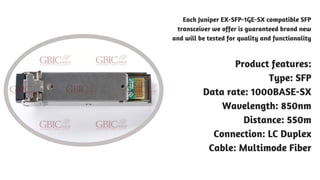

2. Each Juniper EX-SFP-1GE-SX compatible SFP
transceiver we offer is guaranteed brand new
and will be tested for quality and functionality
Product features:
Type: SFP
Data rate: 1000BASE-SX
Wavelength: 850nm
Distance: 550m
Connection: LC Duplex
Cable: Multimode Fiber

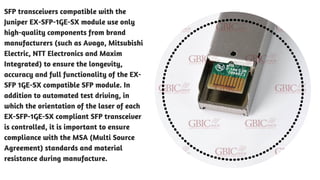

3. SFP transceivers compatible with the
Juniper EX-SFP-1GE-SX module use only
high-quality components from brand
manufacturers (such as Avago, Mitsubishi
Electric, NTT Electronics and Maxim
Integrated) to ensure the longevity,
accuracy and full functionality of the EX-
SFP 1GE-SX compatible SFP module. In
addition to automated test driving, in
which the orientation of the laser of each
EX-SFP-1GE-SX compliant SFP transceiver
is controlled, it is important to ensure
compliance with the MSA (Multi Source
Agreement) standards and material
resistance during manufacture.
