SFP (Small Form-Factor Pluggable) transceivers are utilized in telecommunications for connecting networking devices to fiber optic or copper cables, supporting various communication standards. Enhanced versions like SFP+ offer higher data rates up to 16 Gbit/s, and newer iterations such as SFP28 can support 25 Gbit/s, enabling more efficient data transmission. These pluggable devices facilitate easy upgrades, reduce manufacturing costs, and are compatible with different networking applications.

1. SFP TRANSCEIVERS
HTTPS://WWW.CBO-
IT.DE/DE/PRODUKTE/BLUEOPTICS/TRANSCEIVER/SFPPLUS.HTML

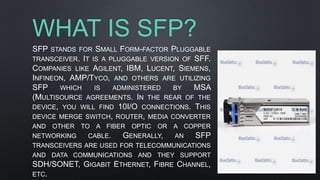

2. WHAT IS SFP?
SFP STANDS FOR SMALL FORM-FACTOR PLUGGABLE
TRANSCEIVER. IT IS A PLUGGABLE VERSION OF SFF.
COMPANIES LIKE AGILENT, IBM, LUCENT, SIEMENS,
INFINEON, AMP/TYCO, AND OTHERS ARE UTILIZING
SFP WHICH IS ADMINISTERED BY MSA
(MULTISOURCE AGREEMENTS. IN THE REAR OF THE
DEVICE, YOU WILL FIND 10I/O CONNECTIONS. THIS
DEVICE MERGE SWITCH, ROUTER, MEDIA CONVERTER
AND OTHER TO A FIBER OPTIC OR A COPPER
NETWORKING CABLE. GENERALLY, AN SFP
TRANSCEIVERS ARE USED FOR TELECOMMUNICATIONS
AND DATA COMMUNICATIONS AND THEY SUPPORT
SDH/SONET, GIGABIT ETHERNET, FIBRE CHANNEL,
ETC.

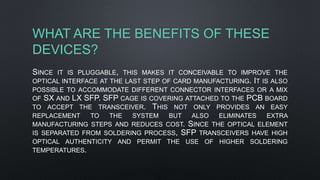

3. WHAT ARE THE BENEFITS OF THESE
DEVICES?
SINCE IT IS PLUGGABLE, THIS MAKES IT CONCEIVABLE TO IMPROVE THE
OPTICAL INTERFACE AT THE LAST STEP OF CARD MANUFACTURING. IT IS ALSO
POSSIBLE TO ACCOMMODATE DIFFERENT CONNECTOR INTERFACES OR A MIX
OF SX AND LX SFP. SFP CAGE IS COVERING ATTACHED TO THE PCB BOARD
TO ACCEPT THE TRANSCEIVER. THIS NOT ONLY PROVIDES AN EASY
REPLACEMENT TO THE SYSTEM BUT ALSO ELIMINATES EXTRA
MANUFACTURING STEPS AND REDUCES COST. SINCE THE OPTICAL ELEMENT
IS SEPARATED FROM SOLDERING PROCESS, SFP TRANSCEIVERS HAVE HIGH
OPTICAL AUTHENTICITY AND PERMIT THE USE OF HIGHER SOLDERING
TEMPERATURES.

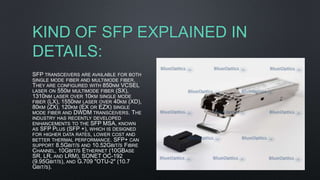

4. KIND OF SFP EXPLAINED IN
DETAILS:
SFP TRANSCEIVERS ARE AVAILABLE FOR BOTH
SINGLE MODE FIBER AND MULTIMODE FIBER.
THEY ARE CONFIGURED WITH 850NM VCSEL
LASER ON 550M MULTIMODE FIBER (SX),
1310NM LASER OVER 10KM SINGLE MODE
FIBER (LX), 1550NM LASER OVER 40KM (XD),
80KM (ZX), 120KM (EX OR EZX) SINGLE
MODE FIBER AND DWDM TRANSCEIVERS. THE
INDUSTRY HAS RECENTLY DEVELOPED
ENHANCEMENTS TO THE SFP MSA, KNOWN
AS SFP PLUS (SFP +), WHICH IS DESIGNED
FOR HIGHER DATA RATES, LOWER COST AND
BETTER THERMAL PERFORMANCE. SFP+ CAN
SUPPORT 8.5GBIT/S AND 10.52GBIT/S FIBRE
CHANNEL, 10GBIT/S ETHERNET (10GBASE
SR, LR, AND LRM), SONET OC-192
(9.95GBIT/S), AND G.709 "OTU-2" (10.7
GBIT/S).

5. SFP transceivers are
prepared with a variety of
transmitter and receiver
types which allows an
individual to choose the
appropriate transceivers for
each link which are needed
for optical reach over the
actual optical fiber type(e.g.
multi-mode fiber or single-
mode fiber).

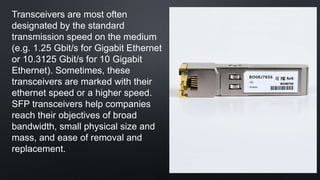

6. Transceivers are most often
designated by the standard
transmission speed on the medium
(e.g. 1.25 Gbit/s for Gigabit Ethernet
or 10.3125 Gbit/s for 10 Gigabit
Ethernet). Sometimes, these
transceivers are marked with their
ethernet speed or a higher speed.
SFP transceivers help companies
reach their objectives of broad
bandwidth, small physical size and
mass, and ease of removal and
replacement.

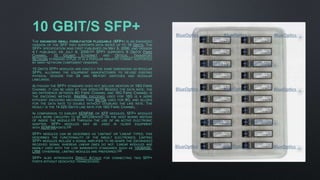

7. 10 GBIT/S SFP+
THE ENHANCED SMALL FORM-FACTOR PLUGGABLE (SFP+) IS AN ENHANCED
VERSION OF THE SFP THAT SUPPORTS DATA RATES UP TO 16 GBIT/S. THE
SFP+ SPECIFICATION WAS FIRST PUBLISHED ON MAY 9, 2006, AND VERSION
4.1 PUBLISHED ON JULY 6, 2009.[11] SFP+ SUPPORTS 8 GBIT/S FIBRE
CHANNEL, 10 GIGABIT ETHERNET AND OPTICAL TRANSPORT
NETWORK STANDARD OTU2. IT IS A POPULAR INDUSTRY FORMAT SUPPORTED
BY MANY NETWORK COMPONENT VENDORS.
10 GBIT/S SFP+ MODULES ARE EXACTLY THE SAME DIMENSIONS AS REGULAR
SFPS, ALLOWING THE EQUIPMENT MANUFACTURER TO RE-USE EXISTING
PHYSICAL DESIGNS FOR 24 AND 48-PORT SWITCHES AND MODULAR
LINECARDS.
ALTHOUGH THE SFP+ STANDARD DOES NOT INCLUDE MENTION OF 16G FIBRE
CHANNEL IT CAN BE USED AT THIS SPEED.[12] BESIDES THE DATA RATE, THE
BIG DIFFERENCE BETWEEN 8G FIBRE CHANNEL AND 16G FIBRE CHANNEL IS
THE ENCODING METHOD. 64B/66B ENCODING USED FOR 16G IS A MORE
EFFICIENT ENCODING MECHANISM THAN 8B/10B USED FOR 8G, AND ALLOWS
FOR THE DATA RATE TO DOUBLE WITHOUT DOUBLING THE LINE RATE. THE
RESULT IS THE 14.025 GBIT/S LINE RATE FOR 16G FIBRE CHANNEL.
IN COMPARISON TO EARLIER XENPAK OR XFP MODULES, SFP+ MODULES
LEAVE MORE CIRCUITRY TO BE IMPLEMENTED ON THE HOST BOARD INSTEAD
OF INSIDE THE MODULE.[13] THROUGH THE USE OF AN ACTIVE ELECTRONIC
ADAPTER, SFP+ MODULES MAY BE USED IN OLDER EQUIPMENT
WITH XENPAKPORTS.[14]
SFP+ MODULES CAN BE DESCRIBED AS 'LIMITING' OR 'LINEAR' TYPES; THIS
DESCRIBES THE FUNCTIONALITY OF THE INBUILT ELECTRONICS. LIMITING
SFP+ MODULES INCLUDE A SIGNAL AMPLIFIER TO RE-SHAPE THE (DEGRADED)
RECEIVED SIGNAL WHEREAS LINEAR ONES DO NOT. LINEAR MODULES ARE
MAINLY USED WITH THE LOW BANDWIDTH STANDARDS SUCH AS 10GBASE-
LRM; OTHERWISE, LIMITING MODULES ARE PREFERRED.[15]
SFP+ ALSO INTRODUCES DIRECT ATTACH FOR CONNECTING TWO SFP+
PORTS WITHOUT DEDICATED TRANSCEIVERS.

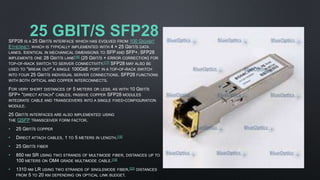

8. 25 GBIT/S SFP28SFP28 IS A 25 GBIT/S INTERFACE WHICH HAS EVOLVED FROM 100 GIGABIT
ETHERNET, WHICH IS TYPICALLY IMPLEMENTED WITH 4 × 25 GBIT/S DATA
LANES. IDENTICAL IN MECHANICAL DIMENSIONS TO SFP AND SFP+, SFP28
IMPLEMENTS ONE 28 GBIT/S LANE[16] (25 GBIT/S + ERROR CORRECTION) FOR
TOP-OF-RACK SWITCH TO SERVER CONNECTIVITY.[17] SFP28 MAY ALSO BE
USED TO "BREAK OUT" A SINGLE 100GBE PORT IN A TOP-OF-RACK SWITCH
INTO FOUR 25 GBIT/S INDIVIDUAL SERVER CONNECTIONS. SFP28 FUNCTIONS
WITH BOTH OPTICAL AND COPPER INTERCONNECTS.
FOR VERY SHORT DISTANCES OF 5 METERS OR LESS, AS WITH 10 GBIT/S
SFP+ "DIRECT ATTACH" CABLES, PASSIVE COPPER SFP28 MODULES
INTEGRATE CABLE AND TRANSCEIVERS INTO A SINGLE FIXED-CONFIGURATION
MODULE.
25 GBIT/S INTERFACES ARE ALSO IMPLEMENTED USING
THE QSFP TRANSCEIVER FORM FACTOR.
• 25 GBIT/S COPPER
• DIRECT ATTACH CABLES, 1 TO 5 METERS IN LENGTH.[18]
• 25 GBIT/S FIBER
• 850 NM SR USING TWO STRANDS OF MULTIMODE FIBER, DISTANCES UP TO
100 METERS ON OM4 GRADE MULTIMODE CABLE.[19]
• 1310 NM LR USING TWO STRANDS OF SINGLEMODE FIBER,[20] DISTANCES
FROM 5 TO 20 KM DEPENDING ON OPTICAL LINK BUDGET.

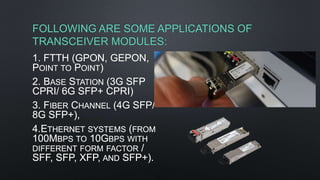

9. FOLLOWING ARE SOME APPLICATIONS OF
TRANSCEIVER MODULES:
1. FTTH (GPON, GEPON,
POINT TO POINT)
2. BASE STATION (3G SFP
CPRI/ 6G SFP+ CPRI)
3. FIBER CHANNEL (4G SFP/
8G SFP+),
4.ETHERNET SYSTEMS (FROM
100MBPS TO 10GBPS WITH
DIFFERENT FORM FACTOR /
SFF, SFP, XFP, AND SFP+).
