TinyOS uses nesC, a component-based programming language, to develop applications. nesC applications consist of modules that implement interfaces and configurations that wire components together. Components define specifications and implementations. Modules provide executable code while configurations wire components. Components use interfaces and tasks allow splitting long operations. Concurrency is managed through tasks and atomic blocks. State is shared through interfaces and generic modules or by-reference parameters.

1. TinyOS Programming
By: R Jayampathi Sampath

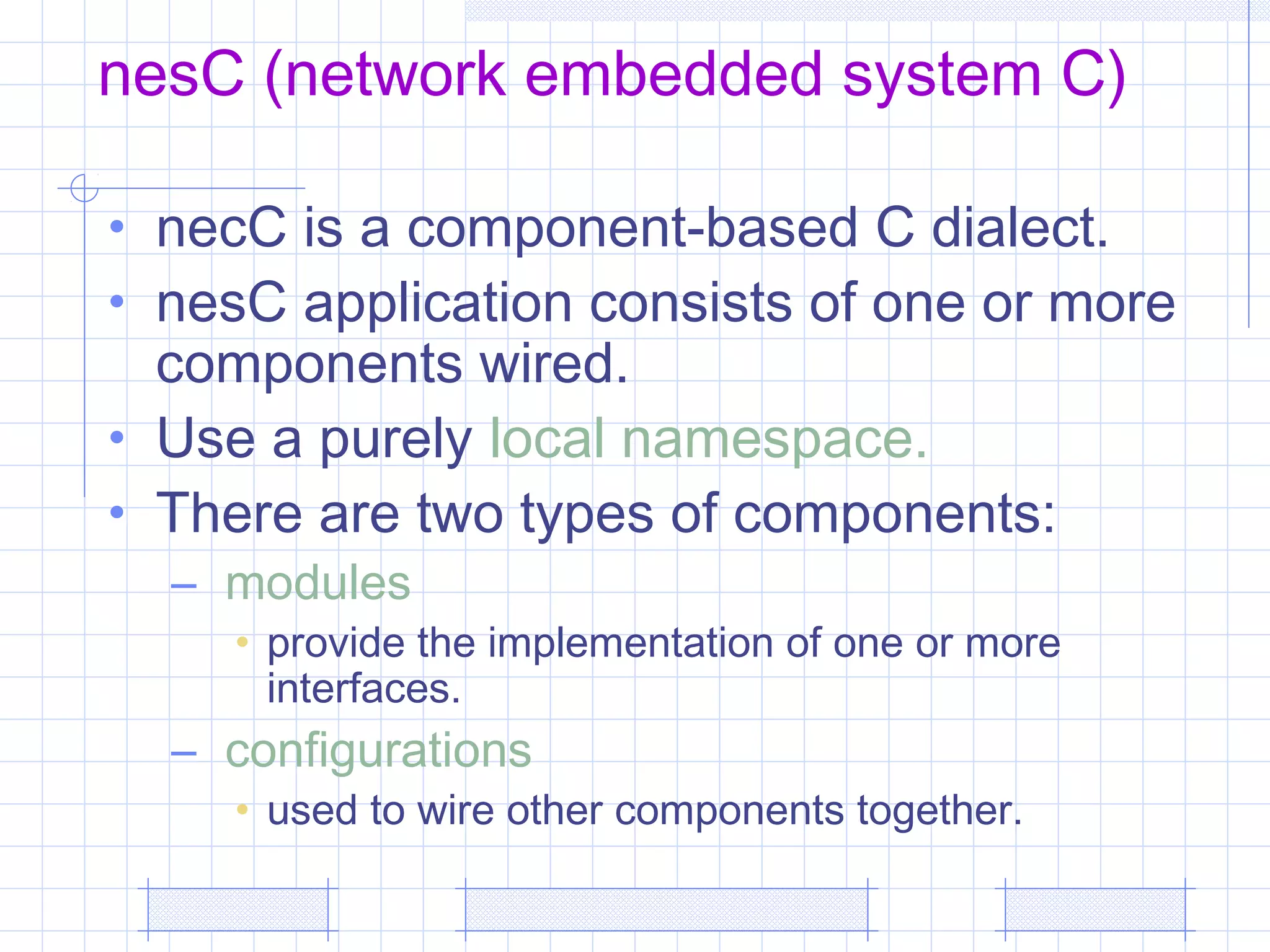

2. nesC (network embedded system C)
• necC is a component-based C dialect.
• nesC application consists of one or more
components wired.
• Use a purely local namespace.
• There are two types of components:
– modules
• provide the implementation of one or more
interfaces.
– configurations
• used to wire other components together.

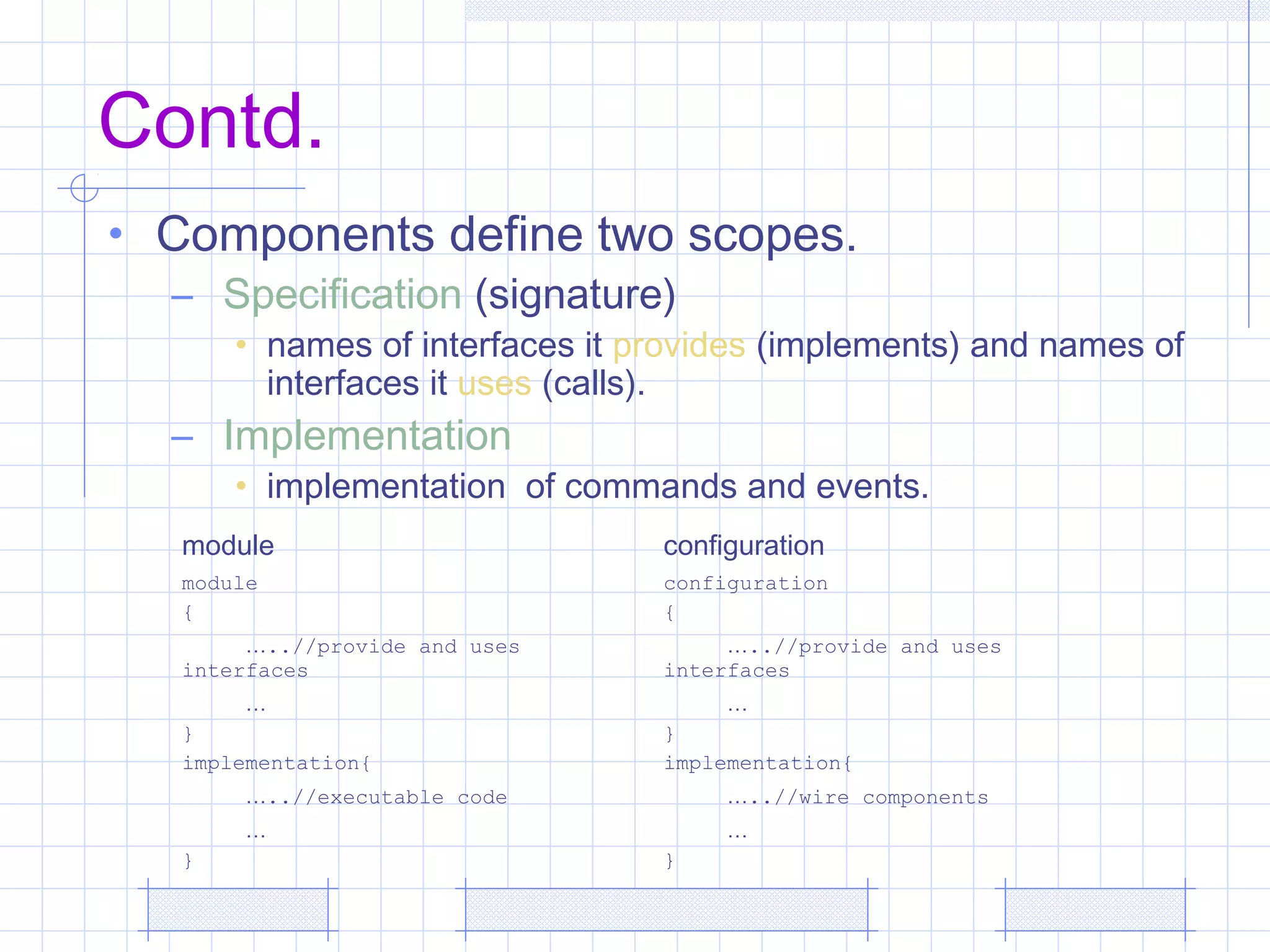

3. Contd.
• Components define two scopes.
– Specification (signature)
• names of interfaces it provides (implements) and names of
interfaces it uses (calls).
– Implementation
• implementation of commands and events.
module configuration
module
{
…..//provide and uses
interfaces
…
}
implementation{
…..//executable code
…
}
configuration
{
…..//provide and uses
interfaces
…
}
implementation{
…..//wire components
…
}

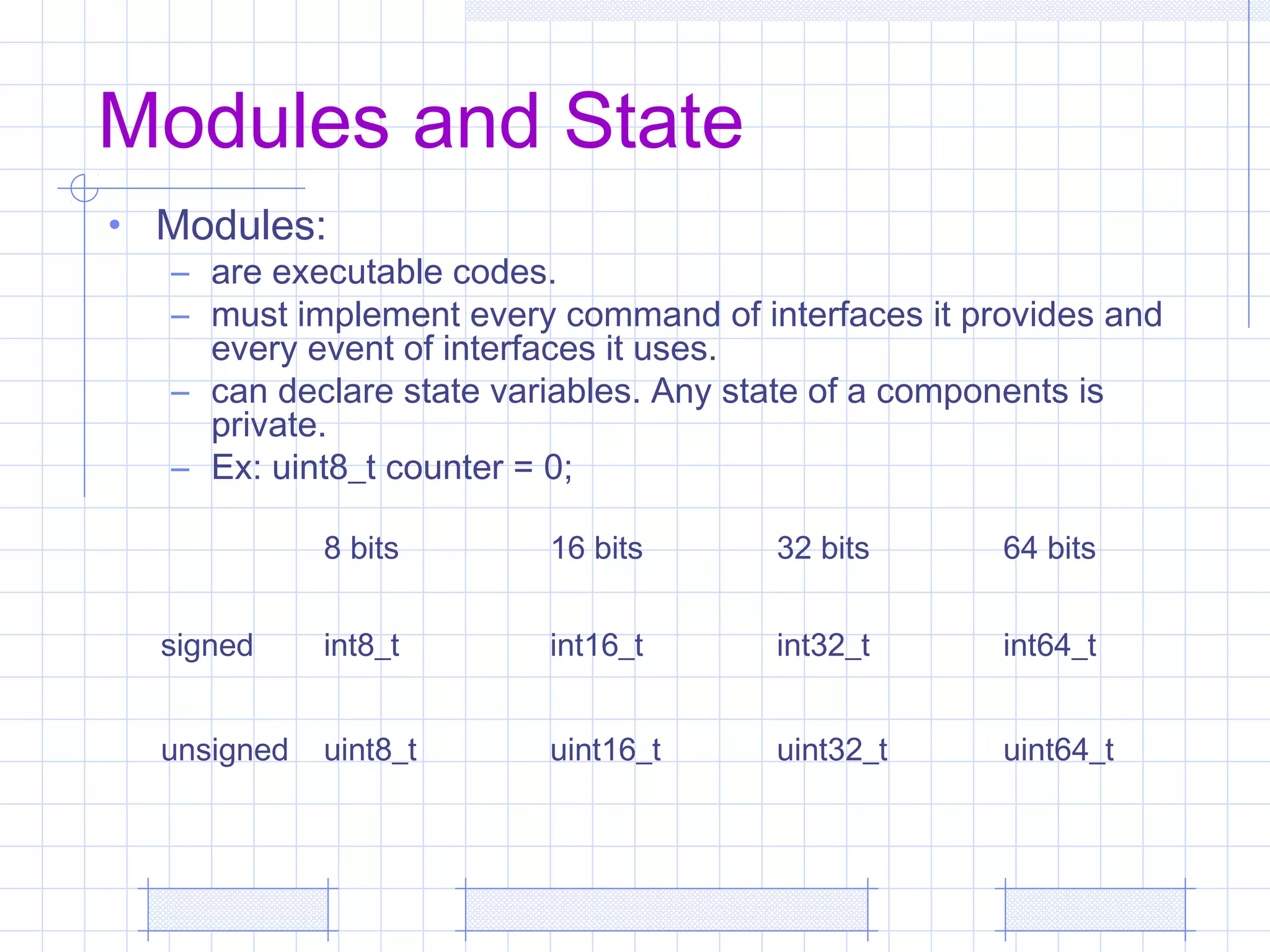

4. Modules and State
• Modules:
– are executable codes.
– must implement every command of interfaces it provides and
every event of interfaces it uses.
– can declare state variables. Any state of a components is
private.
– Ex: uint8_t counter = 0;
8 bits 16 bits 32 bits 64 bits
signed int8_t int16_t int32_t int64_t
unsigned uint8_t uint16_t uint32_t uint64_t

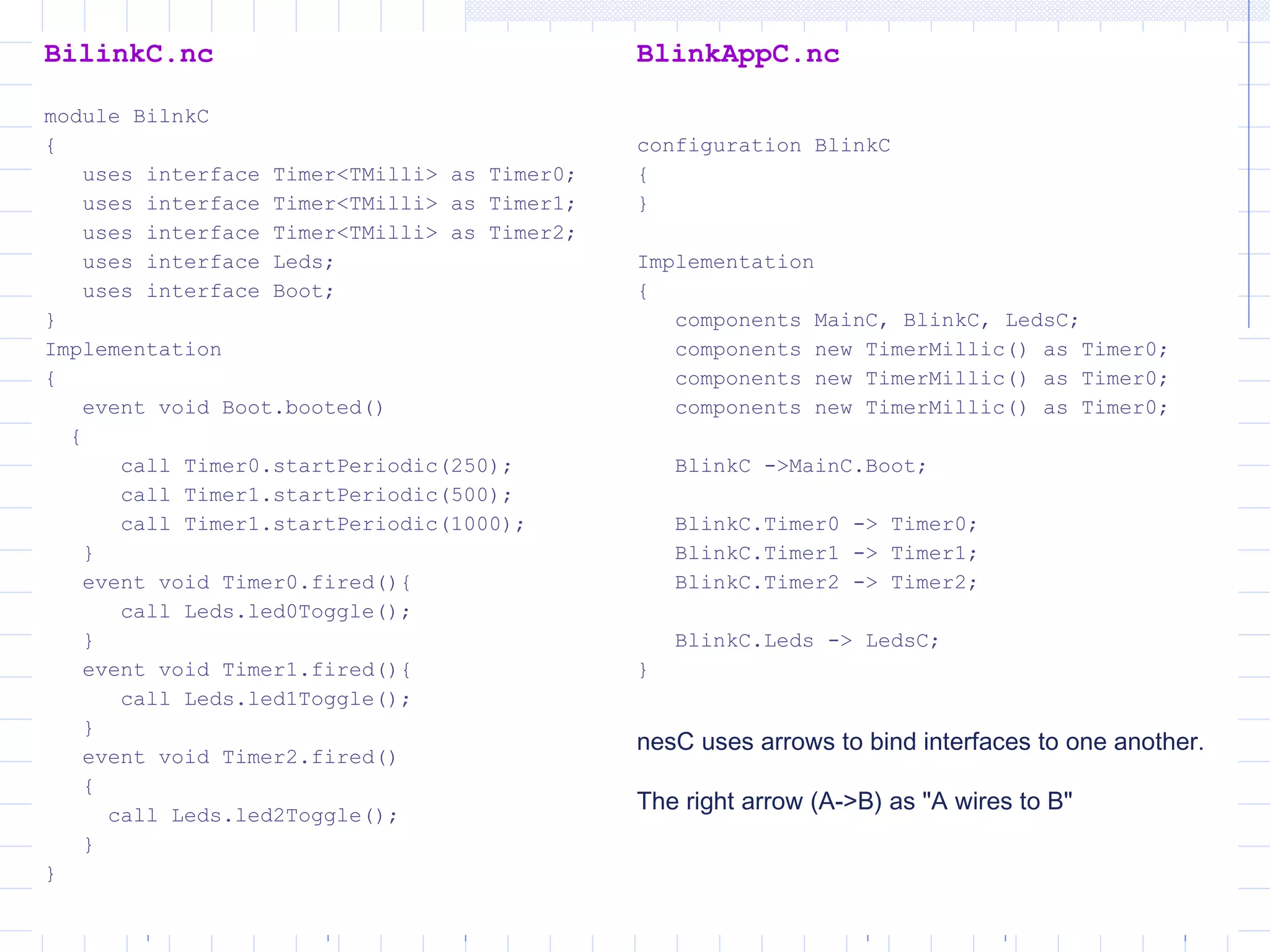

5. BilinkC.nc
module BilnkC
{
uses interface Timer<TMilli> as Timer0;
uses interface Timer<TMilli> as Timer1;
uses interface Timer<TMilli> as Timer2;
uses interface Leds;
uses interface Boot;
}
Implementation
{
event void Boot.booted()
{
call Timer0.startPeriodic(250);
call Timer1.startPeriodic(500);
call Timer1.startPeriodic(1000);
}
event void Timer0.fired(){
call Leds.led0Toggle();
}
event void Timer1.fired(){
call Leds.led1Toggle();
}
event void Timer2.fired()
{
call Leds.led2Toggle();
}
}
BlinkAppC.nc
configuration BlinkC
{
}
Implementation
{
components MainC, BlinkC, LedsC;
components new TimerMillic() as Timer0;
components new TimerMillic() as Timer0;
components new TimerMillic() as Timer0;
BlinkC ->MainC.Boot;
BlinkC.Timer0 -> Timer0;
BlinkC.Timer1 -> Timer1;
BlinkC.Timer2 -> Timer2;
BlinkC.Leds -> LedsC;
}
nesC uses arrows to bind interfaces to one another.
The right arrow (A->B) as "A wires to B"

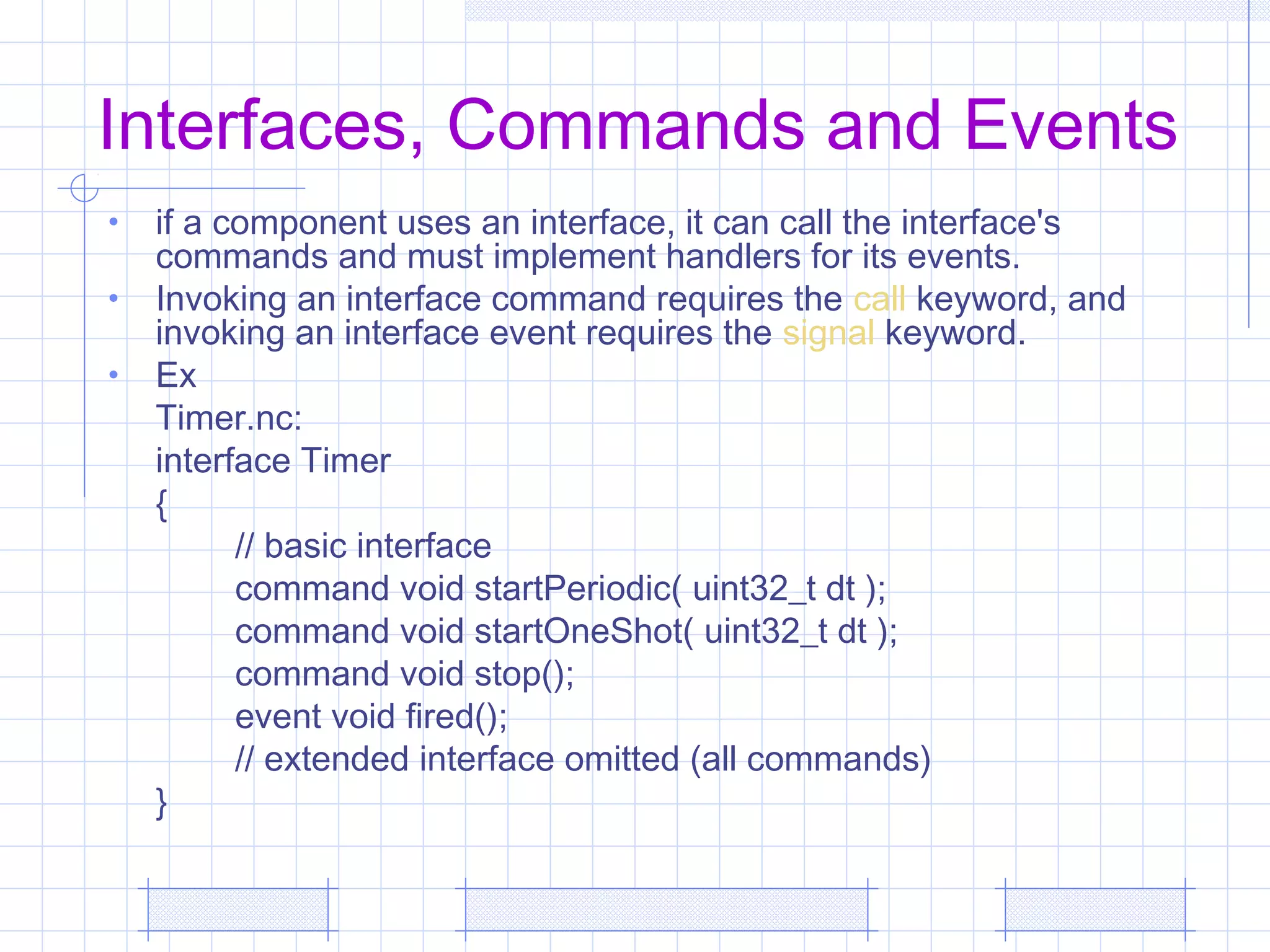

6. Interfaces, Commands and Events
• if a component uses an interface, it can call the interface's
commands and must implement handlers for its events.
• Invoking an interface command requires the call keyword, and
invoking an interface event requires the signal keyword.
• Ex
Timer.nc:
interface Timer
{
// basic interface
command void startPeriodic( uint32_t dt );
command void startOneShot( uint32_t dt );
command void stop();
event void fired();
// extended interface omitted (all commands)
}

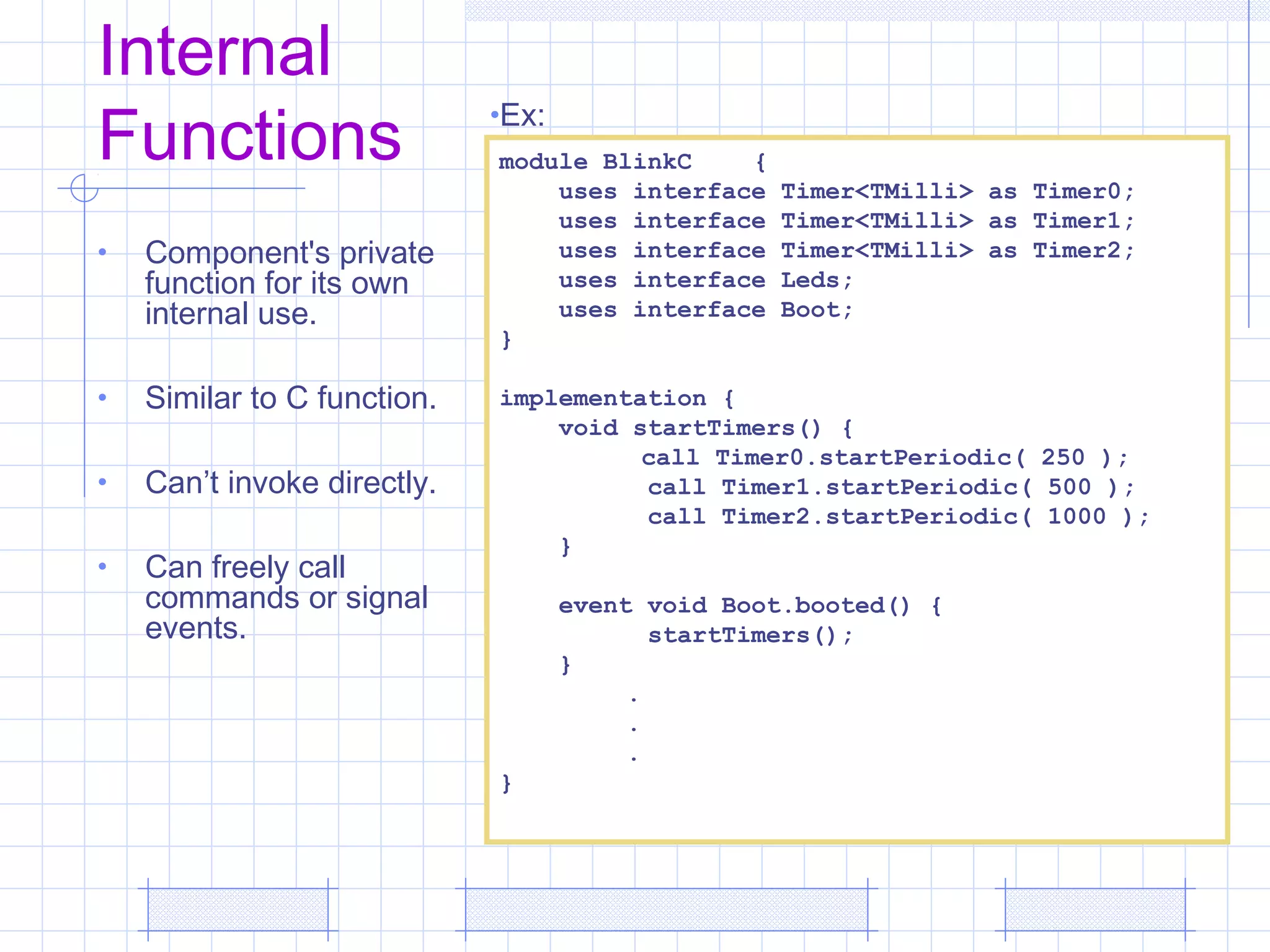

7. Internal
Functions
• Component's private
function for its own
internal use.
• Similar to C function.
• Can’t invoke directly.
• Can freely call
commands or signal
events.
module BlinkC {
uses interface Timer<TMilli> as Timer0;
uses interface Timer<TMilli> as Timer1;
uses interface Timer<TMilli> as Timer2;
uses interface Leds;
uses interface Boot;
}
implementation {
void startTimers() {
call Timer0.startPeriodic( 250 );
call Timer1.startPeriodic( 500 );
call Timer2.startPeriodic( 1000 );
}
event void Boot.booted() {
startTimers();
}
.
.
.
}
•Ex:

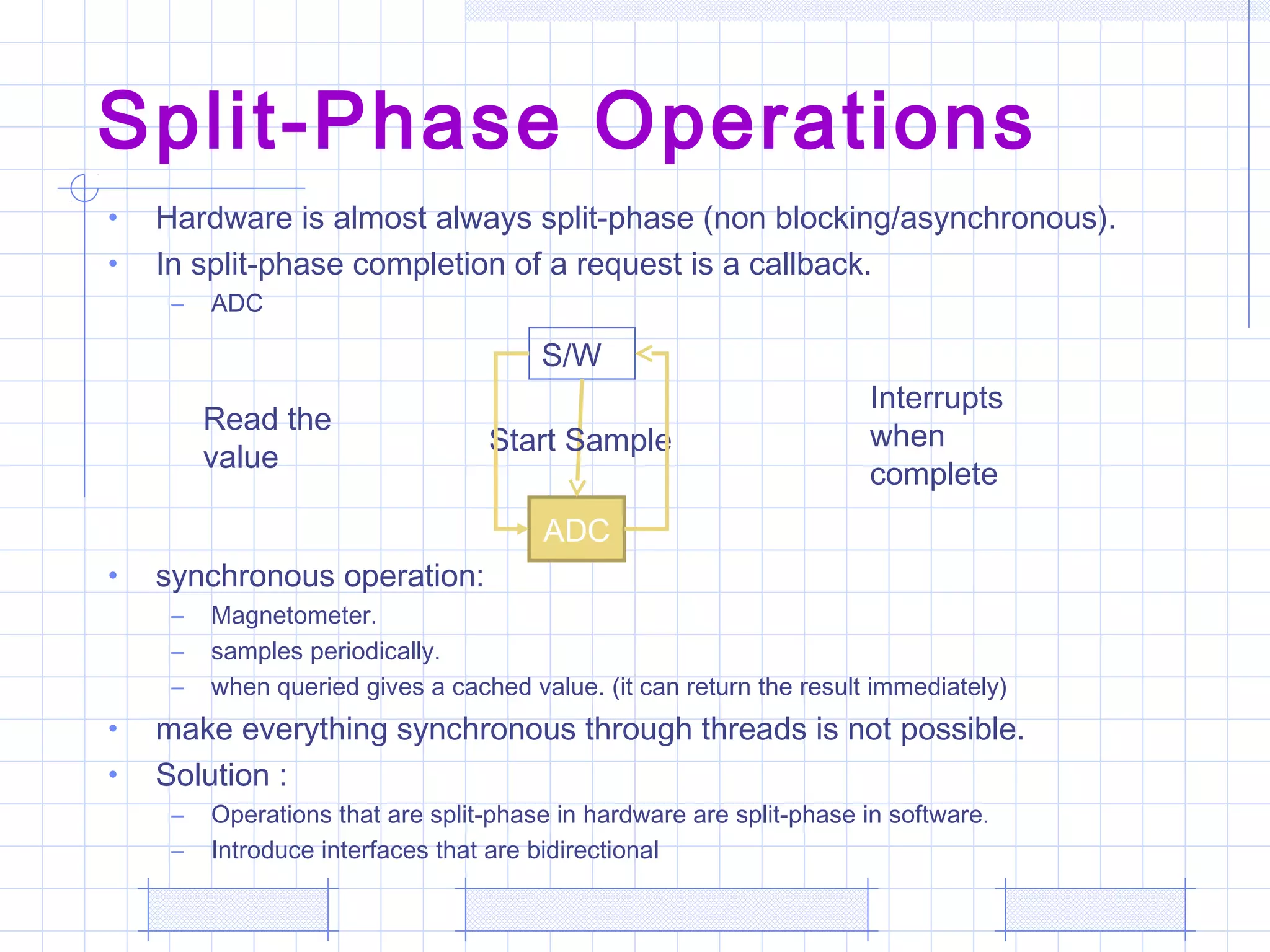

8. Split-Phase Operations
• Hardware is almost always split-phase (non blocking/asynchronous).
• In split-phase completion of a request is a callback.
– ADC
• synchronous operation:
– Magnetometer.
– samples periodically.
– when queried gives a cached value. (it can return the result immediately)
• make everything synchronous through threads is not possible.
• Solution :
– Operations that are split-phase in hardware are split-phase in software.
– Introduce interfaces that are bidirectional
ADC
S/W
Start Sample
Interrupts
when
complete
Read the
value

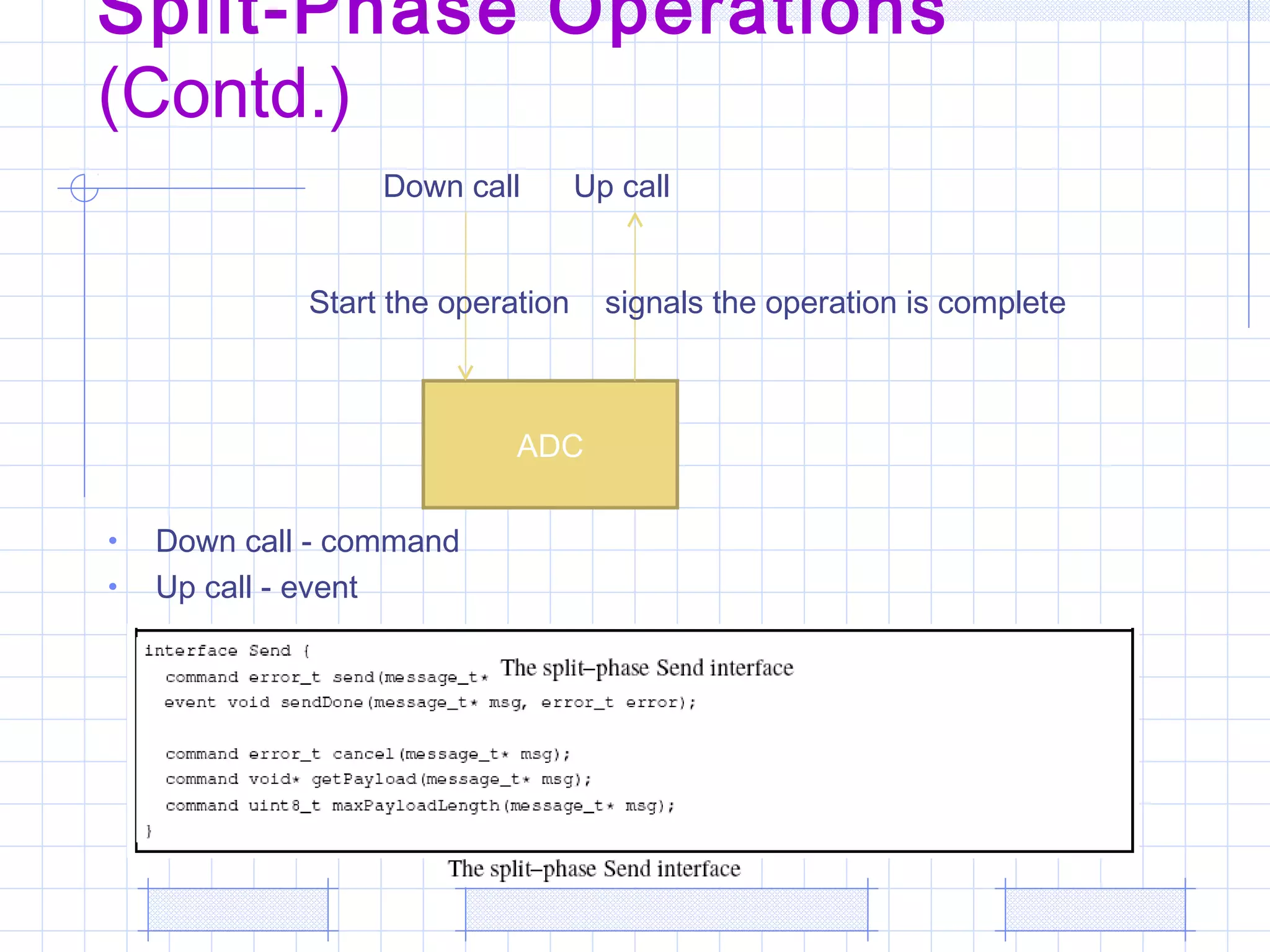

9. Split-Phase Operations
(Contd.)
ADC
Down call
Start the operation
Up call
signals the operation is complete
• Down call - command
• Up call - event

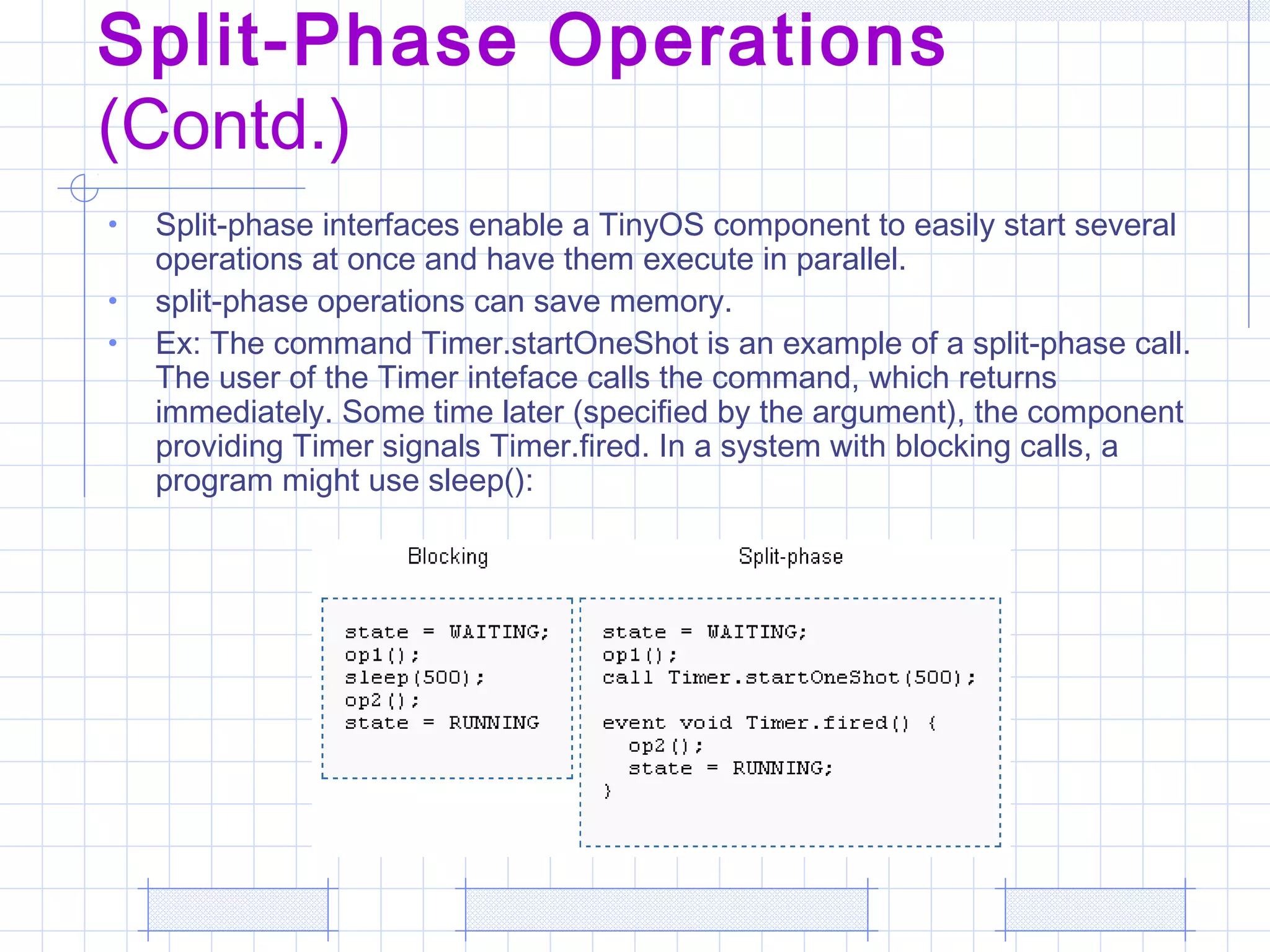

10. Split-Phase Operations
(Contd.)
• Split-phase interfaces enable a TinyOS component to easily start several
operations at once and have them execute in parallel.
• split-phase operations can save memory.
• Ex: The command Timer.startOneShot is an example of a split-phase call.
The user of the Timer inteface calls the command, which returns
immediately. Some time later (specified by the argument), the component
providing Timer signals Timer.fired. In a system with blocking calls, a
program might use sleep():

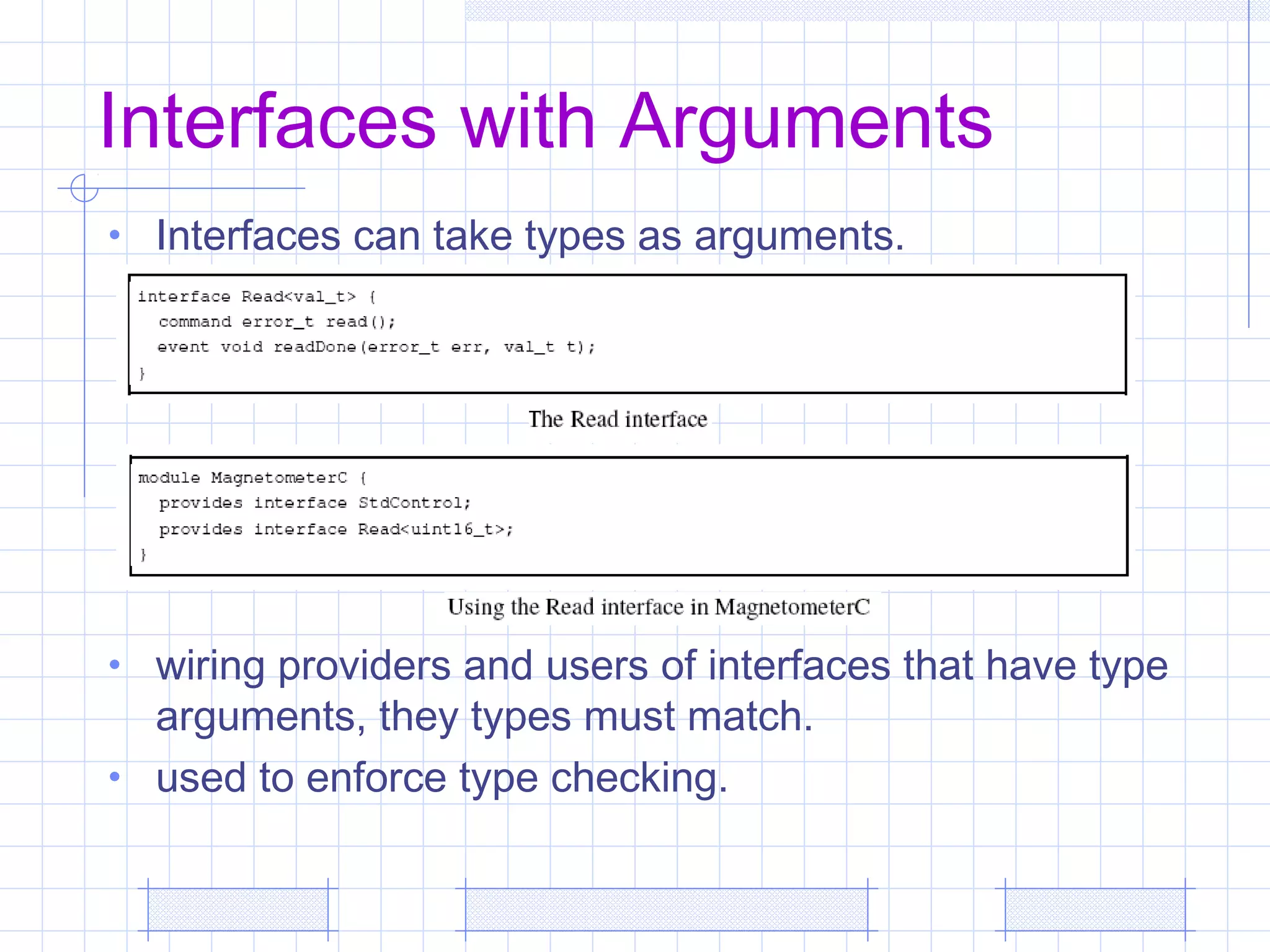

11. Interfaces with Arguments
• Interfaces can take types as arguments.
• wiring providers and users of interfaces that have type
arguments, they types must match.
• used to enforce type checking.

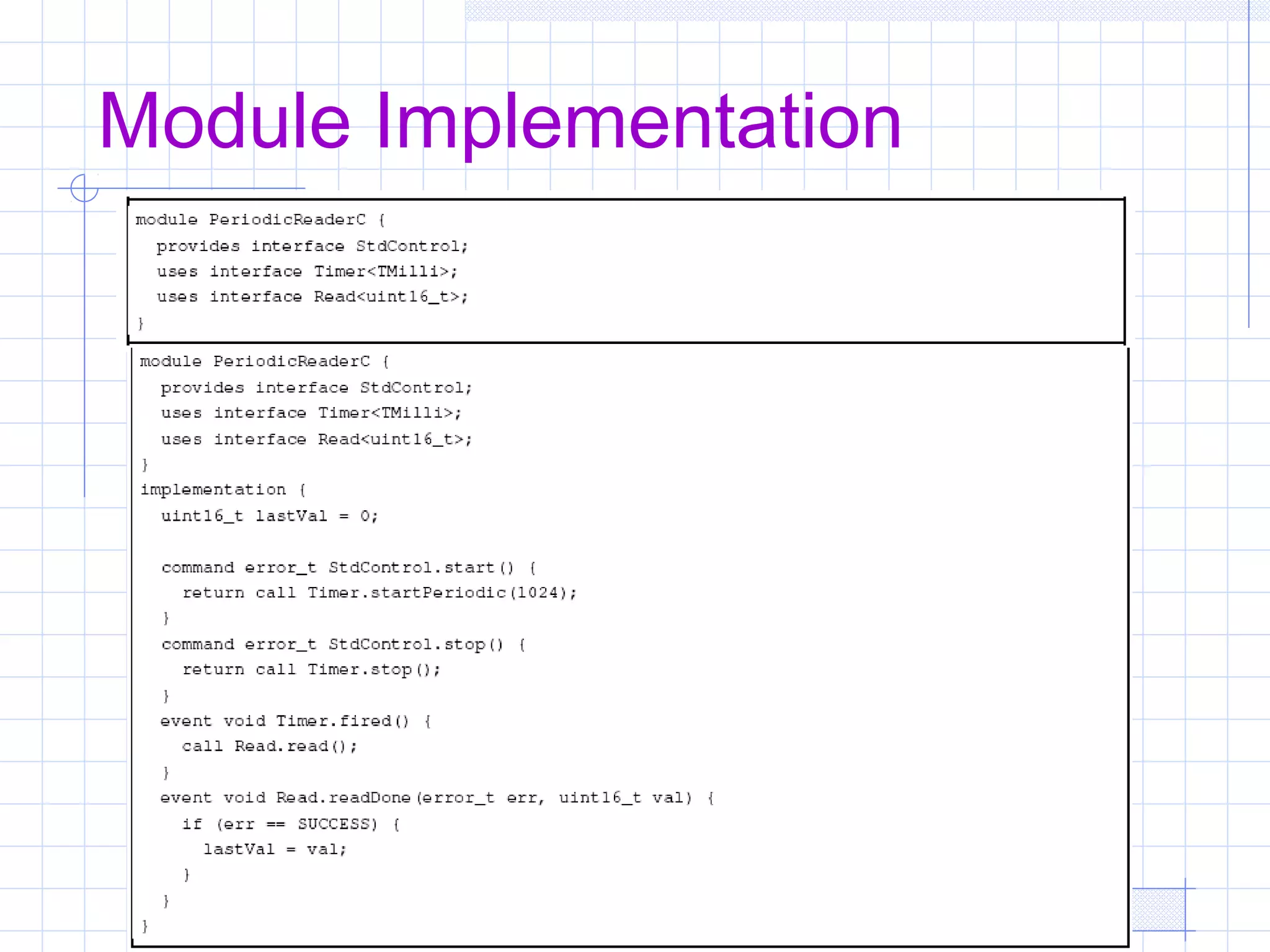

12. Module Implementation

13. Tasks
• Consider magnetometer/ADC example:
– depending on split-phase operations means that the
magnetometer driver has to issue a callback.
– it could just signal the event from within the call.
– signaling an event from within a command is
generally a bad idea.
• might cause a very long call loop.
• corrupt memory and crash the program.
– needs a way to schedule a function to be called later
(like an interrupt).
– can do this is with a task.

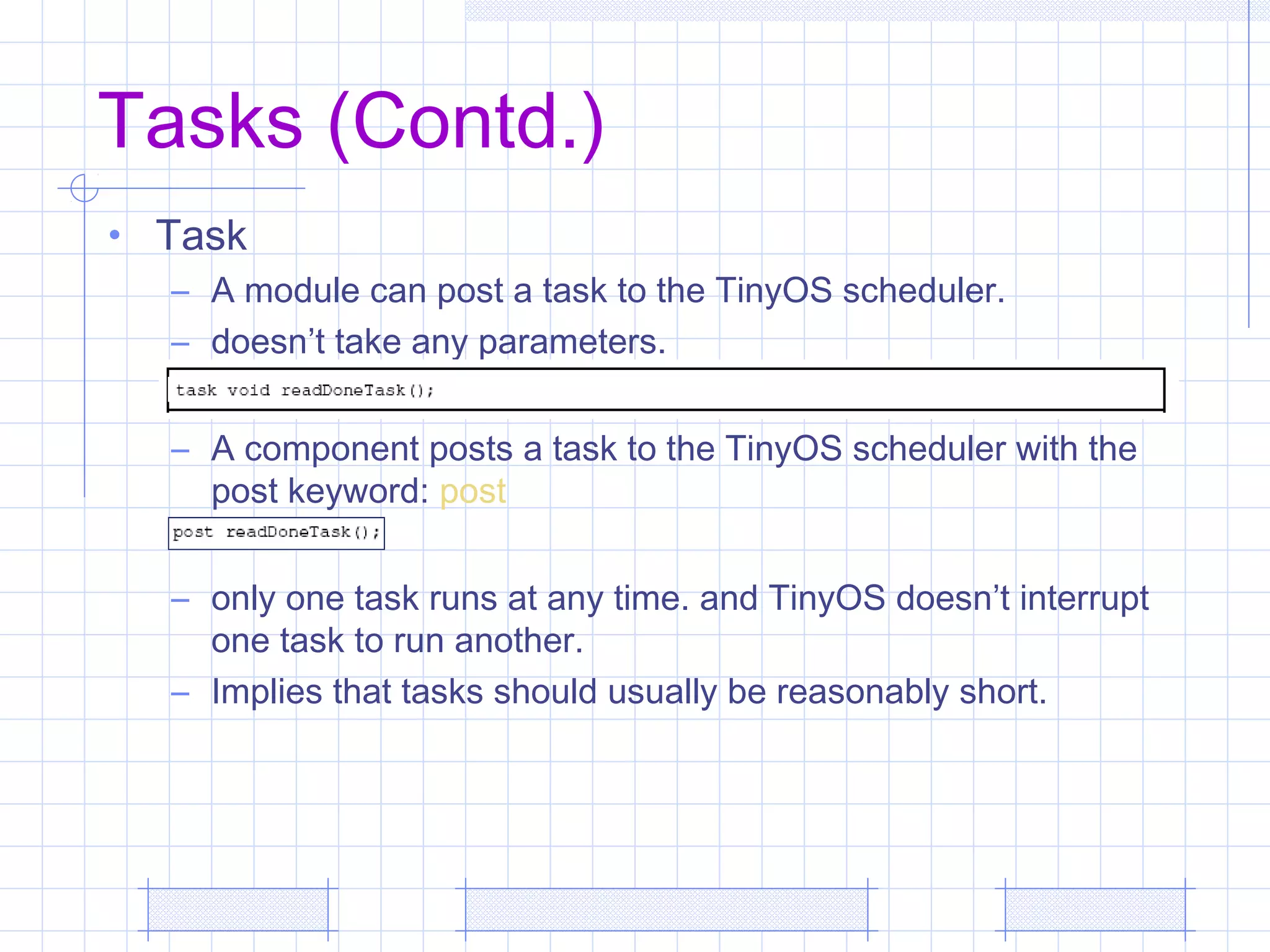

14. Tasks (Contd.)
• Task
– A module can post a task to the TinyOS scheduler.
– doesn’t take any parameters.
– A component posts a task to the TinyOS scheduler with the
post keyword: post
– only one task runs at any time. and TinyOS doesn’t interrupt
one task to run another.
– Implies that tasks should usually be reasonably short.

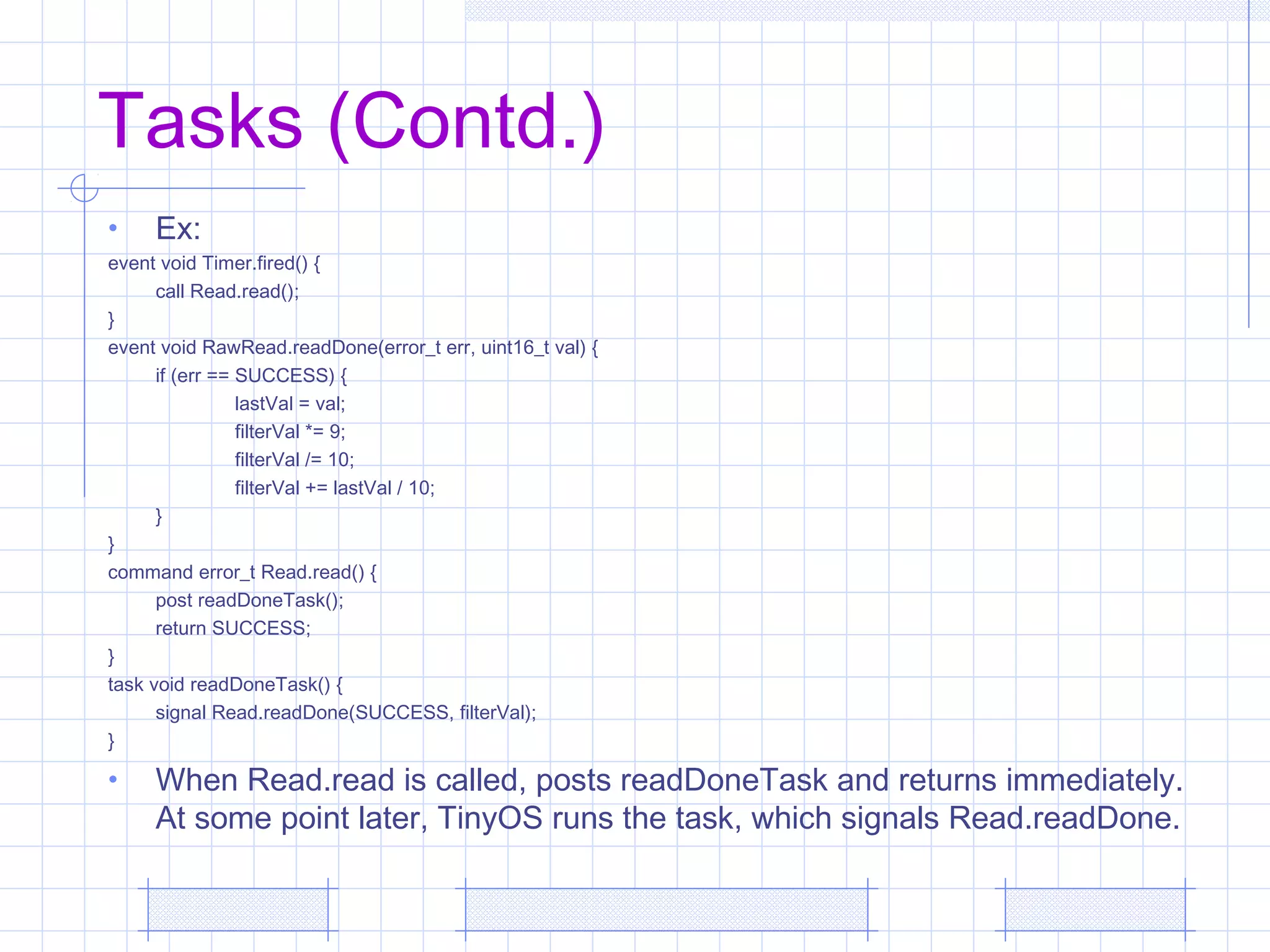

15. Tasks (Contd.)
• Ex:
event void Timer.fired() {
call Read.read();
}
event void RawRead.readDone(error_t err, uint16_t val) {
if (err == SUCCESS) {
lastVal = val;
filterVal *= 9;
filterVal /= 10;
filterVal += lastVal / 10;
}
}
command error_t Read.read() {
post readDoneTask();
return SUCCESS;
}
task void readDoneTask() {
signal Read.readDone(SUCCESS, filterVal);
}
• When Read.read is called, posts readDoneTask and returns immediately.
At some point later, TinyOS runs the task, which signals Read.readDone.

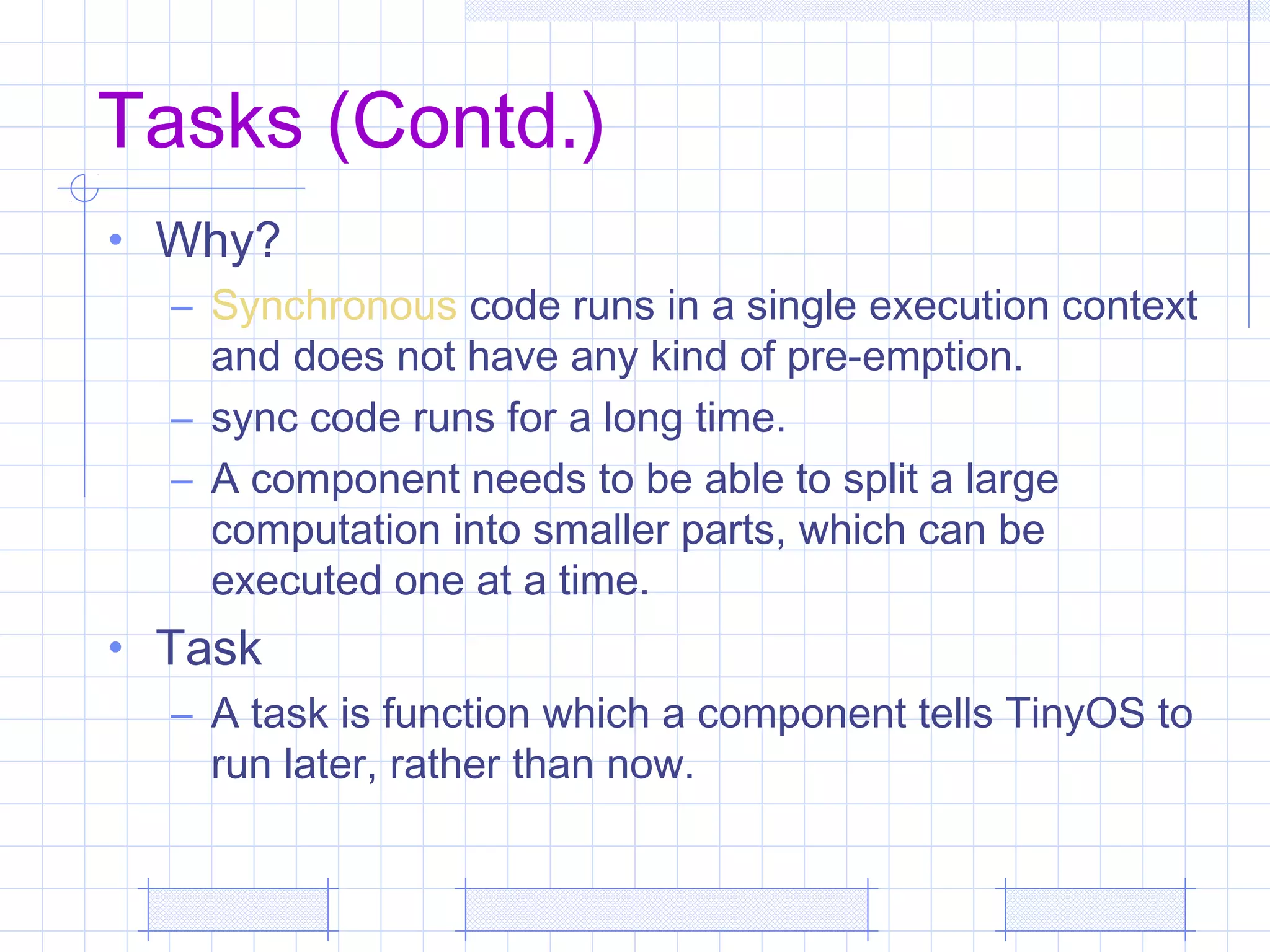

16. Tasks (Contd.)
• Why?
– Synchronous code runs in a single execution context
and does not have any kind of pre-emption.
– sync code runs for a long time.
– A component needs to be able to split a large
computation into smaller parts, which can be
executed one at a time.
• Task
– A task is function which a component tells TinyOS to
run later, rather than now.

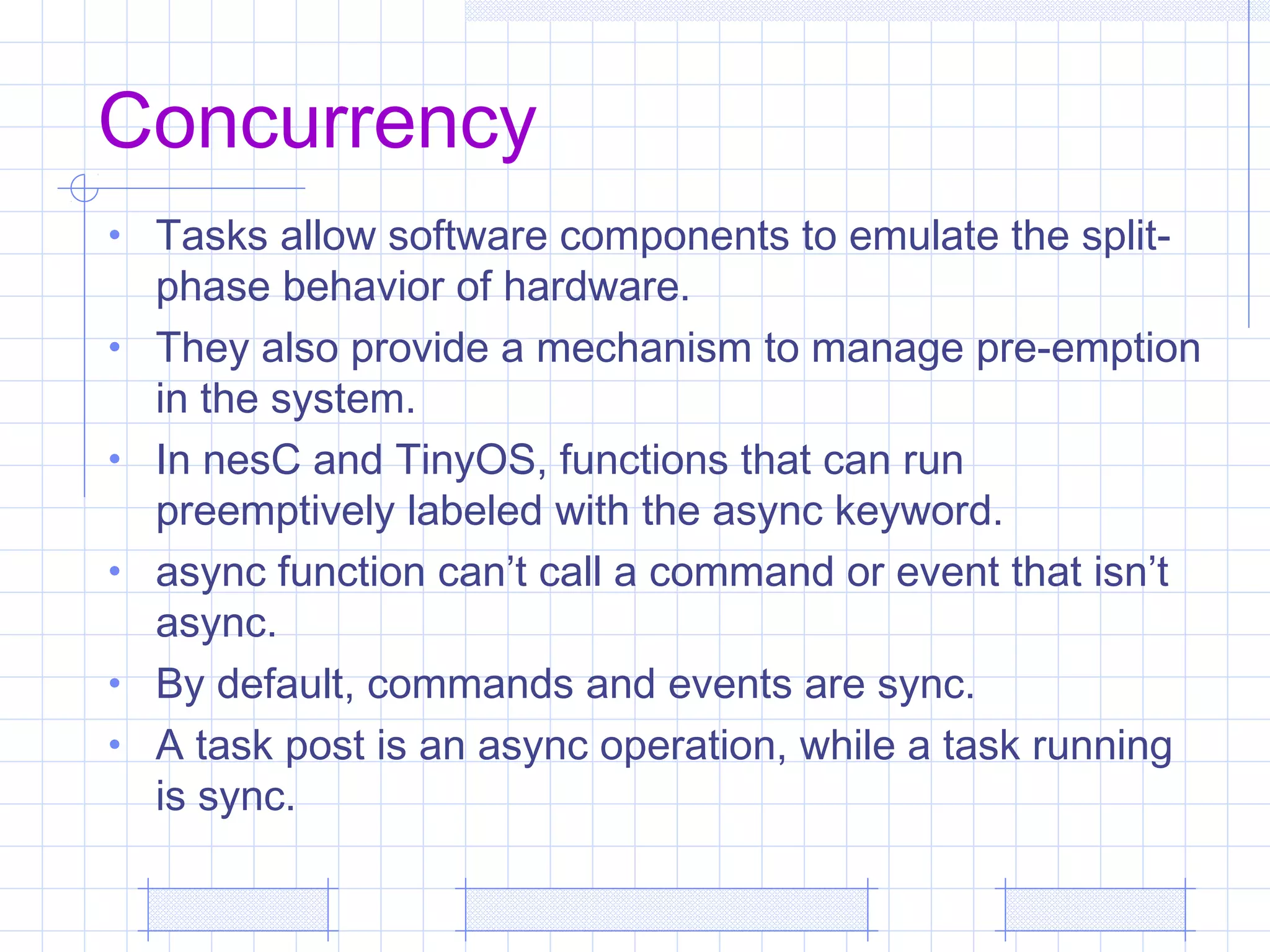

17. Concurrency
• Tasks allow software components to emulate the split-
phase behavior of hardware.
• They also provide a mechanism to manage pre-emption
in the system.
• In nesC and TinyOS, functions that can run
preemptively labeled with the async keyword.
• async function can’t call a command or event that isn’t
async.
• By default, commands and events are sync.
• A task post is an async operation, while a task running
is sync.

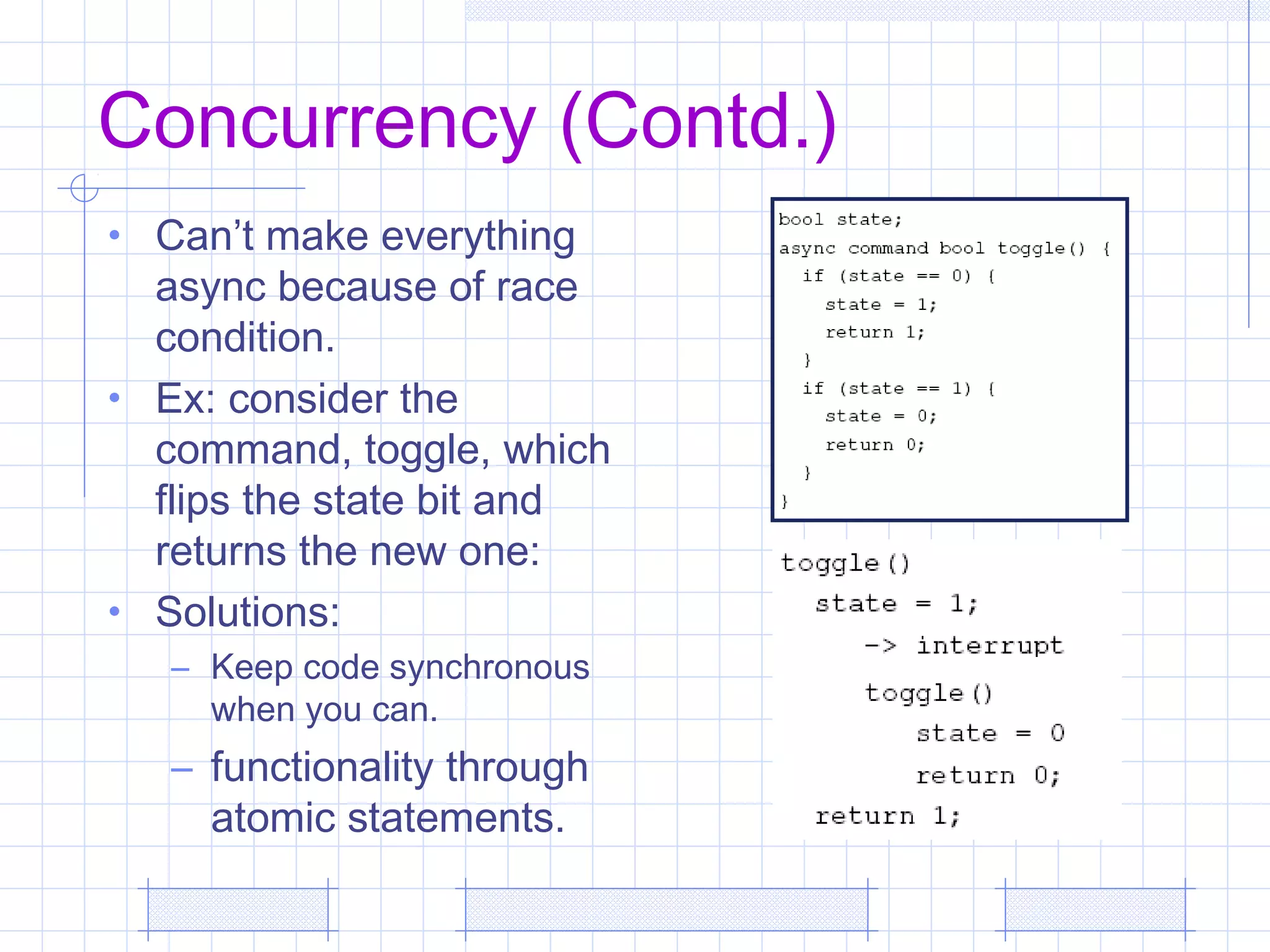

18. Concurrency (Contd.)
• Can’t make everything
async because of race
condition.
• Ex: consider the
command, toggle, which
flips the state bit and
returns the new one:
• Solutions:
– Keep code synchronous
when you can.
– functionality through
atomic statements.

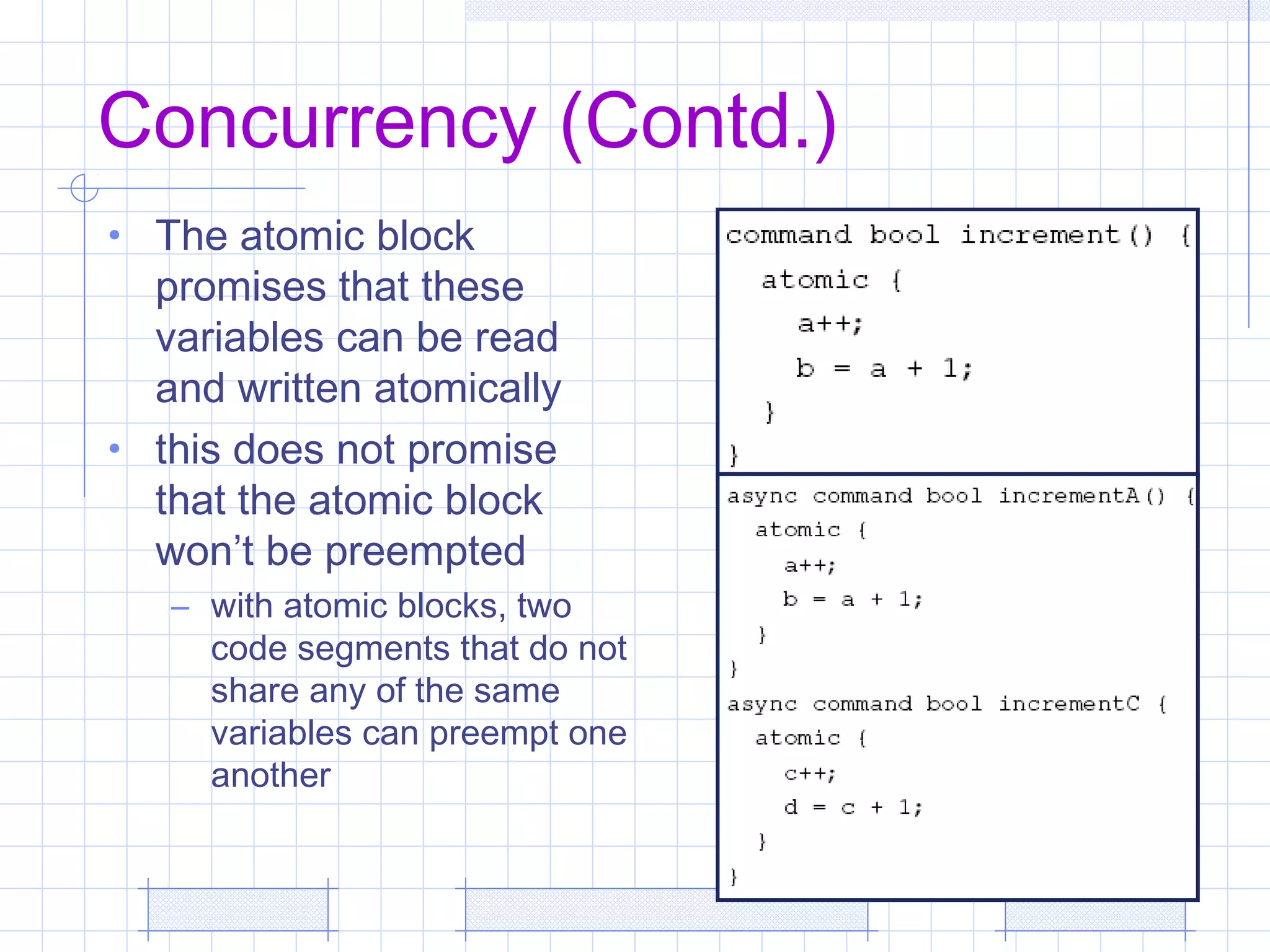

19. Concurrency (Contd.)
• The atomic block
promises that these
variables can be read
and written atomically
• this does not promise
that the atomic block
won’t be preempted
– with atomic blocks, two
code segments that do not
share any of the same
variables can preempt one
another

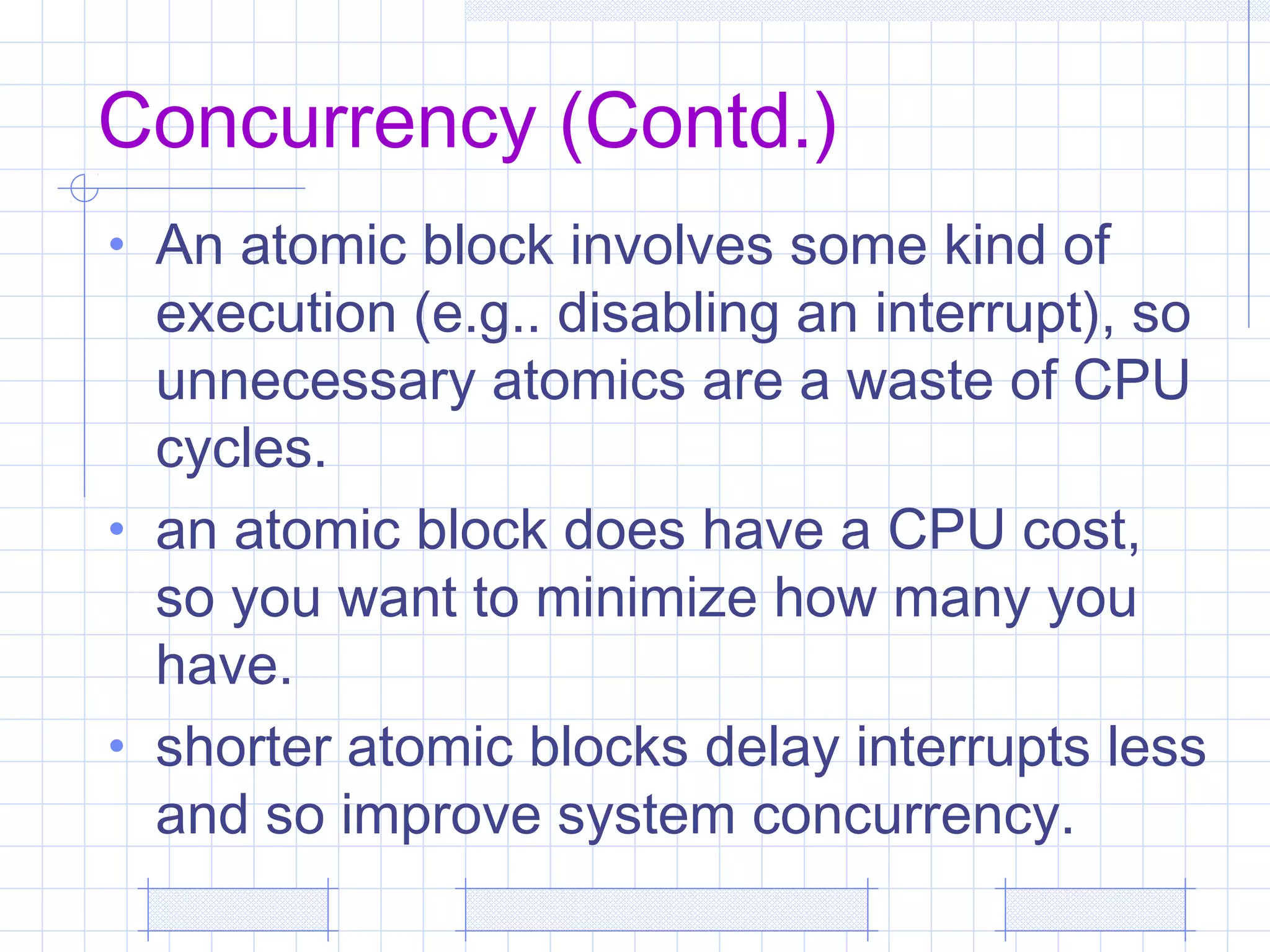

20. Concurrency (Contd.)
• An atomic block involves some kind of
execution (e.g.. disabling an interrupt), so
unnecessary atomics are a waste of CPU
cycles.
• an atomic block does have a CPU cost,
so you want to minimize how many you
have.
• shorter atomic blocks delay interrupts less
and so improve system concurrency.

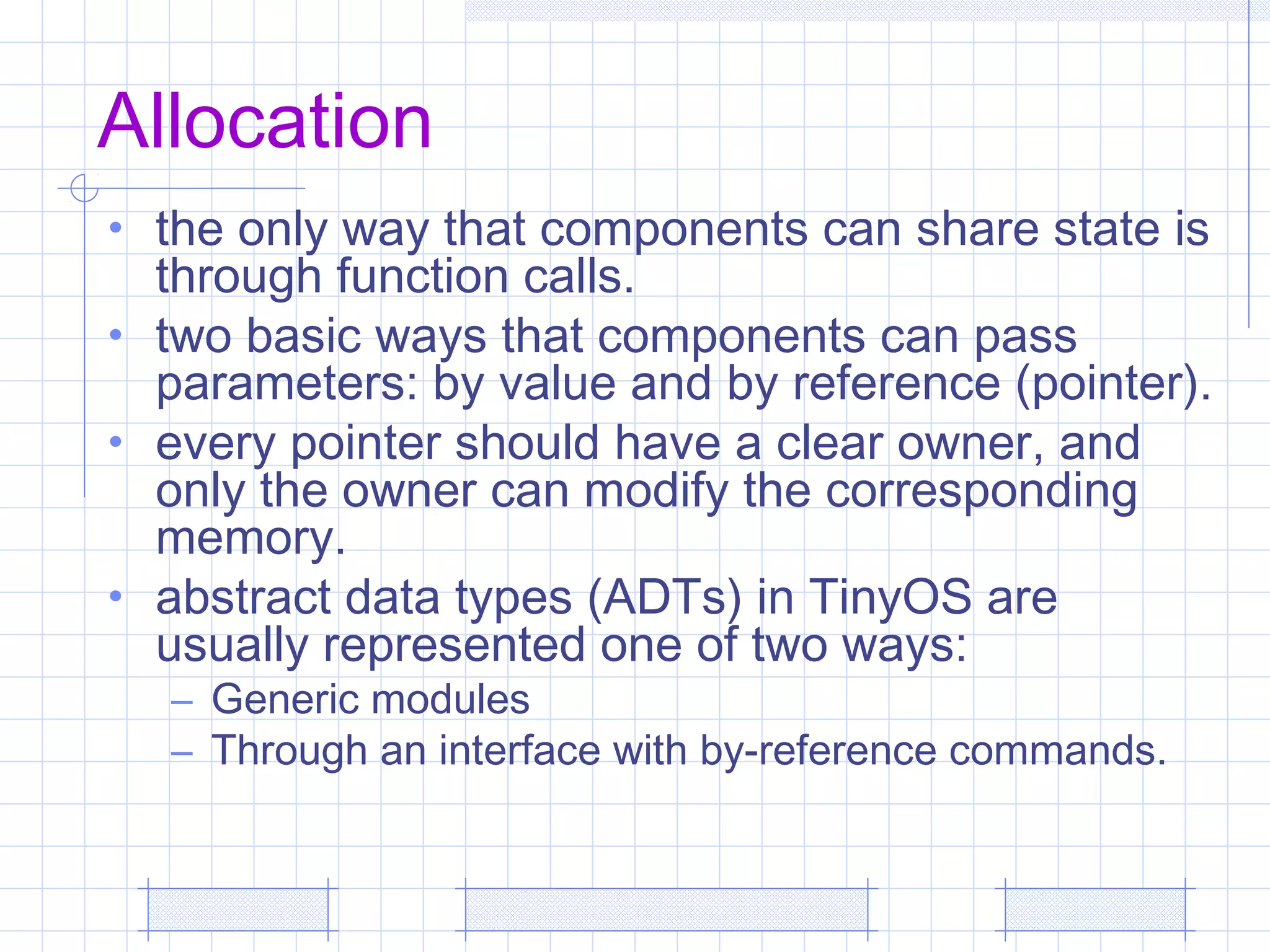

21. Allocation
• the only way that components can share state is
through function calls.
• two basic ways that components can pass
parameters: by value and by reference (pointer).
• every pointer should have a clear owner, and
only the owner can modify the corresponding
memory.
• abstract data types (ADTs) in TinyOS are
usually represented one of two ways:
– Generic modules
– Through an interface with by-reference commands.

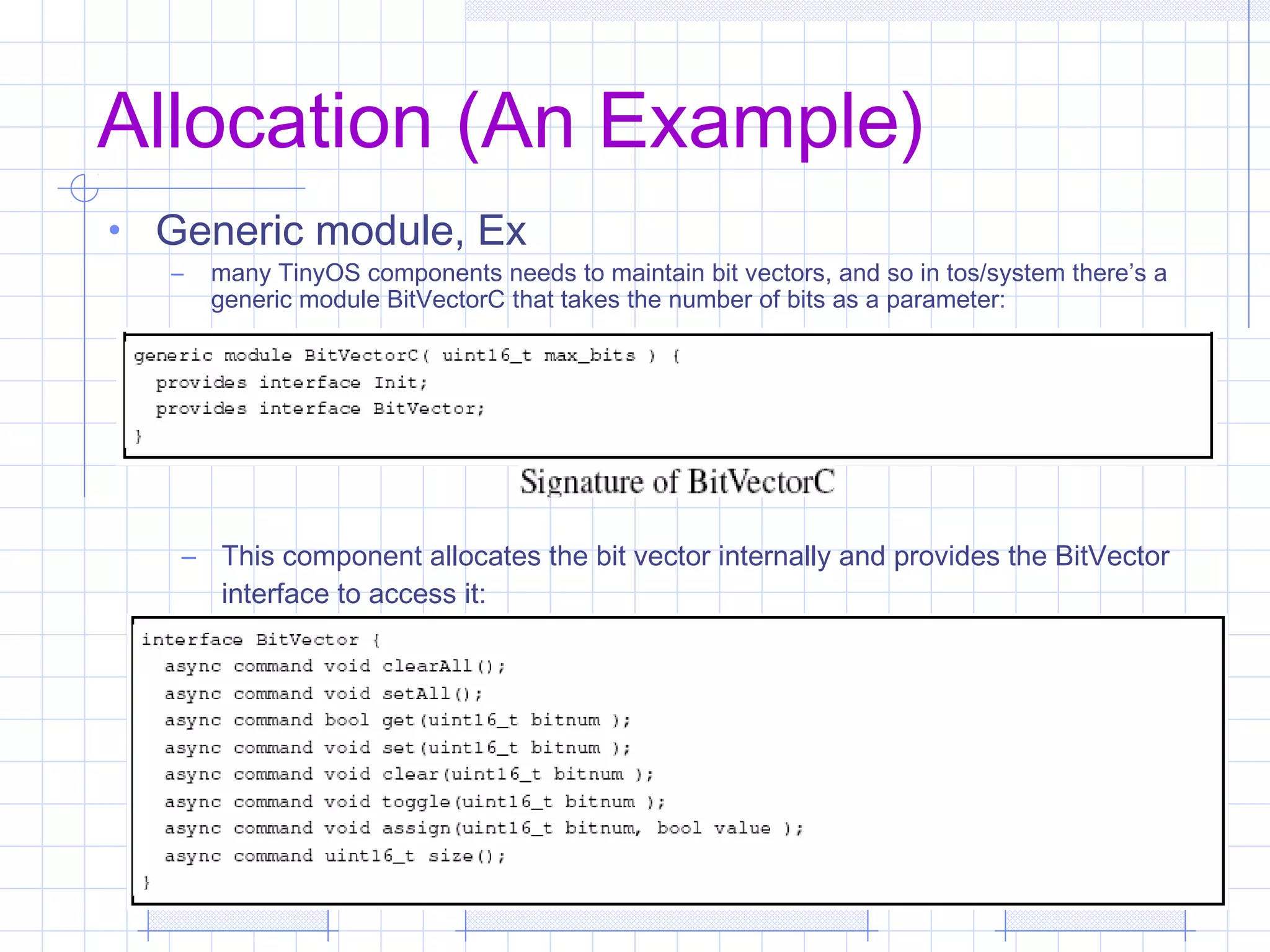

22. Allocation (An Example)
• Generic module, Ex
– many TinyOS components needs to maintain bit vectors, and so in tos/system there’s a
generic module BitVectorC that takes the number of bits as a parameter:
– This component allocates the bit vector internally and provides the BitVector
interface to access it:

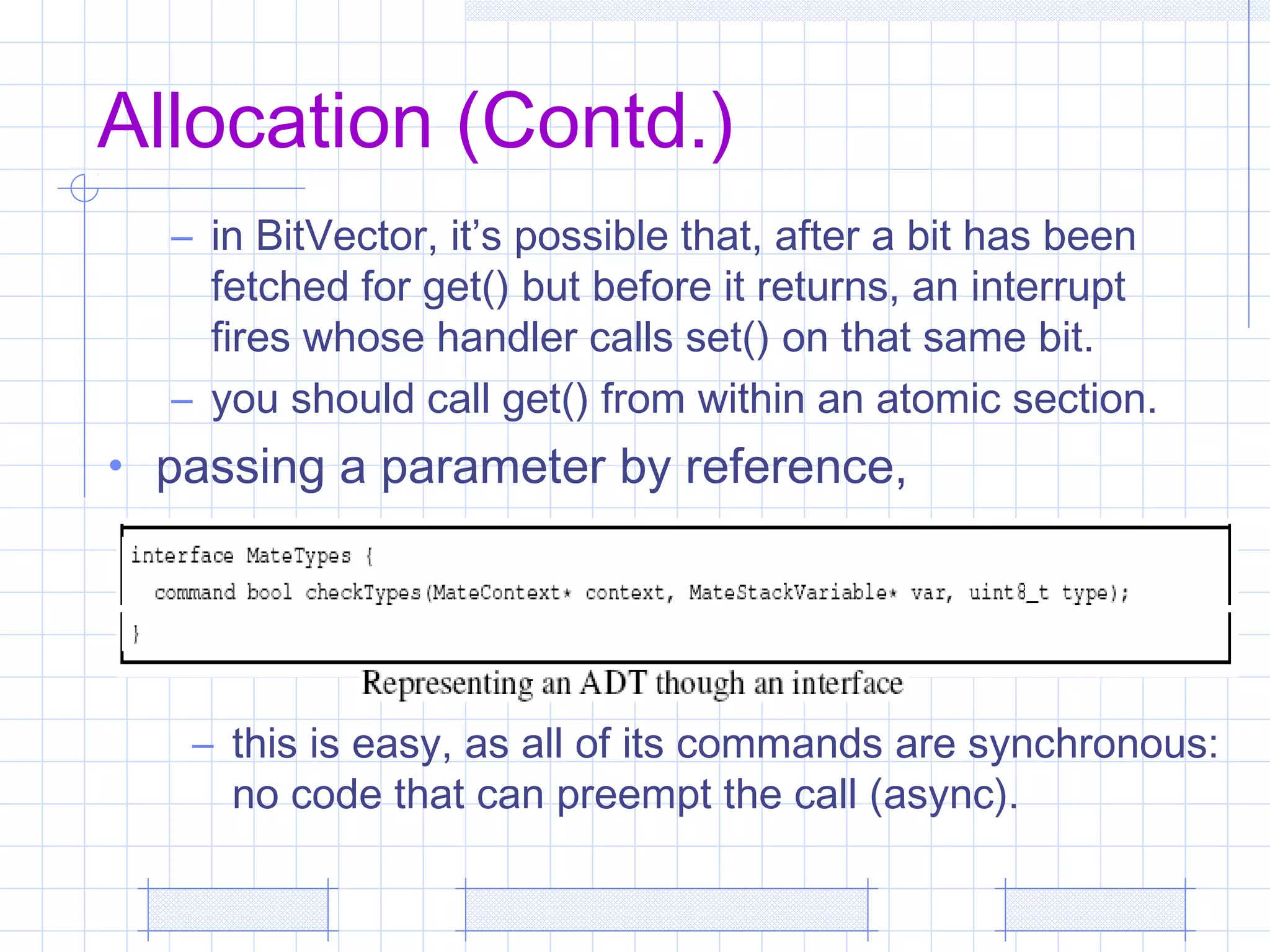

23. Allocation (Contd.)
– in BitVector, it’s possible that, after a bit has been
fetched for get() but before it returns, an interrupt
fires whose handler calls set() on that same bit.
– you should call get() from within an atomic section.
• passing a parameter by reference,
– this is easy, as all of its commands are synchronous:
no code that can preempt the call (async).

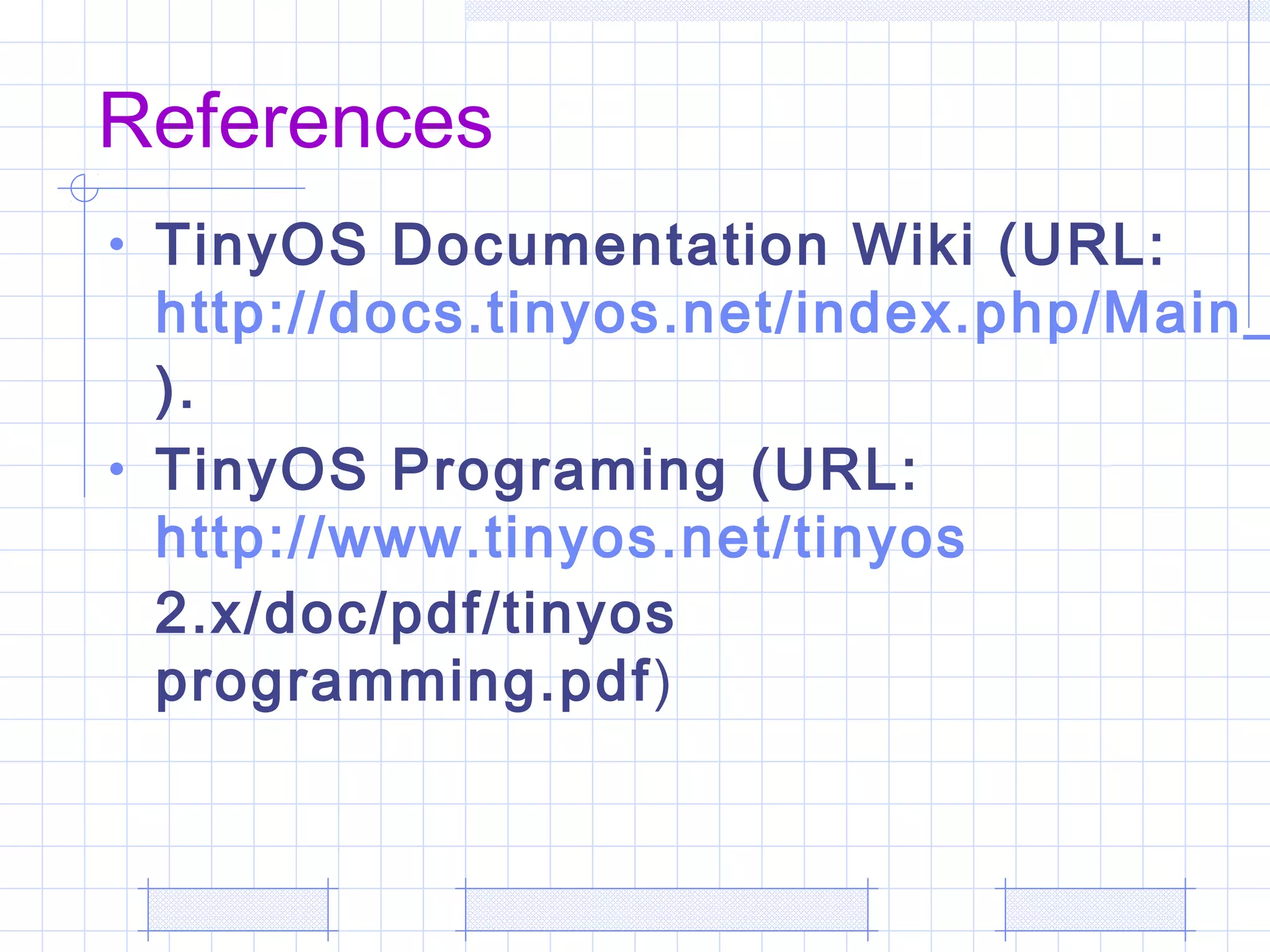

24. References
• TinyOS Documentation Wiki (URL:
http://docs.tinyos.net/index.php/Main_
).
• TinyOS Programing (URL:
http://www.tinyos.net/tinyos
2.x/doc/pdf/tinyos
programming.pdf)
