Working with the XML Document Object Model

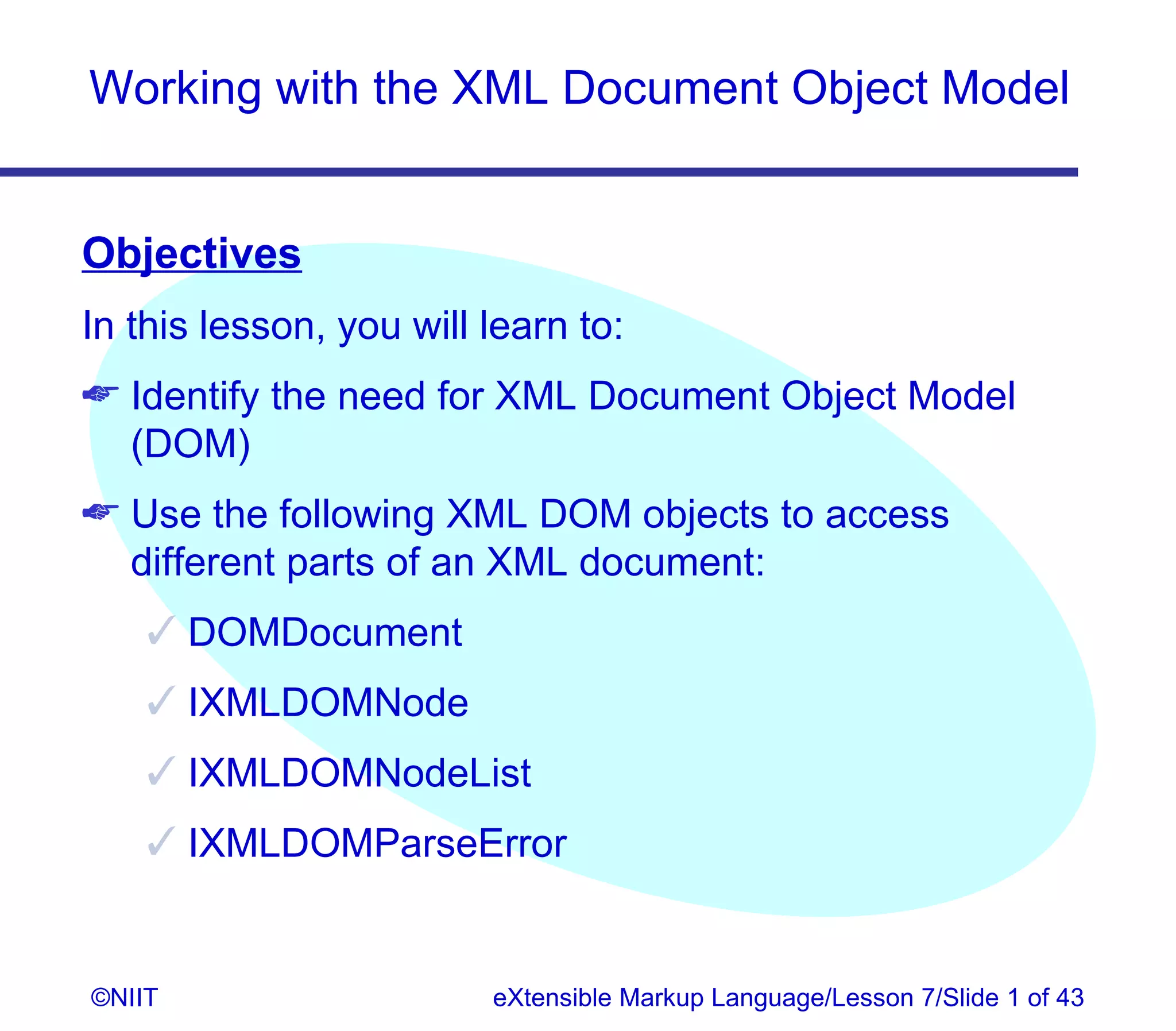

Objectives
In this lesson, you will learn to:
Identify the need for XML Document Object Model
(DOM)
Use the following XML DOM objects to access
different parts of an XML document:
DOMDocument
IXMLDOMNode
IXMLDOMNodeList
IXMLDOMParseError

©NIIT eXtensible Markup Language/Lesson 7/Slide 1 of 43

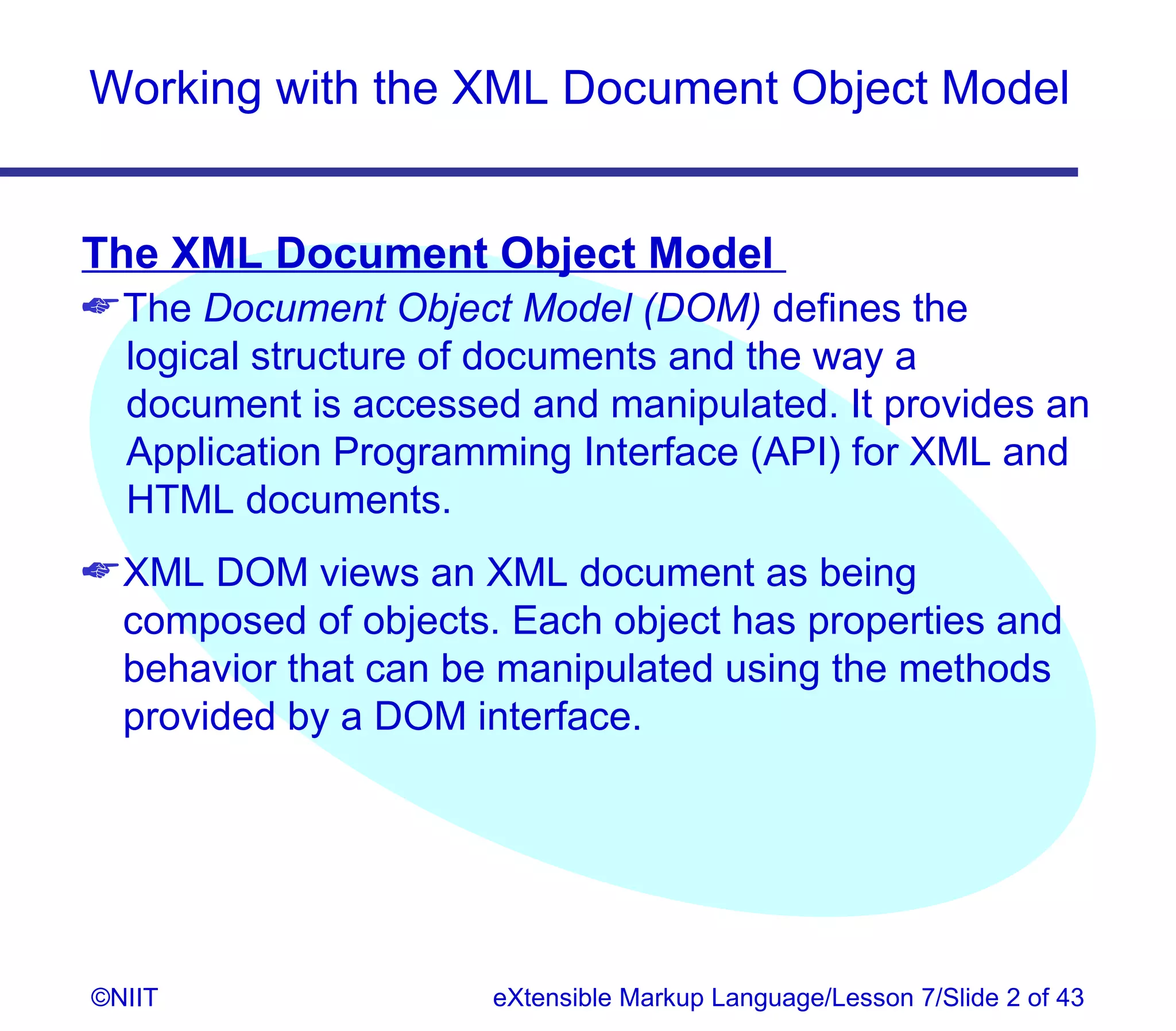

The XML Document Object Model
The Document Object Model (DOM) defines the
logical structure of documents and the way a
document is accessed and manipulated. It provides an
Application Programming Interface (API) for XML and
HTML documents.
XML DOM views an XML document as being
composed of objects. Each object has properties and
behavior that can be manipulated using the methods
provided by a DOM interface.

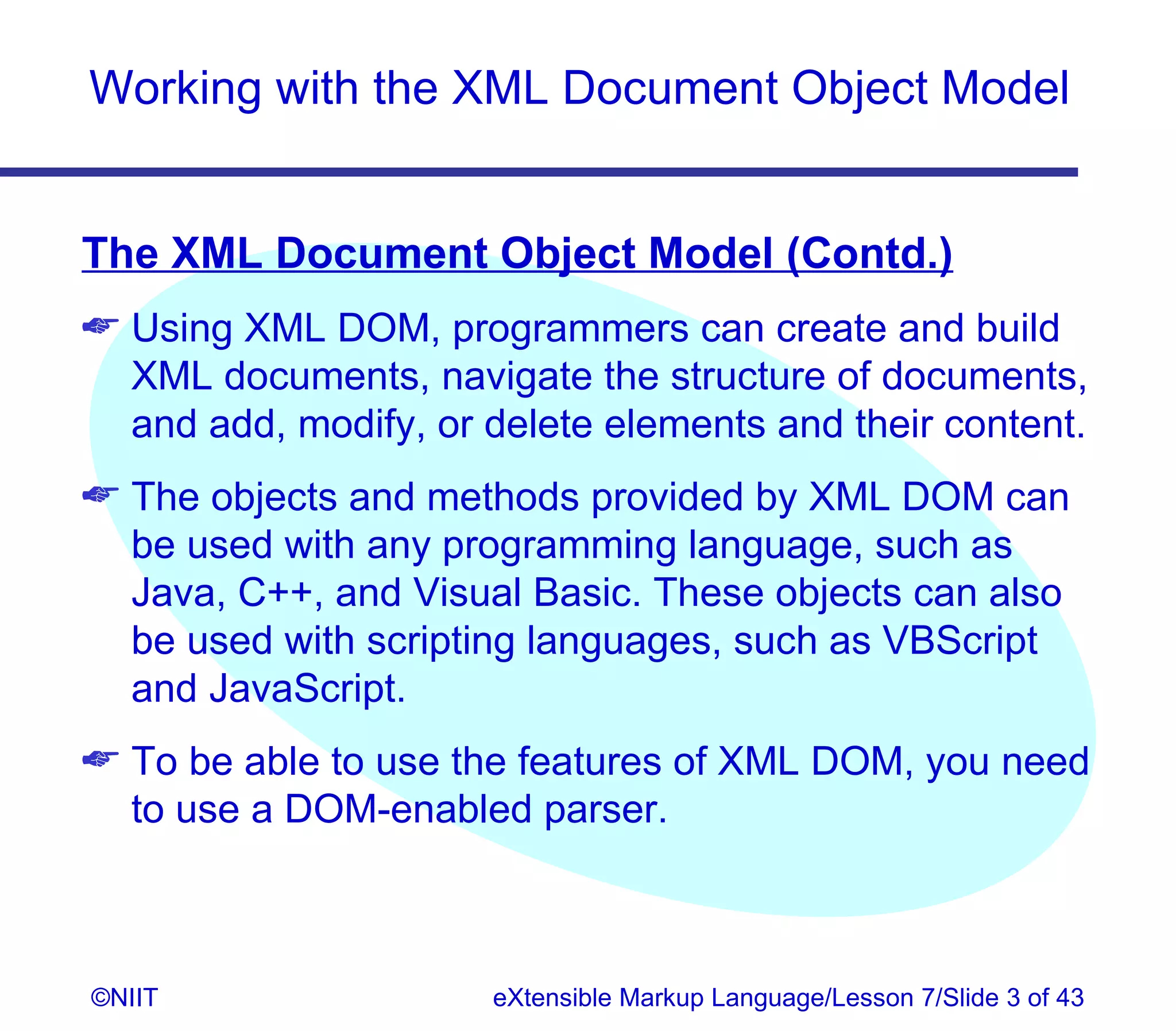

The XML Document Object Model (Contd.)
Using XML DOM, programmers can create and build
XML documents, navigate the structure of documents,
and add, modify, or delete elements and their content.
The objects and methods provided by XML DOM can
be used with any programming language, such as
Java, C++, and Visual Basic. These objects can also
be used with scripting languages, such as VBScript
and JavaScript.
To be able to use the features of XML DOM, you need
to use a DOM-enabled parser.

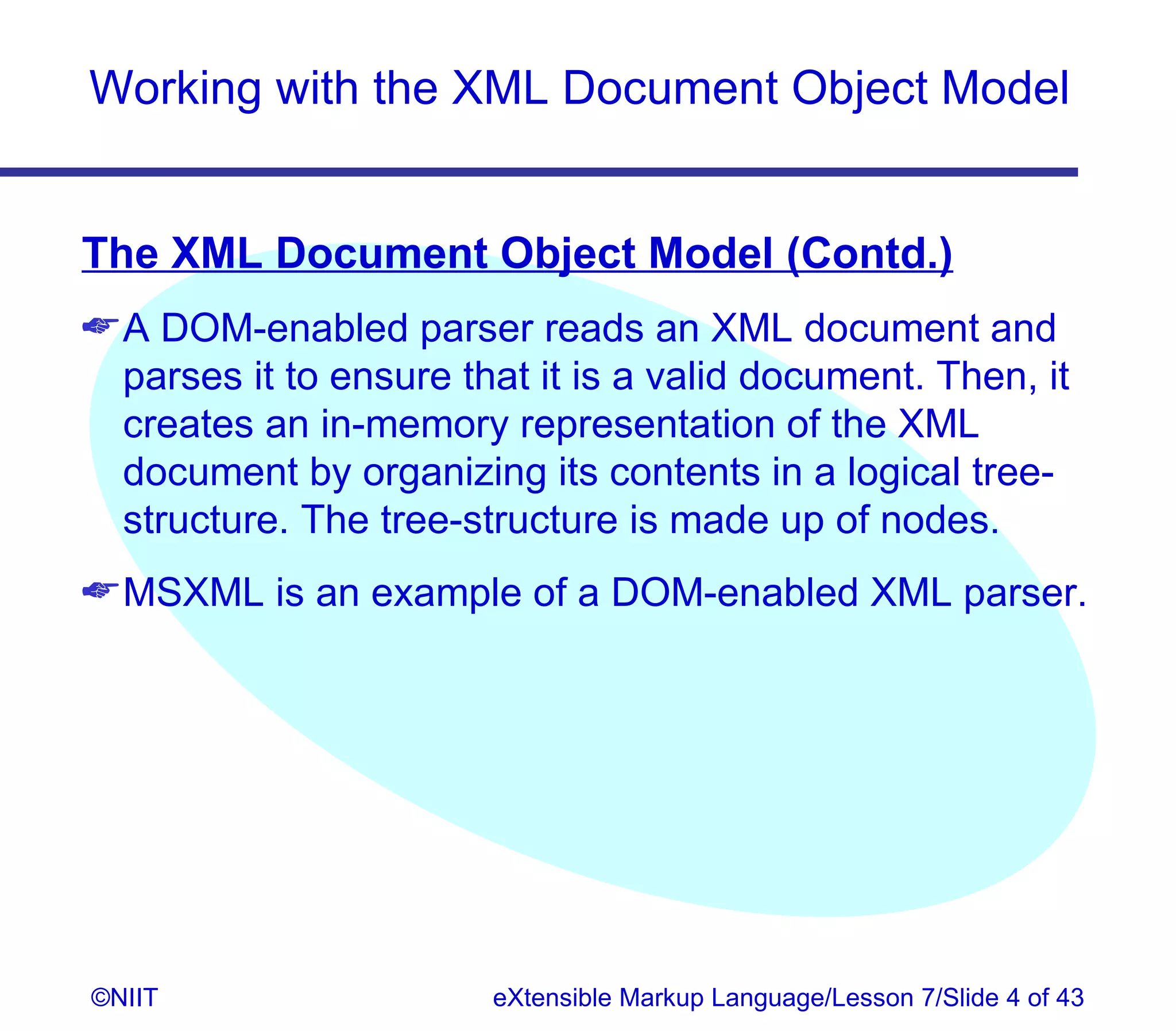

The XML Document Object Model (Contd.)
A DOM-enabled parser reads an XML document and
parses it to ensure that it is a valid document. Then, it
creates an in-memory representation of the XML
document by organizing its contents in a logical tree-
structure. The tree-structure is made up of nodes.
MSXML is an example of a DOM-enabled XML parser.

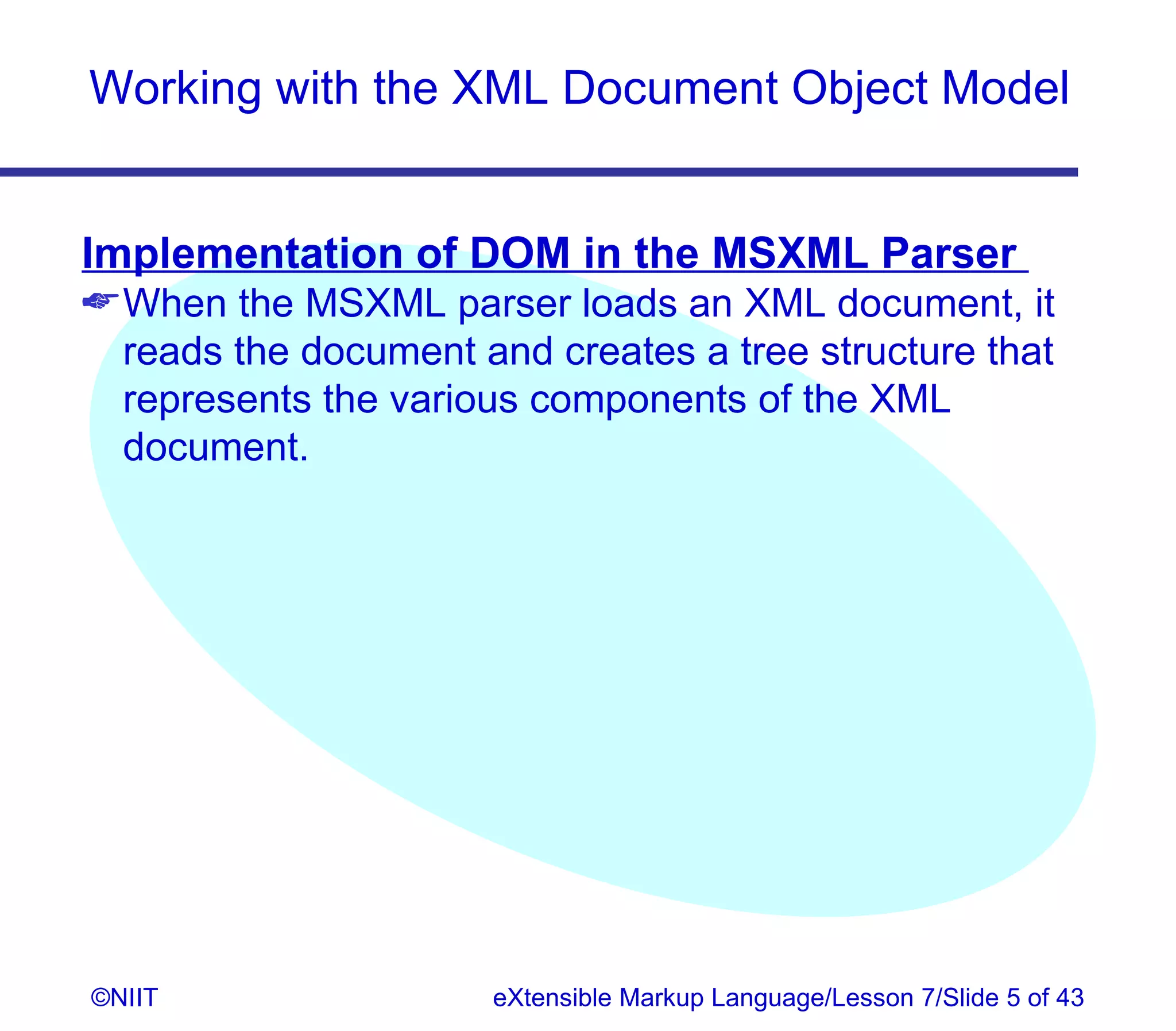

Implementation of DOM in the MSXML Parser
When the MSXML parser loads an XML document, it
reads the document and creates a tree structure that
represents the various components of the XML
document.



Implementation of DOM in the MSXML Parser
(Contd.)

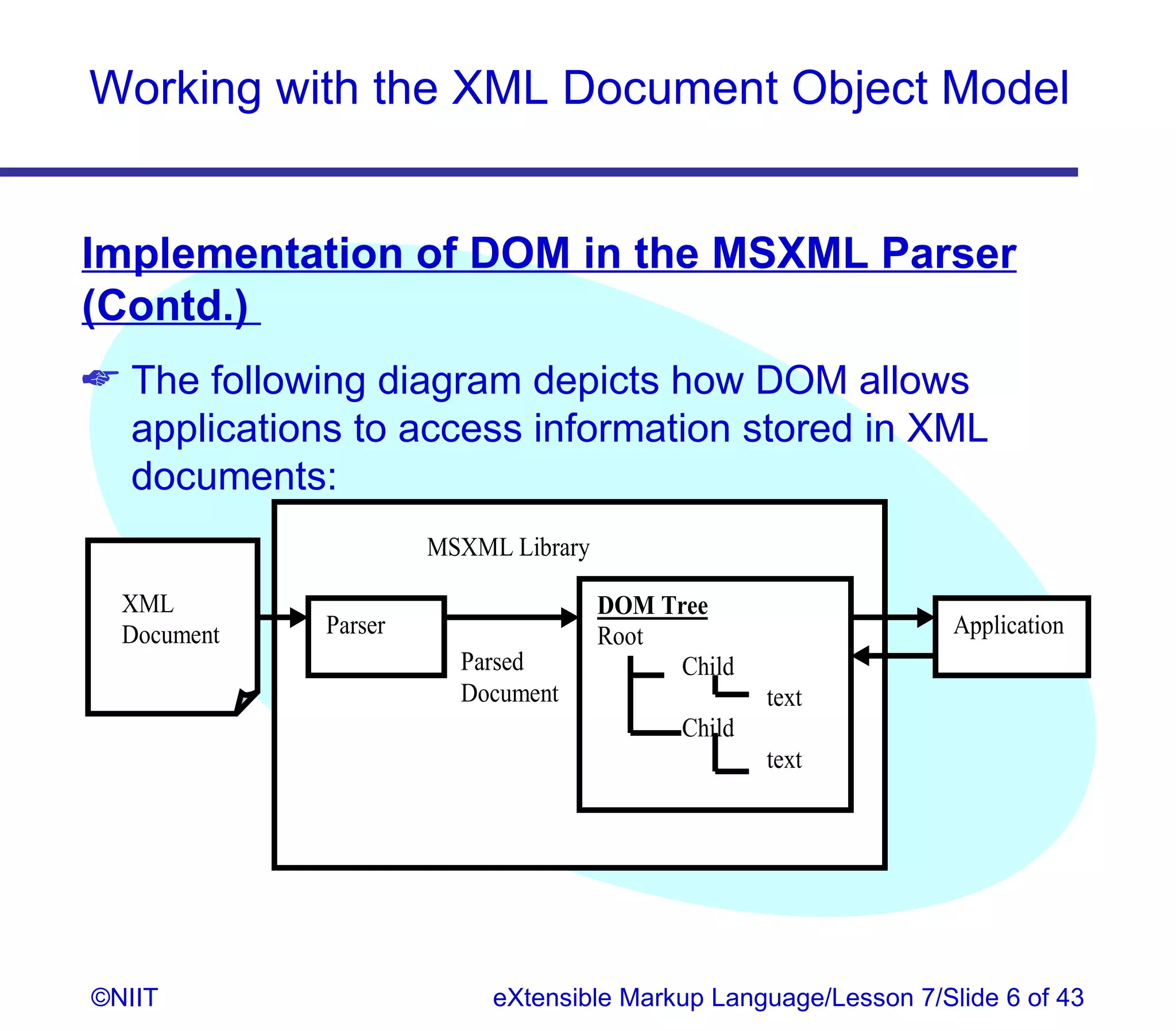

The following diagram depicts how DOM allows
applications to access information stored in XML
documents:
MSXML Library

XML DOM Tree
Document Parser Root Application
Parsed Child
Document text
Child
text

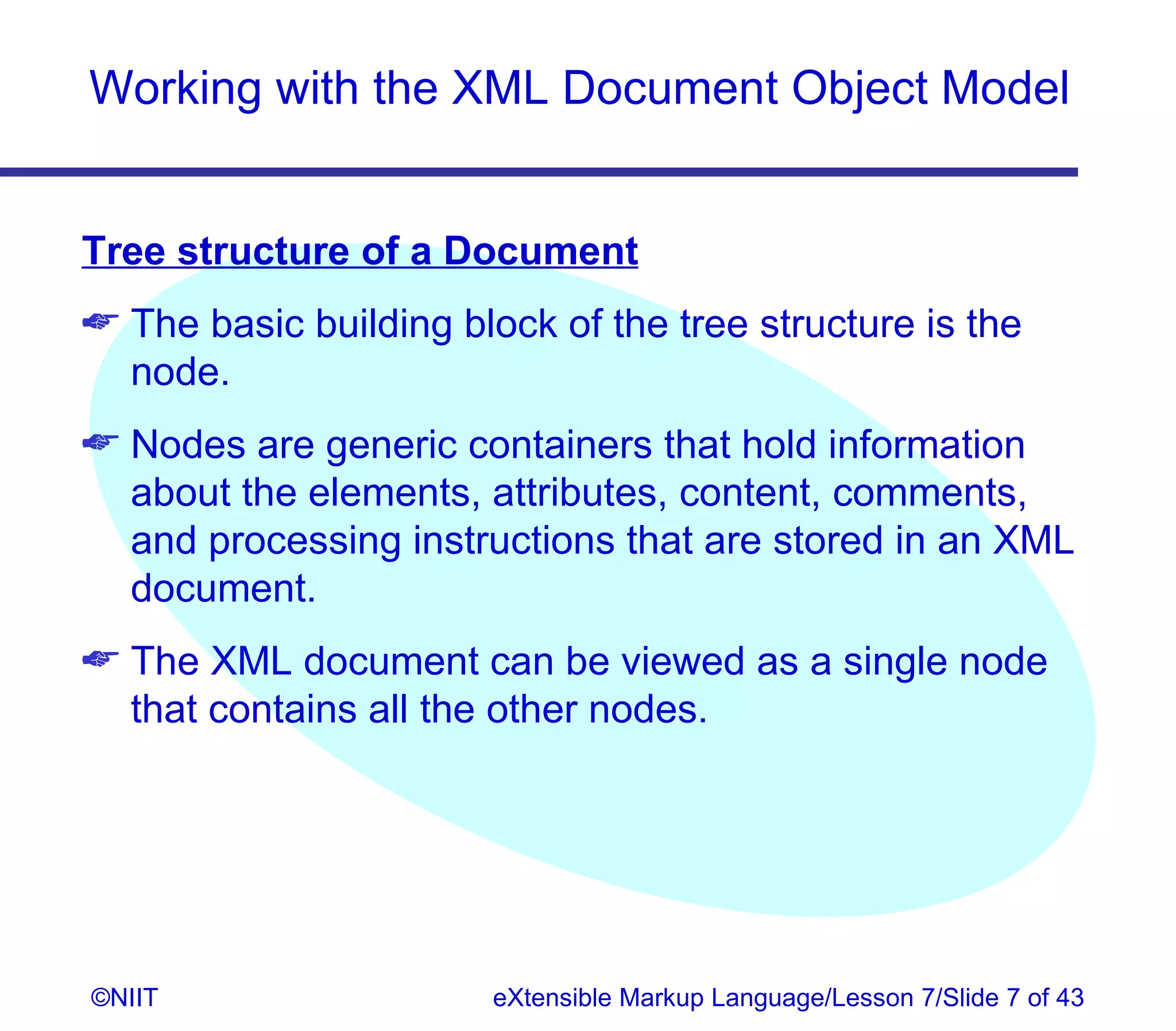

Tree structure of a Document
The basic building block of the tree structure is the
node.
Nodes are generic containers that hold information
about the elements, attributes, content, comments,
and processing instructions that are stored in an XML
document.
The XML document can be viewed as a single node
that contains all the other nodes.

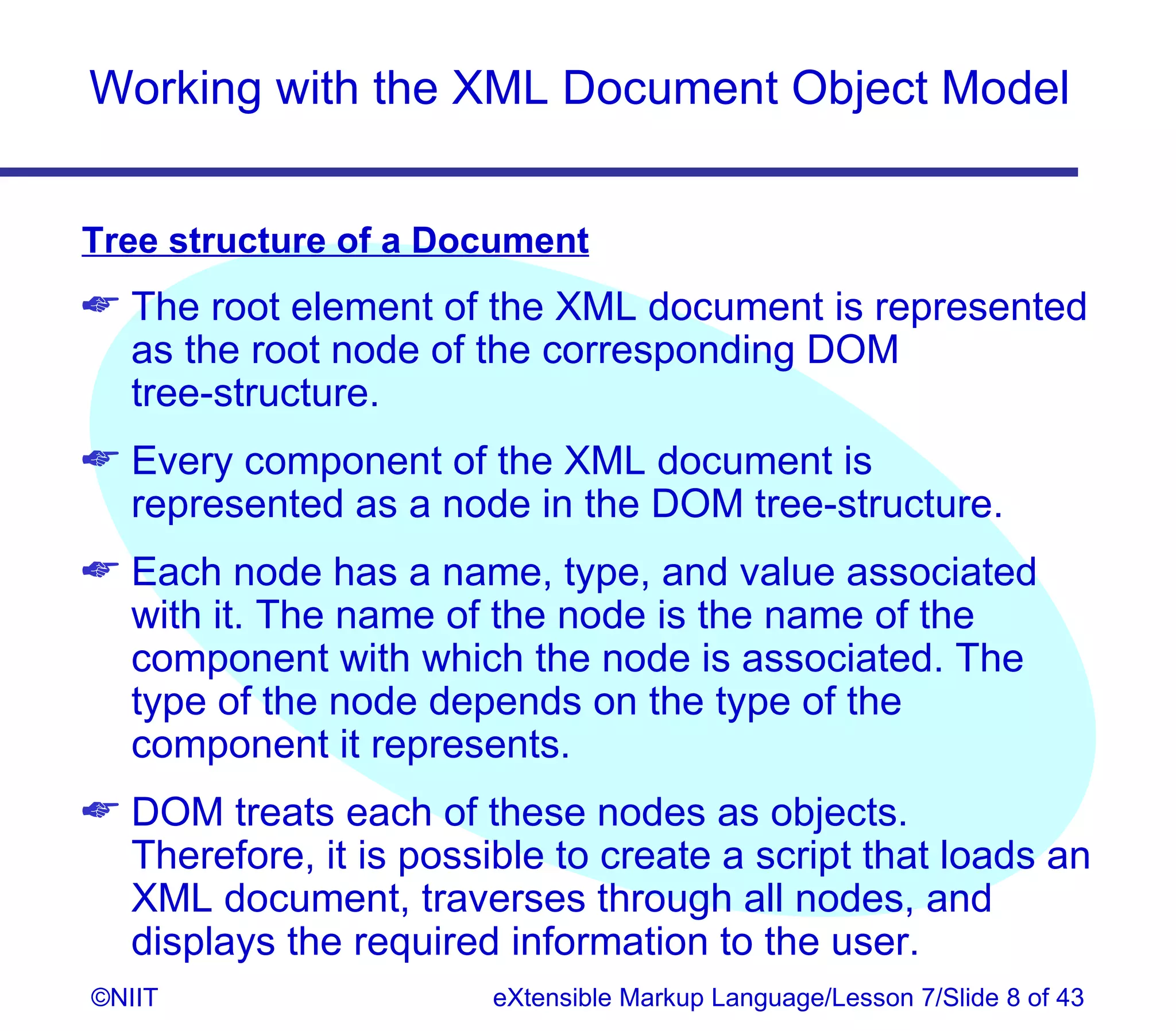

Tree structure of a Document
The root element of the XML document is represented
as the root node of the corresponding DOM
tree‑structure.
Every component of the XML document is
represented as a node in the DOM tree-structure.
Each node has a name, type, and value associated
with it. The name of the node is the name of the
component with which the node is associated. The
type of the node depends on the type of the
component it represents.
DOM treats each of these nodes as objects.
Therefore, it is possible to create a script that loads an
XML document, traverses through all nodes, and
displays the required information to the user.

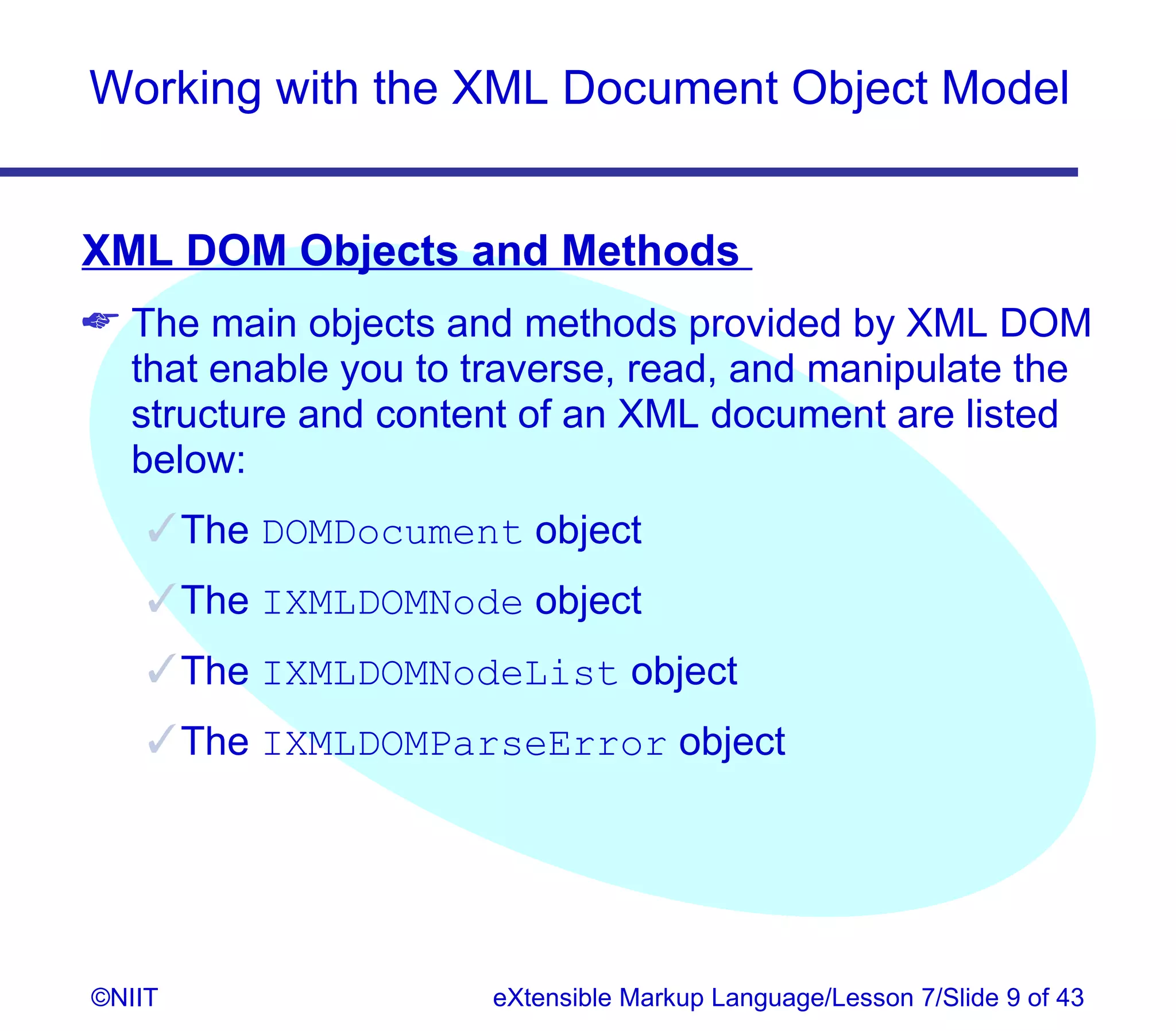

XML DOM Objects and Methods
The main objects and methods provided by XML DOM
that enable you to traverse, read, and manipulate the
structure and content of an XML document are listed
below:
The DOMDocument object
The IXMLDOMNode object
The IXMLDOMNodeList object
The IXMLDOMParseError object

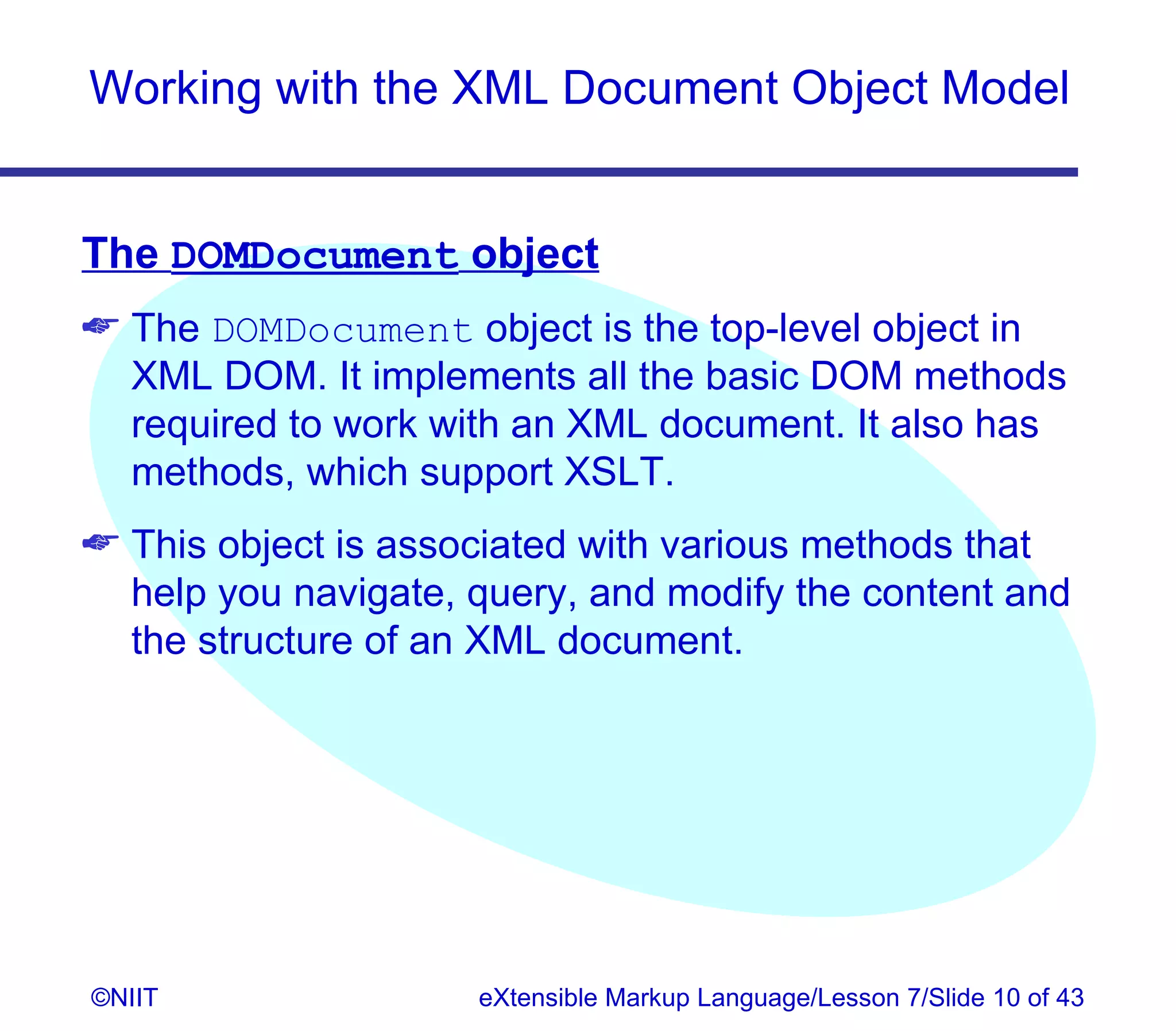

The DOMDocument object
The DOMDocument object is the top-level object in
XML DOM. It implements all the basic DOM methods
required to work with an XML document. It also has
methods, which support XSLT.
This object is associated with various methods that
help you navigate, query, and modify the content and
the structure of an XML document.

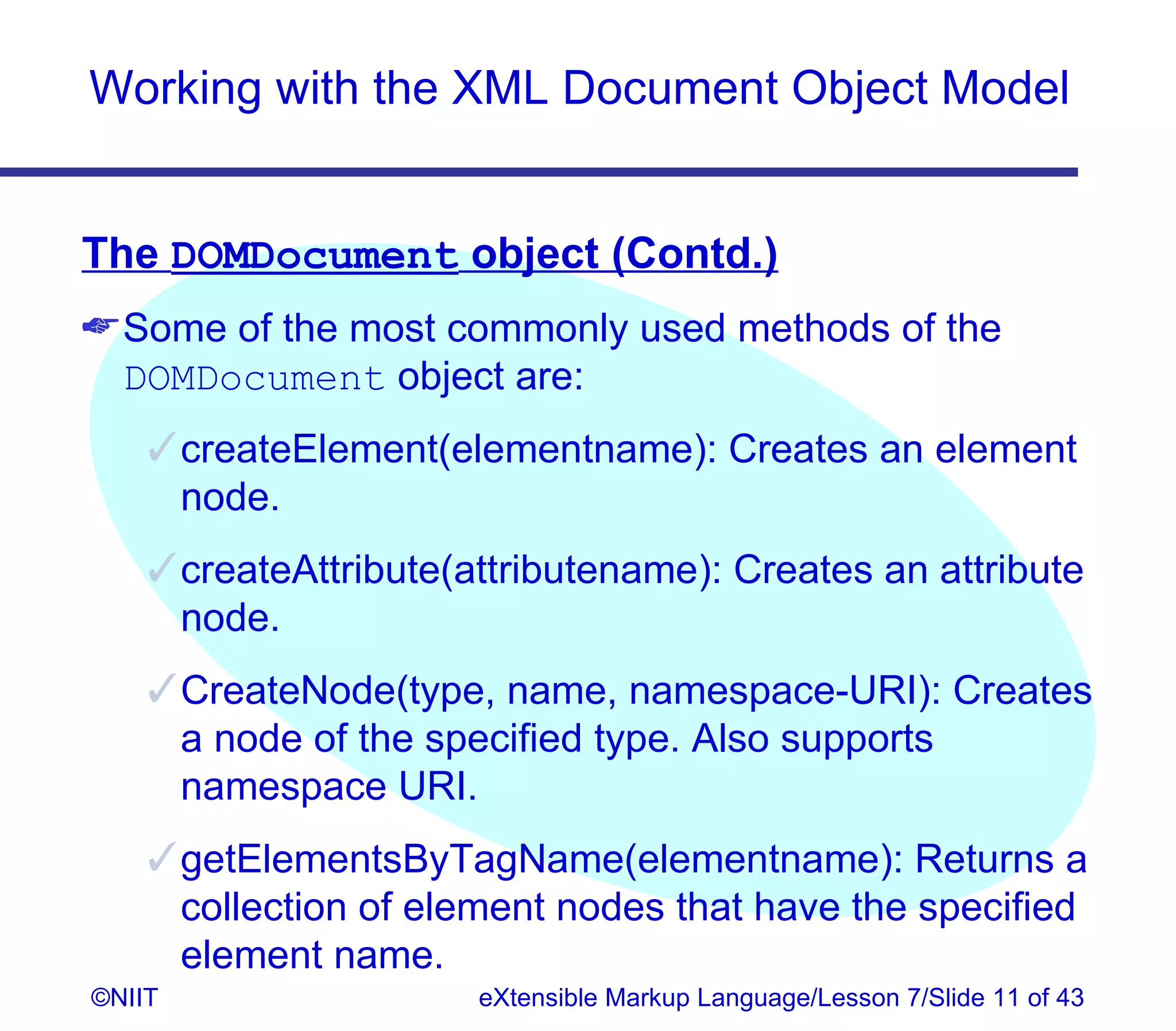

The DOMDocument object (Contd.)
Some of the most commonly used methods of the
DOMDocument object are:
createElement(elementname): Creates an element
node.
createAttribute(attributename): Creates an attribute
node.
CreateNode(type, name, namespace-URI): Creates
a node of the specified type. Also supports
namespace URI.
getElementsByTagName(elementname): Returns a
collection of element nodes that have the specified
element name.

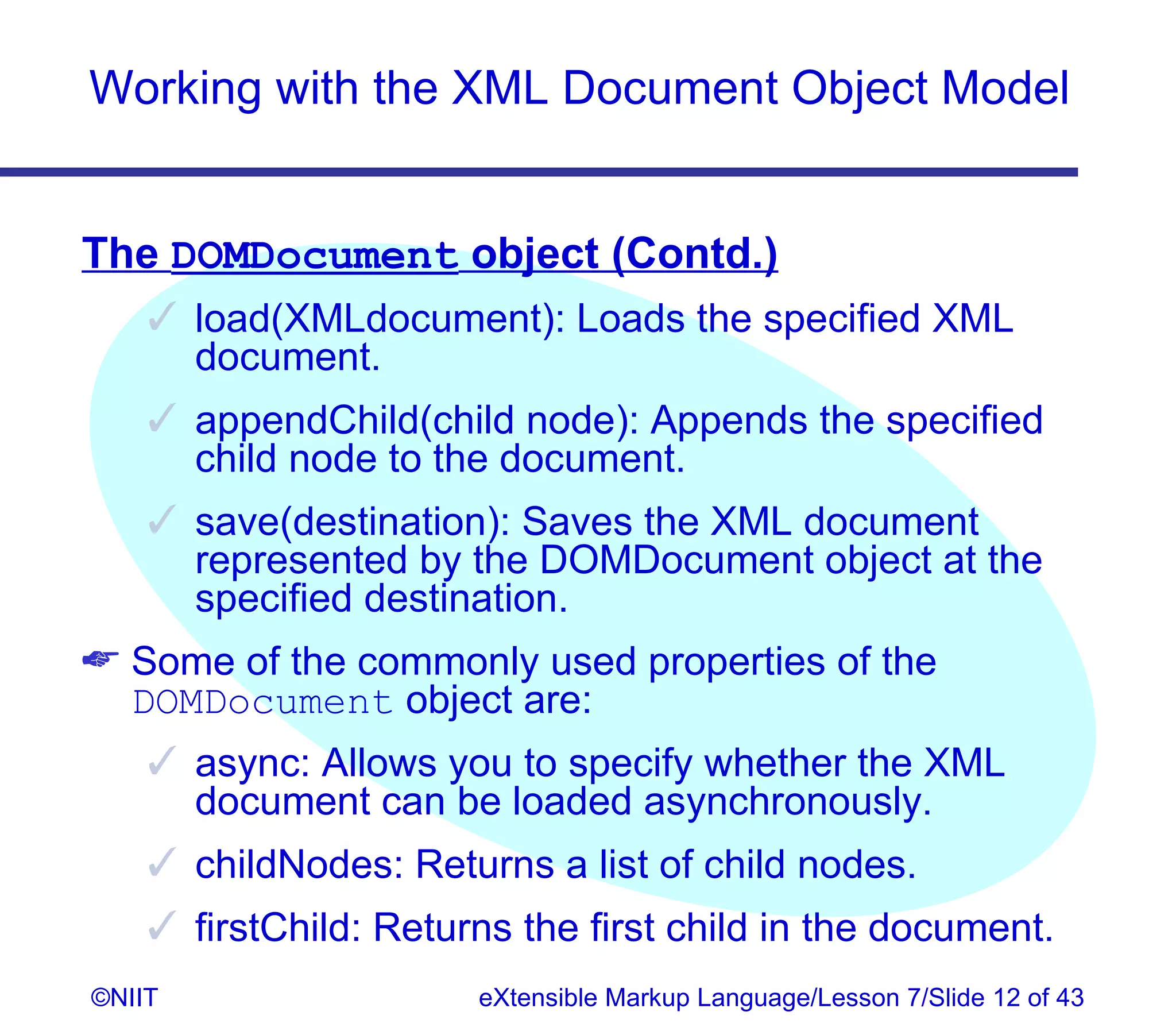

load(XMLdocument): Loads the specified XML
document.
appendChild(child node): Appends the specified
child node to the document.
save(destination): Saves the XML document
represented by the DOMDocument object at the
specified destination.
Some of the commonly used properties of the
DOMDocument object are:
async: Allows you to specify whether the XML
document can be loaded asynchronously.
childNodes: Returns a list of child nodes.
firstChild: Returns the first child in the document.

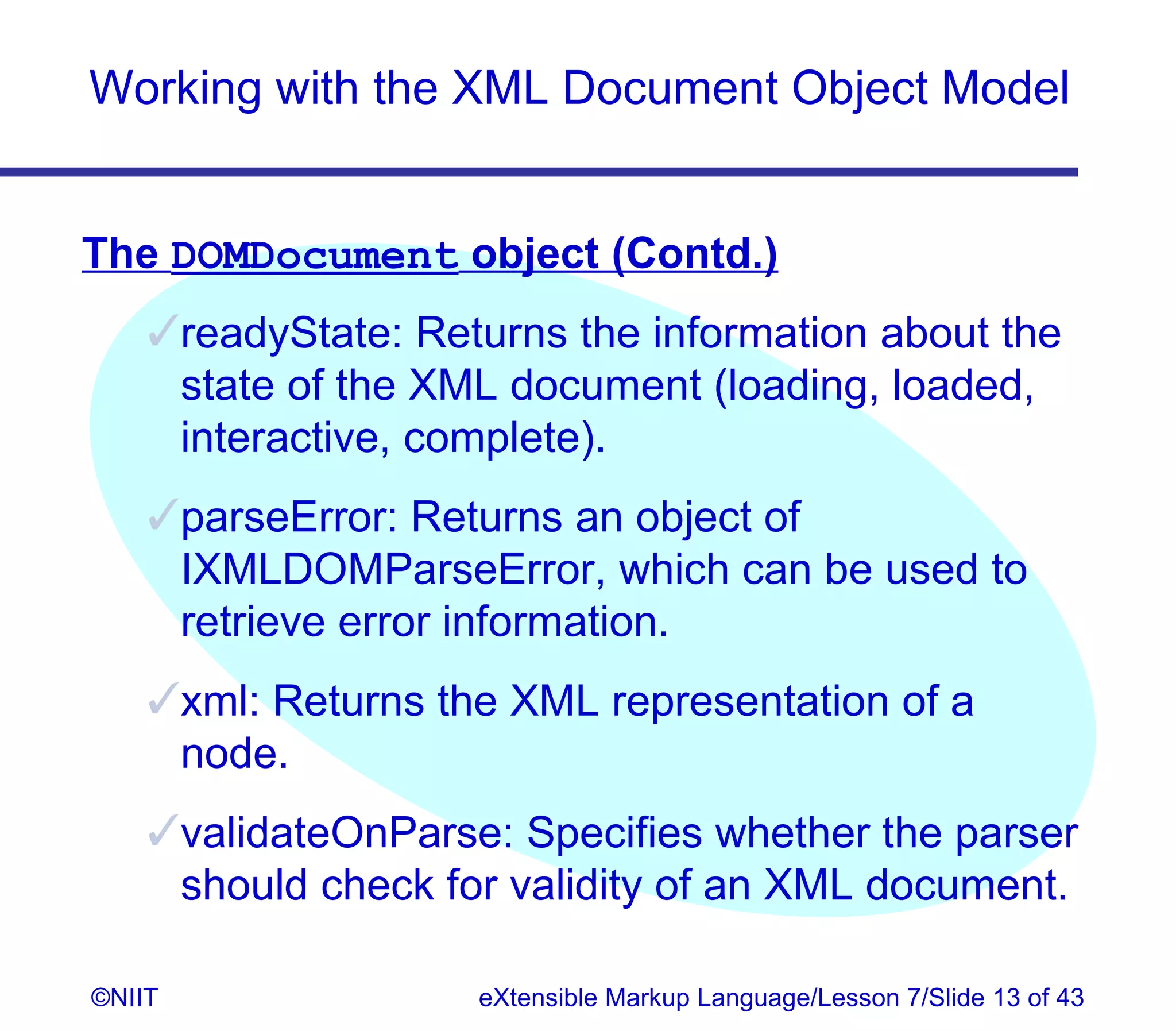

readyState: Returns the information about the
state of the XML document (loading, loaded,
interactive, complete).
parseError: Returns an object of
IXMLDOMParseError, which can be used to
retrieve error information.
xml: Returns the XML representation of a
node.
validateOnParse: Specifies whether the parser
should check for validity of an XML document.

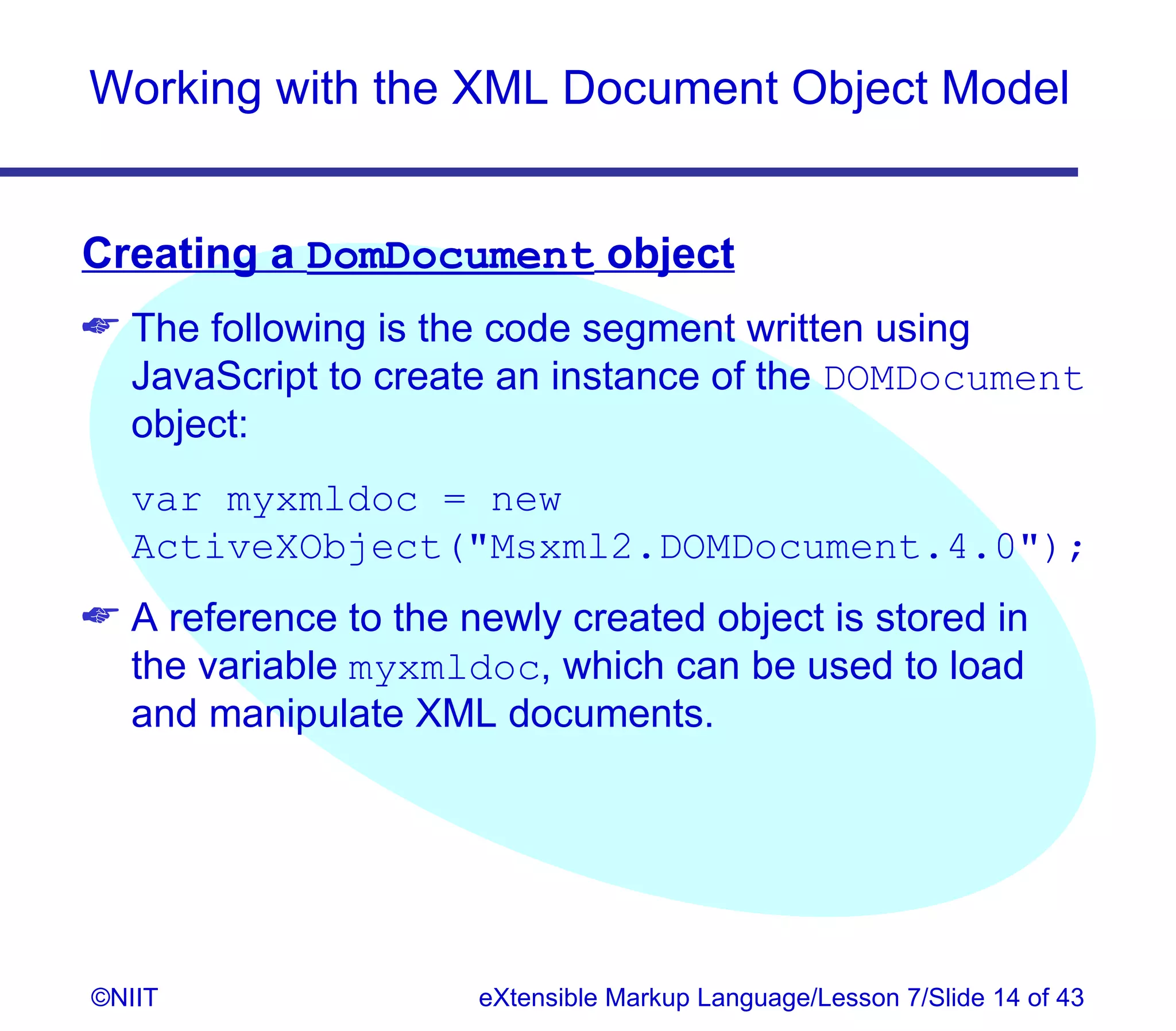

Creating a DomDocument object
The following is the code segment written using
JavaScript to create an instance of the DOMDocument
object:
var myxmldoc = new
ActiveXObject(Msxml2.DOMDocument.4.0);
A reference to the newly created object is stored in
the variable myxmldoc, which can be used to load
and manipulate XML documents.

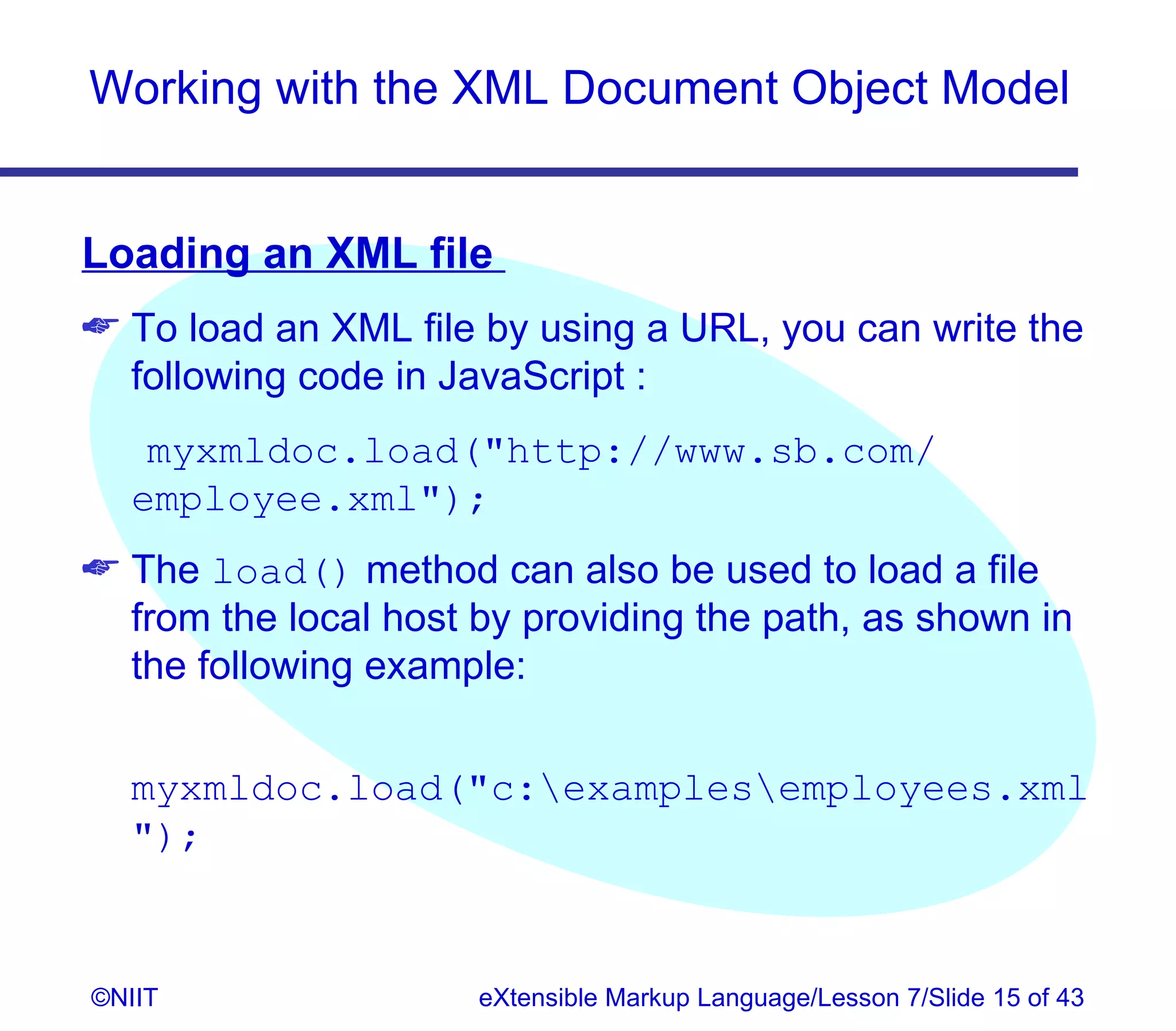

Loading an XML file
To load an XML file by using a URL, you can write the
following code in JavaScript :
myxmldoc.load(http://www.sb.com/
employee.xml);
The load() method can also be used to load a file
from the local host by providing the path, as shown in
the following example:

myxmldoc.load(c:examplesemployees.xml
);

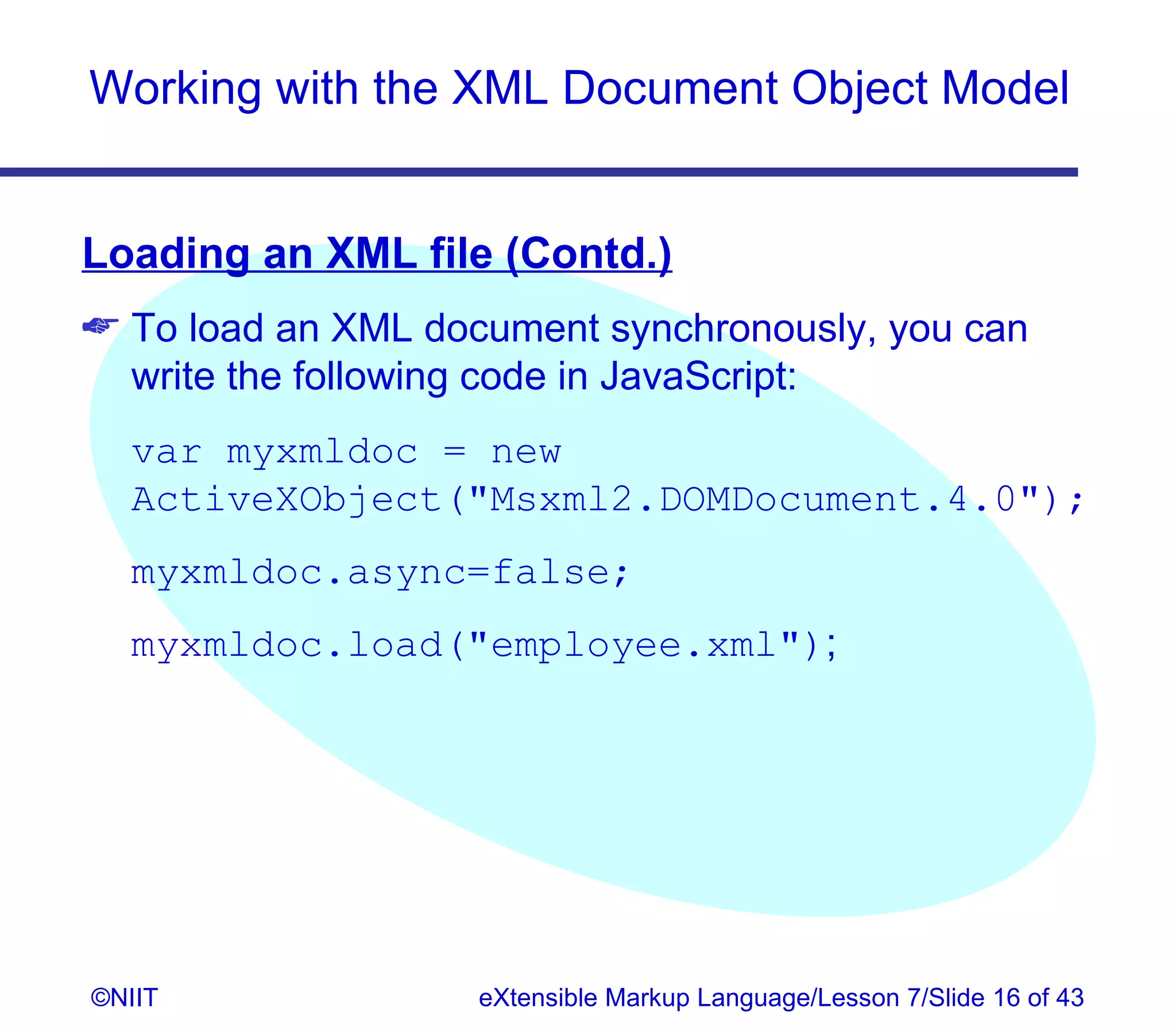

Loading an XML file (Contd.)
To load an XML document synchronously, you can
write the following code in JavaScript:
var myxmldoc = new
myxmldoc.async=false;
myxmldoc.load(employee.xml);

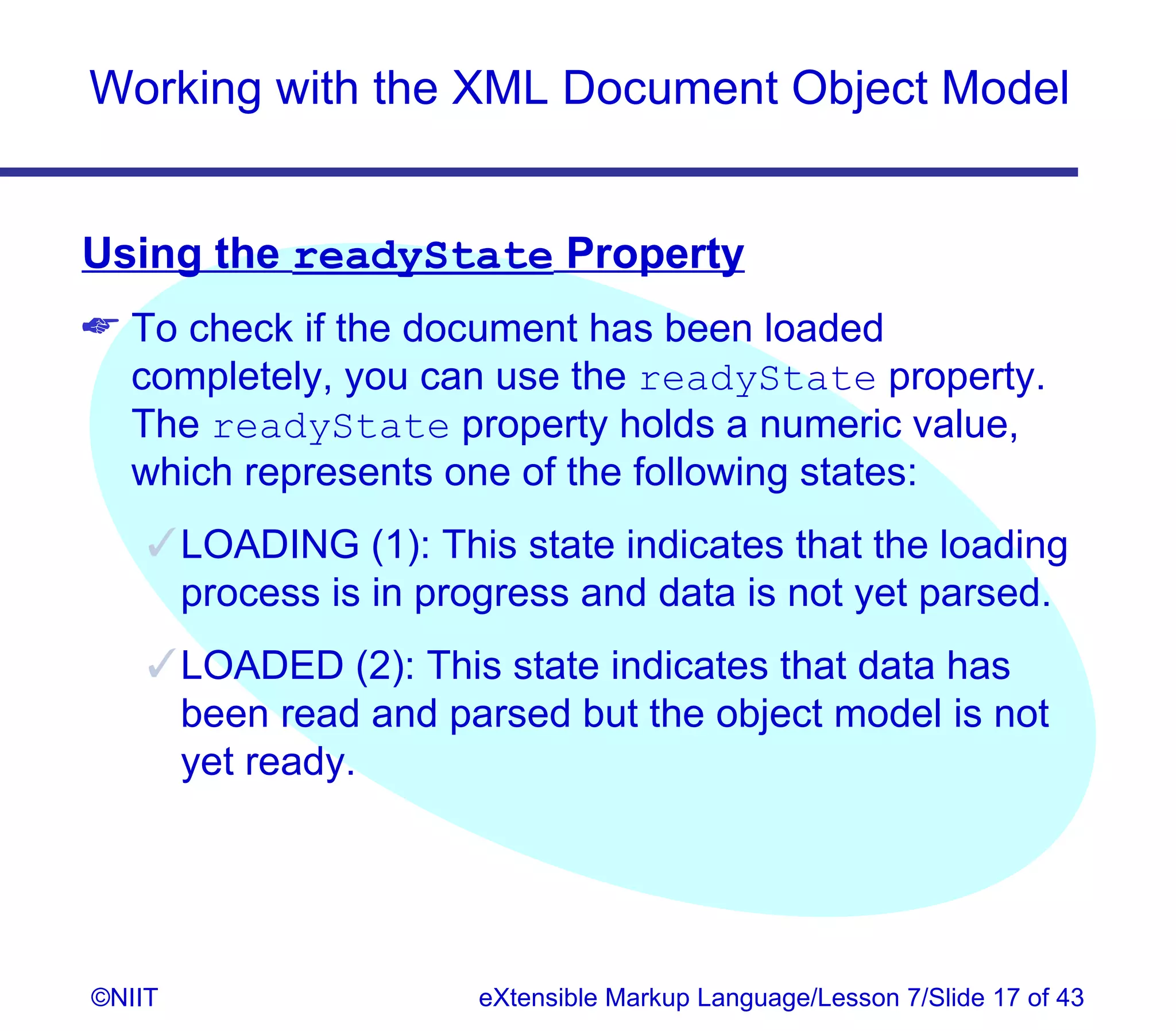

Using the readyState Property
To check if the document has been loaded
completely, you can use the readyState property.
The readyState property holds a numeric value,
which represents one of the following states:
LOADING (1): This state indicates that the loading
process is in progress and data is not yet parsed.
LOADED (2): This state indicates that data has
been read and parsed but the object model is not
yet ready.

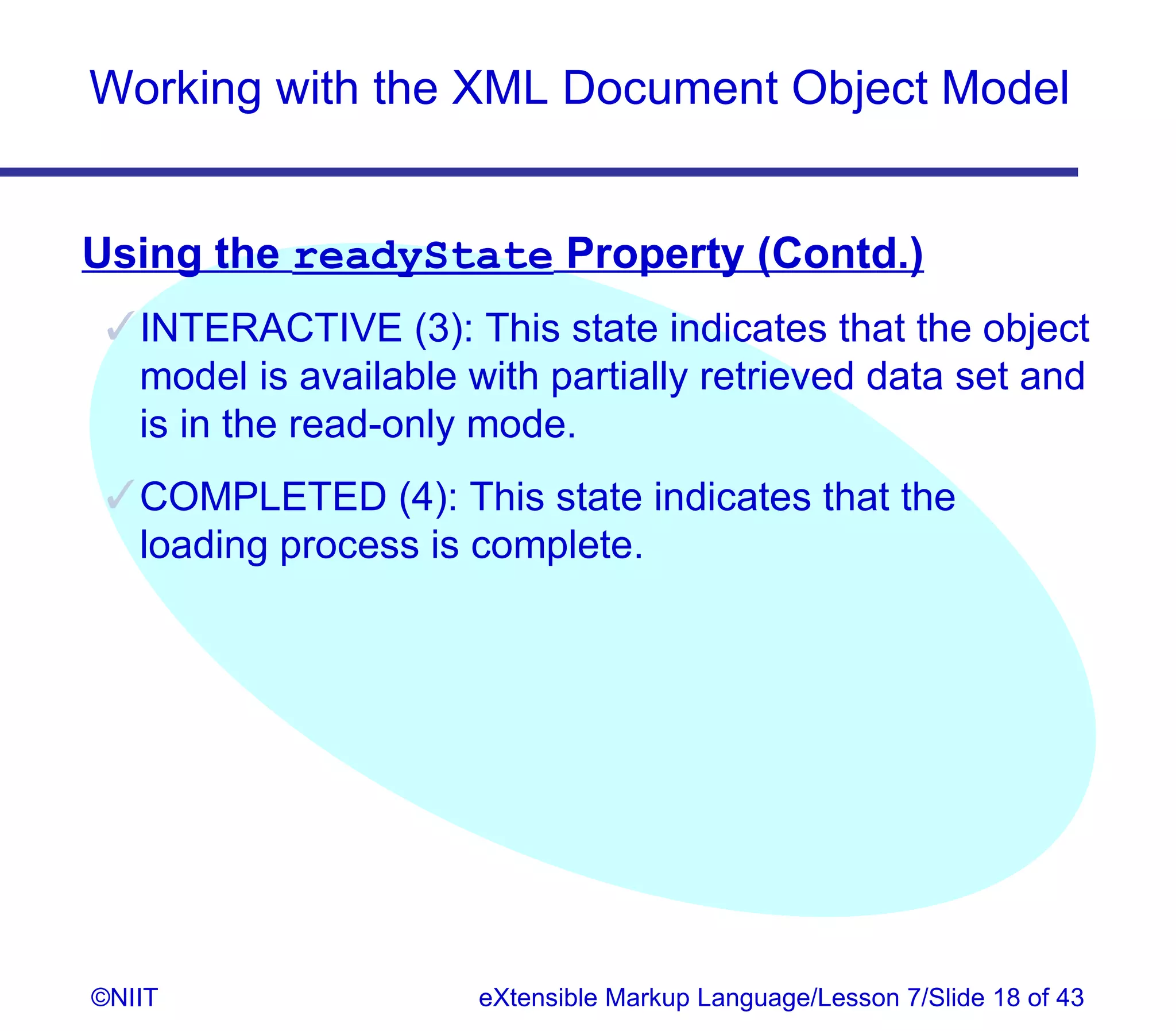

Using the readyState Property (Contd.)
INTERACTIVE (3): This state indicates that the object
model is available with partially retrieved data set and
is in the read-only mode.
COMPLETED (4): This state indicates that the
loading process is complete.

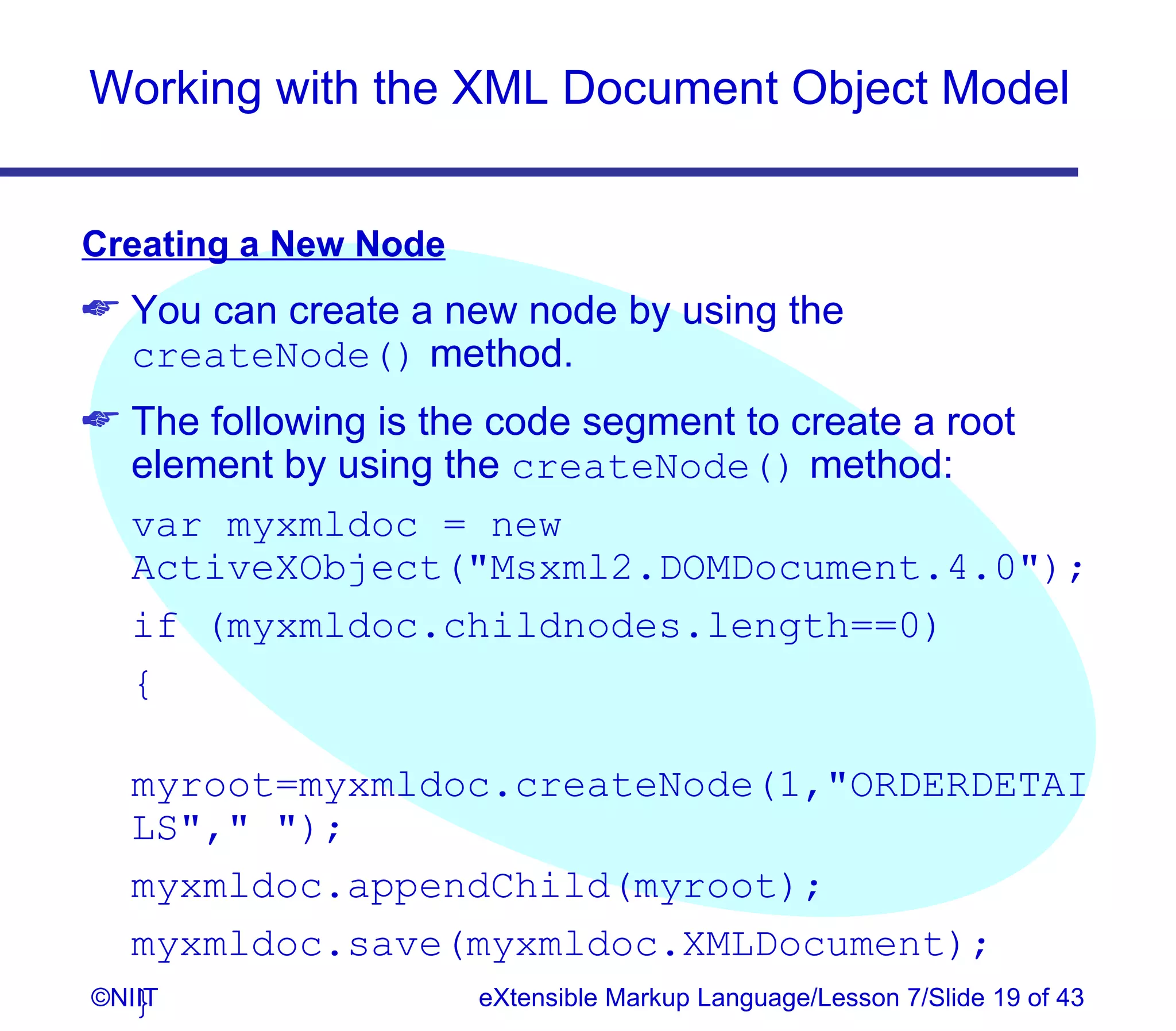

Creating a New Node
You can create a new node by using the
createNode() method.
The following is the code segment to create a root
element by using the createNode() method:
var myxmldoc = new
if (myxmldoc.childnodes.length==0)
{

myroot=myxmldoc.createNode(1,ORDERDETAI
LS, );
myxmldoc.appendChild(myroot);
myxmldoc.save(myxmldoc.XMLDocument);
}

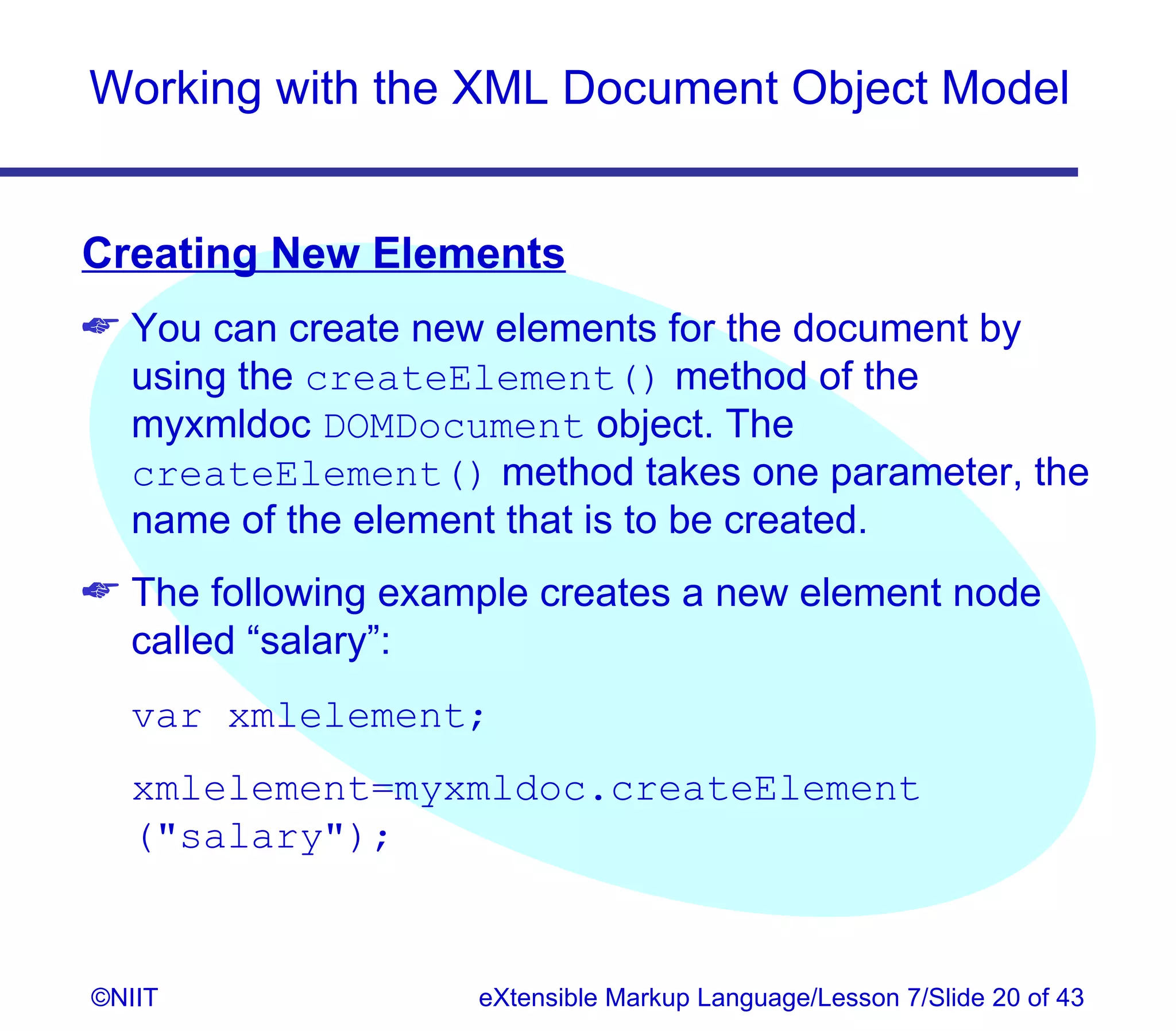

Creating New Elements
You can create new elements for the document by
using the createElement() method of the
myxmldoc DOMDocument object. The
createElement() method takes one parameter, the
name of the element that is to be created.
The following example creates a new element node
called “salary”:
var xmlelement;
xmlelement=myxmldoc.createElement
(salary);

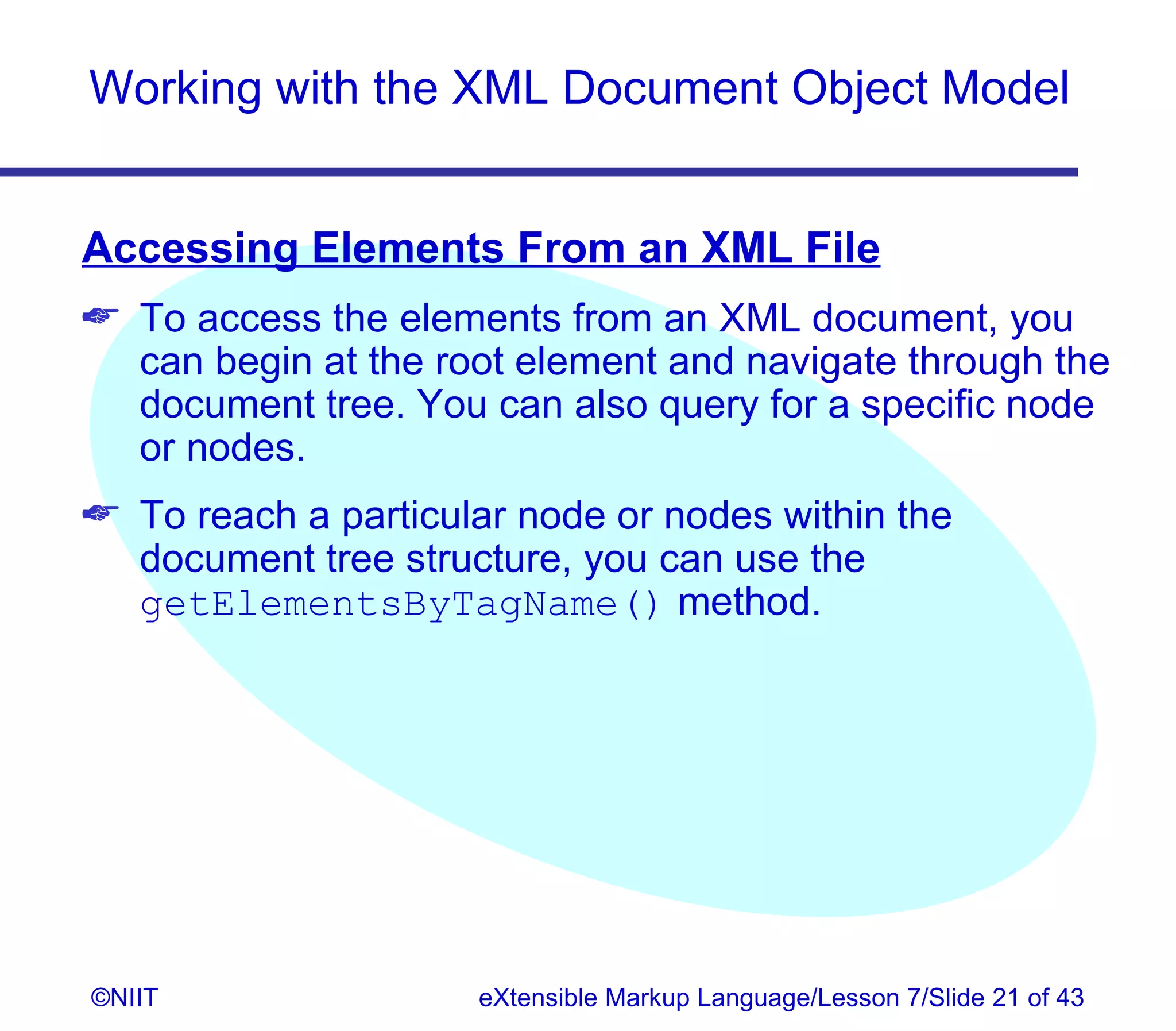

Accessing Elements From an XML File
To access the elements from an XML document, you
can begin at the root element and navigate through the
document tree. You can also query for a specific node
or nodes.
To reach a particular node or nodes within the
document tree structure, you can use the
getElementsByTagName() method.

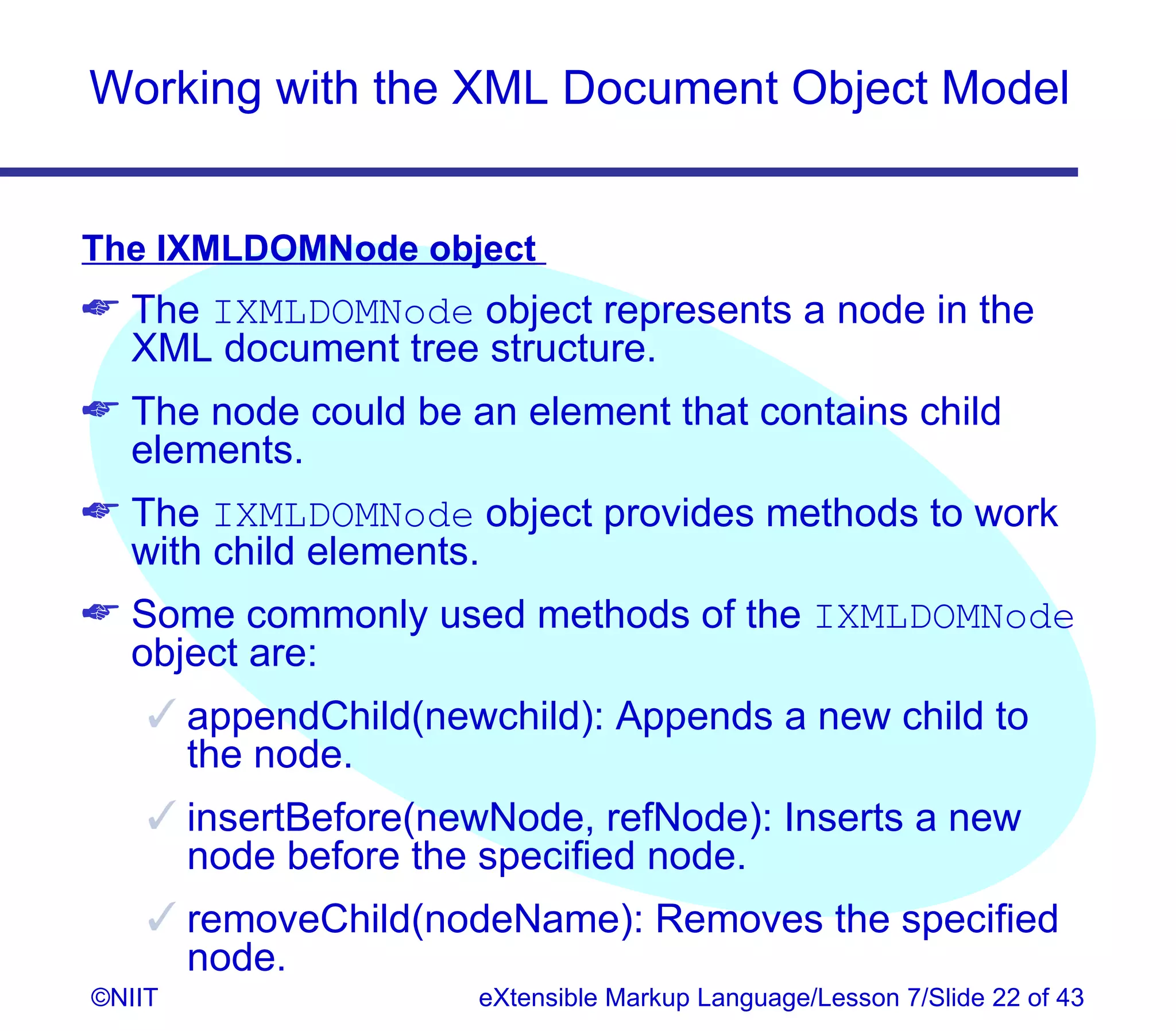

The IXMLDOMNode object
The IXMLDOMNode object represents a node in the
XML document tree structure.
The node could be an element that contains child
elements.
The IXMLDOMNode object provides methods to work
with child elements.
Some commonly used methods of the IXMLDOMNode
object are:
appendChild(newchild): Appends a new child to
the node.
insertBefore(newNode, refNode): Inserts a new
node before the specified node.
removeChild(nodeName): Removes the specified
node.

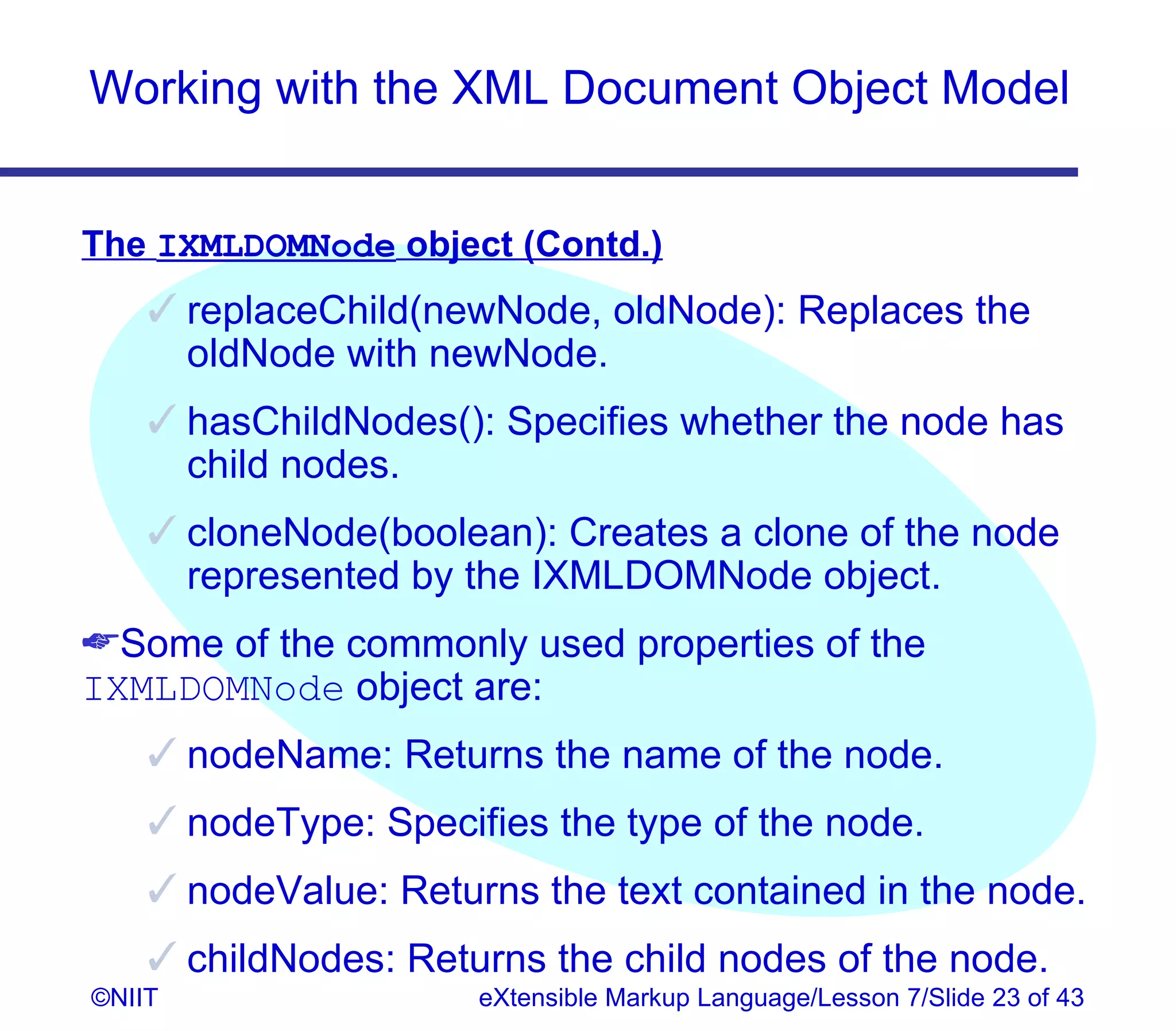

The IXMLDOMNode object (Contd.)
replaceChild(newNode, oldNode): Replaces the
oldNode with newNode.
hasChildNodes(): Specifies whether the node has
child nodes.
cloneNode(boolean): Creates a clone of the node
represented by the IXMLDOMNode object.
Some of the commonly used properties of the
IXMLDOMNode object are:
nodeName: Returns the name of the node.
nodeType: Specifies the type of the node.
nodeValue: Returns the text contained in the node.
childNodes: Returns the child nodes of the node.

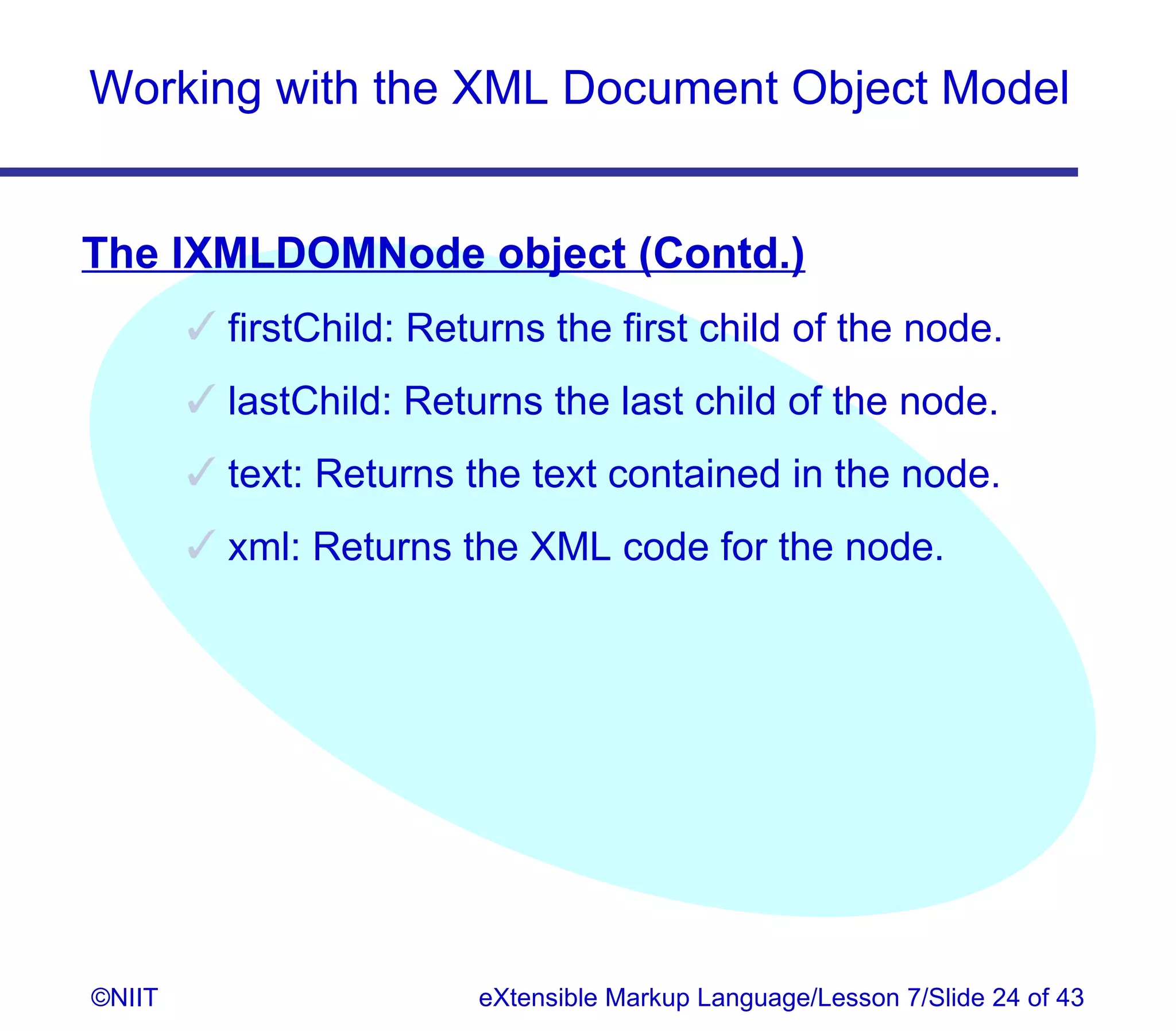

The IXMLDOMNode object (Contd.)
firstChild: Returns the first child of the node.
lastChild: Returns the last child of the node.
text: Returns the text contained in the node.
xml: Returns the XML code for the node.

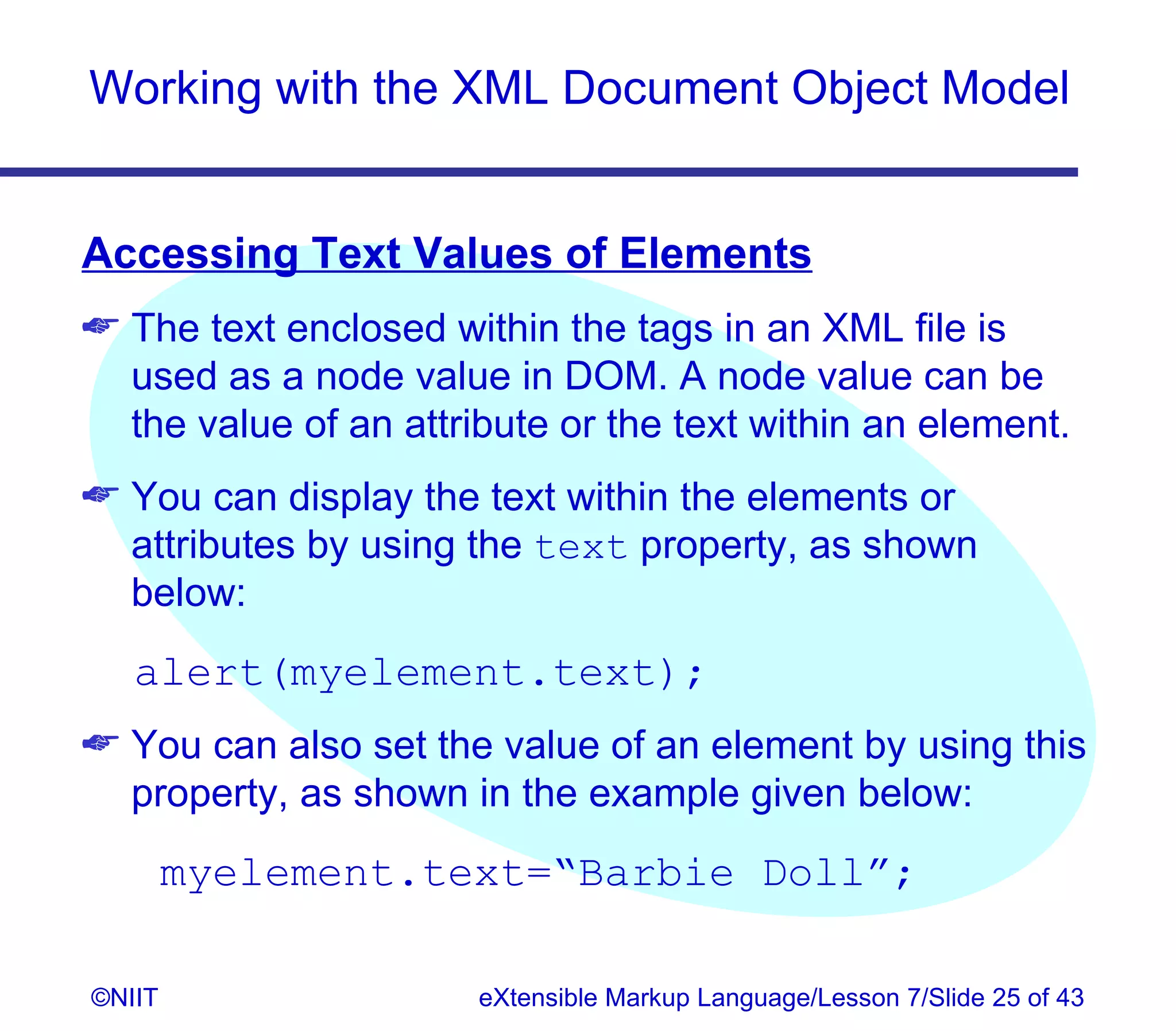

Accessing Text Values of Elements
The text enclosed within the tags in an XML file is
used as a node value in DOM. A node value can be
the value of an attribute or the text within an element.
You can display the text within the elements or
attributes by using the text property, as shown
below:
alert(myelement.text);
You can also set the value of an element by using this
property, as shown in the example given below:
myelement.text=“Barbie Doll”;

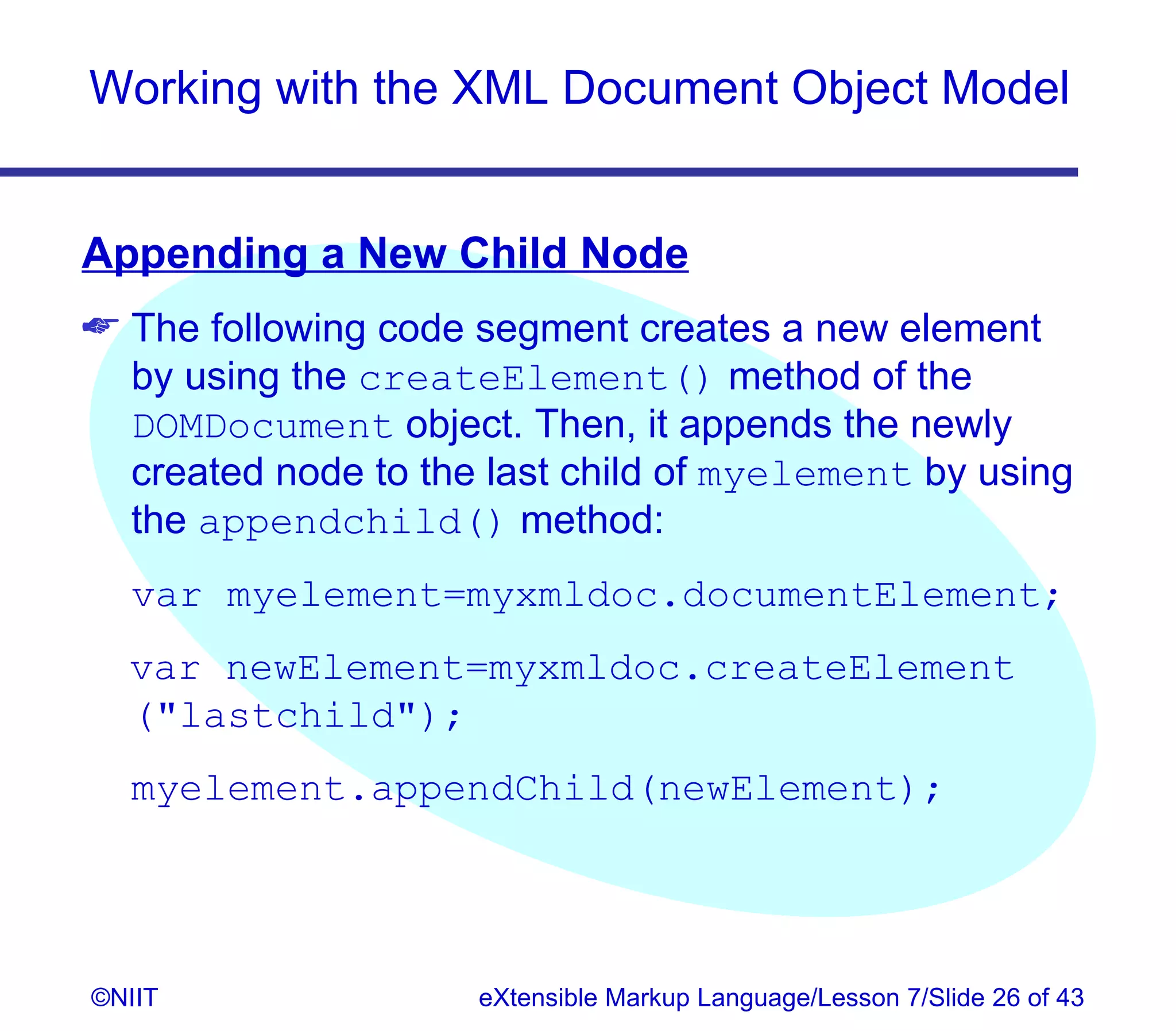

Appending a New Child Node
The following code segment creates a new element
by using the createElement() method of the
DOMDocument object. Then, it appends the newly
created node to the last child of myelement by using
the appendchild() method:
var myelement=myxmldoc.documentElement;
var newElement=myxmldoc.createElement
(lastchild);
myelement.appendChild(newElement);

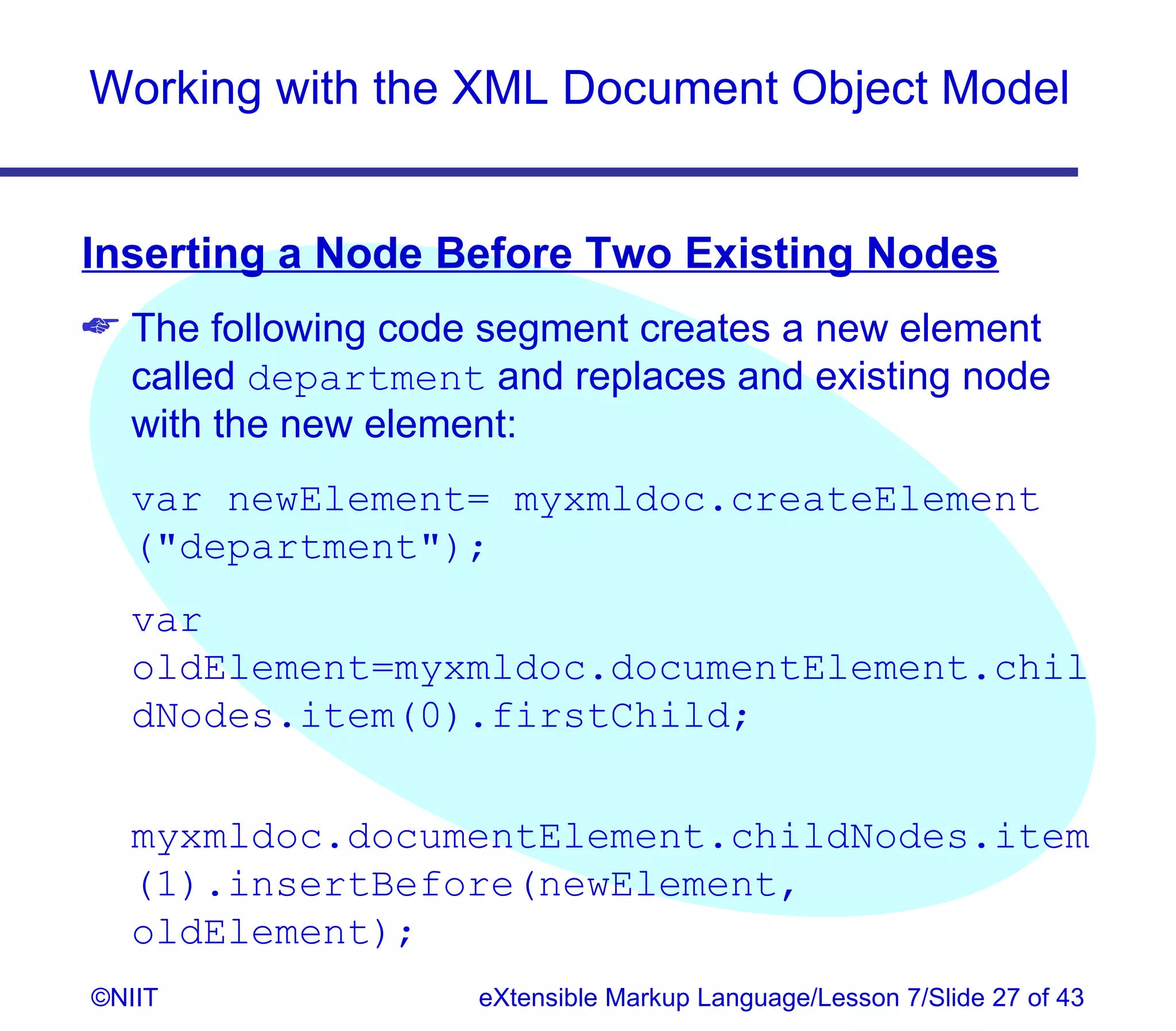

Inserting a Node Before Two Existing Nodes
The following code segment creates a new element
called department and replaces and existing node
with the new element:
var newElement= myxmldoc.createElement
(department);
var
oldElement=myxmldoc.documentElement.chil
dNodes.item(0).firstChild;

myxmldoc.documentElement.childNodes.item
(1).insertBefore(newElement,
oldElement);

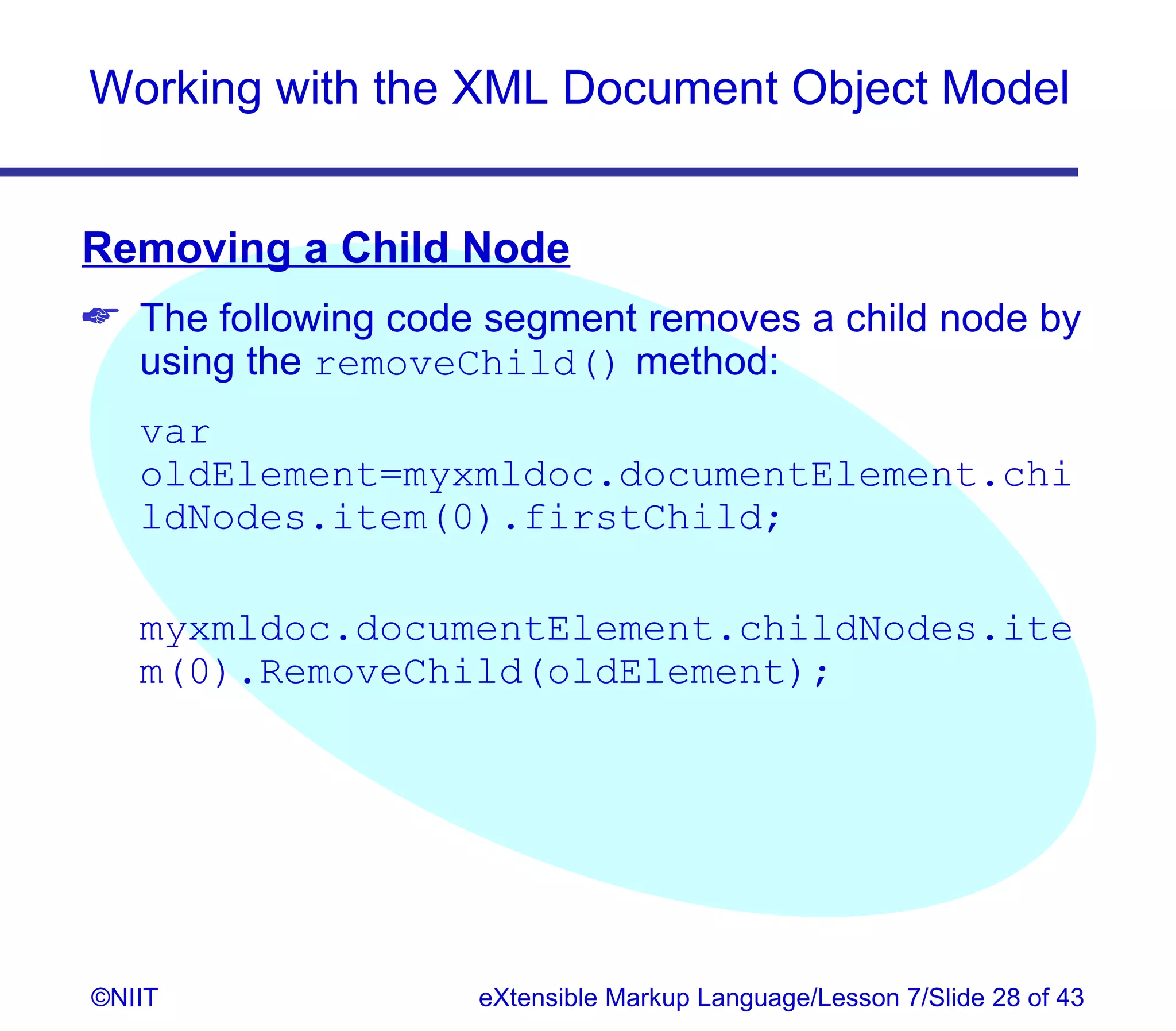

Removing a Child Node
The following code segment removes a child node by
using the removeChild() method:
var
oldElement=myxmldoc.documentElement.chi
ldNodes.item(0).firstChild;

myxmldoc.documentElement.childNodes.ite
m(0).RemoveChild(oldElement);

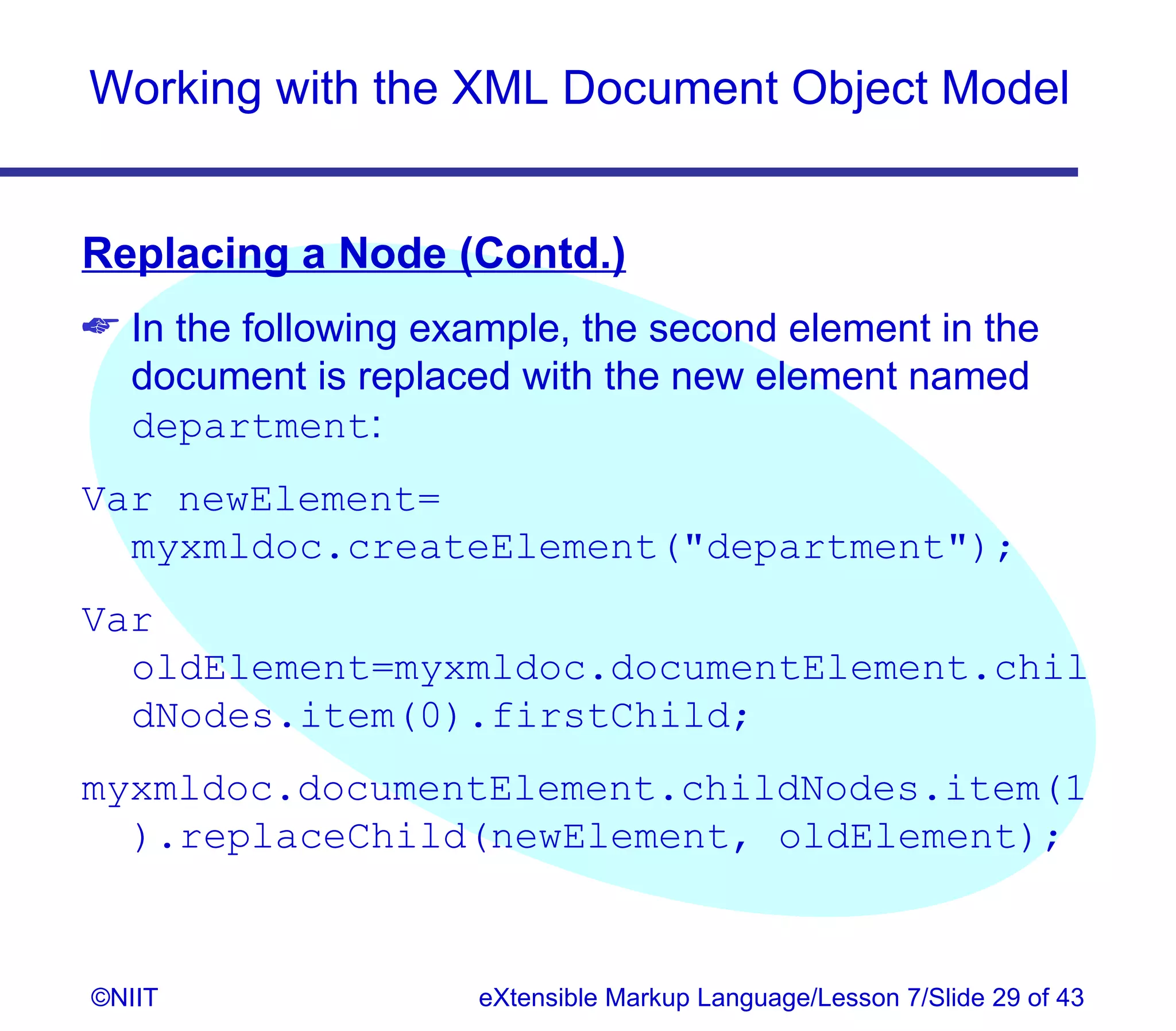

Replacing a Node (Contd.)
In the following example, the second element in the
document is replaced with the new element named
department:
Var newElement=
myxmldoc.createElement(department);
Var
oldElement=myxmldoc.documentElement.chil
dNodes.item(0).firstChild;
myxmldoc.documentElement.childNodes.item(1
).replaceChild(newElement, oldElement);

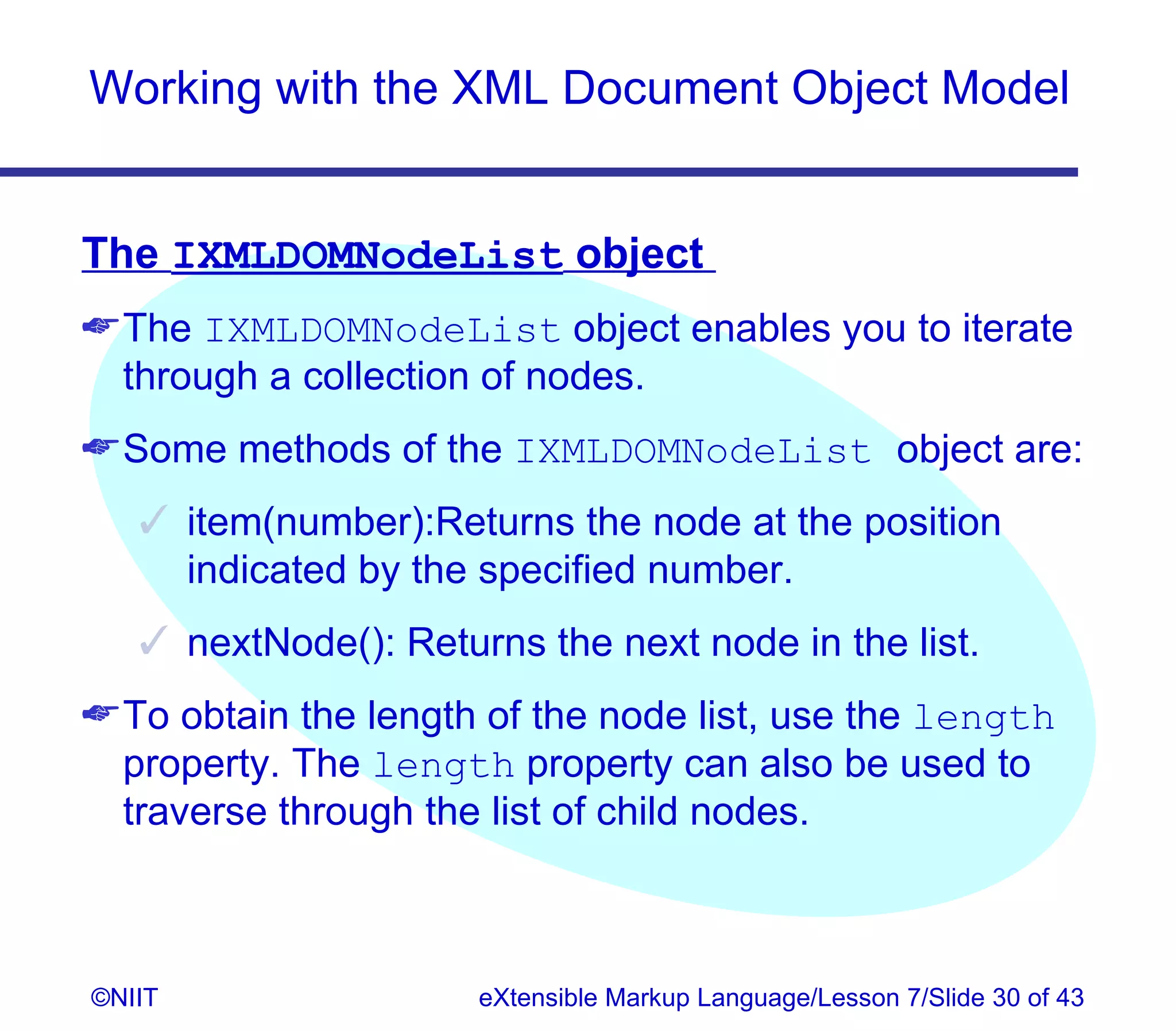

The IXMLDOMNodeList object
The IXMLDOMNodeList object enables you to iterate
through a collection of nodes.
Some methods of the IXMLDOMNodeList object are:
item(number):Returns the node at the position
indicated by the specified number.
nextNode(): Returns the next node in the list.
To obtain the length of the node list, use the length
property. The length property can also be used to
traverse through the list of child nodes.

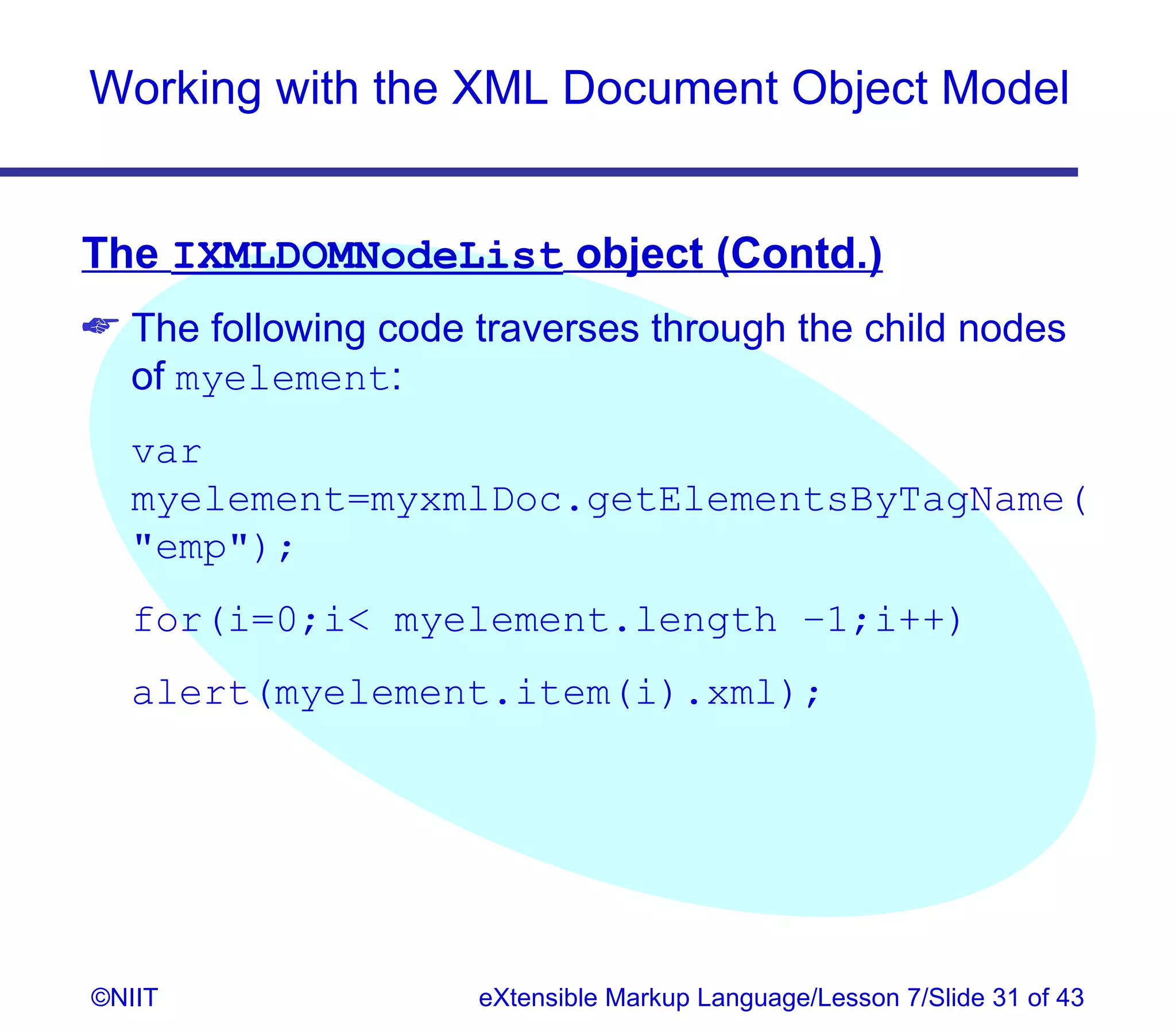

The IXMLDOMNodeList object (Contd.)
The following code traverses through the child nodes
of myelement:
var
myelement=myxmlDoc.getElementsByTagName(
emp);
for(i=0;i myelement.length –1;i++)
alert(myelement.item(i).xml);

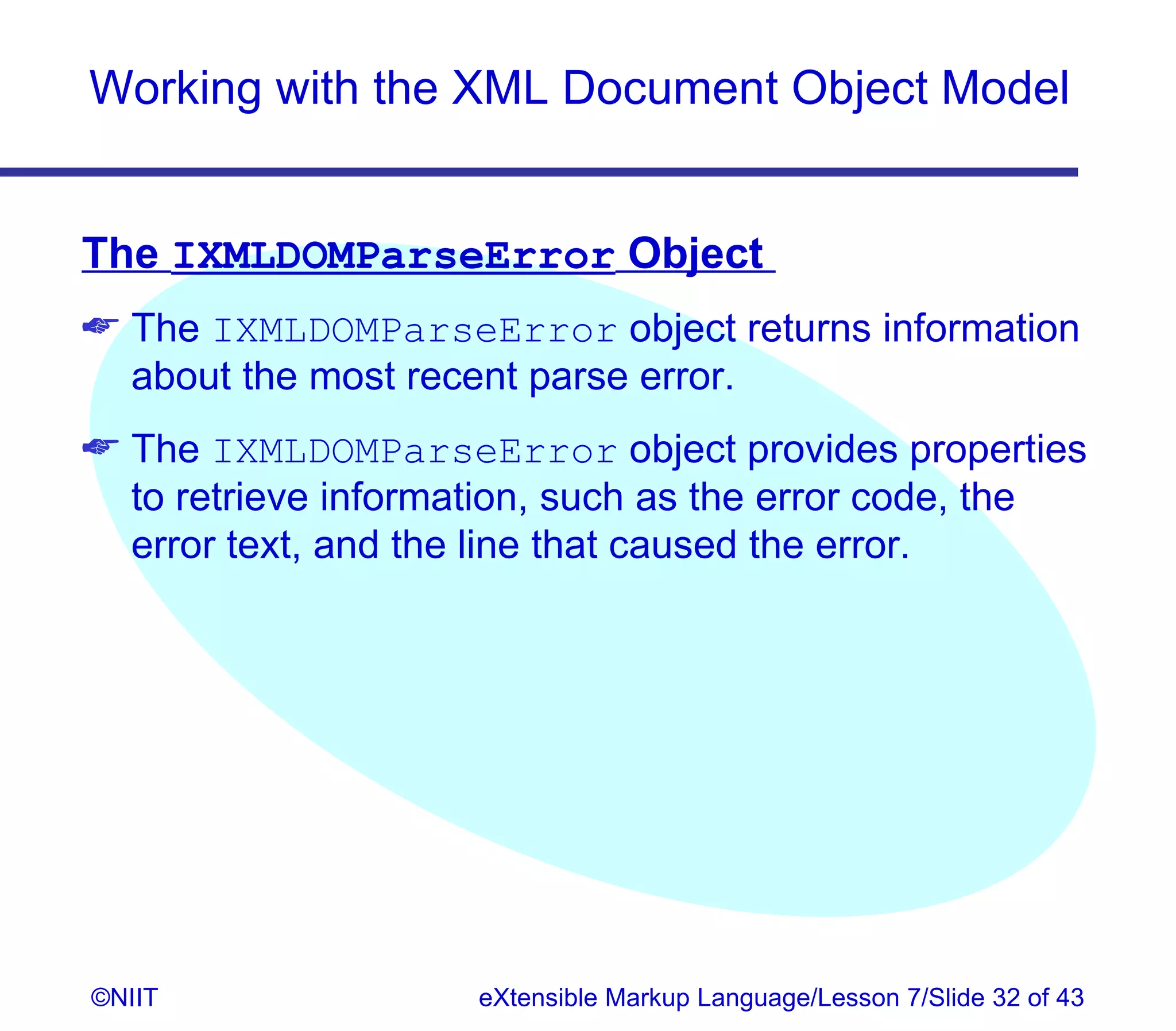

The IXMLDOMParseError Object
The IXMLDOMParseError object returns information
about the most recent parse error.
The IXMLDOMParseError object provides properties
to retrieve information, such as the error code, the
error text, and the line that caused the error.

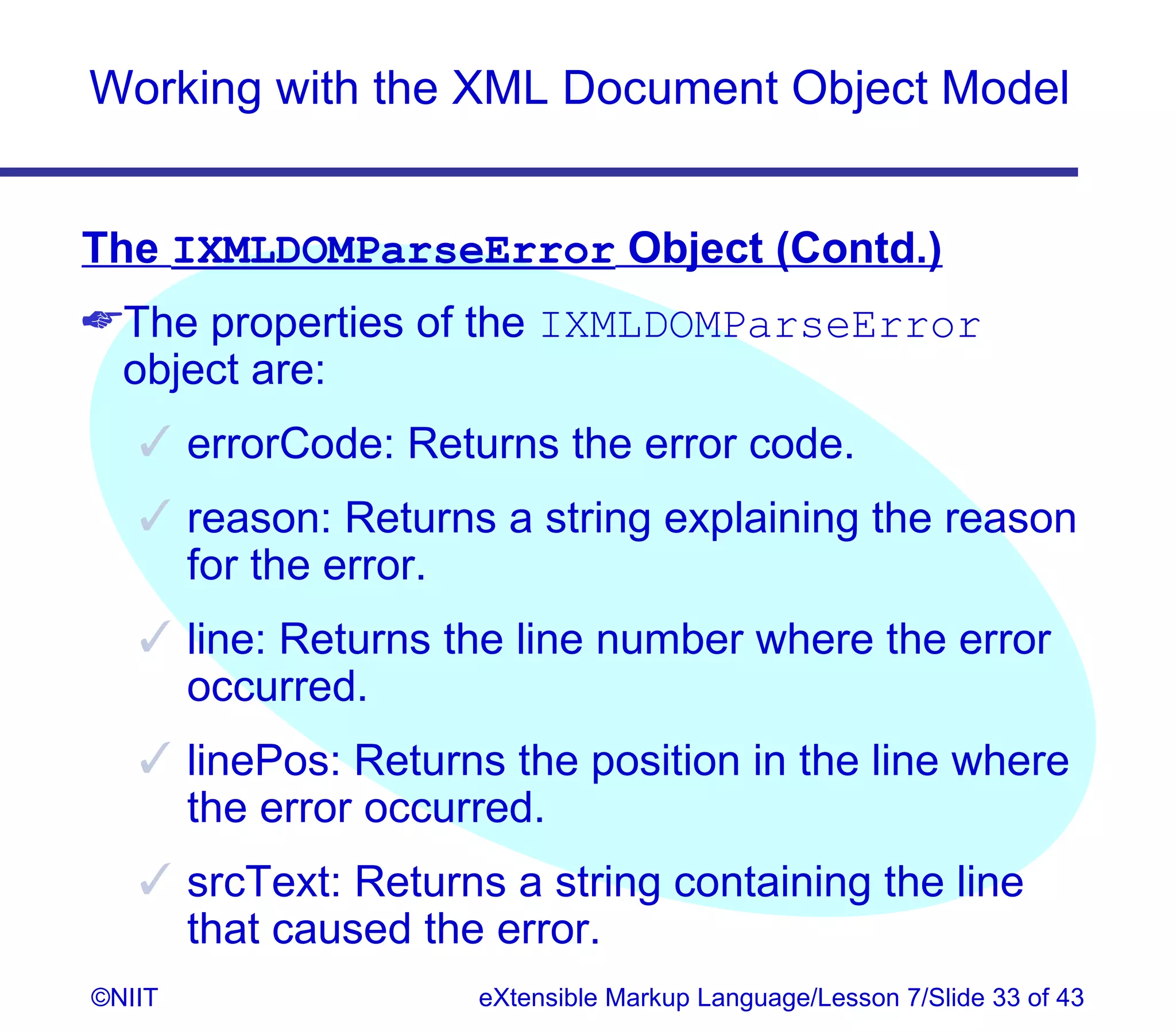

The IXMLDOMParseError Object (Contd.)
The properties of the IXMLDOMParseError
object are:
errorCode: Returns the error code.
reason: Returns a string explaining the reason
for the error.
line: Returns the line number where the error
occurred.
linePos: Returns the position in the line where
the error occurred.
srcText: Returns a string containing the line
that caused the error.

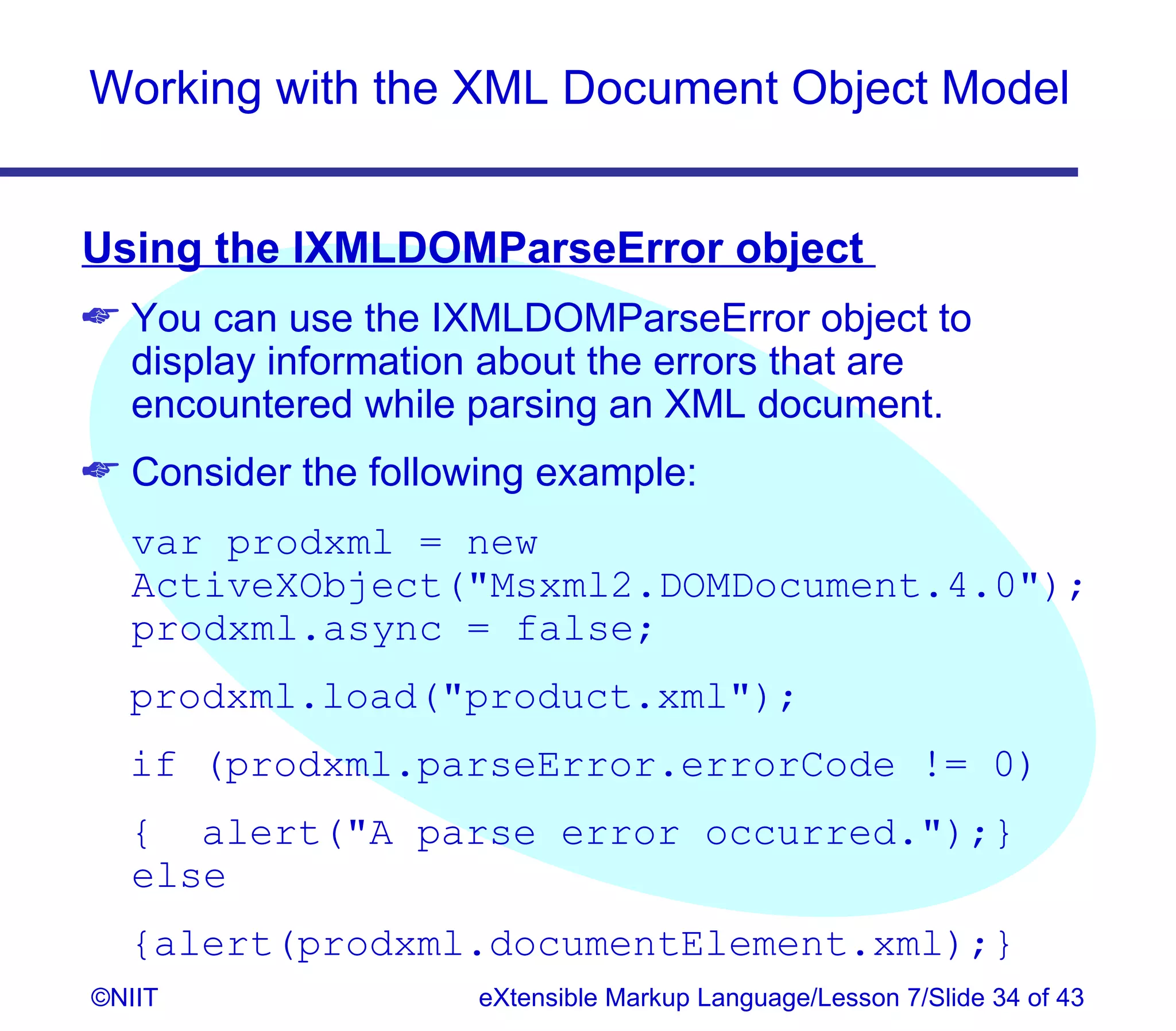

Using the IXMLDOMParseError object
You can use the IXMLDOMParseError object to
display information about the errors that are
encountered while parsing an XML document.
Consider the following example:
var prodxml = new
prodxml.async = false;
prodxml.load(product.xml);
if (prodxml.parseError.errorCode != 0)
{ alert(A parse error occurred.);}
else
{alert(prodxml.documentElement.xml);}

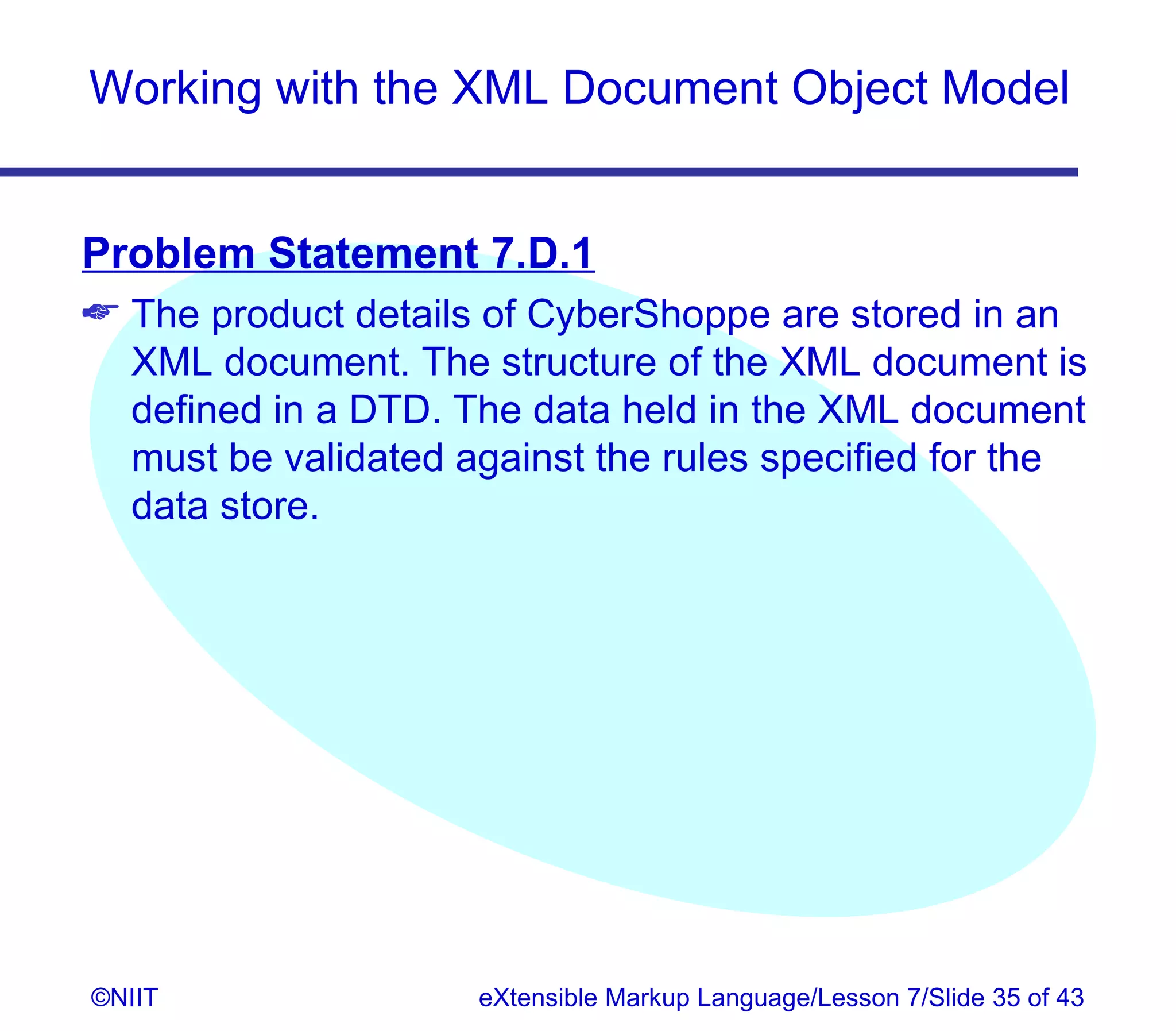

Problem Statement 7.D.1
The product details of CyberShoppe are stored in an
XML document. The structure of the XML document is
defined in a DTD. The data held in the XML document
must be validated against the rules specified for the
data store.

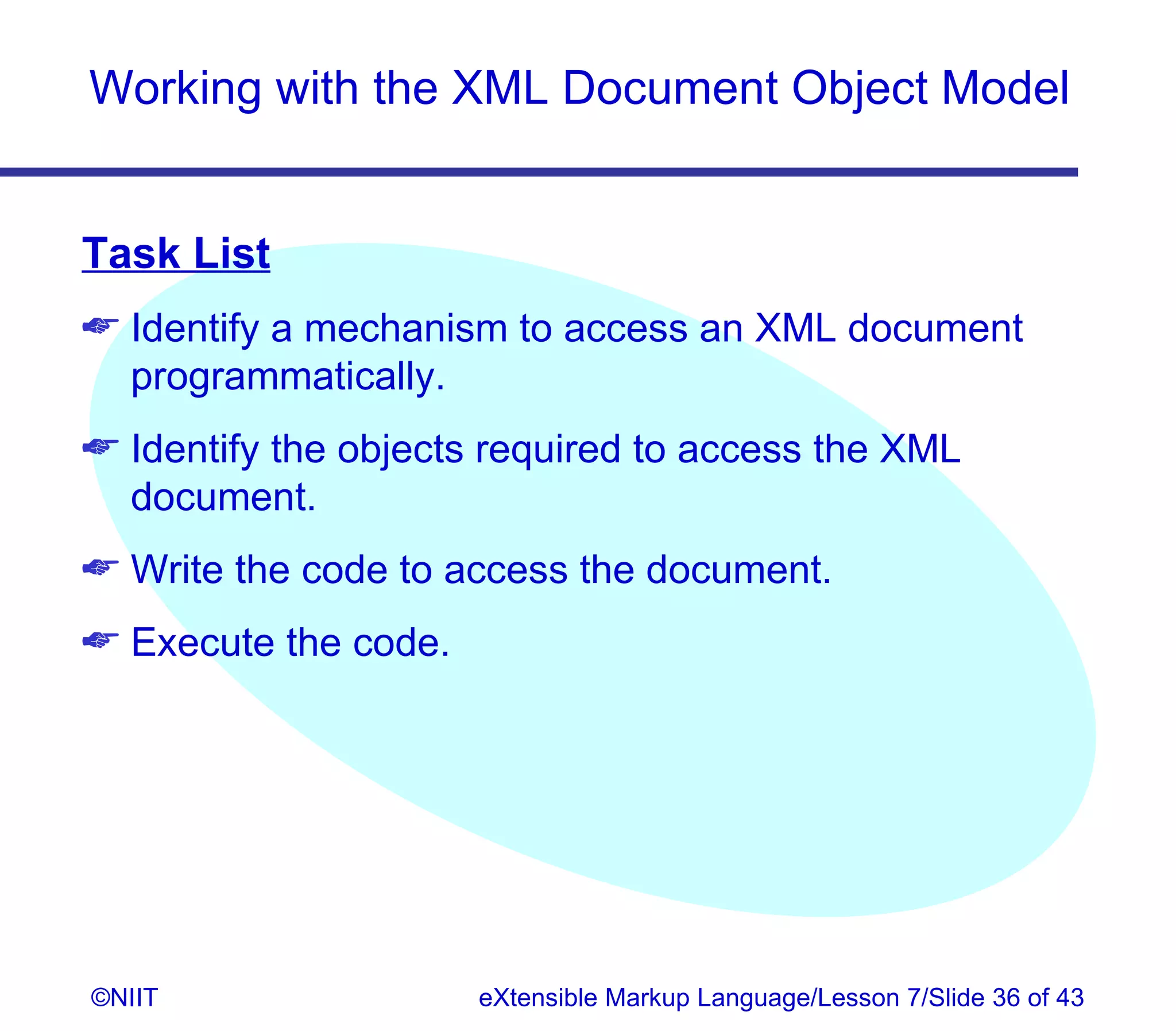

Task List
Identify a mechanism to access an XML document
programmatically.
Identify the objects required to access the XML
document.
Write the code to access the document.
Execute the code.

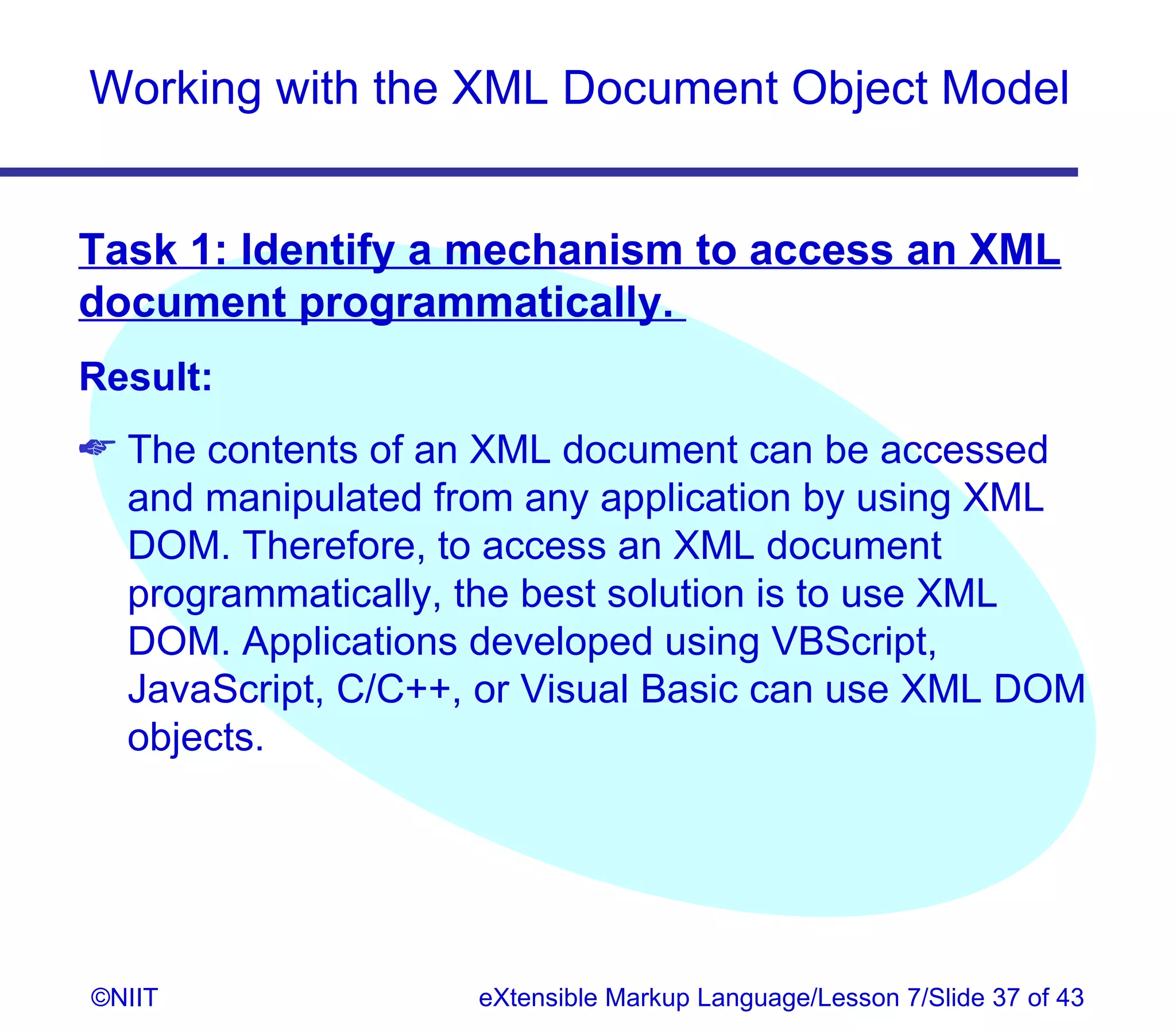

Task 1: Identify a mechanism to access an XML
document programmatically.
Result:
The contents of an XML document can be accessed
and manipulated from any application by using XML
DOM. Therefore, to access an XML document
programmatically, the best solution is to use XML
DOM. Applications developed using VBScript,
JavaScript, C/C++, or Visual Basic can use XML DOM
objects.

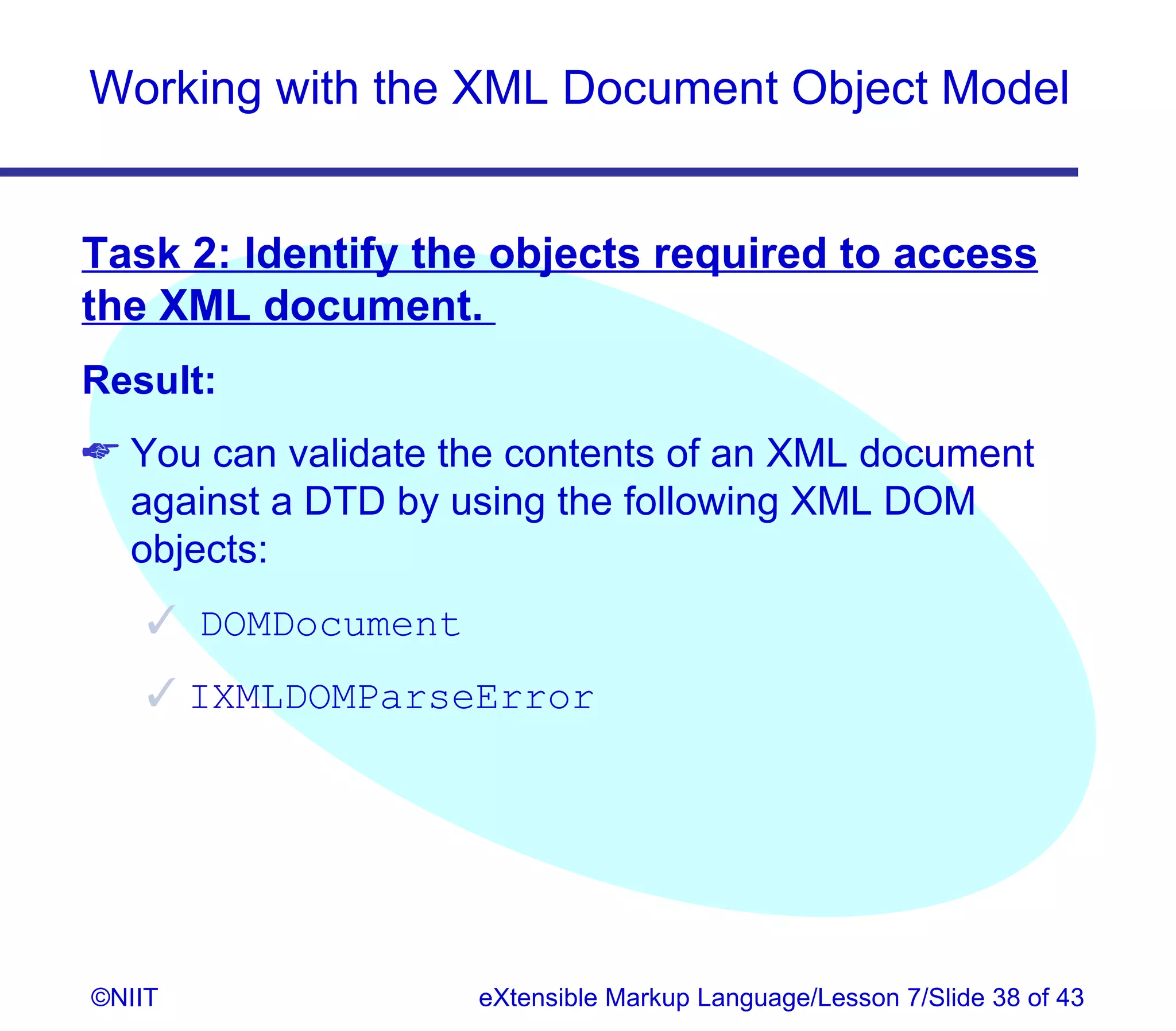

Task 2: Identify the objects required to access
the XML document.
Result:
You can validate the contents of an XML document
against a DTD by using the following XML DOM
objects:
DOMDocument
IXMLDOMParseError

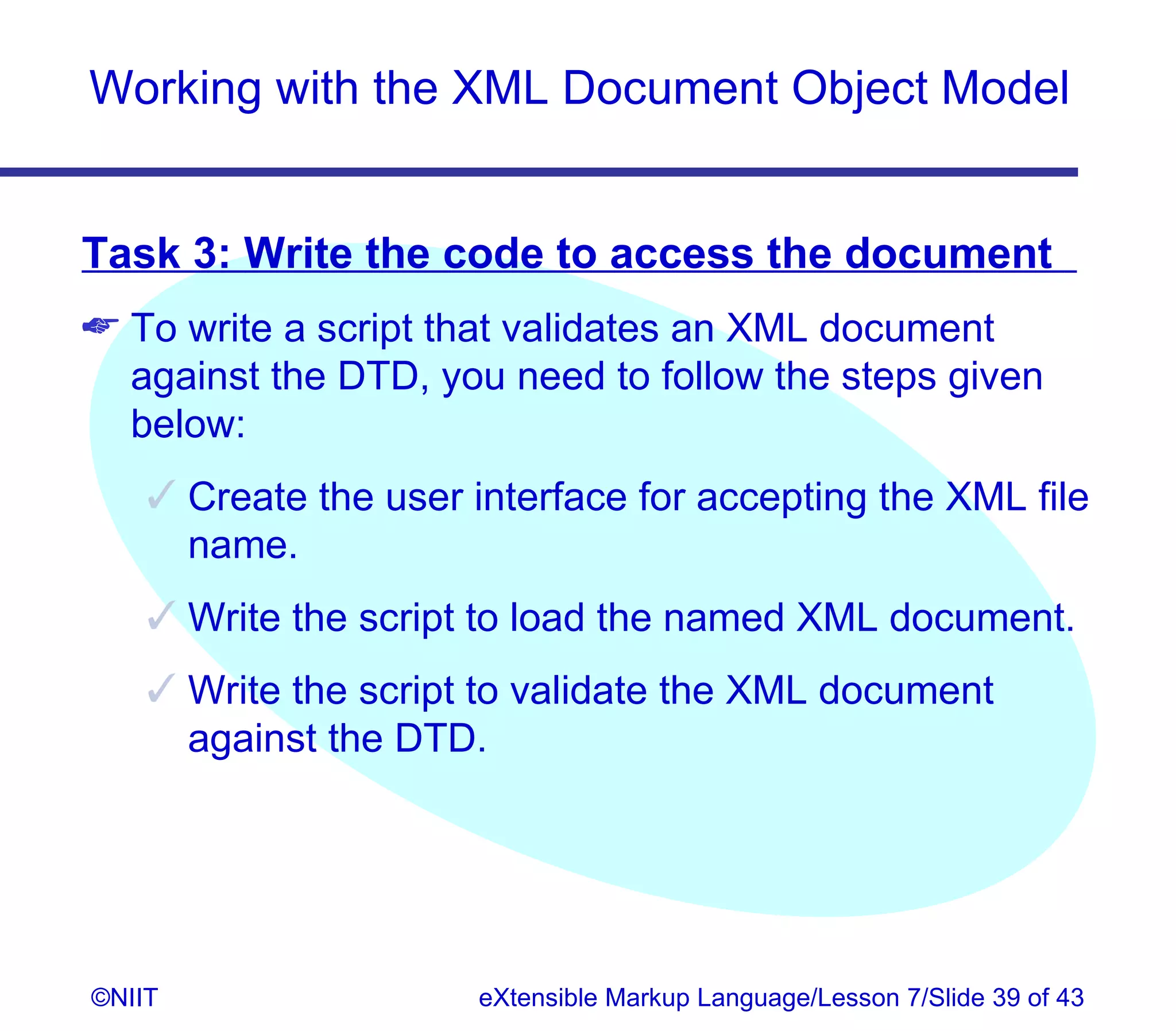

Task 3: Write the code to access the document
To write a script that validates an XML document
against the DTD, you need to follow the steps given
below:
Create the user interface for accepting the XML file
name.
Write the script to load the named XML document.
Write the script to validate the XML document
against the DTD.

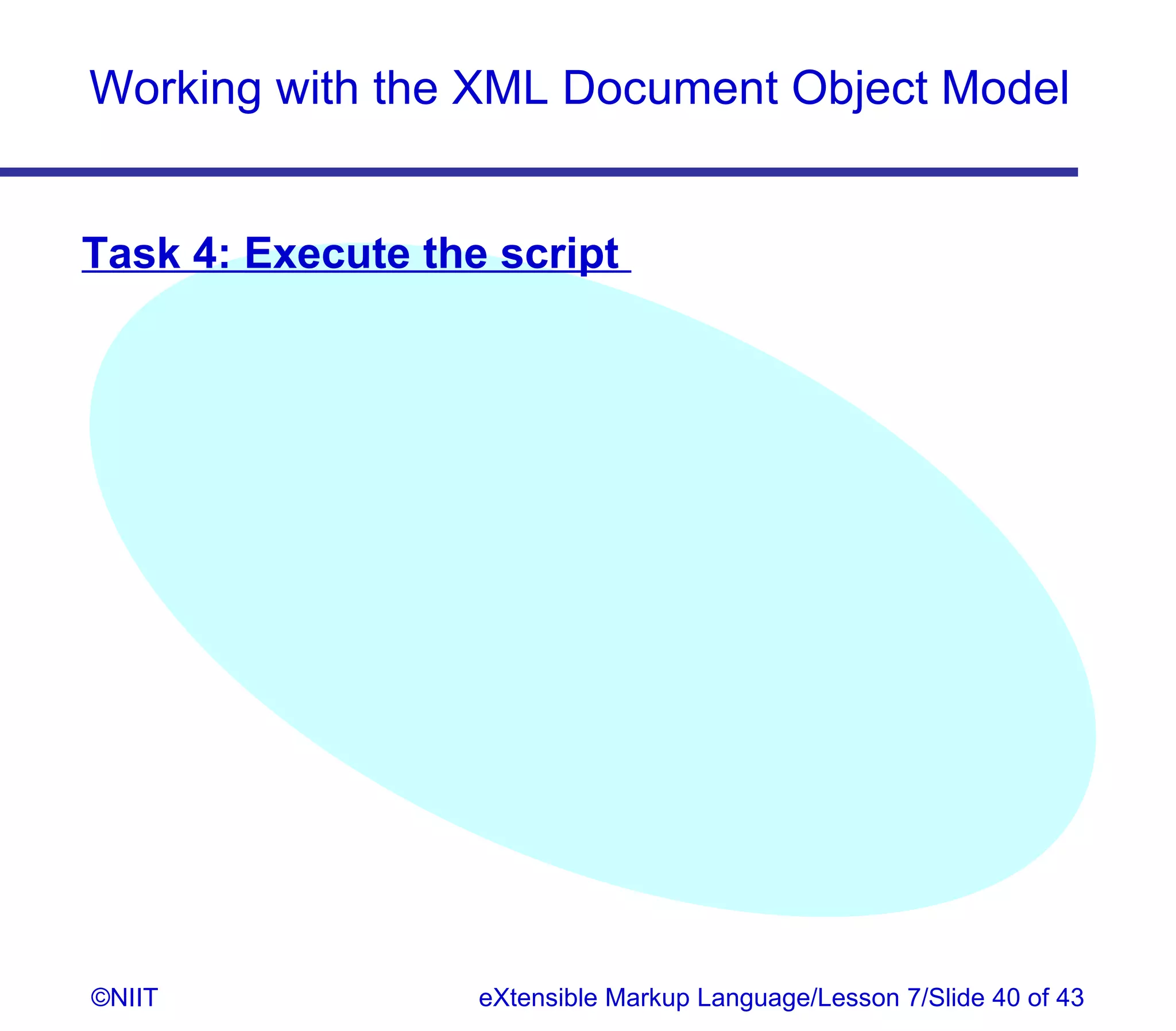

Task 4: Execute the script

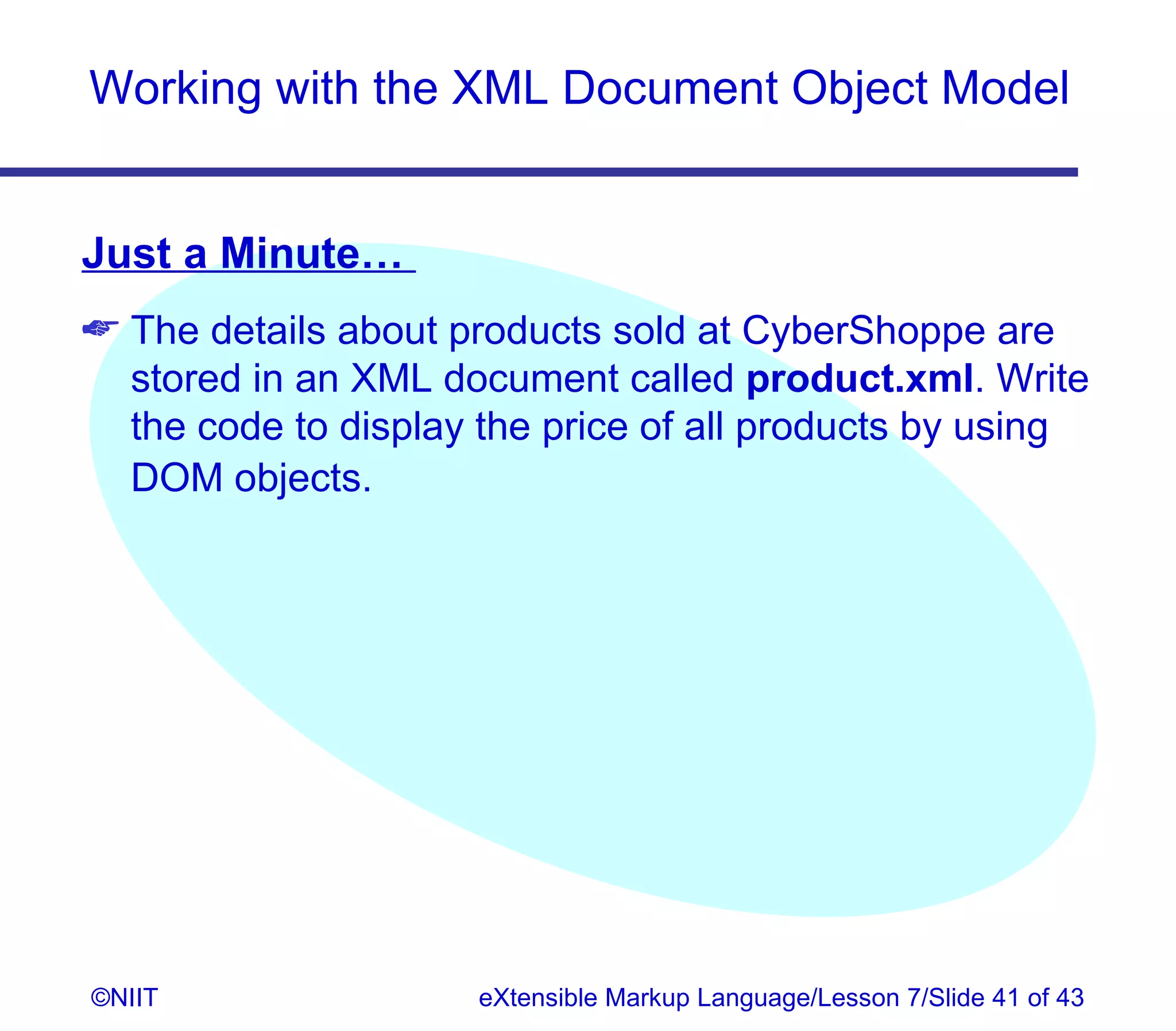

Just a Minute…
The details about products sold at CyberShoppe are
stored in an XML document called product.xml. Write
the code to display the price of all products by using
DOM objects.

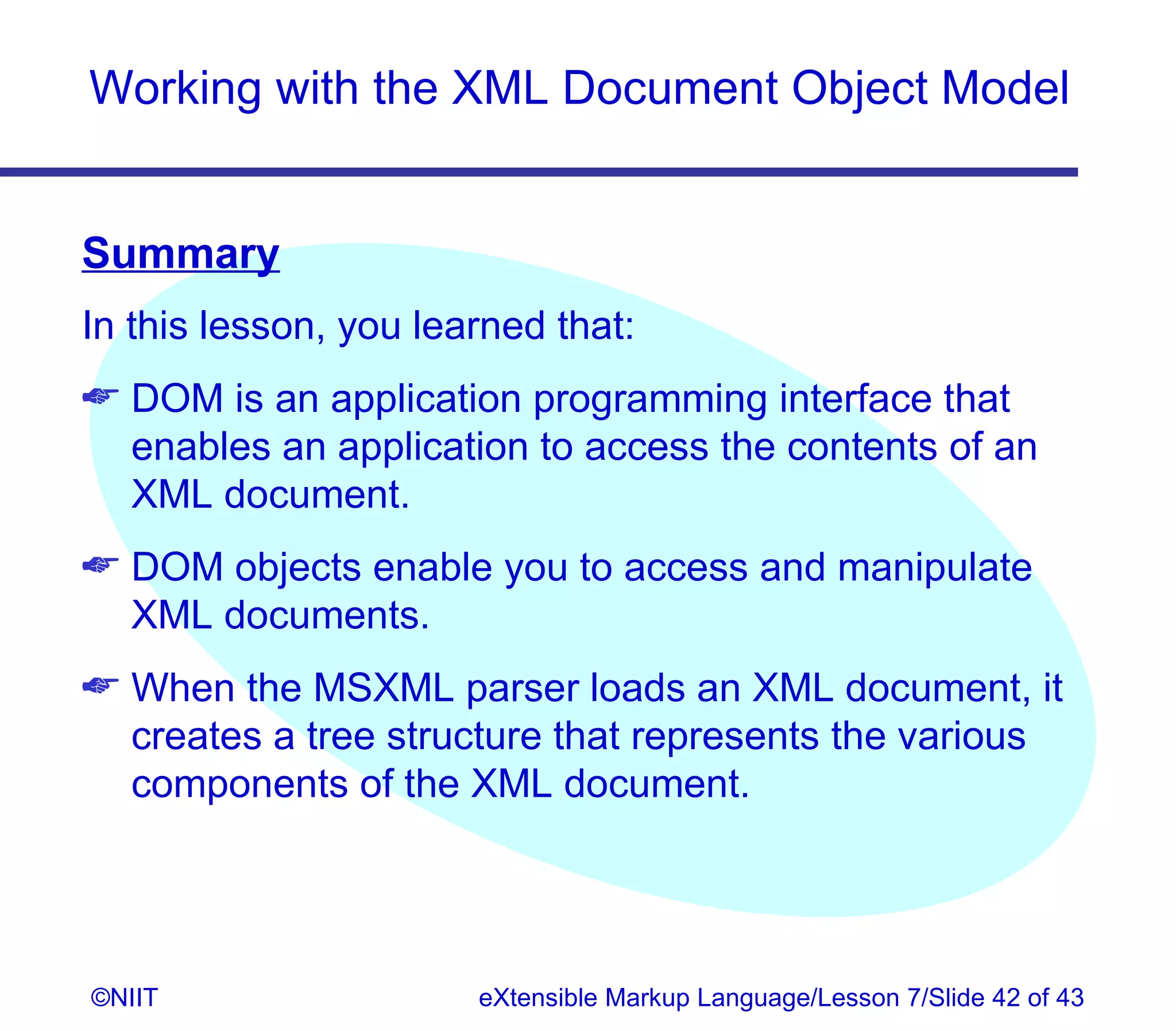

Summary
In this lesson, you learned that:
DOM is an application programming interface that
enables an application to access the contents of an
XML document.
DOM objects enable you to access and manipulate
XML documents.
When the MSXML parser loads an XML document, it
creates a tree structure that represents the various
components of the XML document.

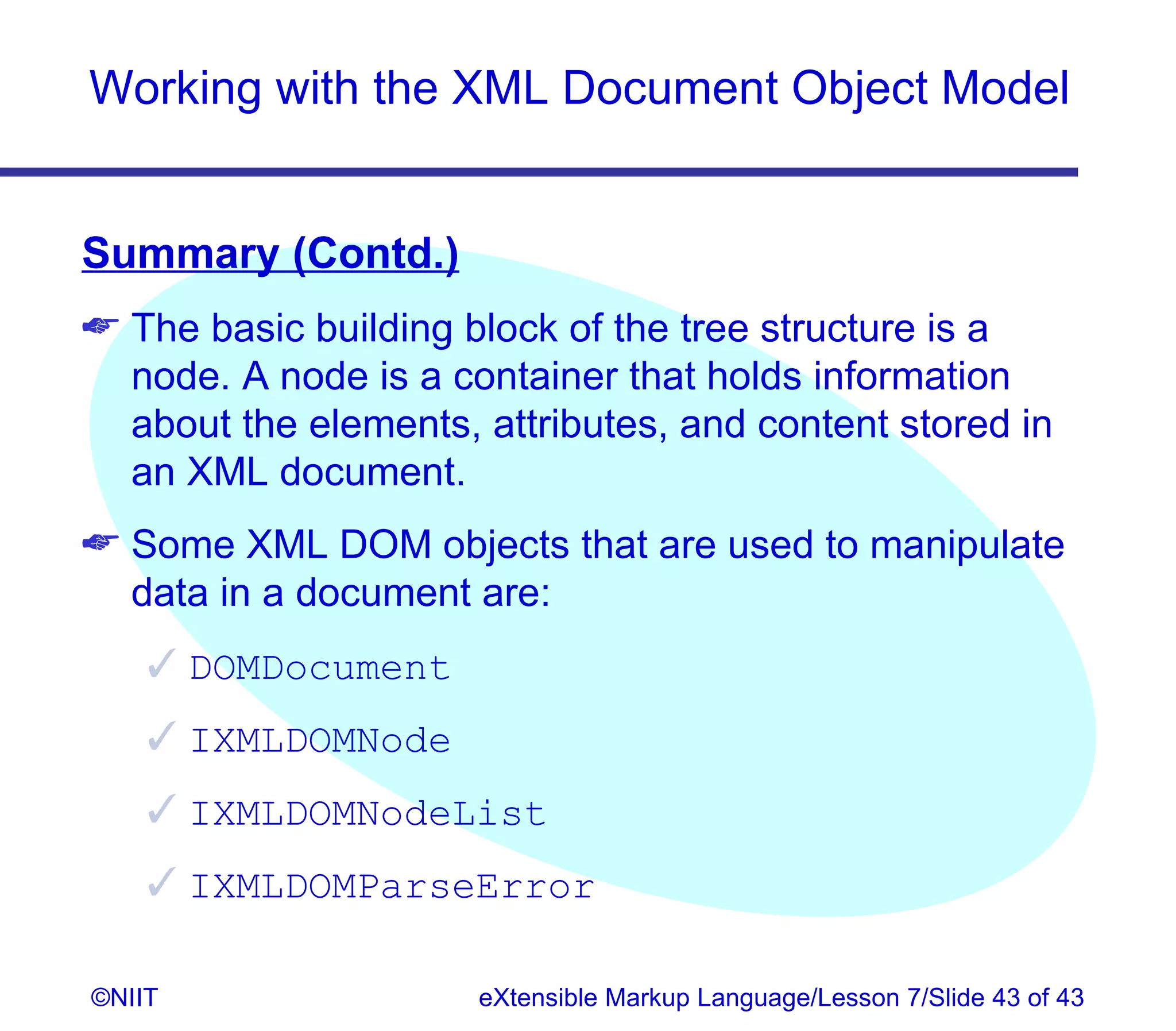

Summary (Contd.)
The basic building block of the tree structure is a
node. A node is a container that holds information
about the elements, attributes, and content stored in
an XML document.
Some XML DOM objects that are used to manipulate
data in a document are:
DOMDocument
IXMLDOMNode
IXMLDOMNodeList
IXMLDOMParseError

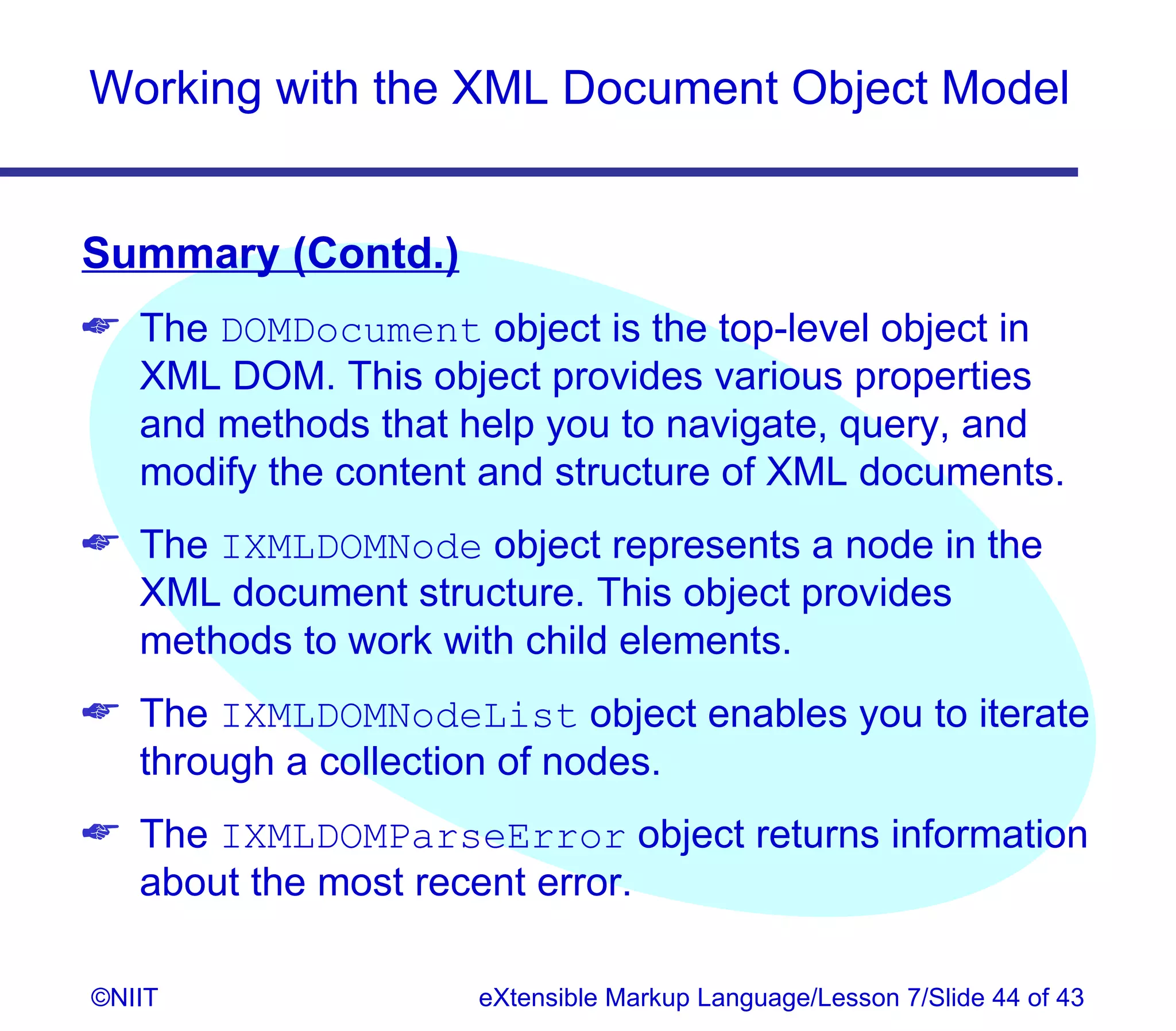

Summary (Contd.)
The DOMDocument object is the top-level object in
XML DOM. This object provides various properties
and methods that help you to navigate, query, and
modify the content and structure of XML documents.
The IXMLDOMNode object represents a node in the
XML document structure. This object provides
methods to work with child elements.
The IXMLDOMNodeList object enables you to iterate
through a collection of nodes.
The IXMLDOMParseError object returns information
about the most recent error.


04 sm3 xml_xp_07

More Related Content

What's hot

Similar to 04 sm3 xml_xp_07

More from Niit Care

Recently uploaded

04 sm3 xml_xp_07
