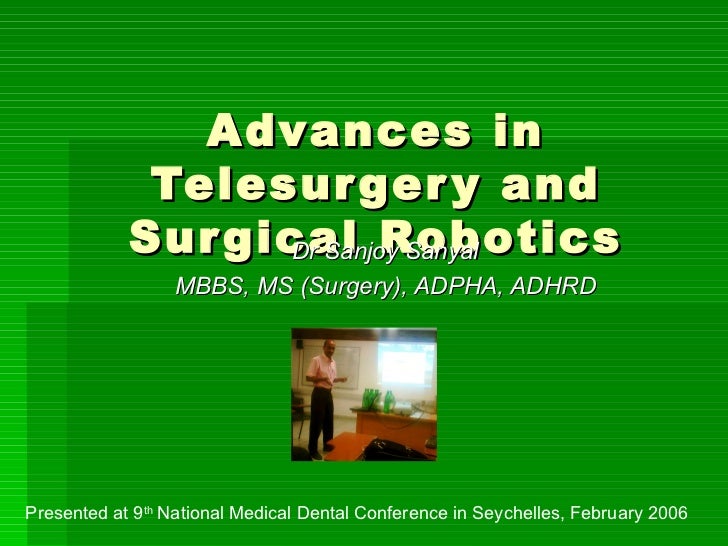

Advances in Telesurgery and Surgical Robotics Dr Sanjoy Sanyal MBBS, MS (Surgery), ADPHA, ADHRD Presented at 9 th  Nationa...
Preface (added 2009) <ul><li>This PPT represents developments in the field during late ‘90s and early 2000s, in: </li></ul...
The research pioneers  <ul><li>Stanford Research Institute (SRI) @ Stanford University School of Medicine </li></ul><ul><l...
World’s first telesurgery <ul><li>September 2001 : Tele- chole </li></ul><ul><li>Prof Jacques Marescaux , New York & Europ...
Background <ul><li>Traditional surgery </li></ul><ul><li>Tri-dimensional </li></ul><ul><li>Cognitive input </li></ul><ul><...
Definitions <ul><li>Telepresence surgery : Computerized interface @ surgical workstation  ↔  remote operative site; force ...
Definitions – cont’d <ul><li>Telerobotics : Remote control with a robotic arm, in conjunction with a laparoscope </li></ul...
Definitions – cont’d <ul><li>Telementoring : Experienced surgeon acts as tutor / instructor ( preceptor ) for remote surge...
Technical aspects <ul><li>Image transmission : T1 transmission (H-320 compression standard) </li></ul><ul><ul><li>Fibre-op...
Haptic <ul><li>Force reflection / feedback; Graduated tactile input </li></ul><ul><ul><li>–  resistance at remote site is ...
Robotic vs. human arm <ul><li>DOF : Number of ways an arm can move </li></ul><ul><li>Human arm : 7-DOF </li></ul><ul><li>H...
Telesurg dynamics @ MIT <ul><li>Surgeon’s fingers placed in rings of instruments  </li></ul><ul><li>Rings are connected to...
Telesurg components @ MIT
Surgeon’s master tool handle @ MIT
Surgeon’s master tool handle @ MIT
Master phantom haptic interface arm
Slave phantom haptic interface arm
Tele-operation slave tool
Tele-operation slave tool
Tele-operational details – Tool
Tele-operational details – Interchangeable tool tips
Experimental task - grasp / transfer
Experimental task - Grasp and transfer with orientation
Experimental task - Clip application
Experimental task – grasper / gripper and shear / scissors
Lap experiment box @ MIT
Lap simulator-1 @ MIT
Lap simulator-2 @ MIT
Dynamics of robotics @ UC <ul><li>Surgeon  – remote location – TV console – set of handheld controls ~ videogame joysticks...
Details of robots <ul><li>‘ Robo-doc ’: 2 robots working in concert </li></ul><ul><ul><li>Holding robots </li></ul></ul><u...
Holding robots <ul><li>Pair of large robotic arms  </li></ul><ul><li>Hydraulic-actuated </li></ul><ul><li>Sits on moveable...
Holding robots – cont’d <ul><li>Holds 2 nd  robot, wheels instruments into position by patient’s side </li></ul><ul><li>Gu...
Companion / Milli-robots / Robotic manipulators <ul><li>Sterile, disposable, steel, mm-scale, fingertip-sized  </li></ul><...
Companion robot – cont’d <ul><li>Inserted into body for actual surgical tasks (cutting, suturing) – 10-20 mm incisions </l...
Setup @ UC Berkeley
Equipment @ UCB
Robotic manipulator @ UCB
Mini robot controls @ UCB Roll-pitch-roll ‘wrist’, gripper and multi-fingered manipulators
Robotic endo-manipulator Endo-platform with biopsy forceps
Minute threading
Threaded robotic instruments – knot tying
2-G RTWL @ UCSF In a joint project between  RIML  of  UCB  and  Department of Surgery  of  University of California San Fr...
Lap interface @ UCSF
4-DOF lap haptic interface
Robotic Cardiac Surgery @ EHIRC  <ul><li>Escort Heart Inst. Research Centre in New Delhi, India  </li></ul><ul><li>Impleme...
Surgeon’s console @ EHIRC <ul><li>Display system : 3-D pictures of chest cavity </li></ul><ul><li>Surgeon  sits at console...
Robotic manipulators @ EHIRC <ul><li>Robot is not autonomous; surgeon-controlled  </li></ul><ul><li>Hold tiny instruments,...
IMA – LAD CABG
Totally endoscopic CABG  <ul><li>Advantages </li></ul><ul><ul><li>Only 3-incisions, each 1 cm on the side and lower chest ...
Technical innovations  <ul><li>Teletactation (Tactile feedback) </li></ul><ul><li>CyberGlove ®  with CyberTouch </li></ul>...
Teletactation – Tactile feedback <ul><li>Sensing tactile information through  tactile sensors  that transmit feel of tissu...
CyberTouch – CyberGlove ® <ul><li>Vibro-tactile, thermal simulators on each  finger  and  palm </li></ul><ul><li>Tactile f...
CyberGlove ® <ul><li>Flexible sensors  measure position  /  movement  of  fingers  and  wrist </li></ul>
Dextrous master glove <ul><li>Thumb ,  index ,  wrist  flexion sensors and wrist rotation sensor </li></ul><ul><li>Senses ...
Spatial cognition – Hand assist in telesurgery Non-dominant hand in-vivo possibly enhances spatial skills through tactile ...
Lap chole simulation Simulated fat and fascia Dissected away; cystic duct clipped
Lap chole simulation – cont’d Cystic artery and duct divided successfully in simulated conditions
Karlsruhe Gynec endo surgery simulations
Gynec surgery simulations – cont’d http://www- kismet.iai.fzk.de/VRTRAIN/phD_main.html   http://www- kismet.iai.fzk.de/VRT...
Dextrous mini robots <ul><li>1 – Camera attachment </li></ul><ul><li>2 – Equipped with a needle for biopsy </li></ul><ul><...
Summary <ul><li>Technically demanding, labor intensive, time consuming, expensive research </li></ul><ul><li>Learning curv...
Future applications <ul><li>Emergency trauma care  </li></ul><ul><ul><li>–  1 st  ‘Golden Hour’ </li></ul></ul><ul><li>Bat...
Cutting edge research today, surgical technology tomorrow
Conclusion <ul><li>“ Science knows no country, because knowledge belongs to humanity, and is the torch which illuminates t...
