Openstack in action2 enovance- openstack live-demo 31-05-12

  1. 1. OpenStack Live DemoLoïc Dachary – Chief Research Officer loic@enovance.comMay 31, 2012 1

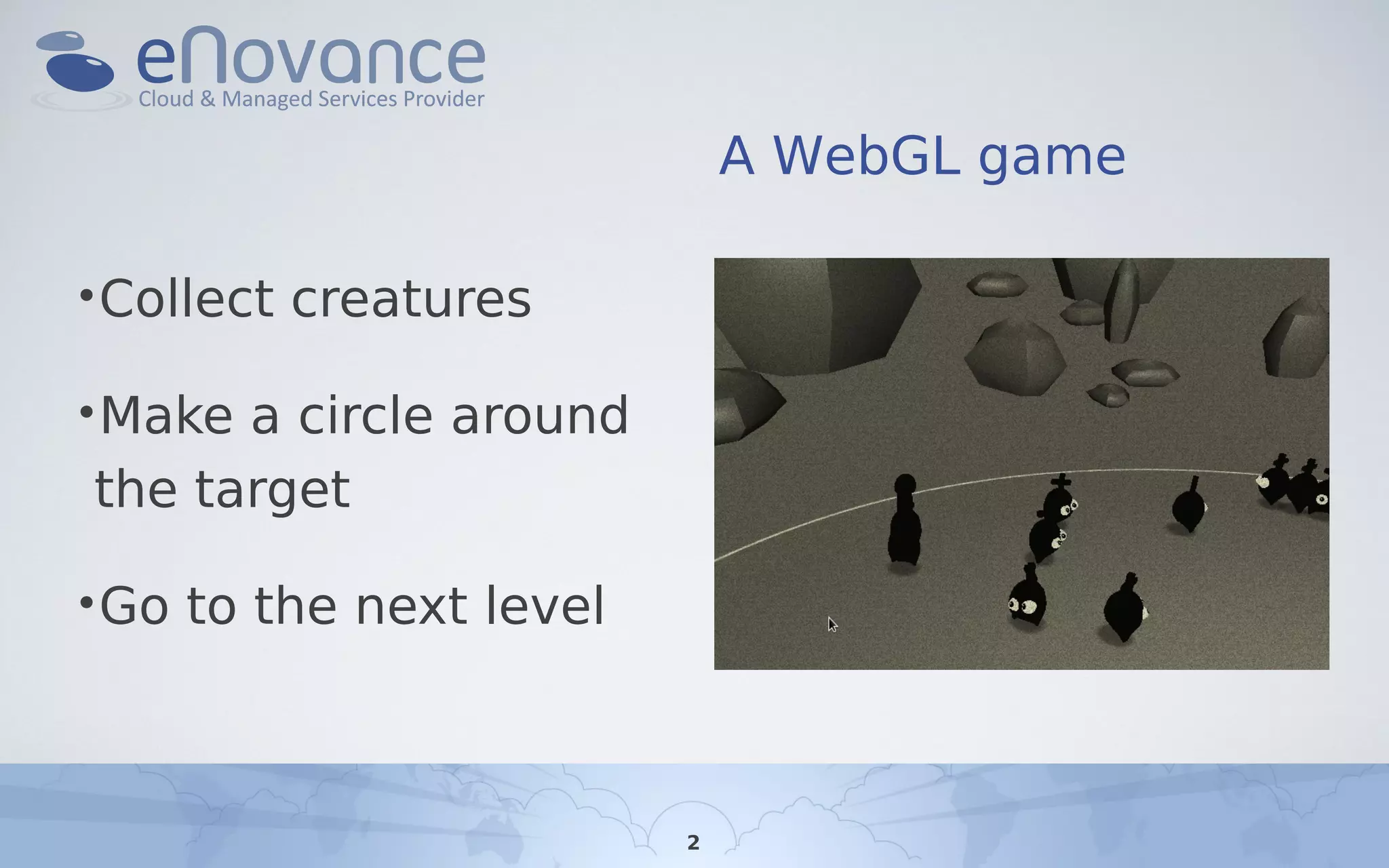

  2. 2. A WebGL game•Collect creatures•Make a circle aroundthe target•Go to the next level 2

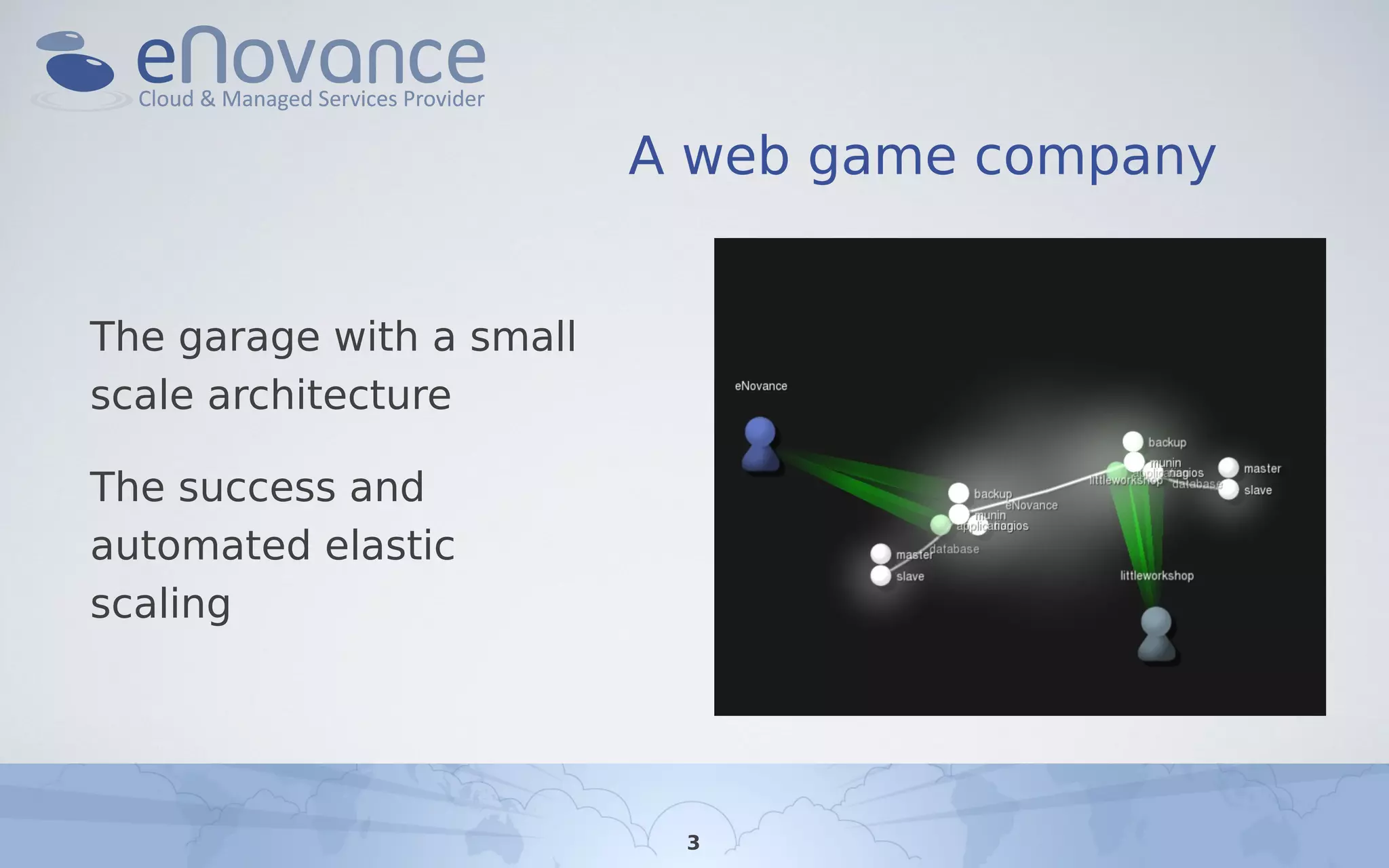

  3. 3. A web game companyThe garage with a smallscale architectureThe success andautomated elasticscaling 3

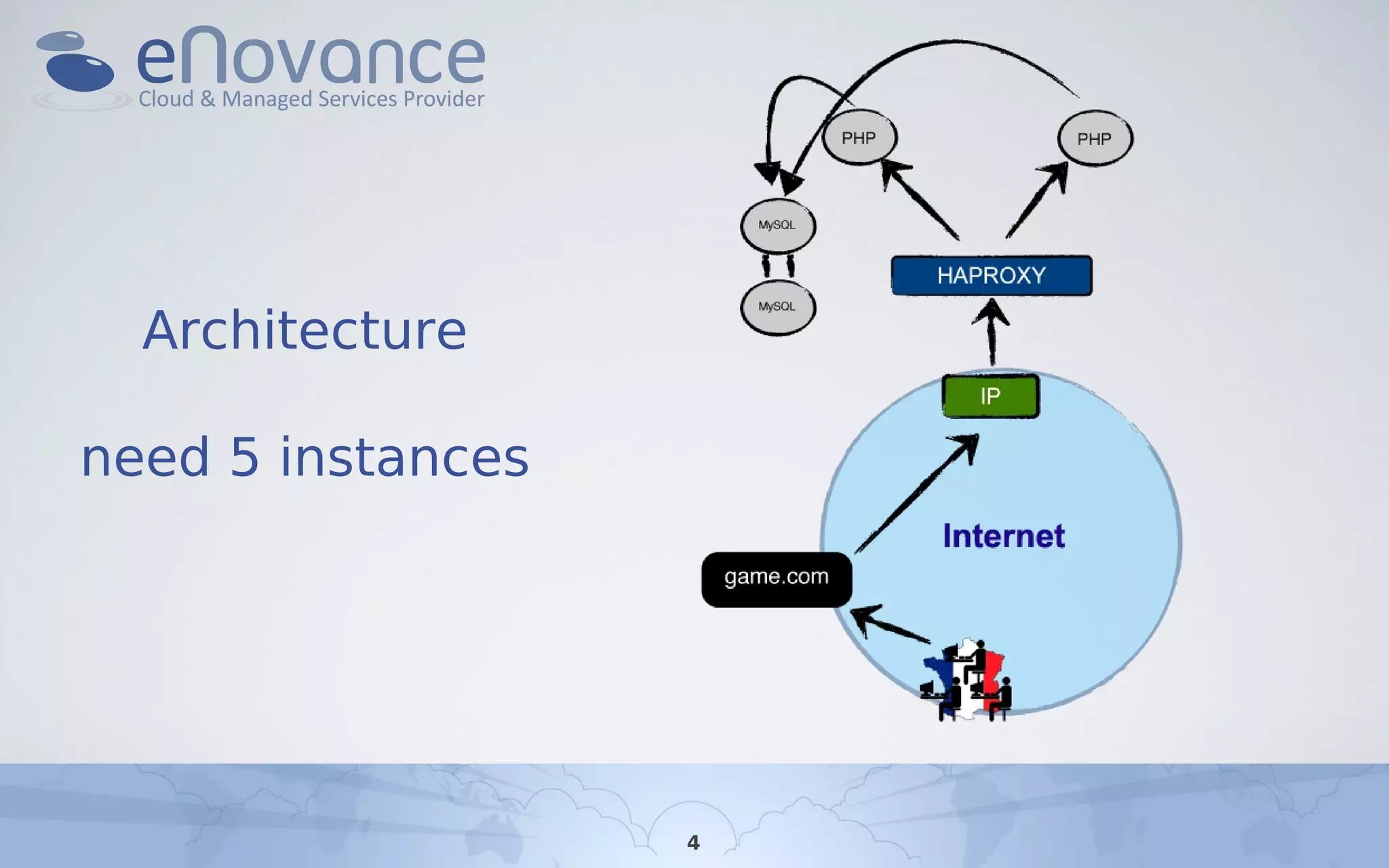

  4. 4. Architectureneed 5 instances 4

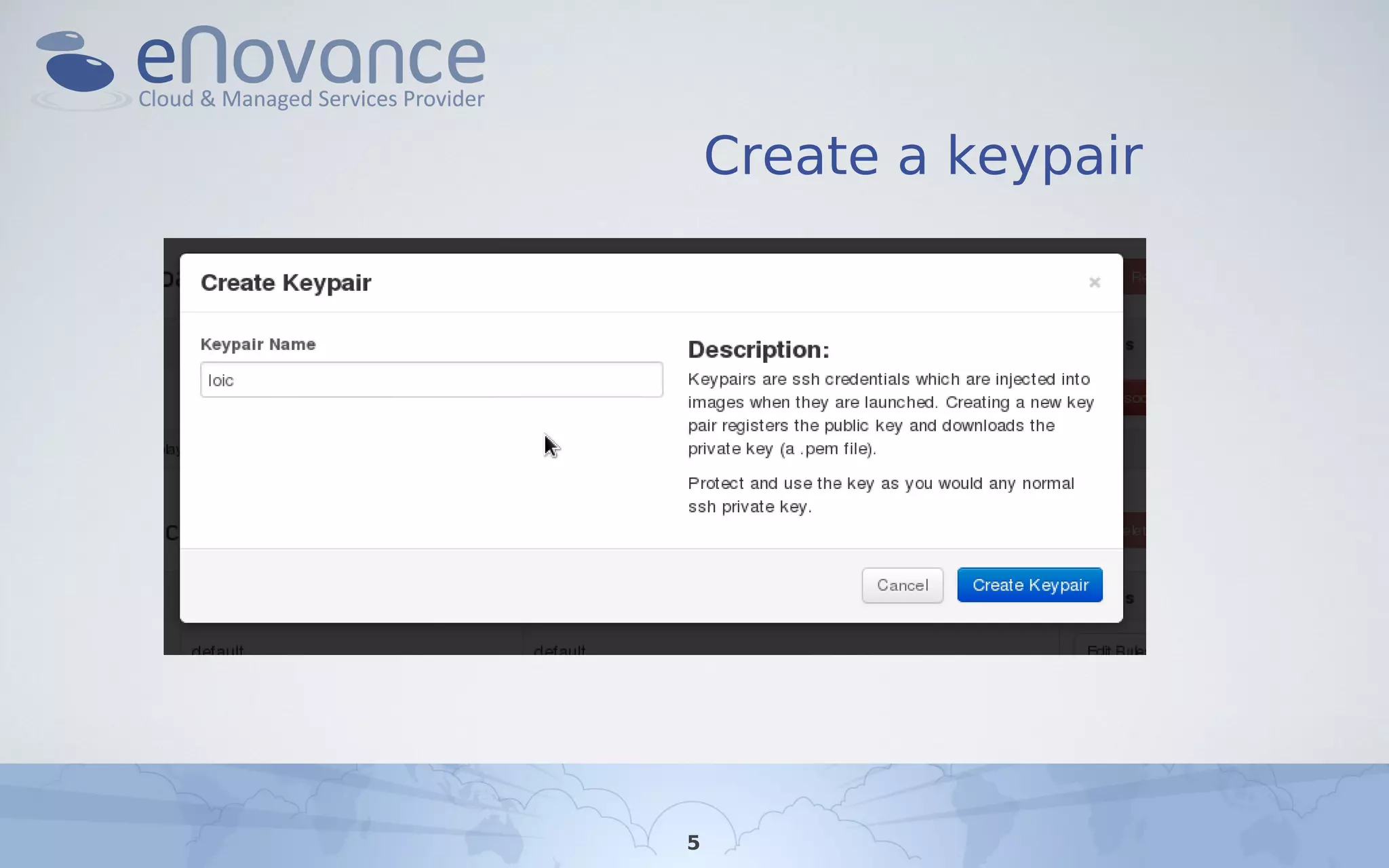

  5. 5. Create a keypair5

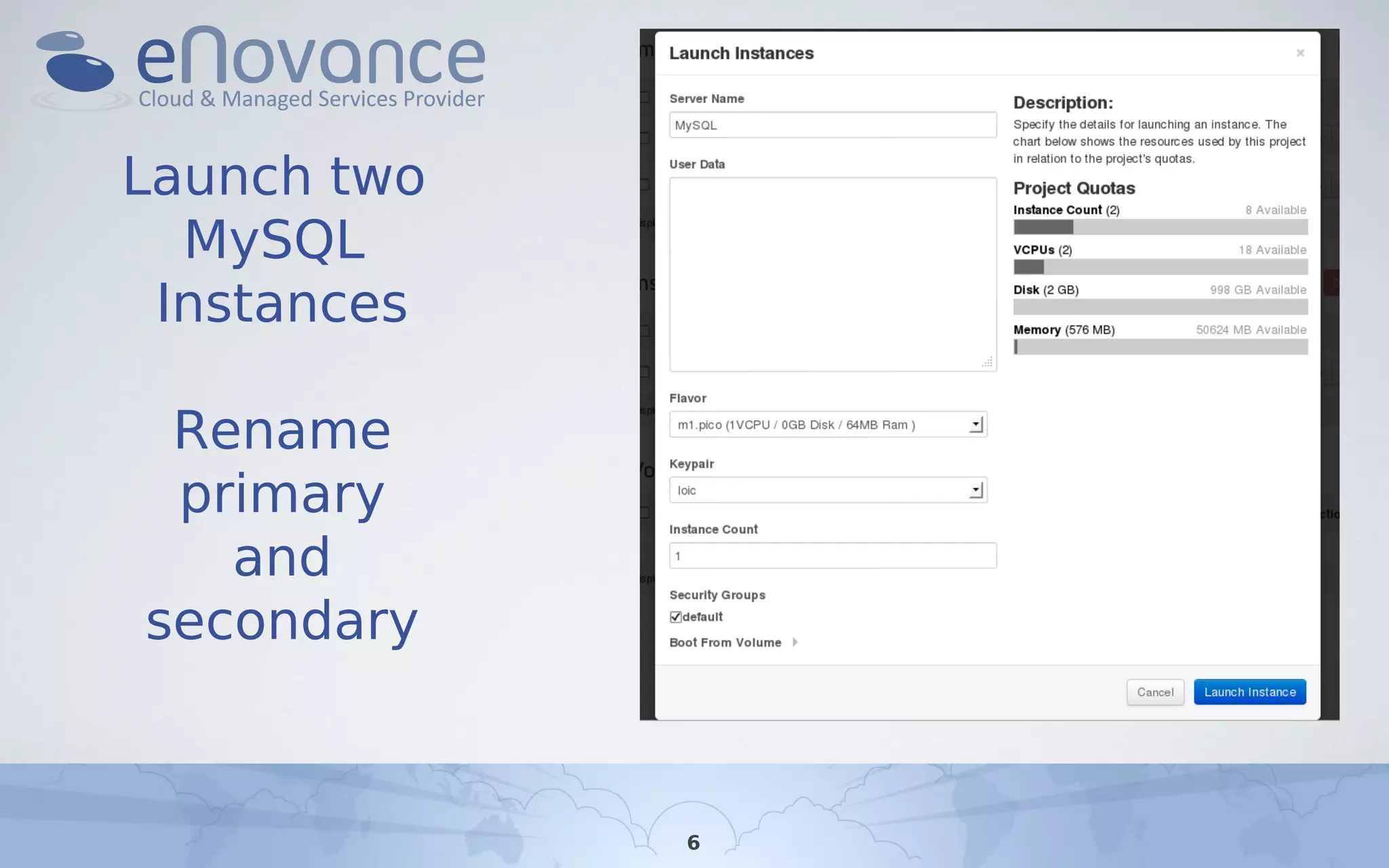

  6. 6. Launch two MySQL Instances Rename primary andsecondary 6

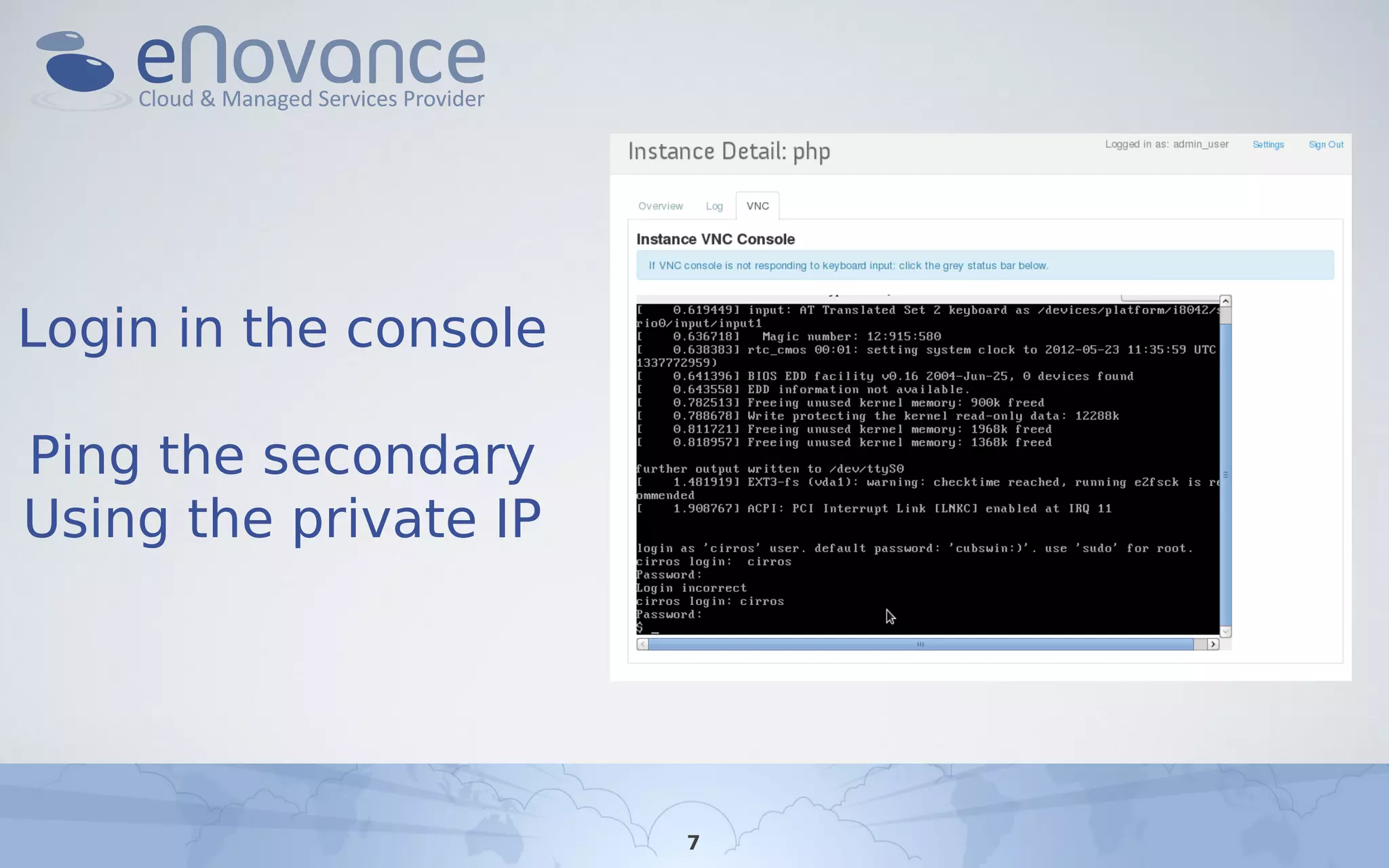

  7. 7. Login in the consolePing the secondaryUsing the private IP 7

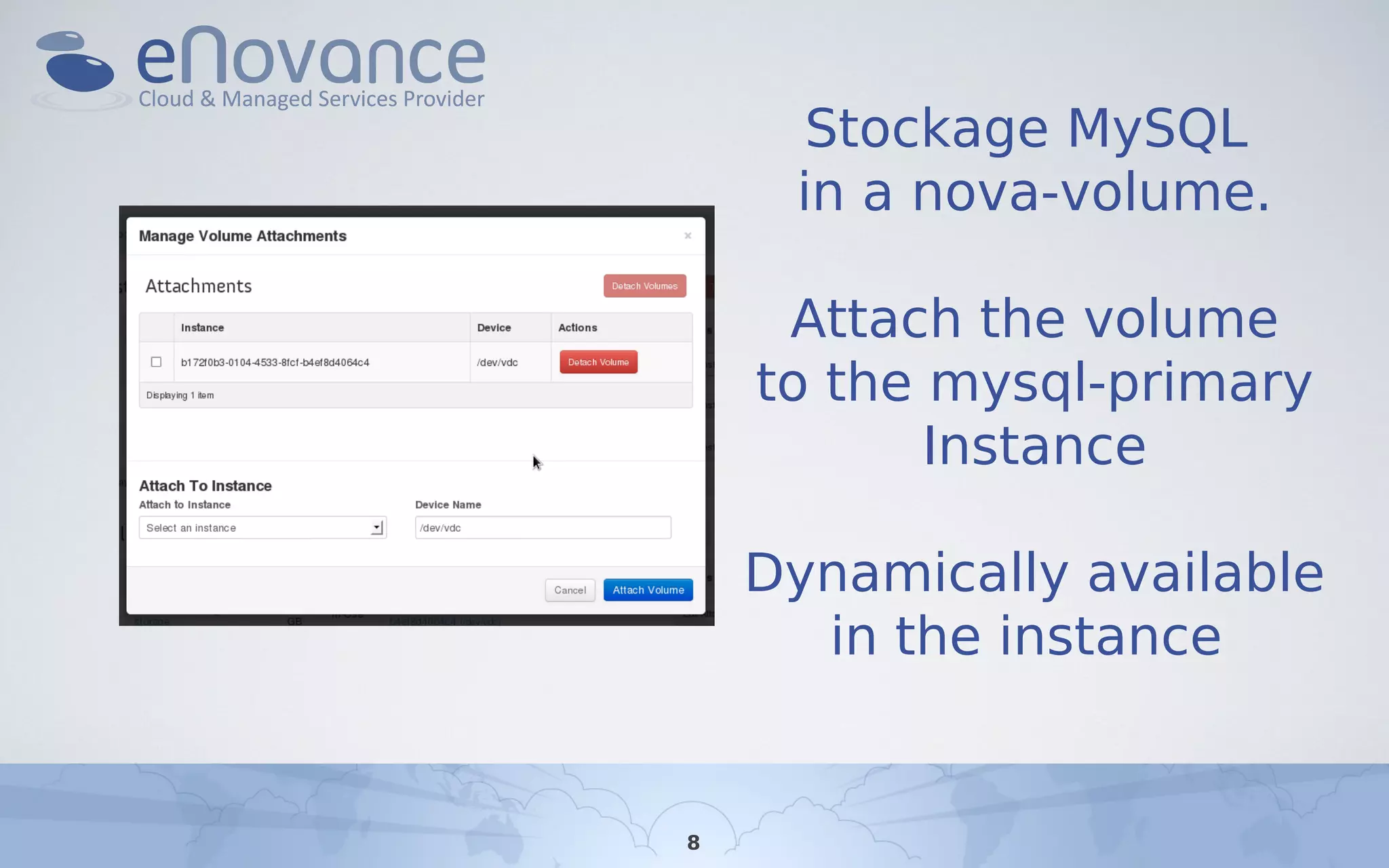

  8. 8. Stockage MySQL in a nova-volume. Attach the volume to the mysql-primary Instance Dynamically available in the instance8

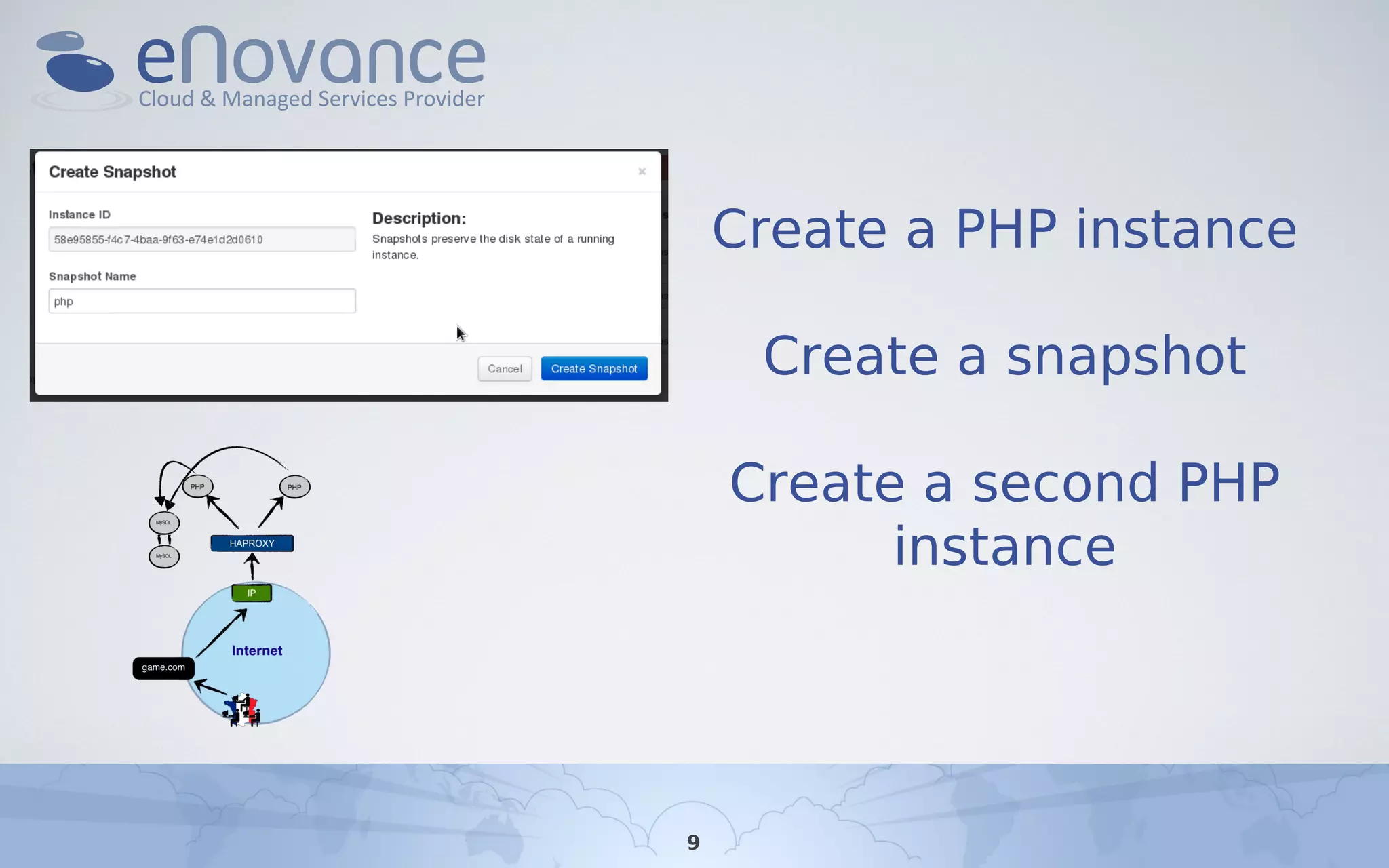

  9. 9. Create a PHP instance Create a snapshot Create a second PHP instance9

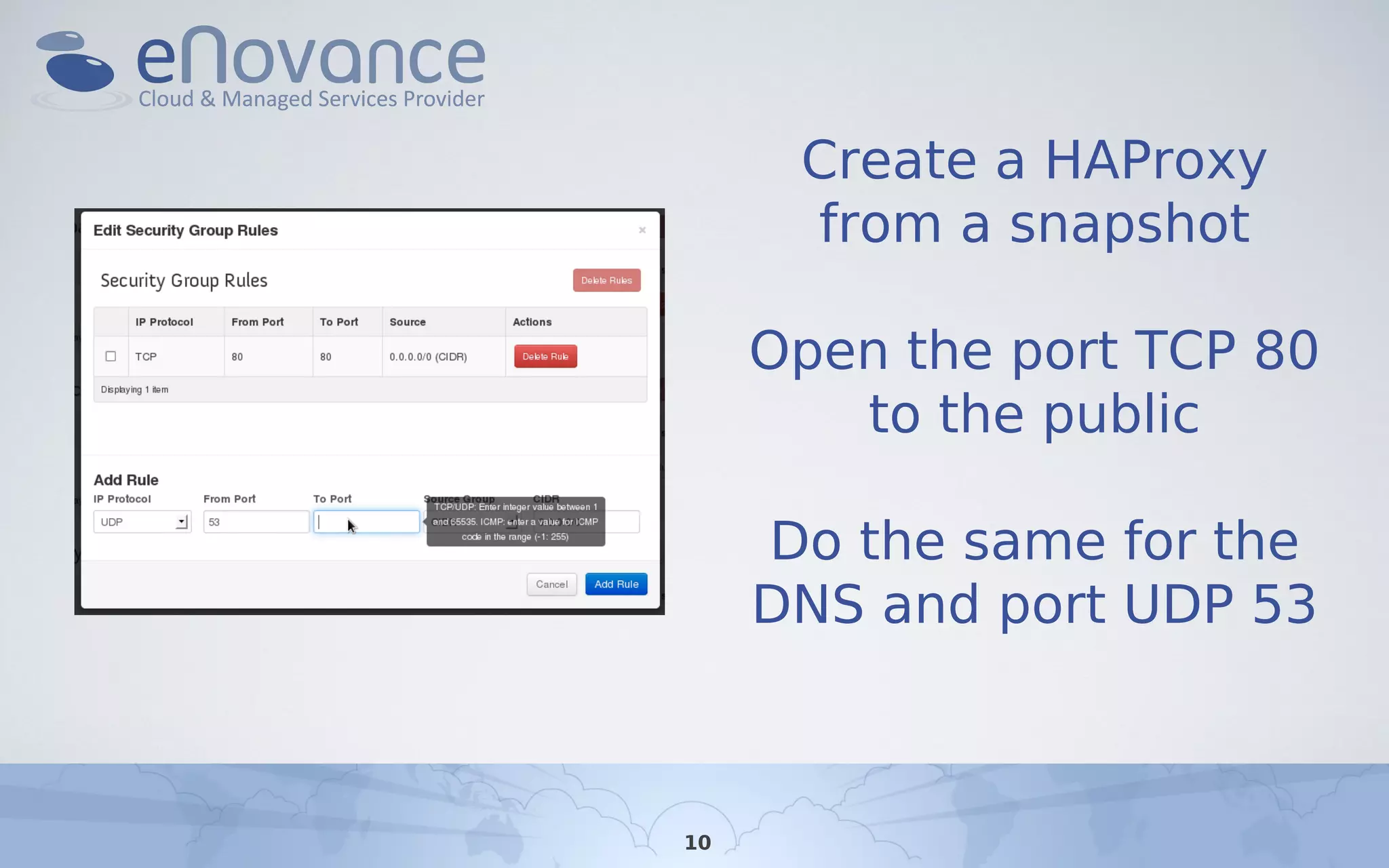

  10. 10. Create a HAProxy from a snapshot Open the port TCP 80 to the public Do the same for the DNS and port UDP 5310

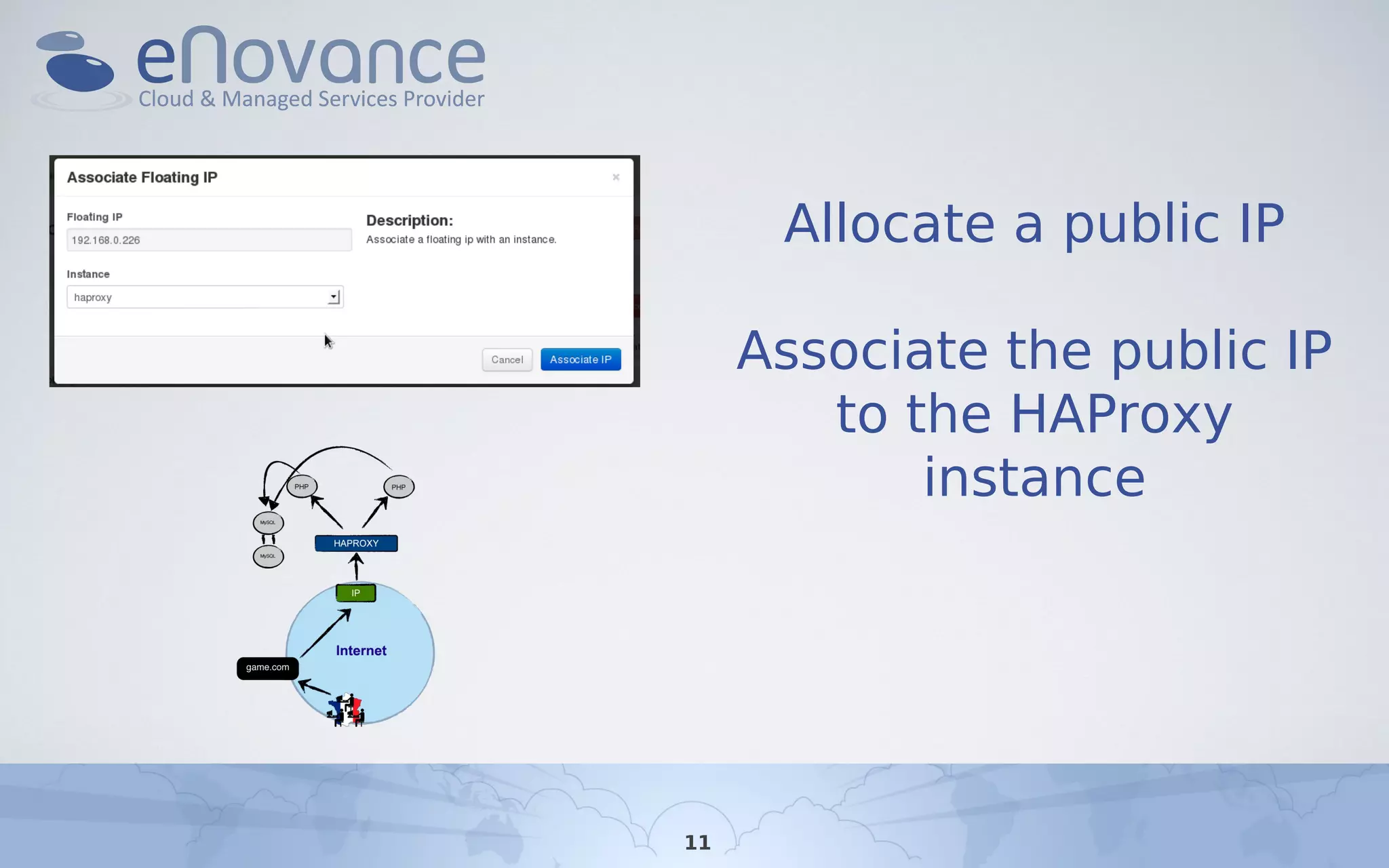

  11. 11. Allocate a public IP Associate the public IP to the HAProxy instance11

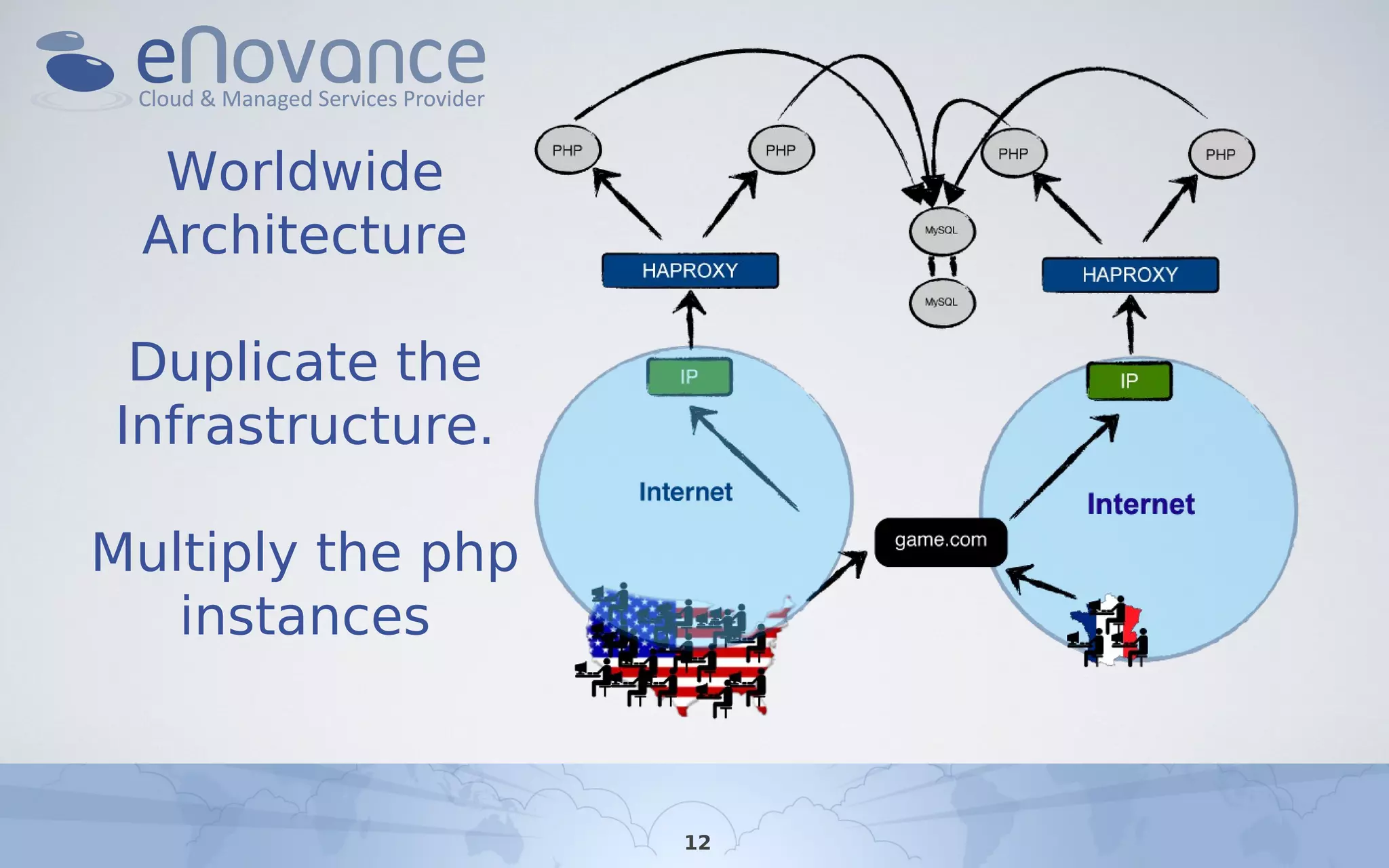

  12. 12. Worldwide Architecture Duplicate theInfrastructure.Multiply the php instances 12

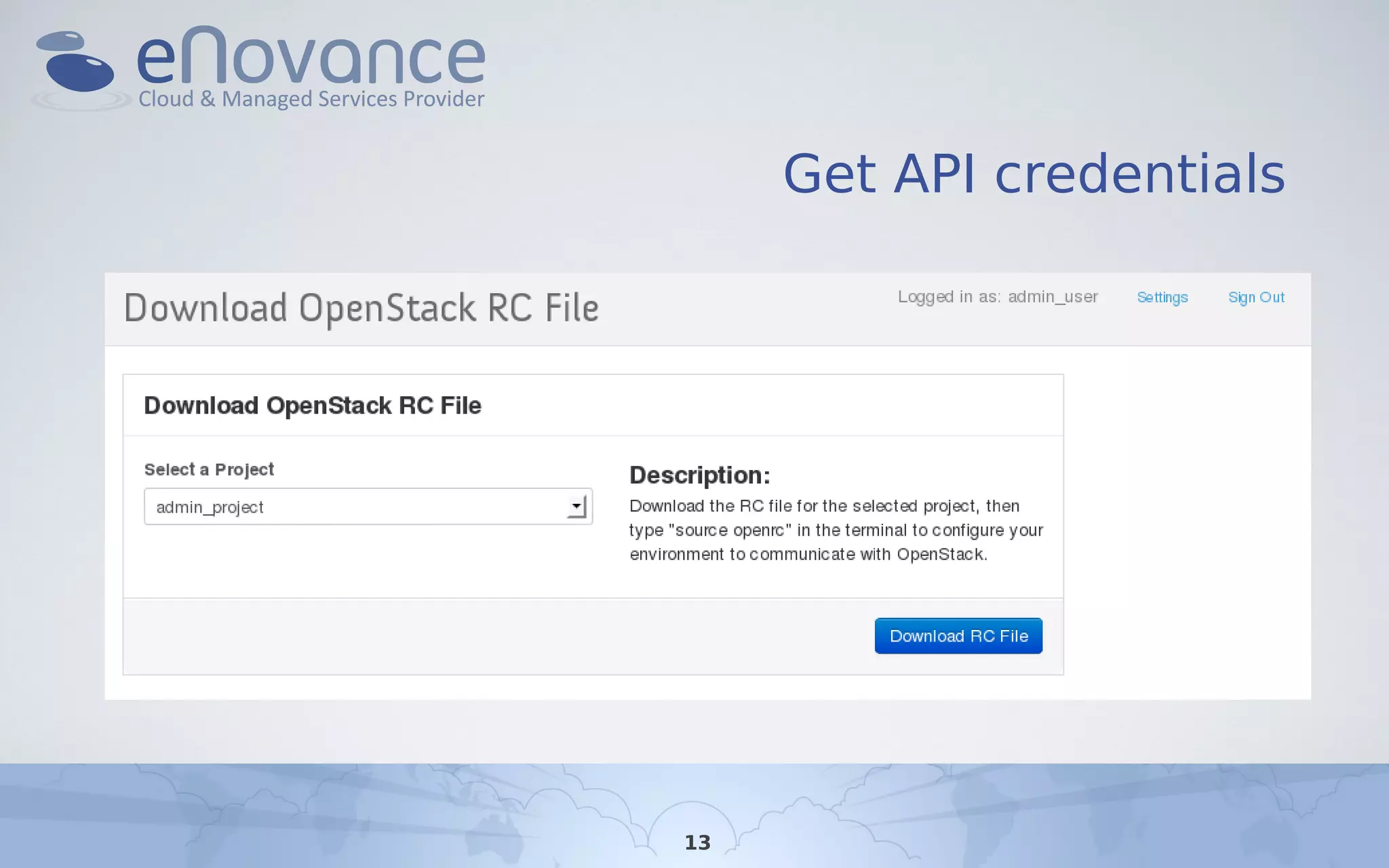

  13. 13. Get API credentials13

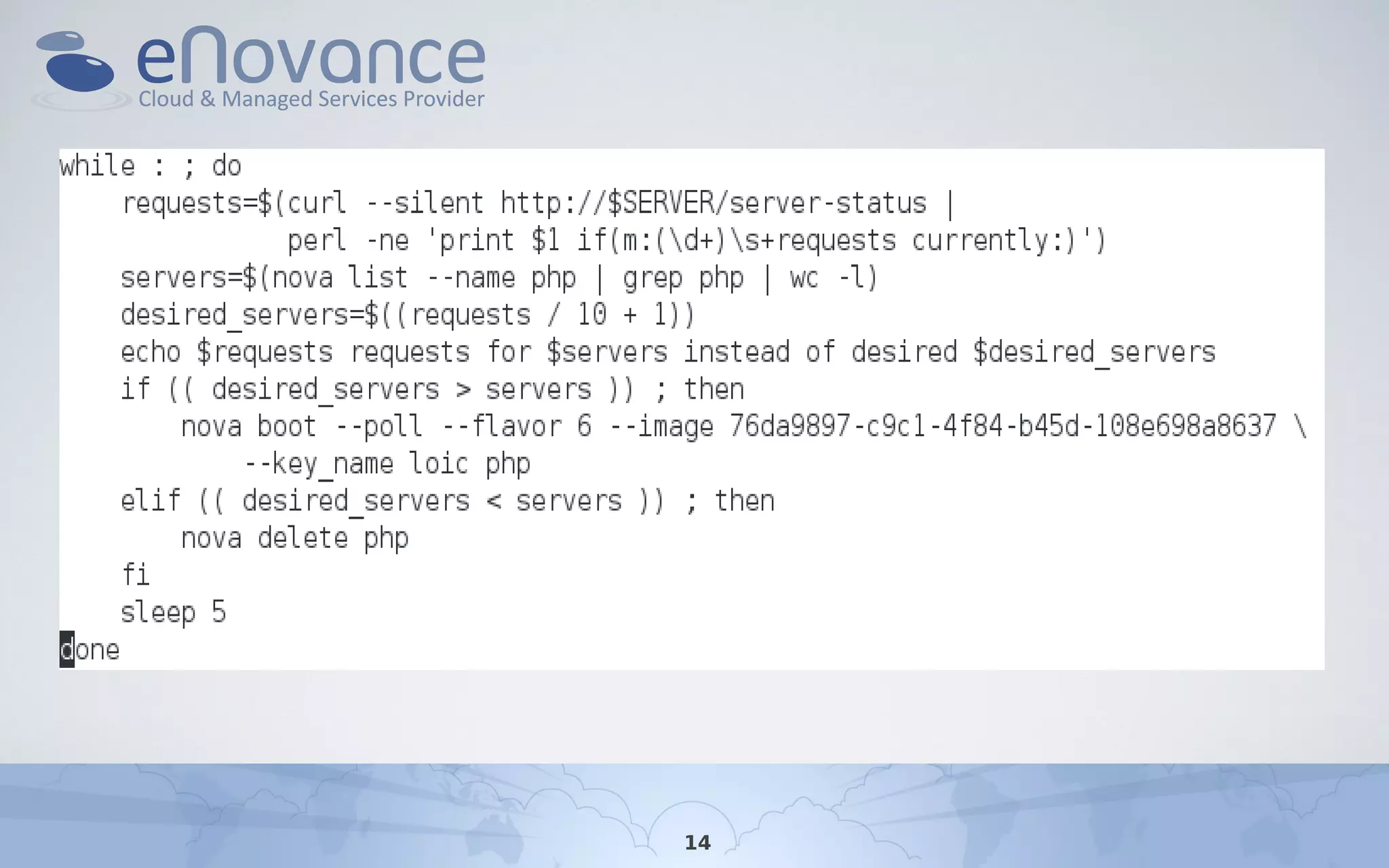

  14. 14. 14

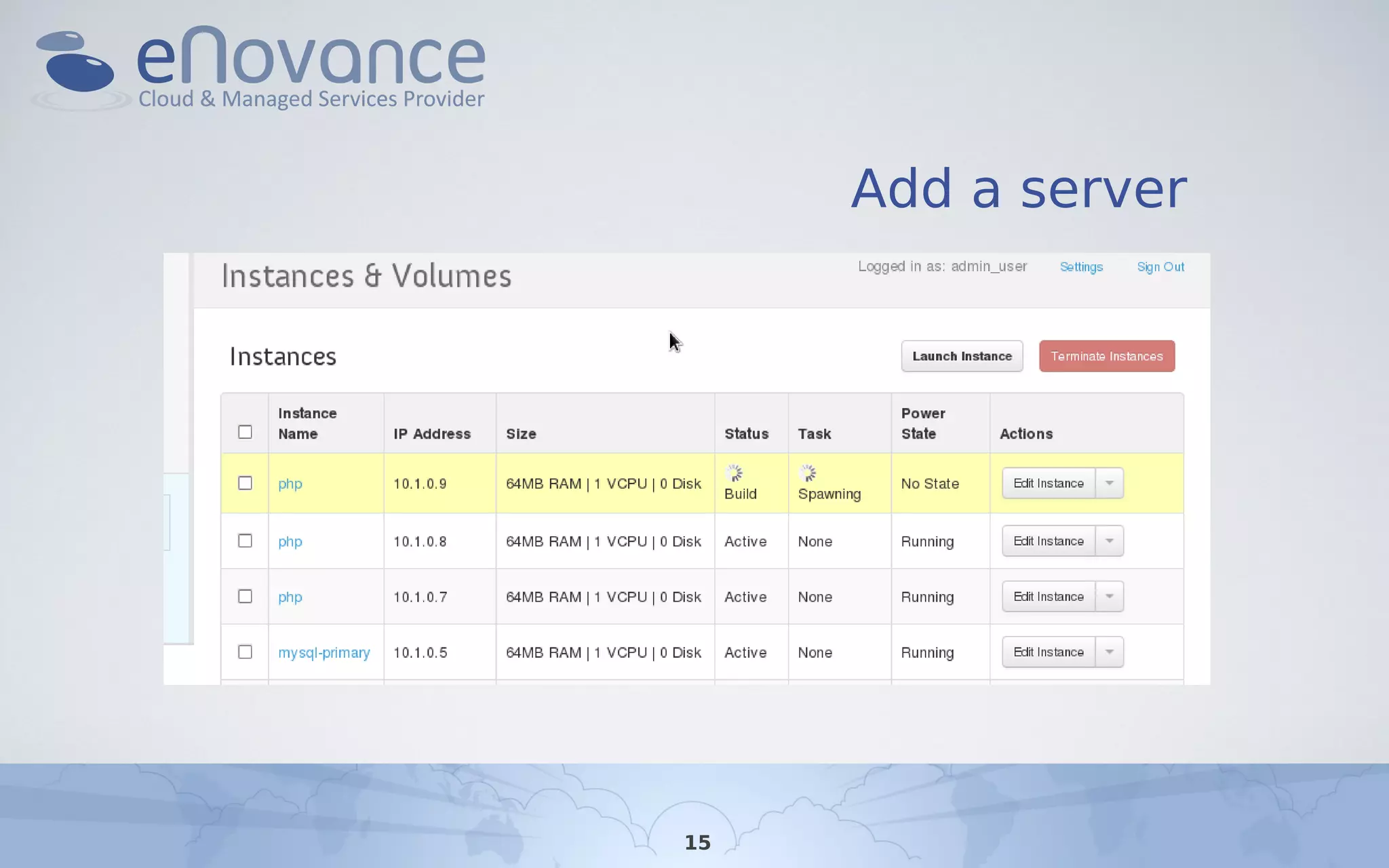

  15. 15. Add a server15

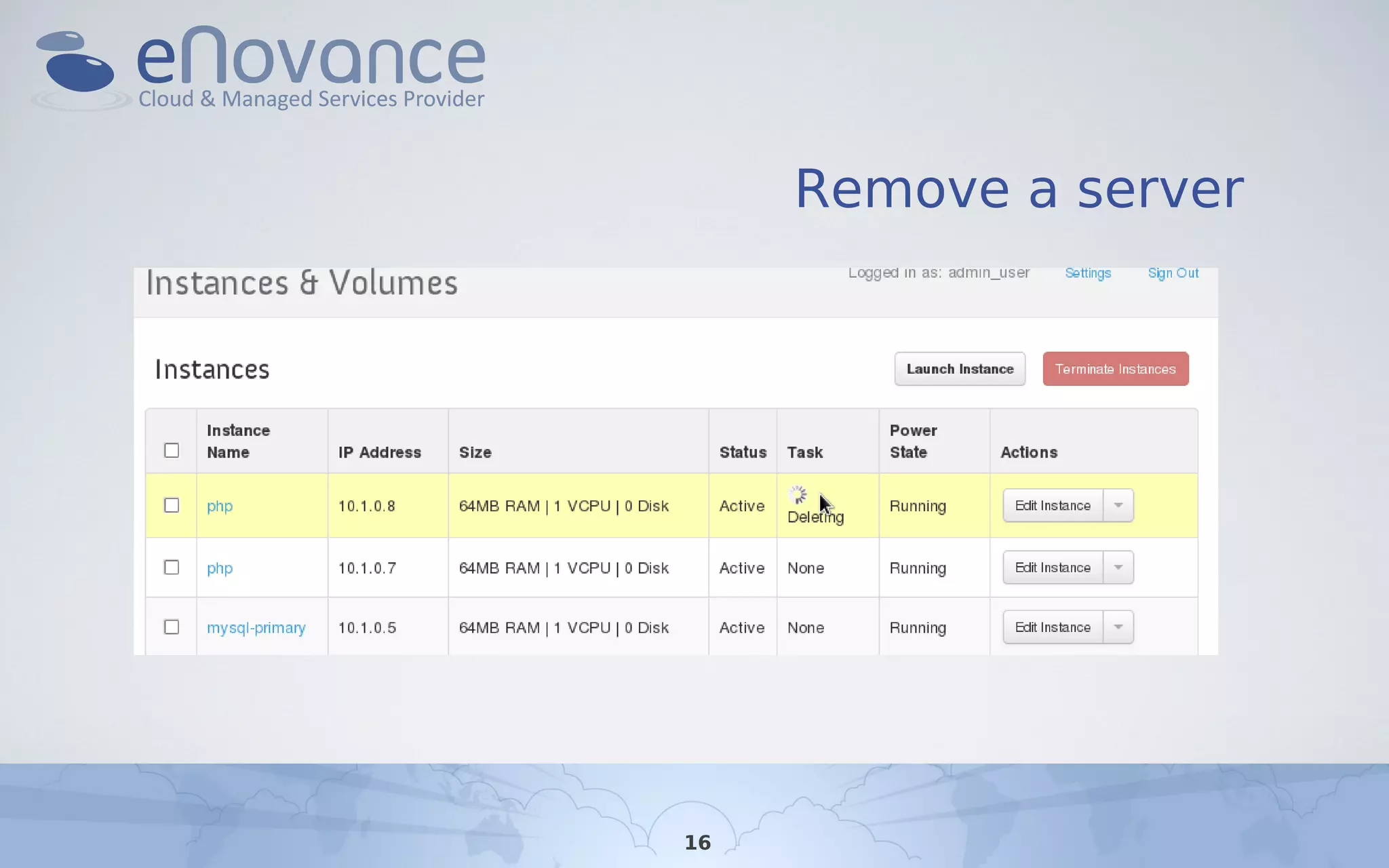

  16. 16. Remove a server16
  17. 17. And it runs on this laptop Thank you loic@enovance.com http://enocloud.com/ 17

×
