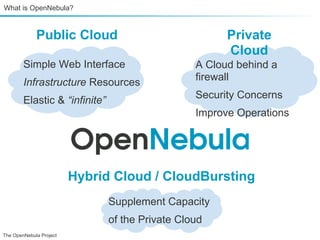

2. What is OpenNebula?
Public Cloud Private
Cloud
Simple Web Interface A Cloud behind a
Infrastructure Resources firewall
Elastic & “infinite” Security Concerns
Improve Operations
Hybrid Cloud / CloudBursting
Supplement Capacity
of the Private Cloud
The OpenNebula Project

3. What is OpenNebula?
Interfaces, Tools & API
● CLI & Sunstone (GUI)
● API
● Cloud (EC2,OCCI)
● Service Management & Catalogs
Network Storage
● VLAN ● VM disks (file & block)
● Firewalling ● Image Distribution
● Multiple Technologies ● Multiple Backends
Multi-tenancy
● AAA Services
● Scheduling
● Permissions & roles
Compute Hosts
● Grouped into logical clusters
● Multiple hypervisors
● Monitoring
The OpenNebula Project

4. What is OpenNebula?

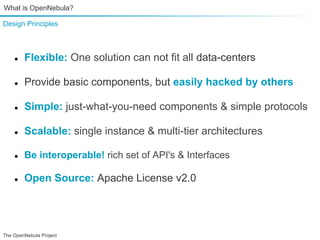

Design Principles
● Flexible: One solution can not fit all data-centers
● Provide basic components, but easily hacked by others
● Simple: just-what-you-need components & simple protocols
● Scalable: single instance & multi-tier architectures
● Be interoperable! rich set of API's & Interfaces
● Open Source: Apache License v2.0000
The OpenNebula Project

5. What is OpenNebula?

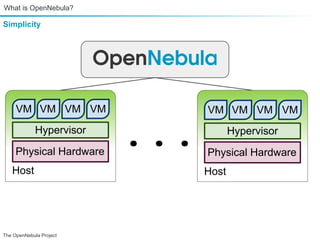

Simplicity
VM VM VM VM VM VM VM VM
Hypervisor
Physical Hardware
... Hypervisor
Physical Hardware
Host Host
The OpenNebula Project

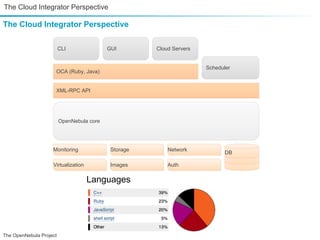

6. The Cloud Integrator Perspective
The Cloud Integrator Perspective
CLI GUI Cloud Servers
Scheduler
OCA (Ruby, Java)
XML-RPC API
OpenNebula core
Monitoring Storage Network
DB
Virtualization Images Auth
Languages
The OpenNebula Project

7. The Cloud Integrator Perspective

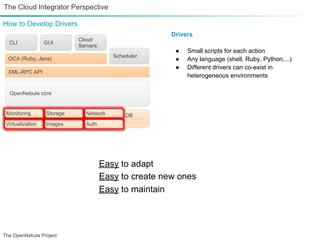

How to Develop Drivers
Drivers
Cloud
CLI GUI
Servers
● Small scripts for each action
OCA (Ruby, Java) Scheduler
● Any language (shell, Ruby, Python,...)
● Different drivers can co-exist in
XML-RPC API
heterogeneous environments
OpenNebula core
Monitoring Storage Network DB
Virtualization Images Auth
Easy to adapt
Easy to create new ones
Easy to maintain
The OpenNebula Project

8. The Cloud Integrator Perspective

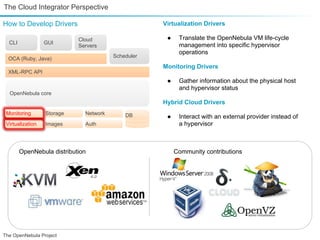

How to Develop Drivers Virtualization Drivers
Cloud ● Translate the OpenNebula VM life-cycle
CLI GUI management into specific hypervisor
Servers
operations
OCA (Ruby, Java) Scheduler
Monitoring Drivers
XML-RPC API
● Gather information about the physical host
and hypervisor status
OpenNebula core
Hybrid Cloud Drivers
Monitoring Storage Network DB ● Interact with an external provider instead of
Virtualization Images Auth a hypervisor
OpenNebula distribution Community contributions
The OpenNebula Project

9. The Cloud Integrator Perspective
Virtual Machine Manager Drivers

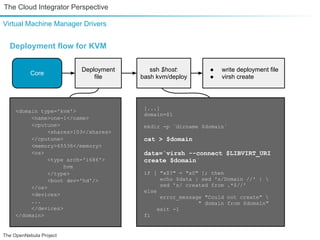

Deployment flow for KVM
Deployment ssh $host: ● write deployment file
Core
file bash kvm/deploy ● virsh create
[...]
<domain type='kvm'>
domain=$1
<name>one-1</name>
<cputune> mkdir -p `dirname $domain`
<shares>103</shares>
</cputune> cat > $domain
<memory>65536</memory>
<os> data=`virsh --connect $LIBVIRT_URI
<type arch='i686'> create $domain`
hvm
</type> if [ "x$?" = "x0" ]; then
<boot dev='hd'/> echo $data | sed 's/Domain //' |
</os> sed 's/ created from .*$//'
else
<devices>
error_message "Could not create"
... " domain from $domain"
</devices> exit -1
</domain> fi
The OpenNebula Project

10. The Cloud Integrator Perspective
Virtual Machine Manager Drivers

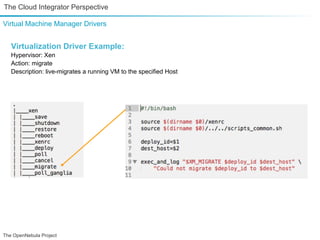

Virtualization Driver Example:
Hypervisor: Xen
Action: migrate
Description: live-migrates a running VM to the specified Host
The OpenNebula Project

11. The Cloud Integrator Perspective

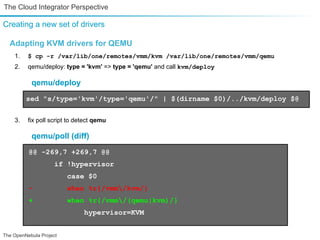

Creating a new set of drivers
Adapting KVM drivers for QEMU
1. $ cp -r /var/lib/one/remotes/vmm/kvm /var/lib/one/remotes/vmm/qemu
2. qemu/deploy: type = 'kvm' => type = 'qemu' and call kvm/deploy
qemu/deploy
sed "s/type='kvm'/type='qemu'/" | $(dirname $0)/../kvm/deploy $@
3. fix poll script to detect qemu
qemu/poll (diff)
@@ -269,7 +269,7 @@
if !hypervisor
case $0
- when %r{/vmm/kvm/}
+ when %r{/vmm/(qemu|kvm)/}
hypervisor=KVM
The OpenNebula Project

12. The Cloud Integrator Perspective

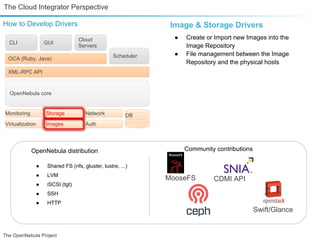

How to Develop Drivers Image & Storage Drivers
Cloud ● Create or Import new Images into the
CLI GUI
Servers Image Repository
Scheduler ● File management between the Image
OCA (Ruby, Java)
Repository and the physical hosts
XML-RPC API
OpenNebula core
Monitoring Storage Network DB
Virtualization Images Auth
OpenNebula distribution Community contributions
● Shared FS (nfs, gluster, lustre, ...)
● LVM
MooseFS CDMI API
● iSCSI (tgt)
● SSH
● HTTP
Swift/Glance
The OpenNebula Project

13. The Cloud Integrator Perspective

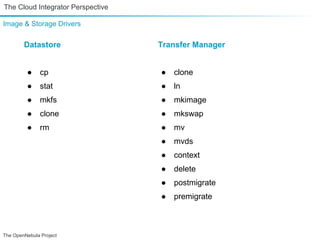

Image & Storage Drivers
Datastore Transfer Manager
● cp ● clone
● stat ● ln
● mkfs ● mkimage
● clone ● mkswap
● rm ● mv
● mvds
● context
● delete
● postmigrate
● premigrate
The OpenNebula Project

14. The Cloud Integrator Perspective

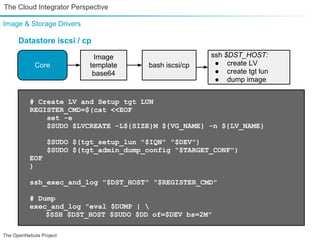

Image & Storage Drivers
Datastore iscsi / cp
Image ssh $DST_HOST:
Core template bash iscsi/cp ● create LV
base64 ● create tgt lun
● dump image
# Create LV and Setup tgt LUN
REGISTER_CMD=$(cat <<EOF
set -e
$SUDO $LVCREATE -L${SIZE}M ${VG_NAME} -n ${LV_NAME}
$SUDO $(tgt_setup_lun "$IQN" "$DEV")
$SUDO $(tgt_admin_dump_config "$TARGET_CONF")
EOF
)
ssh_exec_and_log "$DST_HOST" "$REGISTER_CMD"
# Dump
exec_and_log "eval $DUMP |
$SSH $DST_HOST $SUDO $DD of=$DEV bs=2M"
The OpenNebula Project

15. The Cloud Integrator Perspective
How to Develop Drivers
Networking drivers
CLI GUI
Cloud ● Manage network configuration in
Servers
Scheduler the hosts
OCA (Ruby, Java)
XML-RPC API
● Firewalling rules
● Network Isolation
OpenNebula core ● Bridge creation
Monitoring Storage Network Structure
DB
Virtualization Images Auth ● pre
● post
● clean
OpenNebula distribution Community contributions
● VLAN, 802.1Q
● OpenvSwitch
● ebtables
quantum
● FLAT
● firewall*
The OpenNebula Project

16. The Cloud Integrator Perspective

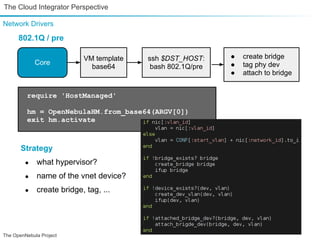

Network Drivers
802.1Q / pre
VM template ssh $DST_HOST: ● create bridge
Core ● tag phy dev
base64 bash 802.1Q/pre
● attach to bridge
require 'HostManaged'
hm = OpenNebulaHM.from_base64(ARGV[0])
exit hm.activate
Strategy
● what hypervisor?
● name of the vnet device?
● create bridge, tag, ...
The OpenNebula Project

17. The Cloud Integrator Perspective
How to Develop Drivers

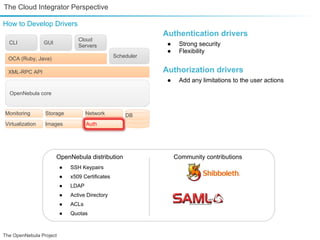

Authentication drivers
Cloud
CLI GUI ● Strong security
Servers
● Flexibility
OCA (Ruby, Java) Scheduler
XML-RPC API Authorization drivers
● Add any limitations to the user actions
OpenNebula core
Monitoring Storage Network DB
Virtualization Images Auth
OpenNebula distribution Community contributions
● SSH Keypairs
● x509 Certificates
● LDAP
● Active Directory
● ACLs
● Quotas
The OpenNebula Project

18. The Cloud Integrator Perspective

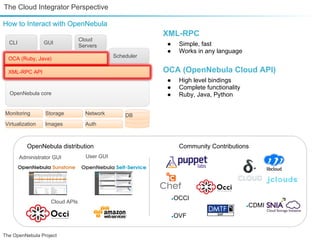

How to Interact with OpenNebula
XML-RPC
Cloud
CLI GUI ● Simple, fast
Servers
● Works in any language
OCA (Ruby, Java) Scheduler
XML-RPC API OCA (OpenNebula Cloud API)
● High level bindings
● Complete functionality
OpenNebula core ● Ruby, Java, Python
Monitoring Storage Network DB
Virtualization Images Auth
OpenNebula distribution Community Contributions
Administrator GUI User GUI
OCCI
●
Cloud APIs
CDMI
●
OVF
●
The OpenNebula Project

19. The Cloud Integrator Perspective
How to Interact with OpenNebula

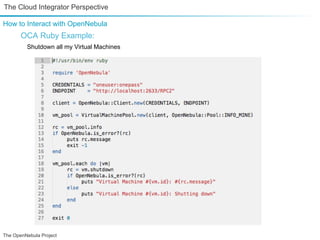

OCA Ruby Example:
Shutdown all my Virtual Machines
The OpenNebula Project

20. Tools for Users and Administrators

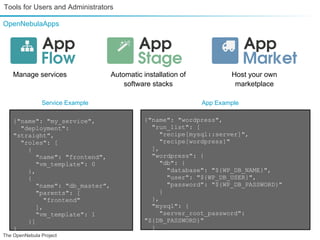

OpenNebulaApps
Manage services Automatic installation of Host your own
software stacks marketplace
Service Example App Example
{"name": "my_service", {"name": "wordpress",
"deployment": "run_list": [
"straight", "recipe[mysql::server]",
"roles": [ "recipe[wordpress]"
{ ],
"name": "frontend", "wordpress": {
"vm_template": 0 "db": {
}, "database": "${WP_DB_NAME}",
{ "user": "${WP_DB_USER}",
"name": "db_master", "password": "${WP_DB_PASSWORD}"
"parents": [ }
"frontend" },
], "mysql": {
"vm_template": 1 "server_root_password":
}] "${DB_PASSWORD}"
} }
The OpenNebula Project }

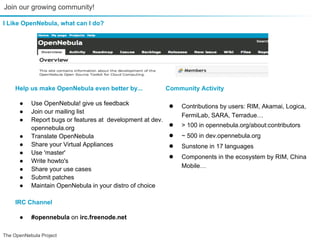

21. Join our growing community!
I Like OpenNebula, what can I do?
Help us make OpenNebula even better by... Community Activity
● Use OpenNebula! give us feedback ● Contributions by users: RIM, Akamai, Logica,
● Join our mailing list
FermiLab, SARA, Terradue…
● Report bugs or features at development at dev.
opennebula.org ● > 100 in opennebula.org/about:contributors
● Translate OpenNebula ● ~ 500 in dev.opennebula.org
● Share your Virtual Appliances ● Sunstone in 17 languages
● Use 'master'
● Components in the ecosystem by RIM, China
● Write howto's
Mobile…
● Share your use cases
● Submit patches
● Maintain OpenNebula in your distro of choice
IRC Channel
● #opennebula on irc.freenode.net
The OpenNebula Project

22. What is OpenNebula?

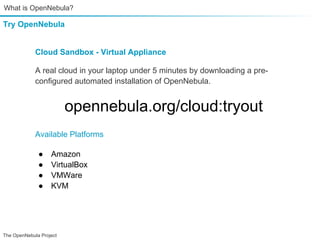

Try OpenNebula
Cloud Sandbox - Virtual Appliance
A real cloud in your laptop under 5 minutes by downloading a pre-
configured automated installation of OpenNebula.
opennebula.org/cloud:tryout
Available Platforms
● Amazon
● VirtualBox
● VMWare
● KVM
The OpenNebula Project

23. Want more?

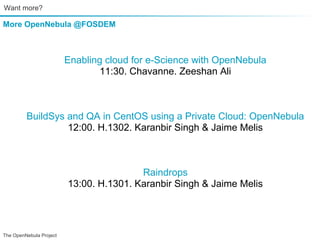

More OpenNebula @FOSDEM
Enabling cloud for e-Science with OpenNebula
11:30. Chavanne. Zeeshan Ali
BuildSys and QA in CentOS using a Private Cloud: OpenNebula
12:00. H.1302. Karanbir Singh & Jaime Melis
Raindrops
13:00. H.1301. Karanbir Singh & Jaime Melis
The OpenNebula Project

24. Questions?
We Will Be Happy to Answer any Question
TL; DR: OpenNebula is awesome, go check it out!
@opennebula
The OpenNebula Project

25. About the Project

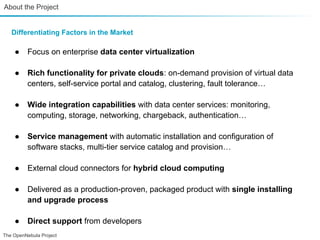

Differentiating Factors in the Market
