1. Analog Power
DCDC, nano-Power IC’s
June 2012
Seite 1 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

2. Part # Description Features Application
Wifi access point,
1MHZ switching DCDC converter. Vin 6V – 24V, Vout
battery operated
0.9V to 5.5V, line regulation +/- 2mV, Vout regulation
ZSPM4011 DCDC Converter, 1A devices, Digital TV,
2%, load regulation +/- 0.5%, quiescent current 5uA,
Video Conferencing,
only 4 external components (3 caps, 1 inductor)
Portable applications
Wifi access point,
1MHZ switching DCDC converter. Vin 6V – 24V, Vout
battery operated
0.9V to 5.5V, line regulation +/- 2mV, Vout regulation
ZSPM4012 DCDC Converter, 2A devices, Digital TV,
2%, load regulation +/- 0.5%, quiescent current 5uA,
Video Conferencing,
only 4 external components (3 caps, 1 inductor)
Portable applications
Wifi access point,
1MHZ switching DCDC converter. Vin 6V – 20V, Vout battery operated
0.9V to 5.5V, line regulation +/- 2mV, Vout regulation devices, Digital TV,
ZSPM4013 DCDC Converter 3A
2%, load regulation +/- 0.5%, quiescent current 5uA,
Video Conferencing,
only 4 external components (3 caps, 1 inductor) Portable applications
Related Ultra-Low Power ICs
Seite 2 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

3. Part # Description Features Application
Battery Management
VTHRESHOLD 1.2V - 4.2V (100mV steps factory Portable battery-
ZSPM4121 Under Voltage Load
programmed), 70nA standby (100pA disabled) operated electronics
Switch
Vin = 2.5V to 5.5V,
Ultra-Low-Power Linear Portable battery-
ZSPM4141 VOUT 1.2V - 4.2V (100mV steps factory programmed)
Regulator operated electronics
@ 200mA, 20nA standby (100pA disabled)
VIN = VIN = VBATT + 0.3 (3.5V) to 7.2V
Li-ion Charger for Portable battery-
ZSPM4551 IICC-STBY, IBAT-LEAK, TJ see ZSPM4521
conventional sources operated electronics
1.5A of continuous output current
VIN = 4.0V to 7.2V
IICC-STBY (EN=0):15uA (typ) Portable battery-
Li-ion Charger for PV operated electronics,
ZSPM4521 IBAT-LEAK (EN=0, 4.1V):10uA (max)
(Solar) sources Solar-powered
1.5A of continuous output current chargers
TJ = -40C to 125C
VIN = 3.2V to 7.2V Portable battery-
NiMH Charger for PV operated electronics,
ZSPM4522 IICC-STBY, IBAT-LEAK, TJ see ZSPM4521 Solar-powered
(Solar) sources
1.5A of continuous output current chargers
VIN = 3.2V to 7.2V Portable battery-
Super Cap Charger for PV operated electronics,
ZSPM4523 IICC-STBY, IBAT-LEAK, TJ see ZSPM4521 Solar-powered
(Solar) sources
1.5A of continuous output current chargers
Ultra-Low Power Battery Management
Seite 3 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

4. ZSPM401x
DCDC Converters
Seite 4 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

5. Three Families – 18 Products
• ZSPM4011 (1A): 1.5V, 1.8V, 2.5V,
3.3V, 5.0V, variable Preliminary Data Sheet
Rev. 0.3 / November 2011
ZSPM4011
High Efficiency 1A Synchronous Buck Converter
Preliminary Data Sheet
Rev. 0.3 / November 2011
ZSPM4012
• ZSPM4012 (2A): 1.5V, 1.8V, 2.5V, High Efficiency 2A Synchronous Buck Converter
3.3V, 5.0V, variable Preliminary Data Sheet
Rev. 0.2 / October 2011
ZSPM4013
High Efficiency 3A Synchronous Buck Converter
• ZSPM4013 (3A): 1.5V, 1.8V, 2.5V,
3.3V, 5.0V, variable
ZSPM401X – Line of Products
Seite 5 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

6. ZSPM401X – 1MHz, 1/2/3A Current Mode Synch Buck
DC/DC Converter
Key Features Customer Benefits
• Wide Vin 6V to 24V (20V for 3A) • High-level of integrated protection
• Fixed Vout 1.5V, 1.8V, 2.5V, 3.3V, reduces BOM (3 caps, 1 inductor)
5V, adjustable (+/- 2% tolerance) • Wide Vin-range = Highest flexibility
• Adjustable version Vout 0.9V to • Low standby current = low power
5.4V (+/- 1.5% reference) budget
• 5uA (typ) in standby mode
• Optimized for light-load conditions
(PWM, PFM)
Z4011
Applications
• On-card switching regulators
• Set-top box DVD, LCD, LED supply
• Hand-held Devices
ZSPM401X Key Features and Applications
Seite 6 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

7. High Level of Integration
RTOP, RBOT Resistor
divider only required
for variable Vout
setting.
Fully integrated DCDC-Converter
Seite 7 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

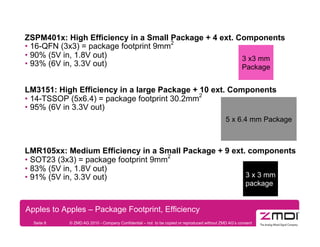

8. ZSPM401x: High Efficiency in a Small Package + 4 ext. Components
• 16-QFN (3x3) = package footprint 9mm2
• 90% (5V in, 1.8V out) 3 x3 mm
• 93% (6V in, 3.3V out) Package
LM3151: High Efficiency in a large Package + 10 ext. Components
• 14-TSSOP (5x6.4) = package footprint 30.2mm2
• 95% (6V in 3.3V out)
5 x 6.4 mm Package
LMR105xx: Medium Efficiency in a Small Package + 9 ext. components
• SOT23 (3x3) = package footprint 9mm2
• 83% (5V in, 1.8V out)
• 91% (5V in, 3.3V out) 3 x 3 mm
package
Apples to Apples – Package Footprint, Efficiency
Seite 8 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

9. ZSPM401x and The Competition
Parameter ZSPM401x TPS54325 LM20333
Output
Current 1A,
2A,
3A
Regulator 3A
Regulator 3A
Regulator
Topology Synchronous Synchronous Synchronous
Efficiency
@
1A 93%
(6V
-­‐
3.3V)
91%
(12V
-­‐
3.3V)
93%
(5V
to
3.3V)
90%
(6V
-­‐
1.8V)
87%
(12V
-­‐
1.8V) 89%
(12V
-­‐
3.3V)
85%
(12V
-­‐
1.8V)
Input
Vrange 6V
-­‐
24V
(3A:
6V-­‐20V)
4.5V-­‐18V 4.5V
to
36V
Output
Voltage
0.9V
-­‐
5.0V 0.76V-­‐18V 0.8V-­‐5V
Output
V
accuracy +/-­‐
2% N/A 0.015
Line
Regulation +/-­‐
2mV 20mV 0.05%(From
Graph)
Load
Regulation
+/-­‐
0.5% 100mV Data
sheet
claims
l ess
than
1%
Switching
Frequ. 1MHz Fixed
700
kHz 200
kHz.
Quiescent
A
(typ) 2mA TYP:
0.85ma
MAX:1.3mA 3mA
Quiescent
A
(stby) 5uA 10uA 180uA
Light
Load
Feature Yes Yes No
Fault
Protection
Current
l imit,
thermal
shutdown,
OVP,
OVP,
UVP,
UVLO
and
thermal
shutdown OVP,
UVLO,
THERMAL
Features UVLO
Power
Good
Yes Yes Yes
Soft
Start Yes Yes Yes
Temp
Range -­‐40C
to
125C
(150
Junction) -­‐40C
to
150C
junction ?40°C
to
+
125°C
Package 16L
PQFN
(3x3) PWP
(14
PIN) 20-­‐Lead
e TSSOP
External
Fixed
V out:
3
caps,
1
i nductor
c
apacitors,
2
resistors,
1
i nductor
5
5
capacitors,
2
resistors,
1
i nductor
components Variable
V out:
above,
plus
2
resistors
Competitive Comparison
Seite 9 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

10. ZSPM401x and The Competition
Parameter NCP5252 LM3151 TPS40055
Output
Current 2A
Regulator Controller Controller
Topology Synchronous Synchronous Synchronous
Efficiency
@
1A 90%
(5V
-­‐
3.3)
Defined
by
e xternal
FETS
and
Inductor
Defined
by
e xternal
FETS
and
Inductor
Max
i s
93% and
Caps and
Caps
Input
Vrange 4.5V
to
13.2
Output
Voltage 0.6V
to
5.0V 3.3V
FIXED
Output
V
accuracy +/-­‐
1% N/A
N/A
Line
Regulation 0.1%
/V N/A
N/A
Load
Regulation
Not
specified
(graphs:
about
0.5%) N/A
N/A
Switching
Frequ. Programmable
from
333kHz
to
1.0MHz Fixed
@
250
kHz/500
kHz/750
kHz Programmable
Up
to
1-­‐MHz
Quiescent
A
(norm) 1.0mA
typ;
2.5mA
max 3.6mA 1.5mA
Quiescent
A
(stby) 10uA
max 39uA
@
18Vin
@25C N/A
Light
Load
Feature "Skip
mode"
for
l ight
l oad Not
Specified
(but
l ikely) Yes
Fault
Protection
UVLO,
OVP,
OCP,
Thermal
Shutdown Termal
shutdown,
UVLO,
OVP,
short-­‐ Termal
shutdown,
UVLO,
OVP,
short-­‐
Features circuit,
current
l imit circuit,
current
l imit
Power
Good
Yes No Yes
Soft
Start Yes Yes Yes
Temp
Range ?40°C
to
+
85°C ?40°C
to
+
125°C ?40°C
to
+
125°C
Package QFN16
3x3
mm 14-­‐Lead
e TSSOP
16-­‐Pin
PowerPAD™
External
1
Inductor,
4
resistors,
6
i nput/output
2
External
Fets
,
1
i nductor,
8
Caps. Depends
on
Topology
components caps,
bootstrap
cap,
freq
select
cap
Competitive Comparison
Seite 10 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

11. ZSPM4121
Ultra-Low-Power Under-Voltage
Load Switch
Seite 11 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

12. Key Functions
1. Provides switching function
• Connects / disconnects battery to
protect from destructive discharge
2. Provides charge to the battery while in
OFF Mode standby (Iqq-off100pA)
• Provided Schottky diode (body diode) in
design
3. Open-drain pull-down for power-good
indication (drive an LED (RED/GREEN)
4. Control load (connect / disconnect) in
energy scavenging (trickle charge)
applications (e.g. indoor solar applications)
ZSPM4121 – Ultra-Low Power Under-Voltage Load Switch
Seite 12 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

13. Typical Application
Typical Application Circuit for
Disconnecting the Battery Direct
Charger Load charge /
disconnect
ZSPM4121
VOUT
battery
VCC
NPG
GND
Typical Application Circuit for
Disconnecting the Load
ZSPM4121
Trickle Load
VOUT
charging Charger VCC
function NPG
GND
ZSPM4121 – Ultra-Low Power Under-Voltage Load Switch
Seite 13 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

14. Key Features Customer Benefits
• Vin = 1.2V to 5.5V • Maximum battery life
• VTHRESH = 1.2V to 4.2V (100mV factory • Fully integrated, low component
programmed steps) count
• ON Mode Standby: Iqq (VCC = 5V, no load) • Ultra compact package: 8L DFN 2x2
= 70nA
• OFF Mode Standby: Iqq-disable (VCC <
VTHRESH, no load) = 100pA
• Low Rds(on):
• 175mΩ (typical) @ 5V
• 350mΩ (typical) @ 1.8V
• Operating Temp (Tj): -20C to 85C
• Over-current Shutdown: 3A
Applications
• Hand-held, battery opperated apps
• RFID, energy harvesting
• Consumer Medical and industrial remote
sensor networks
ZSPM4121 – Ultra-Low Power Under-Voltage Load Switch
Seite 14 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

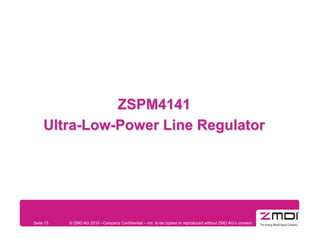

15. ZSPM4141
Ultra-Low-Power Line Regulator
Seite 15 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

16. Key Features Customer Benefits
• Vin = 2.5V to 5.5V • Maximum battery life
• Vout = 1.2V to 4.2V (100mV steps) • Best-in-class Iqq-disable current:
• Drive loads up to 200mA 100pA (typical)
• Iqq: 20nA (load=0 and Vcc = 4.2V) • Ultra compact package: 8L DFN 2x2
• Iqq-disable: 100pA (EN=0, Iout=0)
• Accurate output regulation: 1%
Vline, 2% Vload
• Over-current protection integrated:
250mA
• Operating Temp (Tj): -20C to 85C
Applications
• Hand-held battery opp. Applications
• RFID, energy harvesting
• Smart Card
ZSPM4141 – Ultra-Low Power Line Regulator
Seite 16 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

17. Simple Application Circuit
ZSPM4141
VCC = 2.5V to 5.5V VOUT = 1.2V to 4.2V
VCC VOUT Load
CBYP COUT
0.1µF 2.2µF
(typical) (typical)
EN FB
GND
ZSPM4141 – Ultra-Low Power Line Regulator
Seite 17 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

18. Application Example: Standalone Solar Application
Current solar charging technology is not efficient enough for many portable and
standalone applications.
• Solar energy is 1000x lower indoors (10mW/cm2 vs. 10µW/cm2)
• Legacy control circuitry has high active and standby power dissipation
• ZSPM4121 can supply more energy to the application or storage element than
competing solutions
Metrics
Legacy Solution
ZSPM4121
Solar energy available (indoors)
10µW/cm2
10µW/cm2
1” x 2” solar panel
125µW
125µW
Solar harvesting efficiency
75%
85%
Power harvested from panel
93µW
106µW
Loss due to harvesting electronics
-26µW
-420nW
Power available for application
67µW
106µW
Power required by application
100µW
100µW
ZSPM4121 – Ultra-Low Power Under-Voltage Load Switch
Seite 18 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

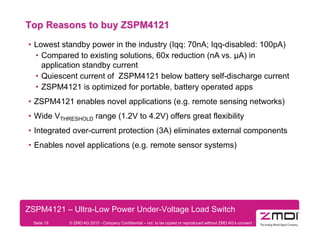

19. Top Reasons to buy ZSPM4121
• Lowest standby power in the industry (Iqq: 70nA; Iqq-disabled: 100pA)
• Compared to existing solutions, 60x reduction (nA vs. µA) in
application standby current
• Quiescent current of ZSPM4121 below battery self-discharge current
• ZSPM4121 is optimized for portable, battery operated apps
• ZSPM4121 enables novel applications (e.g. remote sensing networks)
• Wide VTHRESHOLD range (1.2V to 4.2V) offers great flexibility
• Integrated over-current protection (3A) eliminates external components
• Enables novel applications (e.g. remote sensor systems)
ZSPM4121 – Ultra-Low Power Under-Voltage Load Switch
Seite 19 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

20. Top Reasons to buy ZSPM4141
• Lowest standby power in the industry (Iqq: 20nA; Iqq-disabled: 100pA)
• Compared to existing solutions, 100x reduction (nA vs. µA) in application
standby current
• Quiescent current of ZSPM4141 is below battery self-discharge current
• ZSPM4141 is optimized for portable, battery operated apps
• Drives loads up to 200mA over full Vcc range
• Vcc range from (2.5V – 5.5V) offers flexibility
• Integrated over-current shut-down (250mA) reduces external components
• Wide Vout range 1.2V to 4.2V (100mA factory programmed increments)
• Enables novel applications (e.g. remote sensor systems)
ZSPM4141 – Ultra-Low Power Line Regulator
Seite 20 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent

21. Thank You!
Seite 21 © ZMD AG 2010 - Company Confidential – not to be copied or reproduced without ZMD AG’s consent
