XPages build automation and testing
- 1. www.ics.ug #icsug Let themachines do their work and have good night sleep Martin Přádný, @mpradny Martin Jinoch, @mjinoch

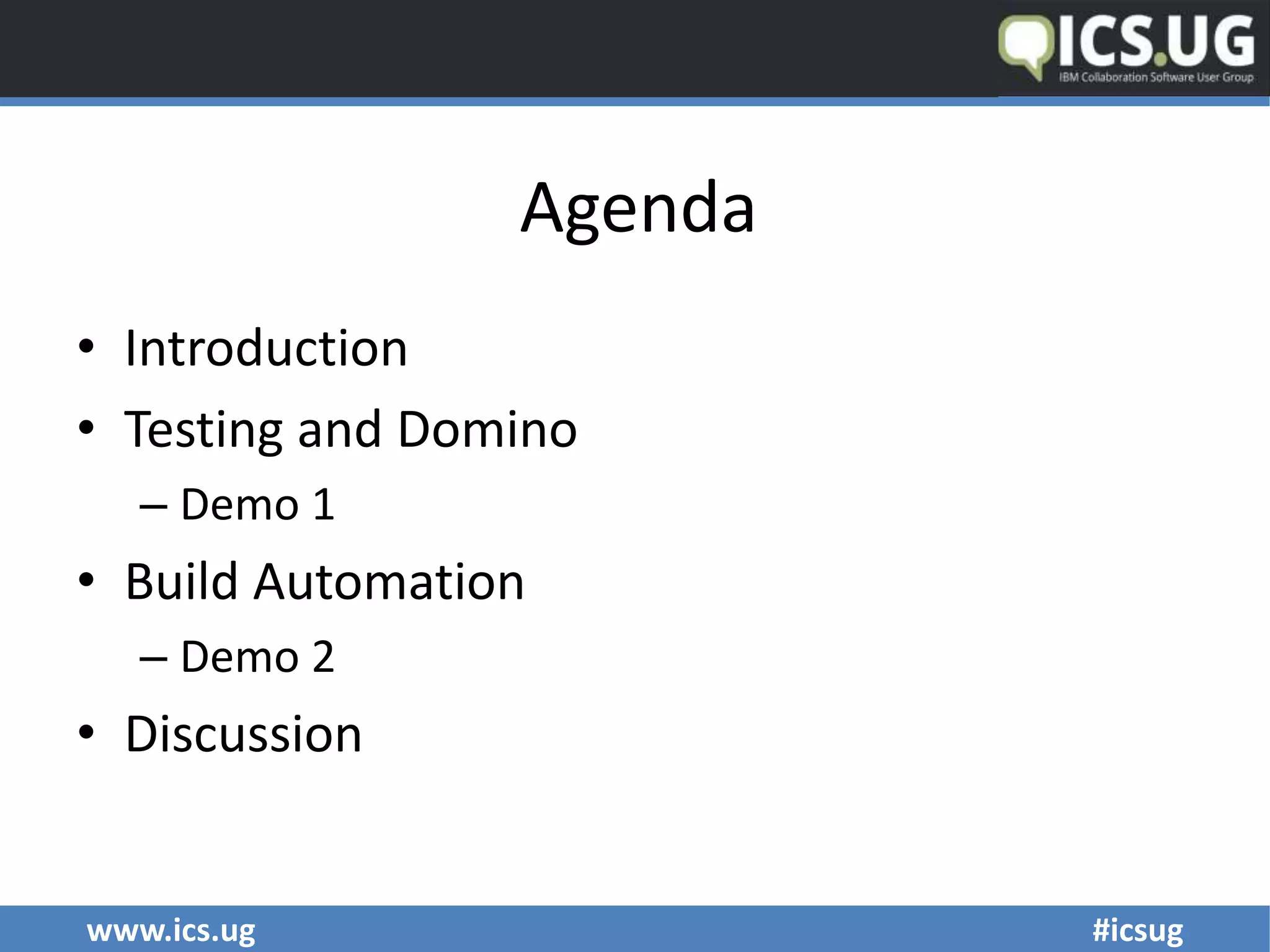

- 2. www.ics.ug #icsug Agenda • Introduction •Testing and Domino – Demo 1 • Build Automation – Demo 2 • Discussion

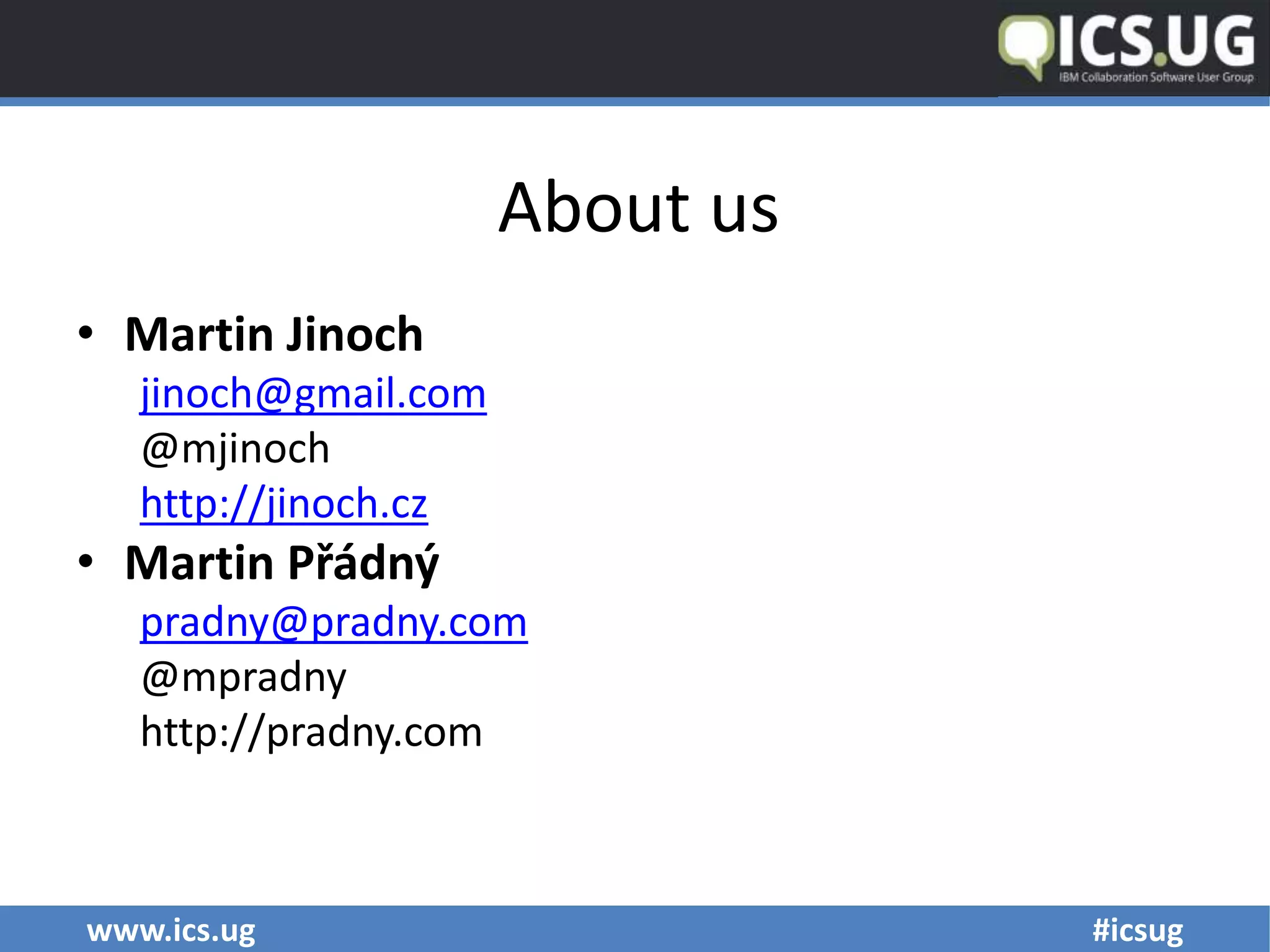

- 3. www.ics.ug #icsug About us •Martin Jinoch jinoch@gmail.com @mjinoch http://jinoch.cz • Martin Přádný pradny@pradny.com @mpradny http://pradny.com

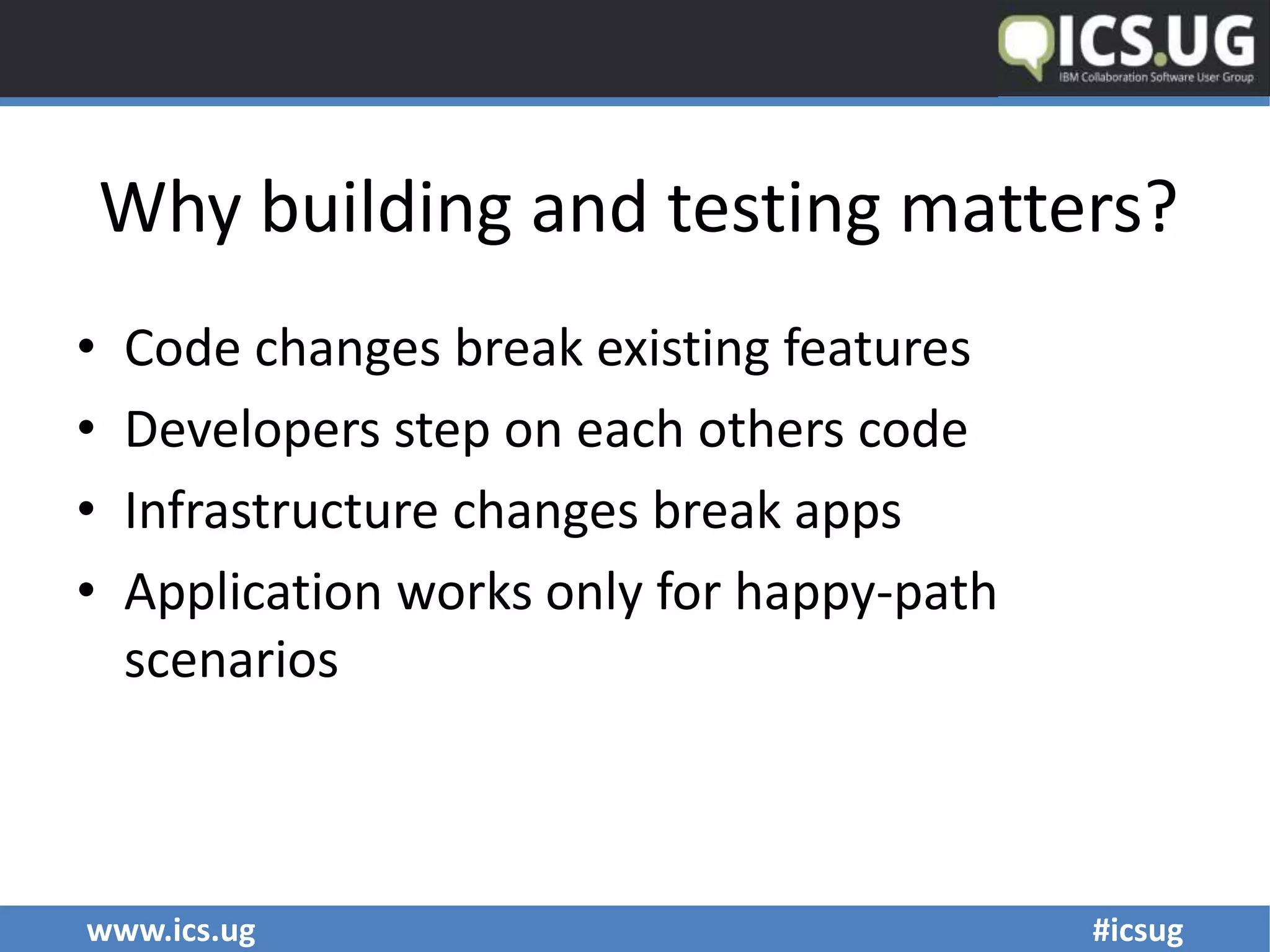

- 4. www.ics.ug #icsug Why buildingand testing matters? • Code changes break existing features • Developers step on each others code • Infrastructure changes break apps • Application works only for happy-path scenarios

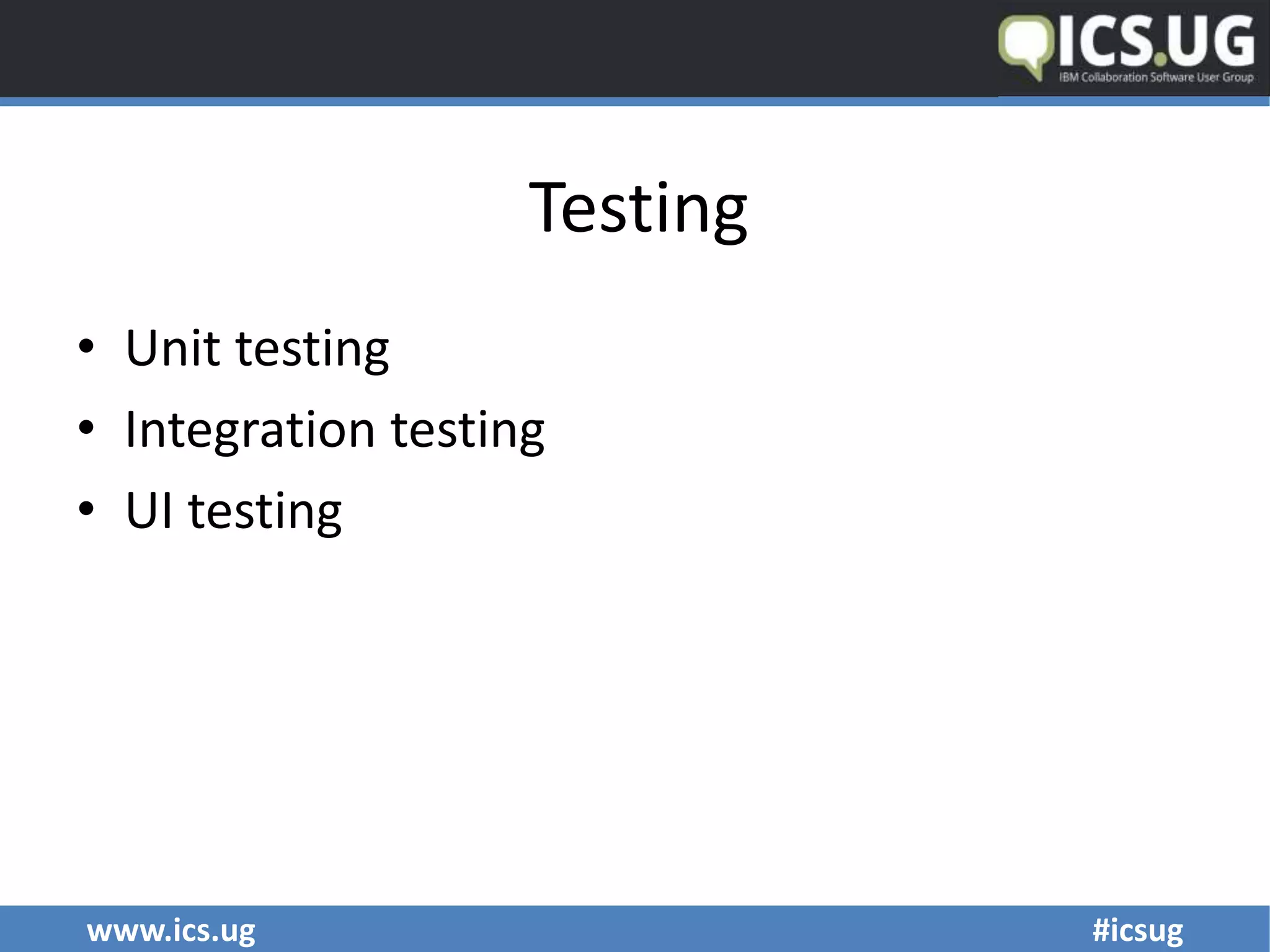

- 5. www.ics.ug #icsug Testing • Unittesting • Integration testing • UI testing

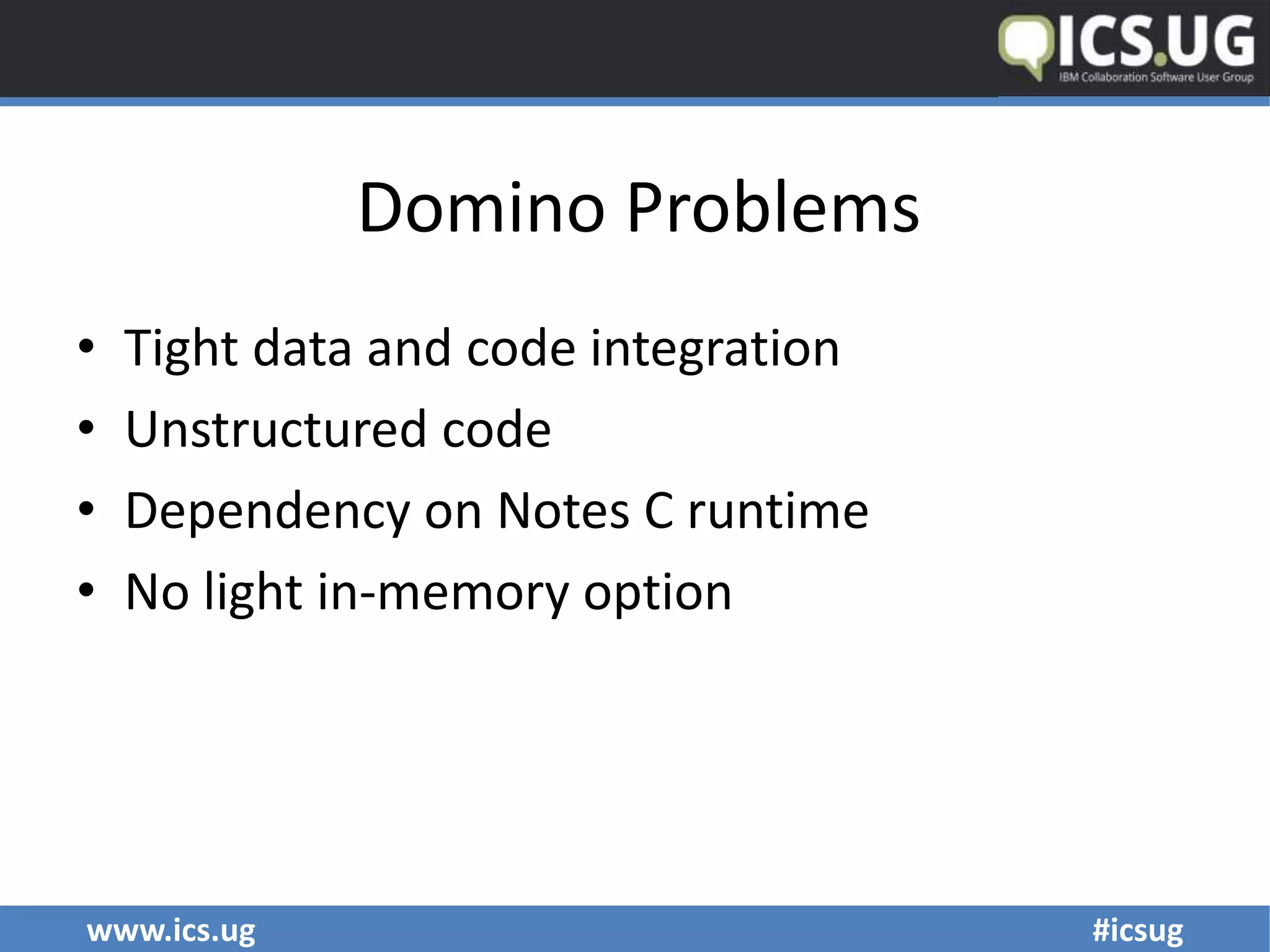

- 6. www.ics.ug #icsug Domino Problems •Tight data and code integration • Unstructured code • Dependency on Notes C runtime • No light in-memory option

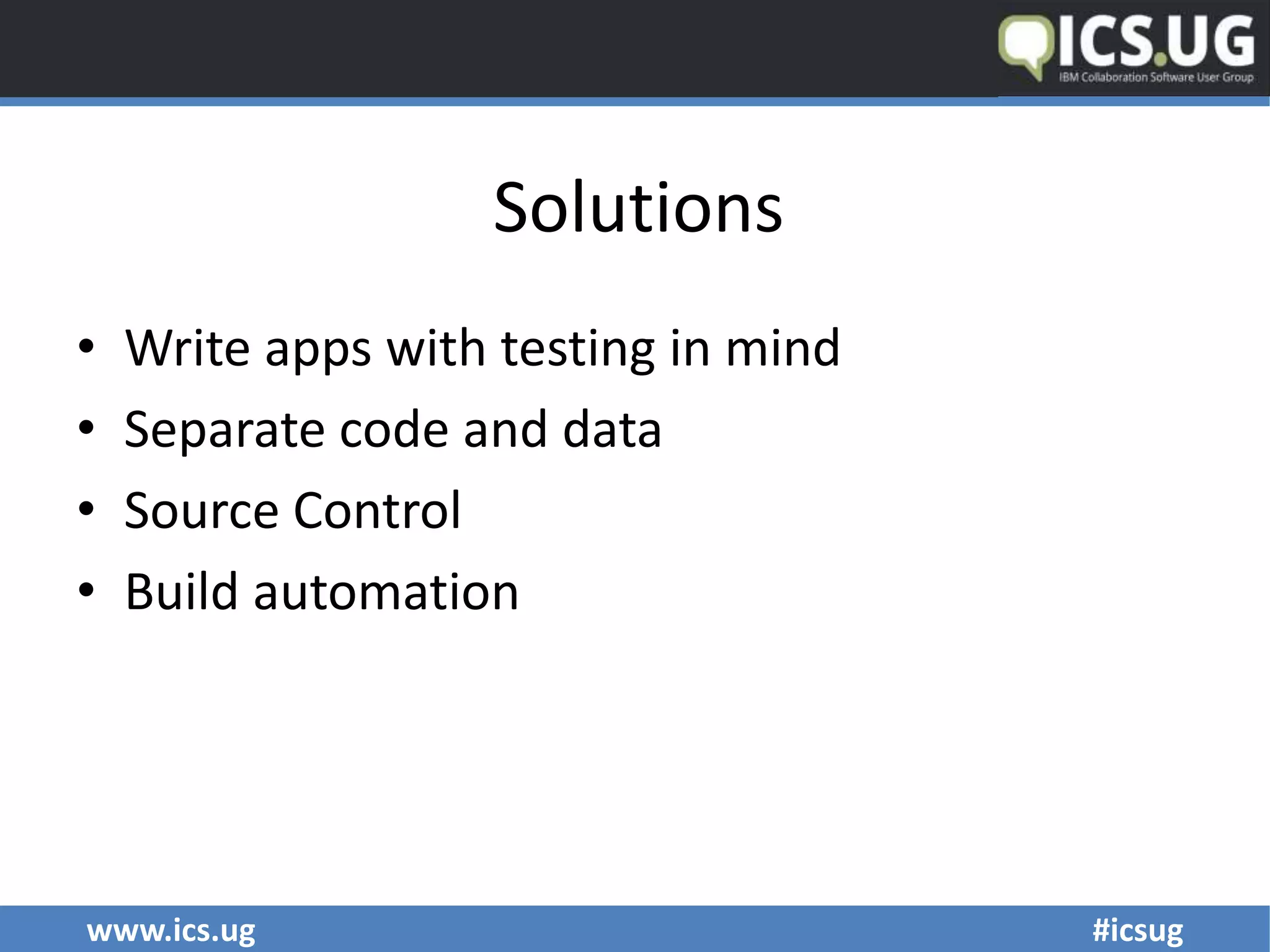

- 7. www.ics.ug #icsug Solutions • Writeapps with testing in mind • Separate code and data • Source Control • Build automation

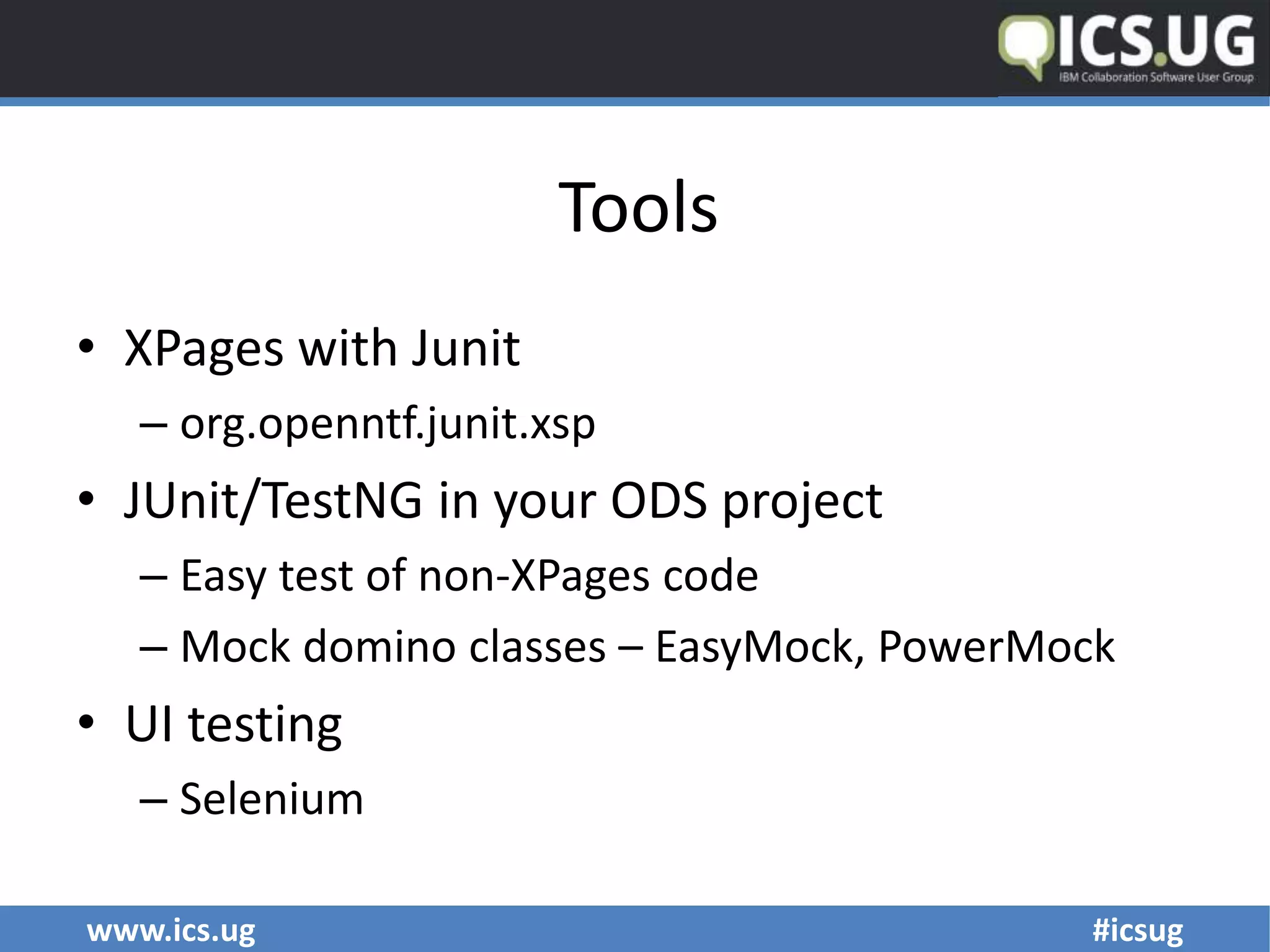

- 8. www.ics.ug #icsug Tools • XPageswith Junit – org.openntf.junit.xsp • JUnit/TestNG in your ODS project – Easy test of non-XPages code – Mock domino classes – EasyMock, PowerMock • UI testing – Selenium

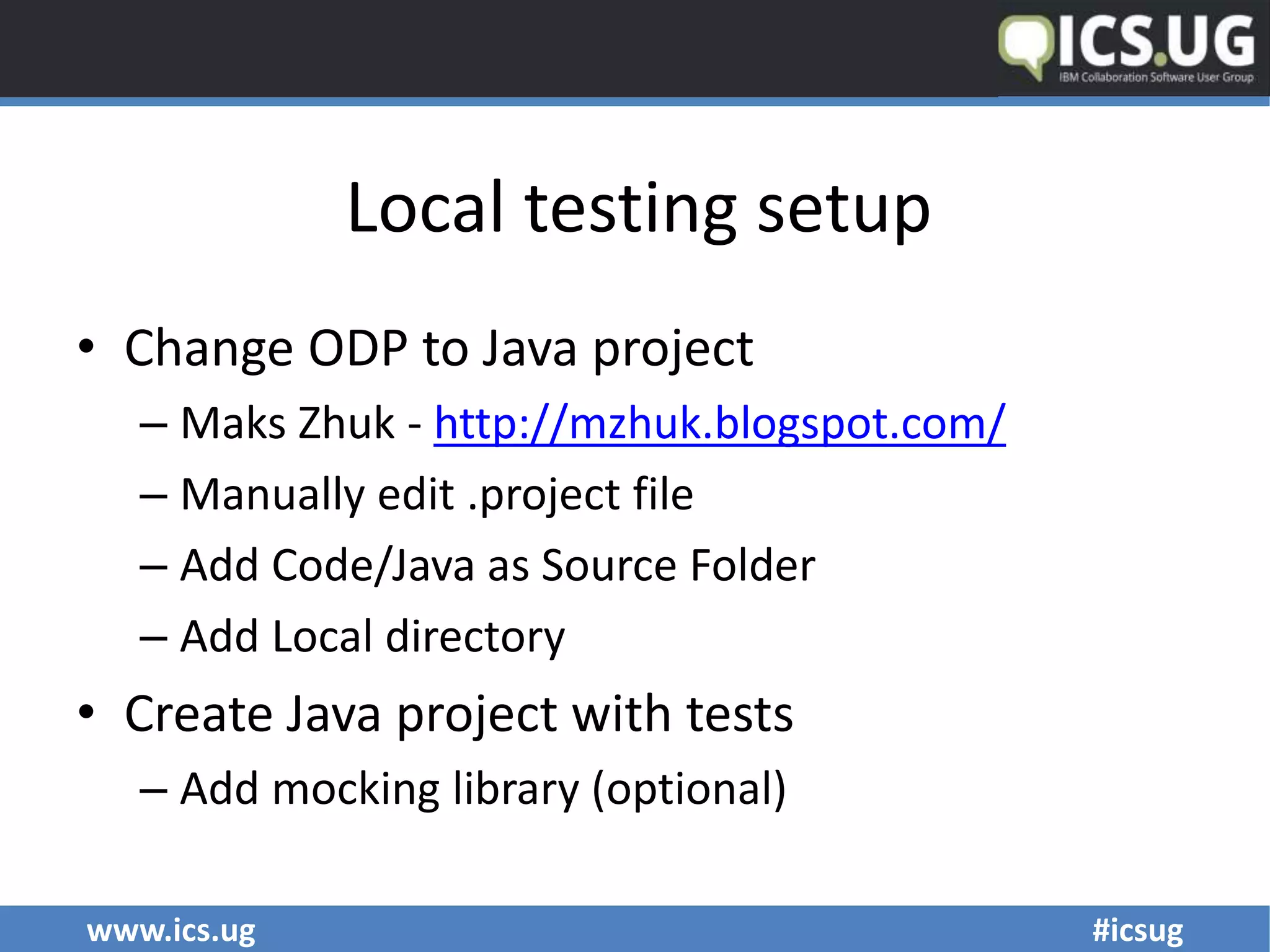

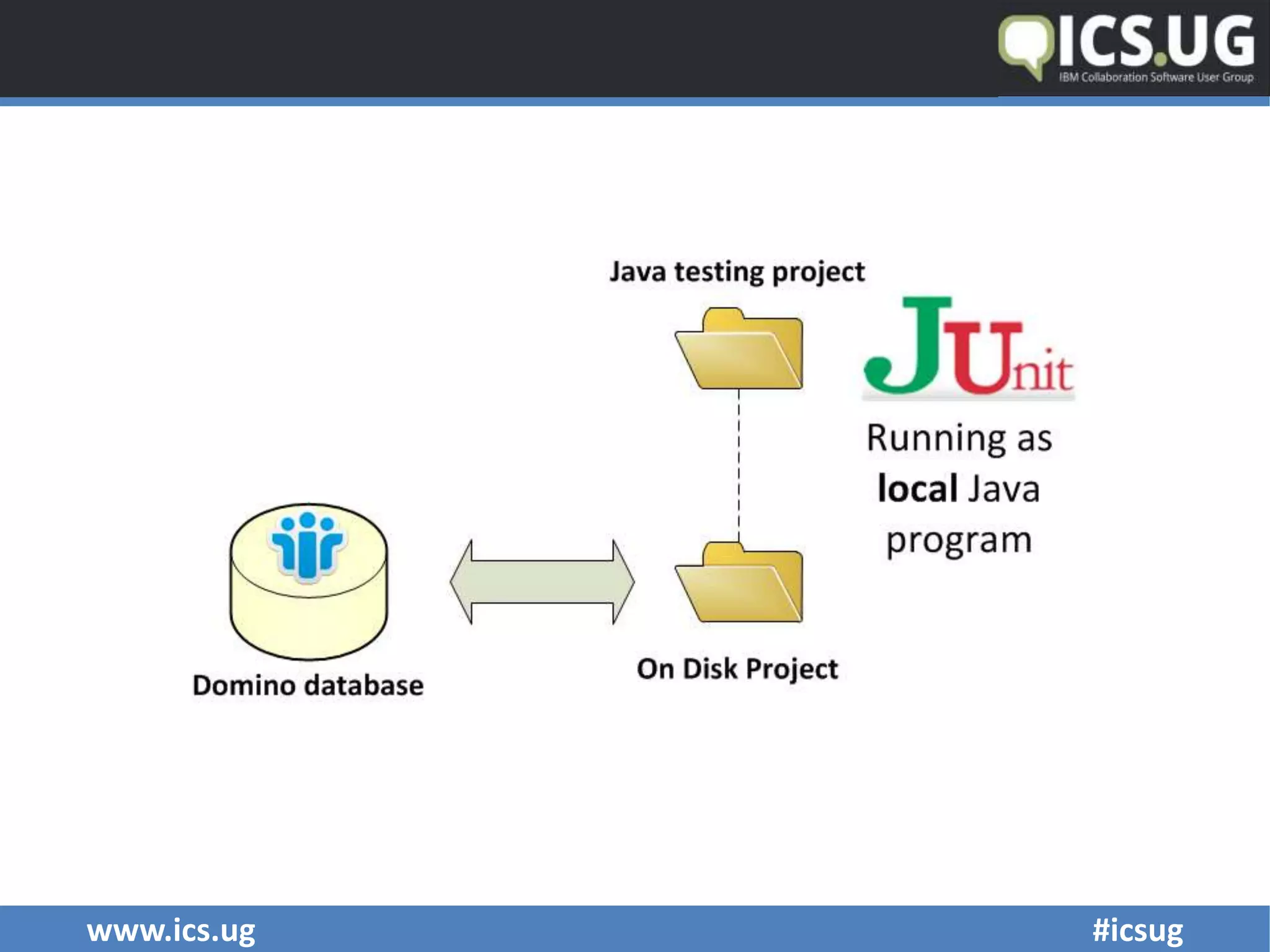

- 9. www.ics.ug #icsug Local testingsetup • Change ODP to Java project – Maks Zhuk - http://mzhuk.blogspot.com/ – Manually edit .project file – Add Code/Java as Source Folder – Add Local directory • Create Java project with tests – Add mocking library (optional)

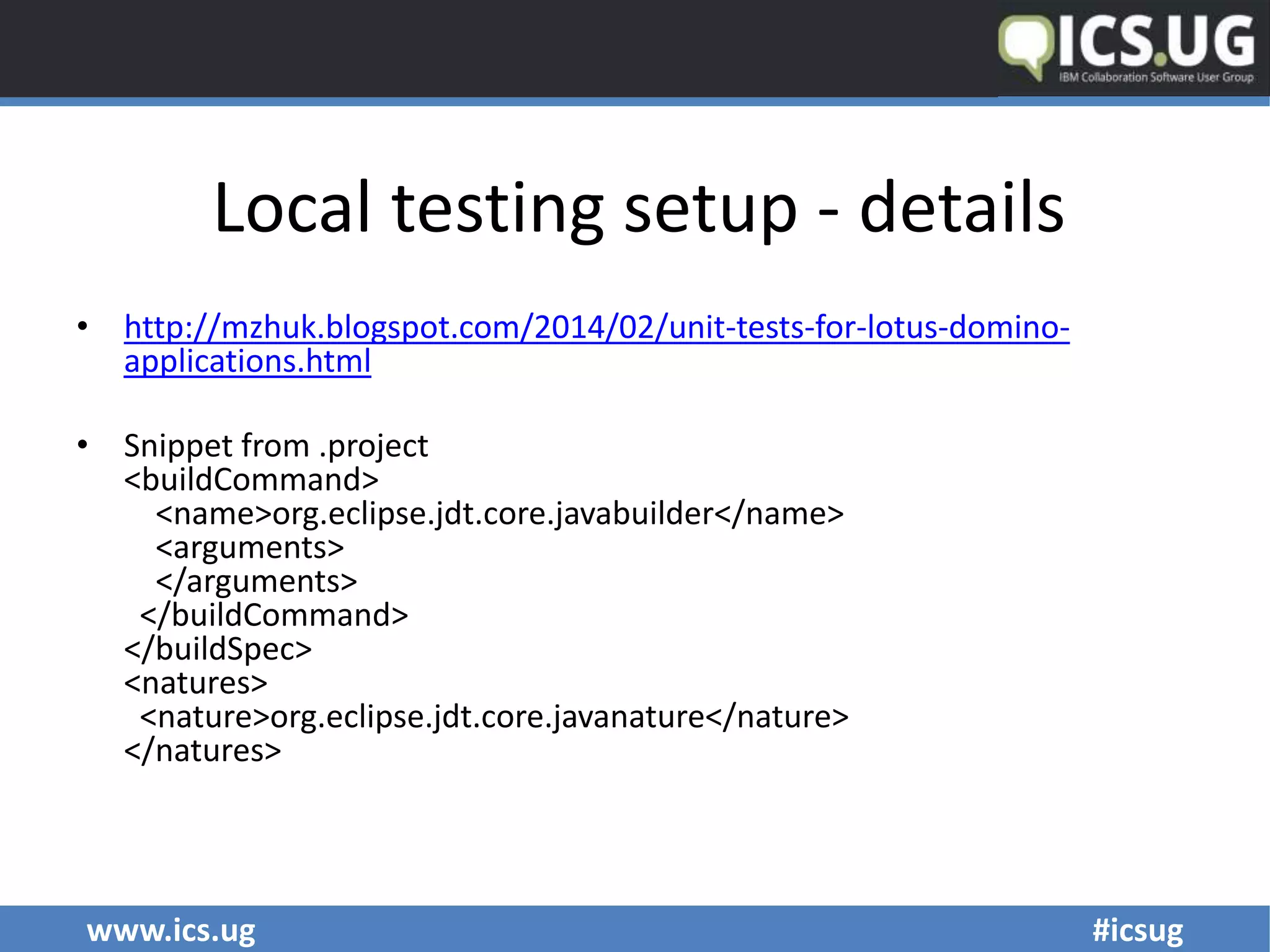

- 10. www.ics.ug #icsug Local testingsetup - details • http://mzhuk.blogspot.com/2014/02/unit-tests-for-lotus-domino- applications.html • Snippet from .project <buildCommand> <name>org.eclipse.jdt.core.javabuilder</name> <arguments> </arguments> </buildCommand> </buildSpec> <natures> <nature>org.eclipse.jdt.core.javanature</nature> </natures>
- 11.

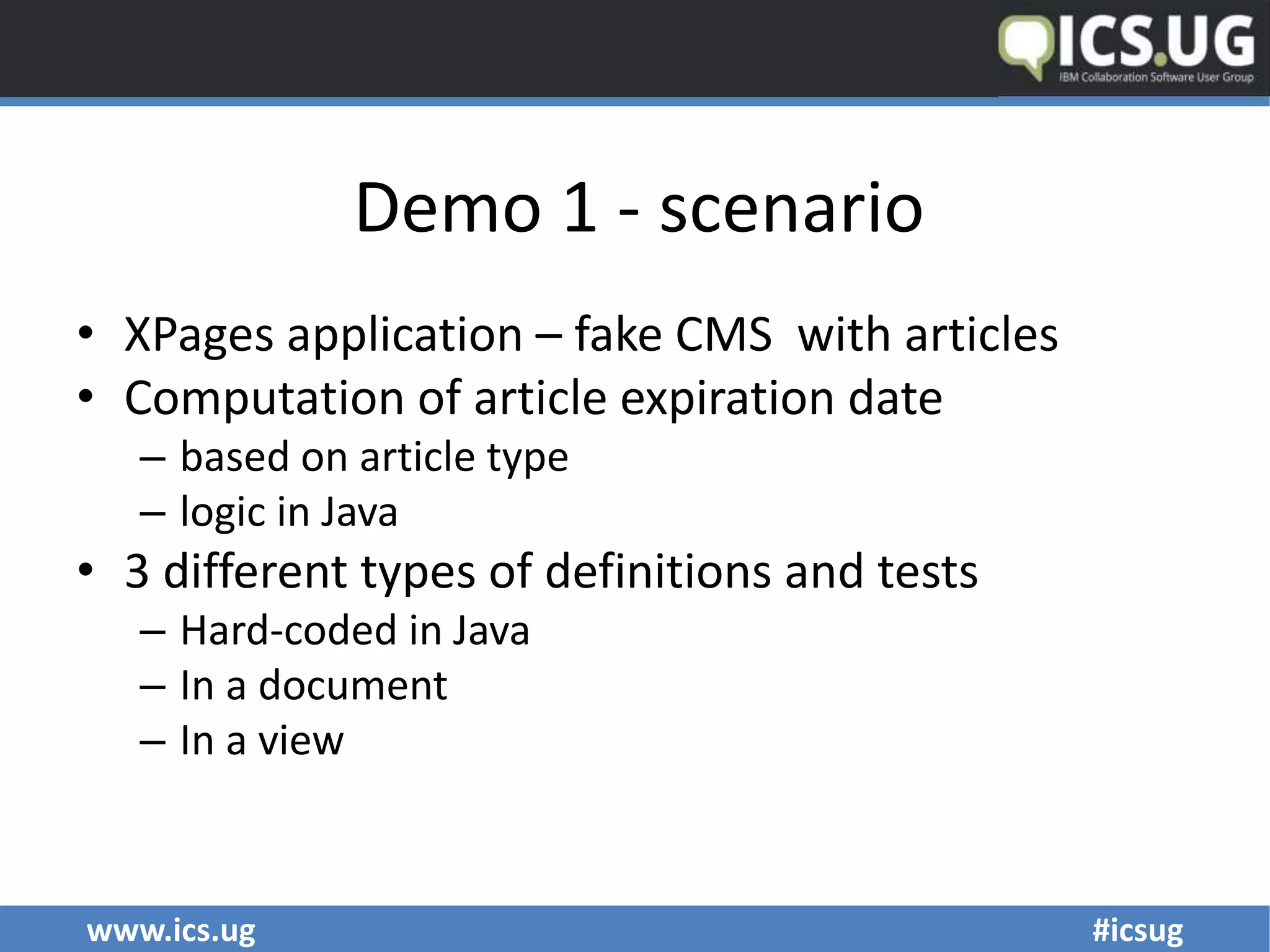

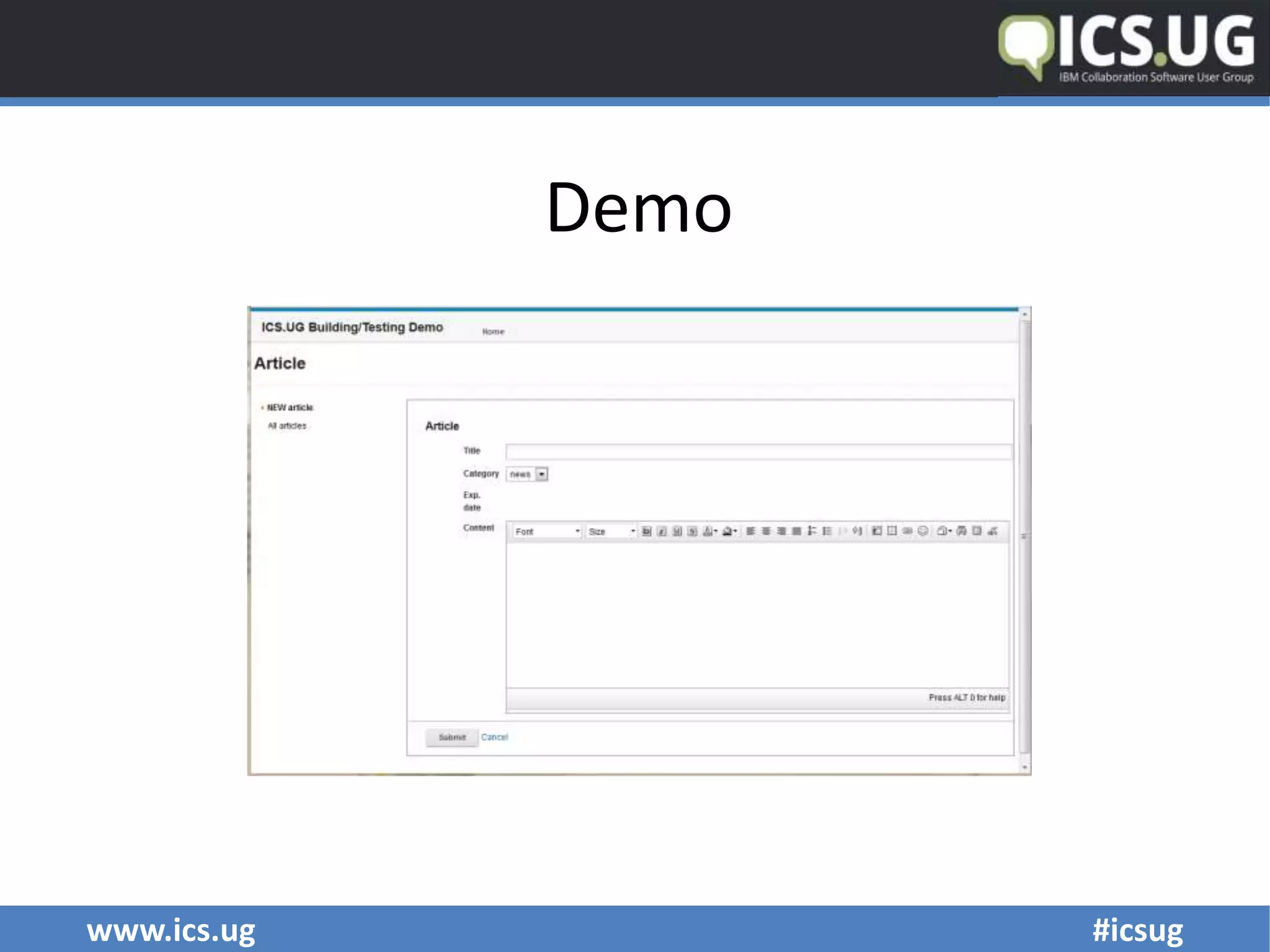

- 12. www.ics.ug #icsug Demo 1- scenario • XPages application – fake CMS with articles • Computation of article expiration date – based on article type – logic in Java • 3 different types of definitions and tests – Hard-coded in Java – In a document – In a view
- 13.

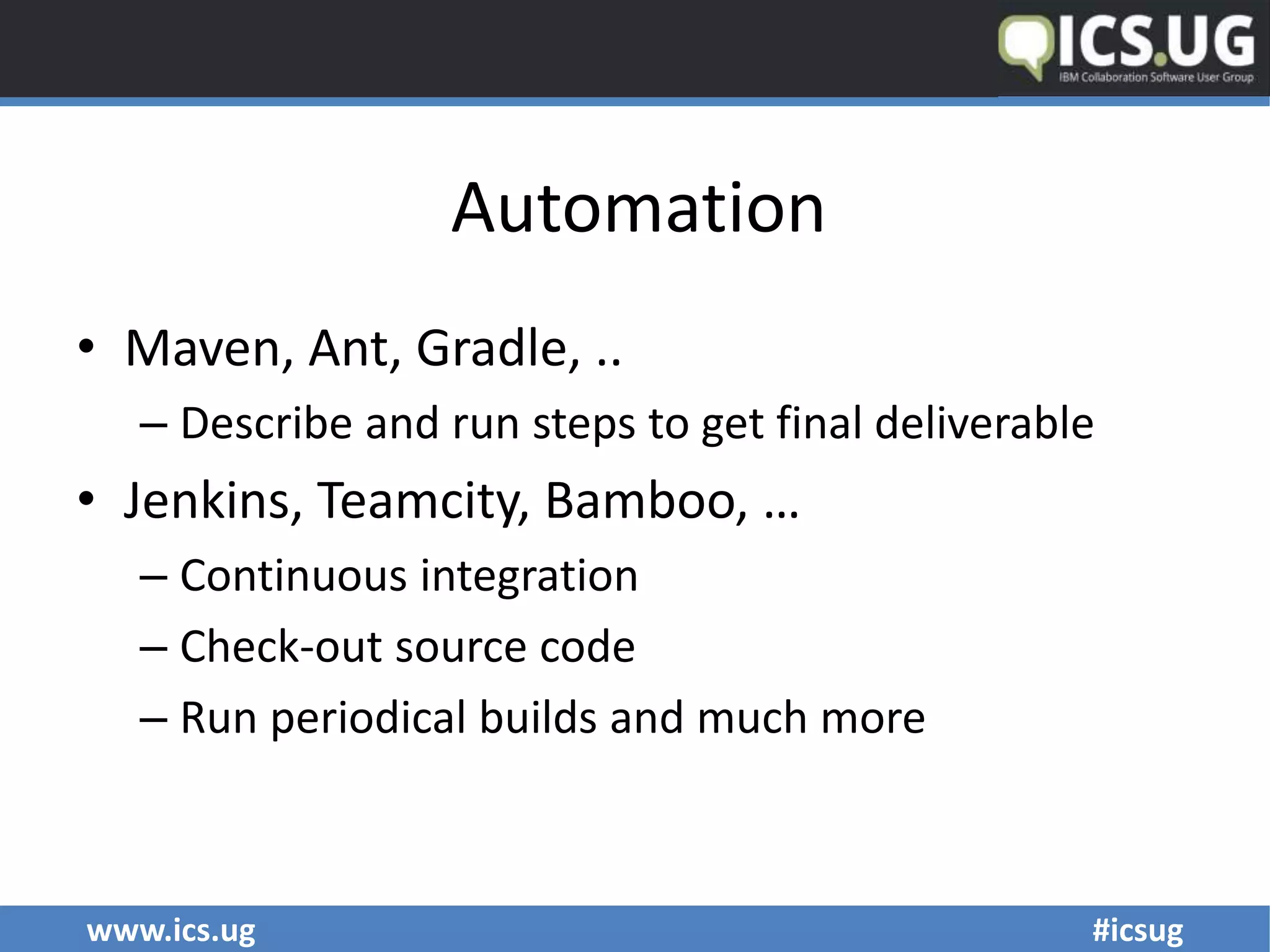

- 14. www.ics.ug #icsug Automation • Maven,Ant, Gradle, .. – Describe and run steps to get final deliverable • Jenkins, Teamcity, Bamboo, … – Continuous integration – Check-out source code – Run periodical builds and much more

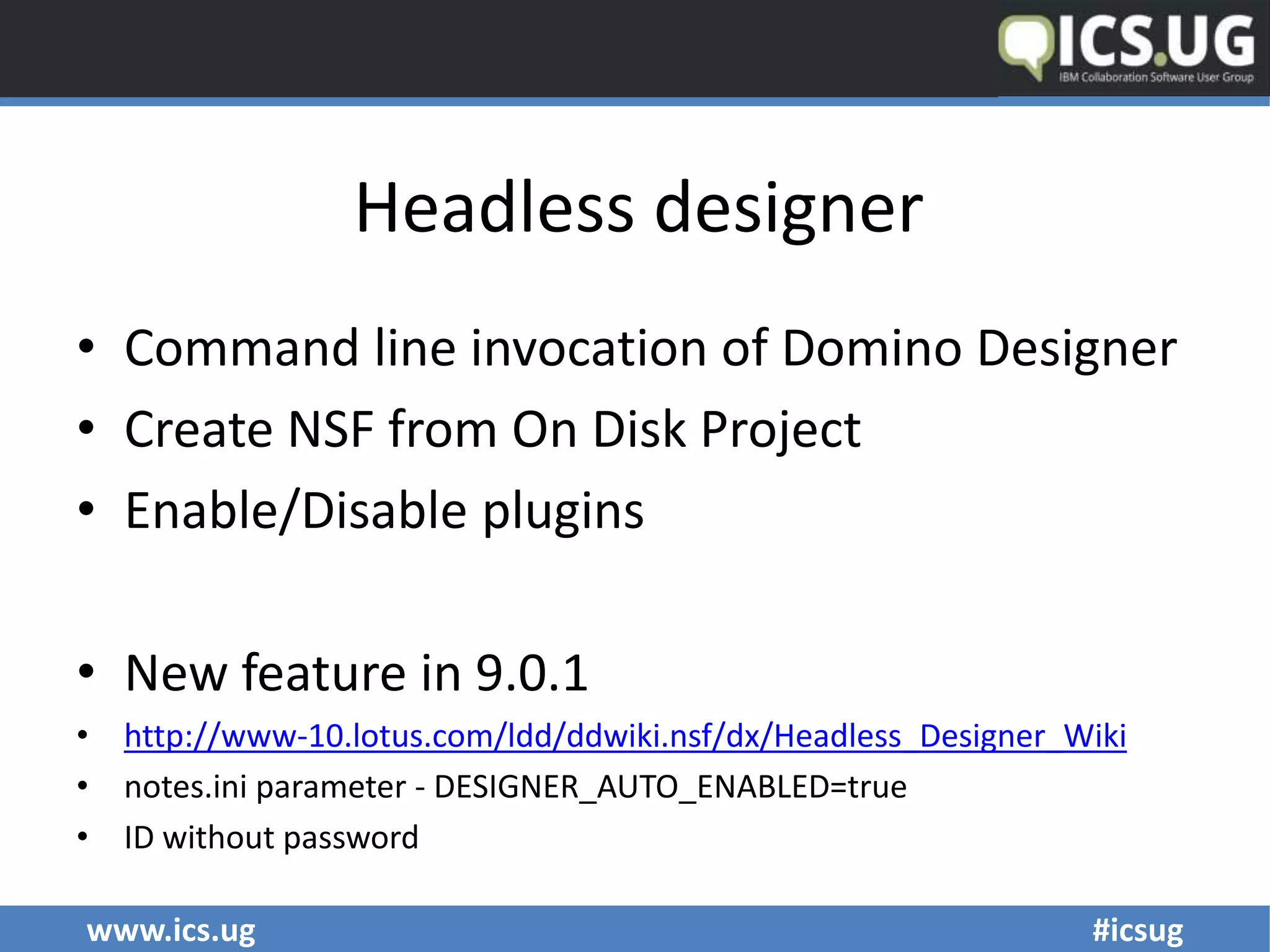

- 15. www.ics.ug #icsug Headless designer •Command line invocation of Domino Designer • Create NSF from On Disk Project • Enable/Disable plugins • New feature in 9.0.1 • http://www-10.lotus.com/ldd/ddwiki.nsf/dx/Headless_Designer_Wiki • notes.ini parameter - DESIGNER_AUTO_ENABLED=true • ID without password

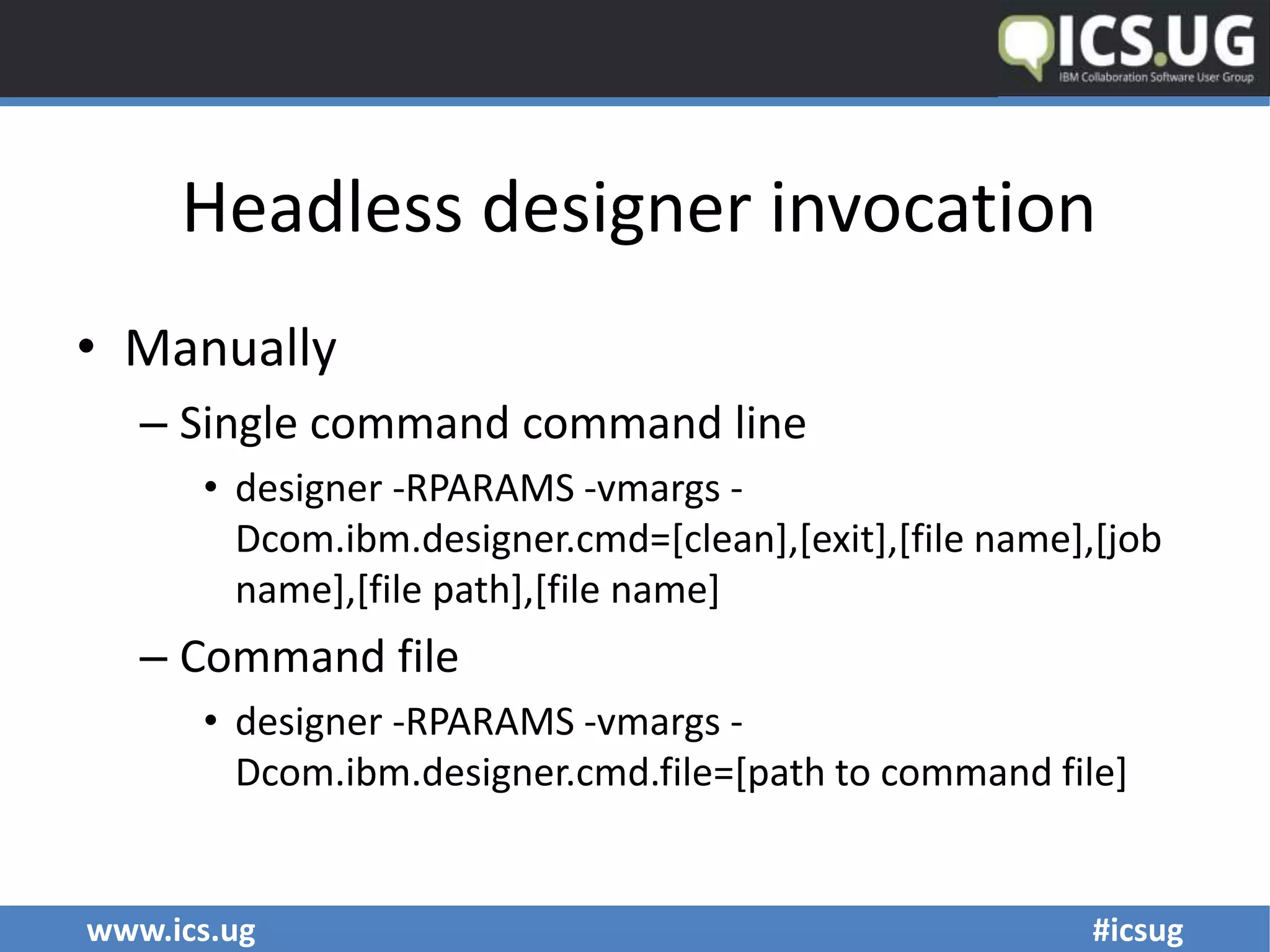

- 16. www.ics.ug #icsug Headless designerinvocation • Manually – Single command command line • designer -RPARAMS -vmargs - Dcom.ibm.designer.cmd=[clean],[exit],[file name],[job name],[file path],[file name] – Command file • designer -RPARAMS -vmargs - Dcom.ibm.designer.cmd.file=[path to command file]

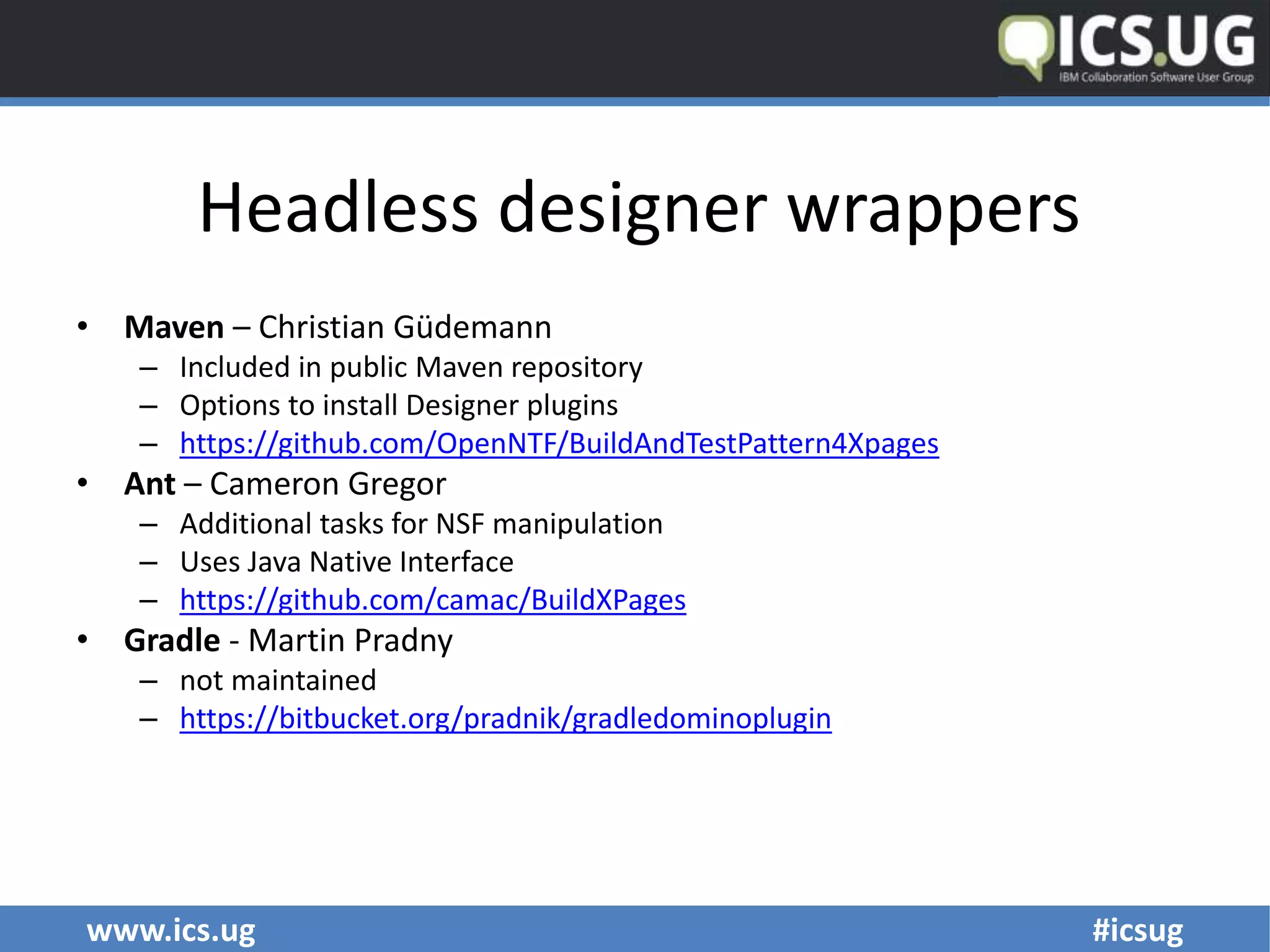

- 17. www.ics.ug #icsug Headless designerwrappers • Maven – Christian Güdemann – Included in public Maven repository – Options to install Designer plugins – https://github.com/OpenNTF/BuildAndTestPattern4Xpages • Ant – Cameron Gregor – Additional tasks for NSF manipulation – Uses Java Native Interface – https://github.com/camac/BuildXPages • Gradle - Martin Pradny – not maintained – https://bitbucket.org/pradnik/gradledominoplugin

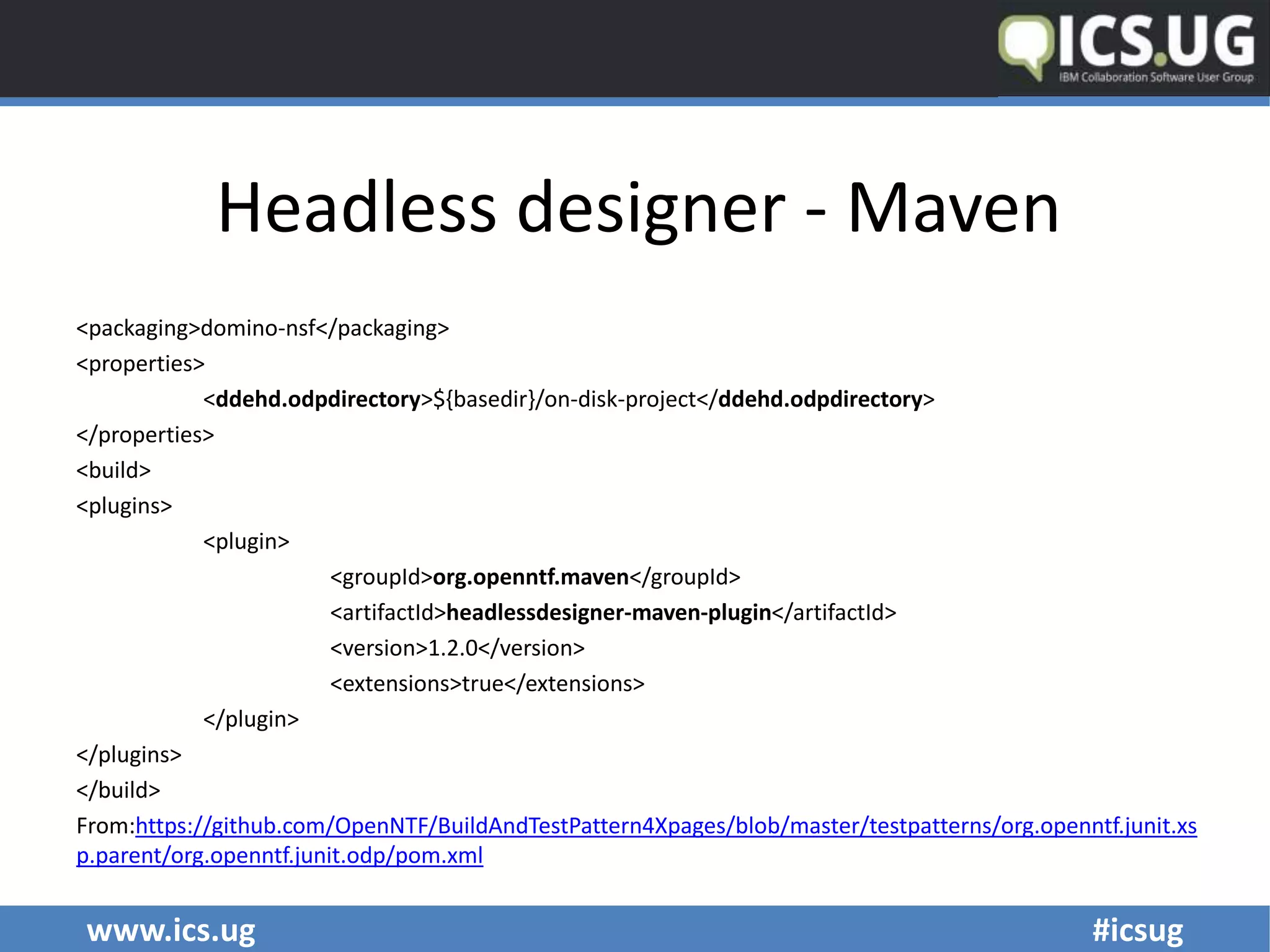

- 18. www.ics.ug #icsug Headless designer- Maven <packaging>domino-nsf</packaging> <properties> <ddehd.odpdirectory>${basedir}/on-disk-project</ddehd.odpdirectory> </properties> <build> <plugins> <plugin> <groupId>org.openntf.maven</groupId> <artifactId>headlessdesigner-maven-plugin</artifactId> <version>1.2.0</version> <extensions>true</extensions> </plugin> </plugins> </build> From:https://github.com/OpenNTF/BuildAndTestPattern4Xpages/blob/master/testpatterns/org.openntf.junit.xs p.parent/org.openntf.junit.odp/pom.xml

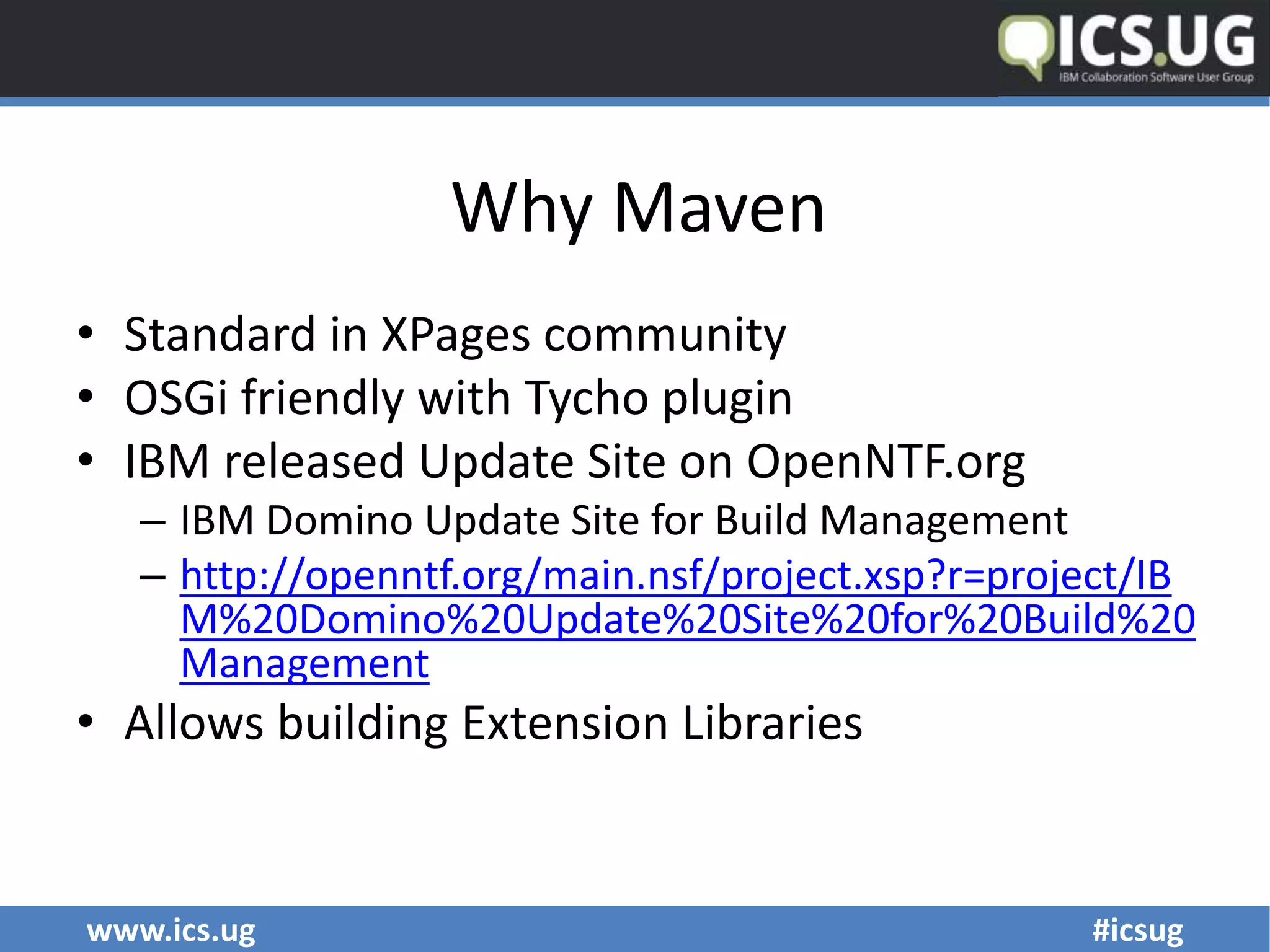

- 19. www.ics.ug #icsug Why Maven •Standard in XPages community • OSGi friendly with Tycho plugin • IBM released Update Site on OpenNTF.org – IBM Domino Update Site for Build Management – http://openntf.org/main.nsf/project.xsp?r=project/IB M%20Domino%20Update%20Site%20for%20Build%20 Management • Allows building Extension Libraries

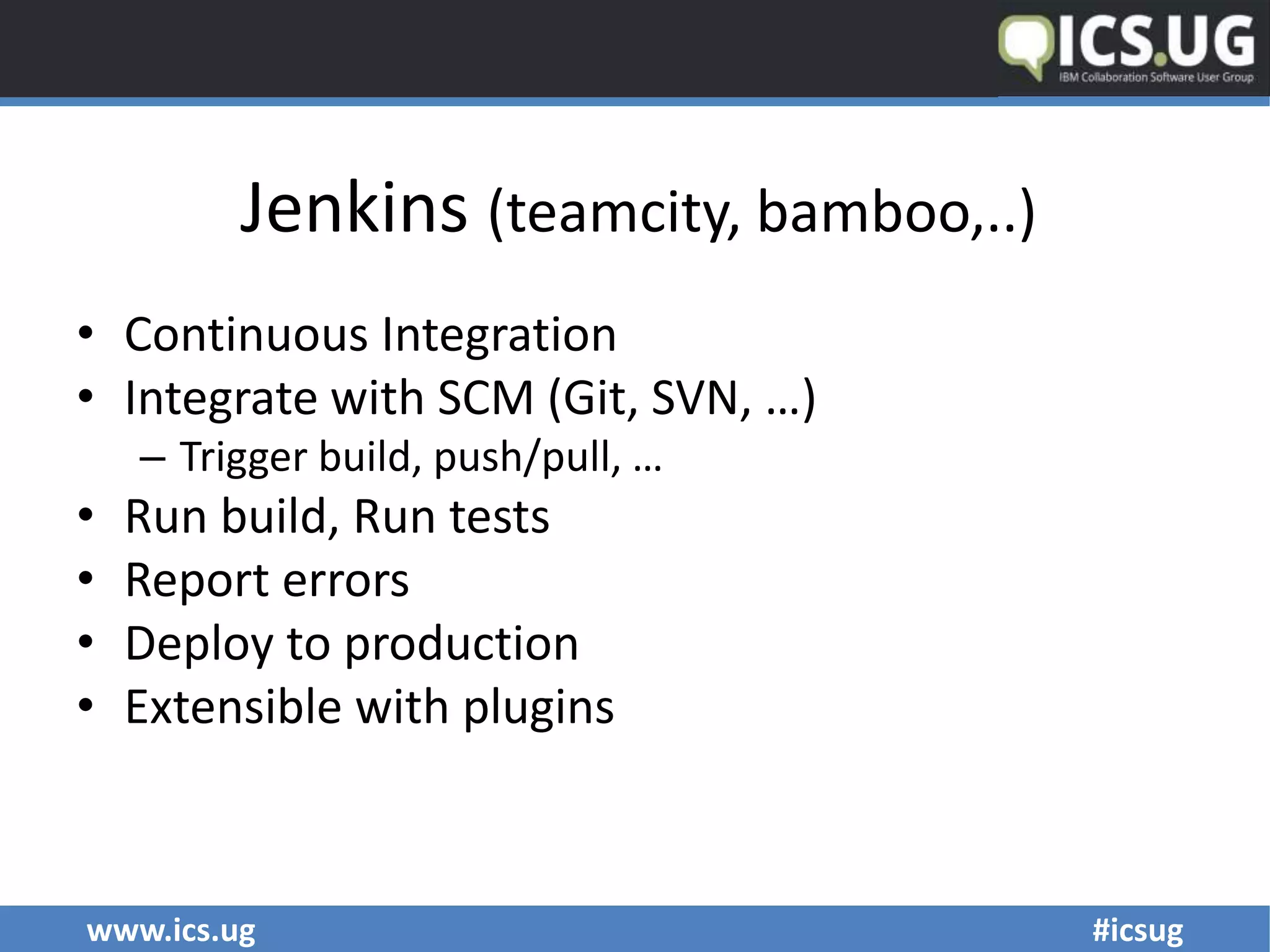

- 20. www.ics.ug #icsug Jenkins (teamcity,bamboo,..) • Continuous Integration • Integrate with SCM (Git, SVN, …) – Trigger build, push/pull, … • Run build, Run tests • Report errors • Deploy to production • Extensible with plugins

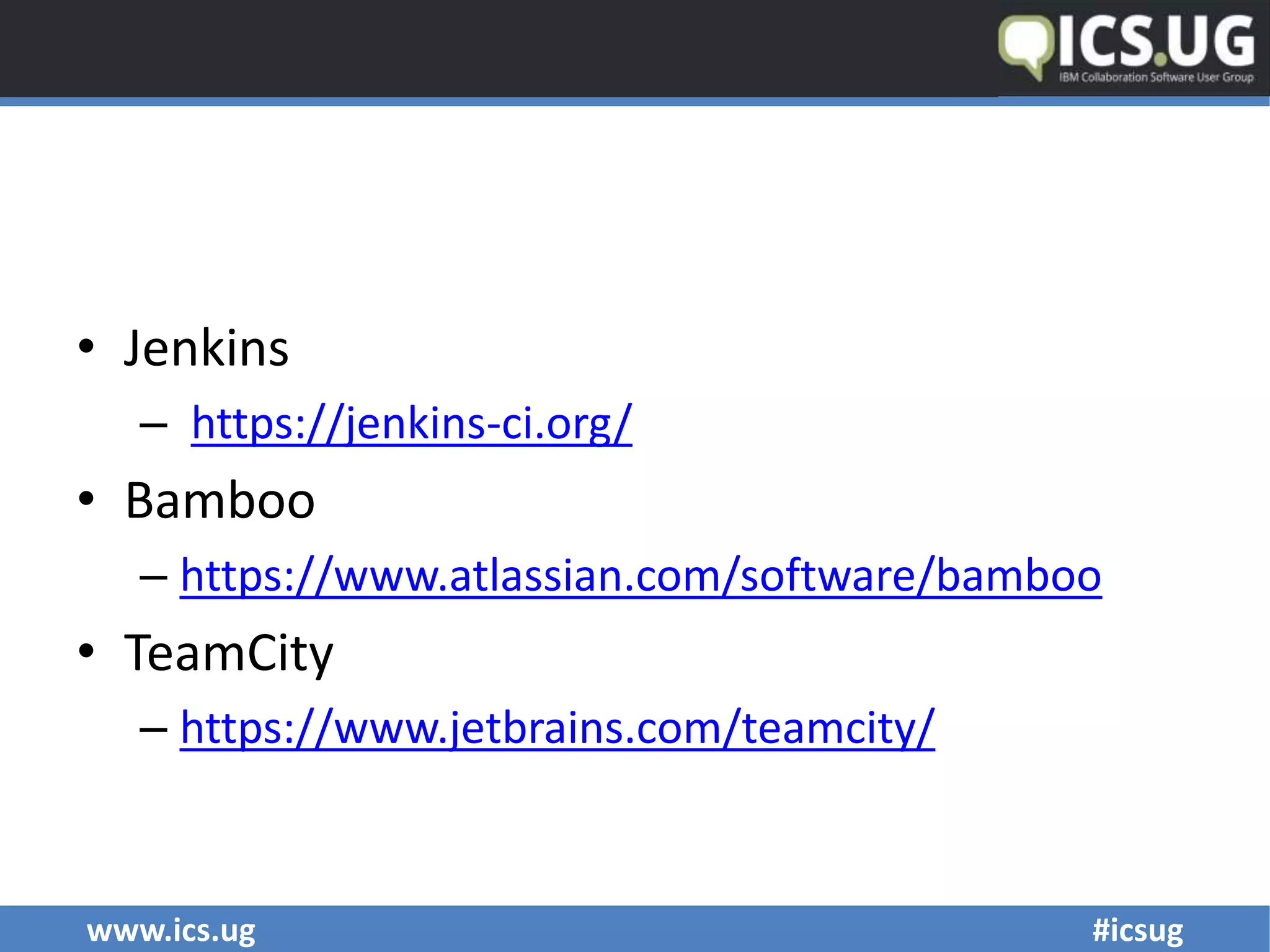

- 21. www.ics.ug #icsug • Jenkins –https://jenkins-ci.org/ • Bamboo – https://www.atlassian.com/software/bamboo • TeamCity – https://www.jetbrains.com/teamcity/

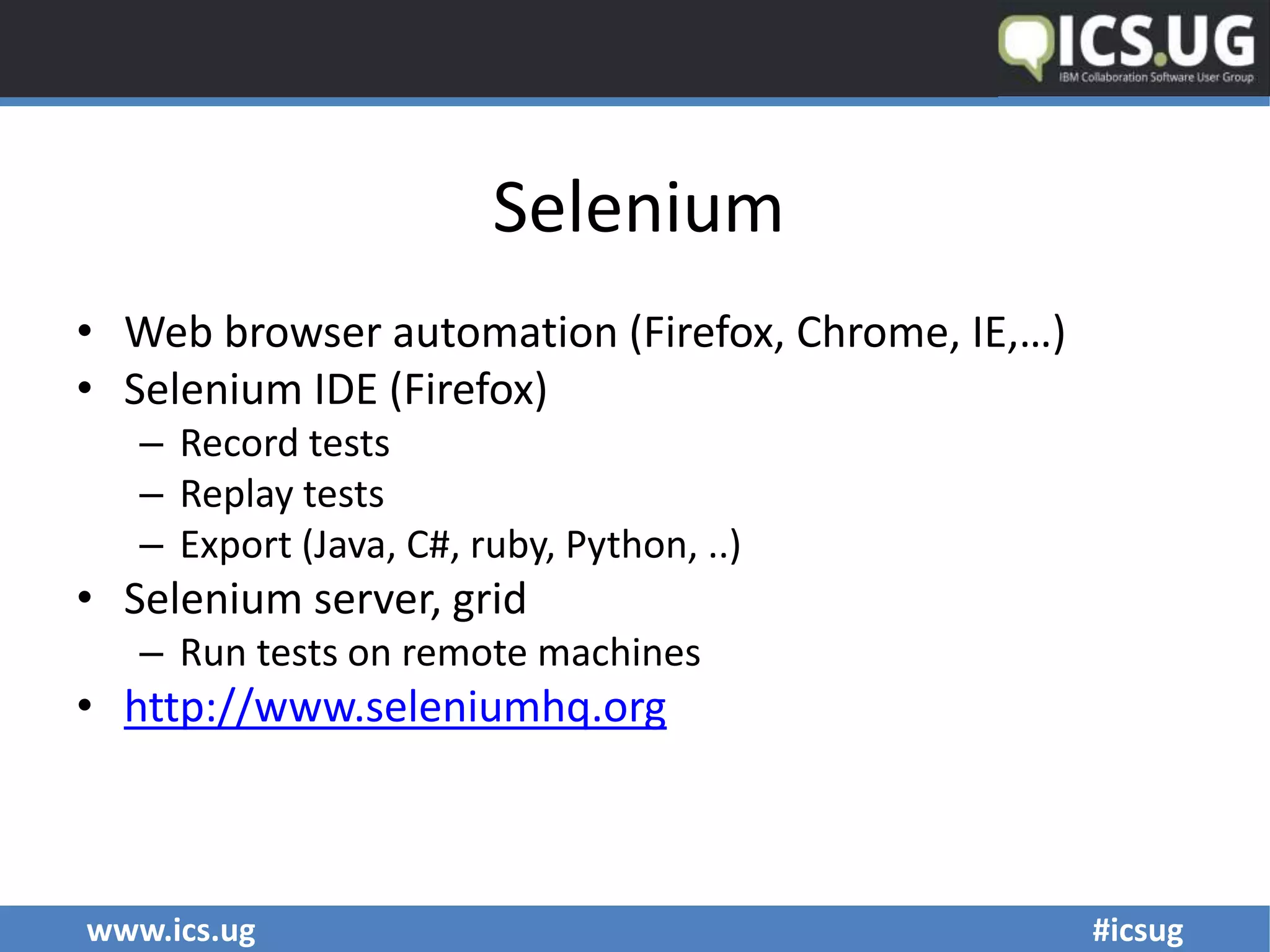

- 22. www.ics.ug #icsug Selenium • Webbrowser automation (Firefox, Chrome, IE,…) • Selenium IDE (Firefox) – Record tests – Replay tests – Export (Java, C#, ruby, Python, ..) • Selenium server, grid – Run tests on remote machines • http://www.seleniumhq.org

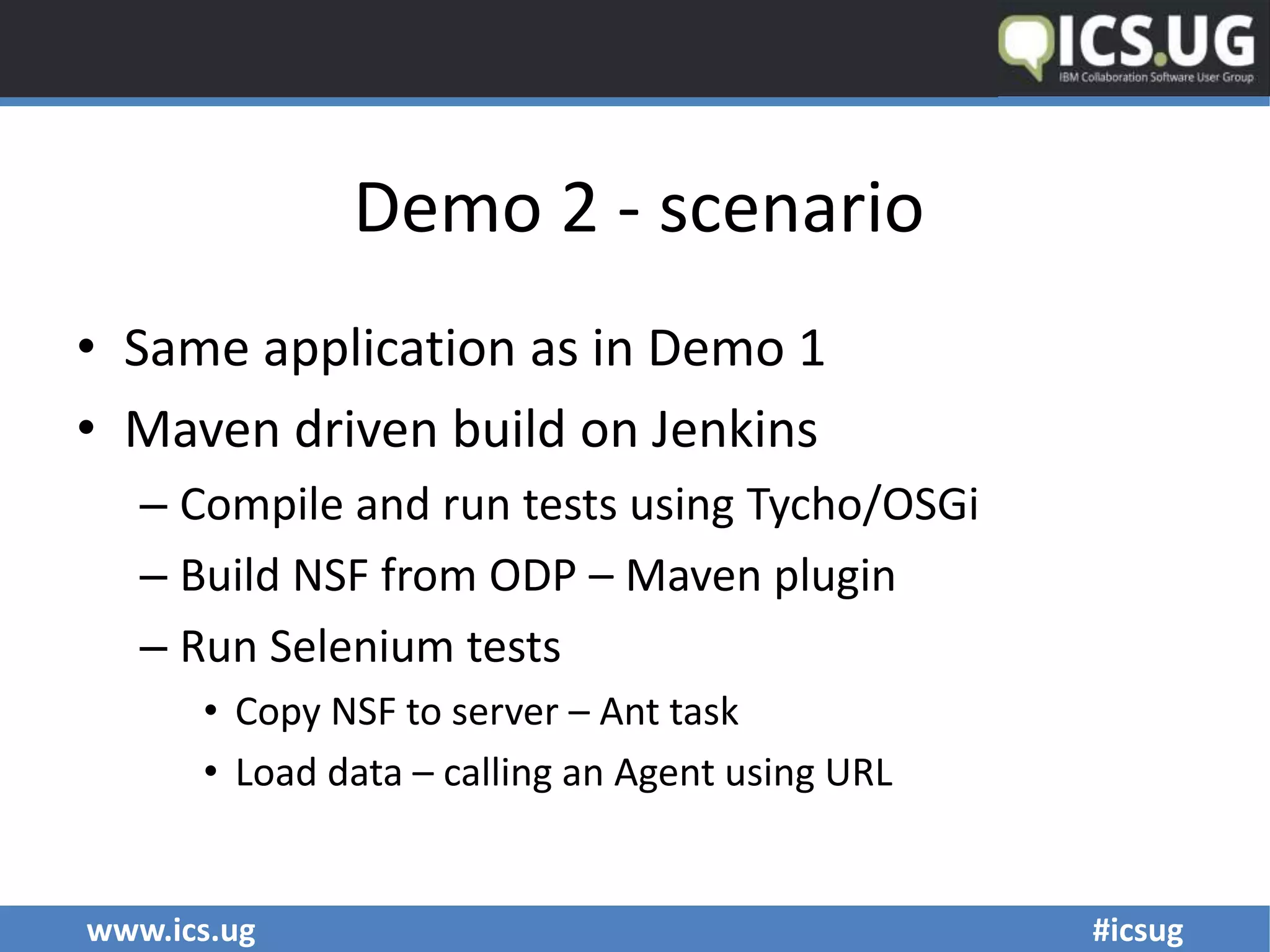

- 23. www.ics.ug #icsug Demo 2- scenario • Same application as in Demo 1 • Maven driven build on Jenkins – Compile and run tests using Tycho/OSGi – Build NSF from ODP – Maven plugin – Run Selenium tests • Copy NSF to server – Ant task • Load data – calling an Agent using URL

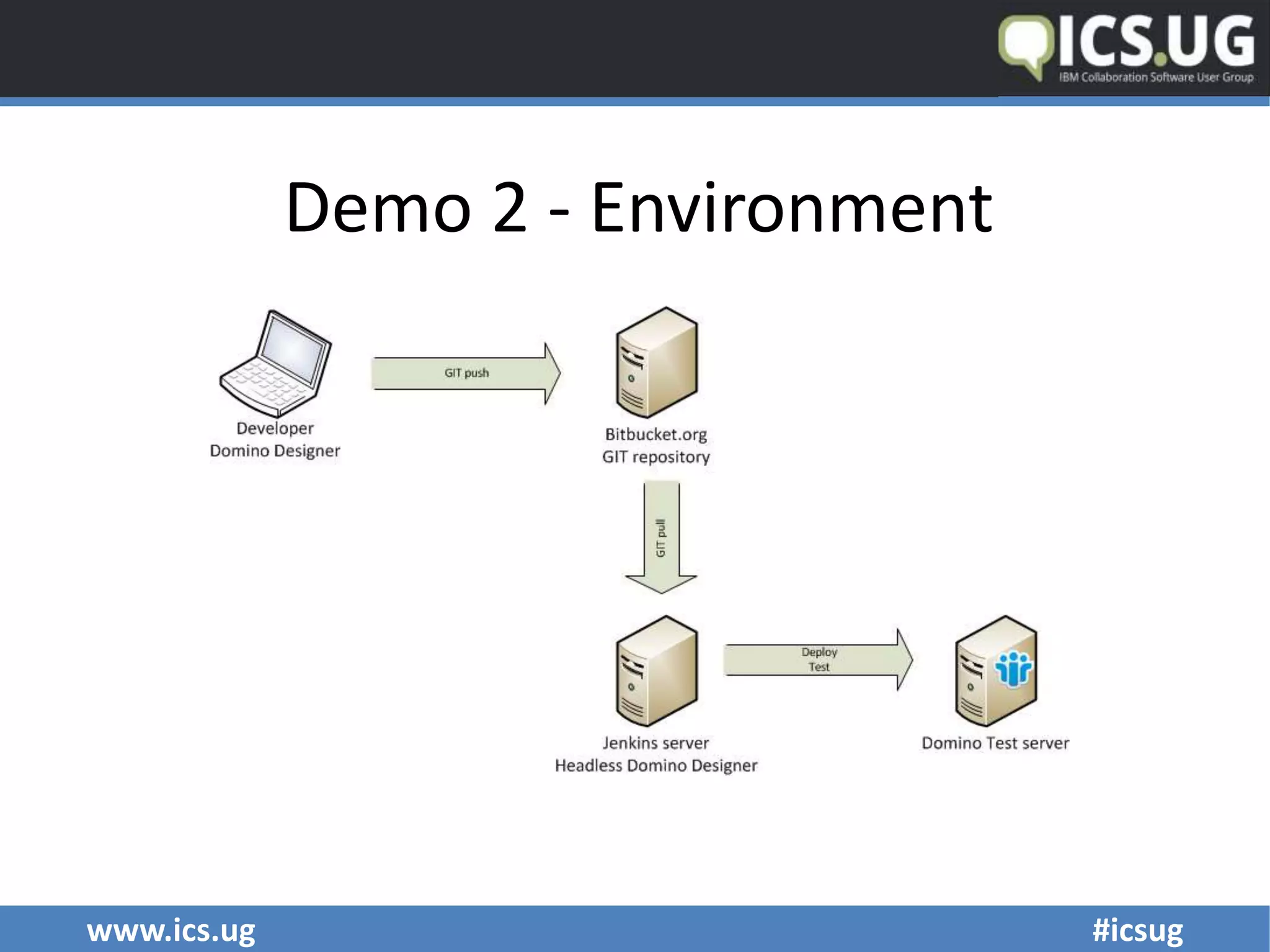

- 24. www.ics.ug #icsug Demo 2- Environment

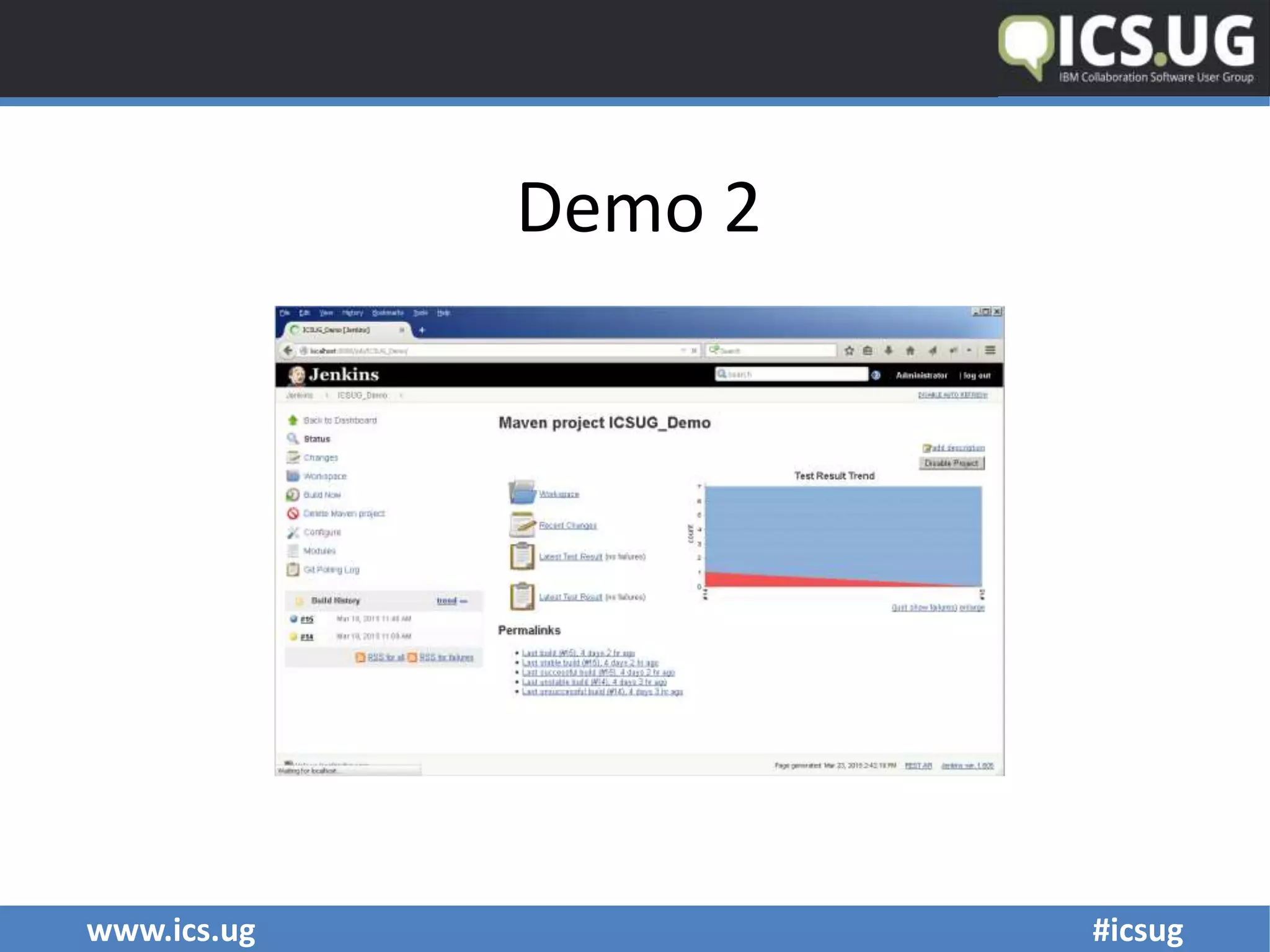

- 25.

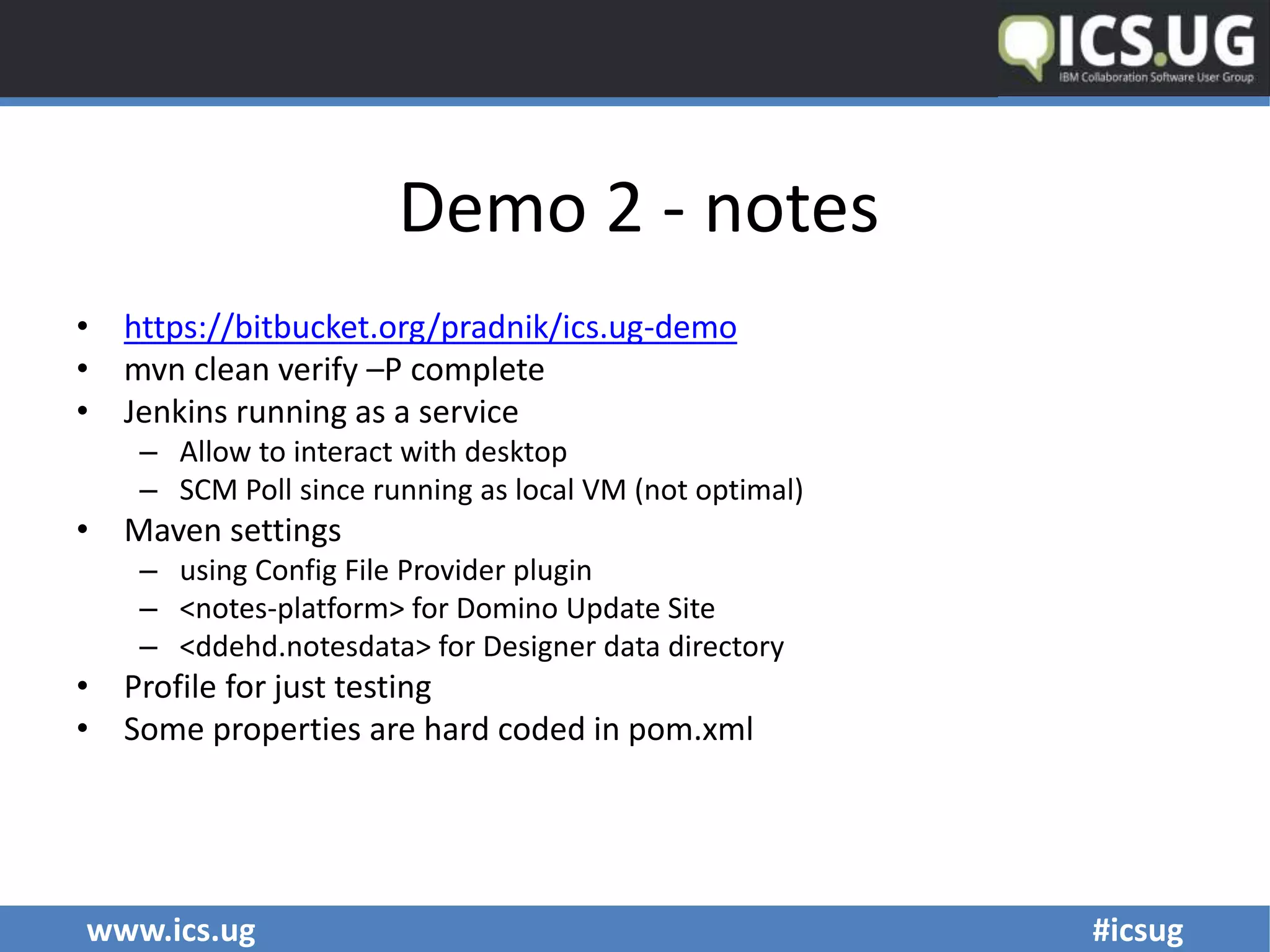

- 26. www.ics.ug #icsug Demo 2- notes • https://bitbucket.org/pradnik/ics.ug-demo • mvn clean verify –P complete • Jenkins running as a service – Allow to interact with desktop – SCM Poll since running as local VM (not optimal) • Maven settings – using Config File Provider plugin – <notes-platform> for Domino Update Site – <ddehd.notesdata> for Designer data directory • Profile for just testing • Some properties are hard coded in pom.xml

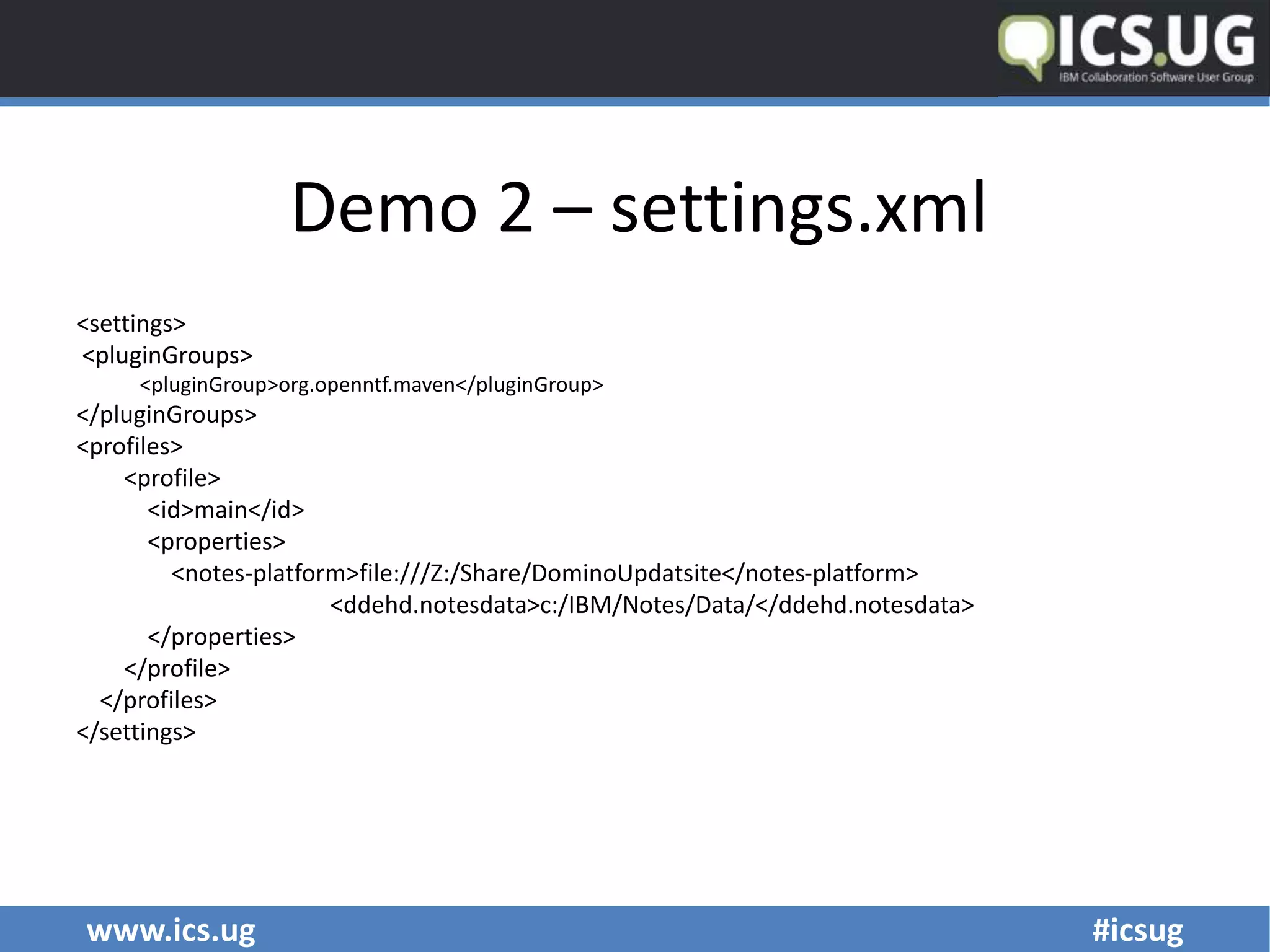

- 27. www.ics.ug #icsug Demo 2– settings.xml <settings> <pluginGroups> <pluginGroup>org.openntf.maven</pluginGroup> </pluginGroups> <profiles> <profile> <id>main</id> <properties> <notes-platform>file:///Z:/Share/DominoUpdatsite</notes-platform> <ddehd.notesdata>c:/IBM/Notes/Data/</ddehd.notesdata> </properties> </profile> </profiles> </settings>

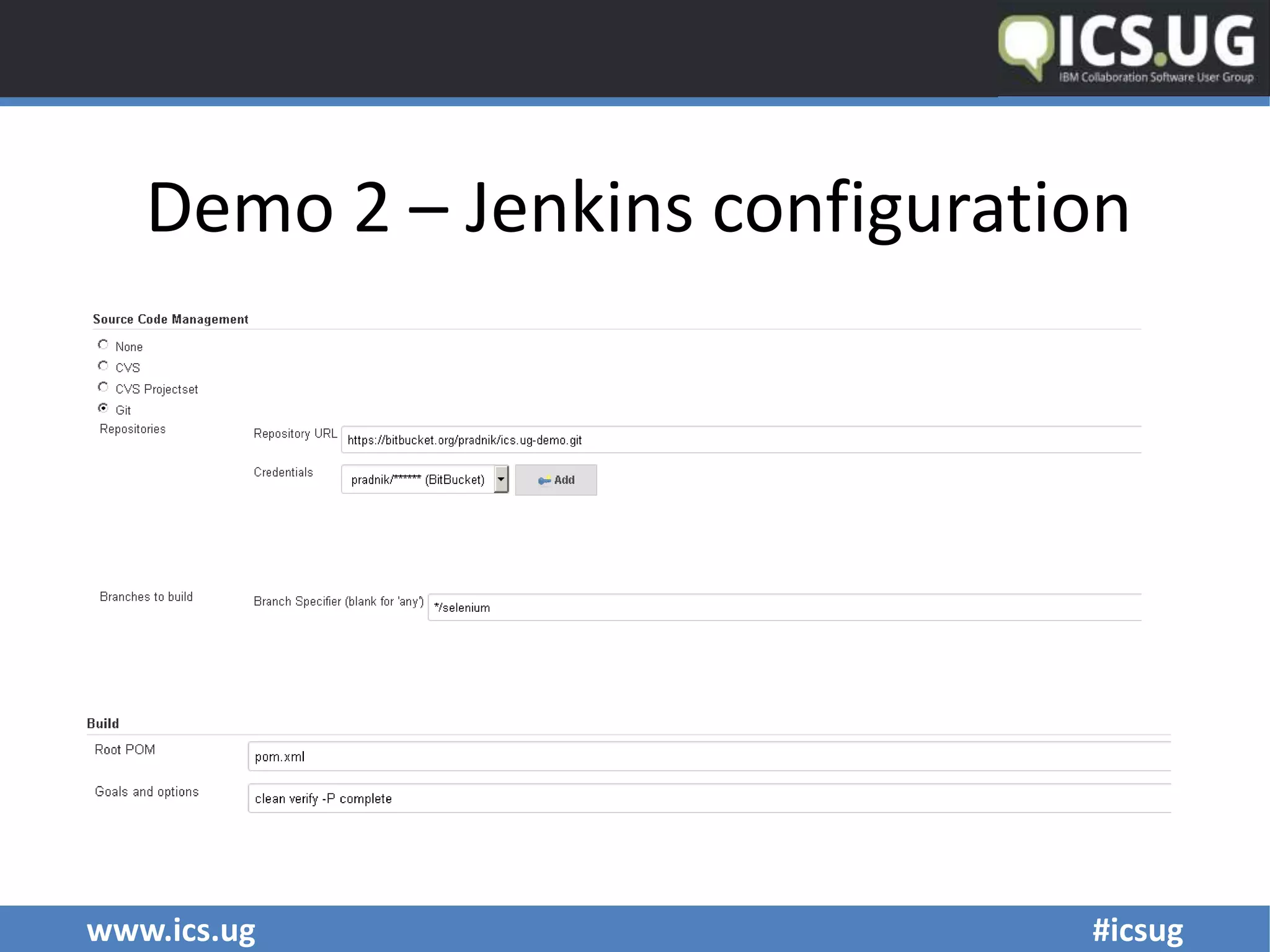

- 28. www.ics.ug #icsug Demo 2– Jenkins configuration

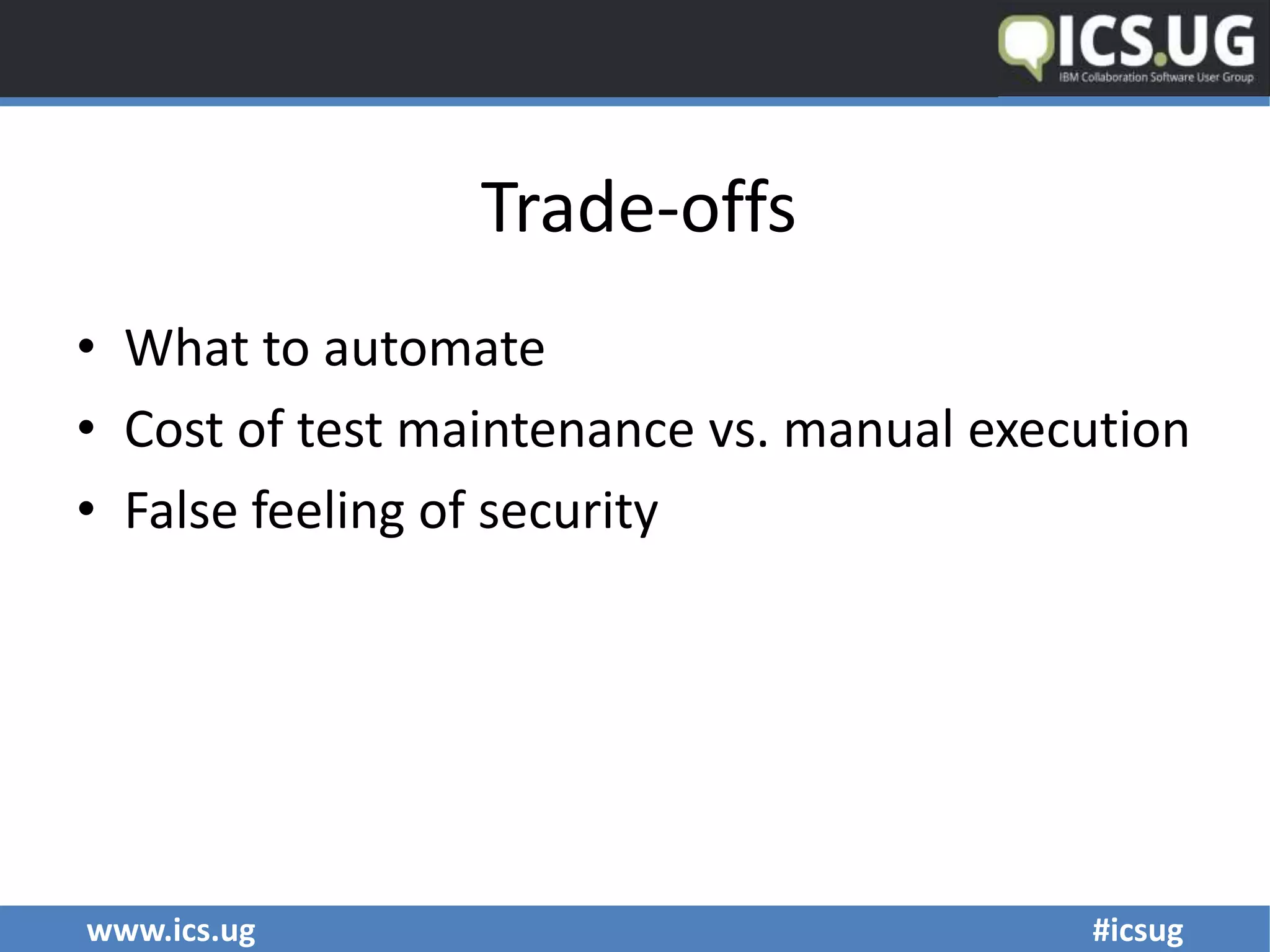

- 29. www.ics.ug #icsug Trade-offs • Whatto automate • Cost of test maintenance vs. manual execution • False feeling of security

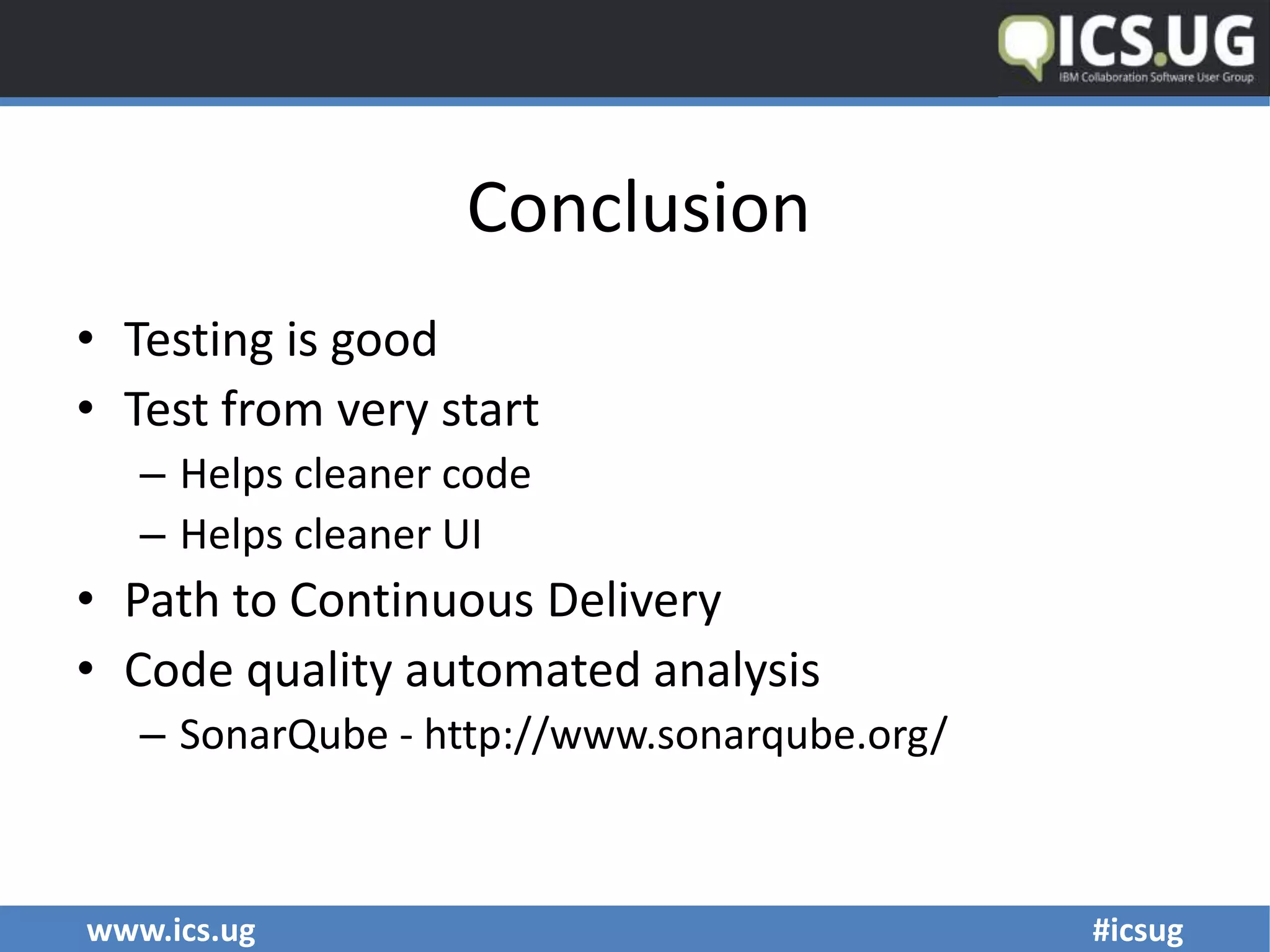

- 30. www.ics.ug #icsug Conclusion • Testingis good • Test from very start – Helps cleaner code – Helps cleaner UI • Path to Continuous Delivery • Code quality automated analysis – SonarQube - http://www.sonarqube.org/
- 31.
- 32.
Editor's Notes
- #9 PowerMock is a framework that extend other mock libraries such as EasyMock with more powerful capabilities. PowerMock uses a custom classloader and bytecode manipulation to enable mocking of static methods, constructors, final classes and methods, private methods, removal of static initializers and more.
- #10 http://mzhuk.blogspot.com/2014/02/unit-tests-for-lotus-domino-applications.html <buildCommand> <name>org.eclipse.jdt.core.javabuilder</name> <arguments> </arguments> </buildCommand> </buildSpec> <natures> <nature>org.eclipse.jdt.core.javanature</nature> </natures>
- #14 Run SimpleArticle test Run DominoArticle test – explain mocking Run ViewArticle test – explain why failed
- #18 Maven - https://github.com/OpenNTF/BuildAndTestPattern4Xpages Ant - https://github.com/camac/BuildXPages Gradle - https://bitbucket.org/pradnik/gradledominoplugin
- #19 Taken from https://github.com/OpenNTF/BuildAndTestPattern4Xpages/blob/master/testpatterns/org.openntf.junit.xsp.parent/org.openntf.junit.odp/pom.xml
- #20 http://openntf.org/main.nsf/project.xsp?r=project/IBM%20Domino%20Update%20Site%20for%20Build%20Management
- #21 Jenkins https://jenkins-ci.org/ Bamboo https://www.atlassian.com/software/bamboo TeamCity https://www.jetbrains.com/teamcity/
- #27 settings.xml: <settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> <pluginGroups> <pluginGroup>org.openntf.maven</pluginGroup> </pluginGroups> <profiles> <profile> <id>main</id> <properties> <notes-platform>file:///Z:/Share/DominoUpdatsite</notes-platform> <ddehd.notesdata>c:/IBM/Notes/Data/</ddehd.notesdata> </properties> </profile> </profiles> </settings>
- #29 mvn clean verify –P complete
