This presentation at OSDC 2013 discusses building and testing under CI a desktop application written in Python using Qt, nose and Jenkins.

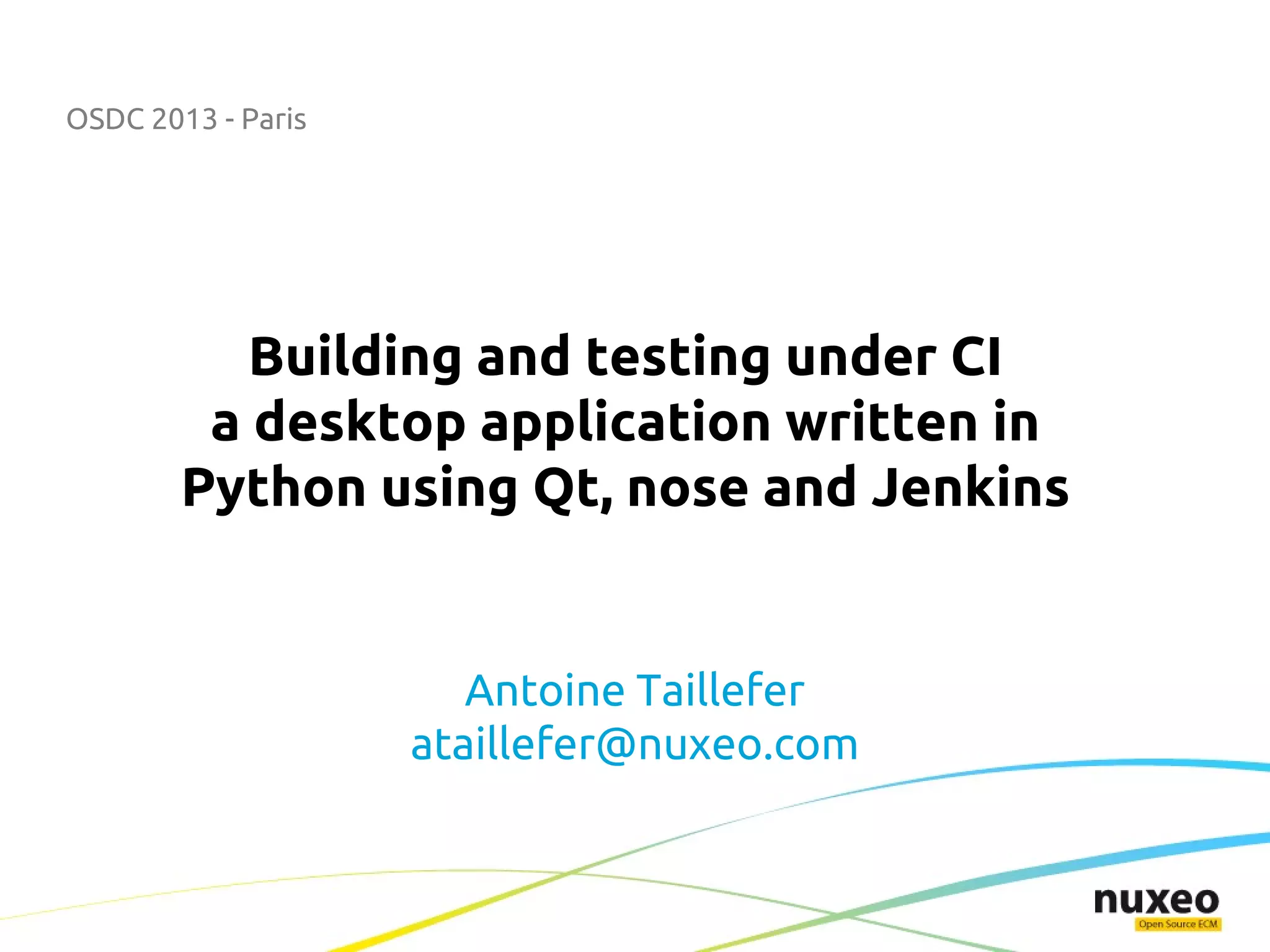

1. OSDC 2013 - Paris
Building and testing under CI
a desktop application written in
Python using Qt, nose and Jenkins
Antoine Taillefer
ataillefer@nuxeo.com

2. 2

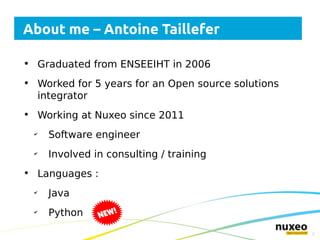

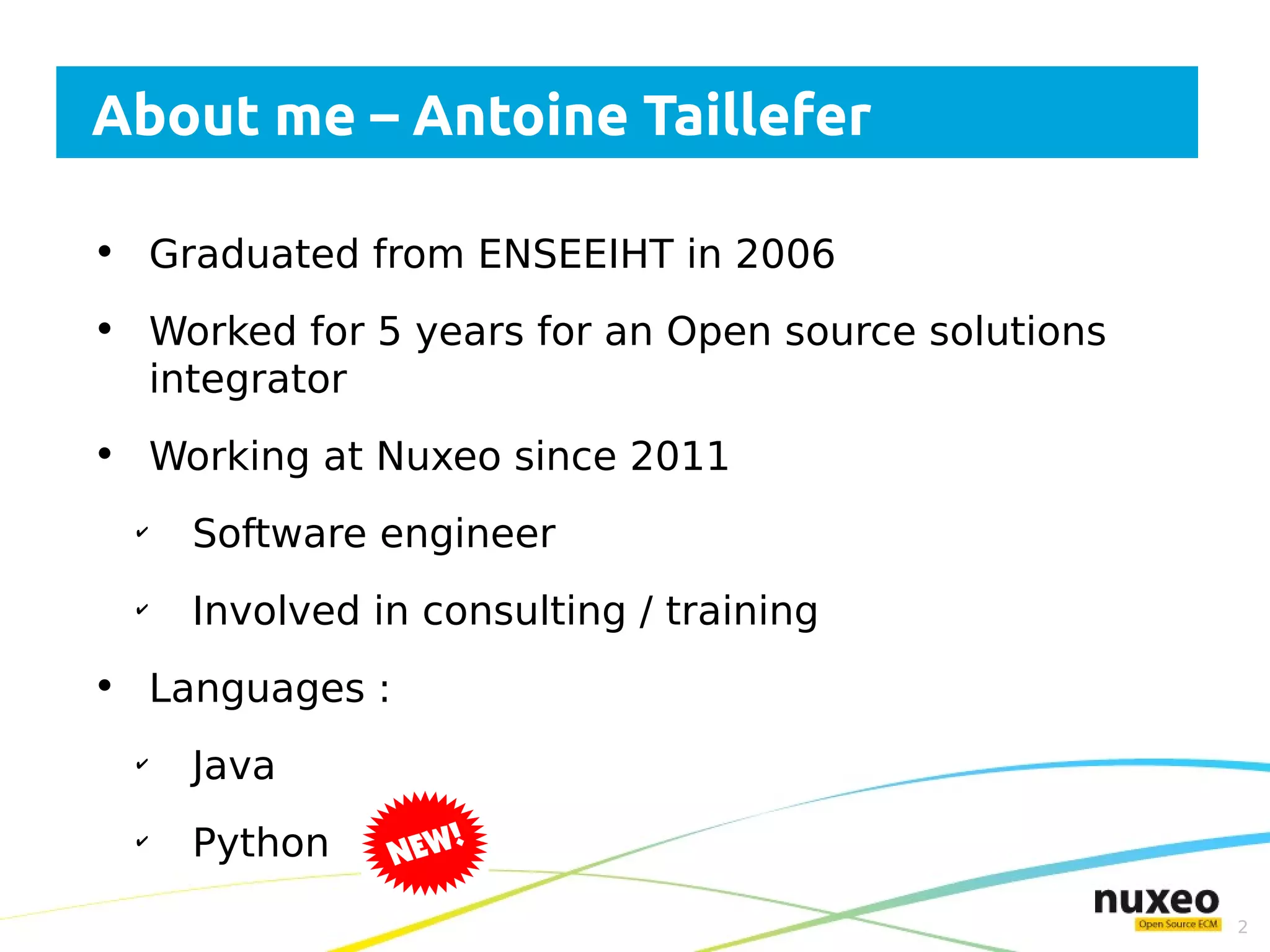

About me – Antoine Taillefer
• Graduated from ENSEEIHT in 2006
• Worked for 5 years for an Open source solutions
integrator
• Working at Nuxeo since 2011
✔
Software engineer
✔
Involved in consulting / training
• Languages :
✔
Java
✔
Python

3. 3

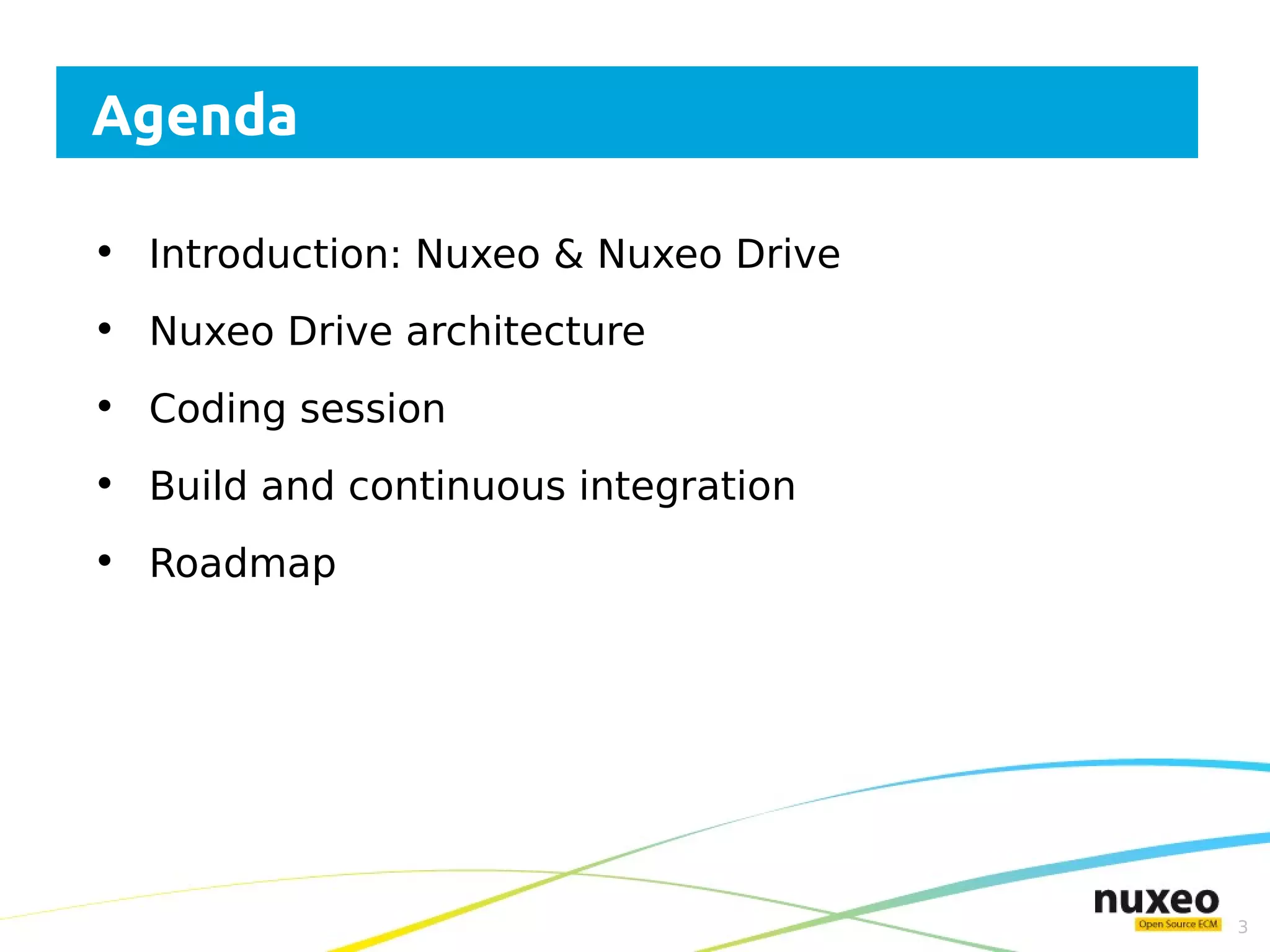

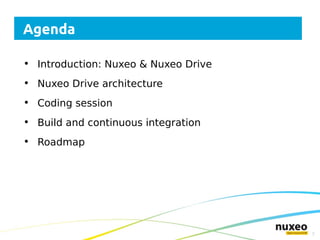

Agenda
• Introduction: Nuxeo & Nuxeo Drive
• Nuxeo Drive architecture
• Coding session
• Build and continuous integration
• Roadmap

4. 4
Introduction

5. 5

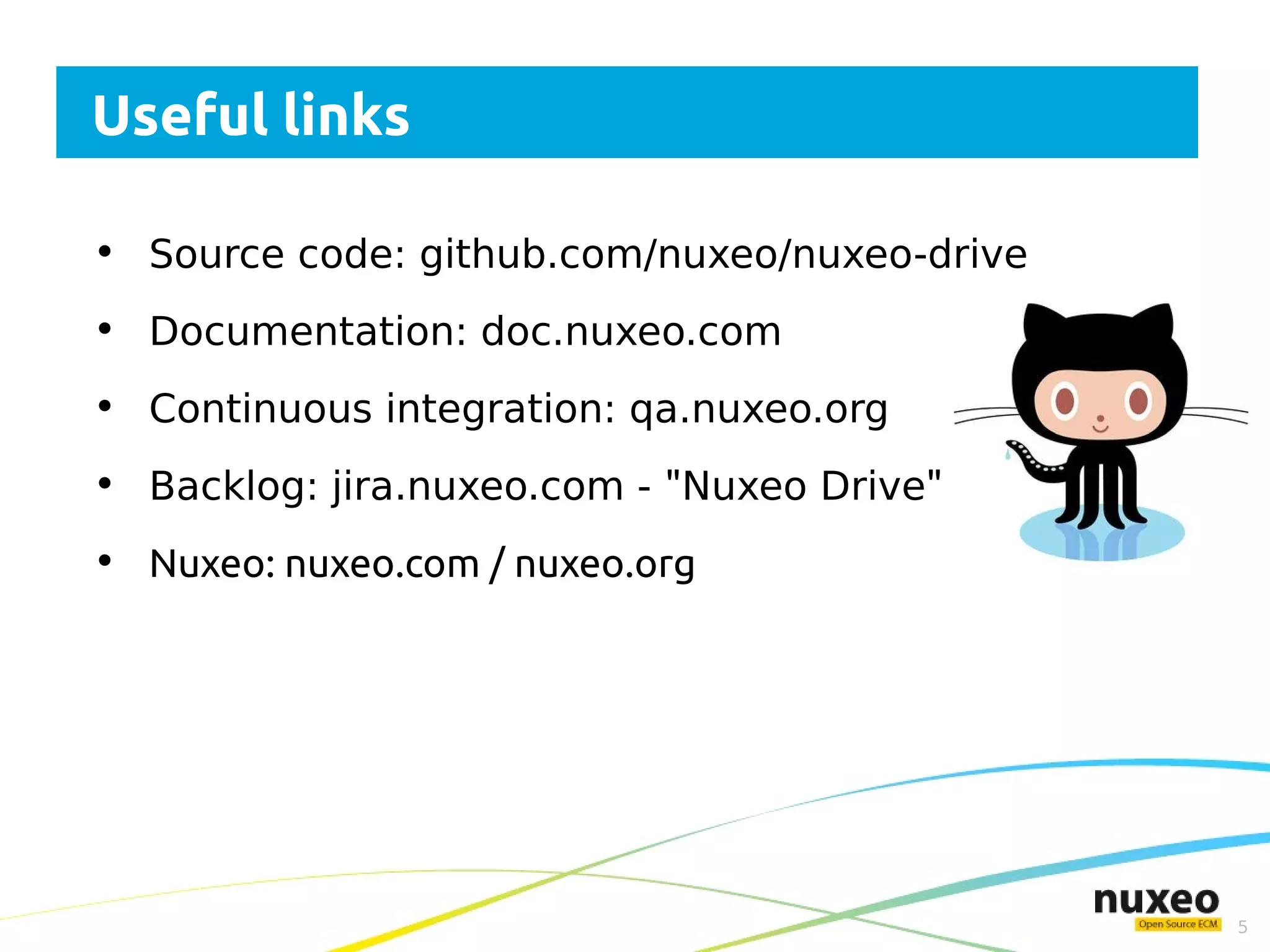

Useful links
• Source code: github.com/nuxeo/nuxeo-drive
• Documentation: doc.nuxeo.com
• Continuous integration: qa.nuxeo.org
• Backlog: jira.nuxeo.com - "Nuxeo Drive"
• Nuxeo: nuxeo.com / nuxeo.org

6. 6

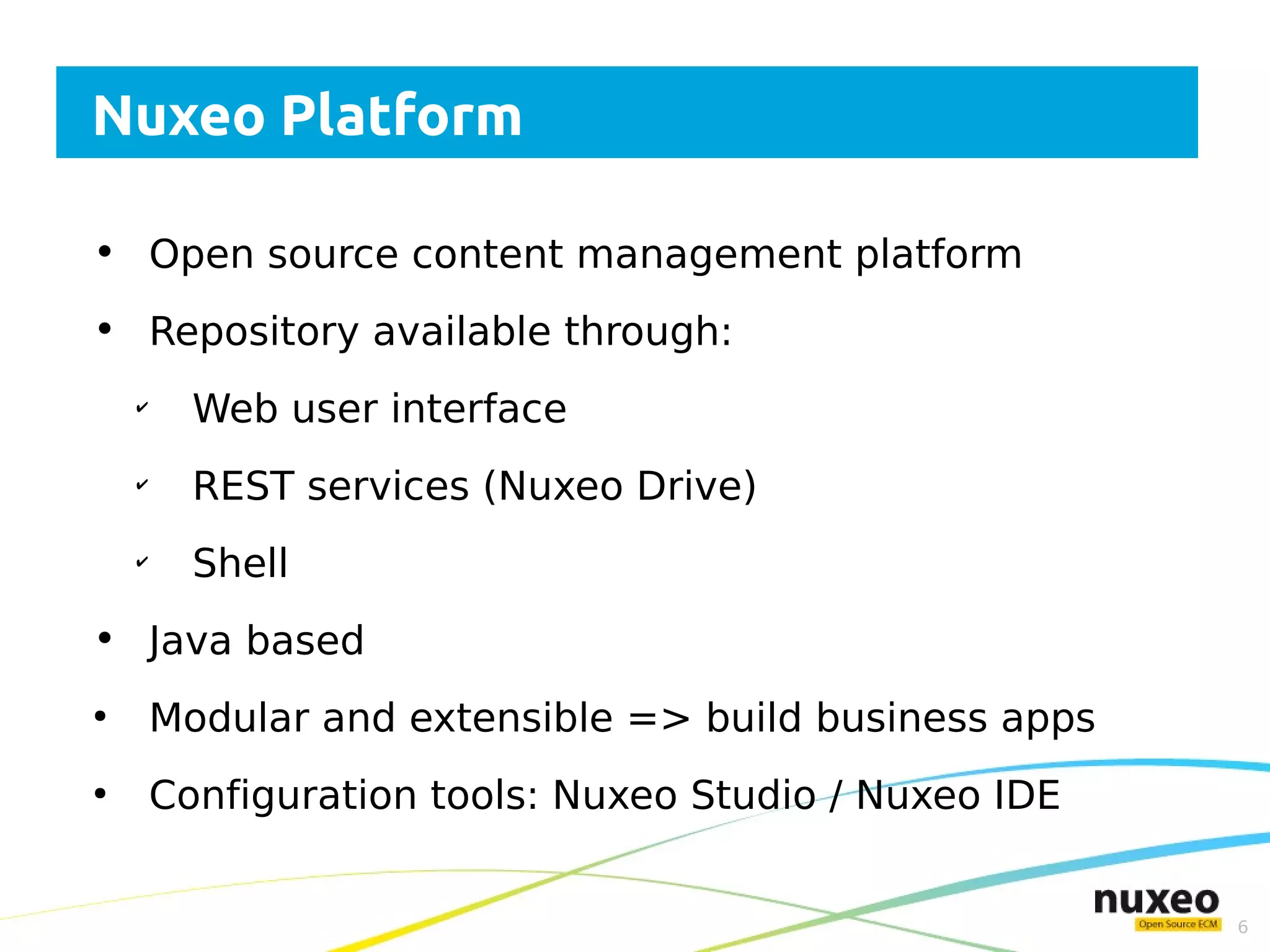

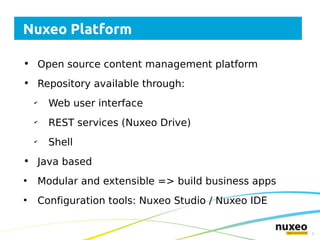

Nuxeo Platform
• Open source content management platform
• Repository available through:
✔
Web user interface
✔
REST services (Nuxeo Drive)
✔
Shell
• Java based
●
Modular and extensible => build business apps
●
Configuration tools: Nuxeo Studio / Nuxeo IDE

7. 7

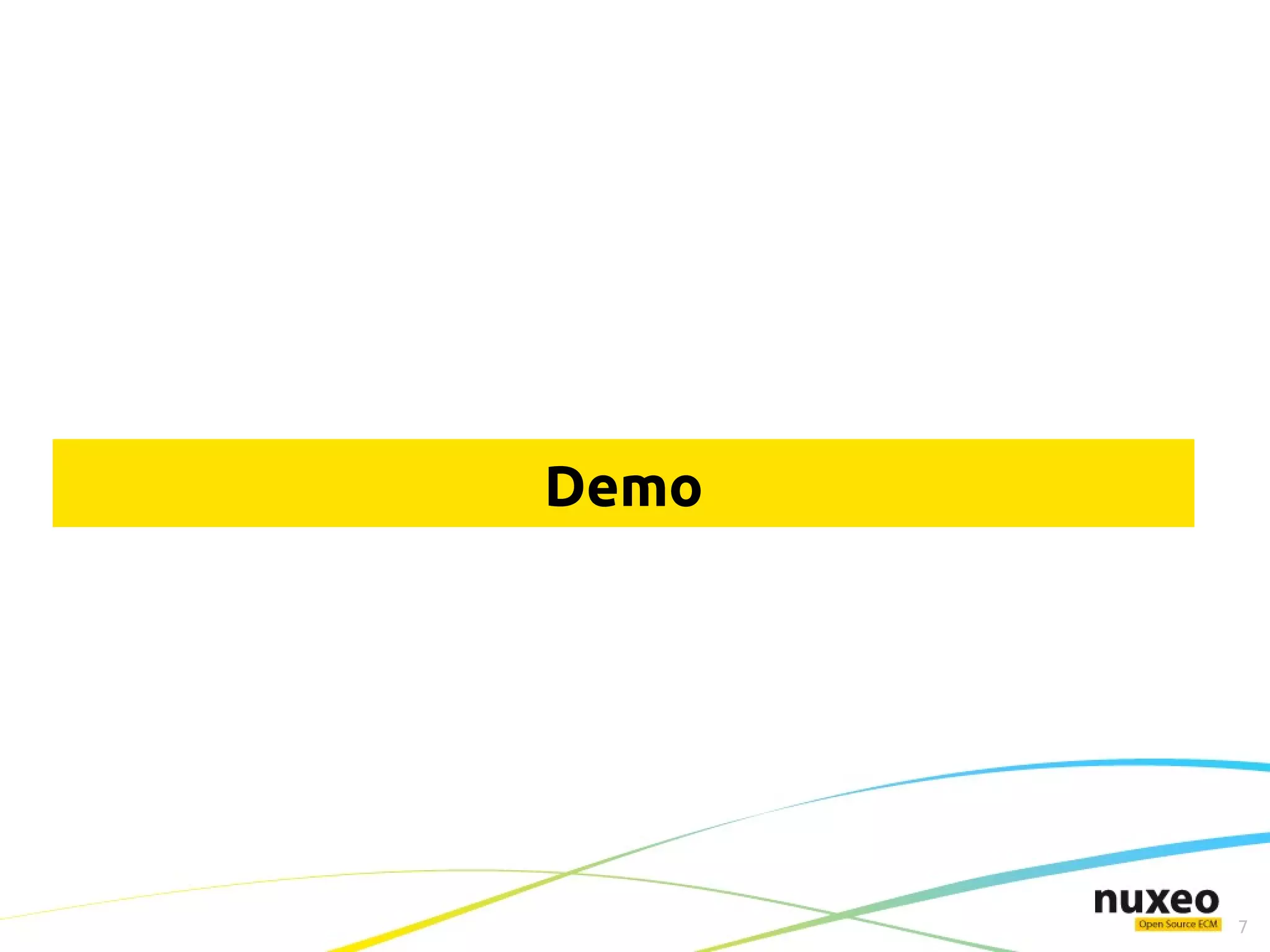

Demo

8. 8

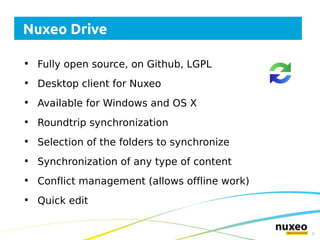

Nuxeo Drive
• Fully open source, on Github, LGPL
• Desktop client for Nuxeo
• Available for Windows and OS X
• Roundtrip synchronization
• Selection of the folders to synchronize
• Synchronization of any type of content
• Conflict management (allows offline work)
• Quick edit

9. 9

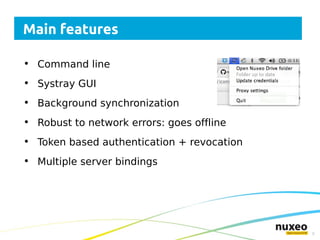

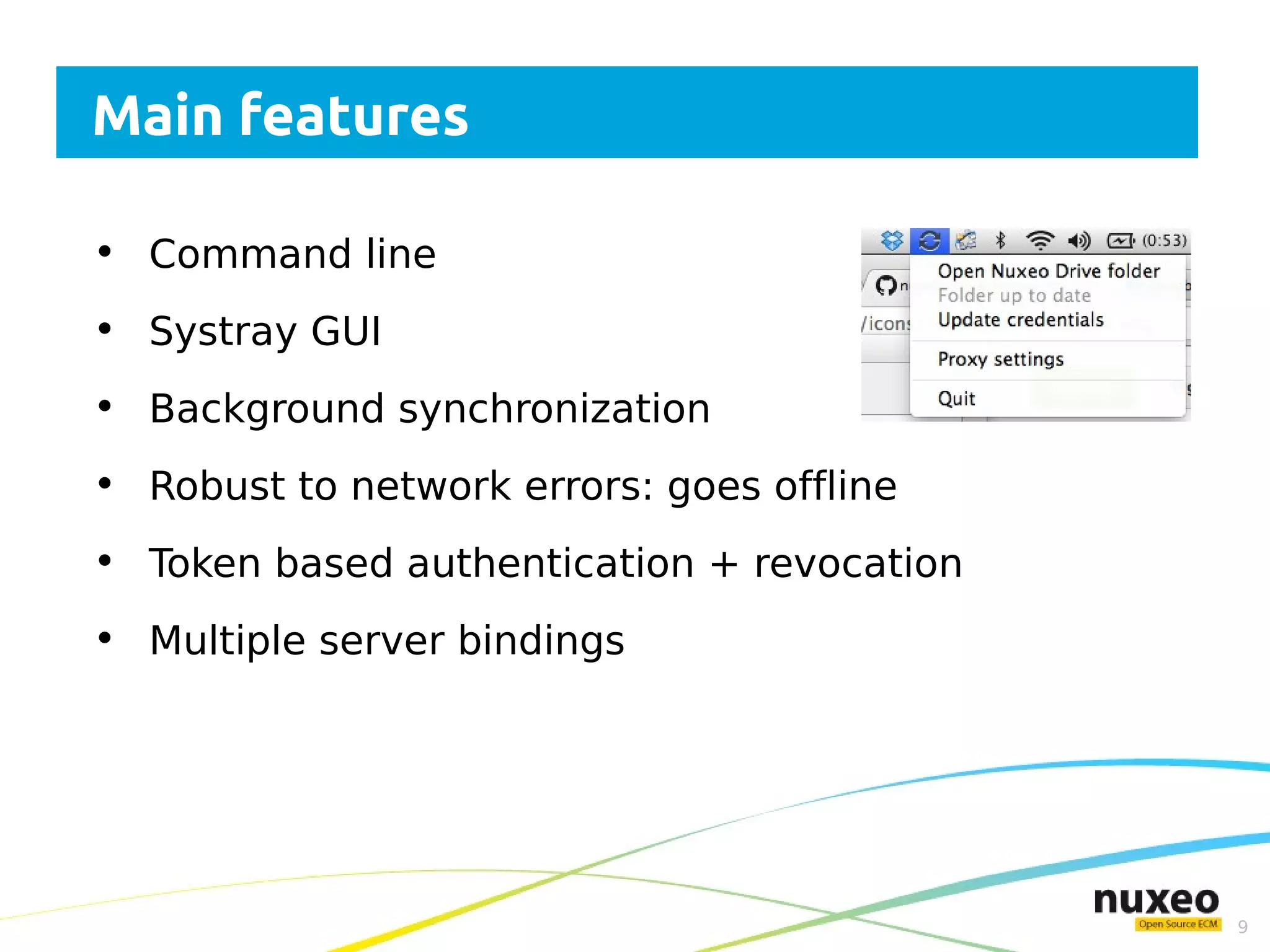

Main features
• Command line
• Systray GUI
• Background synchronization
• Robust to network errors: goes offline
• Token based authentication + revocation
• Multiple server bindings

10. 10
Demo

11. 11
Architecture

12. 12

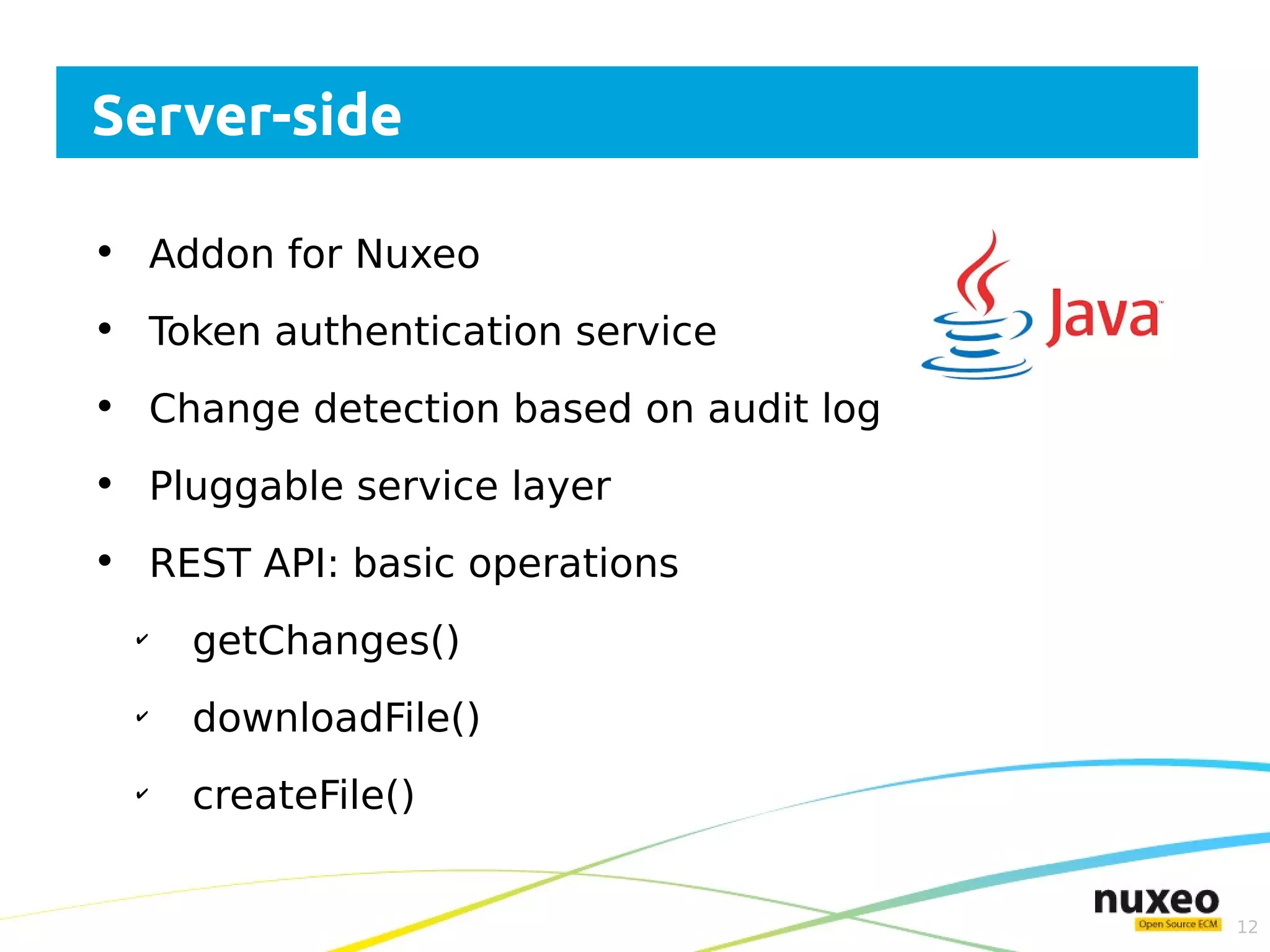

Server-side
• Addon for Nuxeo
• Token authentication service
• Change detection based on audit log
• Pluggable service layer
• REST API: basic operations
✔
getChanges()
✔
downloadFile()
✔
createFile()

13. 13

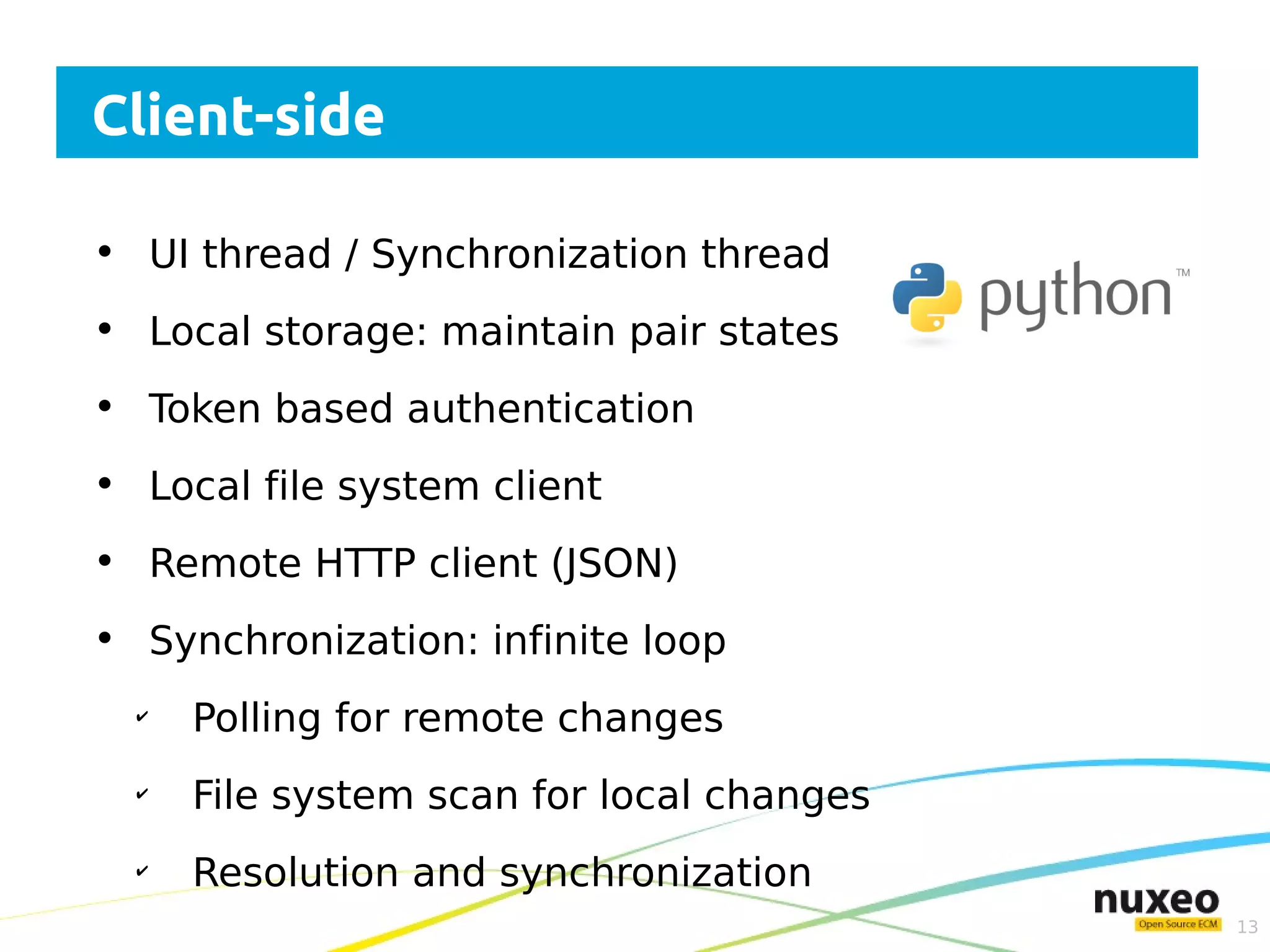

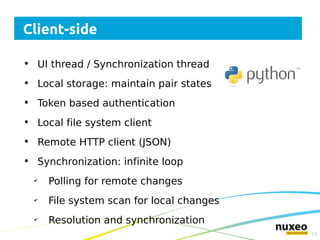

Client-side
• UI thread / Synchronization thread
• Local storage: maintain pair states
• Token based authentication
• Local file system client
• Remote HTTP client (JSON)
• Synchronization: infinite loop
✔
Polling for remote changes
✔
File system scan for local changes
✔
Resolution and synchronization

14. 14

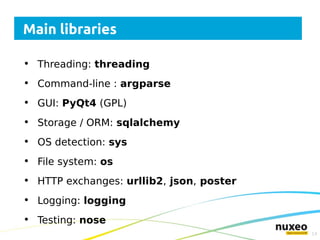

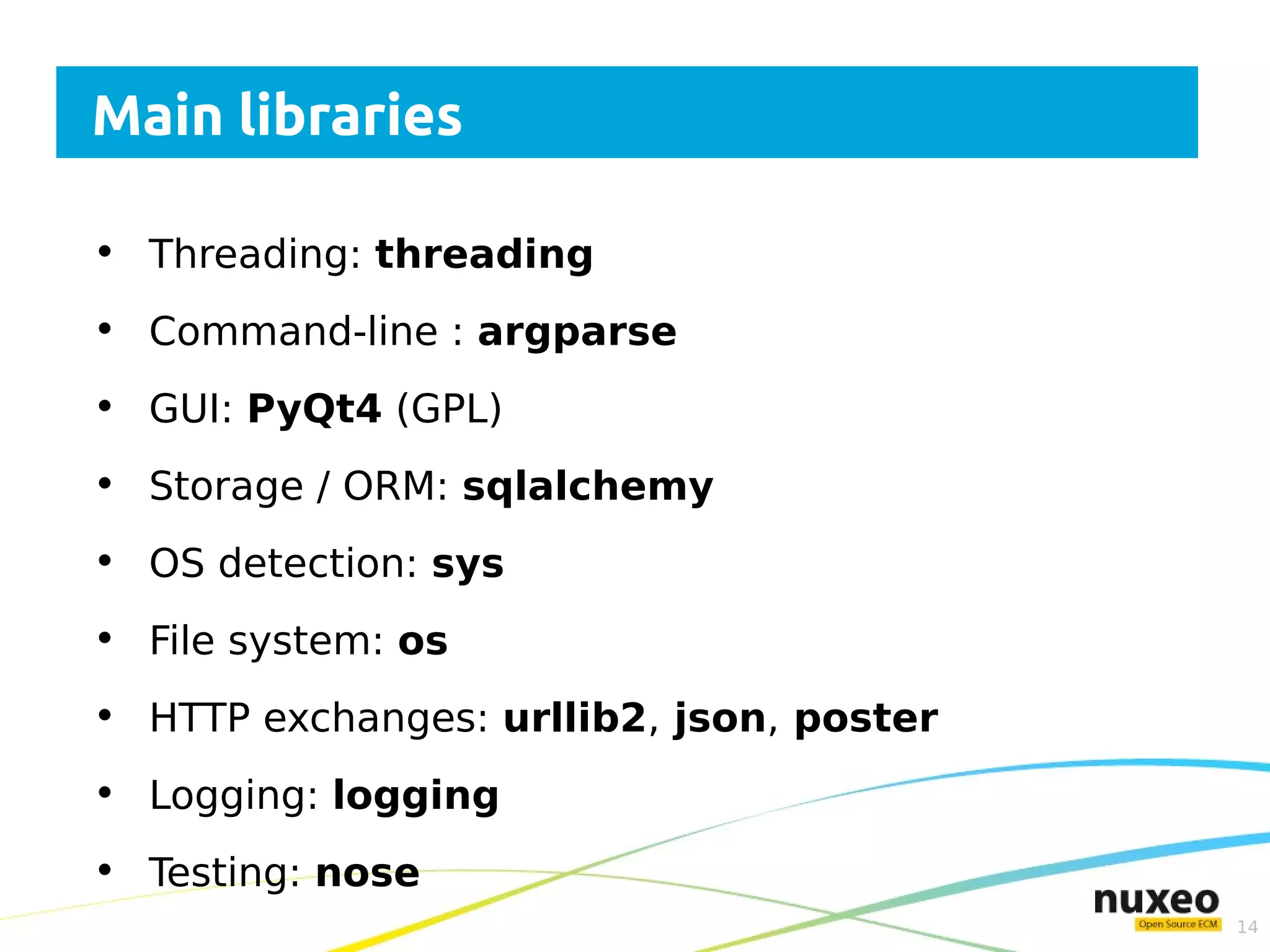

Main libraries
• Threading: threading
• Command-line : argparse
• GUI: PyQt4 (GPL)
• Storage / ORM: sqlalchemy
• OS detection: sys
• File system: os
• HTTP exchanges: urllib2, json, poster
• Logging: logging
• Testing: nose

15. 15
Coding session

16. 16

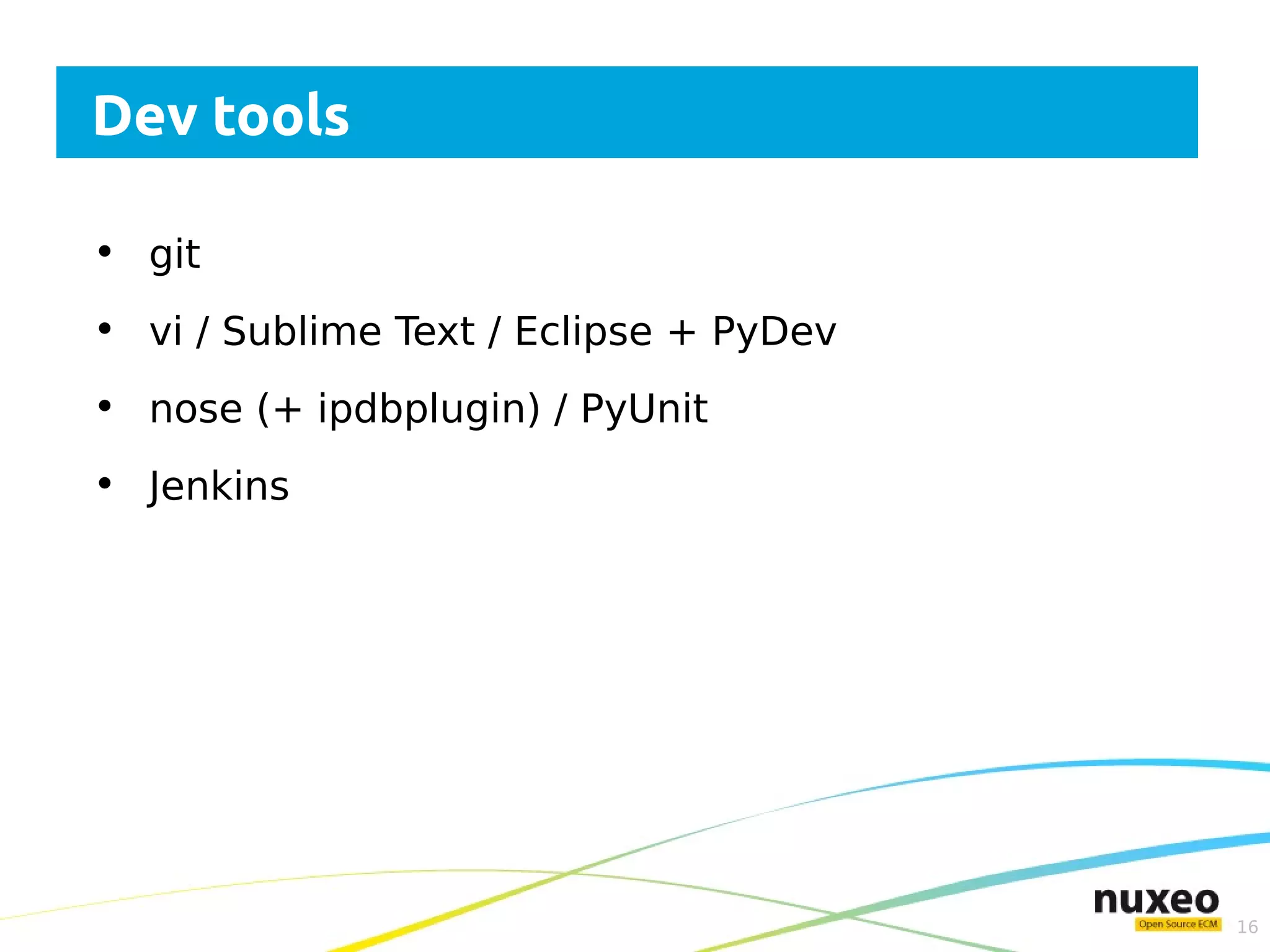

Dev tools
• git
• vi / Sublime Text / Eclipse + PyDev
• nose (+ ipdbplugin) / PyUnit
• Jenkins

17. 17

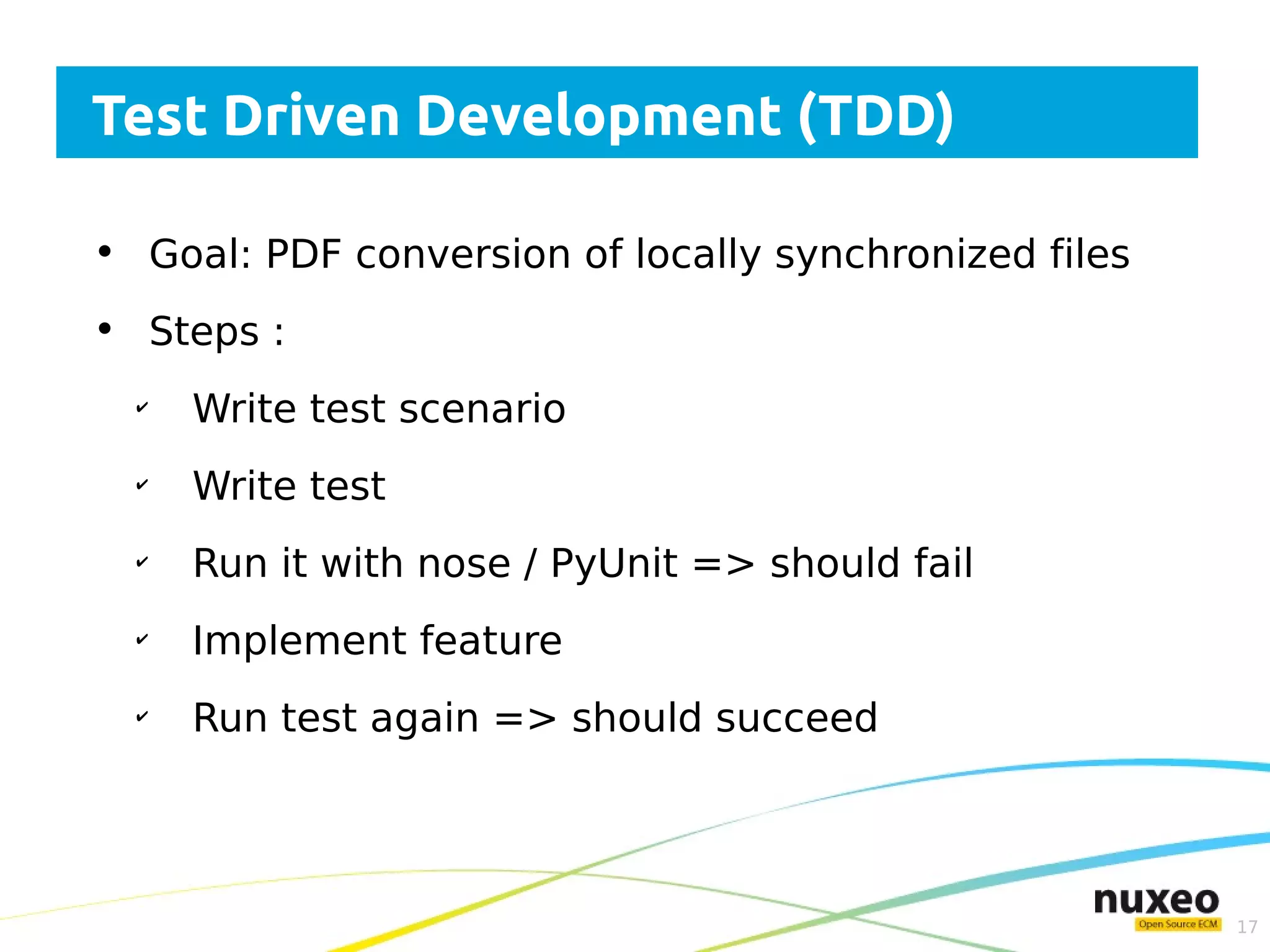

Test Driven Development (TDD)
• Goal: PDF conversion of locally synchronized files
• Steps :
✔
Write test scenario
✔
Write test
✔
Run it with nose / PyUnit => should fail
✔
Implement feature
✔
Run test again => should succeed

18. 18

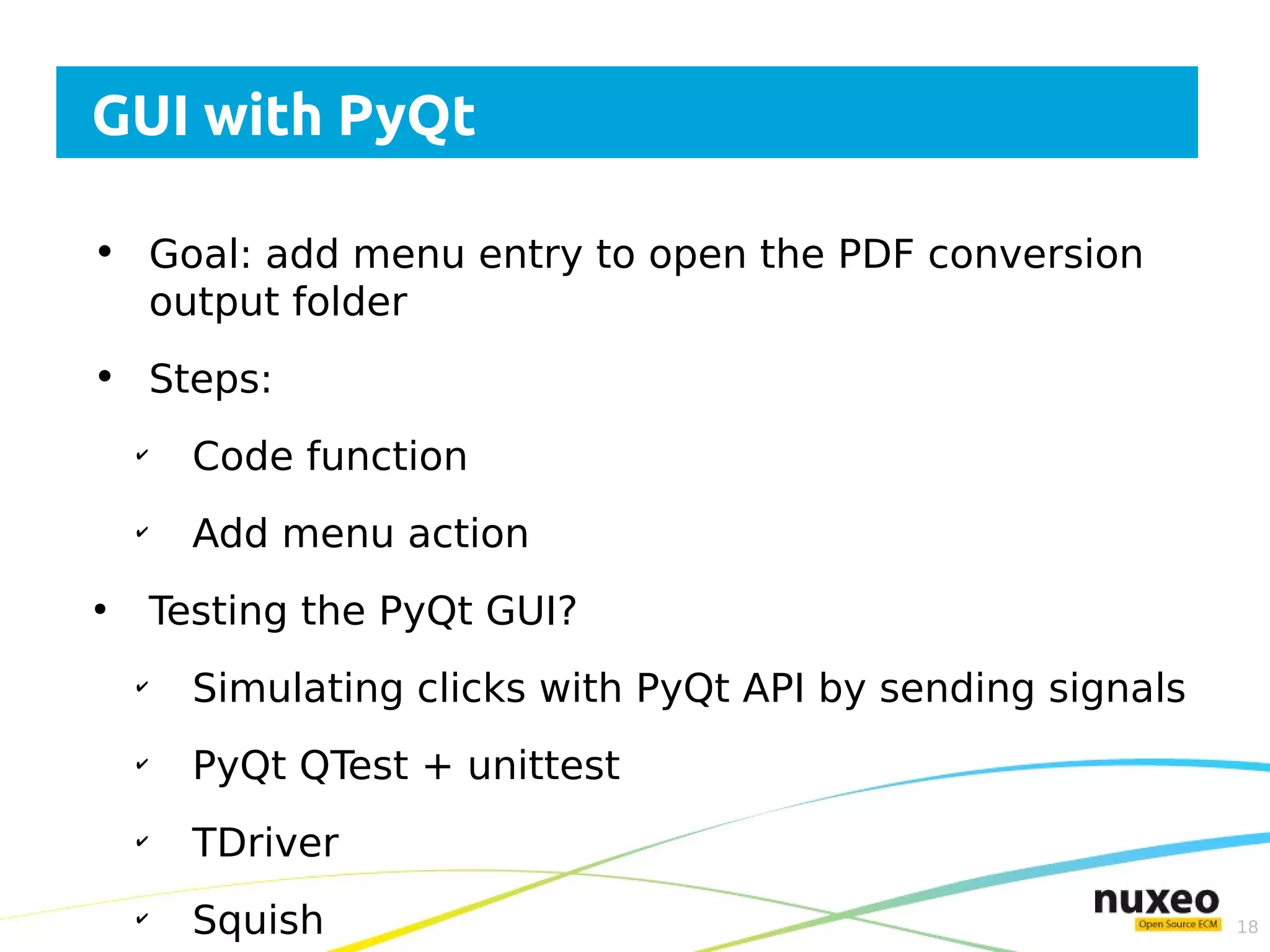

GUI with PyQt
• Goal: add menu entry to open the PDF conversion
output folder
• Steps:
✔
Code function
✔
Add menu action
●
Testing the PyQt GUI?
✔
Simulating clicks with PyQt API by sending signals
✔
PyQt QTest + unittest
✔
TDriver
✔
Squish

19. 19

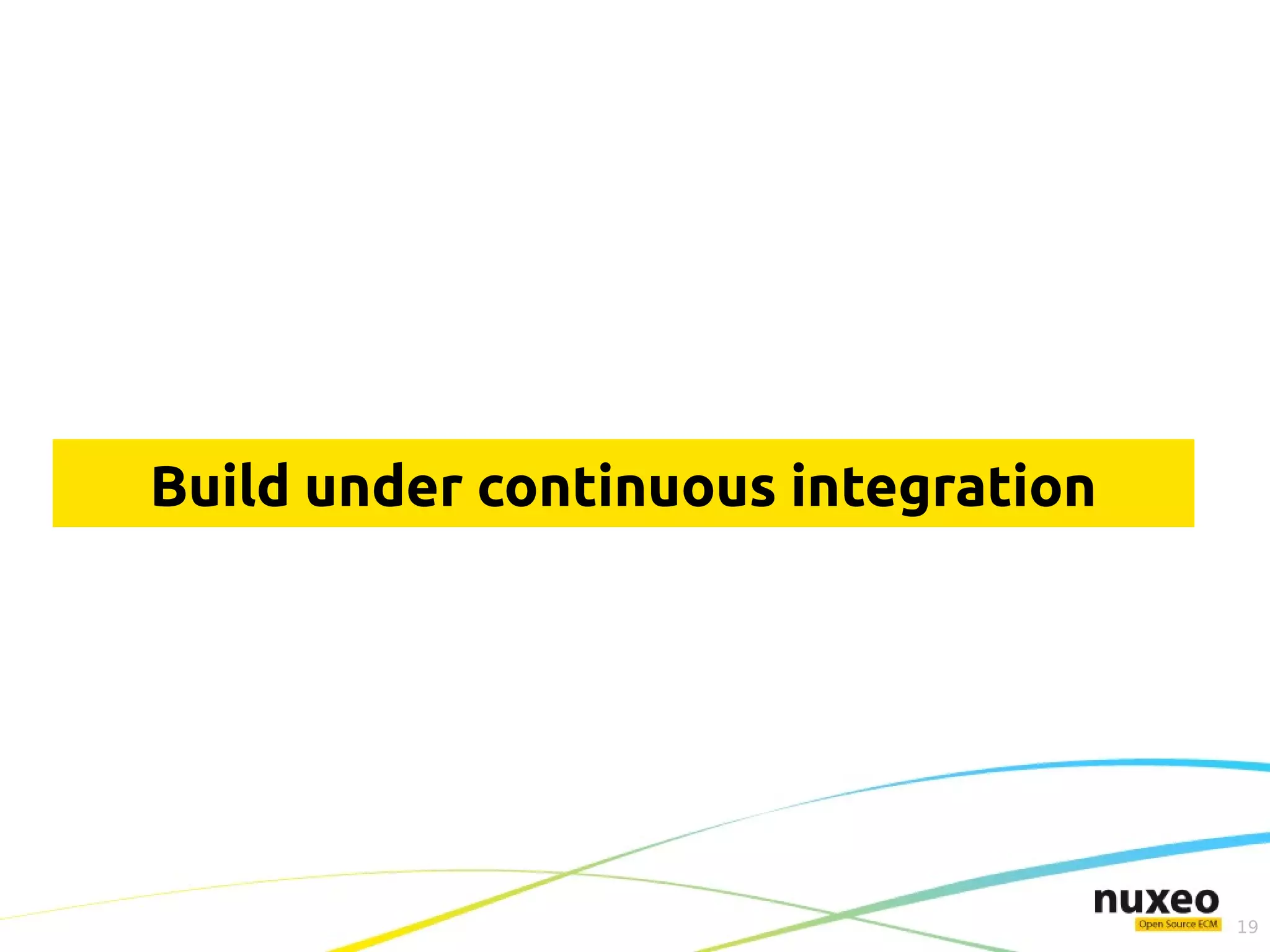

Build under continuous integration

20. 20

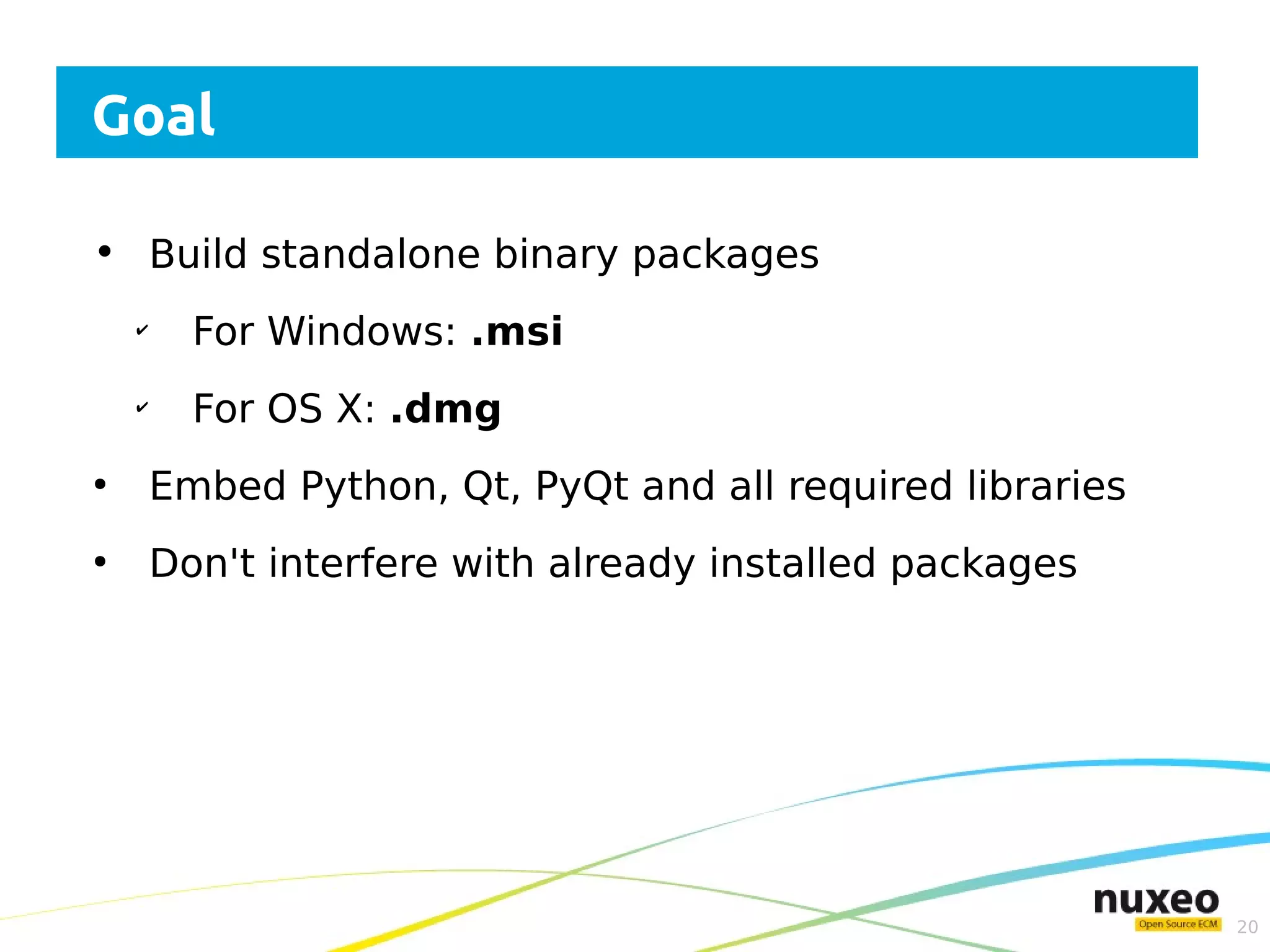

Goal
• Build standalone binary packages
✔
For Windows: .msi
✔
For OS X: .dmg
●
Embed Python, Qt, PyQt and all required libraries
●
Don't interfere with already installed packages

21. 21

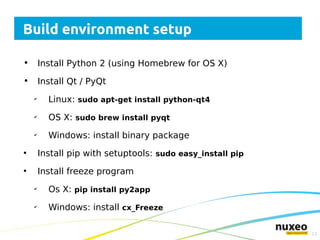

Build environment setup
• Install Python 2 (using Homebrew for OS X)
• Install Qt / PyQt
✔
Linux: sudo apt-get install python-qt4
✔
OS X: sudo brew install pyqt
✔
Windows: install binary package
●
Install pip with setuptools: sudo easy_install pip
●
Install freeze program
✔
Os X: pip install py2app
✔
Windows: install cx_Freeze

22. 22

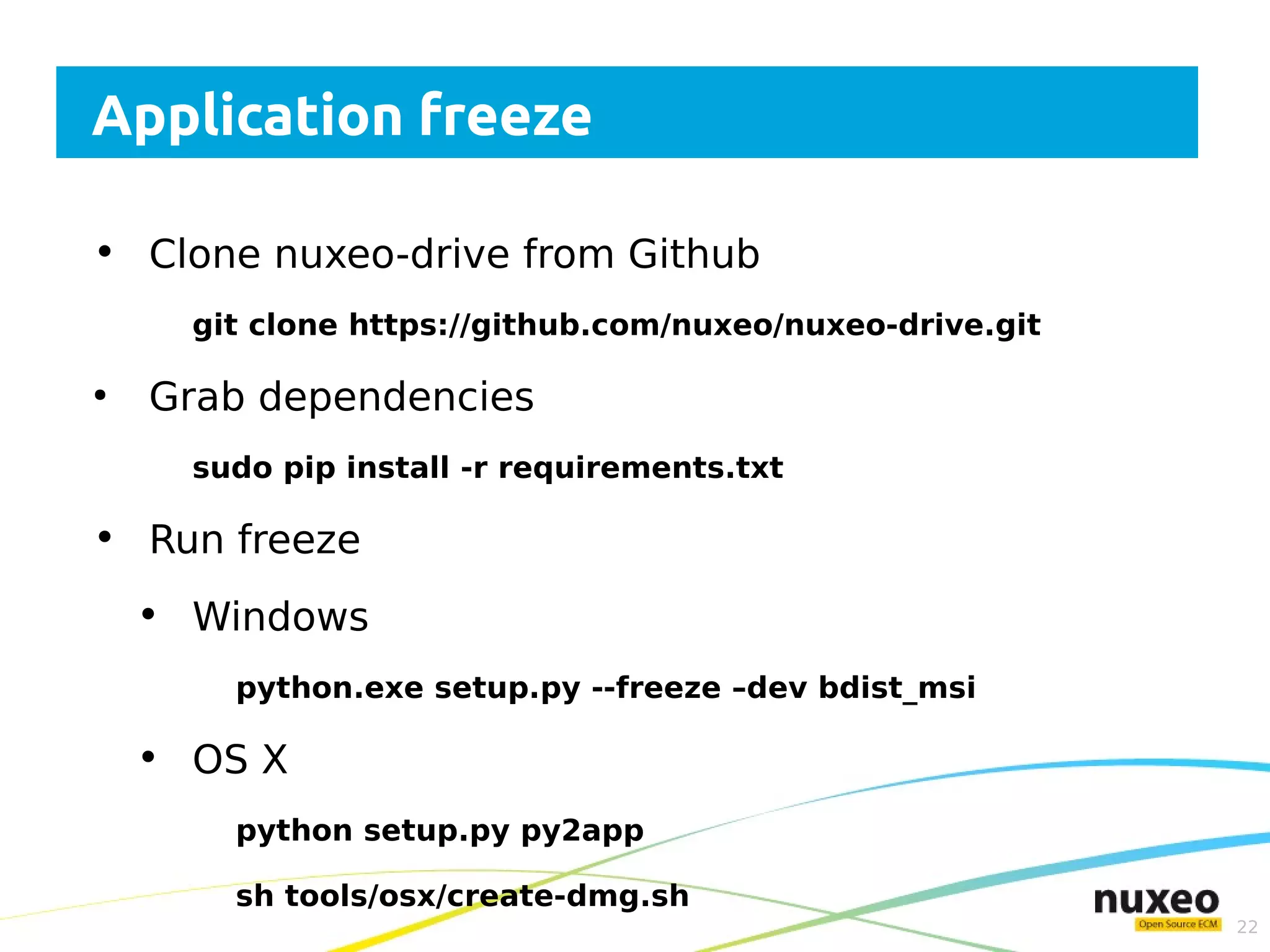

Application freeze
• Clone nuxeo-drive from Github
git clone https://github.com/nuxeo/nuxeo-drive.git
●
Grab dependencies
sudo pip install -r requirements.txt
• Run freeze
• Windows
python.exe setup.py --freeze –dev bdist_msi
• OS X
python setup.py py2app
sh tools/osx/create-dmg.sh

23. 23
Demo

24. 24

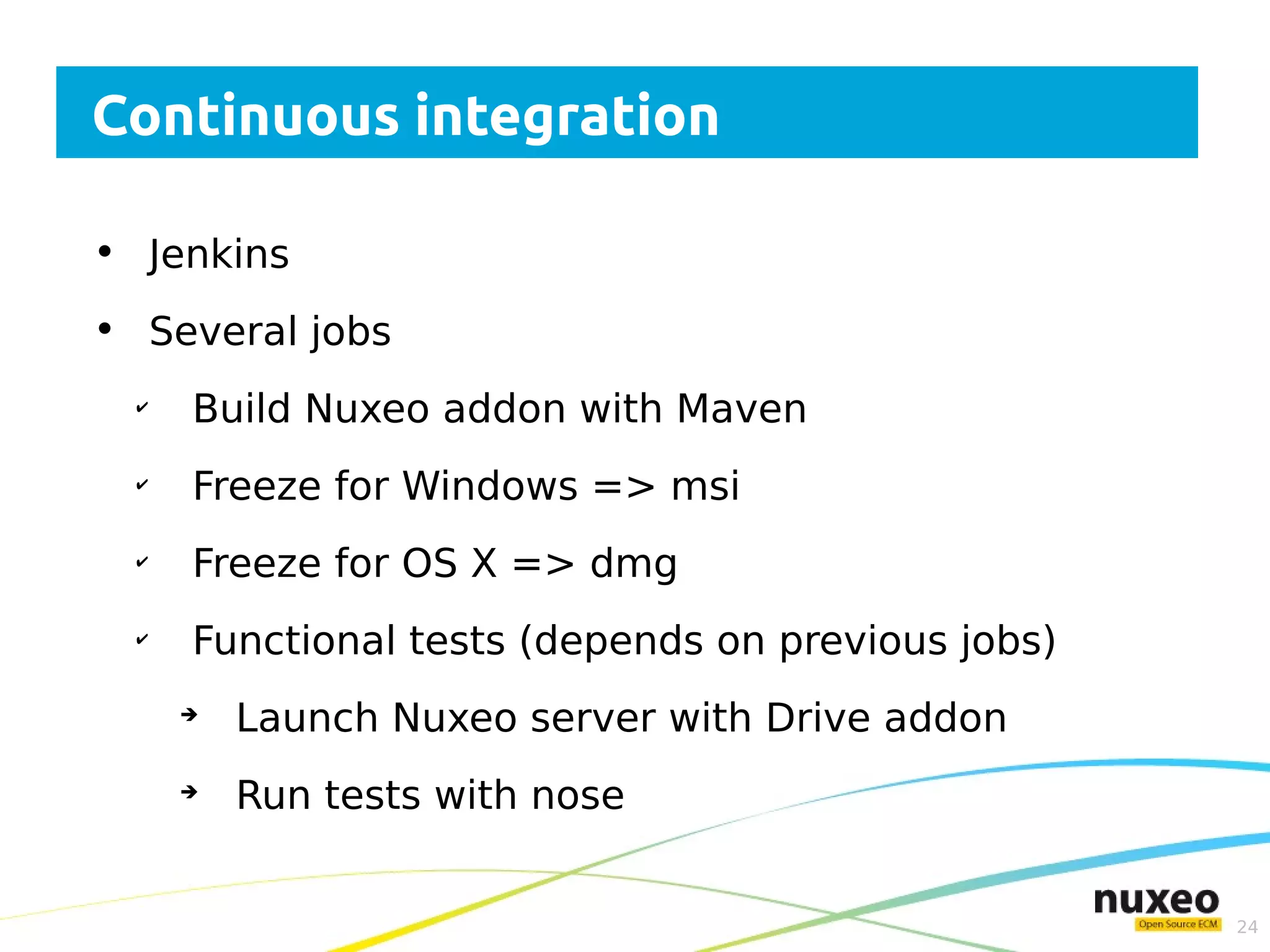

Continuous integration
• Jenkins
• Several jobs
✔
Build Nuxeo addon with Maven
✔
Freeze for Windows => msi
✔
Freeze for OS X => dmg
✔
Functional tests (depends on previous jobs)
➔
Launch Nuxeo server with Drive addon
➔
Run tests with nose

25. 25

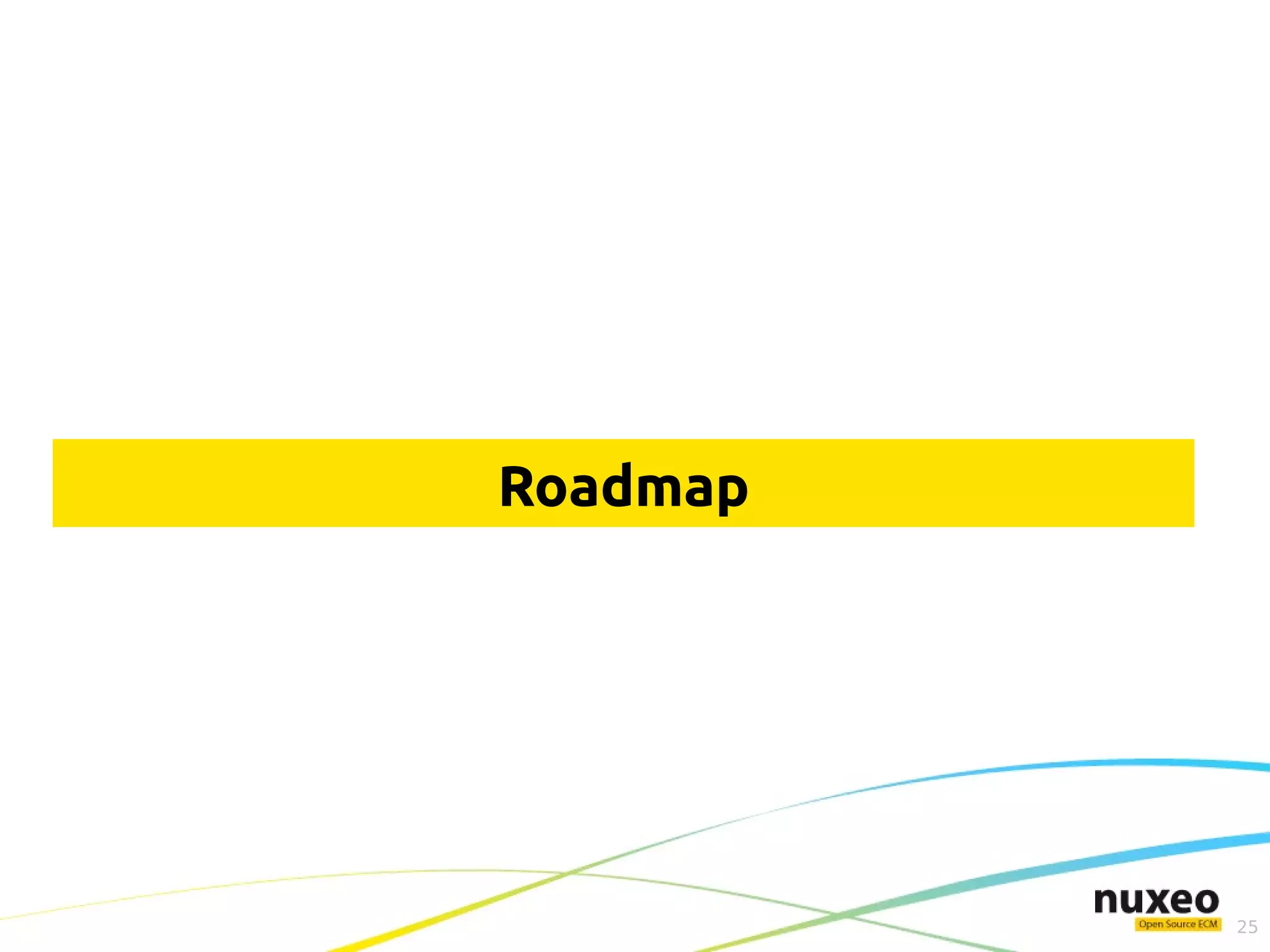

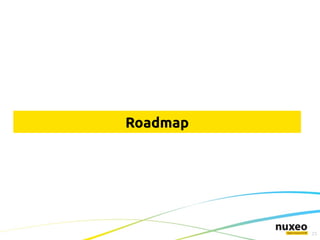

Roadmap

26. 26

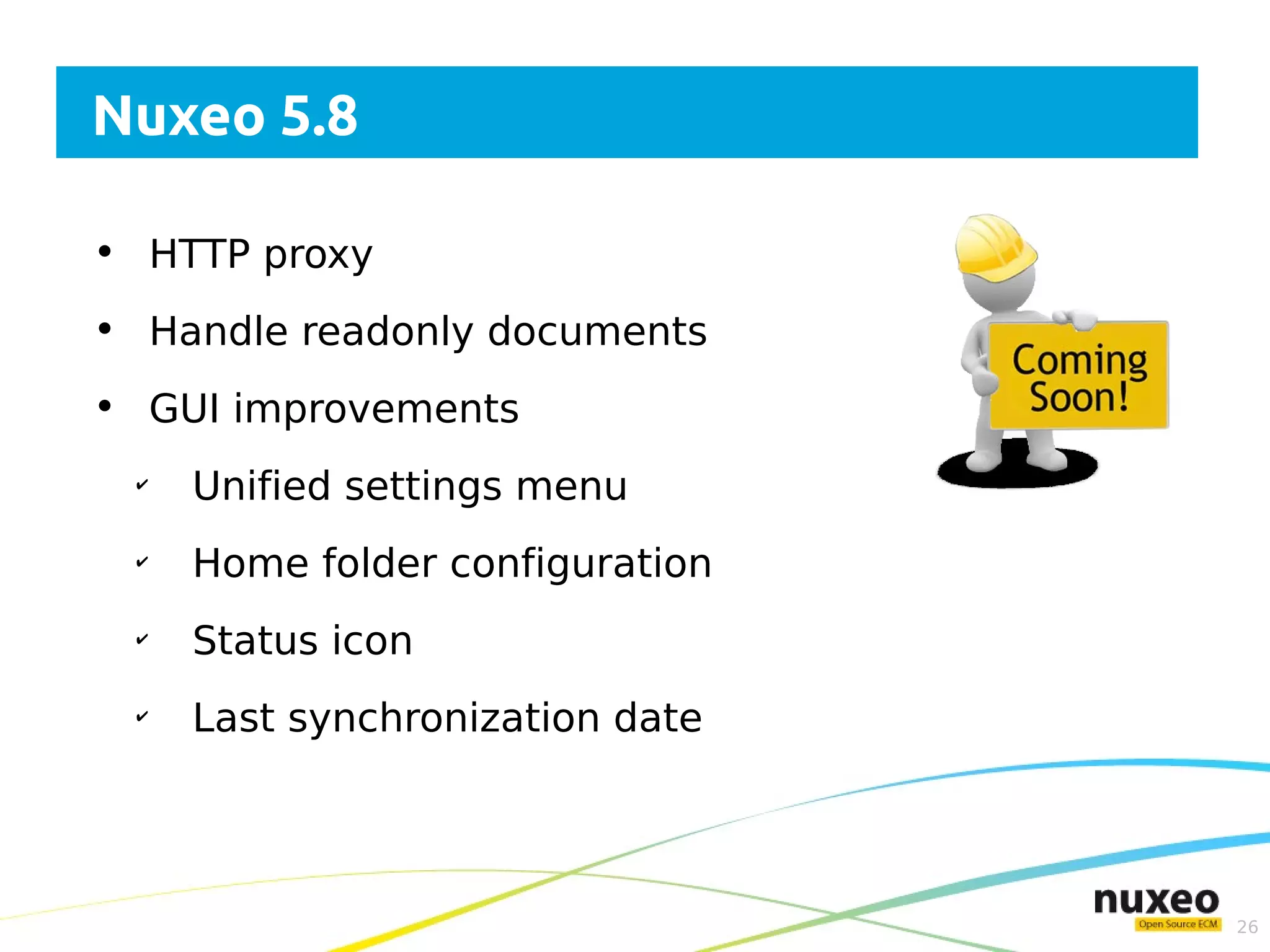

Nuxeo 5.8
• HTTP proxy
• Handle readonly documents
• GUI improvements
✔
Unified settings menu
✔
Home folder configuration
✔
Status icon
✔
Last synchronization date

27. 27

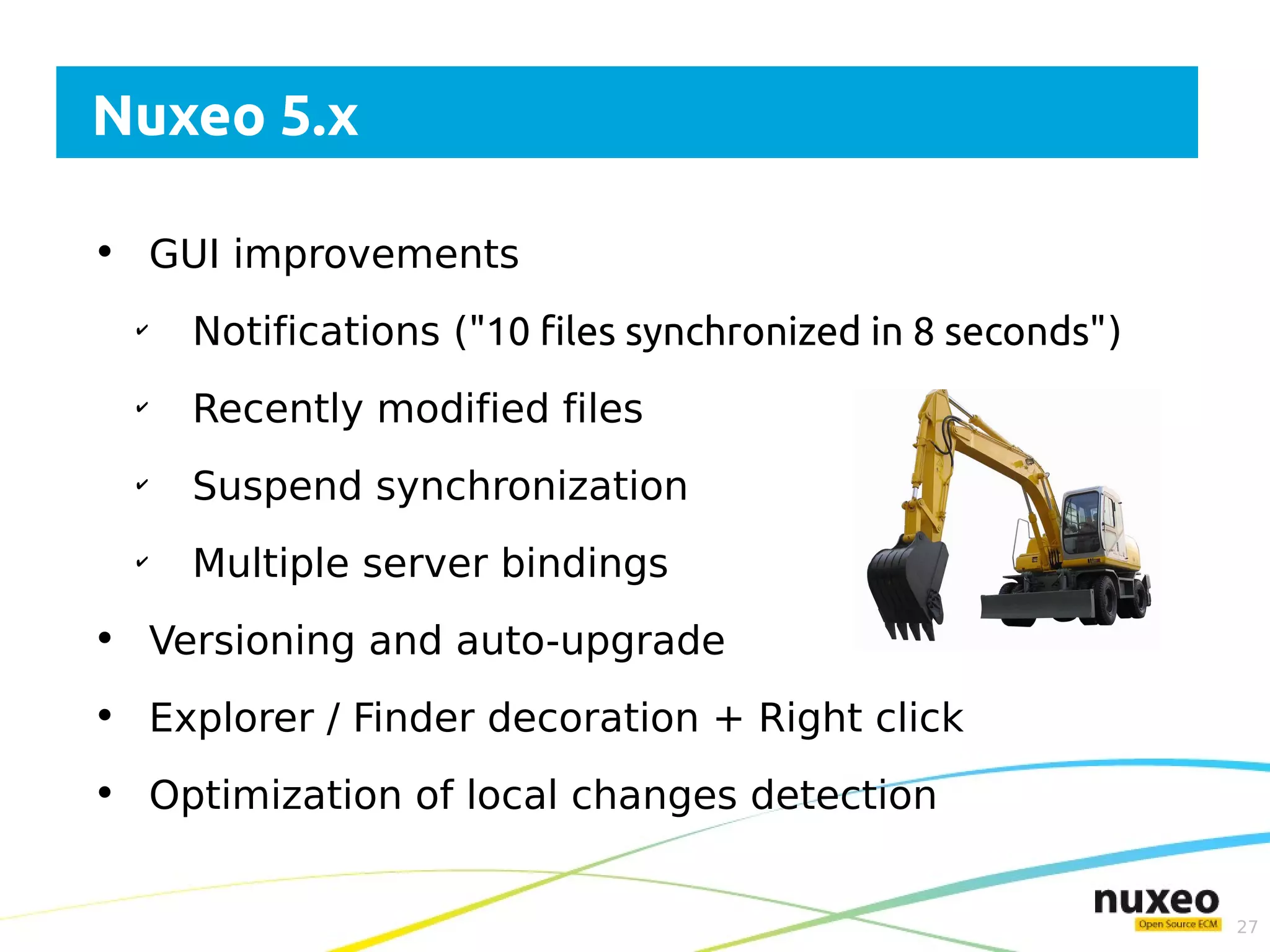

Nuxeo 5.x
• GUI improvements
✔
Notifications ("10 files synchronized in 8 seconds")
✔
Recently modified files
✔
Suspend synchronization
✔
Multiple server bindings
• Versioning and auto-upgrade
• Explorer / Finder decoration + Right click
• Optimization of local changes detection

28. 28
Questions
