- 1. Xen on ARM How fast is it, really? Stefano Stabellini 18 August 2014
- 2.

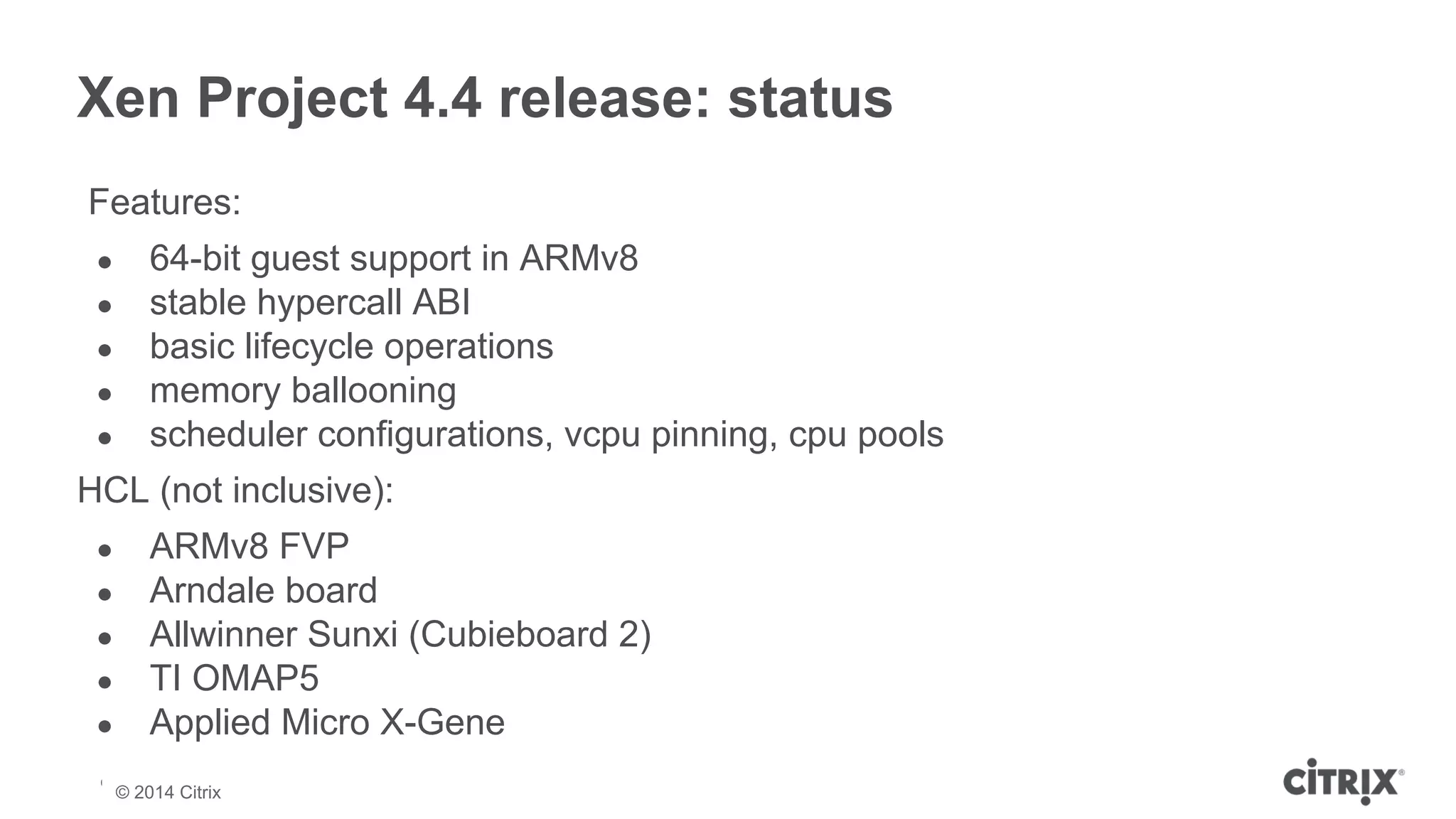

- 3. Xen Project 4.4release: status Features: ● 64-bit guest support in ARMv8 ● stable hypercall ABI ● basic lifecycle operations ● memory ballooning ● scheduler configurations, vcpu pinning, cpu pools HCL (not inclusive): ● ARMv8 FVP ● Arndale board ● Allwinner Sunxi (Cubieboard 2) ● TI OMAP5 ● Applied Micro X-Gene © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

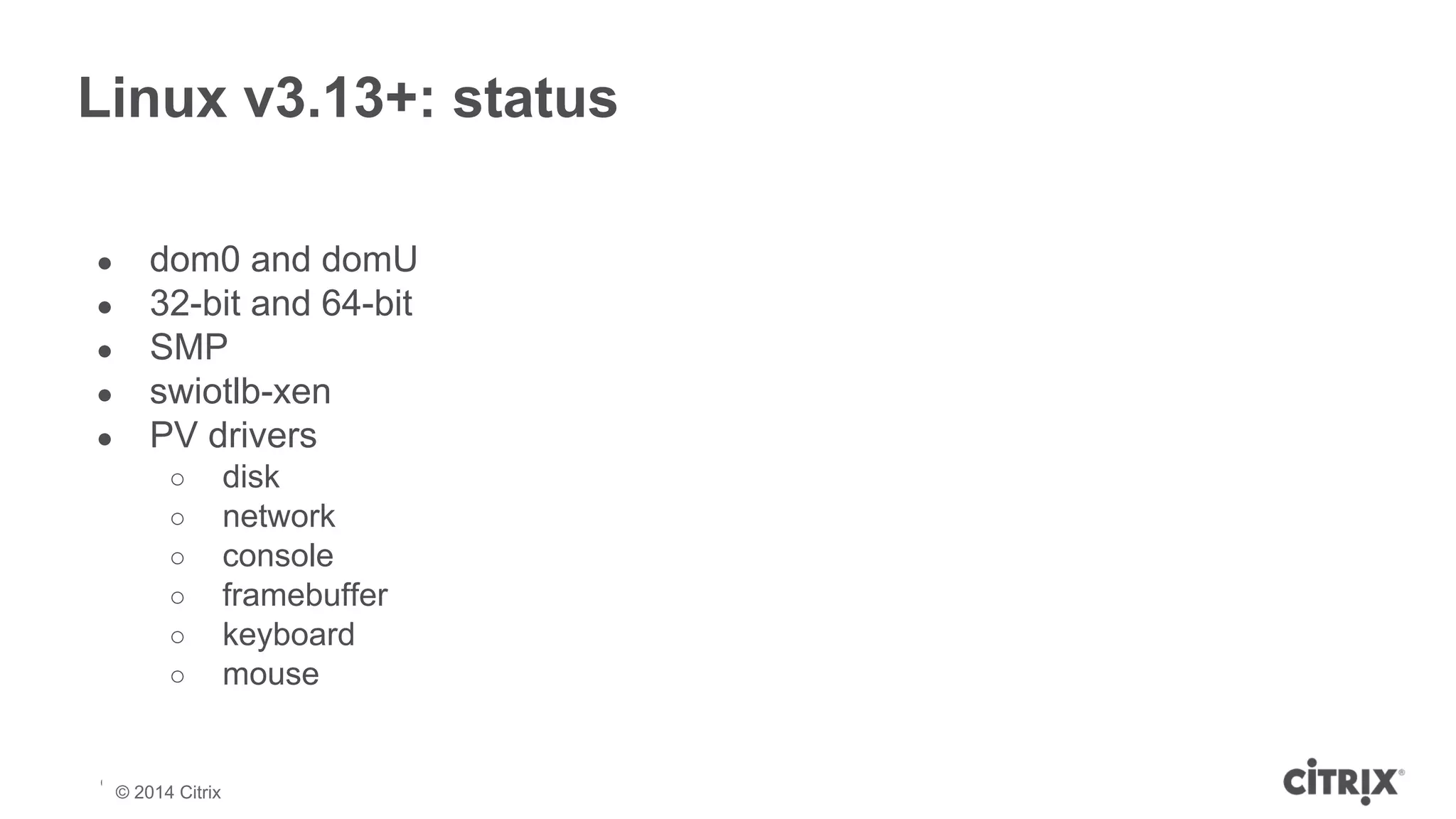

- 4. Linux v3.13+: status ● dom0 and domU ● 32-bit and 64-bit ● SMP ● swiotlb-xen ● PV drivers ○ disk ○ network ○ console ○ framebuffer ○ keyboard ○ mouse © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

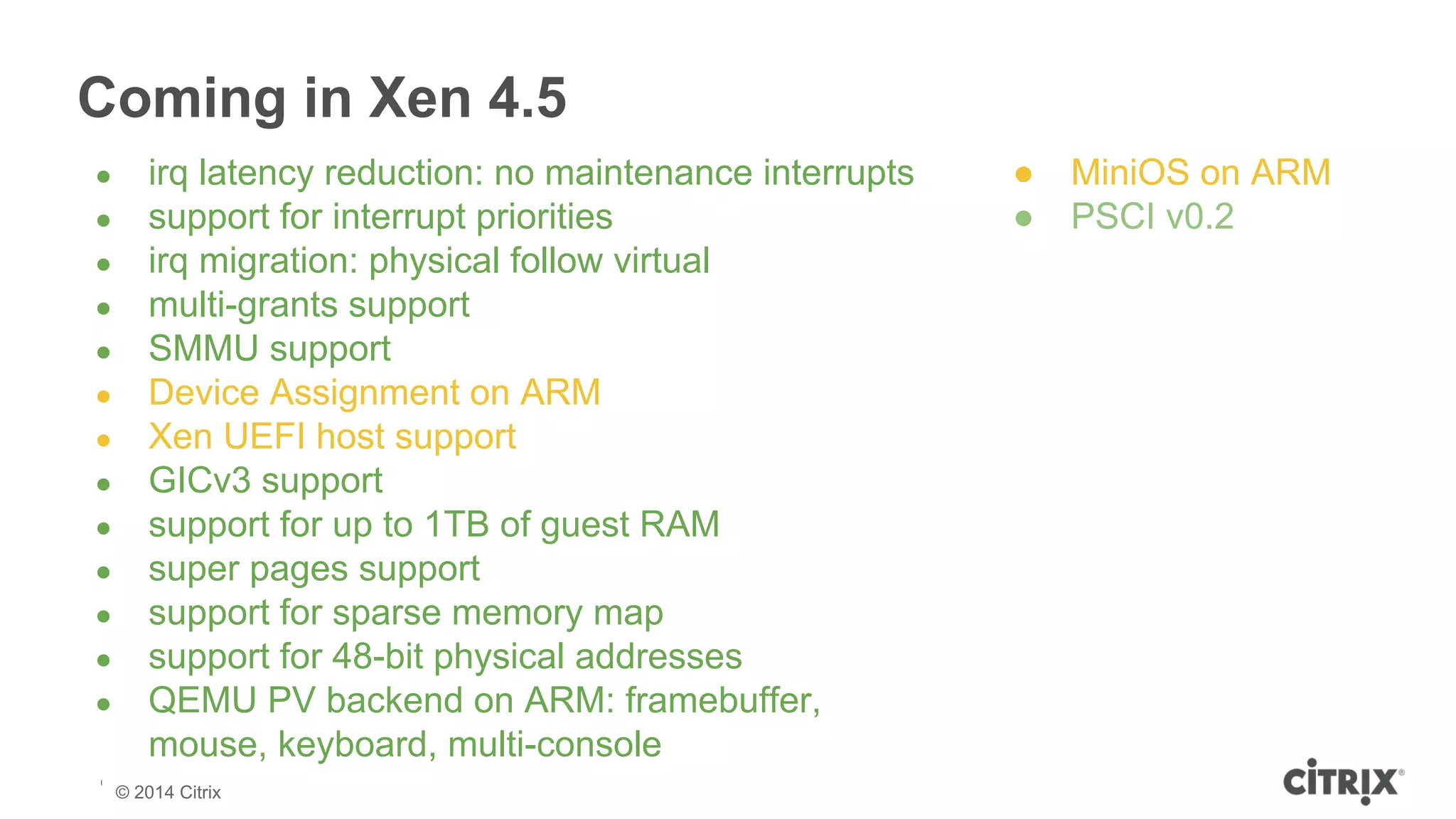

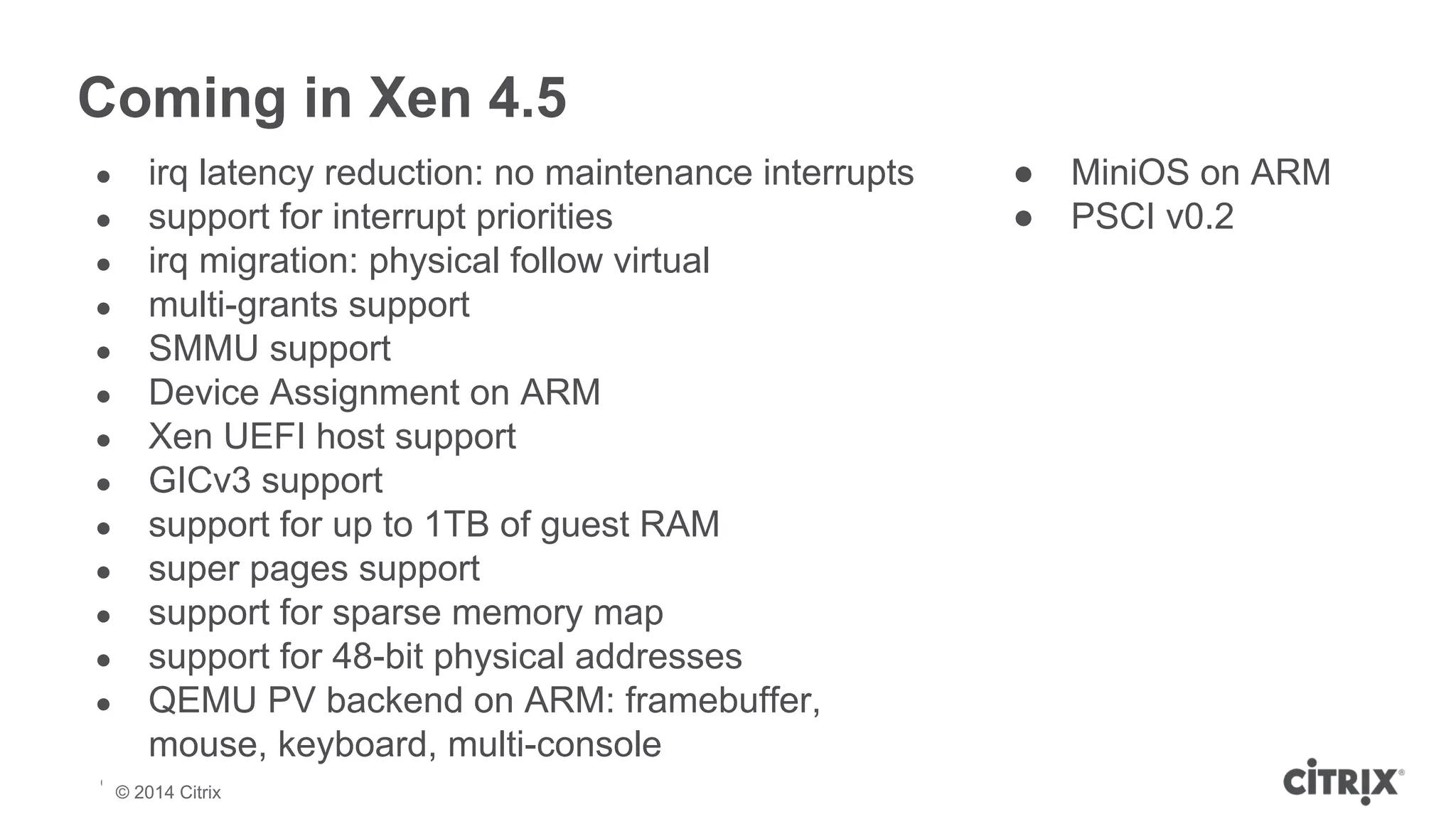

- 5. Coming in Xen4.5 ● irq latency reduction: no maintenance interrupts ● support for interrupt priorities ● irq migration: physical follow virtual ● multi-grants support ● SMMU support ● Device Assignment on ARM ● Xen UEFI host support ● GICv3 support ● support for up to 1TB of guest RAM ● super pages support ● support for sparse memory map ● support for 48-bit physical addresses ● QEMU PV backend on ARM: framebuffer, mouse, keyboard, multi-console © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix ● MiniOS on ARM ● PSCI v0.2
- 6. Coming in Xen4.5 ● irq latency reduction: no maintenance interrupts ● support for interrupt priorities ● irq migration: physical follow virtual ● multi-grants support ● SMMU support ● Device Assignment on ARM ● Xen UEFI host support ● GICv3 support ● support for up to 1TB of guest RAM ● super pages support ● support for sparse memory map ● support for 48-bit physical addresses ● QEMU PV backend on ARM: framebuffer, mouse, keyboard, multi-console © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix ● MiniOS on ARM ● PSCI v0.2

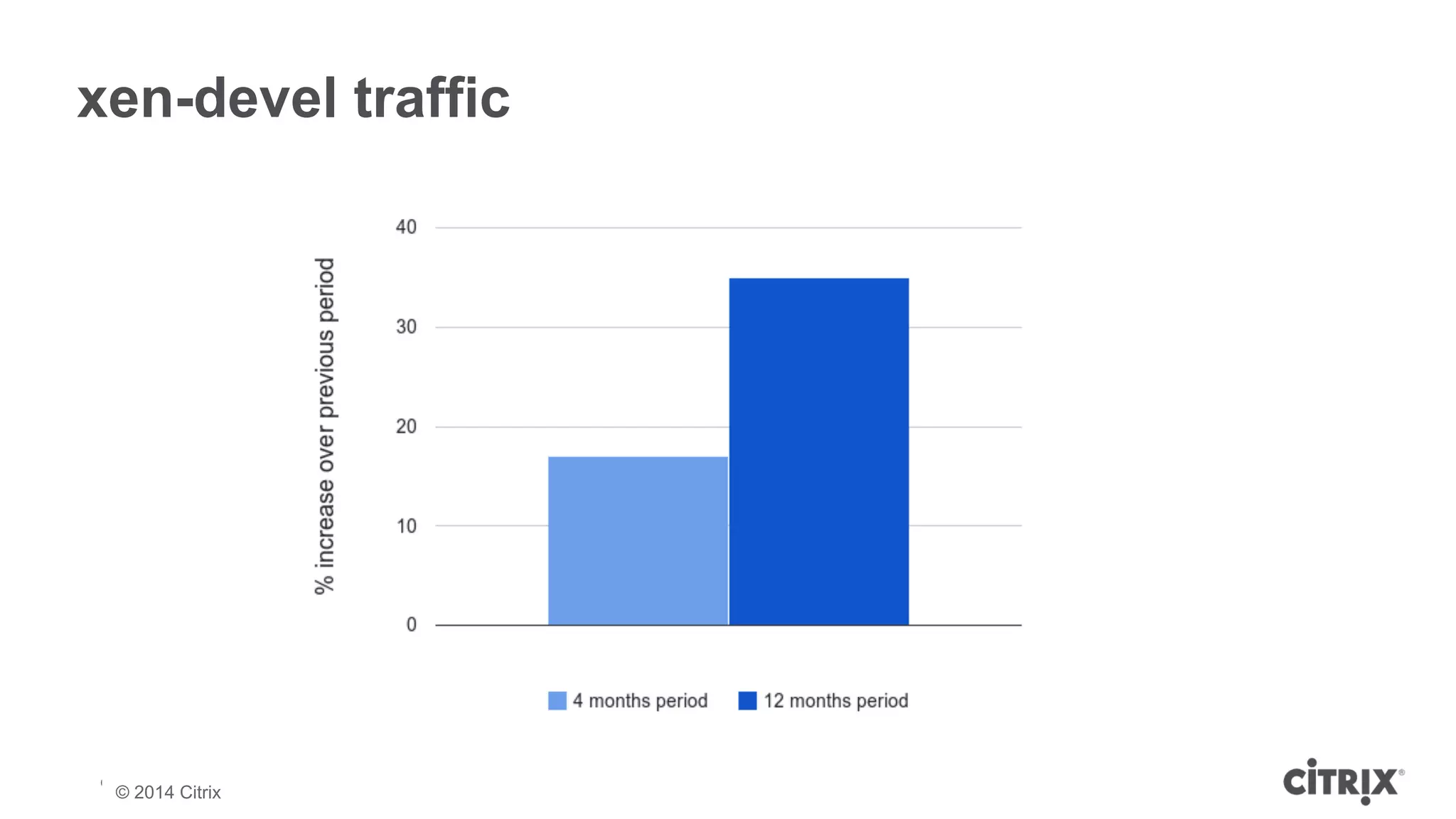

- 7. xen-devel traffic ©2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 8. Maintainers & reviews © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 9. Coming in Xen4.5: performance improvements ● irq latency reduction: no maintenance interrupts ● support for interrupt priorities ● irq migration: physical follow virtual ● multi-grants support ● super pages support ● support for up to 1TB of guest RAM ● support for sparse memory map ● support for 48-bit physical addresses © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

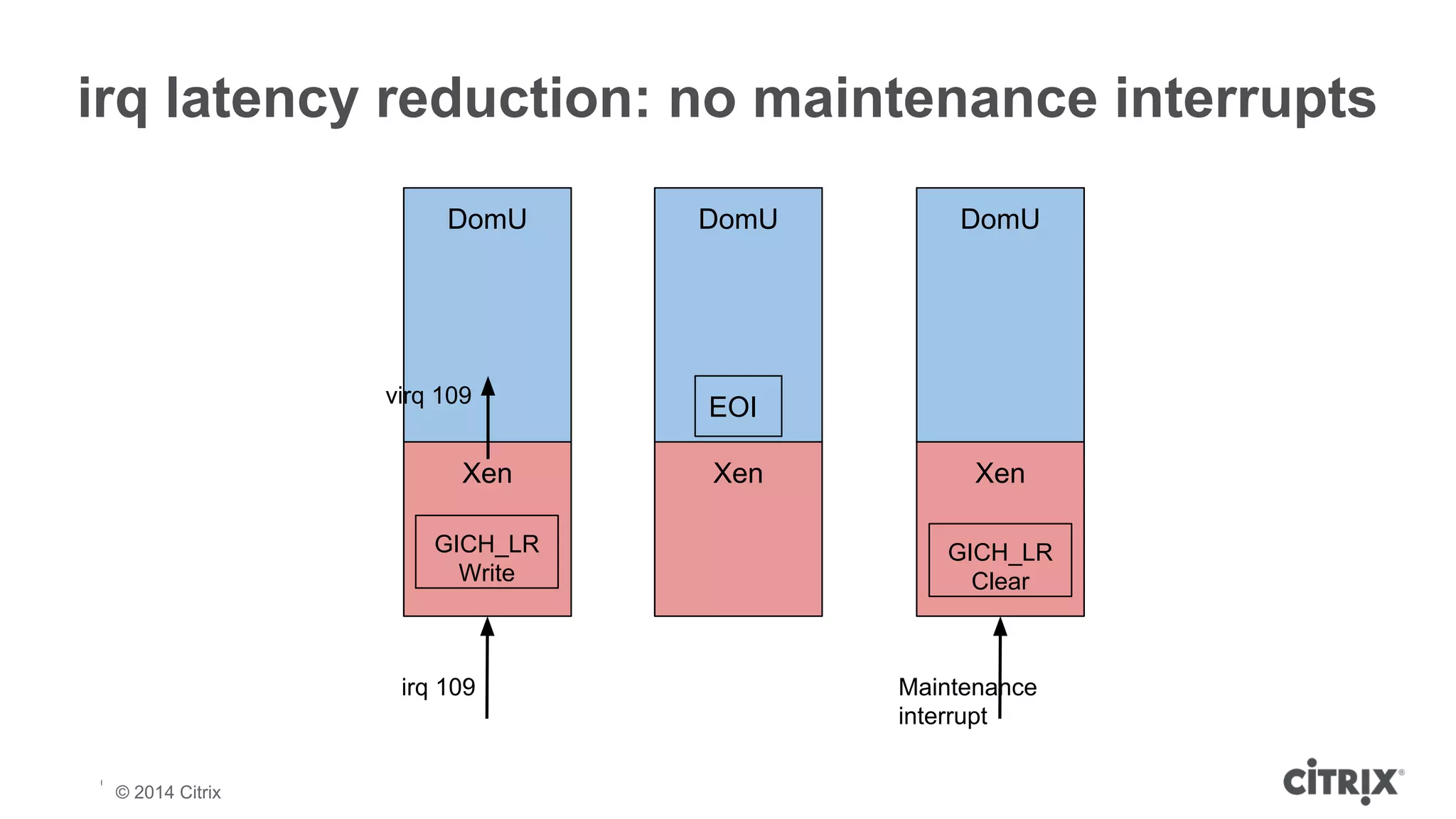

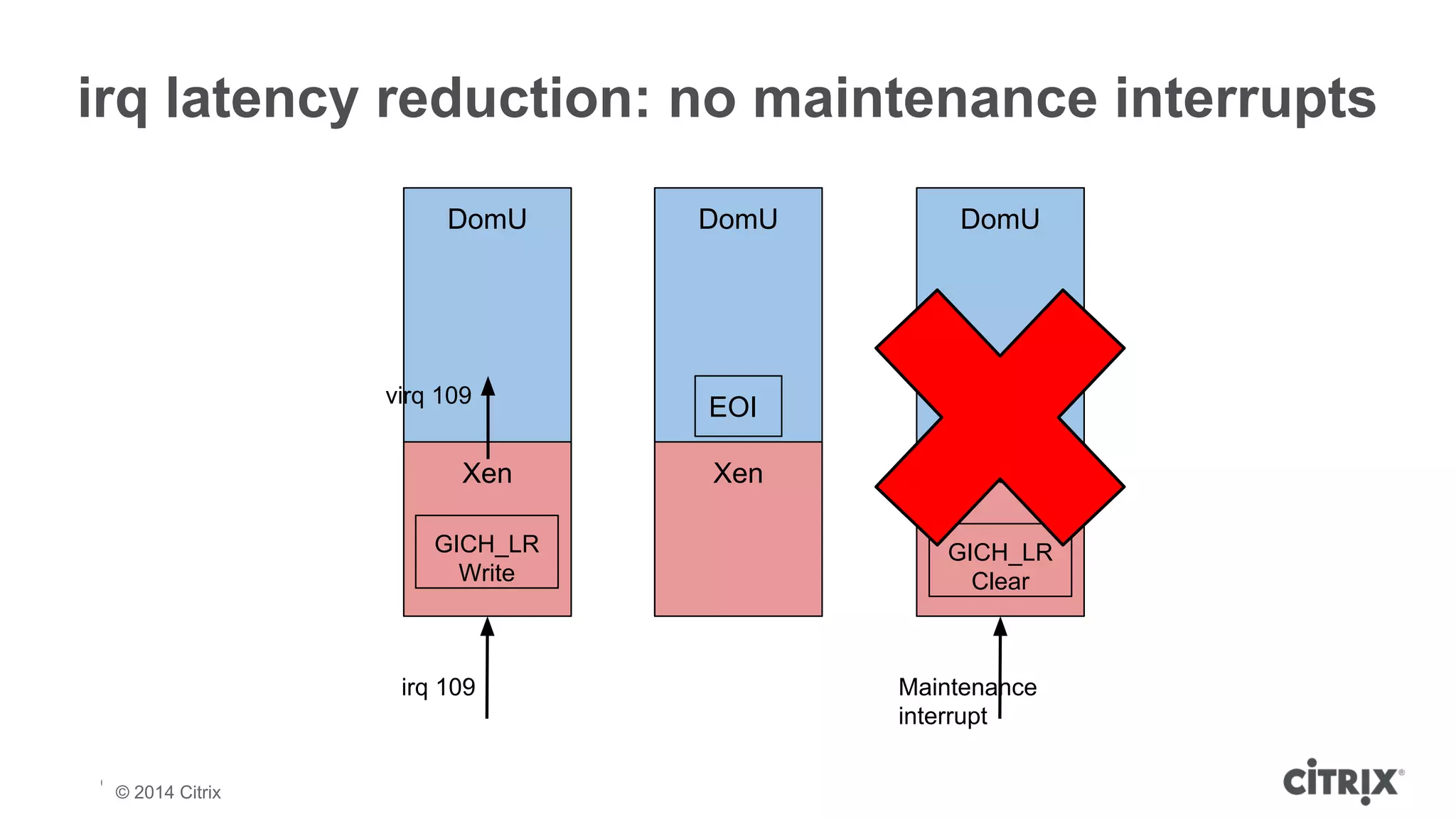

- 10. irq latency reduction:no maintenance interrupts DomU virq 109 Xen irq 109 © 2013 Citrix | Confidential – Do Not Distribute DomU EOI Xen DomU Xen Maintenance interrupt GICH_LR Write GICH_LR Clear © 2014 Citrix
- 11. irq latency reduction:no maintenance interrupts DomU virq 109 Xen irq 109 © 2013 Citrix | Confidential – Do Not Distribute DomU EOI Xen DomU Xen Maintenance interrupt GICH_LR Write GICH_LR Clear © 2014 Citrix
- 12. Coming in Xen4.5: performance improvements ● irq latency reduction: no maintenance interrupts ● support for interrupt priorities ● irq migration: physical follow virtual ● multi-grants support ● super pages support ● support for up to 1TB of guest RAM ● support for sparse memory map ● support for 48-bit physical addresses © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

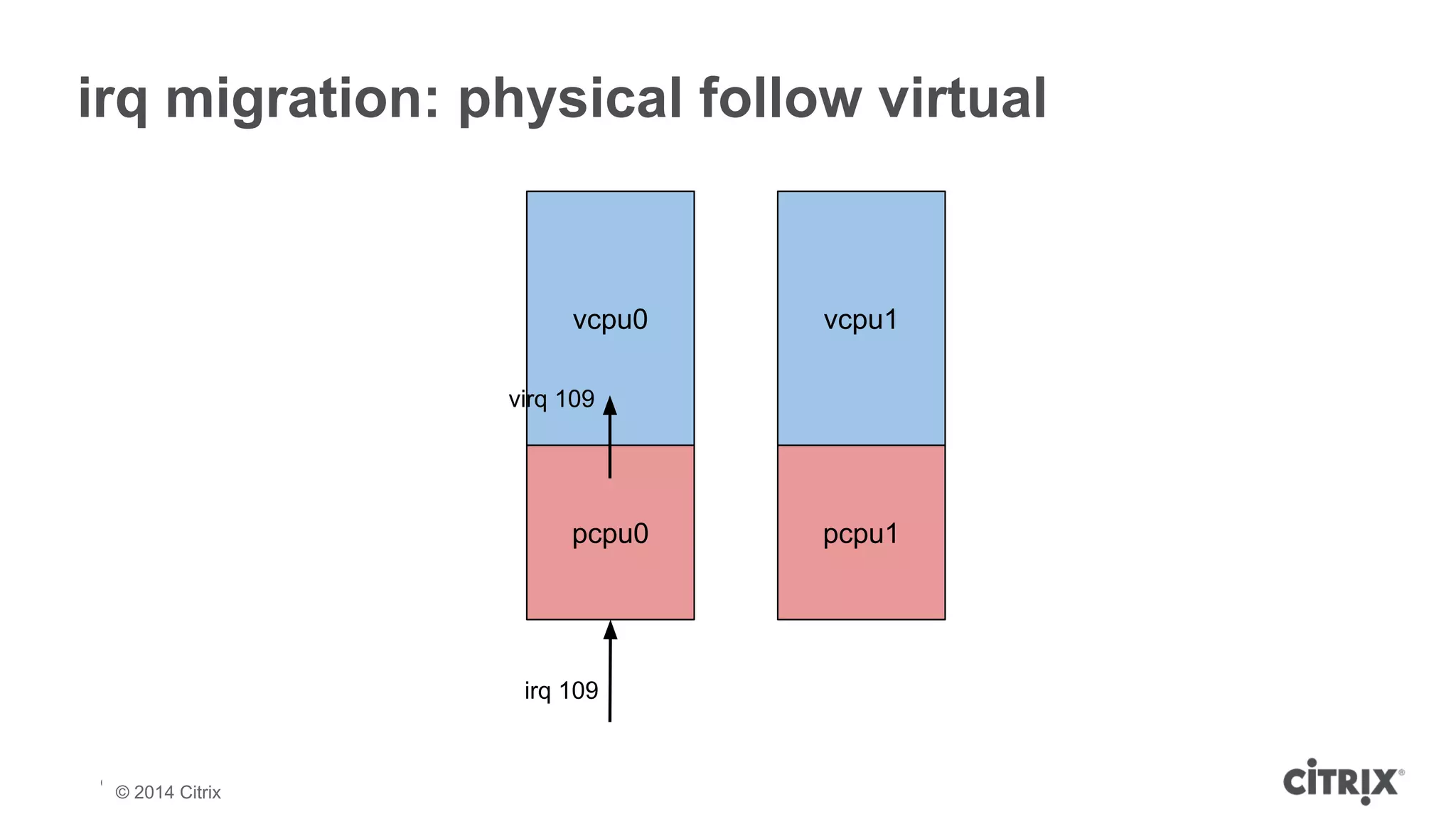

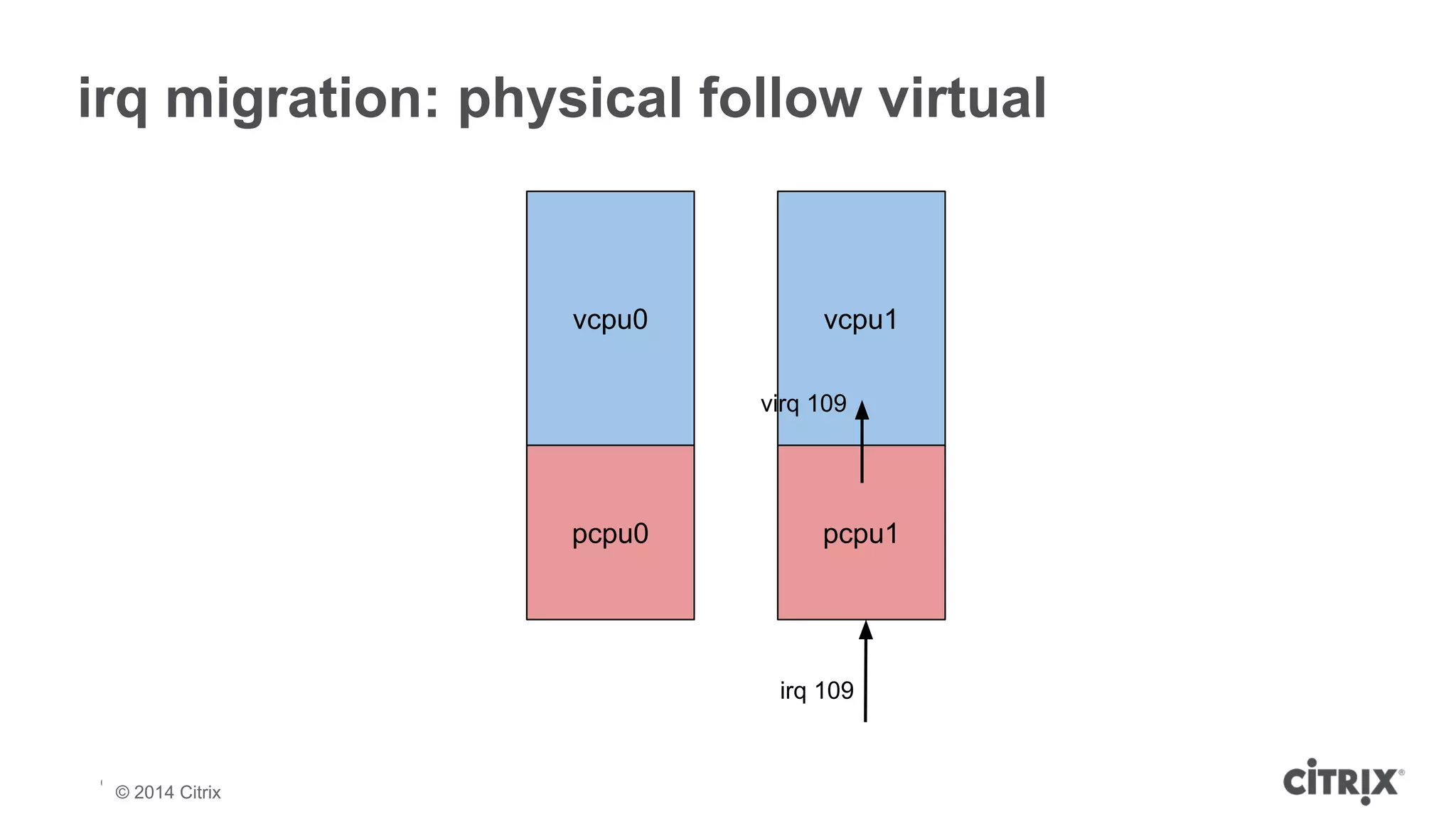

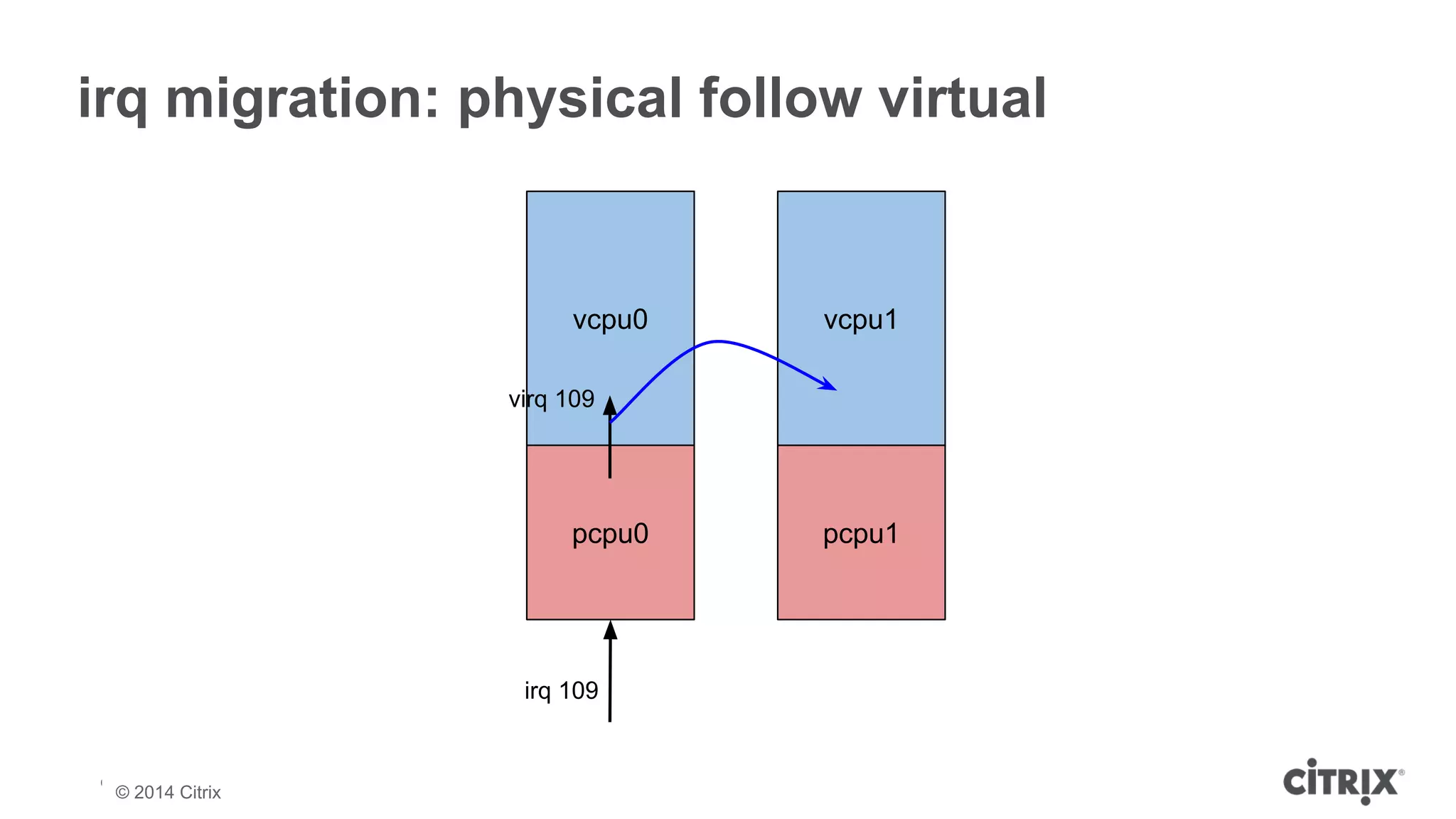

- 13. irq migration: physicalfollow virtual © 2013 Citrix | Confidential – Do Not Distribute vcpu0 vcpu1 virq 109 pcpu0 pcpu1 irq 109 © 2014 Citrix
- 14. irq migration: physicalfollow virtual © 2013 Citrix | Confidential – Do Not Distribute vcpu0 vcpu1 virq 109 pcpu0 pcpu1 irq 109 © 2014 Citrix
- 15. irq migration: physicalfollow virtual © 2013 Citrix | Confidential – Do Not Distribute vcpu0 vcpu1 virq 109 pcpu0 pcpu1 irq 109 © 2014 Citrix
- 16. Coming in Xen4.5: performance improvements ● irq latency reduction: no maintenance interrupts ● support for interrupt priorities ● irq migration: physical follow virtual ● multi-grants support ● super pages support ● support for up to 1TB of guest RAM ● support for sparse memory map ● support for 48-bit physical addresses © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

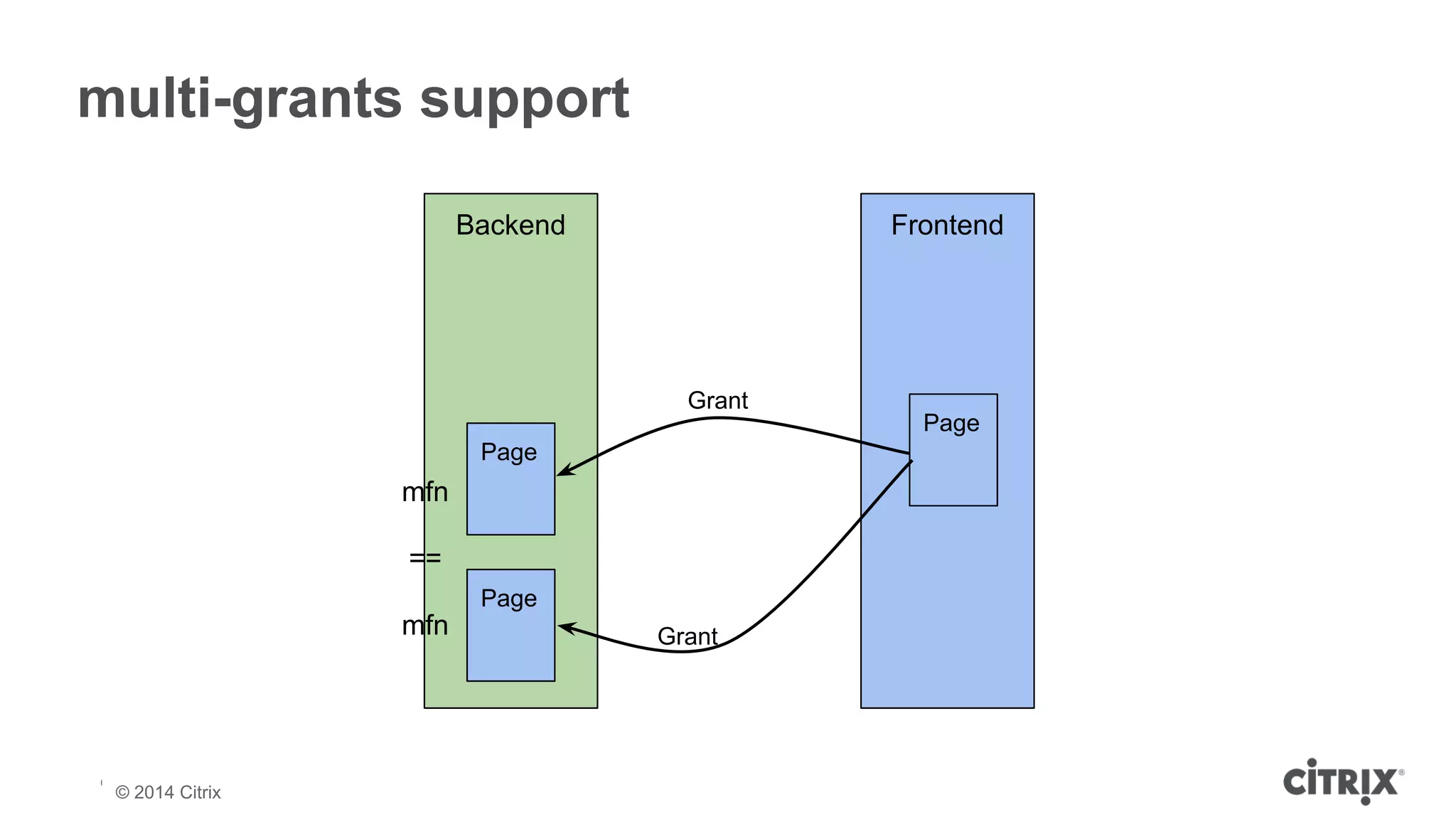

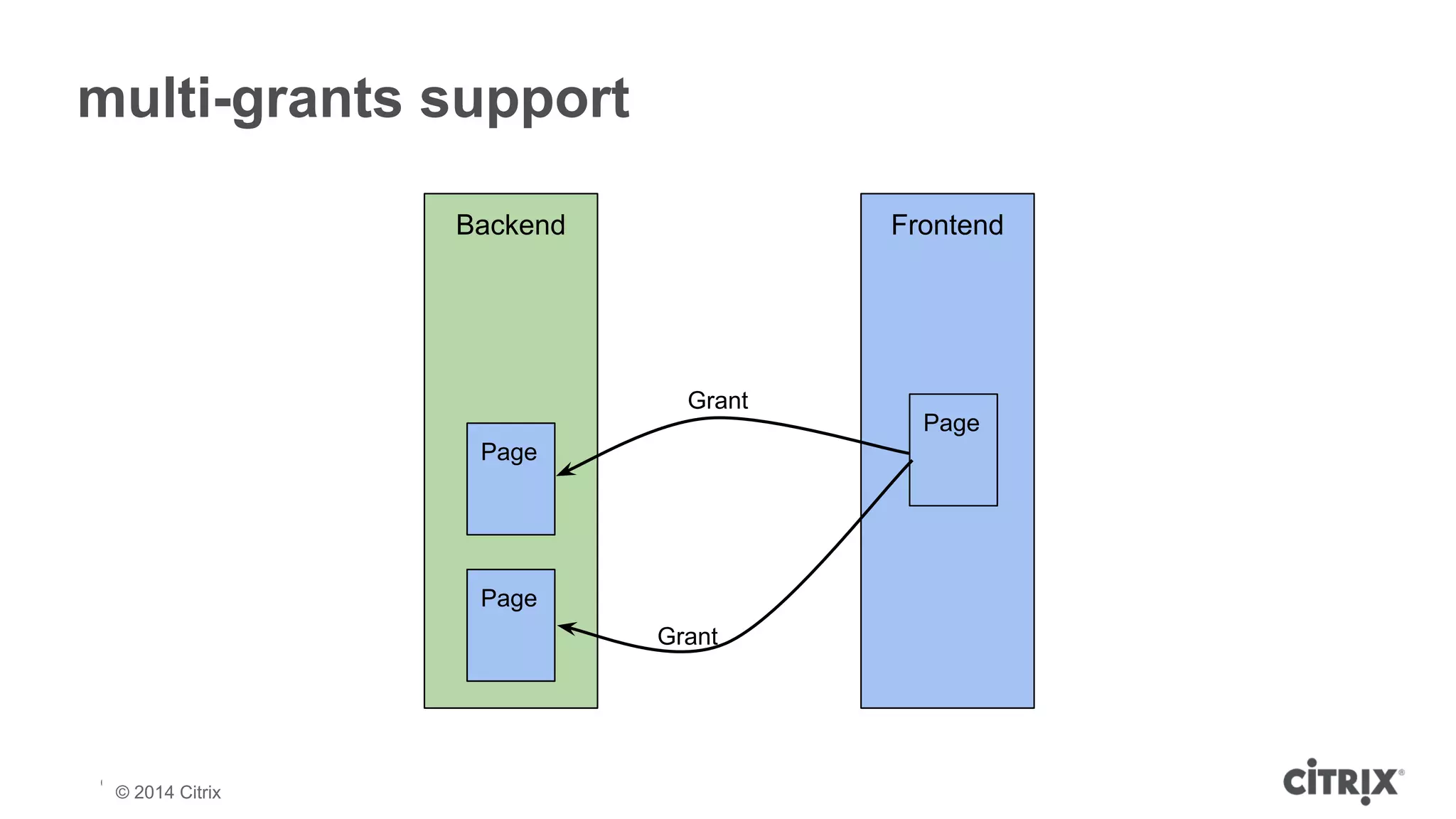

- 17. multi-grants support ©2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix Backend Frontend Page Page Page Grant Grant
- 18. multi-grants support ©2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix Backend Frontend Page Page Page Grant Grant mfn == mfn

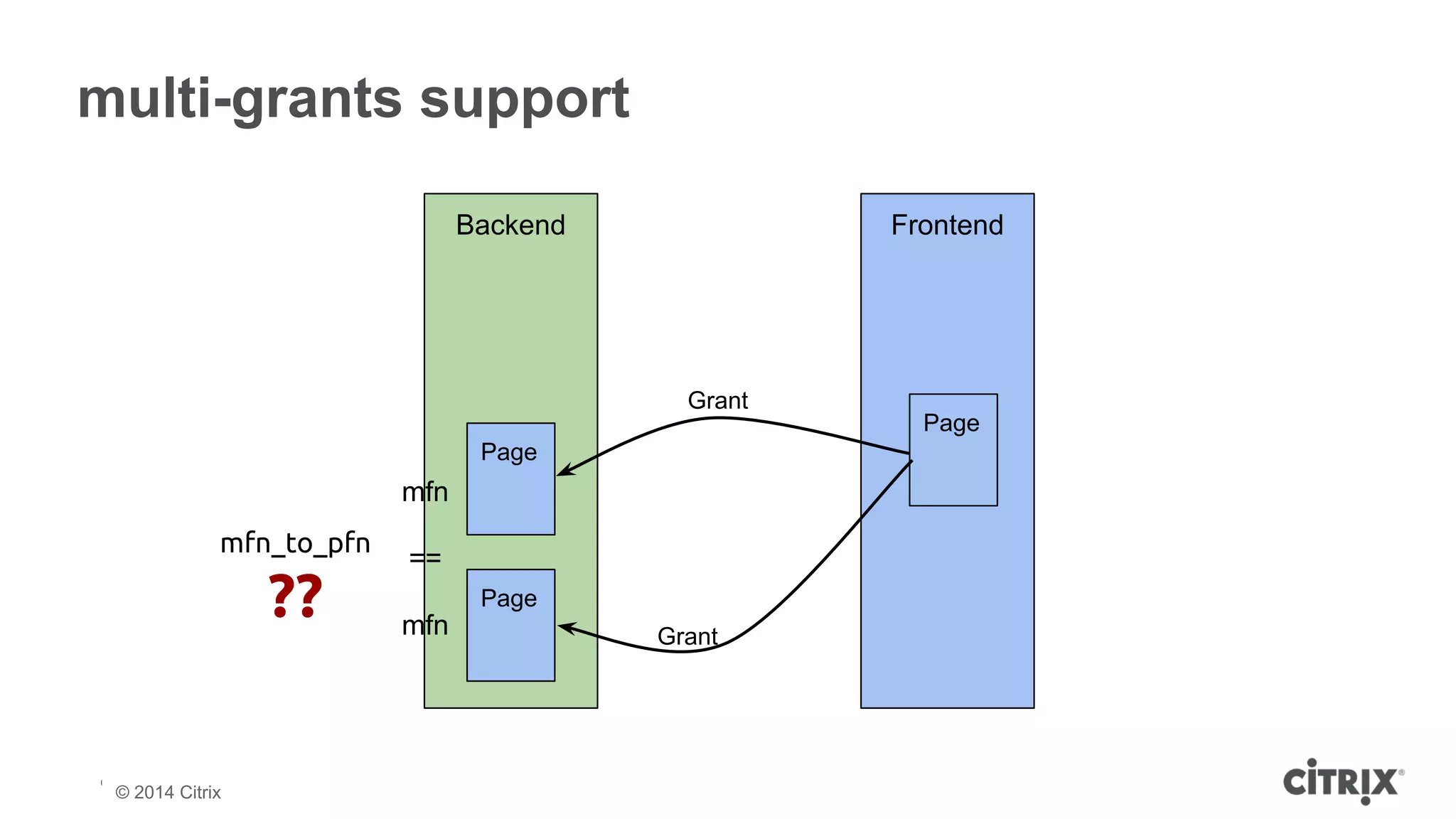

- 19. multi-grants support ©2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix Backend Frontend Page Page Page Grant Grant mfn == mfn mfn_to_pfn ??

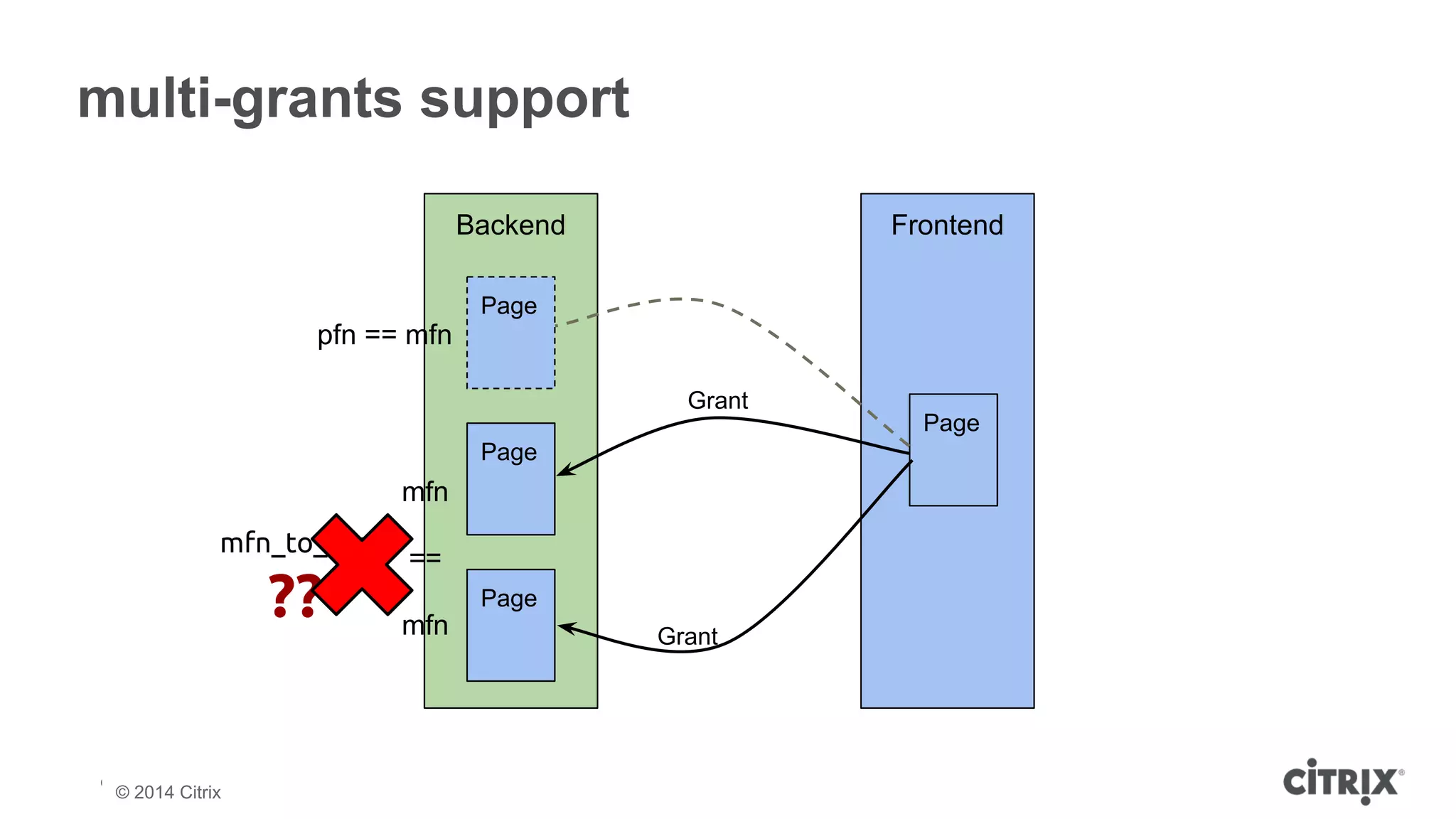

- 20. multi-grants support ©2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix Backend Frontend Page Page Page Grant Grant Page pfn == mfn mfn == mfn mfn_to_pfn ??
- 21. Coming in Xen4.5: performance improvements ● irq latency reduction: no maintenance interrupts ● support for interrupt priorities ● irq migration: physical follow virtual ● multi-grants support ● super pages support ● support for up to 1TB of guest RAM ● support for sparse memory map ● support for 48-bit physical addresses © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

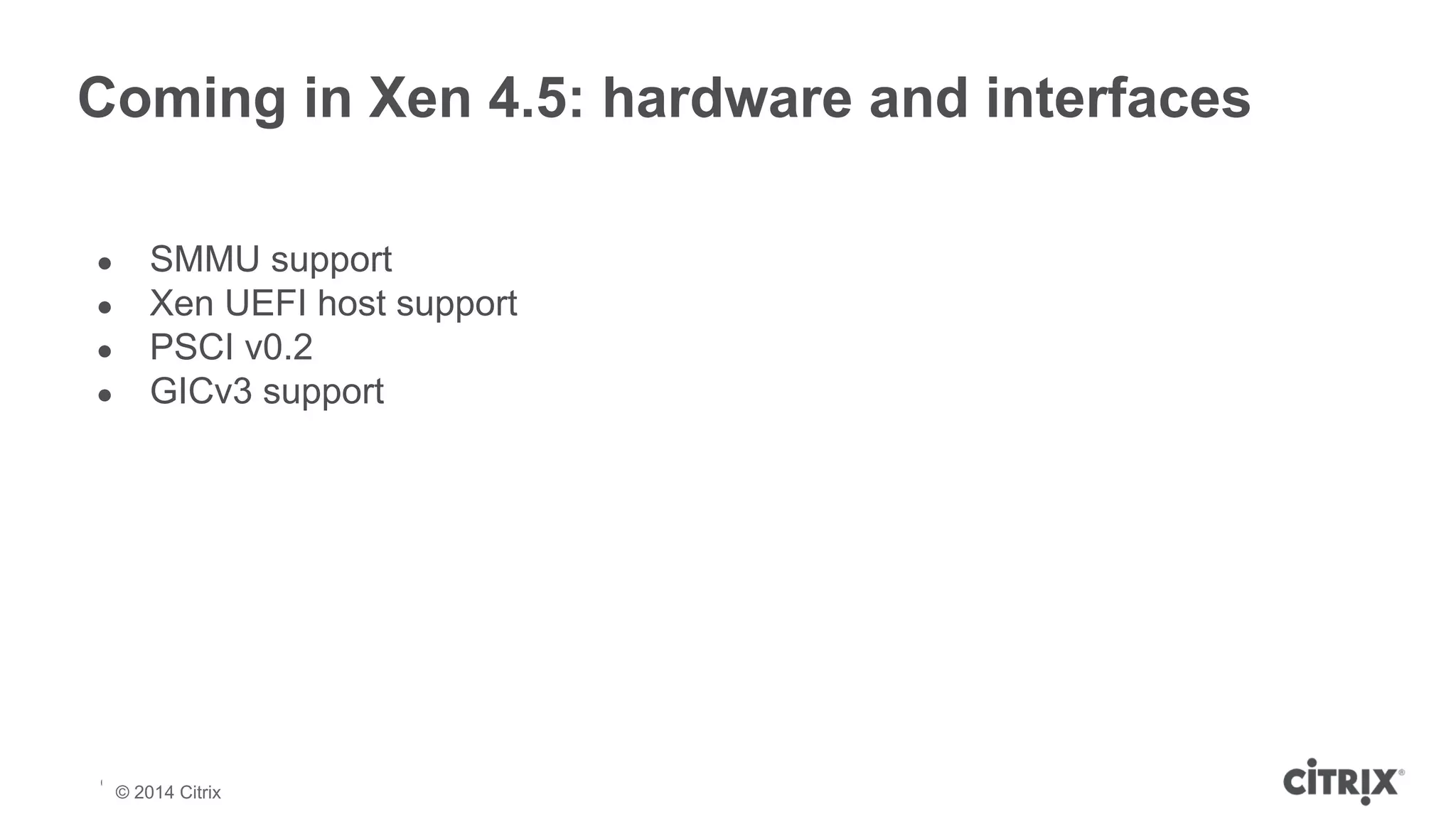

- 22. Coming in Xen4.5: hardware and interfaces ● SMMU support ● Xen UEFI host support ● PSCI v0.2 ● GICv3 support © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

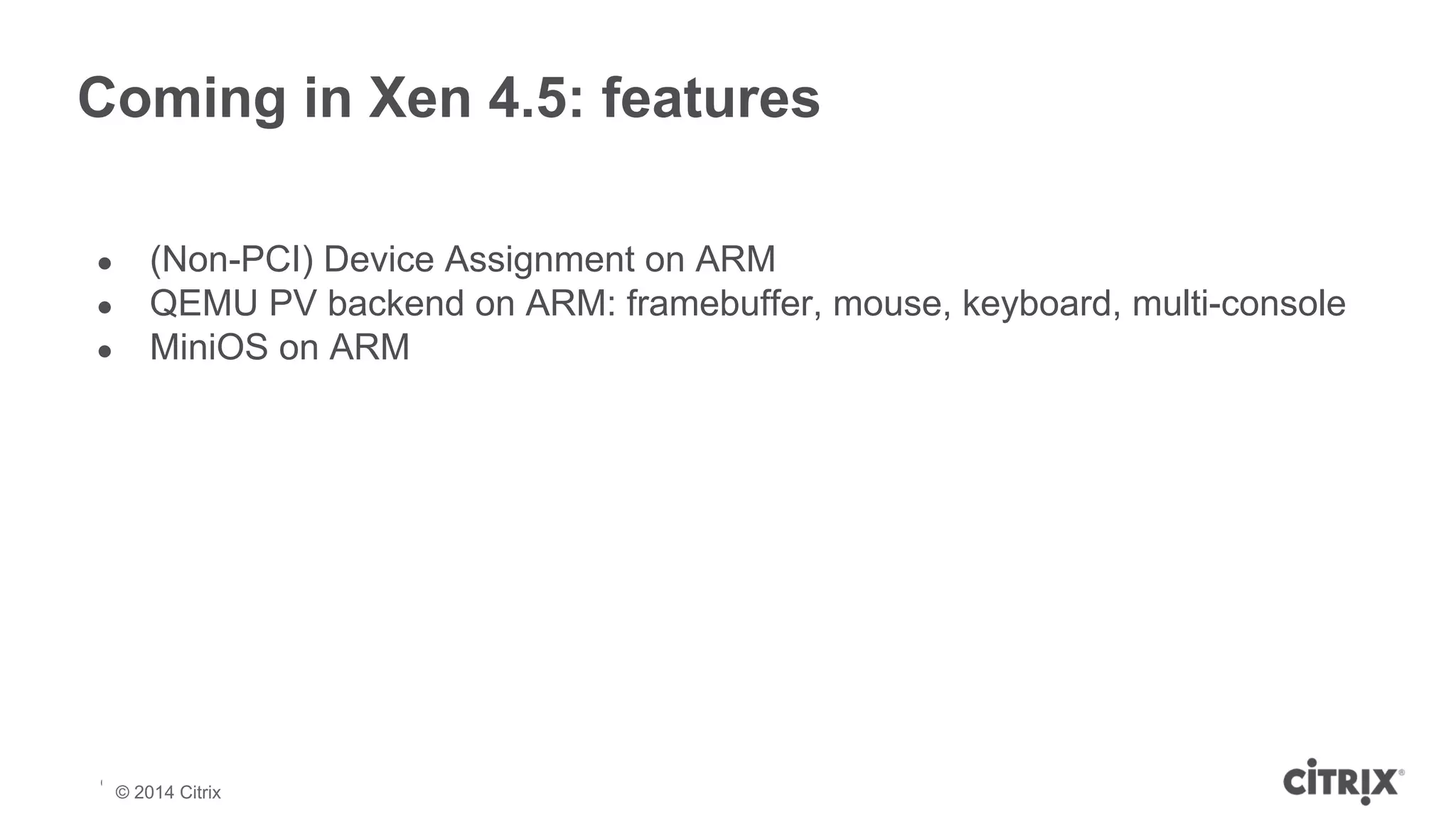

- 23. Coming in Xen4.5: features ● (Non-PCI) Device Assignment on ARM ● QEMU PV backend on ARM: framebuffer, mouse, keyboard, multi-console ● MiniOS on ARM © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 24. Looking ahead ●save/restore and live-migration ● PCI device assignment ● IOMMU emulation for remote processors ● GICv2m support ● SMMUv2 support ● ACPI support © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

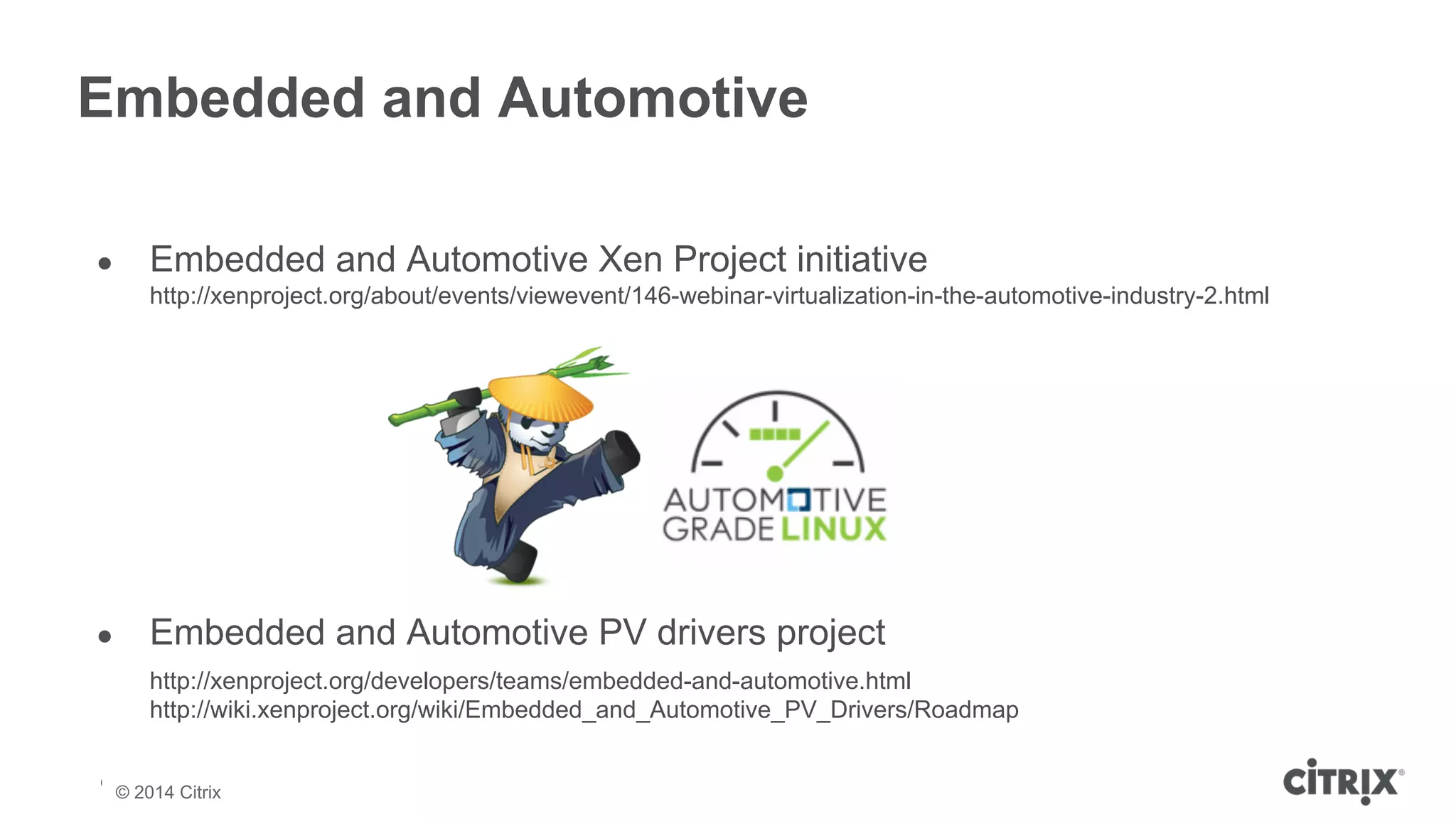

- 25. Embedded and Automotive ● Embedded and Automotive Xen Project initiative http://xenproject.org/about/events/viewevent/146-webinar-virtualization-in-the-automotive-industry-2.html ● Embedded and Automotive PV drivers project http://xenproject.org/developers/teams/embedded-and-automotive.html http://wiki.xenproject.org/wiki/Embedded_and_Automotive_PV_Drivers/Roadmap © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 26.

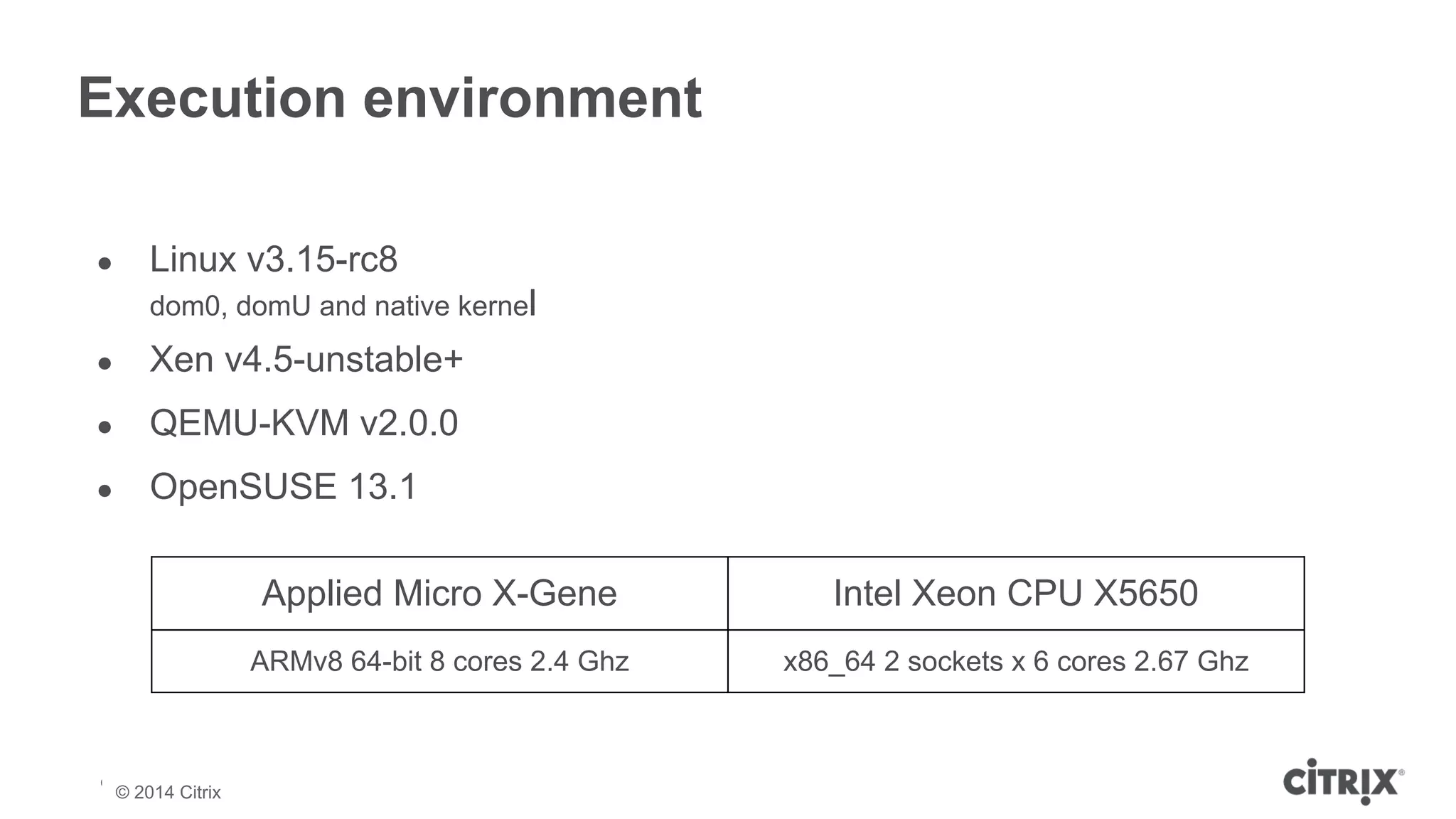

- 27. Execution environment ●Linux v3.15-rc8 dom0, domU and native kernel ● Xen v4.5-unstable+ ● QEMU-KVM v2.0.0 ● OpenSUSE 13.1 © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix Applied Micro X-Gene Intel Xeon CPU X5650 ARMv8 64-bit 8 cores 2.4 Ghz x86_64 2 sockets x 6 cores 2.67 Ghz

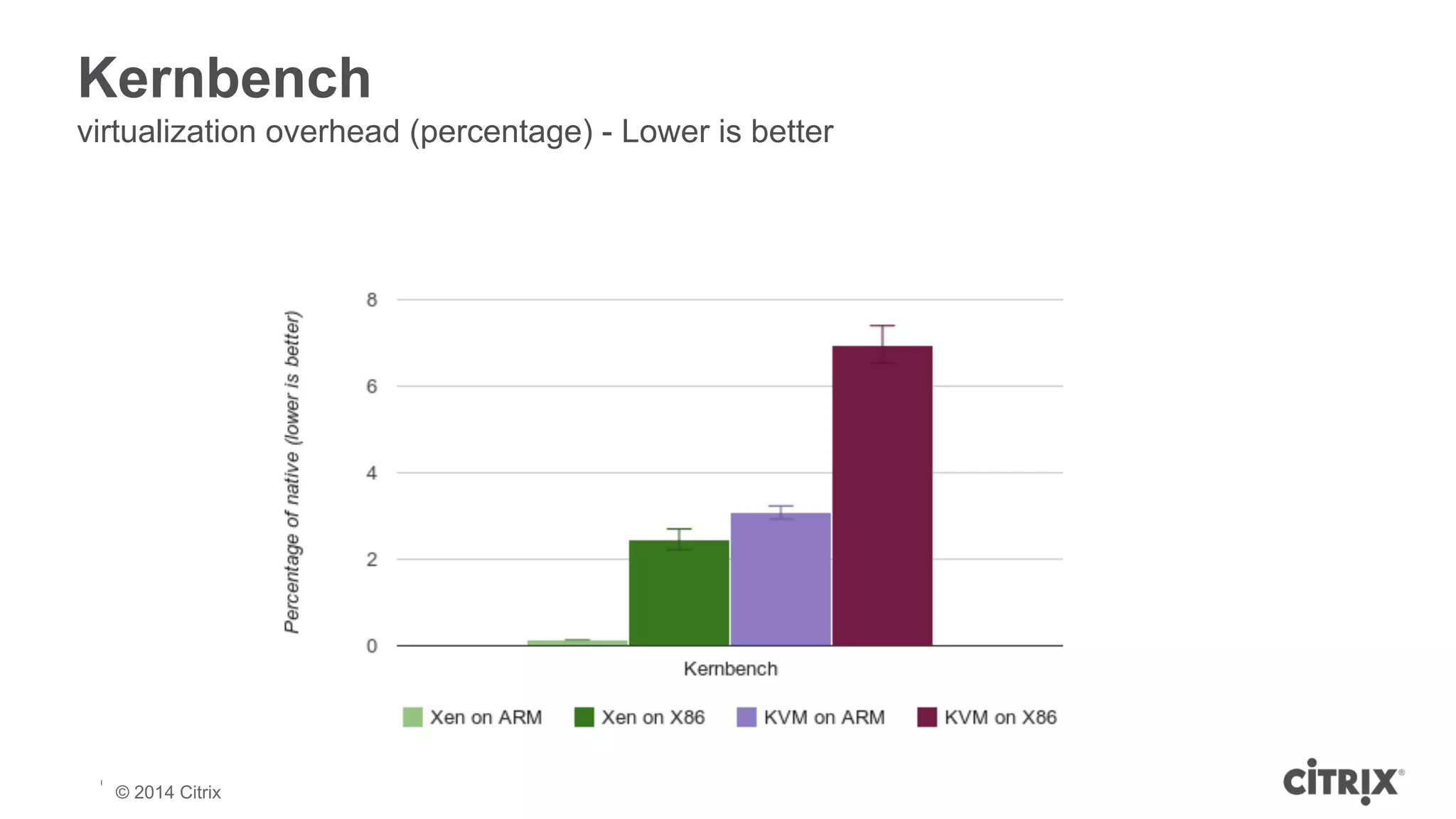

- 28. Kernbench virtualization overhead(percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

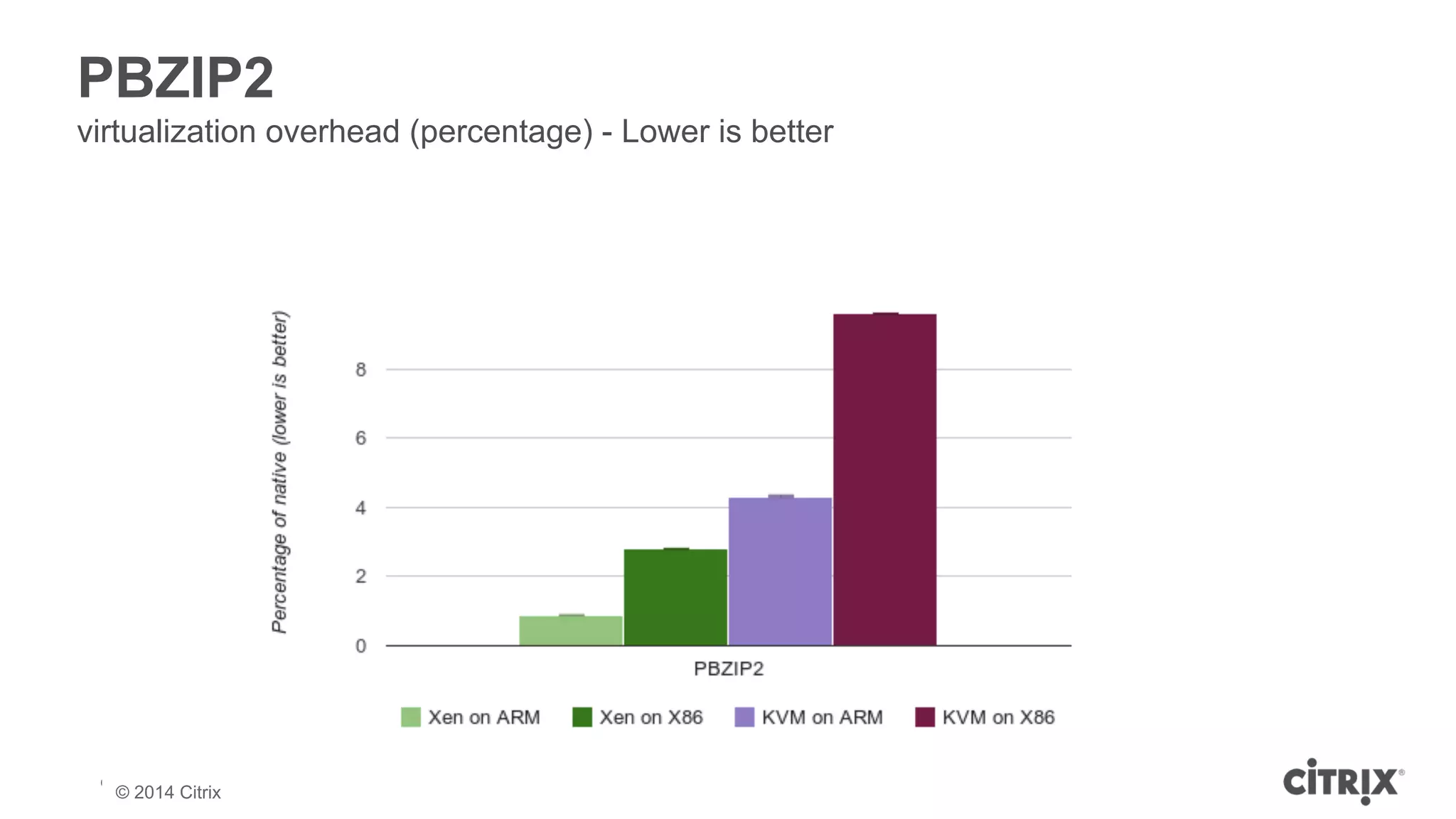

- 29. PBZIP2 virtualization overhead(percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

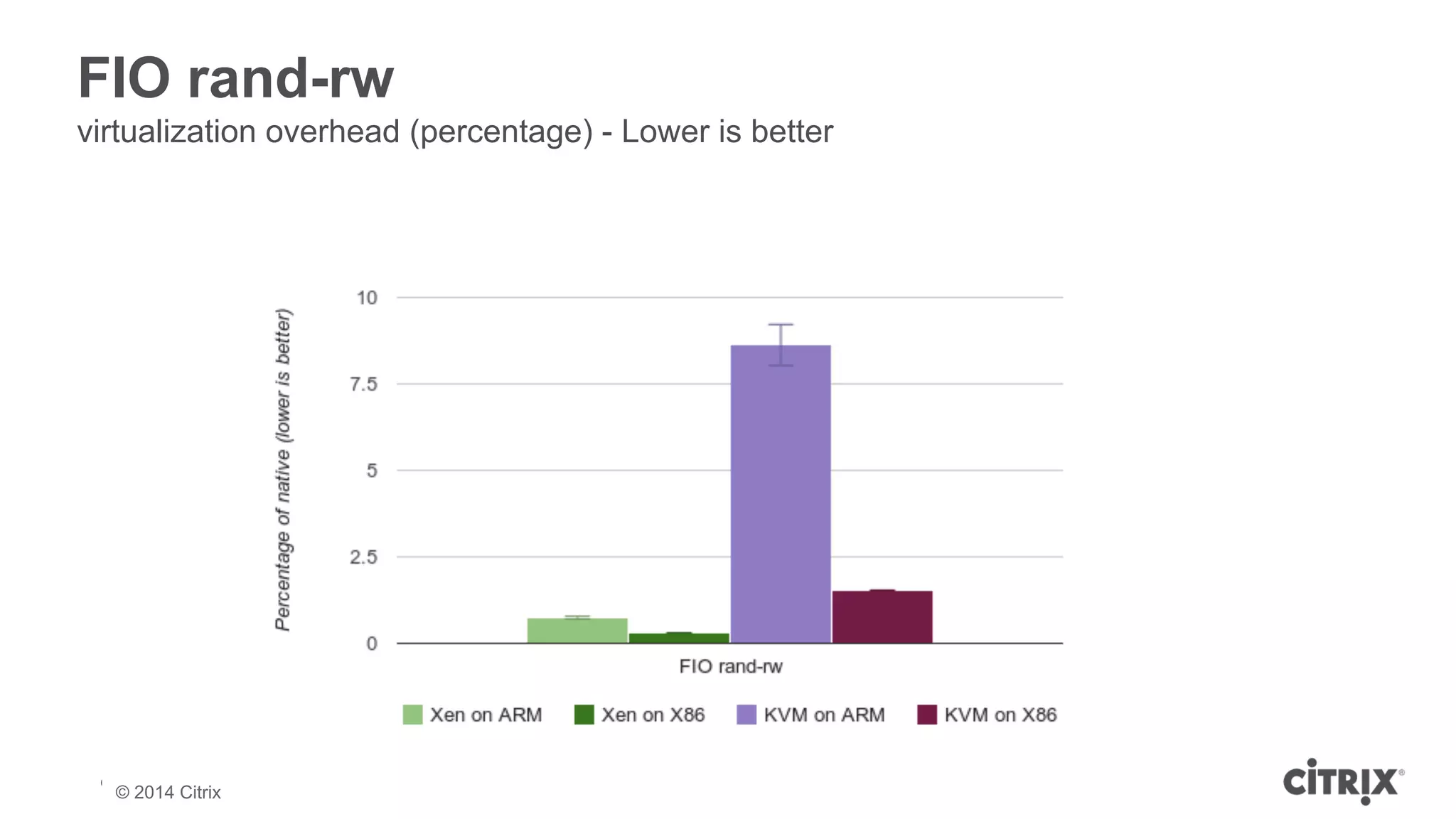

- 30. FIO rand-rw virtualizationoverhead (percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

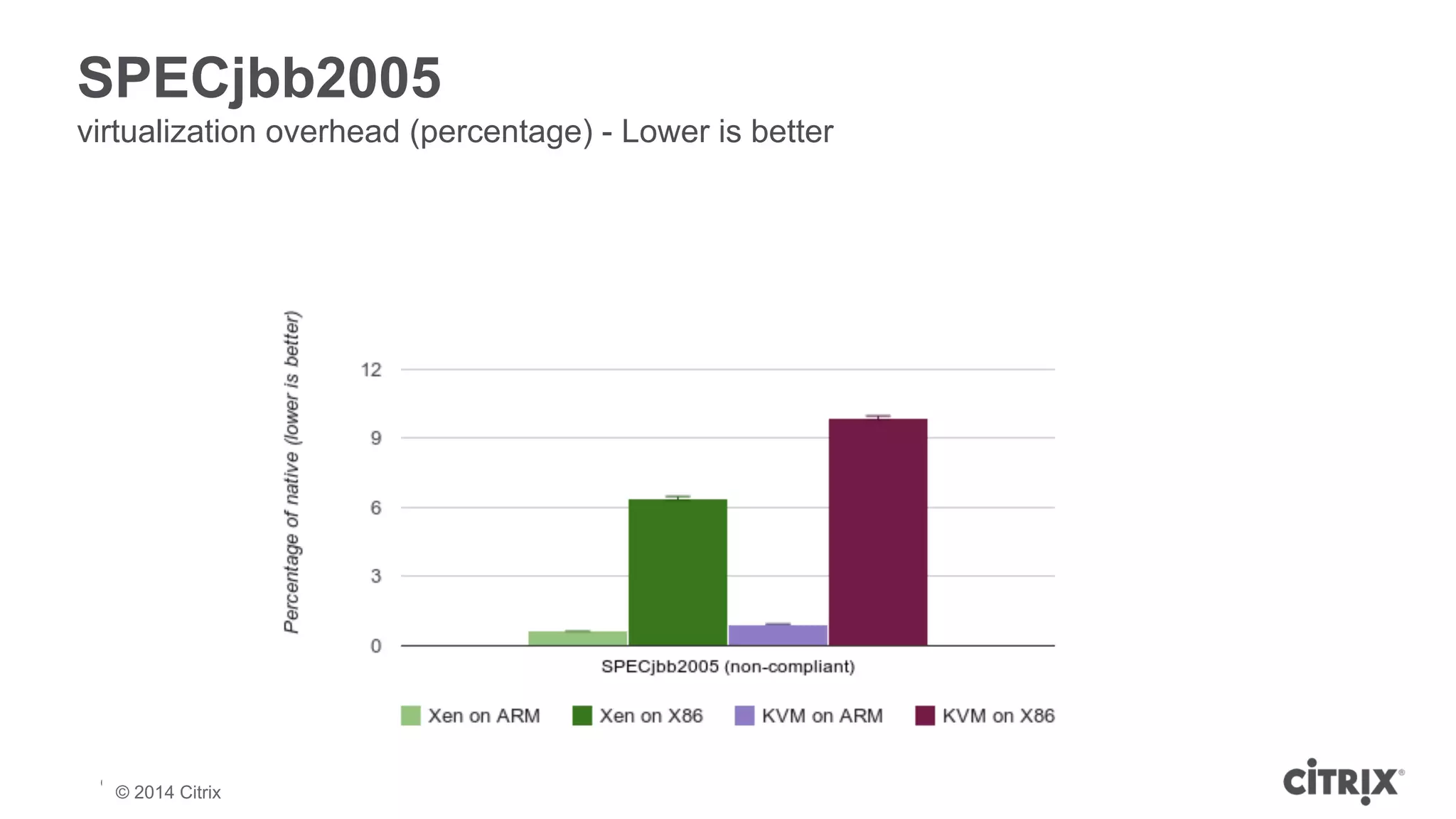

- 31. SPECjbb2005 virtualization overhead(percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 32. PGBench virtualization overhead(percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

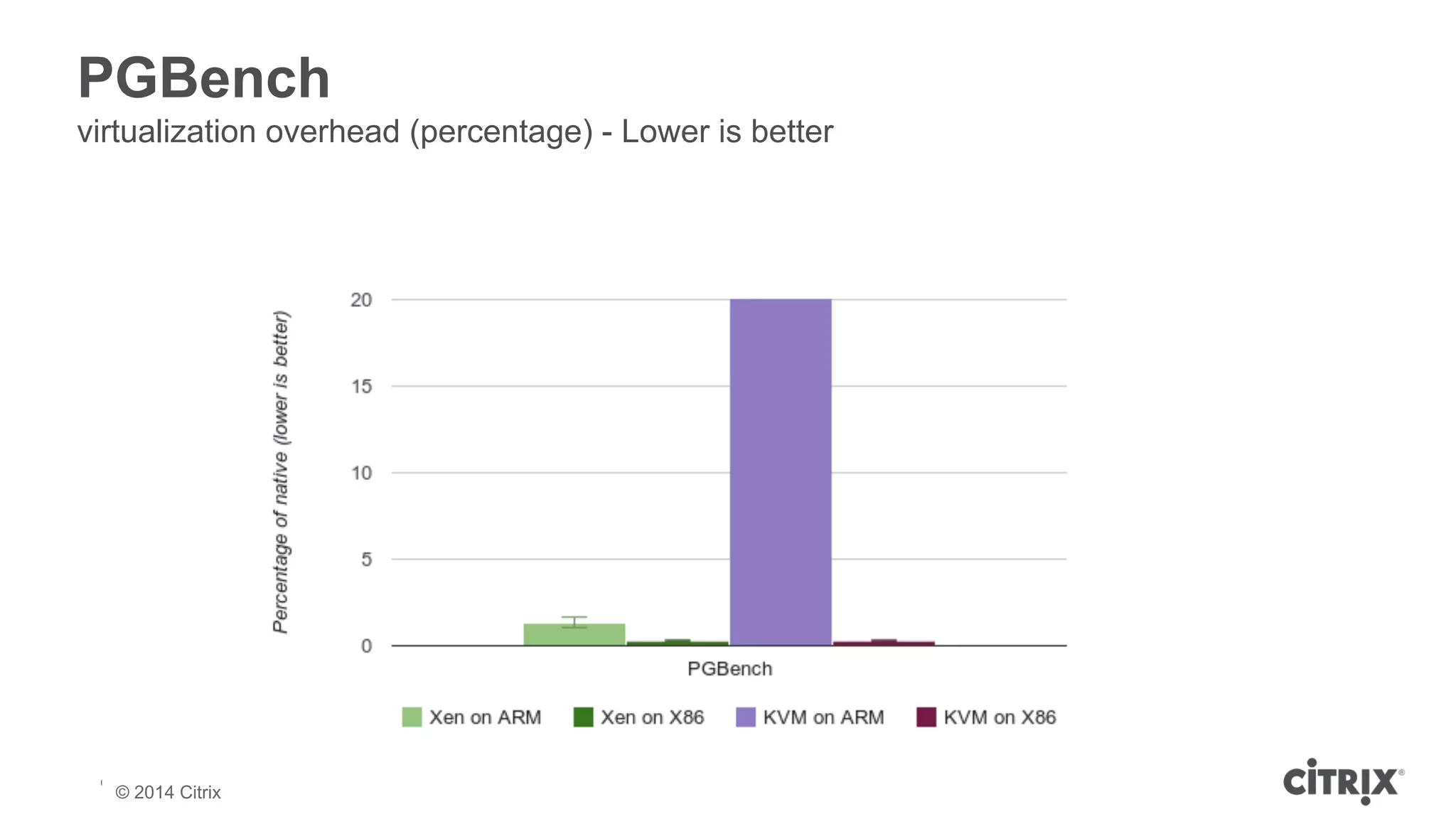

- 33. PGBench virtualization overhead(percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

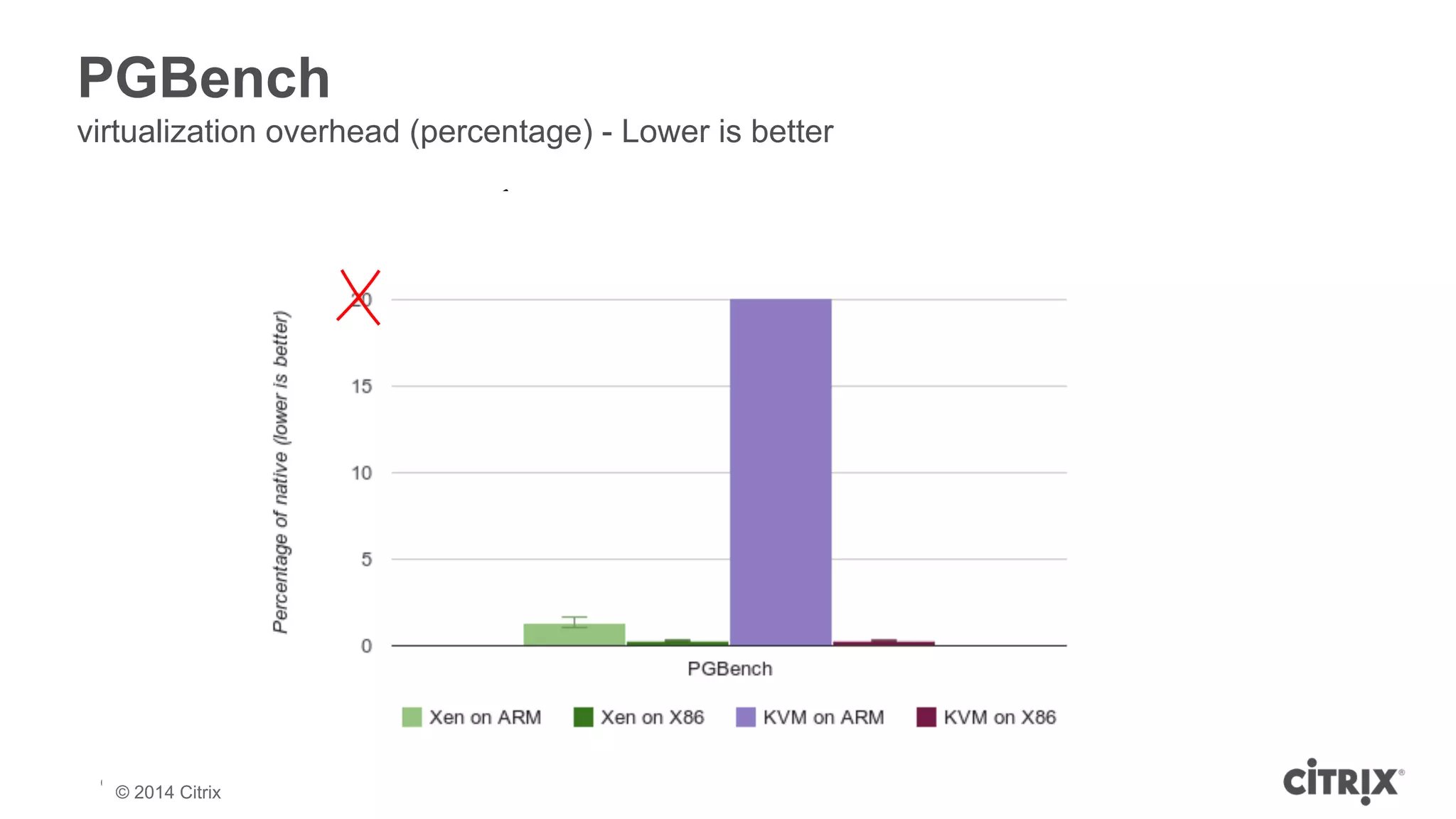

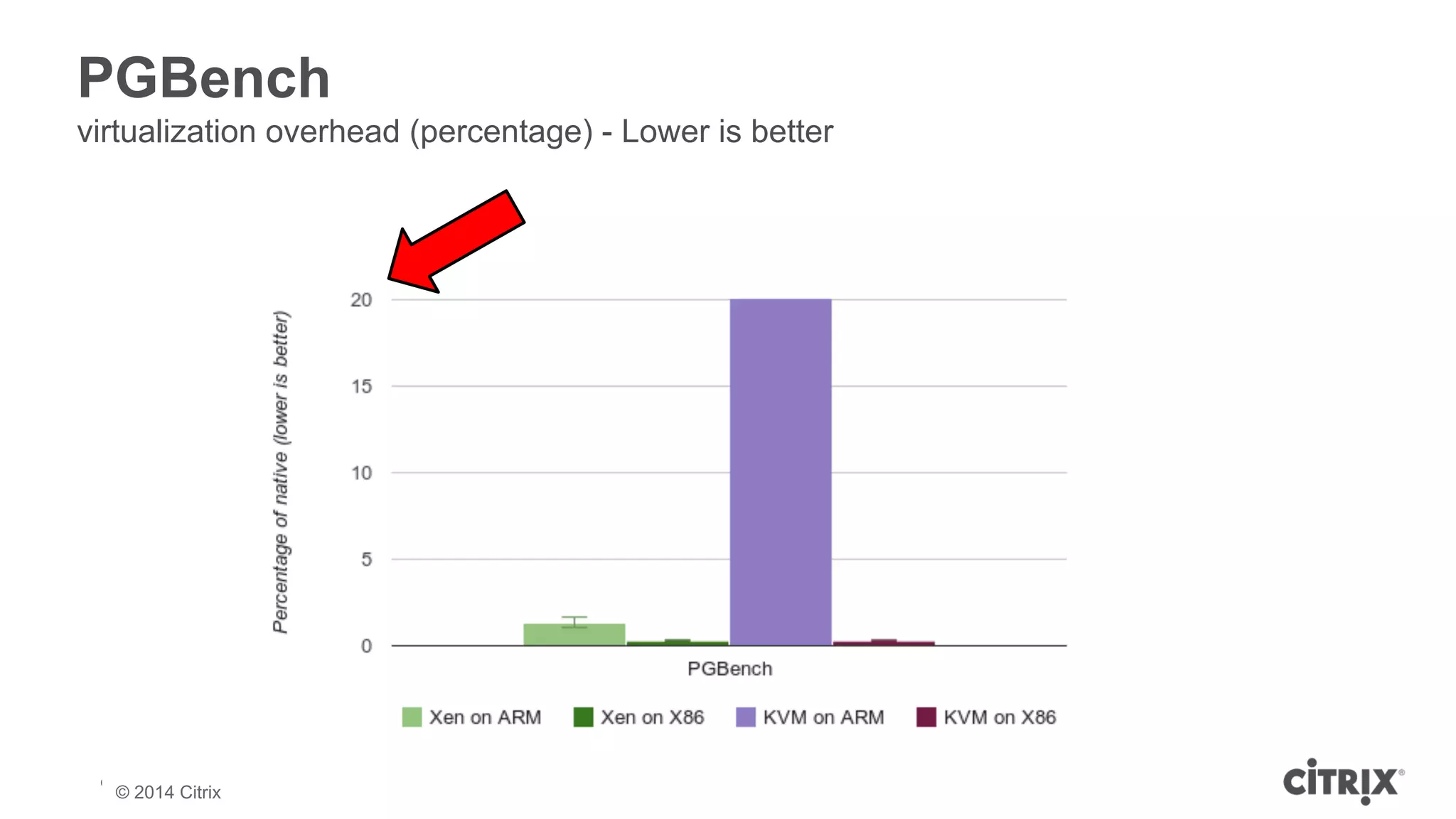

- 34. PGBench virtualization overhead(percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix

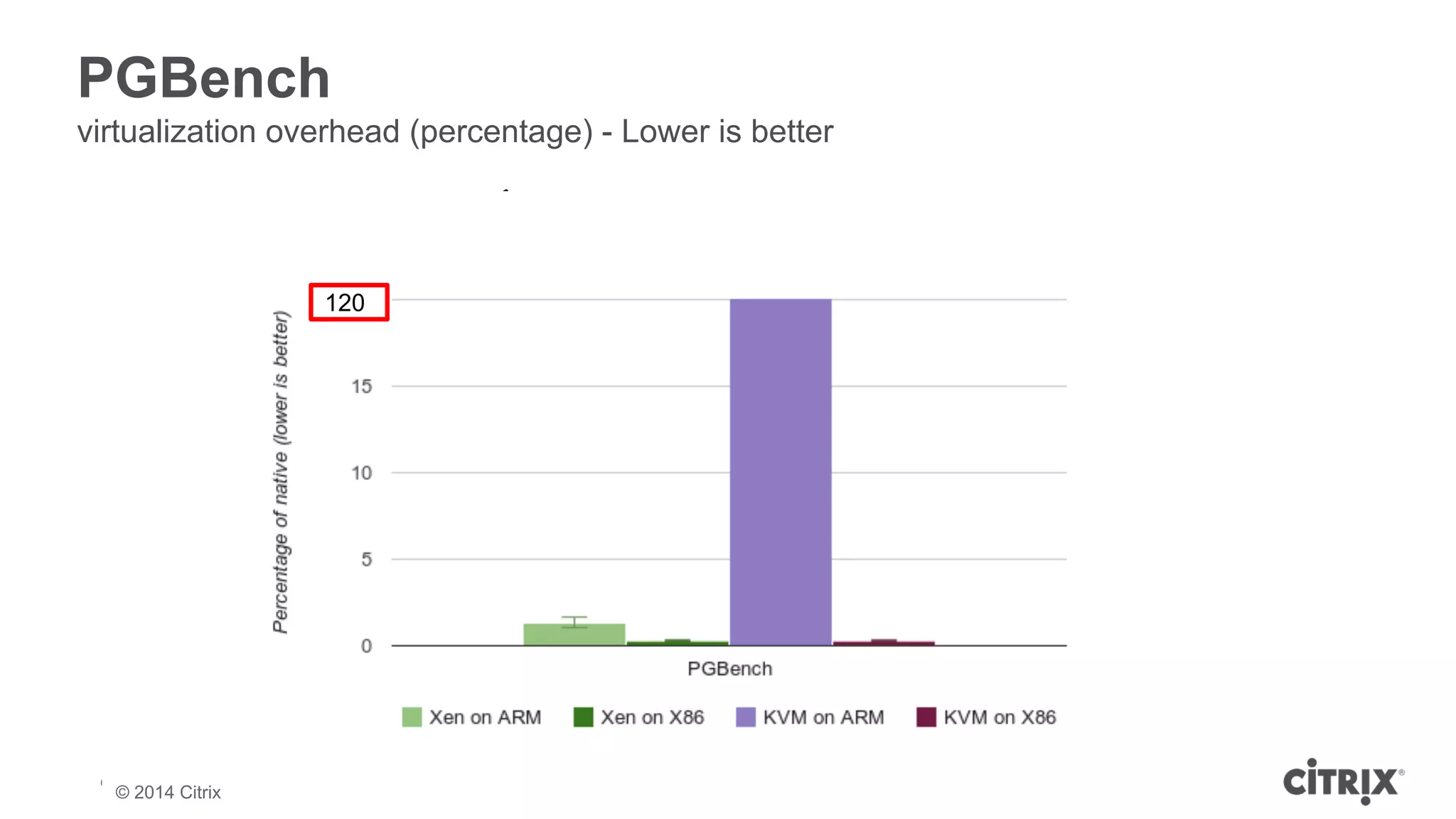

- 35. PGBench virtualization overhead(percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix 120
- 36.

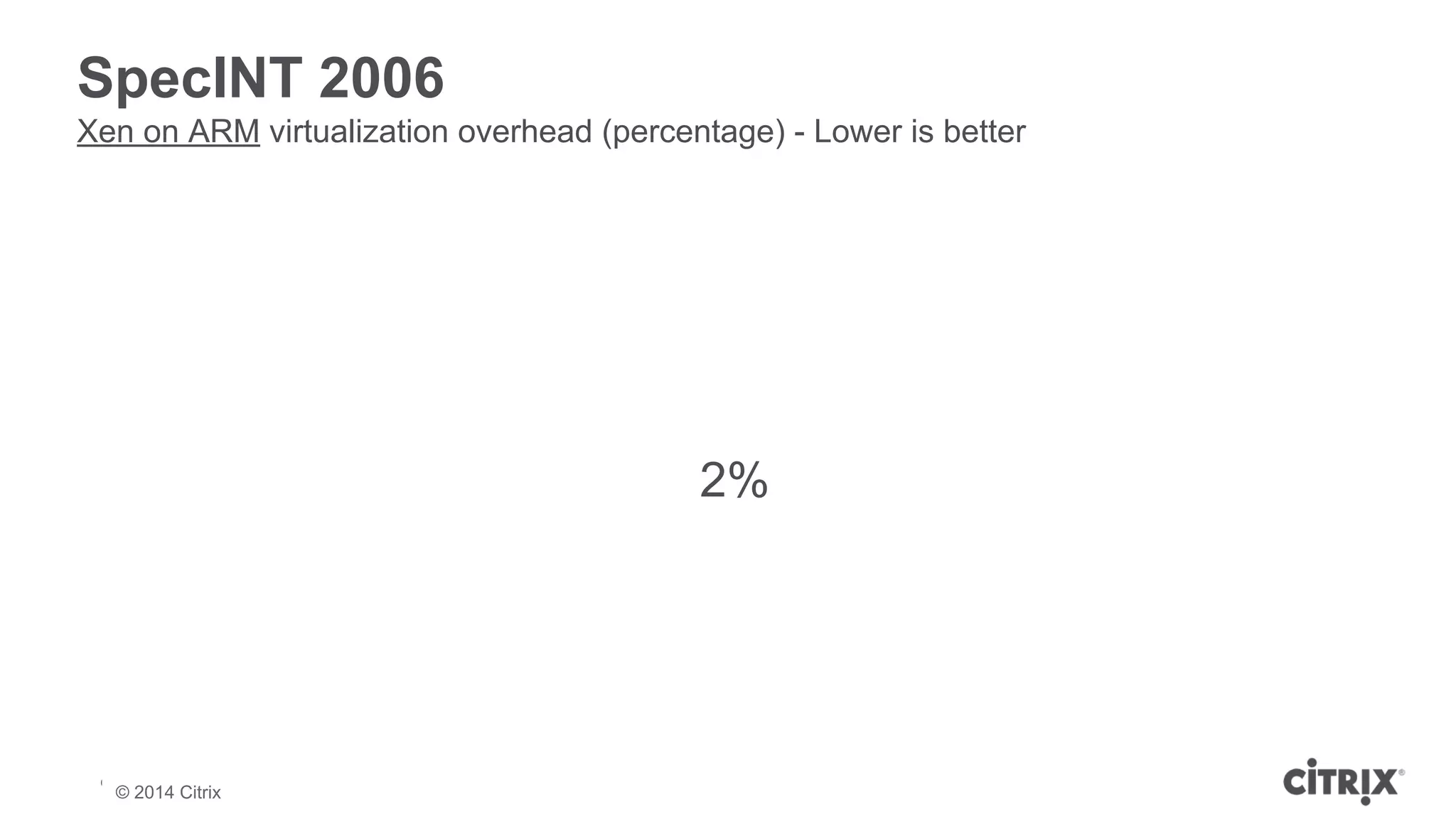

- 37. SpecINT 2006 Xenon ARM virtualization overhead (percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute 2% © 2014 Citrix
- 38.
- 39. Conclusions ● manynew features coming ● good performance results ● still lots of room for improvement © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 40. Conclusions ● needmore reviewers © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 41.

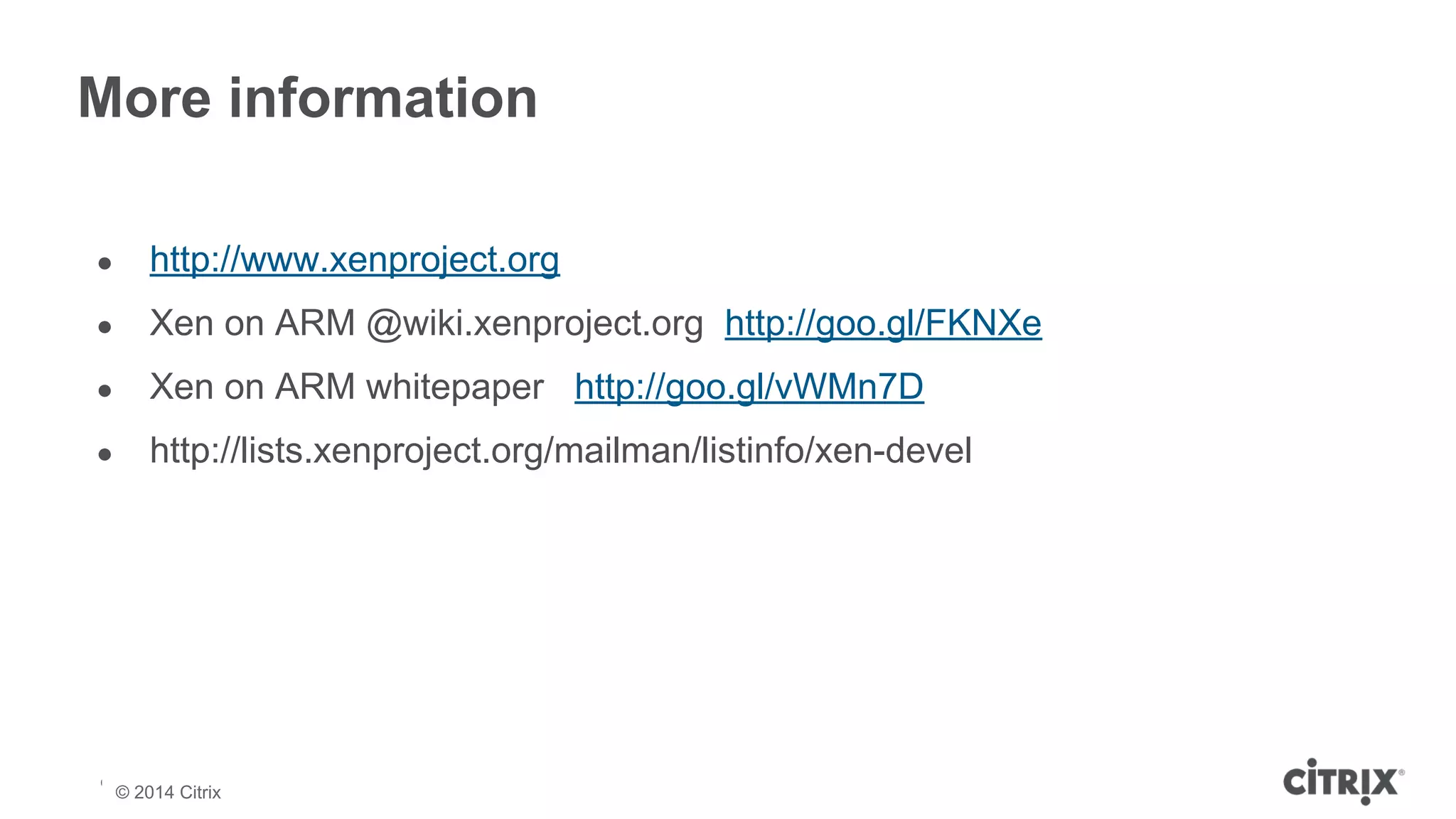

- 42. More information ●http://www.xenproject.org ● Xen on ARM @wiki.xenproject.org http://goo.gl/FKNXe ● Xen on ARM whitepaper http://goo.gl/vWMn7D ● http://lists.xenproject.org/mailman/listinfo/xen-devel © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 43. © 2013 Citrix| Confidential – Do Not Distribute Citrix Work better. Live Better. © 2014 Citrix
- 44.

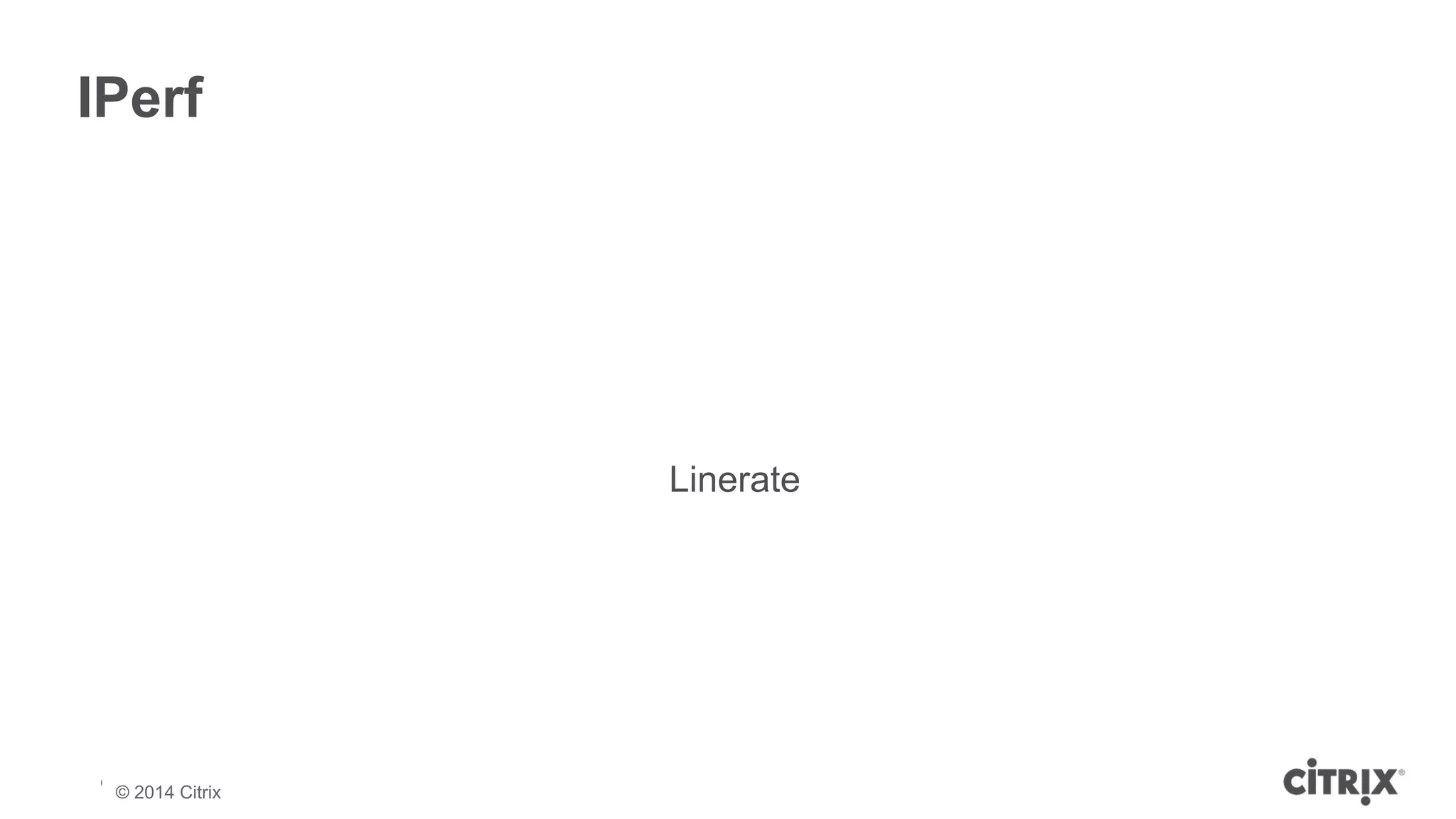

- 45. IPerf © 2013Citrix | Confidential – Do Not Distribute Linerate © 2014 Citrix

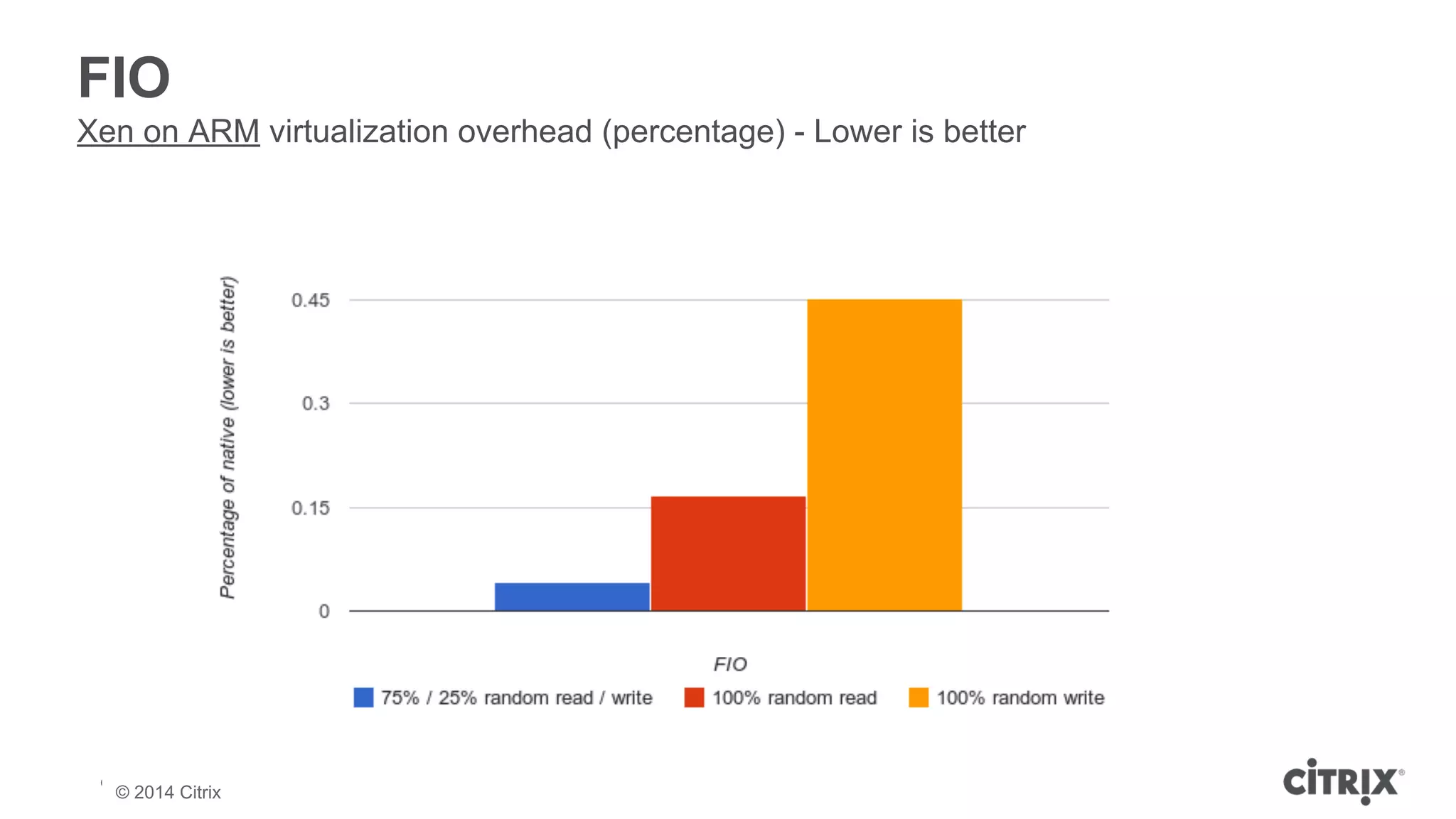

- 46. FIO Xen onARM virtualization overhead (percentage) - Lower is better © 2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
- 47. Reading xen-devel ©2013 Citrix | Confidential – Do Not Distribute © 2014 Citrix
