© Copyright 2020 Xilinx

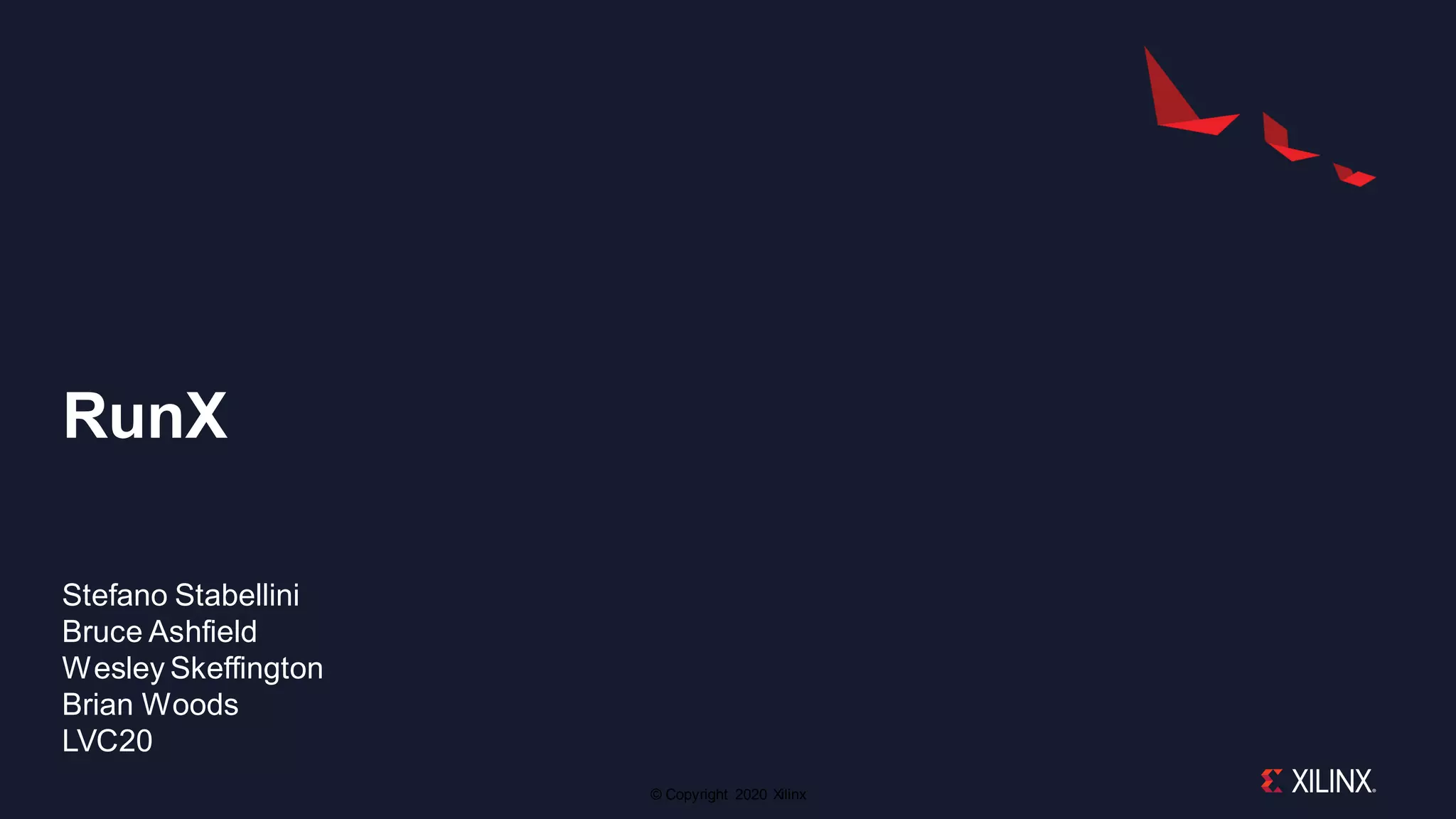

RunX
Stefano Stabellini
Bruce Ashfield
Wesley Skeffington
Brian Woods
LVC20
© Copyright 2020 Xilinx

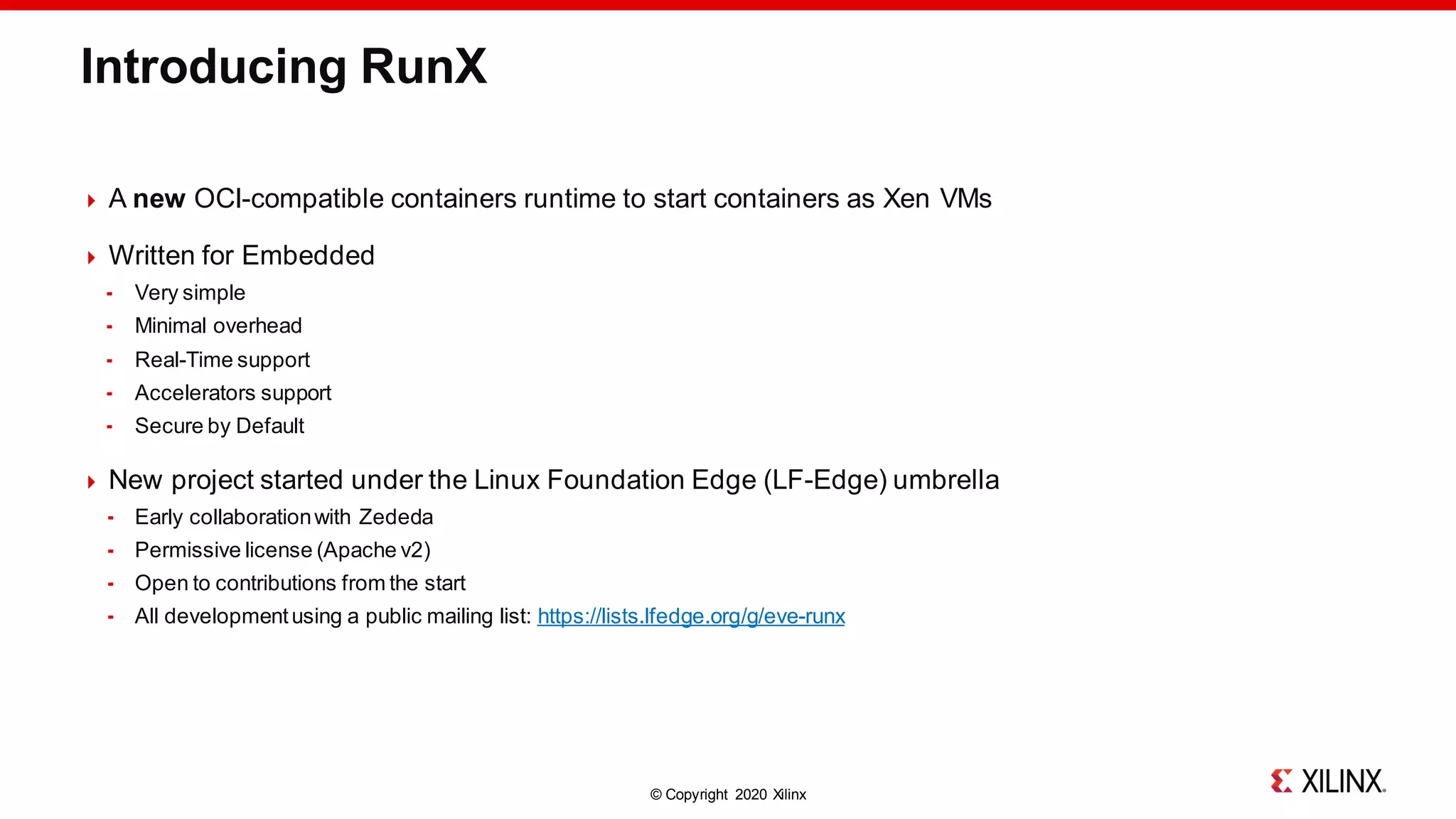

Introducing RunX
 A new OCI-compatible containers runtime to start containers as Xen VMs
 Written for Embedded
 Very simple
 Minimal overhead
 Real-Time support
 Accelerators support
 Secure by Default
 New project started under the Linux Foundation Edge (LF-Edge) umbrella
 Early collaborationwith Zededa
 Permissive license (Apache v2)
 Open to contributions from the start
 All developmentusing a public mailing list: https://lists.lfedge.org/g/eve-runx

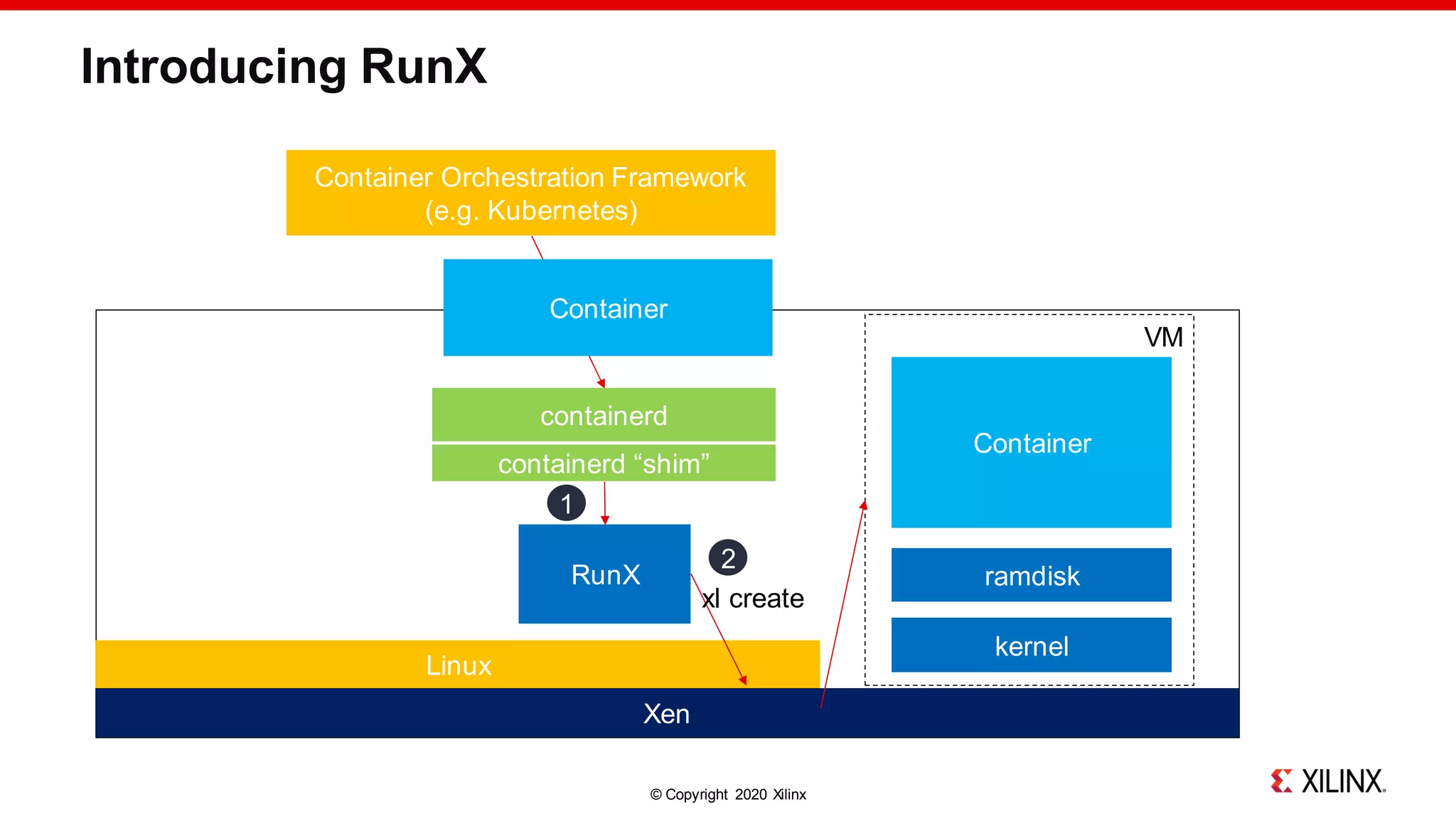

© Copyright 2020 Xilinx
RunX
Linux
Container
xl create
Container
1
2
Container Orchestration Framework
(e.g. Kubernetes)
Xen
ramdisk
kernel
VM
containerd
containerd “shim”
Introducing RunX
© Copyright 2020 Xilinx

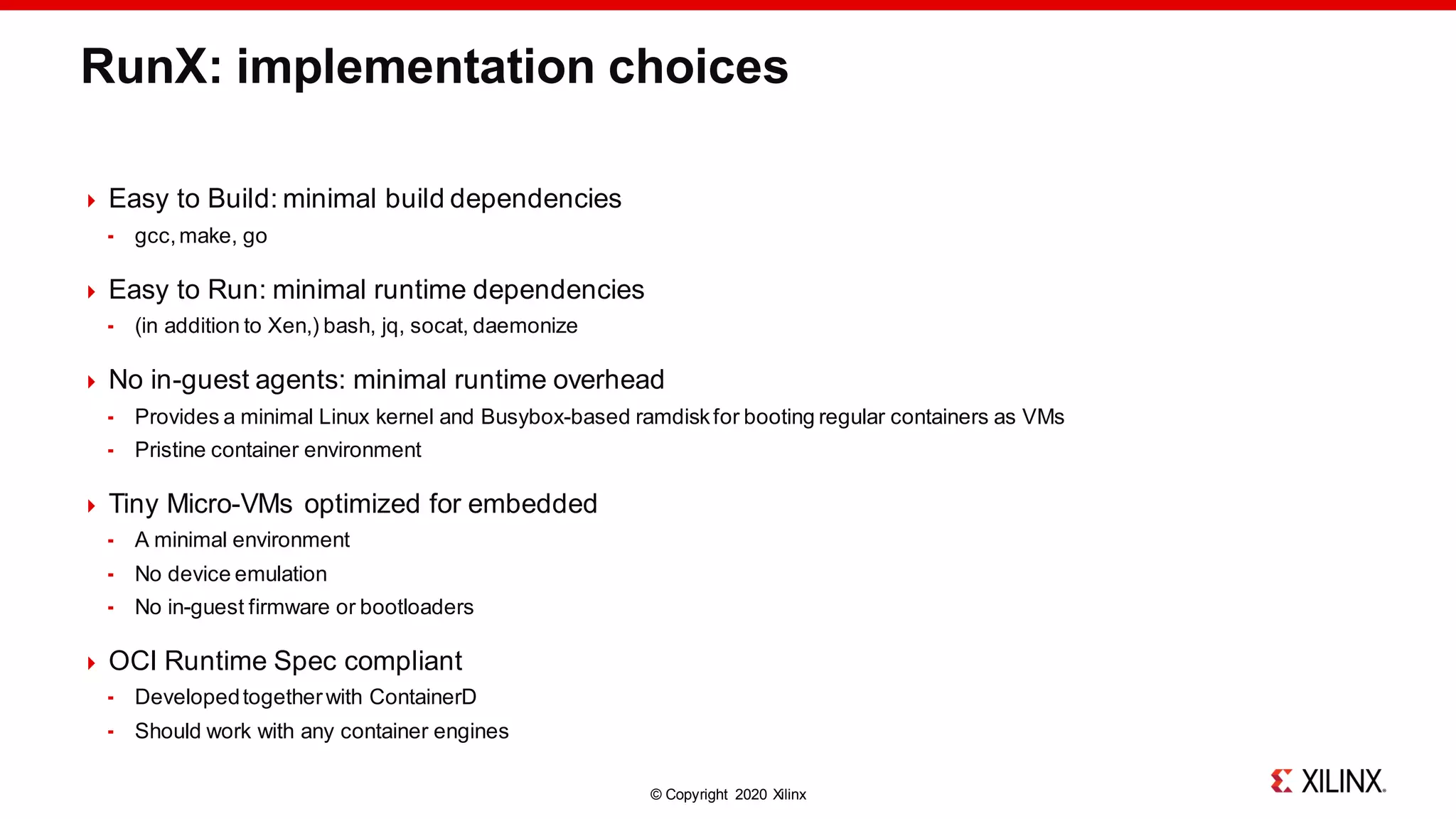

RunX: implementation choices
 Easy to Build: minimal build dependencies
 gcc,make, go
 Easy to Run: minimal runtime dependencies
 (in addition to Xen,) bash, jq, socat, daemonize
 No in-guest agents: minimal runtime overhead
 Provides a minimal Linux kernel and Busybox-based ramdiskfor booting regular containers as VMs
 Pristine container environment
 Tiny Micro-VMs optimized for embedded
 A minimal environment
 No device emulation
 No in-guest firmware or bootloaders
 OCI Runtime Spec compliant
 Developedtogetherwith ContainerD
 Should work with any container engines
© Copyright 2020 Xilinx

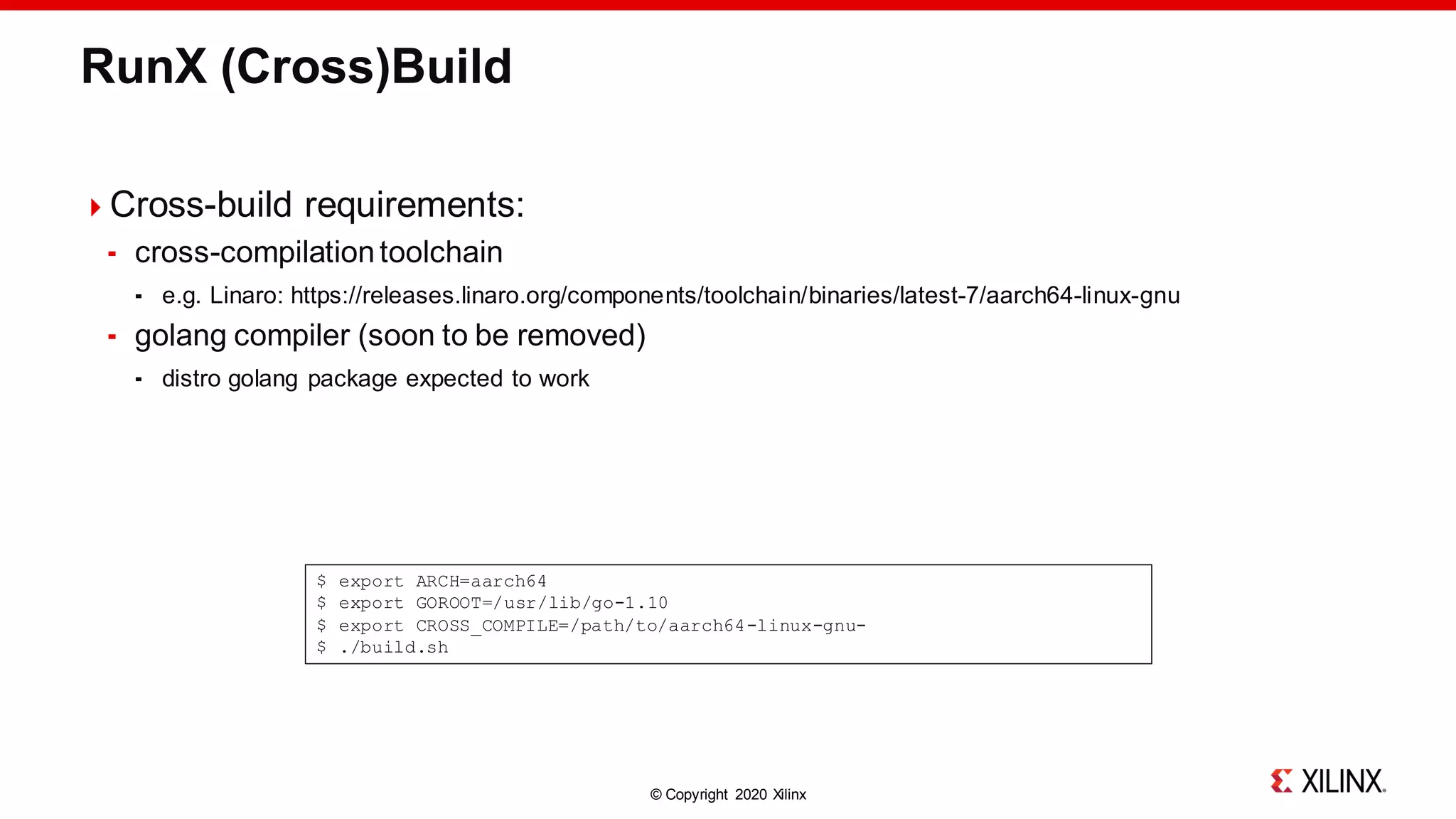

RunX (Cross)Build
Cross-build requirements:
 cross-compilationtoolchain
 e.g. Linaro: https://releases.linaro.org/components/toolchain/binaries/latest-7/aarch64-linux-gnu
 golang compiler (soon to be removed)
 distro golang package expected to work
$ export ARCH=aarch64
$ export GOROOT=/usr/lib/go-1.10
$ export CROSS_COMPILE=/path/to/aarch64-linux-gnu-
$ ./build.sh
© Copyright 2020 Xilinx

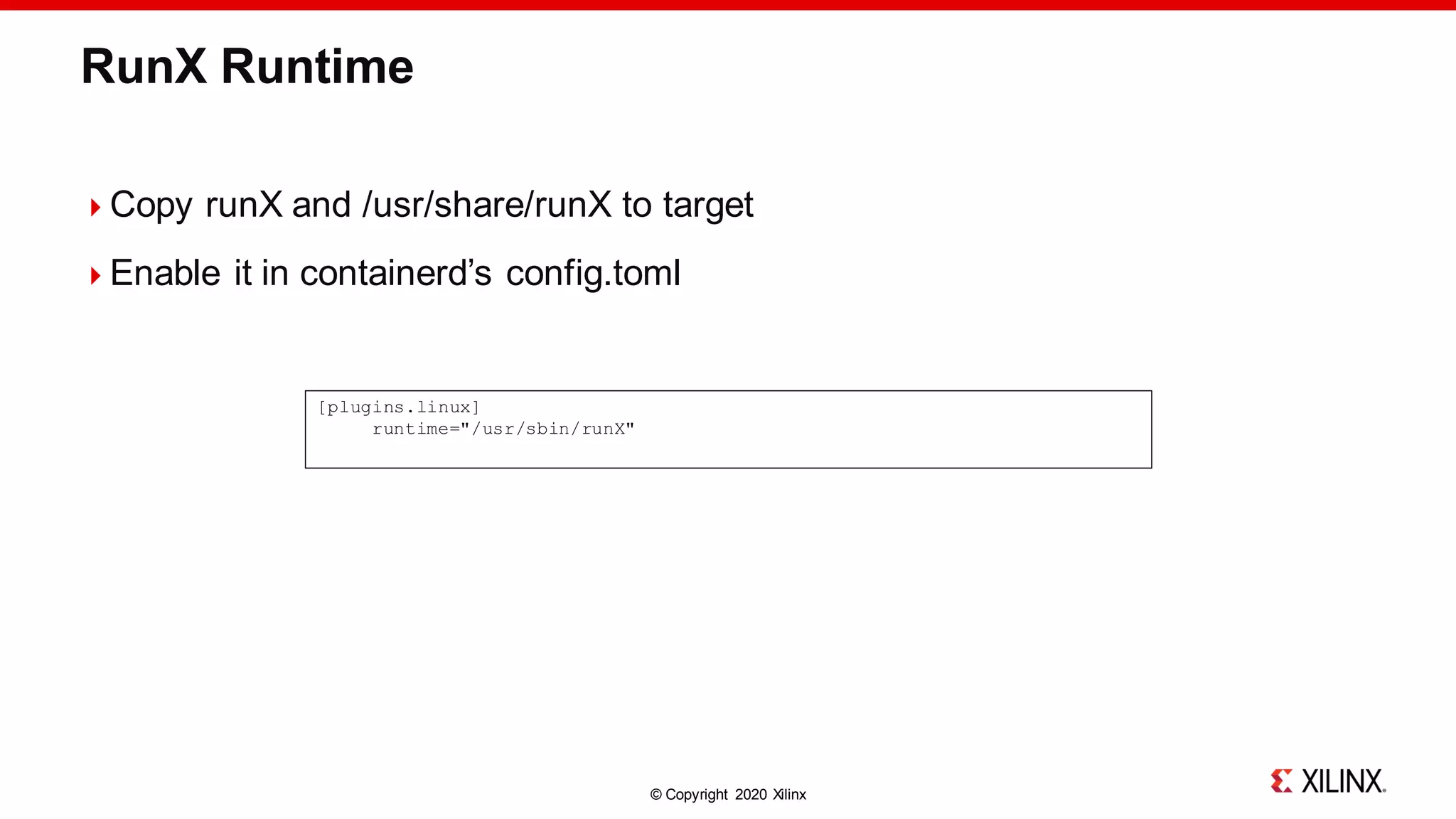

RunX Runtime
Copy runX and /usr/share/runX to target
Enable it in containerd’s config.toml
[plugins.linux]
runtime="/usr/sbin/runX"
© Copyright 2020 Xilinx

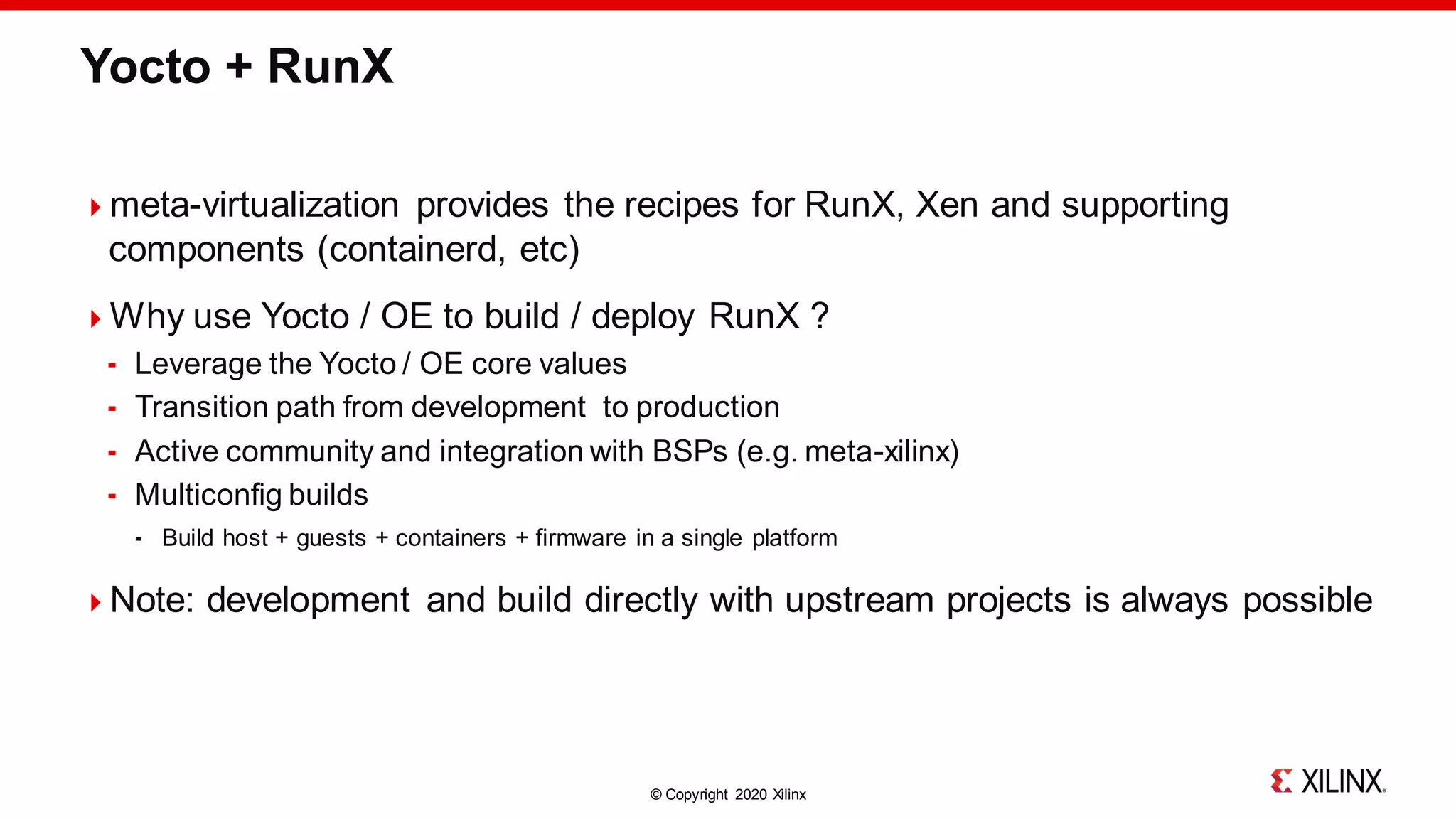

Yocto + RunX
meta-virtualization provides the recipes for RunX, Xen and supporting
components (containerd, etc)
Why use Yocto / OE to build / deploy RunX ?
 Leverage the Yocto / OE core values
 Transition path from development to production
 Active community and integration with BSPs (e.g. meta-xilinx)
 Multiconfig builds
 Build host + guests + containers + firmware in a single platform
Note: development and build directly with upstream projects is always possible
© Copyright 2020 Xilinx

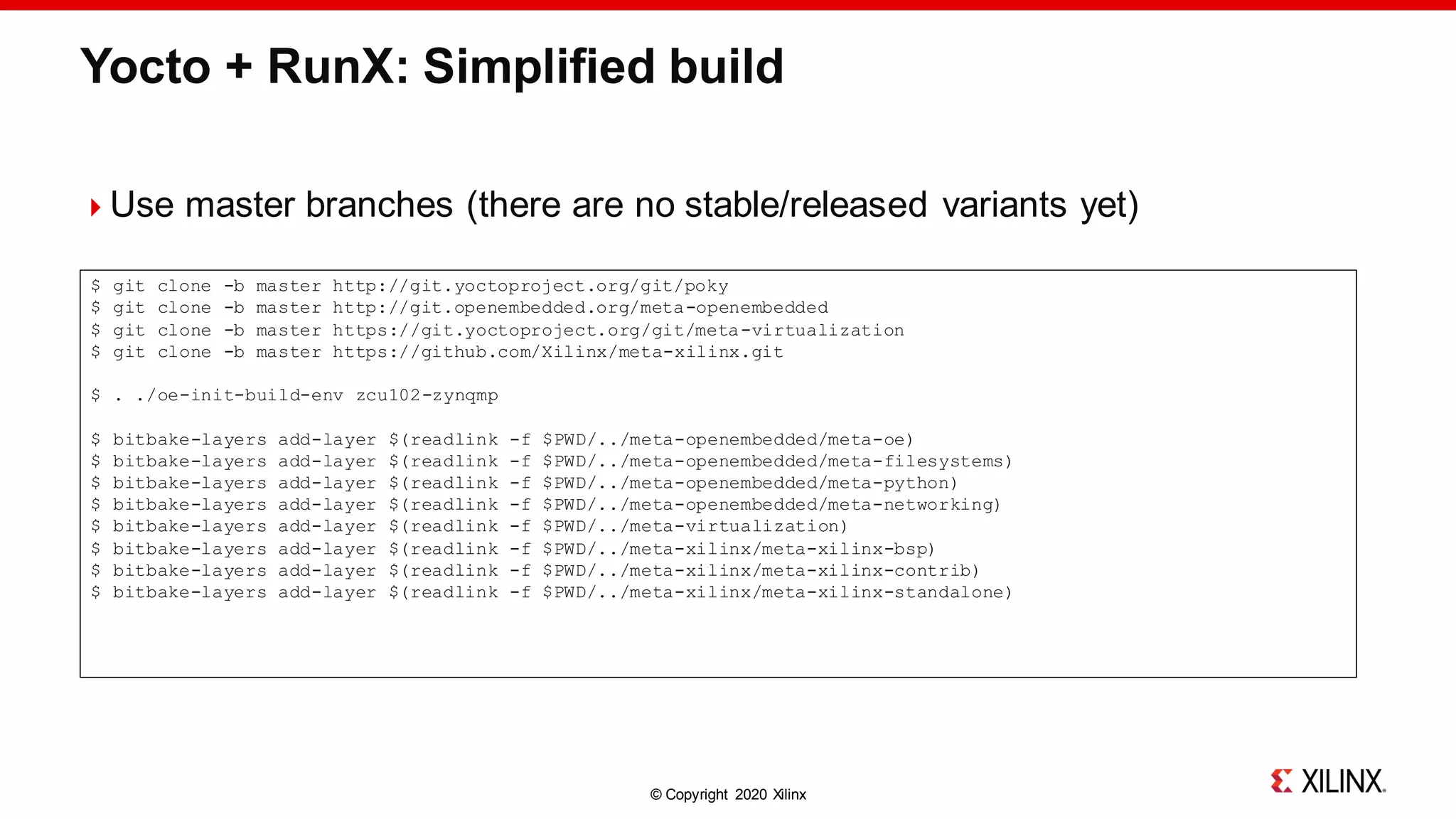

Yocto + RunX: Simplified build
Use master branches (there are no stable/released variants yet)
$ git clone -b master http://git.yoctoproject.org/git/poky
$ git clone -b master http://git.openembedded.org/meta-openembedded
$ git clone -b master https://git.yoctoproject.org/git/meta-virtualization
$ git clone -b master https://github.com/Xilinx/meta-xilinx.git
$ . ./oe-init-build-env zcu102-zynqmp
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-oe)
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-filesystems)
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-python)
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-networking)
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-virtualization)
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-xilinx/meta-xilinx-bsp)
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-xilinx/meta-xilinx-contrib)
$ bitbake-layers add-layer $(readlink -f $PWD/../meta-xilinx/meta-xilinx-standalone)
© Copyright 2020 Xilinx

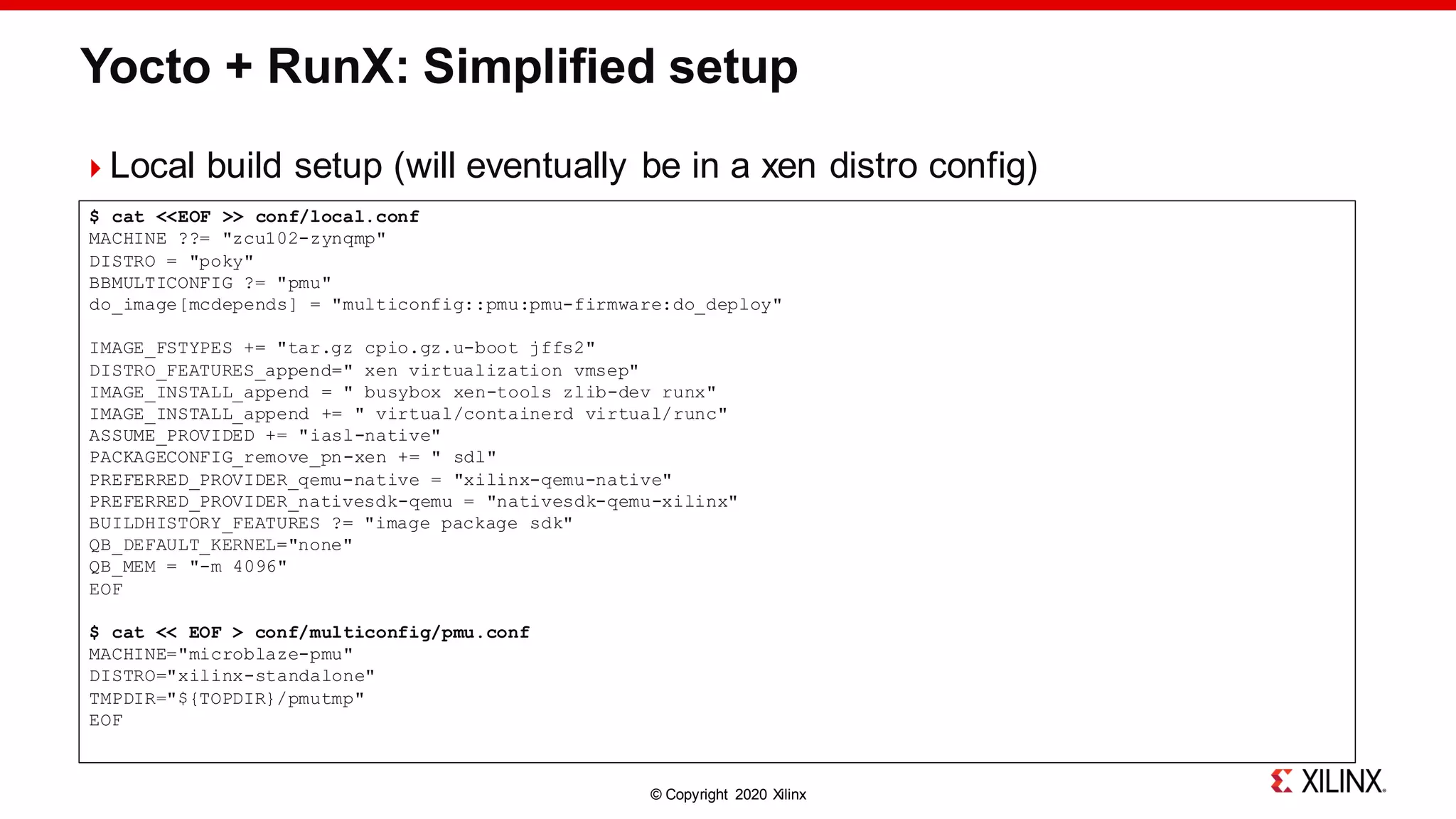

Yocto + RunX: Simplified setup
Local build setup (will eventually be in a xen distro config)
$ cat <<EOF >> conf/local.conf
MACHINE ??= "zcu102-zynqmp"
DISTRO = "poky"
BBMULTICONFIG ?= "pmu"
do_image[mcdepends] = "multiconfig::pmu:pmu-firmware:do_deploy"
IMAGE_FSTYPES += "tar.gz cpio.gz.u-boot jffs2"
DISTRO_FEATURES_append=" xen virtualization vmsep"
IMAGE_INSTALL_append = " busybox xen-tools zlib-dev runx"
IMAGE_INSTALL_append += " virtual/containerd virtual/runc"
ASSUME_PROVIDED += "iasl-native"
PACKAGECONFIG_remove_pn-xen += " sdl"
PREFERRED_PROVIDER_qemu-native = "xilinx-qemu-native"
PREFERRED_PROVIDER_nativesdk-qemu = "nativesdk-qemu-xilinx"
BUILDHISTORY_FEATURES ?= "image package sdk"
QB_DEFAULT_KERNEL="none"
QB_MEM = "-m 4096"
EOF
$ cat << EOF > conf/multiconfig/pmu.conf
MACHINE="microblaze-pmu"
DISTRO="xilinx-standalone"
TMPDIR="${TOPDIR}/pmutmp"
EOF
© Copyright 2020 Xilinx

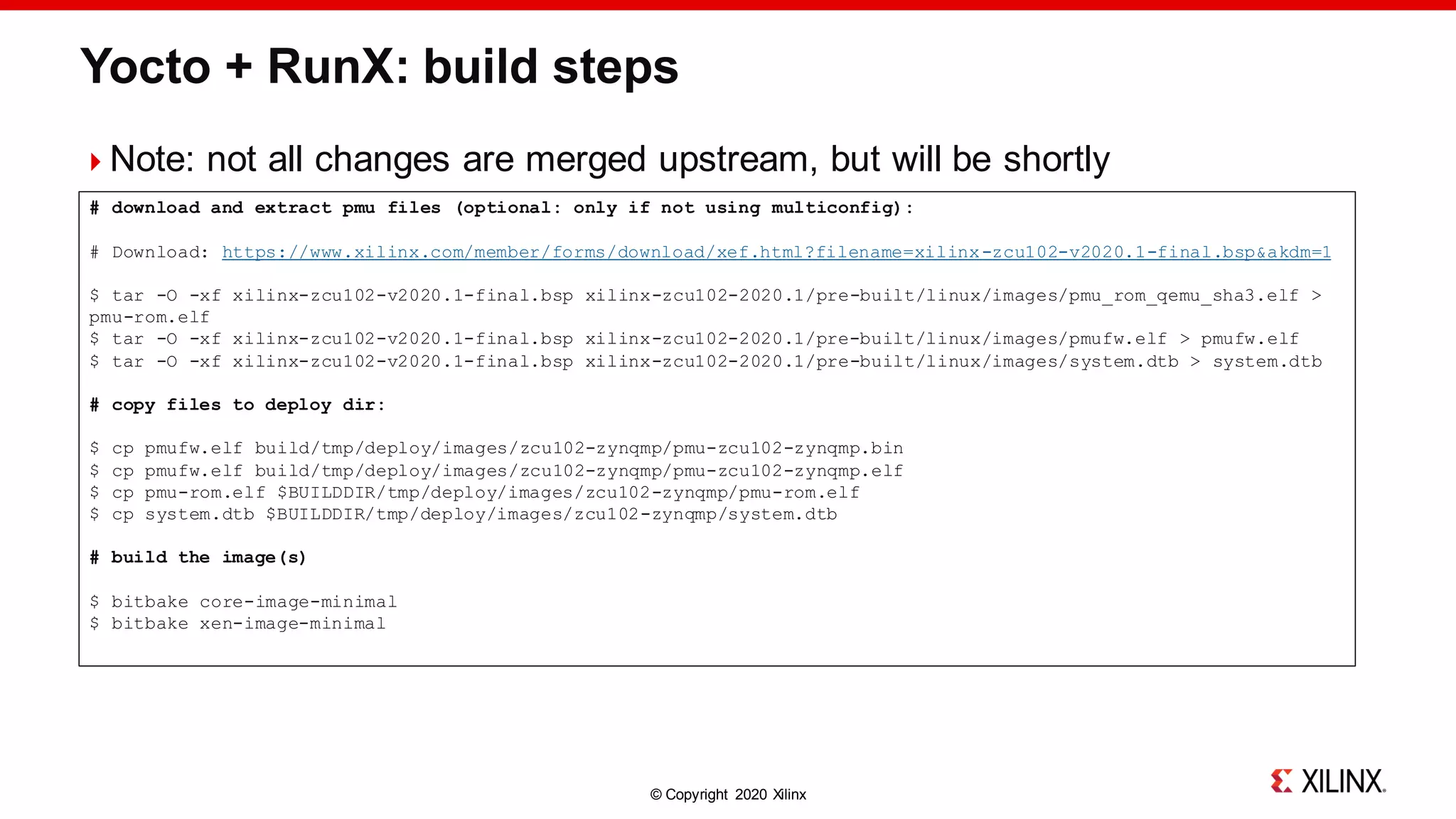

Yocto + RunX: build steps
Note: not all changes are merged upstream, but will be shortly
# download and extract pmu files (optional: only if not using multiconfig):
# Download: https://www.xilinx.com/member/forms/download/xef.html?filename=xilinx-zcu102-v2020.1-final.bsp&akdm=1
$ tar -O -xf xilinx-zcu102-v2020.1-final.bsp xilinx-zcu102-2020.1/pre-built/linux/images/pmu_rom_qemu_sha3.elf >
pmu-rom.elf
$ tar -O -xf xilinx-zcu102-v2020.1-final.bsp xilinx-zcu102-2020.1/pre-built/linux/images/pmufw.elf > pmufw.elf
$ tar -O -xf xilinx-zcu102-v2020.1-final.bsp xilinx-zcu102-2020.1/pre-built/linux/images/system.dtb > system.dtb
# copy files to deploy dir:
$ cp pmufw.elf build/tmp/deploy/images/zcu102-zynqmp/pmu-zcu102-zynqmp.bin
$ cp pmufw.elf build/tmp/deploy/images/zcu102-zynqmp/pmu-zcu102-zynqmp.elf
$ cp pmu-rom.elf $BUILDDIR/tmp/deploy/images/zcu102-zynqmp/pmu-rom.elf
$ cp system.dtb $BUILDDIR/tmp/deploy/images/zcu102-zynqmp/system.dtb
# build the image(s)
$ bitbake core-image-minimal
$ bitbake xen-image-minimal
© Copyright 2020 Xilinx

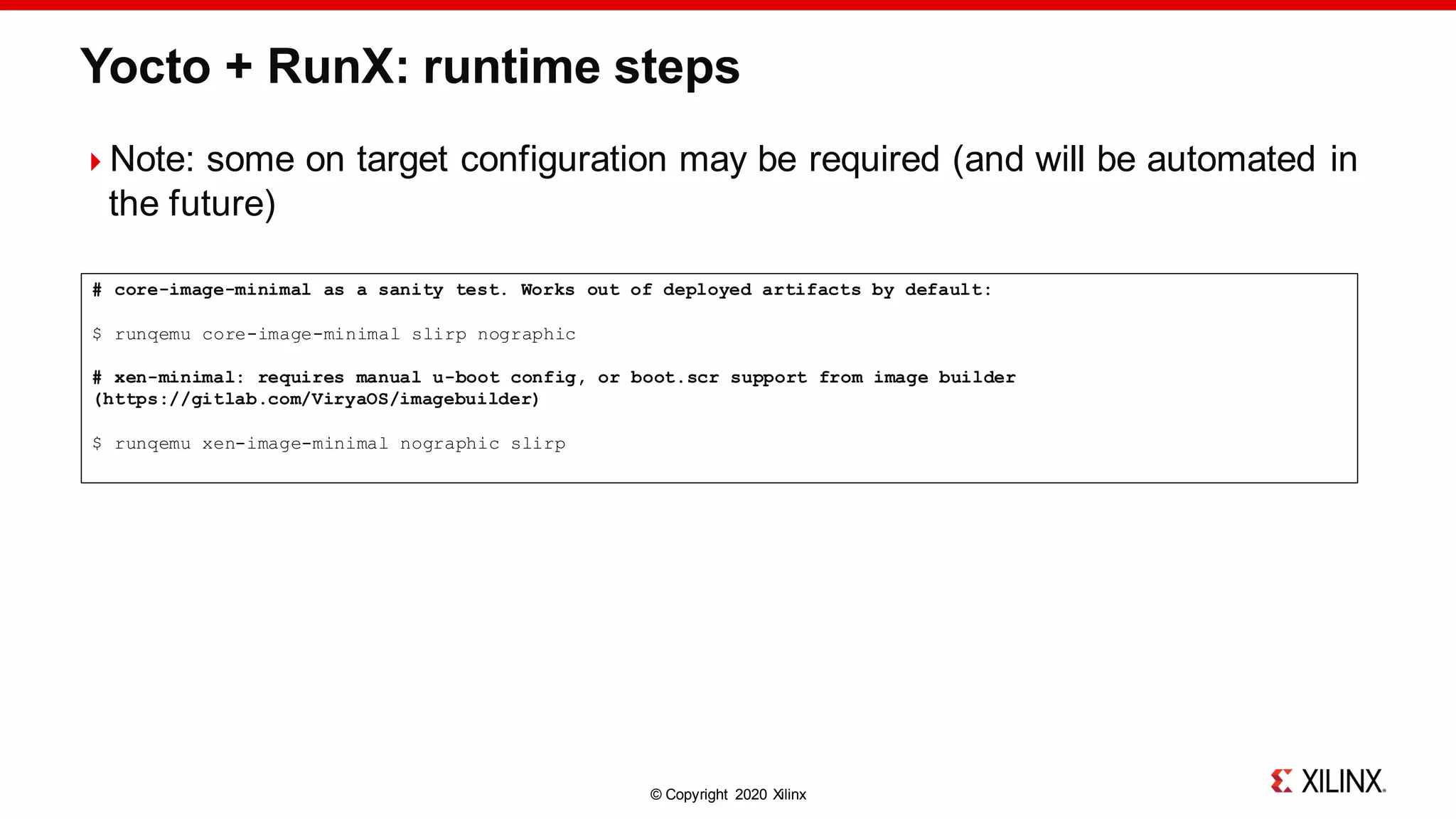

Yocto + RunX: runtime steps
Note: some on target configuration may be required (and will be automated in
the future)
# core-image-minimal as a sanity test. Works out of deployed artifacts by default:
$ runqemu core-image-minimal slirp nographic
# xen-minimal: requires manual u-boot config, or boot.scr support from image builder
(https://gitlab.com/ViryaOS/imagebuilder)
$ runqemu xen-image-minimal nographic slirp
© Copyright 2020 Xilinx
RunX
Linux
Container
xl create
Container
1
2
Container Orchestration Framework
(e.g. Kubernetes)
Xen
ramdisk
kernel
VM
containerd
containerd “shim”
RunX: Traditional Containers
© Copyright 2020 Xilinx

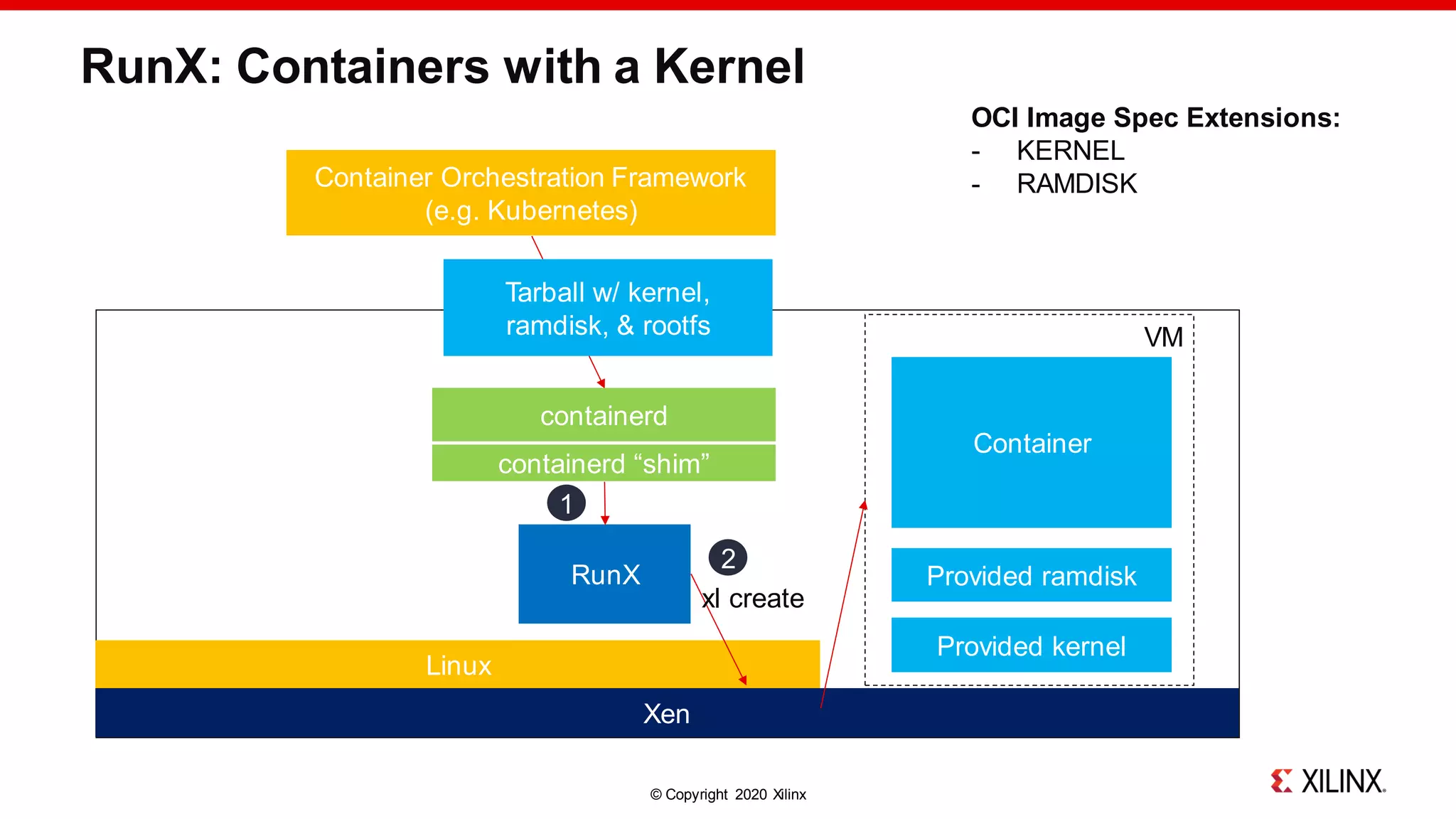

RunX
Linux
Container
xl create
Tarball w/ kernel,
ramdisk, & rootfs
1
2
Container Orchestration Framework
(e.g. Kubernetes)
OCI Image Spec Extensions:
- KERNEL
- RAMDISK
Xen
Provided ramdisk
Provided kernel
VM
containerd
containerd “shim”
RunX: Containers with a Kernel
© Copyright 2020 Xilinx

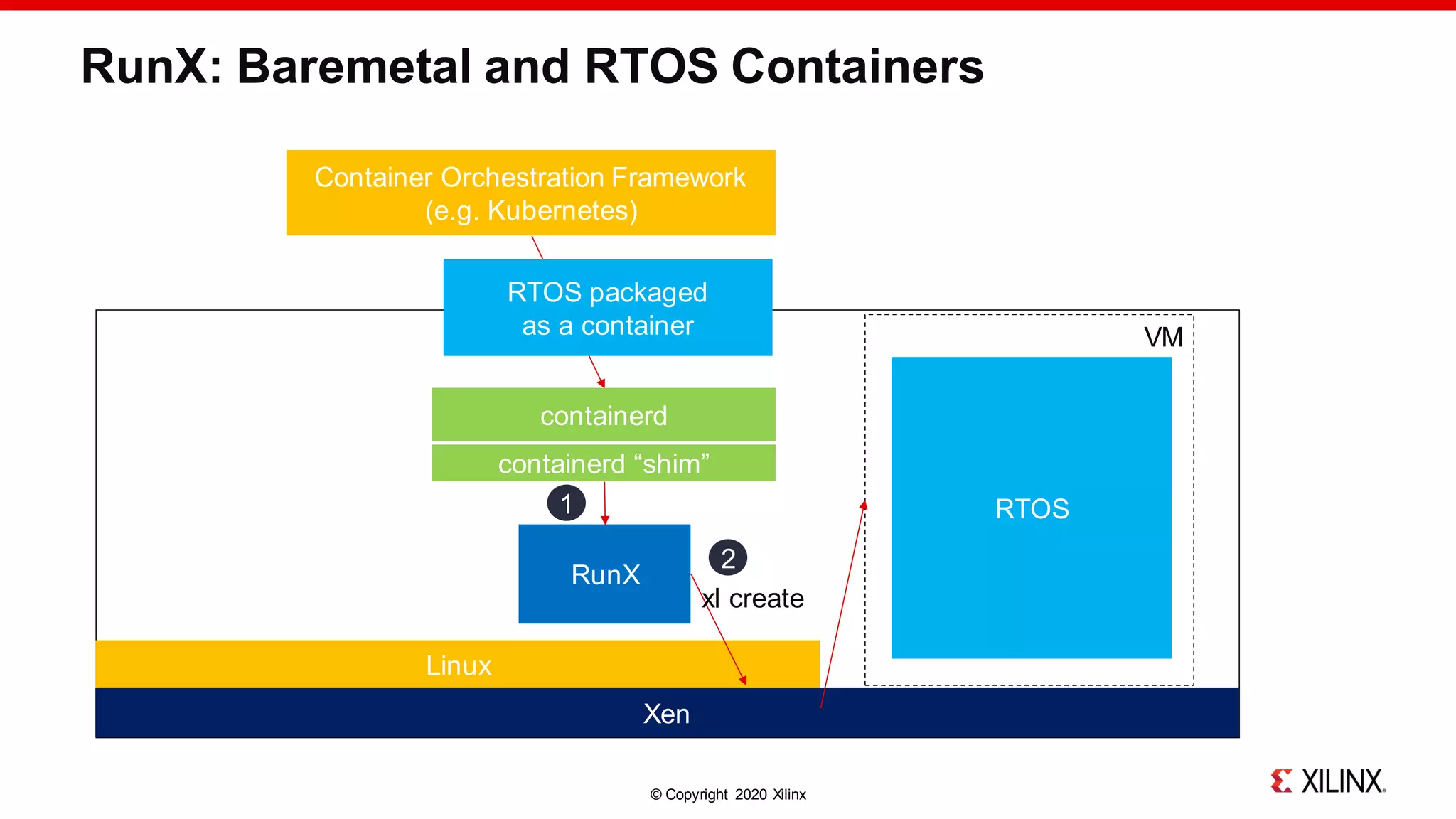

RunX
Linux
RTOS
xl create
RTOS packaged
as a container
1
2
Container Orchestration Framework
(e.g. Kubernetes)
Xen
VM
containerd
containerd “shim”
RunX: Baremetal and RTOS Containers
© Copyright 2020 Xilinx

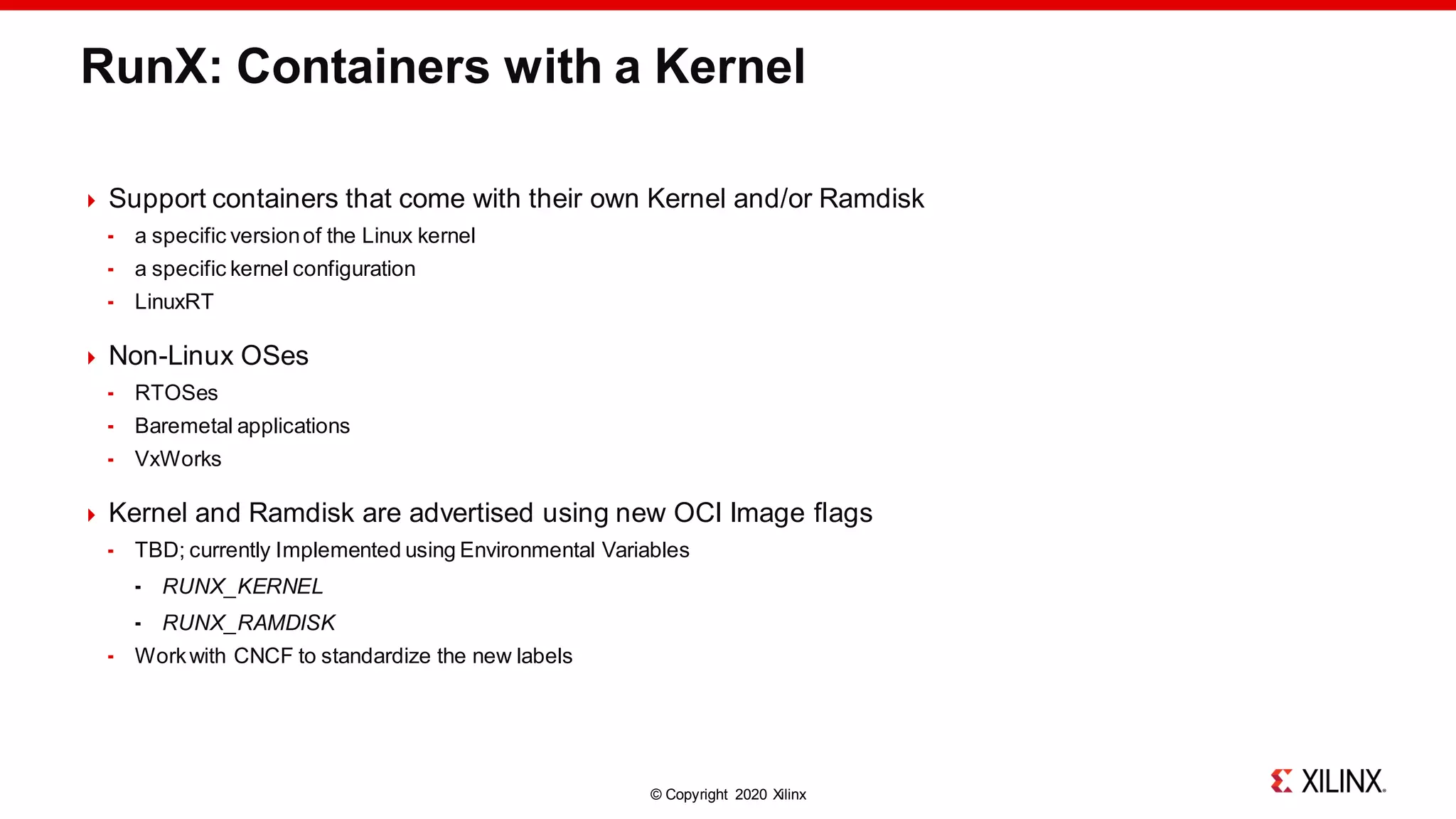

RunX: Containers with a Kernel
 Support containers that come with their own Kernel and/or Ramdisk
 a specific versionof the Linux kernel
 a specific kernel configuration
 LinuxRT
 Non-Linux OSes
 RTOSes
 Baremetal applications
 VxWorks
 Kernel and Ramdisk are advertised using new OCI Image flags
 TBD; currently Implemented using Environmental Variables
 RUNX_KERNEL
 RUNX_RAMDISK
 Workwith CNCF to standardize the new labels
© Copyright 2020 Xilinx
containerd
RunX
+ extra args
Linux
Container
Tarball w/ kernel,
ramdisk, & rootfs
Container Orchestration Framework
(e.g. Kubernetes)
Xen
Provided ramdisk
Provided kernel
VM
Heterogeneous
HW Resource
containerd “shim”
xl create
2
1

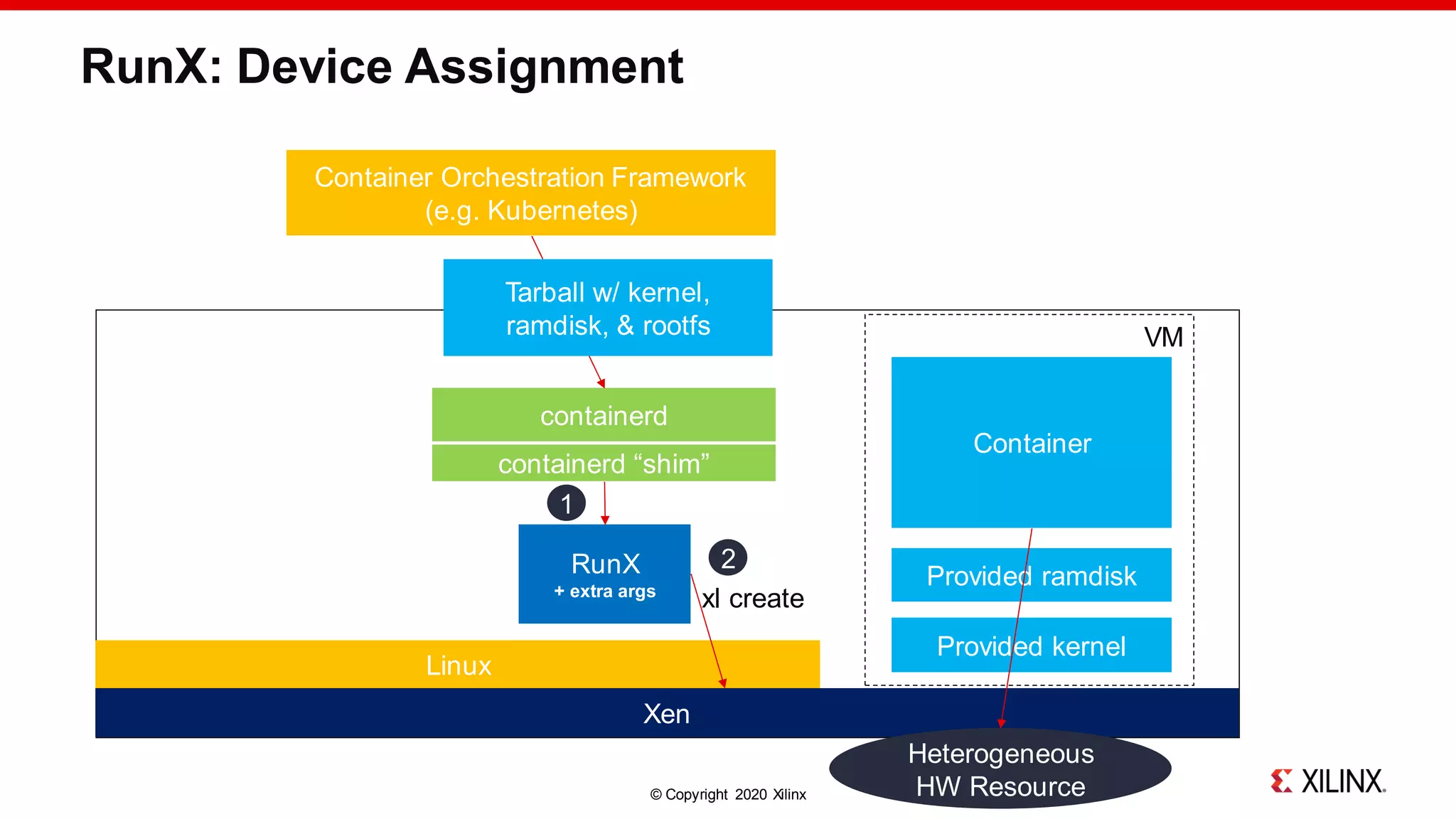

RunX: Device Assignment
© Copyright 2020 Xilinx

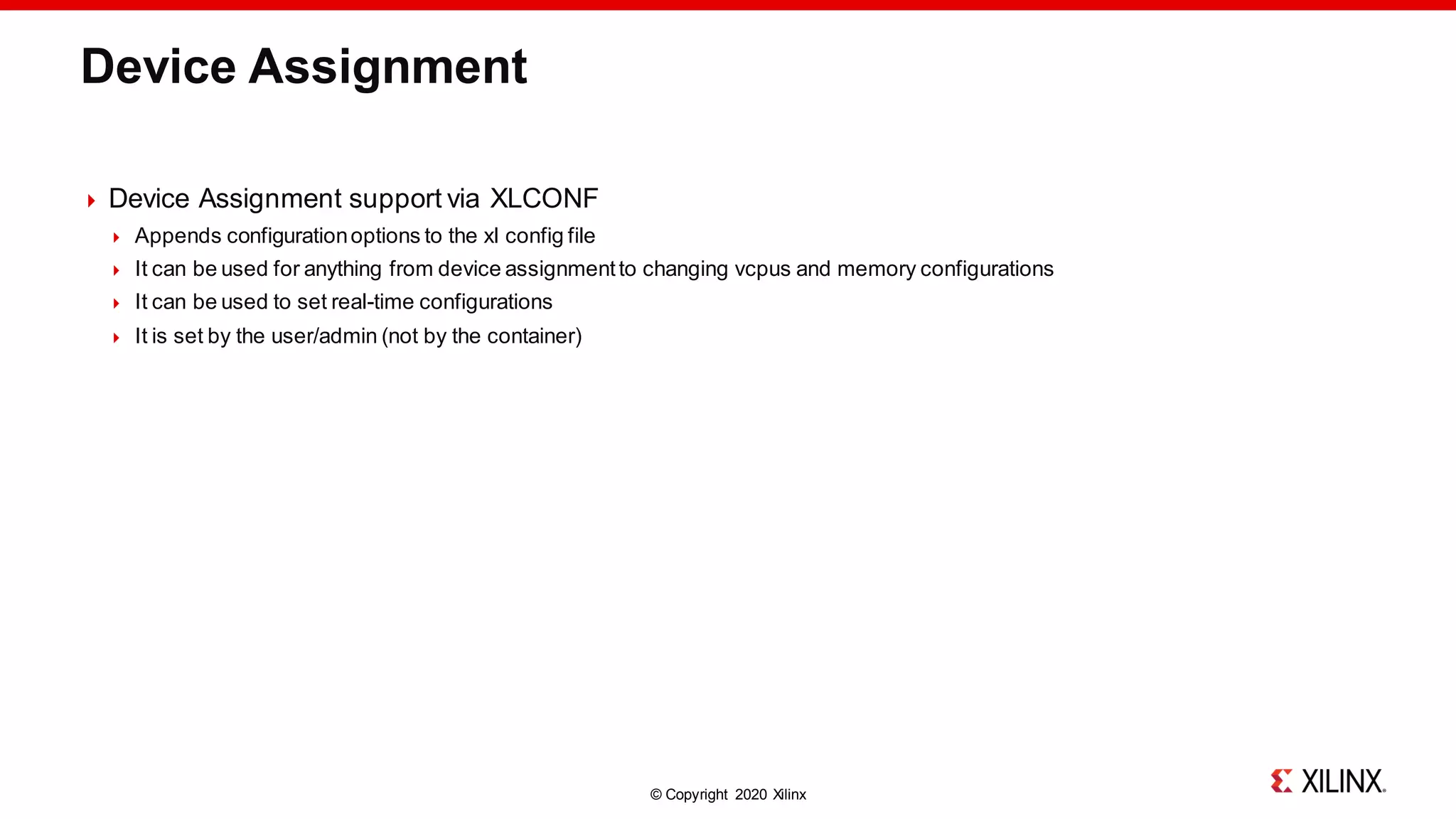

Device Assignment
 Device Assignment support via XLCONF
 Appends configurationoptions to the xl config file
 It can be used for anything from device assignmentto changing vcpus and memory configurations
 It can be used to set real-time configurations
 It is set by the user/admin (not by the container)
© Copyright 2020 Xilinx
containerd
RunX
[extra args] or
config.json
Linux
Container
Tarball w/ kernel,
ramdisk, & rootfs
1
2
Container Orchestration Framework
(e.g. Kubernetes)
OCI Image Spec Extensions:
- RESOURCE = DEVICE_DATA
- KERNEL
- RAMDISK
Xen
Provided ramdisk
Provided kernel
VM
Device Config
Heterogeneous
HW Resource
containerd “shim”

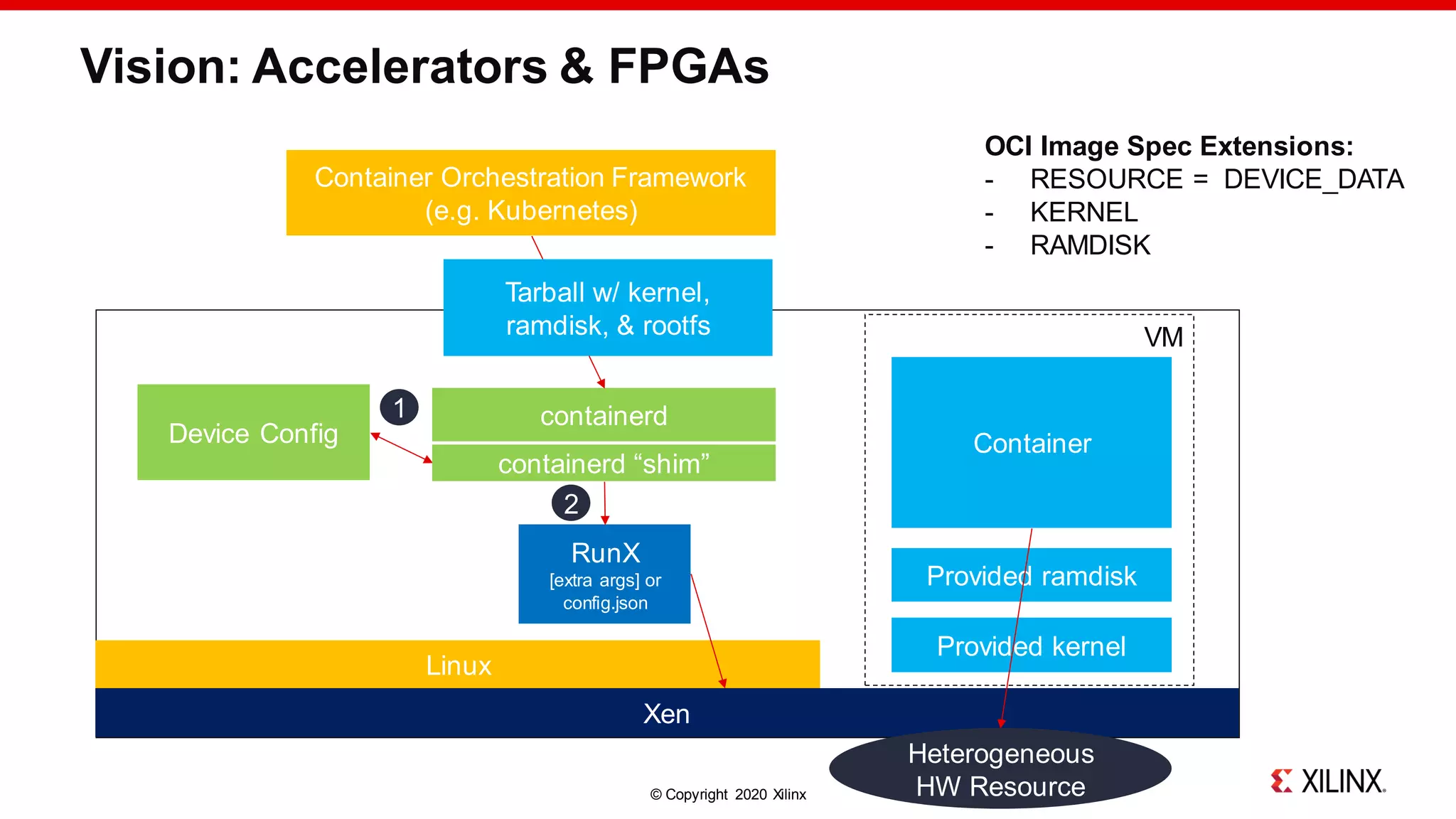

Vision: Accelerators & FPGAs
© Copyright 2020 Xilinx

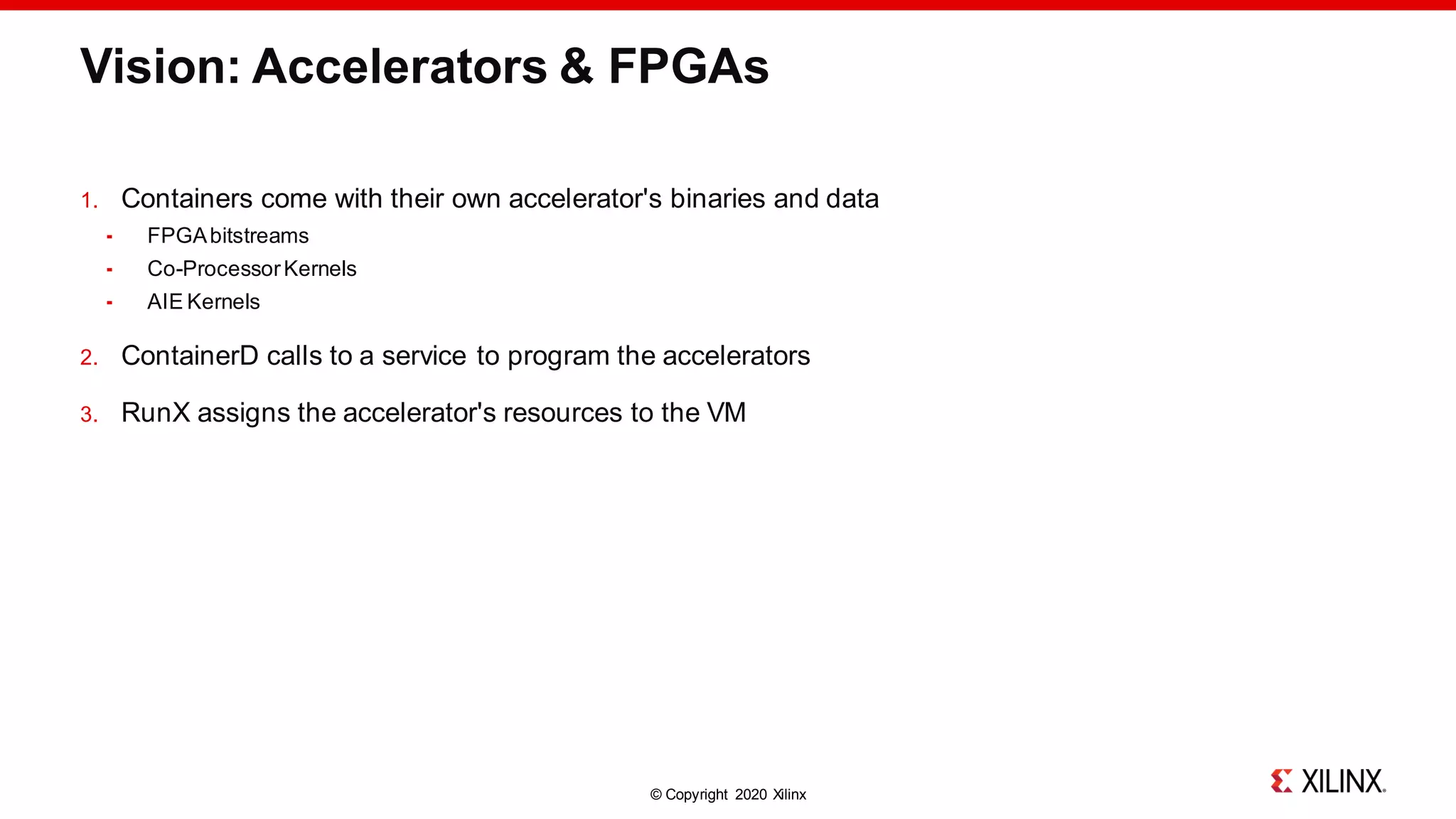

Vision: Accelerators & FPGAs
1. Containers come with their own accelerator's binaries and data
 FPGAbitstreams
 Co-ProcessorKernels
 AIE Kernels
2. ContainerD calls to a service to program the accelerators
3. RunX assigns the accelerator's resources to the VM
© Copyright 2020 Xilinx
Demo
© Copyright 2020 Xilinx

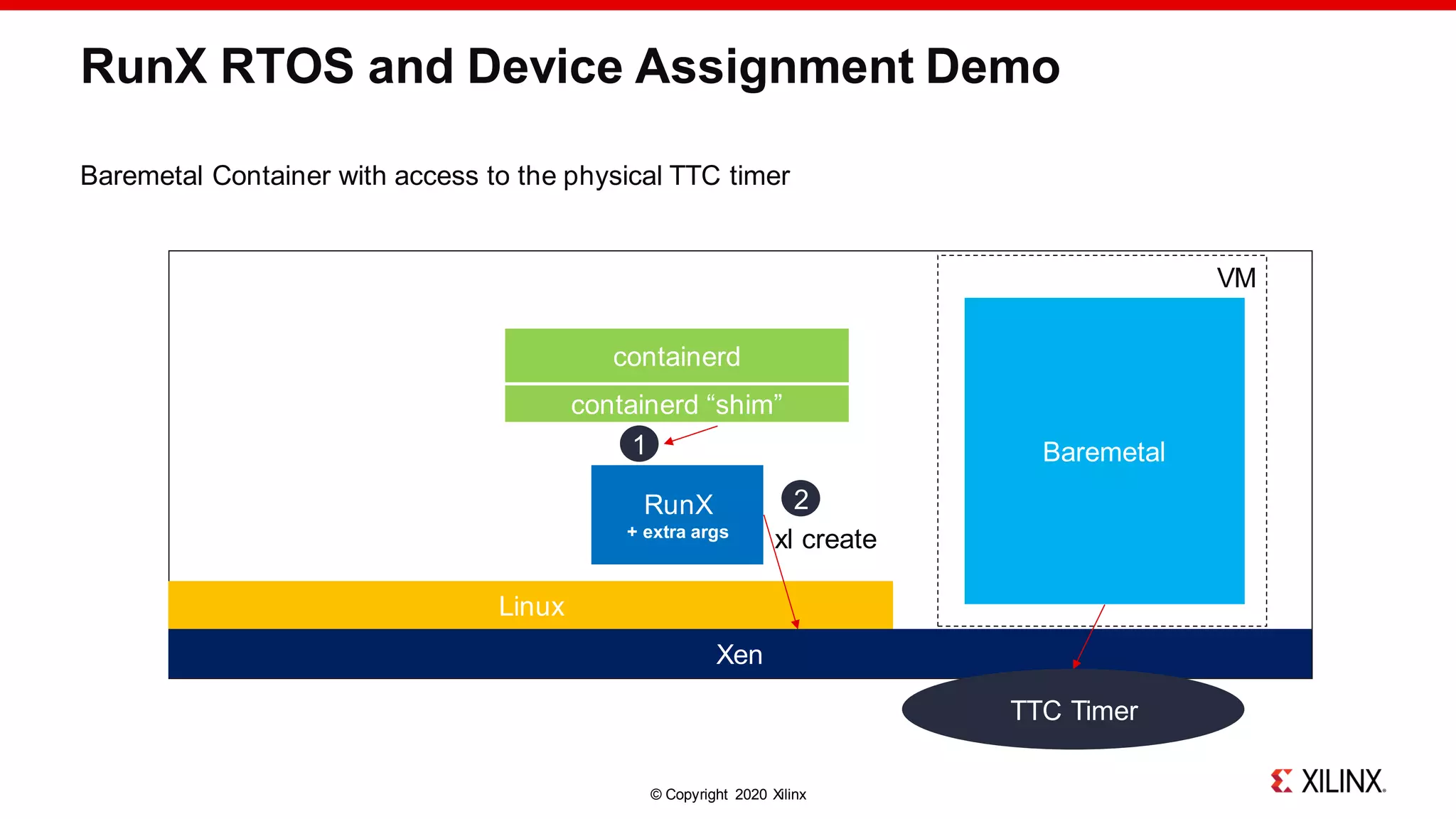

containerd
RunX
+ extra args
Linux
Baremetal
Xen
VM
TTC Timer
containerd “shim”
xl create
2
1
RunX RTOS and Device Assignment Demo
Baremetal Container with access to the physical TTC timer
© Copyright 2020 Xilinx
Thank You

More Related Content

What's hot

Learning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device DriverLearning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device Driver
Nanik Tolaram

XPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, Xilinx
XPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, XilinxXPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, Xilinx
XPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, Xilinx
The Linux Foundation

Android audio system(audioflinger)
Android audio system(audioflinger)Android audio system(audioflinger)
Android audio system(audioflinger)
fefe7270

Scheduling in Android
Scheduling in AndroidScheduling in Android
Scheduling in Android
Opersys inc.

Dom0less - Xen Developer Summit 2019
Dom0less  - Xen Developer Summit 2019Dom0less  - Xen Developer Summit 2019
Dom0less - Xen Developer Summit 2019
Stefano Stabellini

Android Booting Sequence
Android Booting SequenceAndroid Booting Sequence
Android Booting Sequence
Jayanta Ghoshal

Learning AOSP - Android Booting Process
Learning AOSP - Android Booting ProcessLearning AOSP - Android Booting Process
Learning AOSP - Android Booting Process
Nanik Tolaram

Embedded Android Workshop with Pie
Embedded Android Workshop with PieEmbedded Android Workshop with Pie
Embedded Android Workshop with Pie
Opersys inc.

Embedded Android : System Development - Part III
Embedded Android : System Development - Part IIIEmbedded Android : System Development - Part III
Embedded Android : System Development - Part III
Emertxe Information Technologies Pvt Ltd

Deep Dive into the AOSP
Deep Dive into the AOSPDeep Dive into the AOSP
Deep Dive into the AOSP
Dr. Ketan Parmar

Timings of Init : Android Ramdisks for the Practical Hacker
Timings of Init : Android Ramdisks for the Practical HackerTimings of Init : Android Ramdisks for the Practical Hacker
Timings of Init : Android Ramdisks for the Practical Hacker
Stacy Devino

System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022
Stefano Stabellini

XPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM Systems
XPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM SystemsXPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM Systems
XPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM Systems
The Linux Foundation

Android's Multimedia Framework
Android's Multimedia FrameworkAndroid's Multimedia Framework
Android's Multimedia Framework
Opersys inc.

Android Storage - Vold
Android Storage - VoldAndroid Storage - Vold
Android Storage - Vold
William Lee

SFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMU
SFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMUSFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMU
SFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMU
Linaro

Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022
Stefano Stabellini

Yocto Project introduction
Yocto Project introductionYocto Project introduction
Yocto Project introduction
Yi-Hsiu Hsu

BKK16-315 Graphics Stack Update
BKK16-315 Graphics Stack UpdateBKK16-315 Graphics Stack Update
BKK16-315 Graphics Stack Update
Linaro

Embedded_Linux_Booting
Embedded_Linux_BootingEmbedded_Linux_Booting
Embedded_Linux_Booting
Rashila Rr


What's hot (20)

Learning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device DriverLearning AOSP - Android Linux Device Driver
Learning AOSP - Android Linux Device Driver

XPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, Xilinx
XPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, XilinxXPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, Xilinx
XPDDS19 Keynote: Xen Dom0-less - Stefano Stabellini, Principal Engineer, Xilinx

Android audio system(audioflinger)
Android audio system(audioflinger)Android audio system(audioflinger)
Android audio system(audioflinger)

Scheduling in Android
Scheduling in AndroidScheduling in Android
Scheduling in Android

Dom0less - Xen Developer Summit 2019
Dom0less  - Xen Developer Summit 2019Dom0less  - Xen Developer Summit 2019
Dom0less - Xen Developer Summit 2019

Android Booting Sequence
Android Booting SequenceAndroid Booting Sequence
Android Booting Sequence

Learning AOSP - Android Booting Process
Learning AOSP - Android Booting ProcessLearning AOSP - Android Booting Process
Learning AOSP - Android Booting Process

Embedded Android Workshop with Pie
Embedded Android Workshop with PieEmbedded Android Workshop with Pie
Embedded Android Workshop with Pie

Embedded Android : System Development - Part III
Embedded Android : System Development - Part IIIEmbedded Android : System Development - Part III
Embedded Android : System Development - Part III

Deep Dive into the AOSP
Deep Dive into the AOSPDeep Dive into the AOSP
Deep Dive into the AOSP

Timings of Init : Android Ramdisks for the Practical Hacker
Timings of Init : Android Ramdisks for the Practical HackerTimings of Init : Android Ramdisks for the Practical Hacker
Timings of Init : Android Ramdisks for the Practical Hacker

System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022System Device Tree and Lopper: Concrete Examples - ELC NA 2022
System Device Tree and Lopper: Concrete Examples - ELC NA 2022

XPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM Systems
XPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM SystemsXPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM Systems
XPDDS19: [ARM] OP-TEE Mediator in Xen - Volodymyr Babchuk, EPAM Systems

Android's Multimedia Framework
Android's Multimedia FrameworkAndroid's Multimedia Framework
Android's Multimedia Framework

Android Storage - Vold
Android Storage - VoldAndroid Storage - Vold
Android Storage - Vold

SFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMU
SFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMUSFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMU
SFO15-202: Towards Multi-Threaded Tiny Code Generator (TCG) in QEMU

Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022Xen in Safety-Critical Systems - Critical Summit 2022
Xen in Safety-Critical Systems - Critical Summit 2022

Yocto Project introduction
Yocto Project introductionYocto Project introduction
Yocto Project introduction

BKK16-315 Graphics Stack Update
BKK16-315 Graphics Stack UpdateBKK16-315 Graphics Stack Update
BKK16-315 Graphics Stack Update

Embedded_Linux_Booting
Embedded_Linux_BootingEmbedded_Linux_Booting
Embedded_Linux_Booting


Similar to RunX: deploy real-time OSes as containers at the edge

RunX ELCE 2020
RunX ELCE 2020RunX ELCE 2020
RunX ELCE 2020
Stefano Stabellini

Containerday17 Moby-linuxkit-DockerCon-2017-announcements
Containerday17 Moby-linuxkit-DockerCon-2017-announcementsContainerday17 Moby-linuxkit-DockerCon-2017-announcements
Containerday17 Moby-linuxkit-DockerCon-2017-announcements
Kiratech

Moby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at Kiratech
Moby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at KiratechMoby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at Kiratech
Moby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at Kiratech
Kiratech

Docker for Java developers at JavaLand
Docker for Java developers at JavaLandDocker for Java developers at JavaLand
Docker for Java developers at JavaLand
Johan Janssen

Revolutionizing WSO2 PaaS with Kubernetes & App Factory
Revolutionizing WSO2 PaaS with Kubernetes & App FactoryRevolutionizing WSO2 PaaS with Kubernetes & App Factory
Revolutionizing WSO2 PaaS with Kubernetes & App Factory
Imesh Gunaratne

Docker Athens: Docker Engine Evolution & Containerd Use Cases
Docker Athens: Docker Engine Evolution & Containerd Use CasesDocker Athens: Docker Engine Evolution & Containerd Use Cases
Docker Athens: Docker Engine Evolution & Containerd Use Cases
Phil Estes

Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...
Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...
Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...
NLJUG

Introduction to Docker
Introduction to DockerIntroduction to Docker
Introduction to Docker
Nissan Dookeran

Docker-v3.pdf
Docker-v3.pdfDocker-v3.pdf
Docker-v3.pdf
Bruno Cornec

Preparation study of_docker - (MOSG)
Preparation study of_docker  - (MOSG)Preparation study of_docker  - (MOSG)
Preparation study of_docker - (MOSG)
Soshi Nemoto

LinuxKit and Moby, News from DockerCon 2017
LinuxKit and Moby, News from DockerCon 2017LinuxKit and Moby, News from DockerCon 2017
LinuxKit and Moby, News from DockerCon 2017
Dieter Reuter

Docker Ecosystem on Azure
Docker Ecosystem on AzureDocker Ecosystem on Azure
Docker Ecosystem on Azure
Patrick Chanezon

Agile Brown Bag - Vagrant & Docker: Introduction
Agile Brown Bag - Vagrant & Docker: IntroductionAgile Brown Bag - Vagrant & Docker: Introduction
Agile Brown Bag - Vagrant & Docker: Introduction
Agile Partner S.A.

Docker Multi-arch All The Things
Docker Multi-arch All The ThingsDocker Multi-arch All The Things
Docker Multi-arch All The Things
Docker, Inc.

Delivering Docker & K3s worloads to IoT Edge devices
Delivering Docker & K3s worloads to IoT Edge devicesDelivering Docker & K3s worloads to IoT Edge devices
Delivering Docker & K3s worloads to IoT Edge devices
Ajeet Singh Raina

OSSNA18: Xen Beginners Training
OSSNA18: Xen Beginners Training OSSNA18: Xen Beginners Training
OSSNA18: Xen Beginners Training
The Linux Foundation

Linux Containers and Docker SHARE.ORG Seattle 2015
Linux Containers and Docker SHARE.ORG Seattle 2015Linux Containers and Docker SHARE.ORG Seattle 2015
Linux Containers and Docker SHARE.ORG Seattle 2015
Filipe Miranda

App container rkt
App container rktApp container rkt
App container rkt
Xiaofeng Guo

Dev opsec dockerimage_patch_n_lifecyclemanagement_2019
Dev opsec dockerimage_patch_n_lifecyclemanagement_2019Dev opsec dockerimage_patch_n_lifecyclemanagement_2019
Dev opsec dockerimage_patch_n_lifecyclemanagement_2019
kanedafromparis

LinuxKit and Moby, news from DockerCon 2017 - Austin,TX
LinuxKit and Moby, news from DockerCon 2017 - Austin,TXLinuxKit and Moby, news from DockerCon 2017 - Austin,TX
LinuxKit and Moby, news from DockerCon 2017 - Austin,TX
Dieter Reuter


Similar to RunX: deploy real-time OSes as containers at the edge (20)

RunX ELCE 2020
RunX ELCE 2020RunX ELCE 2020
RunX ELCE 2020

Containerday17 Moby-linuxkit-DockerCon-2017-announcements
Containerday17 Moby-linuxkit-DockerCon-2017-announcementsContainerday17 Moby-linuxkit-DockerCon-2017-announcements
Containerday17 Moby-linuxkit-DockerCon-2017-announcements

Moby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at Kiratech
Moby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at KiratechMoby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at Kiratech
Moby and linux kit, what to expect - Lorenzo Fontana, DevOps Expert at Kiratech

Docker for Java developers at JavaLand
Docker for Java developers at JavaLandDocker for Java developers at JavaLand
Docker for Java developers at JavaLand

Revolutionizing WSO2 PaaS with Kubernetes & App Factory
Revolutionizing WSO2 PaaS with Kubernetes & App FactoryRevolutionizing WSO2 PaaS with Kubernetes & App Factory
Revolutionizing WSO2 PaaS with Kubernetes & App Factory

Docker Athens: Docker Engine Evolution & Containerd Use Cases
Docker Athens: Docker Engine Evolution & Containerd Use CasesDocker Athens: Docker Engine Evolution & Containerd Use Cases
Docker Athens: Docker Engine Evolution & Containerd Use Cases

Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...
Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...
Gebruik dezelfde Docker container voor Java applicaties tijdens ontwikkelen e...

Introduction to Docker
Introduction to DockerIntroduction to Docker
Introduction to Docker

Docker-v3.pdf
Docker-v3.pdfDocker-v3.pdf
Docker-v3.pdf

Preparation study of_docker - (MOSG)
Preparation study of_docker  - (MOSG)Preparation study of_docker  - (MOSG)
Preparation study of_docker - (MOSG)

LinuxKit and Moby, News from DockerCon 2017
LinuxKit and Moby, News from DockerCon 2017LinuxKit and Moby, News from DockerCon 2017
LinuxKit and Moby, News from DockerCon 2017

Docker Ecosystem on Azure
Docker Ecosystem on AzureDocker Ecosystem on Azure
Docker Ecosystem on Azure

Agile Brown Bag - Vagrant & Docker: Introduction
Agile Brown Bag - Vagrant & Docker: IntroductionAgile Brown Bag - Vagrant & Docker: Introduction
Agile Brown Bag - Vagrant & Docker: Introduction

Docker Multi-arch All The Things
Docker Multi-arch All The ThingsDocker Multi-arch All The Things
Docker Multi-arch All The Things

Delivering Docker & K3s worloads to IoT Edge devices
Delivering Docker & K3s worloads to IoT Edge devicesDelivering Docker & K3s worloads to IoT Edge devices
Delivering Docker & K3s worloads to IoT Edge devices

OSSNA18: Xen Beginners Training
OSSNA18: Xen Beginners Training OSSNA18: Xen Beginners Training
OSSNA18: Xen Beginners Training

Linux Containers and Docker SHARE.ORG Seattle 2015
Linux Containers and Docker SHARE.ORG Seattle 2015Linux Containers and Docker SHARE.ORG Seattle 2015
Linux Containers and Docker SHARE.ORG Seattle 2015

App container rkt
App container rktApp container rkt
App container rkt

Dev opsec dockerimage_patch_n_lifecyclemanagement_2019
Dev opsec dockerimage_patch_n_lifecyclemanagement_2019Dev opsec dockerimage_patch_n_lifecyclemanagement_2019
Dev opsec dockerimage_patch_n_lifecyclemanagement_2019

LinuxKit and Moby, news from DockerCon 2017 - Austin,TX
LinuxKit and Moby, news from DockerCon 2017 - Austin,TXLinuxKit and Moby, news from DockerCon 2017 - Austin,TX
LinuxKit and Moby, news from DockerCon 2017 - Austin,TX


More from Stefano Stabellini

Xen Safety Embedded OSS Summit April 2024 v4.pdf
Xen Safety Embedded OSS Summit April 2024 v4.pdfXen Safety Embedded OSS Summit April 2024 v4.pdf
Xen Safety Embedded OSS Summit April 2024 v4.pdf
Stefano Stabellini

Safety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen HypervisorSafety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen Hypervisor
Stefano Stabellini

System Device Tree update: Bus Firewalls and Lopper
System Device Tree update: Bus Firewalls and LopperSystem Device Tree update: Bus Firewalls and Lopper
System Device Tree update: Bus Firewalls and Lopper
Stefano Stabellini

Cache coloring Xen Summit 2020
Cache coloring Xen Summit 2020Cache coloring Xen Summit 2020
Cache coloring Xen Summit 2020
Stefano Stabellini

Xen Cache Coloring: Interference-Free Real-Time System
Xen Cache Coloring: Interference-Free Real-Time SystemXen Cache Coloring: Interference-Free Real-Time System
Xen Cache Coloring: Interference-Free Real-Time System
Stefano Stabellini

Xen on ARM for embedded and IoT: from secure containers to dom0less systems
Xen on ARM for embedded and IoT: from secure containers to dom0less systemsXen on ARM for embedded and IoT: from secure containers to dom0less systems
Xen on ARM for embedded and IoT: from secure containers to dom0less systems
Stefano Stabellini

Xen and the art of embedded virtualization (ELC 2017)
Xen and the art of embedded virtualization (ELC 2017)Xen and the art of embedded virtualization (ELC 2017)
Xen and the art of embedded virtualization (ELC 2017)
Stefano Stabellini

Xen Project for ARM Servers
Xen Project for ARM ServersXen Project for ARM Servers
Xen Project for ARM Servers
Stefano Stabellini

Xen and OpenStack
Xen and OpenStackXen and OpenStack
Xen and OpenStack
Stefano Stabellini

XDS15: Project Raisin
XDS15: Project RaisinXDS15: Project Raisin
XDS15: Project Raisin
Stefano Stabellini

OpenStack and Xen
OpenStack and XenOpenStack and Xen
OpenStack and Xen
Stefano Stabellini


More from Stefano Stabellini (11)

Xen Safety Embedded OSS Summit April 2024 v4.pdf
Xen Safety Embedded OSS Summit April 2024 v4.pdfXen Safety Embedded OSS Summit April 2024 v4.pdf
Xen Safety Embedded OSS Summit April 2024 v4.pdf

Safety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen HypervisorSafety-Certifying Open Source Software: The Case of the Xen Hypervisor
Safety-Certifying Open Source Software: The Case of the Xen Hypervisor

System Device Tree update: Bus Firewalls and Lopper
System Device Tree update: Bus Firewalls and LopperSystem Device Tree update: Bus Firewalls and Lopper
System Device Tree update: Bus Firewalls and Lopper

Cache coloring Xen Summit 2020
Cache coloring Xen Summit 2020Cache coloring Xen Summit 2020
Cache coloring Xen Summit 2020

Xen Cache Coloring: Interference-Free Real-Time System
Xen Cache Coloring: Interference-Free Real-Time SystemXen Cache Coloring: Interference-Free Real-Time System
Xen Cache Coloring: Interference-Free Real-Time System

Xen on ARM for embedded and IoT: from secure containers to dom0less systems
Xen on ARM for embedded and IoT: from secure containers to dom0less systemsXen on ARM for embedded and IoT: from secure containers to dom0less systems
Xen on ARM for embedded and IoT: from secure containers to dom0less systems

Xen and the art of embedded virtualization (ELC 2017)
Xen and the art of embedded virtualization (ELC 2017)Xen and the art of embedded virtualization (ELC 2017)
Xen and the art of embedded virtualization (ELC 2017)

Xen Project for ARM Servers
Xen Project for ARM ServersXen Project for ARM Servers
Xen Project for ARM Servers

Xen and OpenStack
Xen and OpenStackXen and OpenStack
Xen and OpenStack

XDS15: Project Raisin
XDS15: Project RaisinXDS15: Project Raisin
XDS15: Project Raisin

OpenStack and Xen
OpenStack and XenOpenStack and Xen
OpenStack and Xen


Recently uploaded

Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)
Julian Hyde

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
Bert Jan Schrijver

zOS Mainframe JES2-JES3 JCL-JECL Differences
zOS Mainframe JES2-JES3 JCL-JECL DifferenceszOS Mainframe JES2-JES3 JCL-JECL Differences
zOS Mainframe JES2-JES3 JCL-JECL Differences
YousufSait3

Fundamentals of Programming and Language Processors
Fundamentals of Programming and Language ProcessorsFundamentals of Programming and Language Processors
Fundamentals of Programming and Language Processors
Rakesh Kumar R

Microservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we workMicroservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we work
Sven Peters

Energy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina JonuziEnergy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina Jonuzi
Green Software Development

14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision
ShulagnaSarkar2

UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling ExtensionsUI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
Peter Muessig

8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf
kalichargn70th171

Modelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - AmsterdamModelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - Amsterdam
Alberto Brandolini

Hand Rolled Applicative User Validation Code Kata
Hand Rolled Applicative User ValidationCode KataHand Rolled Applicative User ValidationCode Kata
Hand Rolled Applicative User Validation Code Kata
Philip Schwarz

The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
kalichargn70th171

Project Management: The Role of Project Dashboards.pdf
Project Management: The Role of Project Dashboards.pdfProject Management: The Role of Project Dashboards.pdf
Project Management: The Role of Project Dashboards.pdf
Karya Keeper

All you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVMAll you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVM
Alina Yurenko

Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdfTop Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
VALiNTRY360

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
gapen1

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics
Hornet Dynamics

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理
dakas1

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?
ToXSL Technologies

YAML crash COURSE how to write yaml file for adding configuring details
YAML crash COURSE how to write yaml file for adding configuring detailsYAML crash COURSE how to write yaml file for adding configuring details
YAML crash COURSE how to write yaml file for adding configuring details
NishanthaBulumulla1


Recently uploaded (20)

Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)Measures in SQL (SIGMOD 2024, Santiago, Chile)
Measures in SQL (SIGMOD 2024, Santiago, Chile)

J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...
J-Spring 2024 - Going serverless with Quarkus, GraalVM native images and AWS ...

zOS Mainframe JES2-JES3 JCL-JECL Differences
zOS Mainframe JES2-JES3 JCL-JECL DifferenceszOS Mainframe JES2-JES3 JCL-JECL Differences
zOS Mainframe JES2-JES3 JCL-JECL Differences

Fundamentals of Programming and Language Processors
Fundamentals of Programming and Language ProcessorsFundamentals of Programming and Language Processors
Fundamentals of Programming and Language Processors

Microservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we workMicroservice Teams - How the cloud changes the way we work
Microservice Teams - How the cloud changes the way we work

Energy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina JonuziEnergy consumption of Database Management - Florina Jonuzi
Energy consumption of Database Management - Florina Jonuzi

14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision

UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling ExtensionsUI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions
UI5con 2024 - Boost Your Development Experience with UI5 Tooling Extensions

8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf8 Best Automated Android App Testing Tool and Framework in 2024.pdf
8 Best Automated Android App Testing Tool and Framework in 2024.pdf

Modelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - AmsterdamModelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - Amsterdam

Hand Rolled Applicative User Validation Code Kata
Hand Rolled Applicative User ValidationCode KataHand Rolled Applicative User ValidationCode Kata
Hand Rolled Applicative User Validation Code Kata

The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...
The Key to Digital Success_ A Comprehensive Guide to Continuous Testing Integ...

Project Management: The Role of Project Dashboards.pdf
Project Management: The Role of Project Dashboards.pdfProject Management: The Role of Project Dashboards.pdf
Project Management: The Role of Project Dashboards.pdf

All you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVMAll you need to know about Spring Boot and GraalVM
All you need to know about Spring Boot and GraalVM

Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdfTop Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf
Top Benefits of Using Salesforce Healthcare CRM for Patient Management.pdf

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样

E-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet DynamicsE-commerce Development Services- Hornet Dynamics
E-commerce Development Services- Hornet Dynamics

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理

How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?How Can Hiring A Mobile App Development Company Help Your Business Grow?
How Can Hiring A Mobile App Development Company Help Your Business Grow?

YAML crash COURSE how to write yaml file for adding configuring details
YAML crash COURSE how to write yaml file for adding configuring detailsYAML crash COURSE how to write yaml file for adding configuring details
YAML crash COURSE how to write yaml file for adding configuring details


RunX: deploy real-time OSes as containers at the edge

  • 1. © Copyright 2020 Xilinx RunX Stefano Stabellini Bruce Ashfield Wesley Skeffington Brian Woods LVC20
  • 2. © Copyright 2020 Xilinx Introducing RunX  A new OCI-compatible containers runtime to start containers as Xen VMs  Written for Embedded  Very simple  Minimal overhead  Real-Time support  Accelerators support  Secure by Default  New project started under the Linux Foundation Edge (LF-Edge) umbrella  Early collaborationwith Zededa  Permissive license (Apache v2)  Open to contributions from the start  All developmentusing a public mailing list: https://lists.lfedge.org/g/eve-runx
  • 3. © Copyright 2020 Xilinx RunX Linux Container xl create Container 1 2 Container Orchestration Framework (e.g. Kubernetes) Xen ramdisk kernel VM containerd containerd “shim” Introducing RunX
  • 4. © Copyright 2020 Xilinx RunX: implementation choices  Easy to Build: minimal build dependencies  gcc,make, go  Easy to Run: minimal runtime dependencies  (in addition to Xen,) bash, jq, socat, daemonize  No in-guest agents: minimal runtime overhead  Provides a minimal Linux kernel and Busybox-based ramdiskfor booting regular containers as VMs  Pristine container environment  Tiny Micro-VMs optimized for embedded  A minimal environment  No device emulation  No in-guest firmware or bootloaders  OCI Runtime Spec compliant  Developedtogetherwith ContainerD  Should work with any container engines
  • 5. © Copyright 2020 Xilinx RunX (Cross)Build Cross-build requirements:  cross-compilationtoolchain  e.g. Linaro: https://releases.linaro.org/components/toolchain/binaries/latest-7/aarch64-linux-gnu  golang compiler (soon to be removed)  distro golang package expected to work $ export ARCH=aarch64 $ export GOROOT=/usr/lib/go-1.10 $ export CROSS_COMPILE=/path/to/aarch64-linux-gnu- $ ./build.sh
  • 6. © Copyright 2020 Xilinx RunX Runtime Copy runX and /usr/share/runX to target Enable it in containerd’s config.toml [plugins.linux] runtime="/usr/sbin/runX"
  • 7. © Copyright 2020 Xilinx Yocto + RunX meta-virtualization provides the recipes for RunX, Xen and supporting components (containerd, etc) Why use Yocto / OE to build / deploy RunX ?  Leverage the Yocto / OE core values  Transition path from development to production  Active community and integration with BSPs (e.g. meta-xilinx)  Multiconfig builds  Build host + guests + containers + firmware in a single platform Note: development and build directly with upstream projects is always possible
  • 8. © Copyright 2020 Xilinx Yocto + RunX: Simplified build Use master branches (there are no stable/released variants yet) $ git clone -b master http://git.yoctoproject.org/git/poky $ git clone -b master http://git.openembedded.org/meta-openembedded $ git clone -b master https://git.yoctoproject.org/git/meta-virtualization $ git clone -b master https://github.com/Xilinx/meta-xilinx.git $ . ./oe-init-build-env zcu102-zynqmp $ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-oe) $ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-filesystems) $ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-python) $ bitbake-layers add-layer $(readlink -f $PWD/../meta-openembedded/meta-networking) $ bitbake-layers add-layer $(readlink -f $PWD/../meta-virtualization) $ bitbake-layers add-layer $(readlink -f $PWD/../meta-xilinx/meta-xilinx-bsp) $ bitbake-layers add-layer $(readlink -f $PWD/../meta-xilinx/meta-xilinx-contrib) $ bitbake-layers add-layer $(readlink -f $PWD/../meta-xilinx/meta-xilinx-standalone)
  • 9. © Copyright 2020 Xilinx Yocto + RunX: Simplified setup Local build setup (will eventually be in a xen distro config) $ cat <<EOF >> conf/local.conf MACHINE ??= "zcu102-zynqmp" DISTRO = "poky" BBMULTICONFIG ?= "pmu" do_image[mcdepends] = "multiconfig::pmu:pmu-firmware:do_deploy" IMAGE_FSTYPES += "tar.gz cpio.gz.u-boot jffs2" DISTRO_FEATURES_append=" xen virtualization vmsep" IMAGE_INSTALL_append = " busybox xen-tools zlib-dev runx" IMAGE_INSTALL_append += " virtual/containerd virtual/runc" ASSUME_PROVIDED += "iasl-native" PACKAGECONFIG_remove_pn-xen += " sdl" PREFERRED_PROVIDER_qemu-native = "xilinx-qemu-native" PREFERRED_PROVIDER_nativesdk-qemu = "nativesdk-qemu-xilinx" BUILDHISTORY_FEATURES ?= "image package sdk" QB_DEFAULT_KERNEL="none" QB_MEM = "-m 4096" EOF $ cat << EOF > conf/multiconfig/pmu.conf MACHINE="microblaze-pmu" DISTRO="xilinx-standalone" TMPDIR="${TOPDIR}/pmutmp" EOF
  • 10. © Copyright 2020 Xilinx Yocto + RunX: build steps Note: not all changes are merged upstream, but will be shortly # download and extract pmu files (optional: only if not using multiconfig): # Download: https://www.xilinx.com/member/forms/download/xef.html?filename=xilinx-zcu102-v2020.1-final.bsp&akdm=1 $ tar -O -xf xilinx-zcu102-v2020.1-final.bsp xilinx-zcu102-2020.1/pre-built/linux/images/pmu_rom_qemu_sha3.elf > pmu-rom.elf $ tar -O -xf xilinx-zcu102-v2020.1-final.bsp xilinx-zcu102-2020.1/pre-built/linux/images/pmufw.elf > pmufw.elf $ tar -O -xf xilinx-zcu102-v2020.1-final.bsp xilinx-zcu102-2020.1/pre-built/linux/images/system.dtb > system.dtb # copy files to deploy dir: $ cp pmufw.elf build/tmp/deploy/images/zcu102-zynqmp/pmu-zcu102-zynqmp.bin $ cp pmufw.elf build/tmp/deploy/images/zcu102-zynqmp/pmu-zcu102-zynqmp.elf $ cp pmu-rom.elf $BUILDDIR/tmp/deploy/images/zcu102-zynqmp/pmu-rom.elf $ cp system.dtb $BUILDDIR/tmp/deploy/images/zcu102-zynqmp/system.dtb # build the image(s) $ bitbake core-image-minimal $ bitbake xen-image-minimal
  • 11. © Copyright 2020 Xilinx Yocto + RunX: runtime steps Note: some on target configuration may be required (and will be automated in the future) # core-image-minimal as a sanity test. Works out of deployed artifacts by default: $ runqemu core-image-minimal slirp nographic # xen-minimal: requires manual u-boot config, or boot.scr support from image builder (https://gitlab.com/ViryaOS/imagebuilder) $ runqemu xen-image-minimal nographic slirp
  • 12. © Copyright 2020 Xilinx RunX Linux Container xl create Container 1 2 Container Orchestration Framework (e.g. Kubernetes) Xen ramdisk kernel VM containerd containerd “shim” RunX: Traditional Containers
  • 13. © Copyright 2020 Xilinx RunX Linux Container xl create Tarball w/ kernel, ramdisk, & rootfs 1 2 Container Orchestration Framework (e.g. Kubernetes) OCI Image Spec Extensions: - KERNEL - RAMDISK Xen Provided ramdisk Provided kernel VM containerd containerd “shim” RunX: Containers with a Kernel
  • 14. © Copyright 2020 Xilinx RunX Linux RTOS xl create RTOS packaged as a container 1 2 Container Orchestration Framework (e.g. Kubernetes) Xen VM containerd containerd “shim” RunX: Baremetal and RTOS Containers
  • 15. © Copyright 2020 Xilinx RunX: Containers with a Kernel  Support containers that come with their own Kernel and/or Ramdisk  a specific versionof the Linux kernel  a specific kernel configuration  LinuxRT  Non-Linux OSes  RTOSes  Baremetal applications  VxWorks  Kernel and Ramdisk are advertised using new OCI Image flags  TBD; currently Implemented using Environmental Variables  RUNX_KERNEL  RUNX_RAMDISK  Workwith CNCF to standardize the new labels
  • 16. © Copyright 2020 Xilinx containerd RunX + extra args Linux Container Tarball w/ kernel, ramdisk, & rootfs Container Orchestration Framework (e.g. Kubernetes) Xen Provided ramdisk Provided kernel VM Heterogeneous HW Resource containerd “shim” xl create 2 1 RunX: Device Assignment
  • 17. © Copyright 2020 Xilinx Device Assignment  Device Assignment support via XLCONF  Appends configurationoptions to the xl config file  It can be used for anything from device assignmentto changing vcpus and memory configurations  It can be used to set real-time configurations  It is set by the user/admin (not by the container)
  • 18. © Copyright 2020 Xilinx containerd RunX [extra args] or config.json Linux Container Tarball w/ kernel, ramdisk, & rootfs 1 2 Container Orchestration Framework (e.g. Kubernetes) OCI Image Spec Extensions: - RESOURCE = DEVICE_DATA - KERNEL - RAMDISK Xen Provided ramdisk Provided kernel VM Device Config Heterogeneous HW Resource containerd “shim” Vision: Accelerators & FPGAs
  • 19. © Copyright 2020 Xilinx Vision: Accelerators & FPGAs 1. Containers come with their own accelerator's binaries and data  FPGAbitstreams  Co-ProcessorKernels  AIE Kernels 2. ContainerD calls to a service to program the accelerators 3. RunX assigns the accelerator's resources to the VM
  • 20. © Copyright 2020 Xilinx Demo
  • 21. © Copyright 2020 Xilinx containerd RunX + extra args Linux Baremetal Xen VM TTC Timer containerd “shim” xl create 2 1 RunX RTOS and Device Assignment Demo Baremetal Container with access to the physical TTC timer
  • 22. © Copyright 2020 Xilinx Thank You
