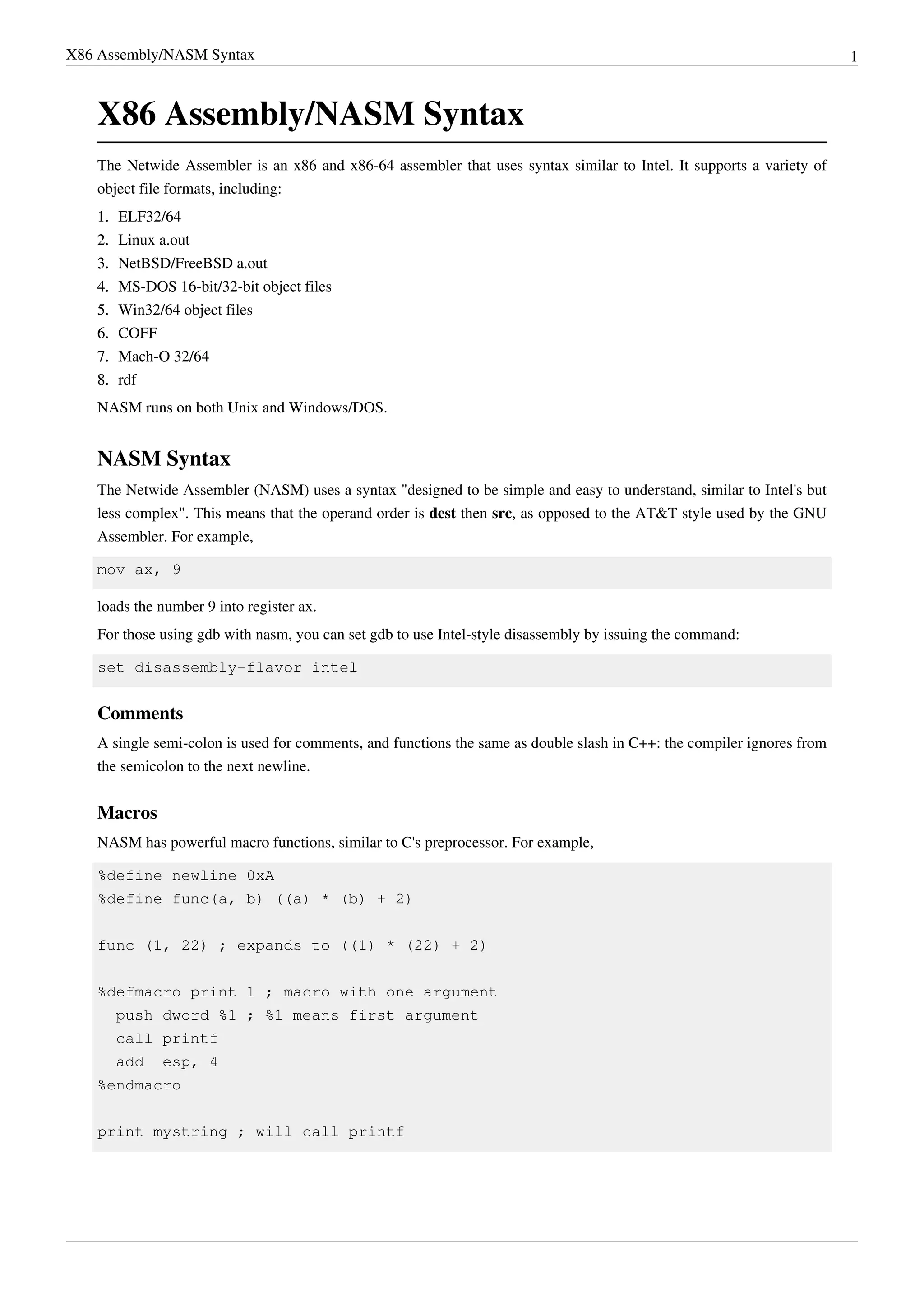

1. X86 Assembly/NASM Syntax 1
X86 Assembly/NASM Syntax
The Netwide Assembler is an x86 and x86-64 assembler that uses syntax similar to Intel. It supports a variety of
object file formats, including:
1.1. ELF32/64
2.2. Linux a.out
3.3. NetBSD/FreeBSD a.out
4.4. MS-DOS 16-bit/32-bit object files
5.5. Win32/64 object files
6.6. COFF
7.7. Mach-O 32/64
8.8. rdf
NASM runs on both Unix and Windows/DOS.
NASM Syntax
The Netwide Assembler (NASM) uses a syntax "designed to be simple and easy to understand, similar to Intel's but
less complex". This means that the operand order is dest then src, as opposed to the AT&T style used by the GNU
Assembler. For example,
mov ax, 9
loads the number 9 into register ax.
For those using gdb with nasm, you can set gdb to use Intel-style disassembly by issuing the command:
set disassembly-flavor intel
Comments
A single semi-colon is used for comments, and functions the same as double slash in C++: the compiler ignores from
the semicolon to the next newline.
Macros
NASM has powerful macro functions, similar to C's preprocessor. For example,
%define newline 0xA
%define func(a, b) ((a) * (b) + 2)
func (1, 22) ; expands to ((1) * (22) + 2)
%defmacro print 1 ; macro with one argument
push dword %1 ; %1 means first argument
call printf
add esp, 4
%endmacro
print mystring ; will call printf

2. X86 Assembly/NASM Syntax 2
Example I/O (Linux and BSD)
To pass the kernel a simple input command on Linux, you would pass values to the following registers and then send
the kernel an interrupt signal. To read in a single character from standard input (such as from a user at their
keyboard), do the following:
; read a byte from stdin
mov eax, 3 ; 3 is recognized by the system as meaning "read"
mov ebx, 0 ; read from standard input
mov ecx, variable ; address to pass to
mov edx, 1 ; input length (one byte)
int 0x80 ; call the kernel
After the int 0x80, eax will contain the number of bytes read. If this number is < 0, there was a read error of
some sort.
Outputting follows a similar convention:
; print a byte to stdout
mov eax, 4 ; the system interprets 4 as "write"
mov ebx, 1 ; standard output (print to terminal)
mov ecx, variable ; pointer to the value being passed
mov edx, 1 ; length of output (in bytes)
int 0x80 ; call the kernel
BSD systems (MacOS X included) use similar system calls, but convention to execute them is different. While on
Linux you pass system call arguments in different registers, on BSD systems they are pushed onto stack (except the
system call number, which is put into eax, the same way as in Linux). BSD version of the code above:
; read a byte from stdin
mov eax, 3 ; sys_read system call
push dword 1 ; input length
push dword variable ; address to pass to
push dword 0 ; read from standard input
push eax
int 0x80 ; call the kernel
add esp, 16 ; move back the stack pointer
; write a byte to stdout
mov eax, 4 ; sys_write system call
push dword 1 ; output length
push dword variable ; memory address
push dword 1 ; write to standard output
push eax
int 0x80 ; call the kernel
add esp, 16 ; move back the stack pointer
; quit the program
mov eax, 1 ; sys_exit system call
push dword 0 ; program return value
push eax

3. X86 Assembly/NASM Syntax 3
int 0x80 ; call the kernel
Hello World (Linux)
Below we have a simple Hello world example, it lays out the basic structure of a nasm program:
global _start
section .data
; Align to the nearest 2 byte boundary, must be a power of two
align 2
; String, which is just a collection of bytes, 0xA is newline
str: db 'Hello, world!',0xA
strLen: equ $-str
section .bss
section .text
_start:
;
; op dst, src
;
;
; Call write(2) syscall:
; ssize_t write(int fd, const void *buf, size_t count)
;
mov edx, strLen ; Arg three: the length of the string
mov ecx, str ; Arg two: the address of the string
mov ebx, 1 ; Arg one: file descriptor, in this case stdout
mov eax, 4 ; Syscall number, in this case the write(2) syscall:
int 0x80 ; Interrupt 0x80
;
; Call exit(3) syscall
; void exit(int status)
;
mov ebx, 0 ; Arg one: the status
mov eax, 1 ; Syscall number:
int 0x80
In order to assemble, link and run the program we need to do the following:
$ nasm -felf32 -g helloWorld.asm
$ ld -g helloWorld.o
$ ./a.out

4. X86 Assembly/NASM Syntax 4
Hello World (Using only Win32 system calls)
In this example we are going to rewrite the hello world example using Win32 system calls. There are several major
differences:
1.1. The intermediate file will be a Microsoft Win32 (i386) object file
2.2. We will avoid using interrupts since they may not be portable and therefore we need to bring in several calls from
kernel32 DLL
global _start
extern _GetStdHandle@4
extern _WriteConsoleA@20
extern _ExitProcess@4
section .data
str: db 'hello, world',0xA
strLen: equ $-str
section .bss
numCharsWritten: resb 1
section .text
_start:
;
; HANDLE WINAPI GetStdHandle( _In_ DWORD nStdHandle ) ;
;
push dword -11 ; Arg1: request handle for standard output
call _GetStdHandle@4 ; Result: in eax
;
; BOOL WINAPI WriteConsole(
; _In_ HANDLE hConsoleOutput,
; _In_ const VOID *lpBuffer,
; _In_ DWORD nNumberOfCharsToWrite,
; _Out_ LPDWORD lpNumberOfCharsWritten,
; _Reserved_ LPVOID lpReserved ) ;
;
push dword 0 ; Arg5: Unused so just use zero
push numCharsWritten ; Arg4: push pointer to numCharsWritten
push dword strLen ; Arg3: push length of output string
push str ; Arg2: push pointer to output string
push eax ; Arg1: push handle returned from _GetStdHandle
call _WriteConsoleA@20
;
; VOID WINAPI ExitProcess( _In_ UINT uExitCode ) ;

5. X86 Assembly/NASM Syntax 5
;
push dword 0 ; Arg1: push exit code
call _ExitProcess@4
In order to assemble, link and run the program we need to do the following. This example was run under cygwin, in
a Windows command prompt the link step would be different. In this example we use the -e command line option
when invoking ld to specify the entry point for program execution. Otherwise we would have to use
_WinMain@16 as the entry point rather than _start. One last note, WriteConsole() does not behave well
within a cygwin console, so in order to see output the final exe should be run within a Windows command prompt:
$ nasm -f win32 -g helloWorldWin32.asm
$ ld -e _start helloWorldwin32.obj -lkernel32 -o helloWorldWin32.exe
Hello World (Using C libraries and Linking with gcc)
In this example we will rewrite Hello World to use printf(3) from the C library and link using gcc. This has
the advantage that going from Linux to Windows requires minimal source code changes and a slightly different
assemble and link steps. In the Windows world this has the additional benefit that the linking step will be the same in
the Windows command prompt and cygwin. There are several major changes:
1. The "hello, world" string now becomes the format string for printf(3) and therefore needs to be null
terminated. This also means we do not need to explicitly specify it's length anymore.
2.2. gcc expects the entry point for execution to be main
3. Microsoft will prefix functions using the cdecl calling convention with a underscore. So main and printf
will become _main and _printf respectively in the Windows development environment.
global main
extern printf
section .data
fmtStr: db 'hello, world',0xA,0
section .text
main:
sub esp, 4 ; Allocate space on the stack for one 4 byte parameter
lea eax, [fmtStr]
mov [esp], eax ; Arg1: pointer to format string
call printf ; Call printf(3):
; int printf(const char *format, ...);
add esp, 4 ; Pop stack once
ret
In order to assemble, link and run the program we need to do the following.

6. X86 Assembly/NASM Syntax 6
$ nasm -felf32 helloWorldgcc.asm
$ gcc helloWorldgcc.o -o helloWorldgcc
The Windows version with prefixed underscores:
global _main
extern _printf ; Uncomment under Windows
section .data
fmtStr: db 'hello, world',0xA,0
section .text
_main:
sub esp, 4 ; Allocate space on the stack for one 4 byte parameter
lea eax, [fmtStr]
mov [esp], eax ; Arg1: pointer to format string
call _printf ; Call printf(3):
; int printf(const char *format, ...);
add esp, 4 ; Pop stack once
ret
In order to assemble, link and run the program we need to do the following.
$ nasm -fwin32 helloWorldgcc.asm
$ gcc helloWorldgcc.o -o helloWorldgcc
