Terraform
- 1. Terraform Make infrastructure great again

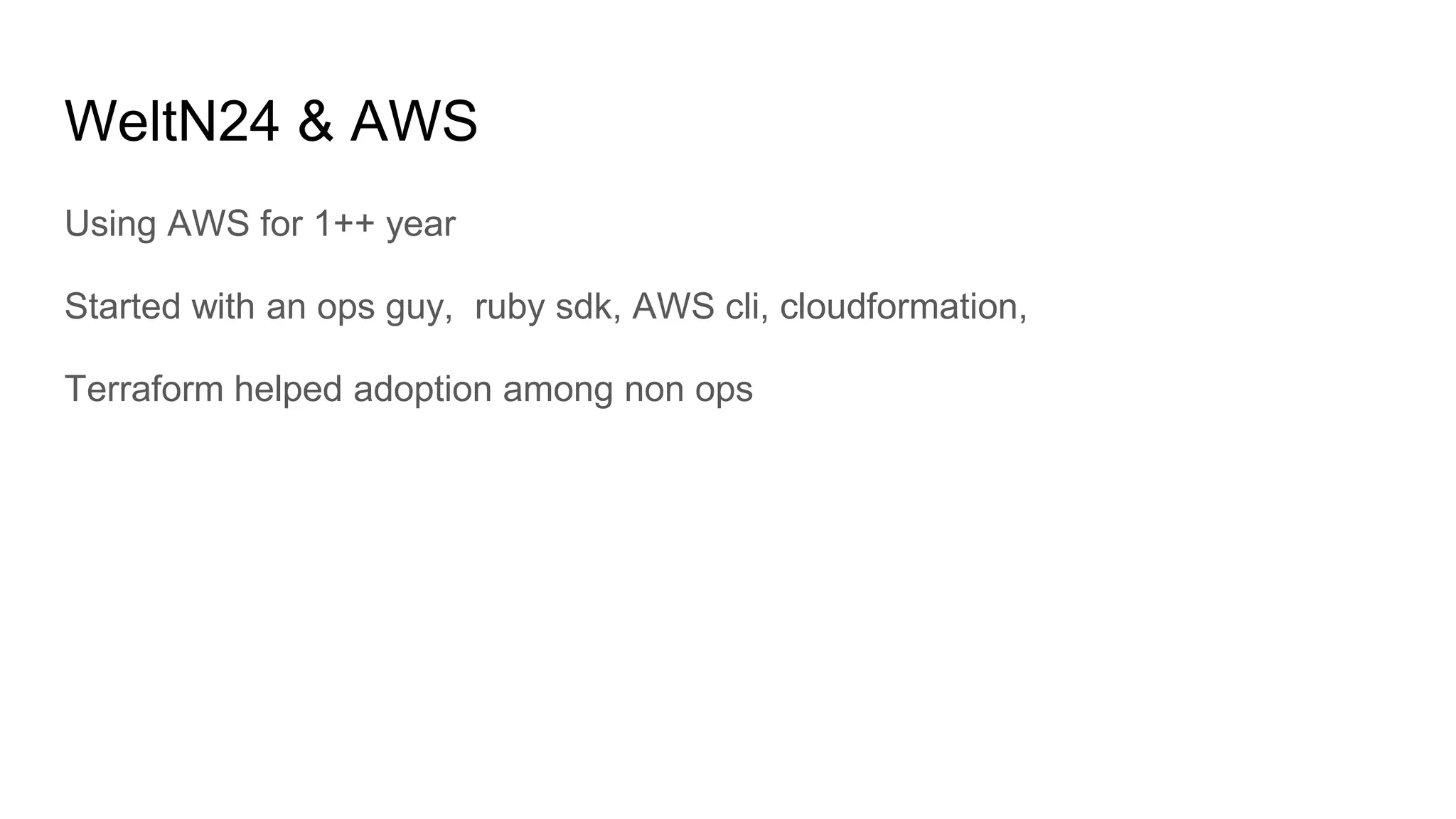

- 3. WeltN24 & AWS Using AWS for 1++ year Started with an ops guy, ruby sdk, AWS cli, cloudformation, Terraform helped adoption among non ops

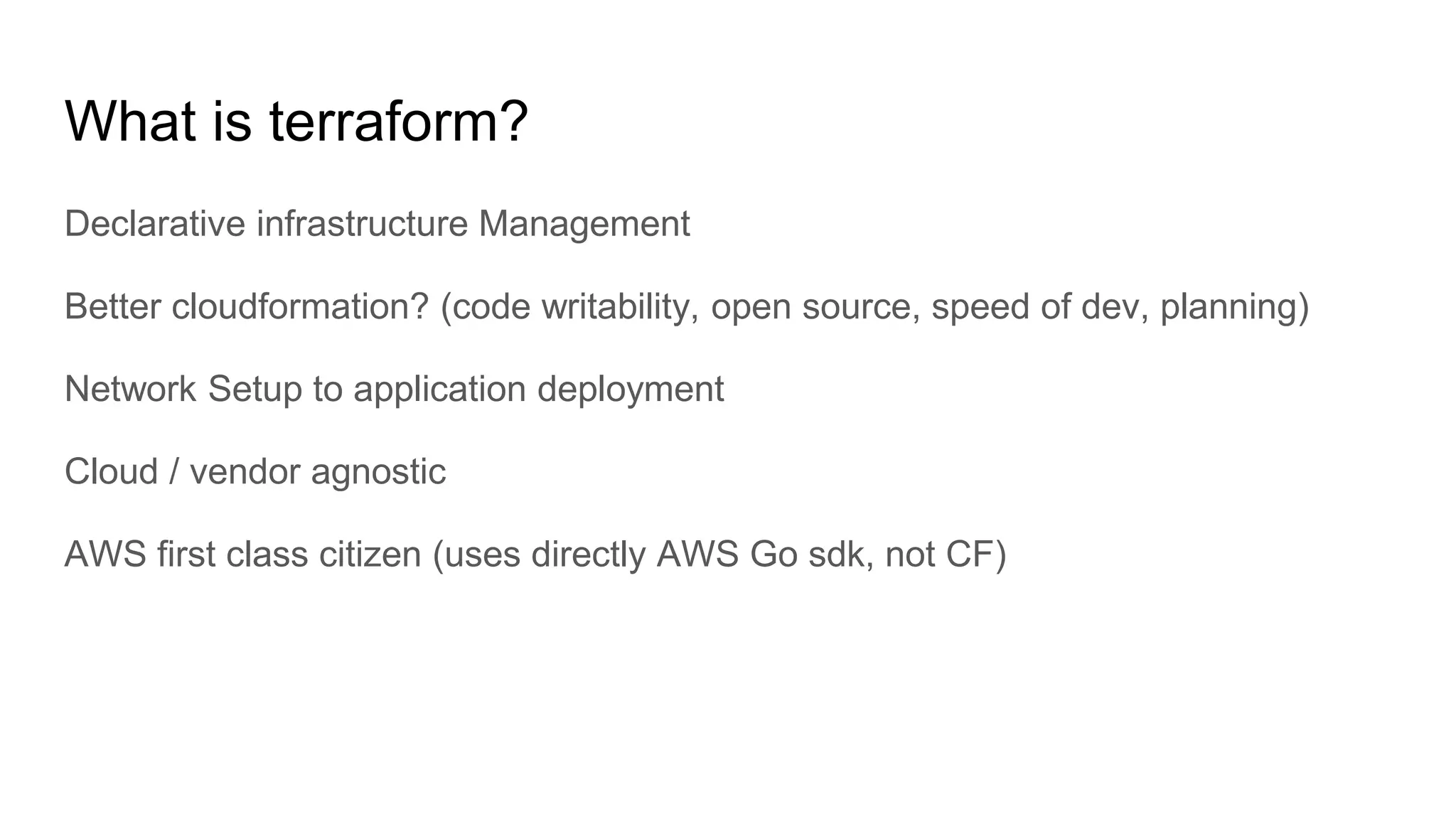

- 4. What is terraform? Declarative infrastructure Management Better cloudformation? (code writability, open source, speed of dev, planning) Network Setup to application deployment Cloud / vendor agnostic AWS first class citizen (uses directly AWS Go sdk, not CF)

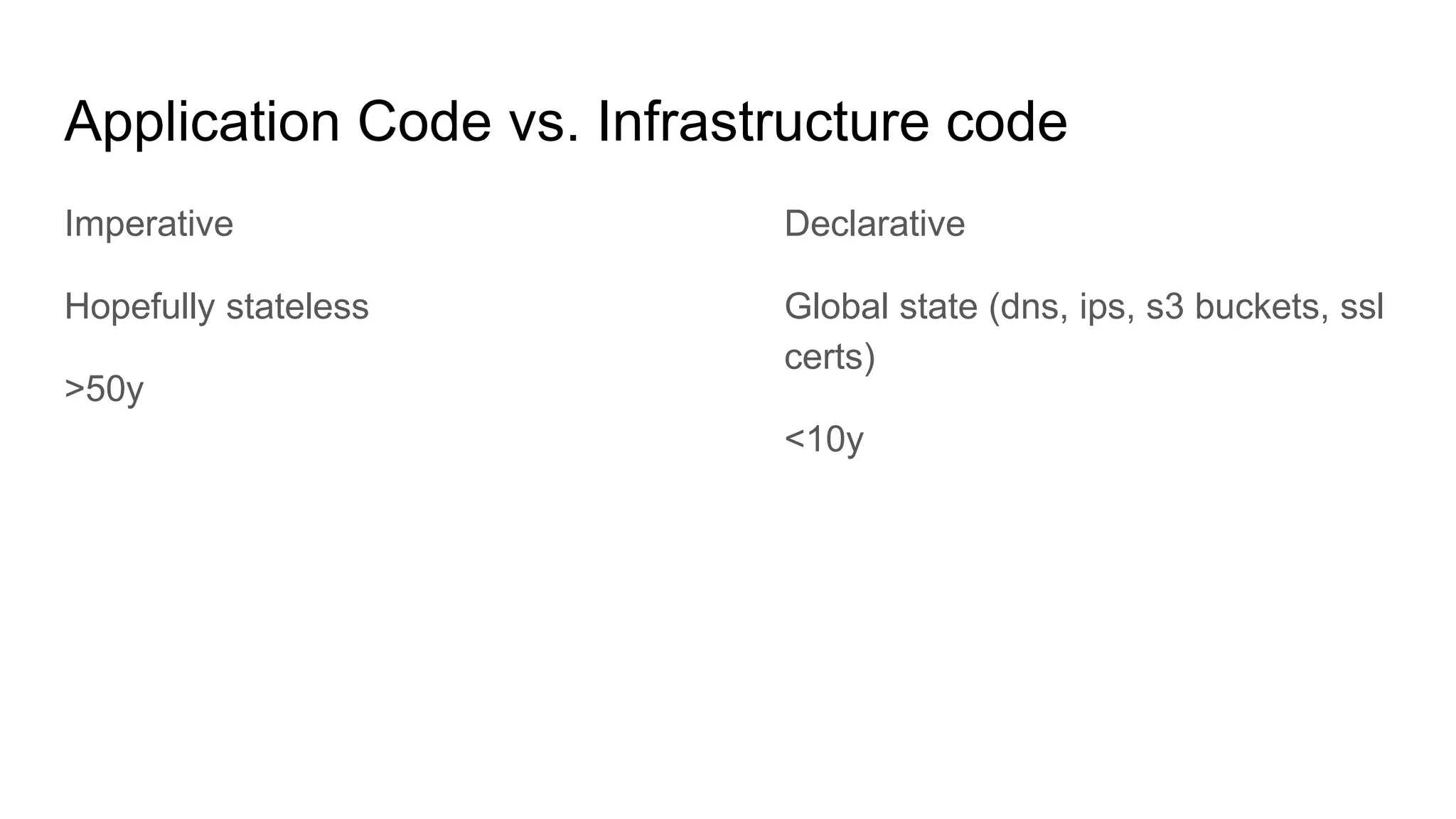

- 5. Application Code vs. Infrastructure code Imperative Hopefully stateless >50y Declarative Global state (dns, ips, s3 buckets, ssl certs) <10y

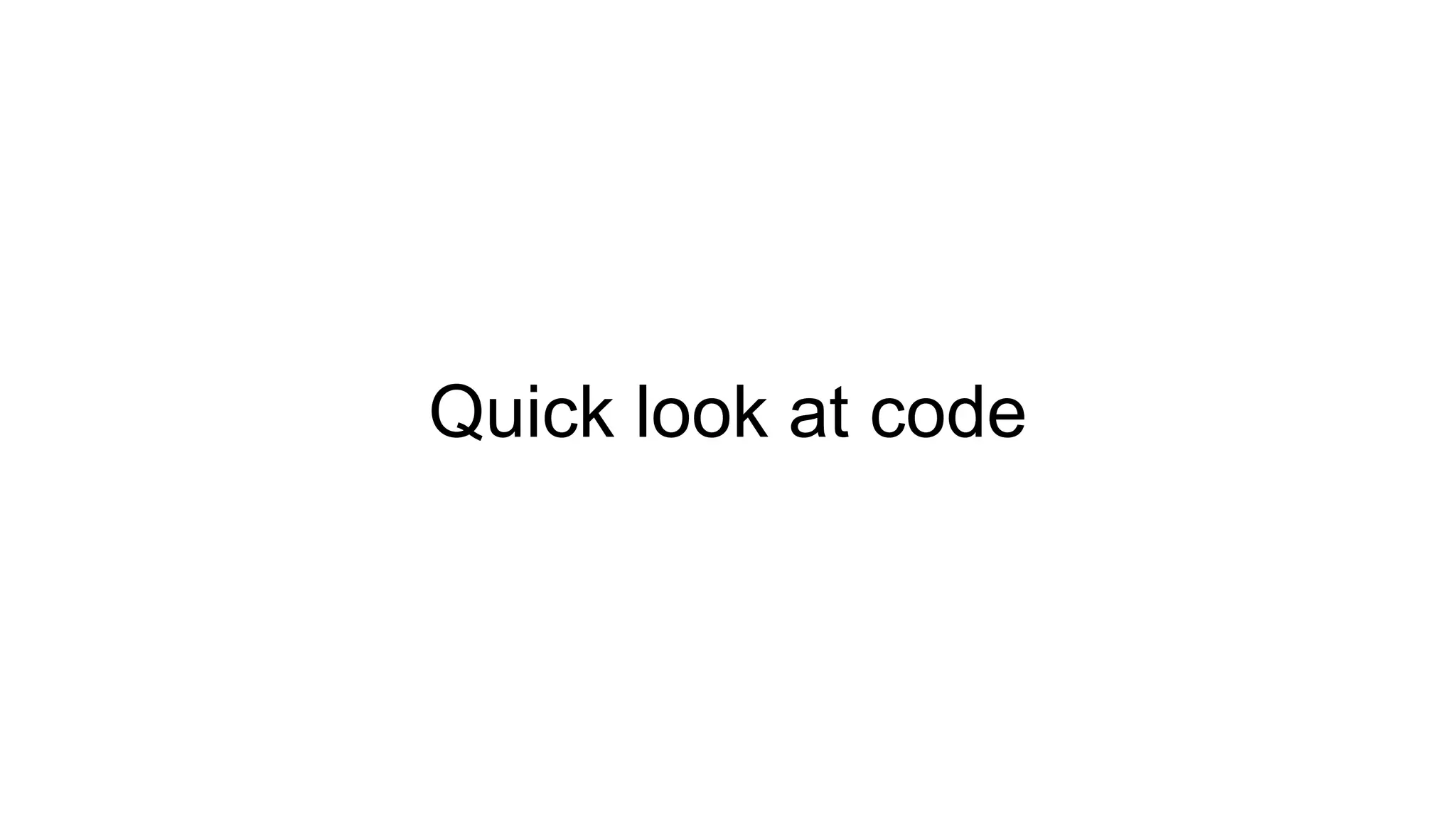

- 6. Quick look at code

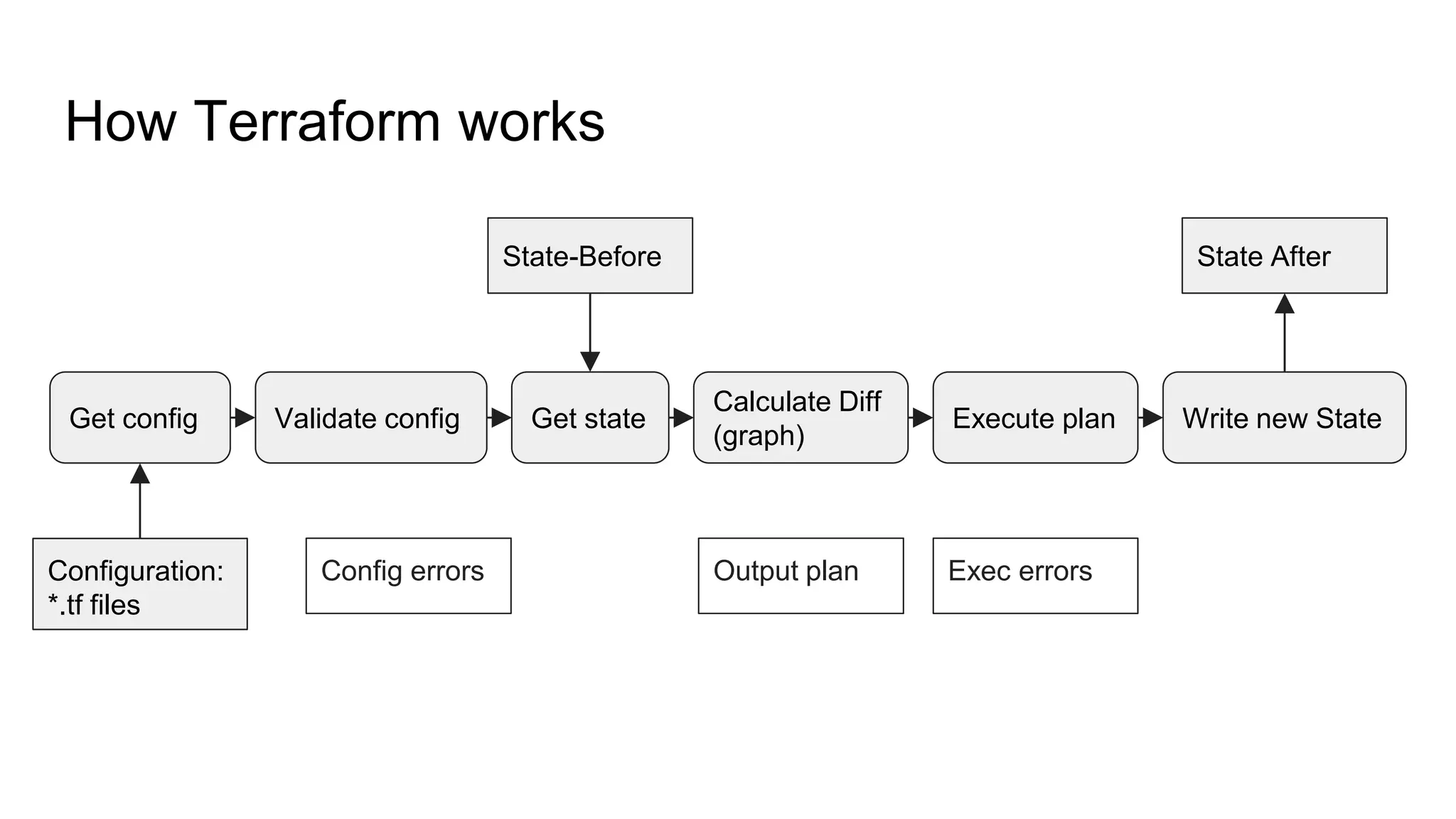

- 7. How Terraform works State-Before Get state Configuration: *.tf files Get config Validate config Config errors Calculate Diff (graph) Execute plan Write new State State After Exec errorsOutput plan

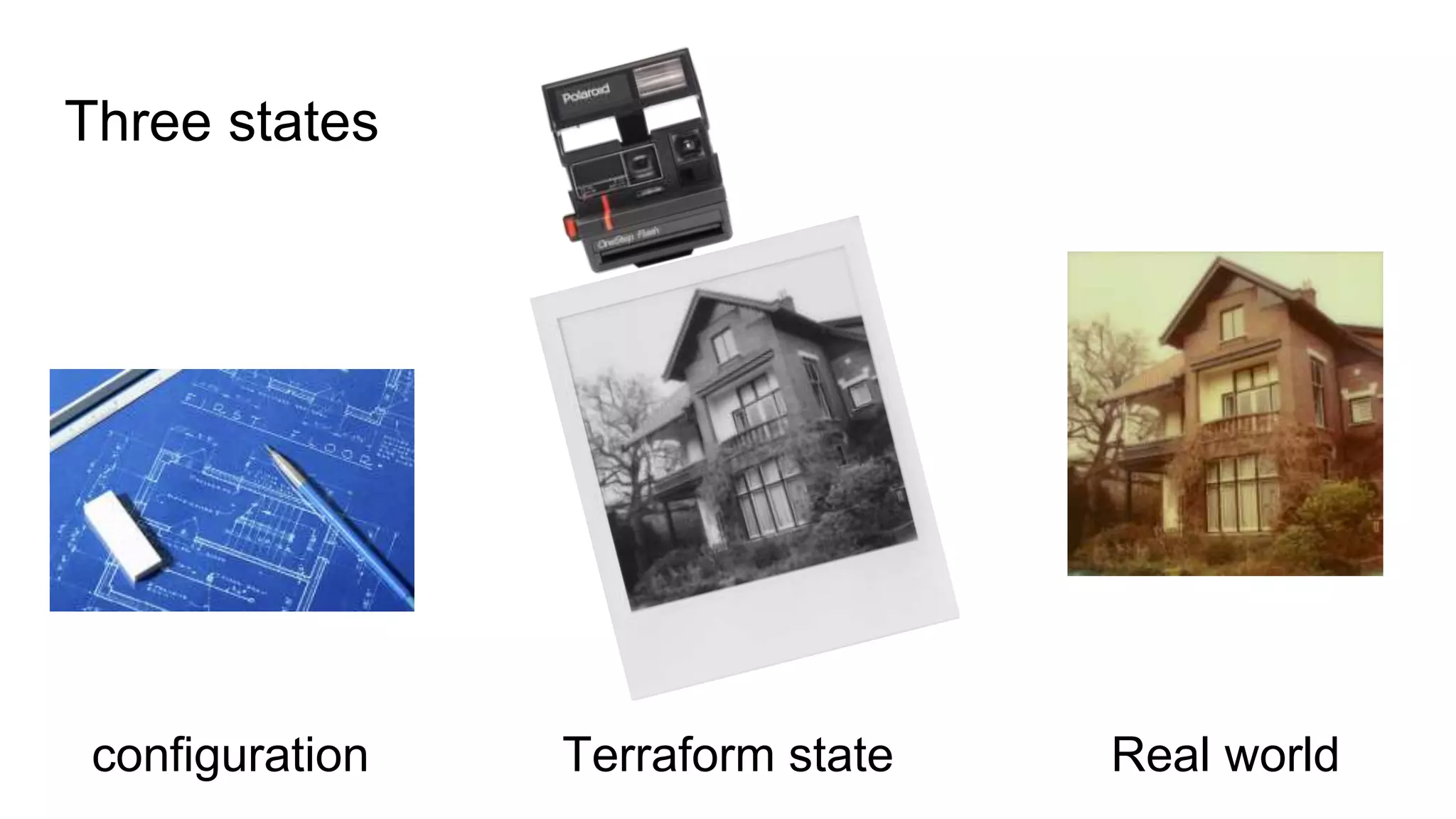

- 8. Three states configuration Terraform state Real world

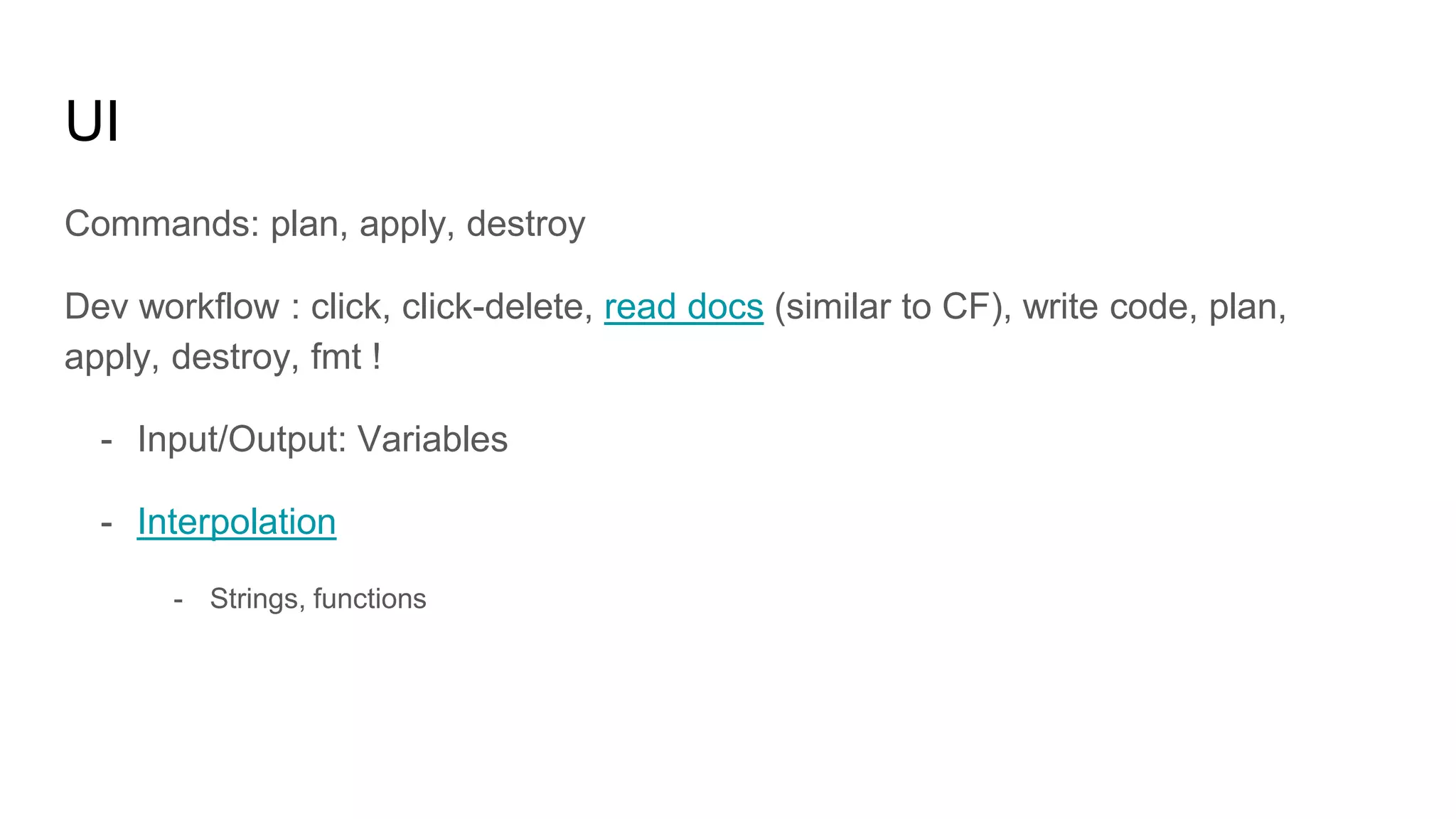

- 9. UI Commands: plan, apply, destroy Dev workflow : click, click-delete, read docs (similar to CF), write code, plan, apply, destroy, fmt ! - Input/Output: Variables - Interpolation - Strings, functions
- 10. demo

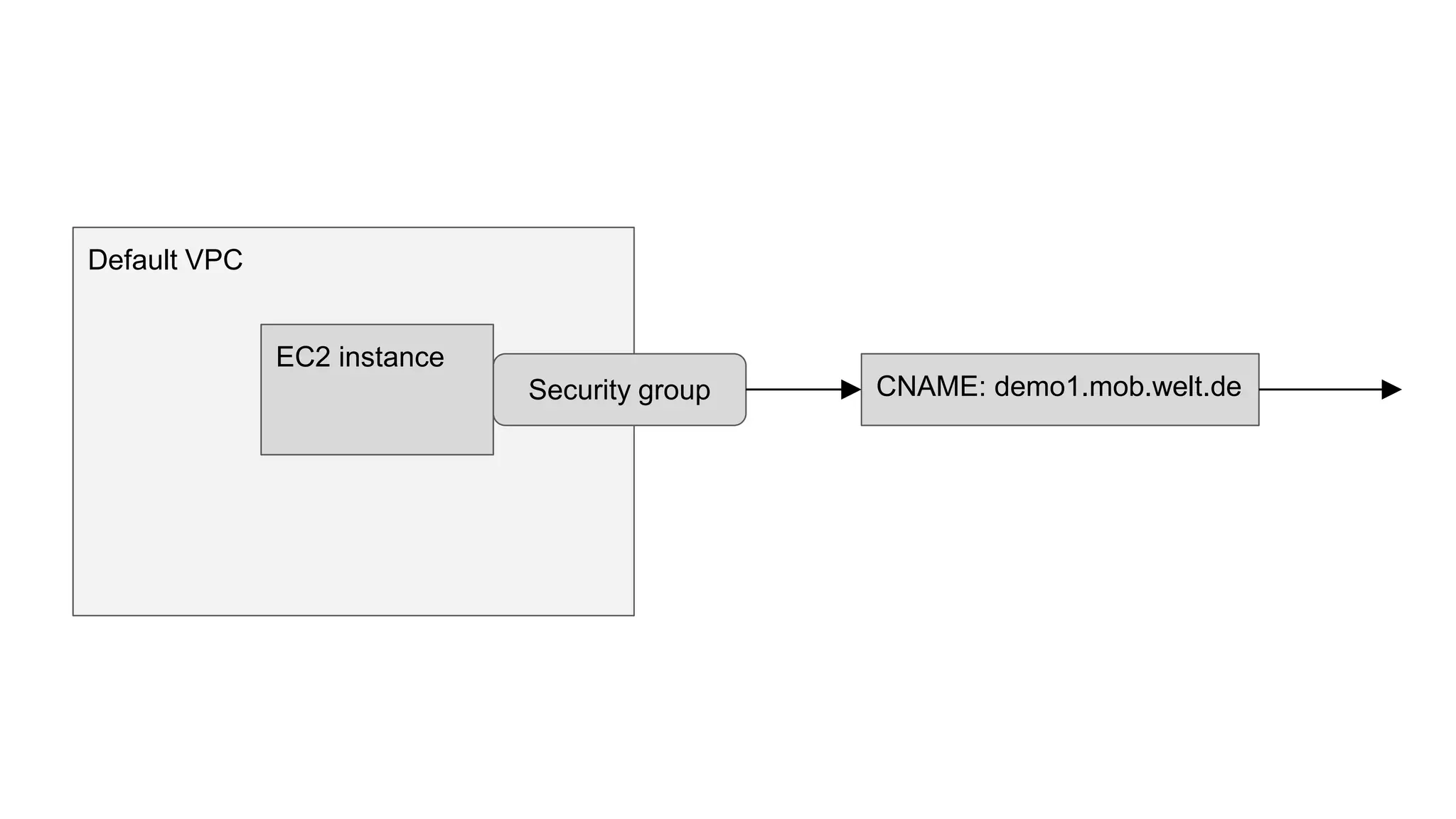

- 11. Default VPC EC2 instance Security group CNAME: demo1.mob.welt.de

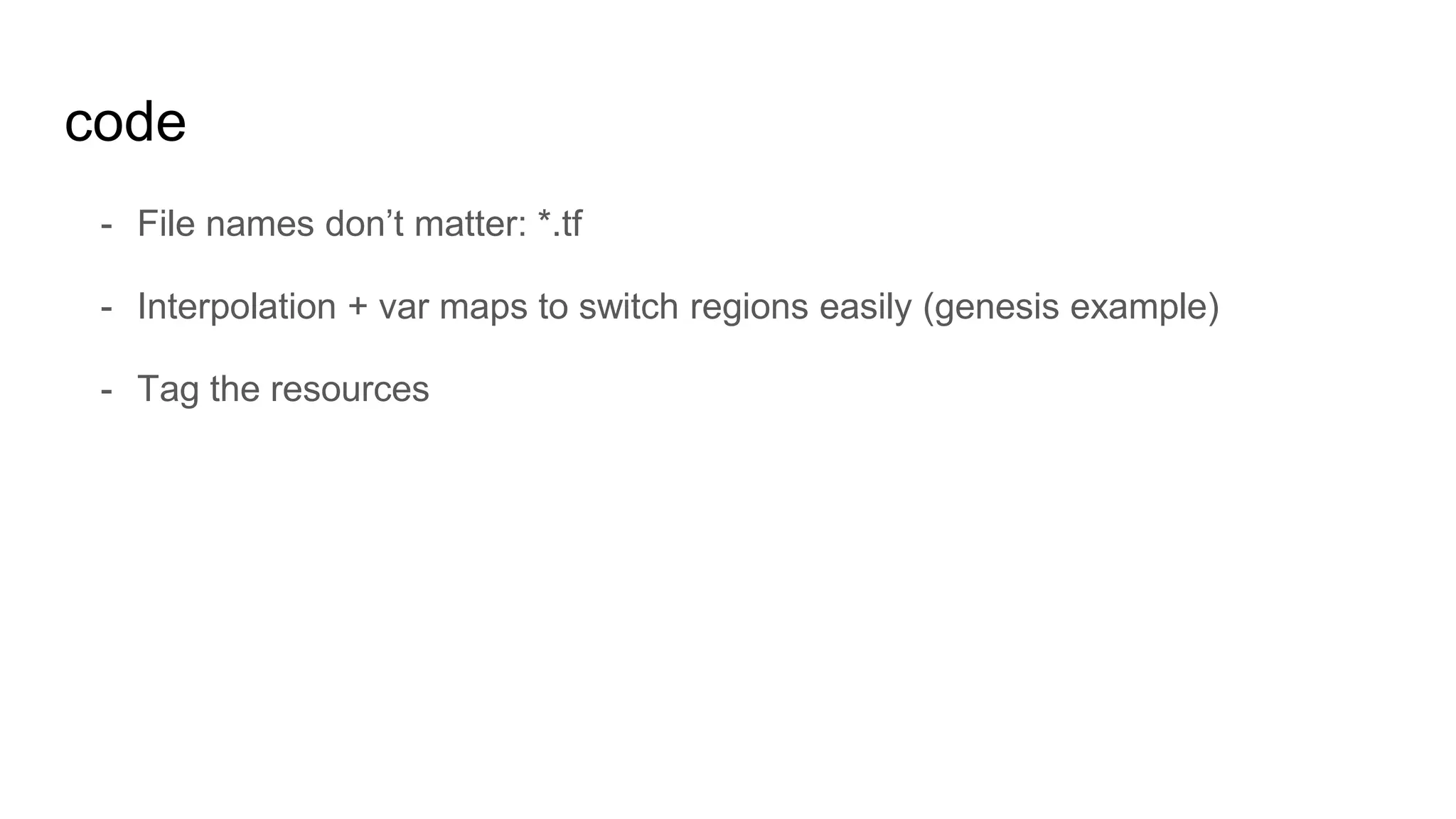

- 12. code - File names don’t matter: *.tf - Interpolation + var maps to switch regions easily (genesis example) - Tag the resources

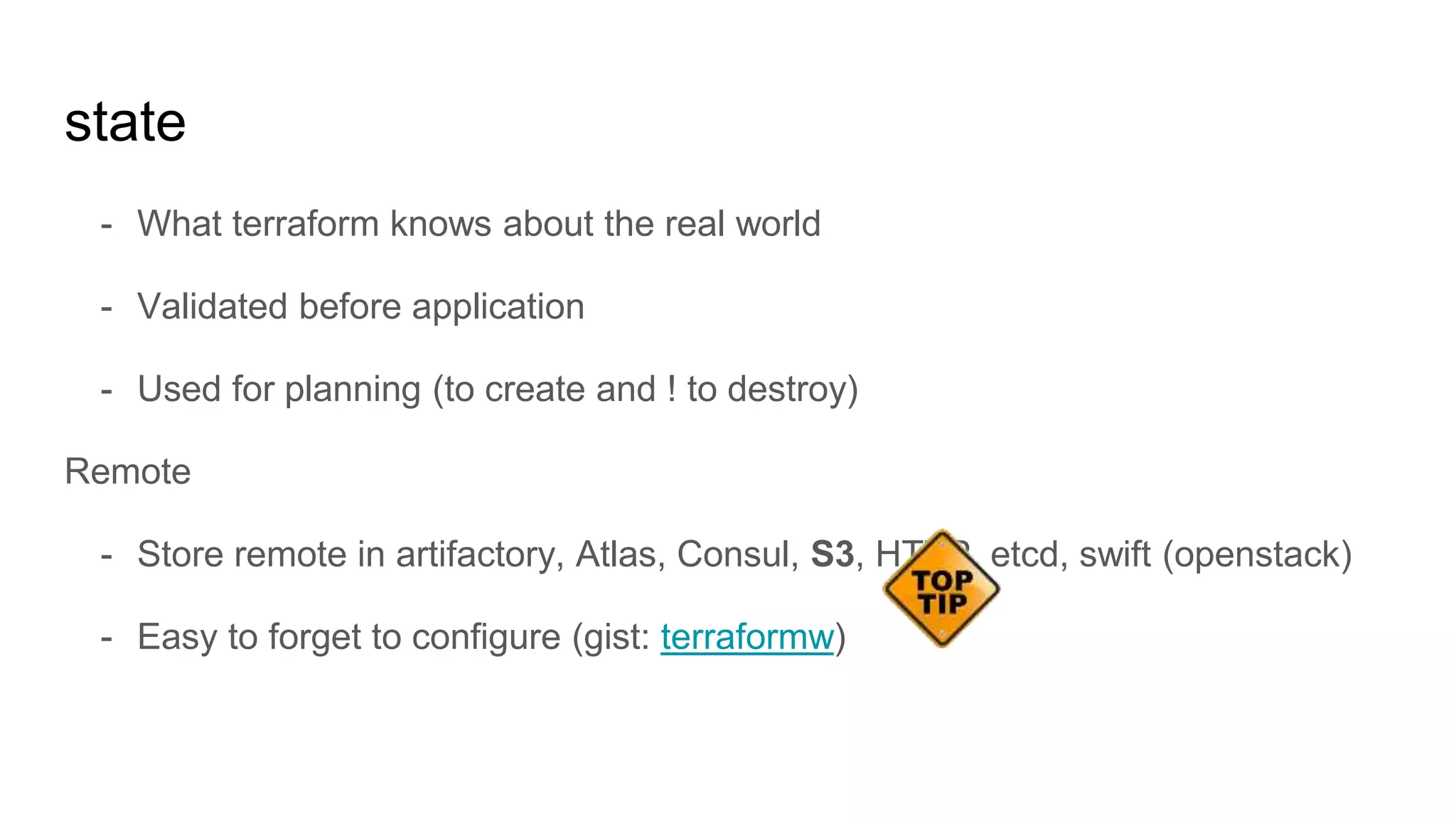

- 13. state - What terraform knows about the real world - Validated before application - Used for planning (to create and ! to destroy) Remote - Store remote in artifactory, Atlas, Consul, S3, HTTP, etcd, swift (openstack) - Easy to forget to configure (gist: terraformw)

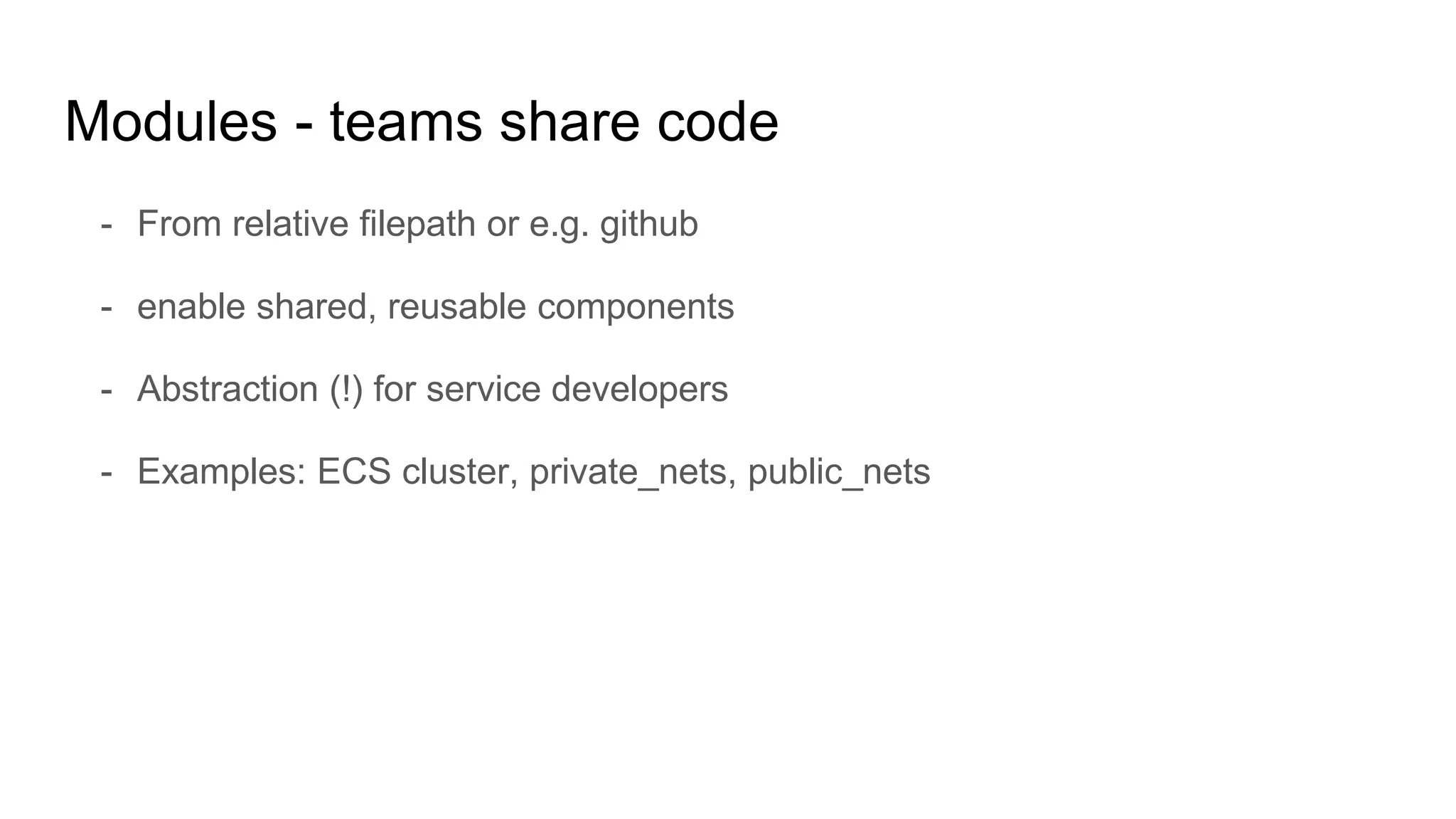

- 14. - From relative filepath or e.g. github - enable shared, reusable components - Abstraction (!) for service developers - Examples: ECS cluster, private_nets, public_nets Modules - teams share code
- 15. Real Life demo

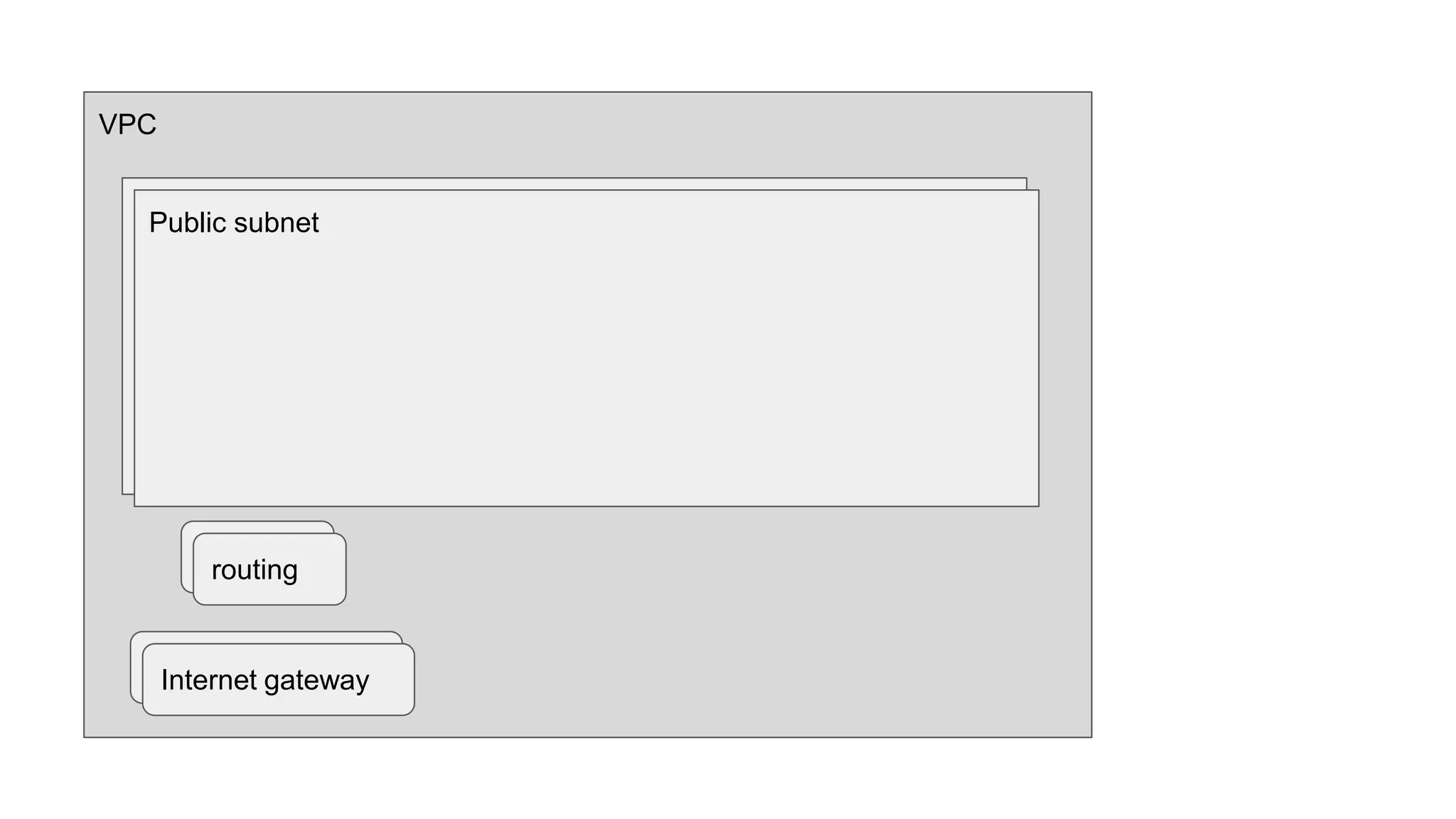

- 16. VPC Public subnet Internet gateway Public subnet Internet gateway routingrouting

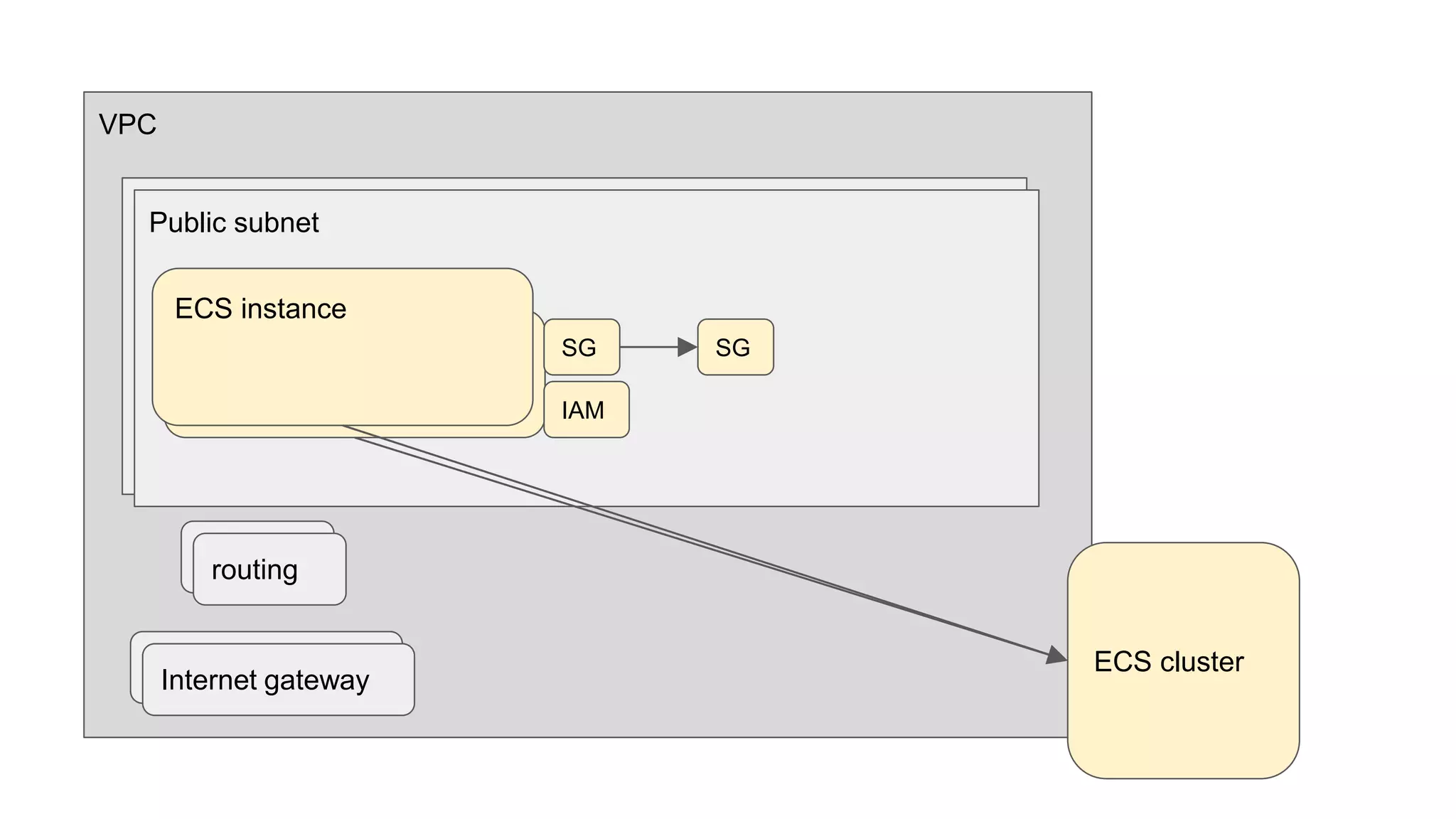

- 17. VPC Public subnet Internet gateway Public subnet Internet gateway routingrouting ECS instance ECS cluster SG ECS instance IAM SG

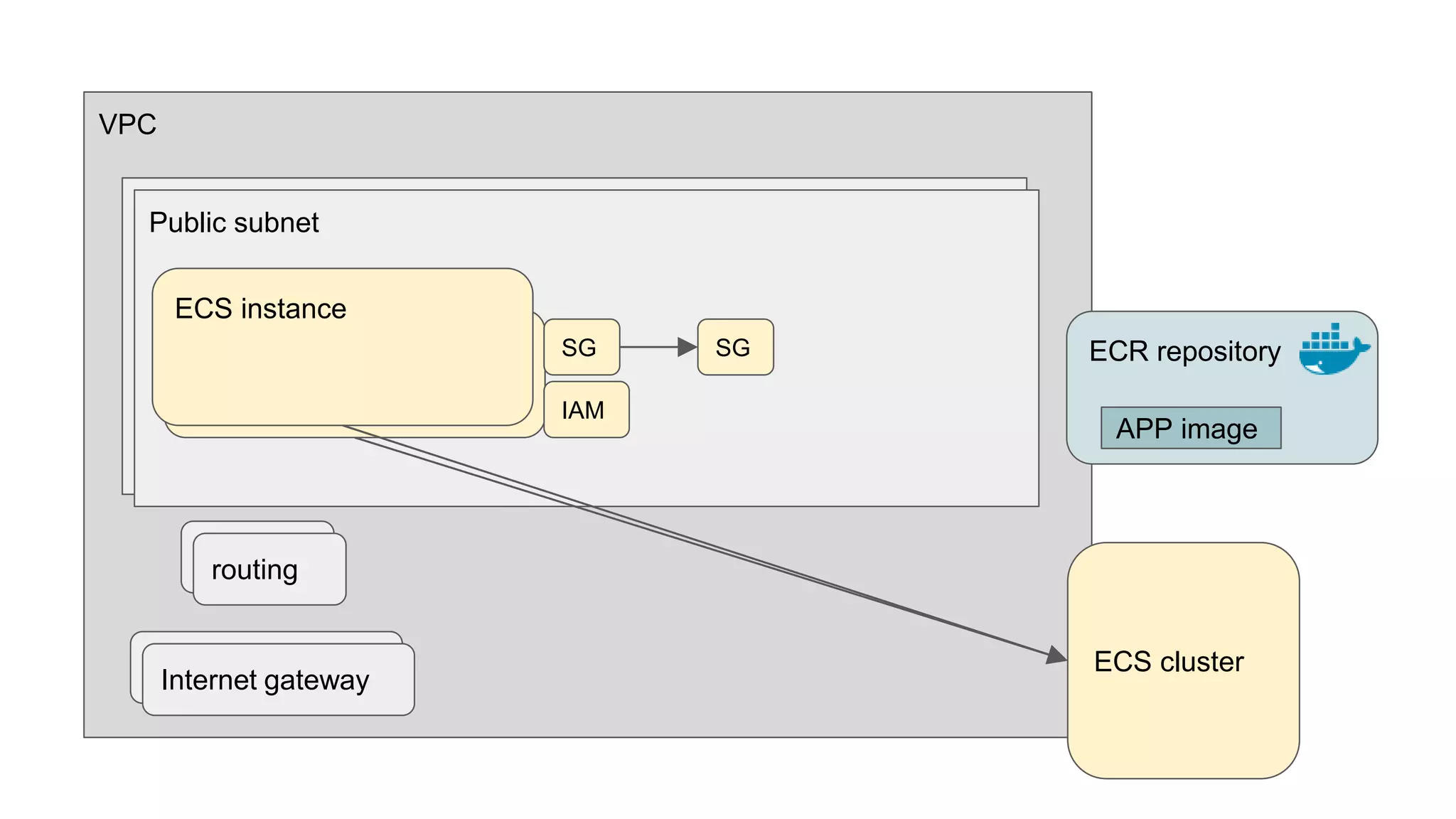

- 18. VPC Public subnet Internet gateway Public subnet Internet gateway routingrouting ECS instance ECS cluster SG ECS instance IAM SG ECR repository APP image

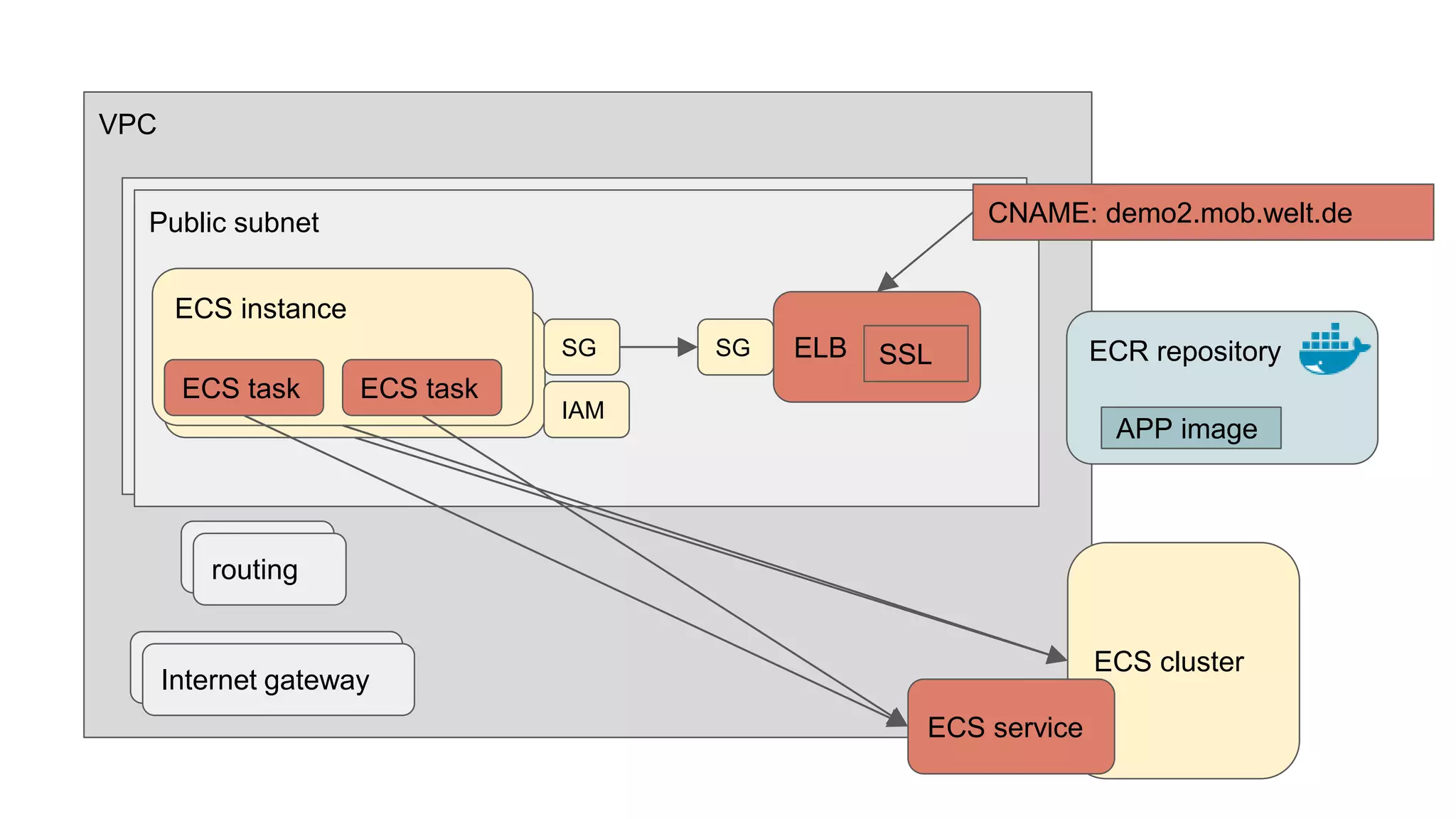

- 19. VPC Public subnet Internet gateway Public subnet Internet gateway routingrouting ECS instance ECS cluster SG ECS instance IAM SG ECR repository APP image ECS task ECS task ECS service ELB CNAME: demo2.mob.welt.de SSL

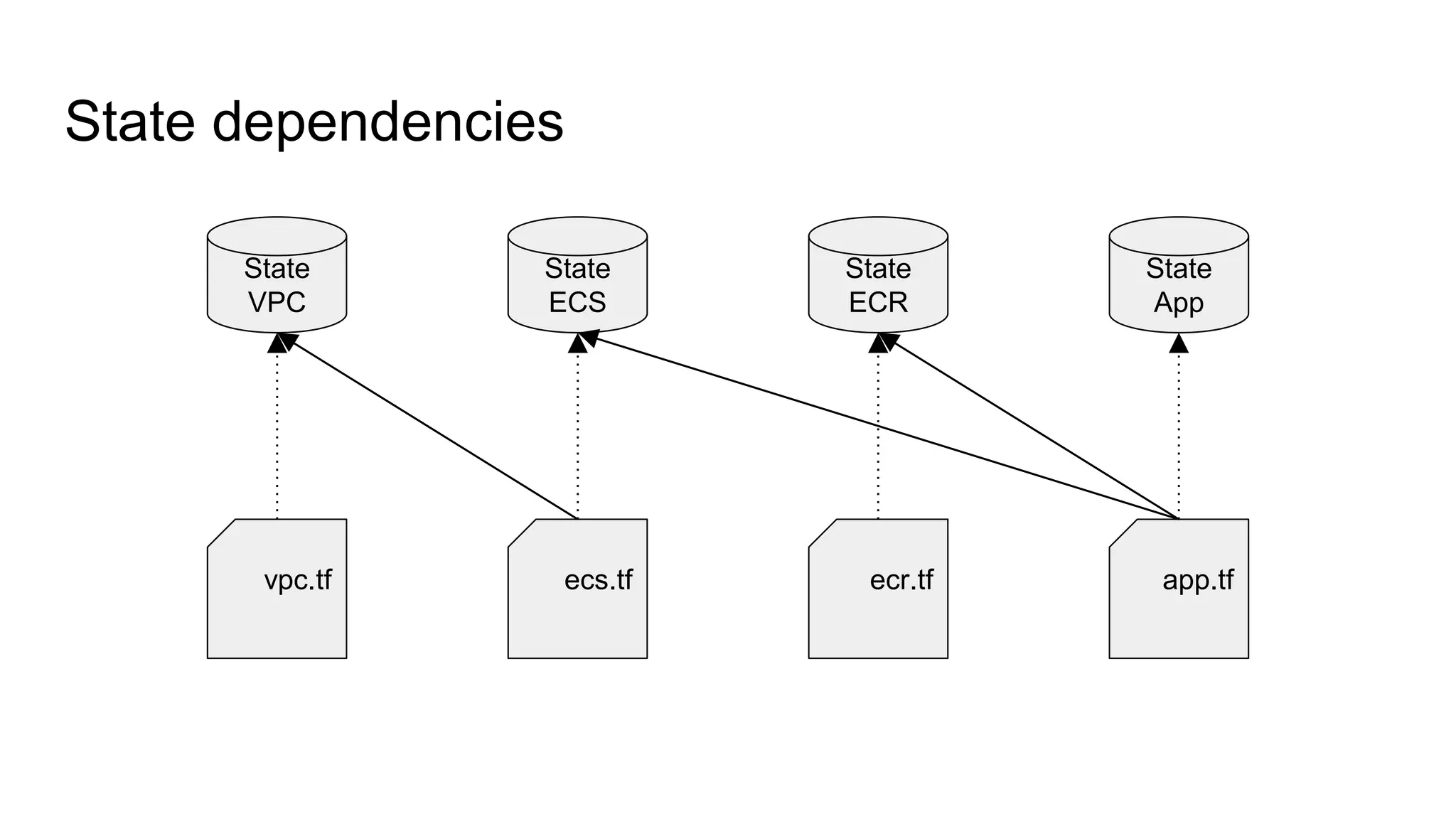

- 20. State dependencies State VPC State ECS State ECR State App vpc.tf ecs.tf ecr.tf app.tf

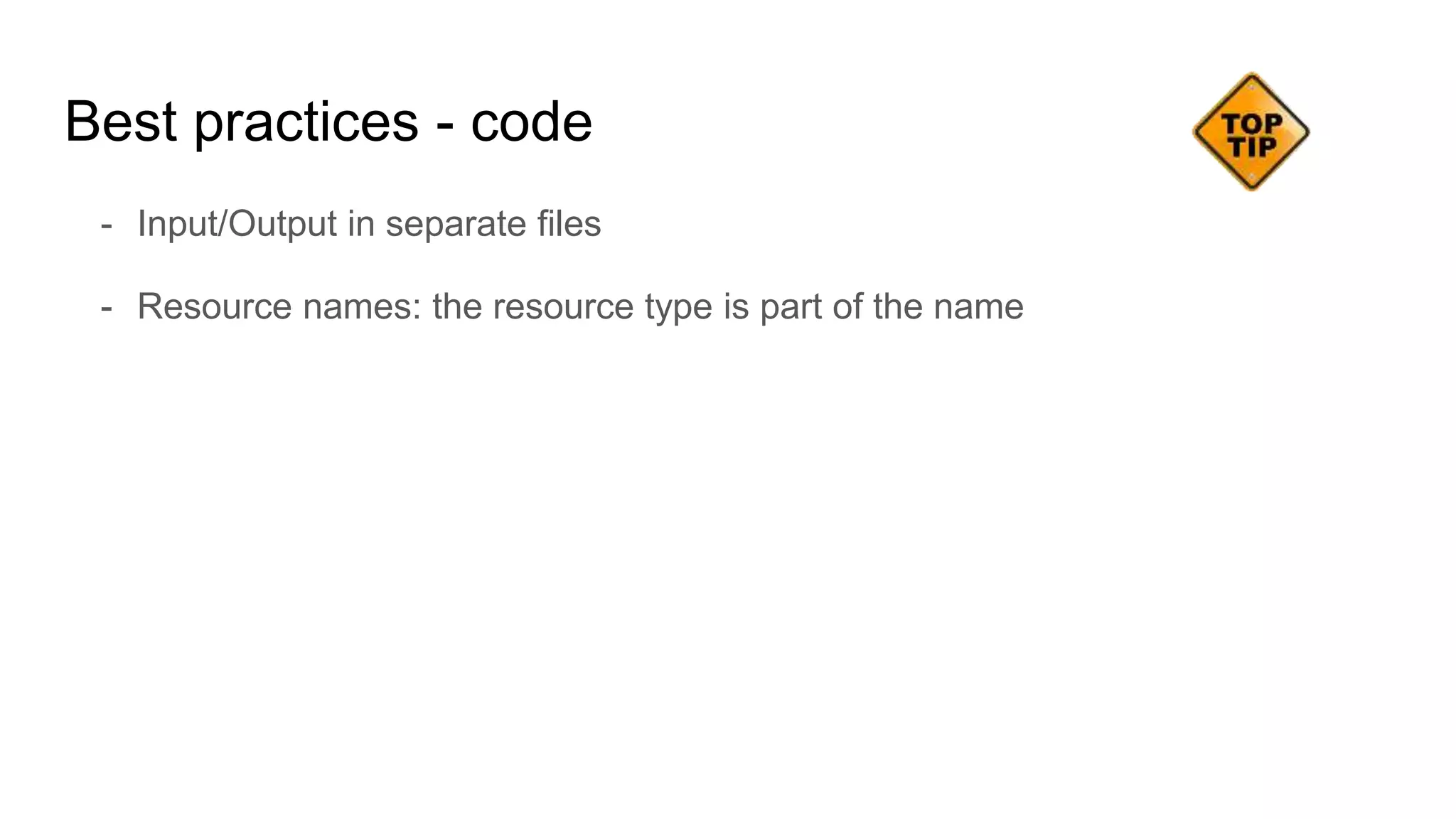

- 21. - Input/Output in separate files - Resource names: the resource type is part of the name Best practices - code

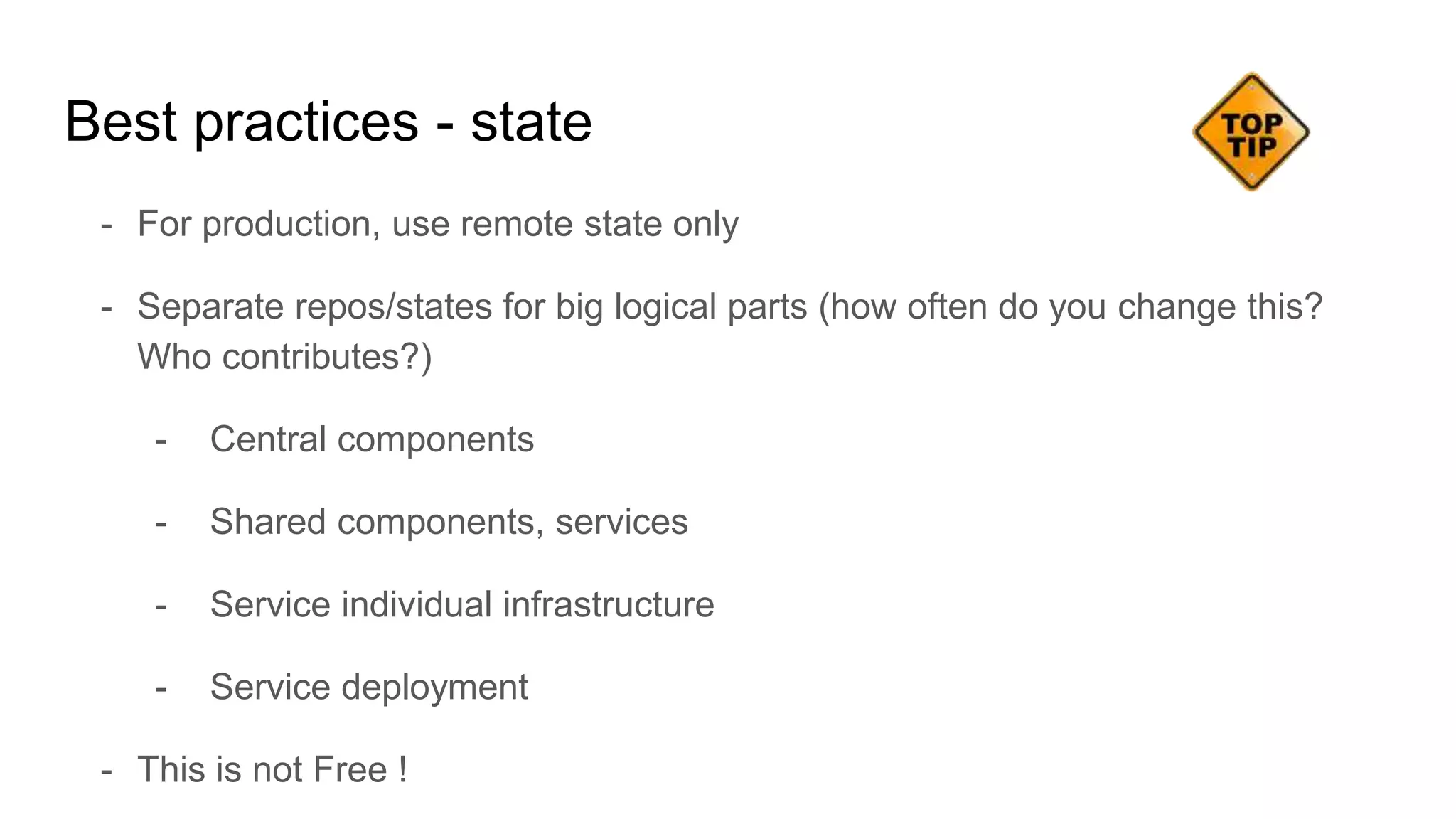

- 22. - For production, use remote state only - Separate repos/states for big logical parts (how often do you change this? Who contributes?) - Central components - Shared components, services - Service individual infrastructure - Service deployment - This is not Free ! Best practices - state

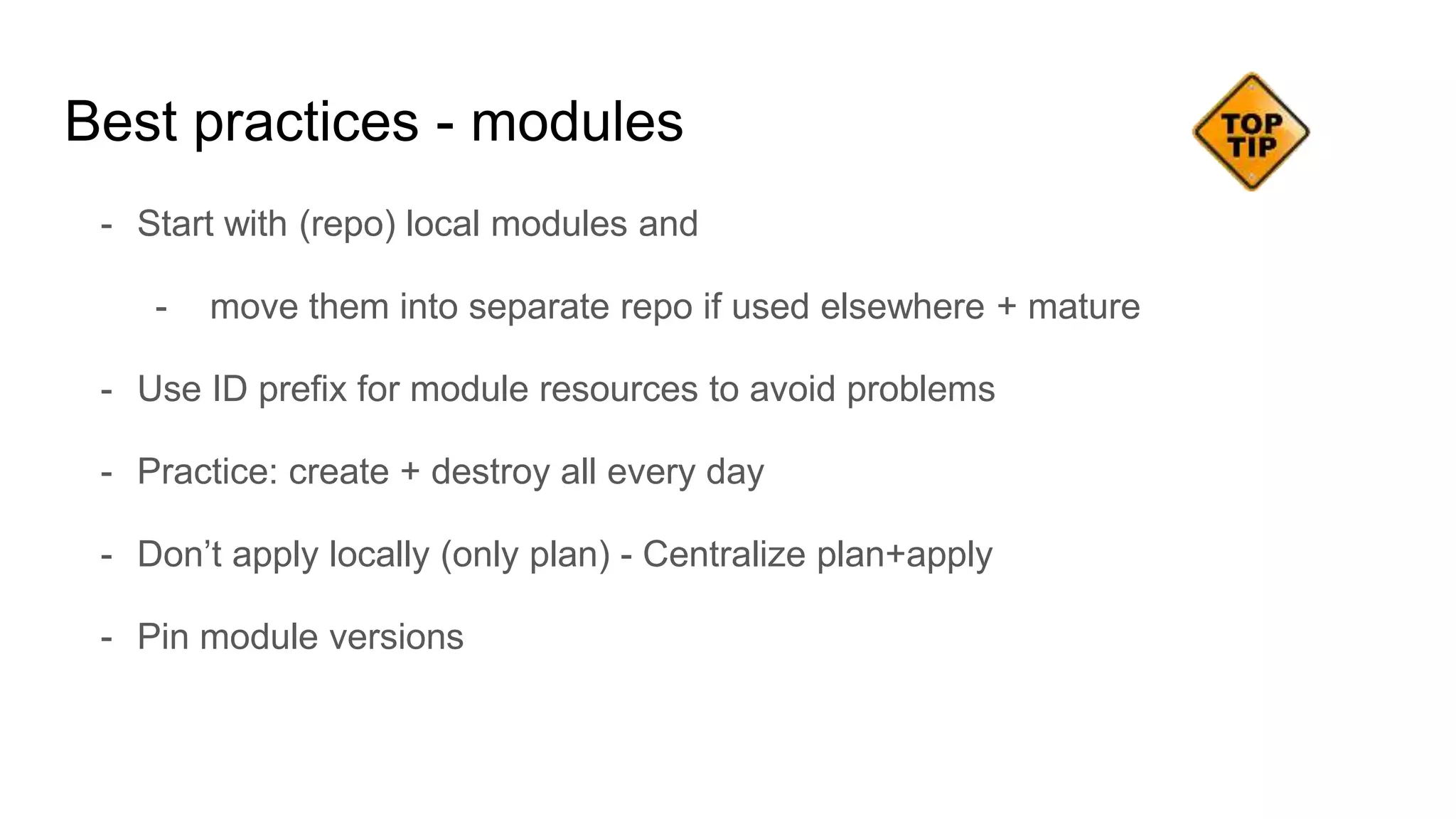

- 23. - Start with (repo) local modules and - move them into separate repo if used elsewhere + mature - Use ID prefix for module resources to avoid problems - Practice: create + destroy all every day - Don’t apply locally (only plan) - Centralize plan+apply - Pin module versions Best practices - modules

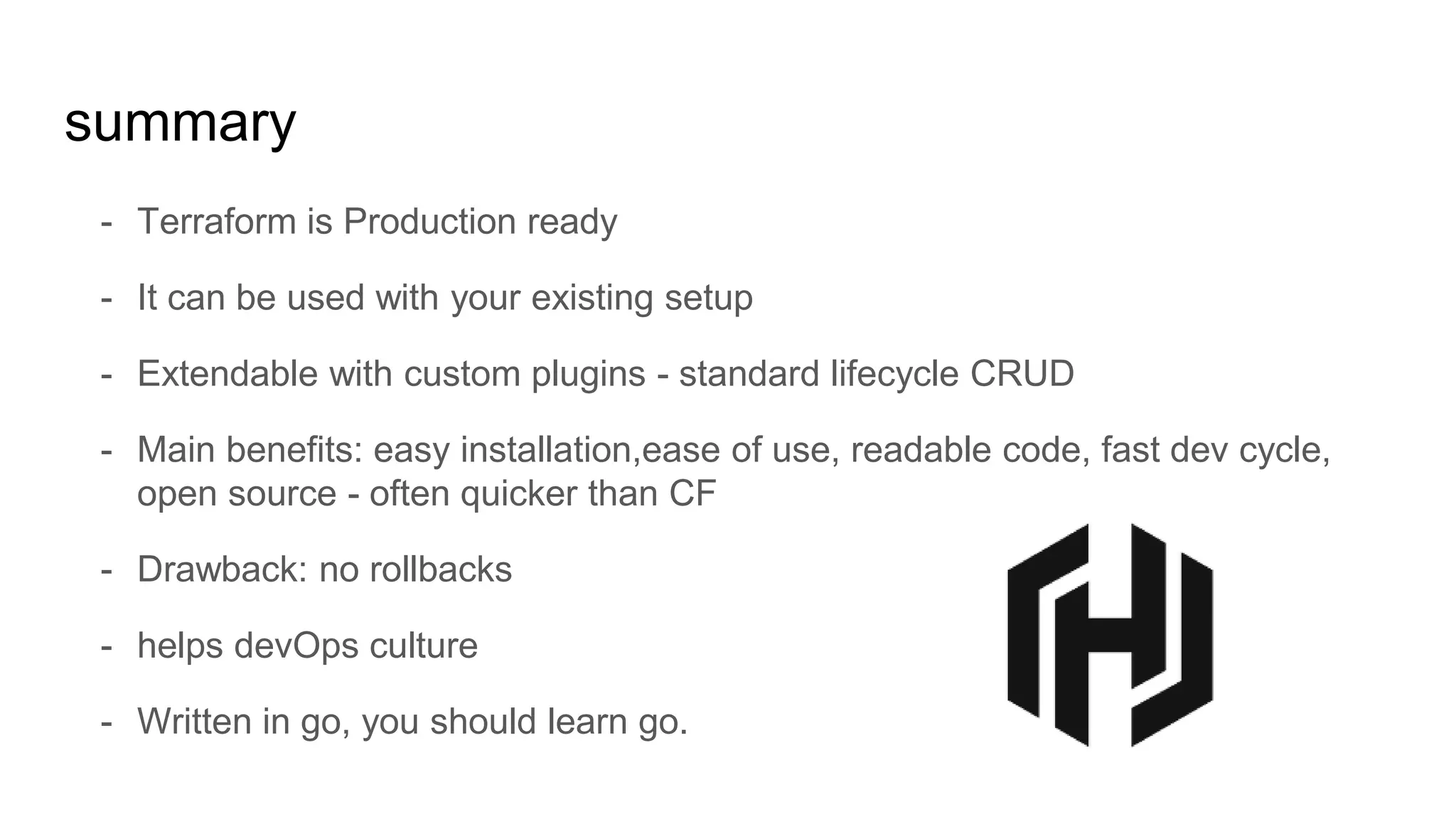

- 24. - Terraform is Production ready - It can be used with your existing setup - Extendable with custom plugins - standard lifecycle CRUD - Main benefits: easy installation,ease of use, readable code, fast dev cycle, open source - often quicker than CF - Drawback: no rollbacks - helps devOps culture - Written in go, you should learn go. summary
Editor's Notes
- local state No exports
- Modules, remote state in s3, interpolation
