- 1. Memory Forensic Investigating MemoryArtefact http://xathrya.id/ 1 Satria Ady Pradana@ Universitas Atma Jaya Yogyakarta 29 April 2017 Workshop
- 2. # Whoami? • CyberSecurity Consultant at Mitra Integrasi Informatika (MII) • Researcher at dracOs Dev Team • Coordinator of Reversing.ID http://xathrya.id/ 2
- 3. Organization • Divided tosome sections related to forensic stages. • Each section has objectives • Has background explanation if necessary http://xathrya.id/ 3
- 4. Overview • Engage inpractical forensic activity • Acquisition – Windows Memory Acquisition • Analysis – Process & DLLs – Registry – Connections http://xathrya.id/ 4

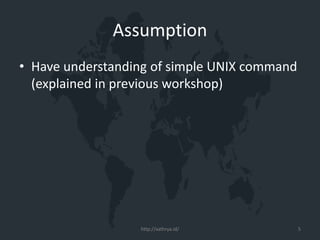

- 5. Assumption • Have understandingof simple UNIX command (explained in previous workshop) http://xathrya.id/ 5

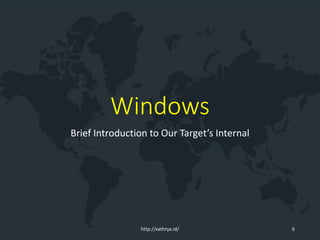

- 6. Windows Brief Introduction toOur Target’s Internal http://xathrya.id/ 6
- 7. Volatility Tools of theTrade http://xathrya.id/ 7
- 8. Profile? • Each operatingsystem has different internal structure • Event for minor version different • Volatility needs to know what type of system our memory dump came from, so it knows which data structures, algorithms, and symbols to use. • List all profiles $ vol.py --info http://xathrya.id/ 8

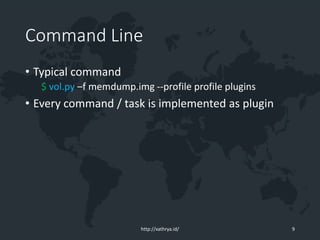

- 9. Command Line • Typicalcommand $ vol.py –f memdump.img --profile profile plugins • Every command / task is implemented as plugin http://xathrya.id/ 9
- 10. Preliminary $ export VOLATILITY_PROFILE=Win7SP0x86 $export VOLATILITY_LOCATION=file:///tmp/image.img $ vol.py pslist $ vol.py files http://xathrya.id/ 10

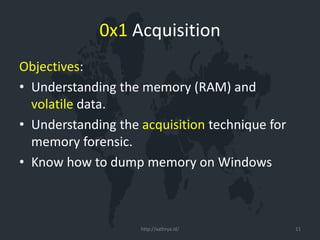

- 11. 0x1 Acquisition Objectives: • Understandingthe memory (RAM) and volatile data. • Understanding the acquisition technique for memory forensic. • Know how to dump memory on Windows http://xathrya.id/ 11

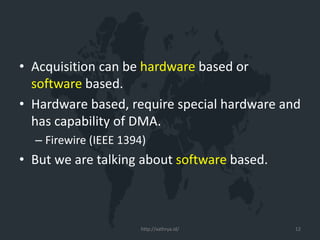

- 12. • Acquisition canbe hardware based or software based. • Hardware based, require special hardware and has capability of DMA. – Firewire (IEEE 1394) • But we are talking about software based. http://xathrya.id/ 12

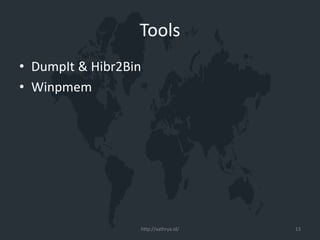

- 13. Tools • DumpIt &Hibr2Bin • Winpmem http://xathrya.id/ 13
- 14. Image Format • Raw •Crash Dumps • Hibernate http://xathrya.id/ 14

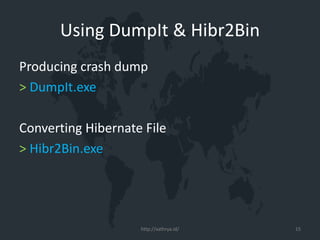

- 15. Using DumpIt &Hibr2Bin Producing crash dump > DumpIt.exe Converting Hibernate File > Hibr2Bin.exe http://xathrya.id/ 15
- 16. Using Winpmem Producing dumpin AFF4 compression > winpmem.exe -o imagedump.aff4 Export to raw from AFF4 > winpmem.exe imagedump.aff4 –export PhysicalMemory -o memory.img Producing raw dump > winpmem.exe imagedump.aff4 –export PhysicalMemory -o memory.img http://xathrya.id/ 16

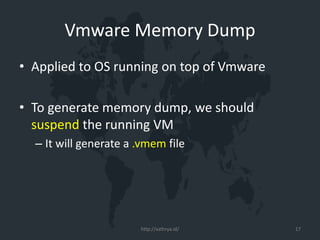

- 17. Vmware Memory Dump •Applied to OS running on top of Vmware • To generate memory dump, we should suspend the running VM – It will generate a .vmem file http://xathrya.id/ 17

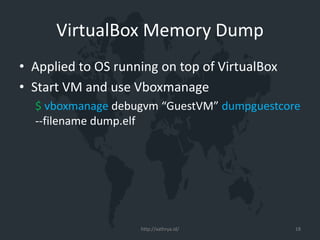

- 18. VirtualBox Memory Dump •Applied to OS running on top of VirtualBox • Start VM and use Vboxmanage $ vboxmanage debugvm “GuestVM” dumpguestcore --filename dump.elf http://xathrya.id/ 18
- 19.

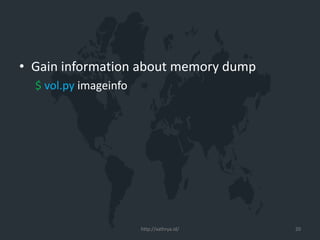

- 20. • Gain informationabout memory dump $ vol.py imageinfo http://xathrya.id/ 20
- 21. PROCESS & DLL View& Dump http://xathrya.id/ 21
- 22. View • List allprocess $ vol.py pslist $ vol.py psscan $ vol.py pstree $ vol.py psxview $ vol.py privs Different? http://xathrya.id/ 22

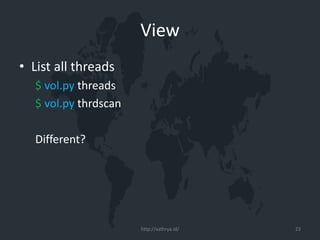

- 23. View • List allthreads $ vol.py threads $ vol.py thrdscan Different? http://xathrya.id/ 23
- 24. View • List modules/librariesof process (ex: pid 135) $ vol.py dlllist –p 135 http://xathrya.id/ 24

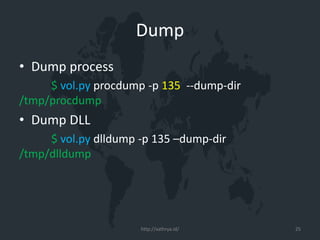

- 25. Dump • Dump process $vol.py procdump -p 135 --dump-dir /tmp/procdump • Dump DLL $ vol.py dlldump -p 135 –dump-dir /tmp/dlldump http://xathrya.id/ 25

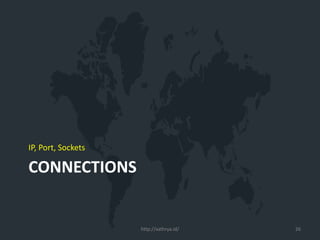

- 26.

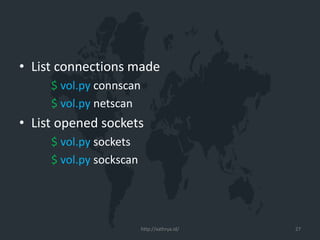

- 27. • List connectionsmade $ vol.py connscan $ vol.py netscan • List opened sockets $ vol.py sockets $ vol.py sockscan http://xathrya.id/ 27

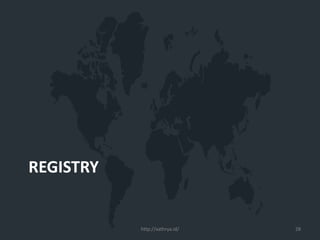

- 28.
- 29. View $ vol.py hivelist $vol.py hivescan http://xathrya.id/ 29
- 30.

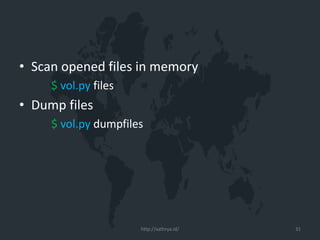

- 31. • Scan openedfiles in memory $ vol.py files • Dump files $ vol.py dumpfiles http://xathrya.id/ 31

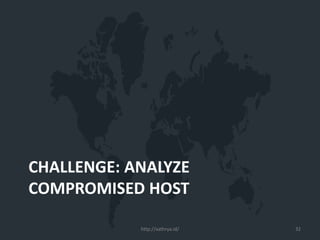

- 32.
