The document contains technical specifications for multiple HVAC units including: - Air handling units ranging from 2,000 to 80,000 CFM and 3 to 50 HP - Condensing units with compressors from 10 to 30 TR - Package units with semi-hermetic or hermetic compressors from 10 to 25 TR - Specifications include refrigerants, fan motors, filter steps, unit construction details, and sound attenuator examples.

1. Unit built in 6 parts / Total length 11m / 2 built-in Silencers
10000CFM
15HP / 40TR
22000CFM
50HP / 96TR
2760
3300

2. Unit built in 6 parts / Total length 11m / 2 built-in Silencers
32000
CFM
25HP/127TR
2760
3300

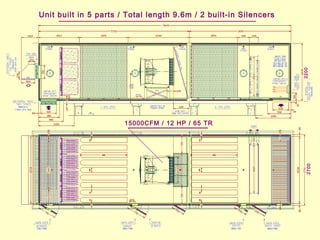

3. Unit built in 5 parts / Total length 9.6m / 2 built-in Silencers
15000CFM / 12 HP / 65 TR
2200
2700

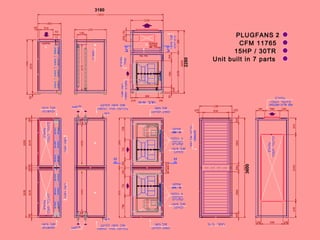

4. 2PLUGFANS
11765CFM
15HP / 30TR
Unit built in 7 parts
2280
3600
3180

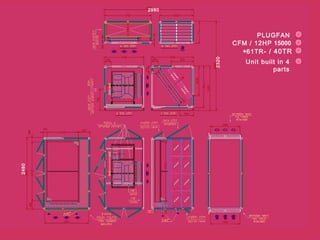

5. PLUGFAN
15000CFM / 12HP
61TR- / 40TR+
Unit built in 4
parts
2980
2320
2480

6. PLUGFAN
2880CFM / 3HP
28TR- / 11TR+
Built-in Silencer
Unit built in 1 part
3450
1350
1620

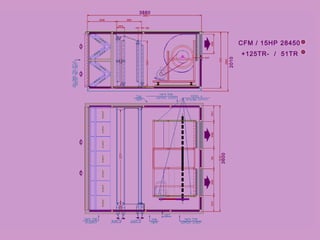

7. 28450CFM / 15HP
125TR- / 51TR+
3880
2010
3600

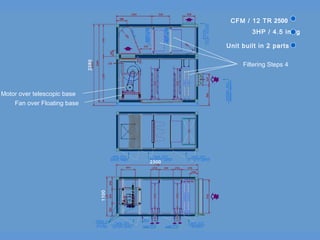

8. 4Filtering Steps
Motor over telescopic base
Fan over Floating base
2500CFM / 12 TR
3HP / 4.5 inwg
Unit built in 2 parts
2300
2280
1100

9. 4000CFM / 3 inwg
4HP / 21TR- / 20TR+
Unit built in 5 parts
3Filtering Steps
1750
2020
1990

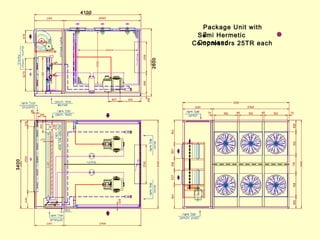

10. Compressors 25TR each
Semi Hermetic
Copeland
Package Unit with
2
4100
3400
2600

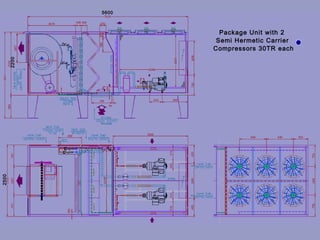

11. Compressors 30TR each
Semi Hermetic Carrier
Package Unit with 2
5600
2500
2200

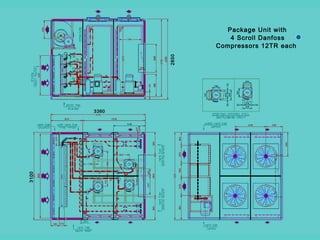

12. Compressors 12TR each
4 Scroll Danfoss
Package Unit with
3360
2850
3100

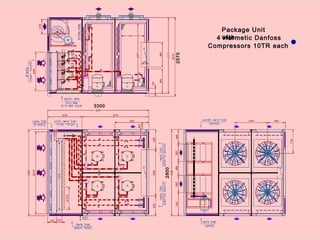

13. Compressors 10TR each
4 Hermetic Danfoss
Package Unit
with
3300
2570
2800

14. with 2 Semi Hermetic
Copeland compressors
Heat Pump Unit
13TR each
3270
2500
2600

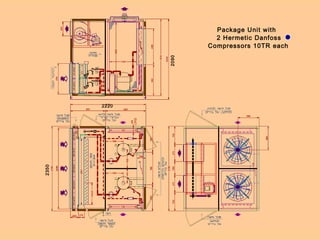

15. Compressors 10TR each
2 Hermetic Danfoss
Package Unit with
2220
2090
2350

16. Refrigerant
Scheme
Example of

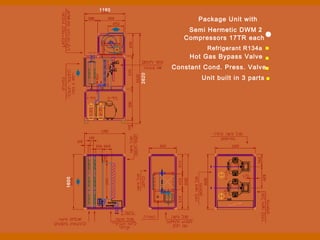

17. Compressors 17TR each
Refrigerant R134a
Constant Cond. Press. Valve
Hot Gas Bypass Valve
2Semi Hermetic DWM
Unit built in 3 parts
Package Unit with
1180
1600
2620

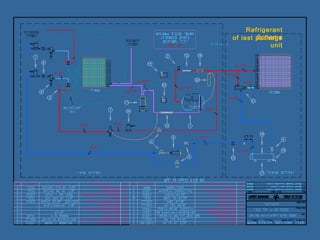

18. Refrigerant
Schemeof last package
unit

19. 650
2900
25TR
8750CFM
3100

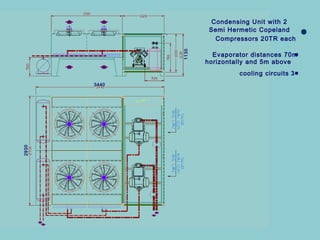

20. Semi Hermetic Copeland
Evaporator distances 70m
horizontally and 5m above
3cooling circuits
Compressors 20TR each
3440
2930
1130
Condensing Unit with 2

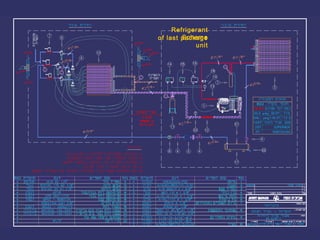

21. Refrigerant
Schemeof last package
unit

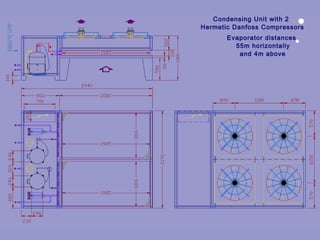

22. Hermetic Danfoss Compressors
Evaporator distances
55m horizontally
Condensing Unit with 2
and 4m above

23. Condensing Unit
with 2 Scroll
DanfossCompr. 10TR each

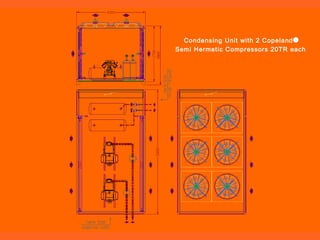

24. Condensing Unit with 2 Copeland
Semi Hermetic Compressors 20TR each

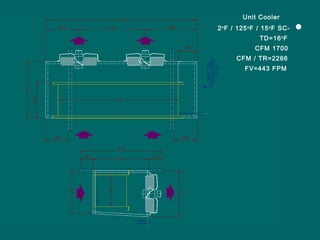

25. TD=16o
F
CFM / TR=2266
FV=443 FPM
-2o
F / 125o
F / 15o
F SC
1700CFM
Unit Cooler

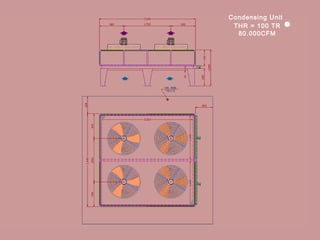

26. THR = 100 TR
80.000CFM
Condensing Unit

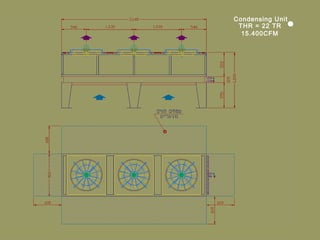

27. THR = 22 TR
15.400CFM
Condensing Unit

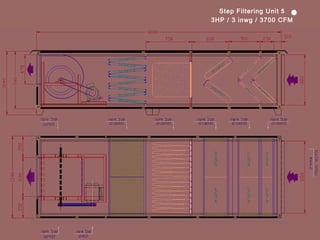

28. 3HP / 3 inwg / 3700 CFM
5Step Filtering Unit

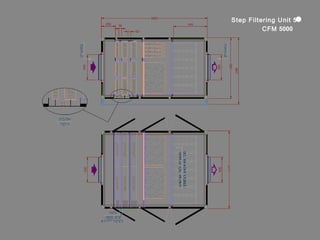

29. 5Step Filtering Unit
5000CFM

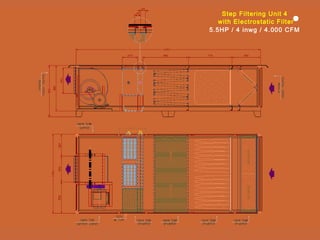

30. with Electrostatic Filter
5.5HP / 4 inwg / 4.000 CFM
4Step Filtering Unit

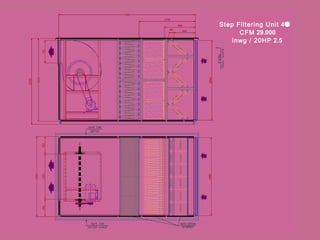

31. 29.000CFM
2.5inwg / 20HP
4Step Filtering Unit

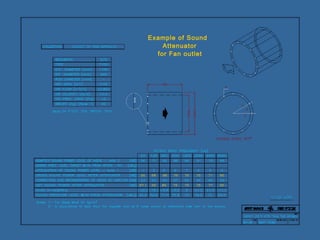

32. Example of Sound
for Fan outlet
Attenuator

33. Example of Sound
for Fan inlet
Attenuator

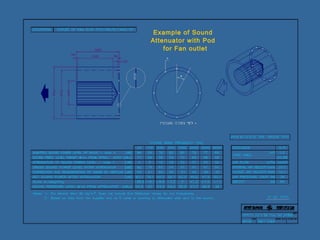

34. Example of Sound
for Fan outlet
Attenuator with Pod

35. Example of Sound
for Fan inlet
Attenuator with Pod

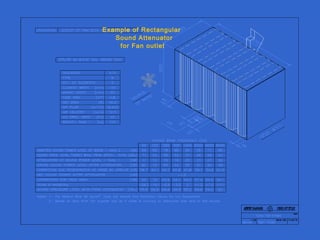

36. Example of Rectangular
for Fan outlet
Sound Attenuator
