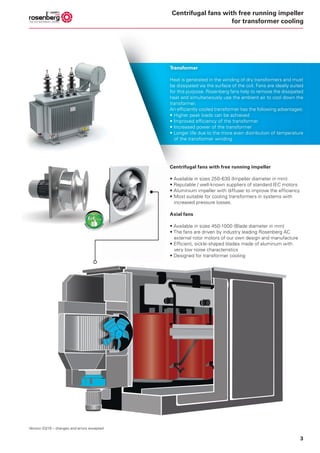

Centrifugal fans with free running impeller
• Available in sizes 250-630 (Impeller diameter in mm)
• Reputable / well-known suppliers of standard IEC motors
• Aluminium impeller with diffuser to improve the efficiency
• Most suitable for cooling transformers in systems with
increased pressure losses.
Axial fans
• Available in sizes 450-1000 (Blade diameter in mm)
• The fans are driven by industry leading Rosenberg AC
external rotor motors of our own design and manufacture
• Efficient, sickle-shaped blades made of aluminum with
very low noise characteristics
• Designed for transformer cooling
Transformer
Heat is generated in the winding of dry transformers and must
be dissipated via the surface of the coil. Fans are ideally suited
for this purpose. Rosenberg fans help to remove the dissipated
heat and simultaneously use the ambient air to cool down the
transformer.
An efficiently cooled transformer has the following advantages:
• Higher peak loads can be achieved
• Improved efficiency of the transformer
• Increased power of the transformer
• Longer life due to the more even distribution of temperature
of the transformer winding
Version 03/19 – changes and errors excepted
Centrifugal fans with free running impeller
for transformer cooling

4. 4
Centrifugal fans with free running impeller
Type: DKNR
DKNR
[Pa]
fa
[in.WG]
fa
V[m3
/h]
0
400
200
600
800
1200
1000
1600
1400
1800
2400
2200
0.00
1.00
2.00
3.00
4.00
5.00
6.00
7.00
9.00
0 1000 2000 3000 4000 5000 6000 7000 8000 10000
0 1000 2000 3000 5000
3
5
50 Hz
7
9
1
V[C.F.M.]
0.00 0.50 1.00 1.50 2.00 3.00V[m3
/s]
V[C.F.M.]2000 4000 6000
V[m3
/h]0 2000 4000 6000 8000 10000 12000 14000 16000
10000
20000
0.00 1.00 2.00 3.00 5.00V[m3
/s]
[Pa]
fa
[in.WG]
fa
0
200
400
600
800
1000
1400
0.00
1.00
2.00
3.00
4.00
5.00
0
21
13
15
19
11
50 Hz
17
V[m3
/h]
[Pa]
fa
[in.WG]
fa
0
400
800
1200
1600
2000
2400
3200
0.00
2.00
4.00
6.00
8.00
12.00
0
2
4 6
10
8
60 Hz
V[C.F.M.]
0 2000 4000 6000 8000 12000
1000 2000 3000 4000 5000 7000
0.00 0.50 1.00 1.50 2.00 3.00V[m3
/s]
[Pa] t
[in.WG]
t
0
200
400
600
800
1000
1200
1400
1600
2000
0
1.00
2.00
3.00
4.00
5.00
6.00
8.00
60 Hz
12
14
22
20
16
18
0 5000 10000 15000 25000V[m3
/h]
0 2000 4000 6000 8000 10000 V[C.F.M.] 14000
0.00 1.00 2.00 3.00 4.00 5.00 7.00V[m3
/s]
Nr. Size Fan type
U
[V]
f
[Hz]
P
[kW]
n
[min-1
]
IN
[A]
LwA
[dB(A)]
1 250 DKNR 250-2KB.071.B08 400 50 0.75 2805 1.67 76
2 250 DKNR 250-2KB.071.B08 460 60 1.27 3430 2.30 81
3 280 DKNR 280-2KB.080.B08 400 50 1.10 2835 2.40 83
4 280 DKNR 280-2KB.080.B09 460 60 1.75 3480 3.10 87
5 315 DKNR 315-2KB.090.B09 400 50 1.50 2885 3.15 87
6 315 DKNR 315-2KB.090.B09 460 60 2.54 3485 4.35 92
7 355 DKNR 355-2KB.100.B10 400 50 3.00 2905 6.10 90
8 355 DKNR 355-2KB.100.B11 460 60 4.55 3540 7.60 94
9 400 DKNR 400-2KB.112.B11 400 50 4.00 2945 7.90 90
10 400 DKNR 400-2KB.112.B13 460 60 6.30 3550 10.20 94
11 450 DKNR 450-4KB.125.B09 400 50 1.50 1435 3.30 76
12 450 DKNR 450-4KB.125.B10 460 60 2.54 1755 4.45 81
13 500 DKNR 500-4KB.140.B10 400 50 3.00 1455 6.20 85
14 500 DKNR 500-4KB.140.B11 460 60 4.55 1760 8.00 89
15 560 DKNR 560-4KB.160.B11 400 50 4.00 1460 8.20 87
16 560 DKNR 560-4KB.160.B13 460 60 6.30 1765 10.90 91
17 560 DKNR 560-6KB.160.B09 400 50 1.10 935 2.90 77
18 560 DKNR 560-6KB.160.B10 460 60 1.75 1170 3.45 82
19 630 DKNR 630-4KB.180.B13 400 50 5.50 1465 11.30 83
20 630 DKNR 630-4KB.180.B13 460 60 8.60 1765 14.50 92
21 630 DKNR 630-6KB.180.B10 400 50 1.50 970 3.70 79
22 630 DKNR 630-6KB.180.B11 460 60 2.54 1165 4.90 83
Notice: Measurement according to ISO 13347-3. The free-outlet sound power level Lw(A)8
is depicted.

5. 5
Centrifugal fans with free running impeller
Type: DKNR

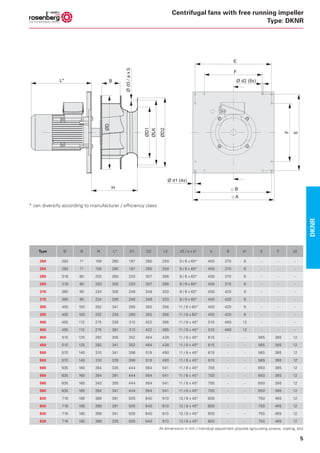

Type D B H L* D1 D2 LK d2 / a x b° A B d1 E F d2
250 283 71 159 260 197 280 259 9 / 6 x 60° 400 370 9 - - -
250 283 71 159 260 197 280 259 9 / 6 x 60° 400 370 9 - - -
280 318 80 203 260 220 307 286 9 / 6 x 60° 400 370 9 - - -
280 318 80 203 305 220 307 286 9 / 6 x 60° 400 370 9 - - -
315 360 90 224 305 248 348 320 9 / 6 x 60° 450 420 9 - - -
315 360 90 224 305 248 348 320 9 / 6 x 60° 450 420 9 - - -
355 405 100 252 341 280 382 356 11 / 6 x 60° 450 420 9 - - -
355 405 100 252 335 280 382 356 11 / 6 x 60° 450 420 9 - - -
400 455 112 275 335 313 422 395 11 / 8 x 45° 510 460 12 - - -
400 455 112 275 391 313 422 395 11 / 8 x 45° 510 460 12 - - -
450 510 125 282 305 352 464 438 11 / 8 x 45° 615 - - 565 365 12
450 510 125 282 341 352 464 438 11 / 8 x 45° 615 - - 565 365 12
500 570 140 310 341 396 519 490 11 / 8 x 45° 615 - - 565 365 12
500 570 140 310 335 396 519 490 11 / 8 x 45° 615 - - 565 365 12
560 635 160 354 335 444 564 541 11 / 8 x 45° 700 - - 650 365 12
560 635 160 354 391 444 564 541 11 / 8 x 45° 700 - - 650 365 12
560 635 160 343 305 444 564 541 11 / 8 x 45° 700 - - 650 365 12
560 635 160 354 341 444 564 541 11 / 8 x 45° 700 - - 650 365 12
630 716 180 389 391 505 640 610 13 / 8 x 45° 800 - - 750 465 12
630 716 180 389 391 505 640 610 13 / 8 x 45° 800 - - 750 465 12
630 716 180 389 341 505 640 610 13 / 8 x 45° 800 - - 750 465 12
630 716 180 389 335 505 640 610 13 / 8 x 45° 800 - - 750 465 12
All dimensions in mm / individual adjustment possible (grounding screws, coating, etc)
H B
A
Ø d1 (4x)
Ø d2 (8x)
ØD
F
E
ØD1
Ød3/axb
ØLK
ØD2
L* B
E
F
DKNR
* can diversify according to manufacturer / efficiency class

6. 6
Axial fans
Type: AKSD / AKFD

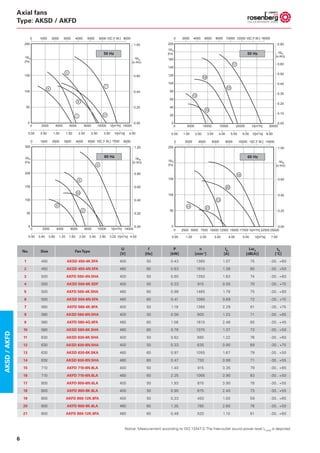

No. Size FanType
