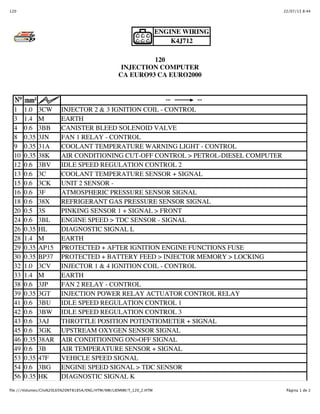

ENGINE WIRING
K4J712
120
INJECTION COMPUTER
CA EURO93 CA EURO2000
1 1.0 3CW INJECTOR 2 & 3 IGNITION COIL - CONTROL
3 1.4 M EARTH
4 0.6 3BB CANISTER BLEED SOLENOID VALVE
8 0.35 3JN FAN 1 RELAY - CONTROL
9 0.35 31A COOLANT TEMPERATURE WARNING LIGHT - CONTROL
10 0.35 38K AIR CONDITIONING CUT-OFF CONTROL > PETROL-DIESEL COMPUTER
12 0.6 3BV IDLE SPEED REGULATION CONTROL 2
13 0.6 3C COOLANT TEMPERATURE SENSOR + SIGNAL
15 0.6 3CK UNIT 2 SENSOR -
16 0.6 3F ATMOSPHERIC PRESSURE SENSOR SIGNAL
18 0.6 38X REFRIGERANT GAS PRESSURE SENSOR SIGNAL
20 0.5 3S PINKING SENSOR 1 + SIGNAL > FRONT
24 0.6 3BL ENGINE SPEED > TDC SENSOR - SIGNAL
26 0.35 HL DIAGNOSTIC SIGNAL L
28 1.4 M EARTH
29 0.35 AP15 PROTECTED + AFTER IGNITION ENGINE FUNCTIONS FUSE
30 0.35 BP37 PROTECTED + BATTERY FEED > INJECTOR MEMORY > LOCKING
32 1.0 3CV INJECTOR 1 & 4 IGNITION COIL - CONTROL
33 1.4 M EARTH
38 0.6 3JP FAN 2 RELAY - CONTROL
39 0.35 3GT INJECTION POWER RELAY ACTUATOR CONTROL RELAY
41 0.6 3BU IDLE SPEED REGULATION CONTROL 1
42 0.6 3BW IDLE SPEED REGULATION CONTROL 3
43 0.6 3AJ THROTTLE POSITION POTENTIOMETER + SIGNAL
45 0.6 3GK UPSTREAM OXYGEN SENSOR SIGNAL
46 0.35 38AR AIR CONDITIONING ON>OFF SIGNAL
49 0.6 3B AIR TEMPERATURE SENSOR + SIGNAL
53 0.35 47F VEHICLE SPEED SIGNAL
54 0.6 3BG ENGINE SPEED SIGNAL > TDC SENSOR
56 0.35 HK DIAGNOSTIC SIGNAL K

2. 22/07/13 8:44120
Página 2 de 2file:///Volumes/Clio%20L65%20NT8185A/ENG/HTM/NM/LIENNM/T_120_2.HTM

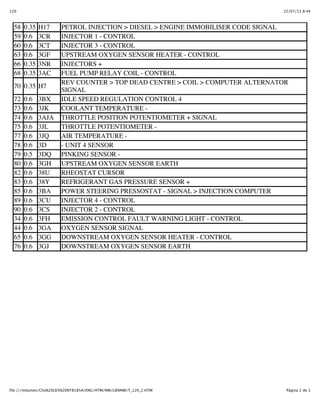

58 0.35 H17 PETROL INJECTION > DIESEL > ENGINE IMMOBILISER CODE SIGNAL
59 0.6 3CR INJECTOR 1 - CONTROL
60 0.6 3CT INJECTOR 3 - CONTROL
63 0.6 3GF UPSTREAM OXYGEN SENSOR HEATER - CONTROL
66 0.35 3NR INJECTORS +
68 0.35 3AC FUEL PUMP RELAY COIL - CONTROL
70 0.35 H7
REV COUNTER > TOP DEAD CENTRE > COIL > COMPUTER ALTERNATOR
SIGNAL
72 0.6 3BX IDLE SPEED REGULATION CONTROL 4
73 0.6 3JK COOLANT TEMPERATURE -
74 0.6 3AJA THROTTLE POSITION POTENTIOMETER + SIGNAL
75 0.6 3JL THROTTLE POTENTIOMETER -
77 0.6 3JQ AIR TEMPERATURE -
78 0.6 3D - UNIT 4 SENSOR
79 0.5 3DQ PINKING SENSOR -
80 0.6 3GH UPSTREAM OXYGEN SENSOR EARTH
82 0.6 38U RHEOSTAT CURSOR
83 0.6 38Y REFRIGERANT GAS PRESSURE SENSOR +
85 0.6 3BA POWER STEERING PRESSOSTAT - SIGNAL > INJECTION COMPUTER
89 0.6 3CU INJECTOR 4 - CONTROL
90 0.6 3CS INJECTOR 2 - CONTROL
34 0.6 3FH EMISSION CONTROL FAULT WARNING LIGHT - CONTROL
44 0.6 3GA OXYGEN SENSOR SIGNAL
65 0.6 3GG DOWNSTREAM OXYGEN SENSOR HEATER - CONTROL
76 0.6 3GJ DOWNSTREAM OXYGEN SENSOR EARTH
