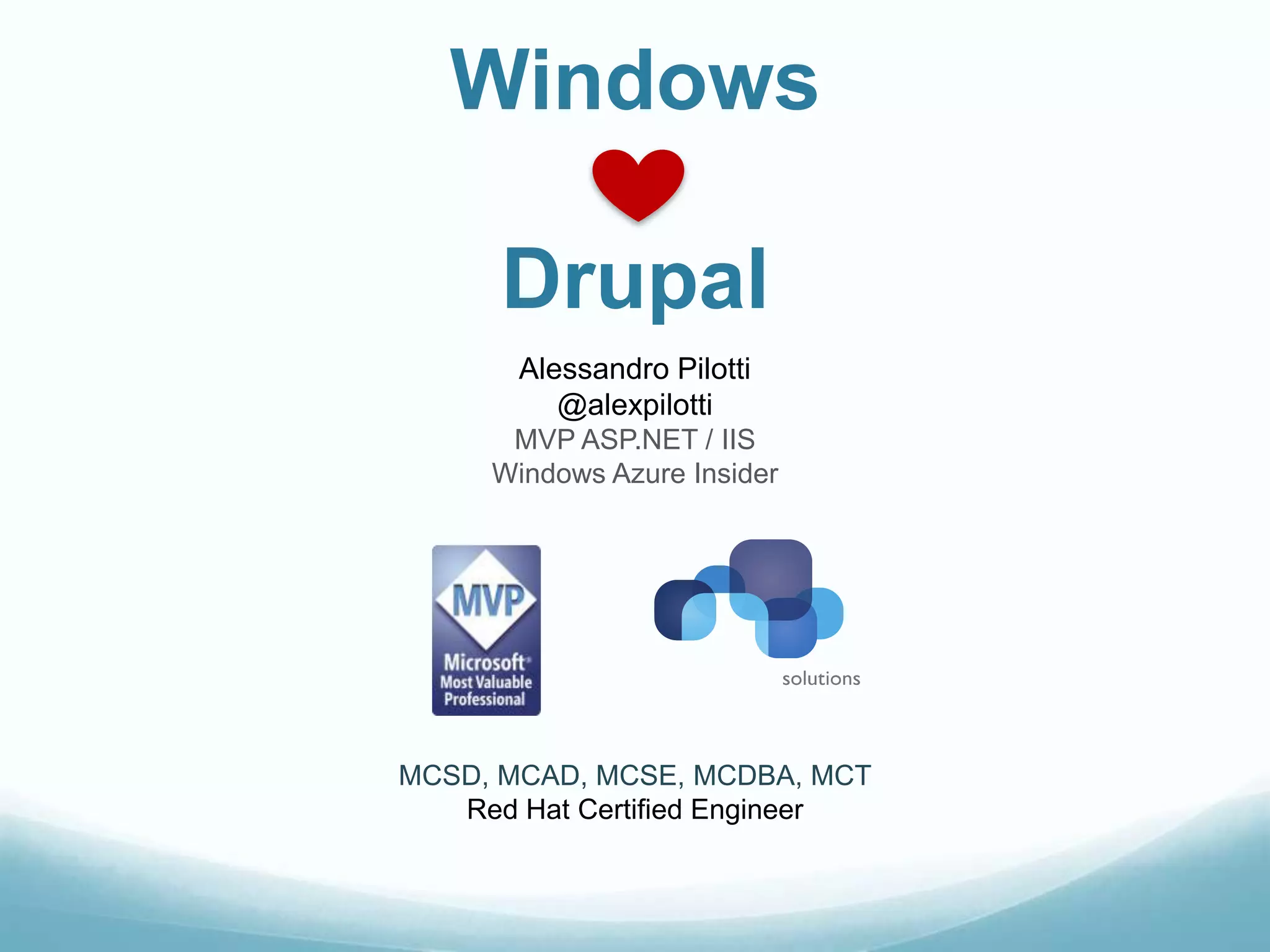

Windows

      Drupal
       Alessandro Pilotti
          @alexpilotti
      MVP ASP.NET / IIS
     Windows Azure Insider




MCSD, MCAD, MCSE, MCDBA, MCT
   Red Hat Certified Engineer

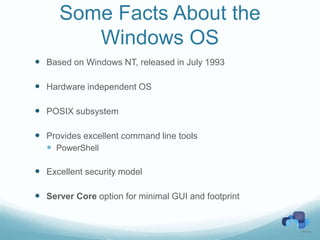

Some Facts About the
         Windows OS
 Based on Windows NT, released in July 1993

 Hardware independent OS

 POSIX subsystem

 Provides excellent command line tools
   PowerShell

 Excellent security model

 Server Core option for minimal GUI and footprint

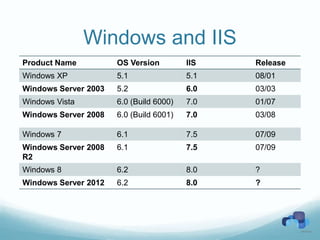

Windows and IIS
Product Name          OS Version         IIS   Release
Windows XP            5.1                5.1   08/01
Windows Server 2003   5.2                6.0   03/03
Windows Vista         6.0 (Build 6000)   7.0   01/07
Windows Server 2008   6.0 (Build 6001)   7.0   03/08

Windows 7             6.1                7.5   07/09
Windows Server 2008   6.1                7.5   07/09
R2
Windows 8             6.2                8.0   ?
Windows Server 2012   6.2                8.0   ?

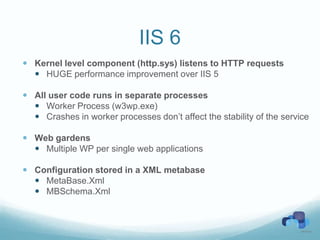

IIS 6
 Kernel level component (http.sys) listens to HTTP requests
   HUGE performance improvement over IIS 5

 All user code runs in separate processes
   Worker Process (w3wp.exe)
   Crashes in worker processes don’t affect the stability of the service

 Web gardens
   Multiple WP per single web applications

 Configuration stored in a XML metabase
   MetaBase.Xml
   MBSchema.Xml
IIS 7.x / 8.0
 Complete redesign over IIS 6.0
 Modular design
 http.sys is still part of the architecture
 Improved remote administration and delegation
 Enhanced command line and scripting tools
   Including PowerShell cmdlets
 Flexible model not limited to HTTP
 Tight integration with WCF

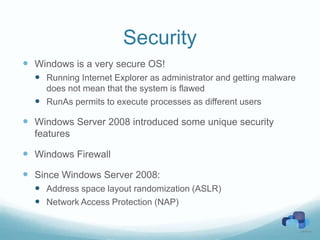

Security
 Windows is a very secure OS!
   Running Internet Explorer as administrator and getting malware
    does not mean that the system is flawed
   RunAs permits to execute processes as different users

 Windows Server 2008 introduced some unique security
  features

 Windows Firewall
 Since Windows Server 2008:
   Address space layout randomization (ASLR)
   Network Access Protection (NAP)

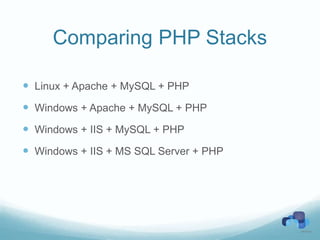

Comparing PHP Stacks

 Linux + Apache + MySQL + PHP
 Windows + Apache + MySQL + PHP
 Windows + IIS + MySQL + PHP
 Windows + IIS + MS SQL Server + PHP

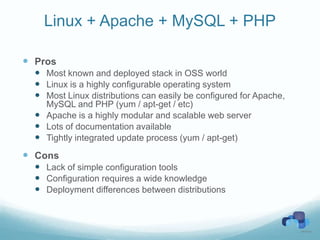

Linux + Apache + MySQL + PHP

 Pros
   Most known and deployed stack in OSS world
   Linux is a highly configurable operating system
   Most Linux distributions can easily be configured for Apache,
    MySQL and PHP (yum / apt-get / etc)
   Apache is a highly modular and scalable web server
   Lots of documentation available
   Tightly integrated update process (yum / apt-get)
 Cons
   Lack of simple configuration tools
   Configuration requires a wide knowledge
   Deployment differences between distributions
Windows + Apache + MySQL + PHP

 Pros
   Most of the components are shared with the LAMP stack
   Suitable for solutions that require integration with both Apache
    modules (e.g. mod_rewrite) and Windows
   Until FastCGI for IIS showed up, undoubtfully the best PHP
    stack on Windows
   Tools like XAMPP provide an easy deployment option
     http://en.wikipedia.org/wiki/Comparison_of_WAMPs
 Cons
     Performance
     Limited documentation and examples
     Limited integration in the Windows ecosystem
     Heterogeneous scenario for security updates

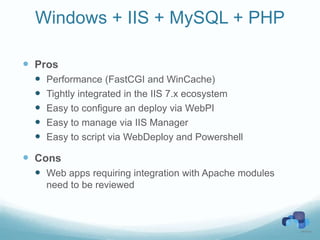

Windows + IIS + MySQL + PHP

 Pros
     Performance (FastCGI and WinCache)
     Tightly integrated in the IIS 7.x ecosystem
     Easy to configure an deploy via WebPI
     Easy to manage via IIS Manager
     Easy to script via WebDeploy and Powershell

 Cons
   Web apps requiring integration with Apache modules
      need to be reviewed

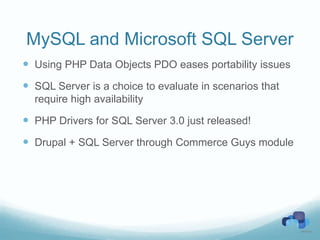

MySQL and Microsoft SQL Server
 Using PHP Data Objects PDO eases portability issues
 SQL Server is a choice to evaluate in scenarios that
  require high availability

 PHP Drivers for SQL Server 3.0 just released!
 Drupal + SQL Server through Commerce Guys module
PHP on Windows
 COM integration
   Simplest way to access OS native 3rd party features
   Marshaling performance is not brilliant (IDispatch / late
     binding)
 .NET integration (experimental)
 W32Api (experimental)
   Register / Invoke API functions
   Be careful with the parameters on the stack
 win32service
   start/stop/register/unregister services
 Note: flock() has a slightly different behavior on Windows

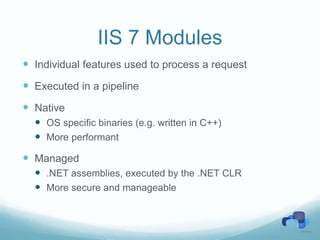

IIS 7 Modules
 Individual features used to process a request
 Executed in a pipeline
 Native
   OS specific binaries (e.g. written in C++)
   More performant
 Managed
   .NET assemblies, executed by the .NET CLR
   More secure and manageable

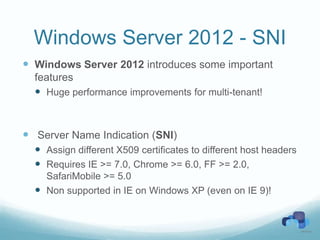

Windows Server 2012 - SNI
 Windows Server 2012 introduces some important
  features
   Huge performance improvements for multi-tenant!



 Server Name Indication (SNI)
   Assign different X509 certificates to different host headers
   Requires IE >= 7.0, Chrome >= 6.0, FF >= 2.0,
    SafariMobile >= 5.0
   Non supported in IE on Windows XP (even on IE 9)!

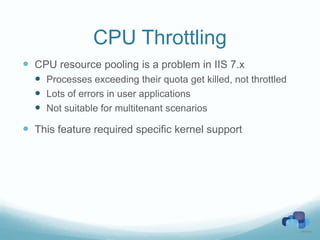

CPU Throttling
 CPU resource pooling is a problem in IIS 7.x
   Processes exceeding their quota get killed, not throttled
   Lots of errors in user applications
   Not suitable for multitenant scenarios
 This feature required specific kernel support

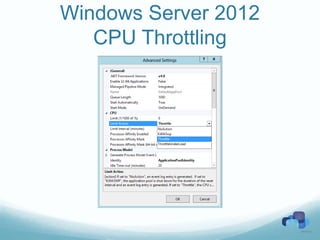

Windows Server 2012
   CPU Throttling
WebPI
 Microsoft Web Platform Installer (WebPI) is a free tool
  that simplifies deployment of web solutions
   IIS features and extensions
       WinCache, PHP Drivers for SQL Server, PHP Manager
     Frameworks
       PHP 5.2 / 5.3, .Net, etc
     Web applications
       Drupal, Joomla, Wordpress, DotNetNuke, Orchard, etc
     Database
       MS SQL Server Express, MySQL, etc
     WebMatrix
       WebMatrix 2 RC available!
Drupal via WebPI
 Fastest way to setup Drupal on IIS
 Takes care of all the steps
   Deploy of Drupal (6.x or 7.x)
   Dependencies
     PHP, IIS: CGI, URL Rewrite, VC9, WinCache, etc
   File permissions
   Database creation
Windows Cache Extension for
          PHP
 Open source project developed by Microsoft
 IIS Specific accelerator
 Requires PHP 5.2 or 5.3 x86
   Non thread safe version
 Provides features not available in APC and
  other accelerators
 Current version: 1.1

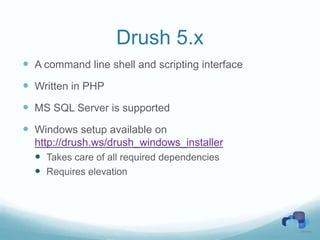

Drush 5.x
 A command line shell and scripting interface
 Written in PHP
 MS SQL Server is supported
 Windows setup available on
  http://drush.ws/drush_windows_installer
   Takes care of all required dependencies
   Requires elevation

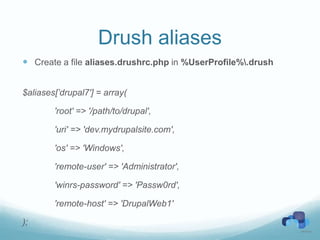

Drush aliases
 Create a file aliases.drushrc.php in %UserProfile%.drush


$aliases[’drupal7'] = array(

        'root' => '/path/to/drupal',

        'uri' => 'dev.mydrupalsite.com',

        'os' => 'Windows',

        'remote-user' => 'Administrator',

        'winrs-password' => 'Passw0rd',

        'remote-host' => 'DrupalWeb1'

);

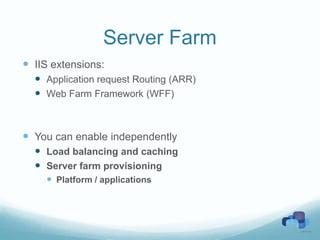

Server Farm
 IIS extensions:
   Application request Routing (ARR)
   Web Farm Framework (WFF)



 You can enable independently
   Load balancing and caching
   Server farm provisioning
     Platform / applications

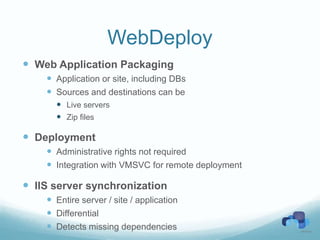

WebDeploy
 Web Application Packaging
     Application or site, including DBs
     Sources and destinations can be
       Live servers
       Zip files

 Deployment
     Administrative rights not required
     Integration with VMSVC for remote deployment

 IIS server synchronization
     Entire server / site / application
     Differential
     Detects missing dependencies

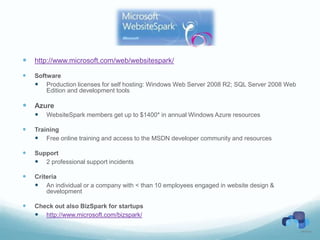

   http://www.microsoft.com/web/websitespark/

   Software
     Production licenses for self hosting: Windows Web Server 2008 R2; SQL Server 2008 Web
        Edition and development tools

   Azure
     WebsiteSpark members get up to $1400* in annual Windows Azure resources

   Training
     Free online training and access to the MSDN developer community and resources

   Support
     2 professional support incidents

   Criteria
     An individual or a company with < than 10 employees engaged in website design &
        development

   Check out also BizSpark for startups
     http://www.microsoft.com/bizspark/

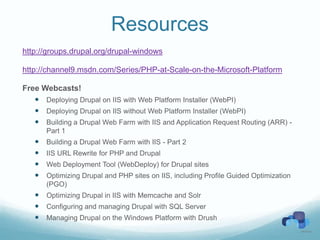

Resources
http://groups.drupal.org/drupal-windows

http://channel9.msdn.com/Series/PHP-at-Scale-on-the-Microsoft-Platform

Free Webcasts!
    Deploying Drupal on IIS with Web Platform Installer (WebPI)
    Deploying Drupal on IIS without Web Platform Installer (WebPI)
    Building a Drupal Web Farm with IIS and Application Request Routing (ARR) -
       Part 1
      Building a Drupal Web Farm with IIS - Part 2
      IIS URL Rewrite for PHP and Drupal
      Web Deployment Tool (WebDeploy) for Drupal sites
      Optimizing Drupal and PHP sites on IIS, including Profile Guided Optimization
       (PGO)
    Optimizing Drupal in IIS with Memcache and Solr
    Configuring and managing Drupal with SQL Server
    Managing Drupal on the Windows Platform with Drush
