This document discusses how to run PHP applications on the Windows Azure platform. It describes how to set up and deploy PHP applications to run in both web and worker roles. It also covers tools for PHP development on Azure, including the Windows Azure SDK for PHP and command line tools. Additionally, it discusses how to use Azure services like SQL Azure and storage from PHP applications.

1. Windows Azure Platform + PHPJonathan WongMicrosoft Innovation Centre Singaporeinnovativesingapore.com | twitter.com/innovativesg

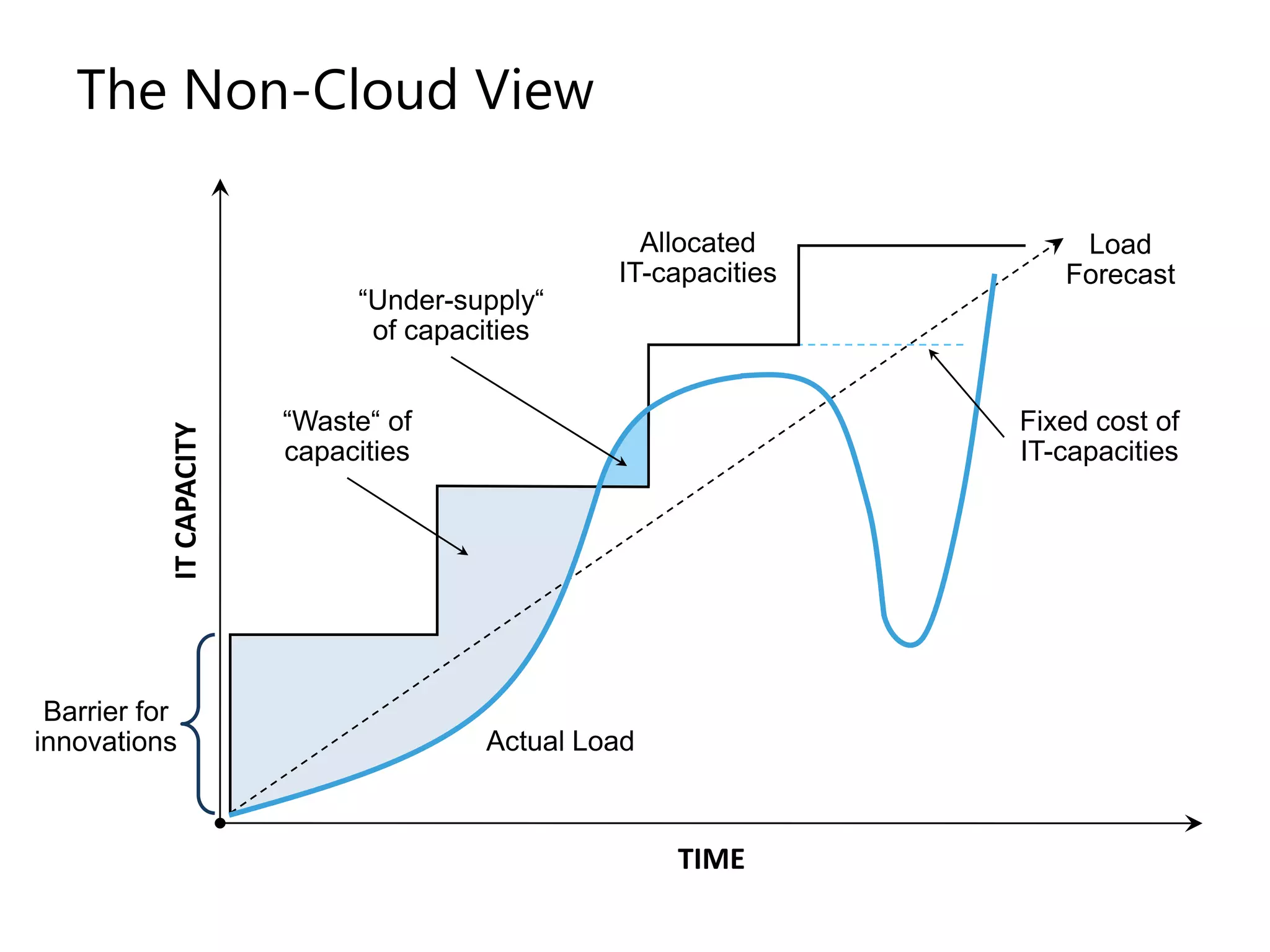

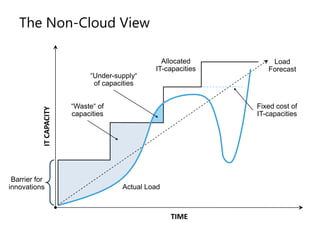

2. The Non-Cloud ViewAllocated IT-capacitiesLoad Forecast“Under-supply“ of capacities“Waste“ of capacitiesFixed cost of IT-capacitiesIT CAPACITYBarrier forinnovationsActualLoadTIME

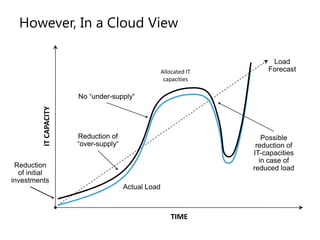

3. Load ForecastAllocated IT capacitiesNo “under-supply“IT CAPACITYReduction of “over-supply“Possible reduction of IT-capacities in case of reduced loadReduction of initial investmentsActualLoadTIMEHowever, In a Cloud View

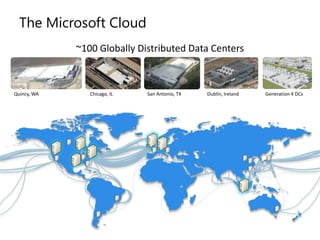

4. The Microsoft Cloud~100 Globally Distributed Data CentersQuincy, WAChicago, ILSan Antonio, TXDublin, IrelandGeneration 4 DCs

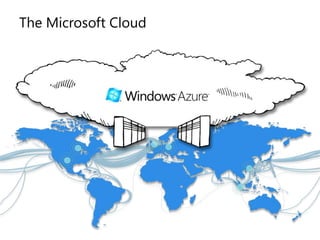

5. The Microsoft Cloud

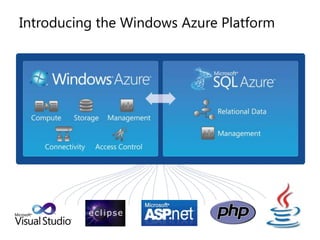

6. Introducing the Windows Azure Platform

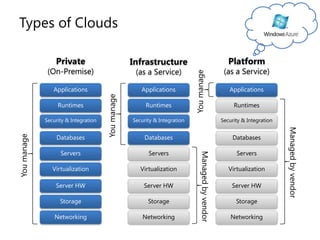

7. Types of CloudsPrivate(On-Premise)Infrastructure(as a Service)Platform(as a Service)You manageApplicationsApplicationsApplicationsYou manageRuntimesRuntimesRuntimesSecurity & IntegrationSecurity & IntegrationSecurity & IntegrationManaged by vendorDatabasesDatabasesDatabasesYou manageServersServersServersManaged by vendorVirtualizationVirtualizationVirtualizationServer HWServer HWServer HWStorageStorageStorageNetworkingNetworkingNetworking

8. Private(On-Premise)Types of CloudsInfrastructure(as a Service)Platform(as a Service)

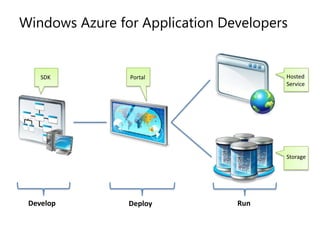

9. Windows Azure for Application DevelopersHostedServicePortalSDKStorageDevelopRunDeploy

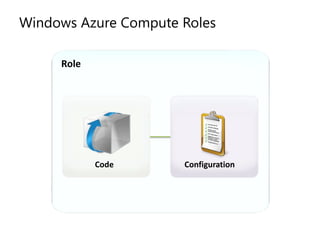

10. Windows Azure Compute RolesRoleCodeConfiguration

11. Web vs. Worker RoleWorker RoleWeb RoleSystem HostIIS HostYour CodeYour Code

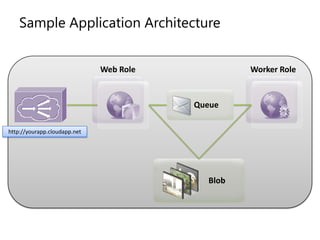

12. Sample Application ArchitectureWeb RoleWorker RoleQueuehttp://yourapp.cloudapp.netBlob

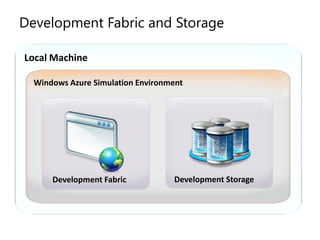

13. Development Fabric and StorageLocal MachineWindows Azure Simulation Environment Development StorageDevelopment Fabric

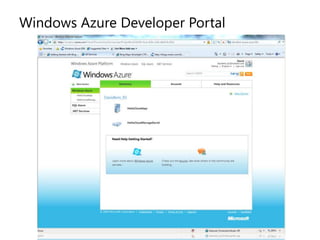

14. Windows Azure Developer Portal

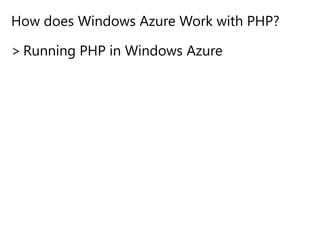

15. How does Windows Azure Work with PHP?Running PHP in Windows Azure

16. Running PHP in Windows AzureHow to Do ItHost in Web role (like .NET)Supply PHP runtimePoint to runtime via FastCGI configuration inWeb.configWeb.roleconfigPHP Web RoleInstance 1VIPLoad BalancerPHP Web RoleInstance 2

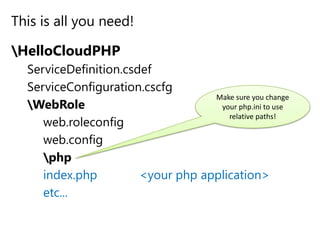

17. This is all you need!\HelloCloudPHPServiceDefinition.csdefServiceConfiguration.cscfg\WebRoleweb.roleconfigweb.config\phpindex.php <your php application>etc...Make sure you change your php.ini to use relative paths!

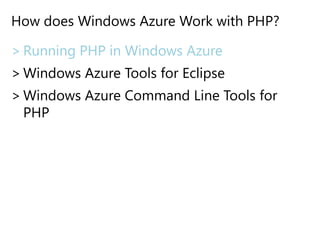

18. How does Windows Azure Work with PHP?Running PHP in Windows AzureWindows Azure Tools for EclipseWindows Azure Command Line Tools for PHP

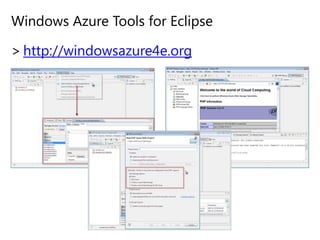

19. Windows Azure Tools for Eclipsehttp://windowsazure4e.org

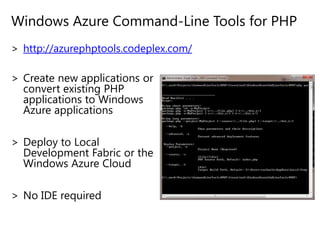

20. Windows Azure Command-Line Tools for PHPCreate new applications or convert existing PHP applications to Windows Azure applicationsDeploy to Local Development Fabric or the Windows Azure CloudNo IDE requiredhttp://azurephptools.codeplex.com/

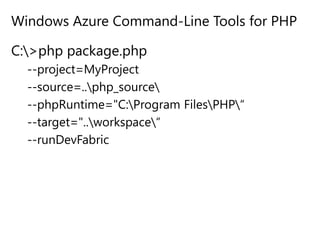

21. Windows Azure Command-Line Tools for PHPC:\>php package.php--project=MyProject--source=..\php_source\--phpRuntime="C:\Program Files\PHP\“--target="..\workspace\“--runDevFabric

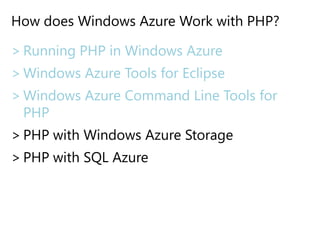

22. How does Windows Azure Work with PHP?Running PHP in Windows AzureWindows Azure Tools for EclipseWindows Azure Command Line Tools for PHPPHP with Windows Azure StoragePHP with SQL Azure

23. PHP + Cloud StorageWindows Azure StorageOn-PremisesVIPPHPWeb RoleLoad BalancerPHP AppSQL AzureWindows Azure Platform

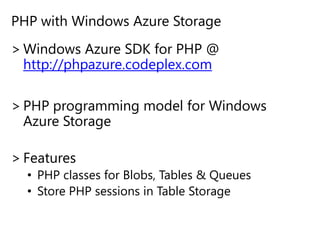

24. PHP with Windows Azure StorageWindows Azure SDK for PHP @ http://phpazure.codeplex.comPHP programming model for Windows Azure StorageFeatures PHP classes for Blobs, Tables & QueuesStore PHP sessions in Table Storage

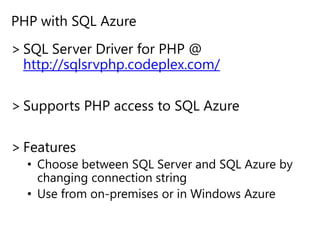

25. PHP with SQL AzureSQL Server Driver for PHP @ http://sqlsrvphp.codeplex.com/Supports PHP access to SQL AzureFeaturesChoose between SQL Server and SQL Azure by changing connection stringUse from on-premises or in Windows Azure

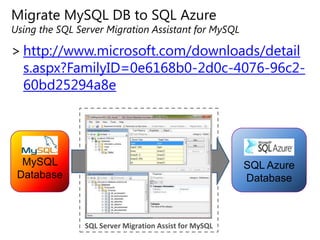

26. Migrate MySQL DB to SQL AzureUsing the SQL Server Migration Assistant for MySQLhttp://www.microsoft.com/downloads/details.aspx?FamilyID=0e6168b0-2d0c-4076-96c2-60bd25294a8eMySQL DatabaseSQL Server Migration Assist for MySQLSQL AzureDatabase

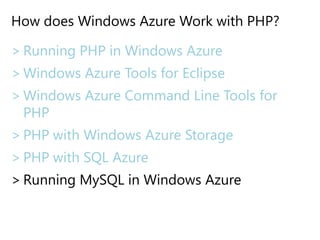

27. How does Windows Azure Work with PHP?Running PHP in Windows AzureWindows Azure Tools for EclipseWindows Azure Command Line Tools for PHPPHP with Windows Azure StoragePHP with SQL AzureRunning MySQL in Windows Azure

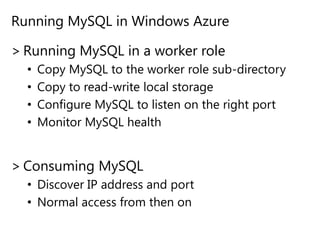

28. Running MySQL in Windows AzureRunning MySQL in a worker roleCopy MySQL to the worker role sub-directoryCopy to read-write local storageConfigure MySQL to listen on the right portMonitor MySQL healthConsuming MySQLDiscover IP address and portNormal access from then on

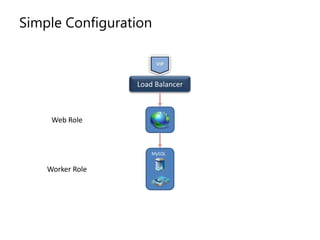

29. Simple ConfigurationVIPLoad BalancerWeb RoleMySQLWorker Role

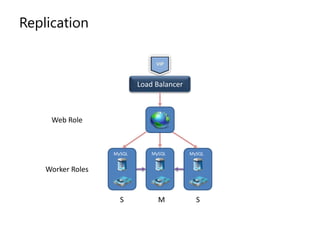

30. ReplicationVIPLoad BalancerWeb RoleMySQLMySQLMySQLWorker RolesMSS

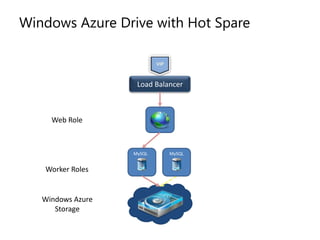

31. Windows Azure Drive with Hot SpareVIPLoad BalancerWeb RoleMySQLMySQLWorker RolesWindows AzureStorage

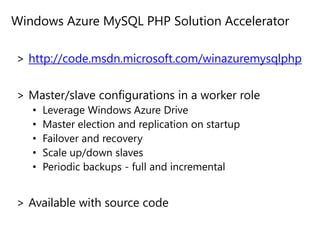

32. Windows Azure MySQL PHP Solution Acceleratorhttp://code.msdn.microsoft.com/winazuremysqlphpMaster/slave configurations in a worker roleLeverage Windows Azure DriveMaster election and replication on startupFailover and recoveryScale up/down slavesPeriodic backups - full and incrementalAvailable with source code

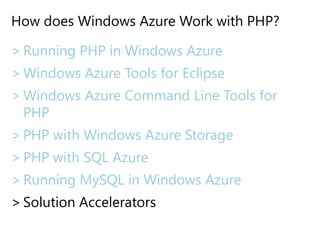

33. How does Windows Azure Work with PHP?Running PHP in Windows AzureWindows Azure Tools for EclipseWindows Azure Command Line Tools for PHPPHP with Windows Azure StoragePHP with SQL AzureRunning MySQL in Windows AzureSolution Accelerators

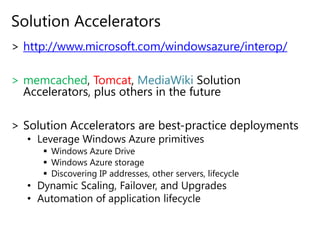

34. Solution Acceleratorshttp://www.microsoft.com/windowsazure/interop/memcached, Tomcat, MediaWikiSolution Accelerators, plus others in the futureSolution Accelerators are best-practice deploymentsLeverage Windows Azure primitivesWindows Azure DriveWindows Azure storageDiscovering IP addresses, other servers, lifecycleDynamic Scaling, Failover, and UpgradesAutomation of application lifecycle

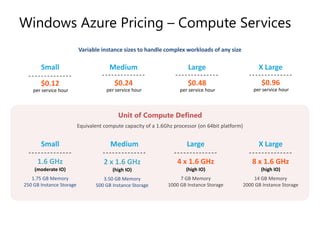

35. Windows Azure Pricing – Compute ServicesVariable instance sizes to handle complex workloads of any size SmallMediumLargeX Large$0.96 per service hour $0.24 per service hour $0.48 per service hour $0.12 per service hour Unit of Compute Defined Equivalent compute capacity of a 1.6Ghz processor (on 64bit platform) SmallMediumLargeX Large1.6 GHz(moderate IO)1.75 GB Memory250 GB Instance Storage4 x 1.6 GHz(high IO)7 GB Memory1000 GB Instance Storage8 x 1.6 GHz(high IO)14 GB Memory2000 GB Instance Storage2 x 1.6 GHz(high IO)3.50 GB Memory500 GB Instance Storage

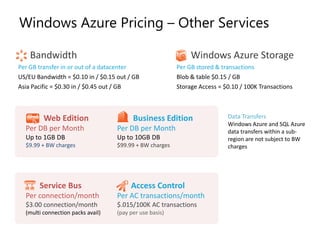

36. Windows Azure Pricing – Other Services BandwidthPer GB transfer in or out of a datacenterUS/EU Bandwidth = $0.10 in / $0.15 out / GB Asia Pacific = $0.30 in / $0.45 out / GB Windows Azure StoragePer GB stored & transactionsBlob & table $0.15 / GBStorage Access = $0.10 / 100K TransactionsData Transfers Windows Azure and SQL Azure data transfers within a sub-region are not subject to BW charges Web Edition Per DB per MonthUp to 1GB DB $9.99 + BW charges Business EditionPer DB per MonthUp to 10GB DB$99.99 + BW charges Service BusPer connection/month$3.00 connection/month(multi connection packs avail) Access ControlPer AC transactions/month$.015/100K AC transactions(pay per use basis)

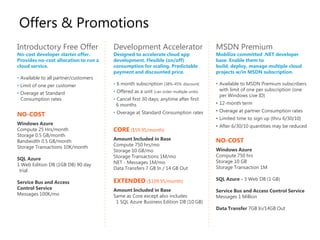

37. Offers & PromotionsDevelopment Accelerator Designed to accelerate cloud app development. Flexible (on/off) consumption for scaling. Predictable payment and discounted price.6 month subscription (38%-45% discount)

38. Offered as a unit (can order multiple units)

39. Cancel first 30 days; anytime after first 6 months

40. Overage at Standard Consumption ratesCORE($59.95/month)Amount Included in BaseCompute 750 hrs/mo Storage 10 GB/mo Storage Transactions 1M/mo NET - Messages 1M/moData Transfers 7 GB In / 14 GB OutEXTENDED($109.95/month)Amount Included in BaseSame as Core except also includes 1 SQL Azure Business Edition DB (10 GB) Introductory Free Offer No-cost developer starter offer. Provides no-cost allocation to run a cloud service.Available to all partner/customers

41. Limit of one per customer
