Presented at Windows Server 2012 Launching Event @Malaysia which talked about Windows Azure & use System Center App Controller to manage Hybrid Cloud

1. Technology Advisor Senior Consultant
Microsoft Malaysia Redynamics

2. Windows Azure

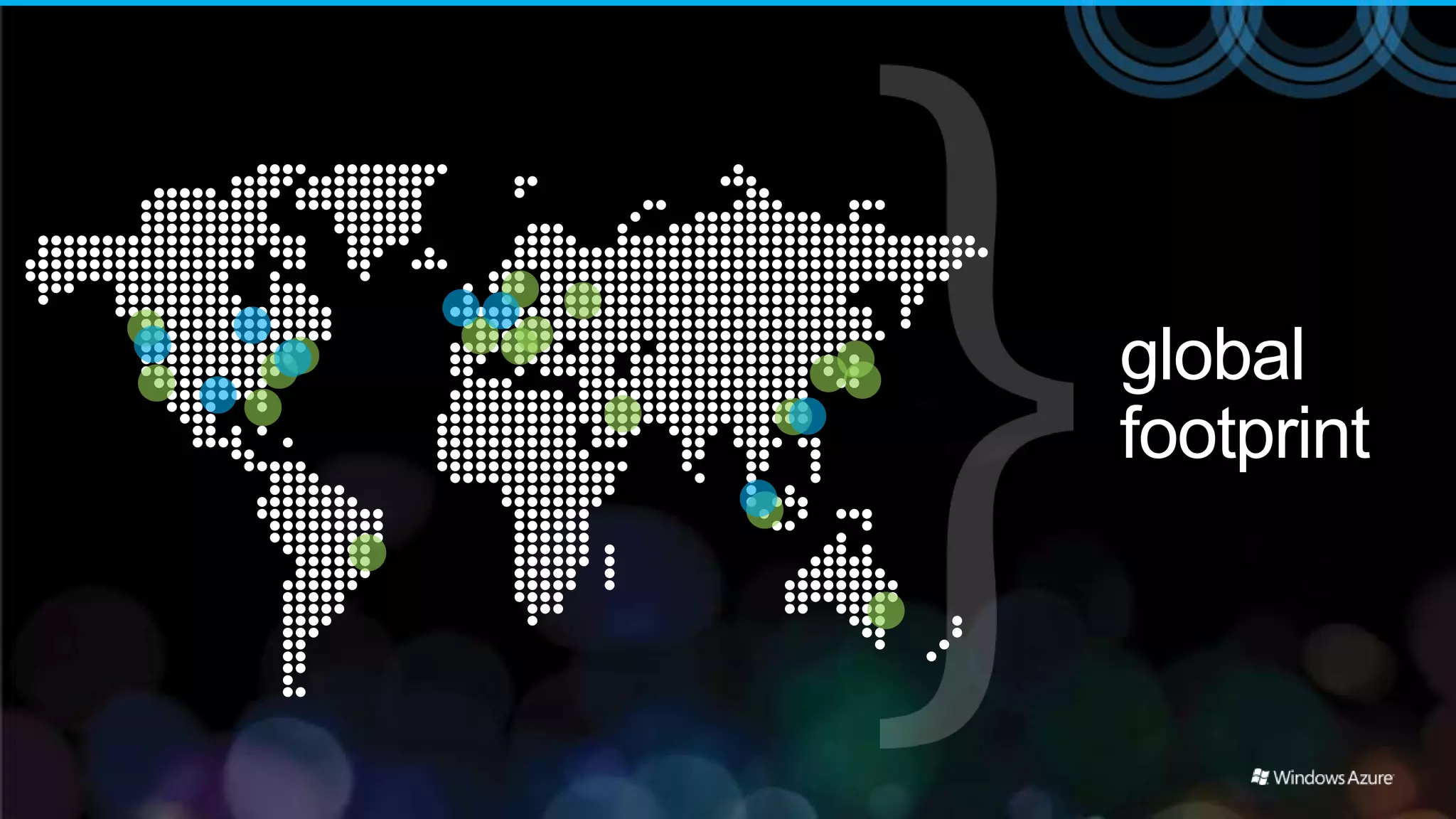

3. global
footprint

4. 99.95% monthly SLA

5. pay only for what you
use

7. virtual machines




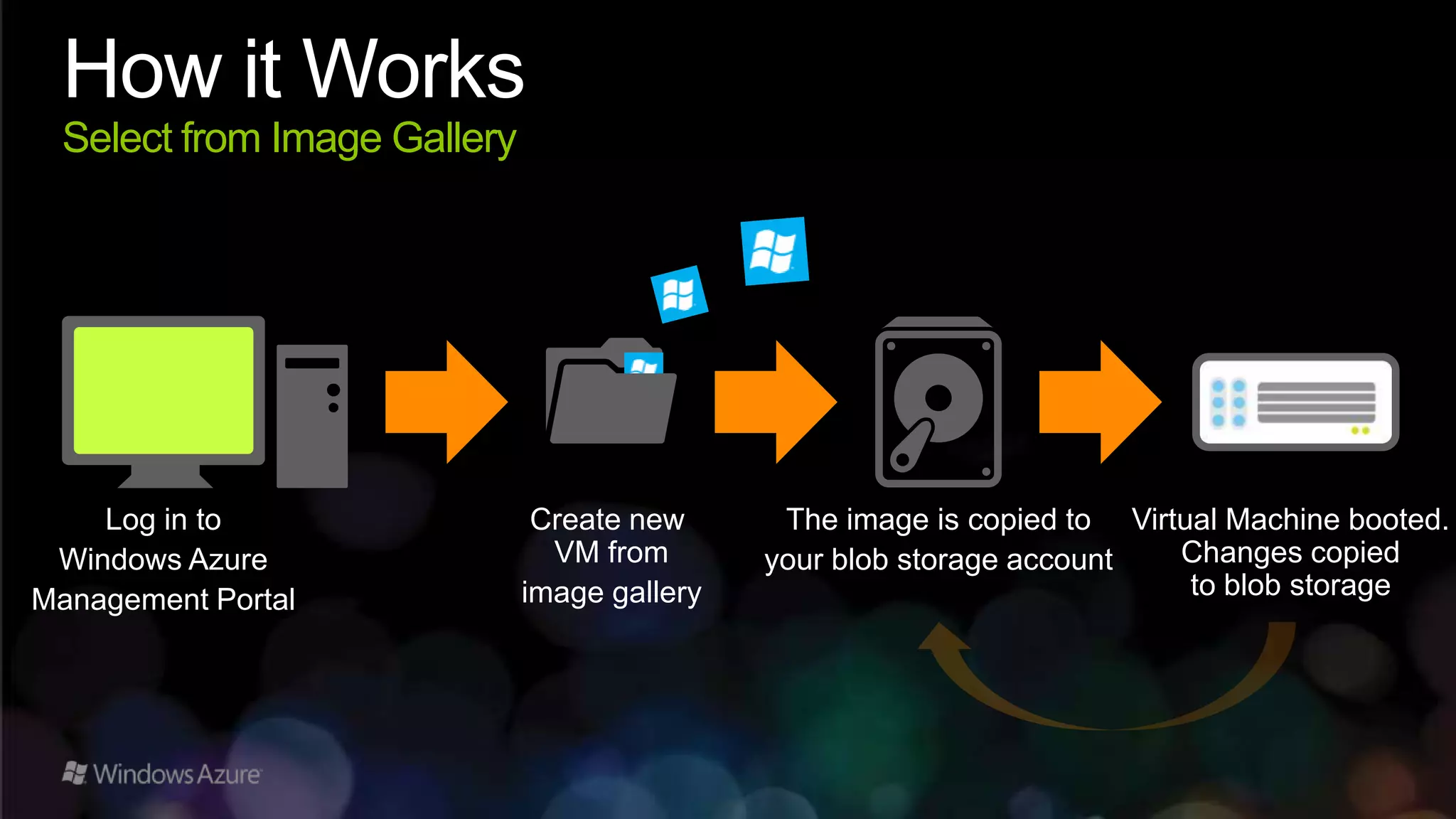

8. How it Works
Select from Image Gallery
Log in to Create new The image is copied to Virtual Machine booted.
Windows Azure VM from your blob storage account Changes copied
Management Portal image gallery to blob storage

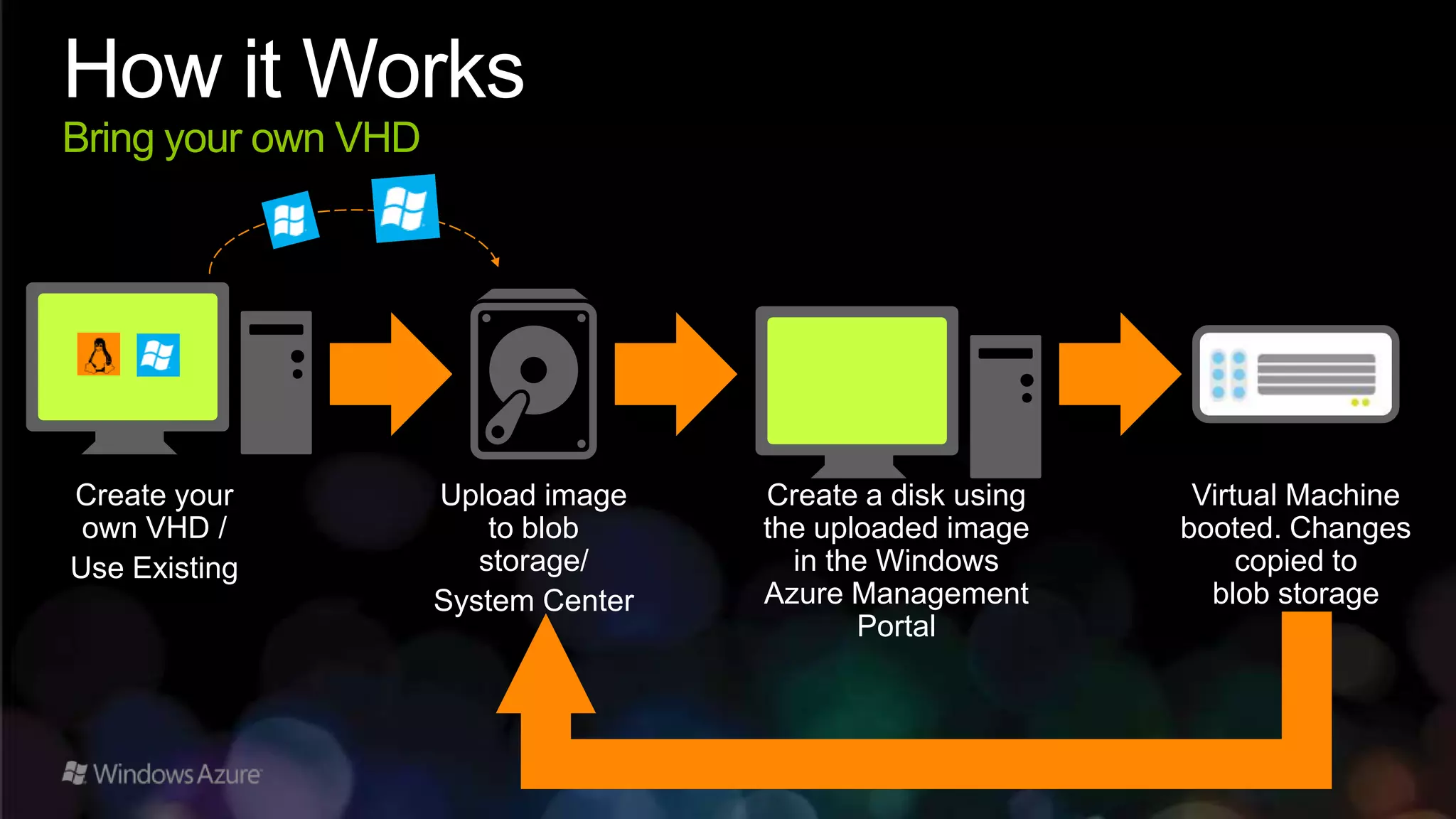

9. How it Works
Bring your own VHD
Create your Upload image Create a disk using Virtual Machine
own VHD / to blob the uploaded image booted. Changes
Use Existing storage/ in the Windows copied to
System Center Azure Management blob storage
Portal

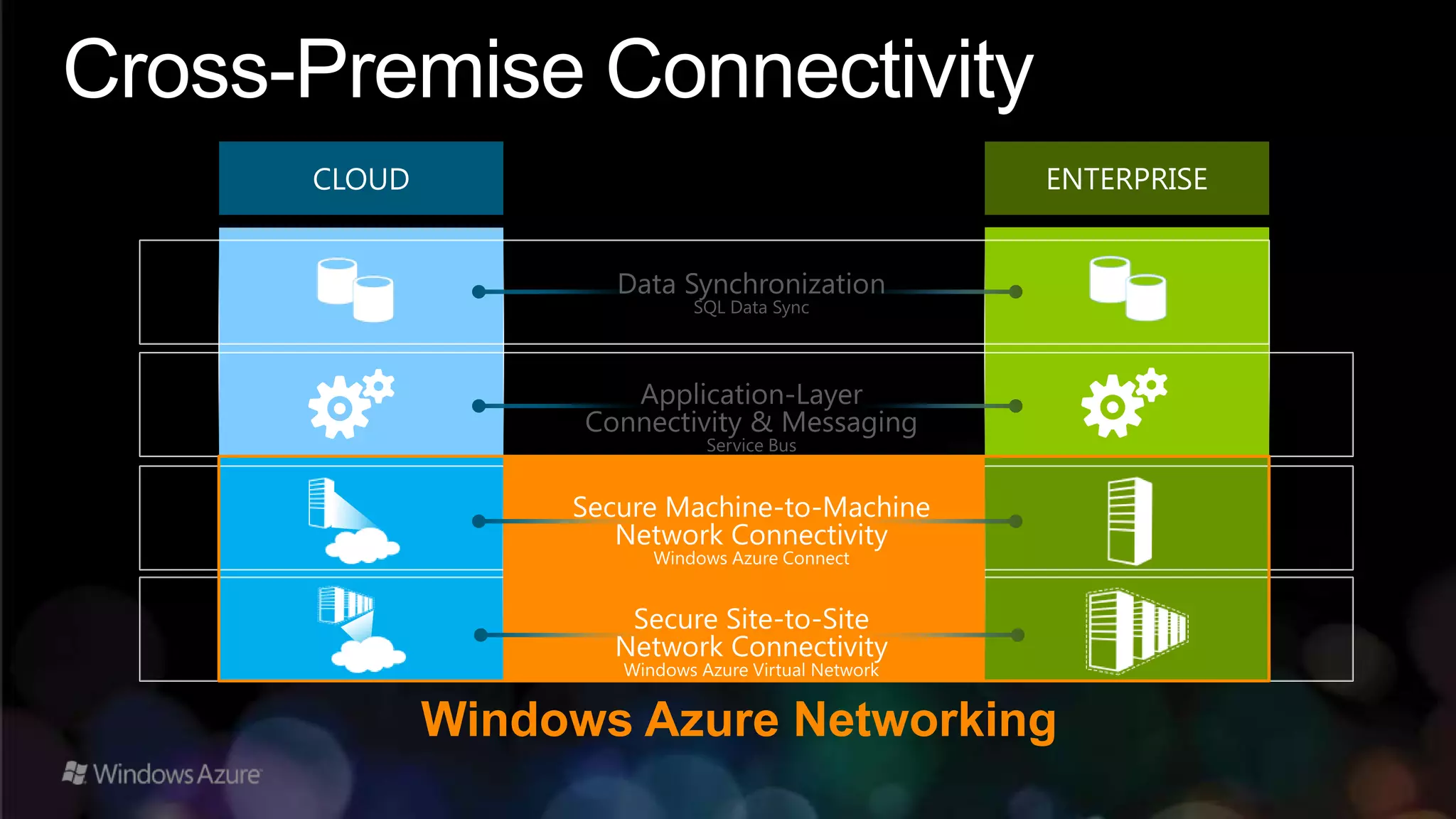

10. Cross-Premise Connectivity

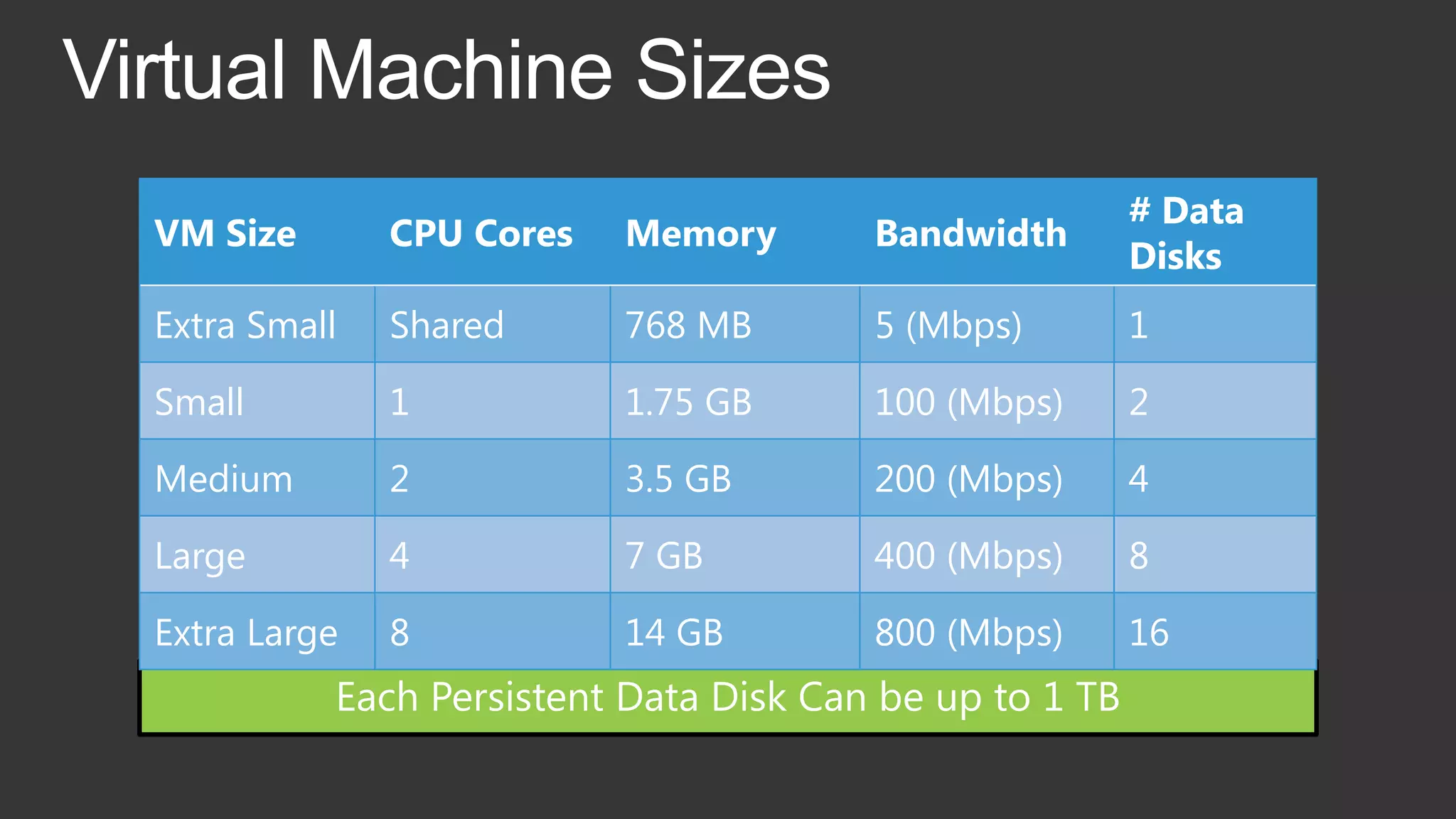

11. # Data
VM Size CPU Cores Memory Bandwidth
Disks
Extra Small Shared 768 MB 5 (Mbps) 1
Small 1 1.75 GB 100 (Mbps) 2
Medium 2 3.5 GB 200 (Mbps) 4
Large 4 7 GB 400 (Mbps) 8
Extra Large 8 14 GB 800 (Mbps) 16
Each Persistent Data Disk Can be up to 1 TB

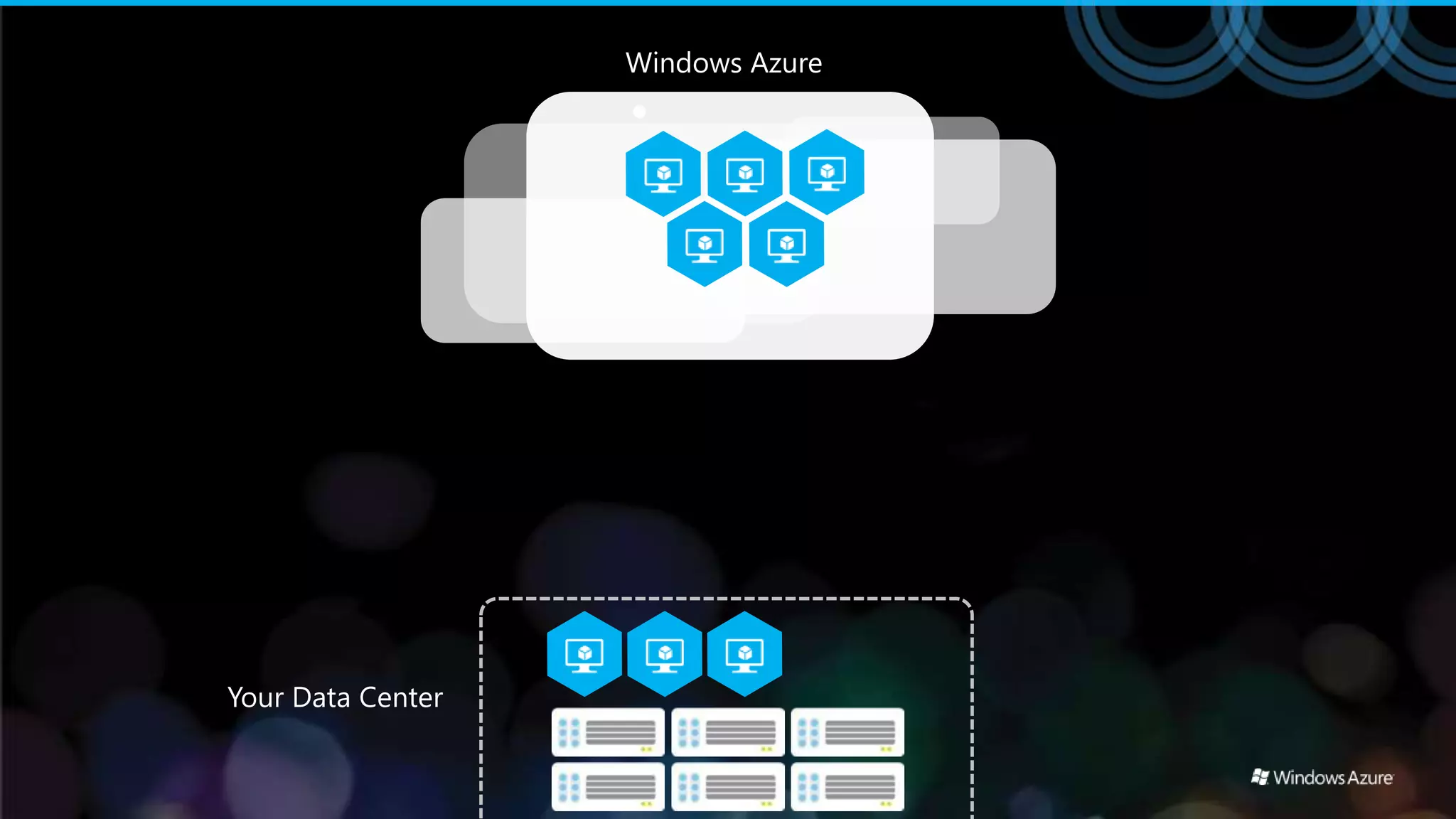

12. Hybrid Cloud
Management
-> Lai Yoong Seng

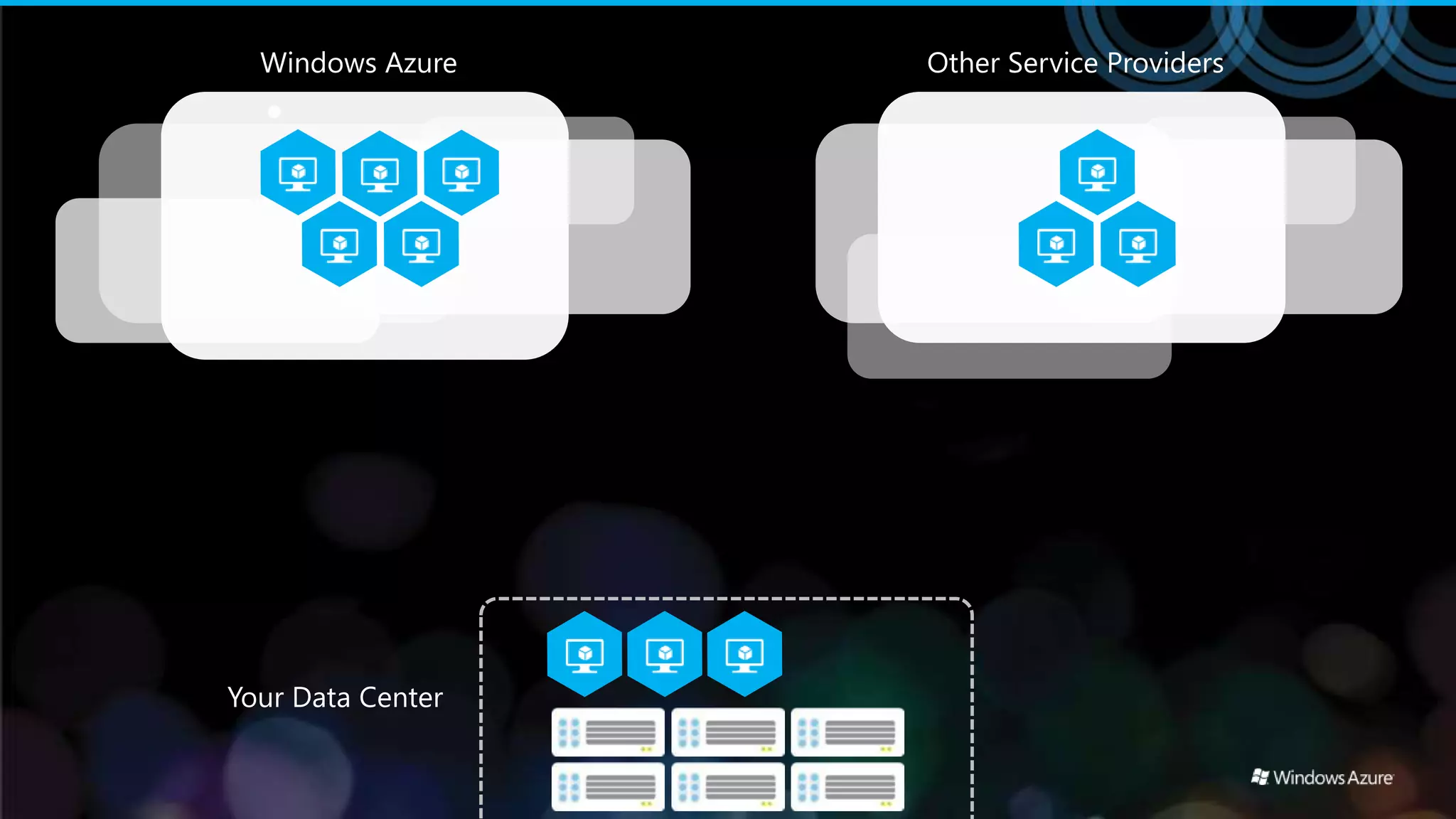

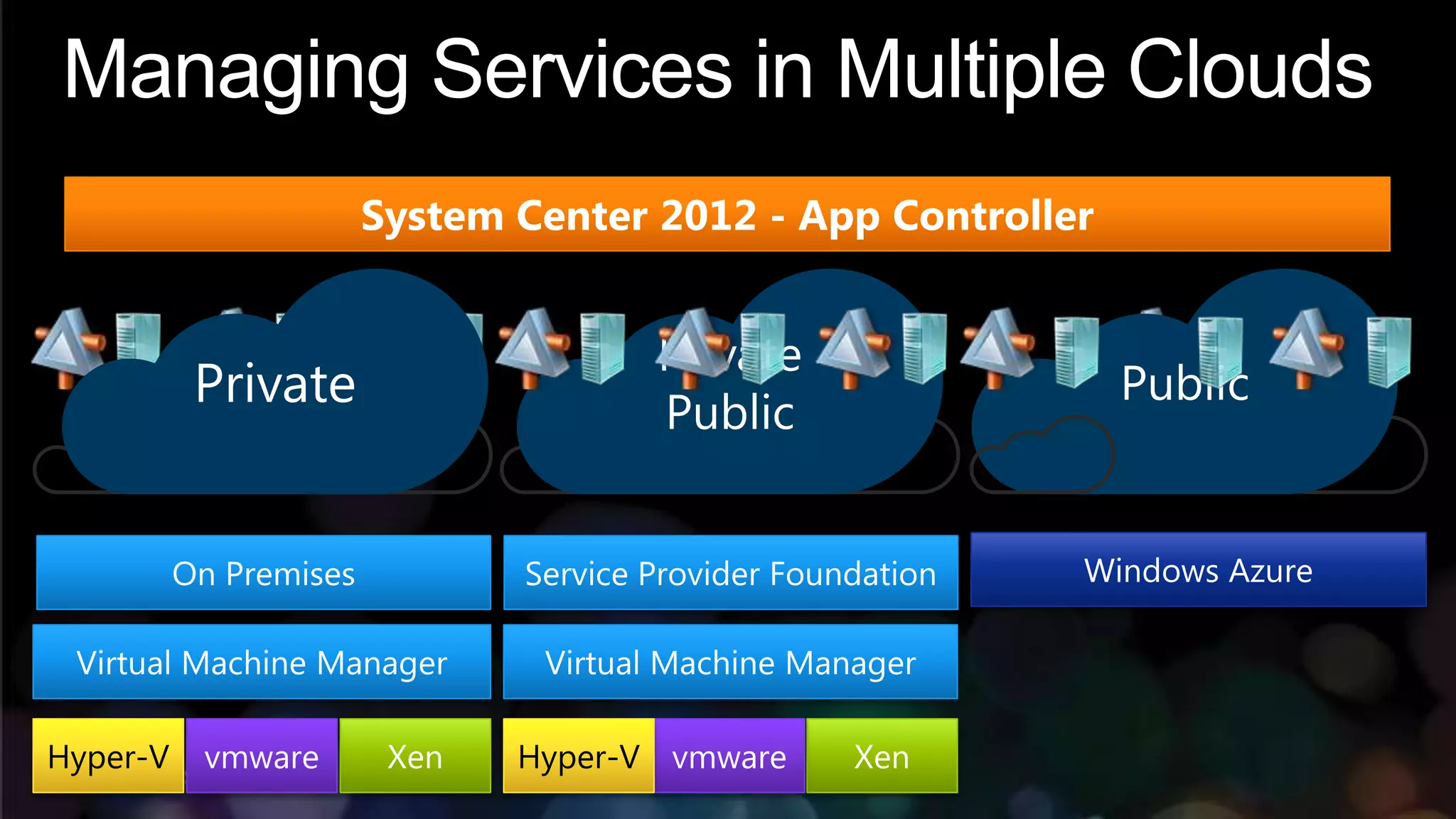

13. Managing Services in Multiple Clouds
Private
Private Public
Public

15. virtual machine portability

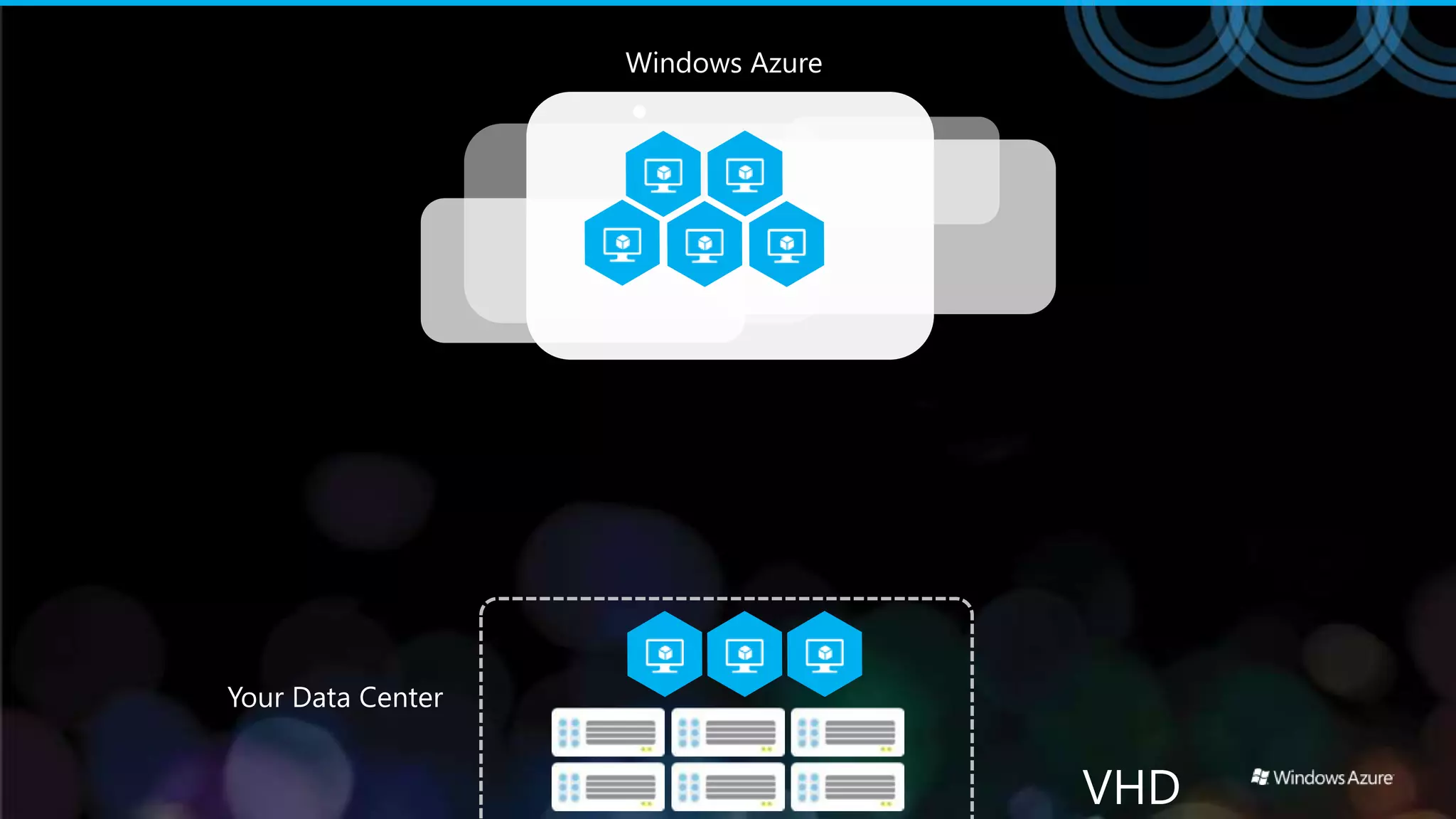

16. VHD

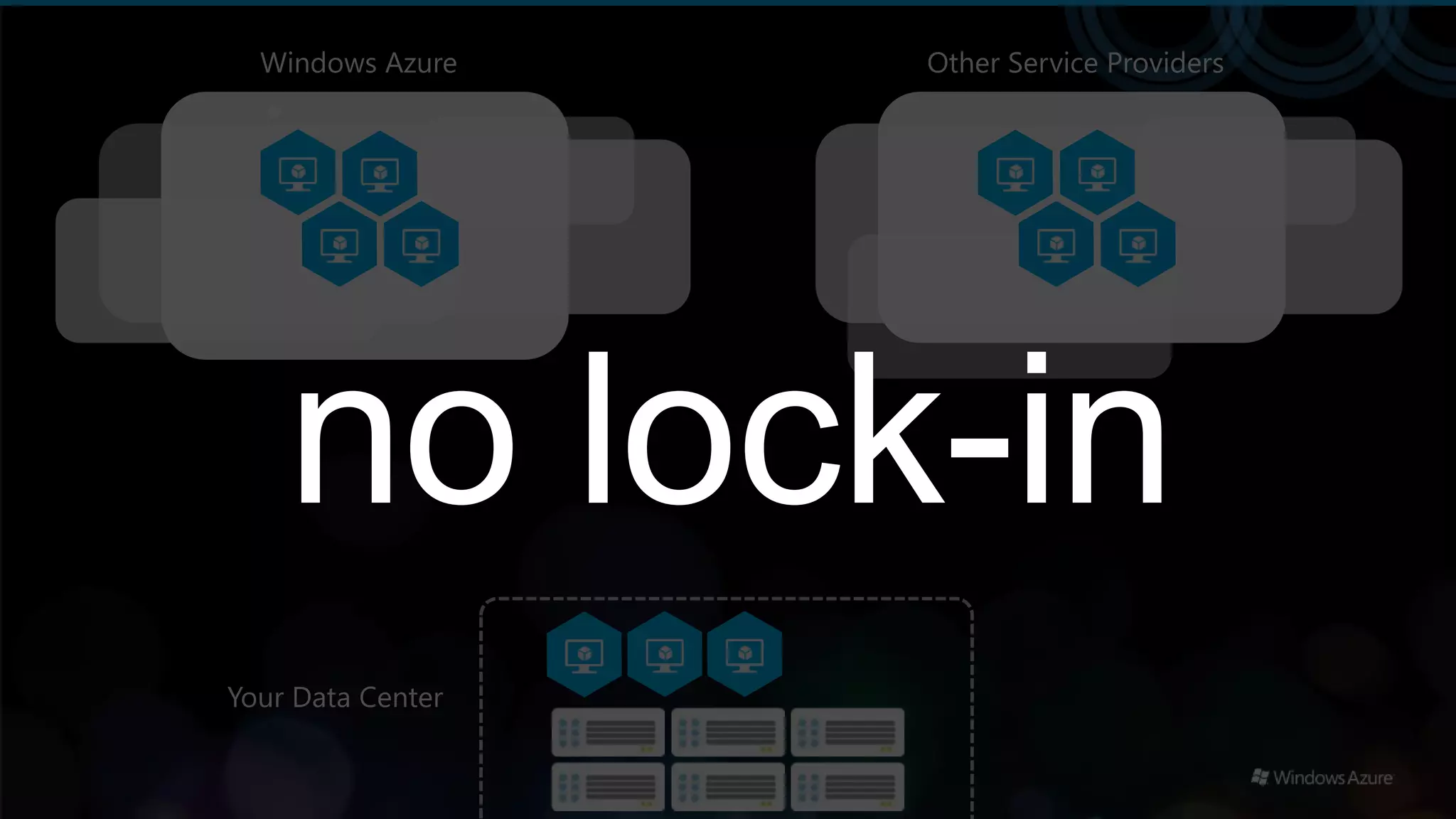

19. no lock-in

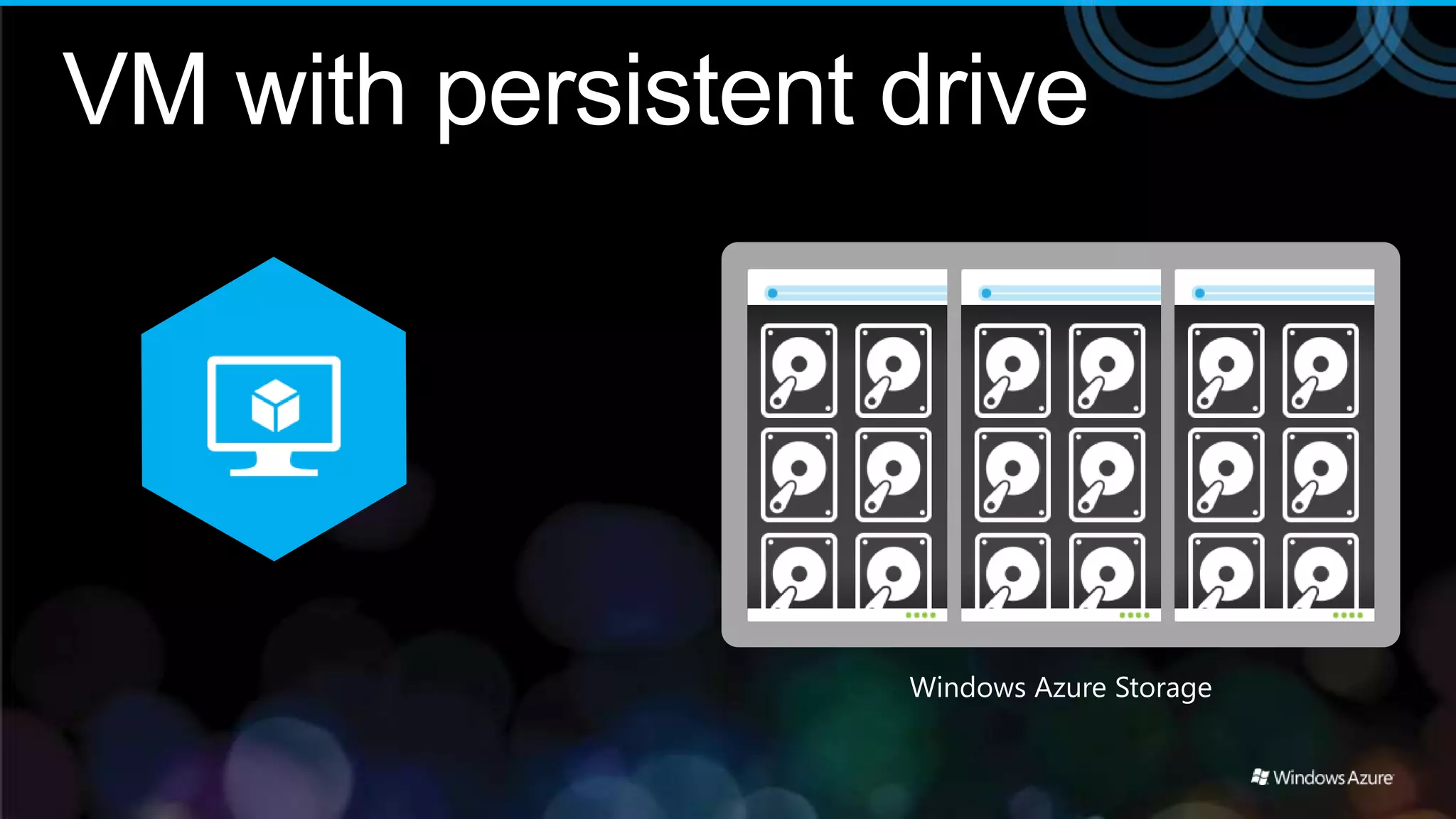

20. VM with persistent drive
Windows Azure Storage

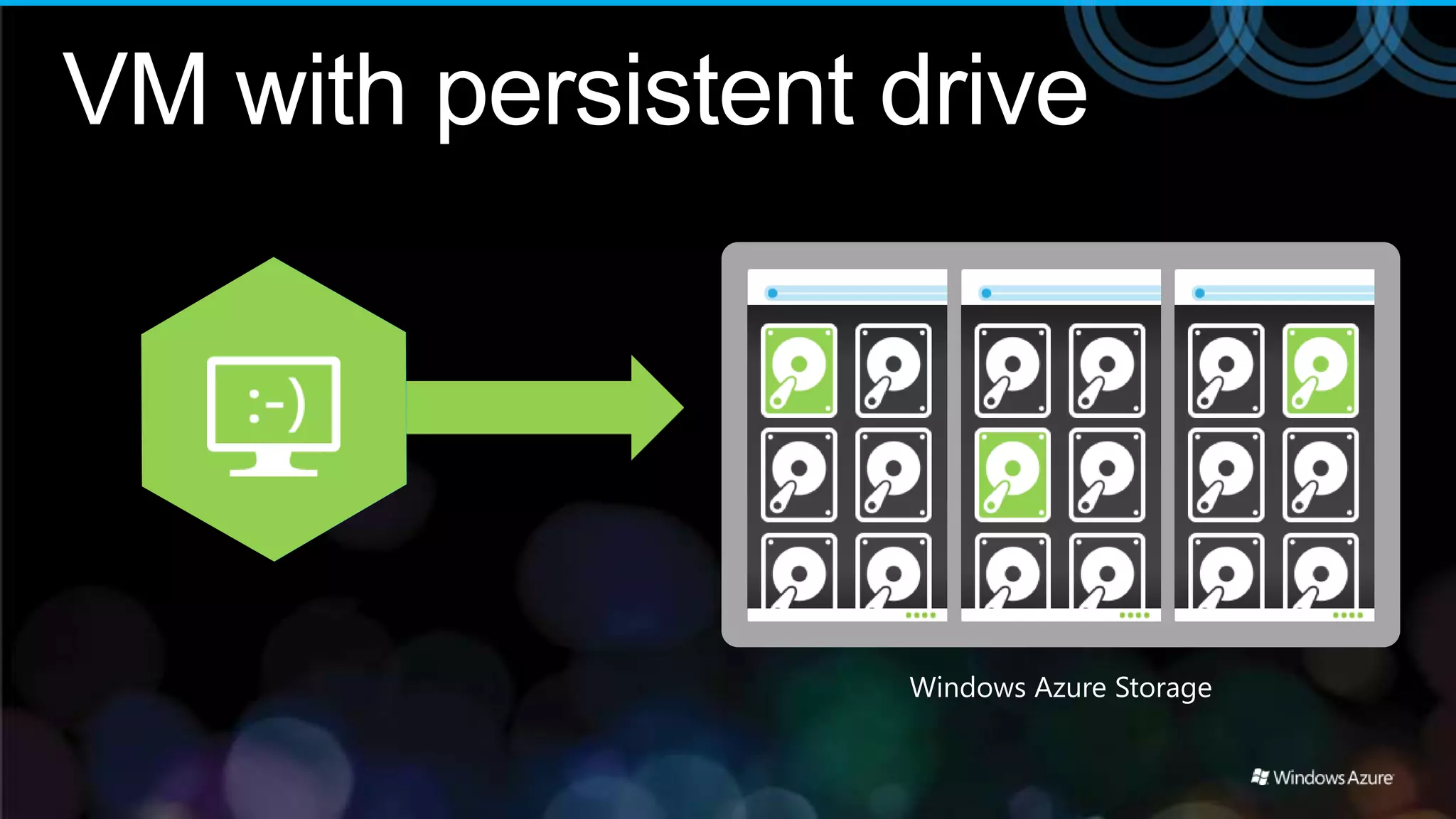

21. VM with persistent drive
Windows Azure Storage

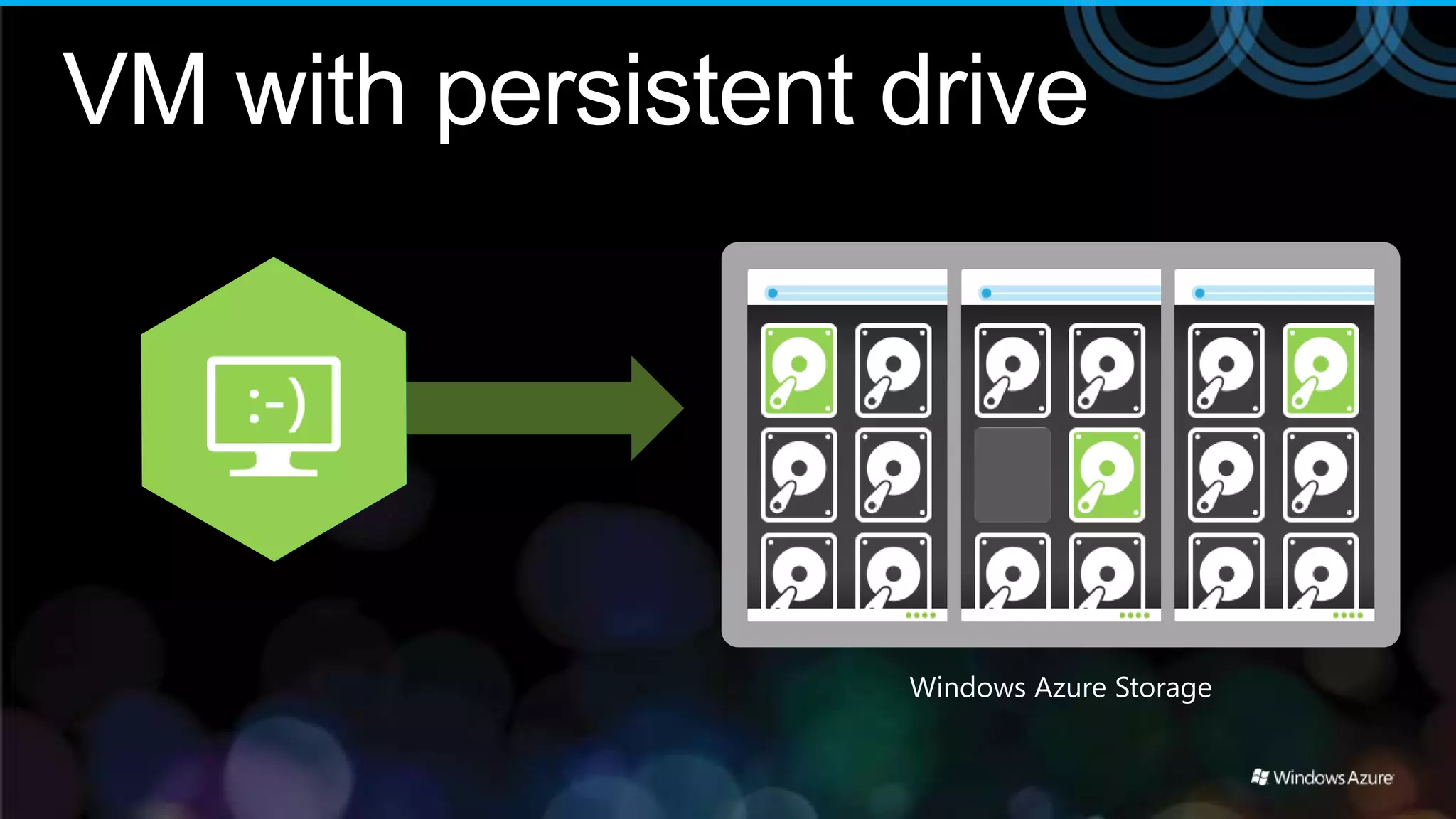

22. VM with persistent drive
Windows Azure Storage

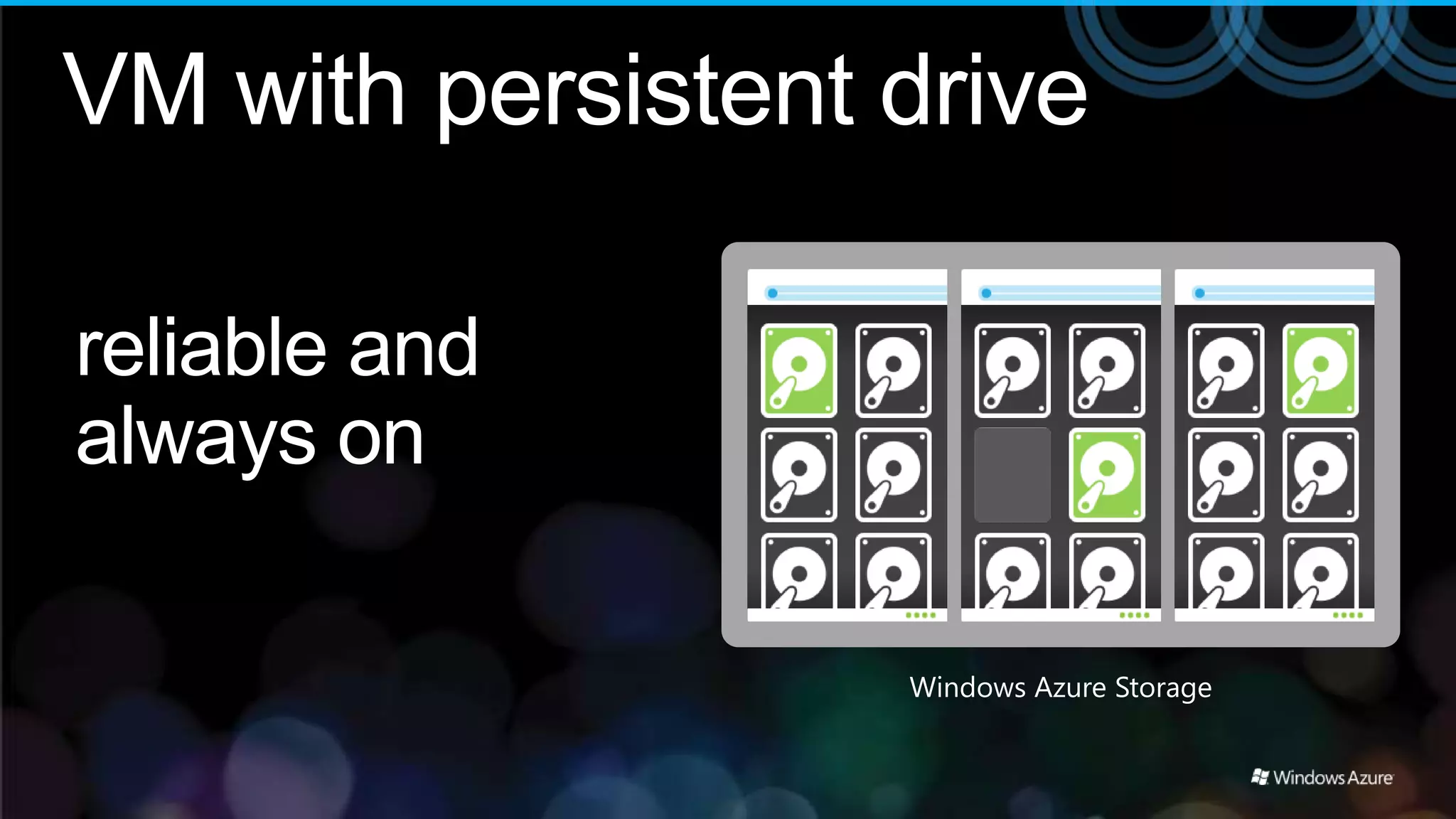

23. VM with persistent drive
reliable and
always on
Windows Azure Storage

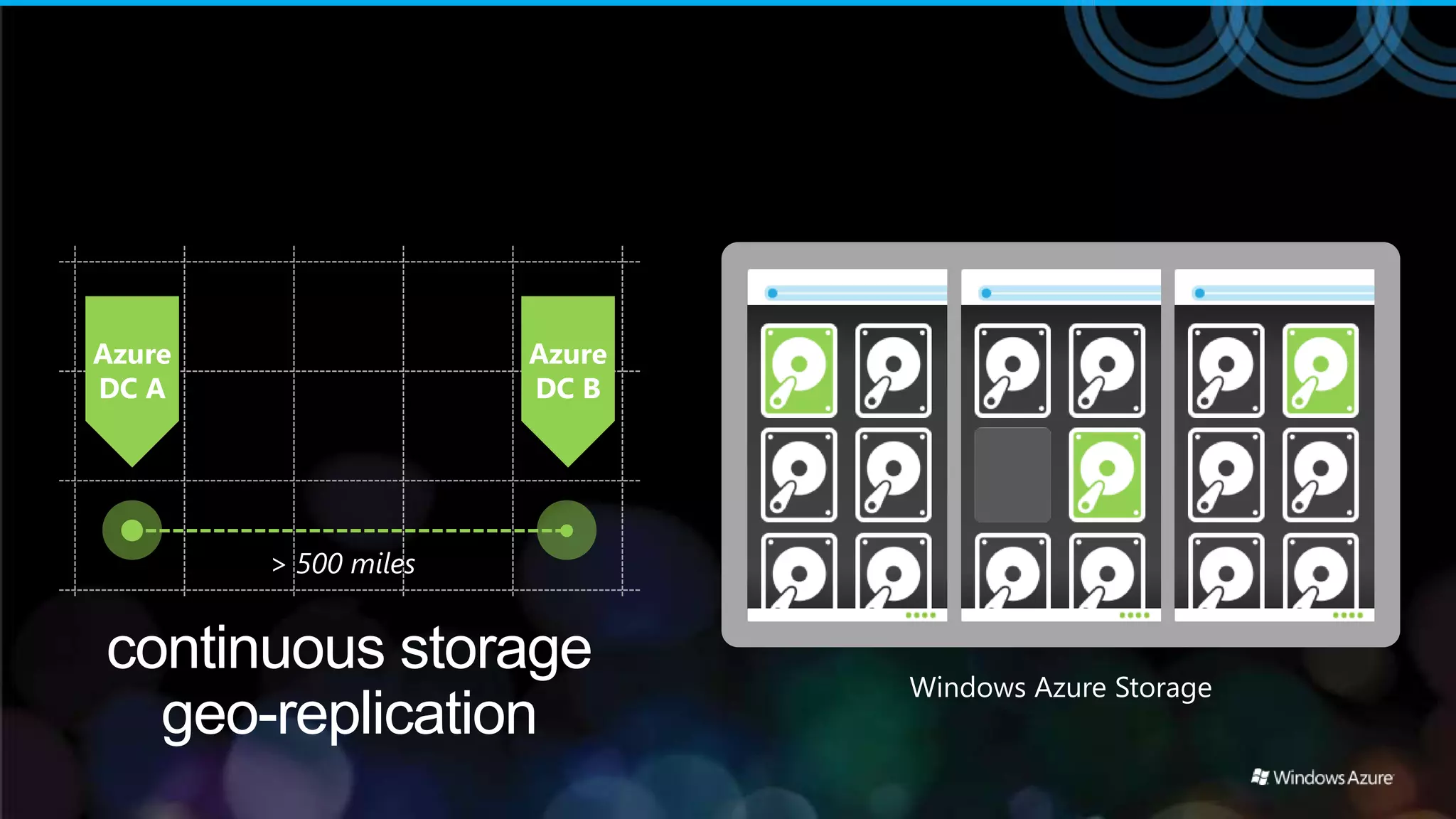

24. > 500 miles
continuous storage Windows Azure Storage
geo-replication

25. web sites
 Build with ASP.NET, Node.js or PHP
 Deploy in seconds with FTP, Git or TFS
 Start for free, scale up as your traffic
grows

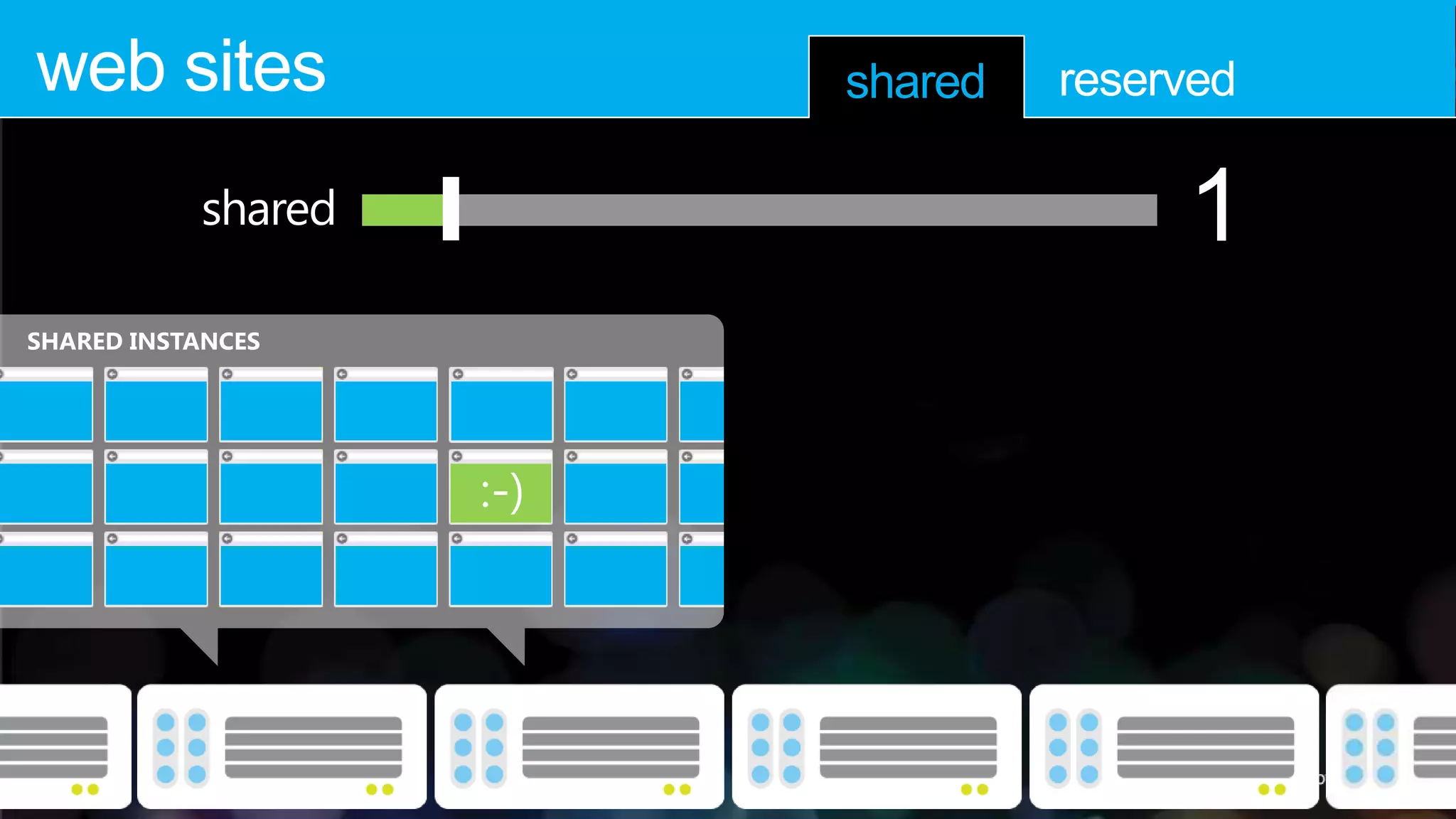

27. web sites shared reserved
shared 1
SHARED INSTANCES

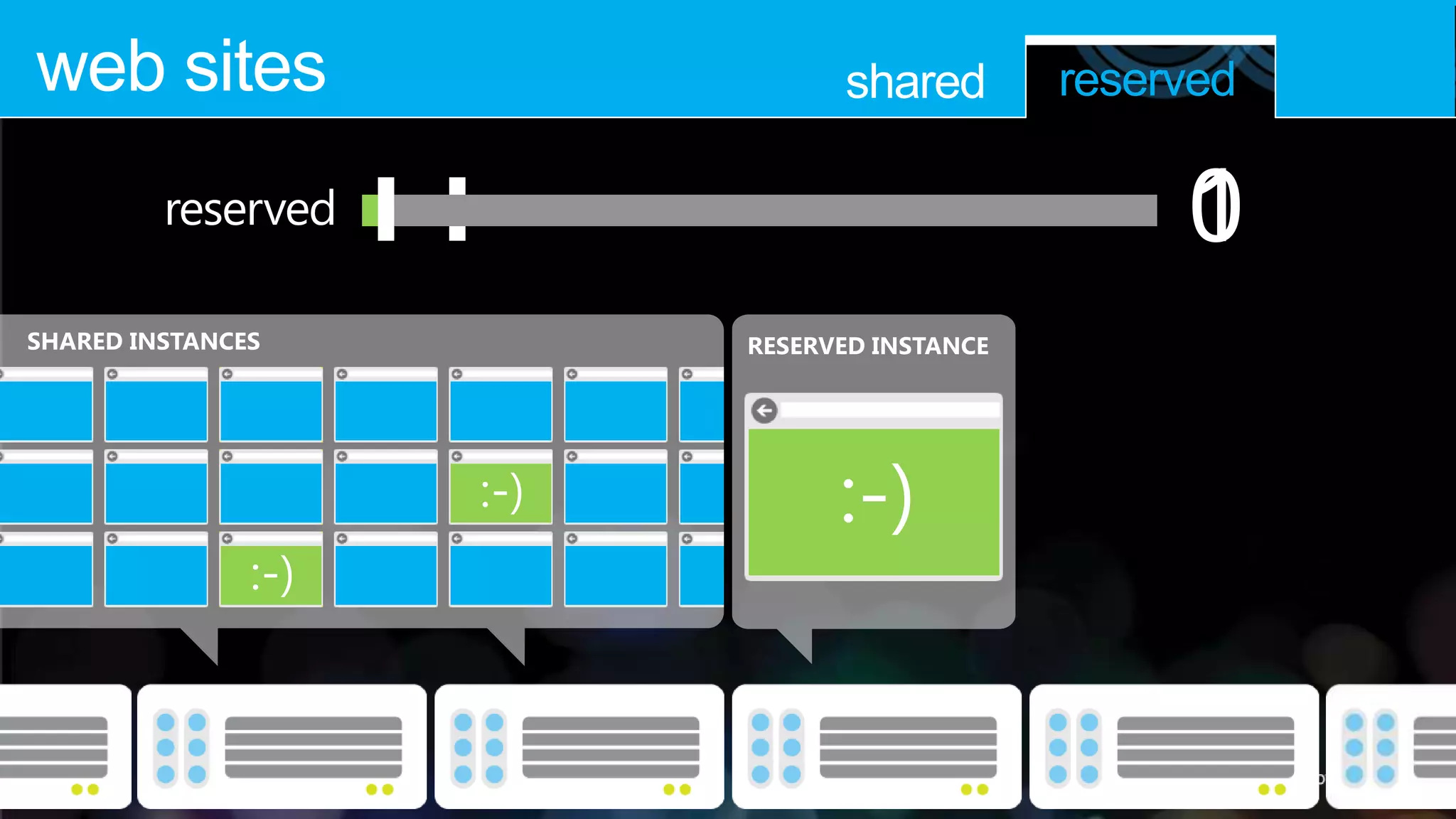

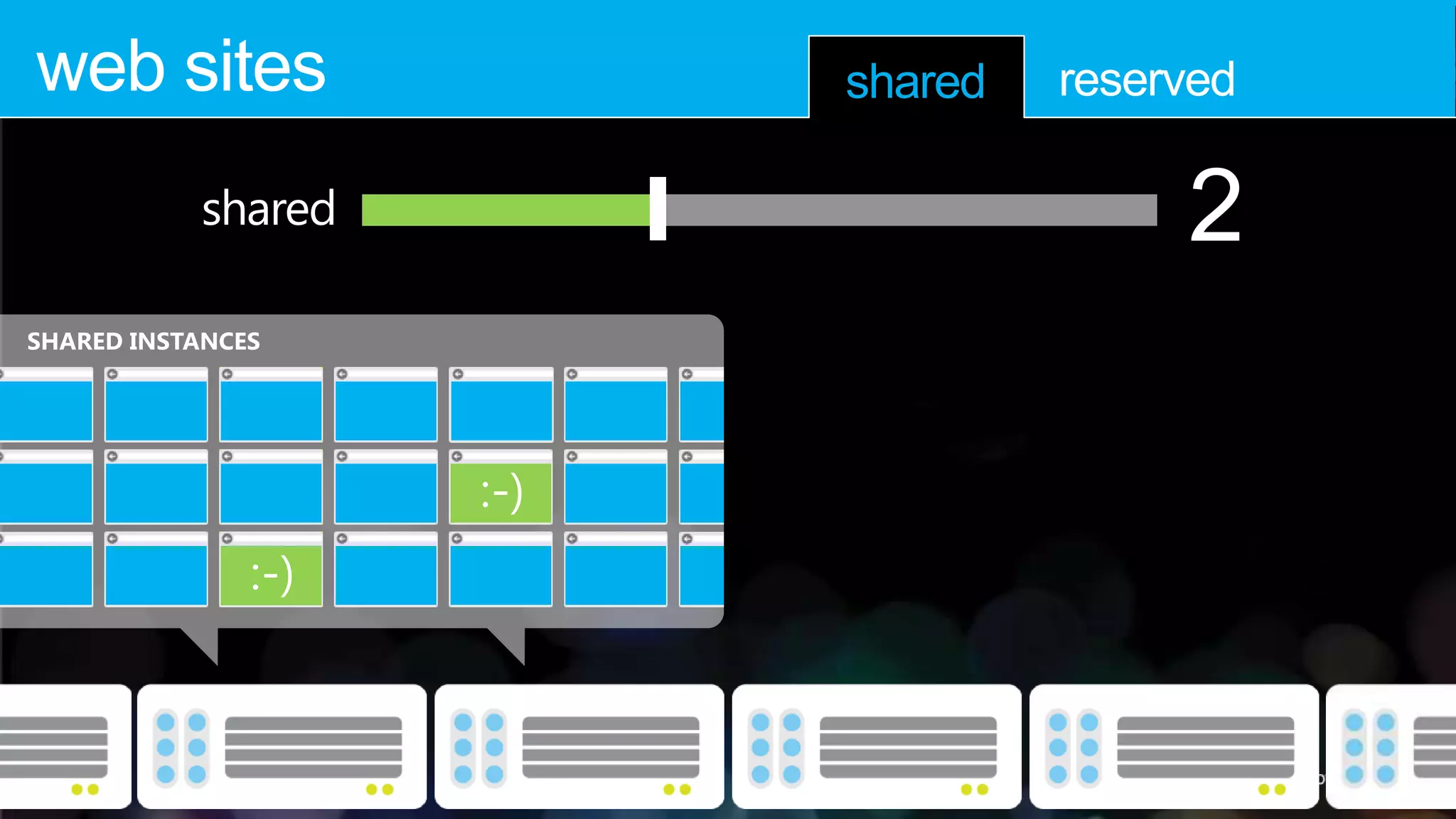

28. web sites shared reserved
shared 2
SHARED INSTANCES

29. web sites shared reserved
reserved 0
1
SHARED INSTANCES RESERVED INSTANCE

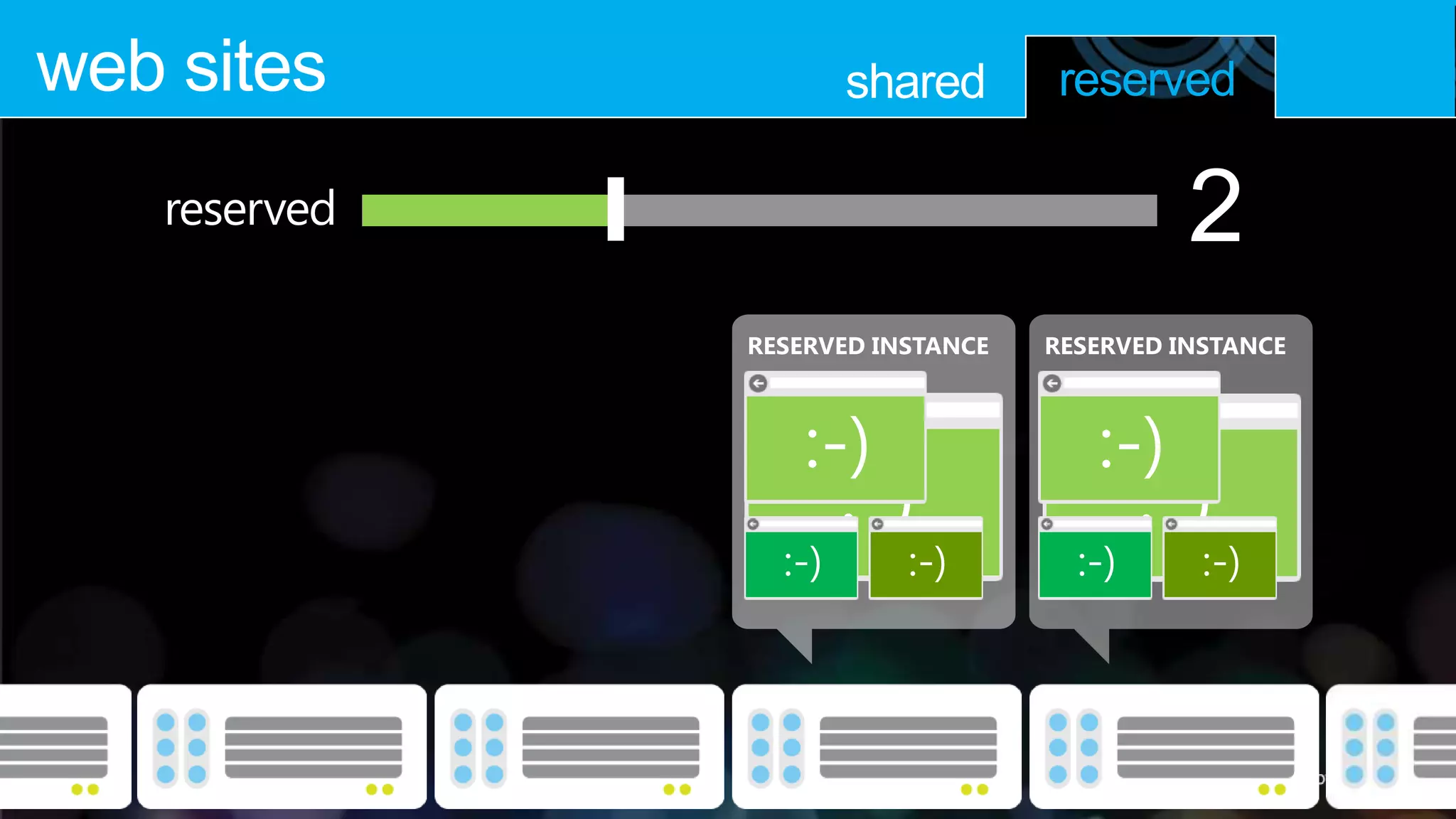

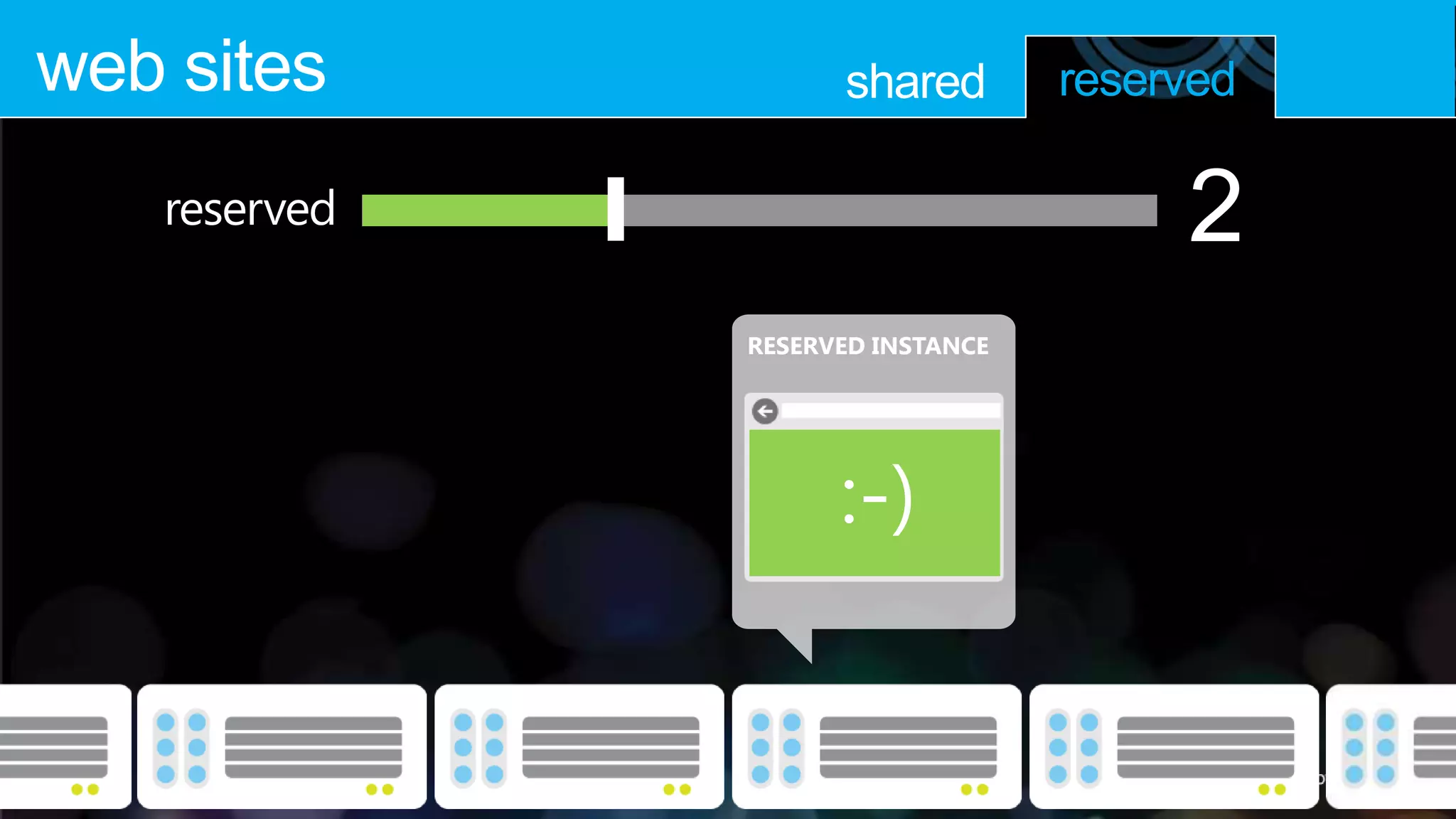

30. web sites shared reserved
reserved 2
RESERVED INSTANCE

31. web sites shared reserved
reserved 2
RESERVED INSTANCE RESERVED INSTANCE

32. cloud services
 Build infinitely scalable apps and
services
 Support rich multi-tier architectures
 Automated application management

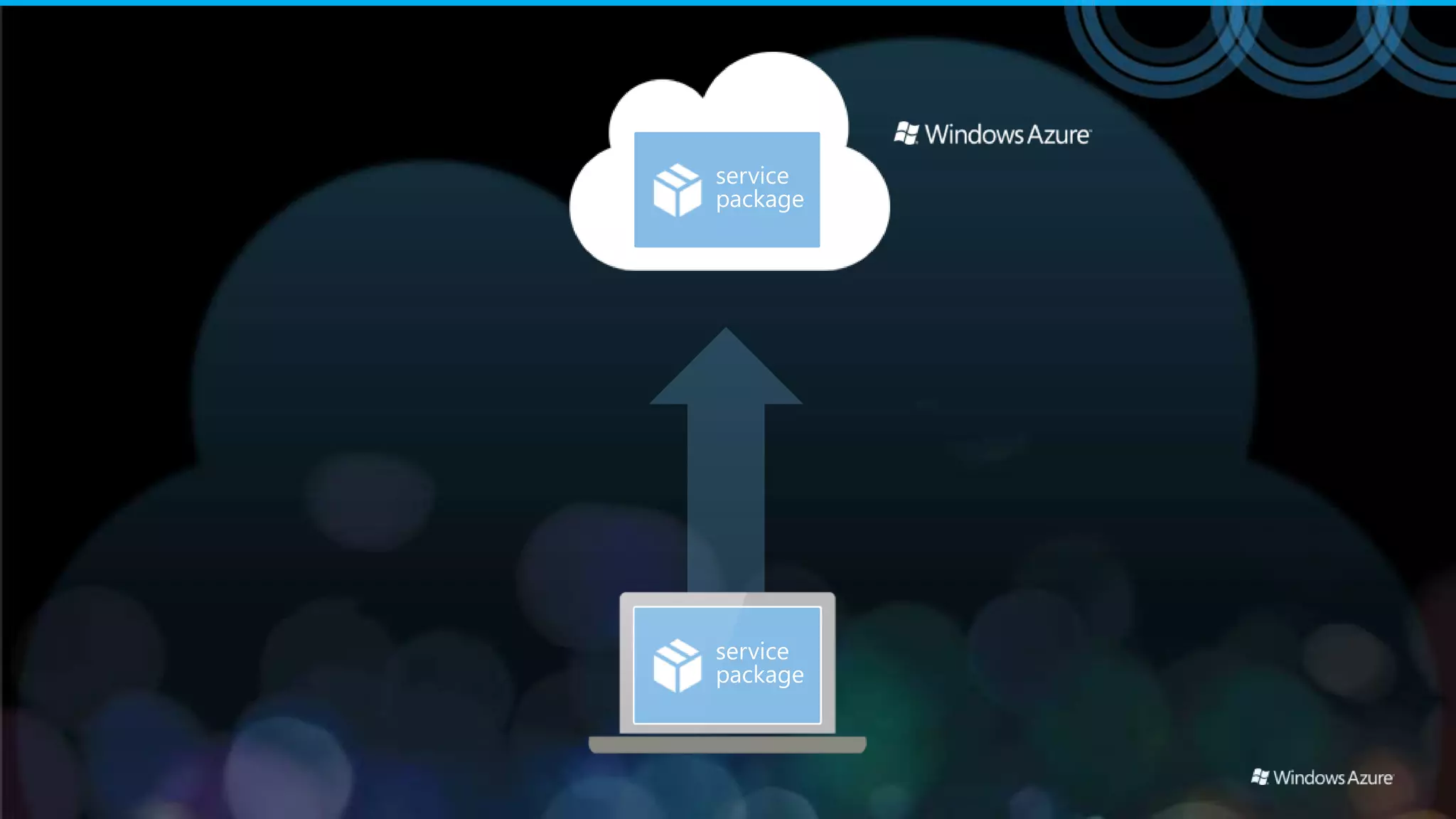

34. service
package
service
package

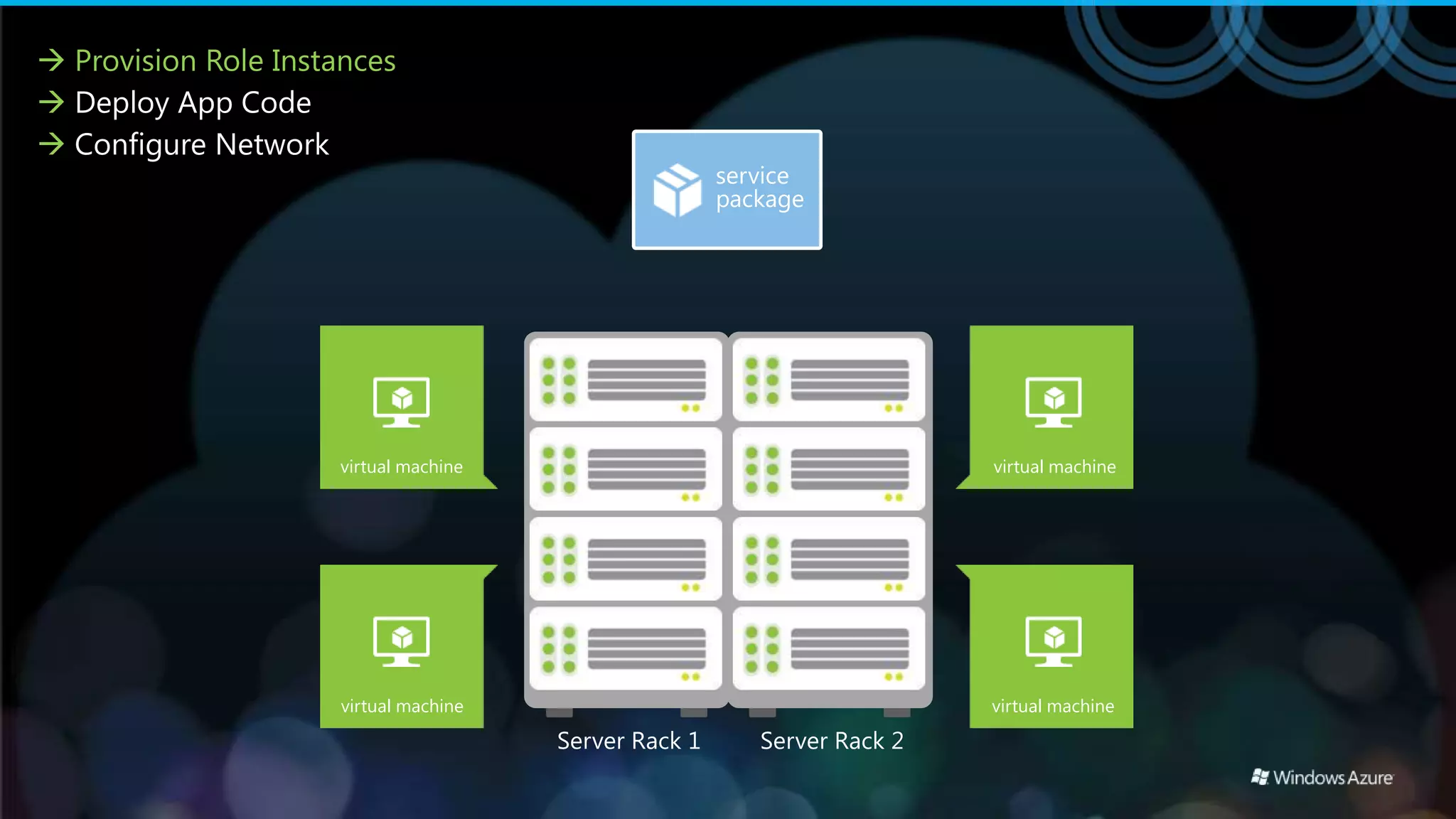

35.  Provision Role Instances
 Deploy App Code
 Configure Network
service
package
virtual machine virtual machine
virtual machine virtual machine
Server Rack 1 Server Rack 2

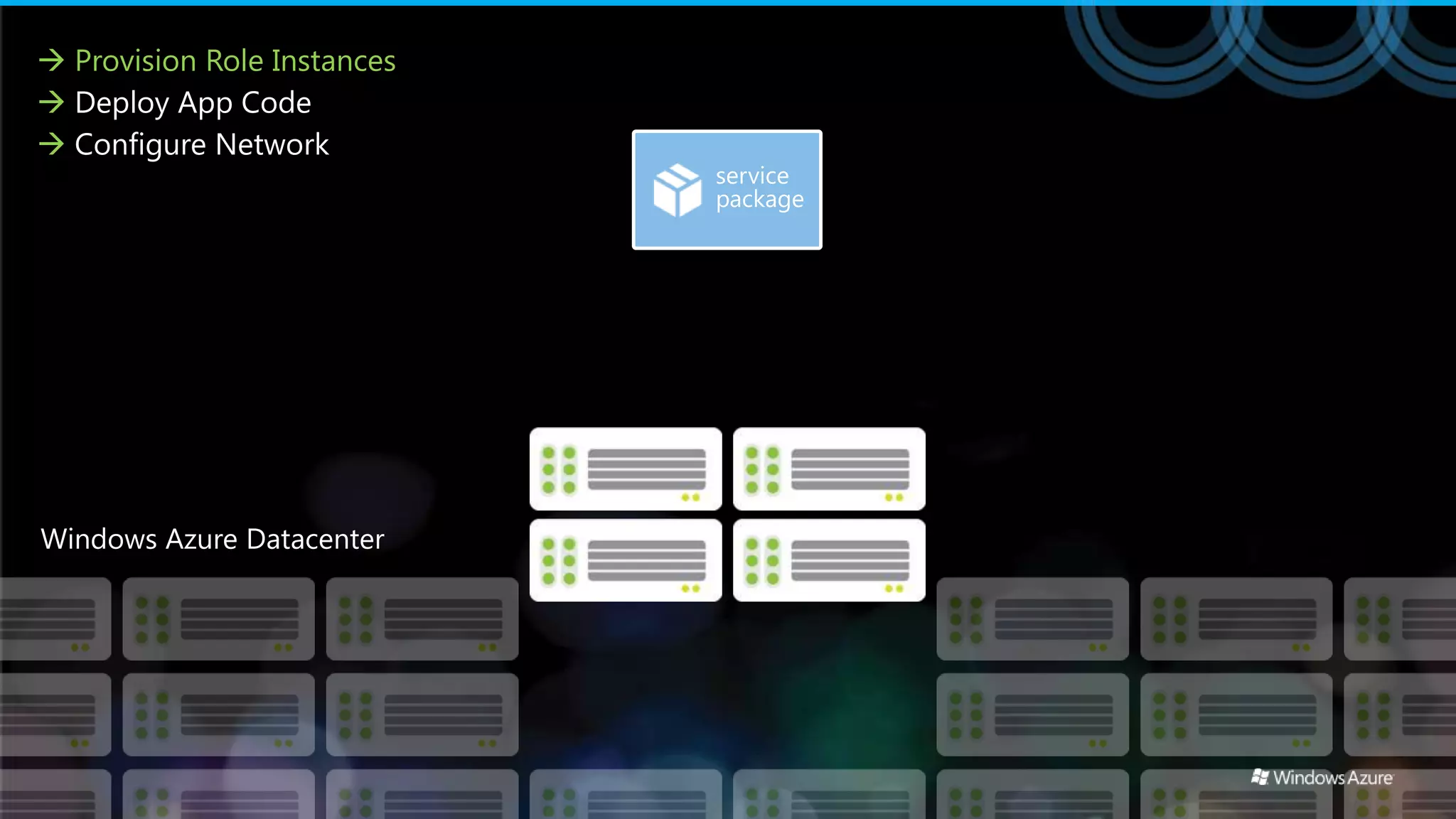

36.  Provision Role Instances
 Deploy App Code
 Configure Network
service
package

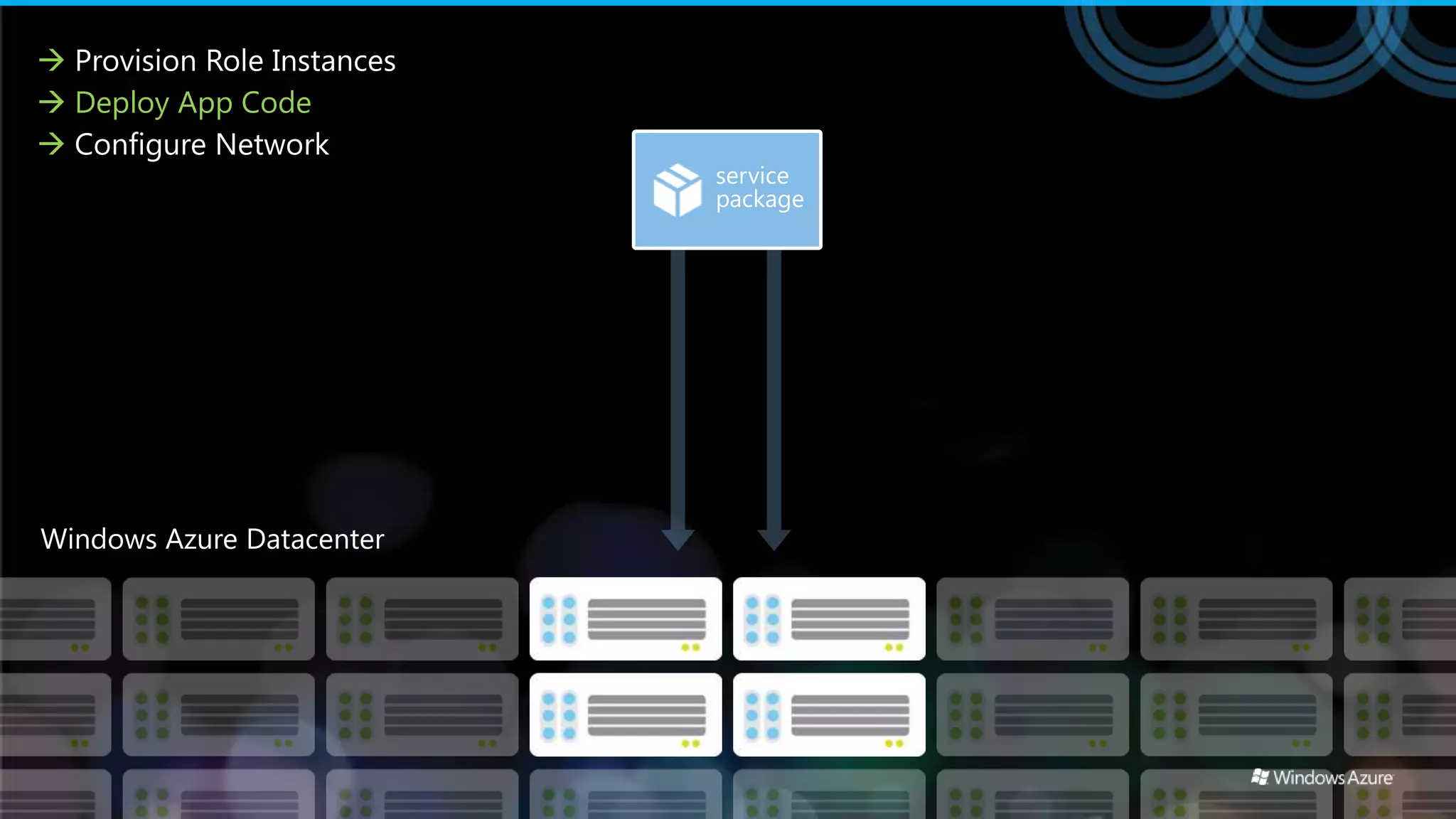

37.  Provision Role Instances
 Deploy App Code
 Configure Network
service
package

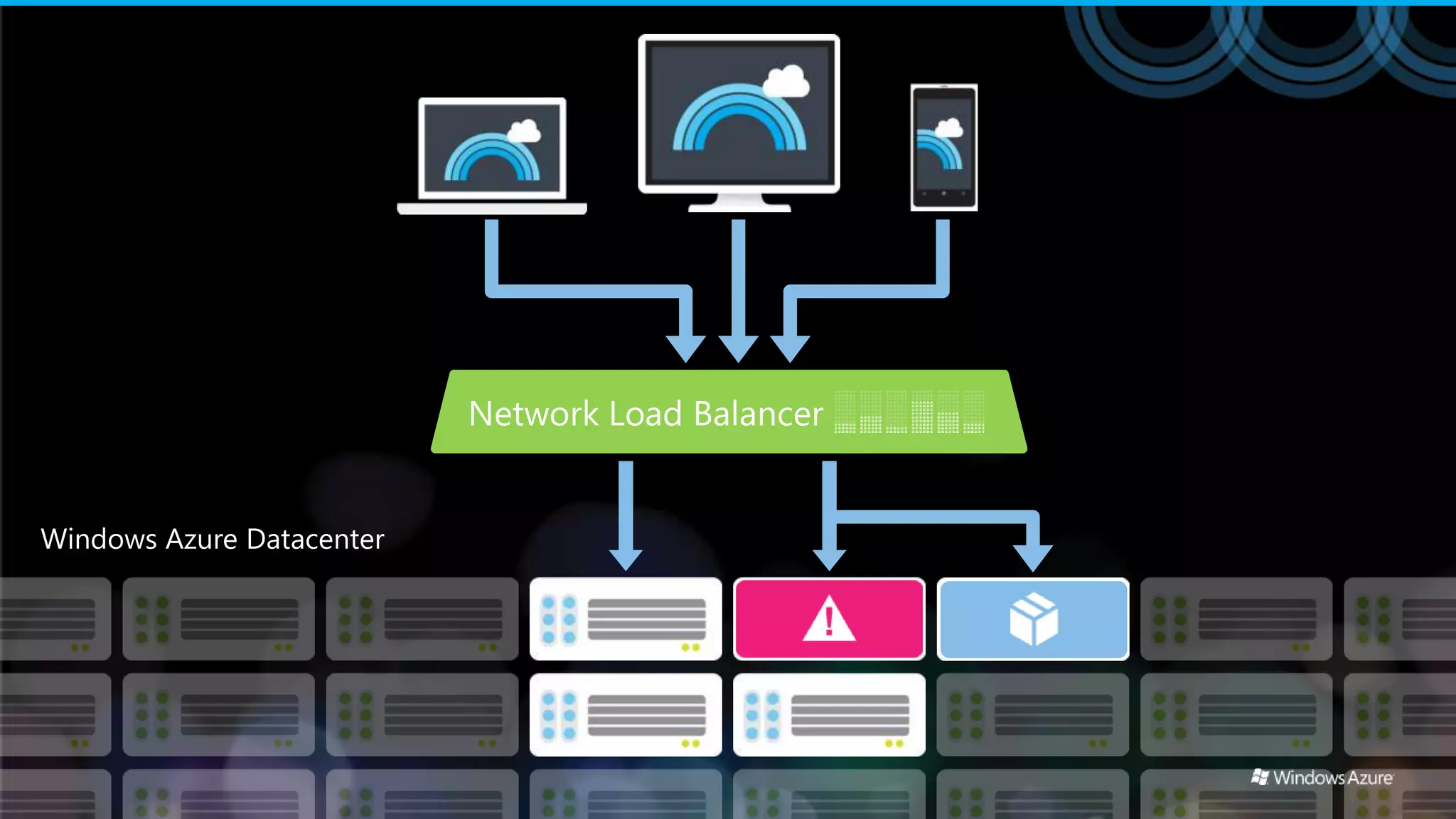

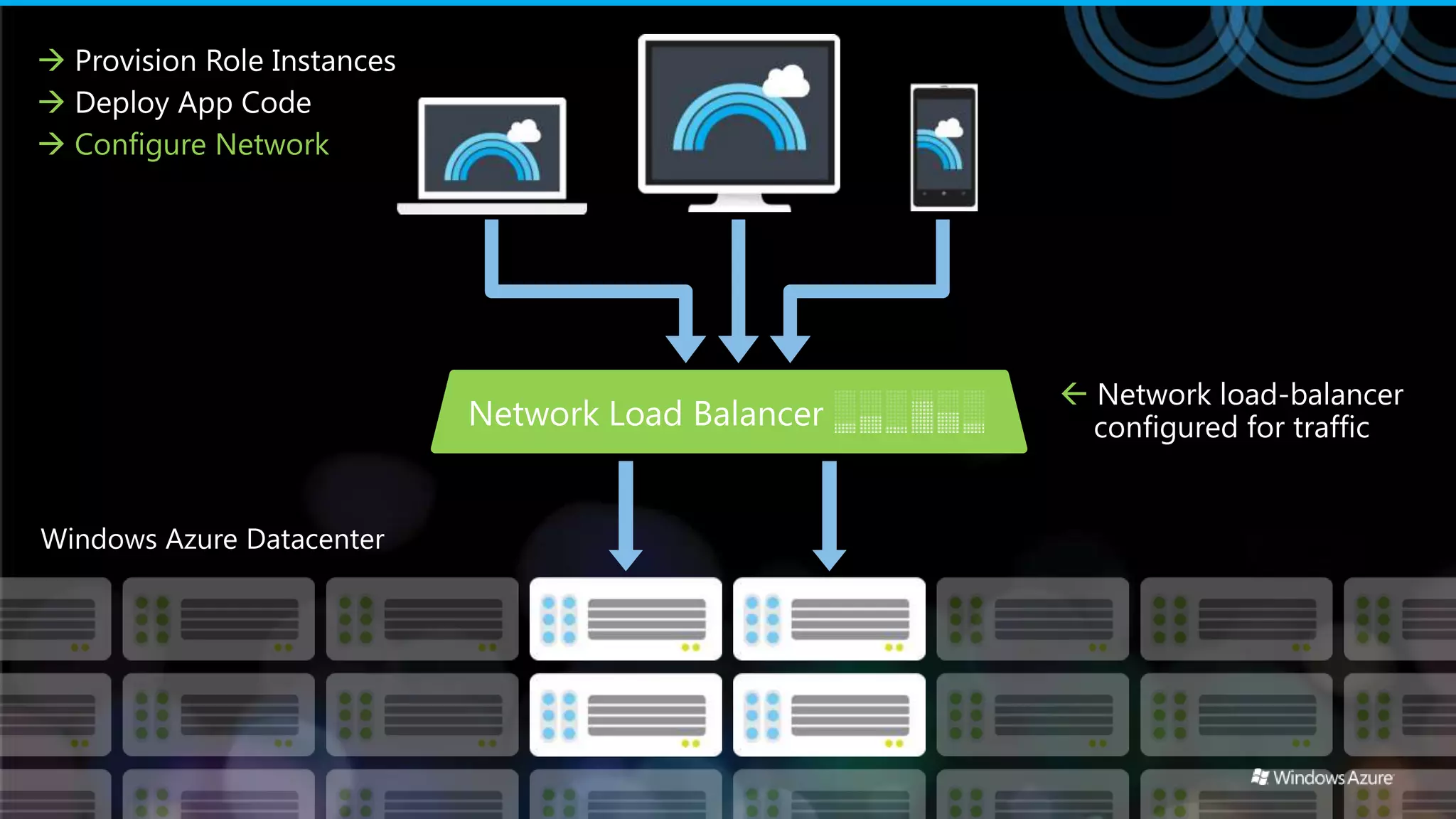

38.  Provision Role Instances
 Deploy App Code
 Configure Network
 Network load-balancer
configured for traffic

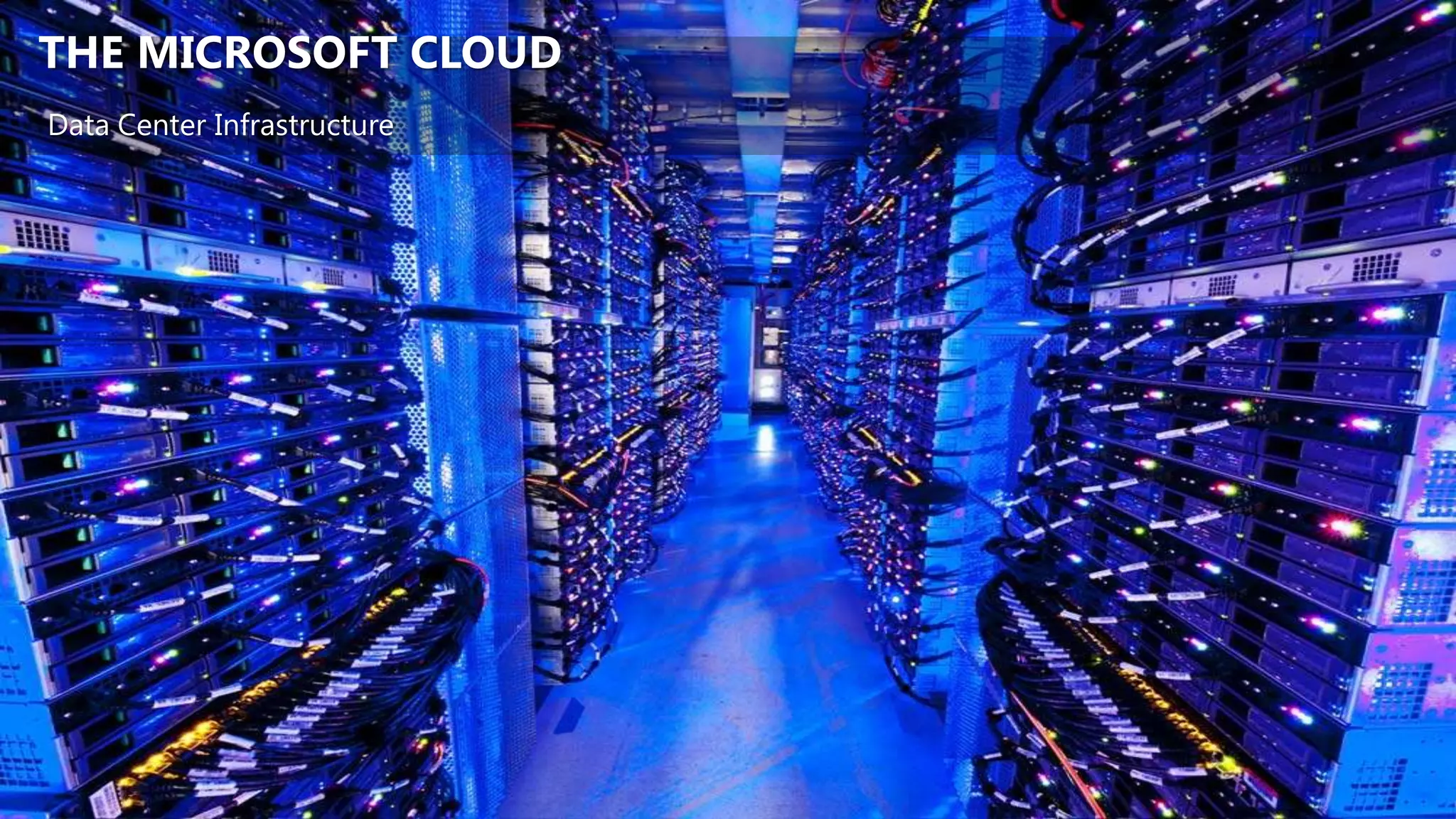

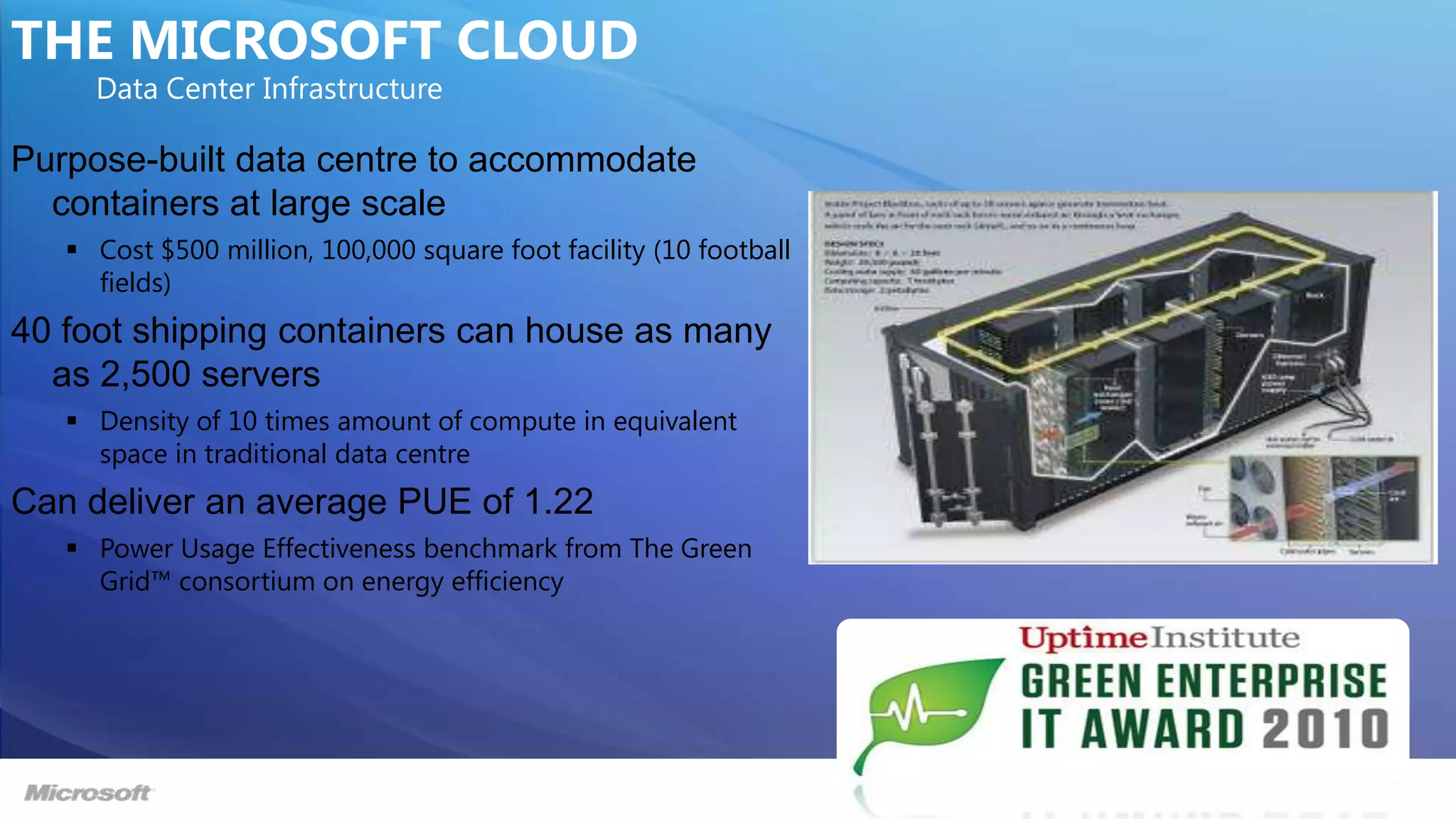

41. THE MICROSOFT CLOUD
Data Center Infrastructure
Purpose-built data centre to accommodate
containers at large scale
 Cost $500 million, 100,000 square foot facility (10 football
fields)
40 foot shipping containers can house as many
as 2,500 servers
 Density of 10 times amount of compute in equivalent
space in traditional data centre
Can deliver an average PUE of 1.22
 Power Usage Effectiveness benchmark from The Green
Grid™ consortium on energy efficiency

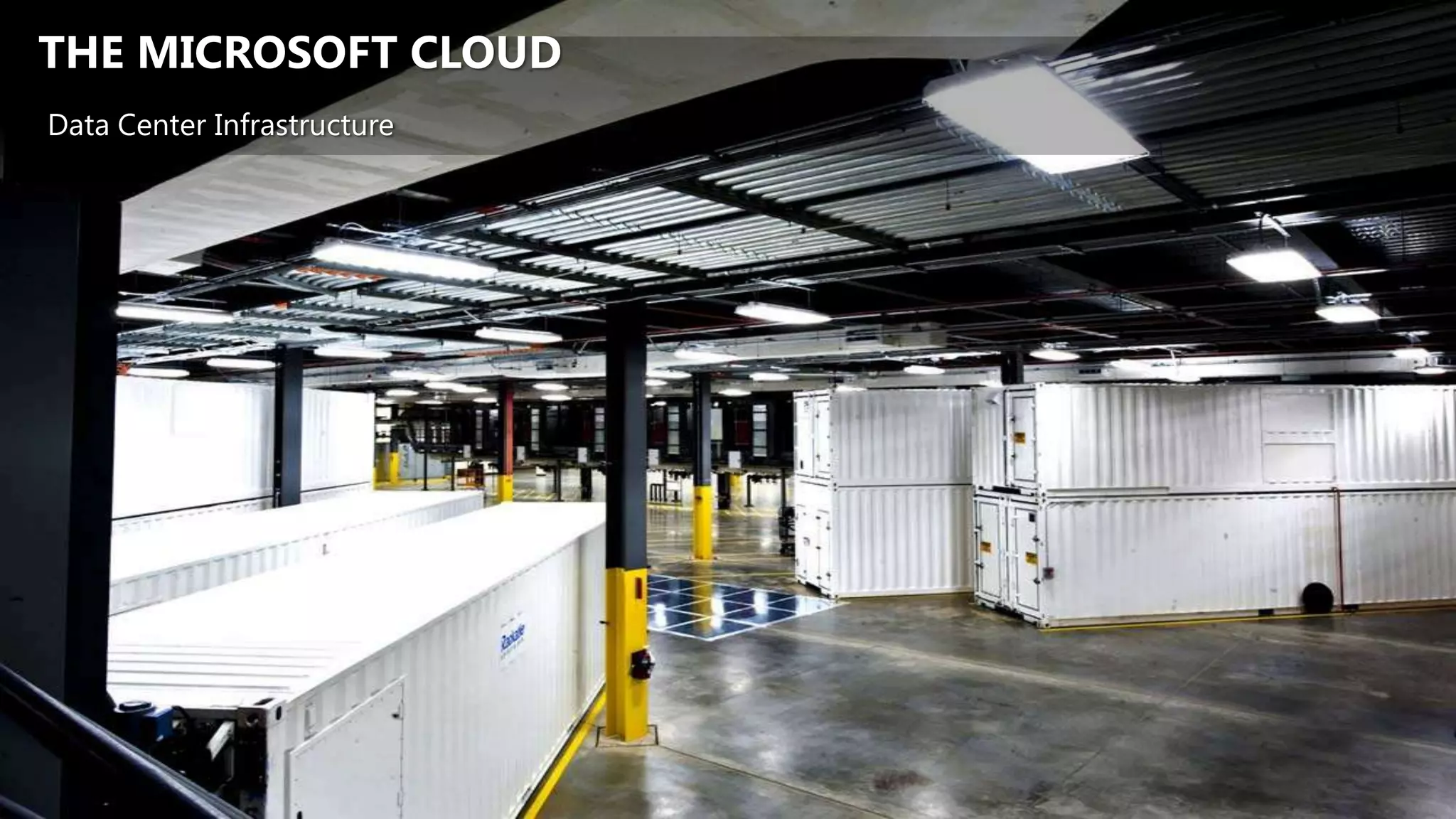

42. THE MICROSOFT CLOUD
Data Center Infrastructure

43. THE MICROSOFT CLOUD
Data Center Infrastructure

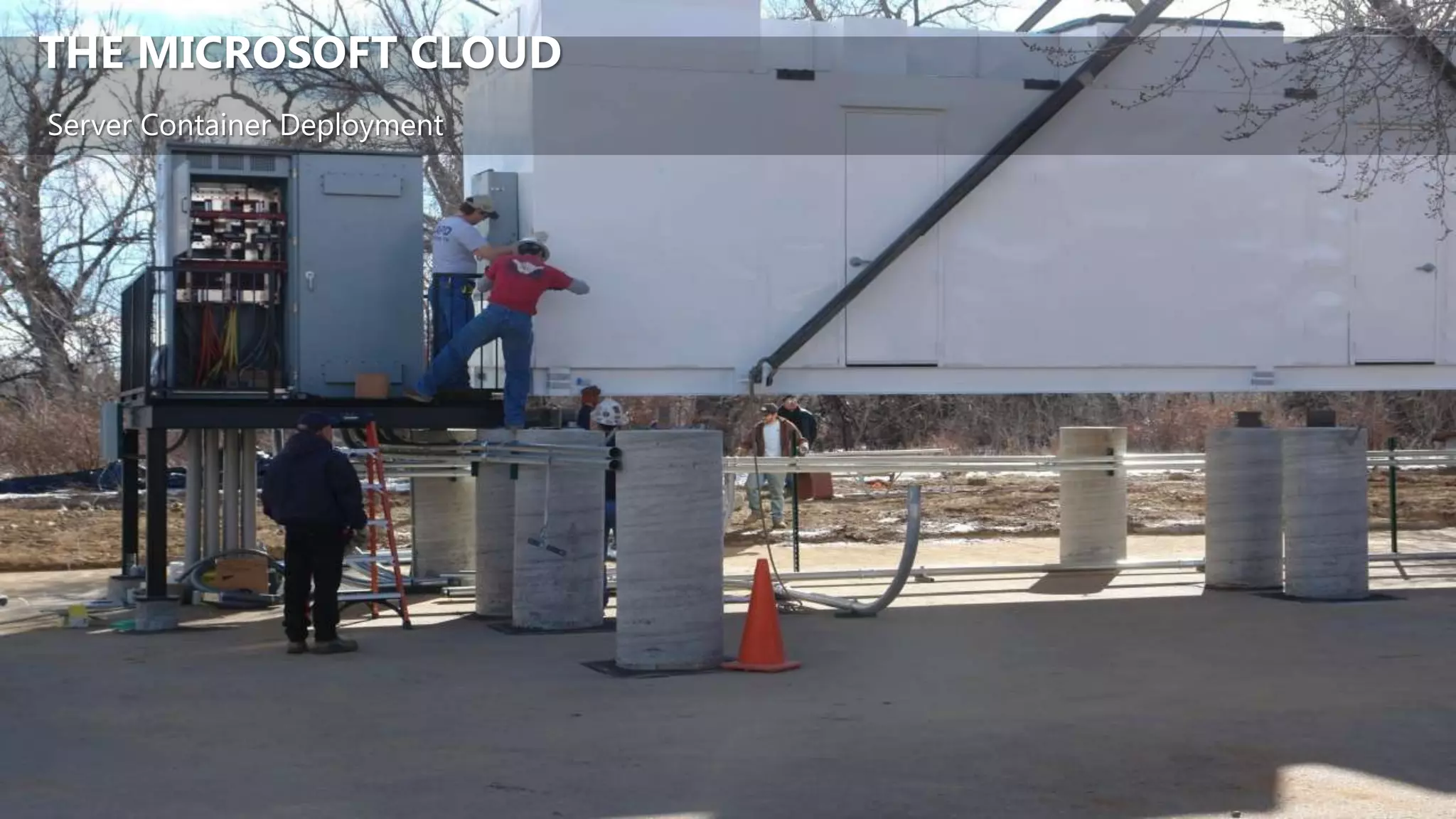

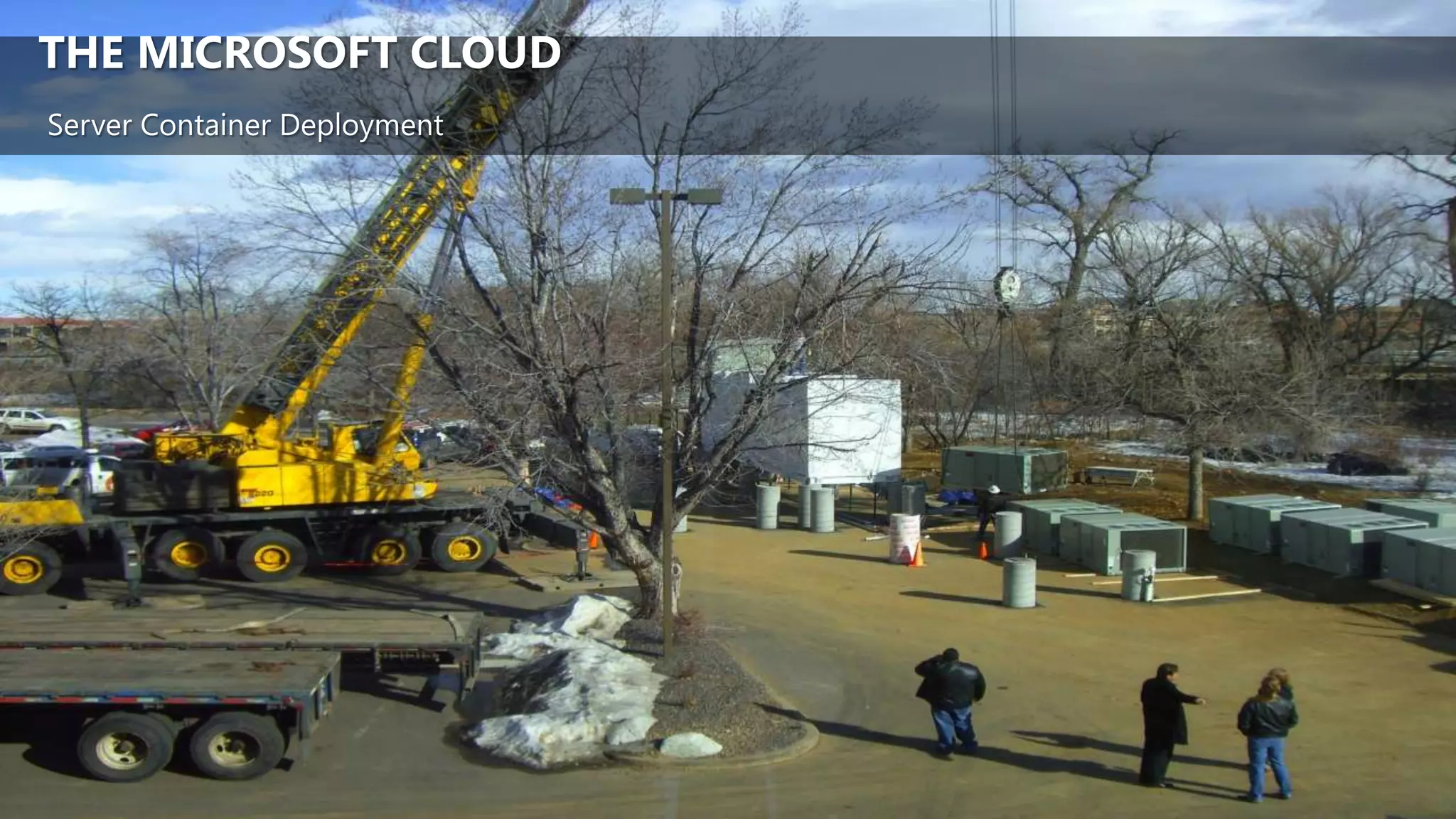

44. THE MICROSOFT CLOUD
Server Container Deployment

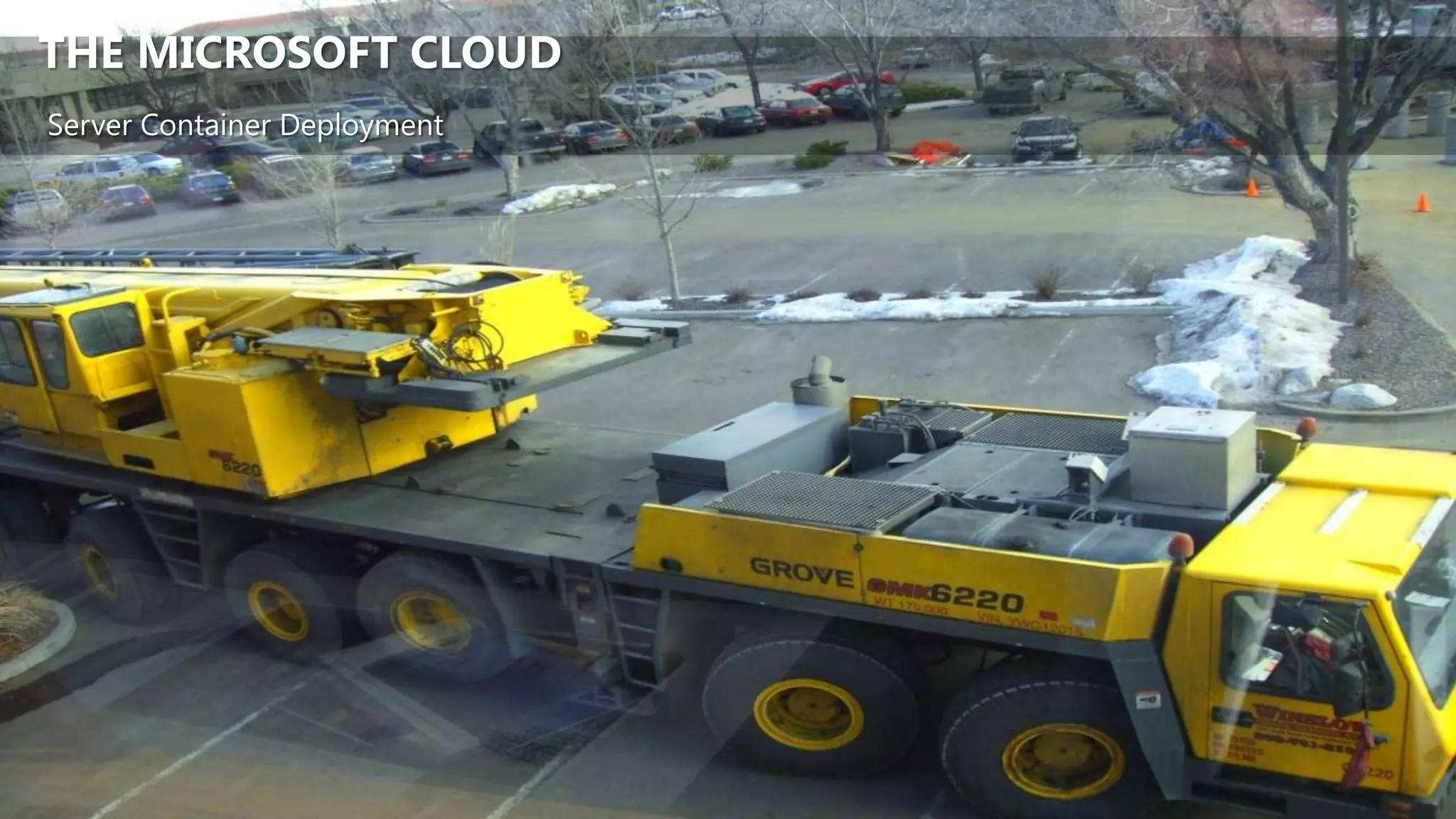

45. THE MICROSOFT CLOUD
Server Container Deployment

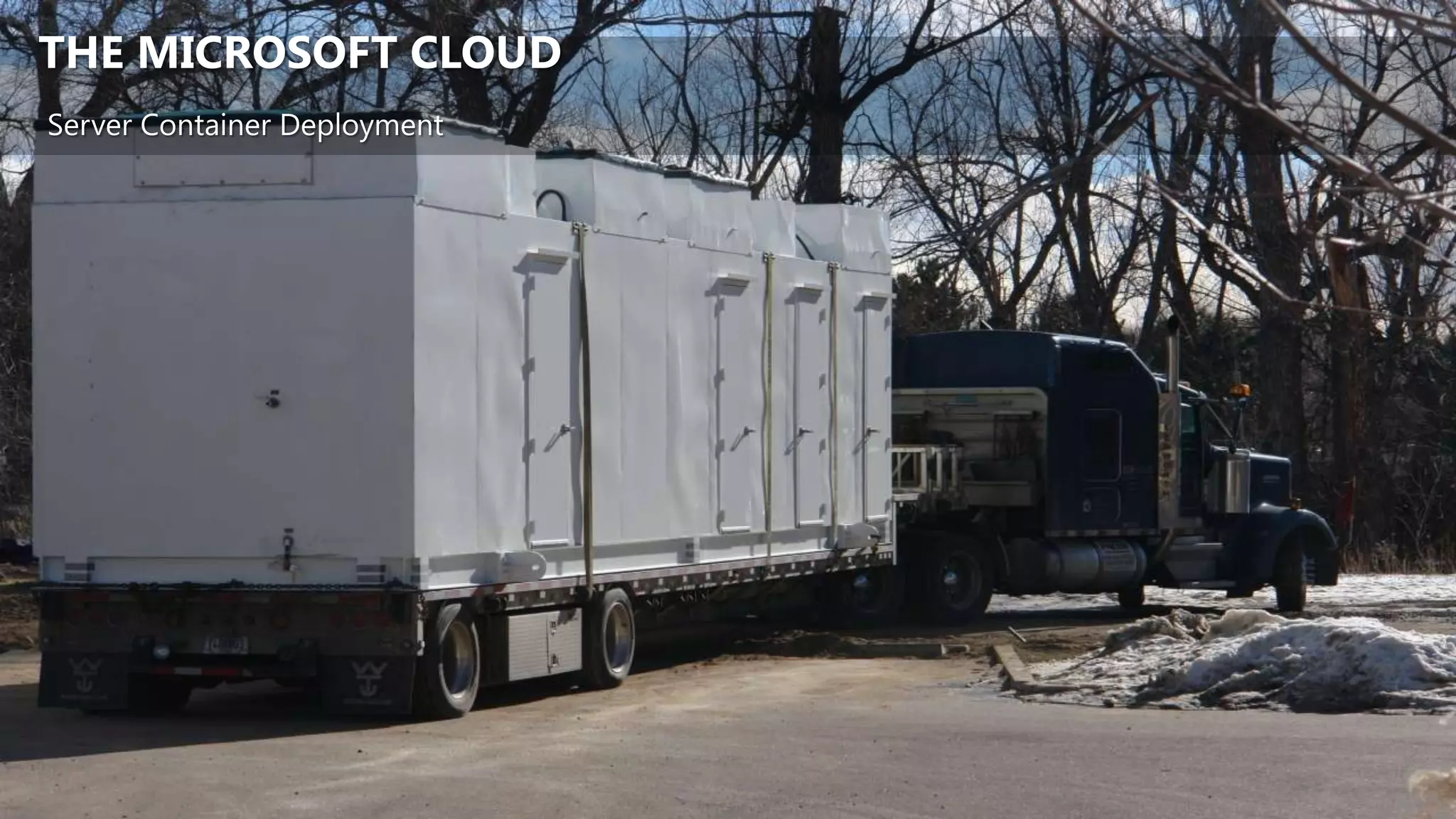

46. THE MICROSOFT CLOUD
Server Container Deployment

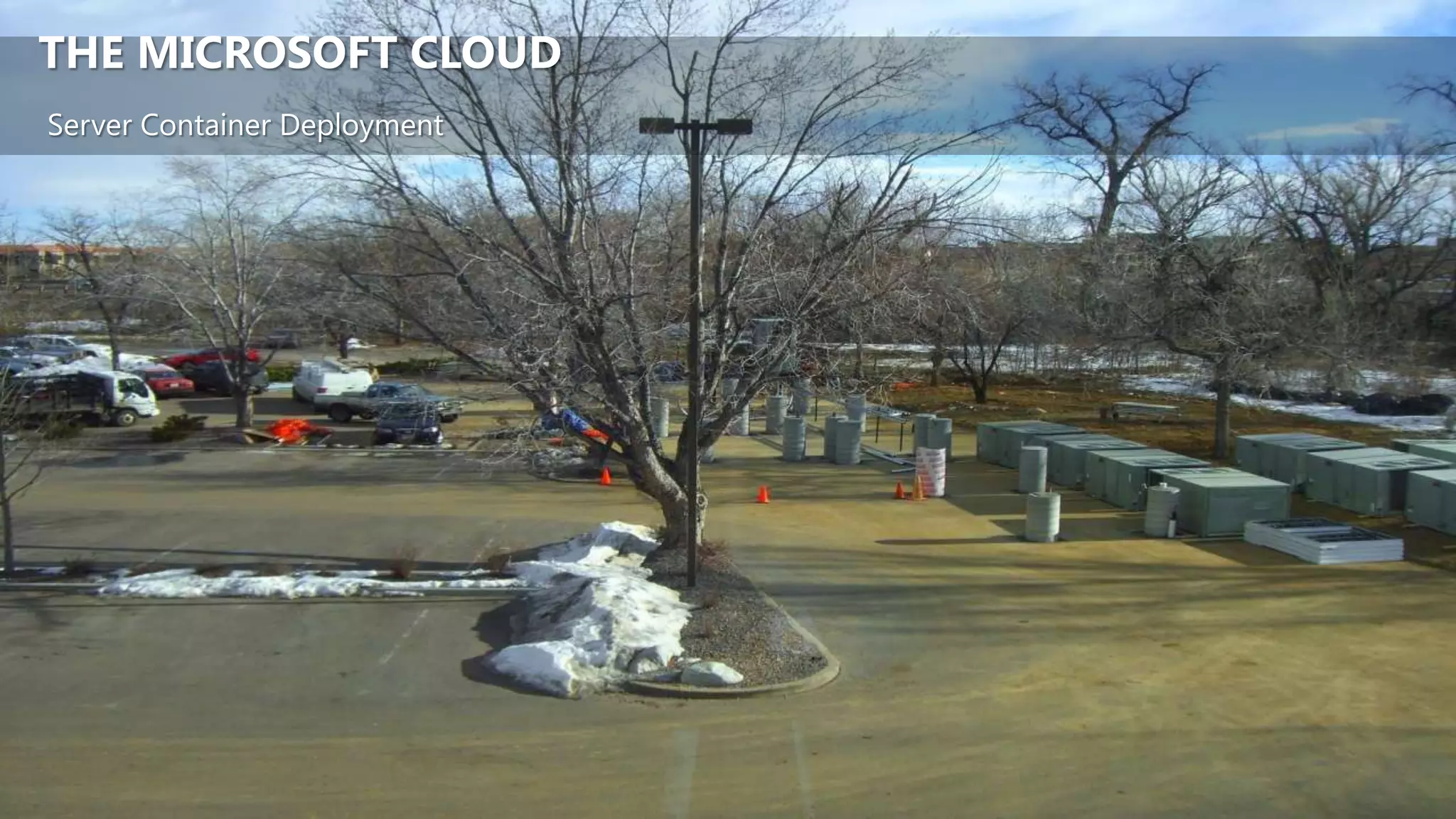

47. THE MICROSOFT CLOUD
Server Container Deployment

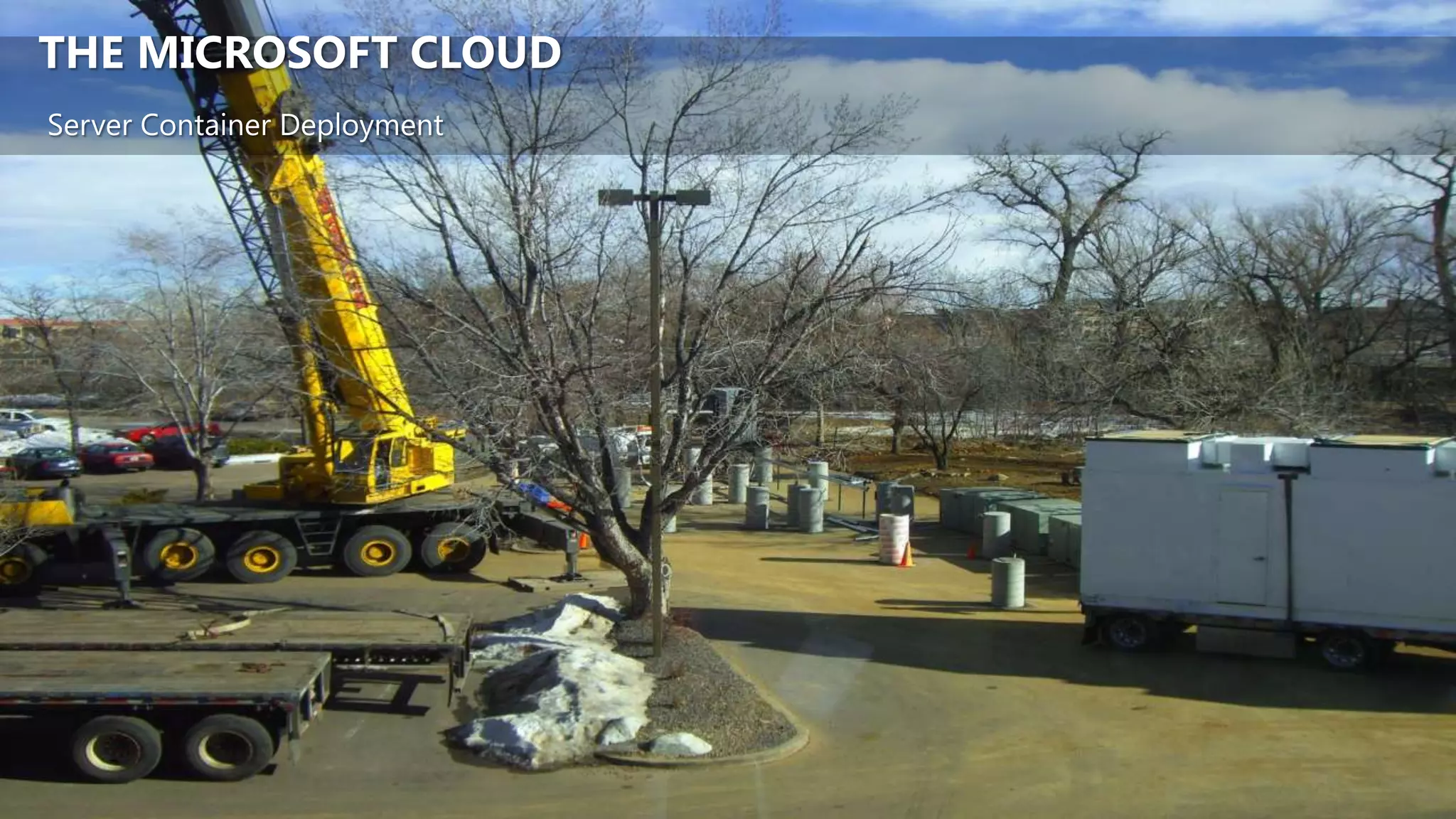

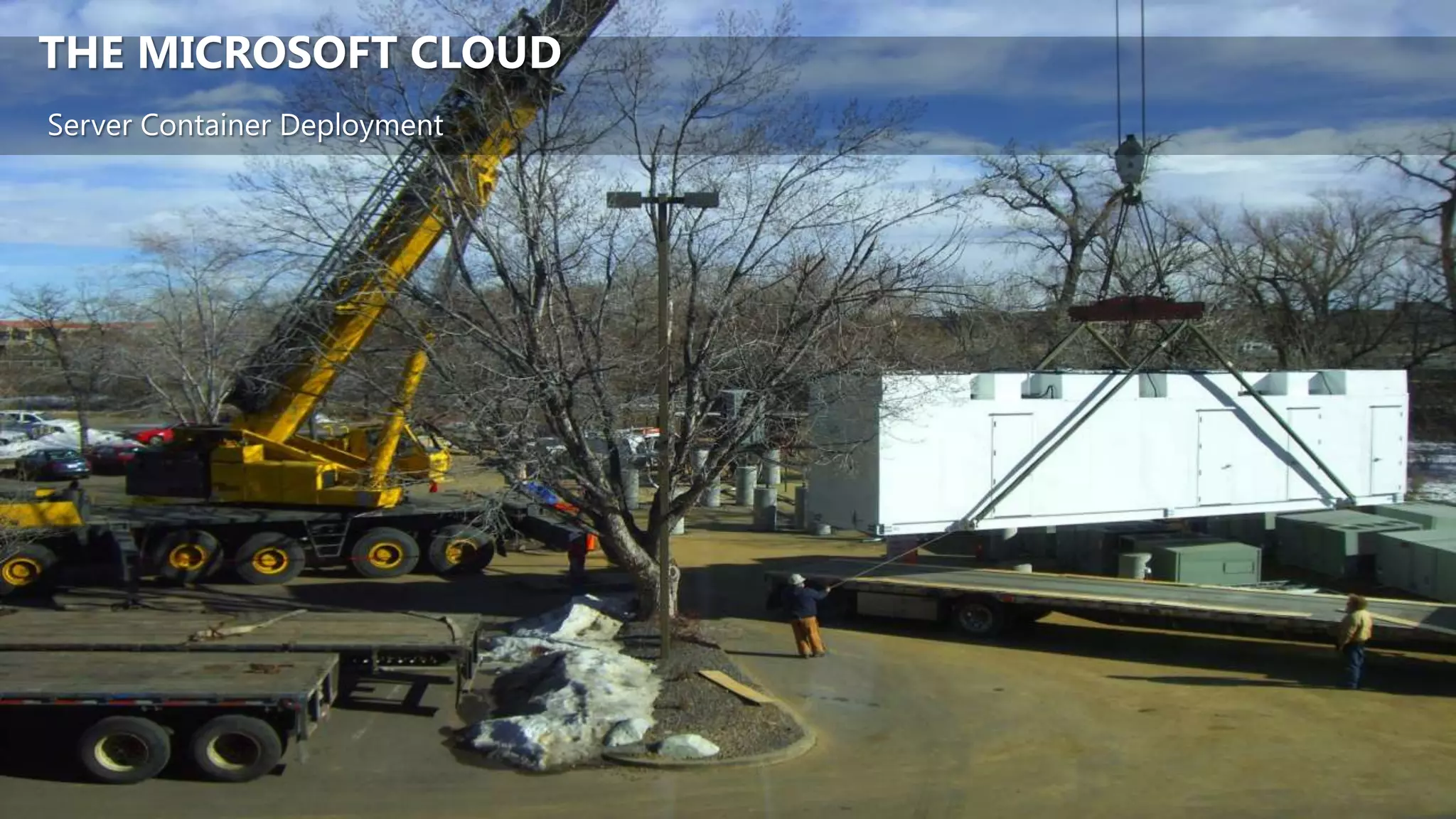

48. THE MICROSOFT CLOUD
Server Container Deployment

49. THE MICROSOFT CLOUD
Server Container Deployment

50. THE MICROSOFT CLOUD
Server Container Deployment
