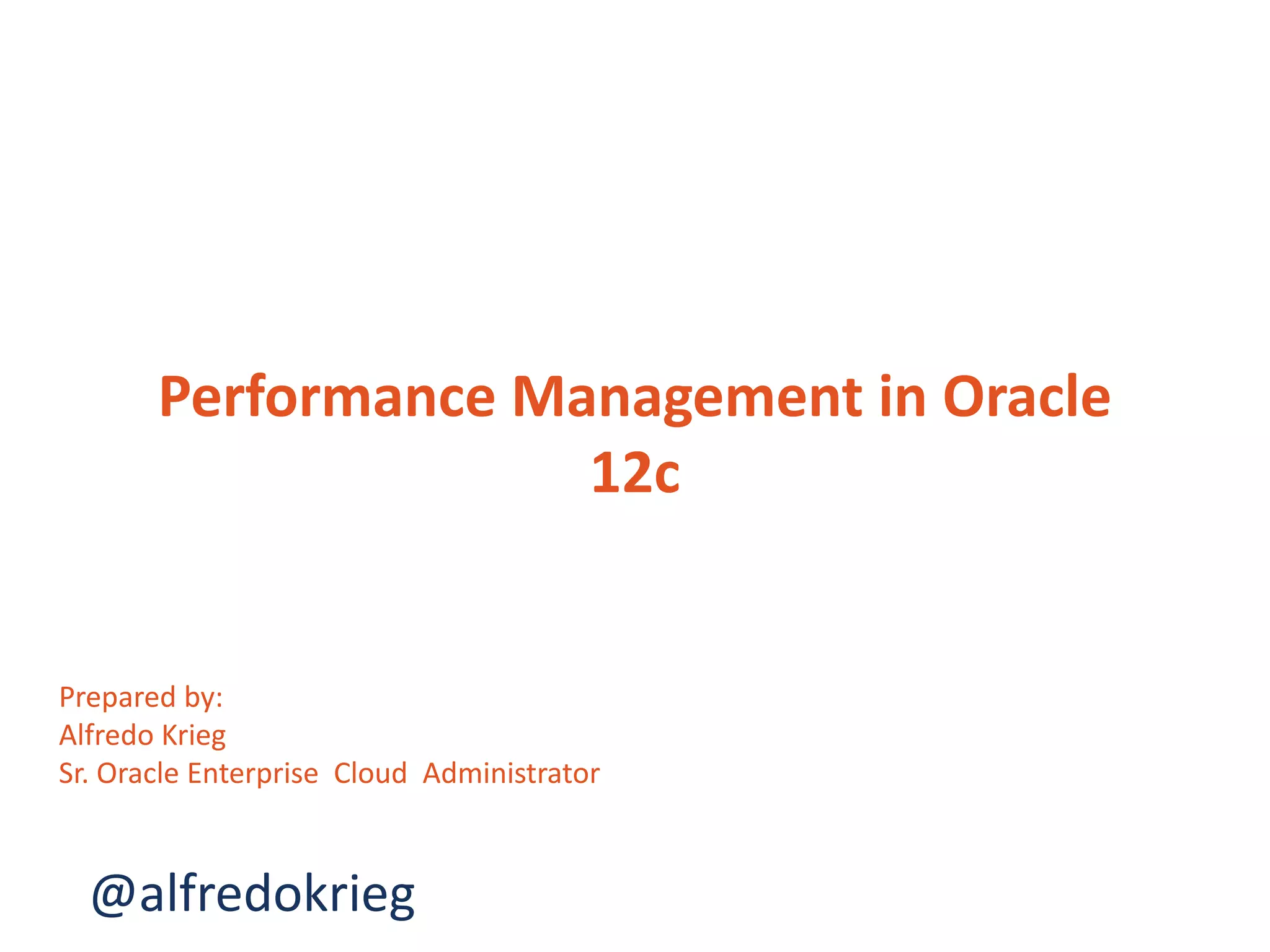

Performance Management in Oracle 12c

Performance Management in Oracle
12c
Prepared by:
Alfredo Krieg
Sr. Oracle Enterprise Cloud Administrator
@alfredokrieg

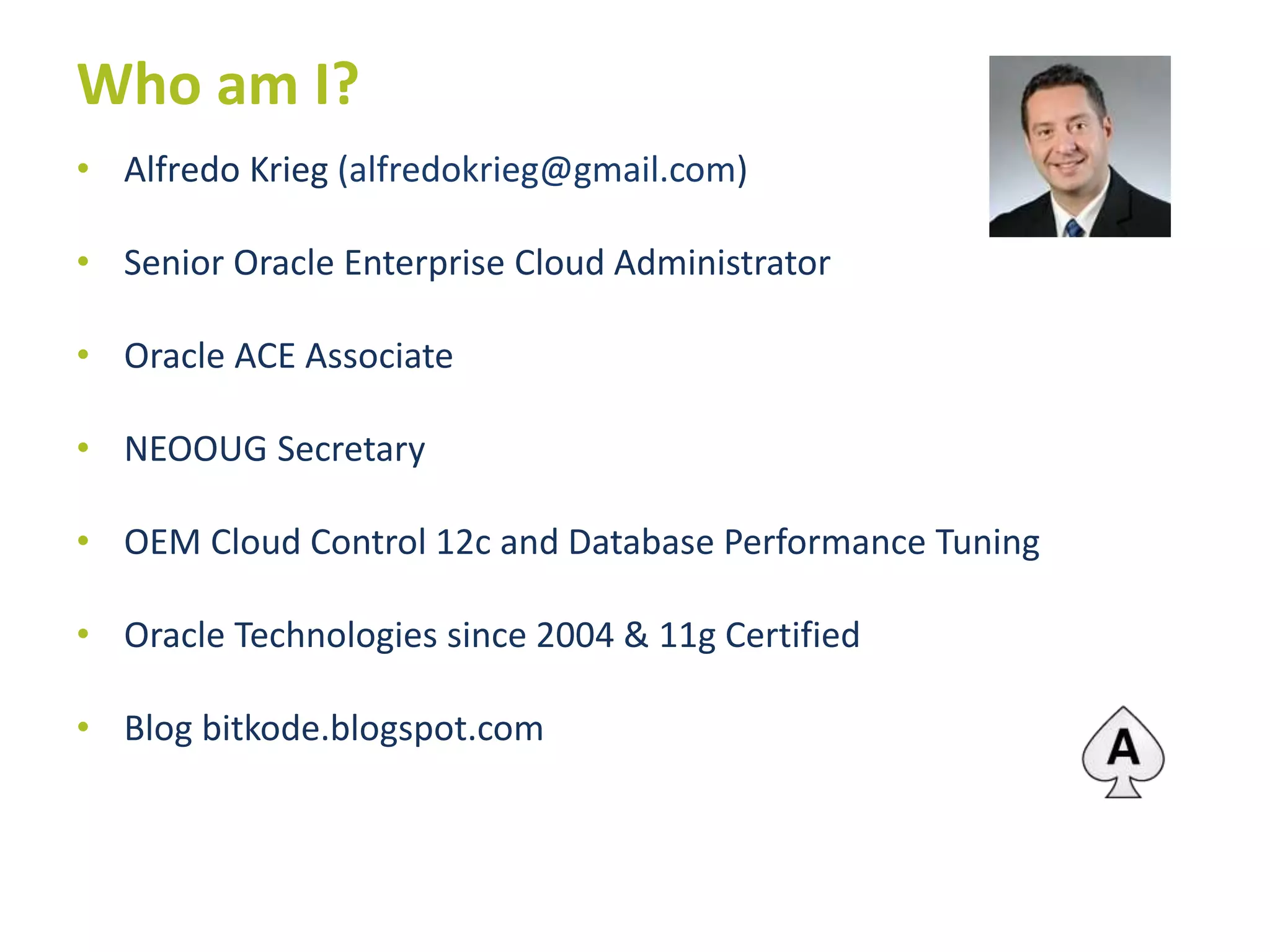

Who am I?
• Alfredo Krieg (alfredokrieg@gmail.com)
• Senior Oracle Enterprise Cloud Administrator
• Oracle ACE Associate
• NEOOUG Secretary
• OEM Cloud Control 12c and Database Performance Tuning
• Oracle Technologies since 2004 & 11g Certified
• Blog bitkode.blogspot.com

Disclaimer
The opinions expressed in this presentation are
solely mine, and not that of my employer.

Motivation
• Performance problem (regression) on a critical SQL
statement
• Users claim that this SQL has been in place for a long
period of time
• Developers claim they haven’t made any changes to the
SQL
• You are responsible of making that SQL run with
acceptable performance
• You have the tools but you don’t know
• Sometimes(?) the problem is reported
at 1 am in the morning or Friday 5 pm

Agenda
• Cost Based Optimizer
• SQL Profiles
- SQL Tuning Advisor
- COE script (custom SQL Profiles)
• Oracle SQL Plan Management
- SPM Framework
- Enable SQL plan baseline capture
- Evolve plans to stabilize performance
- Pack, Load and Unpack baselines
• Oracle Real Time Monitoring
- Usage
- OEM 12c

Cost Based Optimizer
• Cost Based Optimizer CBO (since Oracle 7)
– Determines the most efficient way to execute a SQL statement
after considering:
• Parameters
• Statistics
• Others (Hints, Outlines, Index Selectivity, etc.)
– Produces an optimal execution plan most of the times
– Setup CBO to where most SQL plans are optimal
– We want the CBO to be flexible enough to produce optimal plans
as needed

• Cost Based Optimizer CBO

• Plan Flexibility Vs Plan Stability
– Flexibility
• Goal is to allow the CBO to produce plans
(optimal/suboptimal)
• CBO Statistics and Histograms, Parameters, Bind Peeking,
Cardinality Feedback CFB, Adaptive Cursor Sharing, SQL
profiles STA
• Expect execution plan changes
http://bitkode.blogspot.com/2013/05/why-execution-plan-changed-case-study.html
– Stability
• Goal is to allow only optimal plans to be executed
• Outlines, Hints, SQL Plan Management, Custom SQL profiles
SQLT

• Performance regression

SQL Profiles
• Is a database object
• Contains auxiliary statistics specific to a SQL statement (not
to a plan)
• One time statistics
• If the SQL Profile changes, new plans are created
• Over time, profile content can be outdated
• It requires Diagnostics and Tuning license!
• Internally, a profile is implemented using hints
– OPT_ESTIMATE(@SEL$1, TABLE, TEST@SEL$1, SCALE_ROWS=30)
– TABLE_STATS(“SCOTT”, “TEST”, scale, blocks=3, rows=30)
– INDEX_STATS(“SCOTT”, “TEST”, “EMP_IDX”, scale, blocks=3,
rows=30)

SQL Profiles
• Can be created using:
– SQL Tuning Advisor
– Manually, to *lock a plan*
• The Oracle COE script
• Provided by SQLT. Support Note Id 215187.1
• coe_xfr_sql_profile.sql (Kerry’s site)
• SQL Profiles apply to the following statement types:
– SELECT statements
– UPDATE statements
– INSERT statements (only with a SELECT clause)
– DELETE statements
– CREATE TABLE statements (only with the AS SELECT clause)
– MERGE statements (the update or insert operations)

SQL Profiles
• SQL Tuning Advisor

SQL Profiles
• SQL Tuning Advisor
• When the Automatic SQL Tuning task is configured to
implement SQL profiles automatically
• Behavior depends on the setting of the ACCEPT_SQL_PROFILE

SQL Profiles
• ACCEPT_SQL_PROFILE
– If set to TRUE, then the advisor implements SQL profiles automatically.
– If set to FALSE, then user intervention is required.
– If set to AUTO (default), then the setting is true when at least one SQL
statement exists with a SQL profile, and false when this condition is not
satisfied.
• Settings of Auto task from OEM 12c

SQL Profiles
• Settings of Auto task from command line
COL PARAMETER_NAME FORMAT a25
COL VALUE FORMAT a10
SELECT PARAMETER_NAME, PARAMETER_VALUE AS "VALUE"
FROM DBA_ADVISOR_PARAMETERS
WHERE ( (TASK_NAME = 'SYS_AUTO_SQL_TUNING_TASK') AND
( (PARAMETER_NAME LIKE '%PROFILE%') OR (PARAMETER_NAME =
'LOCAL_TIME_LIMIT') OR (PARAMETER_NAME = 'EXECUTION_DAYS_TO_EXPIRE')
) );
PARAMETER_NAME VALUE
------------------------- ----------
EXECUTION_DAYS_TO_EXPIRE 30
LOCAL_TIME_LIMIT 1000
ACCEPT_SQL_PROFILES FALSE
MAX_SQL_PROFILES_PER_EXEC 20
MAX_AUTO_SQL_PROFILES 10000

SQL Profiles
• Settings of Auto task from command line
BEGIN DBMS_SQLTUNE.SET_TUNING_TASK_PARAMETER
( task_name => 'SYS_AUTO_SQL_TUNING_TASK' ,
parameter => parameter_name ,
value => value ); END; /
BEGIN
DBMS_SQLTUNE.SET_TUNING_TASK_PARAMETER('SYS_AUTO_SQL_TUNING_TAS
K', 'LOCAL_TIME_LIMIT', 1200);
K', 'ACCEPT_SQL_PROFILES', 'true');
K', 'MAX_SQL_PROFILES_PER_EXEC', 50);
K', 'MAX_AUTO_SQL_PROFILES', 10002); END; /

SQL Profiles
• COE Script
– Identify a plan change in a SQL statement
SELECT SQL_ID, PLAN_HASH_VALUE, CHILD_NUMBER FROM V$SQL WHERE
SQL_ID=‘azcb6w2rc2fwk’;
SQL_ID PLAN_HASH_VALUE CHILD_NUMBER
------------- --------------- ------------
azcb6w2rc2fwk 1378164845 3
azcb6w2rc2fwk 648432385 4
azcb6w2rc2fwk 648432385 2
azcb6w2rc2fwk 1378164845 0
azcb6w2rc2fwk 1378164845 1
azcb6w2rc2fwk 1378164845 5
– Plan 648432385 is the “good” plan but is not longer executed!

SQL Profiles
• Download COE script
– Provided by SQLT. Support Note Id 215187.1
– coe_xfr_sql_profile.sql
$@coe_xfr_sql_profile
Parameter 1:
SQL_ID (required)
Enter value for 1: azcb6w2rc2fwk
PLAN_HASH_VALUE AVG_ET_SECS
--------------- -----------
648432385 .006
1378164845 2.03
Parameter 2:
PLAN_HASH_VALUE (required)
Enter value for 2: 648432385
Values passed:
~~~~~~~~~~~~~
SQL_ID : "azcb6w2rc2fwk"
PLAN_HASH_VALUE: "648432385"
Execute coe_xfr_sql_profile_azcb6w2rc2fwk_648432385.sql
on TARGET system in order to create a custom SQL Profile
with plan 648432385 linked to adjusted sql_text.

SQL Profiles
SQL>DECLARE
2 sql_txt CLOB;
3 h SYS.SQLPROF_ATTR;
4 BEGIN
5 sql_txt := q'[
6 UPDATE TABLE_NAME SET COLUMN_NUMBER = (S... FROM TABLE1..WHERE
7 ... )
8 ]';
9 h := SYS.SQLPROF_ATTR(
10 q'[BEGIN_OUTLINE_DATA]',
11 q'[IGNORE_OPTIM_EMBEDDED_HINTS]',
12 q'[OPTIMIZER_FEATURES_ENABLE('12.1.0.2')]',
13 q'[DB_VERSION('12.1.0.2')]',
14 q'[OPT_PARAM('_b_tree_bitmap_plans' 'false')]',
15 q'[OPT_PARAM('_fast_full_scan_enabled' 'false')]',
16 q'[OPT_PARAM('_optimizer_use_feedback' 'false')]',
17 q'[OPT_PARAM('_px_adaptive_dist_method' 'off')]',
18 q'[OPT_PARAM('_optimizer_dsdir_usage_control' 0)]',
19 q'[OPT_PARAM('_optimizer_adaptive_plans' 'false')]',
20 q'[OPT_PARAM('_optimizer_strans_adaptive_pruning' 'false')]',
21 q'[OPT_PARAM('_optimizer_gather_feedback' 'false')]',
22 q'[OPT_PARAM('_optimizer_nlj_hj_adaptive_join' 'false')]',
23 q'[ALL_ROWS]',
24 q'[FULL(@"SEL$A521A1A9" "TABLE1"@"SEL$2")]',
25 q'[END_OUTLINE_DATA]');

SPM Framework
• SQL Plan Management
– New feature in 11g+ for plan stability and control
– Only selected plans (Accepted and Enabled) are executed
– New plans are captured and stored but not executed (default)
• SQL Plan Control Flags
– Enabled (YES/NO)
• Either alive or deleted
– Accepted (YES/NO)
• If Enabled and Accepted will be executed; if not Accepted can
be Evolved
– Fixed (YES/NO) “only if accepted and enabled”
• Plans have priority over Accepted plans and are not expected
to change

SPM Framework
• SQL Plan Baseline
– Group/Set of Accepted plans
• Plan History
– Group/Set of Accepted and not-Accepted plans
• Plan Evolution
– Process of making Enabled plans Accepted
• SQL Management Base (SMB)
– Set of database objects that store Plan History, SQL Plan Baseline
and SQL Profiles

SPM Framework
• SQL Plan Management Views
– DBA_SQL_PLAN_BASELINES & V$SQL

SPM Framework
• Signature
– Unique SQL identifier (hash) from the normalized SQL text
(uncased and whitespaces removed)
• DBMS_SQLTUNE.SQLTEXT_TO_SIGNATURE
• SQL Plan Status Flags
– Reproduced (YES/NO)
• CBO can or cannot reproduce the plan
– Autopurge (YES/NO)
• If YES the plan will be purged if not used, NO never purged
– Rejected (YES/NO)
• Plan was Unaccepted (Accepted = NO) & has LAST_VERIFIED
date or ENABLED=NO

SPM Framework
• SQL Plan Management Initialization Parameters
– OPTIMIZER_CAPTURE_SQL_PLAN_BASELINES
• FALSE by default. Controls the automatic creation of SQL plan
baselines
– OPTIMIZER_USE_SQL_PLAN_BASELINES
• TRUE by default. Controls the use of SQL plan baselines

SPM Framework
• SQL Plan Management has three main components
– Plan Capture
• Automatic Plan Capture
• Manual Plan Capture
– Plan Selection
– Plan Evolution
• Automatic Plan Evolution
• Manual Plan Evolution

Setup SPM – Plan Capture
• Automatic Plan Capture
– OPTIMIZER_CAPTURE_SQL_PLAN_BASELINES = TRUE
– More than one SQL execution

– Most common method to capture plans
– PL/SQL package DBMS_SPM or Enterprise Manager 12c
– Four different sources
• Cursor Cache
• SQL Tuning Set
• Stored Outlines
• Another DB System
– Loaded plans are automatically Accepted

Setup SPM – Plan Selection
• OPTIMIZER_USE_SQL_PLAN_BASELINES=TRUE (Default)

Setup SPM – Plan Evolution
• Accept or reject plans
– Automatic Plan Evolution
• SQL Tuning Advisor task (11g)
• SPM Evolve Advisor (SYS_AUTO_SPM_EVOLVE_TASK) (12c)
– Manual Plan Evolution
• DBMS_SPM.ALTER_SQL_PLAN_BASELINE (11gR1)
• DBMS_SPM.EVOLVE_SQL_PLAN_BASELINE function (11gR2)
• SPM Evolve Advisor API (12c)
• DBMS_SPM.CREATE_EVOLVE_TASK
• DBMS_SPM.EXECUTE_EVOLVE_TASK
• DBMS_SPM.REPORT_EVOLVE_TASK
• DBMS_SPM.ACCEPT_SQL_PLAN_BASELINE

• Adaptive SQL Plan Management – Automatic Plan Evolution
(12c)
– Enabled by default
– When automatic SQL tuning is in COMPREHENSIVE mode, it runs a
verification or evolve process for all SQL statements that have non-
accepted plans during the nightly maintenance window.
– If the non-accepted plan performs better (1.5x default) than the
existing accepted plan (or plans) in the SQL plan baseline, then the
plan is automatically accepted and becomes usable by the optimizer.
– After the task is complete, a persistent report is generated detailing
how the non-accepted plan performs compared to the accepted
plan performance.

– 11gR1

– Display execution plans for a baseline
– Parameters:
• sql_handle =>
• plan_name =>
• format => ‘BASIC’, ‘TYPICAL’ & ‘ALL’

– 11gR2

– 11gR2
– VERIFY (YES/NO) compare the performance before changing non-
accepted plans into accepted plans
• When set to 'YES', the non-accepted plan(s) will be accepted if
verified to give better performance
• When set to 'NO', the non-accepted plan(s) will be changed to
accepted plan(s). (11gR1 like)
– COMMIT (YES/NO)
• When set to 'YES', baseline will be updated to ACCEPTED status
and a report will be generated
• When set to 'NO', a report will be generated without actually
changing the status of the baseline(s) to ACCEPTED.

– 12c
– Create evolve task
– Execute evolve task

– Generate report
– Manual execution of SPM EVOLVE ADVISOR does NOT accept any
SQL plan baseline!!

– Accept the plan baseline recommended by the advisor
– If you try to accept the plan baseline which is NOT recommended by
SPM EVOLVE ADVISOR, it will fail with ORA-38149.
– You can accept the plan baseline which is NOT recommended by SPM
EVOLVE ADVISOR, by setting force to TRUE.
– How to Manually Evolve and Accept SQL PLAN BASELINES in Oracle
12c (Doc ID 1939828.1)

• Reject Plans
– 11gR1

• Reject Plans
– 11gR2 & 12c

Setup SPM
• Pack, Load and Unpack baselines
– 1. On the original system, create a staging table using the
DBMS_SPM.CREATE_STGTAB_BASELINE procedure
– 2. Pack the SQL plan baselines you want to export from the SQL
management base into the staging table using the
DBMS_SPM.PACK_STGTAB_BASELINE function.
– 3. Export the staging table into a flat file using the export
command or Oracle Data Pump.
– 4. Transfer this flat file to the target system.
– 5. Import the staging table from the flat file using the import
command or Oracle Data Pump.
– 6. Unpack the SQL plan baselines from the staging table into the
SQL management base on the target system using the
DBMS_SPM.UNPACK_STGTAB_BASELINE function.

SPM Administration
• SPM Plan Retention
– Weekly scheduled task that runs as an automated task in the
maintenance window
– Purges plans that have not been used for longer than the plan
retention period
– Default retention is 53 weeks and can be setup from 5 to 523
weeks

SPM Administration
• Manage SBM space limit
– Weekly background process measures the total space occupied by
the SMB in the SYSAUX tablespace, default 10%
– Process writes a warning message to the alert log
– Fix by increase SBM space limit, increase SYSAUX size or purge
baselines

SPM Administration
• Licensing
– SPM is available as part of Oracle Database Enterprise Edition
– Includes any of the DBMS_SPM procedures
• But, below features require the Tuning Pack
– Automatic Plan Evolution for SQL Plan Management STA
– Load plans from SQL Tuning Sets into SPM, STS can only be created
if you have Tuning pack or RAT pack
• Maria Colgan’s Blog
https://blogs.oracle.com/optimizer/entry/does_the_use_of_sql

SPM Administration
• Acceptance threshold in the evolve process
– Controlled by hidden parameter
– How to Evolve a SQL Plan Baseline and Adjust the Acceptance
Threshold (Doc ID 1617790.1)

Oracle Real-Time SQL Monitoring
• Introduced in 11g
• By default, started automatically when a SQL runs in
parallel or has consumed at least 5 seconds of CPU and/or
I/O combined in a single execution
• Can be forced using the hint /*+ MONITOR */
• Requires STATISTICS_LEVEL set to ‘TYPICAL’ or ‘ALL’
• Diagnostic and Tuning license
• 2 System Views
– V$SQL_MONITOR
– V$SQL_PLAN_MONITOR
• 2 Packages
– DBMS_SQLTUNE.report_sql_monitor_list
– DBMS_SQLTUNE.report_sql_detail

Oracle Real-Time SQL Monitoring
• SQL Real-Time Monitor in OEM 12c

Performance Management in Oracle 12c

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (13)

Similar to Performance Management in Oracle 12c

Similar to Performance Management in Oracle 12c (20)

More from Alfredo Krieg

More from Alfredo Krieg (11)

Recently uploaded

Recently uploaded (20)

Performance Management in Oracle 12c
