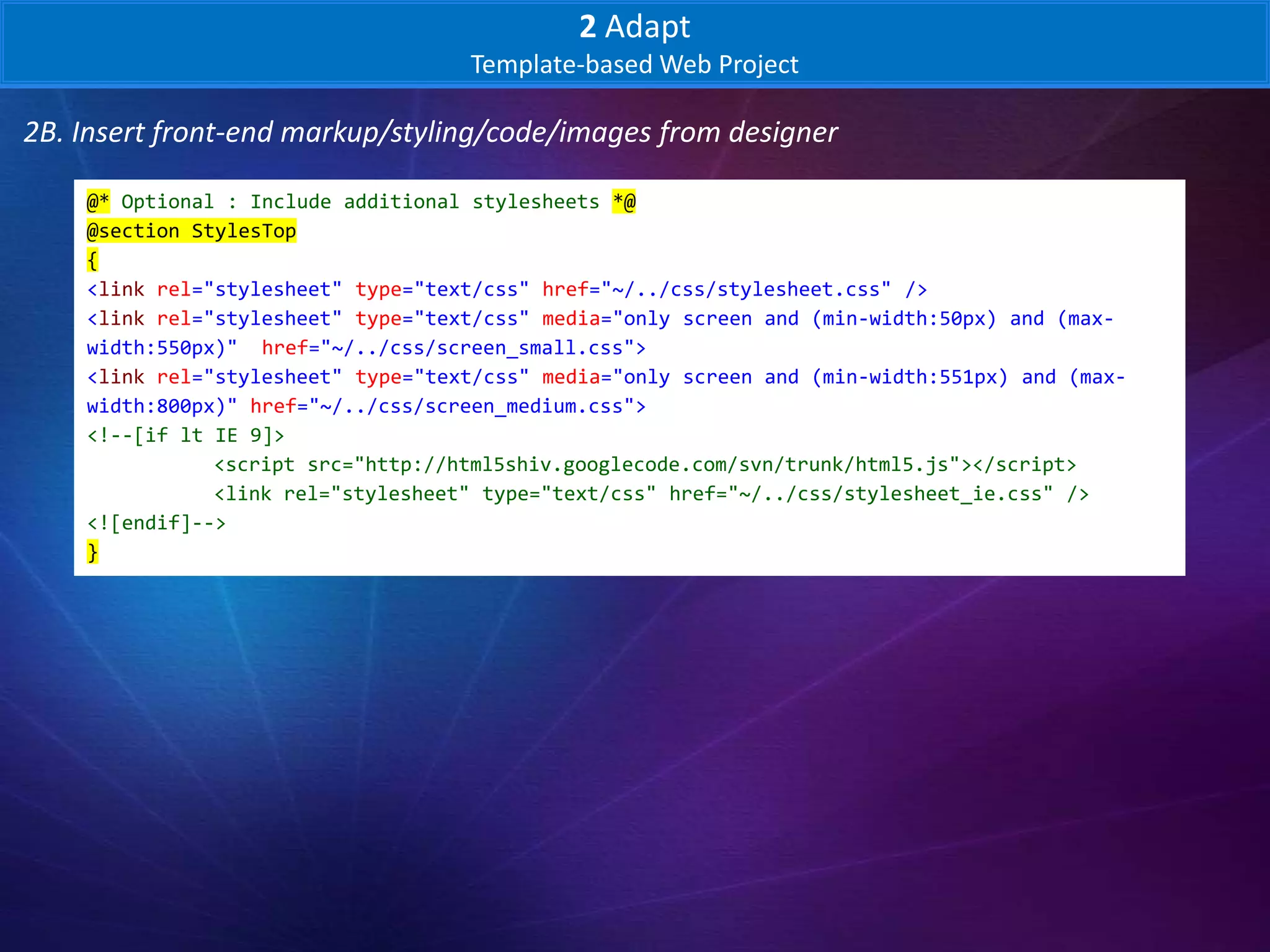

![2 Adapt
Template-based Web Project
2B. Insert front-end markup/styling/code/images from designer
@* Optional : Include additional stylesheets *@
@section StylesTop
{
<link rel="stylesheet" type="text/css" href="~/../css/stylesheet.css" />
<link rel="stylesheet" type="text/css" media="only screen and (min-width:50px) and (max-
width:550px)" href="~/../css/screen_small.css">
<link rel="stylesheet" type="text/css" media="only screen and (min-width:551px) and (max-
width:800px)" href="~/../css/screen_medium.css">
<!--[if lt IE 9]>
<script src="http://html5shiv.googlecode.com/svn/trunk/html5.js"></script>
<link rel="stylesheet" type="text/css" href="~/../css/stylesheet_ie.css" />
<![endif]-->
}](https://image.slidesharecdn.com/whenworldscollidehtml5meetsthecloud-120130103106-phpapp01/75/When-worlds-Collide-HTML5-Meets-the-Cloud-48-2048.jpg)

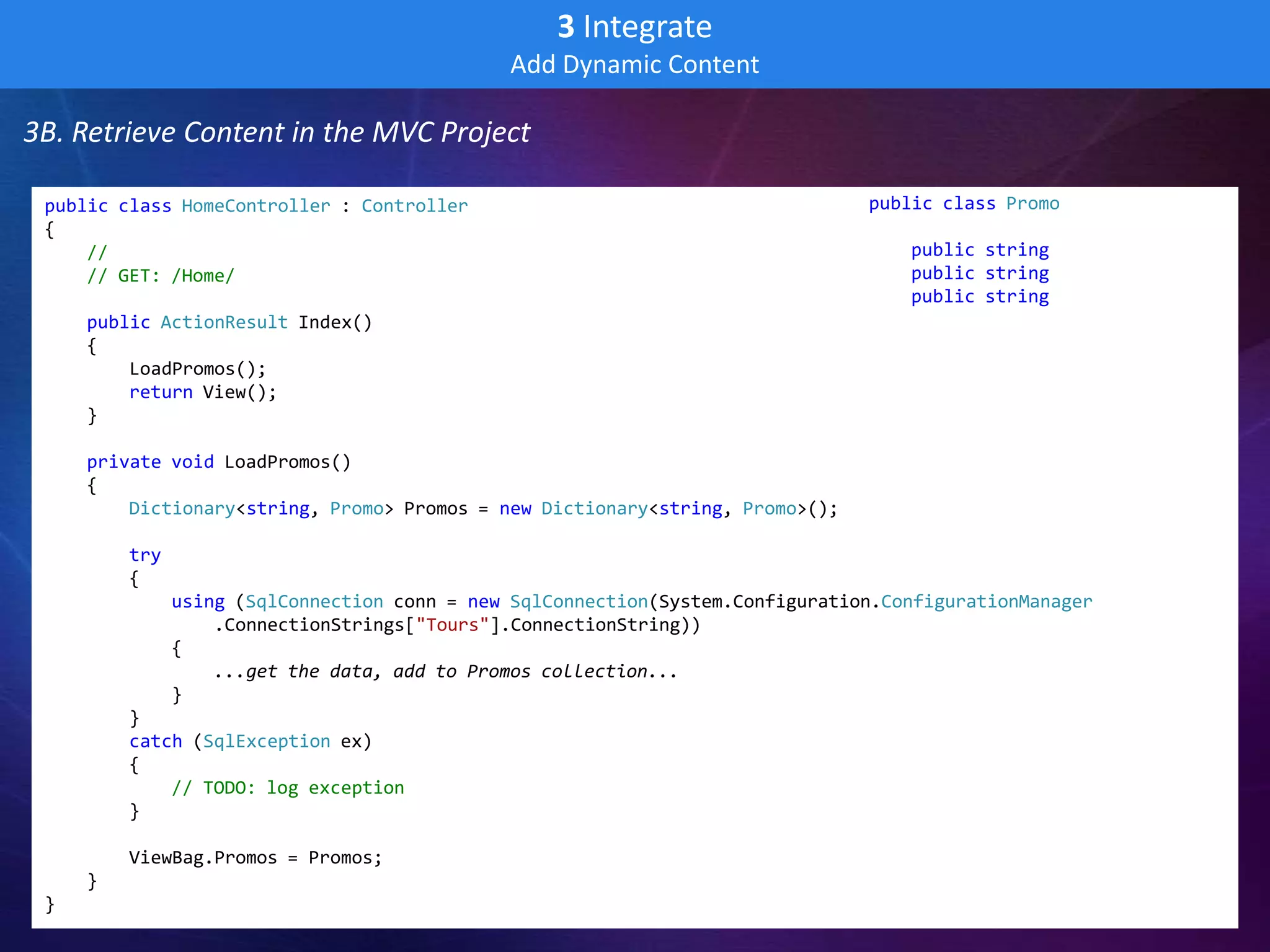

![3 Integrate
Add Dynamic Content
3B. Retrieve Content in the MVC Project
public class HomeController : Controller public class Promo
{ {
// public string Title;
// GET: /Home/ public string Text;
public string ImageURL;
public ActionResult Index() }
{
LoadPromos();
return View();
}
private void LoadPromos()
{
Dictionary<string, Promo> Promos = new Dictionary<string, Promo>();
try
{
using (SqlConnection conn = new SqlConnection(System.Configuration.ConfigurationManager
.ConnectionStrings["Tours"].ConnectionString))
{
...get the data, add to Promos collection...
}
}
catch (SqlException ex)
{
// TODO: log exception
}
ViewBag.Promos = Promos;
}
}](https://image.slidesharecdn.com/whenworldscollidehtml5meetsthecloud-120130103106-phpapp01/75/When-worlds-Collide-HTML5-Meets-the-Cloud-51-2048.jpg)

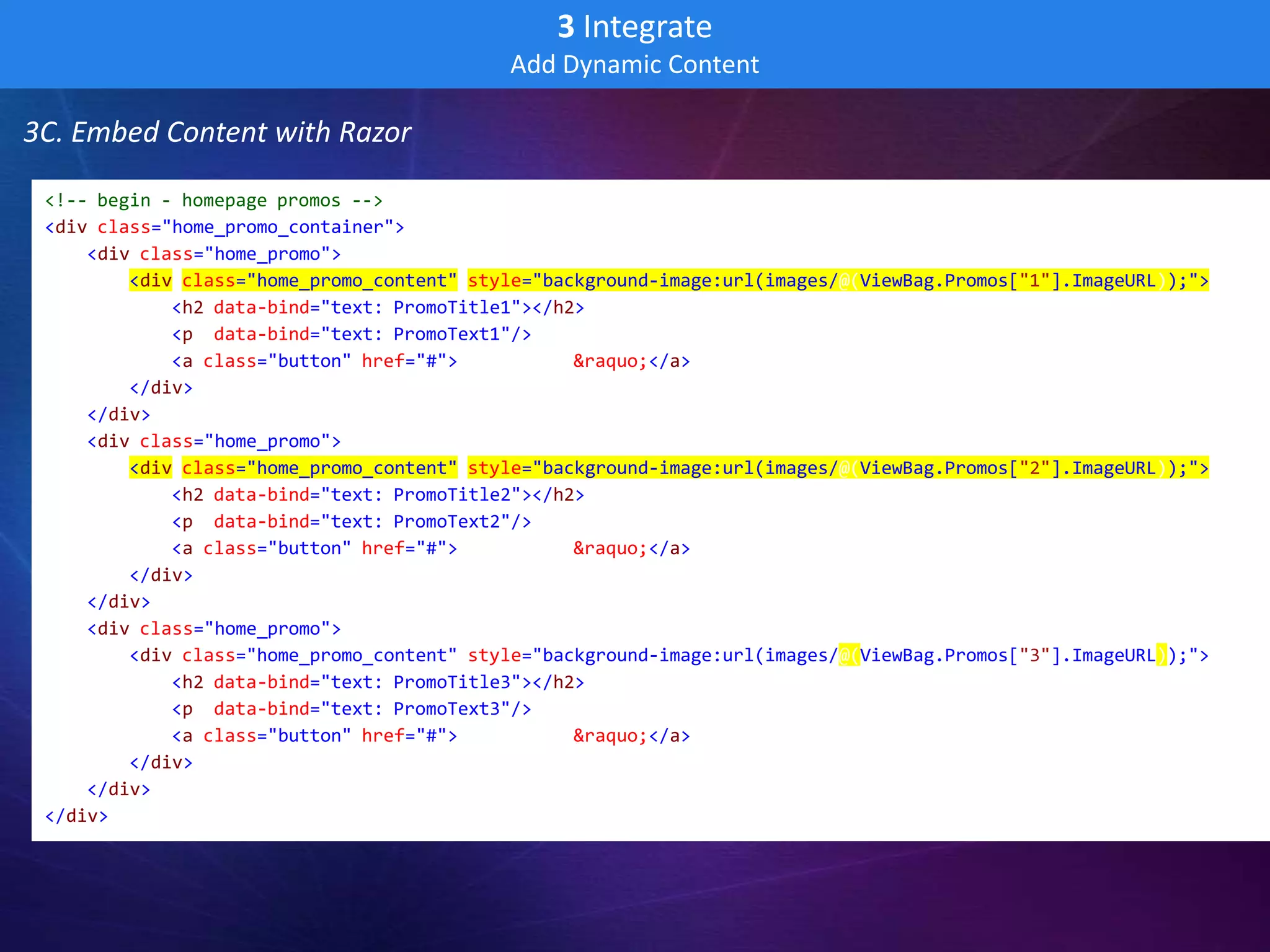

![3 Integrate
Add Dynamic Content
3C. Embed Content with Razor
<!-- begin - homepage promos -->
<div class="home_promo_container">
<div class="home_promo">
<div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["1"].ImageURL));">
<h2 data-bind="text: PromoTitle1"></h2>
<p data-bind="text: PromoText1"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
<div class="home_promo">
<div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["2"].ImageURL));">
<h2 data-bind="text: PromoTitle2"></h2>
<p data-bind="text: PromoText2"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
<div class="home_promo">
<div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["3"].ImageURL));">
<h2 data-bind="text: PromoTitle3"></h2>
<p data-bind="text: PromoText3"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
</div>](https://image.slidesharecdn.com/whenworldscollidehtml5meetsthecloud-120130103106-phpapp01/75/When-worlds-Collide-HTML5-Meets-the-Cloud-52-2048.jpg)

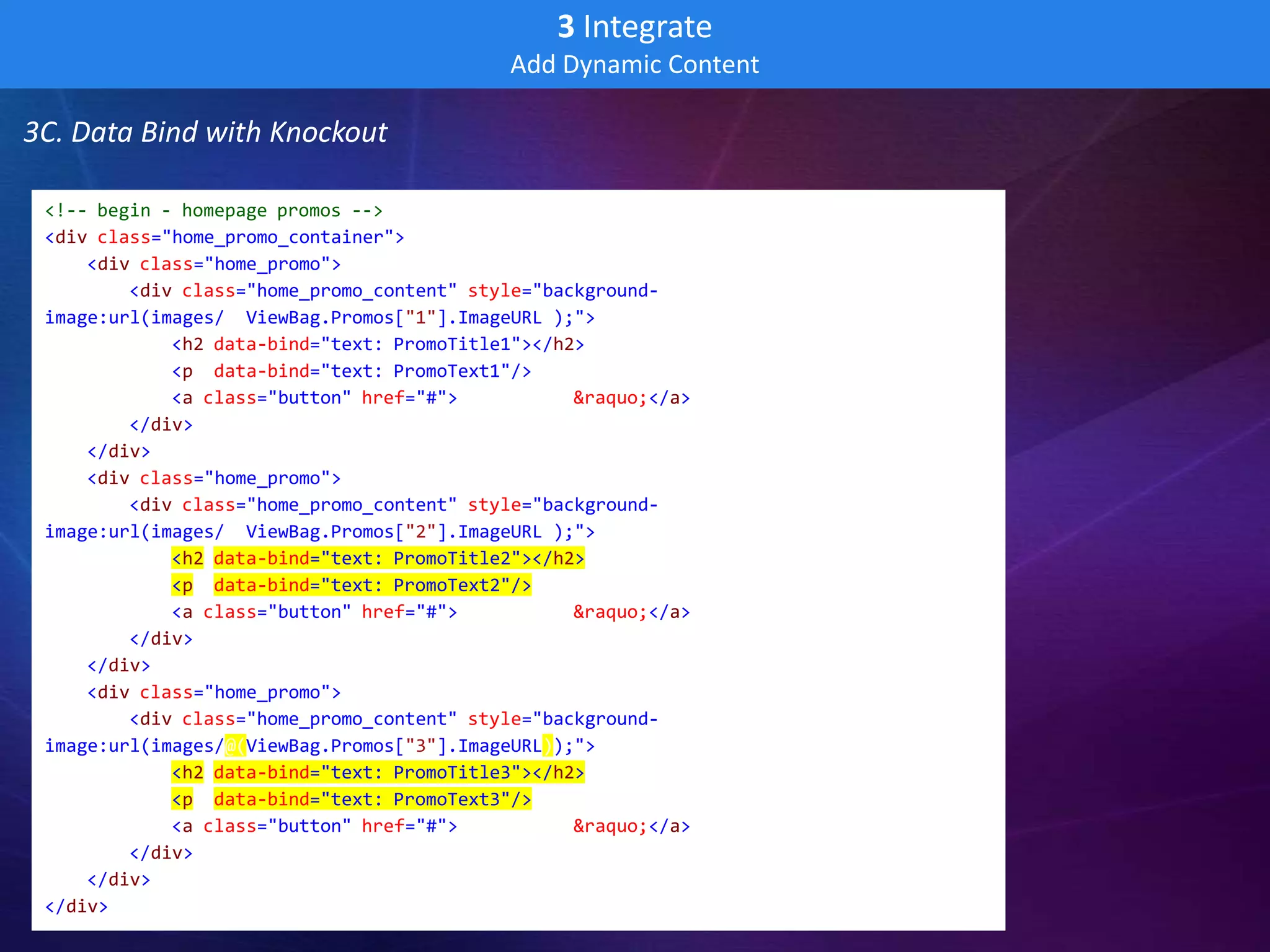

![3 Integrate
Add Dynamic Content
3C. Data Bind with Knockout
<!-- begin - homepage promos -->
<div class="home_promo_container">
<div class="home_promo">
<div class="home_promo_content" style="background-
image:url(images/@(ViewBag.Promos["1"].ImageURL));">
<h2 data-bind="text: PromoTitle1"></h2>
<p data-bind="text: PromoText1"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
<div class="home_promo">
<div class="home_promo_content" style="background-
image:url(images/@(ViewBag.Promos["2"].ImageURL));">
<h2 data-bind="text: PromoTitle2"></h2>
<p data-bind="text: PromoText2"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
<div class="home_promo">
<div class="home_promo_content" style="background-
image:url(images/@(ViewBag.Promos["3"].ImageURL));">
<h2 data-bind="text: PromoTitle3"></h2>
<p data-bind="text: PromoText3"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
</div>](https://image.slidesharecdn.com/whenworldscollidehtml5meetsthecloud-120130103106-phpapp01/75/When-worlds-Collide-HTML5-Meets-the-Cloud-53-2048.jpg)

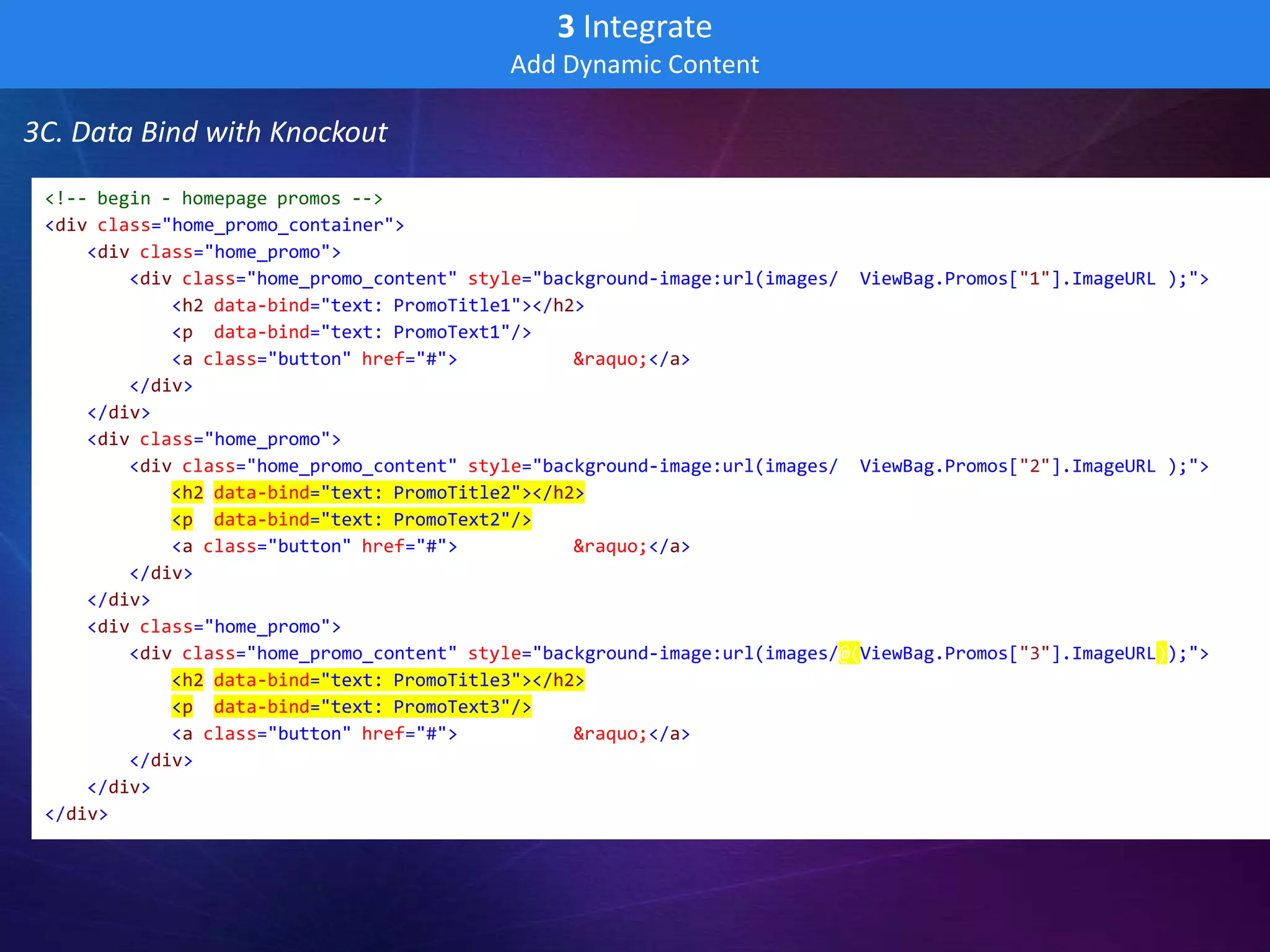

![3 Integrate
Add Dynamic Content
3C. Data Bind with Knockout
<!-- begin - homepage promos -->
<div class="home_promo_container">
<div class="home_promo">
<div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["1"].ImageURL));">
<h2 data-bind="text: PromoTitle1"></h2>
<p data-bind="text: PromoText1"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
<div class="home_promo">
<div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["2"].ImageURL));">
<h2 data-bind="text: PromoTitle2"></h2>
<p data-bind="text: PromoText2"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
<div class="home_promo">
<div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["3"].ImageURL));">
<h2 data-bind="text: PromoTitle3"></h2>
<p data-bind="text: PromoText3"/>
<a class="button" href="#">Learn more »</a>
</div>
</div>
</div>](https://image.slidesharecdn.com/whenworldscollidehtml5meetsthecloud-120130103106-phpapp01/75/When-worlds-Collide-HTML5-Meets-the-Cloud-54-2048.jpg)

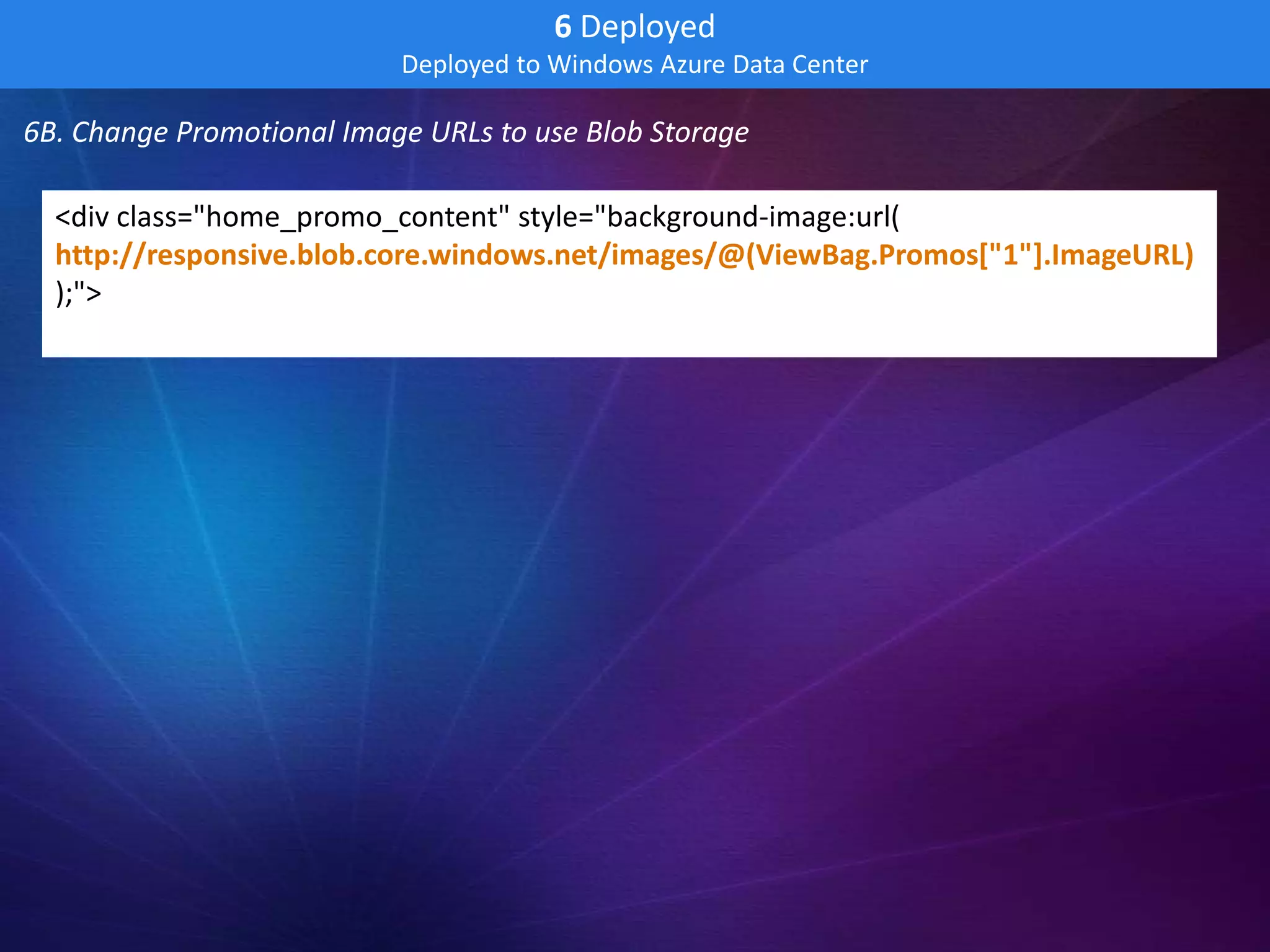

![6 Deployed
Deployed to Windows Azure Data Center
6B. Change Promotional Image URLs to use Blob Storage
<div class="home_promo_content" style="background-image:url(
http://responsive.blob.core.windows.net/images/@(ViewBag.Promos["1"].ImageURL)
);">](https://image.slidesharecdn.com/whenworldscollidehtml5meetsthecloud-120130103106-phpapp01/75/When-worlds-Collide-HTML5-Meets-the-Cloud-64-2048.jpg)

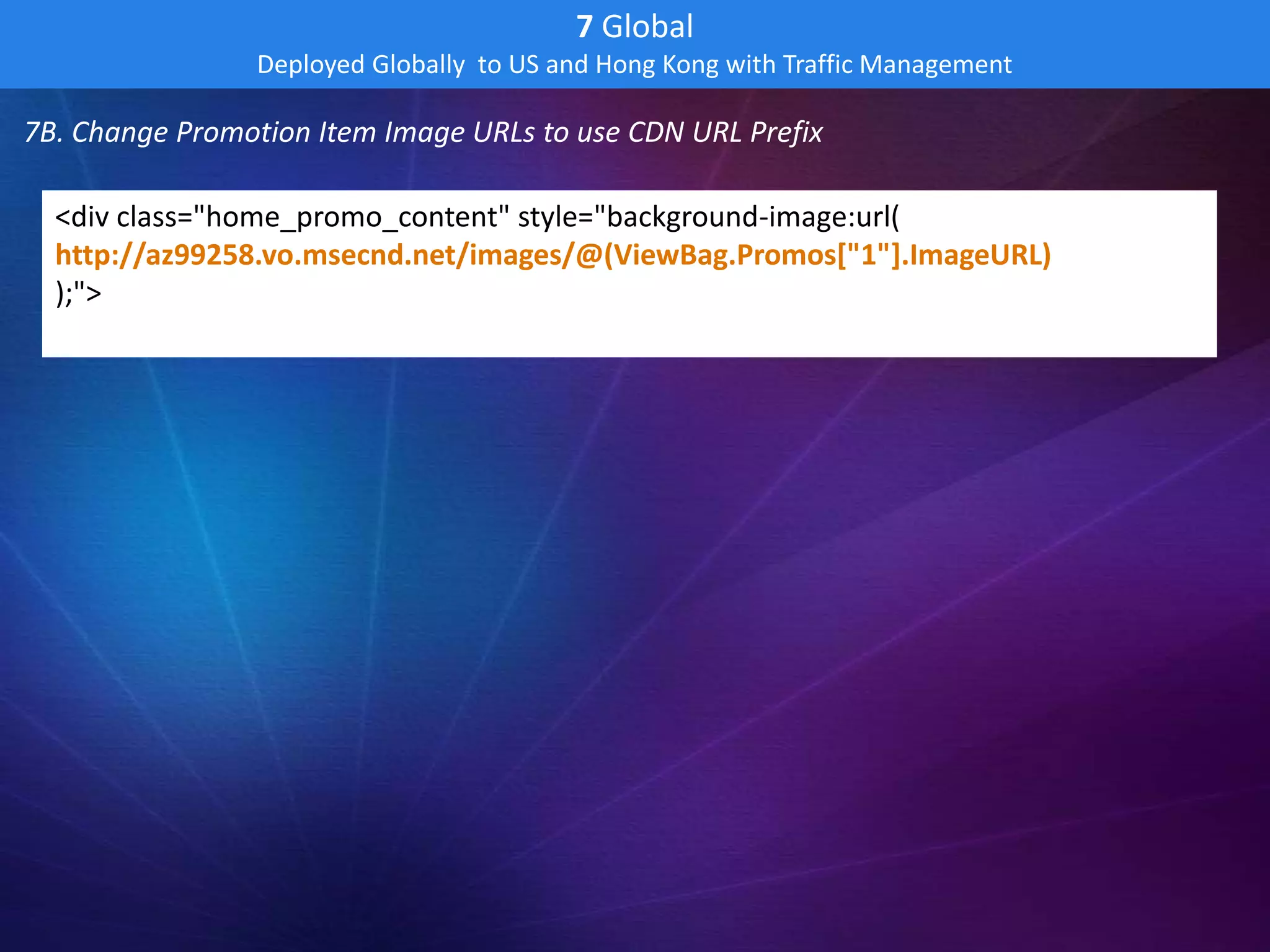

![7 Global
Deployed Globally to US and Hong Kong with Traffic Management
7B. Change Promotion Item Image URLs to use CDN URL Prefix
<div class="home_promo_content" style="background-image:url(
http://az99258.vo.msecnd.net/images/@(ViewBag.Promos["1"].ImageURL)
);">](https://image.slidesharecdn.com/whenworldscollidehtml5meetsthecloud-120130103106-phpapp01/75/When-worlds-Collide-HTML5-Meets-the-Cloud-68-2048.jpg)
Uploaded byDavid Pallmann
When worlds Collide: HTML5 Meets the Cloud
The document discusses the evolution and significance of HTML5 and cloud computing in creating responsive, mobile applications. It highlights the importance of adaptive layouts, multimedia integration, and location-based services while detailing a step-by-step tutorial for developing and deploying apps on the Windows Azure platform. The content covers technical aspects such as using HTML5, cloud services, and identity management to enhance user experience and application functionality.
More Related Content
Similar to When worlds Collide: HTML5 Meets the Cloud
When worlds Collide: HTML5 Meets the Cloud
- 1. David Pallmann GM CustomApp Dev, Neudesic http://davidpallmann.blogspot.com @davidpallmann
- 2. 2 Revolutions The HTML5revolution The Cloud revolution Interactions & Synergies Walkthrough: Creating a Mobile & Global App

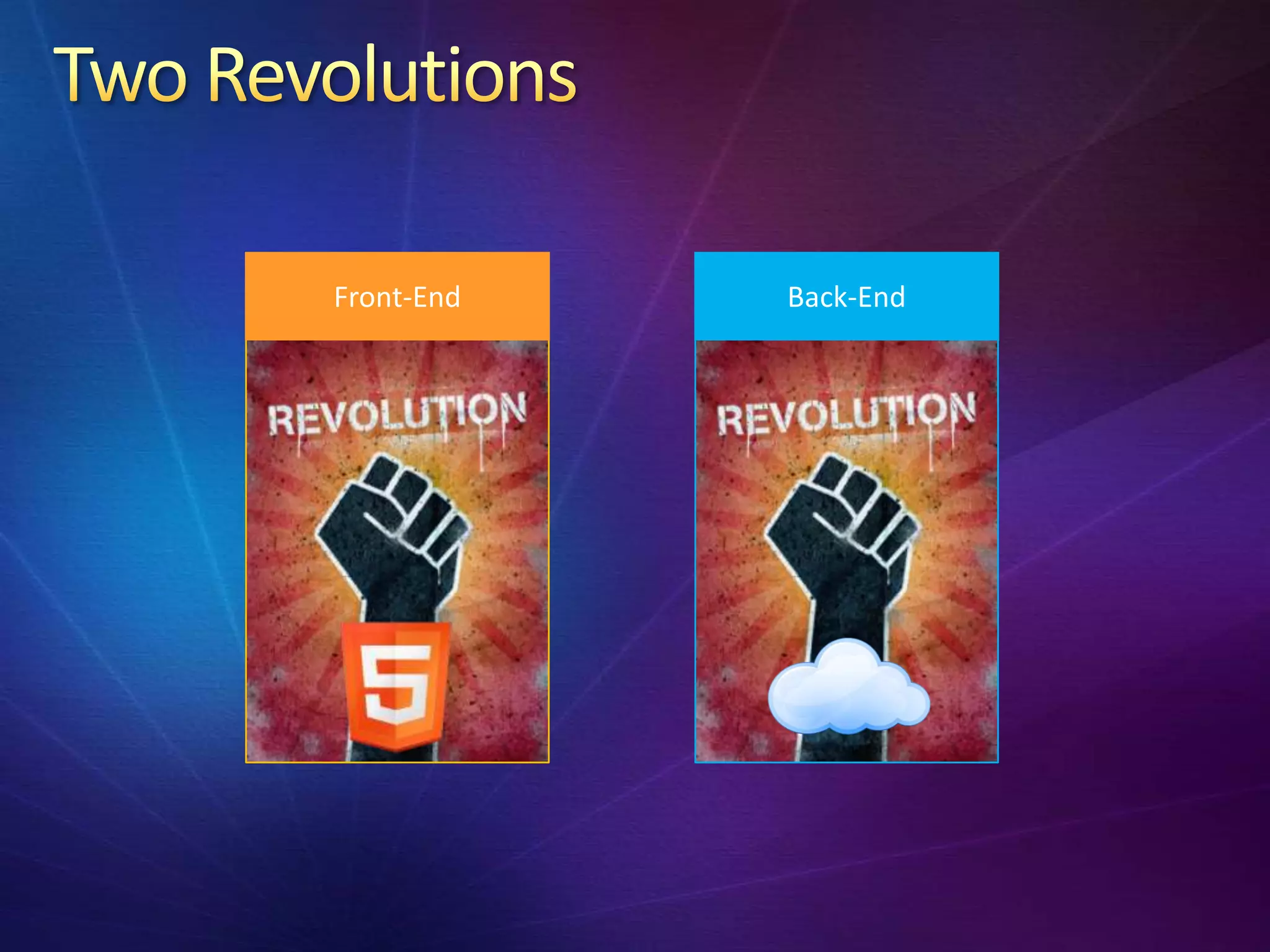

- 3. Front-End Back-End

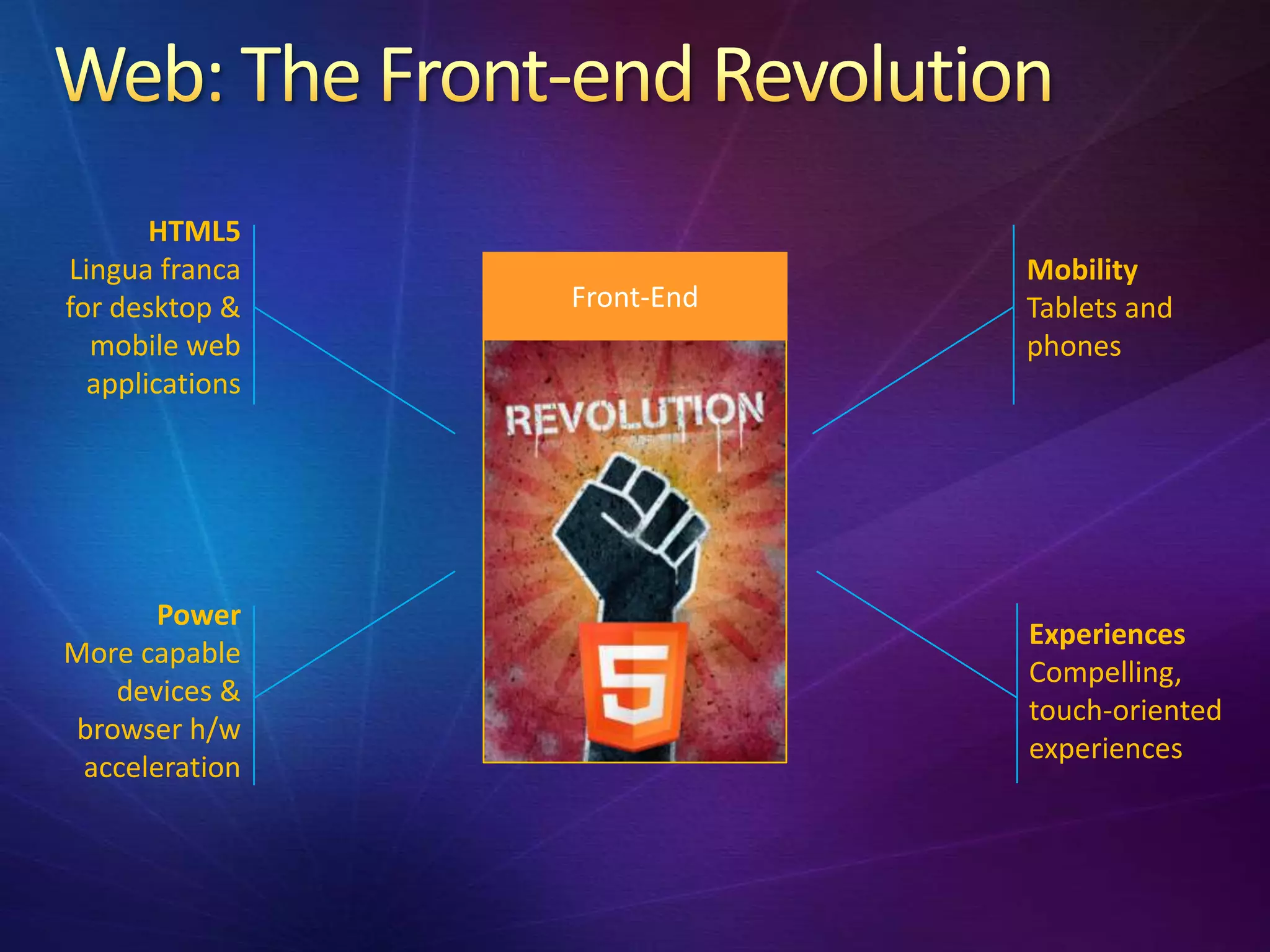

- 4. HTML5 Lingua franca Mobility for desktop & Front-End Tablets and mobile web phones applications Power Experiences More capable Compelling, devices & touch-oriented browser h/w experiences acceleration
- 5. Web just keepsgrowing in importance Rising experiences & expectations On our devices Social Everywhere Part of our lifestyle

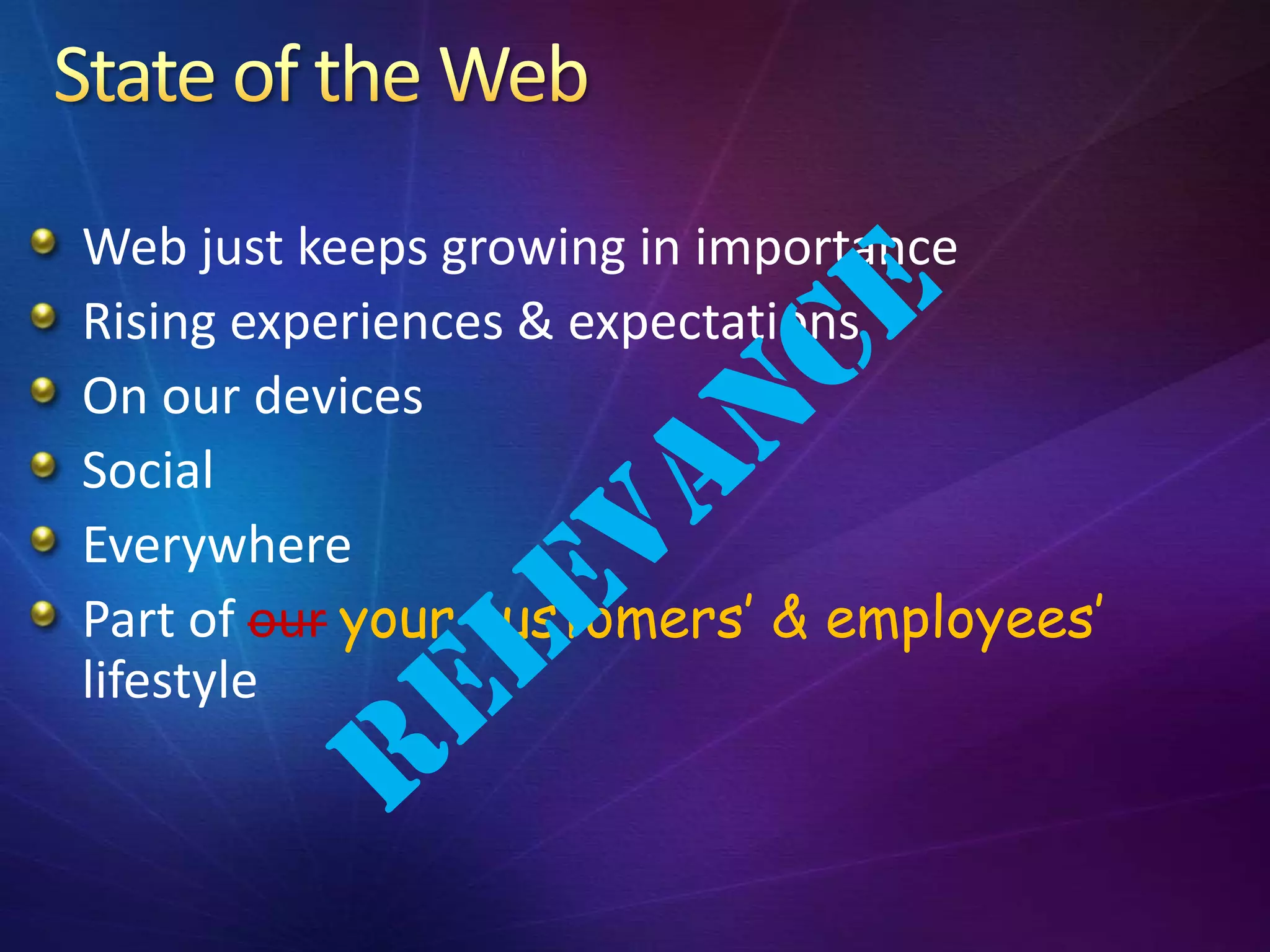

- 6. Web just keepsgrowing in importance Rising experiences & expectations On our devices Social Everywhere Part of our your customers’ & employees’ lifestyle
- 8.
- 9. Video & Audiowithout plugins Canvas & Scalable Vector Graphics w/o plugins New semantic tags Geolocation CSS3, including custom fonts, rounded corners Drag and drop Canvas – 2D drawing, WebGL – 3D graphics New form elements HTML manifest (app caching) & offline storage Hardware acceleration in modern browsers

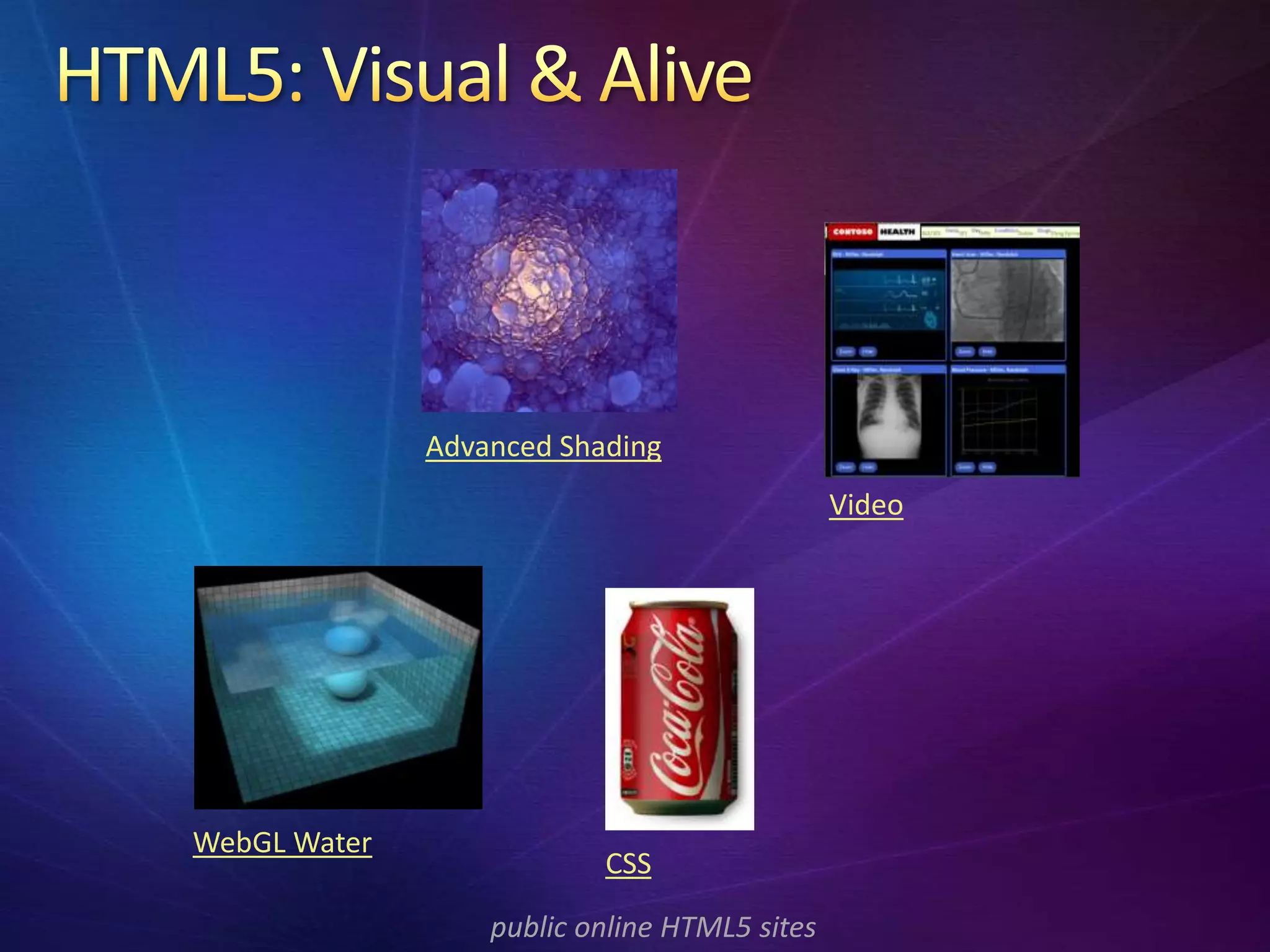

- 10. Advanced Shading Video WebGL Water CSS public online HTML5 sites

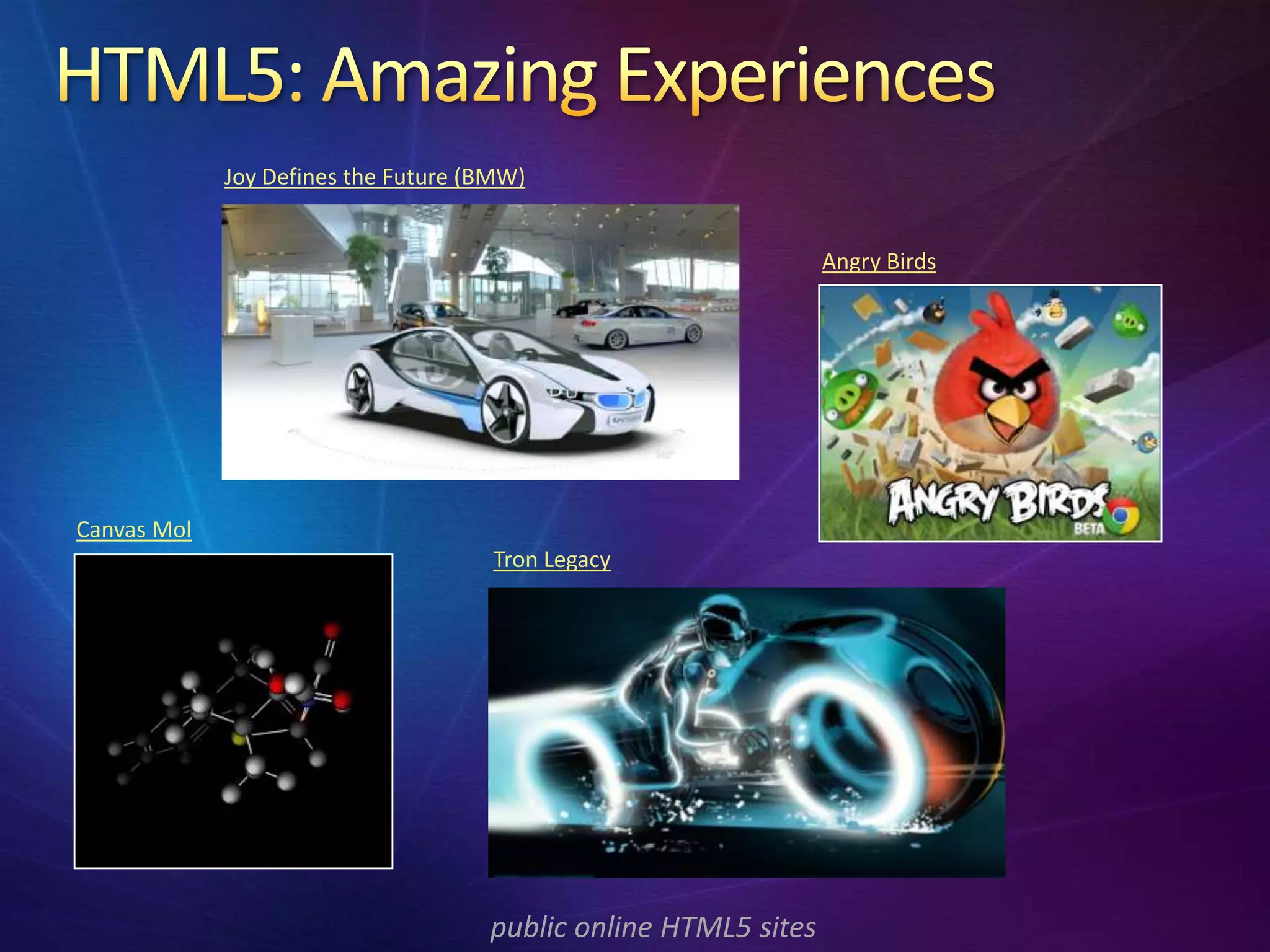

- 11. Joy Defines theFuture (BMW) Angry Birds Canvas Mol Tron Legacy public online HTML5 sites
- 12. Source: Shutterstock.com #86494345 Source: Shutterstock.com #72009739

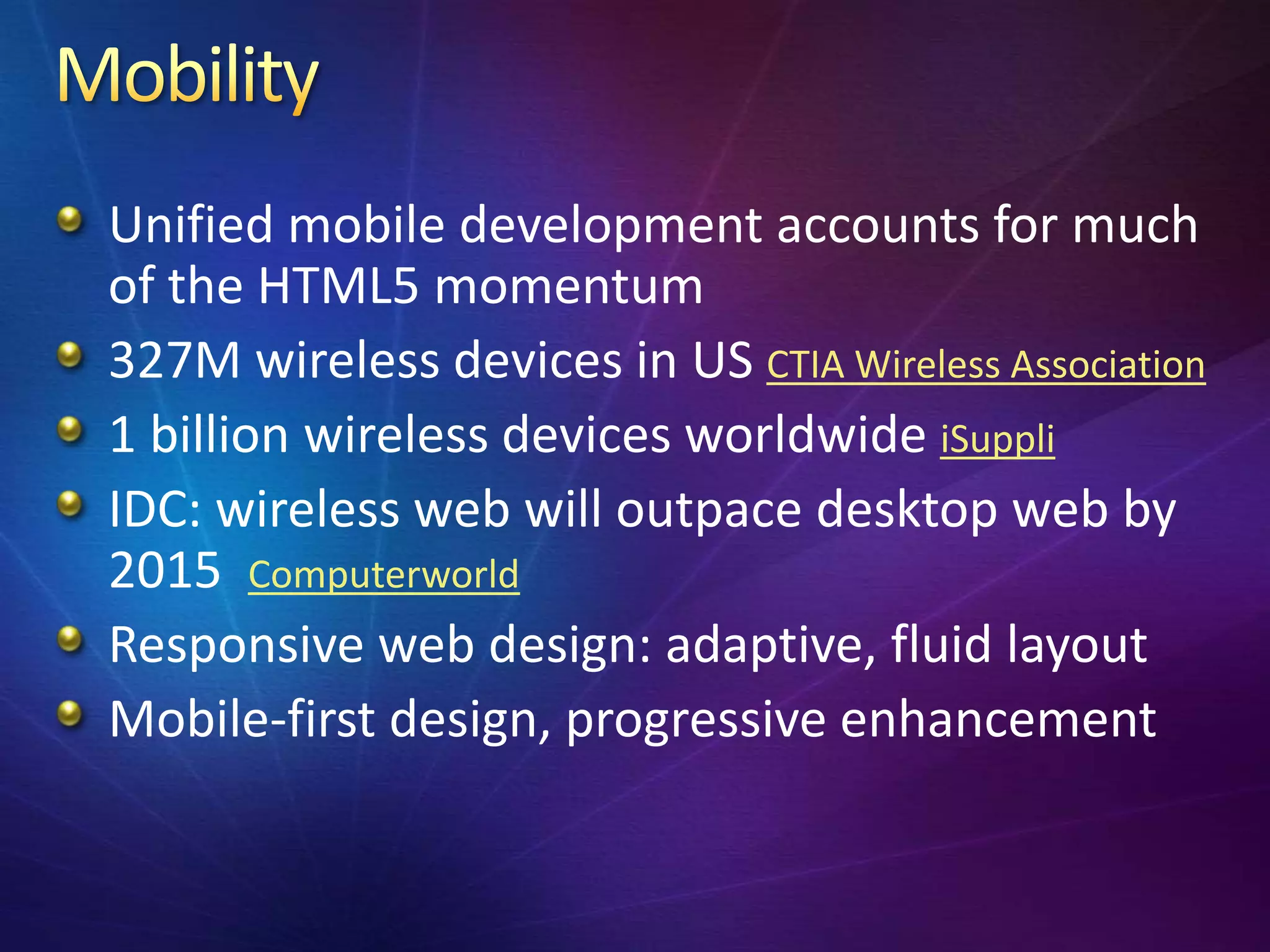

- 14. Unified mobile developmentaccounts for much of the HTML5 momentum 327M wireless devices in US CTIA Wireless Association 1 billion wireless devices worldwide iSuppli IDC: wireless web will outpace desktop web by 2015 Computerworld Responsive web design: adaptive, fluid layout Mobile-first design, progressive enhancement
- 15. A Compelling Experience compelling• immersive • multimedia animated • interactive • responsive Relevant to Your Life integrates with social networks • uses location Ubiquitous runs on PC browser, tablet, phone adaptive layout • touch, mouse or keyboard Maintains Continuity use multiple devices • identity • state • data Constant Availability disconnected operation • sync

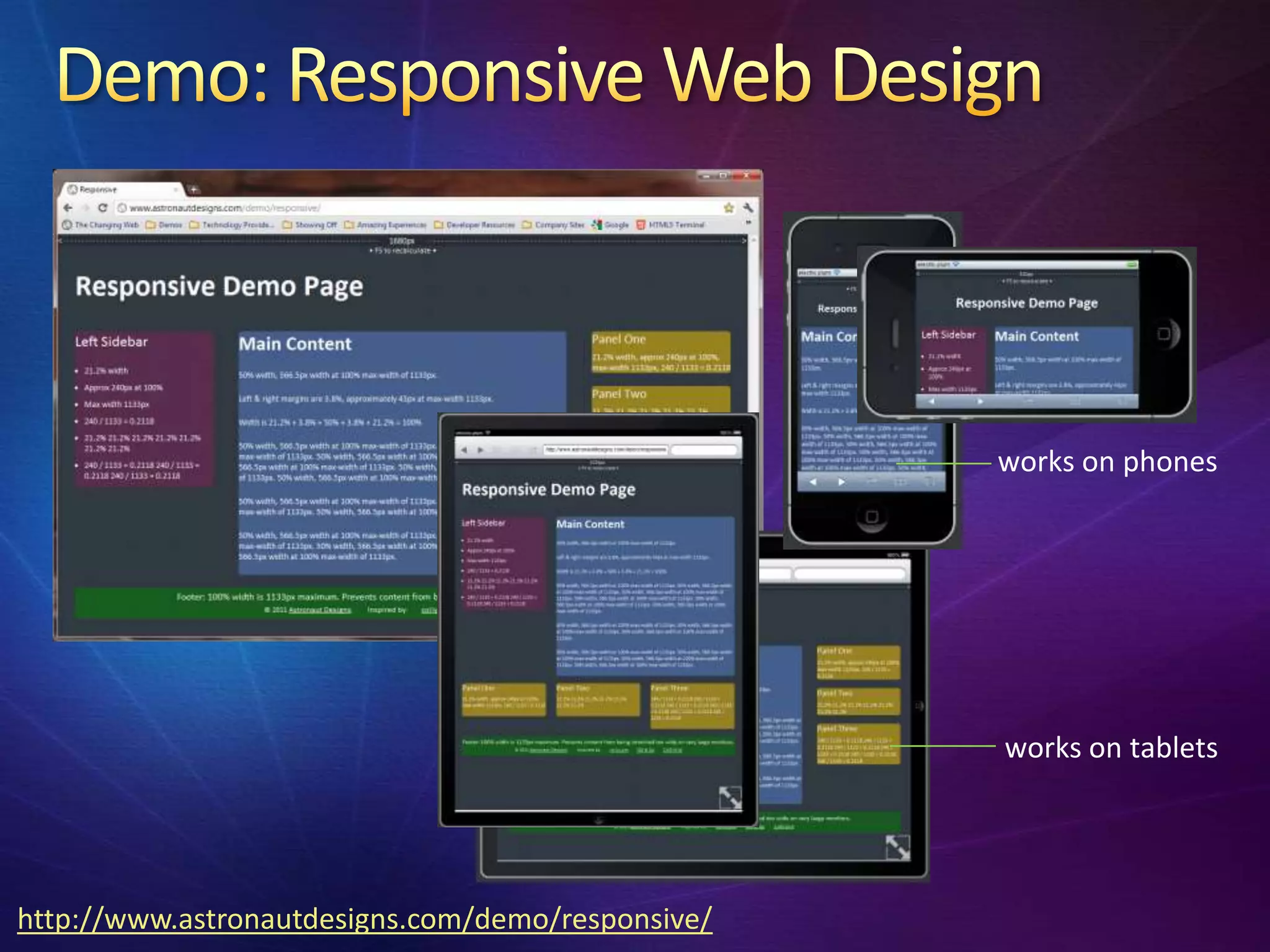

- 16. works on phones works on tablets http://www.astronautdesigns.com/demo/responsive/

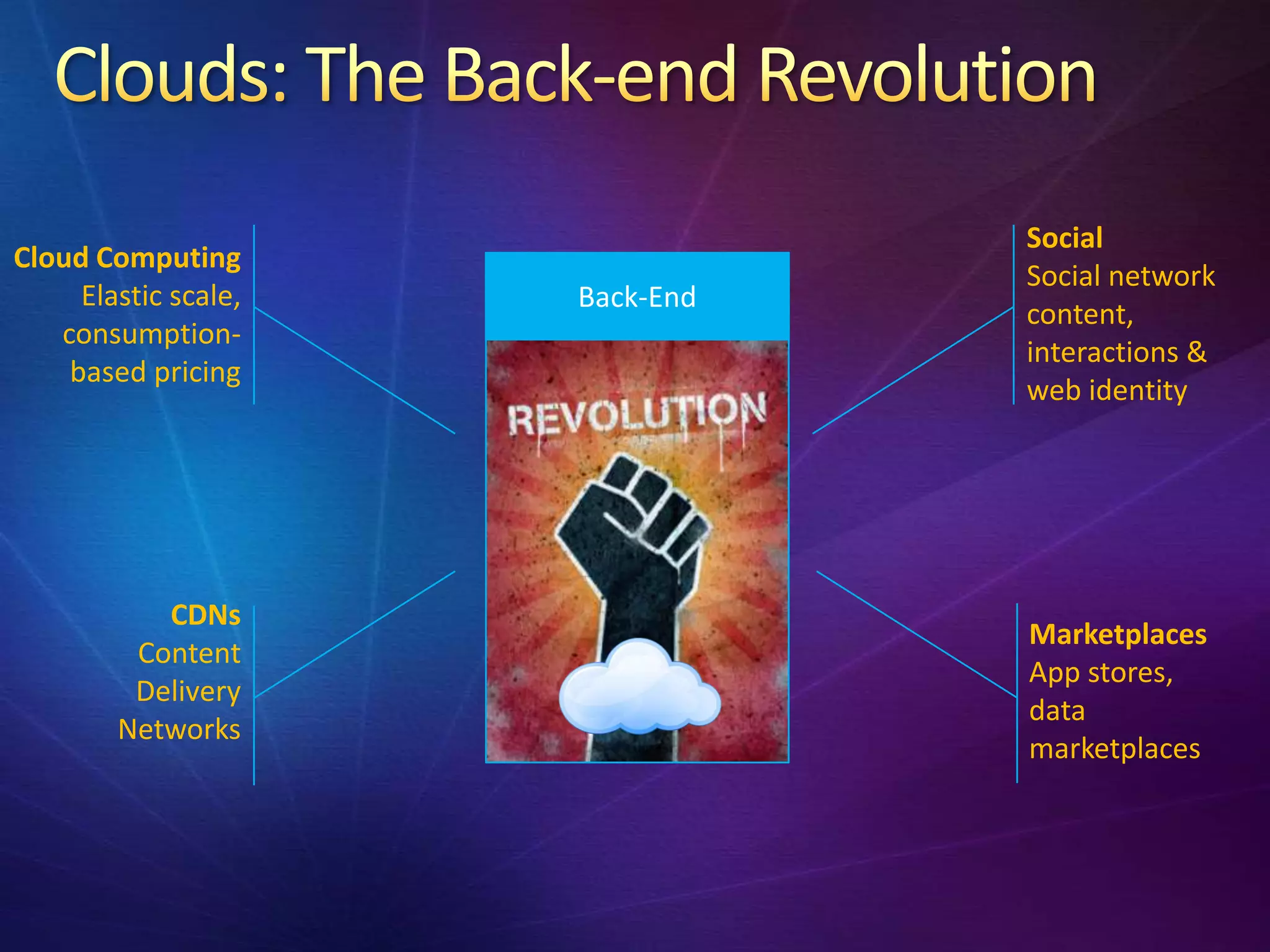

- 17. Social Cloud Computing Social network Elastic scale, Back-End content, consumption- interactions & based pricing web identity CDNs Marketplaces Content App stores, Delivery data Networks marketplaces
- 18.
- 19. Elastic Scale Consumption-based Pricing Commitment-free/ Easy-in, Easy-out Self-serve / On-demand Managed / Platform-as-a-Service Application & Data Protected through Redundancy 3 9’s SLA (99.9%)

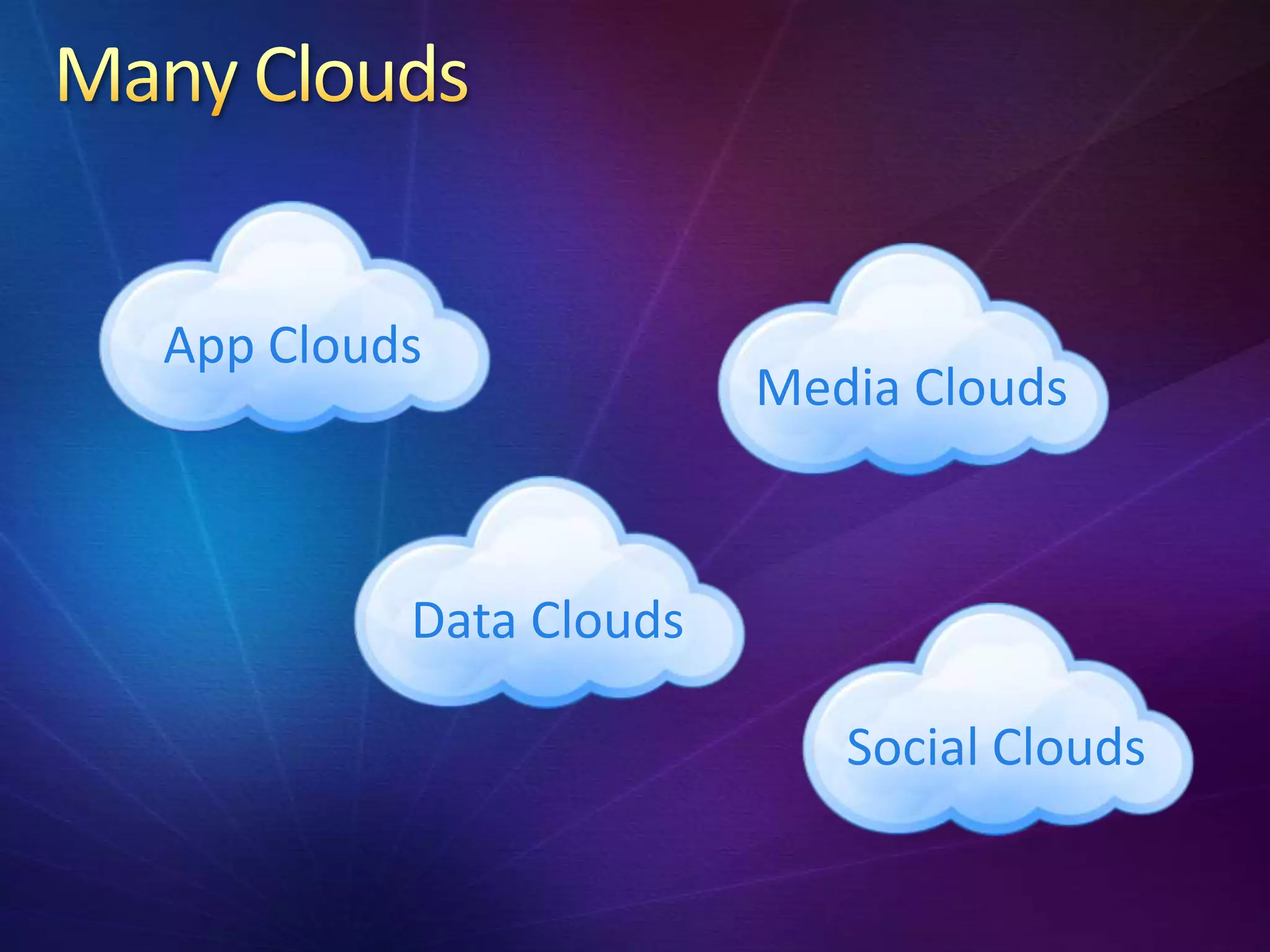

- 20. App Clouds Media Clouds Data Clouds Social Clouds
- 21. Elastic Scale scale larger/smalleras needed Universal worldwide presence • universal access can run in multiple data centers • CDN Highly Available redundancy • resilient • failover Decentralized distributed • combine multiple services lessened emphasis on locking / transactions

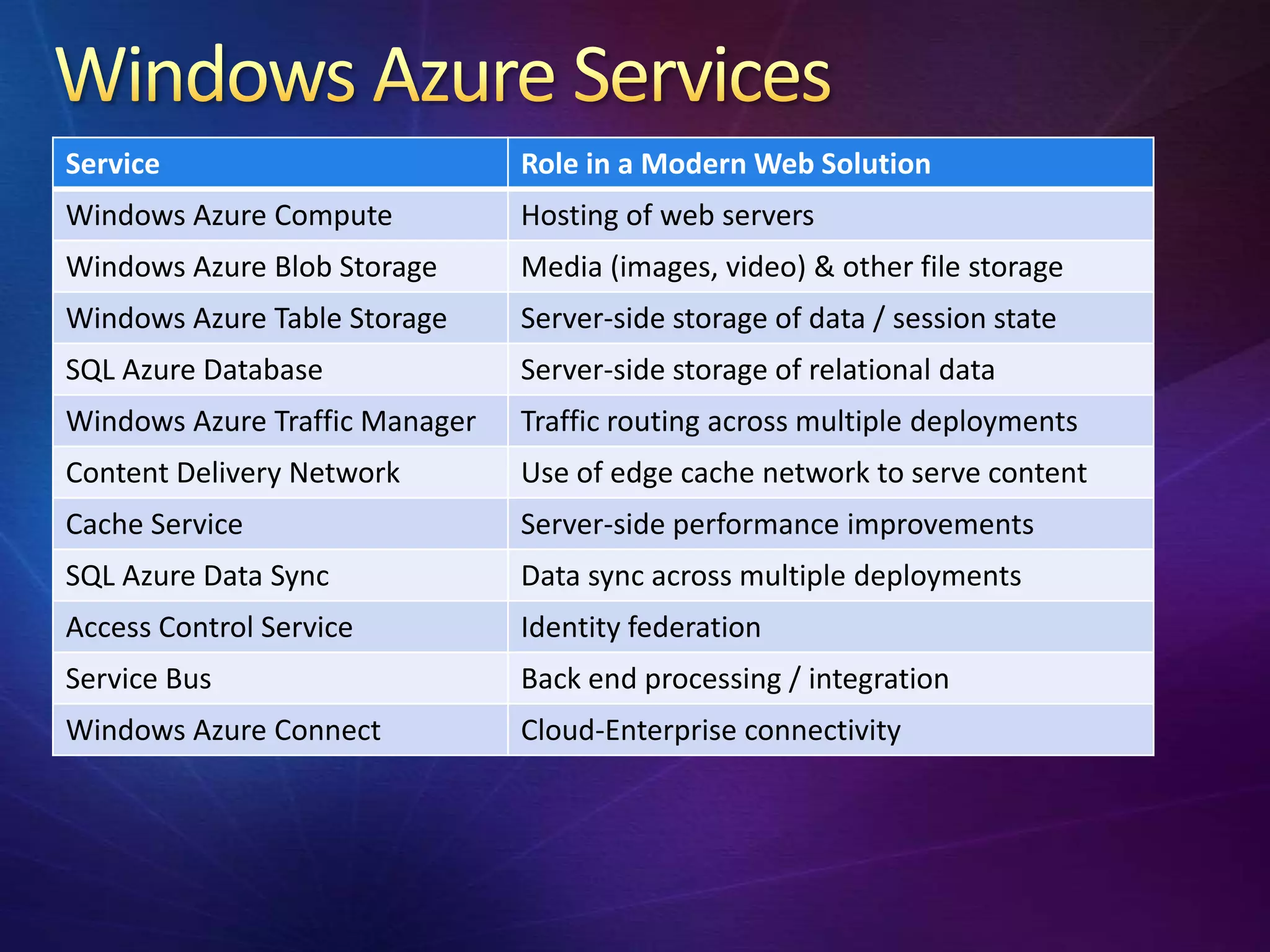

- 23. Service Role in a Modern Web Solution Windows Azure Compute Hosting of web servers Windows Azure Blob Storage Media (images, video) & other file storage Windows Azure Table Storage Server-side storage of data / session state SQL Azure Database Server-side storage of relational data Windows Azure Traffic Manager Traffic routing across multiple deployments Content Delivery Network Use of edge cache network to serve content Cache Service Server-side performance improvements SQL Azure Data Sync Data sync across multiple deployments Access Control Service Identity federation Service Bus Back end processing / integration Windows Azure Connect Cloud-Enterprise connectivity

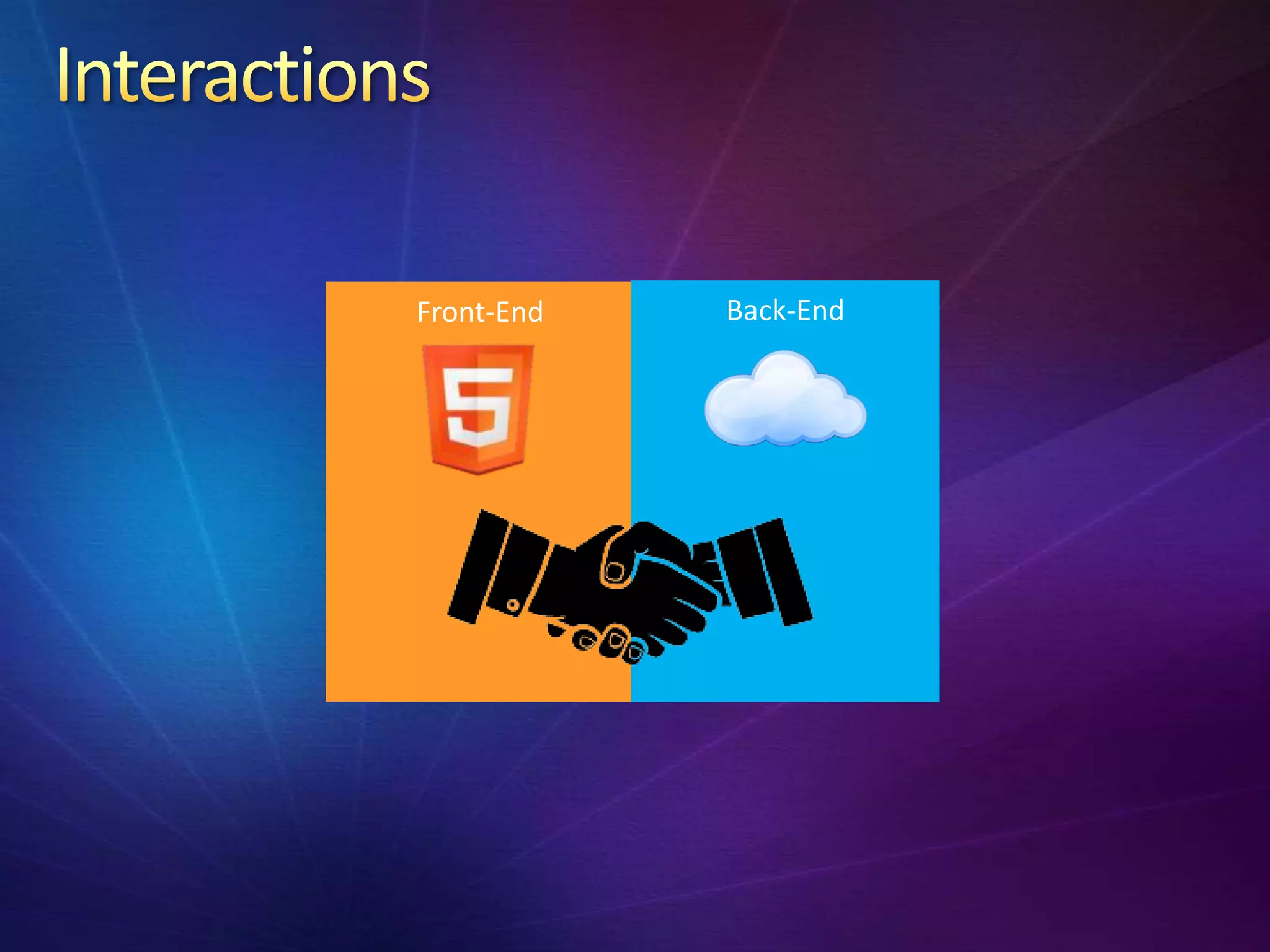

- 24. Front-End Back-End

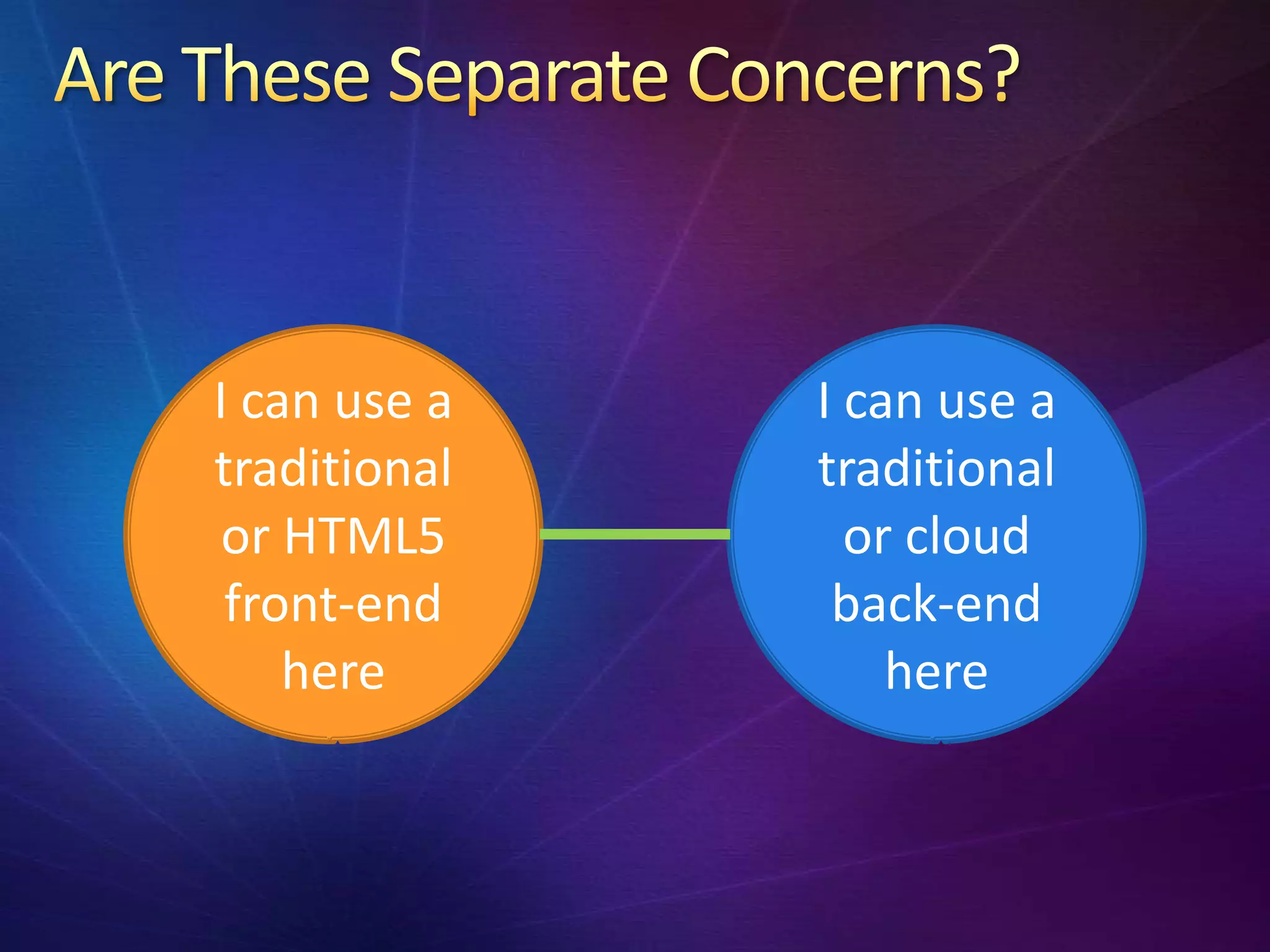

- 25. I can usea I can use a traditional traditional or HTML5 or cloud front-end back-end here here

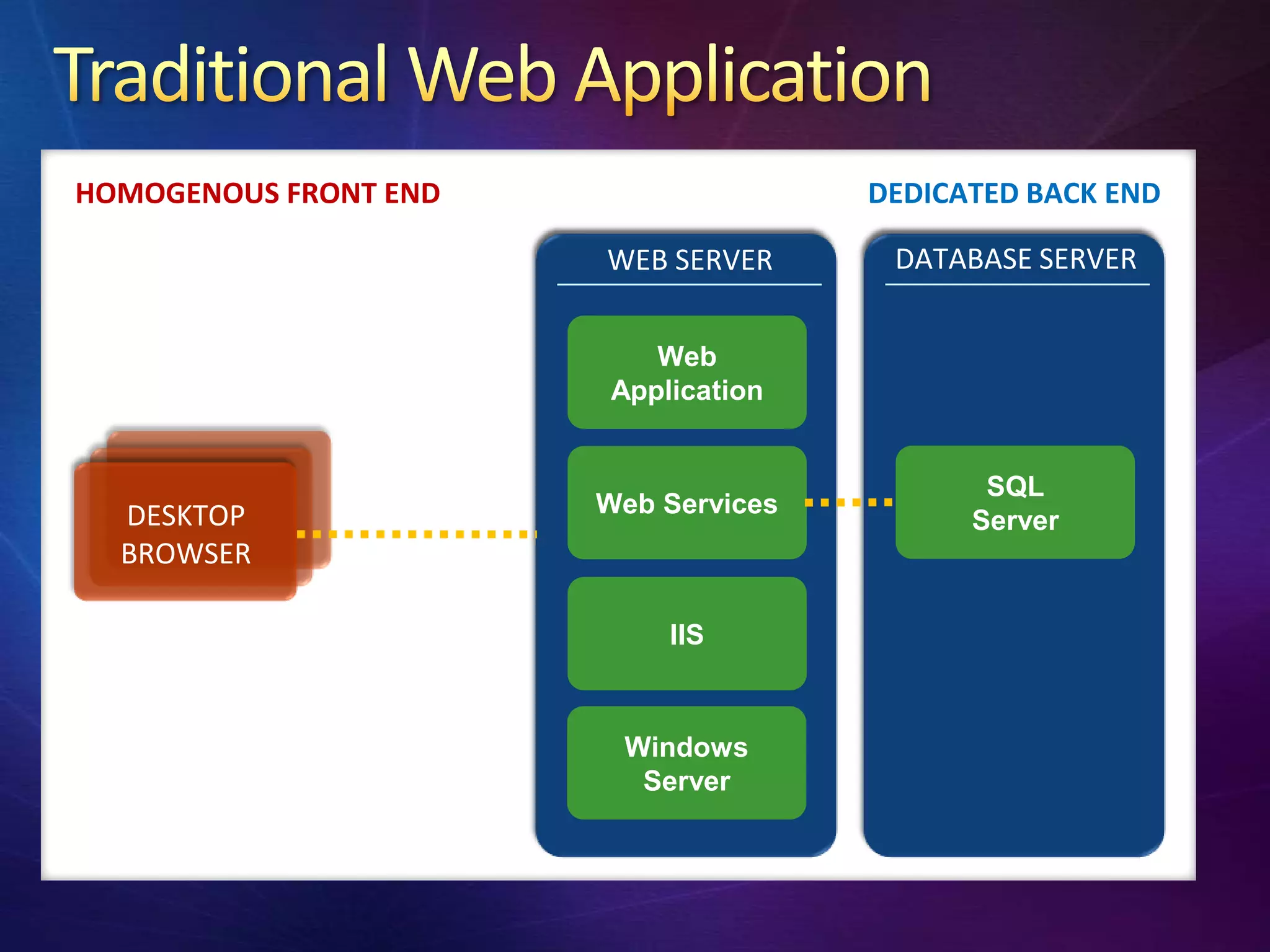

- 26. HOMOGENOUS FRONT END DEDICATED BACK END WEB SERVER DATABASE SERVER Web Application SQL DESKTOP Web Services Server BROWSER IIS Windows Server

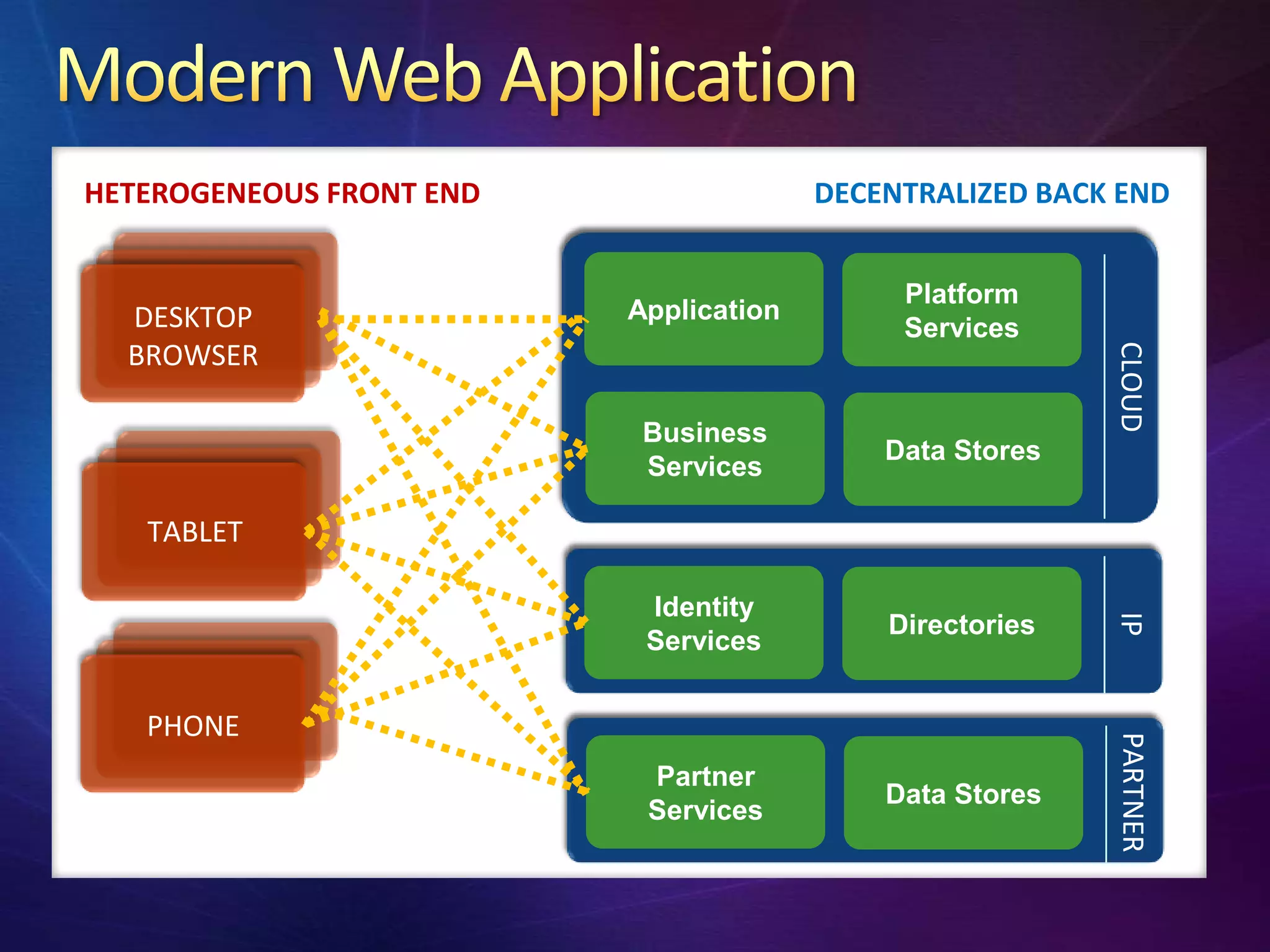

- 27. HETEROGENEOUS FRONT END DECENTRALIZED BACK END Platform DESKTOP Application Services BROWSER CLOUD Business Data Stores Services TABLET Identity IP Directories Services PHONE PARTNER Partner Data Stores Services
- 28. Client-Server Coordination Data Storage Identity StateManagement Synchronization Caching Location Social
- 29.

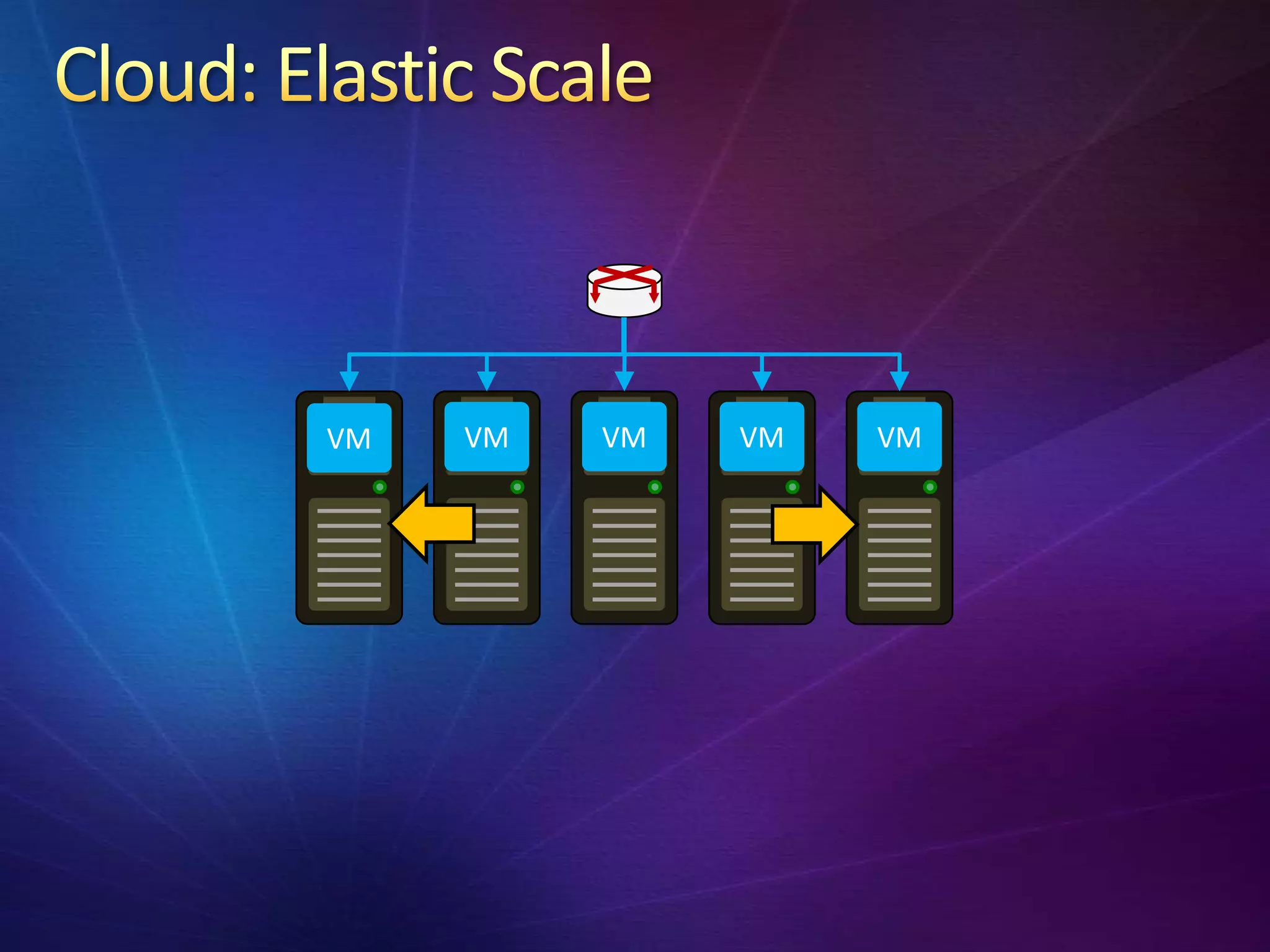

- 30. VM VM VM VM VM

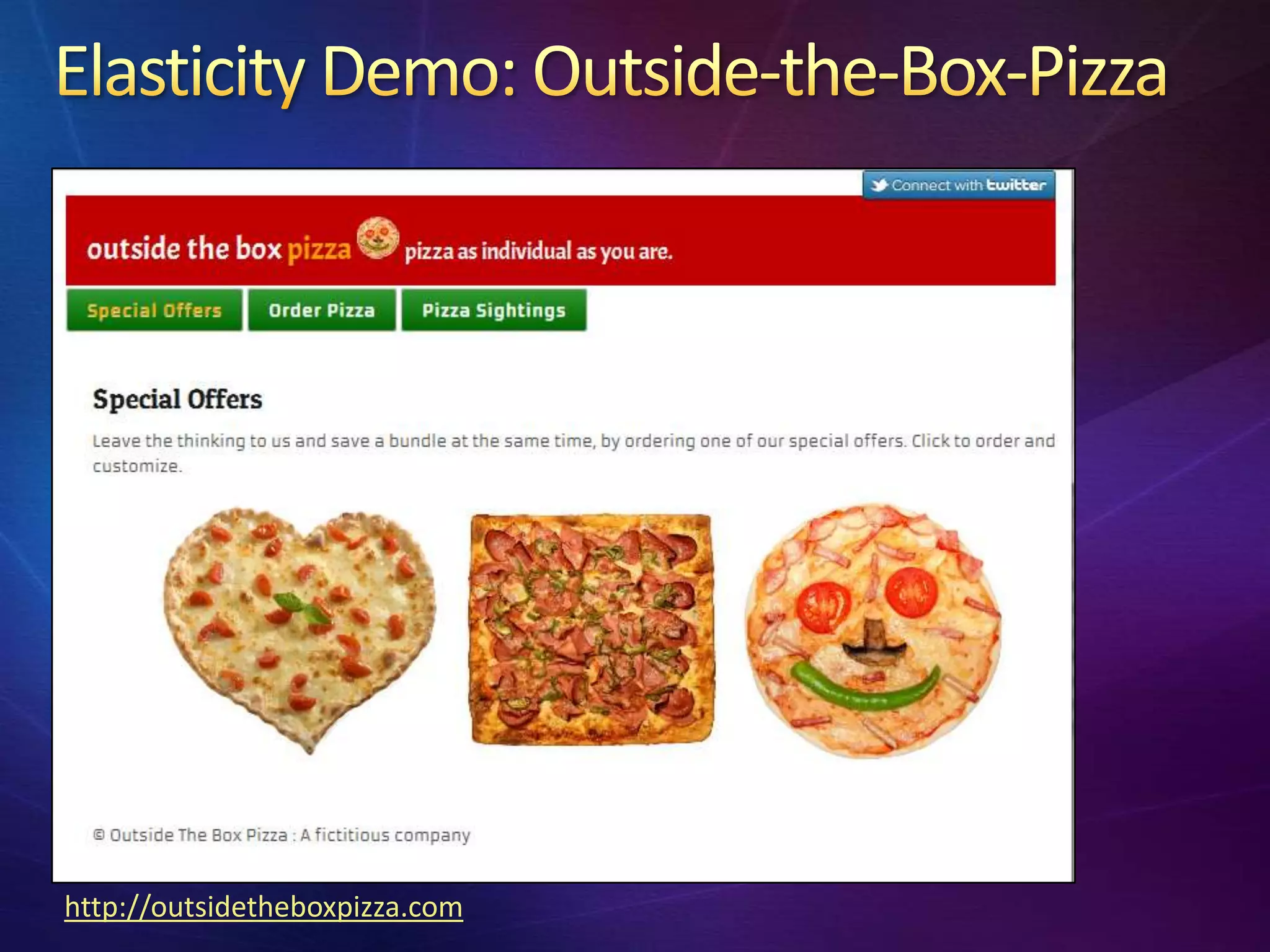

- 32.
- 33. Mobility gives uslocation independence: take the web with you Mobile web apps can use your current location Map integration

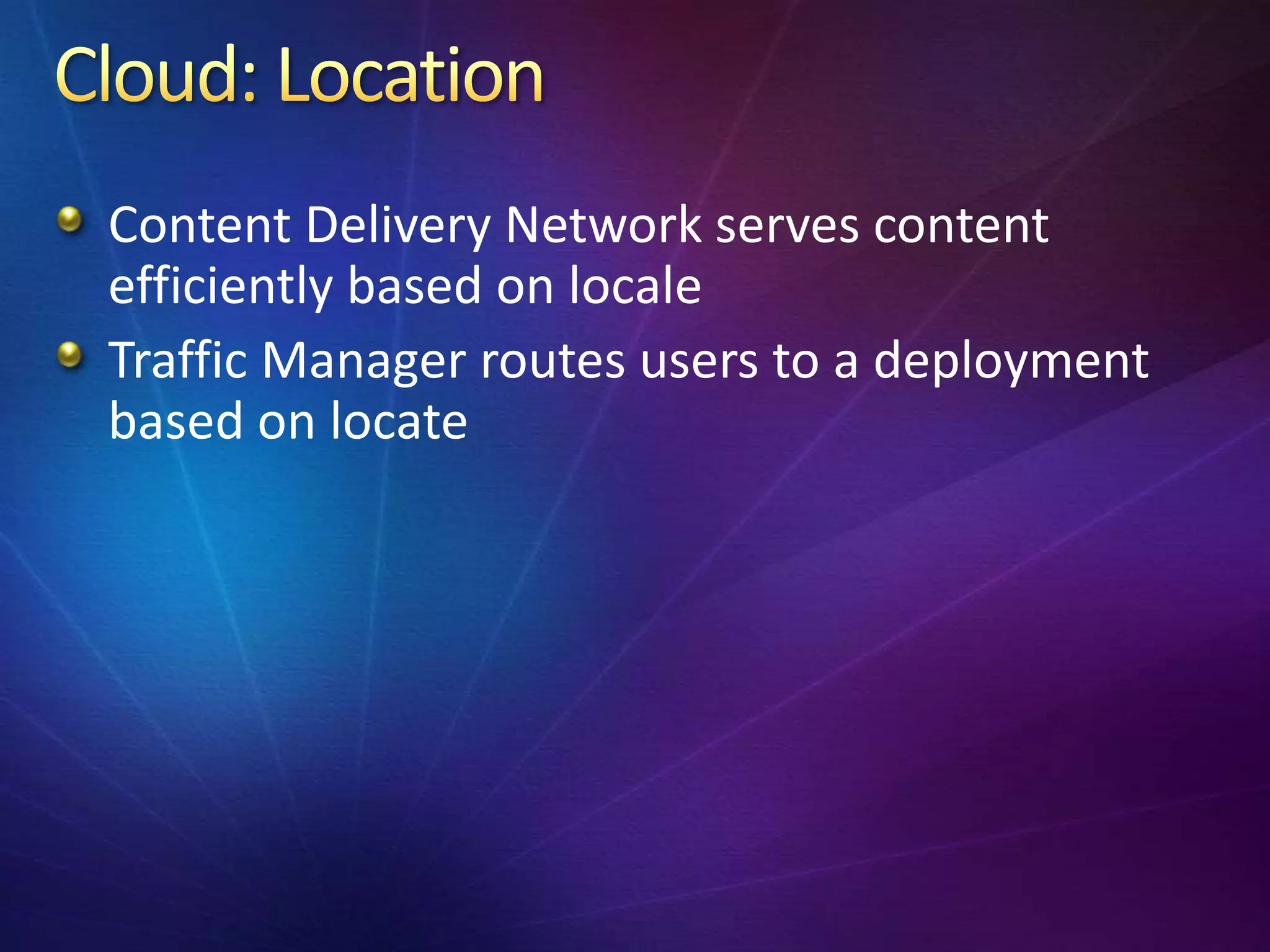

- 34. Content Delivery Networkserves content efficiently based on locale Traffic Manager routes users to a deployment based on locate

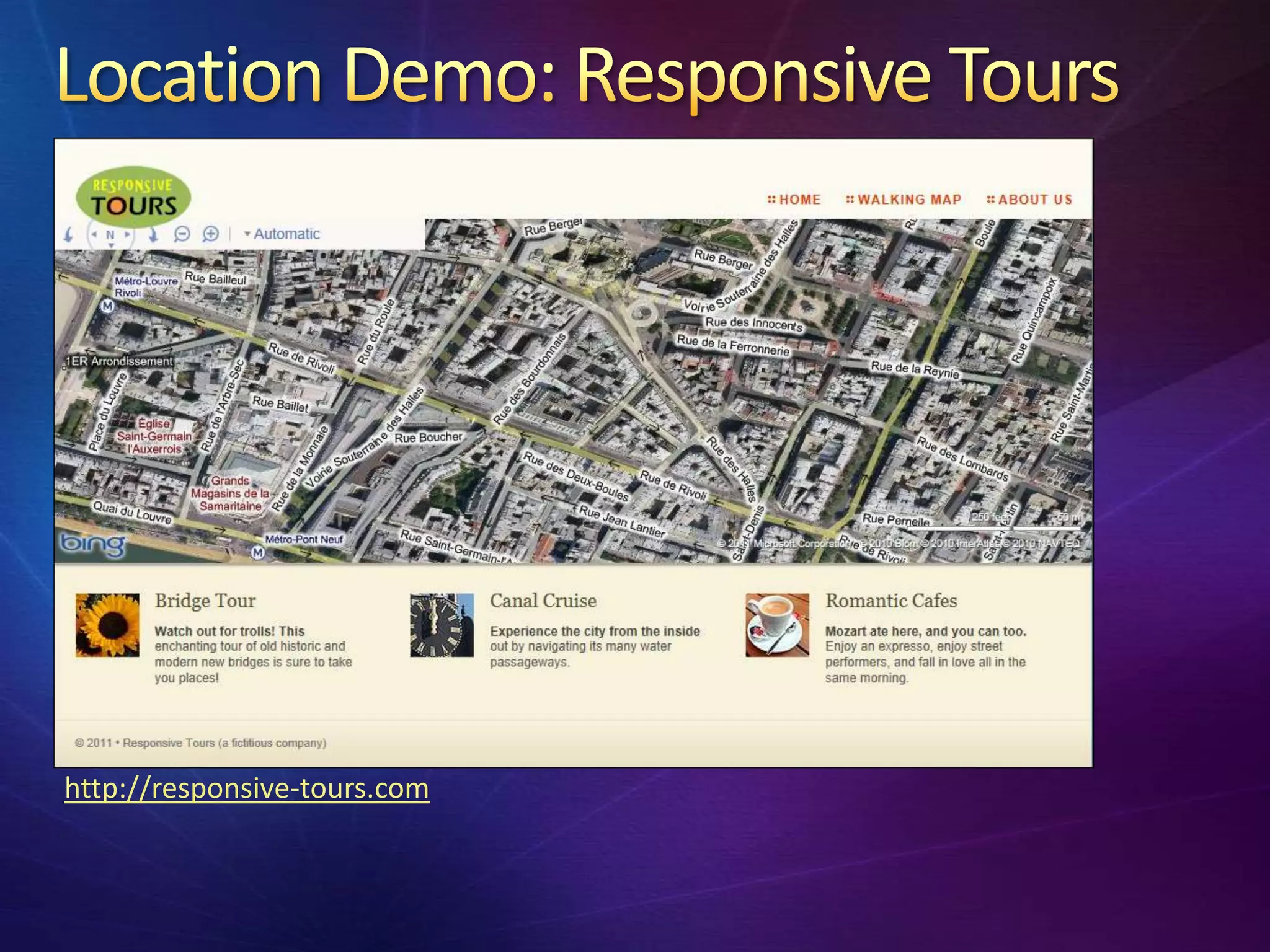

- 35.
- 36.
- 37. Sign-in with webprovider Identity federation (Access Control Service) Back-end social network integration

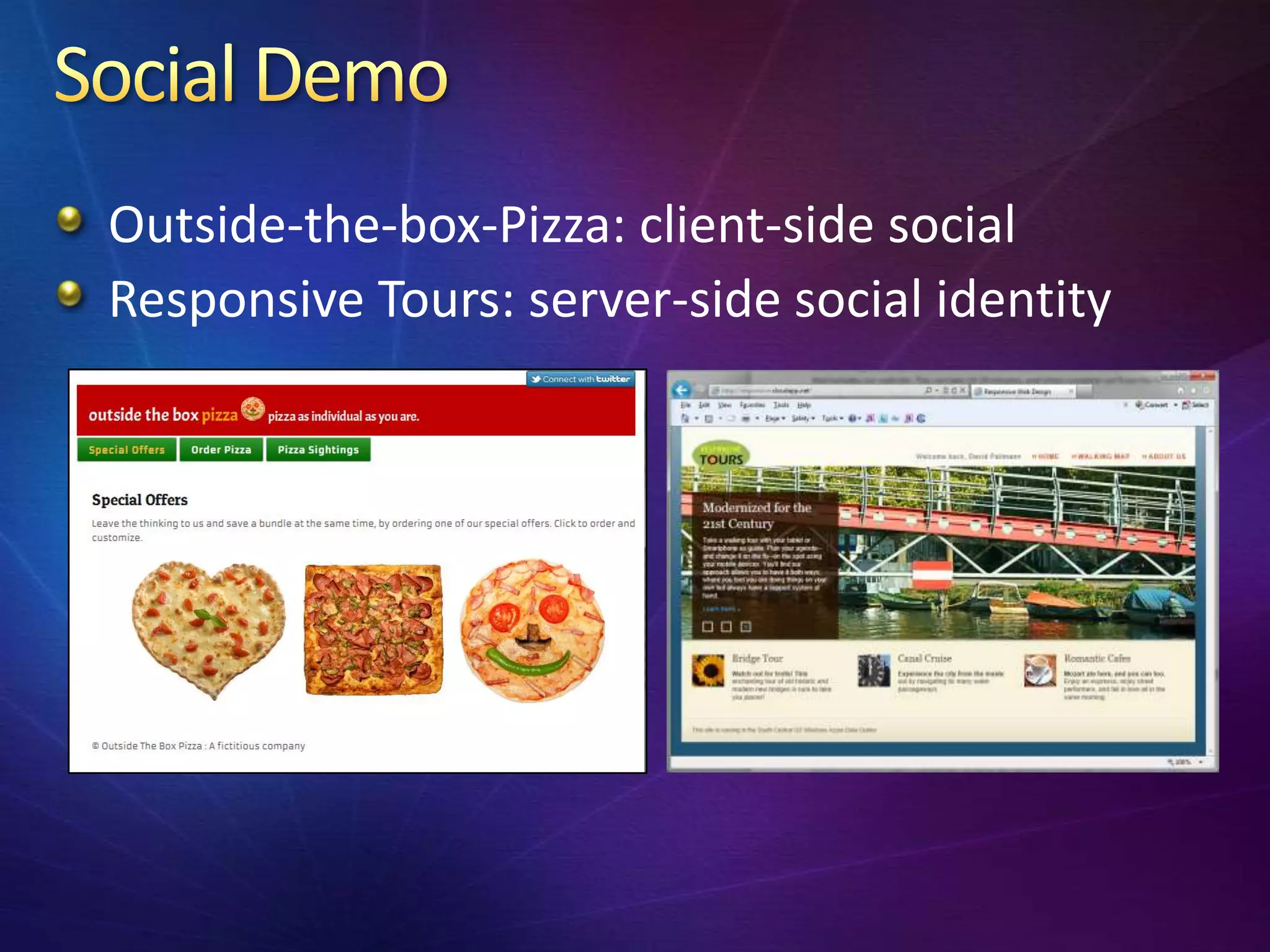

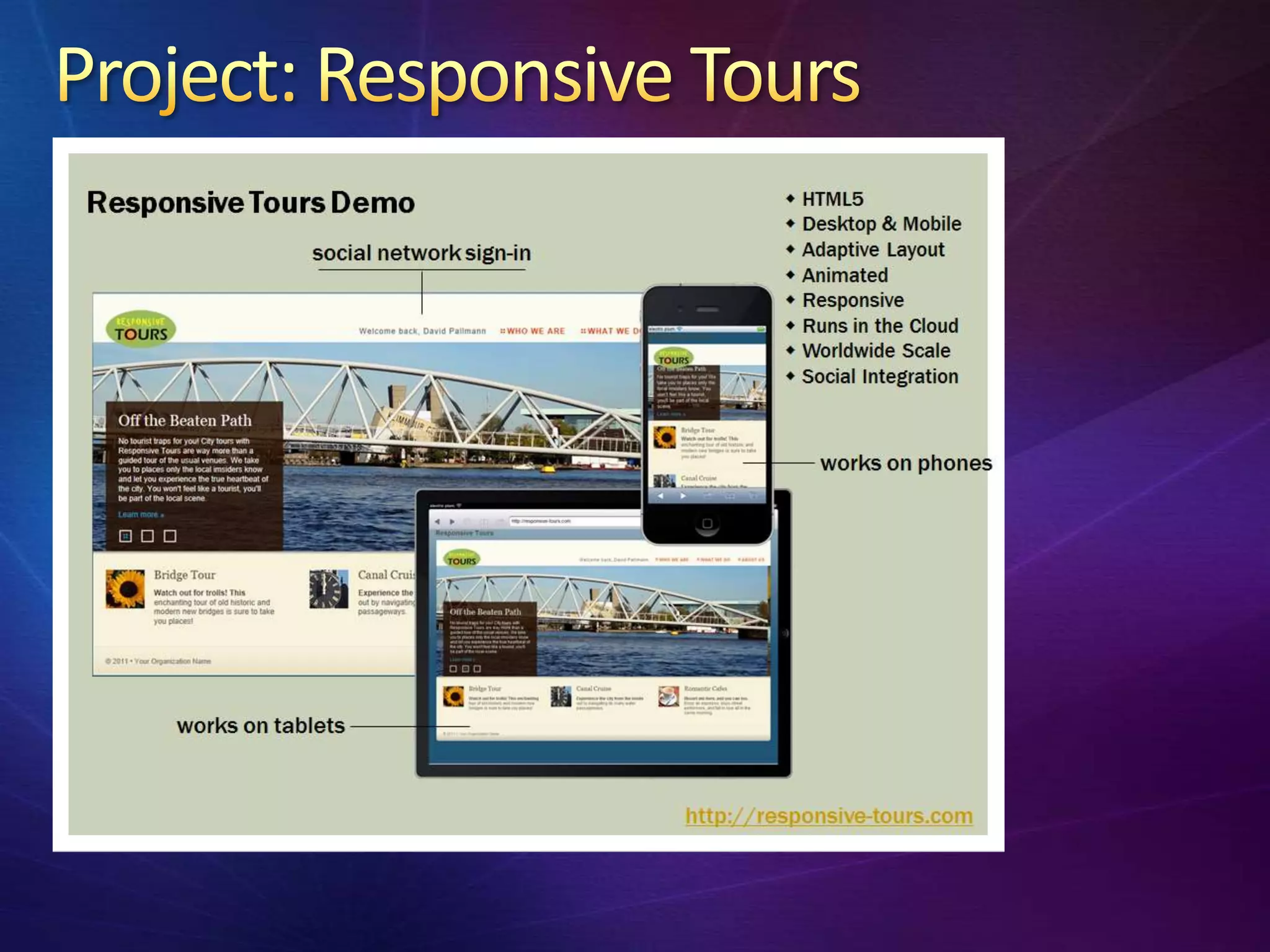

- 38. Outside-the-box-Pizza: client-side social ResponsiveTours: server-side social identity

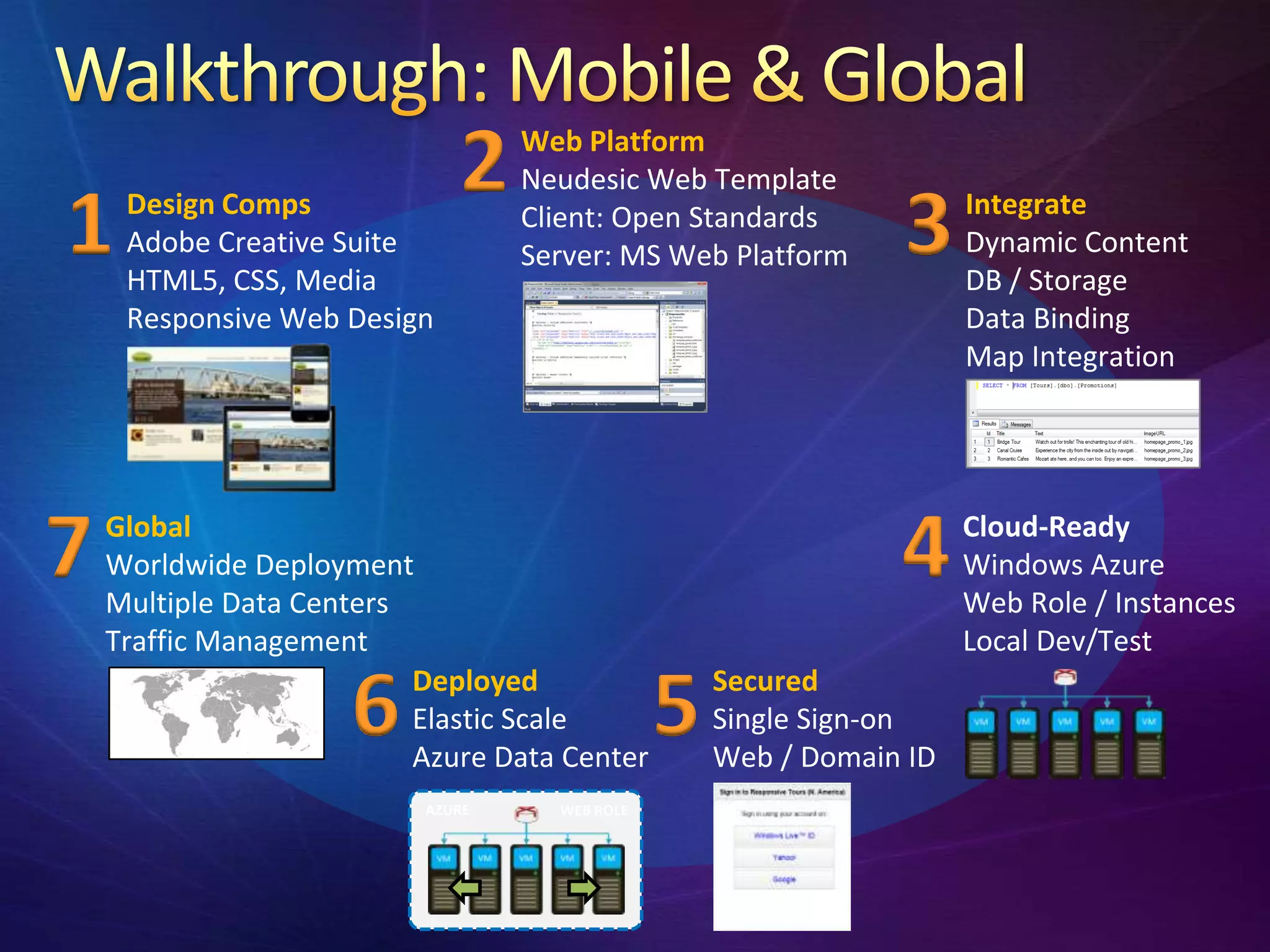

- 40. 2 Web Platform Neudesic Web Template 1 Design Comps Adobe Creative Suite HTML5, CSS, Media Client: Open Standards Server: MS Web Platform 3 Integrate Dynamic Content DB / Storage Responsive Web Design Data Binding Map Integration 7 Global Worldwide Deployment Multiple Data Centers 4 Cloud-Ready Windows Azure Web Role / Instances Traffic Management Local Dev/Test 6 Deployed Elastic Scale Azure Data Center 5 Secured Single Sign-on Web / Domain ID AZURE WEB ROLE

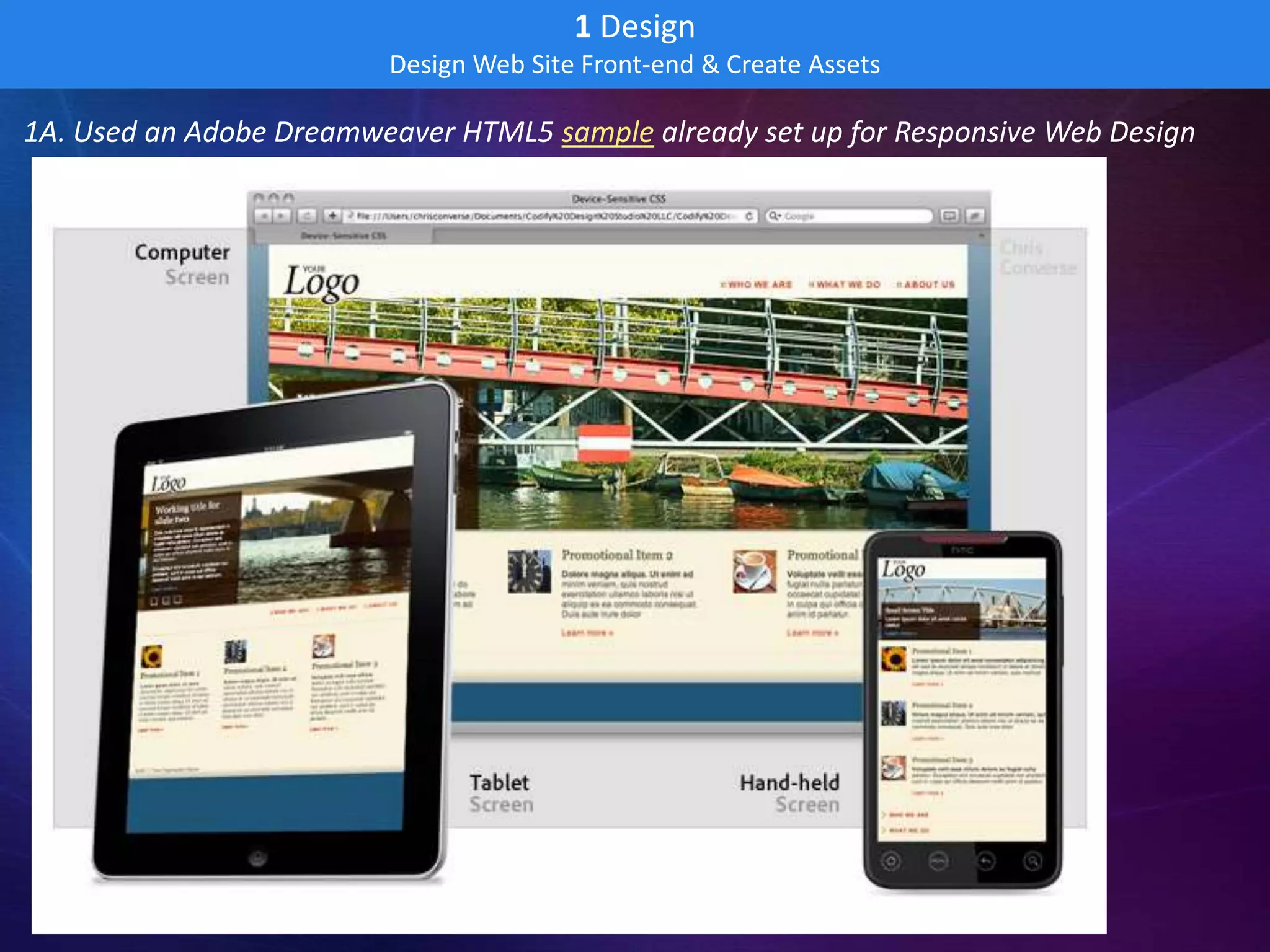

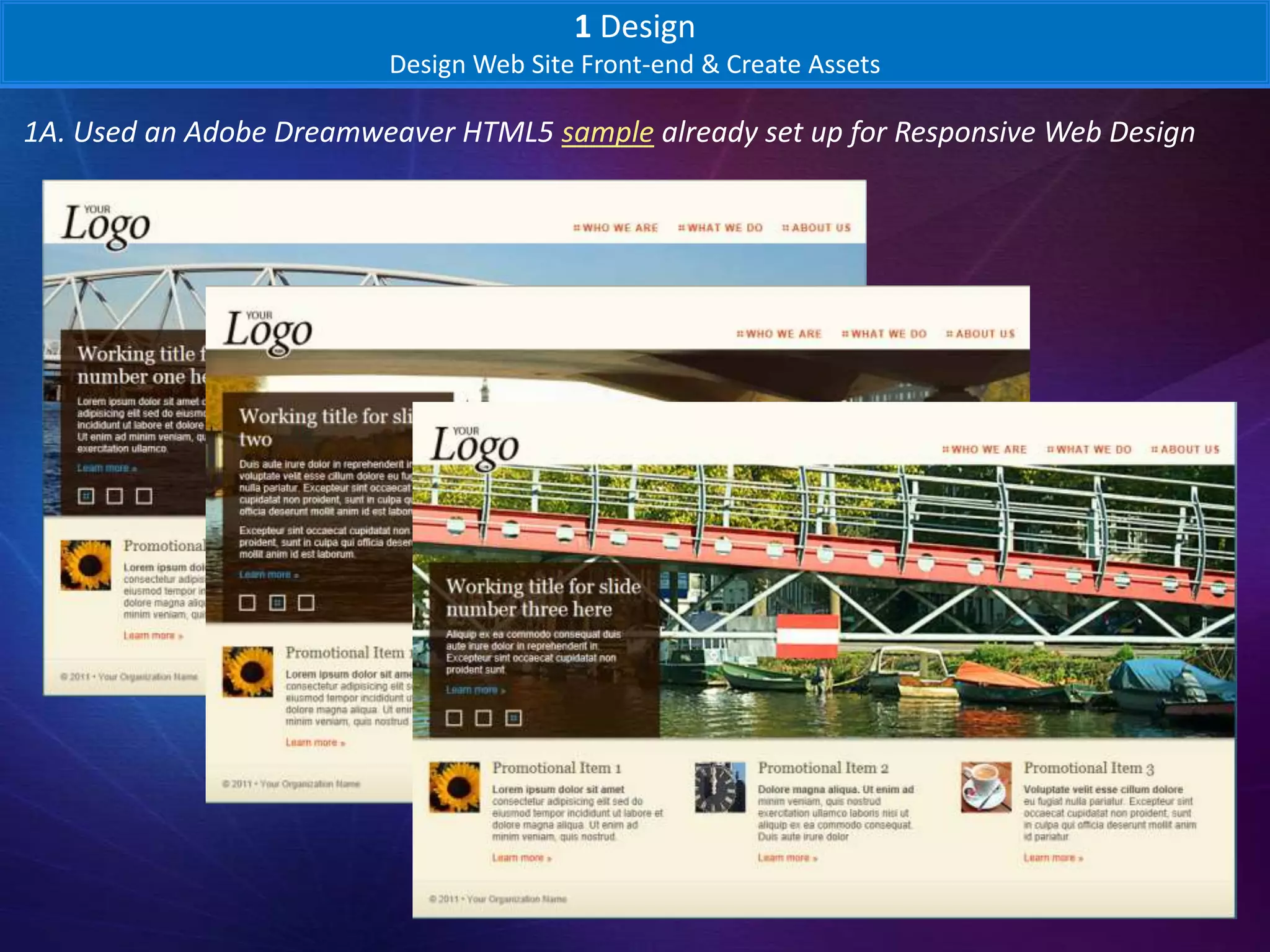

- 41. 1 Design Design Web Site Front-end & Create Assets 1A. Used an Adobe Dreamweaver HTML5 sample already set up for Responsive Web Design
- 42. 1 Design Design Web Site Front-end & Create Assets 1A. Used an Adobe Dreamweaver HTML5 sample already set up for Responsive Web Design

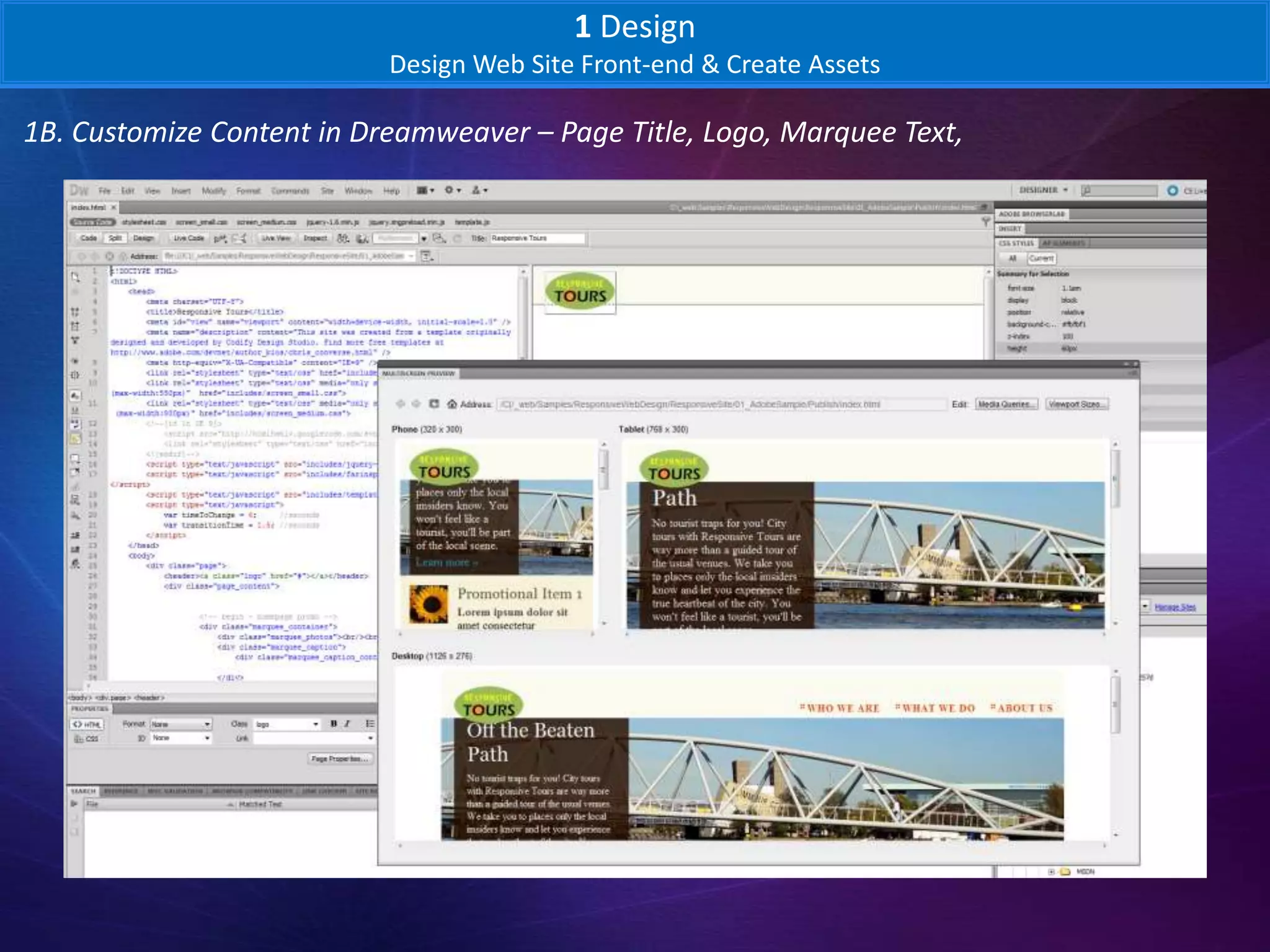

- 43. 1 Design Design Web Site Front-end & Create Assets 1B. Customize Content in Dreamweaver – Page Title, Logo, Marquee Text,

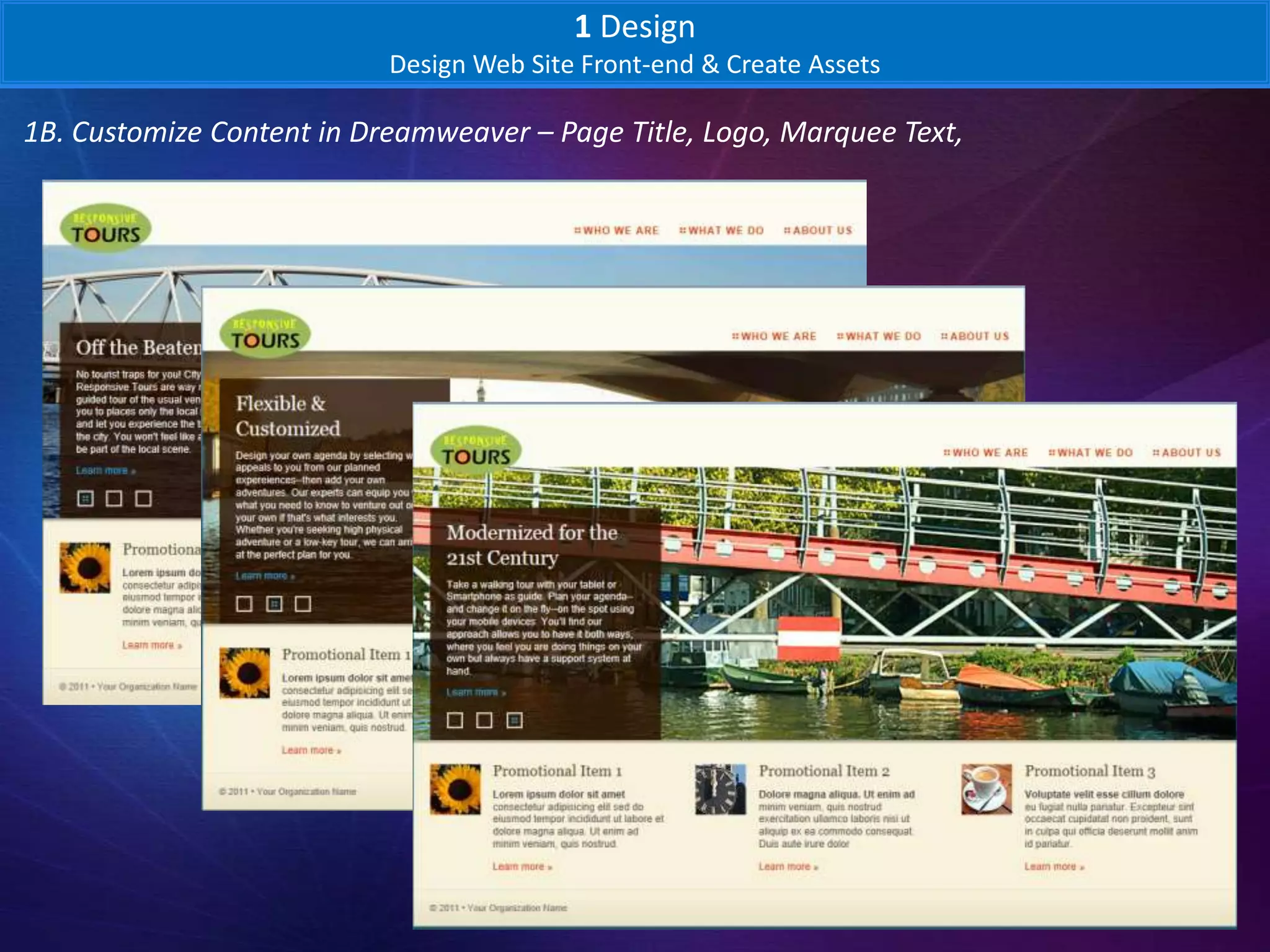

- 44. 1 Design Design Web Site Front-end & Create Assets 1B. Customize Content in Dreamweaver – Page Title, Logo, Marquee Text,

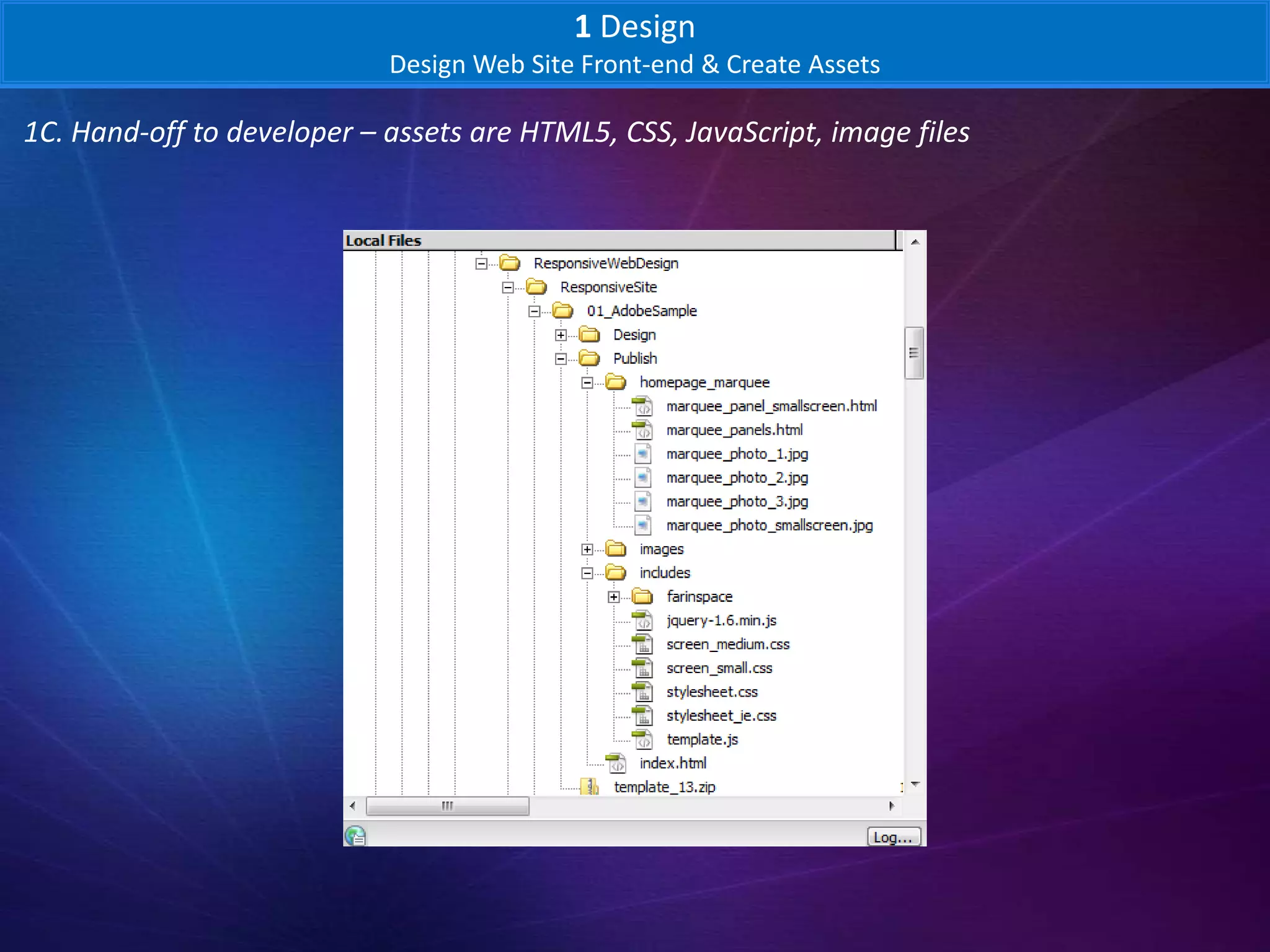

- 45. 1 Design Design Web Site Front-end & Create Assets 1C. Hand-off to developer – assets are HTML5, CSS, JavaScript, image files

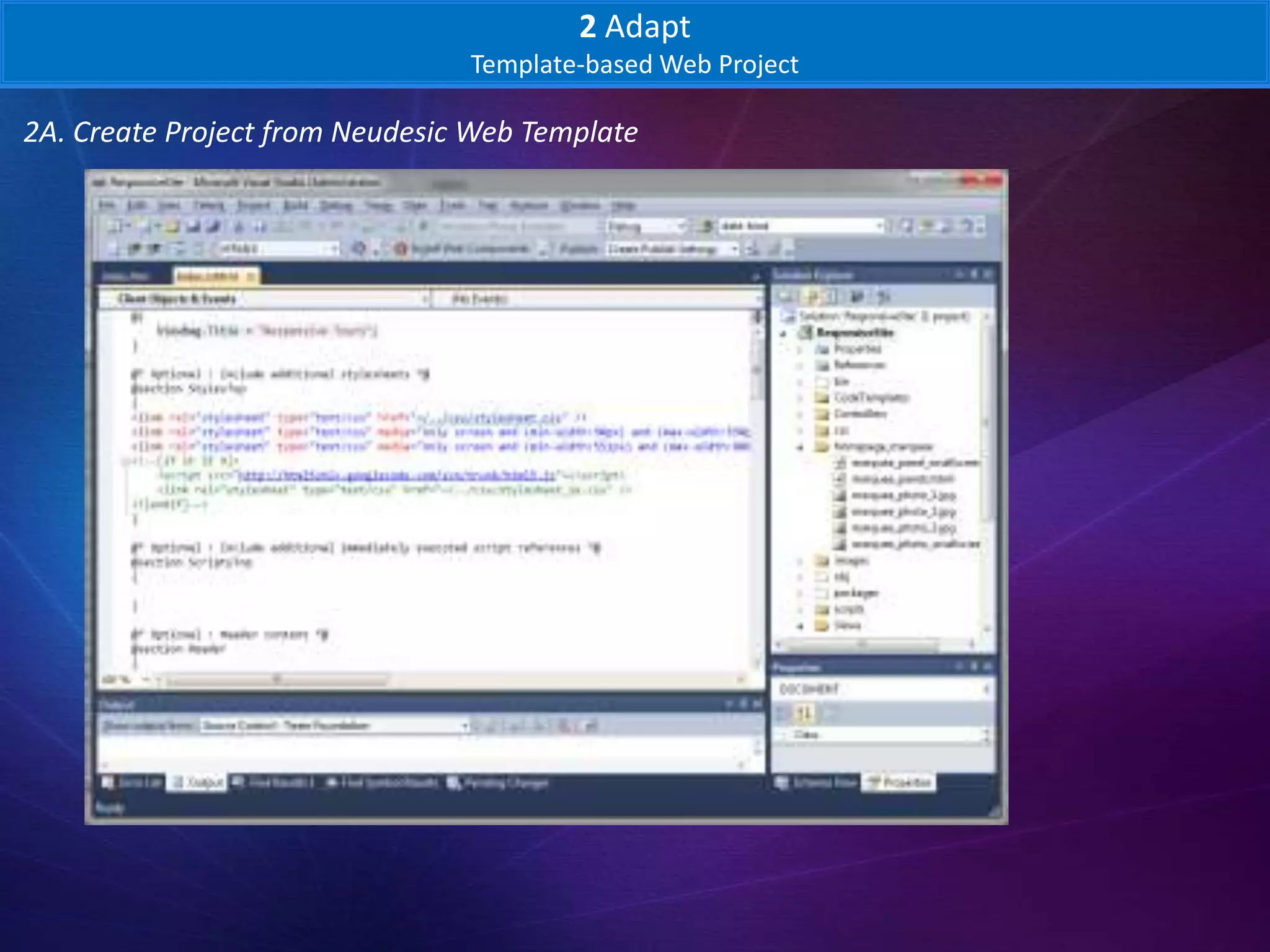

- 46. 2 Adapt Template-based Web Project 2A. Create Project from Neudesic Web Template
- 47. 2 Adapt Template-based Web Project 2B. Insert front-end markup/styling/code/images from designer • Move where some files are to match the templates organization • Change paths in the HTML and CSS to match file relocation and use ASP.NET ~ path convention • Segment HTML and insert into appropriate areas of the home view (Index.cshtml)
- 48. 2 Adapt Template-based Web Project 2B. Insert front-end markup/styling/code/images from designer @* Optional : Include additional stylesheets *@ @section StylesTop { <link rel="stylesheet" type="text/css" href="~/../css/stylesheet.css" /> <link rel="stylesheet" type="text/css" media="only screen and (min-width:50px) and (max- width:550px)" href="~/../css/screen_small.css"> <link rel="stylesheet" type="text/css" media="only screen and (min-width:551px) and (max- width:800px)" href="~/../css/screen_medium.css"> <!--[if lt IE 9]> <script src="http://html5shiv.googlecode.com/svn/trunk/html5.js"></script> <link rel="stylesheet" type="text/css" href="~/../css/stylesheet_ie.css" /> <![endif]--> }

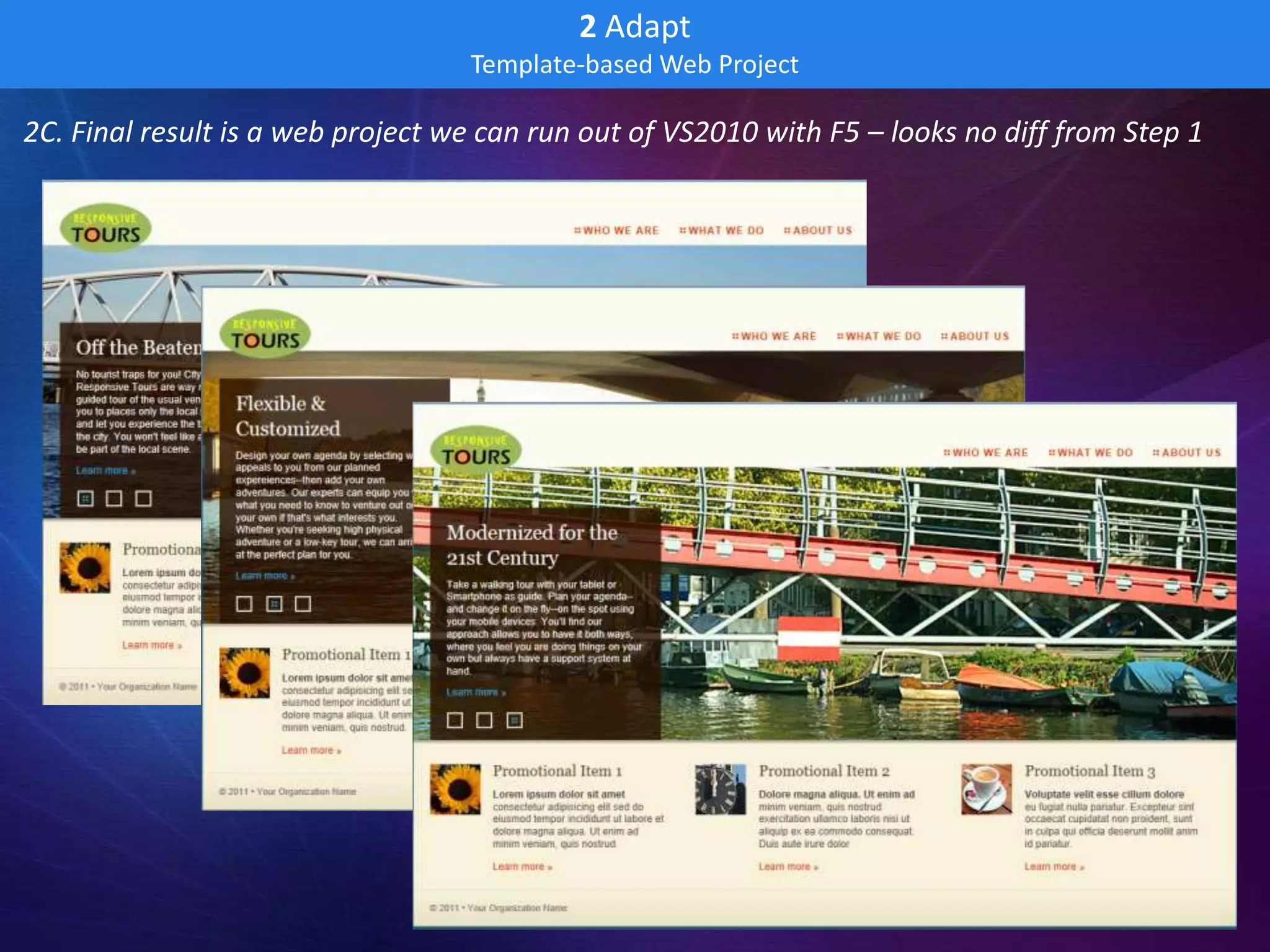

- 49. 2 Adapt Template-based Web Project 2C. Final result is a web project we can run out of VS2010 with F5 – looks no diff from Step 1

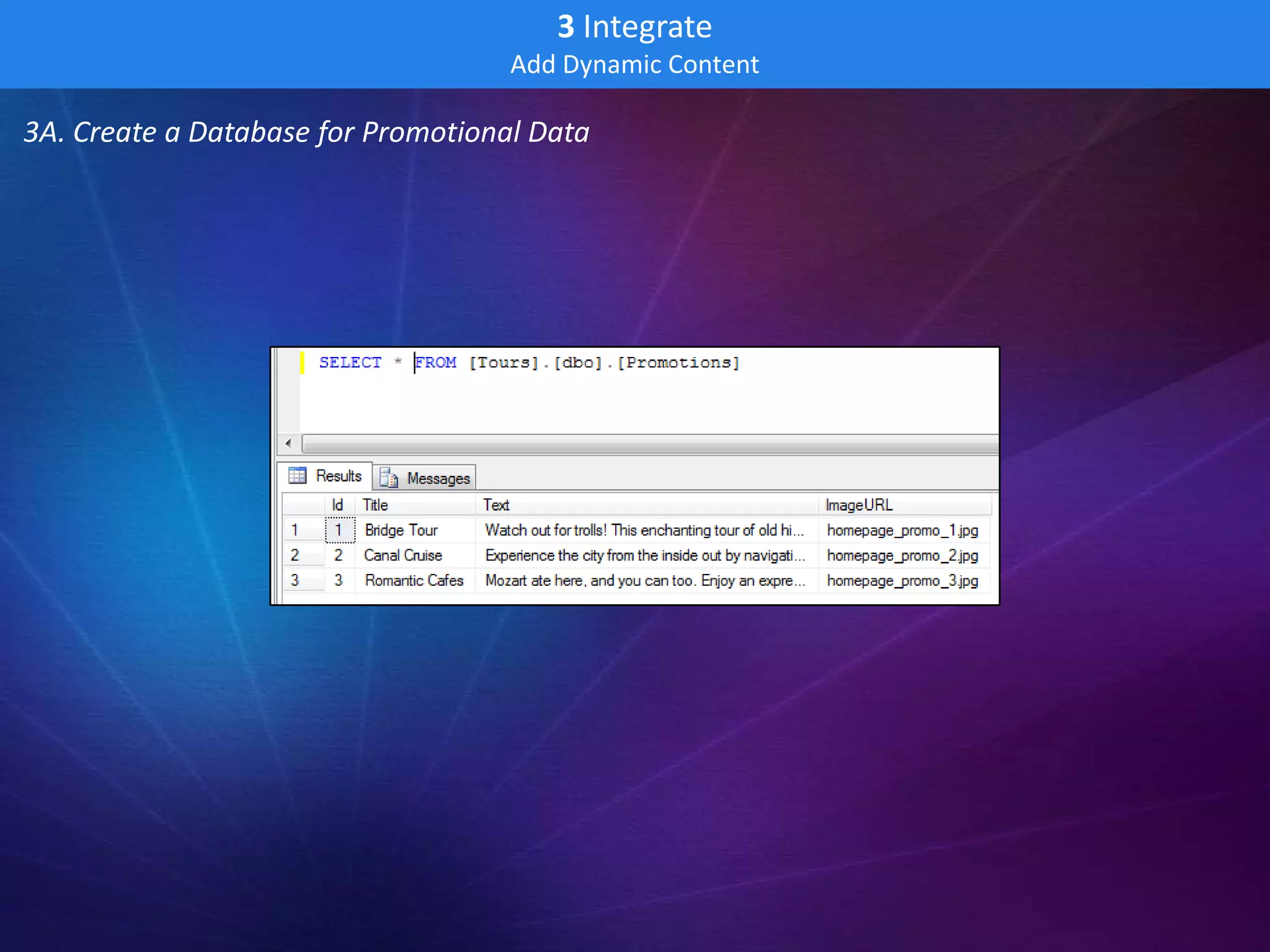

- 50. 3 Integrate Add Dynamic Content 3A. Create a Database for Promotional Data
- 51. 3 Integrate Add Dynamic Content 3B. Retrieve Content in the MVC Project public class HomeController : Controller public class Promo { { // public string Title; // GET: /Home/ public string Text; public string ImageURL; public ActionResult Index() } { LoadPromos(); return View(); } private void LoadPromos() { Dictionary<string, Promo> Promos = new Dictionary<string, Promo>(); try { using (SqlConnection conn = new SqlConnection(System.Configuration.ConfigurationManager .ConnectionStrings["Tours"].ConnectionString)) { ...get the data, add to Promos collection... } } catch (SqlException ex) { // TODO: log exception } ViewBag.Promos = Promos; } }
- 52. 3 Integrate Add Dynamic Content 3C. Embed Content with Razor <!-- begin - homepage promos --> <div class="home_promo_container"> <div class="home_promo"> <div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["1"].ImageURL));"> <h2 data-bind="text: PromoTitle1"></h2> <p data-bind="text: PromoText1"/> <a class="button" href="#">Learn more »</a> </div> </div> <div class="home_promo"> <div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["2"].ImageURL));"> <h2 data-bind="text: PromoTitle2"></h2> <p data-bind="text: PromoText2"/> <a class="button" href="#">Learn more »</a> </div> </div> <div class="home_promo"> <div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["3"].ImageURL));"> <h2 data-bind="text: PromoTitle3"></h2> <p data-bind="text: PromoText3"/> <a class="button" href="#">Learn more »</a> </div> </div> </div>
- 53. 3 Integrate Add Dynamic Content 3C. Data Bind with Knockout <!-- begin - homepage promos --> <div class="home_promo_container"> <div class="home_promo"> <div class="home_promo_content" style="background- image:url(images/@(ViewBag.Promos["1"].ImageURL));"> <h2 data-bind="text: PromoTitle1"></h2> <p data-bind="text: PromoText1"/> <a class="button" href="#">Learn more »</a> </div> </div> <div class="home_promo"> <div class="home_promo_content" style="background- image:url(images/@(ViewBag.Promos["2"].ImageURL));"> <h2 data-bind="text: PromoTitle2"></h2> <p data-bind="text: PromoText2"/> <a class="button" href="#">Learn more »</a> </div> </div> <div class="home_promo"> <div class="home_promo_content" style="background- image:url(images/@(ViewBag.Promos["3"].ImageURL));"> <h2 data-bind="text: PromoTitle3"></h2> <p data-bind="text: PromoText3"/> <a class="button" href="#">Learn more »</a> </div> </div> </div>
- 54. 3 Integrate Add Dynamic Content 3C. Data Bind with Knockout <!-- begin - homepage promos --> <div class="home_promo_container"> <div class="home_promo"> <div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["1"].ImageURL));"> <h2 data-bind="text: PromoTitle1"></h2> <p data-bind="text: PromoText1"/> <a class="button" href="#">Learn more »</a> </div> </div> <div class="home_promo"> <div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["2"].ImageURL));"> <h2 data-bind="text: PromoTitle2"></h2> <p data-bind="text: PromoText2"/> <a class="button" href="#">Learn more »</a> </div> </div> <div class="home_promo"> <div class="home_promo_content" style="background-image:url(images/@(ViewBag.Promos["3"].ImageURL));"> <h2 data-bind="text: PromoTitle3"></h2> <p data-bind="text: PromoText3"/> <a class="button" href="#">Learn more »</a> </div> </div> </div>

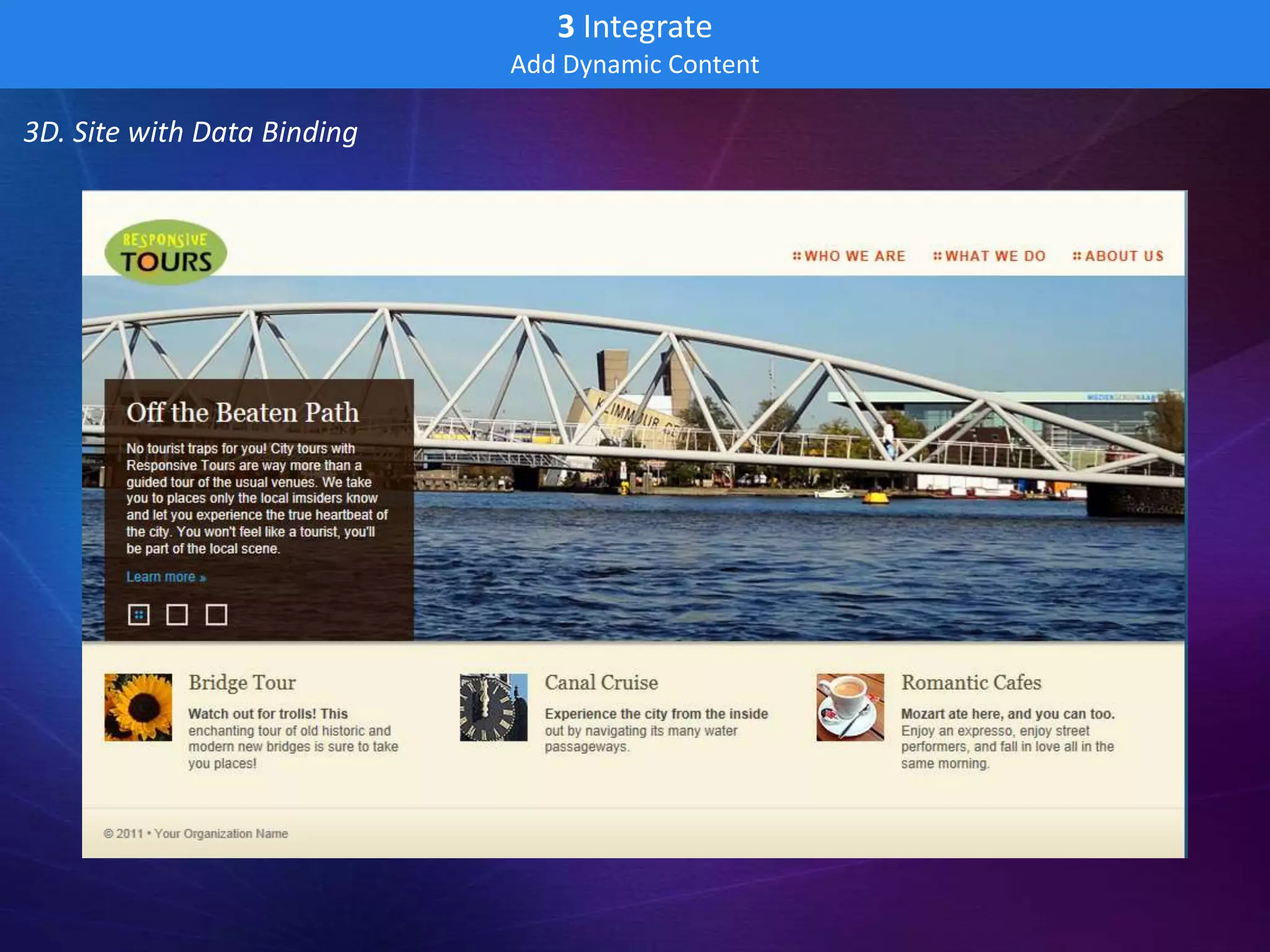

- 55. 3 Integrate Add Dynamic Content 3D. Site with Data Binding

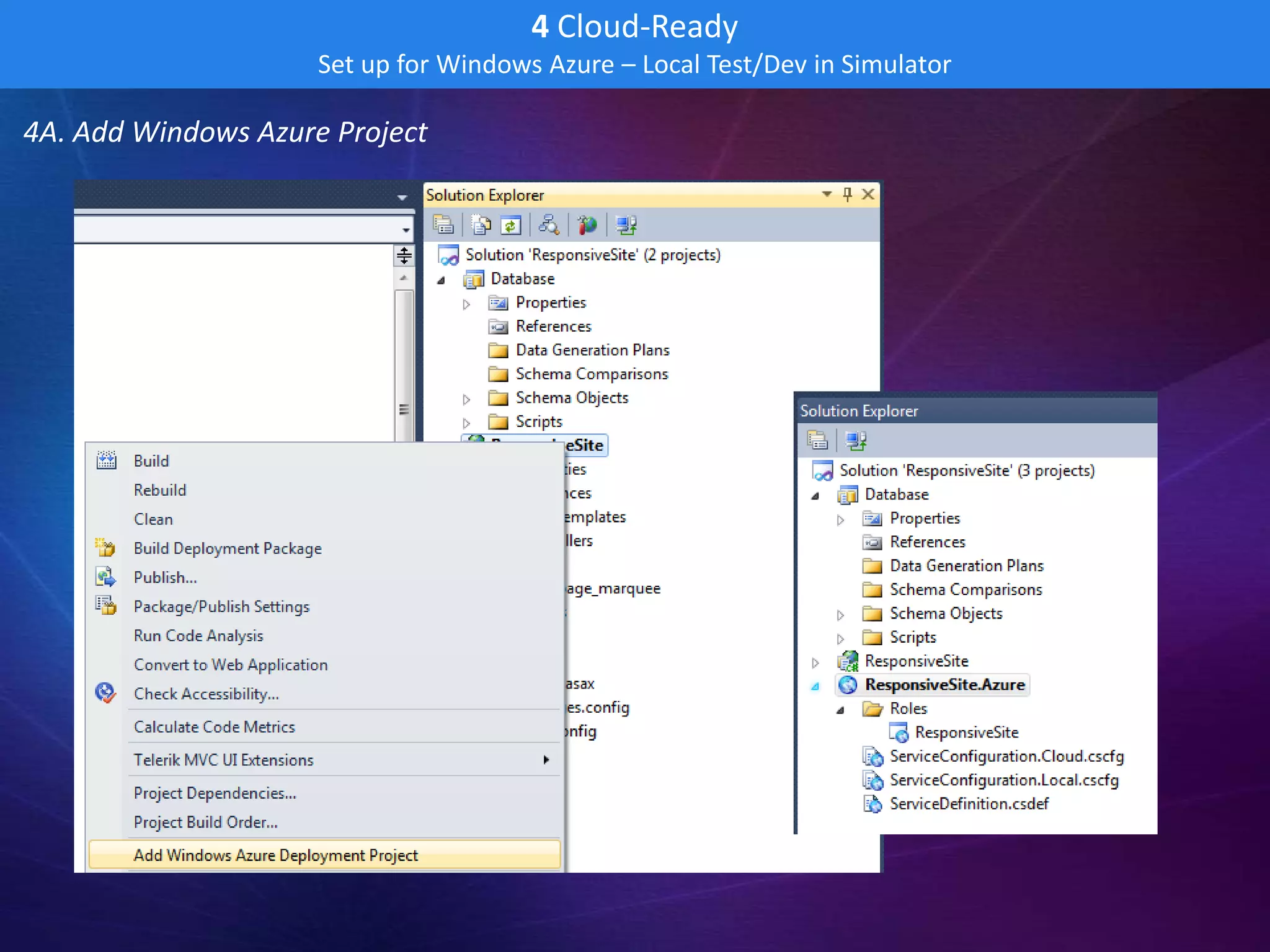

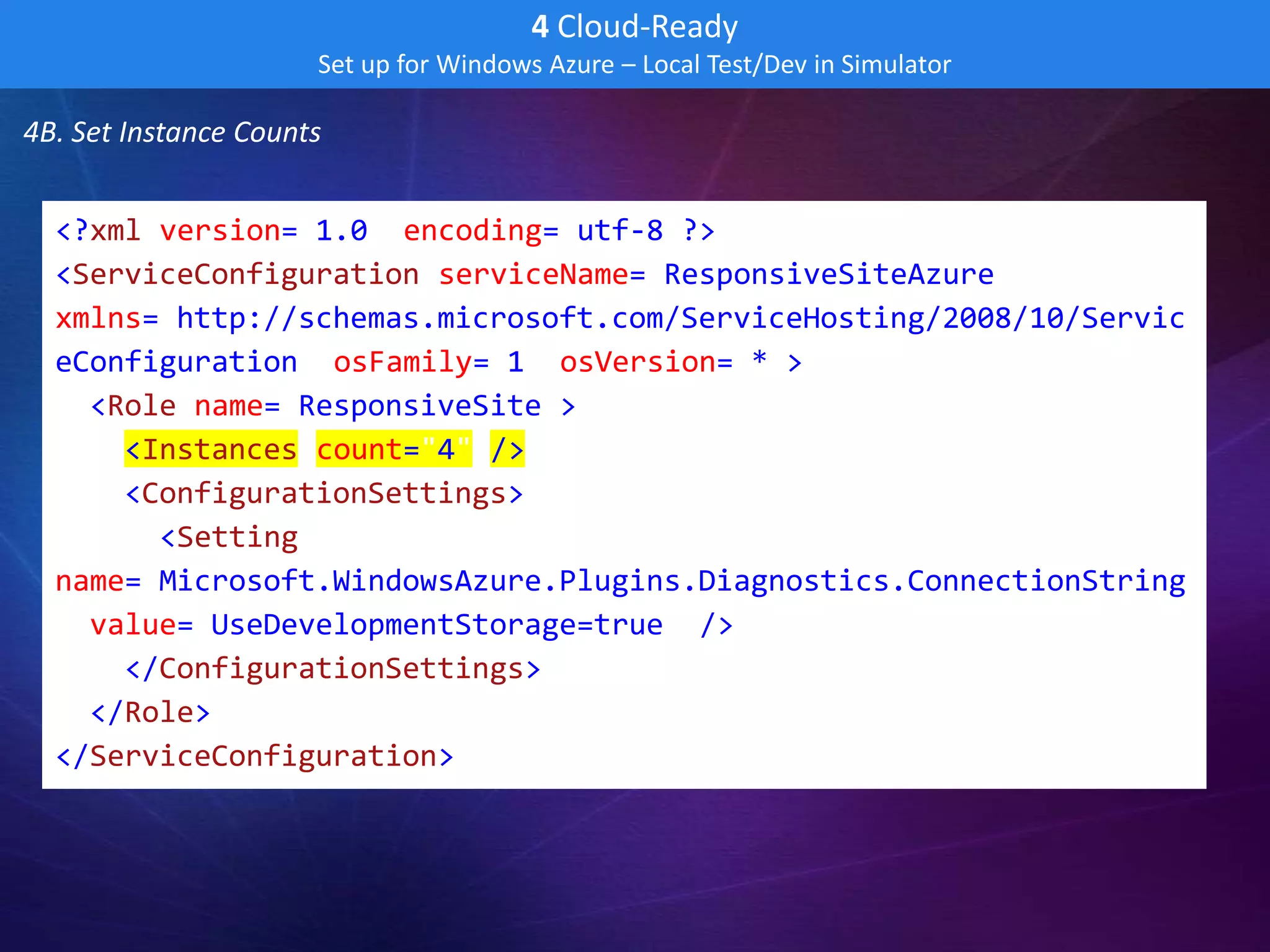

- 56. 4 Cloud-Ready Set up for Windows Azure – Local Test/Dev in Simulator 4A. Add Windows Azure Project
- 57. 4 Cloud-Ready Set up for Windows Azure – Local Test/Dev in Simulator 4B. Set Instance Counts <?xml version="1.0" encoding="utf-8"?> <ServiceConfiguration serviceName="ResponsiveSiteAzure" xmlns="http://schemas.microsoft.com/ServiceHosting/2008/10/Servic eConfiguration" osFamily="1" osVersion="*"> <Role name="ResponsiveSite"> <Instances count="4" /> <ConfigurationSettings> <Setting name="Microsoft.WindowsAzure.Plugins.Diagnostics.ConnectionString " value="UseDevelopmentStorage=true" /> </ConfigurationSettings> </Role> </ServiceConfiguration>

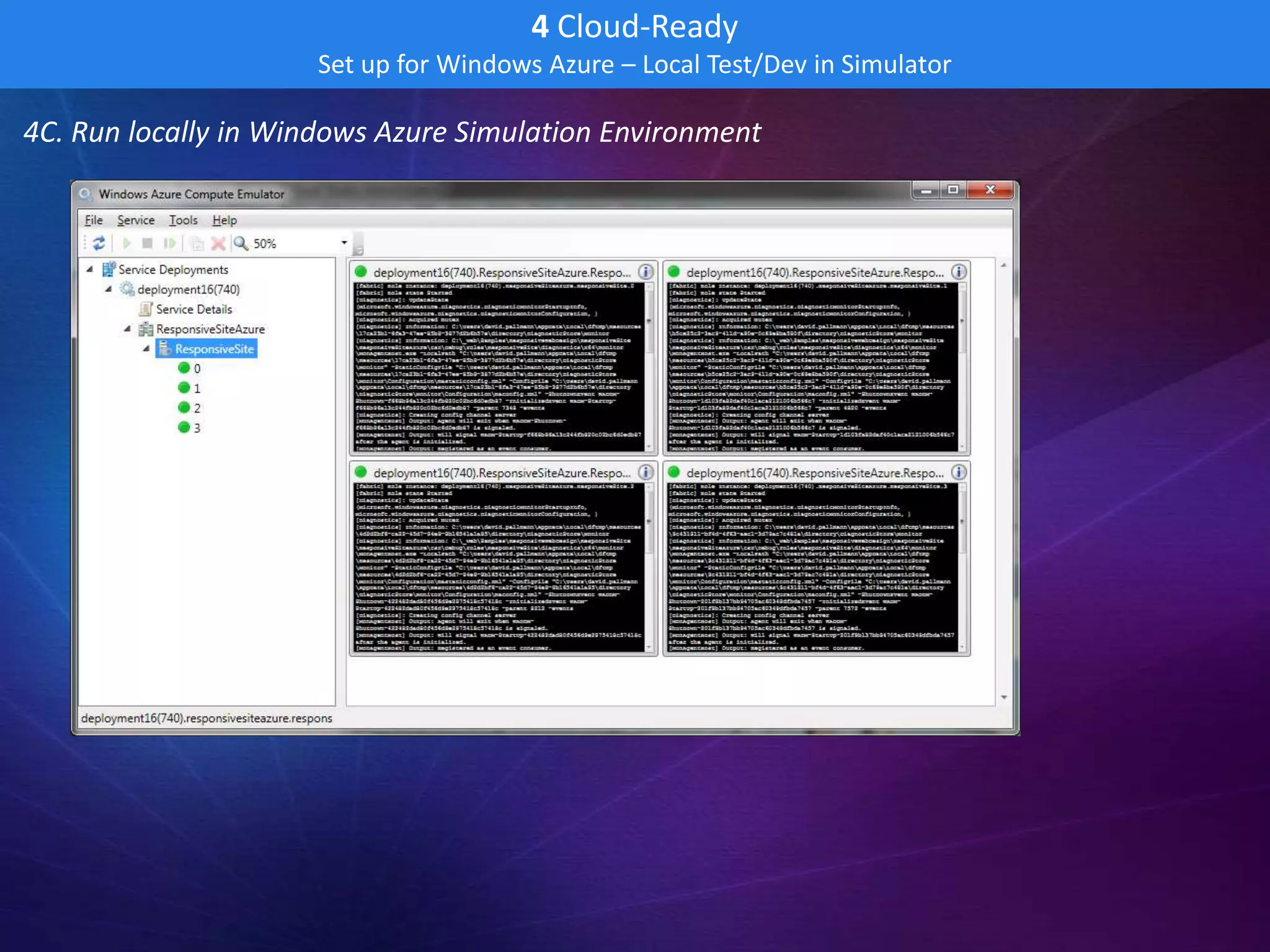

- 58. 4 Cloud-Ready Set up for Windows Azure – Local Test/Dev in Simulator 4C. Run locally in Windows Azure Simulation Environment

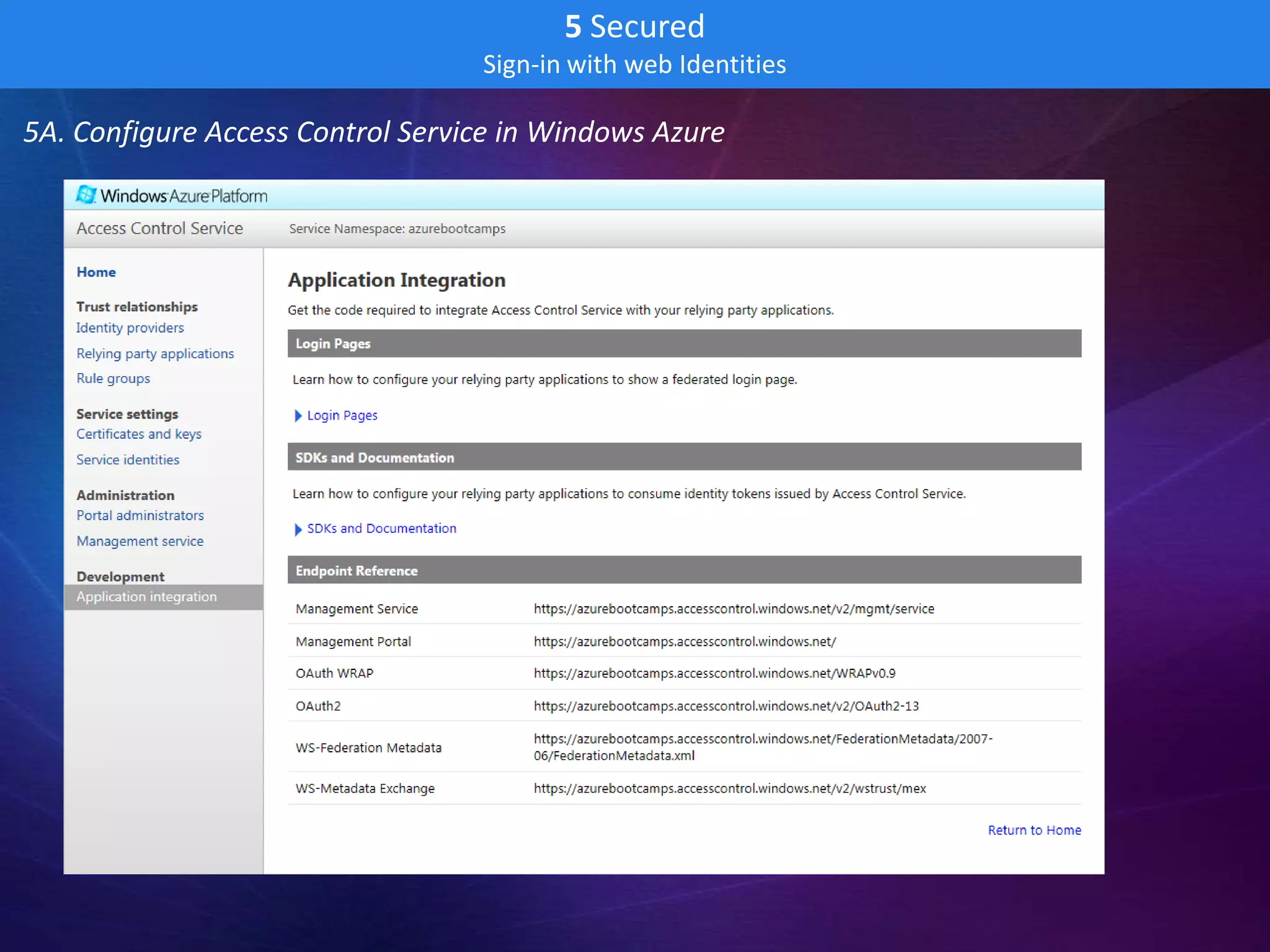

- 59. 5 Secured Sign-in with web Identities 5A. Configure Access Control Service in Windows Azure
- 60. 5 Secured Sign-in with web Identities 5B. Instrument for identity with Windows Identity Foundation

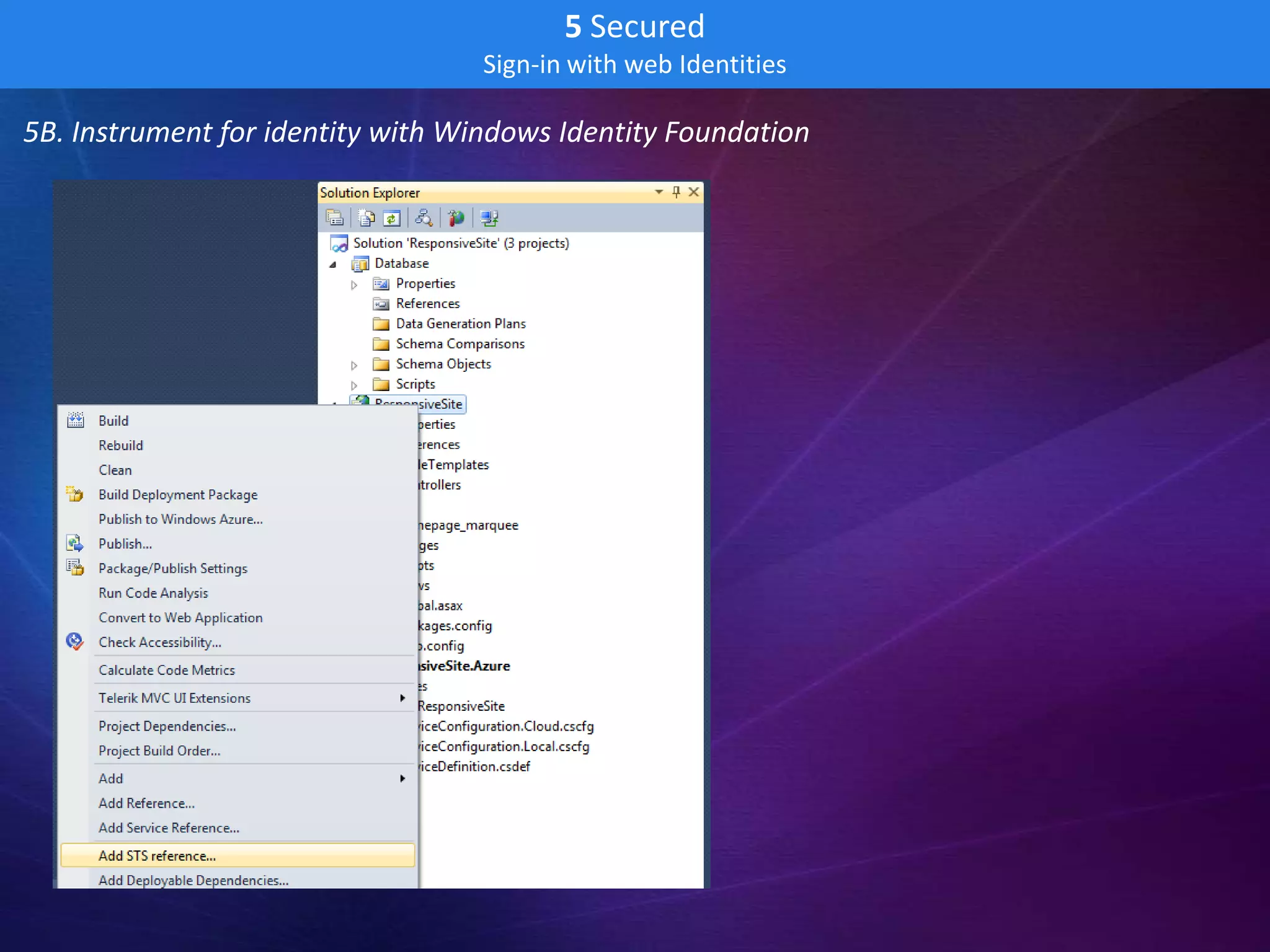

- 61. 5 Secured Sign-in with web Identities 5B. Instrument for identity with Windows Identity Foundation

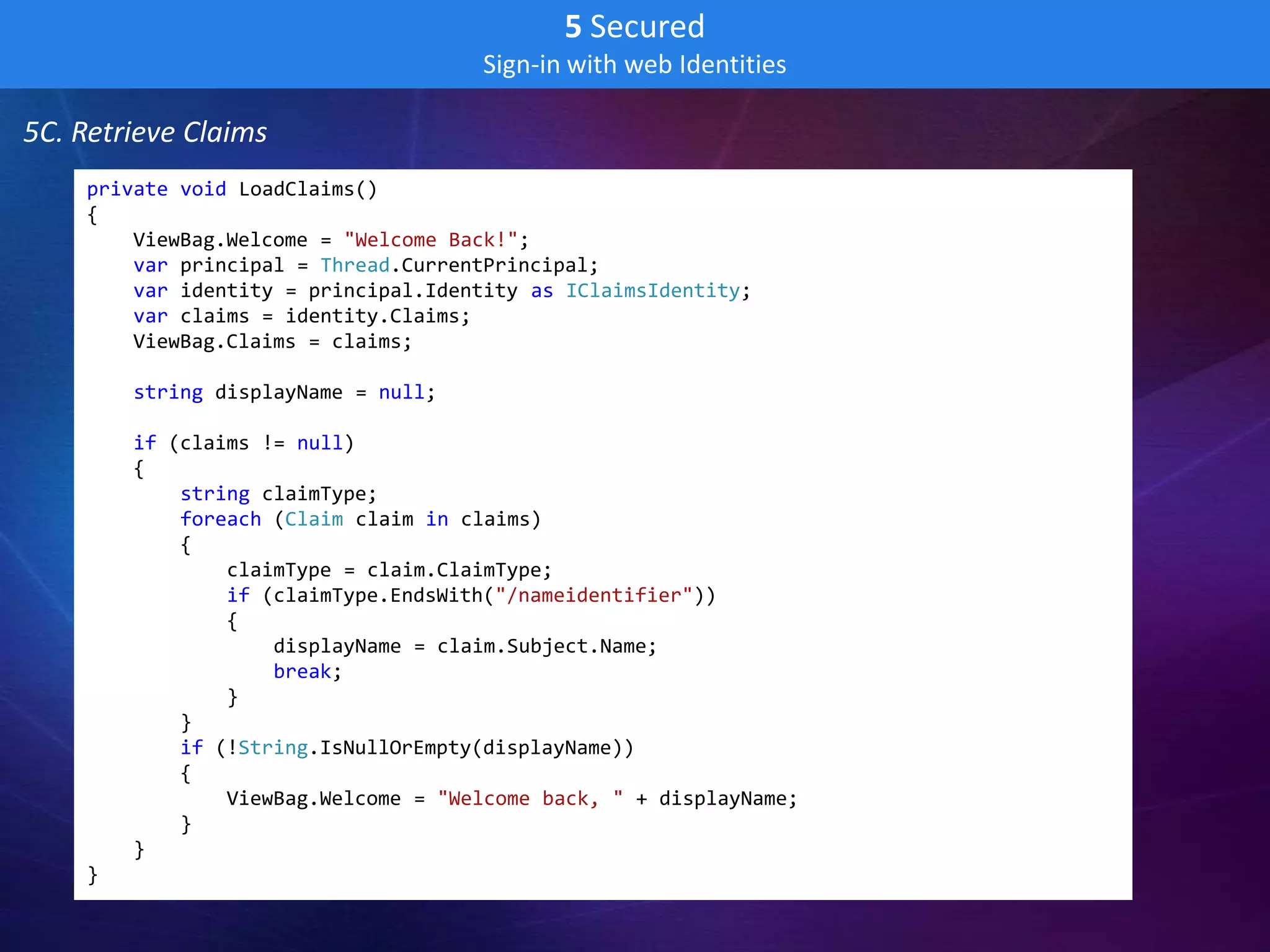

- 62. 5 Secured Sign-in with web Identities 5C. Retrieve Claims private void LoadClaims() { ViewBag.Welcome = "Welcome Back!"; var principal = Thread.CurrentPrincipal; var identity = principal.Identity as IClaimsIdentity; var claims = identity.Claims; ViewBag.Claims = claims; string displayName = null; if (claims != null) { string claimType; foreach (Claim claim in claims) { claimType = claim.ClaimType; if (claimType.EndsWith("/nameidentifier")) { displayName = claim.Subject.Name; break; } } if (!String.IsNullOrEmpty(displayName)) { ViewBag.Welcome = "Welcome back, " + displayName; } } }

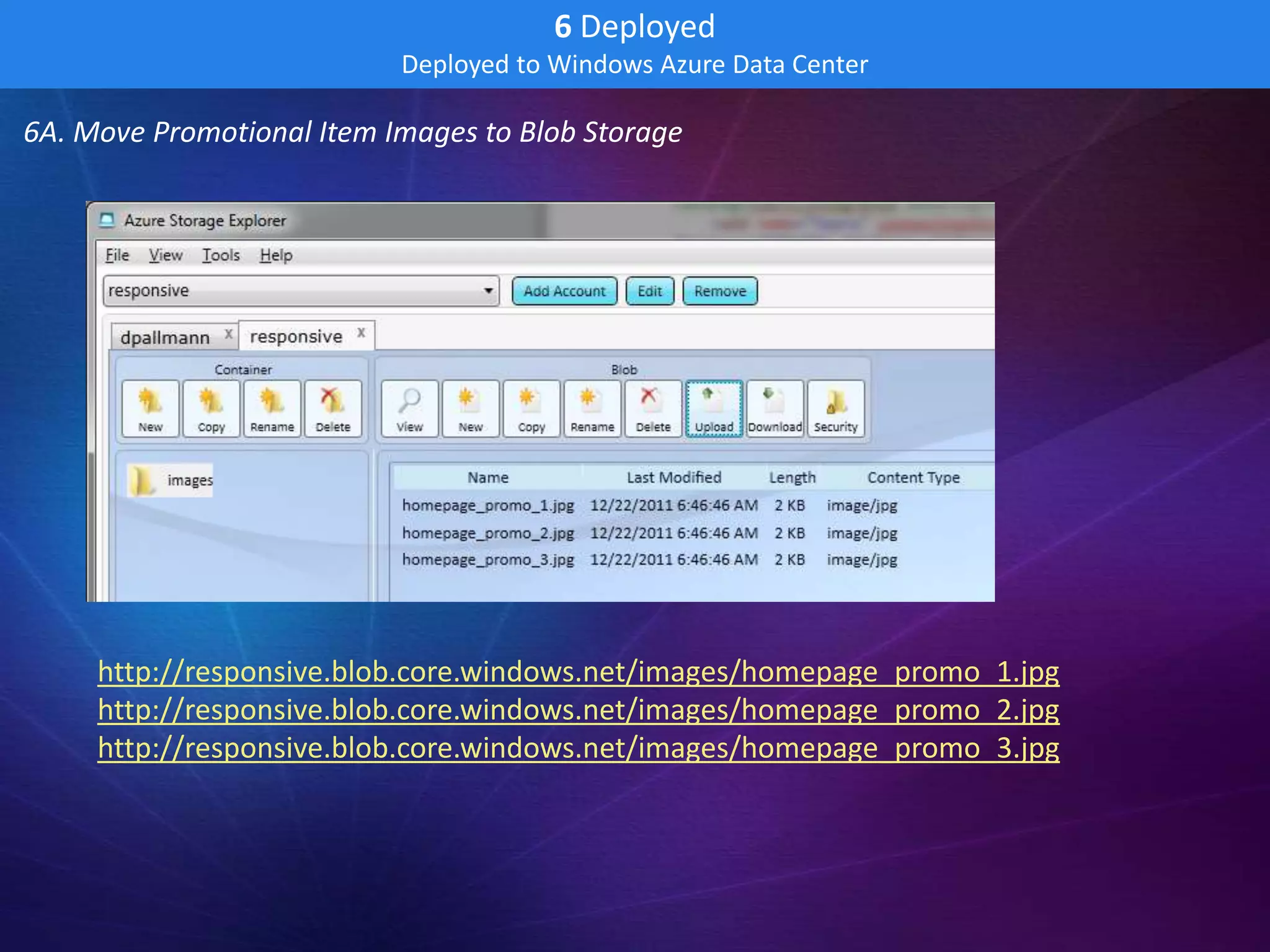

- 63. 6 Deployed Deployed to Windows Azure Data Center 6A. Move Promotional Item Images to Blob Storage http://responsive.blob.core.windows.net/images/homepage_promo_1.jpg http://responsive.blob.core.windows.net/images/homepage_promo_2.jpg http://responsive.blob.core.windows.net/images/homepage_promo_3.jpg
- 64. 6 Deployed Deployed to Windows Azure Data Center 6B. Change Promotional Image URLs to use Blob Storage <div class="home_promo_content" style="background-image:url( http://responsive.blob.core.windows.net/images/@(ViewBag.Promos["1"].ImageURL) );">

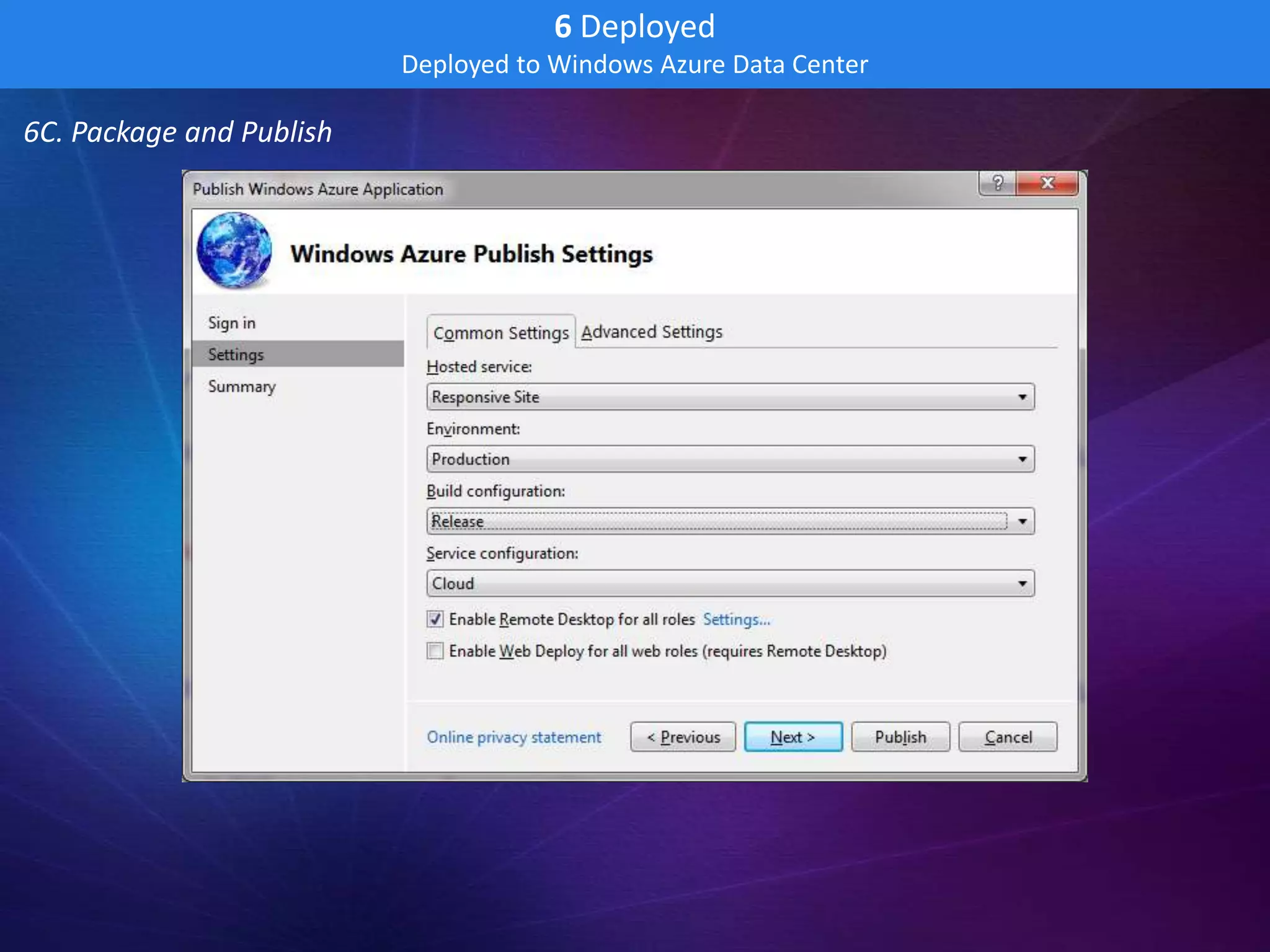

- 65. 6 Deployed Deployed to Windows Azure Data Center 6C. Package and Publish

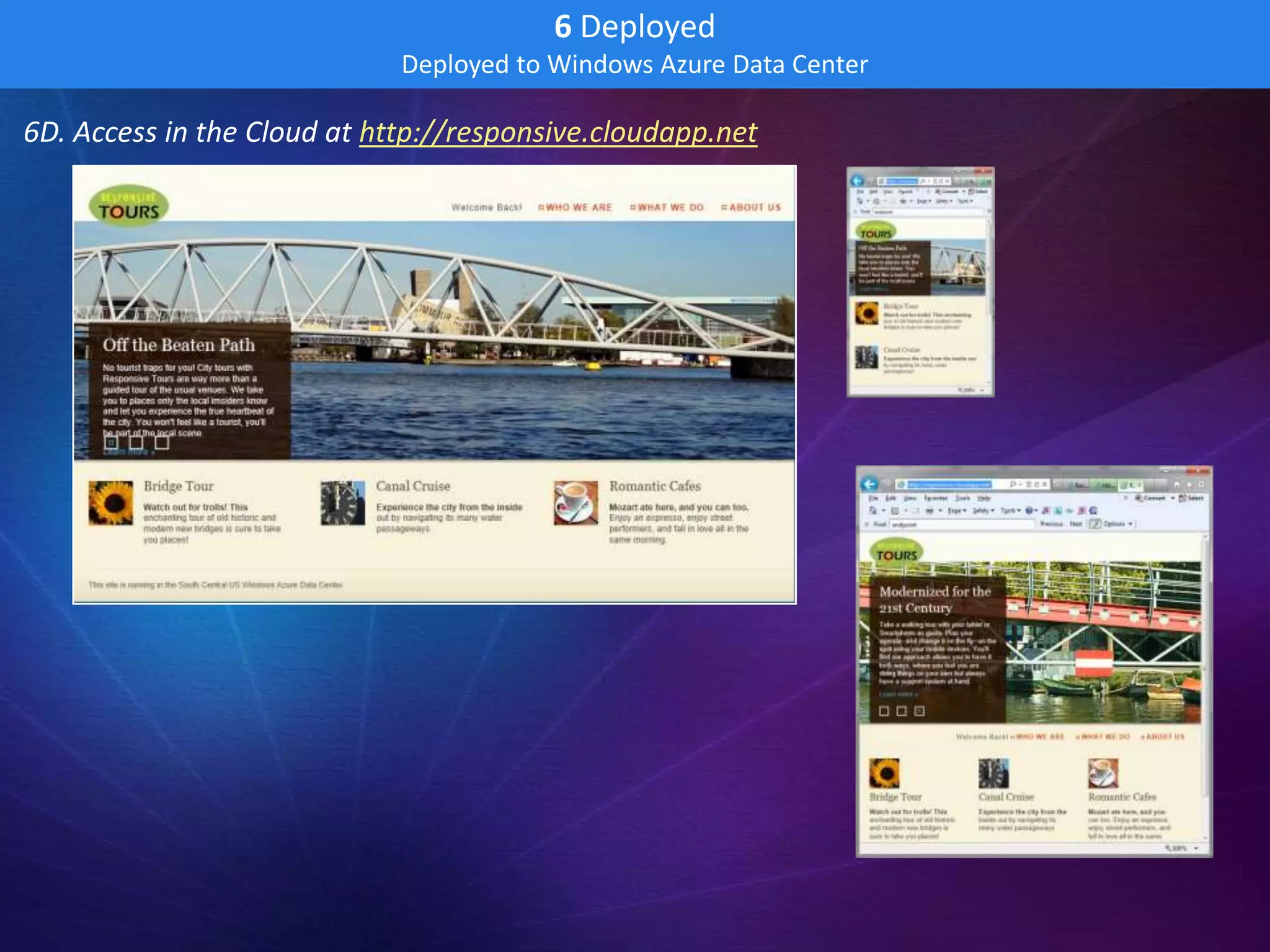

- 66. 6 Deployed Deployed to Windows Azure Data Center 6D. Access in the Cloud at http://responsive.cloudapp.net

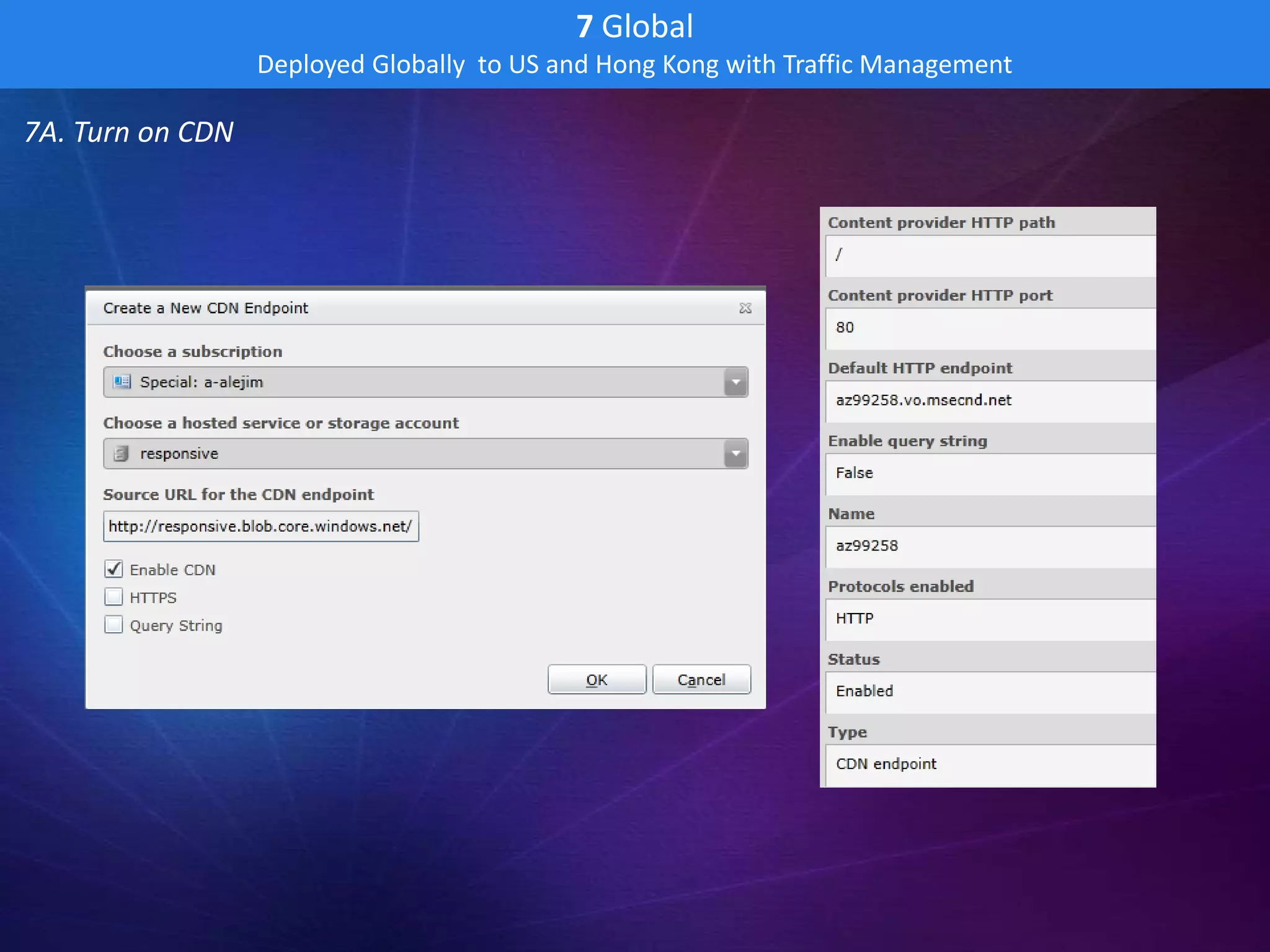

- 67. 7 Global Deployed Globally to US and Hong Kong with Traffic Management 7A. Turn on CDN
- 68. 7 Global Deployed Globally to US and Hong Kong with Traffic Management 7B. Change Promotion Item Image URLs to use CDN URL Prefix <div class="home_promo_content" style="background-image:url( http://az99258.vo.msecnd.net/images/@(ViewBag.Promos["1"].ImageURL) );">
- 69. 7 Global Deployed Globally to US and Hong Kong with Traffic Management 7C. Deploy to Multiple Data Centers

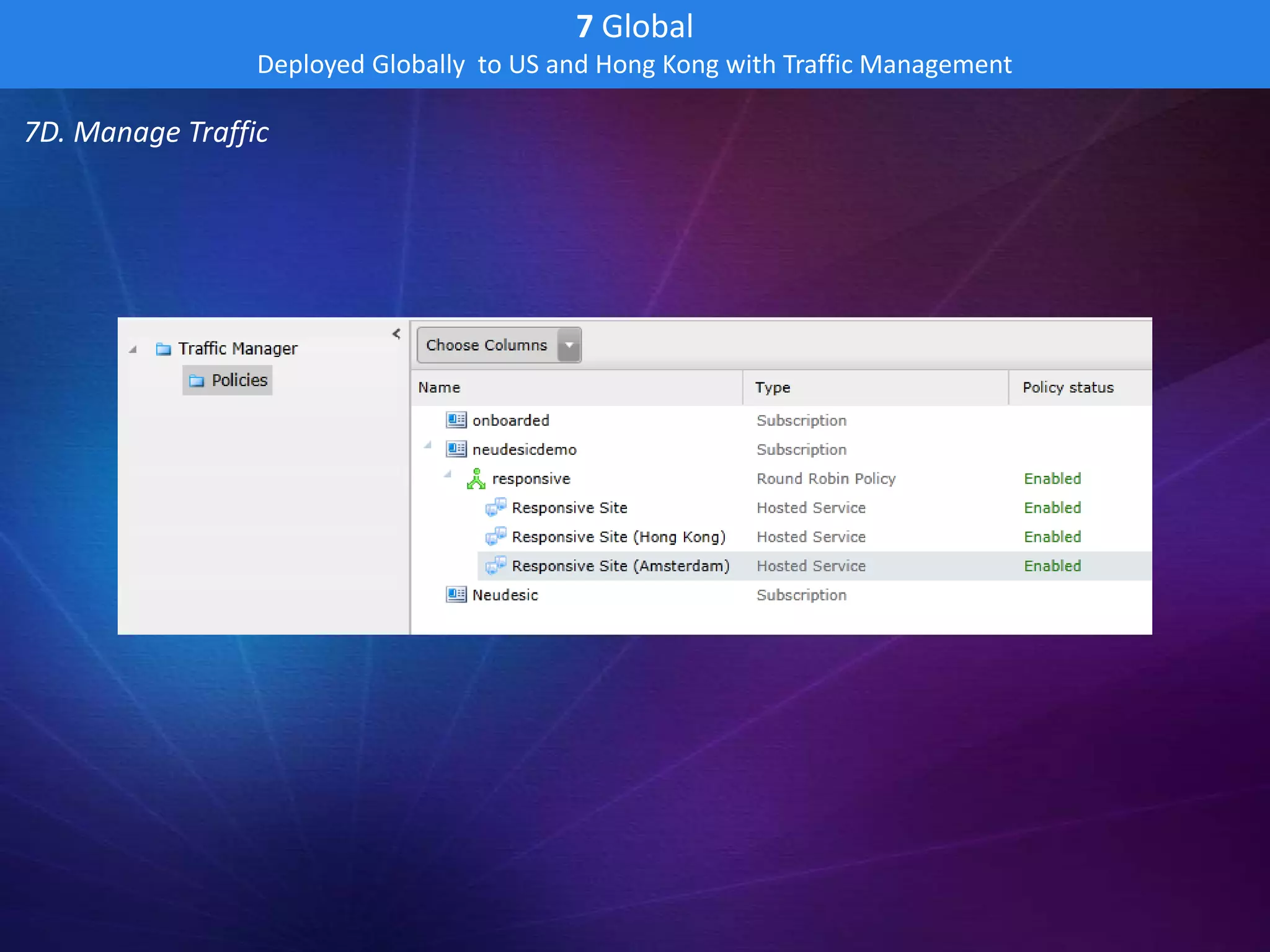

- 70. 7 Global Deployed Globally to US and Hong Kong with Traffic Management 7D. Manage Traffic

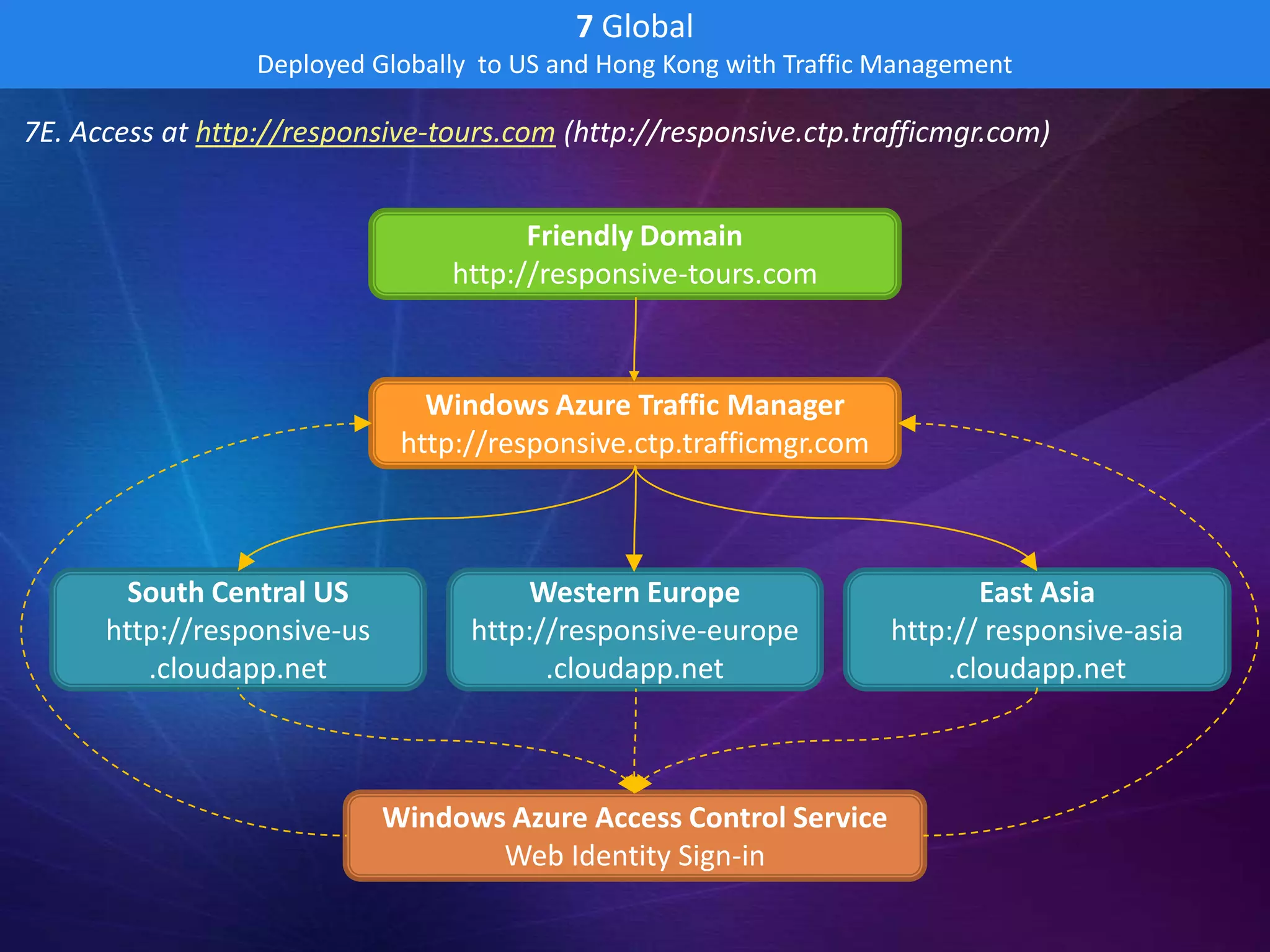

- 71. 7 Global Deployed Globally to US and Hong Kong with Traffic Management 7E. Access at http://responsive-tours.com (http://responsive.ctp.trafficmgr.com) Friendly Domain http://responsive-tours.com Windows Azure Traffic Manager http://responsive.ctp.trafficmgr.com South Central US Western Europe East Asia http://responsive-us http://responsive-europe http:// responsive-asia .cloudapp.net .cloudapp.net .cloudapp.net Windows Azure Access Control Service Web Identity Sign-in

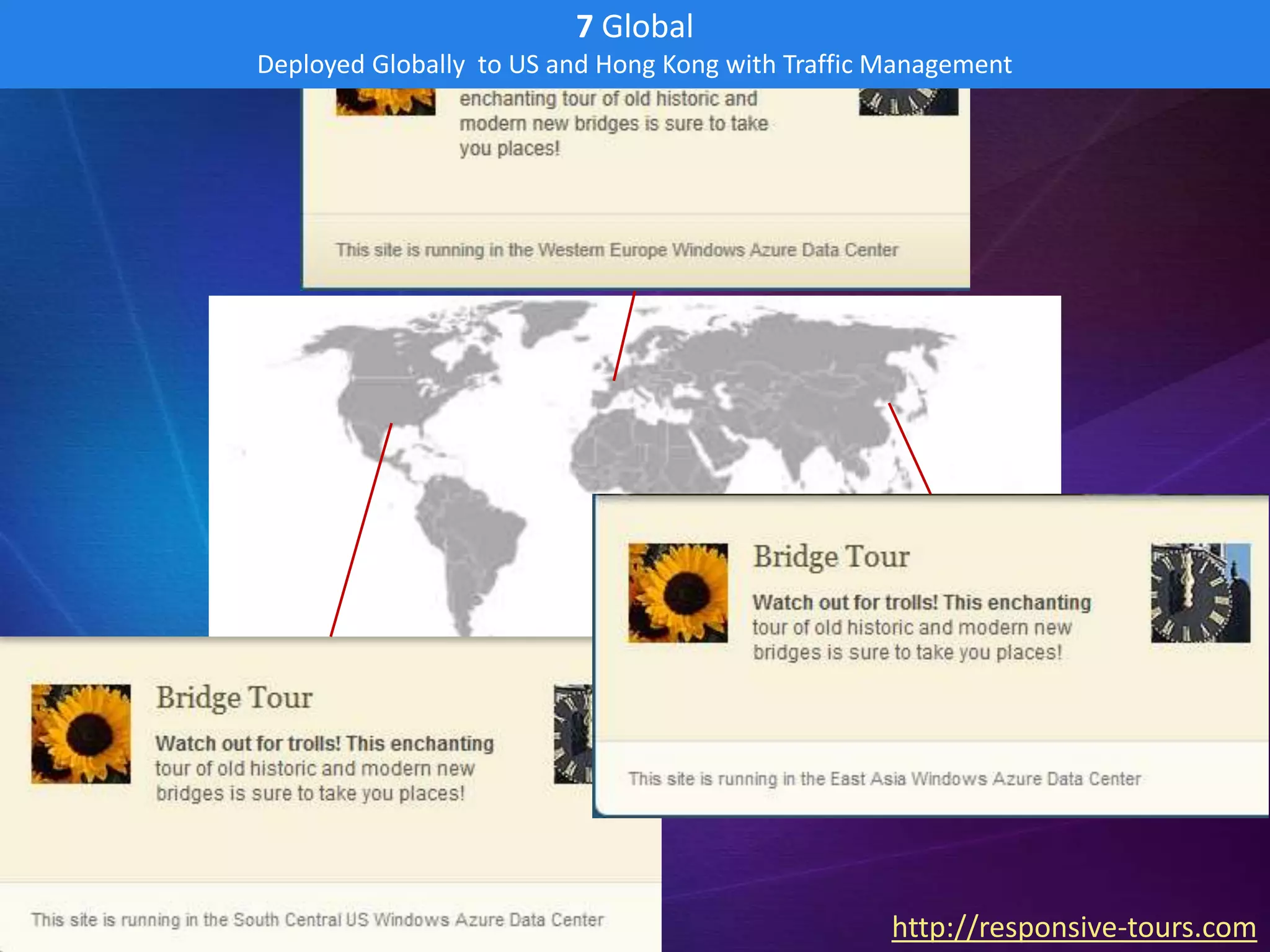

- 72. 7 Global Deployed Globallyto US and Hong Kong with Traffic Management http://responsive-tours.com

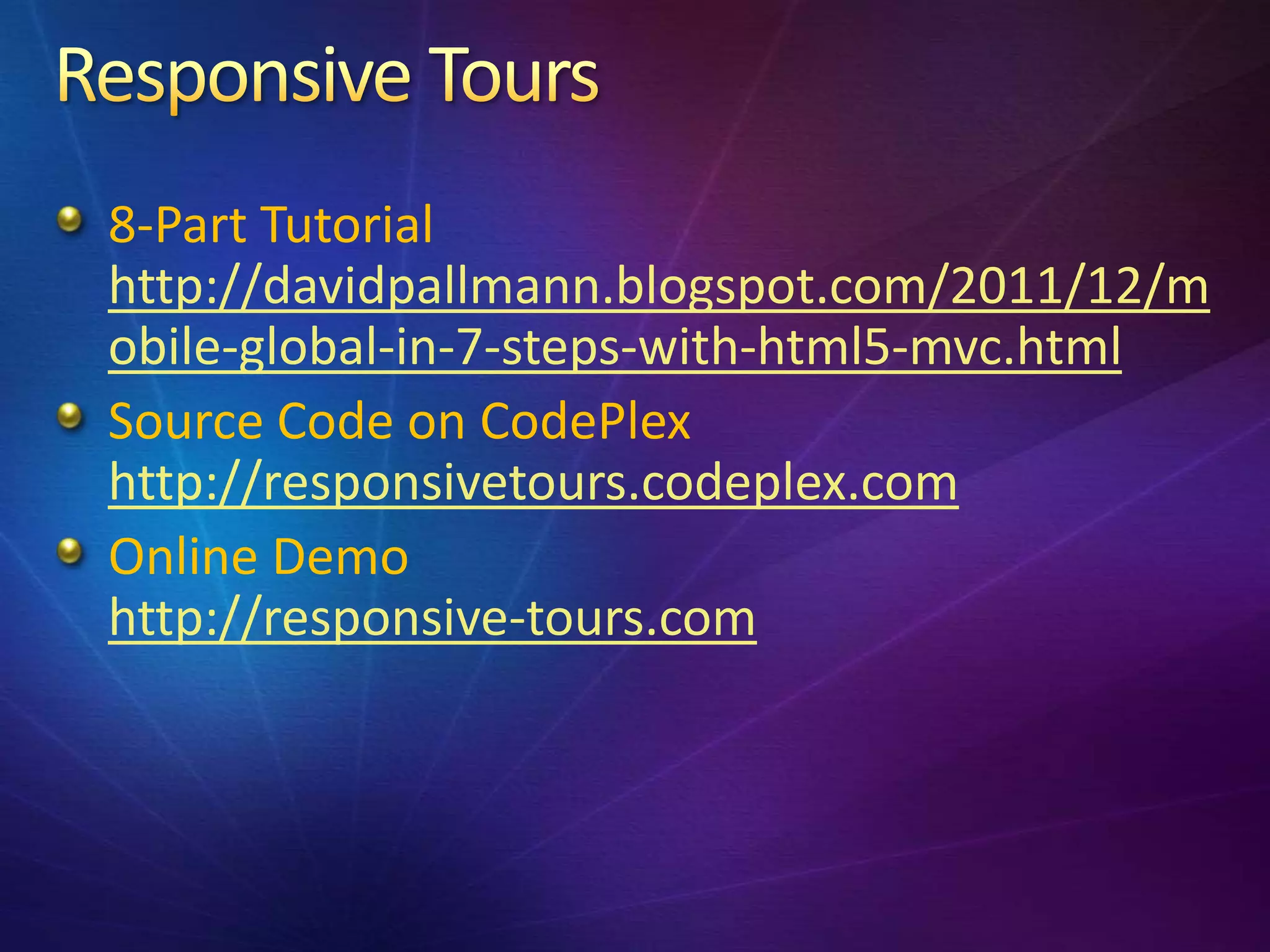

- 73. 8-Part Tutorial http://davidpallmann.blogspot.com/2011/12/m obile-global-in-7-steps-with-html5-mvc.html Source Codeon CodePlex http://responsivetours.codeplex.com Online Demo http://responsive-tours.com
- 74. David Pallmann GM CustomApp Dev, Neudesic http://davidpallmann.blogspot.com @davidpallmann
