Sijie Guo discusses lessons learned from building Apache Pulsar, a modern messaging and streaming system. Key points include: - Pulsar was designed for the cloud-native era, separating compute and storage for scalability unlike earlier systems designed for on-premise use. - It supports unified messaging and streaming with a single API and multi-protocol support like Kafka, AMQP, and MQTT. - Features like multi-tenancy, geo-replication, and infinite stream storage help support use cases like multi-cloud, hybrid cloud, and managing entire data lifecycles. - The talk reflects on how Pulsar's architecture was influenced by trends in cloud computing,

1. Apache Pulsar: what we learned from building a
modern messaging and streaming system for cloud
Sijie Guo
Co-founder and CEO, StreamNative

2. Who am I?
● Sijie Guo (@sijieg)
● Co-founder and CEO, StreamNative
● PMC Member of Pulsar/BookKeeper
● Ex Co-Founder, Streamlio
● Ex Twitter, Yahoo!

3. StreamNative
Founded by the creators of Apache Pulsar, StreamNative provides a
cloud-native, unified messaging and streaming platform powered by
Apache Pulsar to support multi-cloud and hybrid-cloud strategies

4. Apache Pulsar: what we learned from building a
modern messaging and streaming system for cloud
Sijie Guo
Co-founder and CEO, StreamNative

6. 2010
I build log storage for real-time data

7. 2010 2011
I build log storage for real-time data

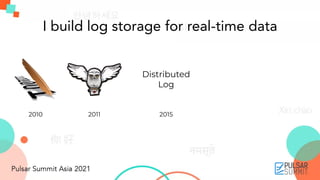

8. 2010 2011
Distributed
Log
2015
I build log storage for real-time data

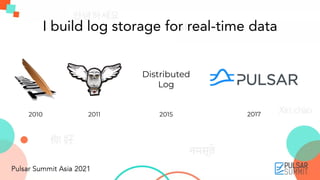

9. 2010 2011
Distributed
Log
2015 2017
I build log storage for real-time data

11. The Log: What every software engineer should know about real-time
data's unifying abstraction
- Jay Kreps

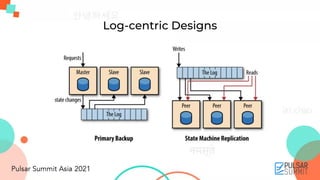

12. Log-centric Designs

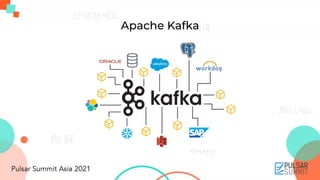

13. Apache Kafka

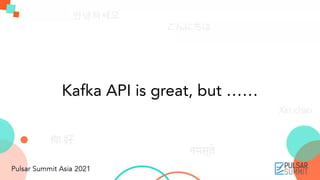

14. Kafka API is great, but ……

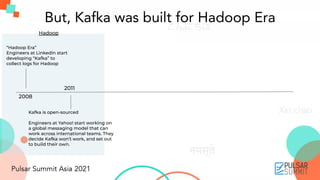

15. 2008
“Hadoop Era”
Engineers at LinkedIn start
developing “Kafka” to
collect logs for Hadoop
Kafka is open-sourced
Engineers at Yahoo! start working on
a global messaging model that can
work across international teams. They
decide Kafka won’t work, and set out
to build their own.
2011
Hadoop
But, Kafka was built for Hadoop Era

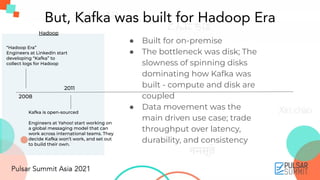

16. 2008
“Hadoop Era”
Engineers at LinkedIn start
developing “Kafka” to
collect logs for Hadoop
Kafka is open-sourced
Engineers at Yahoo! start working on
a global messaging model that can
work across international teams. They
decide Kafka won’t work, and set out
to build their own.
2011
Hadoop
But, Kafka was built for Hadoop Era
● Built for on-premise
● The bottleneck was disk; The
slowness of spinning disks
dominating how Kafka was
built - compute and disk are
coupled
● Data movement was the
main driven use case; trade
throughput over latency,
durability, and consistency

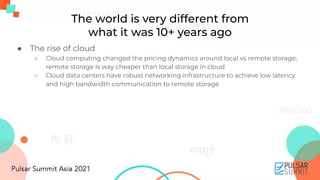

17. The world is very different from
what it was 10+ years ago
● The rise of cloud
○ Cloud computing changed the pricing dynamics around local vs remote storage;
remote storage is way cheaper than local storage in cloud
○ Cloud data centers have robust networking infrastructure to achieve low latency
and high bandwidth communication to remote storage

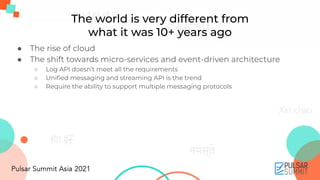

18. The world is very different from
what it was 10+ years ago
● The rise of cloud
● The shift towards micro-services and event-driven architecture
○ Log API doesn’t meet all the requirements
○ Unified messaging and streaming API is the trend
○ Require the ability to support multiple messaging protocols

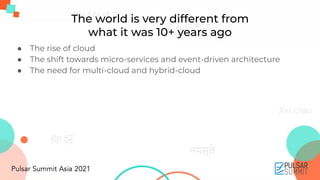

19. The world is very different from
what it was 10+ years ago
● The rise of cloud
● The shift towards micro-services and event-driven architecture
● The need for multi-cloud and hybrid-cloud

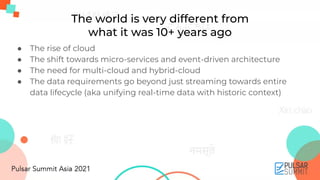

20. The world is very different from
what it was 10+ years ago
● The rise of cloud
● The shift towards micro-services and event-driven architecture
● The need for multi-cloud and hybrid-cloud
● The data requirements go beyond just streaming towards entire
data lifecycle (aka unifying real-time data with historic context)

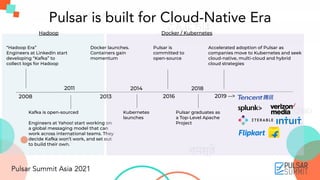

21. 2008
“Hadoop Era”
Engineers at LinkedIn start
developing “Kafka” to
collect logs for Hadoop
Kafka is open-sourced
Engineers at Yahoo! start working on
a global messaging model that can
work across international teams. They
decide Kafka won’t work, and set out
to build their own.
2011
Hadoop
Pulsar is built for Cloud-Native Era
2016
Docker launches.
Containers gain
momentum
2014
Kubernetes
launches
Pulsar graduates as
a Top-Level Apache
Project
2013
Pulsar is
committed to
open-source
2018
Accelerated adoption of Pulsar as
companies move to Kubernetes and seek
cloud-native, multi-cloud and hybrid
cloud strategies
2019 -->
Docker / Kubernetes

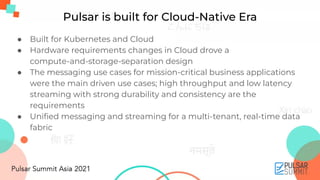

22. ● Built for Kubernetes and Cloud
● Hardware requirements changes in Cloud drove a
compute-and-storage-separation design
● The messaging use cases for mission-critical business applications
were the main driven use cases; high throughput and low latency
streaming with strong durability and consistency are the
requirements
● Unified messaging and streaming for a multi-tenant, real-time data
fabric
Pulsar is built for Cloud-Native Era

23. Look back …

24. What we learned from building Pulsar
● Compute and storage separation
● Messaging and Streaming unification
● Support multi messaging protocols
● Importance of multi-tenancy
● Geo-replication to support multi-cloud and hybrid-cloud
● Infinite stream storage to support entire data lifecycle

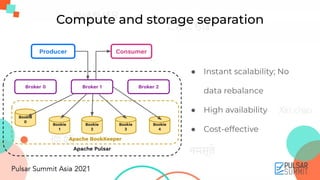

25. Compute and storage separation
● Instant scalability; No
data rebalance
● High availability
● Cost-effective
Apache Pulsar
Apache BookKeeper
Broker 0
Producer Consumer
Broker 1 Broker 2
Bookie
0
Bookie
1
Bookie
2
Bookie
3
Bookie
4

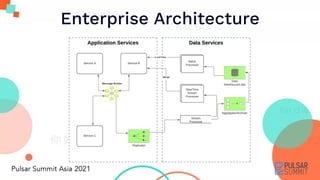

26. Enterprise Architecture

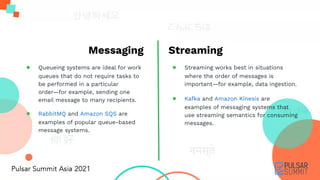

27. Messaging
● Queueing systems are ideal for work
queues that do not require tasks to
be performed in a particular
order—for example, sending one
email message to many recipients.
● RabbitMQ and Amazon SQS are
examples of popular queue-based
message systems.
Streaming
● Streaming works best in situations
where the order of messages is
important—for example, data ingestion.
● Kafka and Amazon Kinesis are
examples of messaging systems that
use streaming semantics for consuming
messages.

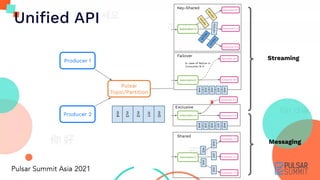

28. Streaming
Messaging
Producer 1
Producer 2
Pulsar
Topic/Partition
m0
m1
m2
m3
m4
Consumer D-1
Consumer D-2
Consumer D-3
Subscription D
<
k
2
,
v
1
>
<
k
2
,
v
3
>
<k3
,v2
>
<
k
1
,
v
0
>
<
k
1
,
v
4
>
Key-Shared
Consumer C-1
Consumer C-2
Consumer C-3
Subscription C
m1
m2
m3
m4
m0
Shared
Failover
Consumer B-1
Consumer B-0
Subscription B
m1
m2
m3
m4
m0
In case of failure in
Consumer B-0
Consumer A-1
Consumer A-0
Subscription A
m1
m2
m3
m4
m0
Exclusive
X
Unified API

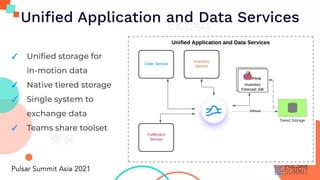

29. Unified Application and Data Services
✓ Unified storage for
in-motion data
✓ Native tiered storage
✓ Single system to
exchange data
✓ Teams share toolset

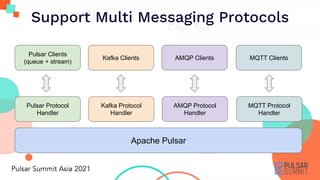

30. Apache Pulsar
Pulsar Protocol
Handler
Pulsar Clients
(queue + stream)
Kafka Protocol
Handler
AMQP Protocol
Handler
MQTT Protocol
Handler
Kafka Clients AMQP Clients MQTT Clients
Support Multi Messaging Protocols

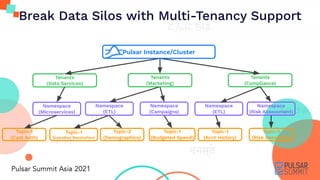

31. Break Data Silos with Multi-Tenancy Support
Tenants
(Compliance)
Tenants
(Data Services)
Namespace
(Microservices)
Topic-1
(Cust Auth)
Topic-1
(Location Resolution)
Topic-2
(Demographics)
Topic-1
(Budgeted Spend)
Topic-1
(Acct History)
Topic-1
(Risk Detection)
Namespace
(ETL)
Namespace
(Campaigns)
Namespace
(ETL)
Tenants
(Marketing)
Namespace
(Risk Assessment)
Pulsar Instance/Cluster

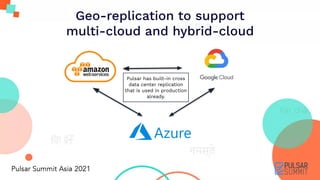

32. Geo-replication to support
multi-cloud and hybrid-cloud
Pulsar has built-in cross
data center replication
that is used in production
already.

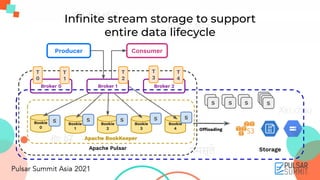

33. Infinite stream storage to support
entire data lifecycle
Storage
Apache Pulsar
Apache BookKeeper
Broker 0
Producer Consumer
Broker 1 Broker 2
Bookie
0
Bookie
1
Bookie
2
Bookie
3
Bookie
4
S S S S
S S S S
T
1
T
2
T
3
T
4
T
0
S
Apache Pulsar
Apache BookKeeper
Offloading
Broker 0
Producer Consumer
Broker 1 Broker 2
Bookie
0
Bookie
1
Bookie
2
Bookie
3
Bookie
4
S S S S
S S S S
T
1
T
2
T
3
T
4
T
0
S

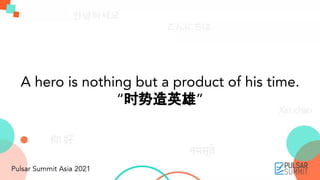

34. A hero is nothing but a product of his time.
“时势造英雄”

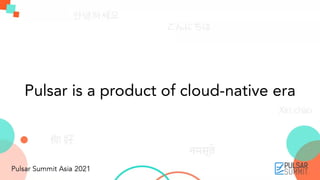

35. Pulsar is a product of cloud-native era
