Building a derived data store using Kafka

•Download as PPTX, PDF•

1 like•190 views

LinkedIn built a new derived data store called Venice to address limitations of their previous system Voldemort. Venice uses Kafka to enable scalable, fault-tolerant processing and replication of both batch-processed and incrementally updated derived data. It processes data through Hadoop jobs to Kafka topics, from which both batch-stored and real-time copies are maintained through Venice and Samza respectively. Kafka Mirror Maker replicates data across data centers for high availability.

Technology

Storage Infrastructure @ Linkedln
Deepshikha
SRE

Agenda
Why we need derived data stores
Nearline derived data
How we used Kafka to build a derived data
store

Derived Data Store
● What is derived data?
● Why do we need it?
● Why do we need specific stores for
derived data?

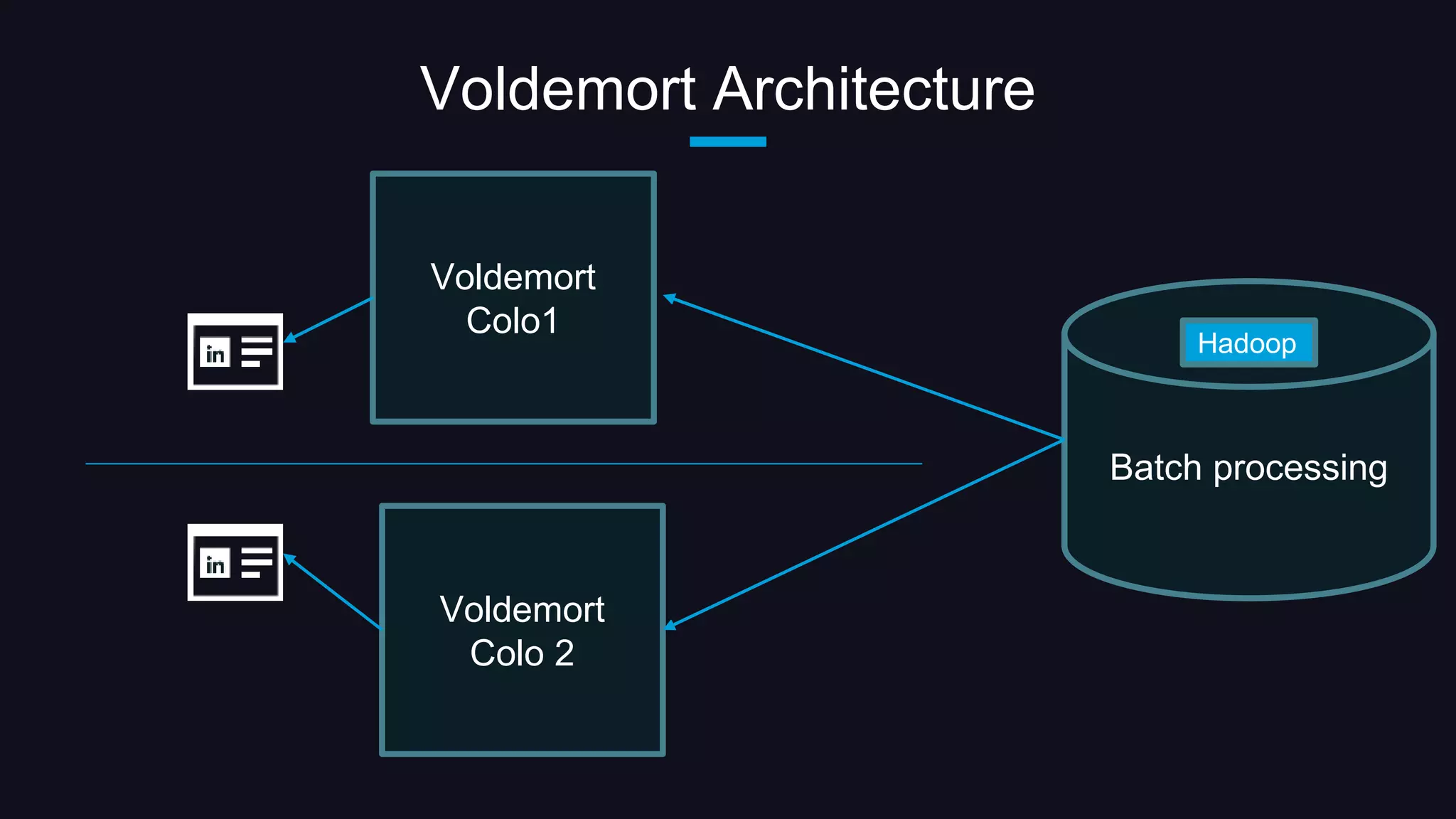

Voldemort Architecture
Voldemort
Colo1
Batch processing
Hadoop
Voldemort
Colo 2

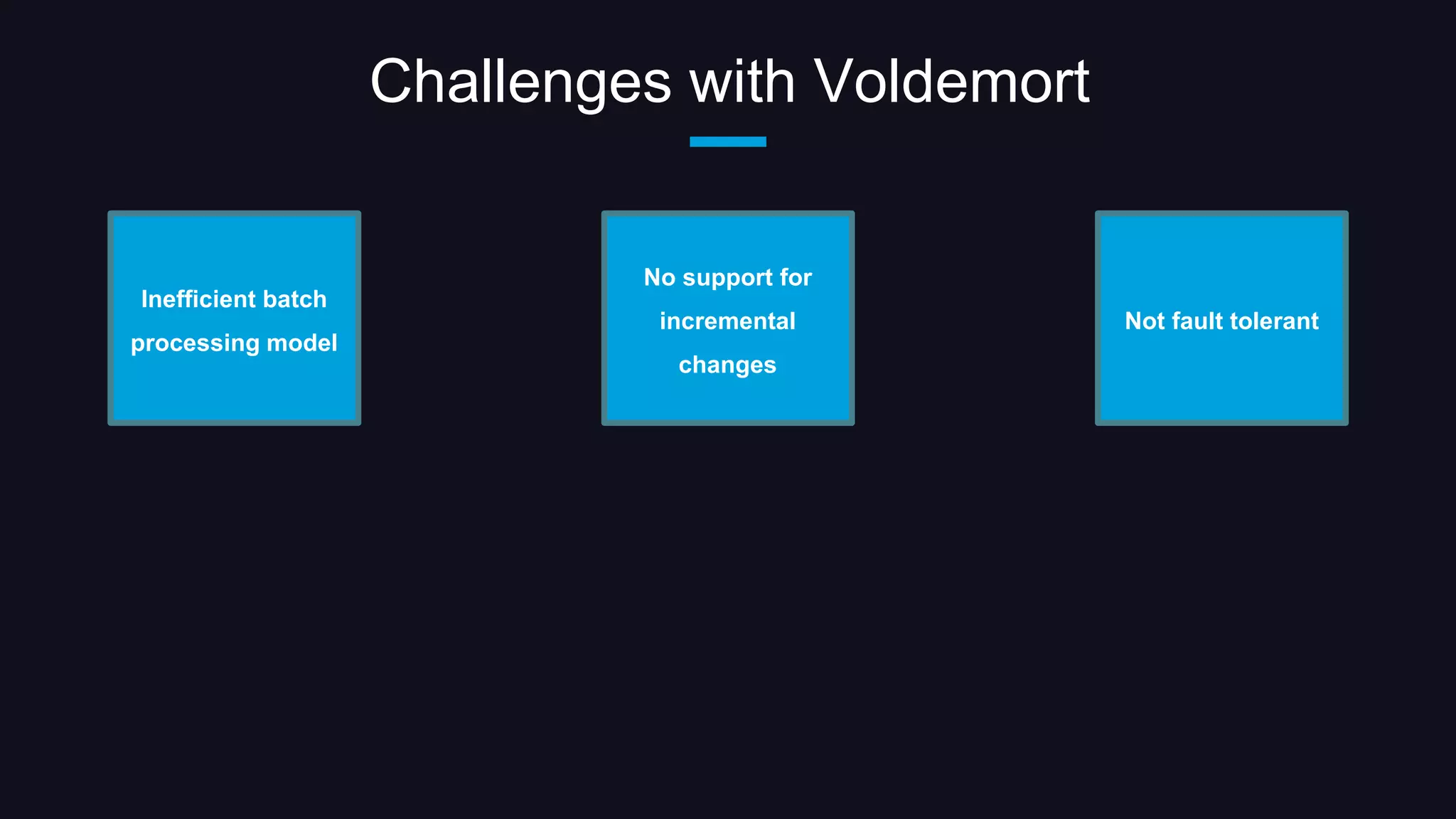

Challenges with Voldemort
Inefficient batch
processing model
No support for
incremental
changes
Not fault tolerant

Near real-time streaming data
● Real Time insights drive engagement
and fuel a number of applications

Why incremental pushes?
● To serve near real time computation
● Doing a full cycle offline push to update partial records is
expensive wrt time & resource
● Atomic swap might result in not serving changed data

What do we need?
● Scalable, cost-effective replication of
batch processed data
● Pluggable support for stream processing
● Incremental pushes

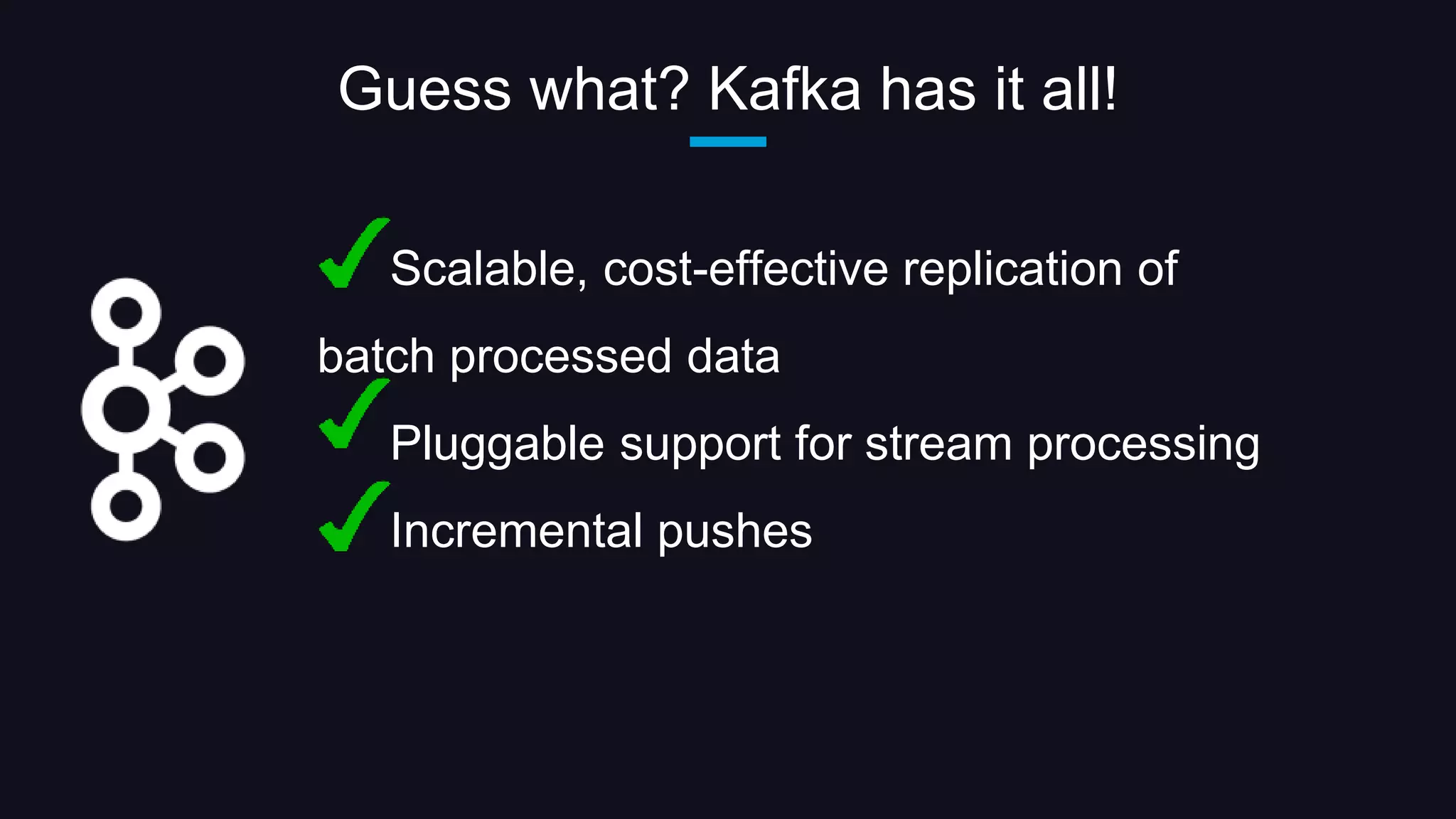

Guess what? Kafka has it all!
Scalable, cost-effective replication of
batch processed data
Pluggable support for stream processing
Incremental pushes

It also has
Useful metrics
Cross-colo replication abstracted away
with Kafka Mirror Maker
Reduced overhead of setting up from
scratch!

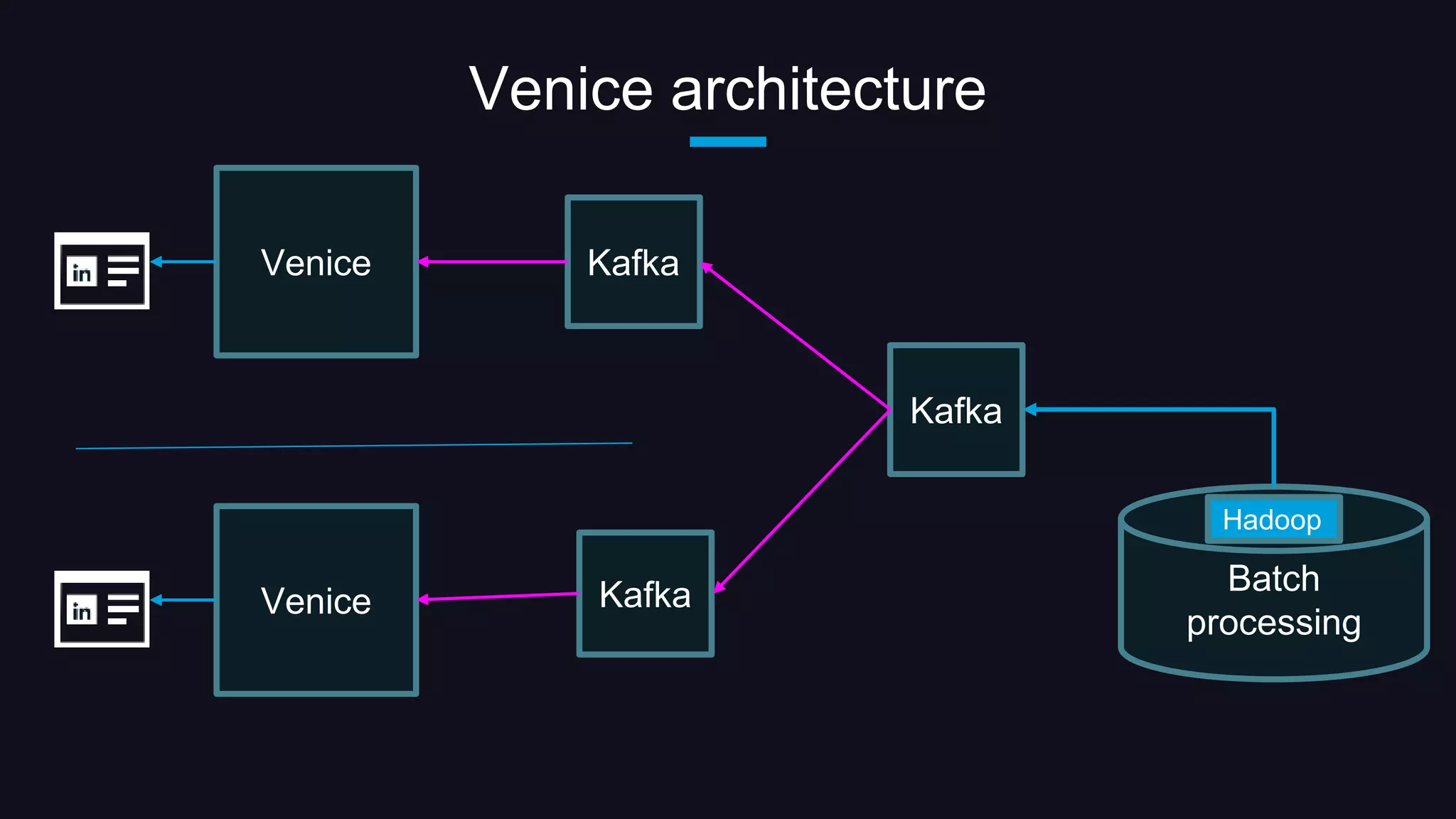

Batch
processing
Venice architecture
Venice
Hadoop
Kafka
Venice Kafka
Kafka

Batch
processing

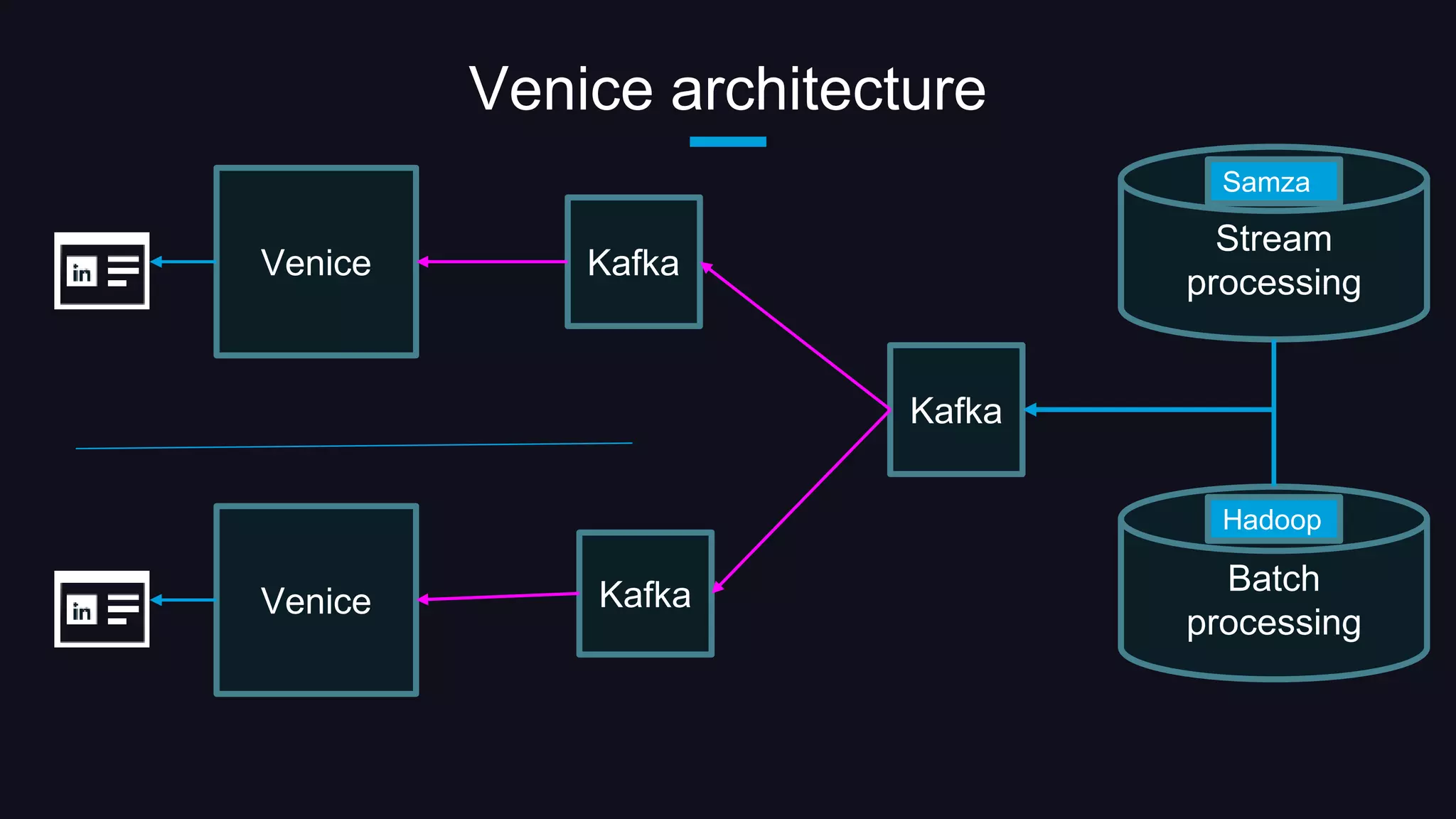

Venice architecture
Venice
Hadoop
Kafka
Venice Kafka
Kafka
Stream
processing
Samza

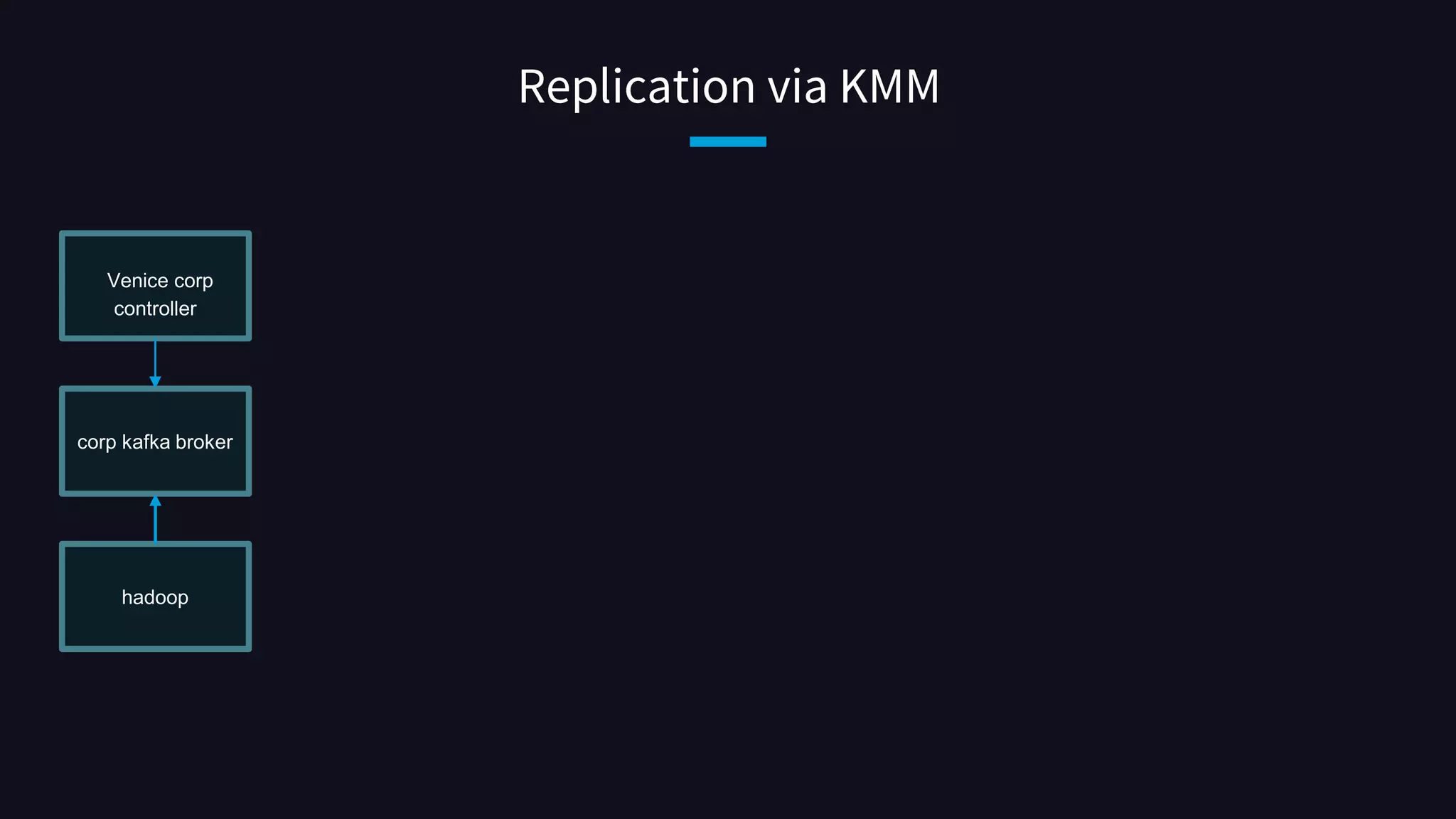

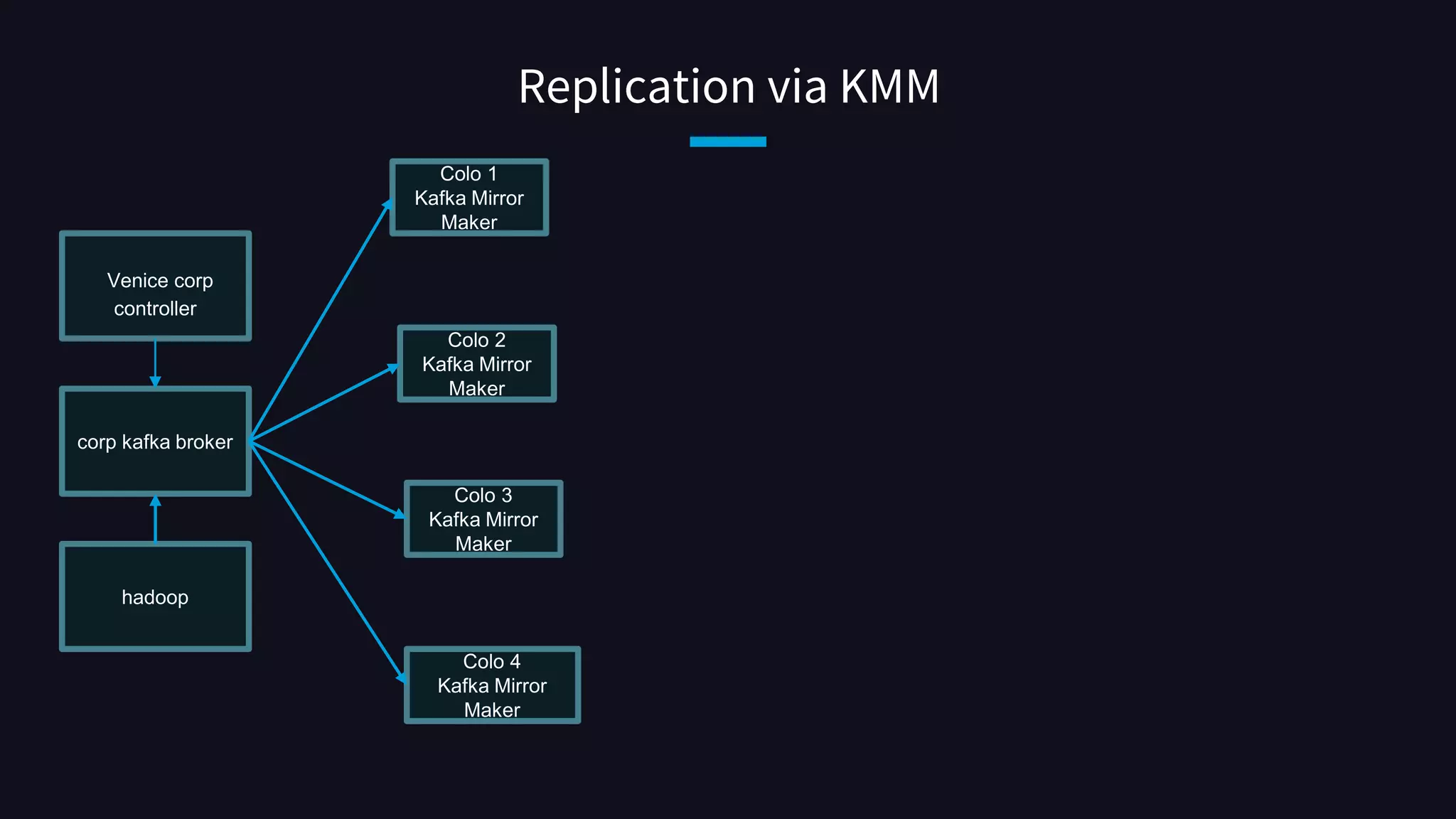

Replication via KMM
Venice corp
controller
corp kafka broker
hadoop

Replication via KMM
Venice corp
controller
corp kafka broker
hadoop
Colo 1
Kafka Mirror
Maker
Colo 2
Kafka Mirror
Maker
Colo 3
Kafka Mirror
Maker
Colo 4
Kafka Mirror
Maker

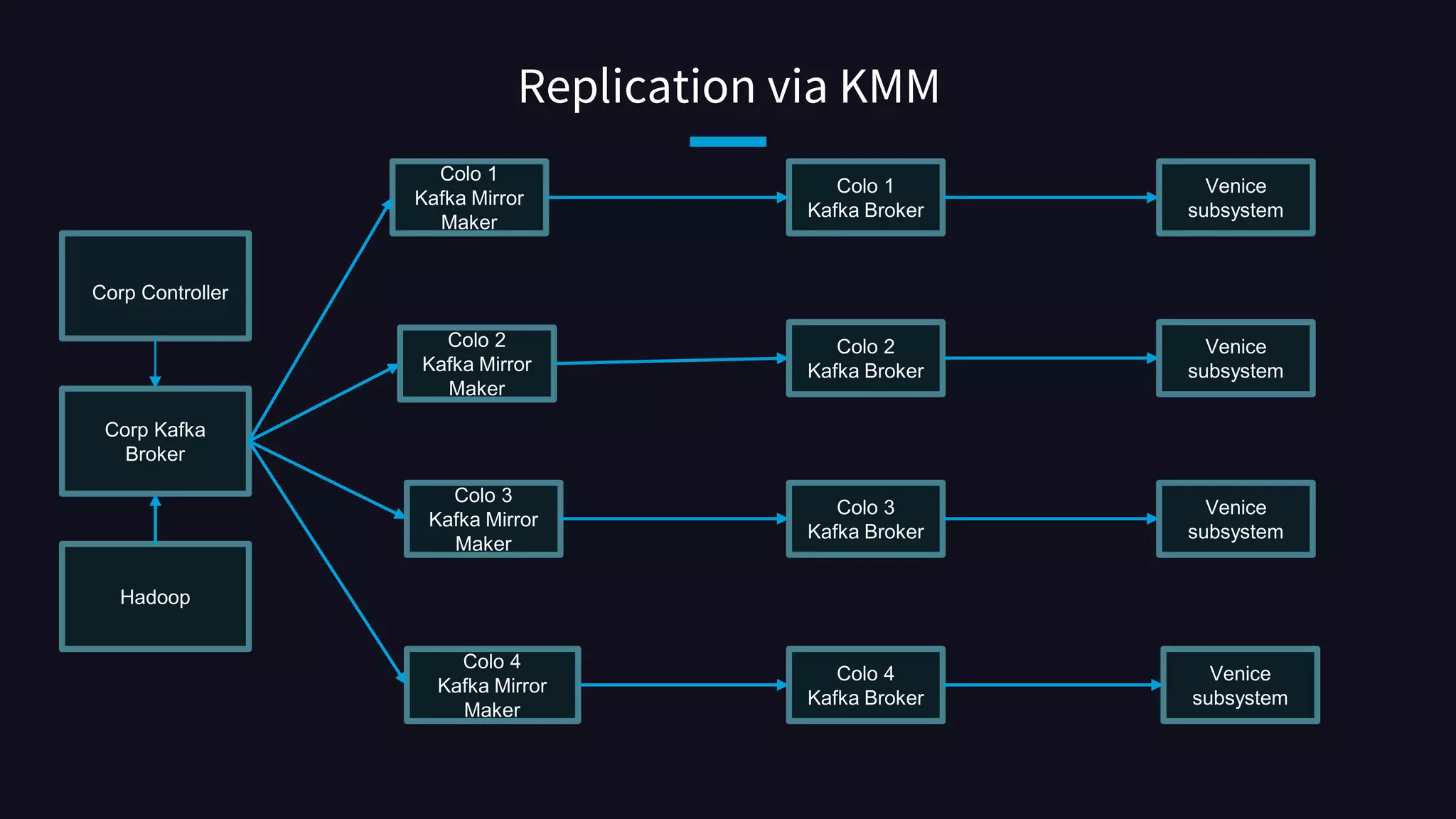

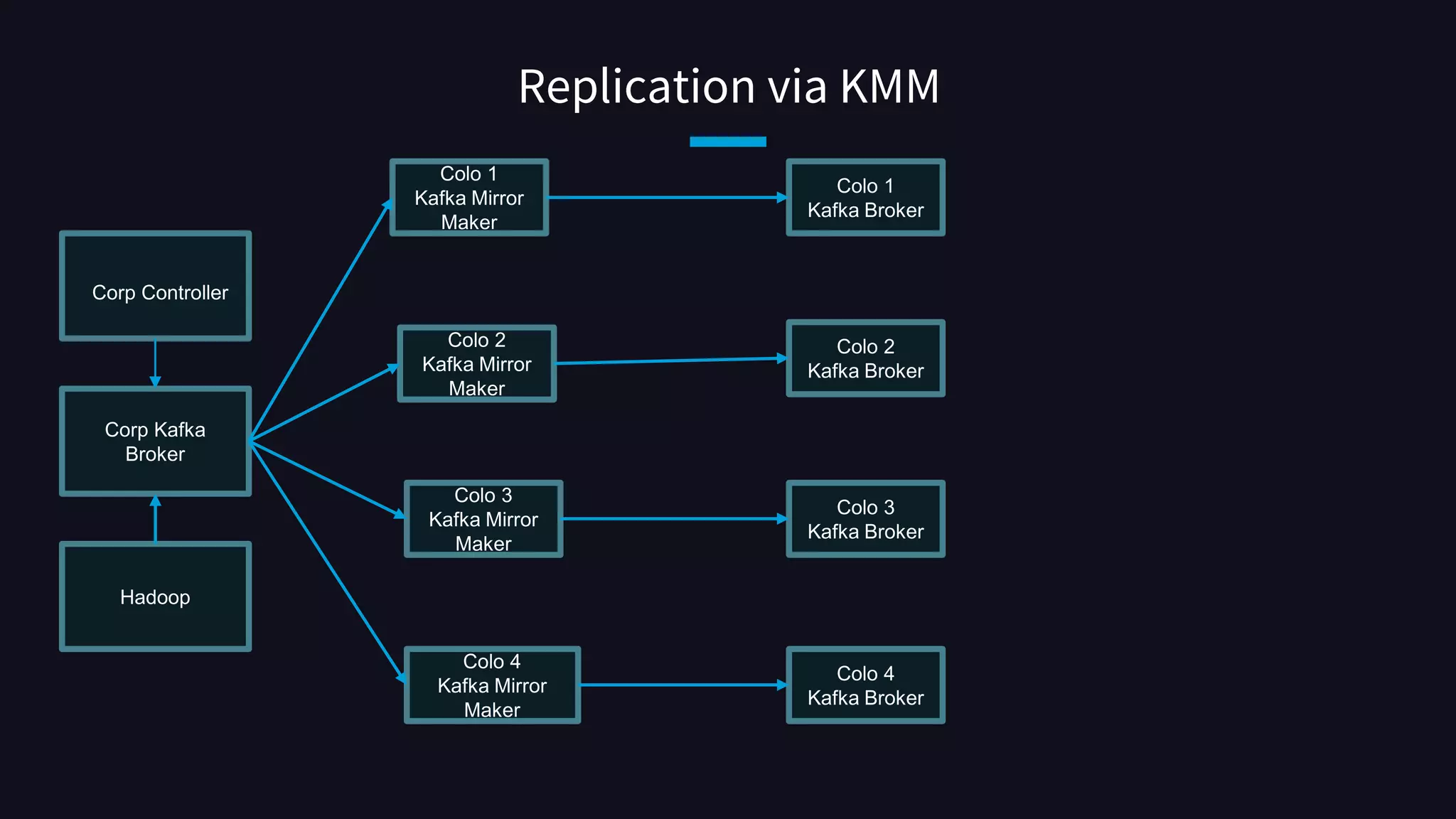

Replication via KMM
Corp Controller
Corp Kafka
Broker
Hadoop
Colo 1
Kafka Mirror
Maker
Colo 2
Kafka Mirror
Maker
Colo 3
Kafka Mirror
Maker
Colo 4
Kafka Mirror
Maker
Colo 1
Kafka Broker
Colo 3
Kafka Broker
Colo 2
Kafka Broker
Colo 4
Kafka Broker

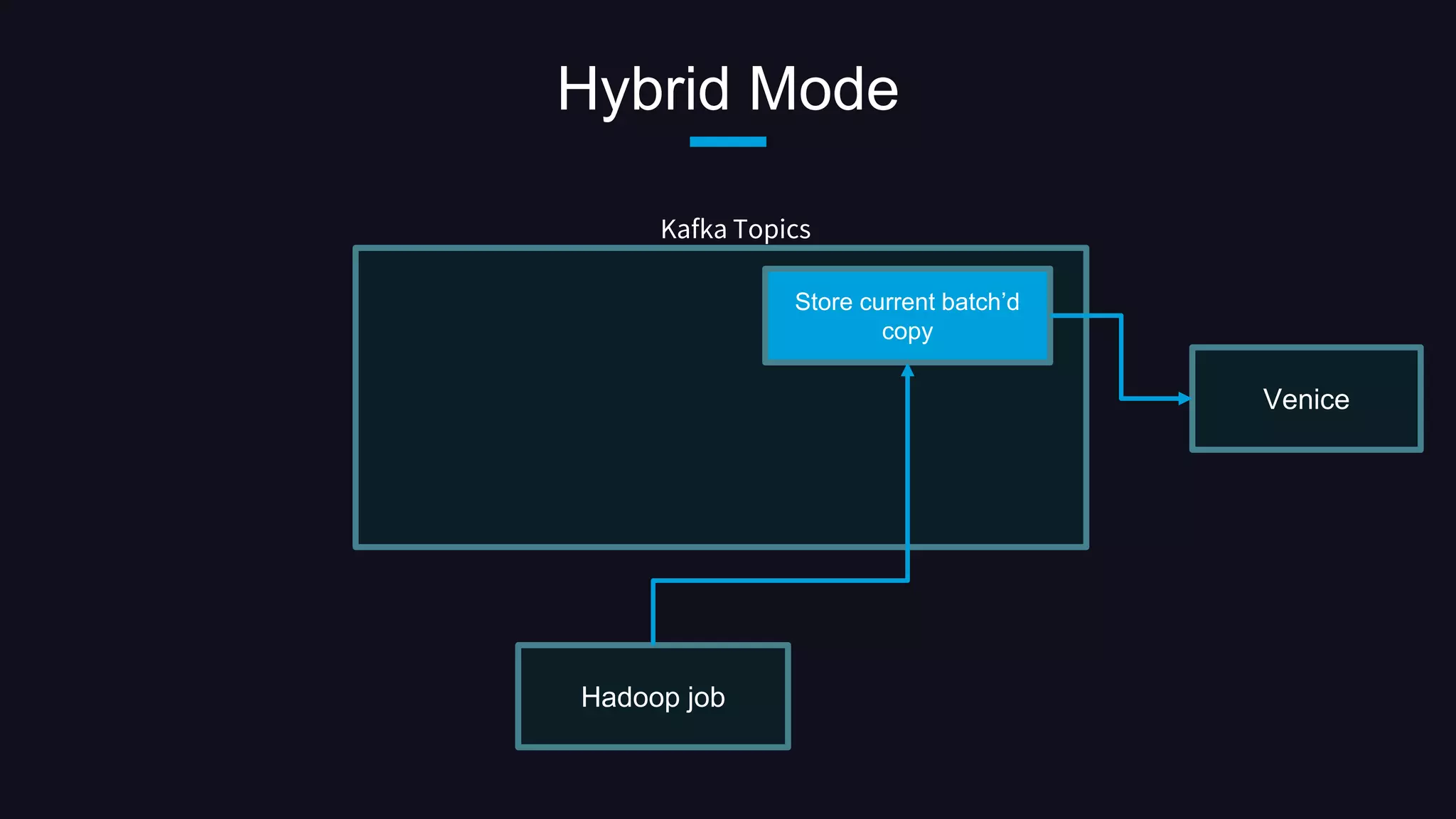

Hybrid Mode
Store current batch’d
copy
Kafka Topics
Hadoop job
Venice

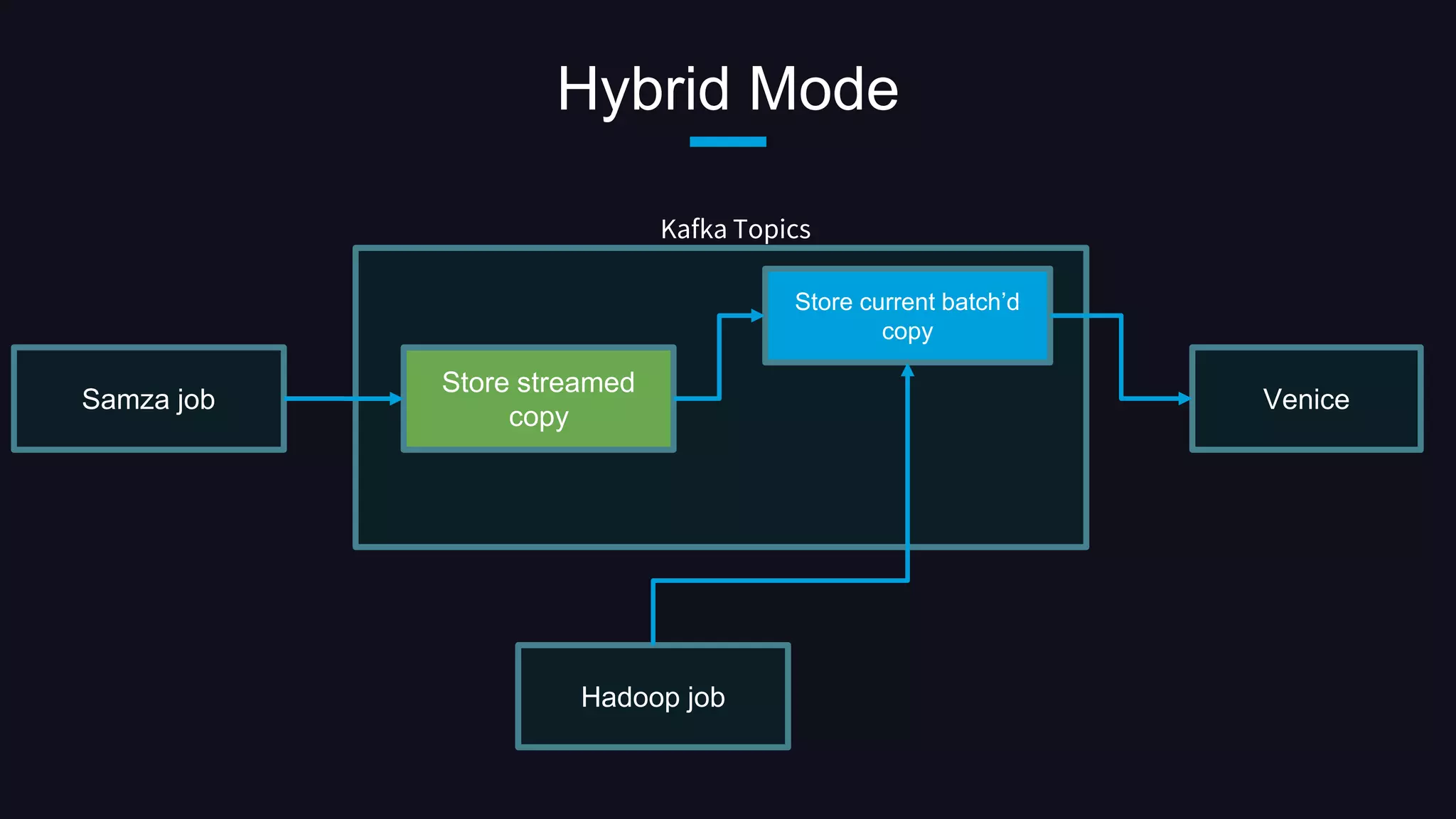

Hybrid Mode
Store current batch’d
copy
Kafka Topics
Hadoop job
Venice
Store streamed
copy
Samza job

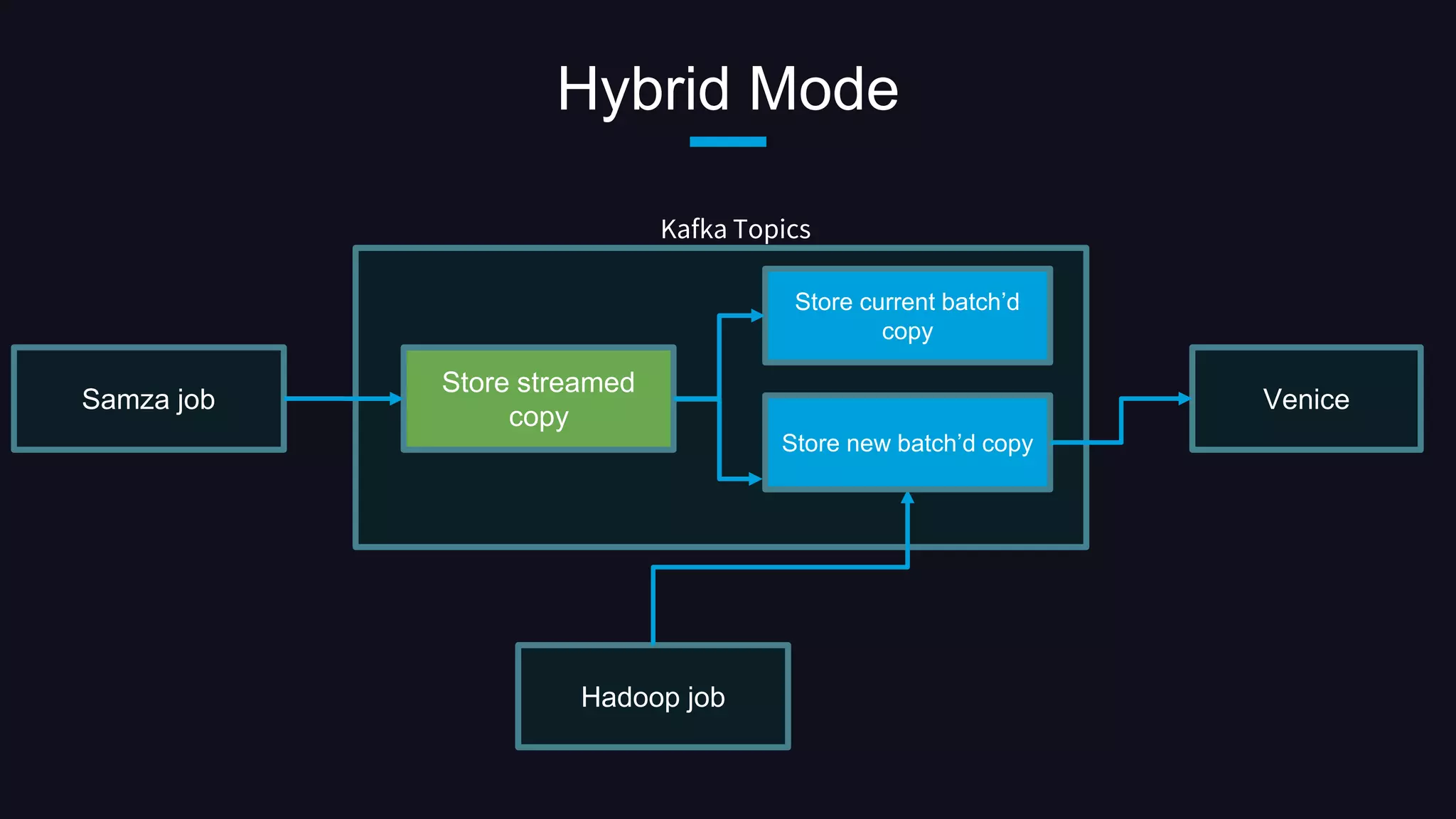

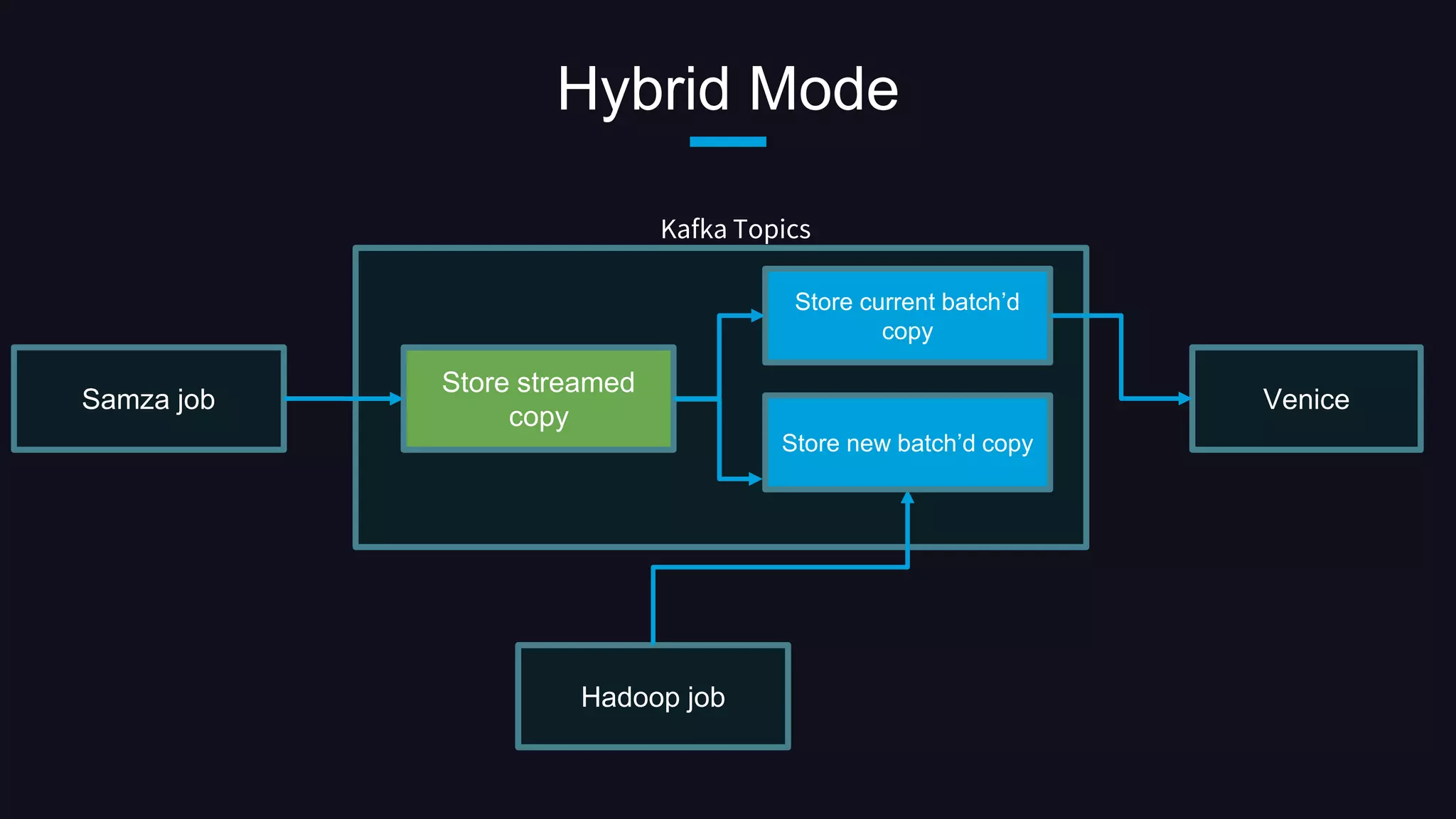

Hybrid Mode
Store current batch’d
copy
Kafka Topics
Hadoop job
Venice
Store streamed
copy
Samza job
Store new batch’d copy

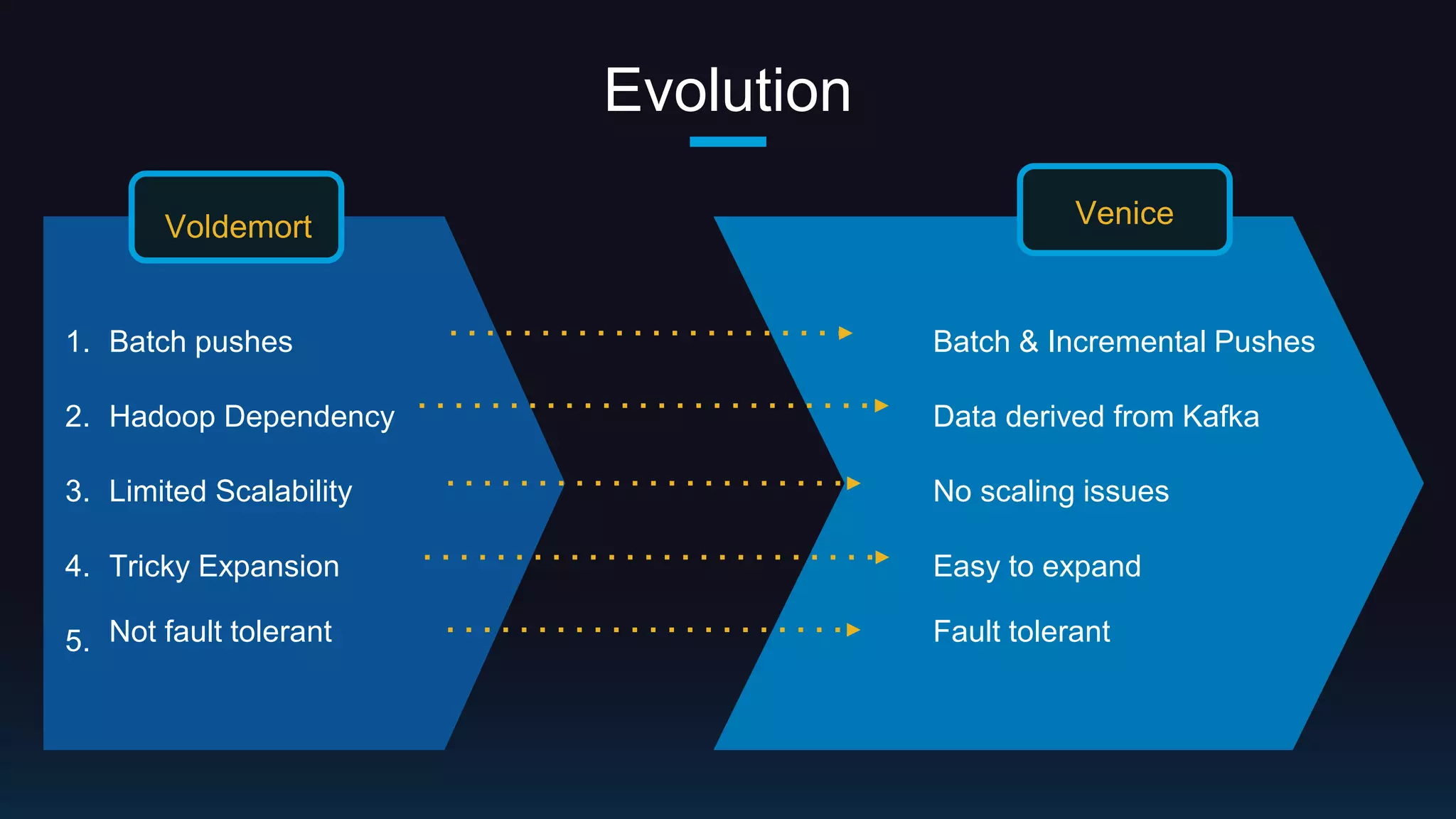

Evolution
Batch pushes
Hadoop Dependency
Limited Scalability
Tricky Expansion
Not fault tolerant
1.
2.
3.
4.
5.
Voldemort Venice
Batch & Incremental Pushes
Data derived from Kafka
No scaling issues
Easy to expand
Fault tolerant
