Voice over Internet Protocol (VoIP) is a technology that allows voice communication over IP networks, like the internet. To use VoIP with analog devices, a gateway is required to convert analog signals to digital. Users can connect IP-enabled devices, such as PCs and mobile devices, directly to a router to make VoIP calls.

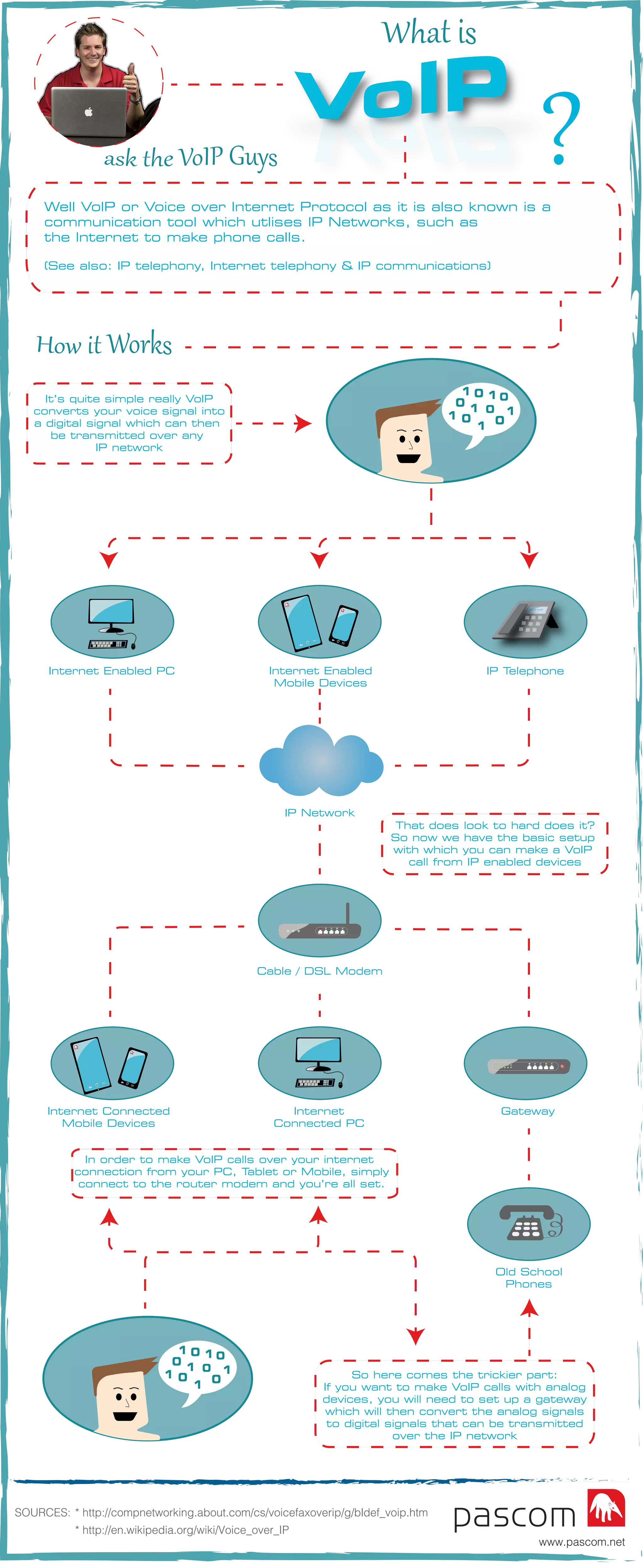

1. Well VoIP or Voice over Internet Protocol as it is also known is a
communication tool which utlises IP Networks, such as
the Internet to make phone calls.
(See also: IP telephony, Internet telephony & IP communications)
VoIP
?
So here comes the trickier part:
If you want to make VoIP calls with analog
devices, you will need to set up a gateway
which will then convert the analog signals
to digital signals that can be transmitted
over the IP network
In order to make VoIP calls over your internet
connection from your PC, Tablet or Mobile, simply
connect to the router modem and you’re all set.
www.pascom.net
It’s quite simple really VoIP
converts your voice signal into
a digital signal which can then
be transmitted over any
IP network
That does look to hard does it?
So now we have the basic setup
with which you can make a VoIP
call from IP enabled devices
IP Telephone
0
1
1
0
0
1
1
1 1
0
0
0
Internet Enabled PC
IP Network
Cable / DSL Modem
GatewayInternet
Connected PC
Internet Connected
Mobile Devices
Old School
Phones
Internet Enabled
Mobile Devices
SOURCES: * http://compnetworking.about.com/cs/voicefaxoverip/g/bldef_voip.htm
* http://en.wikipedia.org/wiki/Voice_over_IP
