1. Data Mining using WEKA tool
Dr. S KANNIMUTHU,
Professor,
Head-Center of Excellence in Algorithms,
Department of CSE,
Karpagam College of Engineering,
Coimbatore.
1 10/30/2022
WORKSHOP ON DATA MINING
USING WEKA AND PYTHON

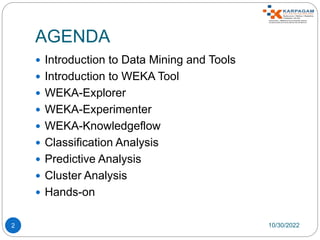

2. AGENDA
 Introduction to Data Mining and Tools
 Introduction to WEKA Tool
 WEKA-Explorer
 WEKA-Experimenter
 WEKA-Knowledgeflow
 Classification Analysis
 Predictive Analysis
 Cluster Analysis
 Hands-on
10/30/2022
2

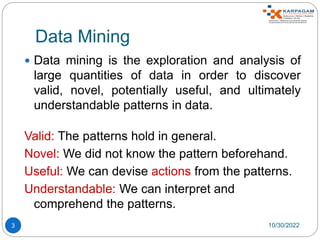

3. Data Mining
 Data mining is the exploration and analysis of
large quantities of data in order to discover
valid, novel, potentially useful, and ultimately
understandable patterns in data.
Valid: The patterns hold in general.
Novel: We did not know the pattern beforehand.
Useful: We can devise actions from the patterns.
Understandable: We can interpret and
comprehend the patterns.
10/30/2022
3

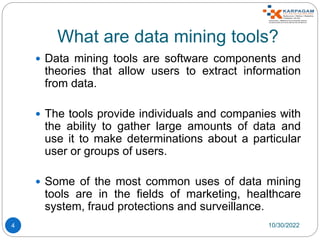

4. What are data mining tools?
 Data mining tools are software components and
theories that allow users to extract information
from data.
 The tools provide individuals and companies with
the ability to gather large amounts of data and
use it to make determinations about a particular
user or groups of users.
 Some of the most common uses of data mining
tools are in the fields of marketing, healthcare
system, fraud protections and surveillance.
10/30/2022
4

5. WEKA: the software
5
 Machine learning/data mining software written in
Java (distributed under the GNU Public License)
 Used for research, education, and applications
 Main features:
 Comprehensive set of data pre-processing tools,
learning algorithms and evaluation methods
 Graphical user interfaces (incl. data visualization)
 Environment for comparing learning algorithms
10/30/2022

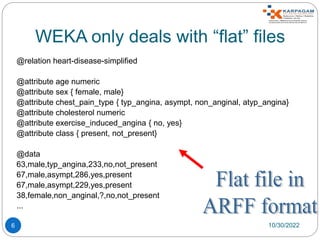

6. WEKA only deals with “flat” files
6
@relation heart-disease-simplified
@attribute age numeric
@attribute sex { female, male}
@attribute chest_pain_type { typ_angina, asympt, non_anginal, atyp_angina}
@attribute cholesterol numeric
@attribute exercise_induced_angina { no, yes}
@attribute class { present, not_present}
@data
63,male,typ_angina,233,no,not_present
67,male,asympt,286,yes,present
67,male,asympt,229,yes,present
38,female,non_anginal,?,no,not_present
...
10/30/2022

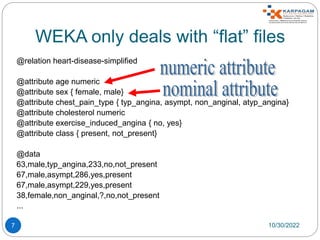

7. WEKA only deals with “flat” files
7
@relation heart-disease-simplified
@attribute age numeric
@attribute sex { female, male}
@attribute chest_pain_type { typ_angina, asympt, non_anginal, atyp_angina}
@attribute cholesterol numeric
@attribute exercise_induced_angina { no, yes}
@attribute class { present, not_present}
@data
63,male,typ_angina,233,no,not_present
67,male,asympt,286,yes,present
67,male,asympt,229,yes,present
38,female,non_anginal,?,no,not_present
...
10/30/2022

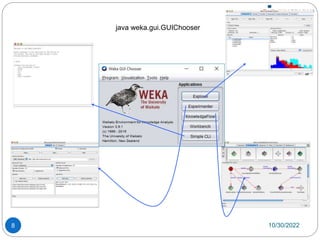

8. 8
java weka.gui.GUIChooser
10/30/2022

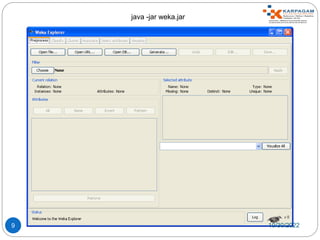

9. 9
java -jar weka.jar
10/30/2022

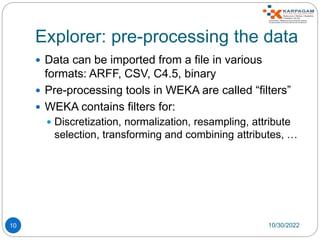

10. Explorer: pre-processing the data
10
 Data can be imported from a file in various
formats: ARFF, CSV, C4.5, binary
 Pre-processing tools in WEKA are called “filters”
 WEKA contains filters for:
 Discretization, normalization, resampling, attribute
selection, transforming and combining attributes, …
10/30/2022

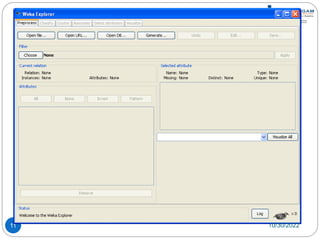

11. 11 10/30/2022

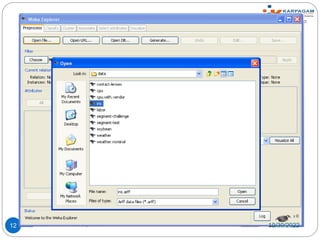

12. 12 10/30/2022

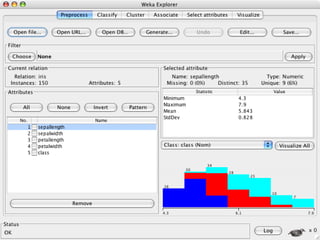

13. 10/30/2022
13

14. 14 10/30/2022

15. 15 10/30/2022

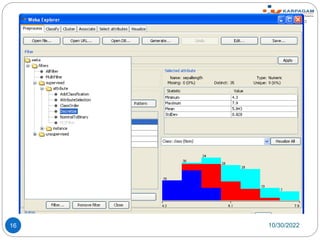

16. 16 10/30/2022

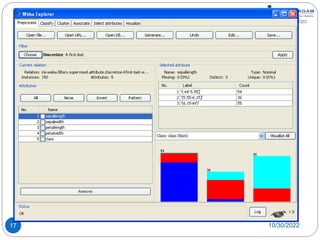

17. 10/30/2022
17

18. 18 10/30/2022

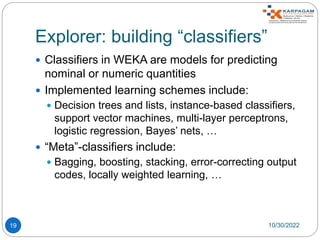

19. Explorer: building “classifiers”
19
 Classifiers in WEKA are models for predicting
nominal or numeric quantities
 Implemented learning schemes include:
 Decision trees and lists, instance-based classifiers,
support vector machines, multi-layer perceptrons,
logistic regression, Bayes’ nets, …
 “Meta”-classifiers include:
 Bagging, boosting, stacking, error-correcting output
codes, locally weighted learning, …
10/30/2022

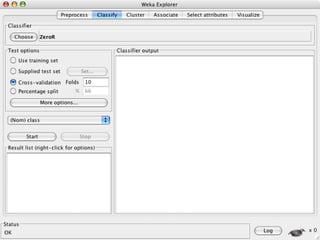

20. 10/30/2022
20

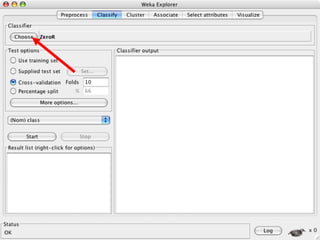

21. 10/30/2022
21

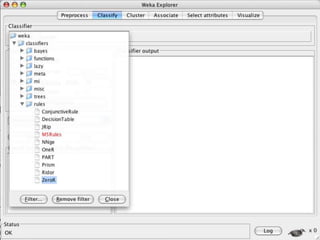

22. 10/30/2022
22

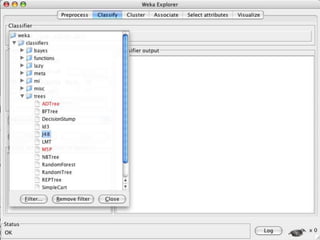

23. 10/30/2022
23

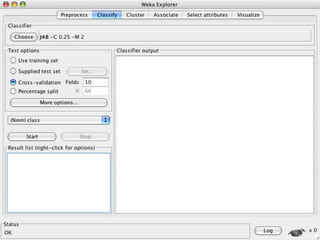

24. 10/30/2022
24

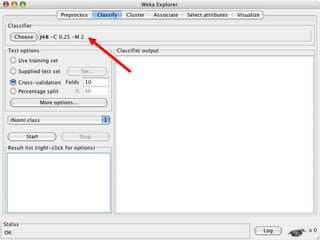

25. 10/30/2022
25

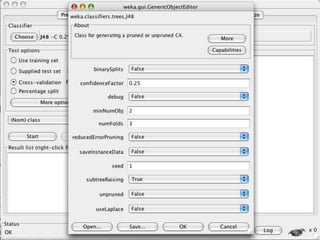

26. 10/30/2022
26

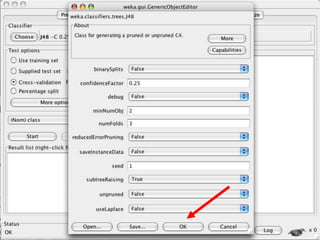

27. 10/30/2022
27

28. 10/30/2022
28

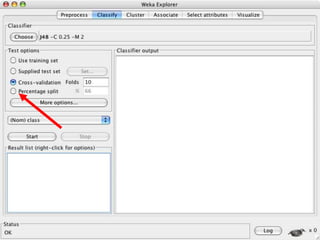

29. 10/30/2022
29

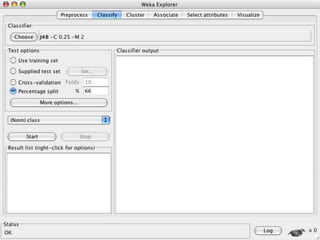

30. 10/30/2022
30

31. 10/30/2022
31

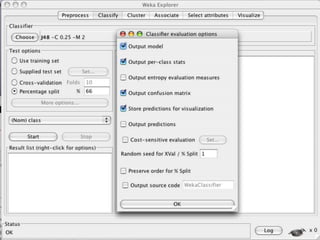

32. 10/30/2022
32

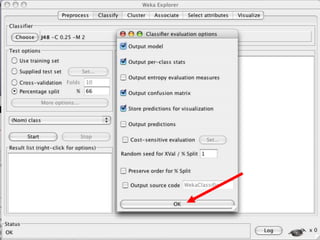

33. 10/30/2022
33

34. 10/30/2022
34

35. 10/30/2022
35

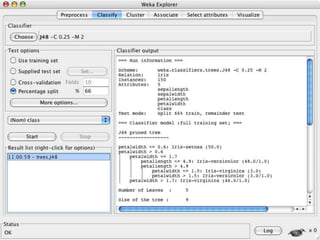

36. 10/30/2022
36

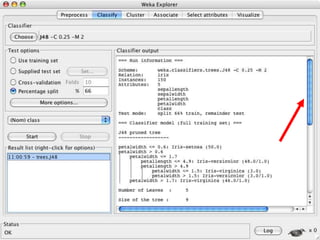

37. 10/30/2022
37

38. 10/30/2022
38

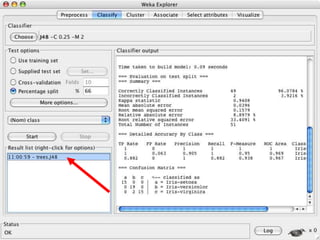

39. 10/30/2022
39

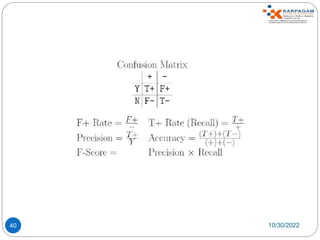

40. 40 10/30/2022

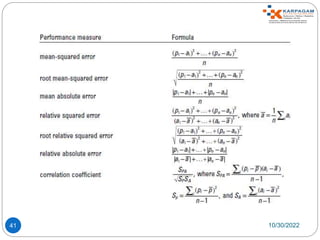

41. 10/30/2022
41

42. 10/30/2022

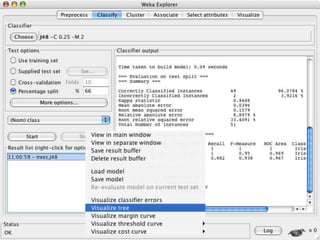

42

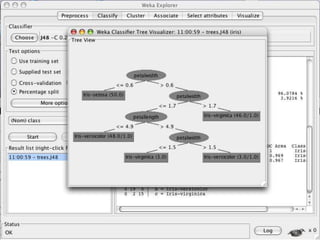

43. 10/30/2022
43

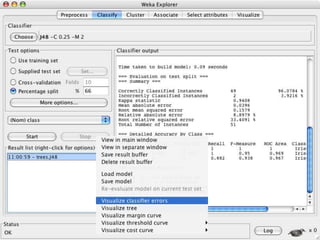

44. 10/30/2022
44

45. 10/30/2022
45

46. 10/30/2022
46

47. 10/30/2022
47

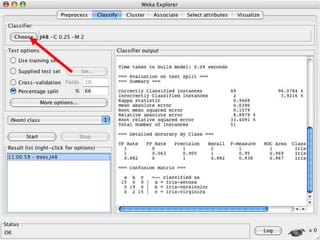

48. 10/30/2022

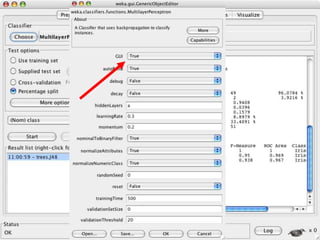

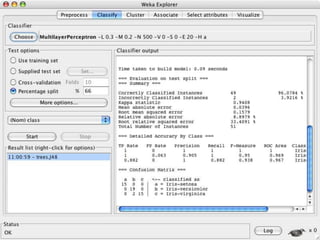

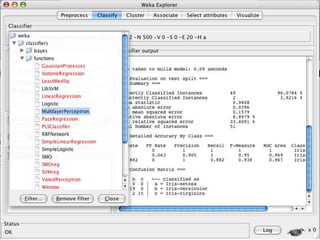

48

49. 10/30/2022
49

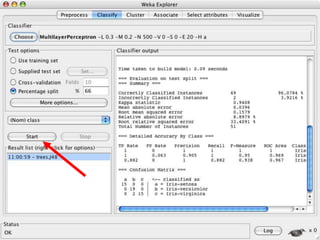

50. 10/30/2022
50

51. 10/30/2022
51

52. 10/30/2022
52

53. 10/30/2022

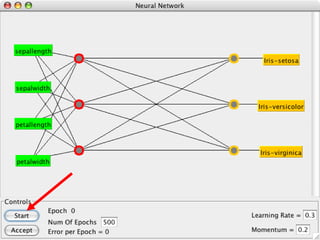

53

54. 10/30/2022

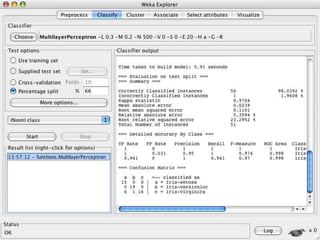

54

55. 10/30/2022
55

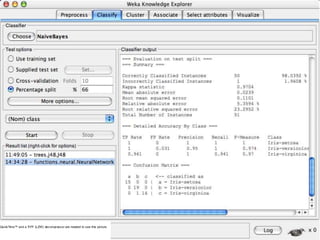

56. 10/30/2022
56
QuickTime™ and a TIFF (LZW) decompressor are needed to see this picture.

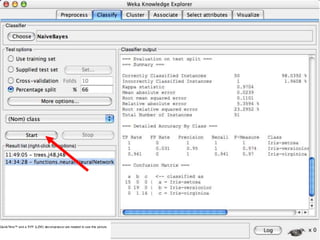

57. 10/30/2022
57
QuickTime™ and a TIFF (LZW) decompressor are needed to see this picture.

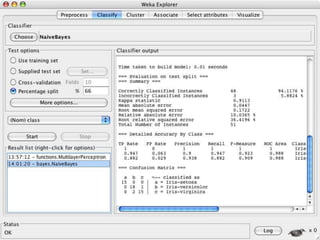

58. 10/30/2022
58

59. 10/30/2022
59

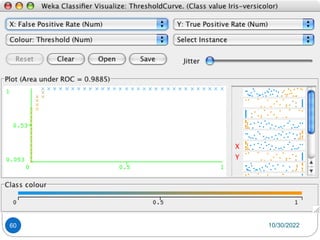

60. 60 10/30/2022

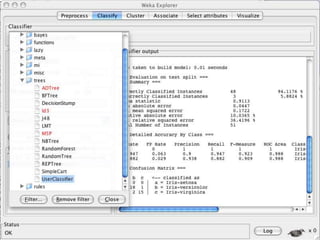

61. 10/30/2022
61

62. 10/30/2022
62
Quick T
ime™an
d aT
IFF(L
ZW)de
c o
mpre
s sorar
e n
ee
de
dtos e
e t
his p
ic t
ure
.

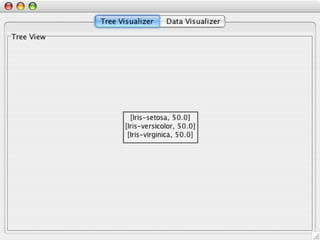

63. 10/30/2022
63

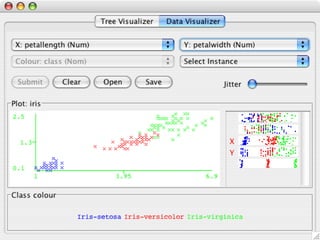

64. 10/30/2022
64

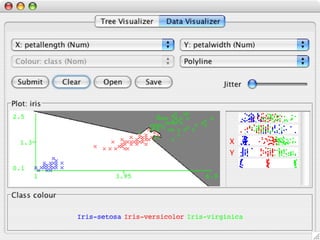

65. 10/30/2022
65

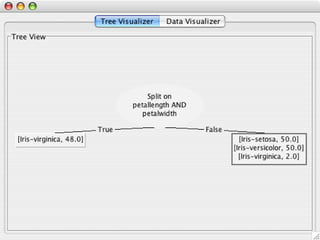

66. 10/30/2022
66

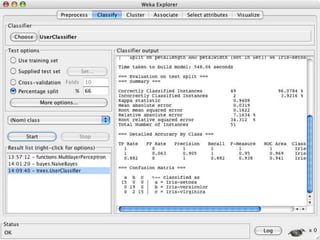

67. 10/30/2022
67

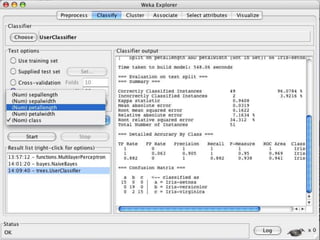

68. 10/30/2022
68

69. 10/30/2022
69

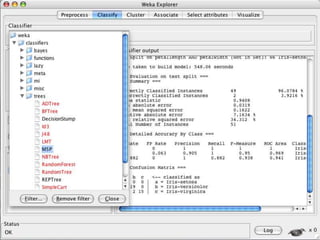

70. 10/30/2022
70

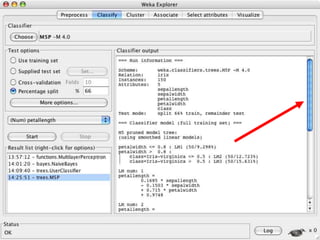

71. 10/30/2022
71

72. 10/30/2022
72

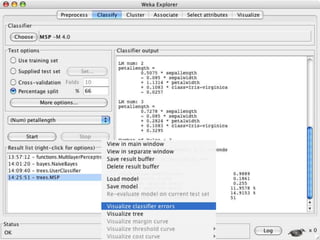

73. 10/30/2022
73

74. 74 10/30/2022

75. 75 10/30/2022

76. 10/30/2022
76

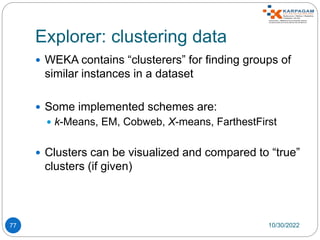

77. Explorer: clustering data
77
 WEKA contains “clusterers” for finding groups of
similar instances in a dataset
 Some implemented schemes are:
 k-Means, EM, Cobweb, X-means, FarthestFirst
 Clusters can be visualized and compared to “true”
clusters (if given)
10/30/2022

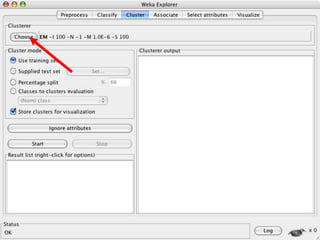

78. 10/30/2022
78

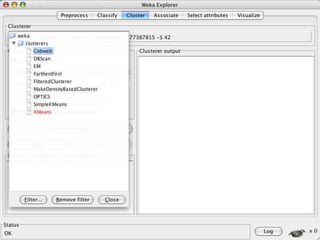

79. 10/30/2022
79

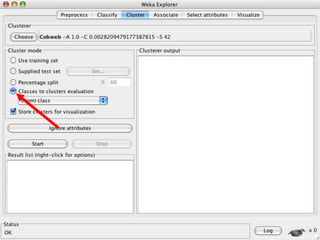

80. 10/30/2022
80

81. 10/30/2022
81

82. 10/30/2022
82

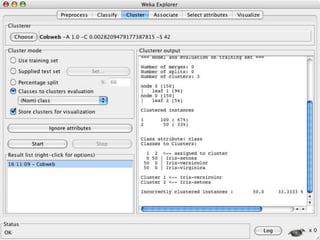

83. 10/30/2022
83

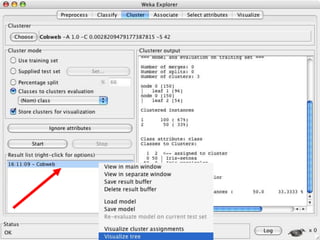

84. 10/30/2022
84

85. 10/30/2022
85

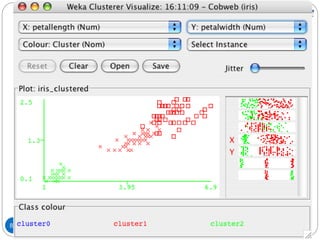

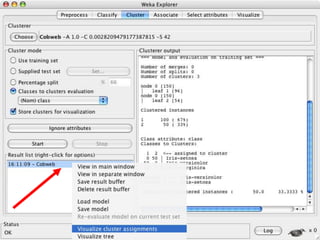

86. 10/30/2022
86

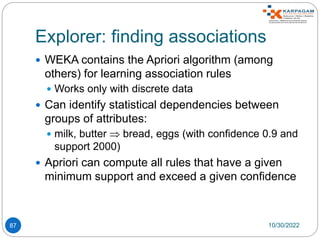

87. Explorer: finding associations
87
 WEKA contains the Apriori algorithm (among
others) for learning association rules
 Works only with discrete data
 Can identify statistical dependencies between
groups of attributes:
 milk, butter  bread, eggs (with confidence 0.9 and
support 2000)
 Apriori can compute all rules that have a given
minimum support and exceed a given confidence
10/30/2022

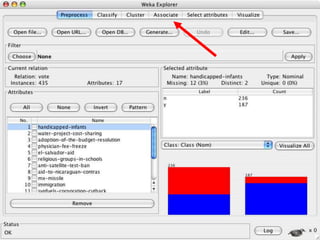

88. 10/30/2022
88

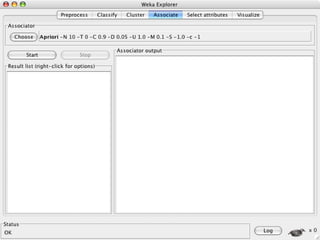

89. 10/30/2022

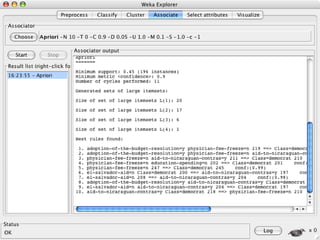

89

90. 10/30/2022
90

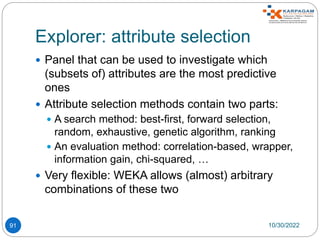

91. Explorer: attribute selection
91
 Panel that can be used to investigate which
(subsets of) attributes are the most predictive
ones
 Attribute selection methods contain two parts:
 A search method: best-first, forward selection,
random, exhaustive, genetic algorithm, ranking
 An evaluation method: correlation-based, wrapper,
information gain, chi-squared, …
 Very flexible: WEKA allows (almost) arbitrary
combinations of these two
10/30/2022

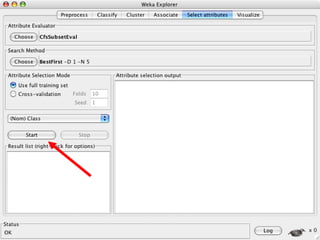

92. 10/30/2022
92

93. 10/30/2022
93

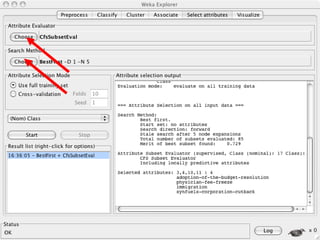

94. 10/30/2022
94

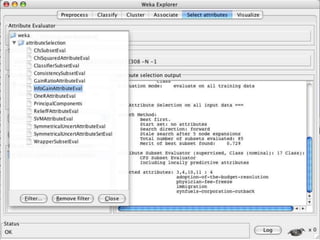

95. 10/30/2022
95

96. 10/30/2022
96

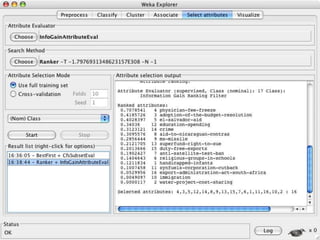

97. 10/30/2022
97

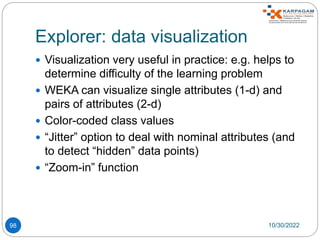

98. Explorer: data visualization
98
 Visualization very useful in practice: e.g. helps to
determine difficulty of the learning problem
 WEKA can visualize single attributes (1-d) and
pairs of attributes (2-d)
 Color-coded class values
 “Jitter” option to deal with nominal attributes (and
to detect “hidden” data points)
 “Zoom-in” function
10/30/2022

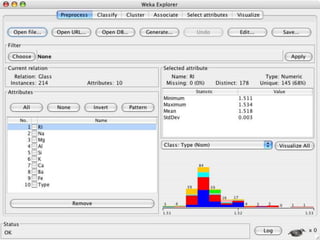

99. 10/30/2022
99

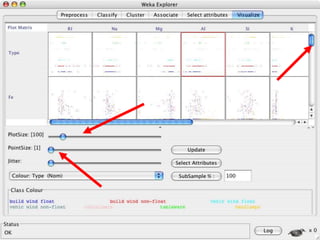

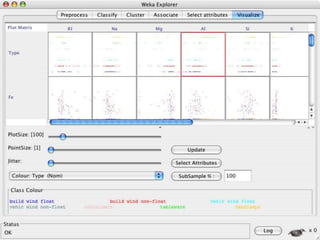

100. 10/30/2022
100

101. 10/30/2022
101

102. Performing experiments
102
 Experimenter makes it easy to compare the
performance of different learning schemes
 For classification and regression problems
 Results can be written into file or database
10/30/2022

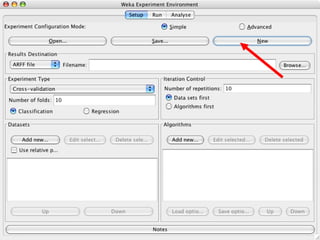

103. 10/30/2022
103

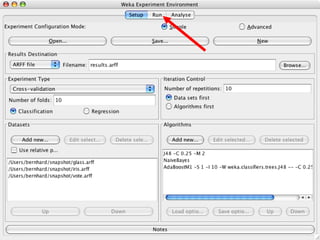

104. 10/30/2022
104

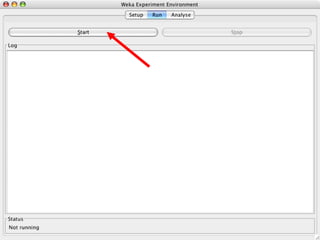

105. 10/30/2022
105

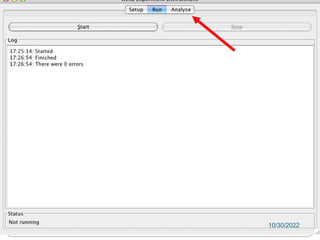

106. 106 10/30/2022

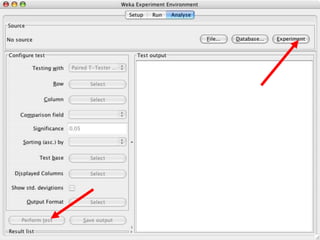

107. 10/30/2022
107

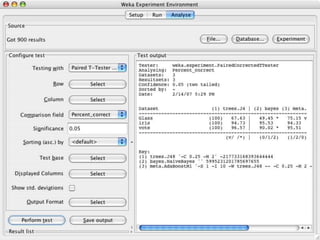

108. 10/30/2022
108

109. 10/30/2022
109

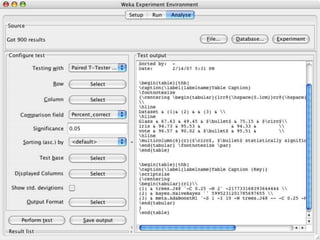

110. 10/30/2022
110

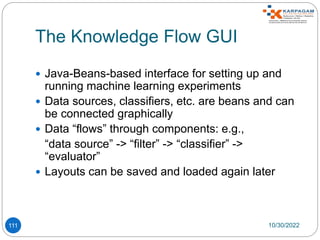

111. The Knowledge Flow GUI
111
 Java-Beans-based interface for setting up and
running machine learning experiments
 Data sources, classifiers, etc. are beans and can
be connected graphically
 Data “flows” through components: e.g.,
“data source” -> “filter” -> “classifier” ->
“evaluator”
 Layouts can be saved and loaded again later
10/30/2022

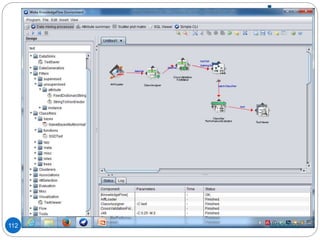

112. 112 10/30/2022

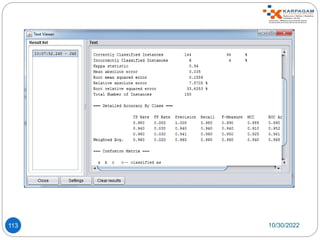

113. 113 10/30/2022

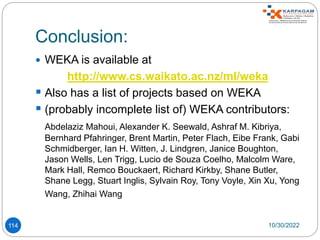

114. Conclusion:
114
 WEKA is available at
http://www.cs.waikato.ac.nz/ml/weka
 Also has a list of projects based on WEKA
 (probably incomplete list of) WEKA contributors:
Abdelaziz Mahoui, Alexander K. Seewald, Ashraf M. Kibriya,
Bernhard Pfahringer, Brent Martin, Peter Flach, Eibe Frank, Gabi
Schmidberger, Ian H. Witten, J. Lindgren, Janice Boughton,
Jason Wells, Len Trigg, Lucio de Souza Coelho, Malcolm Ware,
Mark Hall, Remco Bouckaert, Richard Kirkby, Shane Butler,
Shane Legg, Stuart Inglis, Sylvain Roy, Tony Voyle, Xin Xu, Yong
Wang, Zhihai Wang
10/30/2022

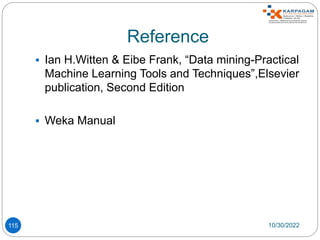

115. Reference
 Ian H.Witten & Eibe Frank, “Data mining-Practical
Machine Learning Tools and Techniques”,Elsevier
publication, Second Edition
 Weka Manual
10/30/2022
115

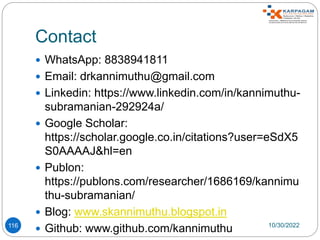

116. Contact
