WEKA is a machine learning software written in Java that contains tools for data pre-processing, classification, regression, clustering, association rule mining, and attribute selection. It has graphical user interfaces that allow users to view data, apply machine learning algorithms, and evaluate results. WEKA supports common file formats and can access data from databases. It contains implementations of many machine learning algorithms and allows users to perform experiments to compare algorithm performance.

1. Department of Computer Science,
University of Waikato, New Zealand
Eibe Frank
 WEKA: A Machine
Learning Toolkit
 The Explorer
• Classification and
Regression
• Clustering
• Association Rules
• Attribute Selection
• Data Visualization
 The Experimenter
 The Knowledge
Flow GUI
 Conclusions
Machine Learning with
WEKA

2. 8/3/2022 University of Waikato 2
WEKA: the bird
Copyright: Martin Kramer (mkramer@wxs.nl)

3. 8/3/2022 University of Waikato 3

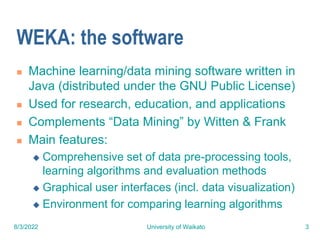

WEKA: the software
 Machine learning/data mining software written in
Java (distributed under the GNU Public License)
 Used for research, education, and applications
 Complements “Data Mining” by Witten & Frank
 Main features:
 Comprehensive set of data pre-processing tools,
learning algorithms and evaluation methods
 Graphical user interfaces (incl. data visualization)
 Environment for comparing learning algorithms

4. 8/3/2022 University of Waikato 4
WEKA: versions
 There are several versions of WEKA:
 WEKA 3.0: “book version” compatible with
description in data mining book
 WEKA 3.2: “GUI version” adds graphical user
interfaces (book version is command-line only)
 WEKA 3.3: “development version” with lots of
improvements
 This talk is based on the latest snapshot of WEKA
3.3 (soon to be WEKA 3.4)

5. 8/3/2022 University of Waikato 5
@relation heart-disease-simplified
@attribute age numeric
@attribute sex { female, male}
@attribute chest_pain_type { typ_angina, asympt, non_anginal, atyp_angina}
@attribute cholesterol numeric
@attribute exercise_induced_angina { no, yes}
@attribute class { present, not_present}
@data
63,male,typ_angina,233,no,not_present
67,male,asympt,286,yes,present
67,male,asympt,229,yes,present
38,female,non_anginal,?,no,not_present
...
WEKA only deals with “flat” files

6. 8/3/2022 University of Waikato 6

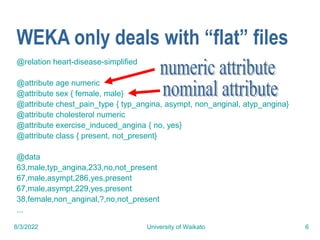

@relation heart-disease-simplified
@attribute age numeric
@attribute sex { female, male}
@attribute chest_pain_type { typ_angina, asympt, non_anginal, atyp_angina}
@attribute cholesterol numeric
@attribute exercise_induced_angina { no, yes}
@attribute class { present, not_present}
@data
63,male,typ_angina,233,no,not_present
67,male,asympt,286,yes,present
67,male,asympt,229,yes,present
38,female,non_anginal,?,no,not_present
...
WEKA only deals with “flat” files

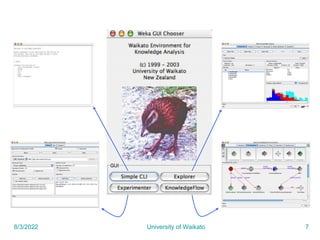

7. 8/3/2022 University of Waikato 7

8. 8/3/2022 University of Waikato 8

9. 8/3/2022 University of Waikato 9

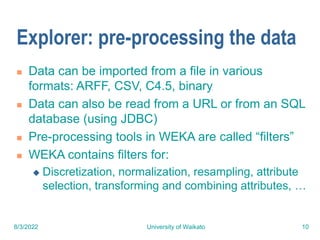

10. 8/3/2022 University of Waikato 10

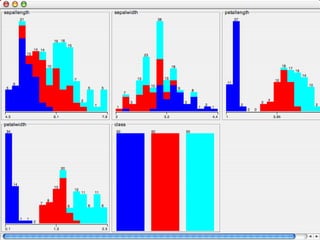

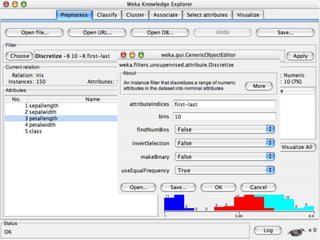

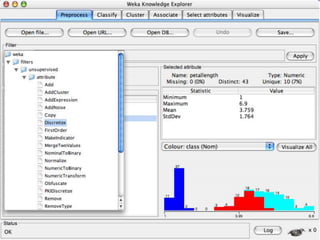

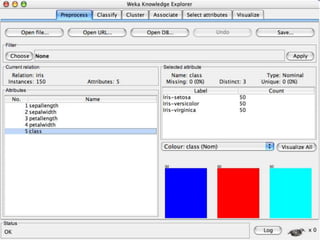

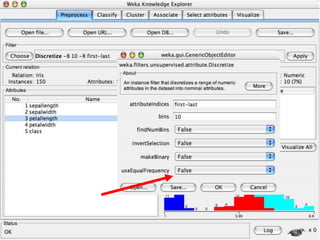

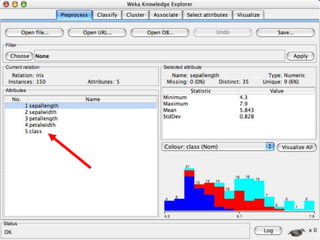

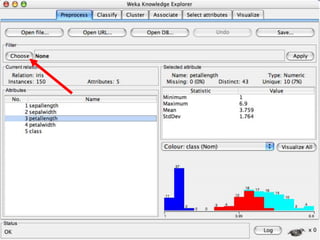

Explorer: pre-processing the data
 Data can be imported from a file in various
formats: ARFF, CSV, C4.5, binary
 Data can also be read from a URL or from an SQL
database (using JDBC)
 Pre-processing tools in WEKA are called “filters”
 WEKA contains filters for:
 Discretization, normalization, resampling, attribute
selection, transforming and combining attributes, …

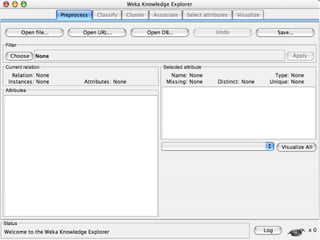

11. 8/3/2022 University of Waikato 11

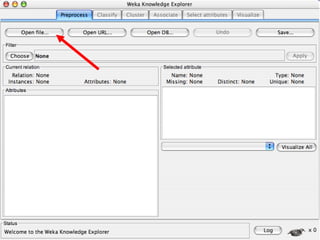

12. 8/3/2022 University of Waikato 12

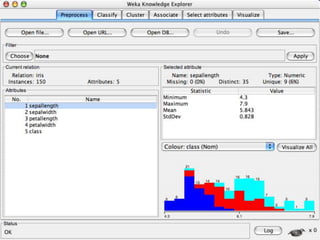

13. 8/3/2022 University of Waikato 13

14. 8/3/2022 University of Waikato 14

15. 8/3/2022 University of Waikato 15

16. 8/3/2022 University of Waikato 16

17. 8/3/2022 University of Waikato 17

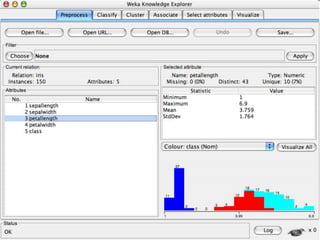

18. 8/3/2022 University of Waikato 18

19. 8/3/2022 University of Waikato 19

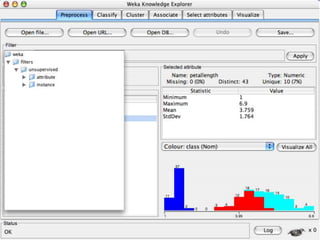

20. 8/3/2022 University of Waikato 20

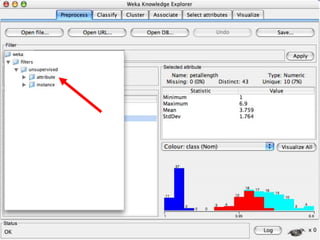

21. 8/3/2022 University of Waikato 21

22. 8/3/2022 University of Waikato 22

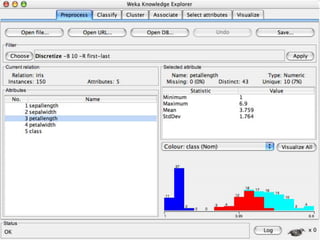

23. 8/3/2022 University of Waikato 23

24. 8/3/2022 University of Waikato 24

25. 8/3/2022 University of Waikato 25

26. 8/3/2022 University of Waikato 26

27. 8/3/2022 University of Waikato 27

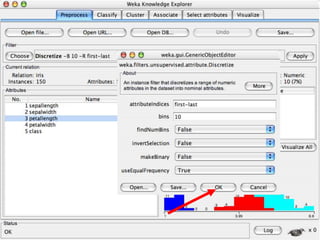

28. 8/3/2022 University of Waikato 28

29. 8/3/2022 University of Waikato 29

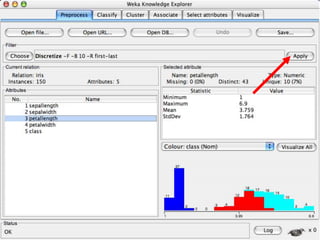

30. 8/3/2022 University of Waikato 30

31. 8/3/2022 University of Waikato 31

32. 8/3/2022 University of Waikato 32

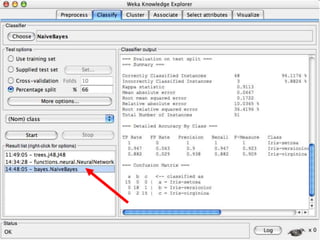

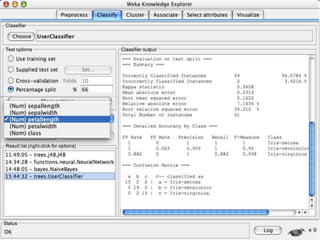

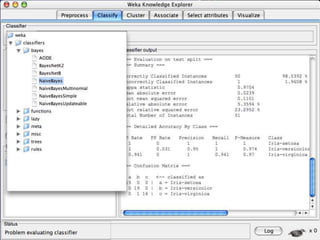

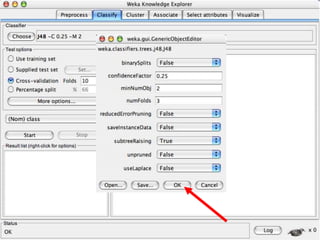

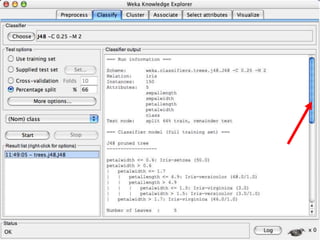

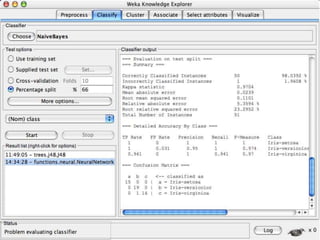

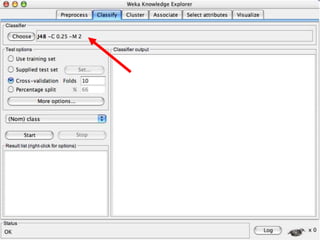

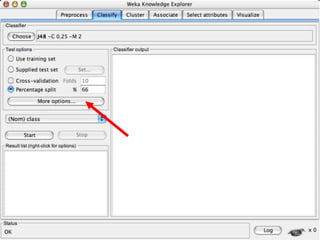

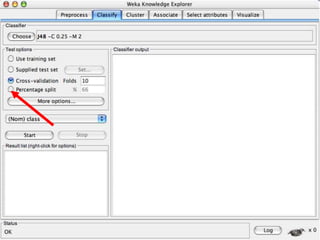

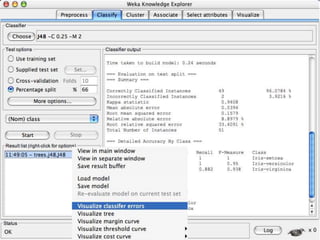

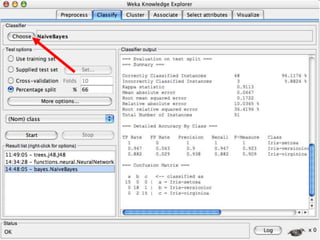

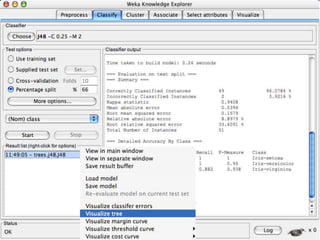

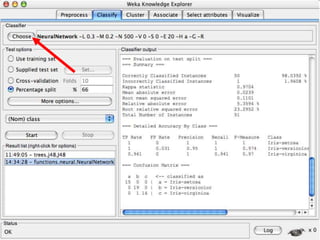

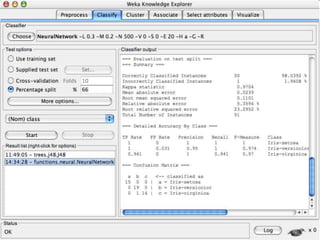

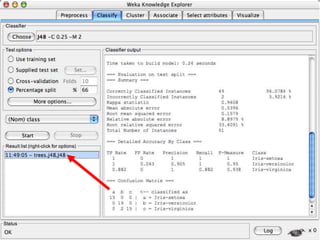

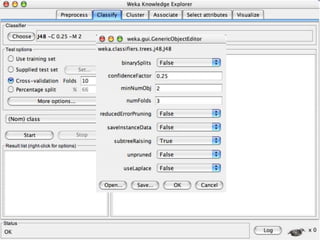

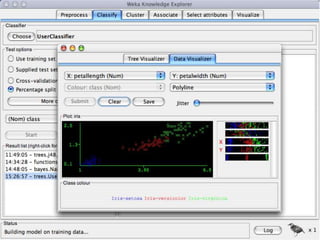

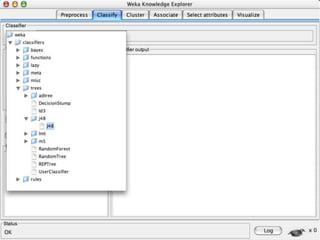

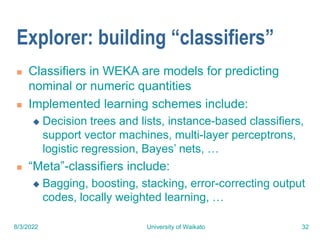

Explorer: building “classifiers”
 Classifiers in WEKA are models for predicting
nominal or numeric quantities
 Implemented learning schemes include:
 Decision trees and lists, instance-based classifiers,
support vector machines, multi-layer perceptrons,
logistic regression, Bayes’ nets, …
 “Meta”-classifiers include:
 Bagging, boosting, stacking, error-correcting output
codes, locally weighted learning, …

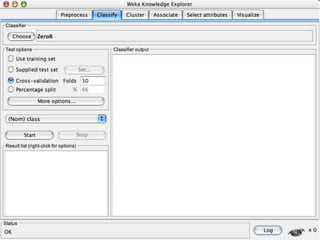

33. 8/3/2022 University of Waikato 33

34. 8/3/2022 University of Waikato 34

35. 8/3/2022 University of Waikato 35

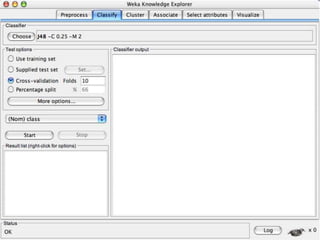

36. 8/3/2022 University of Waikato 36

37. 8/3/2022 University of Waikato 37

38. 8/3/2022 University of Waikato 38

39. 8/3/2022 University of Waikato 39

40. 8/3/2022 University of Waikato 40

41. 8/3/2022 University of Waikato 41

42. 8/3/2022 University of Waikato 42

43. 8/3/2022 University of Waikato 43

44. 8/3/2022 University of Waikato 44

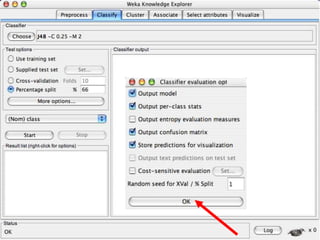

45. 8/3/2022 University of Waikato 45

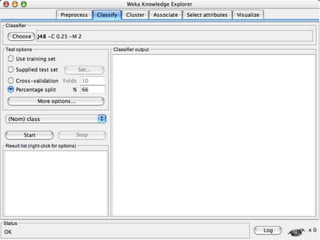

46. 8/3/2022 University of Waikato 46

47. 8/3/2022 University of Waikato 47

48. 8/3/2022 University of Waikato 48

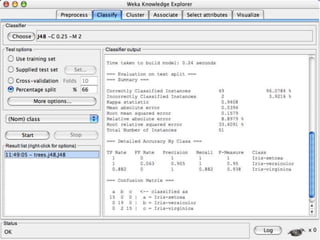

49. 8/3/2022 University of Waikato 49

50. 8/3/2022 University of Waikato 50

51. 8/3/2022 University of Waikato 51

52. 8/3/2022 University of Waikato 52

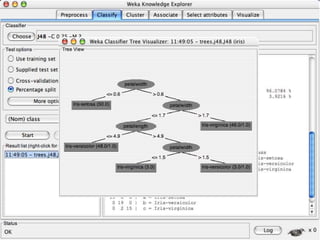

53. 8/3/2022 University of Waikato 53

54. 8/3/2022 University of Waikato 54

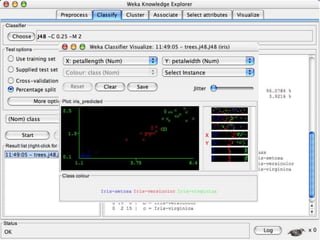

55. 8/3/2022 University of Waikato 55

56. 8/3/2022 University of Waikato 56

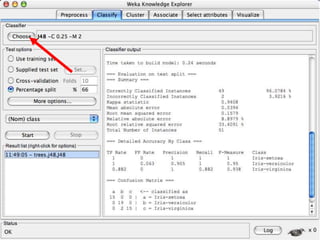

57. 8/3/2022 University of Waikato 57

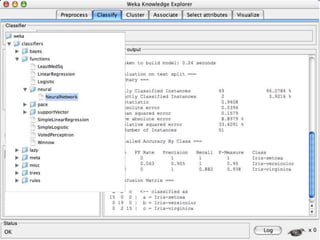

58. 8/3/2022 University of Waikato 58

59. 8/3/2022 University of Waikato 59

60. 8/3/2022 University of Waikato 60

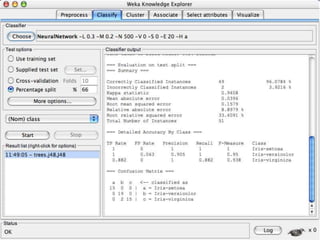

61. 8/3/2022 University of Waikato 61

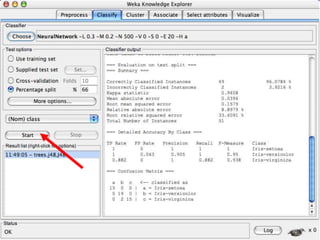

62. 8/3/2022 University of Waikato 62

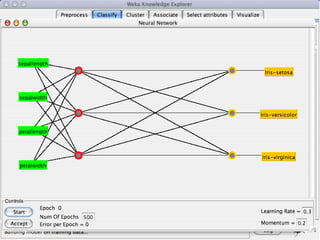

63. 8/3/2022 University of Waikato 63

64. 8/3/2022 University of Waikato 64

65. 8/3/2022 University of Waikato 65

66. 8/3/2022 University of Waikato 66

67. 8/3/2022 University of Waikato 67

68. 8/3/2022 University of Waikato 68

69. 8/3/2022 University of Waikato 69

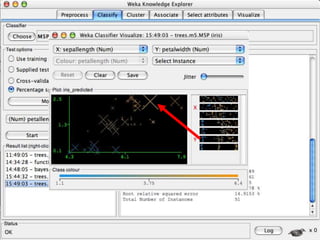

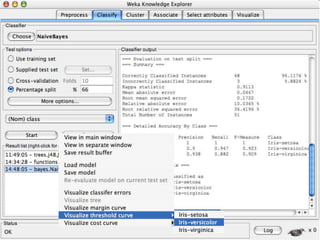

70. 8/3/2022 University of Waikato 70

71. 8/3/2022 University of Waikato 71

72. 8/3/2022 University of Waikato 72

73. 8/3/2022 University of Waikato 73

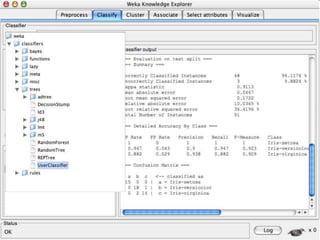

74. 8/3/2022 University of Waikato 74

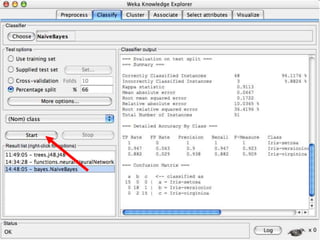

75. 8/3/2022 University of Waikato 75

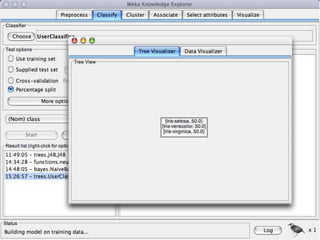

76. 8/3/2022 University of Waikato 76

77. 8/3/2022 University of Waikato 77

78. 8/3/2022 University of Waikato 78

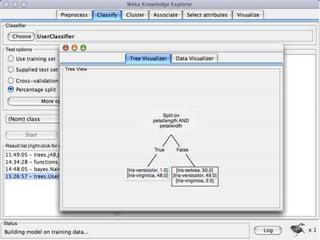

79. 8/3/2022 University of Waikato 79

80. 8/3/2022 University of Waikato 80

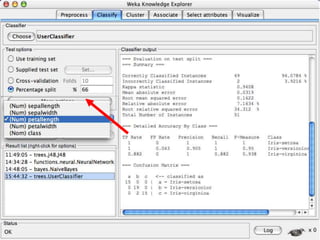

81. 8/3/2022 University of Waikato 81

82. 8/3/2022 University of Waikato 82

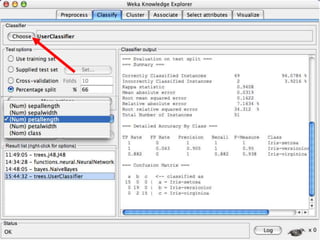

83. 8/3/2022 University of Waikato 83

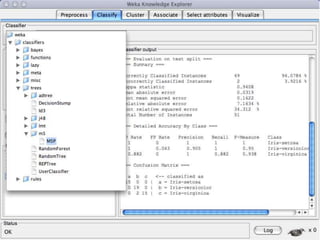

84. 8/3/2022 University of Waikato 84

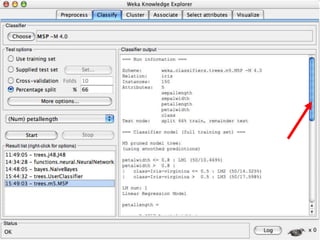

85. 8/3/2022 University of Waikato 85

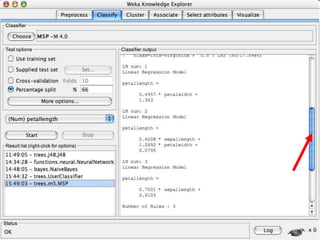

86. 8/3/2022 University of Waikato 86

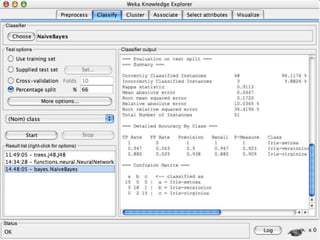

87. 8/3/2022 University of Waikato 87

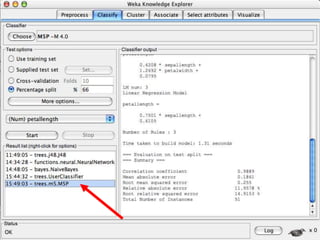

88. 8/3/2022 University of Waikato 88

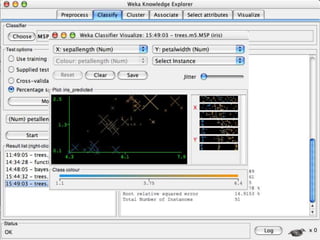

89. 8/3/2022 University of Waikato 89

90. 8/3/2022 University of Waikato 90

91. 8/3/2022 University of Waikato 91

92. 8/3/2022 University of Waikato 92

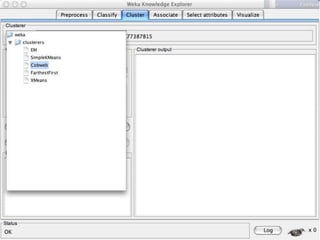

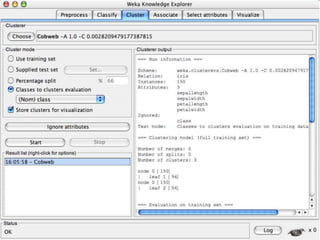

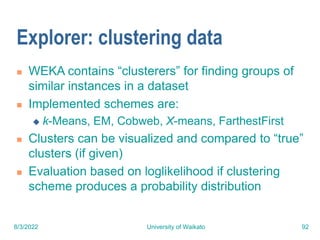

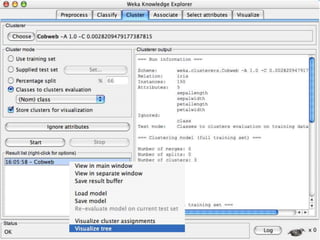

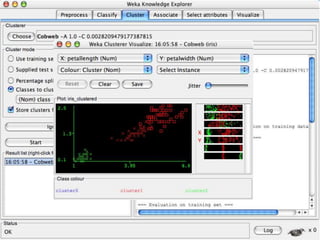

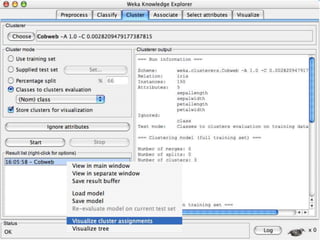

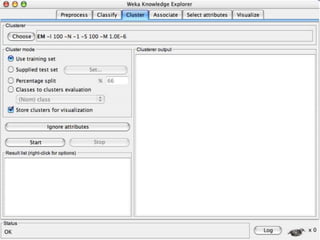

Explorer: clustering data
 WEKA contains “clusterers” for finding groups of
similar instances in a dataset
 Implemented schemes are:
 k-Means, EM, Cobweb, X-means, FarthestFirst
 Clusters can be visualized and compared to “true”
clusters (if given)
 Evaluation based on loglikelihood if clustering
scheme produces a probability distribution

93. 8/3/2022 University of Waikato 93

94. 8/3/2022 University of Waikato 94

95. 8/3/2022 University of Waikato 95

96. 8/3/2022 University of Waikato 96

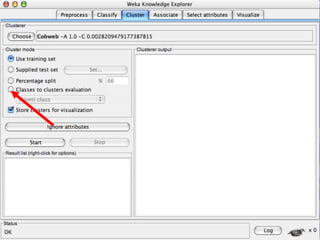

97. 8/3/2022 University of Waikato 97

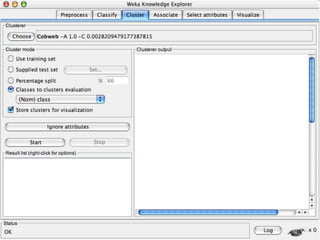

98. 8/3/2022 University of Waikato 98

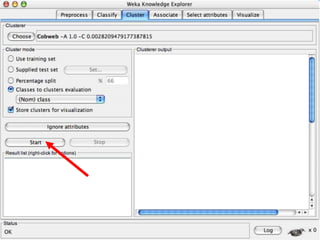

99. 8/3/2022 University of Waikato 99

100. 8/3/2022 University of Waikato 100

101. 8/3/2022 University of Waikato 101

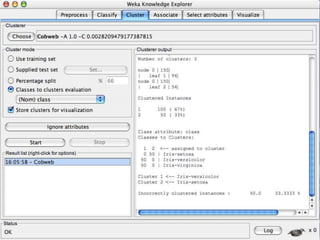

102. 8/3/2022 University of Waikato 102

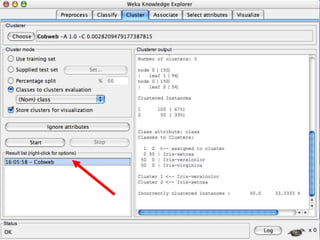

103. 8/3/2022 University of Waikato 103

104. 8/3/2022 University of Waikato 104

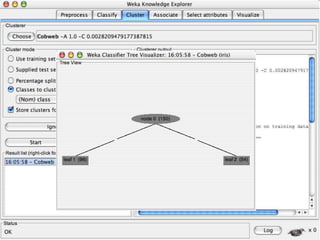

105. 8/3/2022 University of Waikato 105

106. 8/3/2022 University of Waikato 106

107. 8/3/2022 University of Waikato 107

108. 8/3/2022 University of Waikato 108

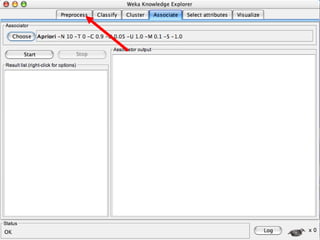

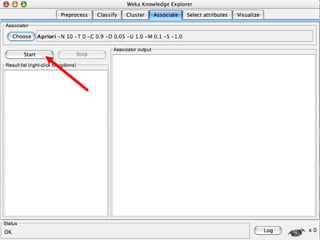

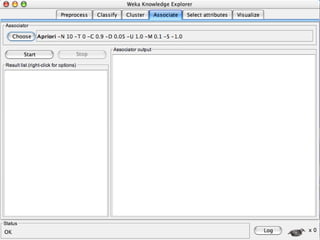

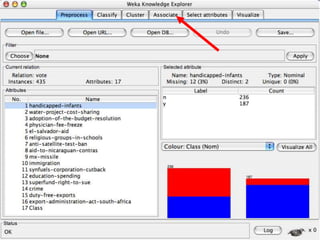

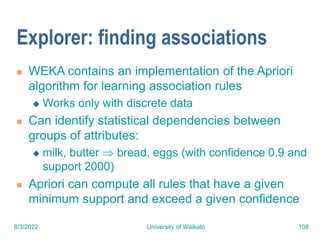

Explorer: finding associations
 WEKA contains an implementation of the Apriori
algorithm for learning association rules
 Works only with discrete data
 Can identify statistical dependencies between
groups of attributes:
 milk, butter  bread, eggs (with confidence 0.9 and
support 2000)
 Apriori can compute all rules that have a given
minimum support and exceed a given confidence

109. 8/3/2022 University of Waikato 109

110. 8/3/2022 University of Waikato 110

111. 8/3/2022 University of Waikato 111

112. 8/3/2022 University of Waikato 112

113. 8/3/2022 University of Waikato 113

114. 8/3/2022 University of Waikato 114

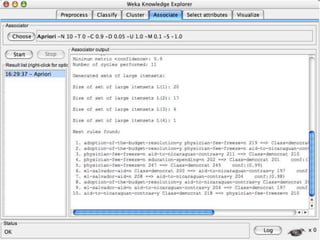

115. 8/3/2022 University of Waikato 115

116. 8/3/2022 University of Waikato 116

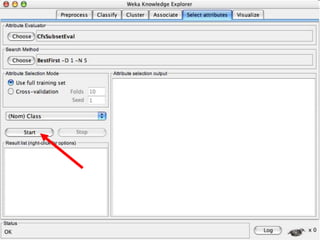

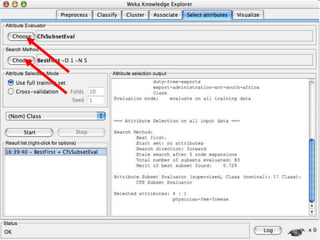

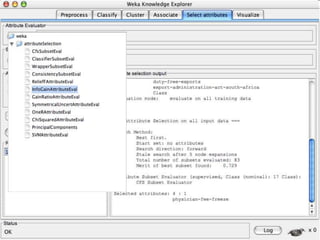

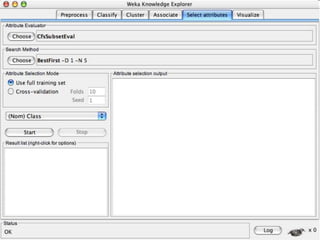

Explorer: attribute selection
 Panel that can be used to investigate which
(subsets of) attributes are the most predictive ones
 Attribute selection methods contain two parts:
 A search method: best-first, forward selection,
random, exhaustive, genetic algorithm, ranking
 An evaluation method: correlation-based, wrapper,
information gain, chi-squared, …
 Very flexible: WEKA allows (almost) arbitrary
combinations of these two

117. 8/3/2022 University of Waikato 117

118. 8/3/2022 University of Waikato 118

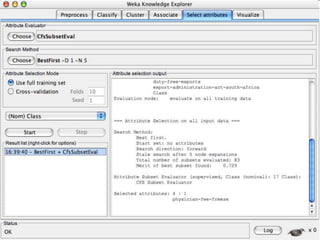

119. 8/3/2022 University of Waikato 119

120. 8/3/2022 University of Waikato 120

121. 8/3/2022 University of Waikato 121

122. 8/3/2022 University of Waikato 122

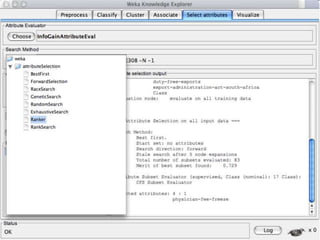

123. 8/3/2022 University of Waikato 123

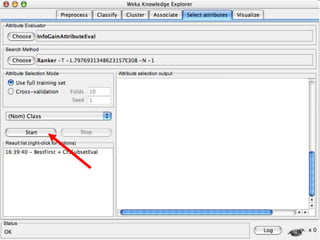

124. 8/3/2022 University of Waikato 124

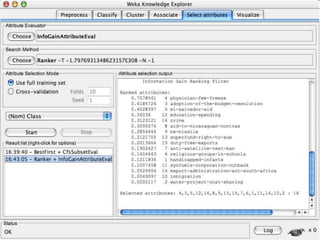

125. 8/3/2022 University of Waikato 125

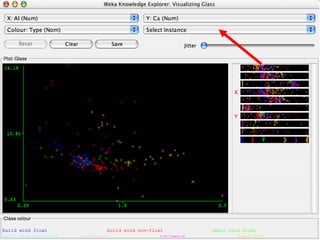

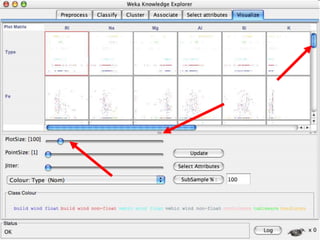

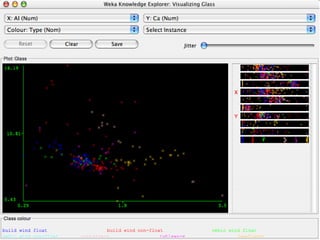

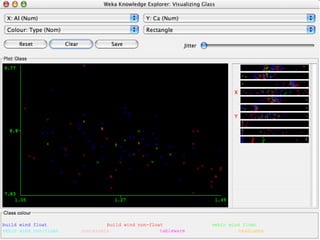

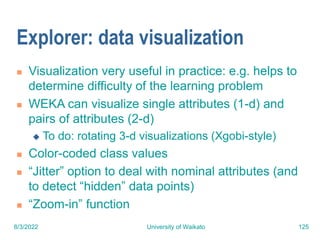

Explorer: data visualization
 Visualization very useful in practice: e.g. helps to
determine difficulty of the learning problem
 WEKA can visualize single attributes (1-d) and
pairs of attributes (2-d)
 To do: rotating 3-d visualizations (Xgobi-style)
 Color-coded class values
 “Jitter” option to deal with nominal attributes (and
to detect “hidden” data points)
 “Zoom-in” function

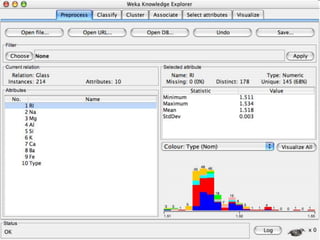

126. 8/3/2022 University of Waikato 126

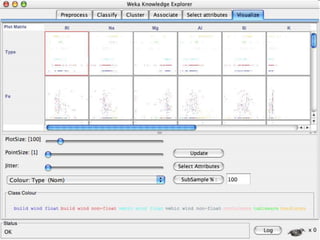

127. 8/3/2022 University of Waikato 127

128. 8/3/2022 University of Waikato 128

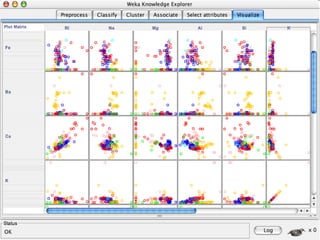

129. 8/3/2022 University of Waikato 129

130. 8/3/2022 University of Waikato 130

131. 8/3/2022 University of Waikato 131

132. 8/3/2022 University of Waikato 132

133. 8/3/2022 University of Waikato 133

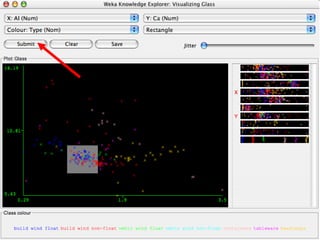

134. 8/3/2022 University of Waikato 134

135. 8/3/2022 University of Waikato 135

136. 8/3/2022 University of Waikato 136

137. 8/3/2022 University of Waikato 137

138. 8/3/2022 University of Waikato 138

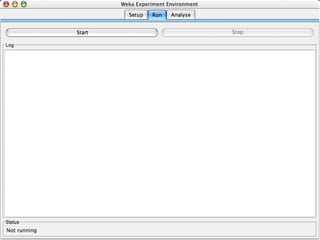

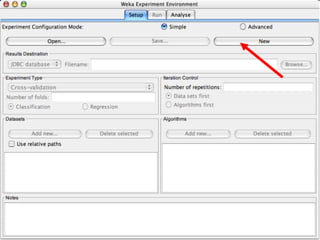

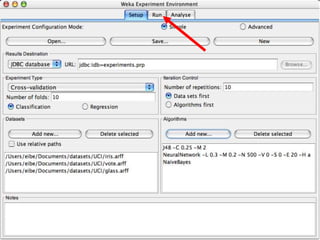

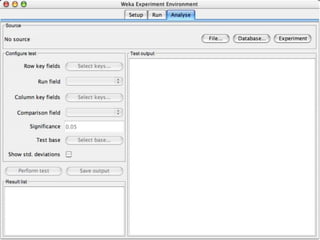

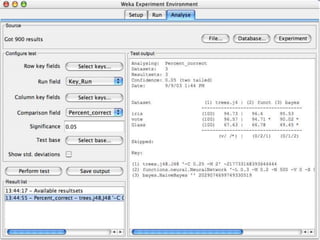

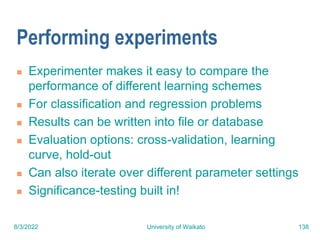

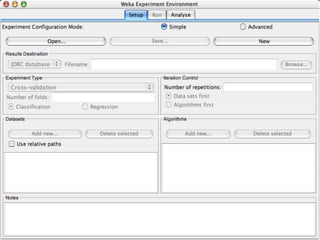

Performing experiments
 Experimenter makes it easy to compare the
performance of different learning schemes
 For classification and regression problems
 Results can be written into file or database
 Evaluation options: cross-validation, learning
curve, hold-out
 Can also iterate over different parameter settings
 Significance-testing built in!

139. 8/3/2022 University of Waikato 139

140. 8/3/2022 University of Waikato 140

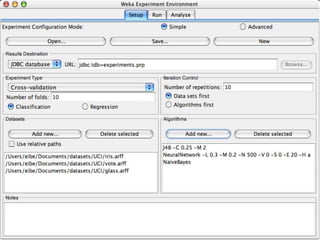

141. 8/3/2022 University of Waikato 141

142. 8/3/2022 University of Waikato 142

143. 8/3/2022 University of Waikato 143

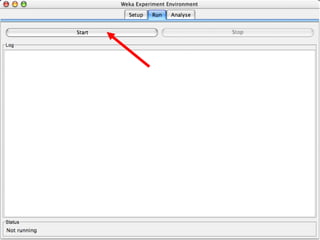

144. 8/3/2022 University of Waikato 144

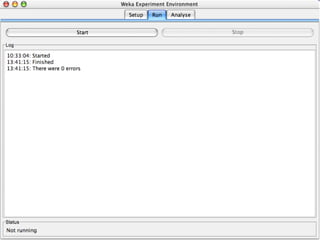

145. 8/3/2022 University of Waikato 145

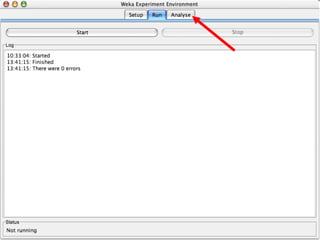

146. 8/3/2022 University of Waikato 146

147. 8/3/2022 University of Waikato 147

148. 8/3/2022 University of Waikato 148

149. 8/3/2022 University of Waikato 149

150. 8/3/2022 University of Waikato 150

151. 8/3/2022 University of Waikato 151

152. 8/3/2022 University of Waikato 152

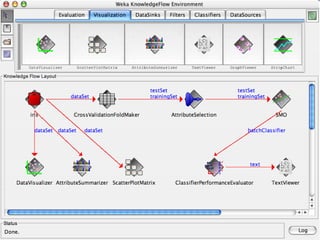

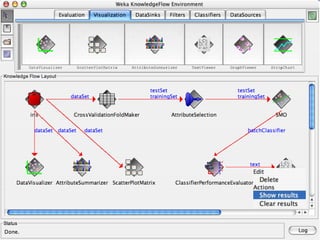

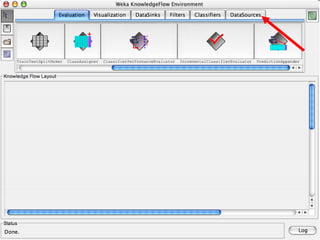

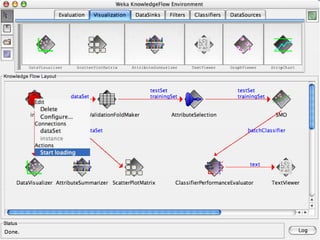

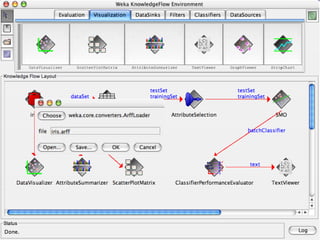

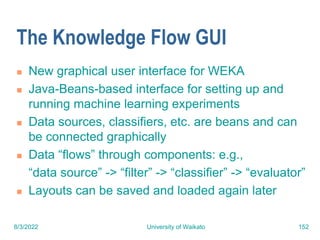

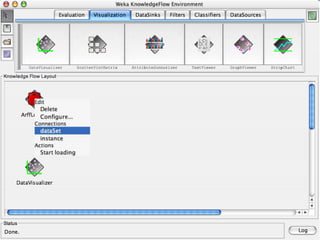

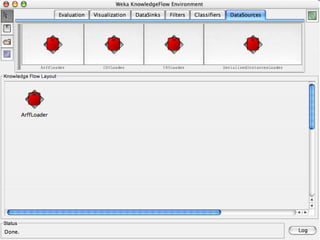

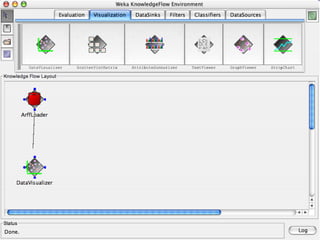

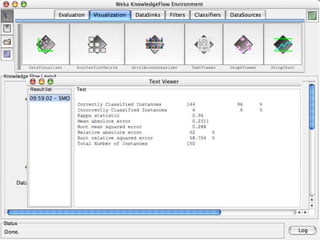

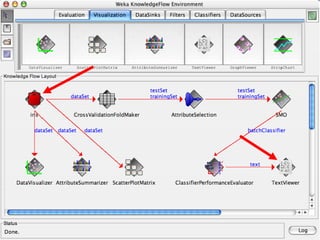

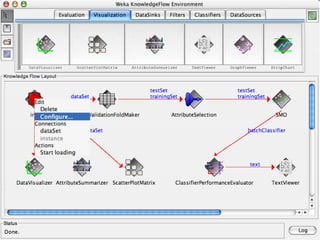

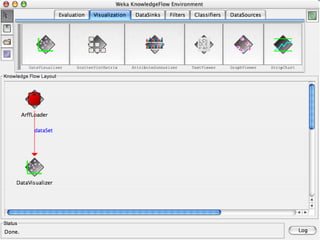

The Knowledge Flow GUI
 New graphical user interface for WEKA
 Java-Beans-based interface for setting up and
running machine learning experiments
 Data sources, classifiers, etc. are beans and can
be connected graphically
 Data “flows” through components: e.g.,
“data source” -> “filter” -> “classifier” -> “evaluator”
 Layouts can be saved and loaded again later

153. 8/3/2022 University of Waikato 153

154. 8/3/2022 University of Waikato 154

155. 8/3/2022 University of Waikato 155

156. 8/3/2022 University of Waikato 156

157. 8/3/2022 University of Waikato 157

158. 8/3/2022 University of Waikato 158

159. 8/3/2022 University of Waikato 159

160. 8/3/2022 University of Waikato 160

161. 8/3/2022 University of Waikato 161

162. 8/3/2022 University of Waikato 162

163. 8/3/2022 University of Waikato 163

164. 8/3/2022 University of Waikato 164

165. 8/3/2022 University of Waikato 165

166. 8/3/2022 University of Waikato 166

167. 8/3/2022 University of Waikato 167

168. 8/3/2022 University of Waikato 168

169. 8/3/2022 University of Waikato 169

170. 8/3/2022 University of Waikato 170

171. 8/3/2022 University of Waikato 171

172. 8/3/2022 University of Waikato 172

173. 8/3/2022 University of Waikato 173
Conclusion: try it yourself!
 WEKA is available at
http://www.cs.waikato.ac.nz/ml/weka
 Also has a list of projects based on WEKA
 WEKA contributors:
Abdelaziz Mahoui, Alexander K. Seewald, Ashraf M. Kibriya, Bernhard
Pfahringer , Brent Martin, Peter Flach, Eibe Frank ,Gabi Schmidberger
,Ian H. Witten , J. Lindgren, Janice Boughton, Jason Wells, Len Trigg,
Lucio de Souza Coelho, Malcolm Ware, Mark Hall ,Remco Bouckaert ,
Richard Kirkby, Shane Butler, Shane Legg, Stuart Inglis, Sylvain Roy,
Tony Voyle, Xin Xu, Yong Wang, Zhihai Wang
