1. Introduction to the Design Time
Governance Capabilities of Fuse
Service Works (FSW)
Kurt Stam and Kenny Peeples
Webinar
March 26, 2014

2. Dev Nation: By and for Developers
http://devnation.org

3. Introduction to Fuse Service Works
by Kenny Peeples

4. Red Hat JBoss Integration Product
Line

5. Why Use JBoss Fuse Service Works?
Integrate, Automate, service enable existing IT assets
Improve customer experience with new or expanded services
Remove manual touch points and automate processes
Decouple business services from infrastructure
Foundation for easier mobile, cloud and BPM projects
Easily and securely access cloud assets (onpremise or public cloud)
Reduce cost, faster and efficient solutions, easier to maintain

6. Why Use JBoss Fuse Service Works?
Automate, track and control service releases
Improve cross-team communication
Automate release process
Document, inventory and categorize services, artifacts deployments
Improve QoS with SLAs and policies for services
Improve runtime visibility
Reduce operational costs
Improve time to recovery
Respond faster to situations
Analyze performance, find issues and respond

7. What is JBoss Fuse Service Works?

8. Apache Camel
Implementation framework for most commonly used Enterprise Integration Patterns (EIP)
Speeds time to solution and provides multiple connectivity options
Popular and vibrant community
Requirement for a really simple way to do integration
● Started as a Sub-project of ActiveMQ in March 2007
● 36 committers (15 work for Red Hat)
● 80-100k artifact downloads a month
● 120k website views a month
● 1000 user mailing list posts per month
● 130 + Components and growing
● Most widely used integration framework

9. JBoss Switchyard

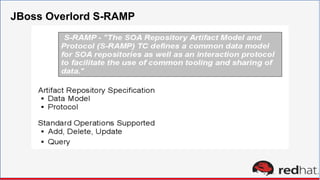

10. JBoss Overlord S-RAMP

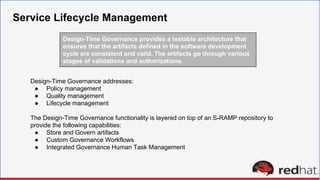

11. Service Lifecycle Management
Design-Time Governance addresses:
● Policy management
● Quality management
● Lifecycle management
The Design-Time Governance functionality is layered on top of an S-RAMP repository to
provide the following capabilities:
● Store and Govern artifacts
● Custom Governance Workflows
● Integrated Governance Human Task Management
Design-Time Governance provides a testable architecture that
ensures that the artifacts defined in the software development
cycle are consistent and valid. The artifacts go through various
stages of validations and authorizations.

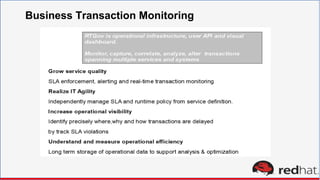

12. Business Transaction Monitoring

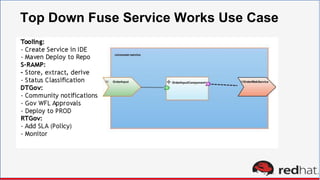

13. Top Down Fuse Service Works Use Case

14. Design Time Governance
Capabilities

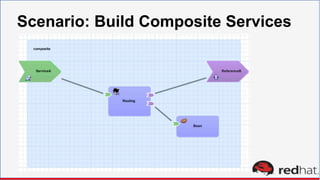

15. Scenario: Build Composite Services

16. A few other scenarios
Determine impact of changes to new version of API
Where is the source code from 8 years ago?

17. Proper Governance saves time and money.

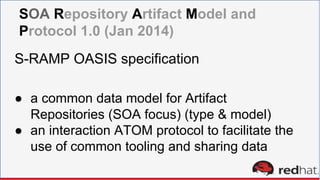

19. SOA Repository Artifact Model and
Protocol 1.0 (Jan 2014)
S-RAMP OASIS specification
● a common data model for Artifact
Repositories (SOA focus) (type & model)
● an interaction ATOM protocol to facilitate the
use of common tooling and sharing data

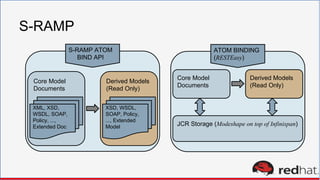

20. ATOM BINDING
(RESTEasy)
Derived Models
(Read Only)
Core Model
Documents
JCR Storage (Modeshape on top of Infinispan)
S-RAMP
S-RAMP ATOM
BIND API
Derived Models
(Read Only)
Core Model
Documents
XML, XSD,
WSDL, SOAP,
Policy, ...,
Extended Doc
XSD, WSDL,
SOAP, Policy,
..., Extended
Model

21. Interact with S-RAMP through
the ATOM BIND REST API?

22. S-RAMP Client
SrampAtomApiClient client =
new SrampAtomApiClient(endpoint, username, password, true);
//Upload an artifact
BaseArtifactType artifact = client.uploadArtifact(type, is, file);
//Query S-RAMP
QueryResultSet rs = client.buildQuery("/s-ramp[@from-demo = ?]")

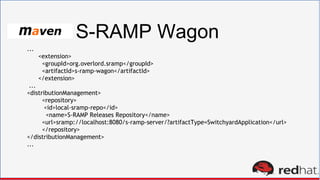

23. S-RAMP Wagon
...
<extension>
<groupId>org.overlord.sramp</groupId>
<artifactId>s-ramp-wagon</artifactId>
</extension>
...
<distributionManagement>
<repository>
<id>local-sramp-repo</id>
<name>S-RAMP Releases Repository</name>
<url>sramp://localhost:8080/s-ramp-server/?artifactType=SwitchyardApplication</url>
</repository>
</distributionManagement>
...

24. S-RAMP Demo

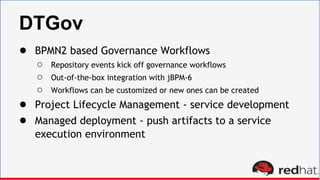

25. DTGov
● BPMN2 based Governance Workflows
○ Repository events kick off governance workflows
○ Out-of-the-box integration with jBPM-6
○ Workflows can be customized or new ones can be created
● Project Lifecycle Management - service development
● Managed deployment - push artifacts to a service
execution environment

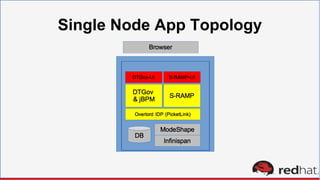

26. Single Node App Topology

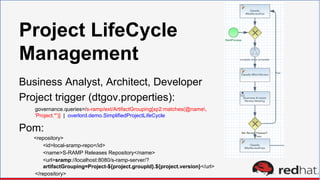

27. Project LifeCycle
Management
Business Analyst, Architect, Developer
Project trigger (dtgov.properties):
governance.queries=/s-ramp/ext/ArtifactGrouping[xp2:matches(@name,
'Project.*')] | overlord.demo.SimplifiedProjectLifeCycle
Pom:
<repository>
<id>local-sramp-repo</id>
<name>S-RAMP Releases Repository</name>
<url>sramp://localhost:8080/s-ramp-server/?
artifactGrouping=Project-${project.groupId}.${project.version}</url>
</repository>

28. Project LifeCycle
Management
● S-RAMP pom signal property triggers
review meeting
<artifactId>requirements</artifactId>
<packaging>jar</packaging>
<name>DTGov Demos Project: Requirements</name>
<properties>
<signal>AnalysisArtifactsComplete</signal>
</properties>
● Human task to approve or fail

30. DTGov Demo 1

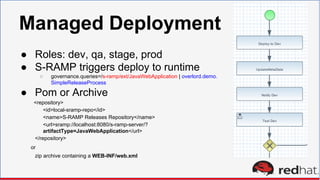

31. Managed Deployment
● Roles: dev, qa, stage, prod
● S-RAMP triggers deploy to runtime
○ governance.queries=/s-ramp/ext/JavaWebApplication | overlord.demo.
SimpleReleaseProcess
● Pom or Archive
<repository>
<id>local-sramp-repo</id>
<name>S-RAMP Releases Repository</name>
<url>sramp://localhost:8080/s-ramp-server/?
artifactType=JavaWebApplication</url>
</repository>
or
zip archive containing a WEB-INF/web.xml

32. Managed Deployment
● Deploy to runtime
○ direct,
○ RHQ/JON,
○ JBoss Domain Deployment
● Classifies deployment status
● Sends out notifications
● Human task to approve or fail
● target execution environments: dev, qa,
stage, prod

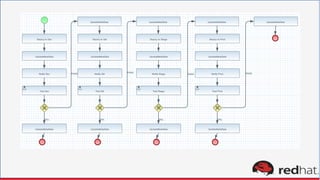

33. ●

34. DTGov Demo 2

35. Get Started with Fuse Service Works
Navigate to http://www.jboss.org/products/fsw.
html
BRMS is recommended, for the web based
tooling and consoles

36. Join the Overlord Project
Overlord is an umbrella project which represents
JBoss Governance. Overlord is part of the SOA Group.
Projects: APIMan, DTGov, RTGov & S-RAMP on http:
//www.jboss.org/overlord

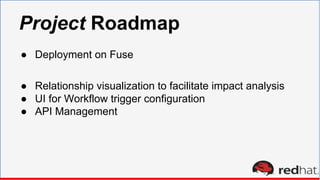

37. Project Roadmap
