This document discusses how the WSO2 ESB middleware platform can help organizations scale up their integration capabilities with lower costs. It describes how the WSO2 ESB uses a component-based and configuration-driven approach to provide functional, administrative, geographic, and load scalability. Key features that enable scalability include its modular architecture based on the WSO2 Carbon platform, performance scaling capabilities, integration with other WSO2 products for governance and lifecycle management, and support for cloud deployments. The document also provides examples of how the ESB has helped customers through case studies and demos of its capabilities.

1. "Think BIG, Spend Small”
A look at how WSO2 can help scale up with less cost"
Udayanga Wickramasinghe
Software Engineer
WSO2 ESB
March 2012

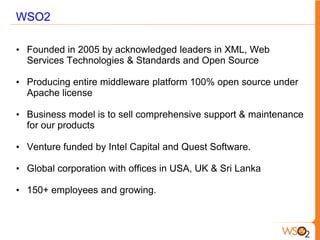

2. WSO2
• Founded in 2005 by acknowledged leaders in XML, Web
Services Technologies & Standards and Open Source
• Producing entire middleware platform 100% open source under
Apache license
• Business model is to sell comprehensive support & maintenance
for our products
• Venture funded by Intel Capital and Quest Software.
• Global corporation with offices in USA, UK & Sri Lanka
• 150+ employees and growing.

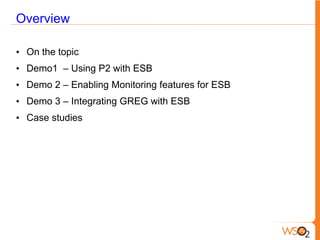

3. Overview
• On the topic
• Demo1 – Using P2 with ESB
• Demo 2 – Enabling Monitoring features for ESB
• Demo 3 – Integrating GREG with ESB
• Case studies

4. Scaling Up…..
“ability of a system to accommodate increasing number of
components into the system ”
• Variety of scalability concerns
 Functional scalability
 Administrative Scalability
 Geographic scalability
 Load scalability

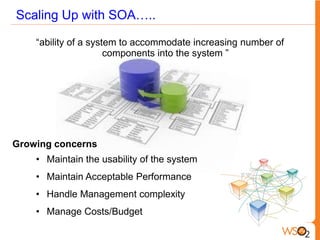

5. Scaling Up with SOA…..
“ability of a system to accommodate increasing number of
components into the system ”
Growing concerns
• Maintain the usability of the system
• Maintain Acceptable Performance
• Handle Management complexity
• Manage Costs/Budget

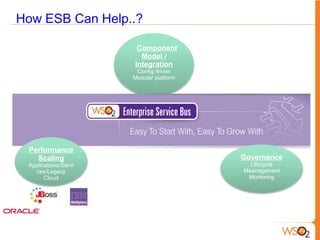

6. How ESB Can Help..?
Component
Model /
Integration
Config driven
Modular platform
Performance
Scaling Governance
Applications/Servi Lifecycle
ces/Legacy Maanagement
Cloud Montoring

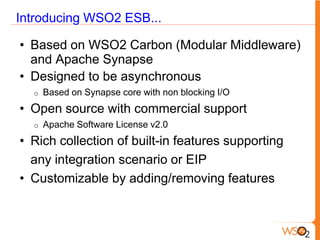

7. Introducing WSO2 ESB...
• Based on WSO2 Carbon (Modular Middleware)
and Apache Synapse
• Designed to be asynchronous
o Based on Synapse core with non blocking I/O
• Open source with commercial support
o Apache Software License v2.0
• Rich collection of built-in features supporting
any integration scenario or EIP
• Customizable by adding/removing features

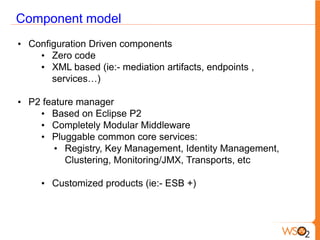

8. Component model
• Configuration Driven components
• Zero code
• XML based (ie:- mediation artifacts, endpoints ,
services…)
• P2 feature manager
• Based on Eclipse P2
• Completely Modular Middleware
• Pluggable common core services:
• Registry, Key Management, Identity Management,
Clustering, Monitoring/JMX, Transports, etc
• Customized products (ie:- ESB +)

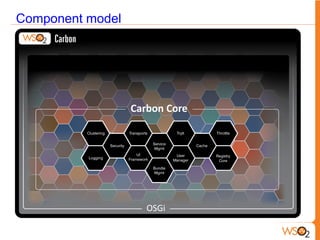

9. Component model

10. Component model

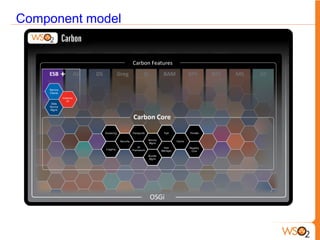

11. Component model

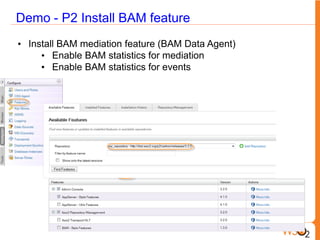

12. Demo - P2 Install BAM feature
• Install BAM mediation feature (BAM Data Agent)
• Enable BAM statistics for mediation
• Enable BAM statistics for events

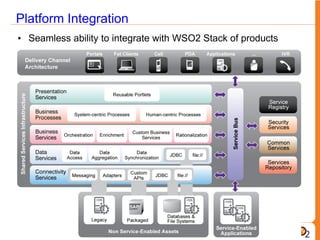

13. Platform Integration
• Seamless ability to integrate with WSO2 Stack of products

14. Platform Integration

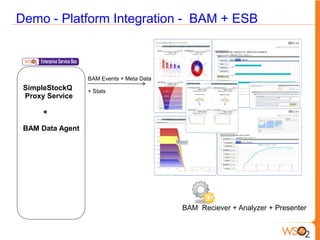

15. Demo - Platform Integration - BAM + ESB
BAM Events + Meta Data
SimpleStockQ + Stats
Proxy Service
+
BAM Data Agent
BAM Reciever + Analyzer + Presenter

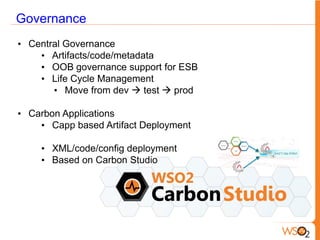

16. Governance
• Central Governance
• Artifacts/code/metadata
• OOB governance support for ESB
• Life Cycle Management
• Move from dev  test  prod
• Carbon Applications
• Capp based Artifact Deployment
• XML/code/config deployment
• Based on Carbon Studio

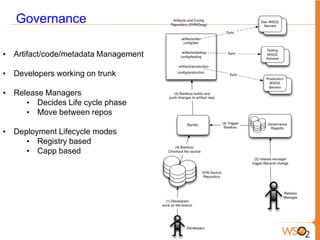

17. Governance
• Artifact/code/metadata Management
• Developers working on trunk
• Release Managers
• Decides Life cycle phase
• Move between repos
• Deployment Lifecycle modes
• Registry based
• Capp based

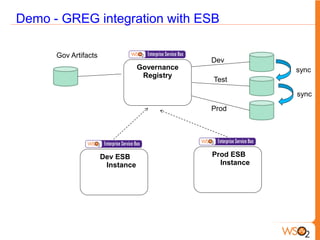

18. Demo - GREG integration with ESB
Gov Artifacts
Dev
Governance sync
Registry
Test
sync
Prod
Dev ESB Prod ESB
Instance Instance

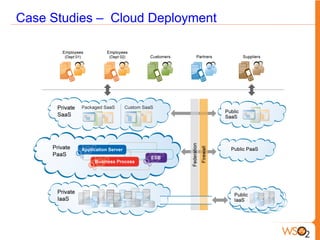

19. Case Studies – Cloud Deployment

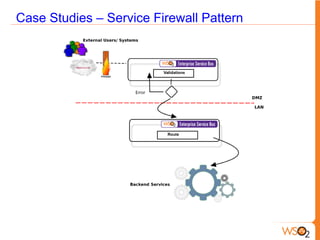

20. Case Studies – Service Firewall Pattern

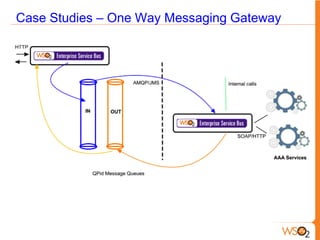

21. Case Studies – One Way Messaging Gateway

22. Case Studies – SAP Gateway

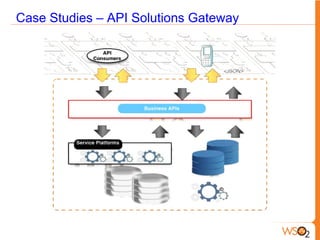

23. Case Studies – API Solutions Gateway

24. Q&A

25. Selected Customers

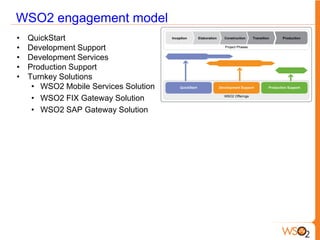

26. WSO2 engagement model
• QuickStart
• Development Support
• Development Services
• Production Support
• Turnkey Solutions
• WSO2 Mobile Services Solution
• WSO2 FIX Gateway Solution
• WSO2 SAP Gateway Solution

27. Thank You.
