ACHIEVING CE 2.0 NETWORK INTEGRITY
A SOLID FOUNDATION TO ENABLE ‘THE THIRD NETWORK’
Target Audience
Carrier Ethernet Network Architects, Product Managers,
Network Operations & Wholesale access teams.

2. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 2
WEBINAR SUMMARY
1.A new approach to optimize CE 2.0 service design
2.Cutting-edge test methodologies for service activation
3.Assisted troubleshooting and automatic diagnostics
4.Proactive detection of service degradation
5.Test solutions evolution from CE 2.0 toward the ‘Third Network’

3. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 3

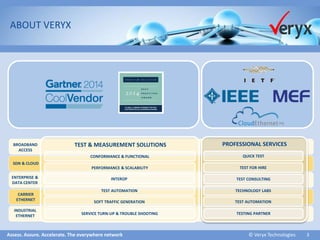

ABOUT VERYX
INDUSTRIAL
ETHERNET
BROADBAND ACCESS
CONFORMANCE & FUNCTIONAL
PERFORMANCE & SCALABILITY
INTEROP
TEST AUTOMATION
SOFT TRAFFIC GENERATION
QUICK TEST
TEST FOR HIRE
TEST CONSULTING
TECHNOLOGY LABS
TEST AUTOMATION
TEST & MEASUREMENT SOLUTIONS
PROFESSIONAL SERVICES
SERVICE TURN-UP & TROUBLE SHOOTING
CARRIER ETHERNET
TESTING PARTNER
SDN & CLOUD
ENTERPRISE & DATA CENTER

4. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 4
Anew approach to optimize CE 2.0 service design
Service Design
Service
Activation
Service
Troubleshooting
Service
Monitoring
Evolution…

5. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 5
Ethernet
Service
Type
+
+
=
MEF
Service
Definition
Ethernet
Service
Attributes
Ethernet
Service
Attribute
Parameters
E-Line
E-LAN
E-Tree
E-Access
EPL
EVPL
EP-LAN
EVP-LAN
EP-Tree
EVP-Tree
Access EPL
AccessEVPL

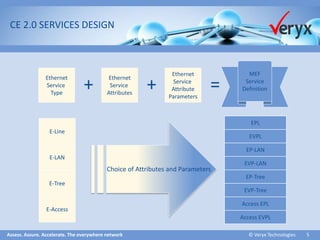

CE 2.0 SERVICES DESIGN
Choice of Attributes and Parameters

6. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 6
CE 2.0 MOBILE BACKHAUL
DESIGN EXAMPLE
Customer requirements drive the set of attributes and parameters composing the service
Service topology
Point-to-point ?
Multipoint-to-multipoint ?
Functional attributes
All-to-one bundling ?
Multiplexing ?
L2CP handling
Performance attributes
Delay sensitive application ?
Frame Loss sensitive application ?
Traffic management attributes
Committed Bandwidth Profile ?
Best effort bandwidth profile ?
EVPL Services for Mobile Backhaul
UNI
UNI
UNI
UNI

7. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 7

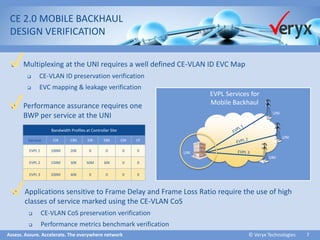

CE 2.0 MOBILE BACKHAUL
DESIGN VERIFICATION
Multiplexing at the UNI requires a well defined CE-VLAN ID EVC Map
CE-VLAN ID preservation verification
EVC mapping & leakage verification
Applications sensitive to Frame Delay and Frame Loss Ratio require the use of high classes of service marked using the CE-VLAN CoS
CE-VLAN CoS preservation verification
Performance metrics benchmark verification
Performance assurance requires one BWP per service at the UNI
Must have CIR & CBS greater than 0
May have EIR & EBS greater than 0
Independent verification of CIR, CBS, EIR and EBS
BandwidthProfiles at Controller Site
Service
CIR
CBS
EIR
EBS
CM
CF
EVPL1
100M
20K
0
0
0
0
EVPL 2
150M
30K
50M
30K
0
0
EVPL 3
200M
40K
0
0
0
0
EVPL Services for Mobile Backhaul
UNI
UNI
UNI
UNI
✔
✔
✔

8. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 8

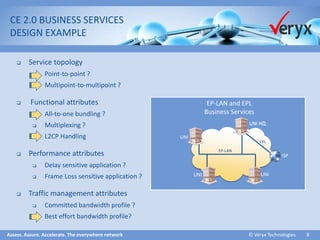

CE 2.0 BUSINESS SERVICES
DESIGN EXAMPLE
Service topology
Point-to-point ?
Multipoint-to-multipoint ?
Functional attributes
All-to-one bundling ?
Multiplexing ?
L2CP Handling
Performance attributes
Delay sensitive application ?
Frame Loss sensitive application ?
Traffic management attributes
Committed bandwidth profile ?
Best effort bandwidth profile?
UNI
UNI
UNI
UNI HQ
ISP
EP-LAN and EPL Business Services
EP-LAN
EPL

9. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 9
CE 2.0 BUSINESS SERVICES
DESIGN VERIFICATION
All-to-one bundling requires that all CE-VLAN IDs be mapped to the EVC
CE-VLAN ID preservation verification for 4095 VIDs
CE-VLAN CoS preservation verification for 8 PCP bits
Layer 2 Control Protocols handling
Spanning Tree BPDUs tunneling verification
Multipoint-to-multipoint topologies require a transport protocol that supports MAC learning
MAC learning verification
Number of unknown MAC addresses verification
UNI
UNI
UNI
UNI
UNI HQ
ISP
EP-LAN and EPL Business Services
EPL
EP-LAN
✔
✔
✔

10. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 10

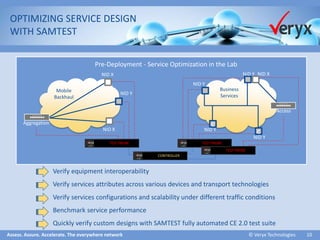

OPTIMIZING SERVICE DESIGN
WITH SAMTEST
Verify equipment interoperability
Verify services attributes across various devices and transport technologies
Verify services configurations and scalability under different traffic conditions
Benchmark service performance
Quickly verify custom designs with SAMTEST fully automated CE 2.0 test suite
Pre-Deployment -Service Optimization in the Lab
NID X
NID Y
NID X
Aggregation
Access
c
c
NID Y
NID Y
NID Y
NID Y
CONTROLLER
TEST PROBE
TEST PROBE
Mobile Backhaul
Business Services
NID X
TEST PROBE

11. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 11

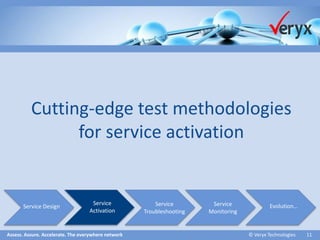

Cutting-edge test methodologies
for service activation
Service Design
Service
Activation
Service
Troubleshooting
Service
Monitoring
Evolution…

12. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 12

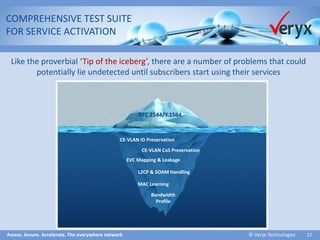

Like the proverbial ‘Tip of the iceberg’, there are a number of problems that could potentially lie undetected until subscribers start using their services
COMPREHENSIVE TEST SUITE
FOR SERVICE ACTIVATION
RFC 2544/Y.1564
CE-VLAN ID Preservation
CE-VLAN CoS Preservation
EVC Mapping & Leakage
MAC Learning
L2CP & SOAM Handling
Bandwidth
Profile

13. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 13
Multi-Operator Service Activation
Service Provider
Access Provider
REMOTE UNI
LOCAL UNI
TEST PROBE
ENNI
TEST PROBE
LOOPBACK

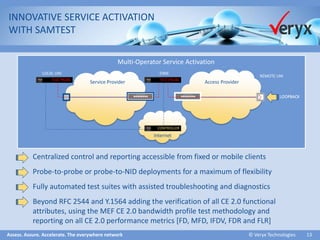

INNOVATIVE SERVICE ACTIVATION
WITH SAMTEST
Centralized control and reporting accessible from fixed or mobile clients
Probe-to-probe or probe-to-NID deployments for a maximum of flexibility
Fully automated test suites with assisted troubleshooting and diagnostics
Beyond RFC 2544 and Y.1564 adding the verification of all CE 2.0 functional attributes, using the MEF CE 2.0 bandwidth profile test methodology and reporting on all CE 2.0 performance metrics [FD, MFD, IFDV, FDR and FLR]
Internet
CONTROLLER

14. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 14
Assisted troubleshooting and automatic diagnostics
Service Design
Service
Activation
Service
Troubleshooting
Service
Monitoring
Evolution…

15. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 15

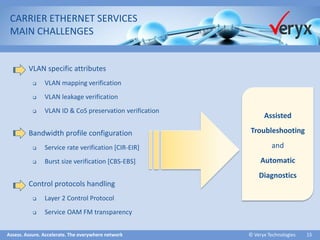

CARRIER ETHERNET SERVICES
MAIN CHALLENGES
VLAN specific attributes
VLAN mapping verification
VLAN leakage verification
VLAN ID & CoS preservation verification
Bandwidth profile configuration
Service rate verification [CIR-EIR]
Burst size verification [CBS-EBS]
Control protocols handling
Layer 2 Control Protocol
Service OAM FM transparency
Assisted
Troubleshooting
and
Automatic
Diagnostics

16. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 16

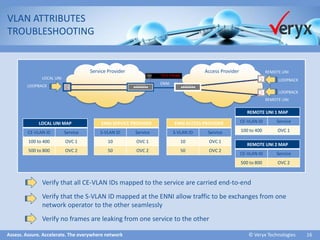

VLAN ATTRIBUTES
TROUBLESHOOTING
Verify that all CE-VLAN IDs mapped to the service are carried end-to-end
Verify that the S-VLAN ID mapped at the ENNI allow traffic to be exchanges from one network operator to the other seamlessly
Verify no frames are leaking from one service to the other
Service Provider
LOCALUNI MAP
CE-VLAN ID
Service
100 to 400
OVC 1
500 to800
OVC 2
ENNI SERVICE PROVIDER
S-VLAN ID
Service
10
OVC 1
50
OVC 2
REMOTE UNI 1 MAP
CE-VLAN ID
Service
100 to 400
OVC 1
Access Provider
REMOTE UNI
ENNI
REMOTE UNI
ENNI ACCESS PROVIDER
S-VLAN ID
Service
10
OVC 1
50
OVC 2
REMOTE UNI 2 MAP
CE-VLAN ID
Service
500 to 800
OVC 2
LOCAL UNI
ENNI
TEST PROBE
LOOPBACK
LOOPBACK
LOOPBACK

17. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 17
BANDWIDTH PROFILE
TROUBLESHOOTING
Committed Parameters
Service Frames
arrive at UNI
Service Frames
admitted to network
Bandwidth Profile Algorithm
Bandwidth profile is the enabler of service assurance
Green frames must be delivered per the performance objectives in the SLA
Yellow frames may be delivered but without performance assurance
Decoupled verification of the bandwidth profile rates parameters [CIR-EIR] and burst parameters [CBS-EBS] is imperative
Troubleshooting and automated diagnostics using constant, bursty and a mix of constant and bursty test traffic
Best Effort Parameters
Reporting the exact measured values instead of a simple Pass or Fail [RFC 2544-Y.1564]

18. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 18

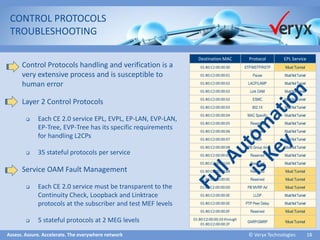

CONTROL PROTOCOLS
TROUBLESHOOTING
Control Protocols handling and verification is a very extensive process and is susceptible to human error
Layer 2 Control Protocols
Each CE 2.0 service EPL, EVPL, EP-LAN, EVP-LAN, EP-Tree, EVP-Tree has its specific requirements for handling L2CPs
35 stateful protocols per service
Service OAM Fault Management
Each CE 2.0 service must be transparent to the Continuity Check, Loopback and Linktrace protocols at the subscriber and test MEF levels
5 stateful protocols at 2 MEG levels
Destination MAC
Protocol
EPL Service
01:80:C2:00:00:00
STP/MSTP/RSTP
Must Tunnel
01:80:C2:00:00:01
Pause
Must Not Tunnel
01:80:C2:00:00:02
LACP/LAMP
Must Not Tunnel
01:80:C2:00:00:02
Link OAM
Must Not Tunnel
01:80:C2:00:00:02
ESMC
Must Not Tunnel
01:80:C2:00:00:03
802.1X
Must Not Tunnel
01:80:C2:00:00:04
MACSpecific
Must Not Tunnel
01:80:C2:00:00:05
Reserved
Must Not Tunnel
01:80:C2:00:00:06
Reserved
Must Not Tunnel
01:80:C2:00:00:07
E-LMI
Must Not Tunnel
01:80:C2:00:00:08
PB Group Ad
Must Not Tunnel
01:80:C2:00:00:09
Reserved
Must Not Tunnel
01:80:C2:00:00:0A
Reserved
Must Not Tunnel
01:80:C2:00:00:0B
Reserved
Must Tunnel
01:80:C2:00:00:0C
Reserved
Must Tunnel
01:80:C2:00:00:0D
PB MVRP Ad
Must Tunnel
01:80:C2:00:00:0E
LLDP
Must Not Tunnel
01:80:C2:00:00:0E
PTP Peer Delay
Must Not Tunnel
01:80:C2:00:00:0F
Reserved
Must Tunnel
01:80:C2:00:00:20through
01:80:C2:00:00:2F
GARP/GMRP
Must Tunnel

19. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 19
A SERVICE PROVIDER PERSPECTIVE
WITH INTEGRA TELECOM
Before SAMTEST, at the time of turn-up if a failure happened (about 93% of the time) the amount of time spent troubleshooting using a scaled back version of RFC2544 was enormous
As we transition to using the fully automated SAMTEST CE 2.0 test suites, testing and troubleshooting time has been reduced by almost 75%
SAMTEST assisted troubleshooting and automated diagnostics features definitely bring us faster time to revenue
And, the test reports aligned with CE 2.0 greatly simplifies the discussion with our interconnection partners
Typically turning-up 30 E-Access services per month
About 2 of them PASS on the first test iteration and the rest of them FAIL.
7%
93%
E-ACCESS SERVICE TURN-UPS PER MONTH
PASS initial testing.
FAIL initial testing. Troubleshooting required.
226
57
MAN HOURS TESTING THE SERVICES PER MONTH WITHOUT SAMTEST
MAN HOURS TESTING THE SERVICES PER MONTH WITH SAMTEST
IMPROVED PRODUCTIVITY
A SERVICE PROVIDER PERSPECTIVE
WITH INTEGRA TELECOM

20. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 20
Proactive detection
of service degradation
Service Design
Service
Activation
Service
Troubleshooting
Service
Monitoring
Evolution…

21. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 21
BEYOND PERFORMANCE
MONITORING
The main difference between plain old Ethernet services and ‘Carrier Ethernet’ Services is the Quality of Service
But… is performance monitoring sufficient to assure quality of service ?
No…
With all the new high definition and real- time applications offered on Carrier Ethernet networks, its important for service providers to:
Be alerted when performance thresholds are about to be exceeded
Receive auto-diagnostics allowing them to take action and avoid SLA violations

22. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 22

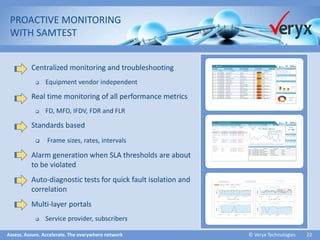

PROACTIVE MONITORING
WITH SAMTEST
Centralized monitoring and troubleshooting
Equipment vendor independent
Real time monitoring of all performance metrics
FD, MFD, IFDV, FDR and FLR
Standards based
Frame sizes, rates, intervals
Alarm generation when SLA thresholds are about to be violated
Auto-diagnostic tests for quick fault isolation and correlation
Multi-layer portals
Service provider, subscribers

23. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 23
Poll Question

24. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 24
Test solutions evolution from CE 2.0 toward the Third Network
Service Design
Service
Activation
Service
Troubleshooting
Service
Monitoring
Evolution…

25. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 25
Carrier Ethernet and Cloud Ethernet
Internet

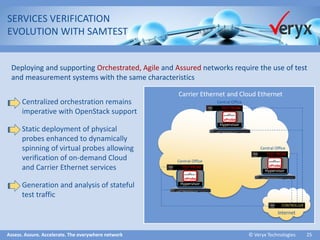

SERVICESVERIFICATION
EVOLUTION WITH SAMTEST
Centralized orchestration remains imperative with OpenStack support
Static deployment of physical probes enhanced to dynamically spinning of virtual probes allowing verification of on-demand Cloud and Carrier Ethernet services
Generation and analysis of stateful test traffic
Deploying and supporting Orchestrated, Agile and Assurednetworks require the use of test and measurement systems with the same characteristics
Hypervisor
vProbe
Central Office
TEST PROBE
Hypervisor
vProbe
TEST PROBE
Hypervisor
vProbe
TEST PROBE
CONTROLLER
Central Office
Central Office

26. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 26
Carrier Ethernet and Cloud Ethernet

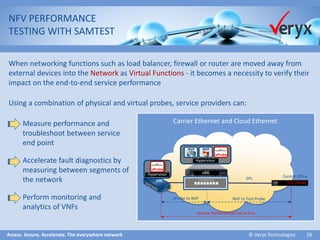

NFV PERFORMANCE
TESTING WITH SAMTEST
When networking functions such as load balancer, firewall or router are moved away from external devices into the Networkas Virtual Functions -it becomes a necessity to verify their impact on the end-to-end service performance
Using a combination of physical and virtual probes, service providers can:
OVS
Hypervisor
EPL
x86
Service Performance End to End
NVF
NVF
vProbe
Hypervisor
vProbe
CPE
Central Office
TEST PROBE
Measure performance and troubleshoot between service end point
Accelerate fault diagnostics by measuring between segments of the network
Perform monitoring and analytics of VNFs
vProbe to NVF
NVF to Test Probe

27. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 27
Q & A

28. Assess. Assure. Accelerate. The everywhere network ©Veryx Technologies 28
THANK YOU
MEET US AT BOOTH 333
GEN 14, WASHINGTON DC
NOV 18-20
OR WRITE TO US info@veryxtech.com
www.veryxtech.com
