AOS & CPPM INTEGRATION
CONFIGURATION & TESTING
EAP TLS & EAP PEAP
CONFIDENTIAL © Copyright 2014. Aruba Networks, Inc. All rights reserved
by
Abilash Soundararajan

EAP-TLS

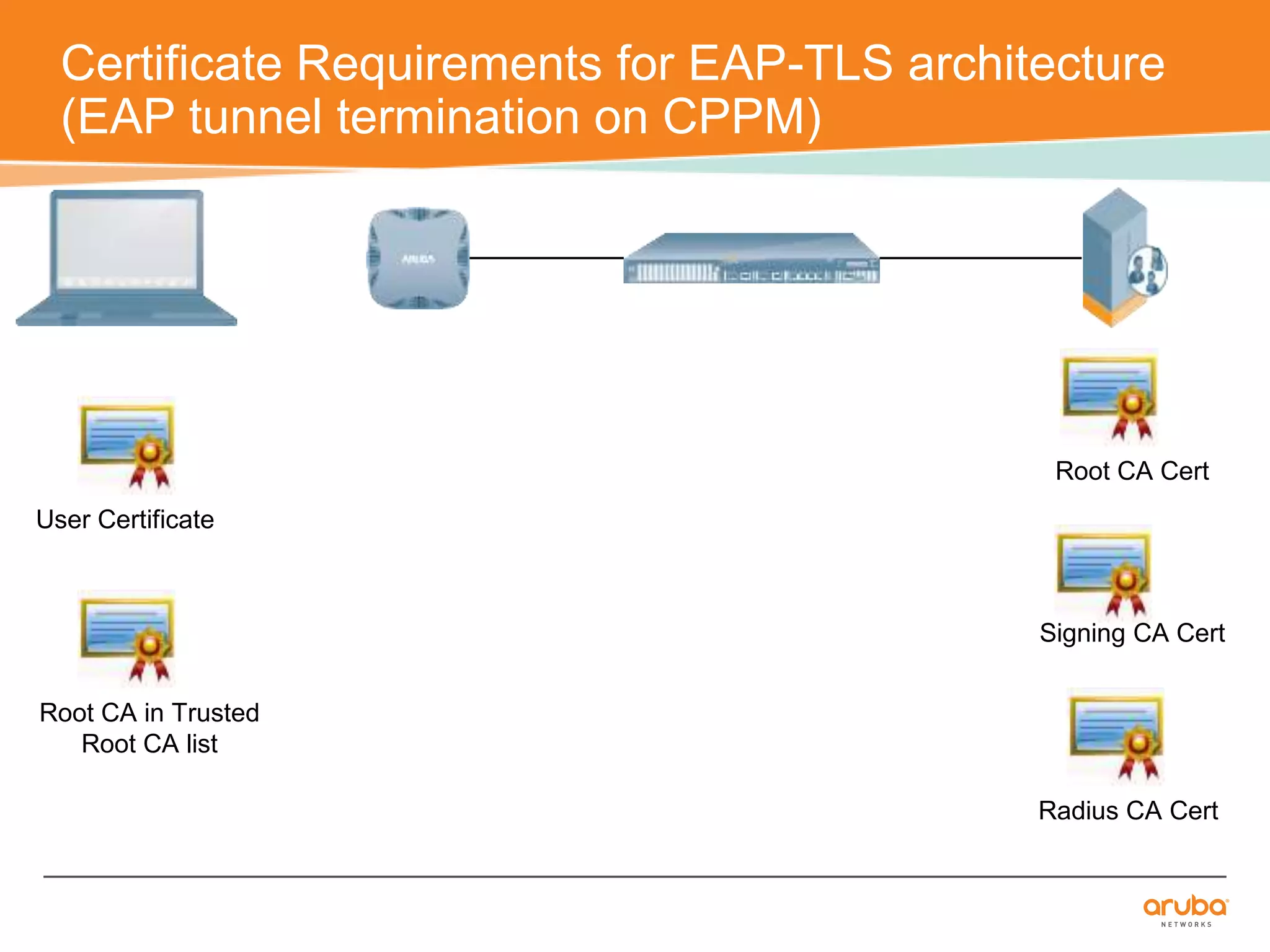

Certificate Requirements for EAP-TLS architecture
(EAP tunnel termination on CPPM)
User Certificate
Root CA Cert
Signing CA Cert
Radius CA Cert
Root CA in Trusted
Root CA list

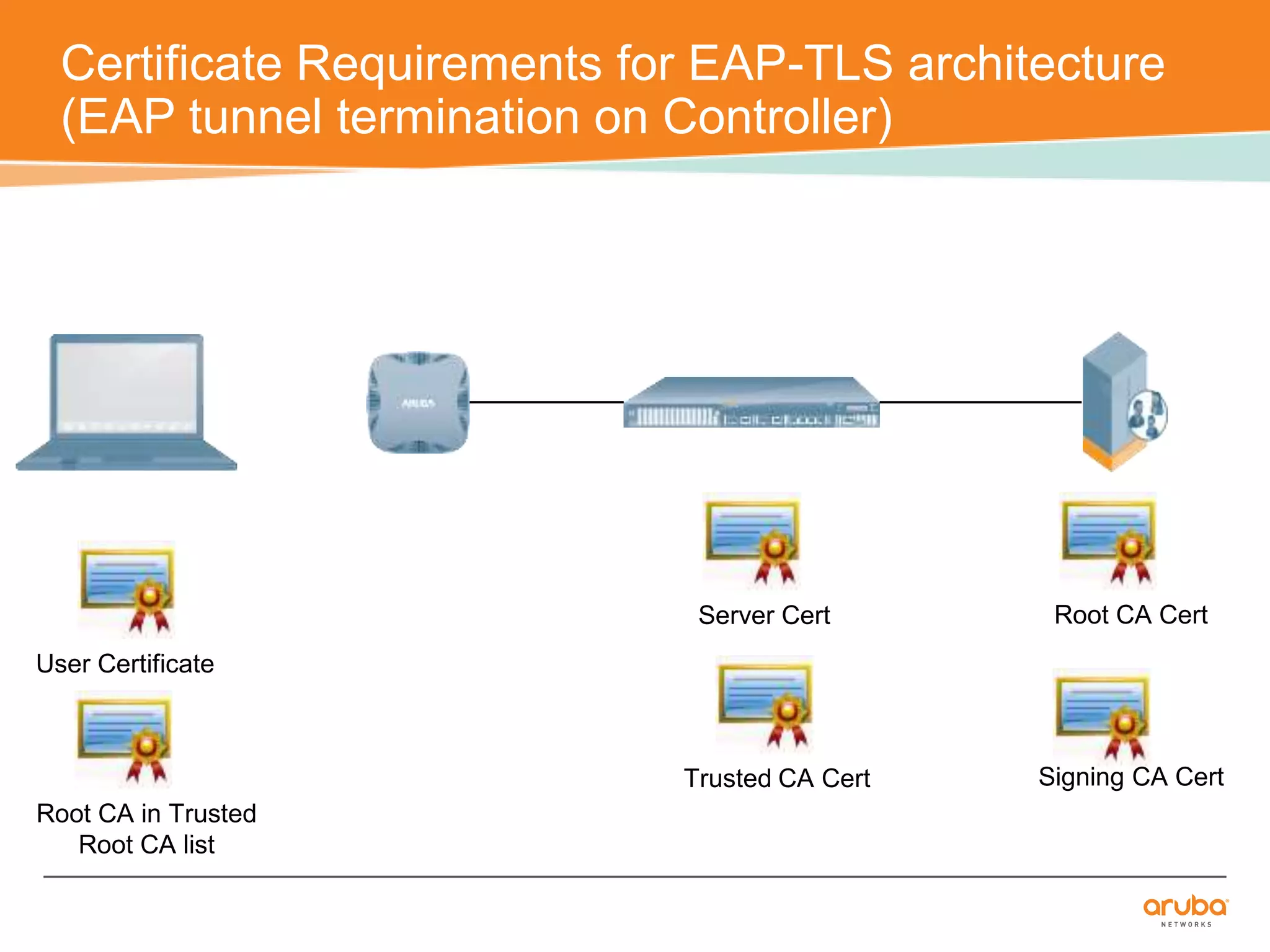

Certificate Requirements for EAP-TLS architecture
(EAP tunnel termination on Controller)
User Certificate
Server Cert
Trusted CA Cert
Root CA Cert
Signing CA Cert
Root CA in Trusted
Root CA list

SETTING UP EAP-TLS
TERMINATION ON CPPM

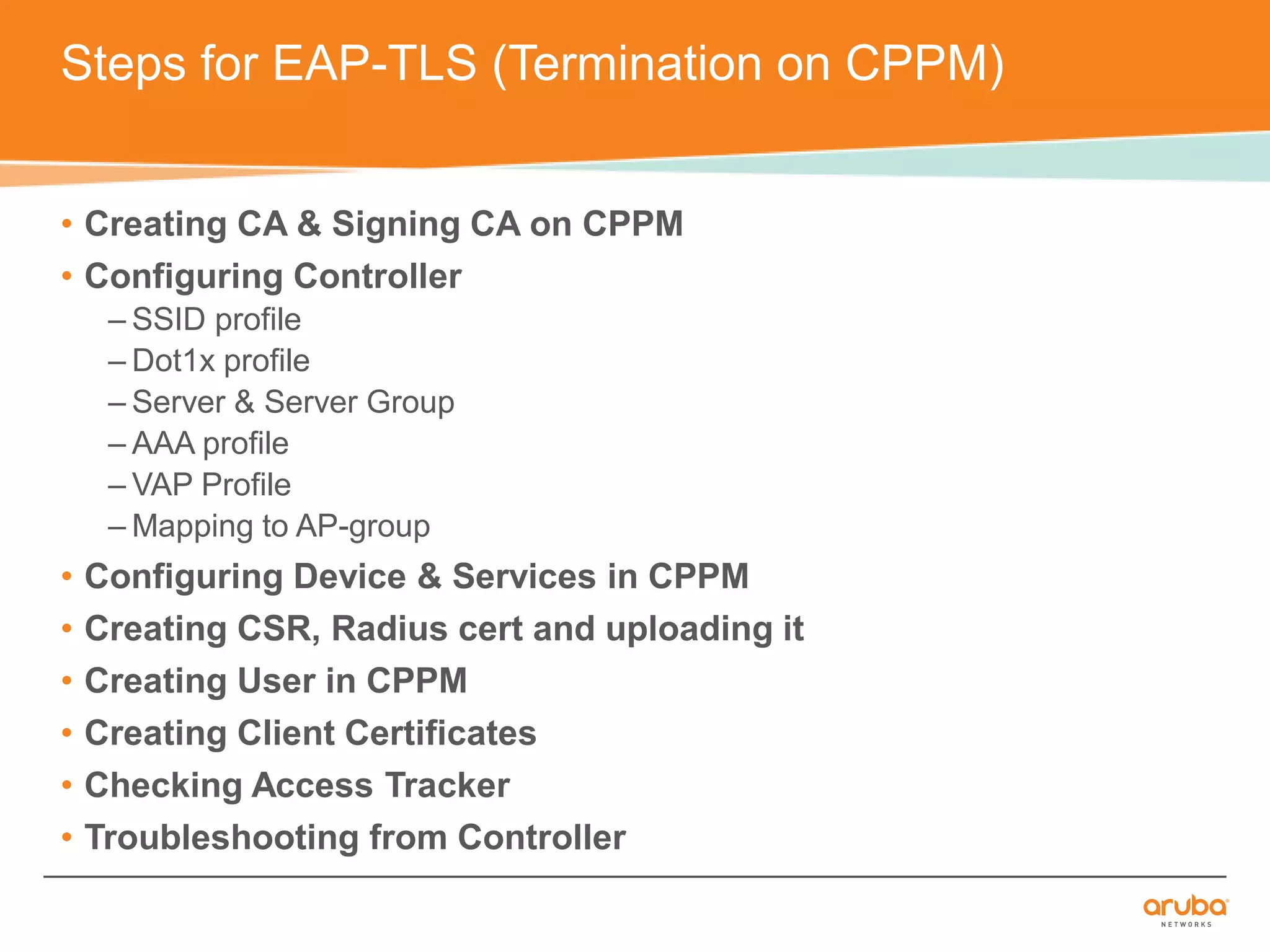

Steps for EAP-TLS (Termination on CPPM)
• Creating CA & Signing CA on CPPM
• Configuring Controller
– SSID profile
– Dot1x profile
– Server & Server Group
– AAA profile
– VAP Profile
–Mapping to AP-group
• Configuring Device & Services in CPPM
• Creating CSR, Radius cert and uploading it
• Creating User in CPPM
• Creating Client Certificates
• Checking Access Tracker
• Troubleshooting from Controller

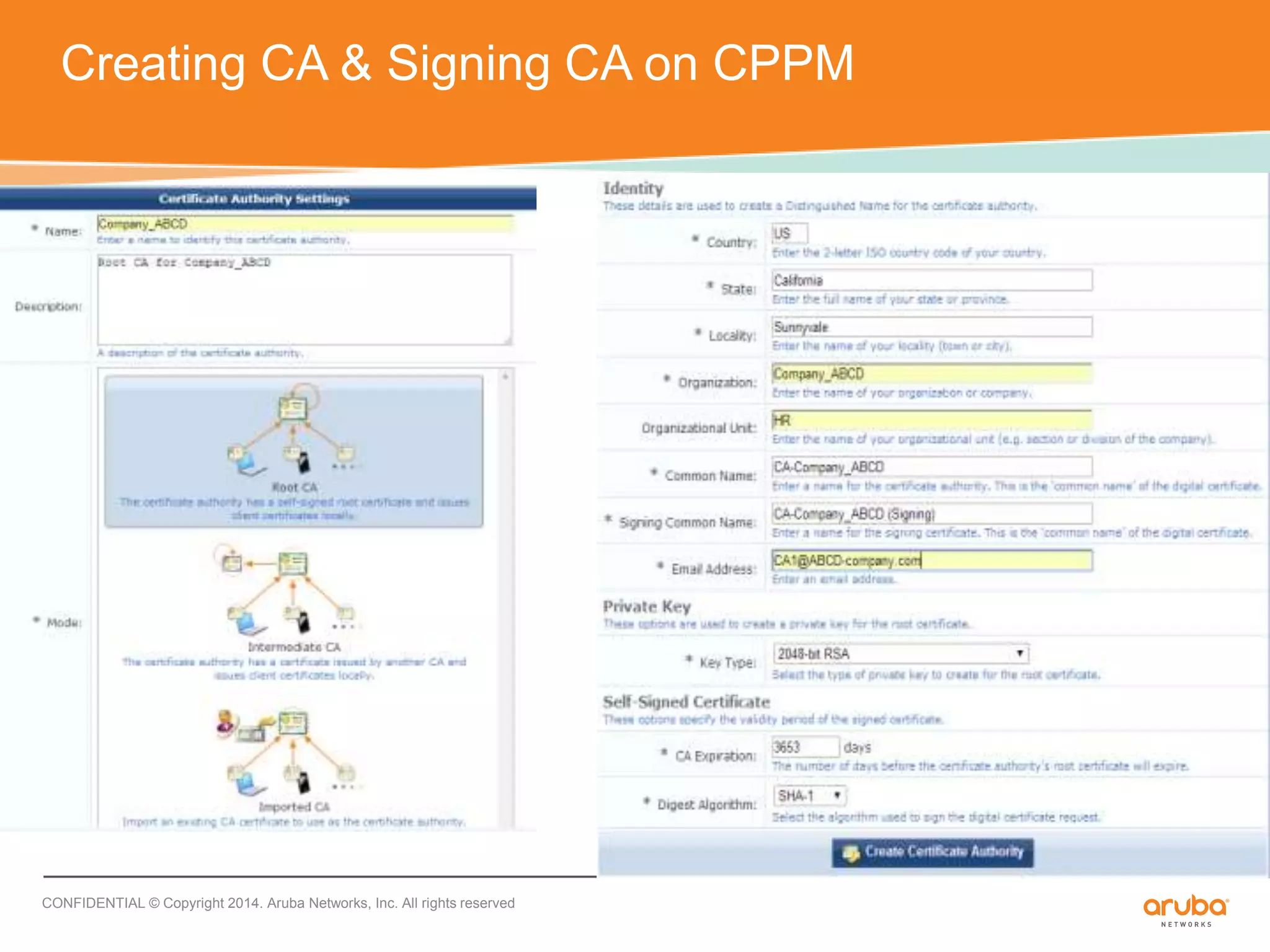

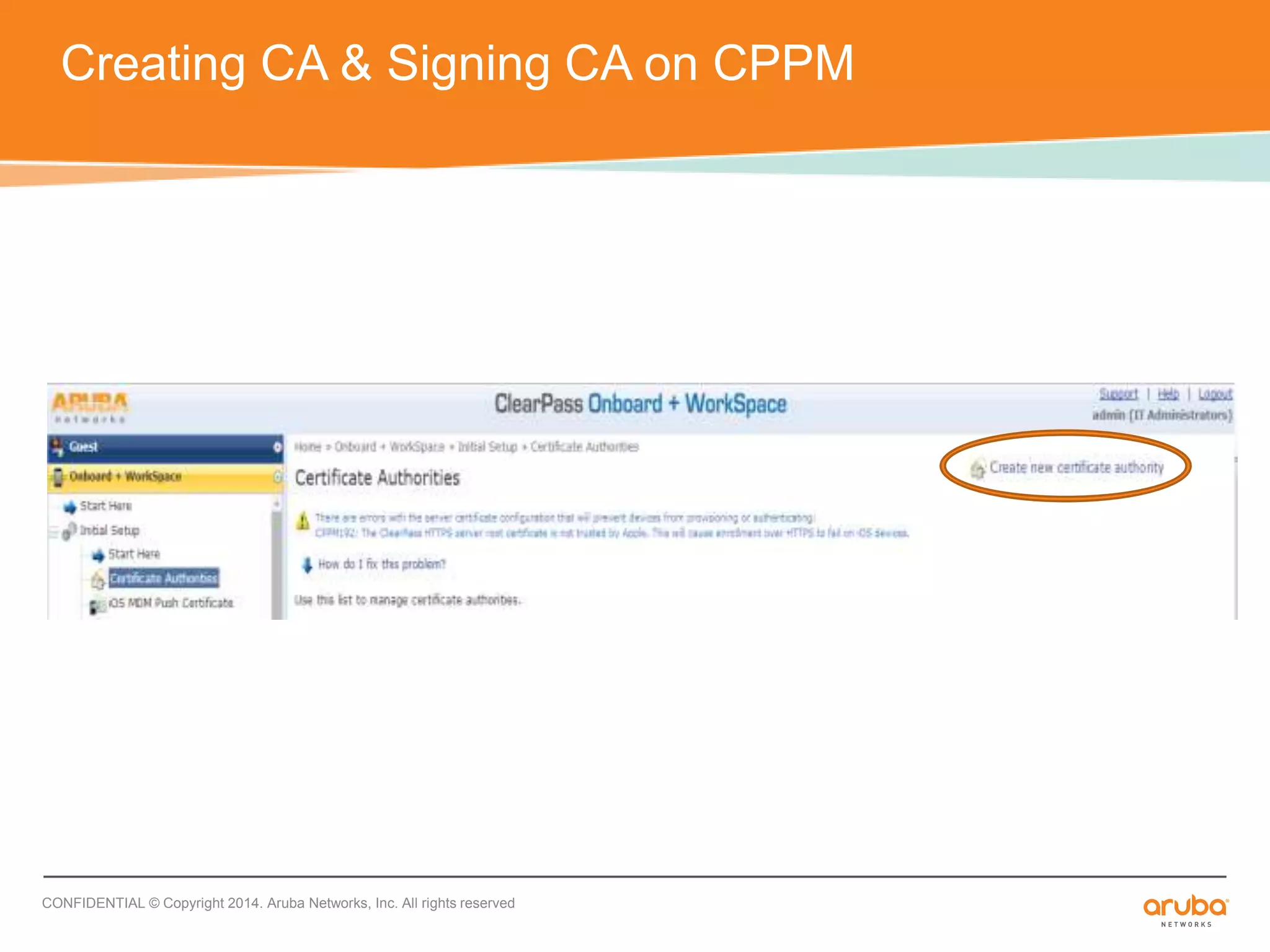

Creating CA & Signing CA on CPPM

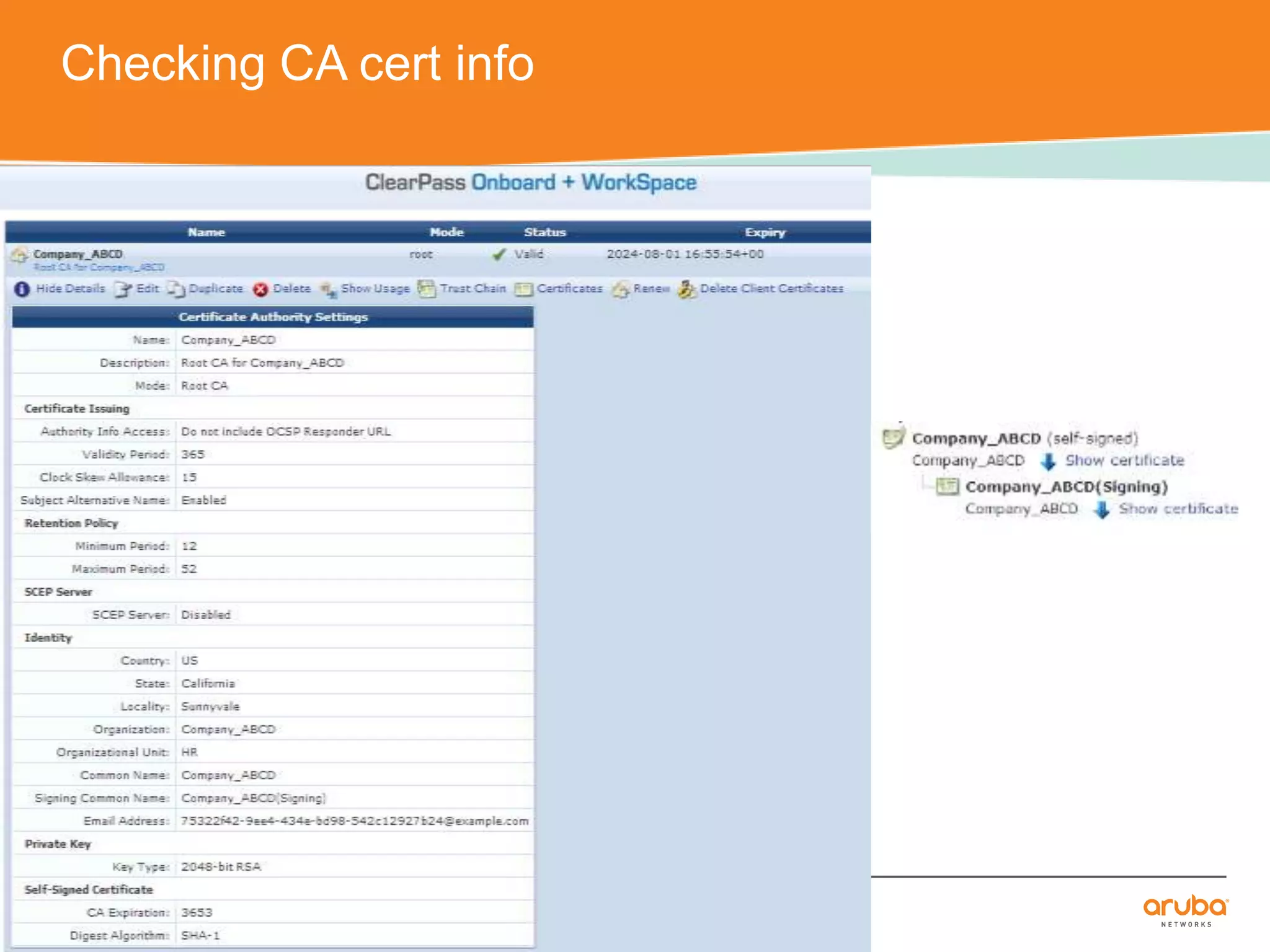

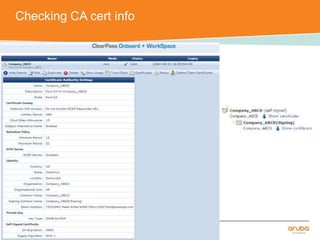

Checking CA cert info

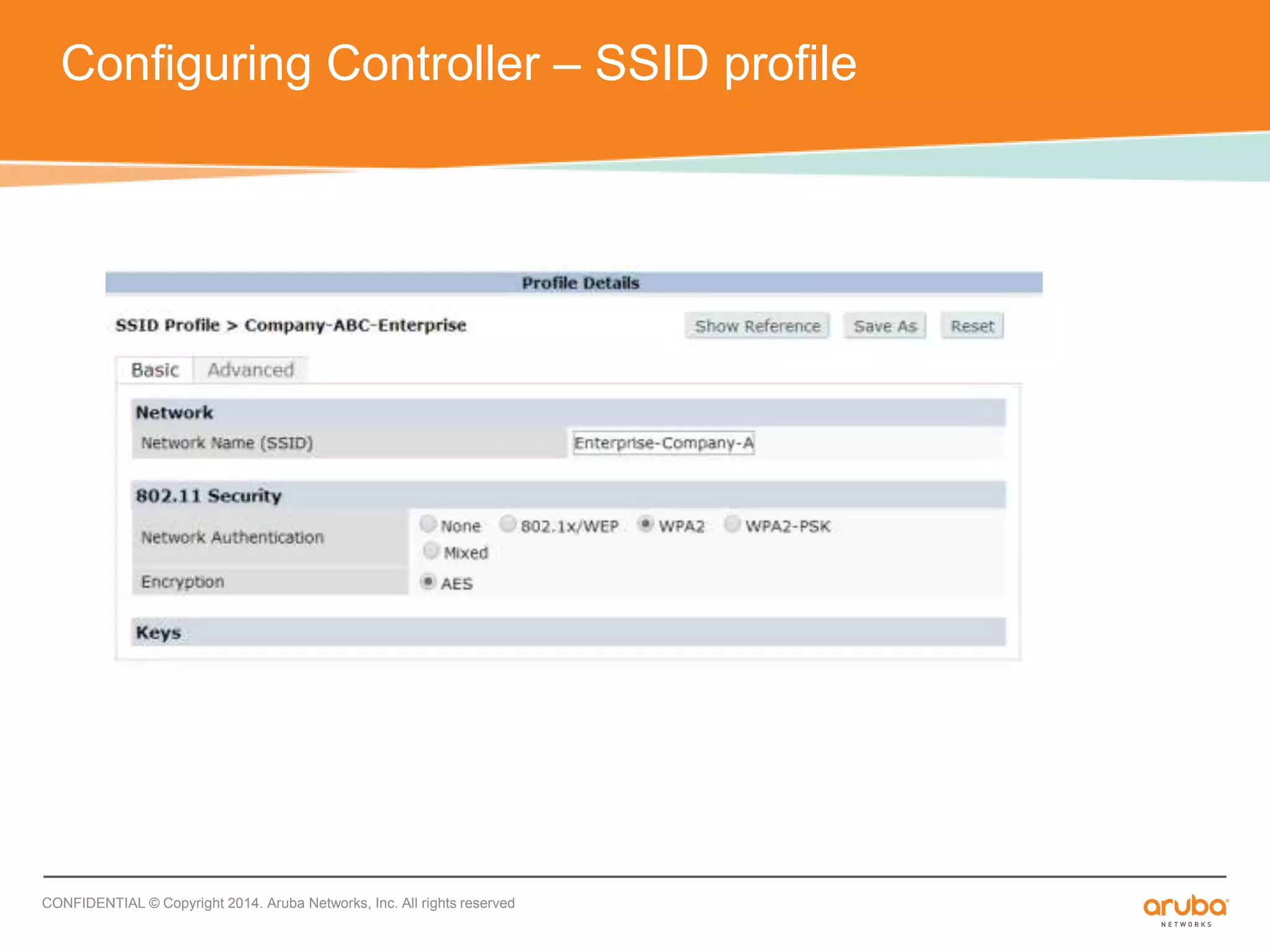

Configuring Controller – SSID profile

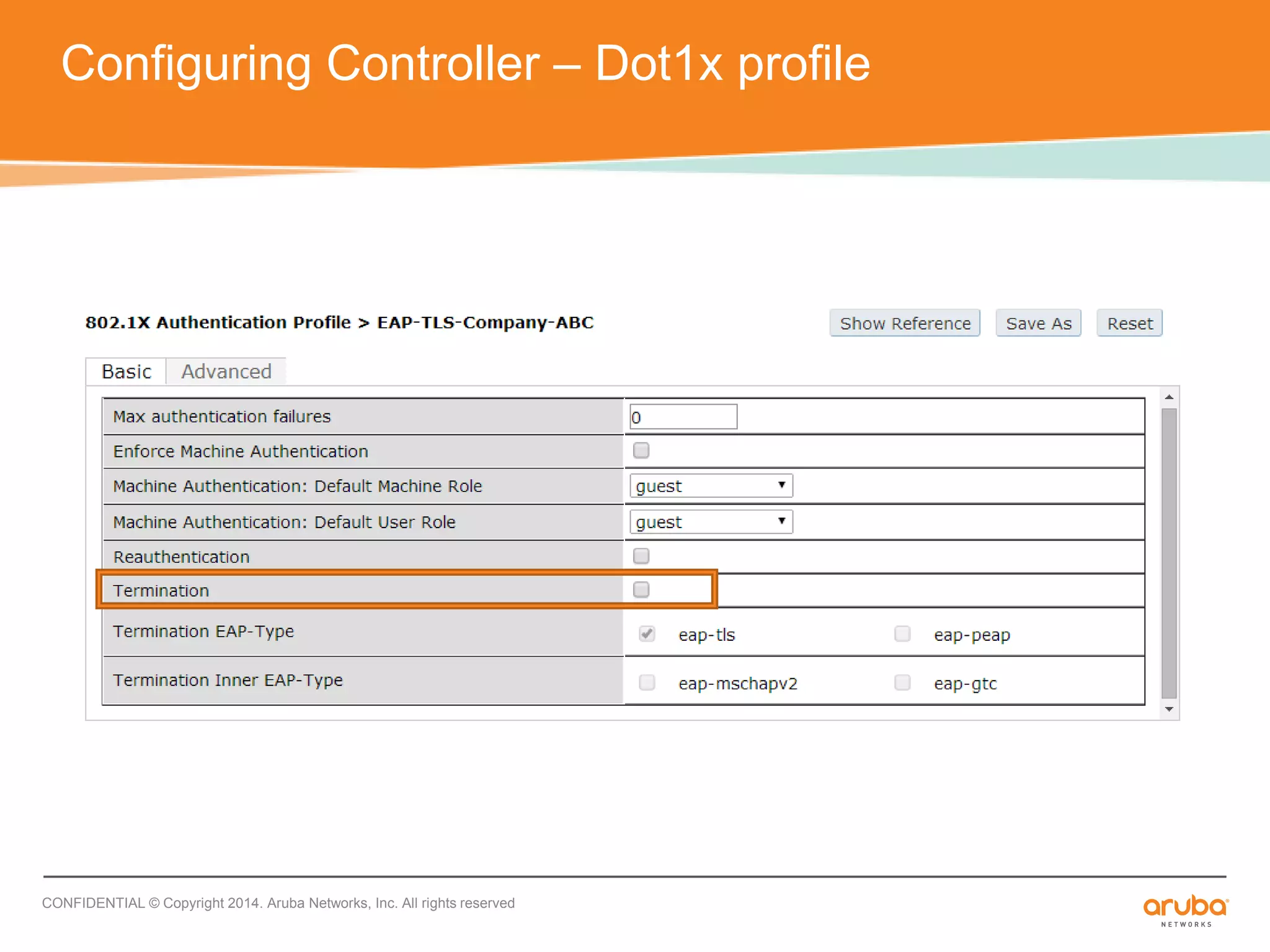

Configuring Controller – Dot1x profile

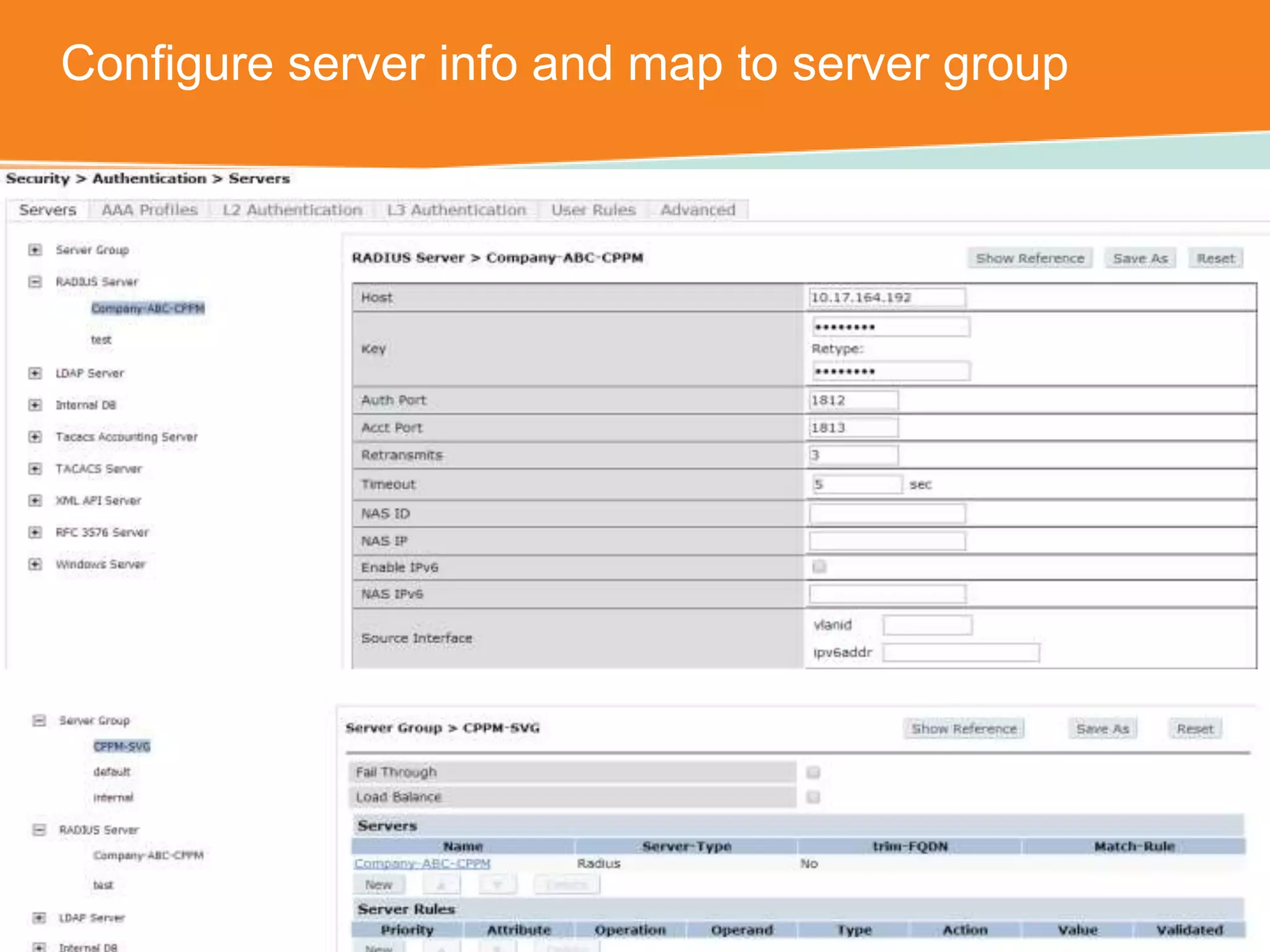

Configure server info and map to server group

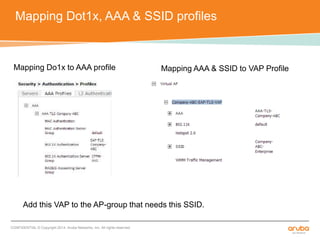

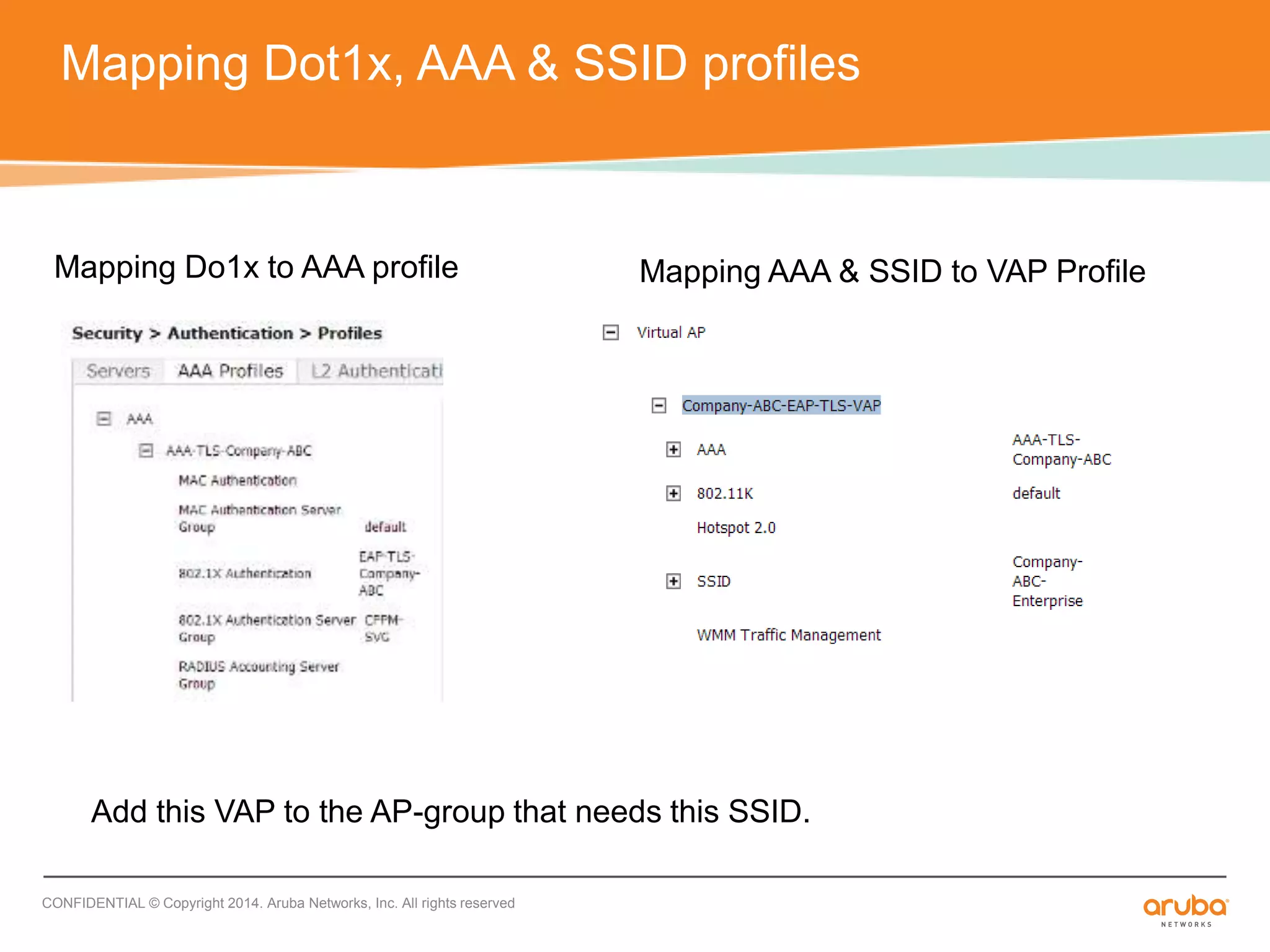

Mapping Dot1x, AAA & SSID profiles
Mapping Do1x to AAA profile Mapping AAA & SSID to VAP Profile
Add this VAP to the AP-group that needs this SSID.

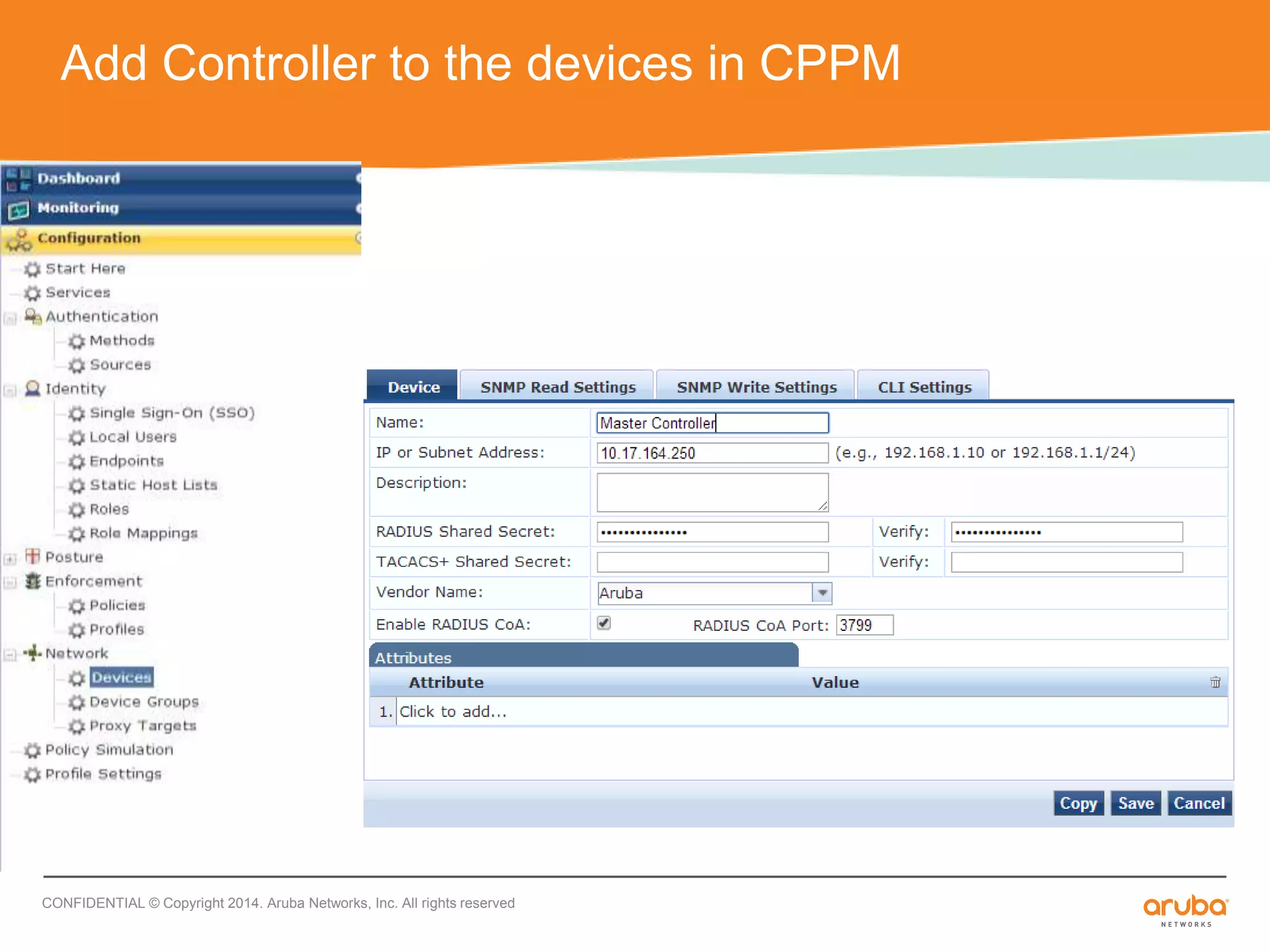

Add Controller to the devices in CPPM

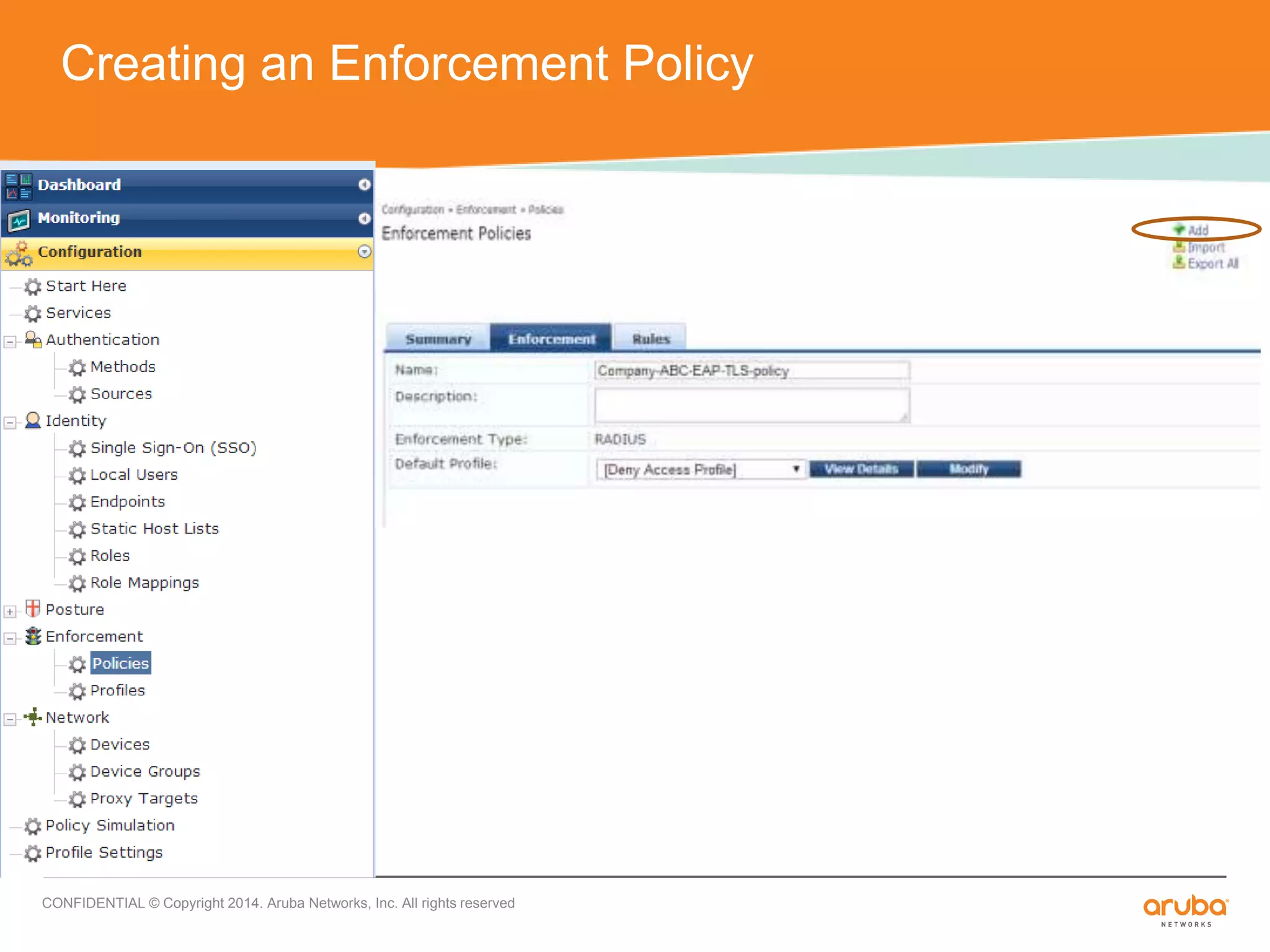

Creating an Enforcement Policy

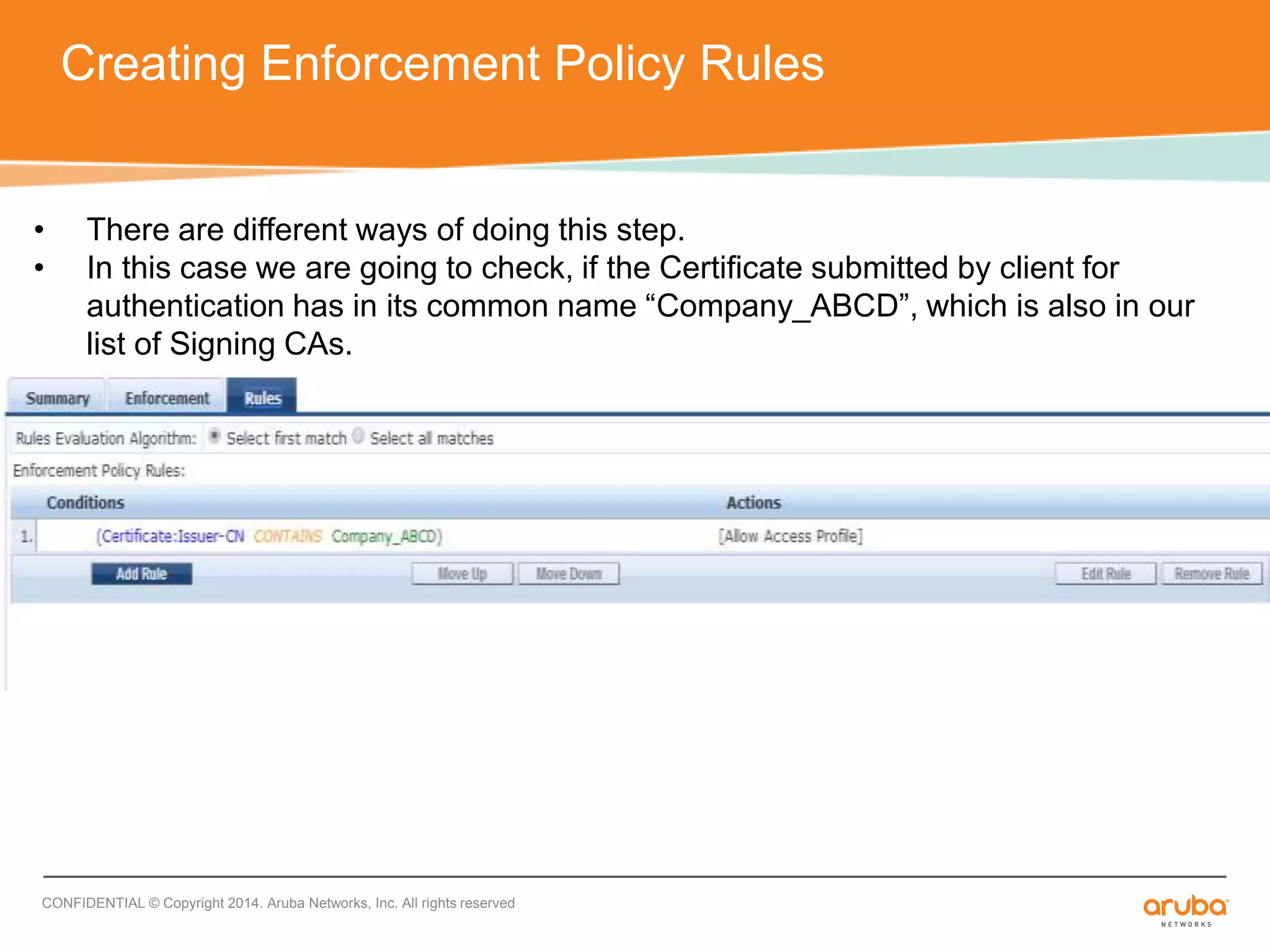

Creating Enforcement Policy Rules
• There are different ways of doing this step.
• In this case we are going to check, if the Certificate submitted by client for
authentication has in its common name “Company_ABCD”, which is also in our
list of Signing CAs.

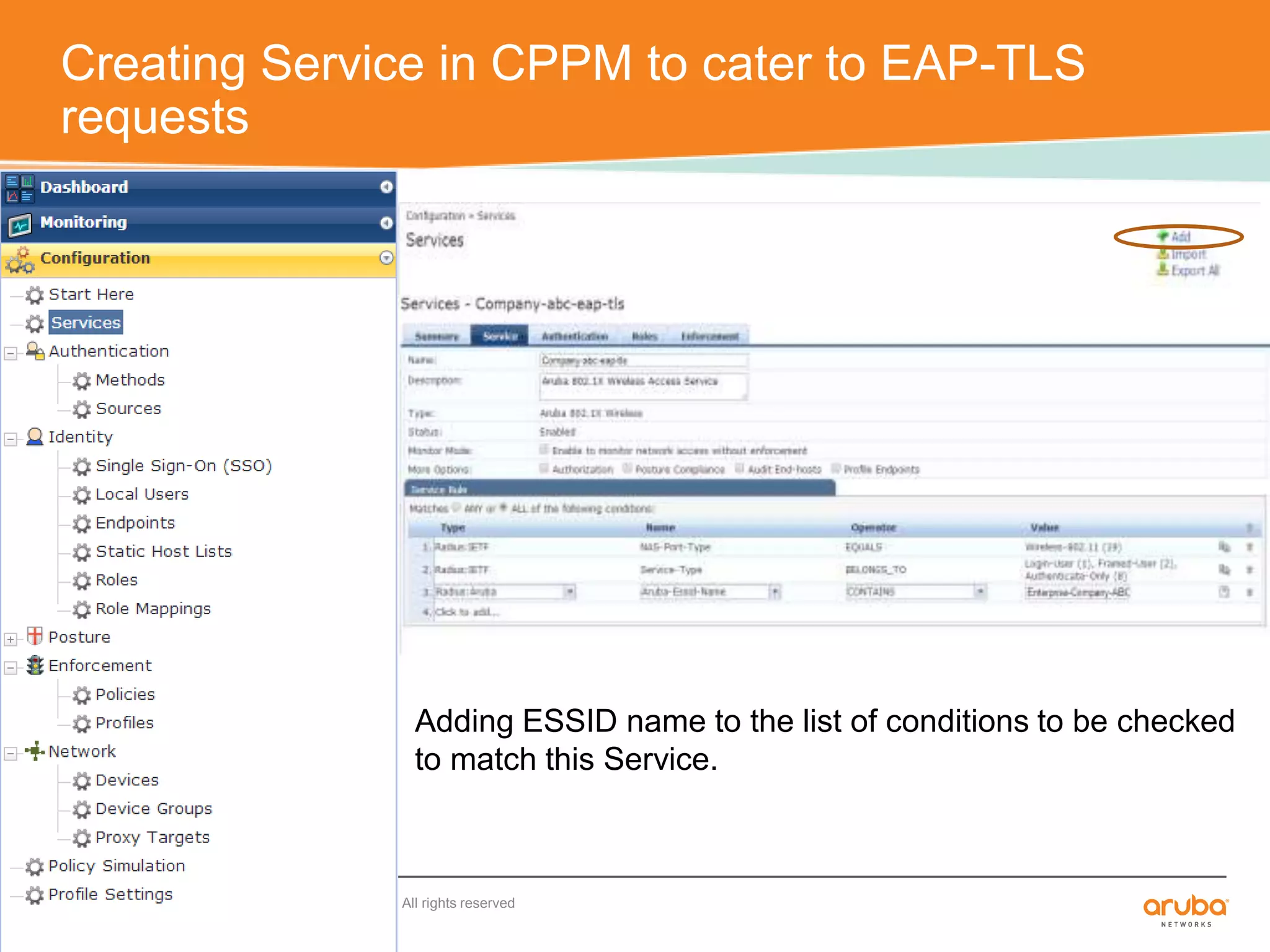

Creating Service in CPPM to cater to EAP-TLS
requests
Adding ESSID name to the list of conditions to be checked
to match this Service.

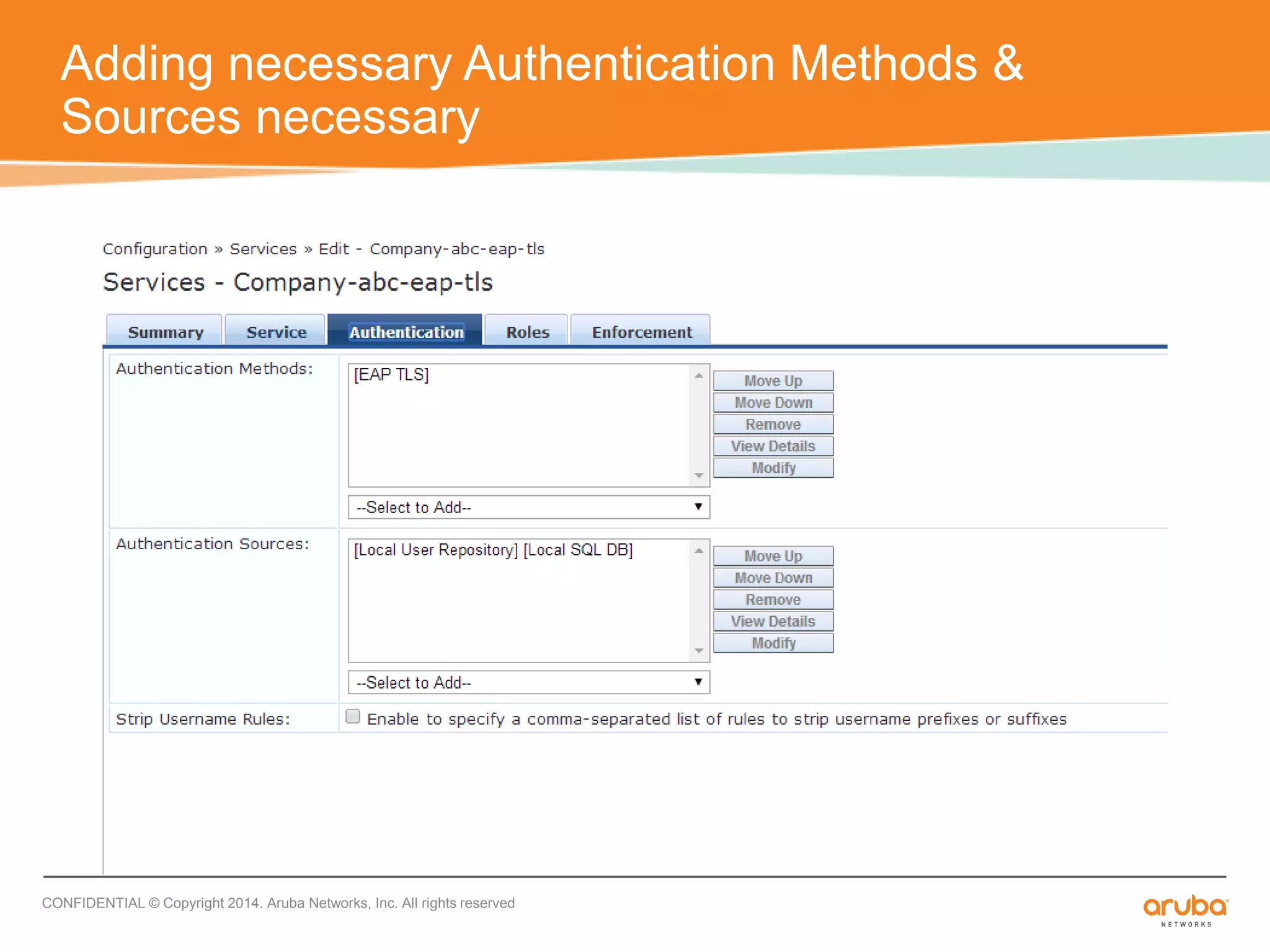

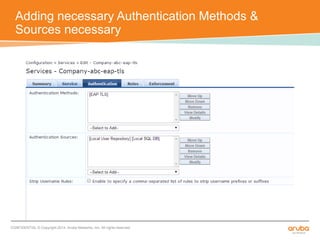

Adding necessary Authentication Methods &
Sources necessary

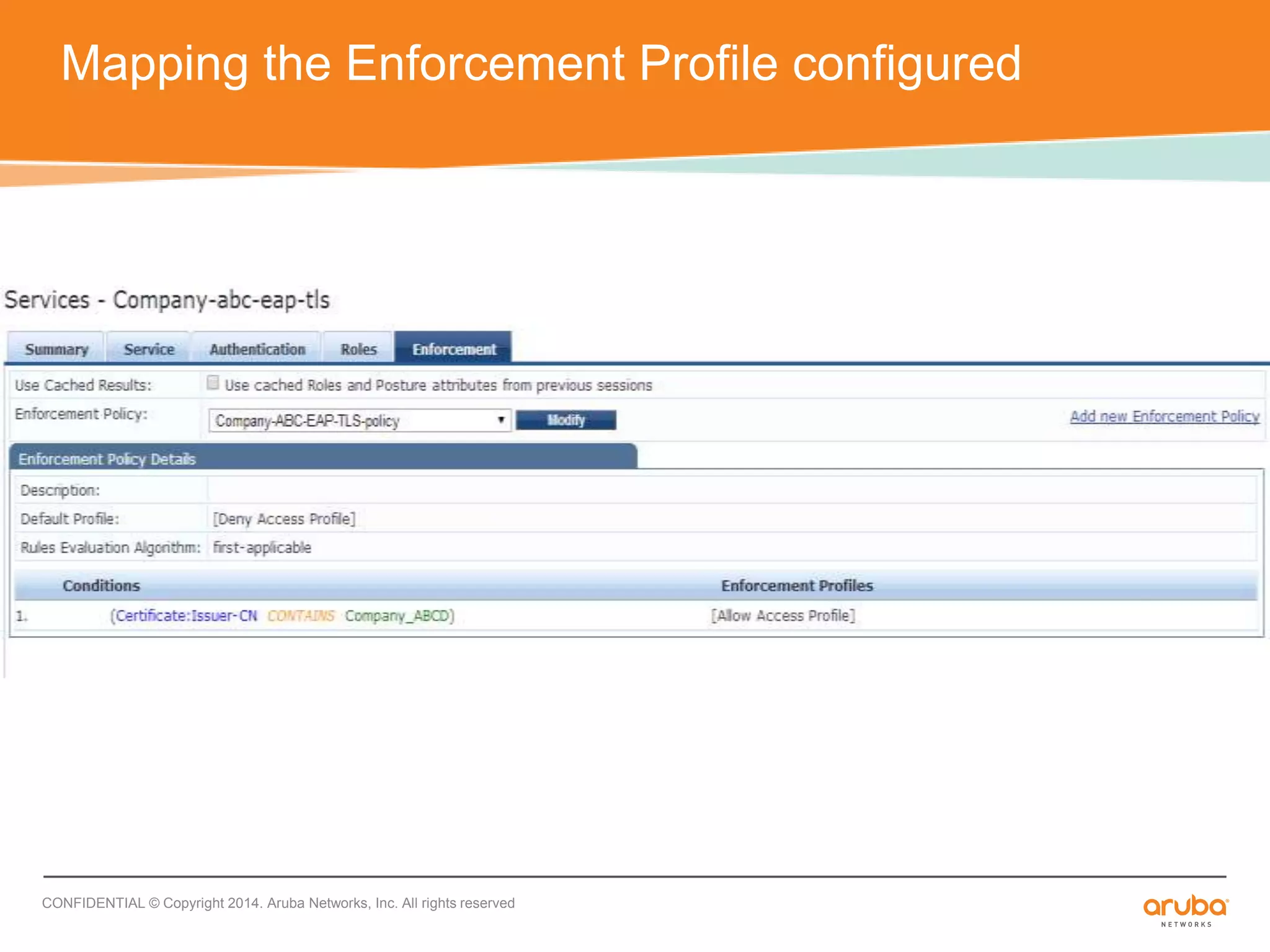

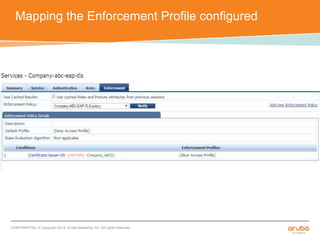

Mapping the Enforcement Profile configured

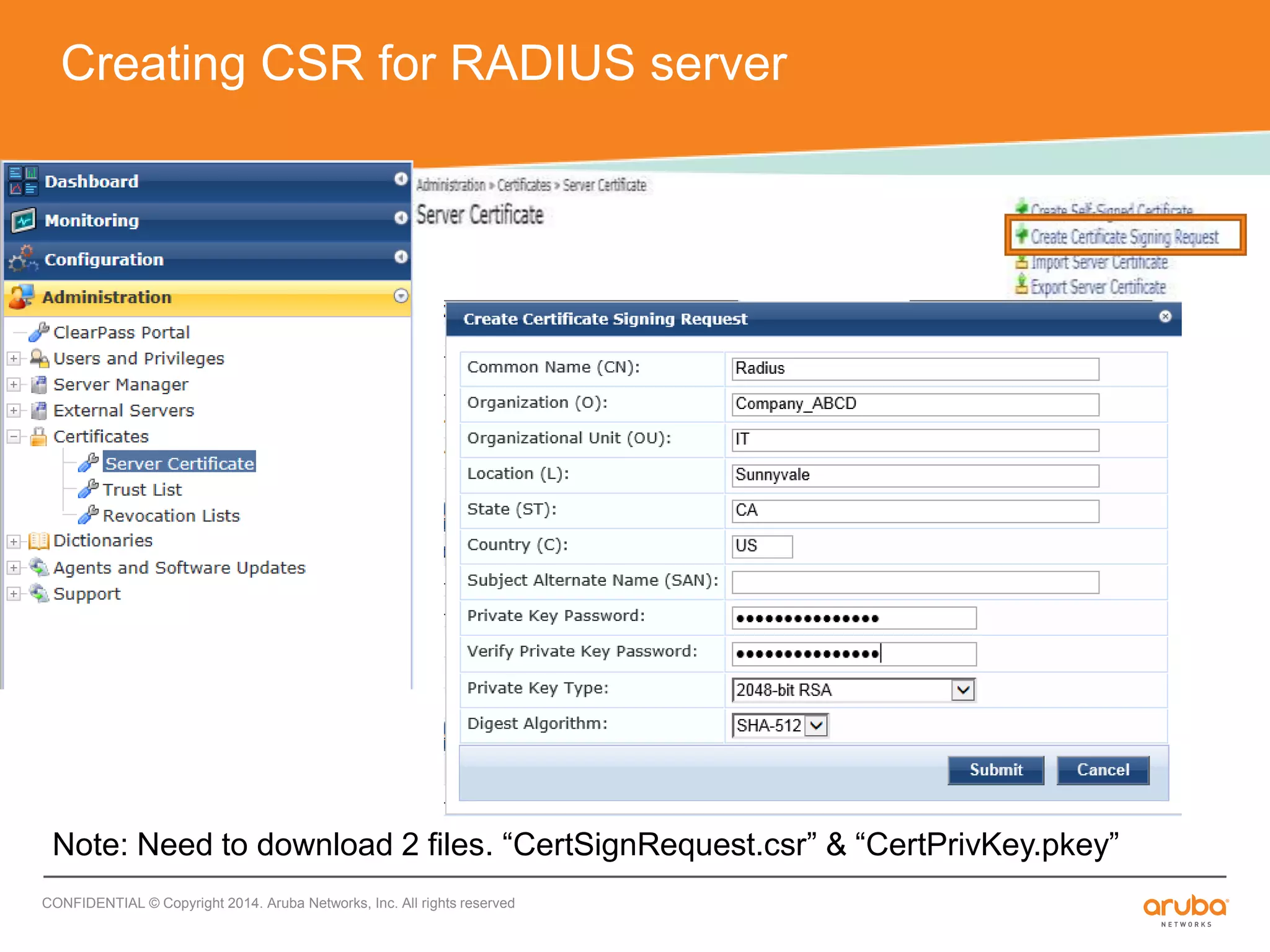

Creating CSR for RADIUS server
Note: Need to download 2 files. “CertSignRequest.csr” & “CertPrivKey.pkey”

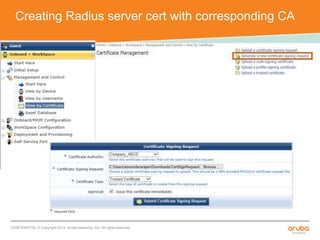

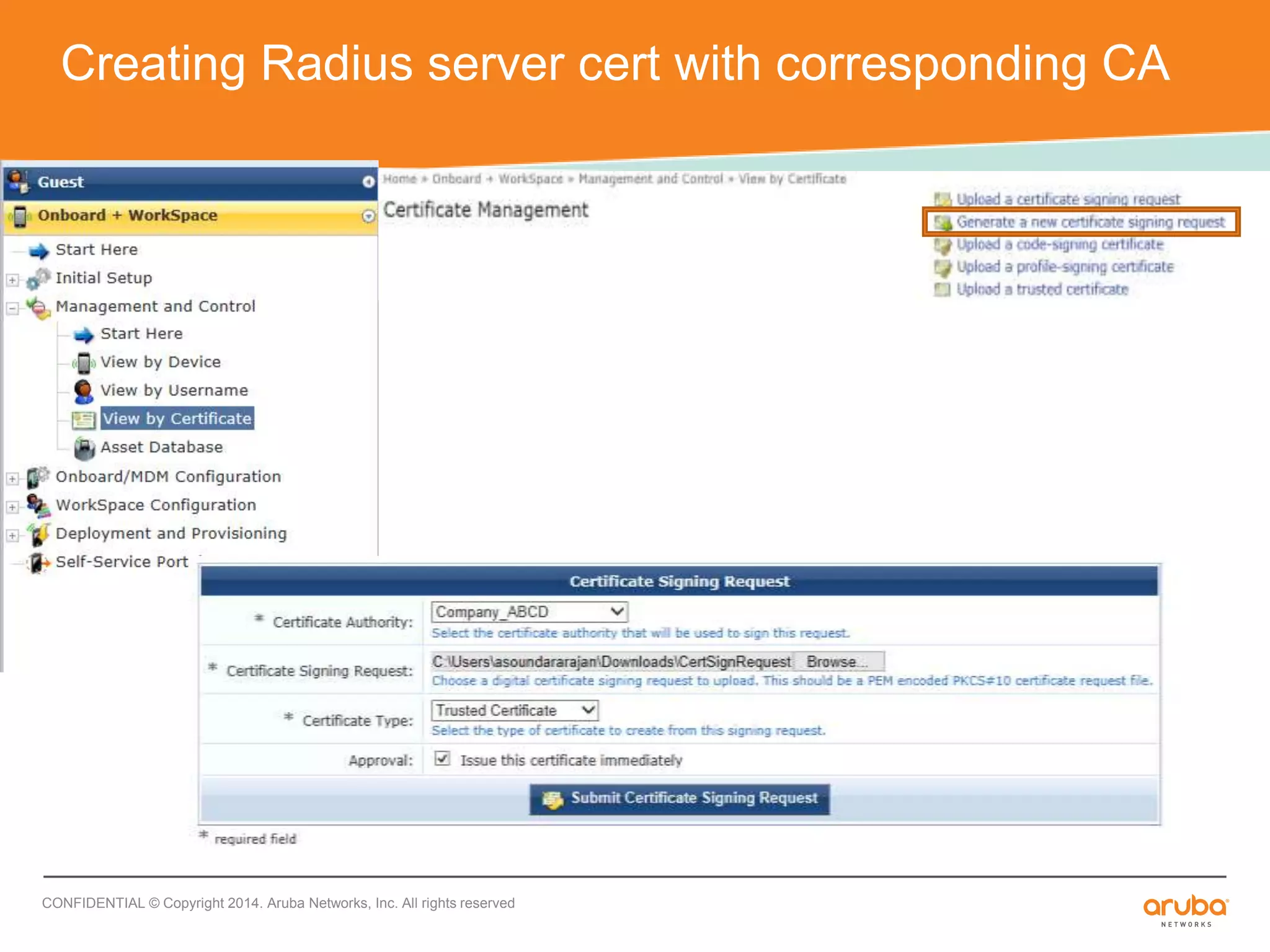

Creating Radius server cert with corresponding CA

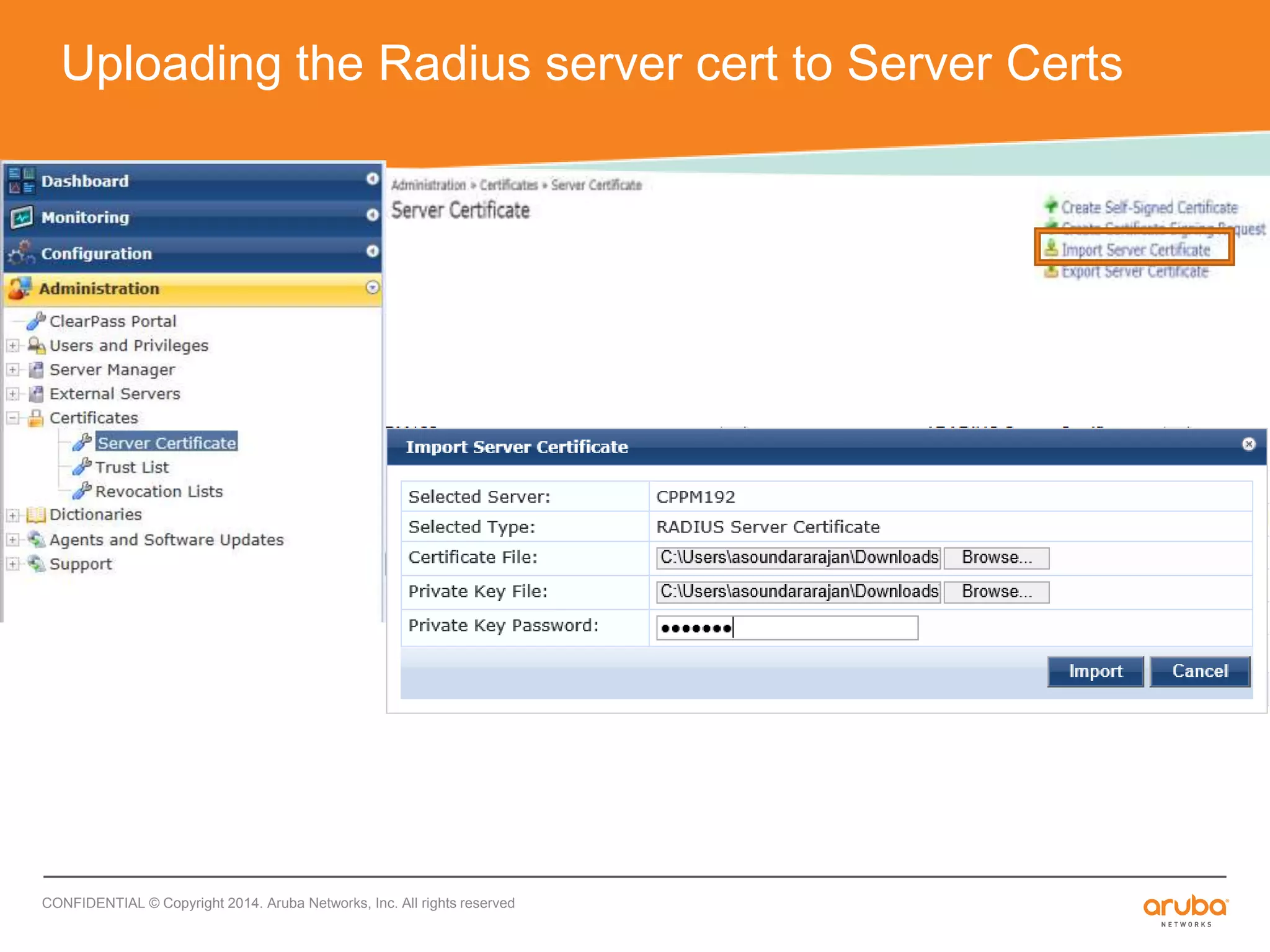

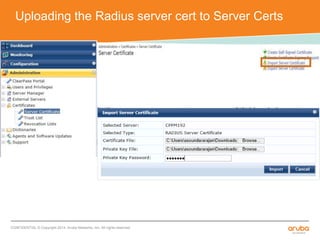

Uploading the Radius server cert to Server Certs

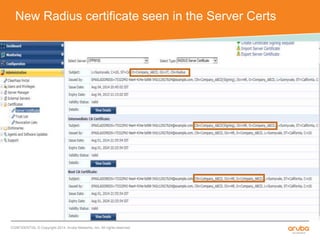

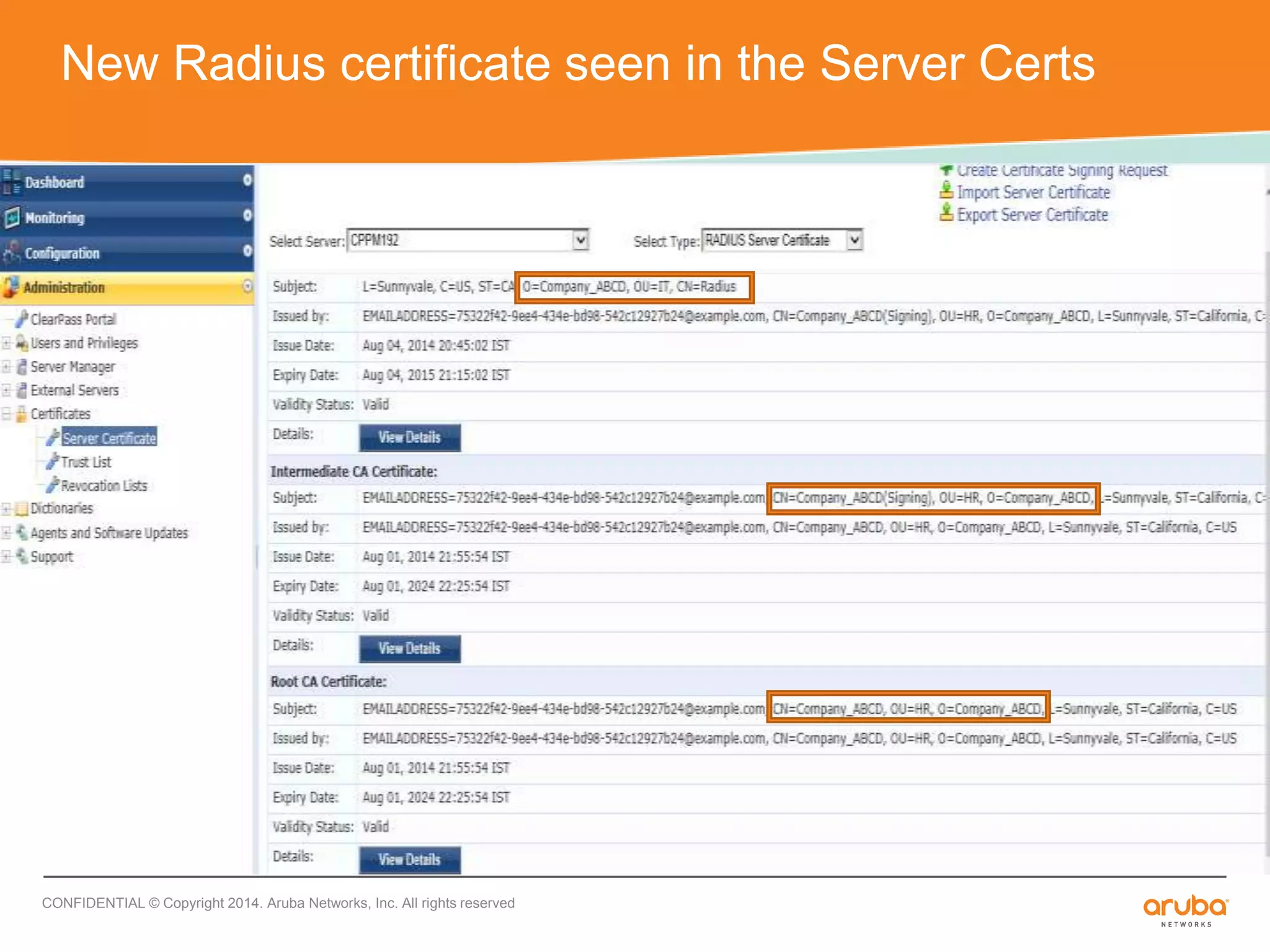

New Radius certificate seen in the Server Certs

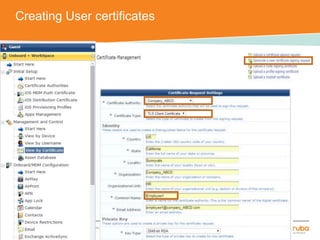

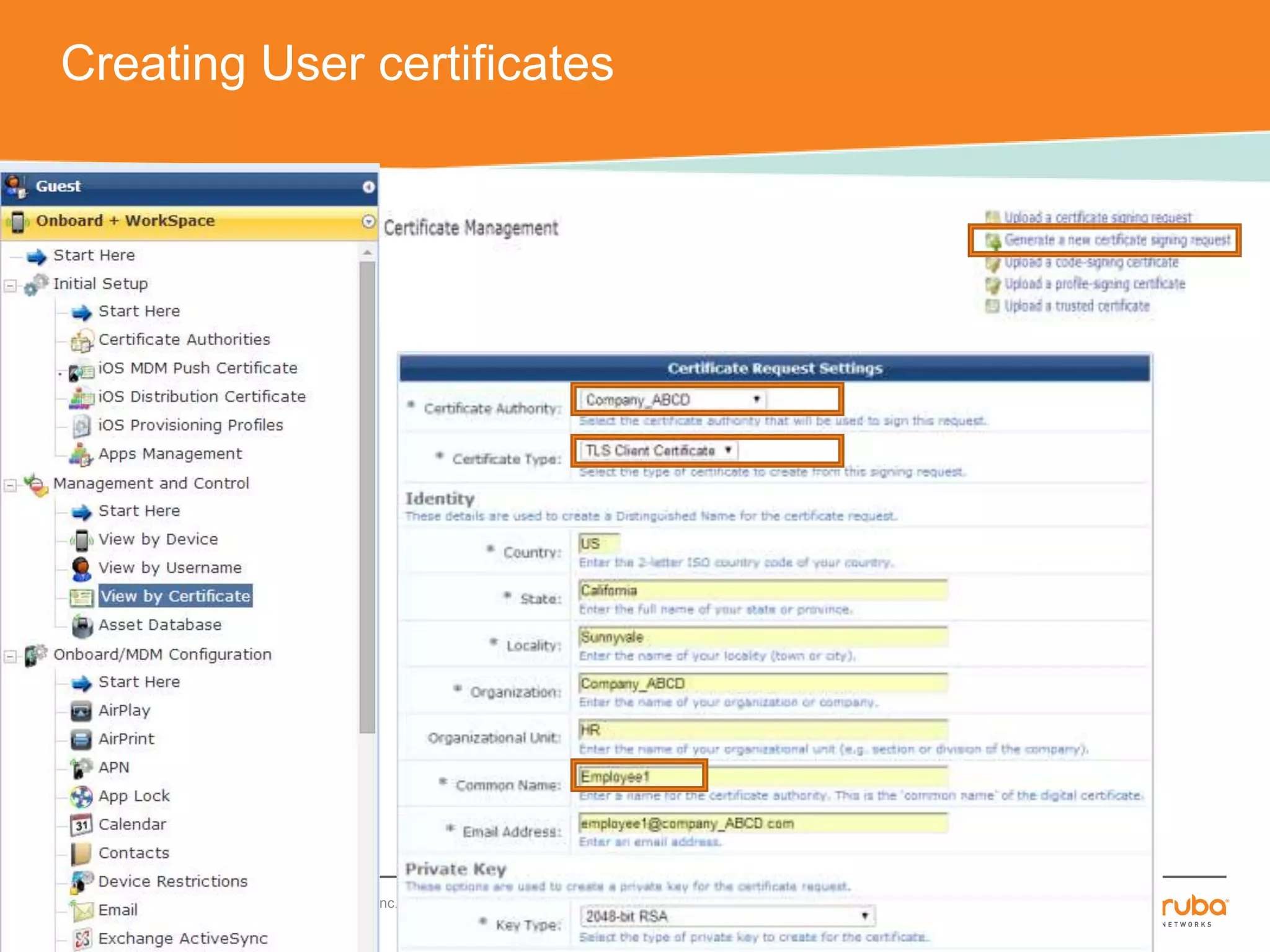

Creating User certificates

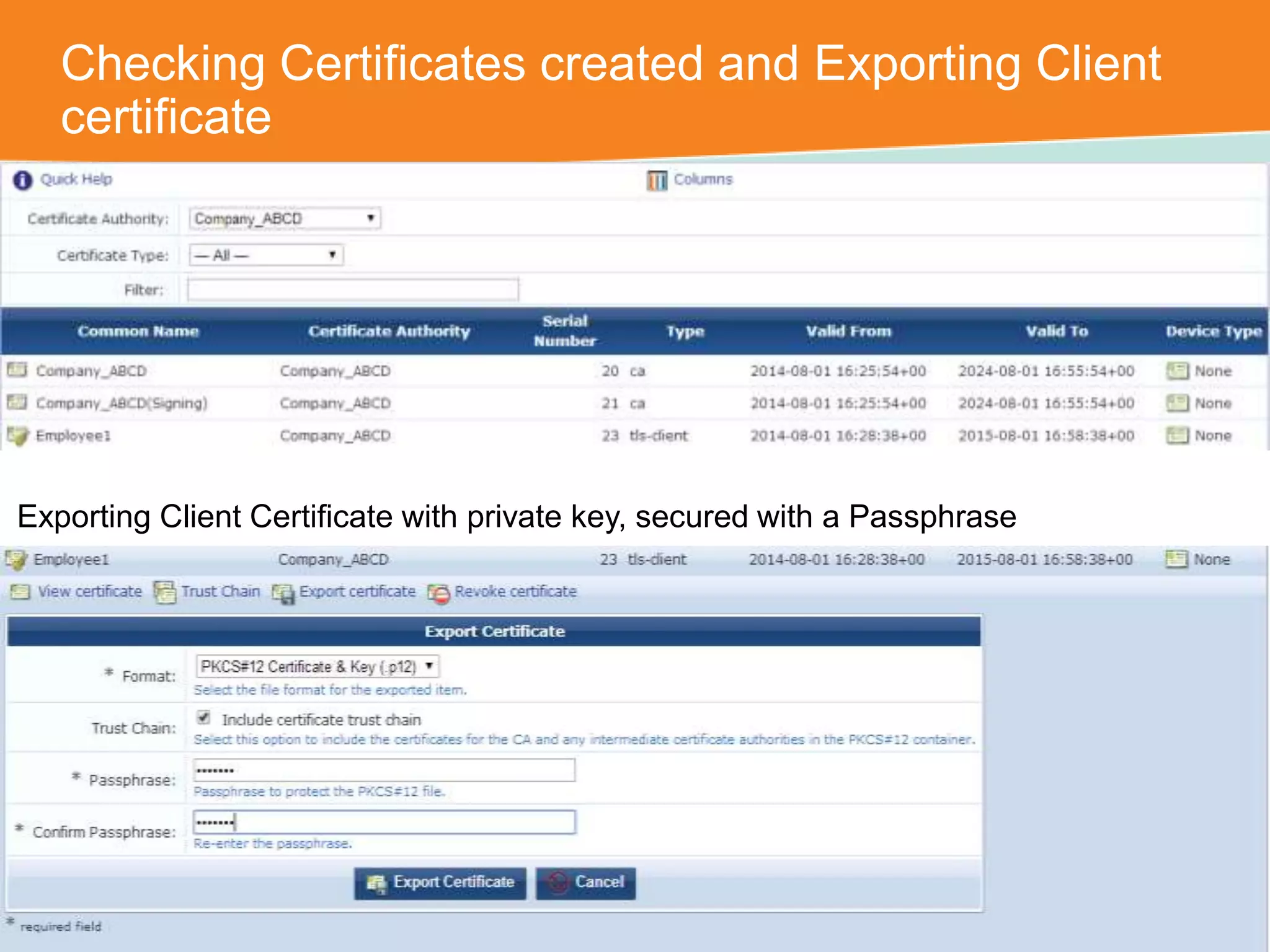

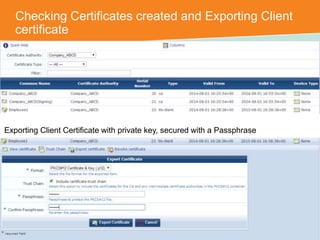

Checking Certificates created and Exporting Client
certificate
Exporting Client Certificate with private key, secured with a Passphrase

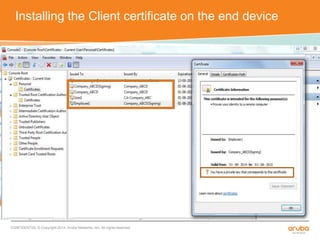

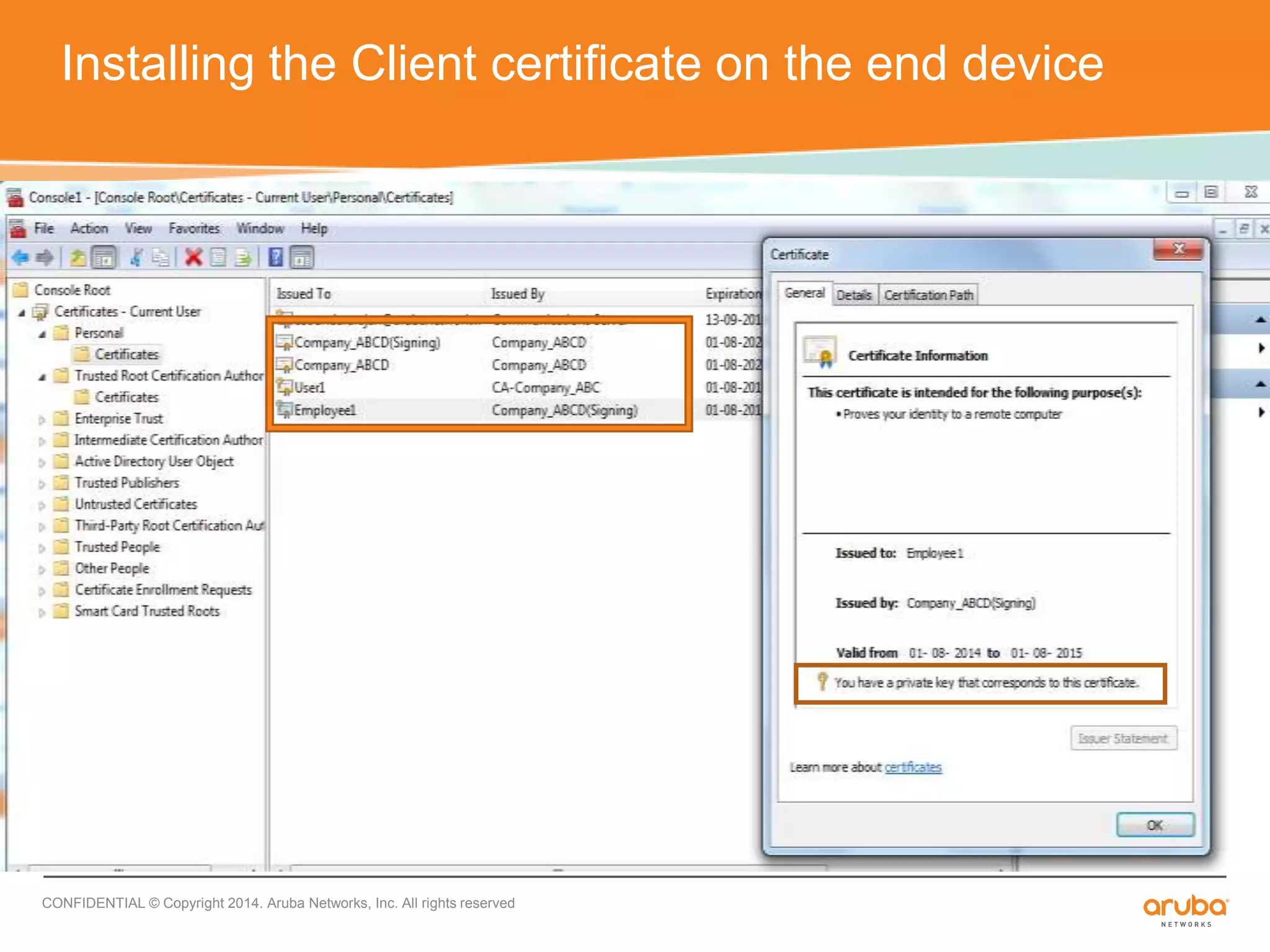

Installing the Client certificate on the end device

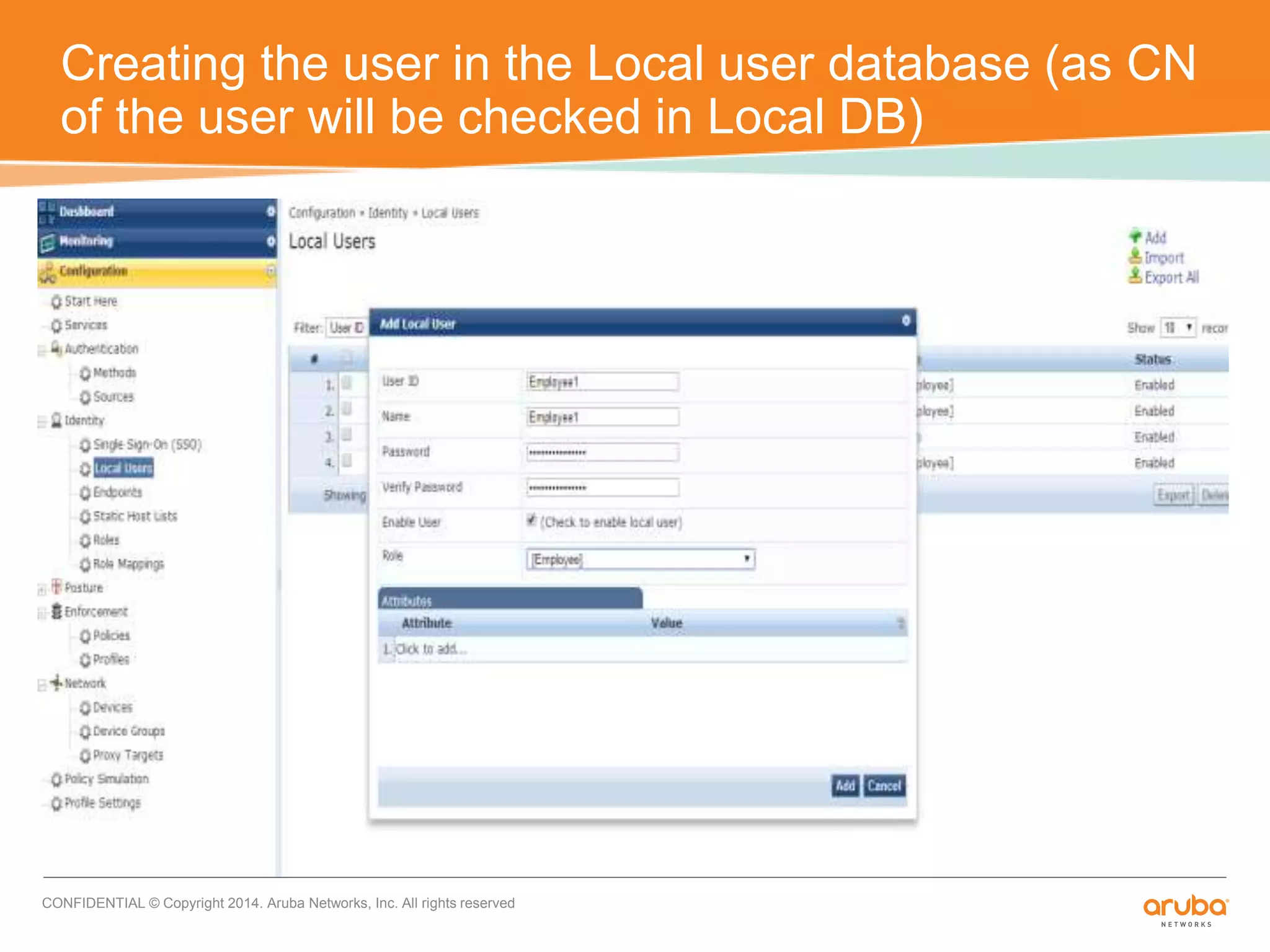

Creating the user in the Local user database (as CN
of the user will be checked in Local DB)

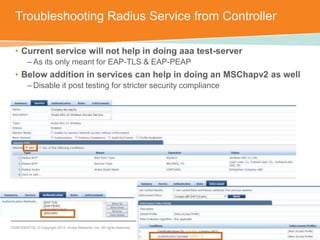

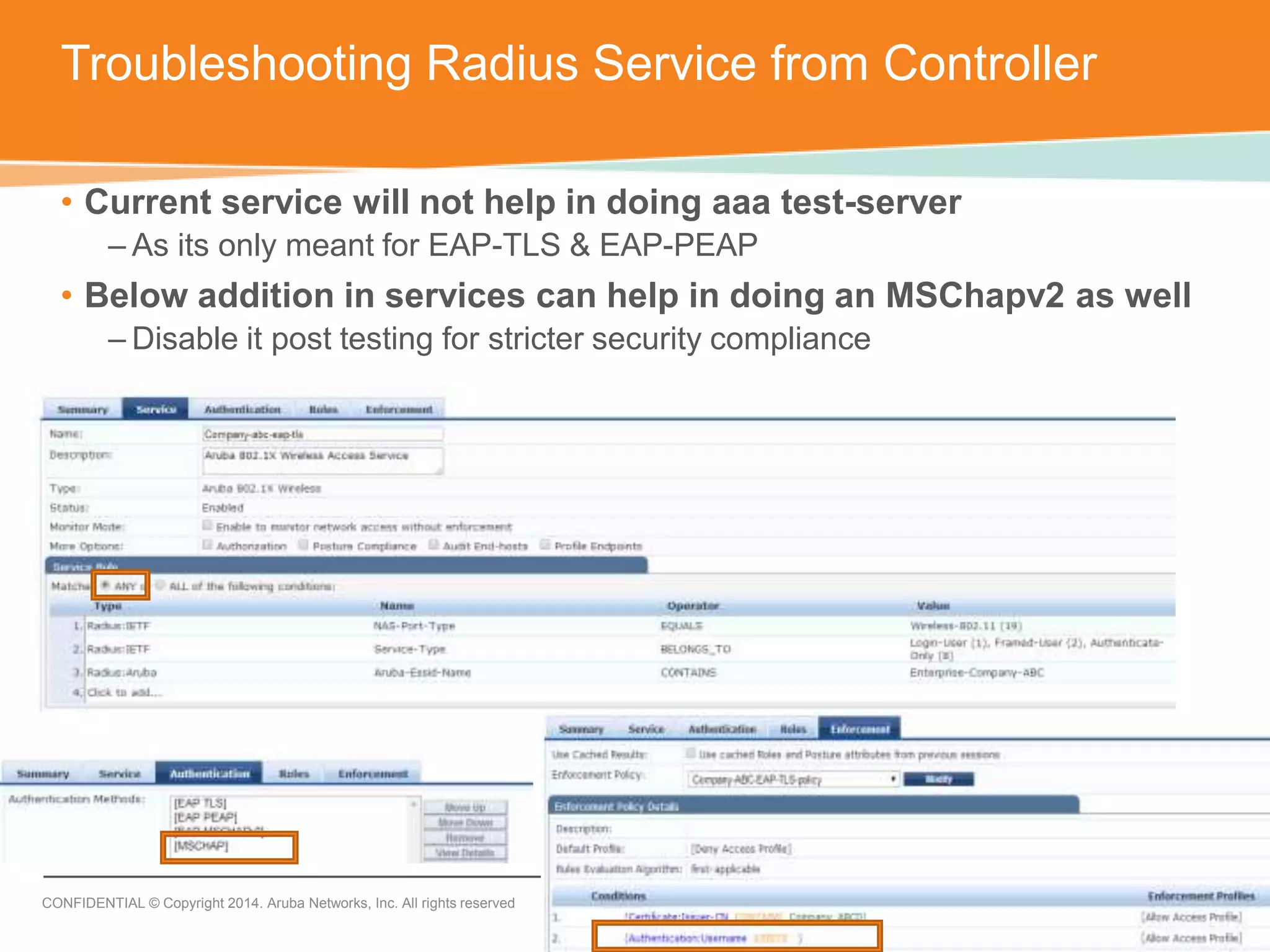

Troubleshooting Radius Service from Controller
• Current service will not help in doing aaa test-server
– As its only meant for EAP-TLS & EAP-PEAP
• Below addition in services can help in doing an MSChapv2 as well
– Disable it post testing for stricter security compliance

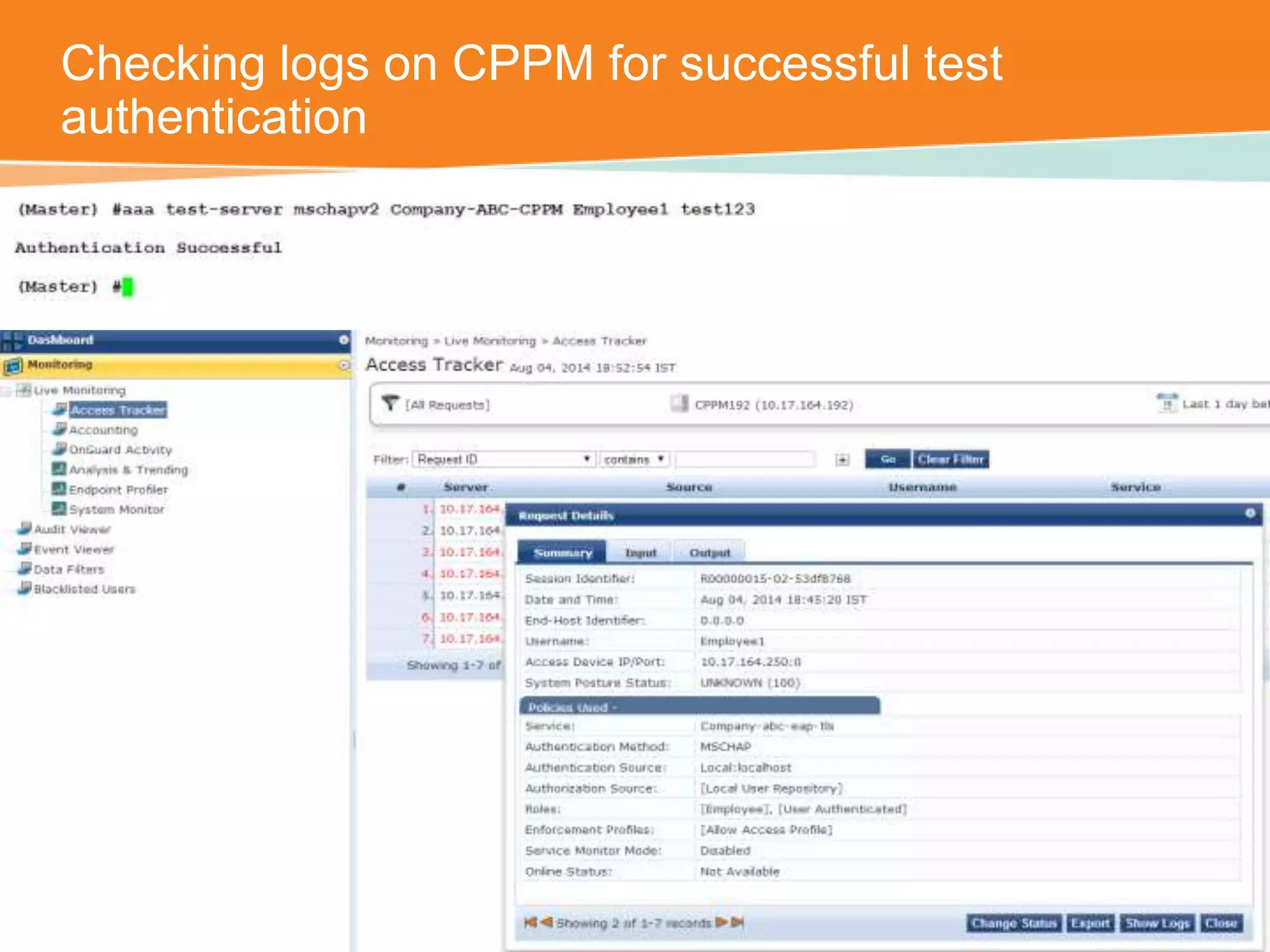

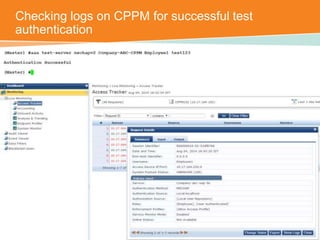

Checking logs on CPPM for successful test
authentication

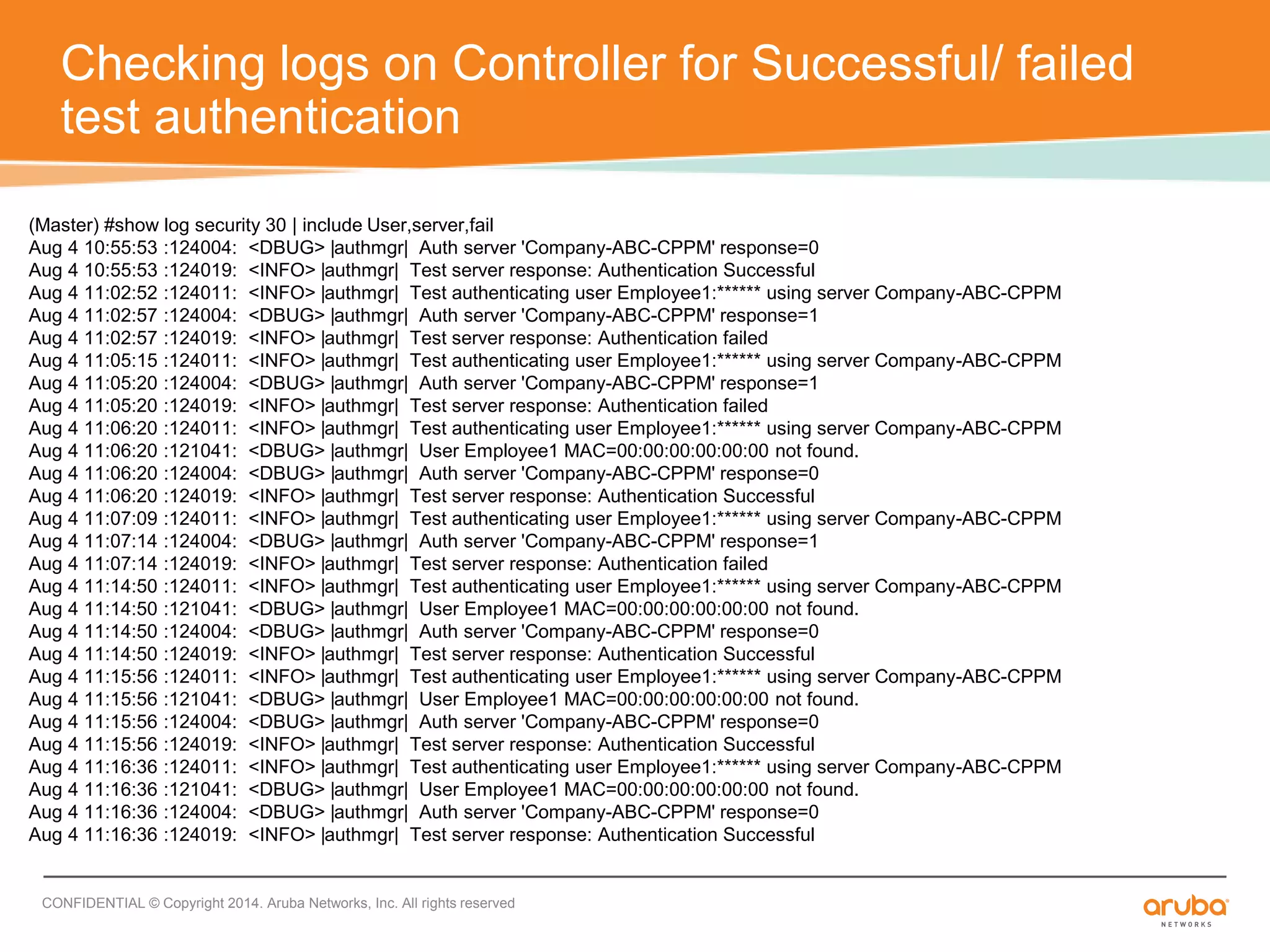

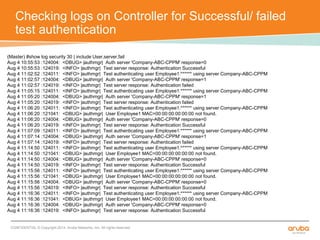

Checking logs on Controller for Successful/ failed
test authentication
(Master) #show log security 30 | include User,server,fail
Aug 4 10:55:53 :124004: <DBUG> |authmgr| Auth server 'Company-ABC-CPPM' response=0
Aug 4 10:55:53 :124019: <INFO> |authmgr| Test server response: Authentication Successful
Aug 4 11:02:52 :124011: <INFO> |authmgr| Test authenticating user Employee1:****** using server Company-ABC-CPPM
Aug 4 11:02:57 :124019: <INFO> |authmgr| Test server response: Authentication failed
Aug 4 11:06:20 :121041: <DBUG> |authmgr| User Employee1 MAC=00:00:00:00:00:00 not found.

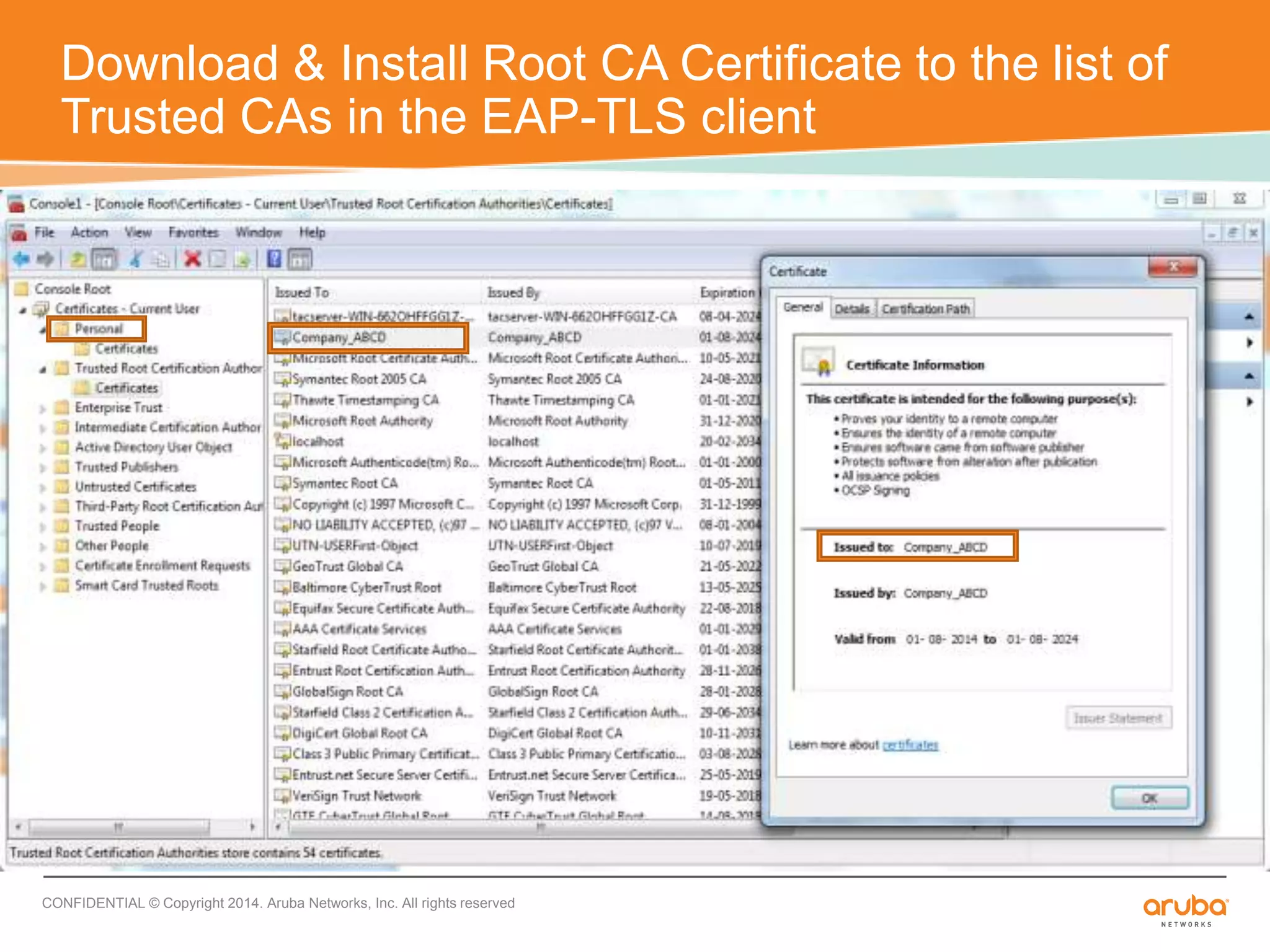

Download & Install Root CA Certificate to the list of
Trusted CAs in the EAP-TLS client

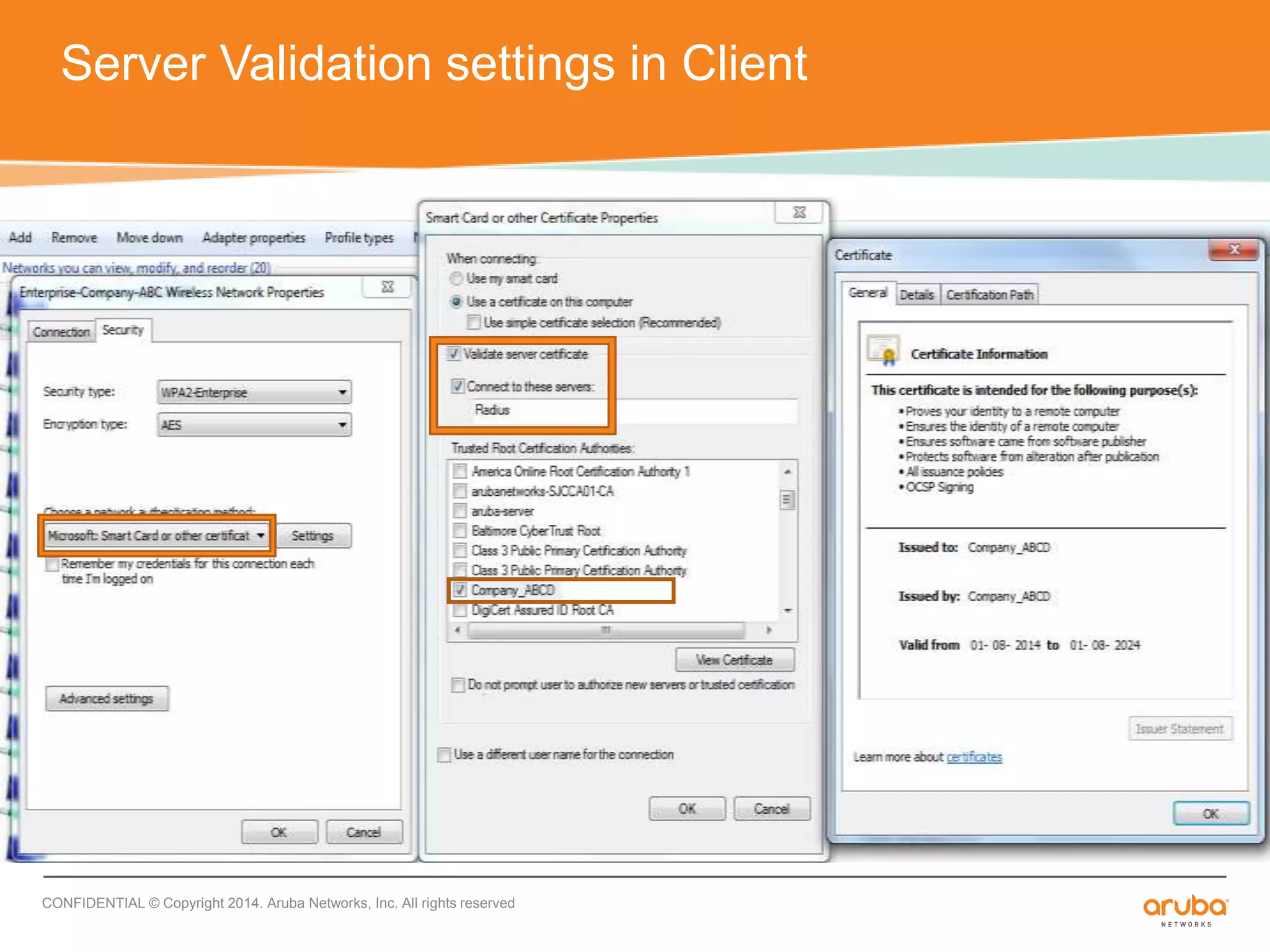

Server Validation settings in Client

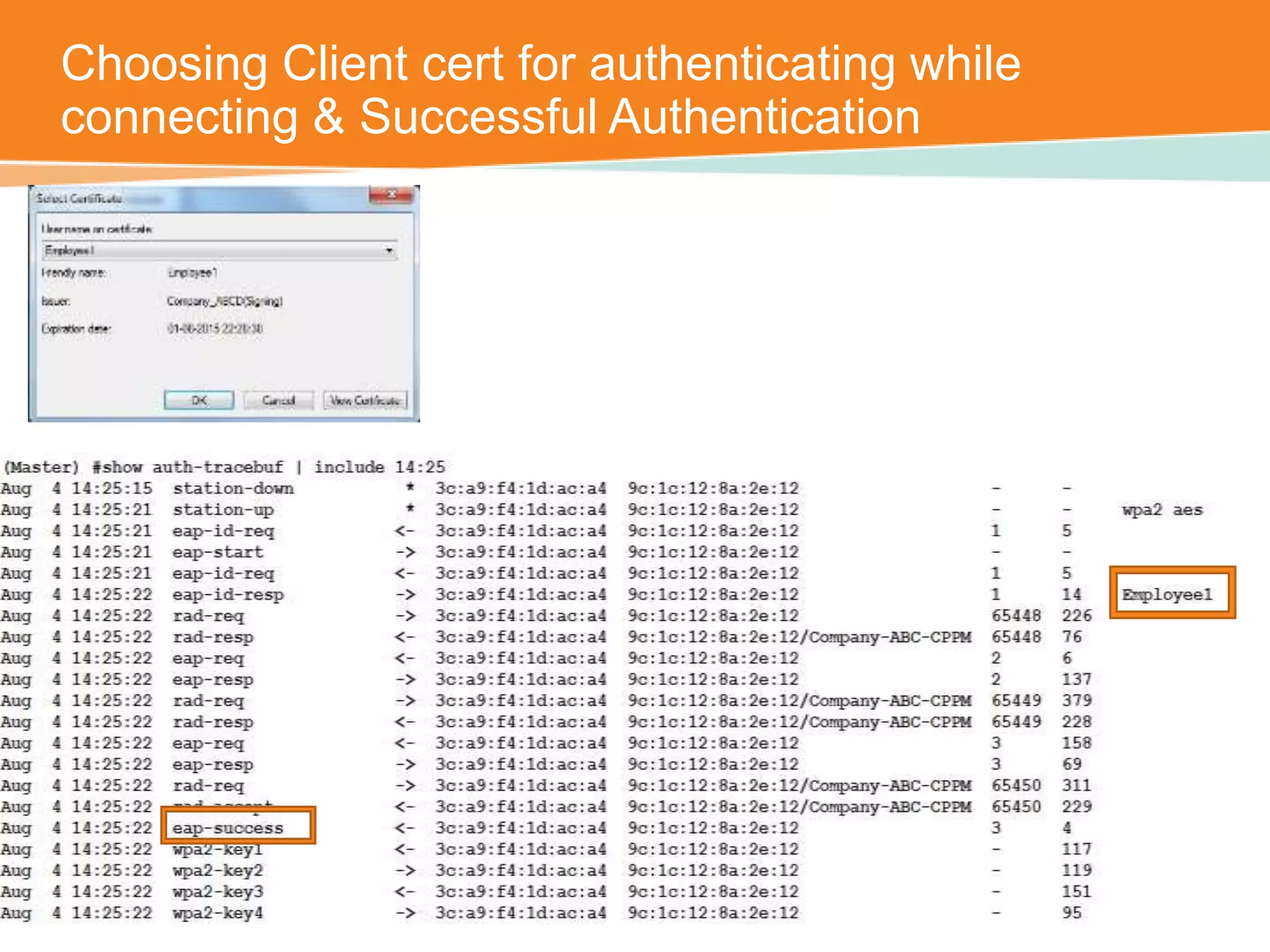

Choosing Client cert for authenticating while
connecting & Successful Authentication

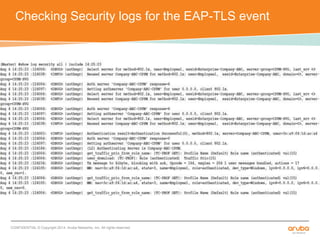

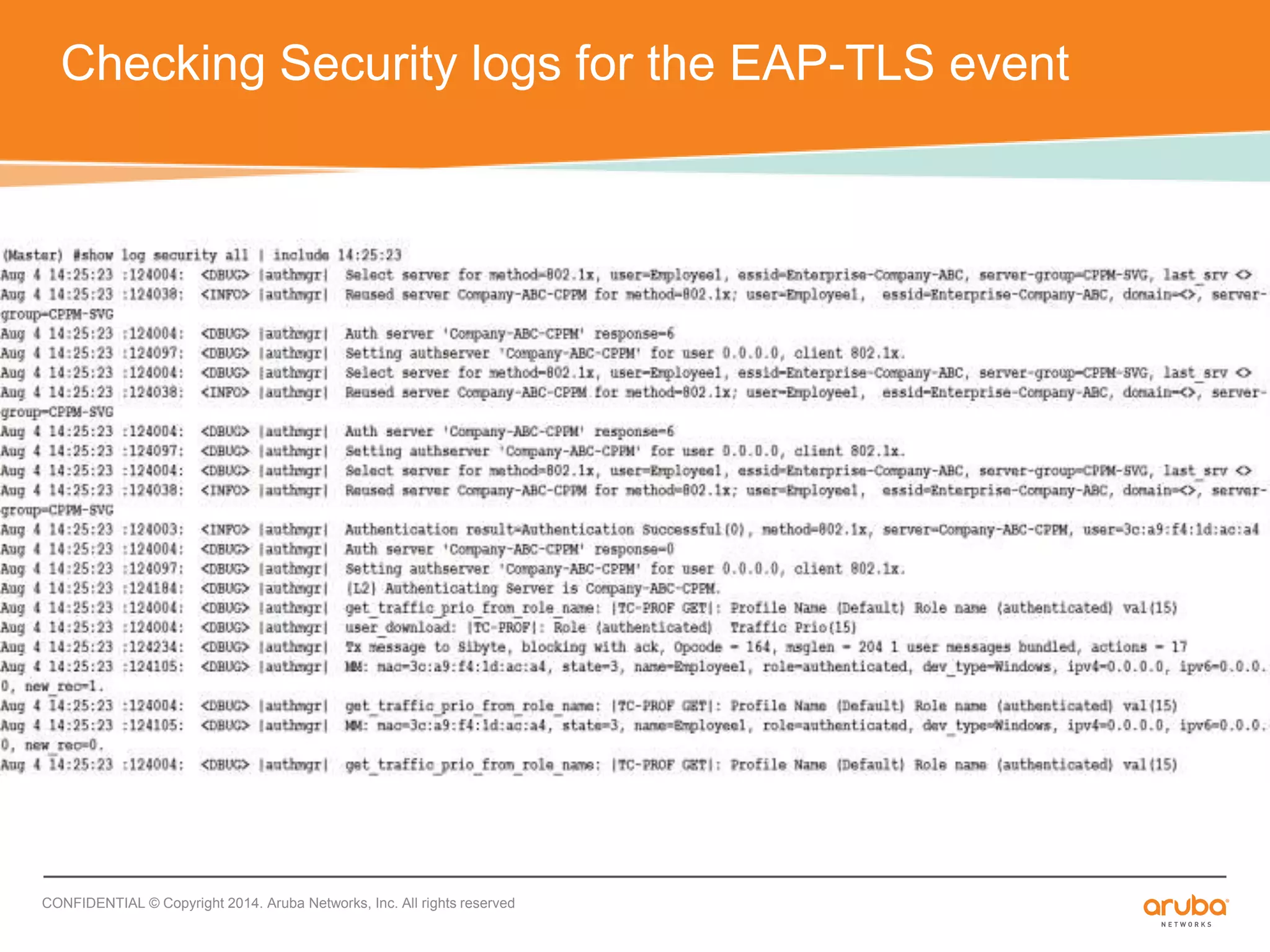

Checking Security logs for the EAP-TLS event

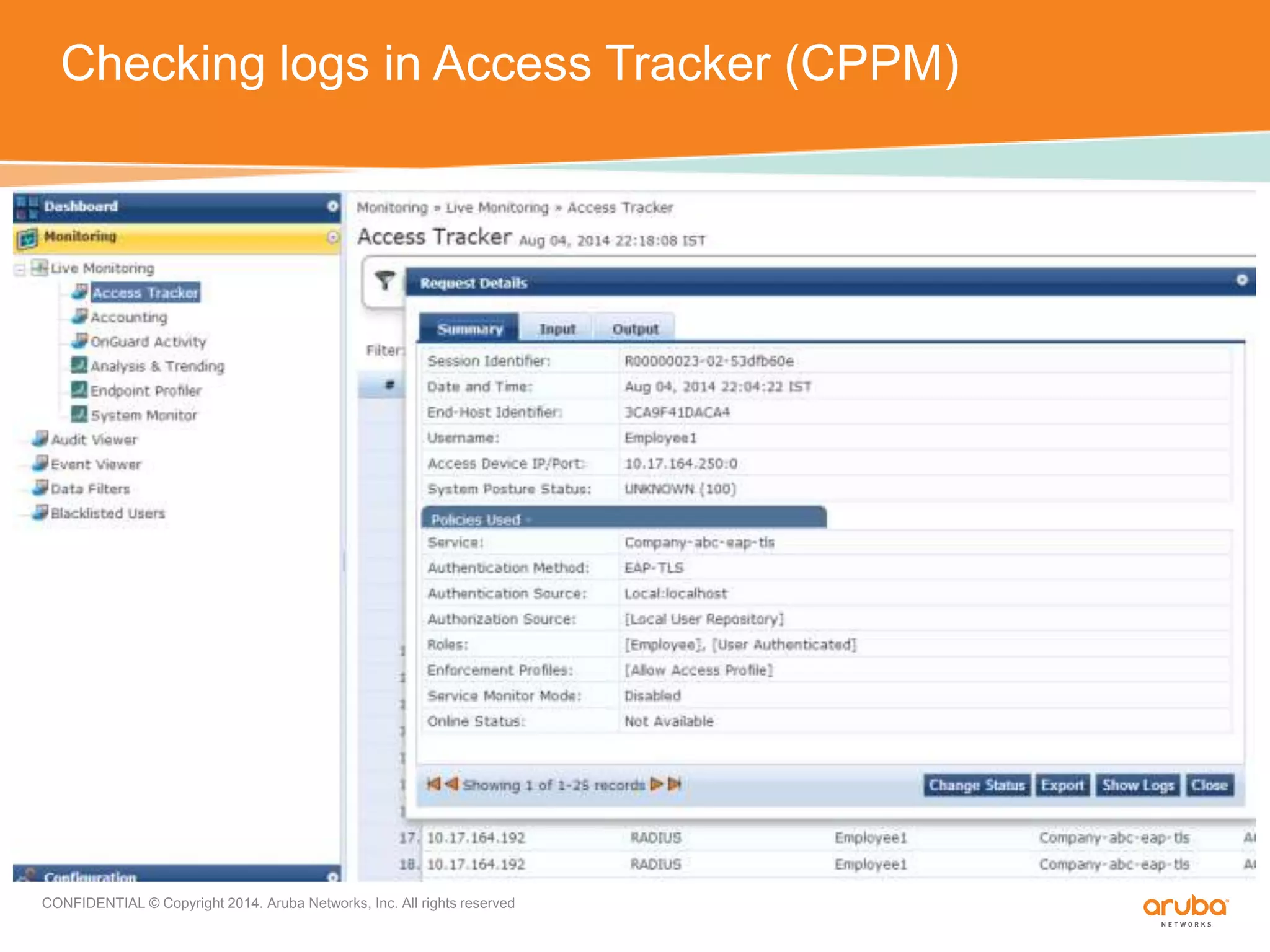

Checking logs in Access Tracker (CPPM)

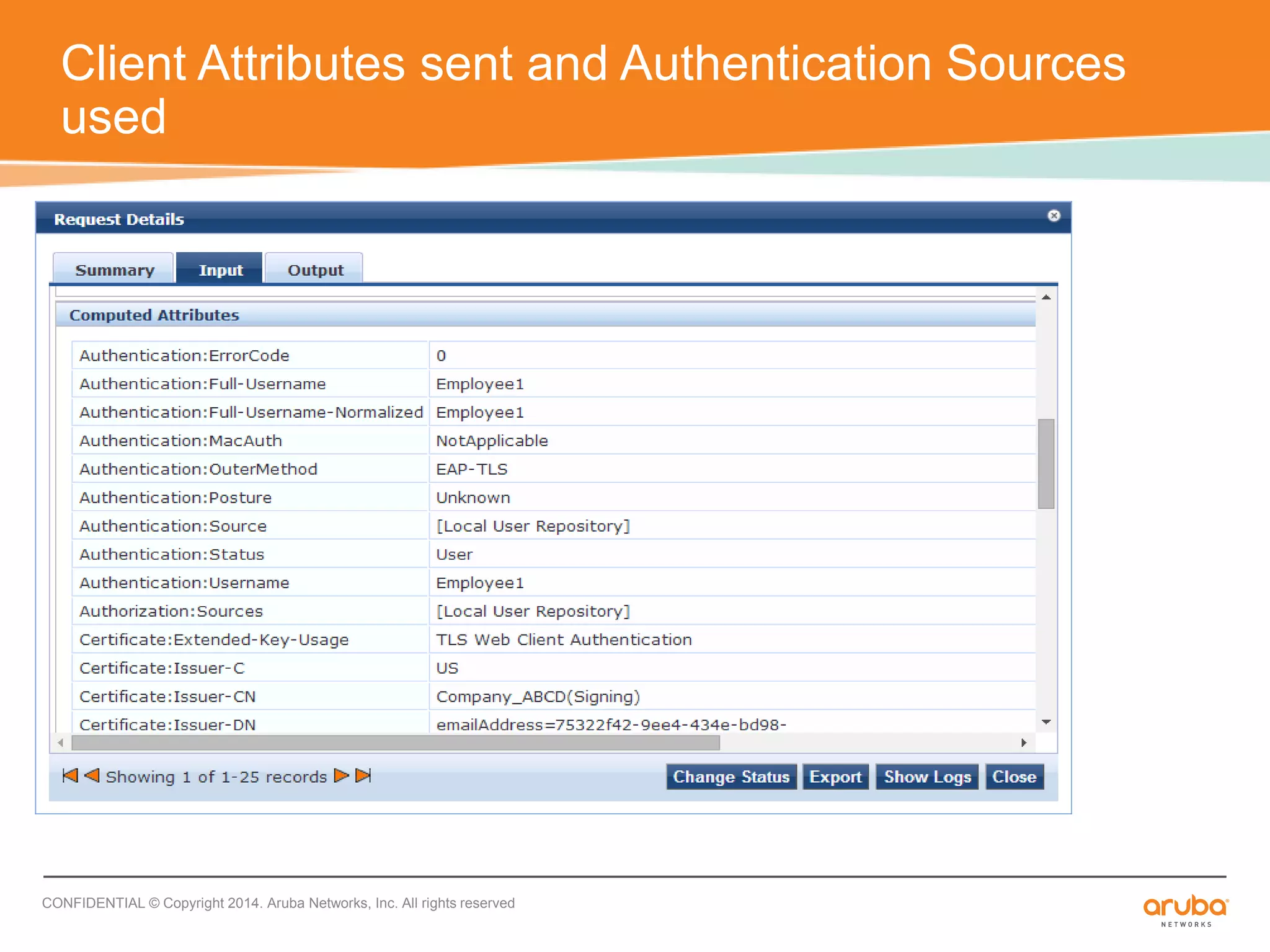

Client Attributes sent and Authentication Sources
used

EAP-TLS WITH TERMINATION
ON CONTROLLER

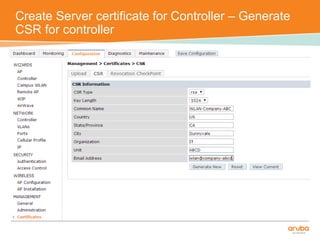

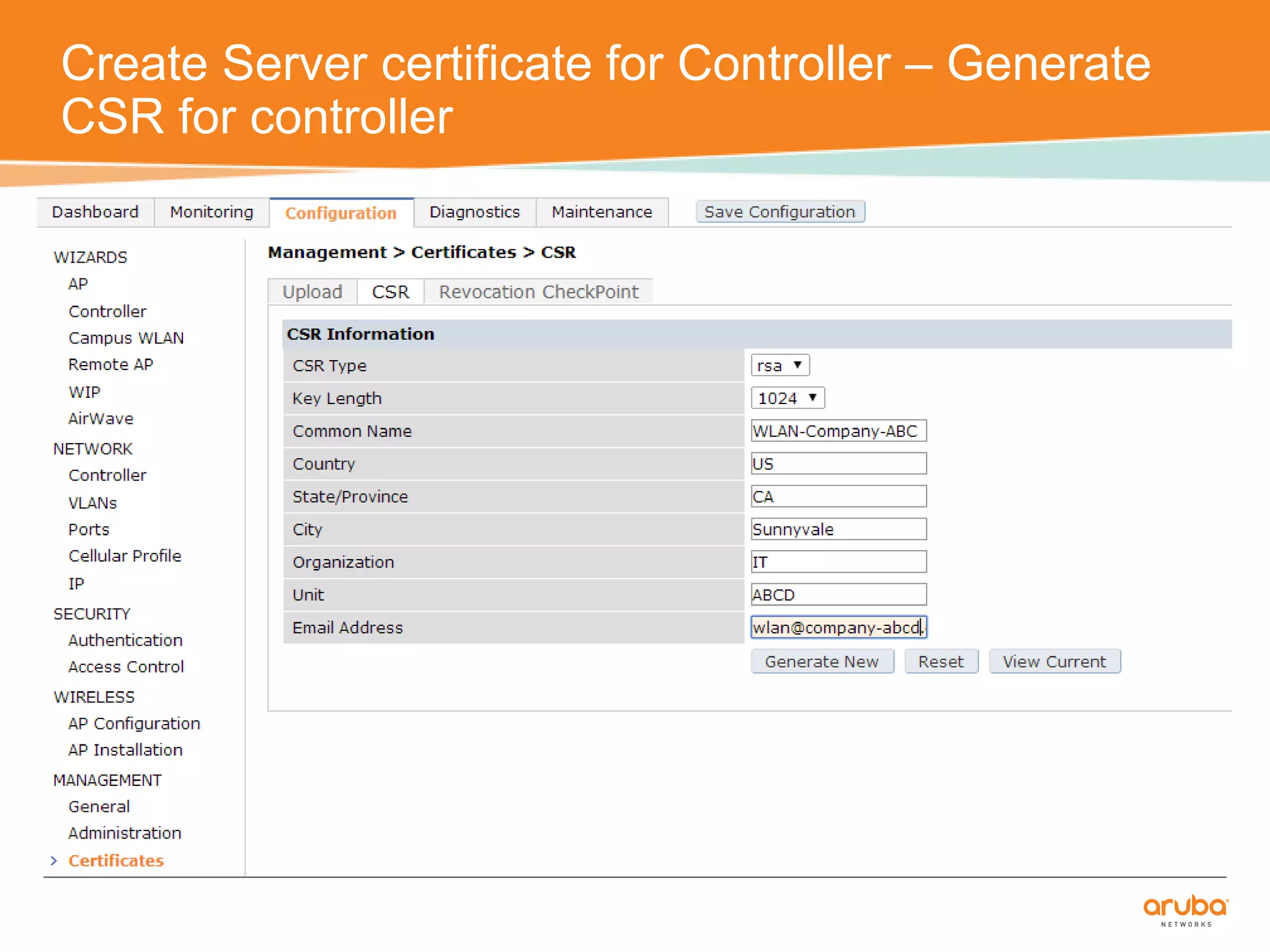

Create Server certificate for Controller – Generate
CSR for controller

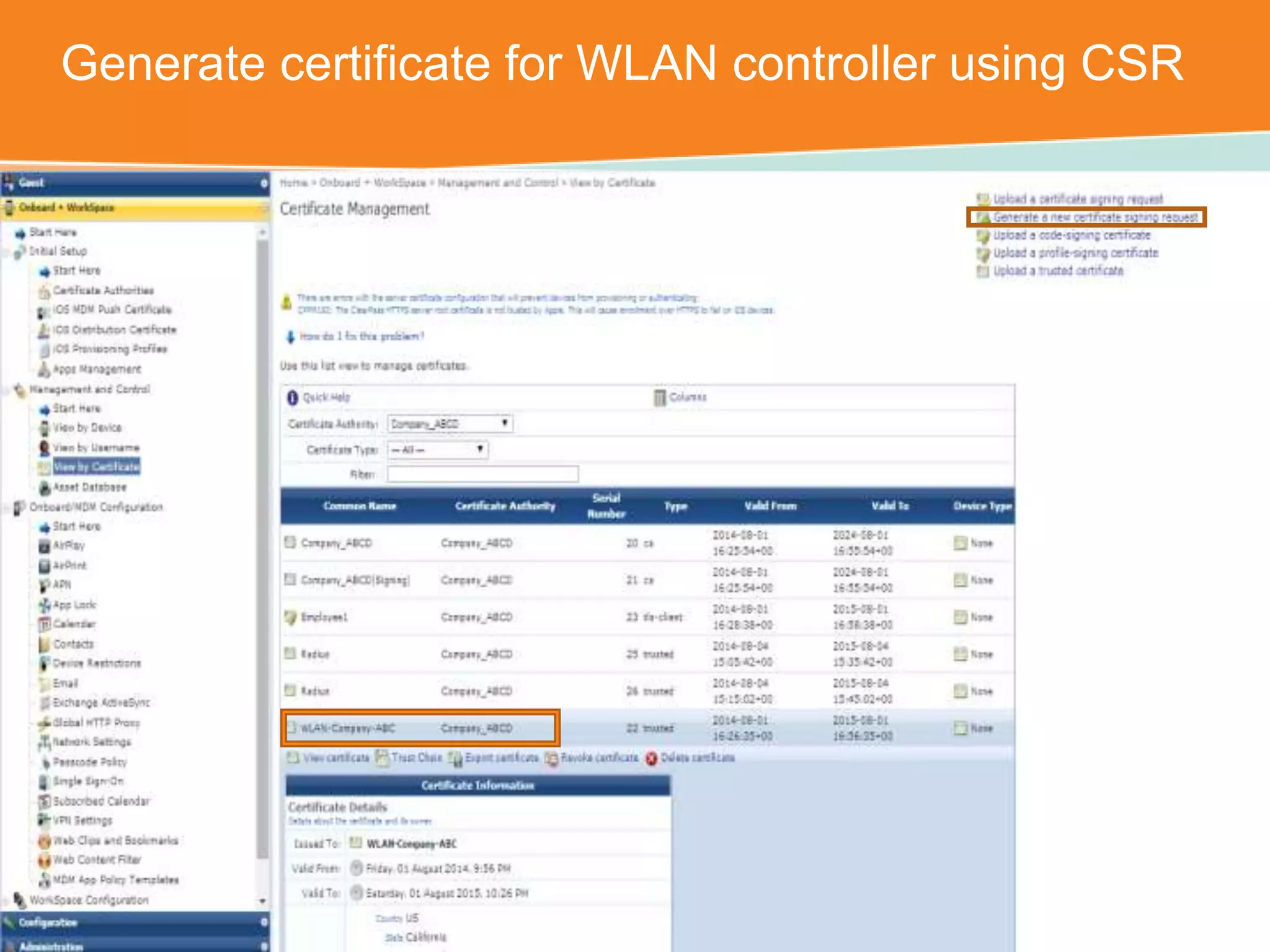

Generate certificate for WLAN controller using CSR

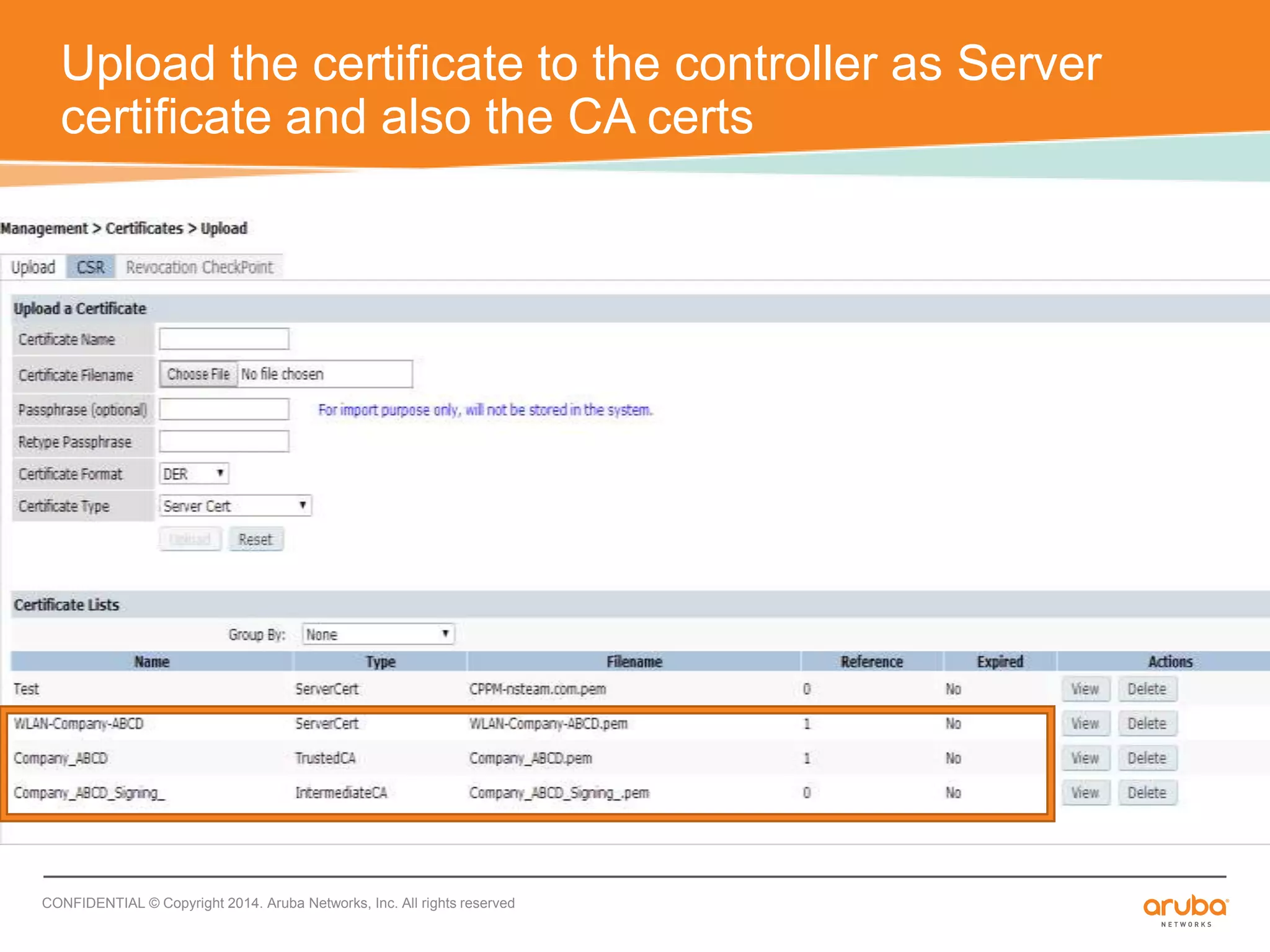

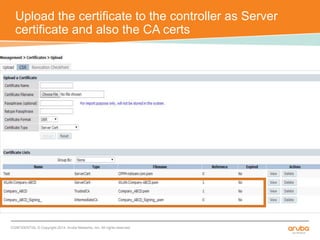

Upload the certificate to the controller as Server
certificate and also the CA certs

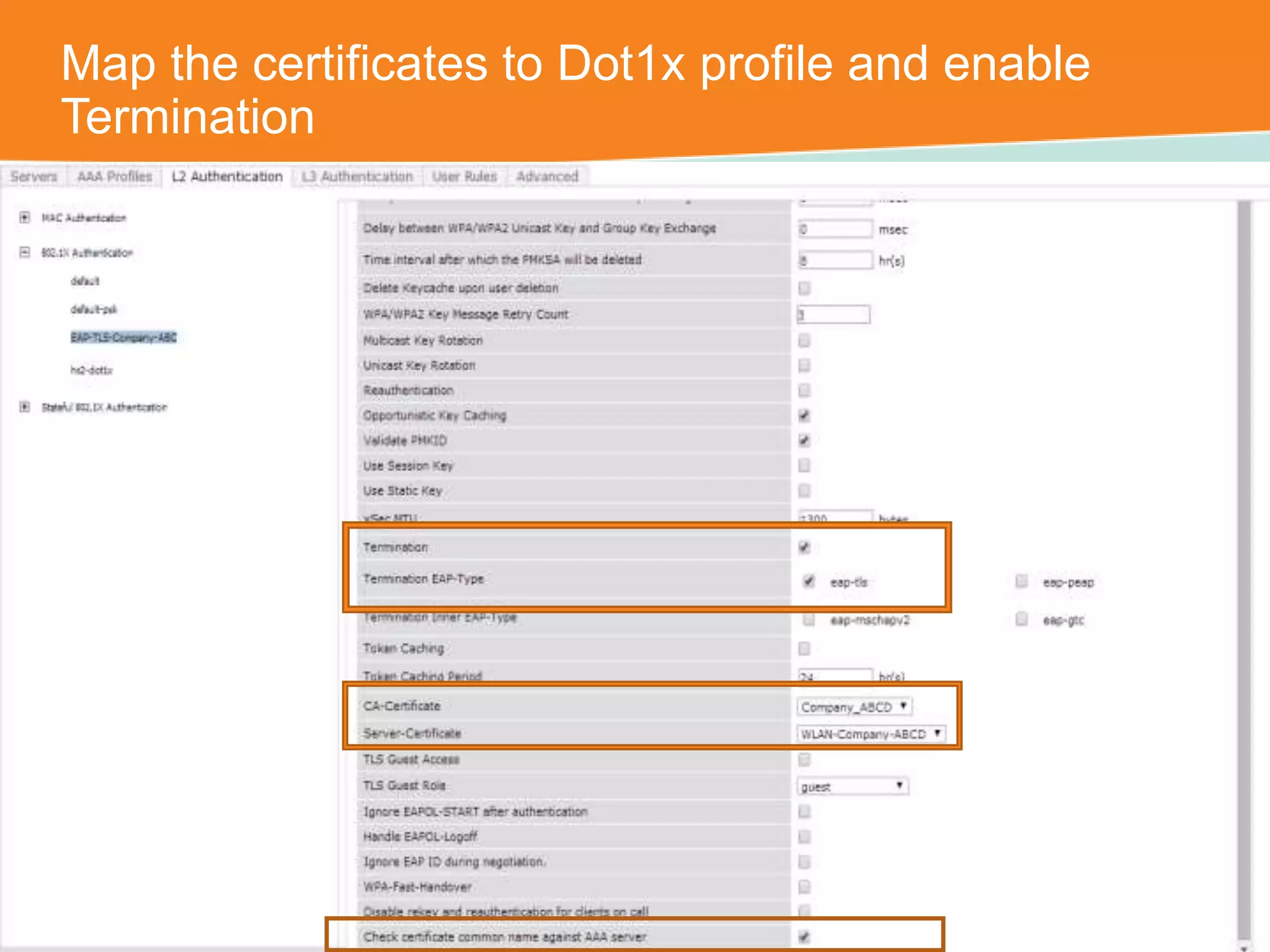

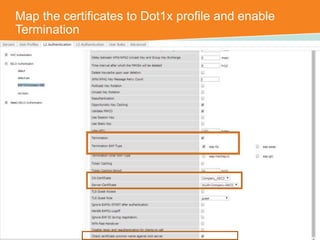

Map the certificates to Dot1x profile and enable
Termination

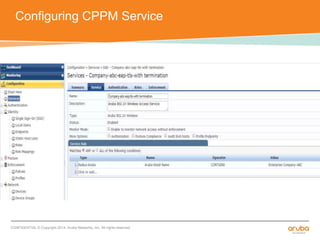

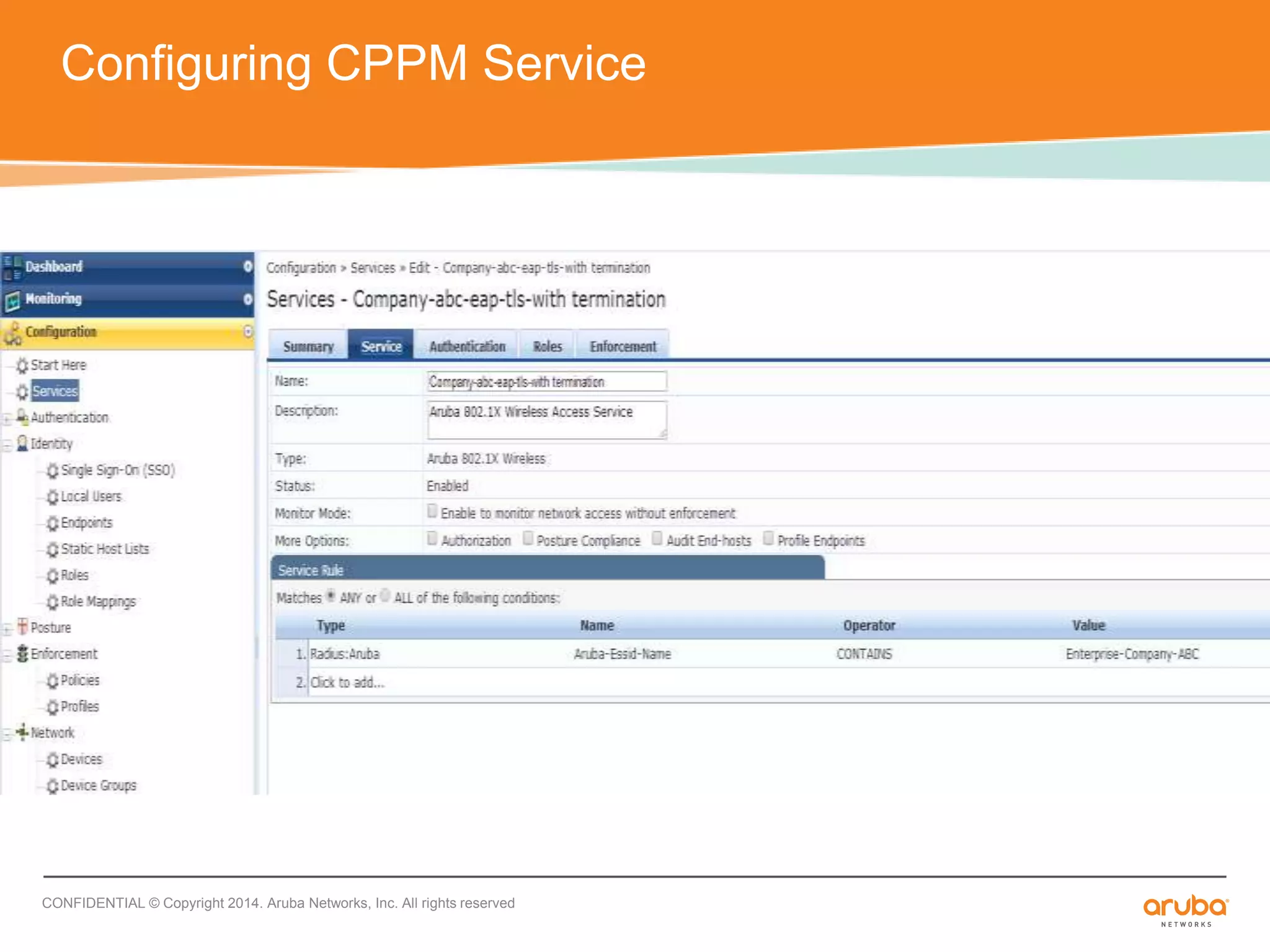

Configuring CPPM Service

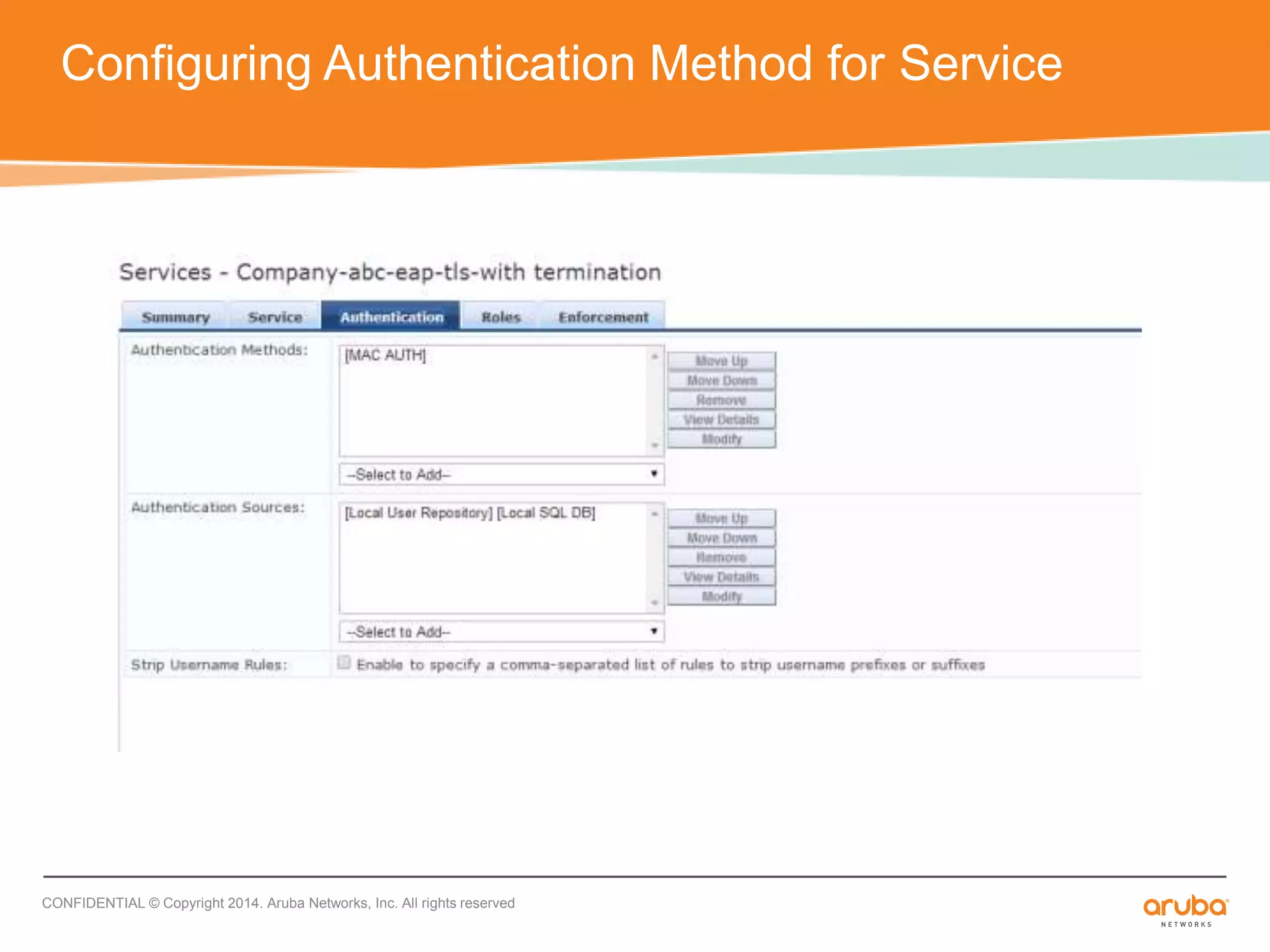

Configuring Authentication Method for Service

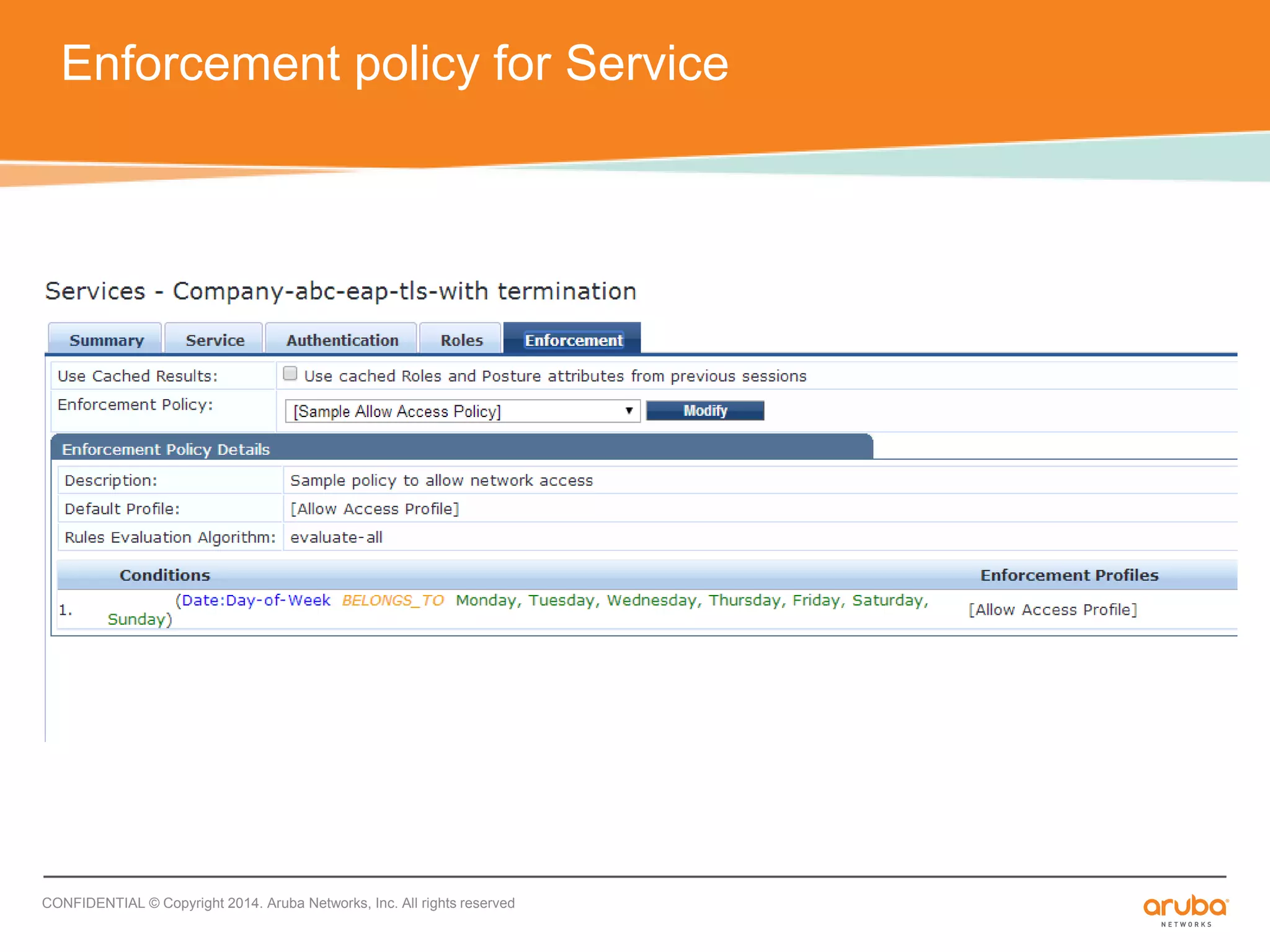

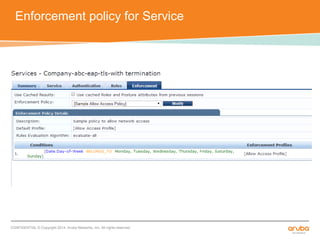

Enforcement policy for Service

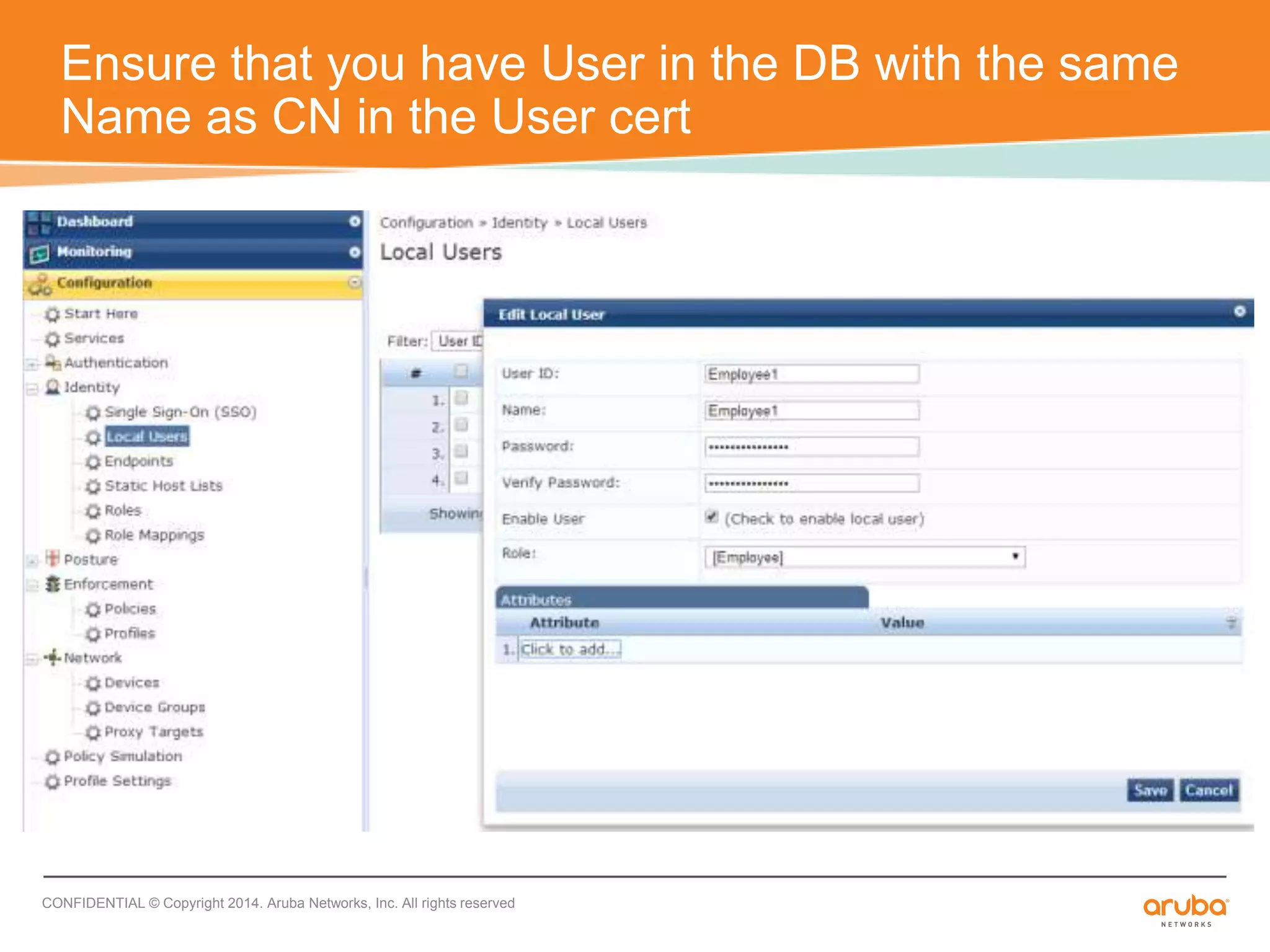

Ensure that you have User in the DB with the same
Name as CN in the User cert

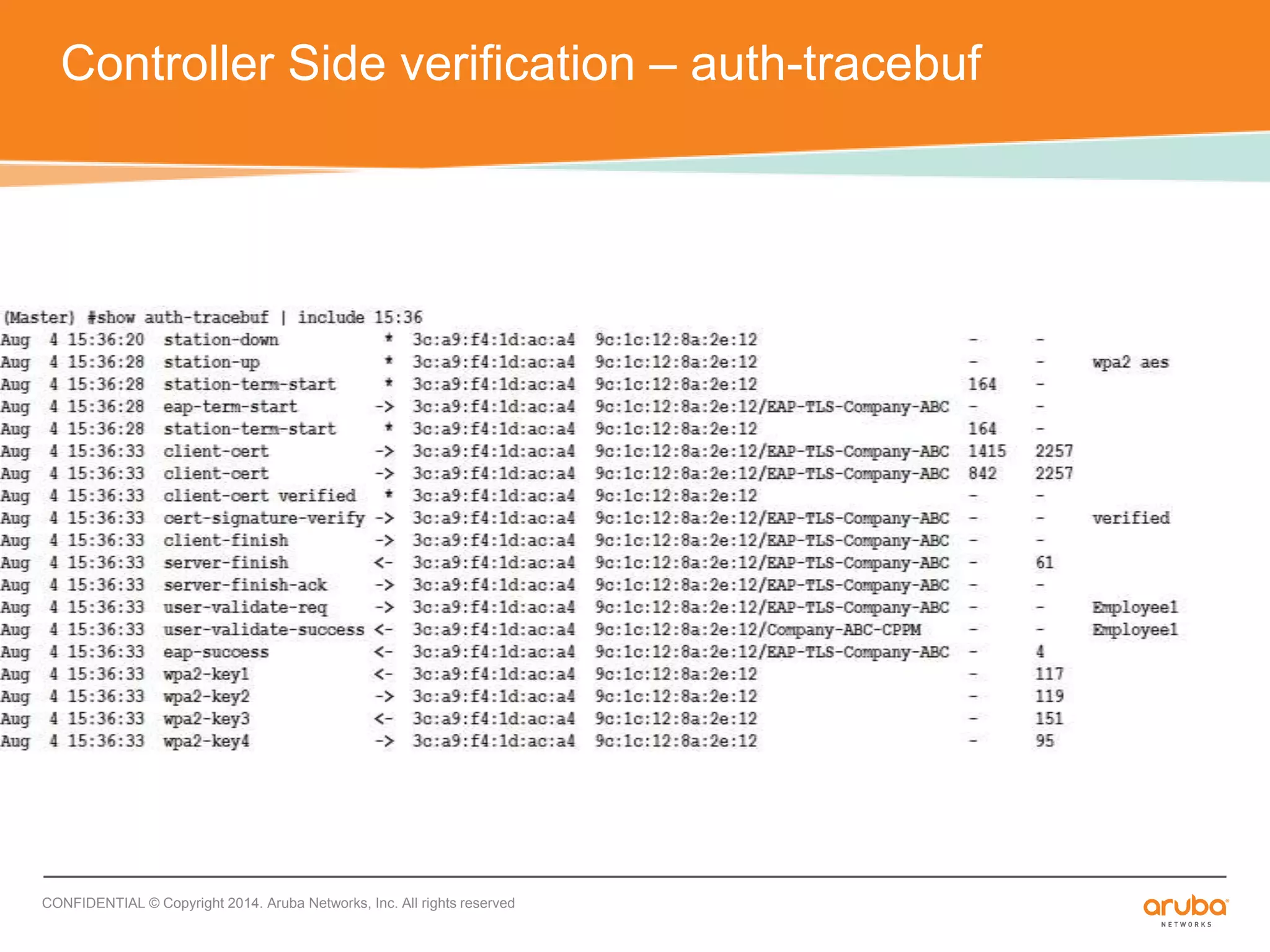

Controller Side verification – auth-tracebuf

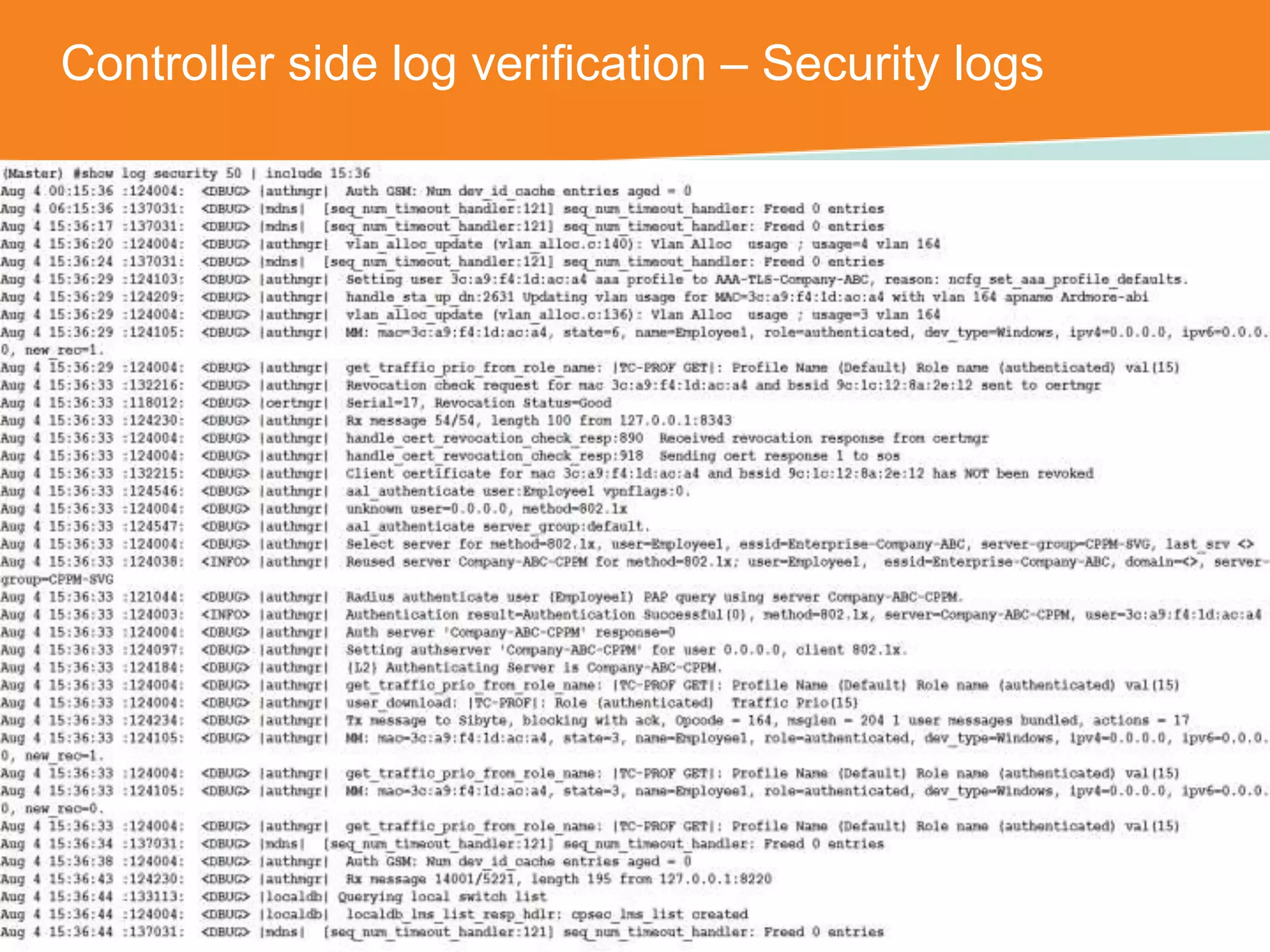

Controller side log verification – Security logs

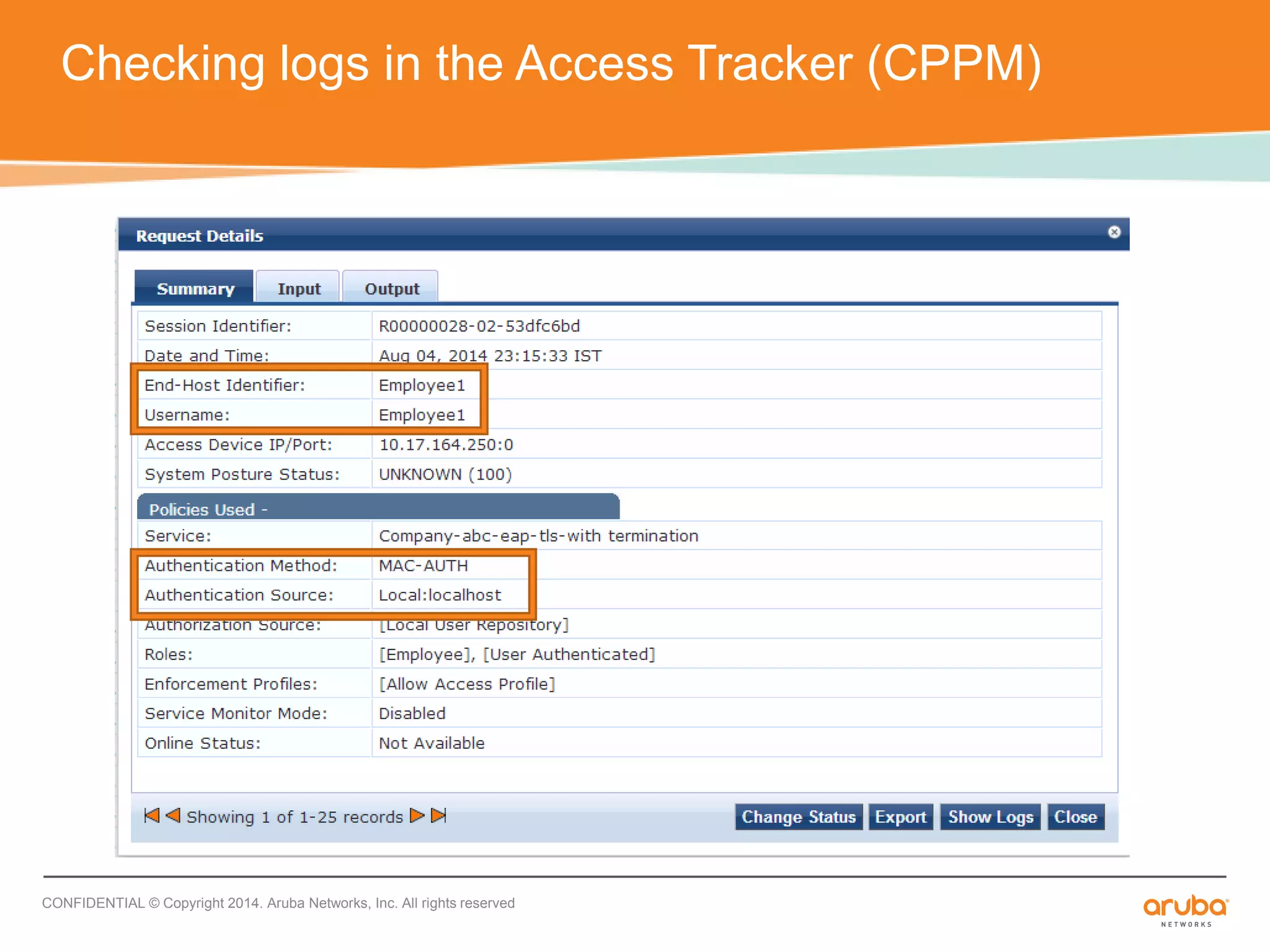

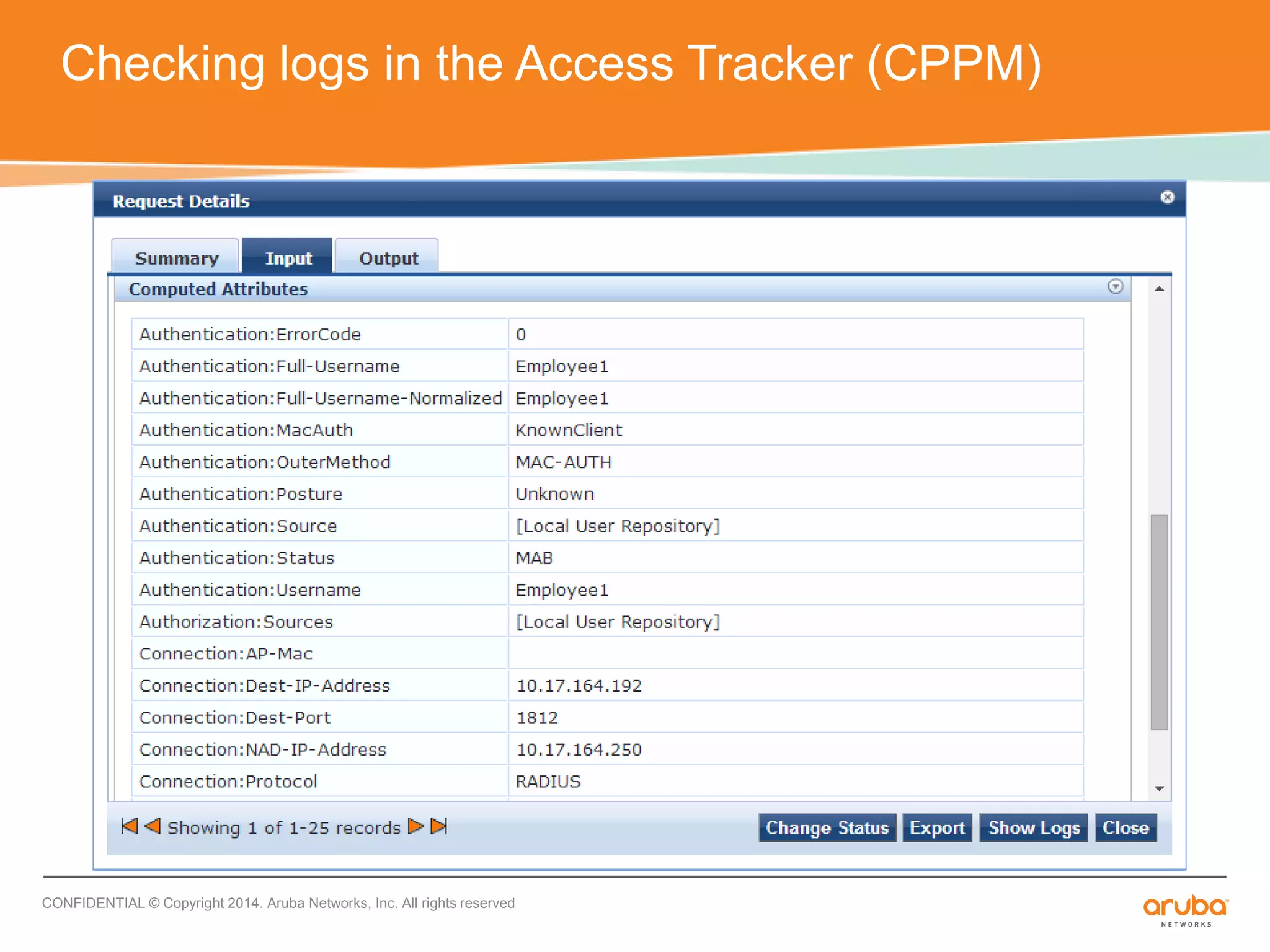

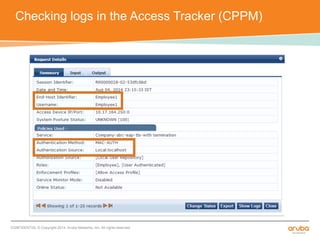

Checking logs in the Access Tracker (CPPM)

EAP-PEAP

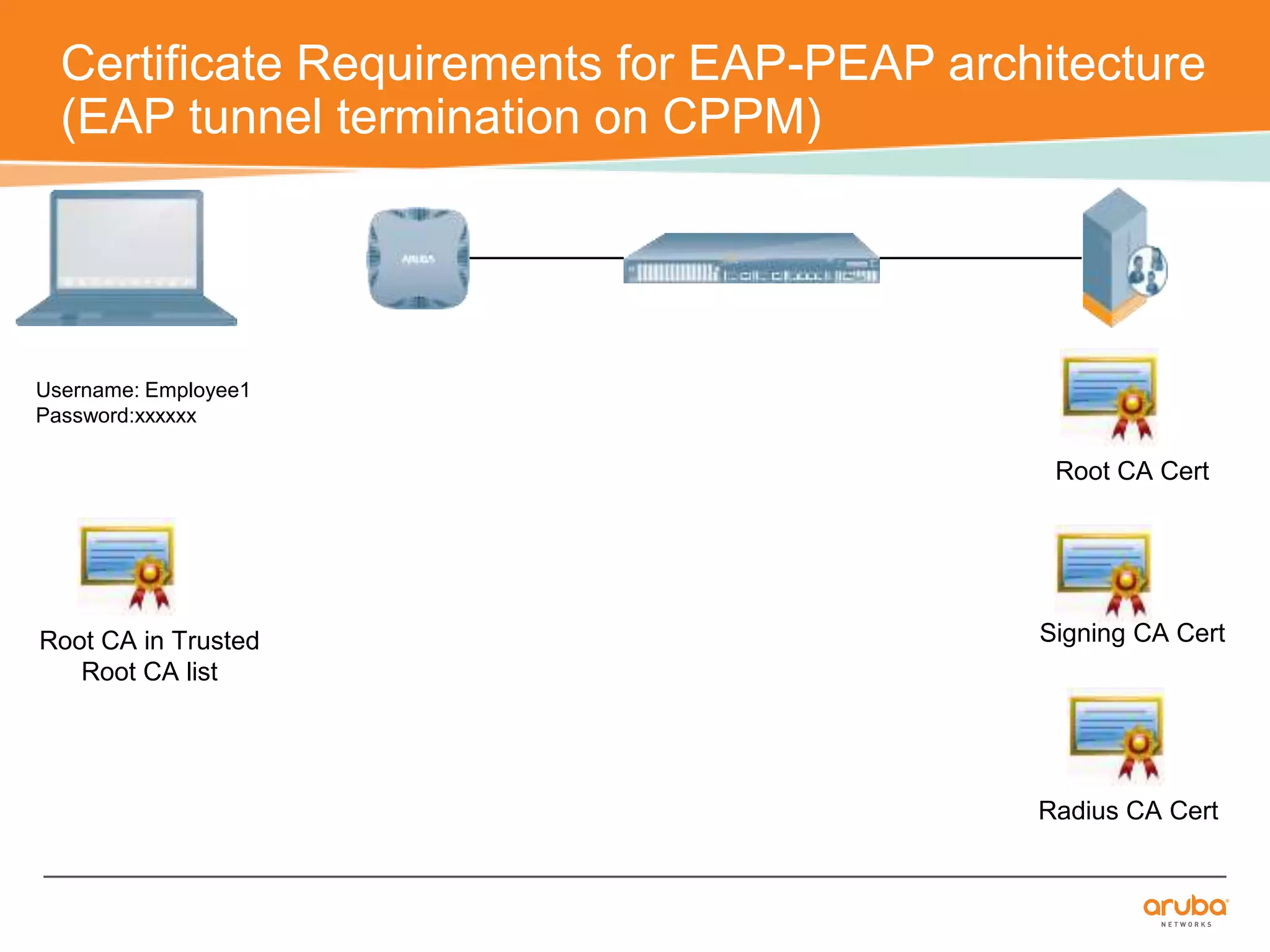

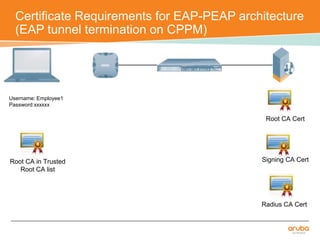

Certificate Requirements for EAP-PEAP architecture
(EAP tunnel termination on CPPM)
Root CA Cert
Username: Employee1
Password:xxxxxx
Root CA in Trusted Signing CA Cert
Radius CA Cert
Root CA list

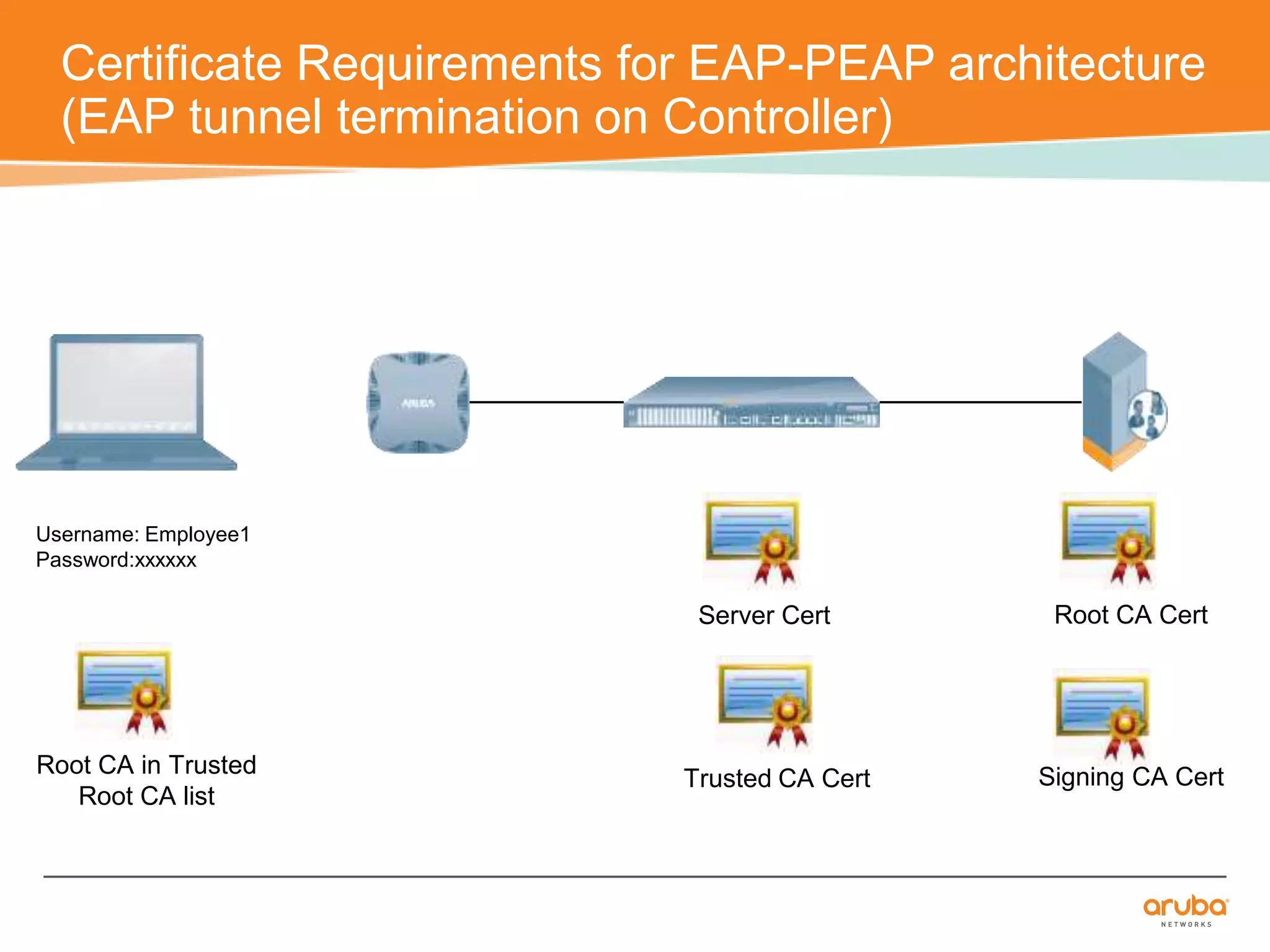

Certificate Requirements for EAP-PEAP architecture
(EAP tunnel termination on Controller)
Server Cert
Trusted CA Cert
Root CA Cert
Username: Employee1
Password:xxxxxx
Root CA in Trusted Signing CA Cert
Root CA list

EAP-PEAP WITH
TERMINATION ON CPPM

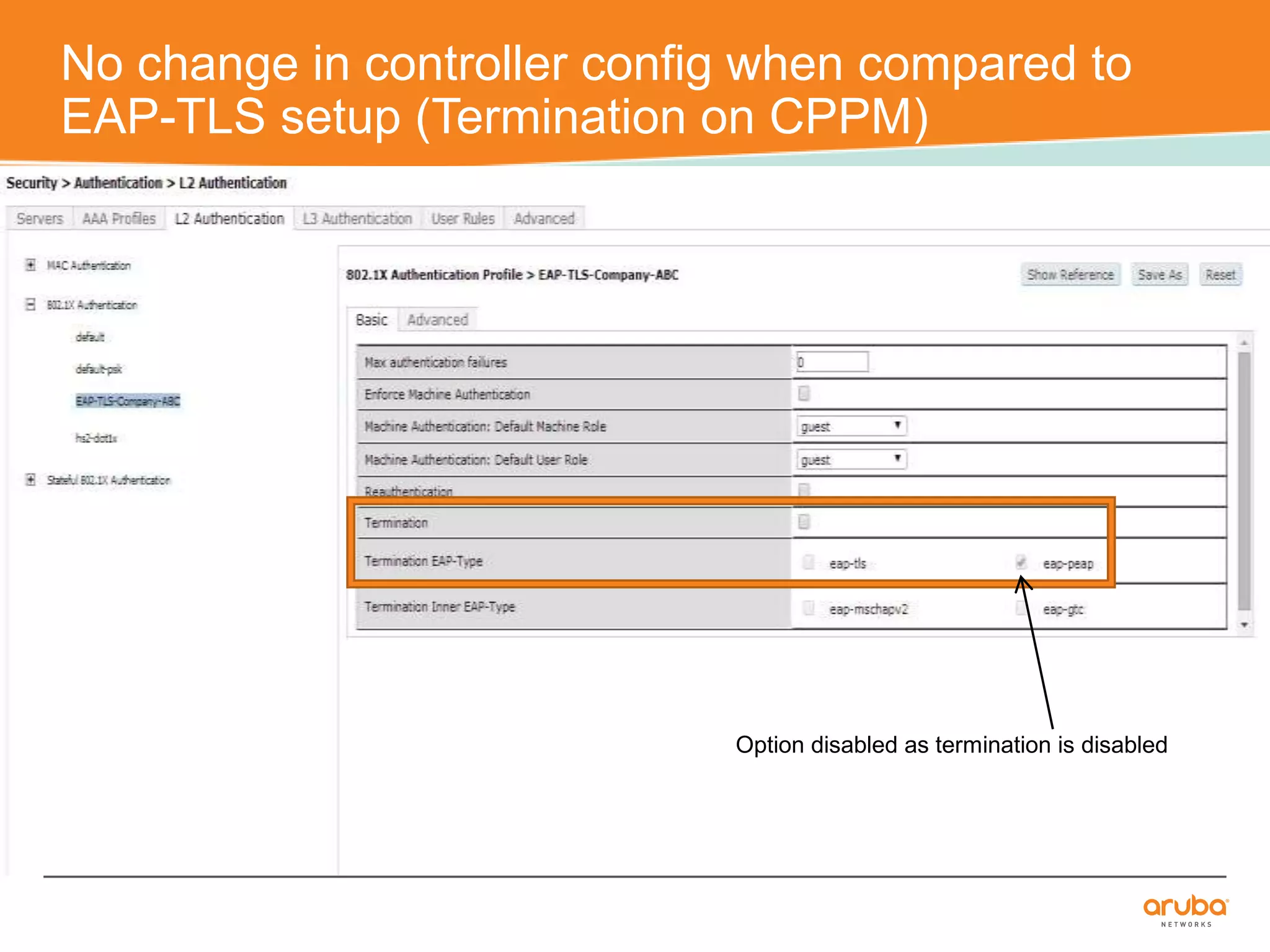

No change in controller config when compared to
EAP-TLS setup (Termination on CPPM)
Option disabled as termination is disabled

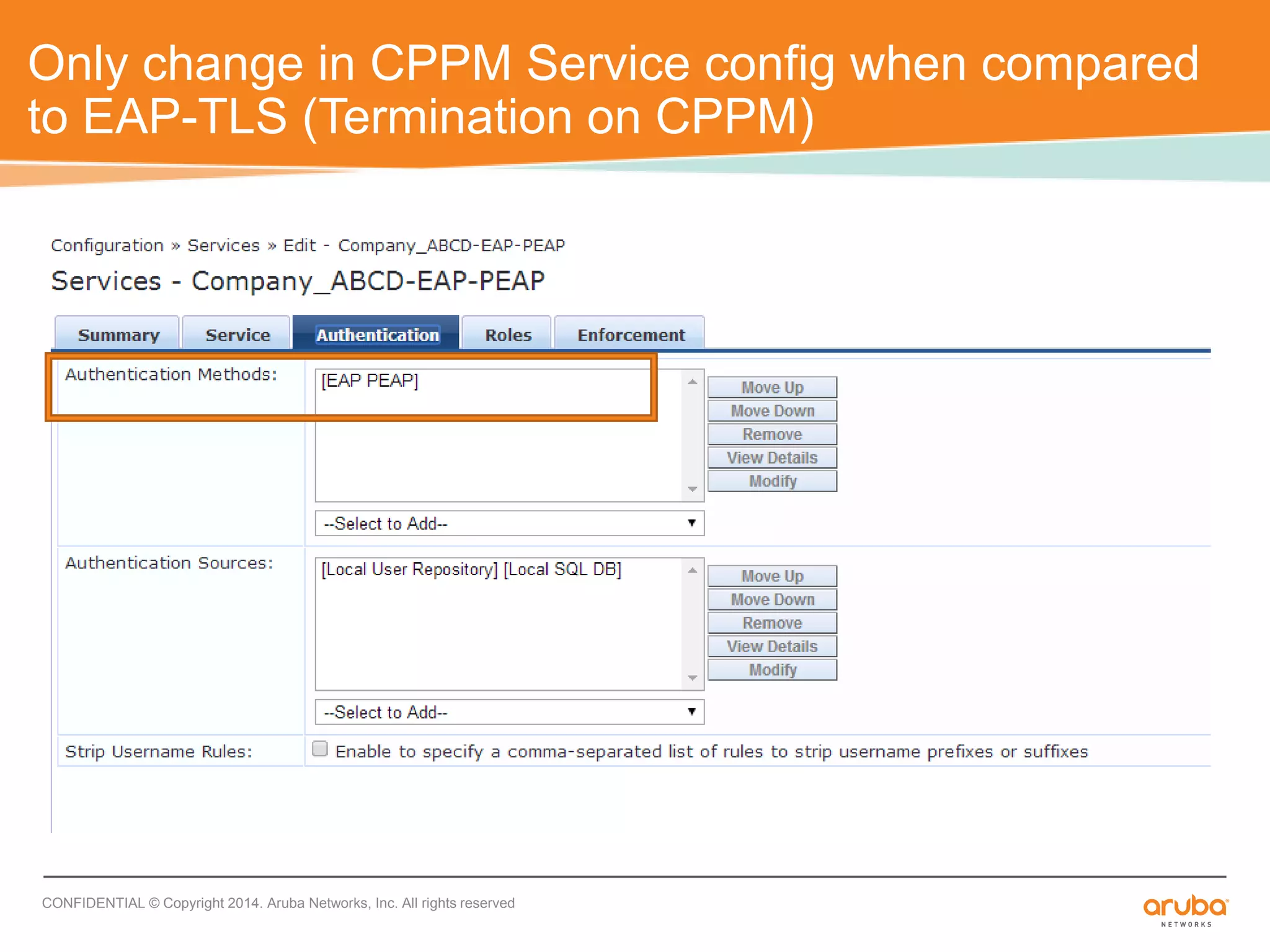

Only change in CPPM Service config when compared
to EAP-TLS (Termination on CPPM)

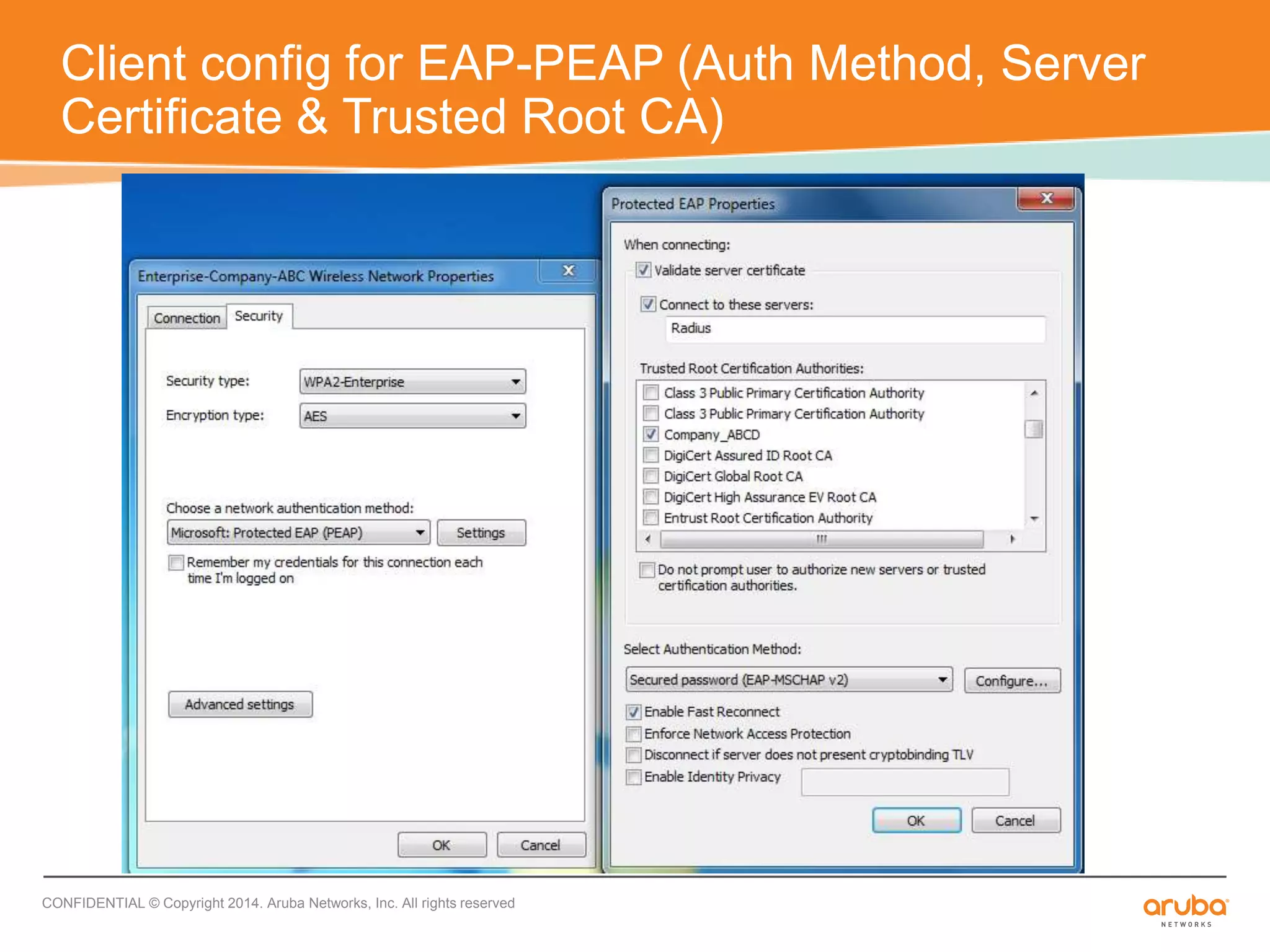

Client config for EAP-PEAP (Auth Method, Server
Certificate & Trusted Root CA)

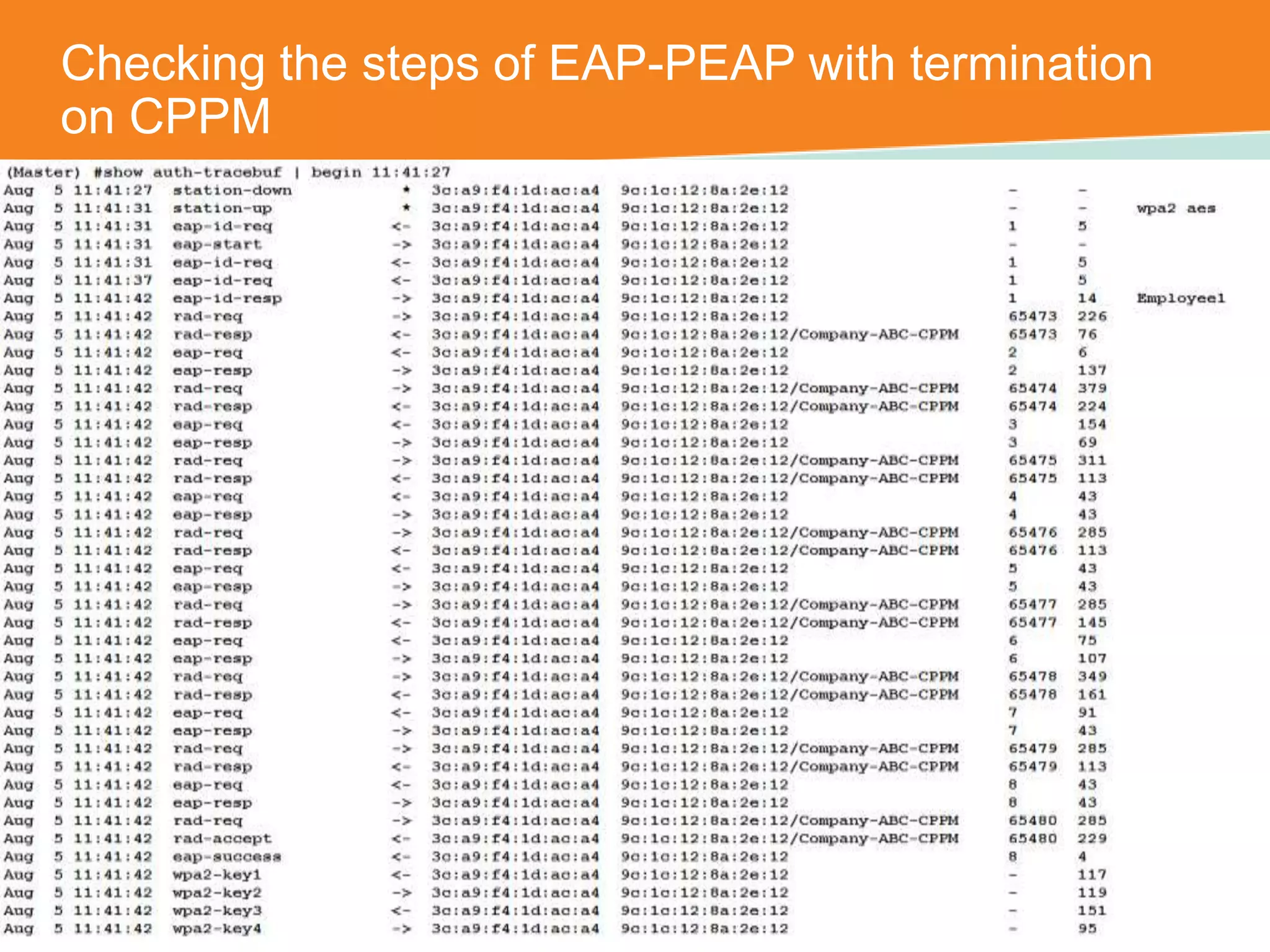

Checking the steps of EAP-PEAP with termination
on CPPM

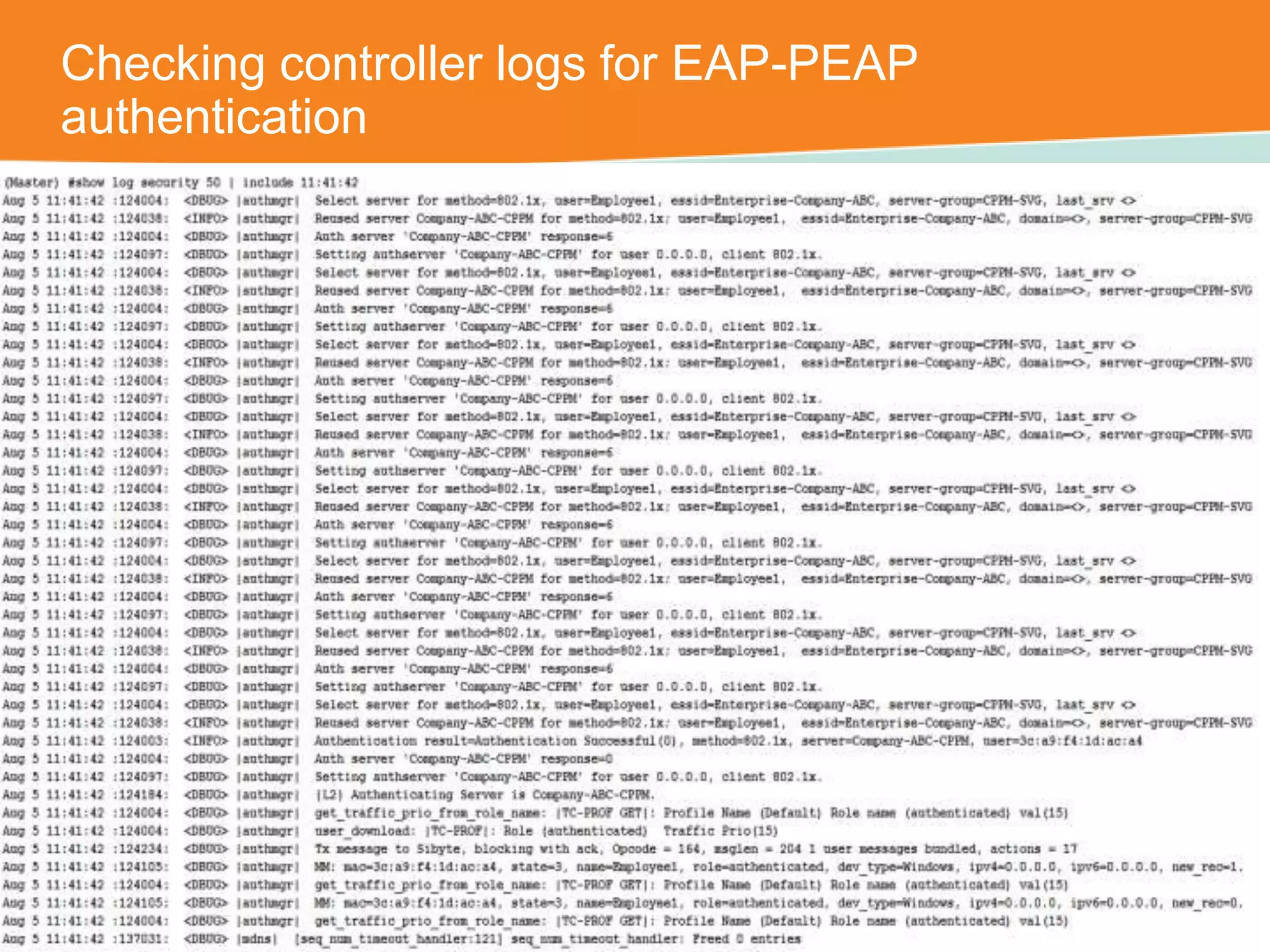

Checking controller logs for EAP-PEAP
authentication

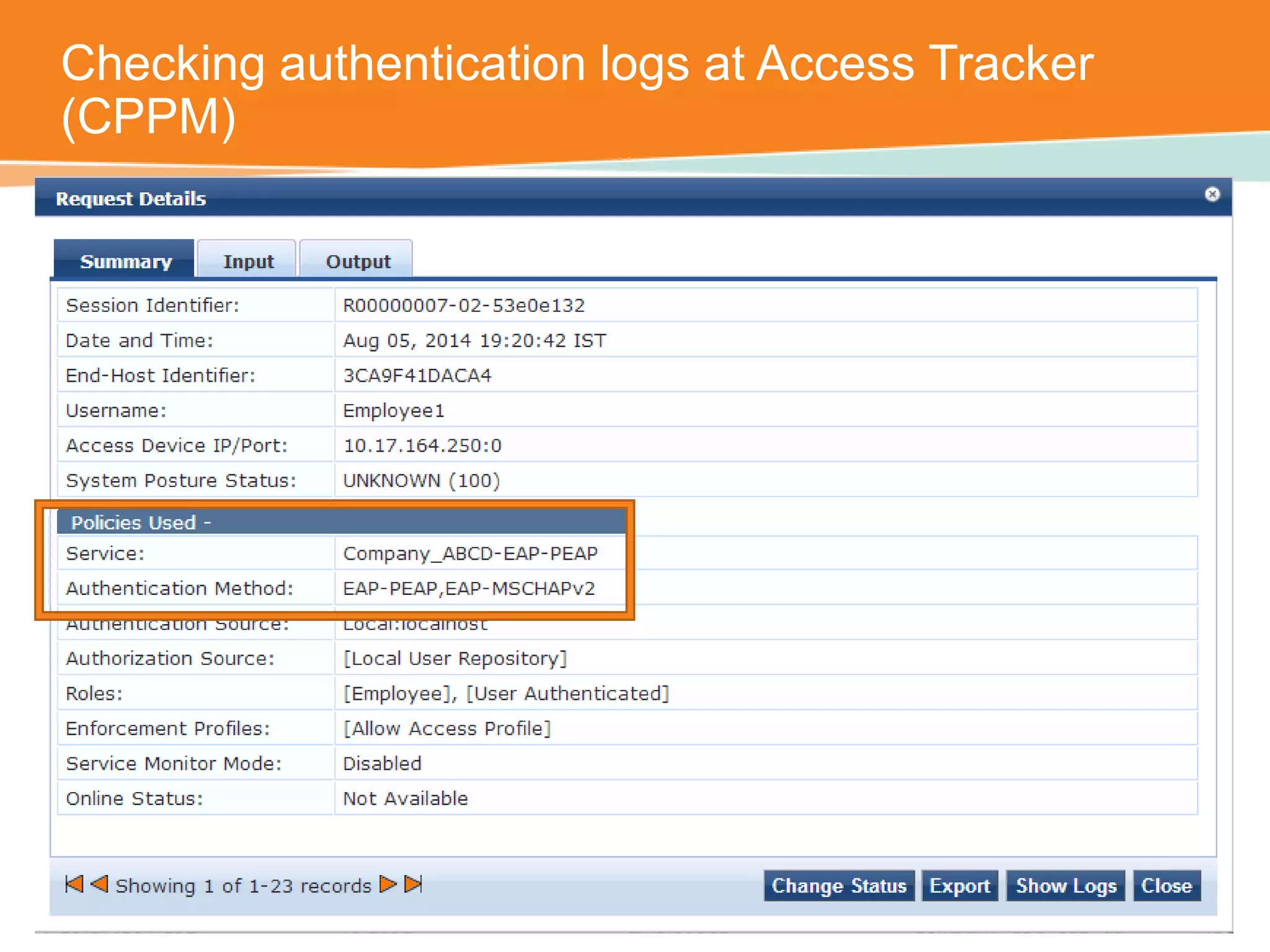

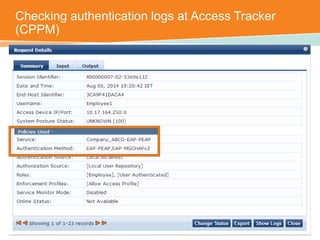

Checking authentication logs at Access Tracker
(CPPM)

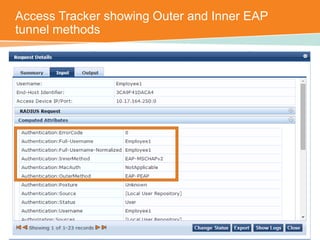

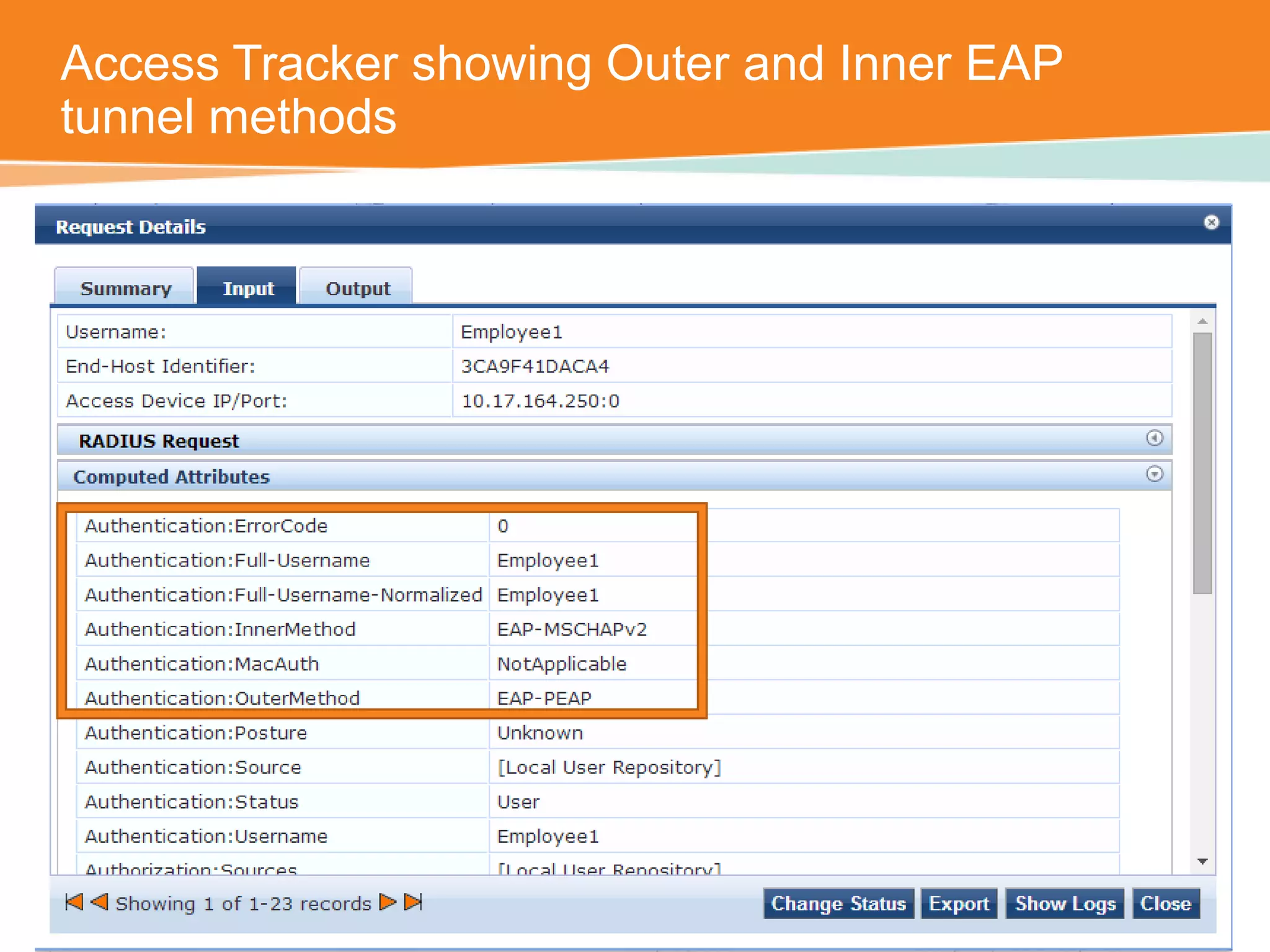

Access Tracker showing Outer and Inner EAP
tunnel methods

EAP-PEAP WITH TERMINATION ON
CONTROLLER

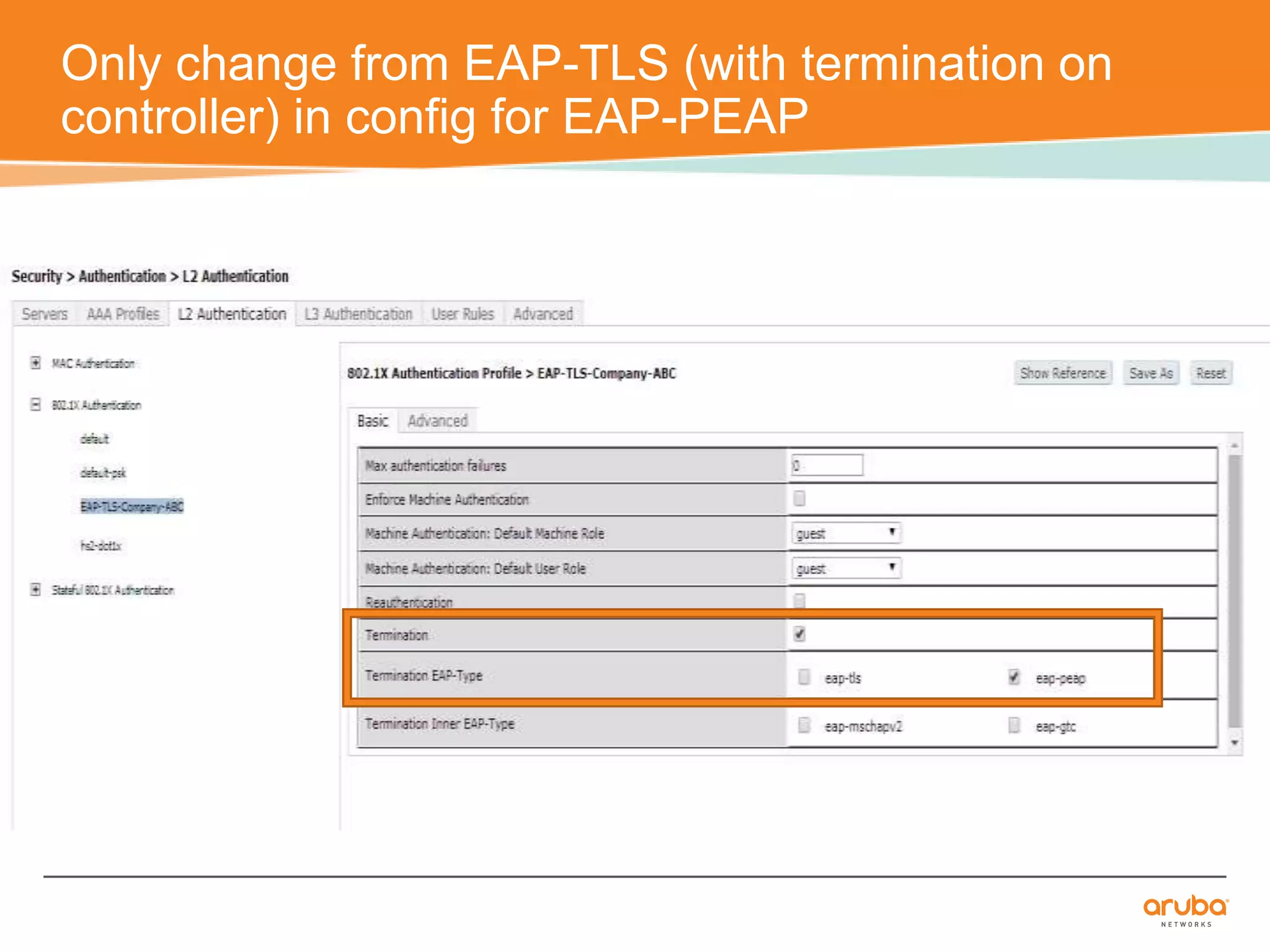

Only change from EAP-TLS (with termination on
controller) in config for EAP-PEAP

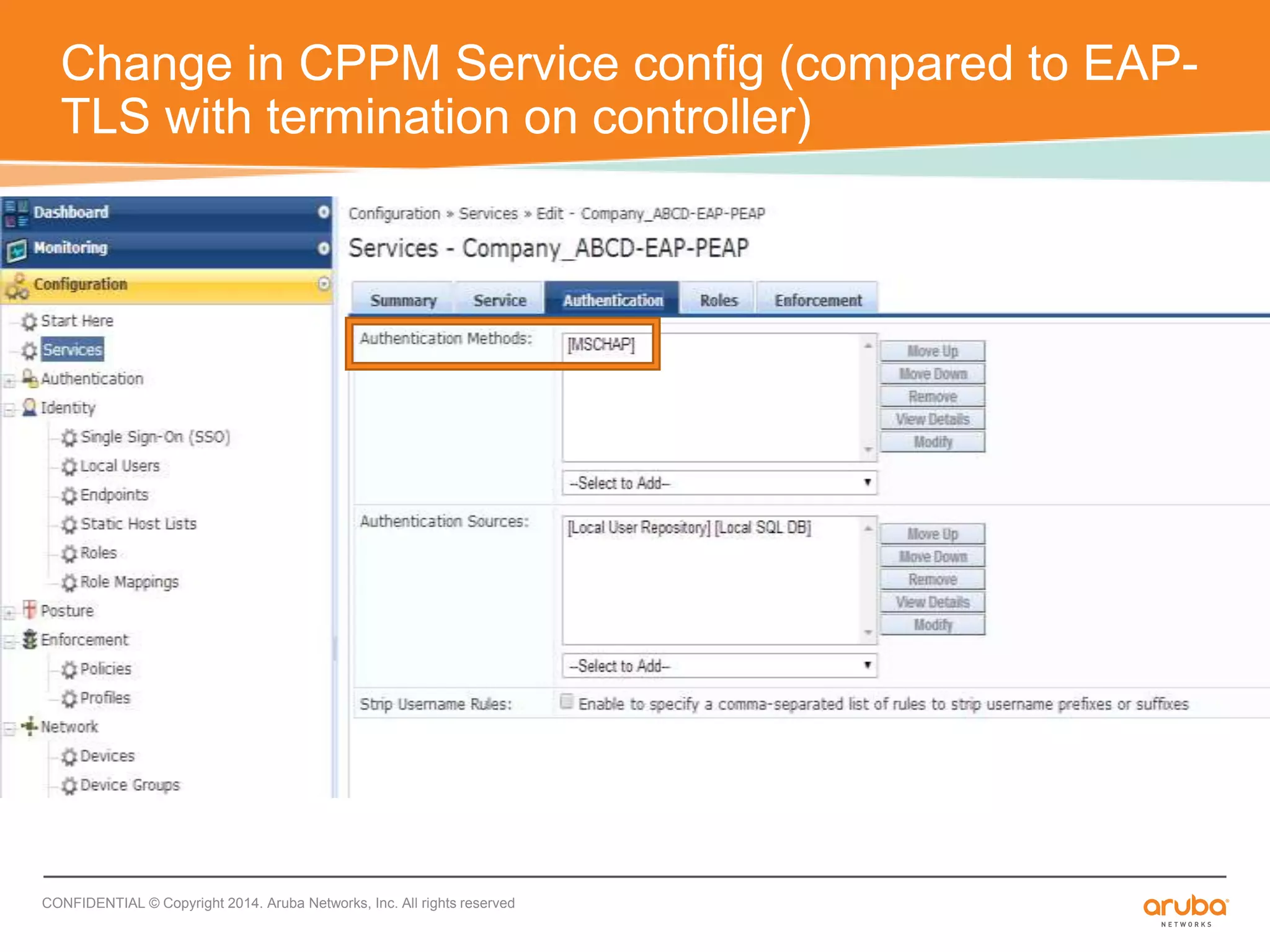

Change in CPPM Service config (compared to EAP-TLS
with termination on controller)

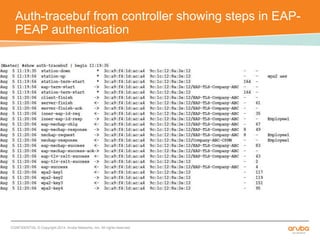

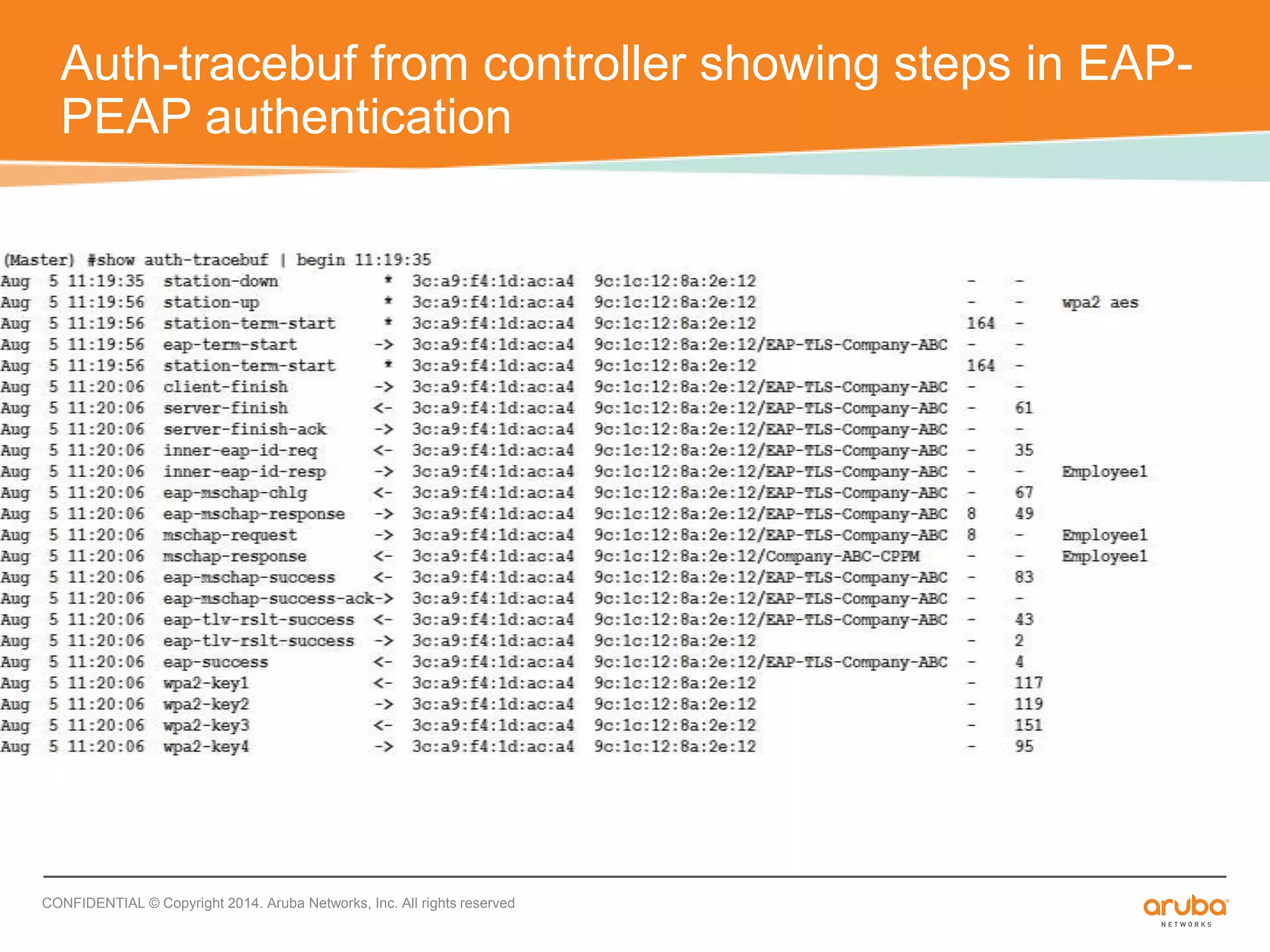

Auth-tracebuf from controller showing steps in EAP-PEAP
authentication

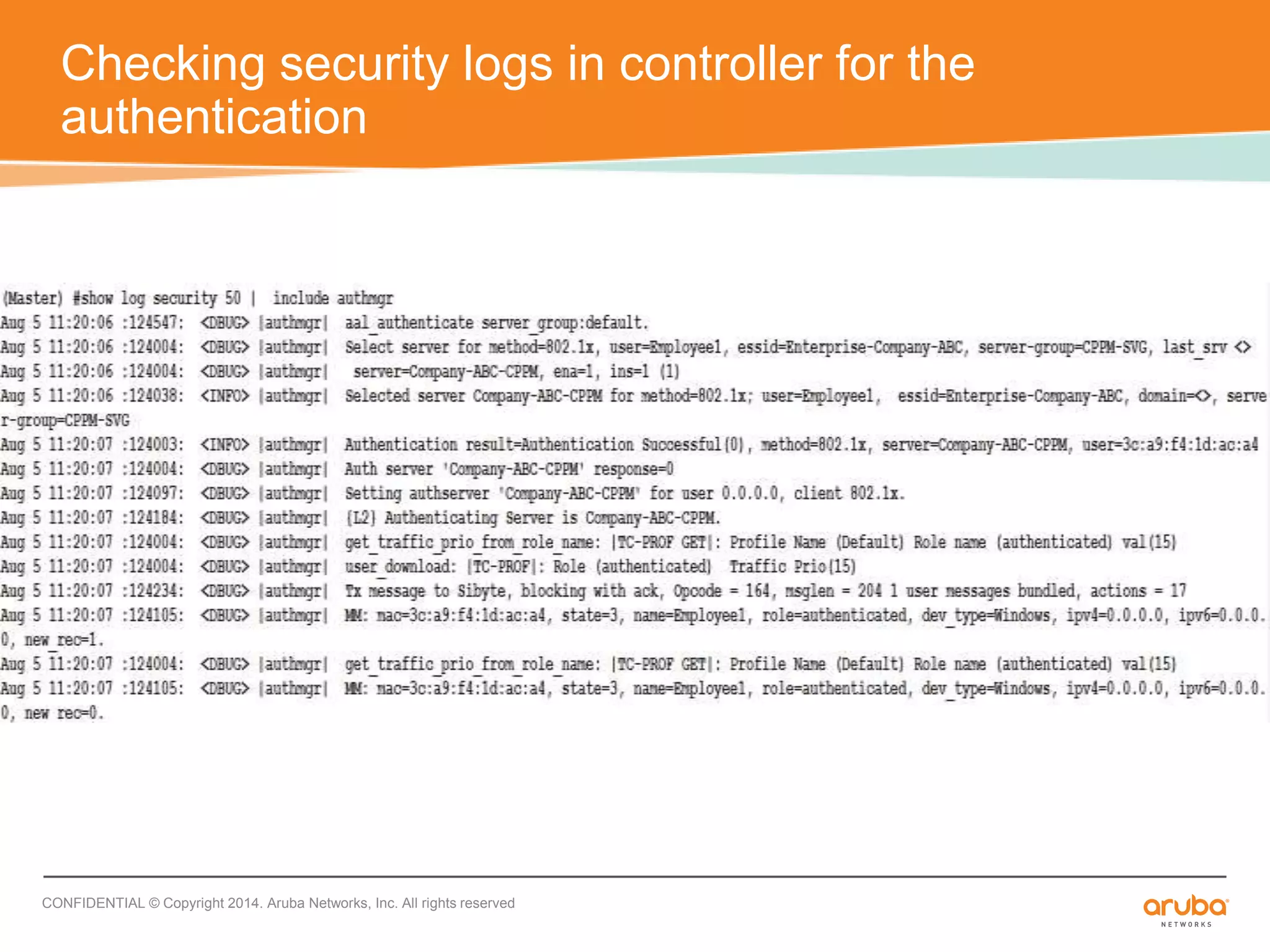

Checking security logs in controller for the
authentication

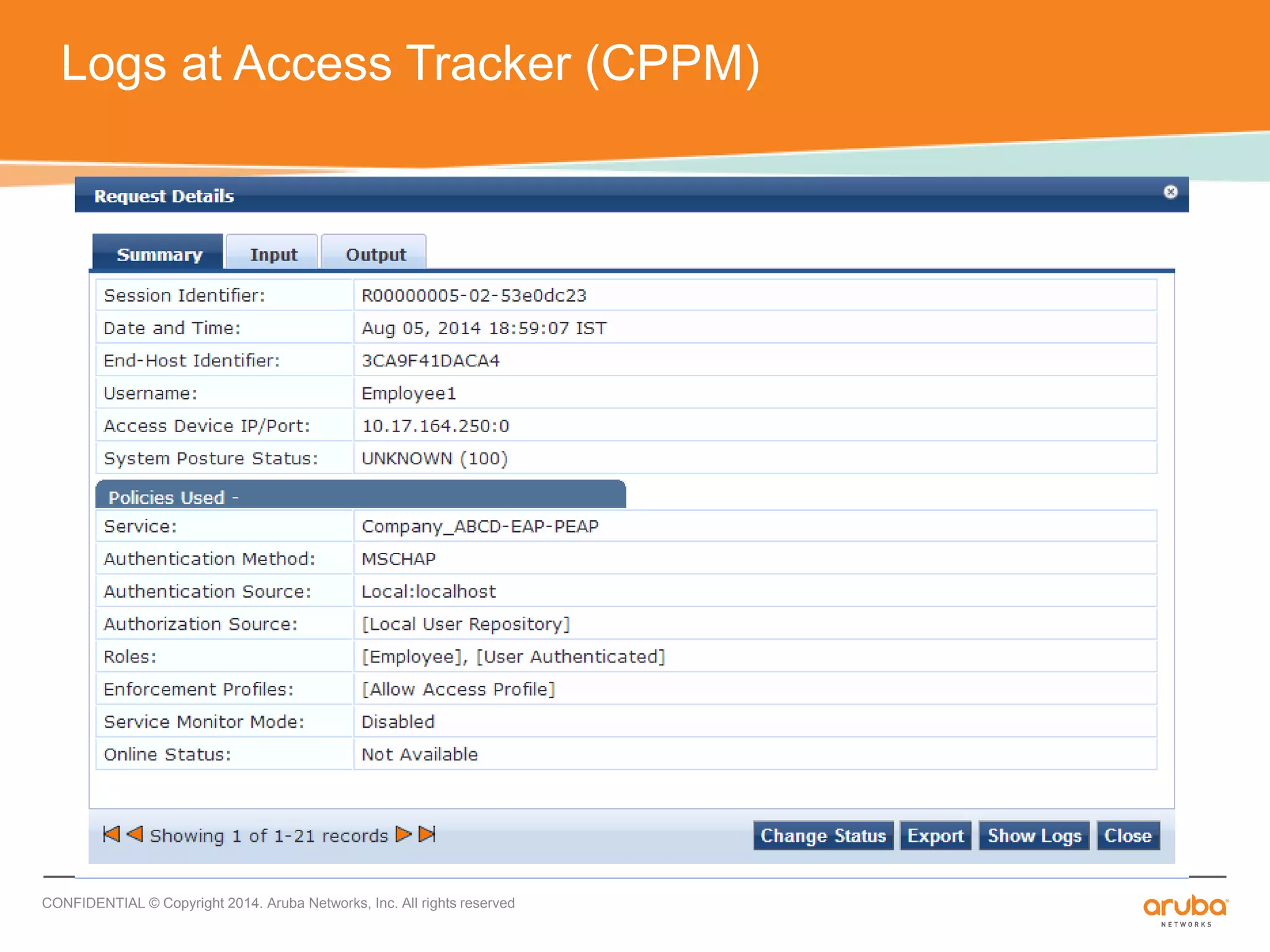

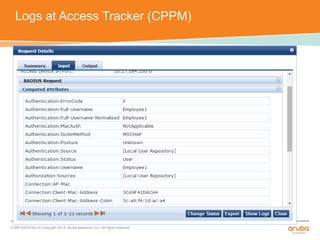

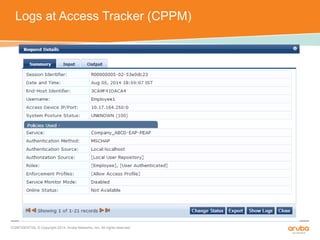

Logs at Access Tracker (CPPM)

MISCELLANEOUS
TROUBLESHOOTING TIPS

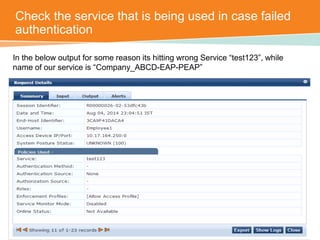

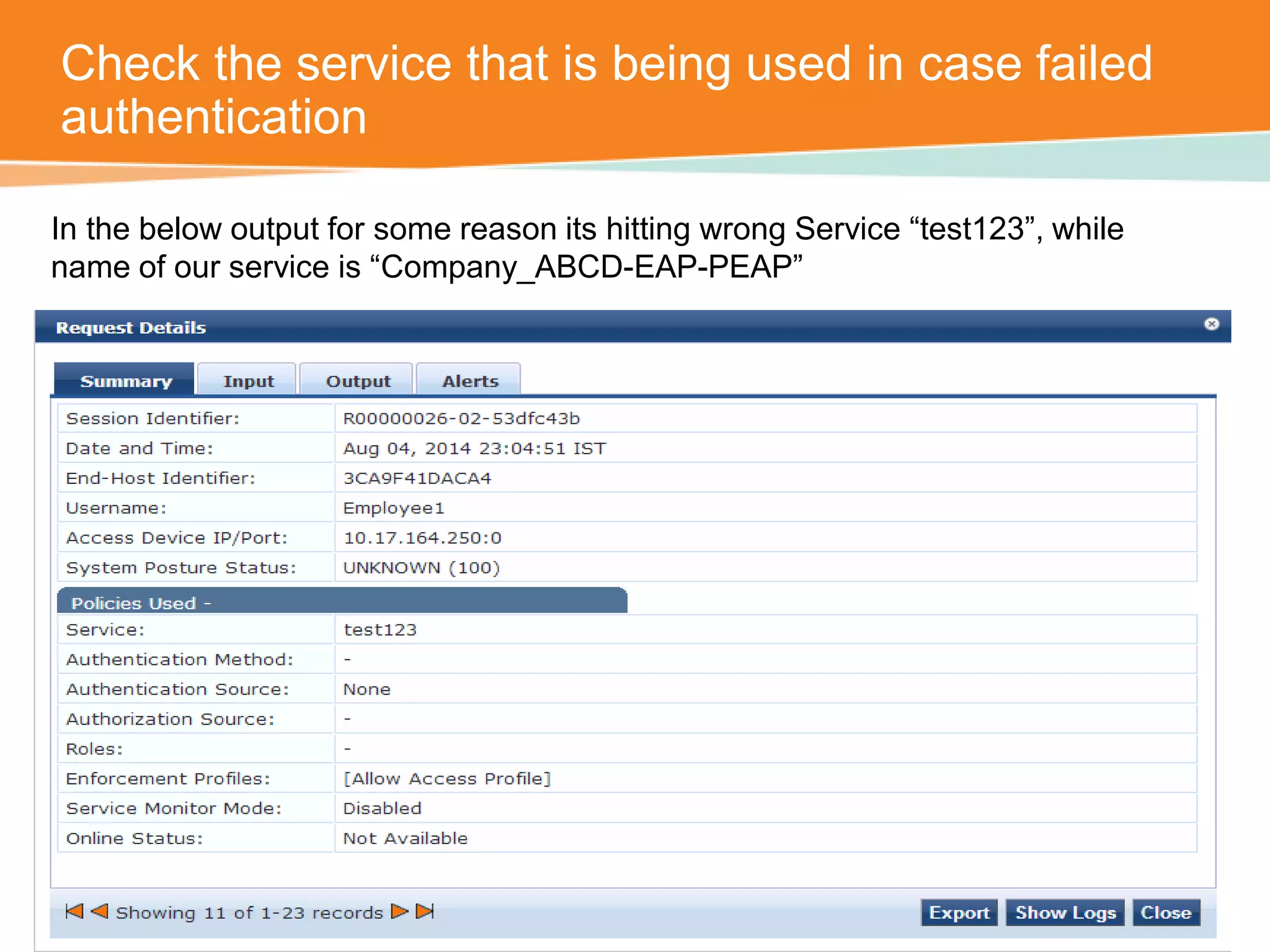

Check the service that is being used in case failed
authentication
In the below output for some reason its hitting wrong Service “test123”, while
name of our service is “Company_ABCD-EAP-PEAP”

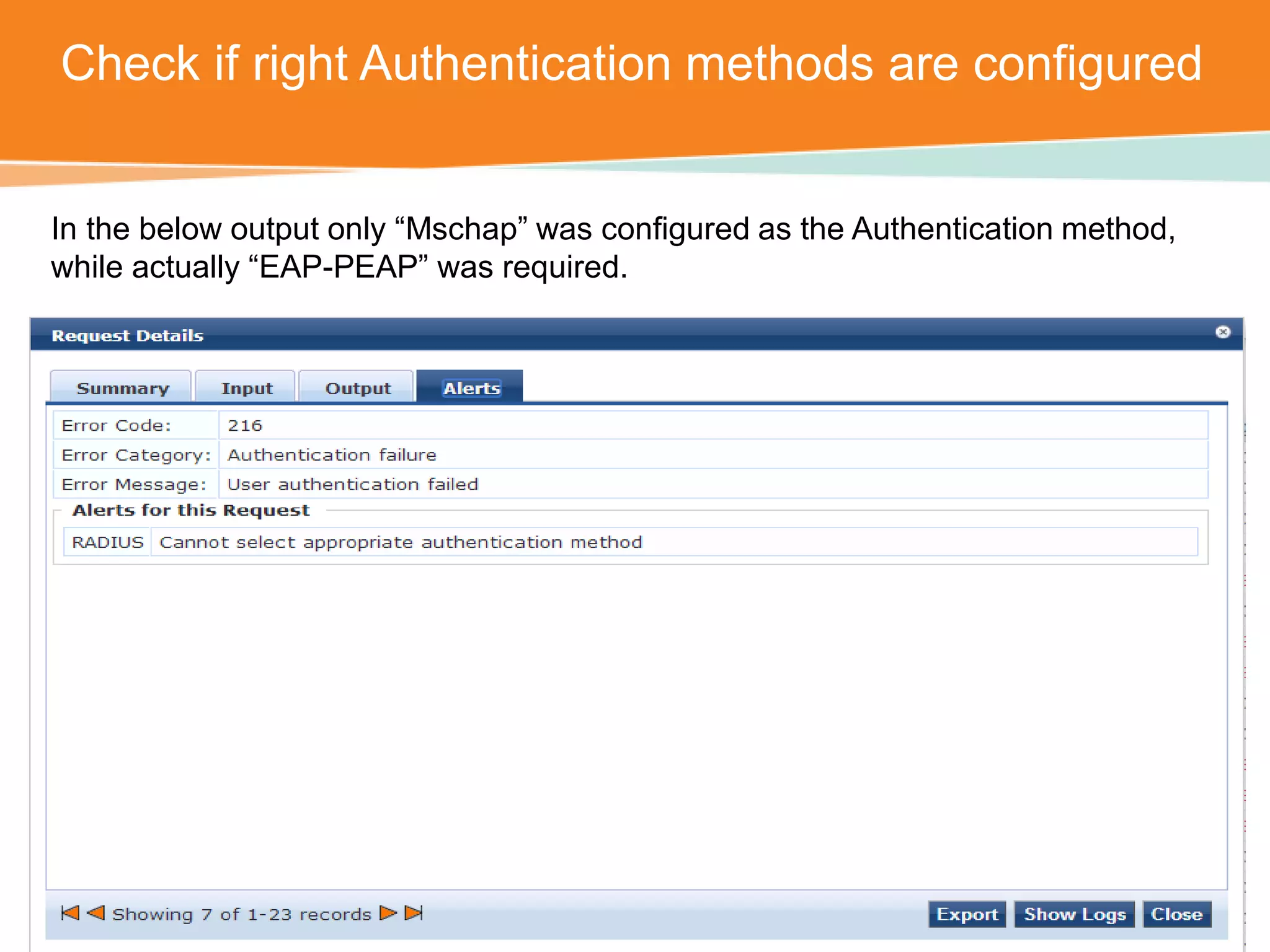

Check if right Authentication methods are configured
In the below output only “Mschap” was configured as the Authentication method,
while actually “EAP-PEAP” was required.

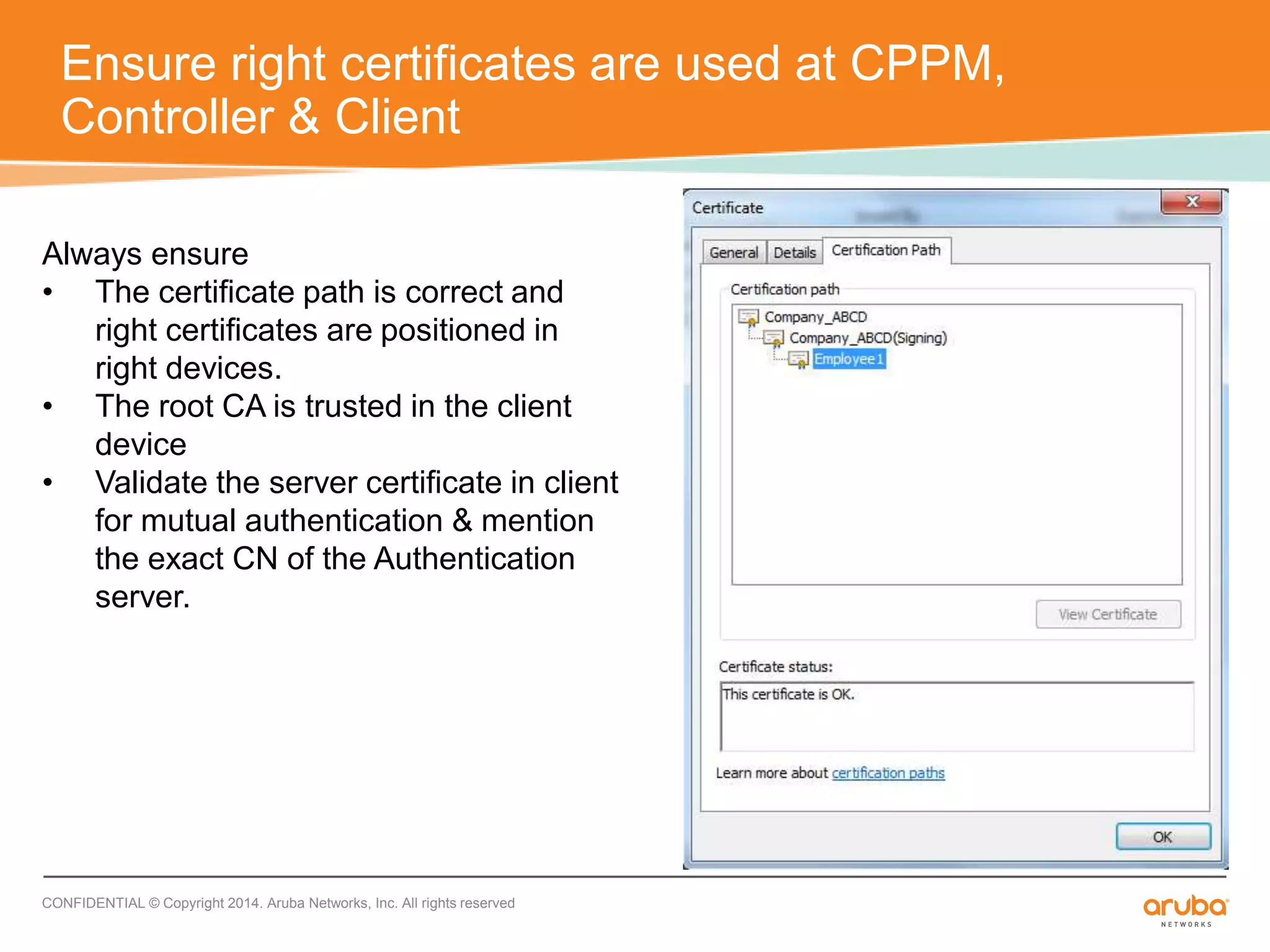

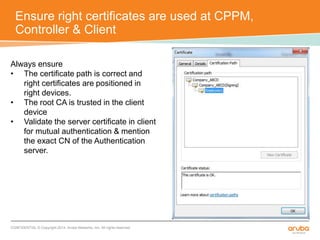

Ensure right certificates are used at CPPM,
Controller & Client
Always ensure
• The certificate path is correct and
right certificates are positioned in
right devices.
• The root CA is trusted in the client
device
• Validate the server certificate in client
for mutual authentication & mention
the exact CN of the Authentication
server.

THANK YOU!!!
