Uploaded byChris Love
Disrupting the application eco system with progressive web applications
The document discusses Progressive Web Applications (PWAs) as a modern approach to delivering web applications that function reliably across various devices and conditions. It outlines the key features of PWAs, including offline capabilities, fast performance, and user engagement, along with the necessary requirements like HTTPS and service workers. The document also covers technical details, such as manifest files and the use of fetch API, and highlights the benefits of integrating push notifications for user retention.
More Related Content
![[1C1]Service Workers](https://cdn.slidesharecdn.com/ss_thumbnails/1c1serviceworkers-140927225946-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Disrupting the application eco system with progressive web applications
Disrupting the application eco system with progressive web applications
- 1. Disrupting the Application Eco-Systemwith Progressive Web Applications LOVE2DEV.COM
- 2. My Bio Microsoft MVP ASPInsider Edge User Agent Web Developer 25 years Author & Speaker @ChrisLove Love2Dev.com

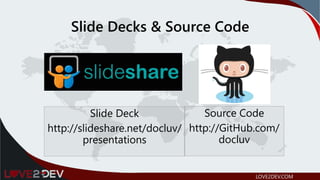

- 3. Slide Decks &Source Code Source Code http://GitHub.com/ docluv Slide Deck http://slideshare.net/docluv/ presentations LOVE2DEV.COM

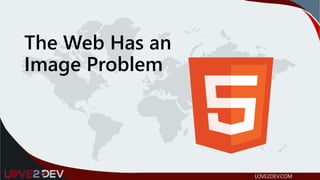

- 4. The Web Hasan Image Problem LOVE2DEV.COM
- 5. LOVE2DEV.COM Mark Zuckerberg 2012 http://tcrn.ch/2hwN6HF “Not onlywas this a big mistake with mobile, but Zuckerberg says that its biggest mistake period was the focus on HTML5.”
- 6.
- 7.
- 8.
- 9.
- 10.
- 11. What is aProgressive Web Application? Defining the Front-End LOVE2DEV.COM

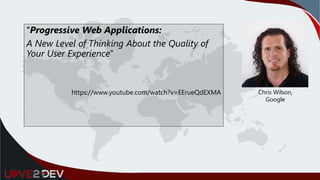

- 12. “Progressive Web Applications: ANew Level of Thinking About the Quality of Your User Experience” https://www.youtube.com/watch?v=EErueQdEXMA Chris Wilson, Google

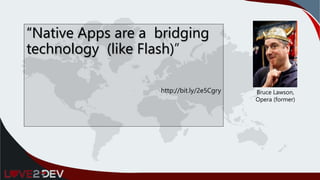

- 13. “Native Apps area bridging technology (like Flash)” http://bit.ly/2e5Cgry Bruce Lawson, Opera (former)

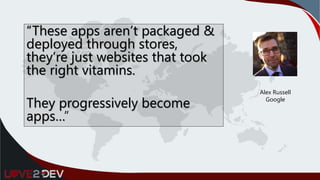

- 14. “These apps aren’tpackaged & deployed through stores, they’re just websites that took the right vitamins. They progressively become apps…” Alex Russell Google
- 15.
- 16. Modern Web Apps ASingle Code Base, Friendly to All Platforms
- 17. Modern Web Apps OperateFast Engage Customers Built Very Different From the Past

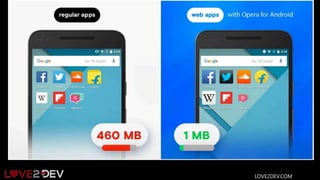

- 18.

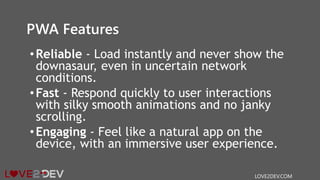

- 19. PWA Features •Reliable -Load instantly and never show the downasaur, even in uncertain network conditions. •Fast - Respond quickly to user interactions with silky smooth animations and no janky scrolling. •Engaging - Feel like a natural app on the device, with an immersive user experience. LOVE2DEV.COM
- 20. PWA Features •“install” tothe home screen •have their own icon (defined by the web developer) •can launch full-screen, portrait or landscape •but “live” on the Web LOVE2DEV.COM

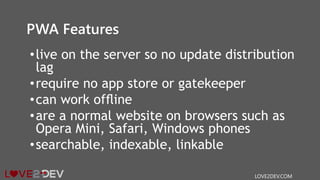

- 21. PWA Features •live onthe server so no update distribution lag •require no app store or gatekeeper •can work offline •are a normal website on browsers such as Opera Mini, Safari, Windows phones •searchable, indexable, linkable LOVE2DEV.COM

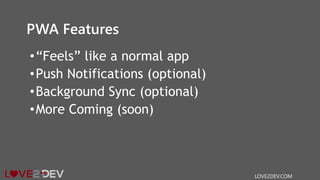

- 22. PWA Features •“Feels” likea normal app •Push Notifications (optional) •Background Sync (optional) •More Coming (soon) LOVE2DEV.COM

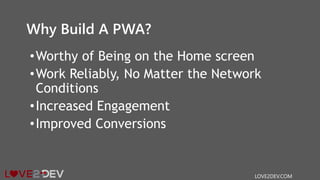

- 23. Why Build APWA? •Worthy of Being on the Home screen •Work Reliably, No Matter the Network Conditions •Increased Engagement •Improved Conversions LOVE2DEV.COM
- 24. PWA Updates •AppCache ->Service Worker •localStorage -> IndexDB •Touch Icons -> Manifest •Save to Homescreen -> Install Banner LOVE2DEV.COM

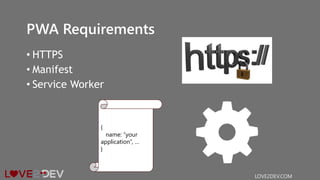

- 25. PWA Requirements • HTTPS •Manifest • Service Worker LOVE2DEV.COM { name: “your application”, … }

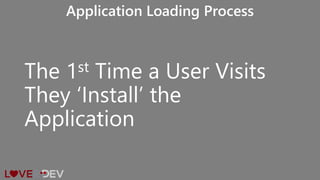

- 26. Application Loading Process The1st Time a User Visits They ‘Install’ the Application

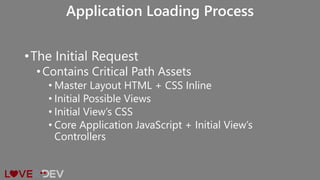

- 27. •The Initial Request •ContainsCritical Path Assets • Master Layout HTML + CSS Inline • Initial Possible Views • Initial View’s CSS • Core Application JavaScript + Initial View’s Controllers Application Loading Process

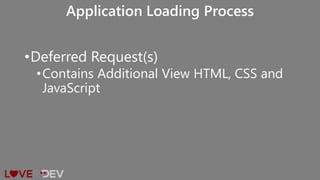

- 28. •Deferred Request(s) •Contains AdditionalView HTML, CSS and JavaScript Application Loading Process

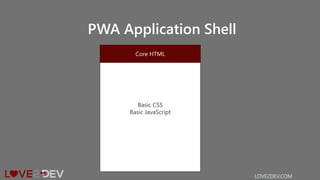

- 29. PWA Application Shell LOVE2DEV.COM BasicCSS Basic JavaScript Core HTML

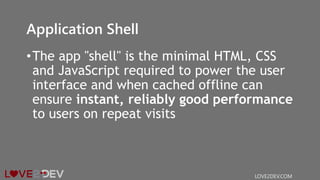

- 30. Application Shell •The app"shell" is the minimal HTML, CSS and JavaScript required to power the user interface and when cached offline can ensure instant, reliably good performance to users on repeat visits LOVE2DEV.COM

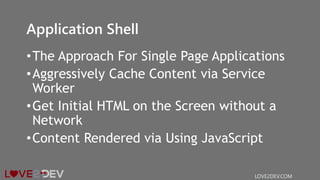

- 31. Application Shell •The ApproachFor Single Page Applications •Aggressively Cache Content via Service Worker •Get Initial HTML on the Screen without a Network •Content Rendered via Using JavaScript LOVE2DEV.COM

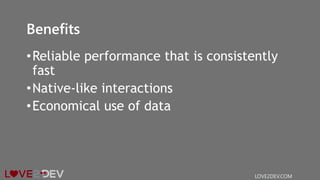

- 32. Benefits •Reliable performance thatis consistently fast •Native-like interactions •Economical use of data LOVE2DEV.COM

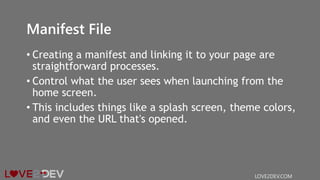

- 33. Manifest File • Creatinga manifest and linking it to your page are straightforward processes. • Control what the user sees when launching from the home screen. • This includes things like a splash screen, theme colors, and even the URL that's opened. LOVE2DEV.COM

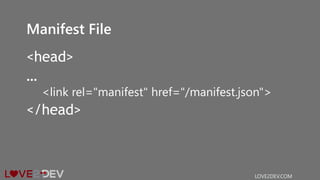

- 34. Manifest File <head> … <link rel="manifest"href="/manifest.json"> </head> LOVE2DEV.COM

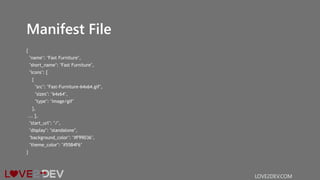

- 35. Manifest File { "name": "FastFurniture", "short_name": "Fast Furniture", "icons": [ { "src": "Fast-Furniture-64x64.gif", "sizes": "64x64", "type": "image/gif" }, ... ], "start_url": "/", "display": "standalone", "background_color": "#F99D36", "theme_color": "#55B4F6" } LOVE2DEV.COM
- 36. Include •A short_name foruse as the text on the users home screen. •A name for use in the Web App Install banner. LOVE2DEV.COM

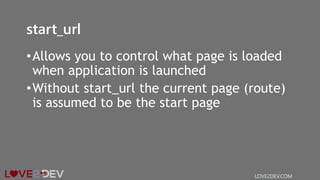

- 37. start_url •Allows you tocontrol what page is loaded when application is launched •Without start_url the current page (route) is assumed to be the start page LOVE2DEV.COM

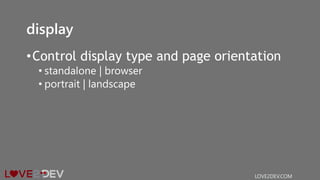

- 38. display •Control display typeand page orientation • standalone | browser • portrait | landscape LOVE2DEV.COM

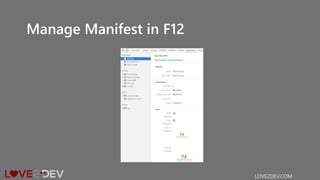

- 39. Manage Manifest inF12 LOVE2DEV.COM

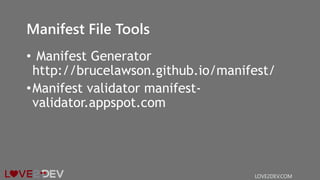

- 40. Manifest File Tools •Manifest Generator http://brucelawson.github.io/manifest/ •Manifest validator manifest- validator.appspot.com LOVE2DEV.COM

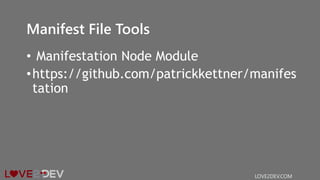

- 41. Manifest File Tools •Manifestation Node Module •https://github.com/patrickkettner/manifes tation LOVE2DEV.COM

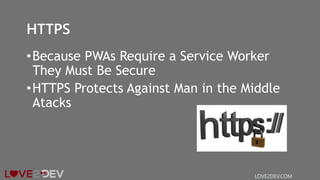

- 42. HTTPS •Because PWAs Requirea Service Worker They Must Be Secure •HTTPS Protects Against Man in the Middle Atacks LOVE2DEV.COM

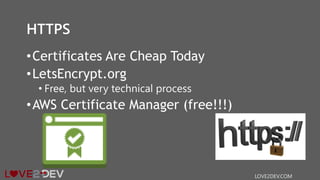

- 43. HTTPS •Certificates Are CheapToday •LetsEncrypt.org • Free, but very technical process •AWS Certificate Manager (free!!!) LOVE2DEV.COM

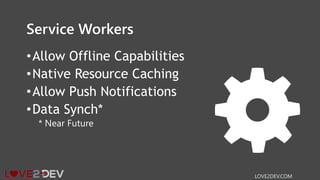

- 44. Service Workers •Allow OfflineCapabilities •Native Resource Caching •Allow Push Notifications •Data Synch* * Near Future LOVE2DEV.COM

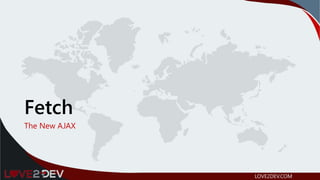

- 45.

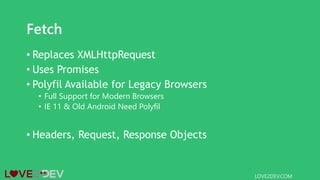

- 46. Fetch • Replaces XMLHttpRequest •Uses Promises • Polyfil Available for Legacy Browsers • Full Support for Modern Browsers • IE 11 & Old Android Need Polyfil • Headers, Request, Response Objects LOVE2DEV.COM

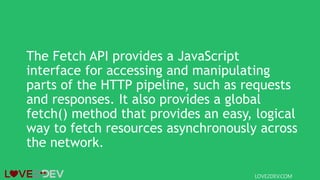

- 47. The Fetch APIprovides a JavaScript interface for accessing and manipulating parts of the HTTP pipeline, such as requests and responses. It also provides a global fetch() method that provides an easy, logical way to fetch resources asynchronously across the network. LOVE2DEV.COM
- 48. if (typeof fetch=== "undefined" || fetch.toString().indexOf("[native code]") === -1) { scripts.unshift("js/libs/fetch.js"); } LOVE2DEV.COM
- 49. var myImage =document.querySelector('img'); fetch('flowers.jpg') .then(function(response) { return response.blob(); }) .then(function(myBlob) { var objectURL = URL.createObjectURL(myBlob); myImage.src = objectURL; }); LOVE2DEV.COM

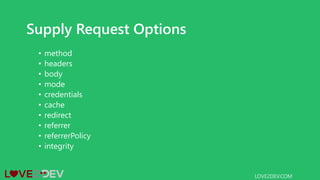

- 50. Supply Request Options •method • headers • body • mode • credentials • cache • redirect • referrer • referrerPolicy • integrity LOVE2DEV.COM

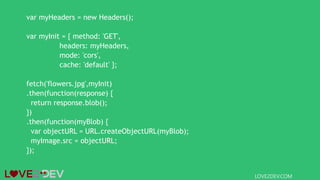

- 51. var myHeaders =new Headers(); var myInit = { method: 'GET', headers: myHeaders, mode: 'cors', cache: 'default' }; fetch('flowers.jpg',myInit) .then(function(response) { return response.blob(); }) .then(function(myBlob) { var objectURL = URL.createObjectURL(myBlob); myImage.src = objectURL; }); LOVE2DEV.COM

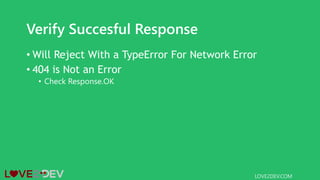

- 52. Verify Succesful Response •Will Reject With a TypeError For Network Error • 404 is Not an Error • Check Response.OK LOVE2DEV.COM

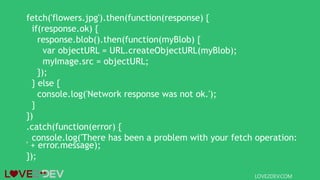

- 53. fetch('flowers.jpg').then(function(response) { if(response.ok) { response.blob().then(function(myBlob){ var objectURL = URL.createObjectURL(myBlob); myImage.src = objectURL; }); } else { console.log('Network response was not ok.'); } }) .catch(function(error) { console.log('There has been a problem with your fetch operation: ' + error.message); }); LOVE2DEV.COM

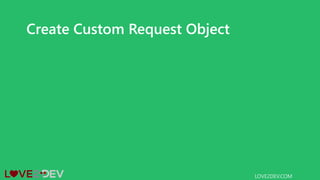

- 54. Create Custom RequestObject LOVE2DEV.COM

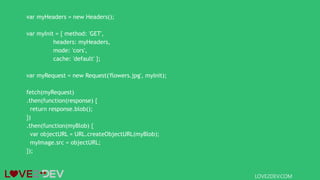

- 55. var myHeaders =new Headers(); var myInit = { method: 'GET', headers: myHeaders, mode: 'cors', cache: 'default' }; var myRequest = new Request('flowers.jpg', myInit); fetch(myRequest) .then(function(response) { return response.blob(); }) .then(function(myBlob) { var objectURL = URL.createObjectURL(myBlob); myImage.src = objectURL; }); LOVE2DEV.COM

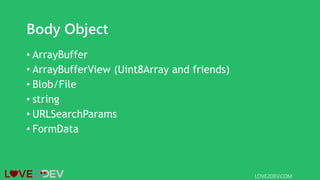

- 56. Body Object • ArrayBuffer •ArrayBufferView (Uint8Array and friends) • Blob/File • string • URLSearchParams • FormData LOVE2DEV.COM

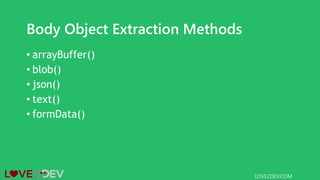

- 57. Body Object ExtractionMethods • arrayBuffer() • blob() • json() • text() • formData() LOVE2DEV.COM

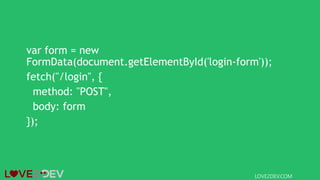

- 58. var form =new FormData(document.getElementById('login-form')); fetch("/login", { method: "POST", body: form }); LOVE2DEV.COM

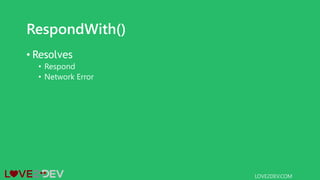

- 59. RespondWith() • Resolves • Respond •Network Error LOVE2DEV.COM

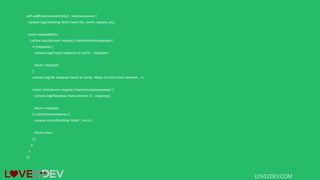

- 60. self.addEventListener('fetch', function(event) { console.log('Handlingfetch event for', event.request.url); event.respondWith( caches.match(event.request).then(function(response) { if (response) { console.log('Found response in cache:', response); return response; } console.log('No response found in cache. About to fetch from network...'); return fetch(event.request).then(function(response) { console.log('Response from network is:', response); return response; }).catch(function(error) { console.error('Fetching failed:', error); throw error; }); }) ); }); LOVE2DEV.COM

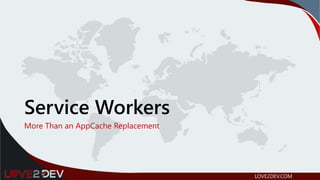

- 61. Service Workers More Thanan AppCache Replacement LOVE2DEV.COM

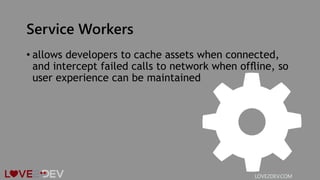

- 62. Service Workers • allowsdevelopers to cache assets when connected, and intercept failed calls to network when offline, so user experience can be maintained LOVE2DEV.COM
- 63. Service Workers • Fasterloading of assets, even when online • Fastest HTTP Request is the One Never Made LOVE2DEV.COM

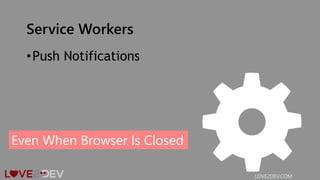

- 64. Service Workers •Push Notifications LOVE2DEV.COM EvenWhen Browser Is Closed

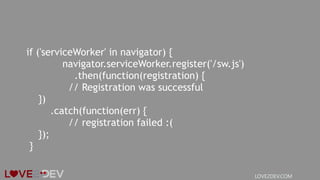

- 65. if ('serviceWorker' innavigator) { navigator.serviceWorker.register('/sw.js') .then(function(registration) { // Registration was successful }) .catch(function(err) { // registration failed :( }); } LOVE2DEV.COM

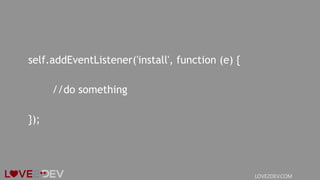

- 66. self.addEventListener('install', function (e){ //do something }); LOVE2DEV.COM

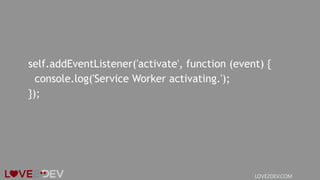

- 67. self.addEventListener('activate', function (event){ console.log('Service Worker activating.'); }); LOVE2DEV.COM
- 68.
- 69.
- 70.
- 71.
- 72. Service Worker Cache •Persist Files with Response Headers • Limited by Device Resources • Available Online & Offline LOVE2DEV.COM

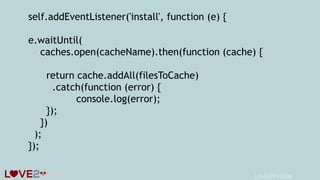

- 73. self.addEventListener('install', function (e){ e.waitUntil( caches.open(cacheName).then(function (cache) { return cache.addAll(filesToCache) .catch(function (error) { console.log(error); }); }) ); }); LOVE2DEV.COM
- 74. self.addEventListener('fetch', function (event){ //intercept fetch request (any request from the UI thread for a file or API) and return from cache or get from server & cache it event.respondWith( caches.match(event.request).then(function (resp) { return resp || fetchAsset(event); }) ); }); LOVE2DEV.COM
- 75. Service Worker Cache •Persist Files with Response Headers • Limited by Device Resources • Available Online & Offline LOVE2DEV.COM
- 76.
- 77.
- 78.
- 79.
- 80.
- 81.
- 82.
- 83.

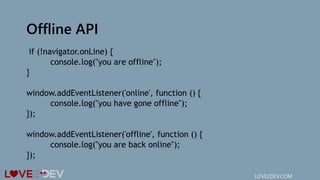

- 84. Offline API if (!navigator.onLine){ console.log("you are offline"); } window.addEventListener('online', function () { console.log("you have gone offline"); }); window.addEventListener('offline', function () { console.log("you are back online"); }); LOVE2DEV.COM
- 85. Debugging Service Workers •Use Developer Tools • Sources • Application • Manifest • Service Workers LOVE2DEV.COM
- 86.
- 87.

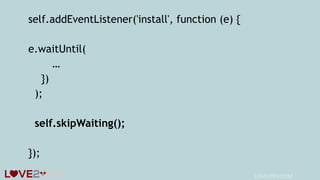

- 88. self.addEventListener('install', function (e){ e.waitUntil( … }) ); self.skipWaiting(); }); LOVE2DEV.COM
- 89. Service Worker Tools •sw_precache • A node module to generate service worker code that will precache specific resources so they work offline. • https://github.com/googlechrome/sw-precache • sw_toolbox • A collection of service worker tools for offlining runtime requests • https://github.com/GoogleChrome/sw-toolbox LOVE2DEV.COM

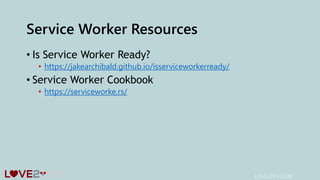

- 90. Service Worker Resources •Is Service Worker Ready? • https://jakearchibald.github.io/isserviceworkerready/ • Service Worker Cookbook • https://serviceworke.rs/ LOVE2DEV.COM
- 91.

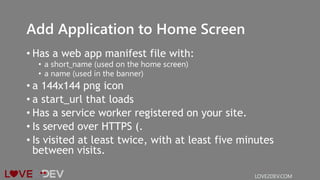

- 92. Add Application toHome Screen • Has a web app manifest file with: • a short_name (used on the home screen) • a name (used in the banner) • a 144x144 png icon • a start_url that loads • Has a service worker registered on your site. • Is served over HTTPS (. • Is visited at least twice, with at least five minutes between visits. LOVE2DEV.COM
- 93.
- 94.

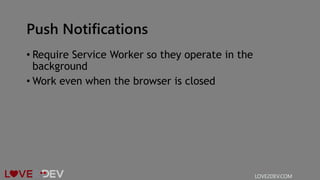

- 95. Push Notifications • RequireService Worker so they operate in the background • Work even when the browser is closed LOVE2DEV.COM

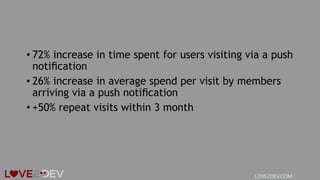

- 96. • 72% increasein time spent for users visiting via a push notification • 26% increase in average spend per visit by members arriving via a push notification • +50% repeat visits within 3 month LOVE2DEV.COM

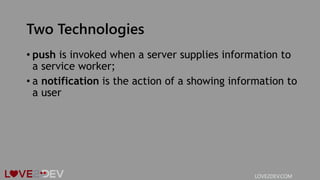

- 97. Two Technologies • pushis invoked when a server supplies information to a service worker; • a notification is the action of a showing information to a user LOVE2DEV.COM
- 98.
- 99. { "body": "Did youmake a $1,000,000 purchase at Dr. Evil...", "icon": "images/ccard.png", "vibrate": [200, 100, 200, 100, 200, 100, 400], "tag": "request", "actions": [ { "action": "yes", "title": "Yes", "icon": "images/yes.png" }, { "action": "no", "title": "No", "icon": "images/no.png" } ] } LOVE2DEV.COM

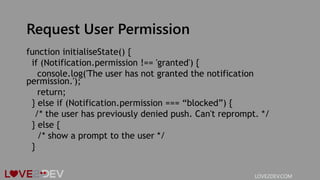

- 100. Request User Permission functioninitialiseState() { if (Notification.permission !== 'granted') { console.log('The user has not granted the notification permission.'); return; } else if (Notification.permission === “blocked”) { /* the user has previously denied push. Can't reprompt. */ } else { /* show a prompt to the user */ } LOVE2DEV.COM

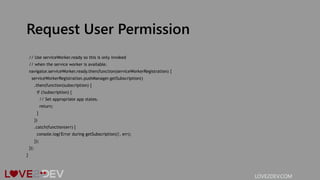

- 101. Request User Permission //Use serviceWorker.ready so this is only invoked // when the service worker is available. navigator.serviceWorker.ready.then(function(serviceWorkerRegistration) { serviceWorkerRegistration.pushManager.getSubscription() .then(function(subscription) { if (!subscription) { // Set appropriate app states. return; } }) .catch(function(err) { console.log('Error during getSubscription()', err); }); }); } LOVE2DEV.COM
