This session discussed the authentication, authorization techniques of today for web and api applications based on ASP.NET MVC and Web API.

1. DEVintersection
Session AS17
End-to-End Security for Your
Web API and MVC Applications
Michele Leroux Bustamante
michelebusta@solliance.net

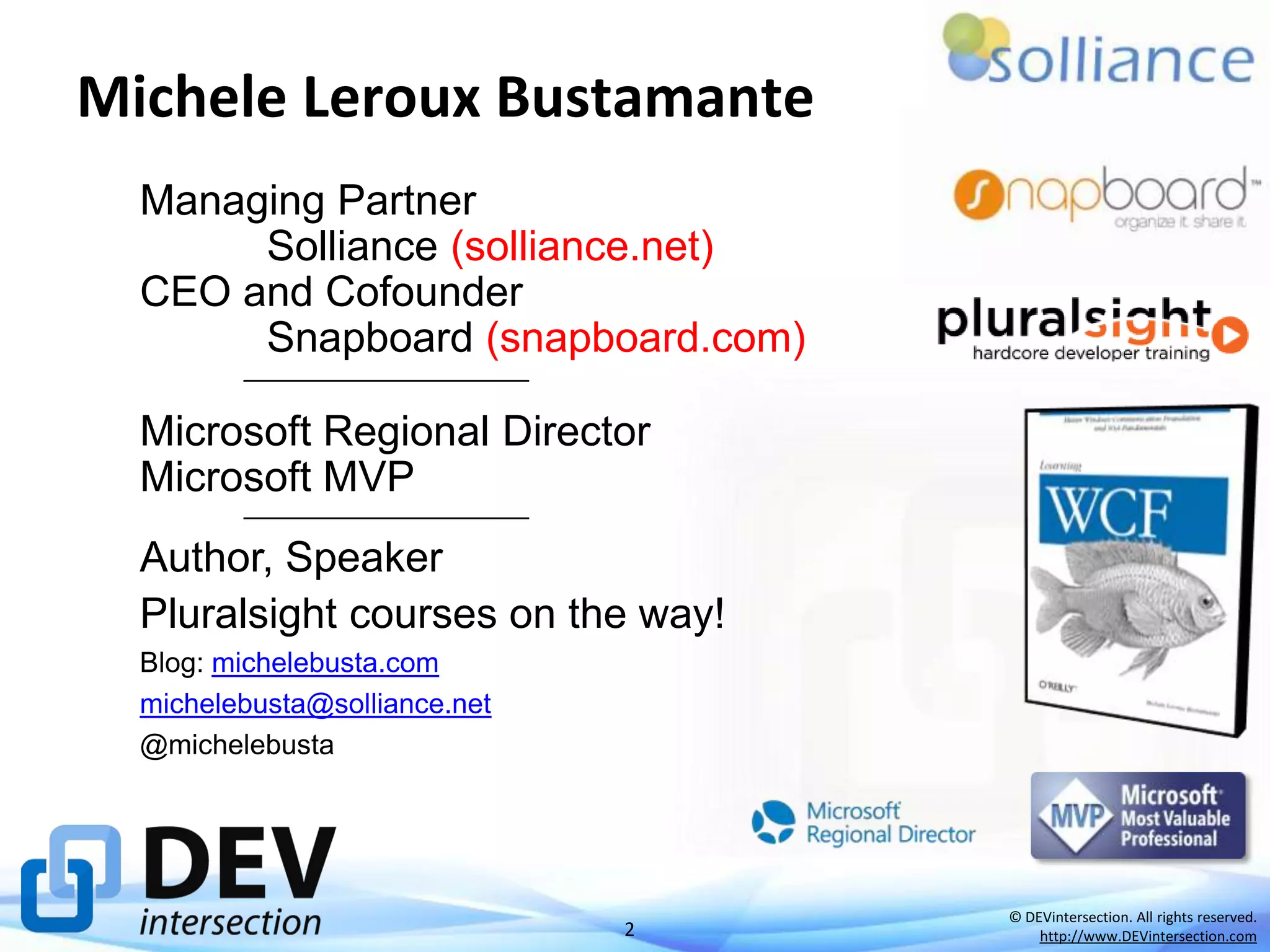

2. Michele Leroux Bustamante
Managing Partner
Solliance (solliance.net)
CEO and Cofounder
Snapboard (snapboard.com)
Microsoft Regional Director
Microsoft MVP
Author, Speaker
Pluralsight courses on the way!
Blog: michelebusta.com
michelebusta@solliance.net
@michelebusta
2
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

3. Hello World!
1992

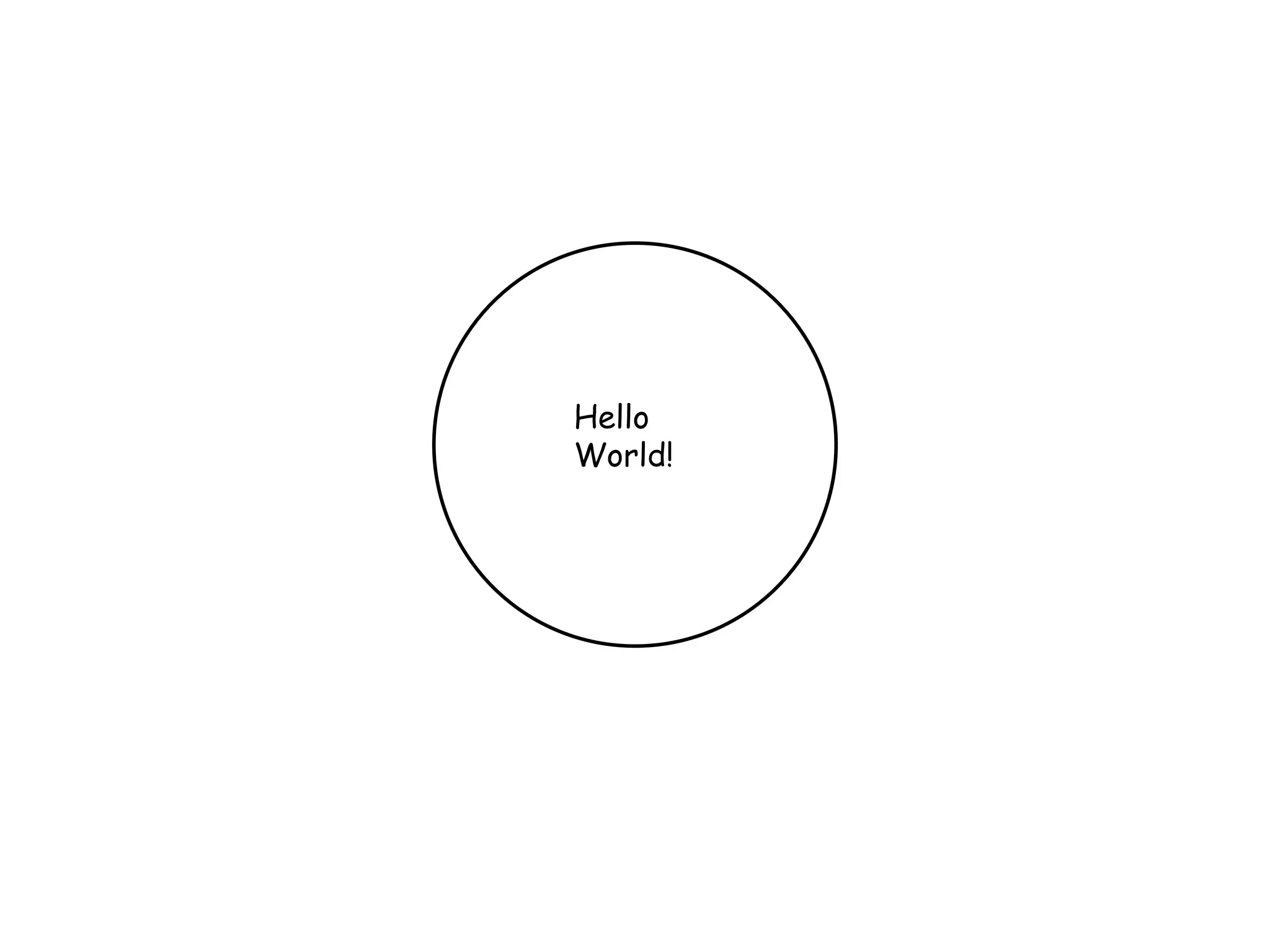

4. Hello
World!

5. Hello World!
2013

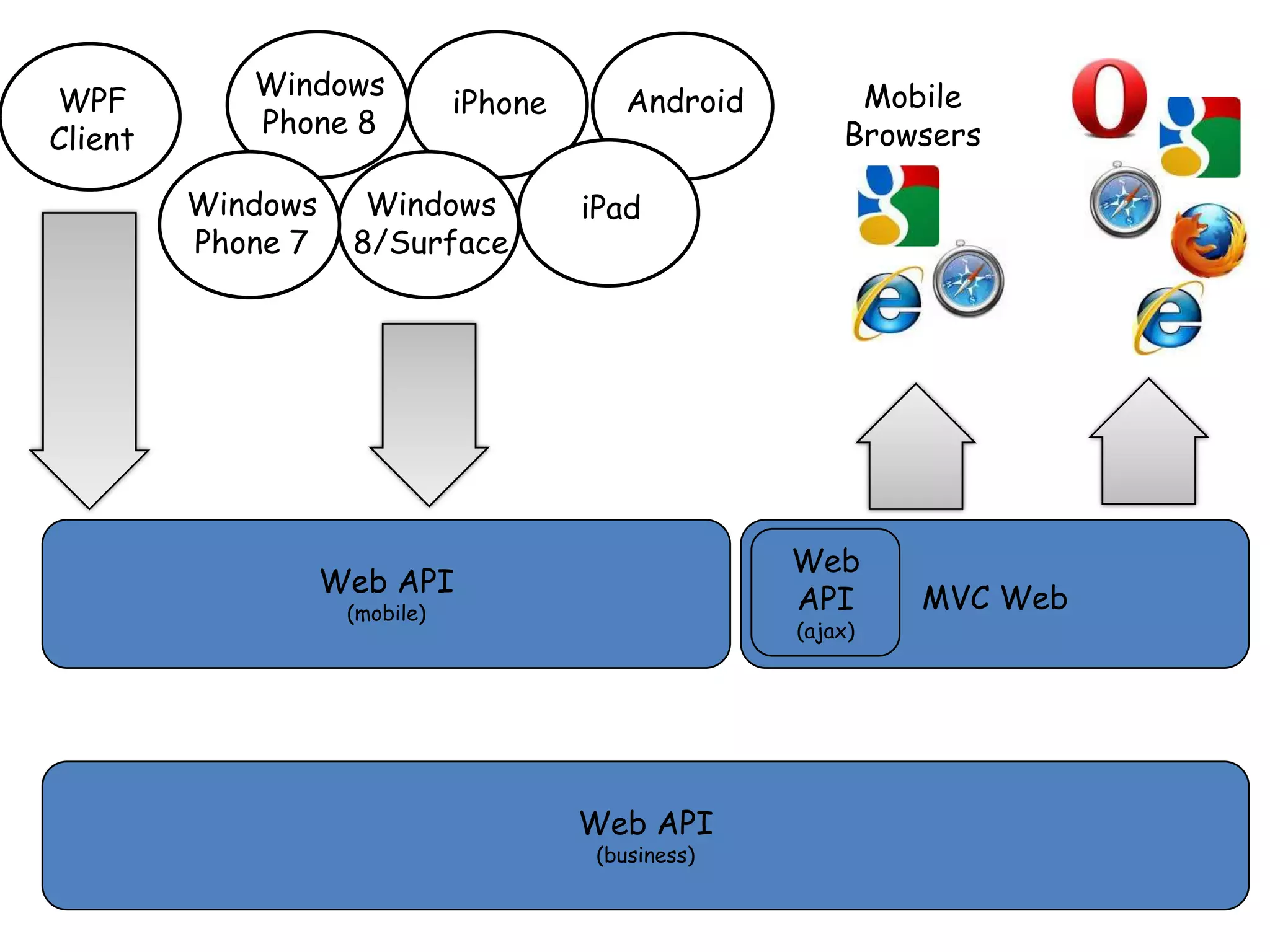

6. WPF
Client
Windows
Phone 8
Windows
Phone 7
iPhone
Windows
8/Surface
Android
Mobile
Browsers
iPad
Web
API
Web API
(mobile)
(ajax)
Web API
(business)
MVC Web

7. Things are complicated…
So we seek simplicity
where we can

8. WS-Federation
WS-ReliableMessaging
WS-PolicyAttachment
OASIS Web Services Security
WS*
HELL
WSDL
WS-Coordination
WS-CAF
MTOM
WS-Transfer
WS-Eventing
WS-BusinessActivity
WS-ResourceTransfer
WSRF
DIME
WS-Addressing
SOAP

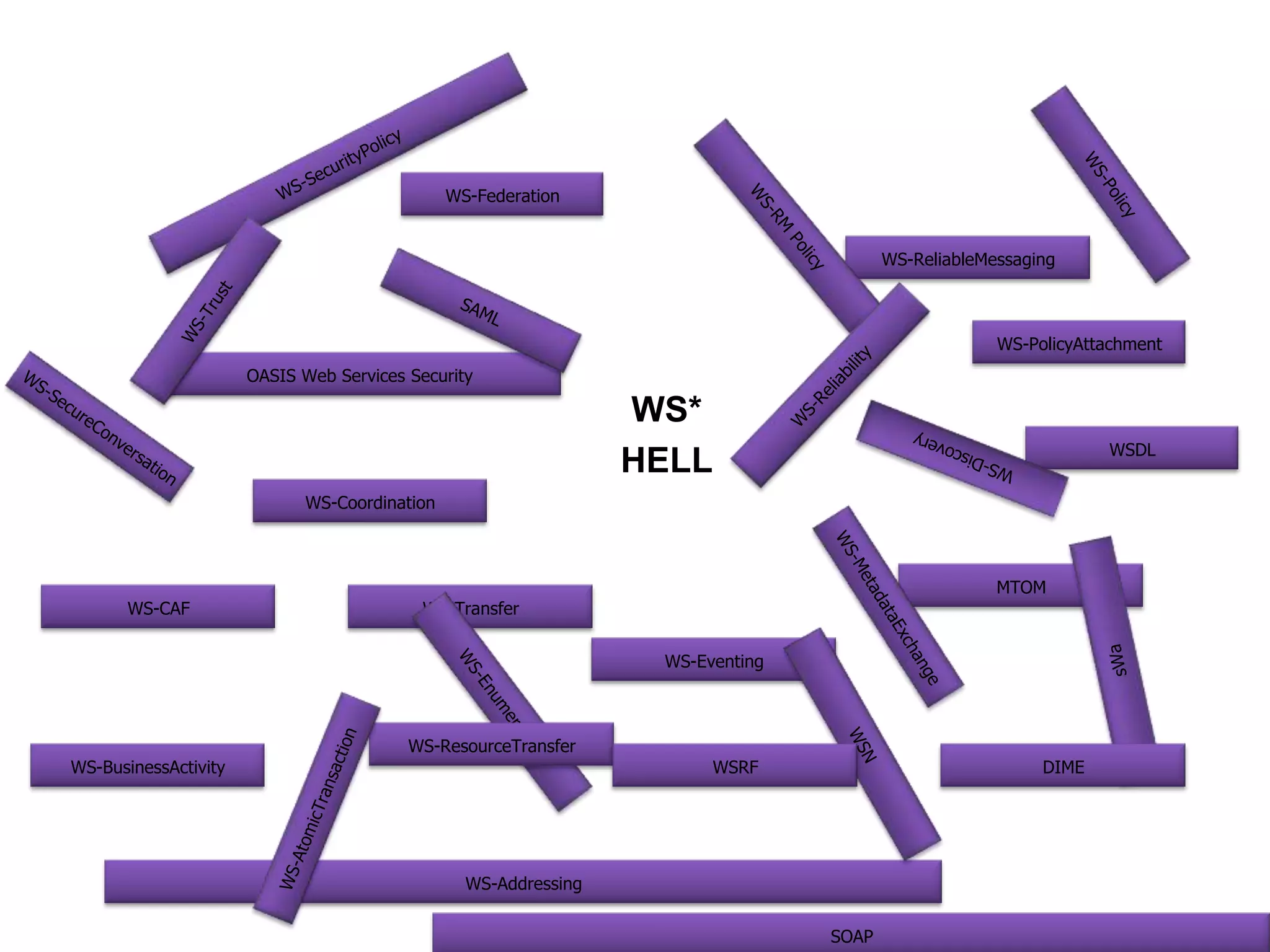

9. WS-Federation
WS-ReliableMessaging
WS-PolicyAttachment
OASIS Web Services Security
WS*
HELL
WSDL
WS-Coordination
WS-CAF
MTOM
WS-Transfer
WS-Eventing
WS-BusinessActivity
WS-ResourceTransfer
WSRF
DIME
WS-Addressing
SOAP

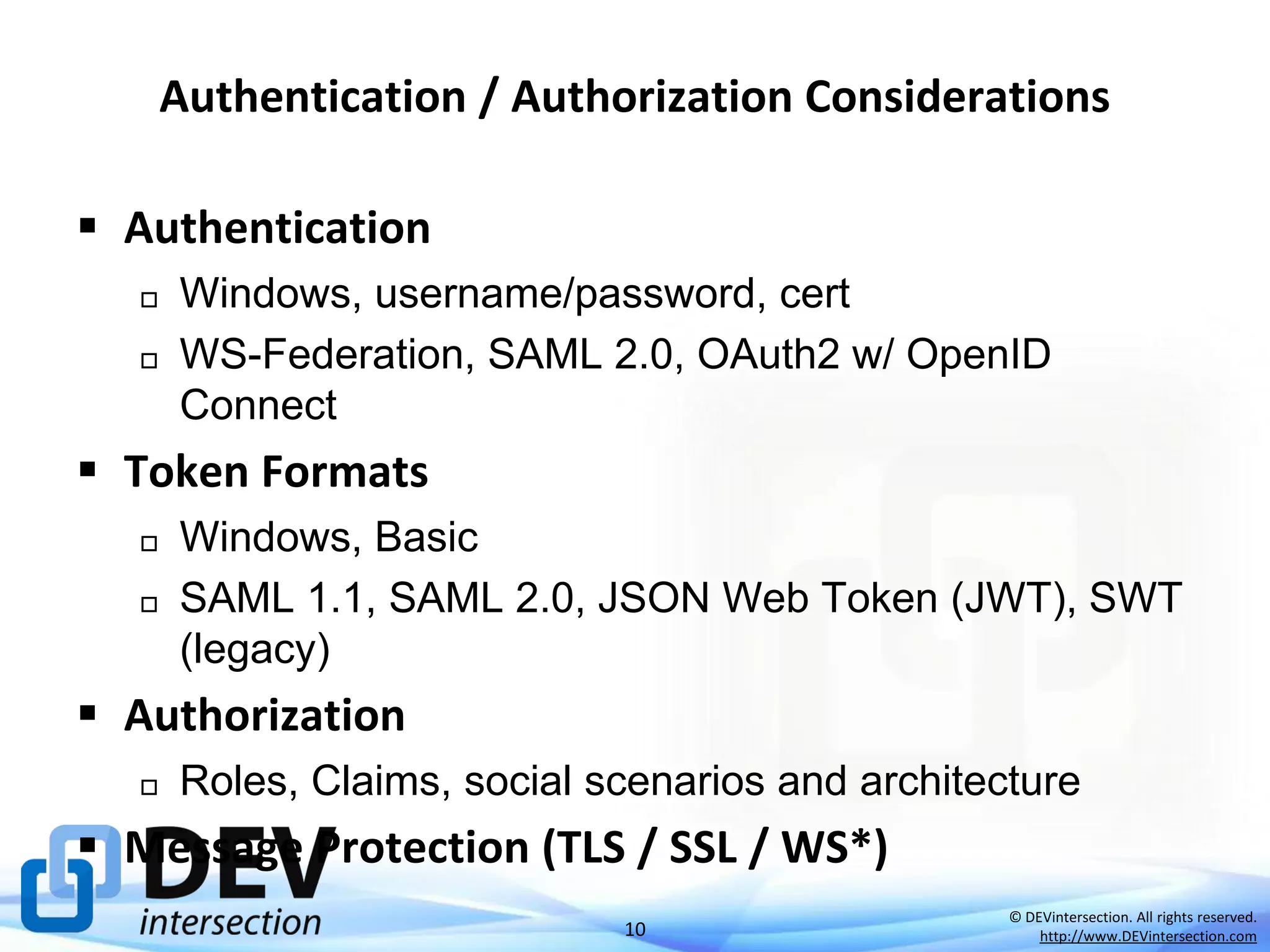

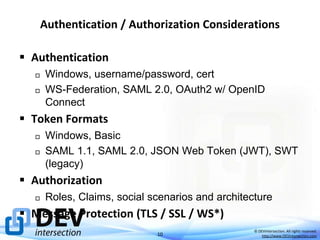

10. Authentication / Authorization Considerations
 Authentication


Windows, username/password, cert
WS-Federation, SAML 2.0, OAuth2 w/ OpenID
Connect
 Token Formats


Windows, Basic
SAML 1.1, SAML 2.0, JSON Web Token (JWT), SWT
(legacy)
 Authorization

Roles, Claims, social scenarios and architecture
 Message Protection (TLS / SSL / WS*)
10
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

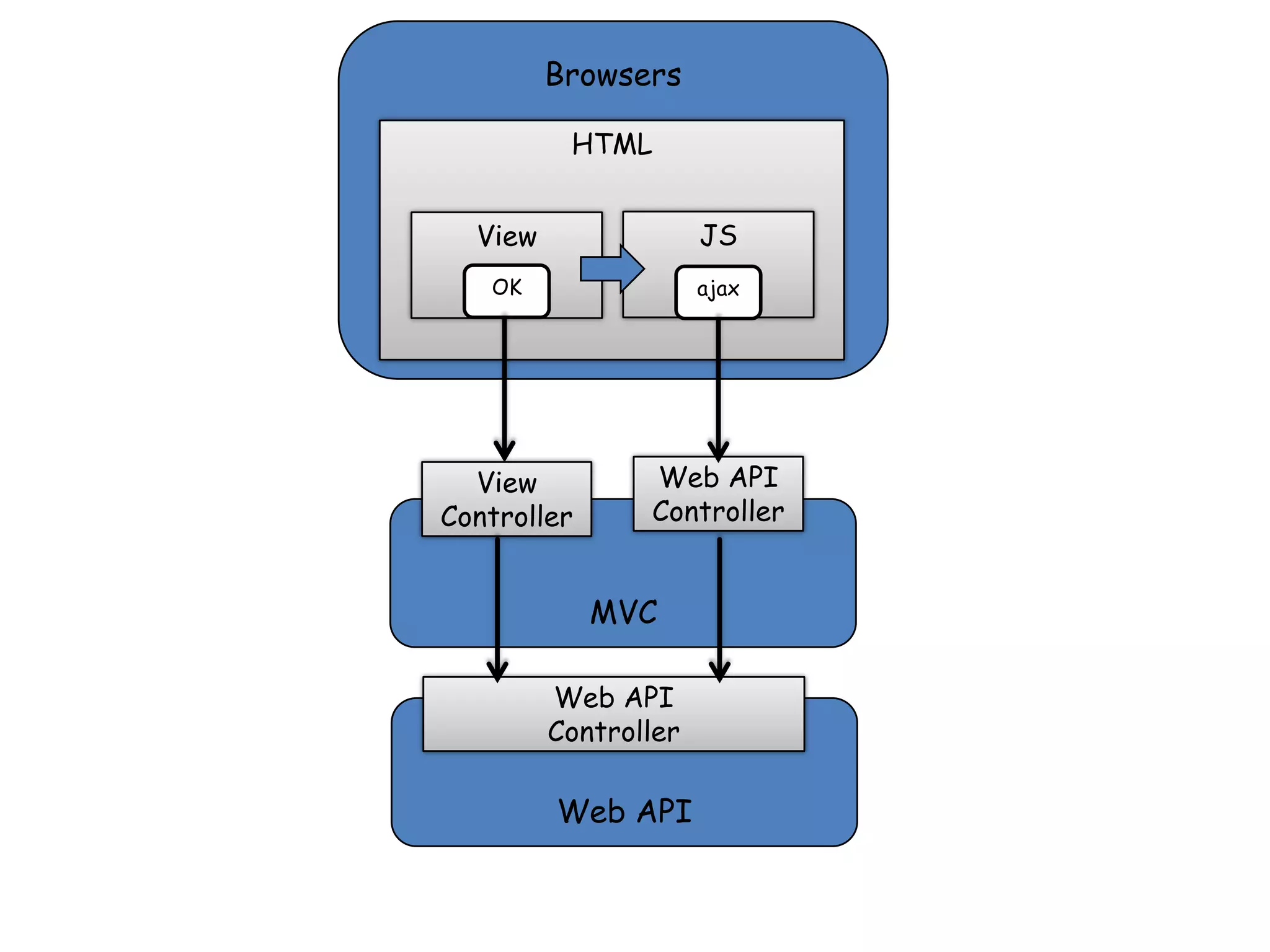

11. Browsers
HTML
View
JS
OK
ajax
View
Controller
Web API
Controller
MVC
Web API
Controller
Web API

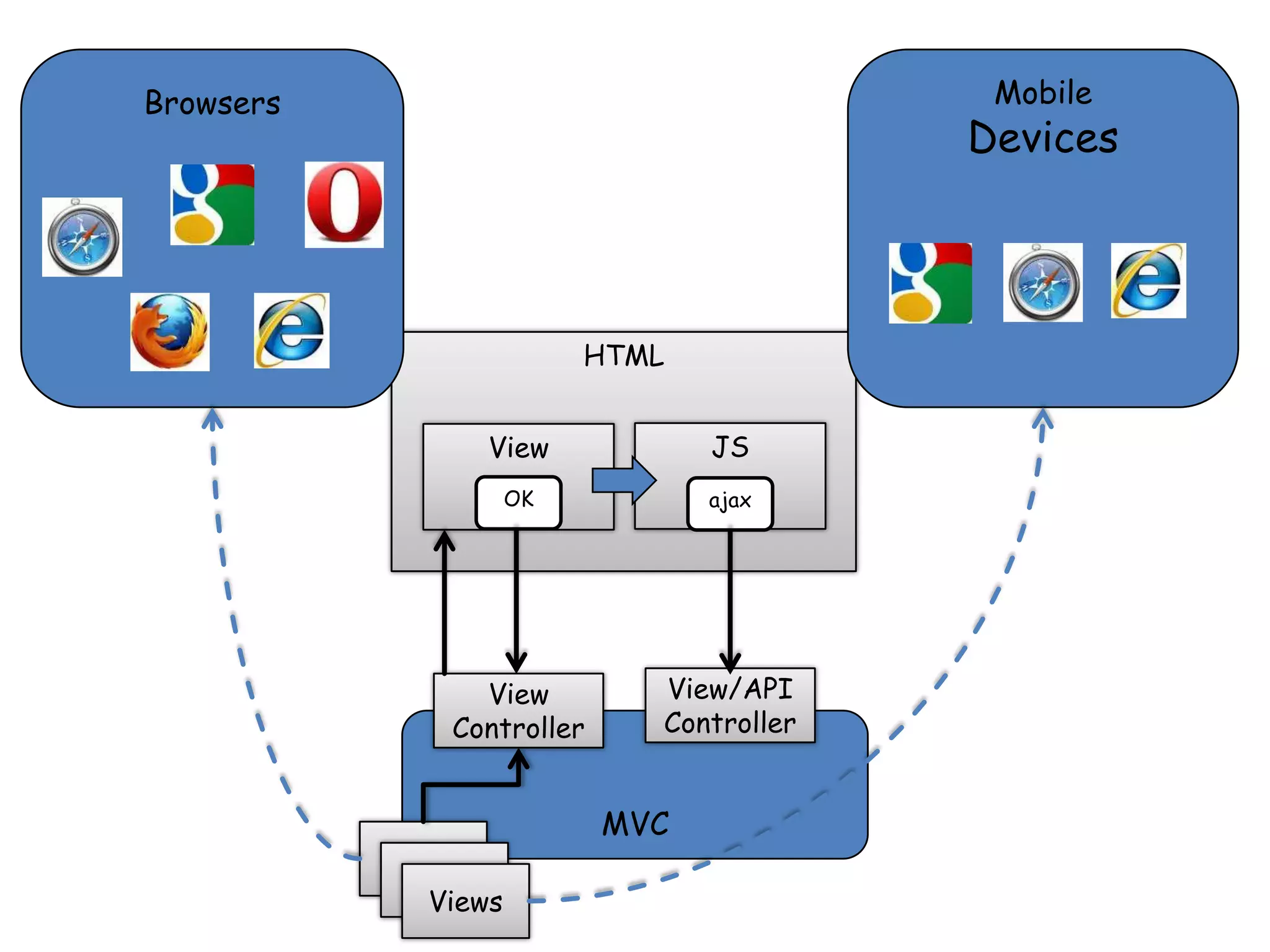

12. Mobile
Browsers
Devices
HTML
View
JS
OK
ajax
View
Controller
View/API
Controller
View
View
Views
MVC

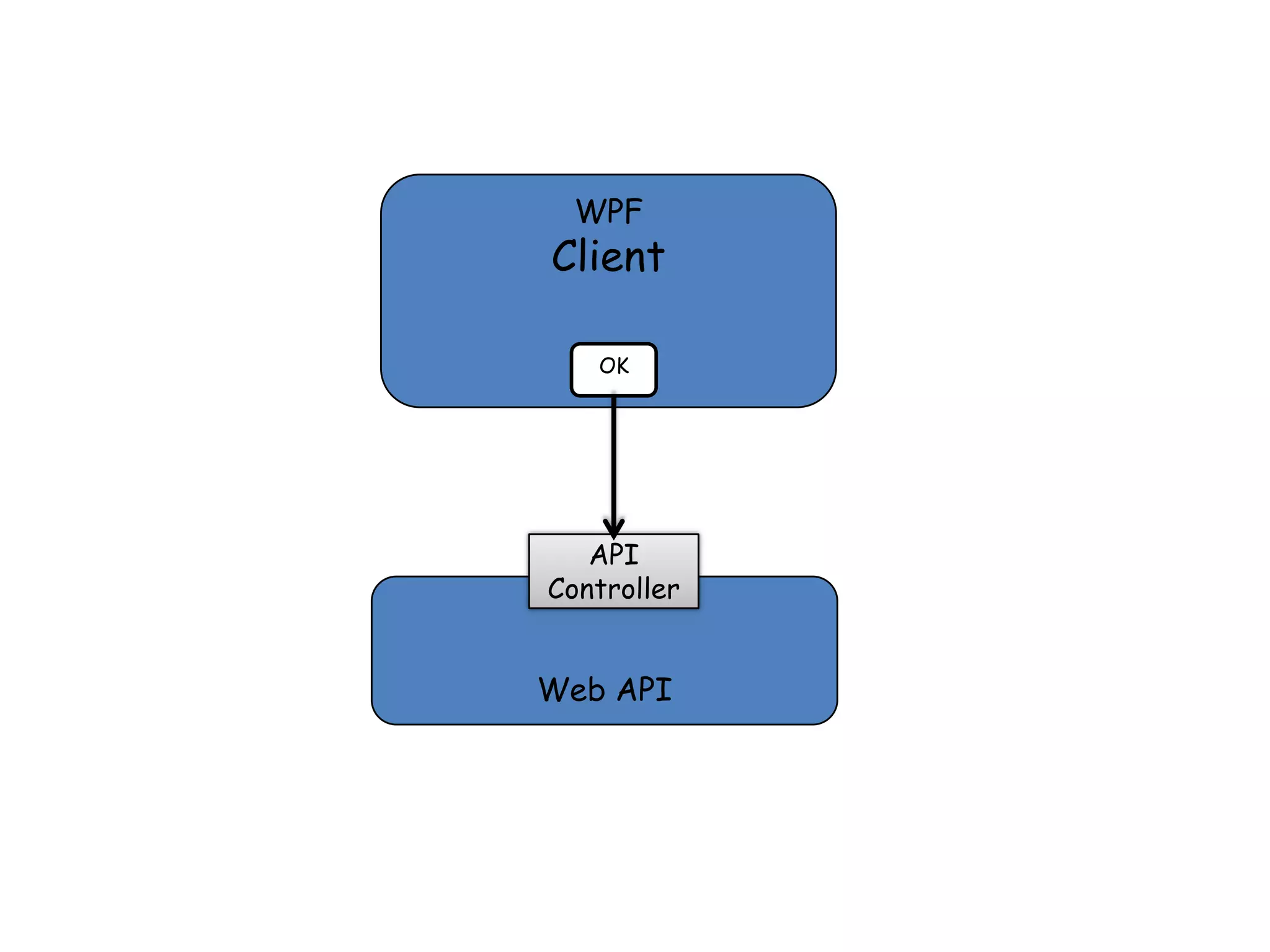

13. WPF
Client
OK
API
Controller
Web API

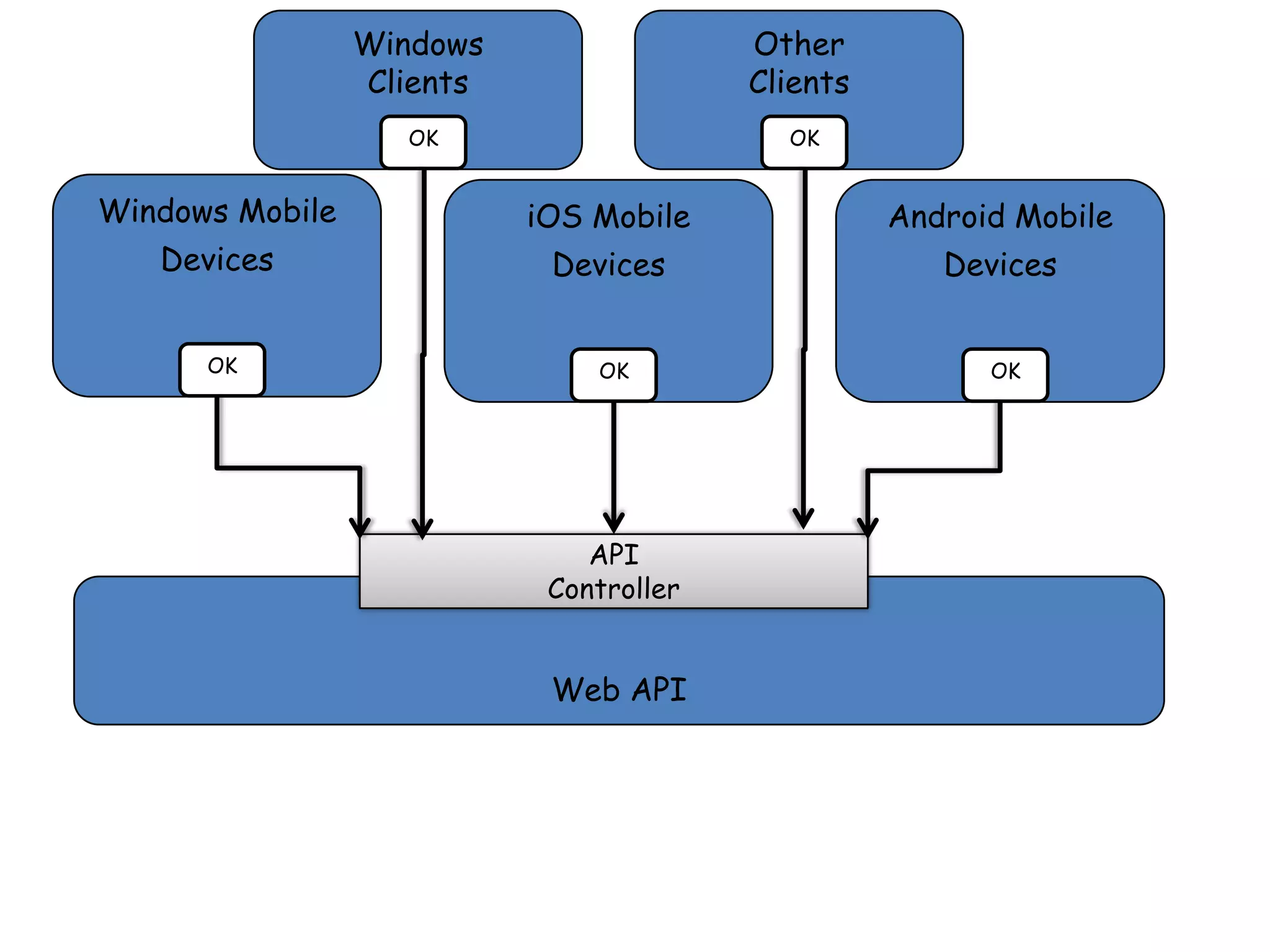

14. Windows
Clients
OK
Windows Mobile
Devices
OK
Other
Clients
OK
iOS Mobile
Android Mobile
Devices
Devices
OK
OK
API
Controller
Web API

15. Wherever possible
choose the lowest
common denominator

16. Demo
WebSecurity and Claims

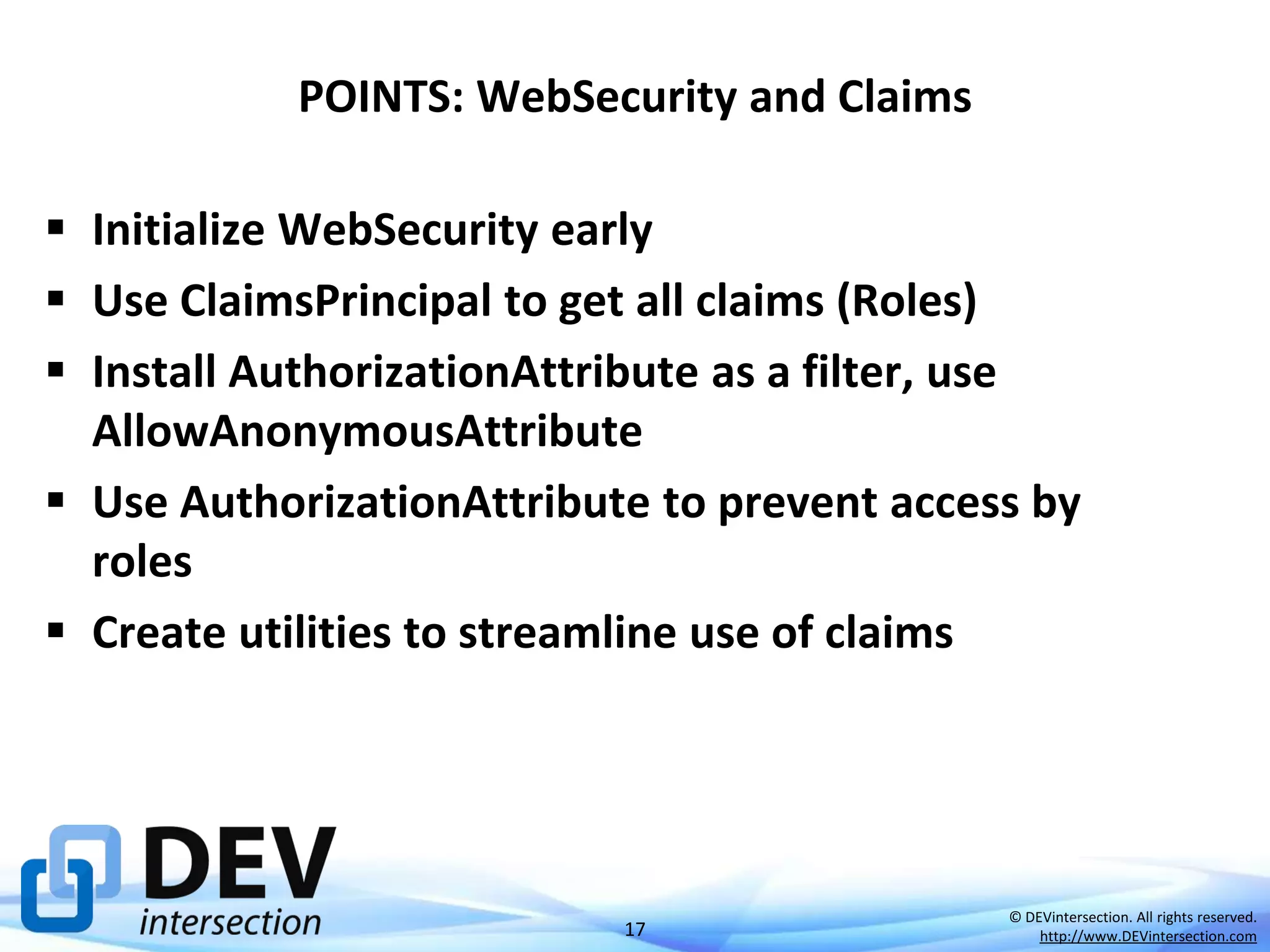

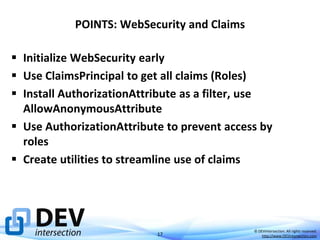

17. POINTS: WebSecurity and Claims
 Initialize WebSecurity early
 Use ClaimsPrincipal to get all claims (Roles)
 Install AuthorizationAttribute as a filter, use
AllowAnonymousAttribute
 Use AuthorizationAttribute to prevent access by
roles
 Create utilities to streamline use of claims
17
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

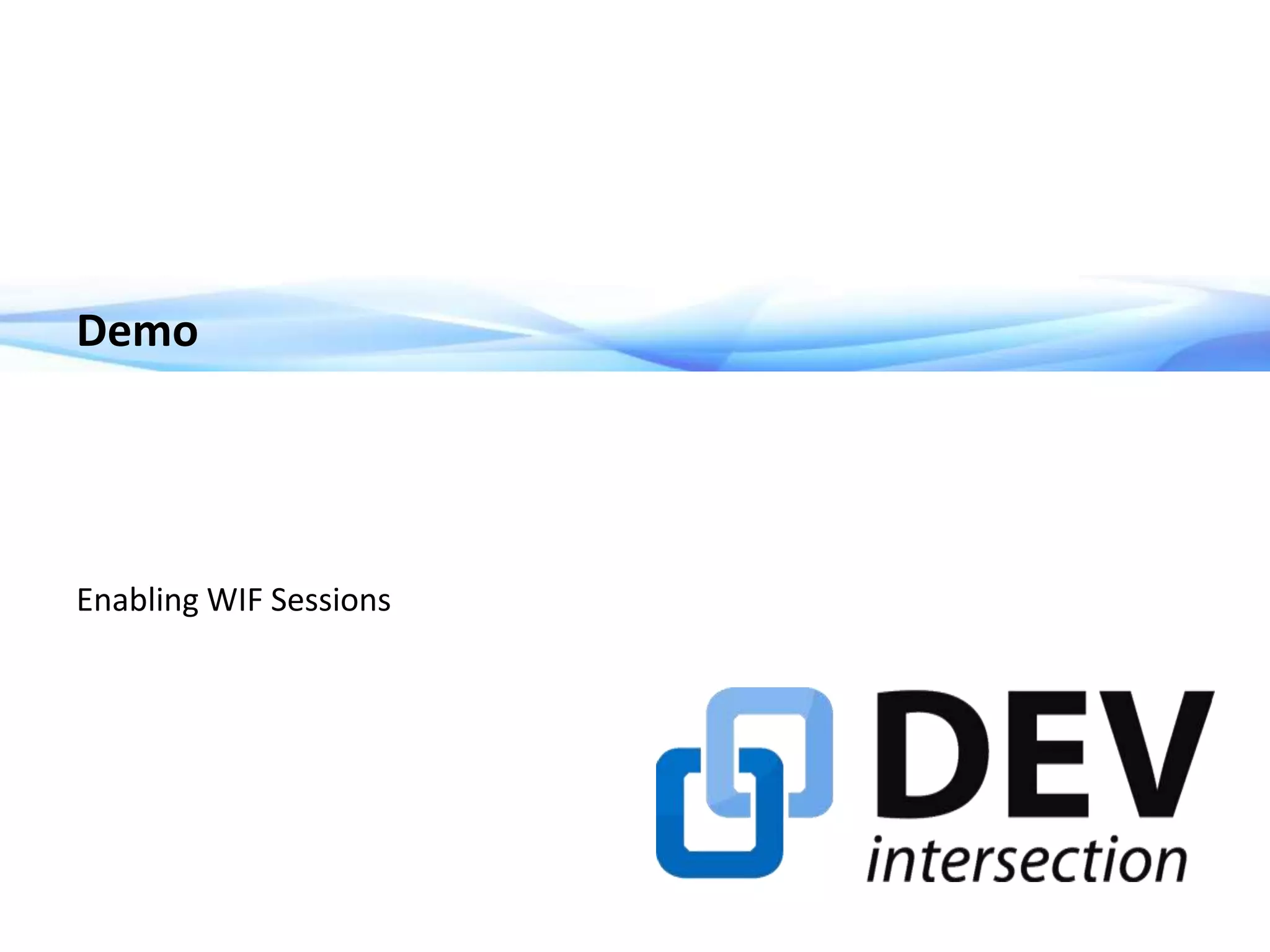

18. Demo
Enabling WIF Sessions

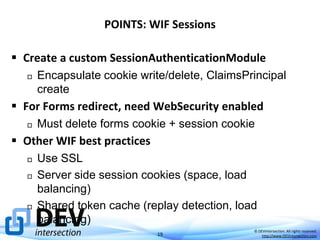

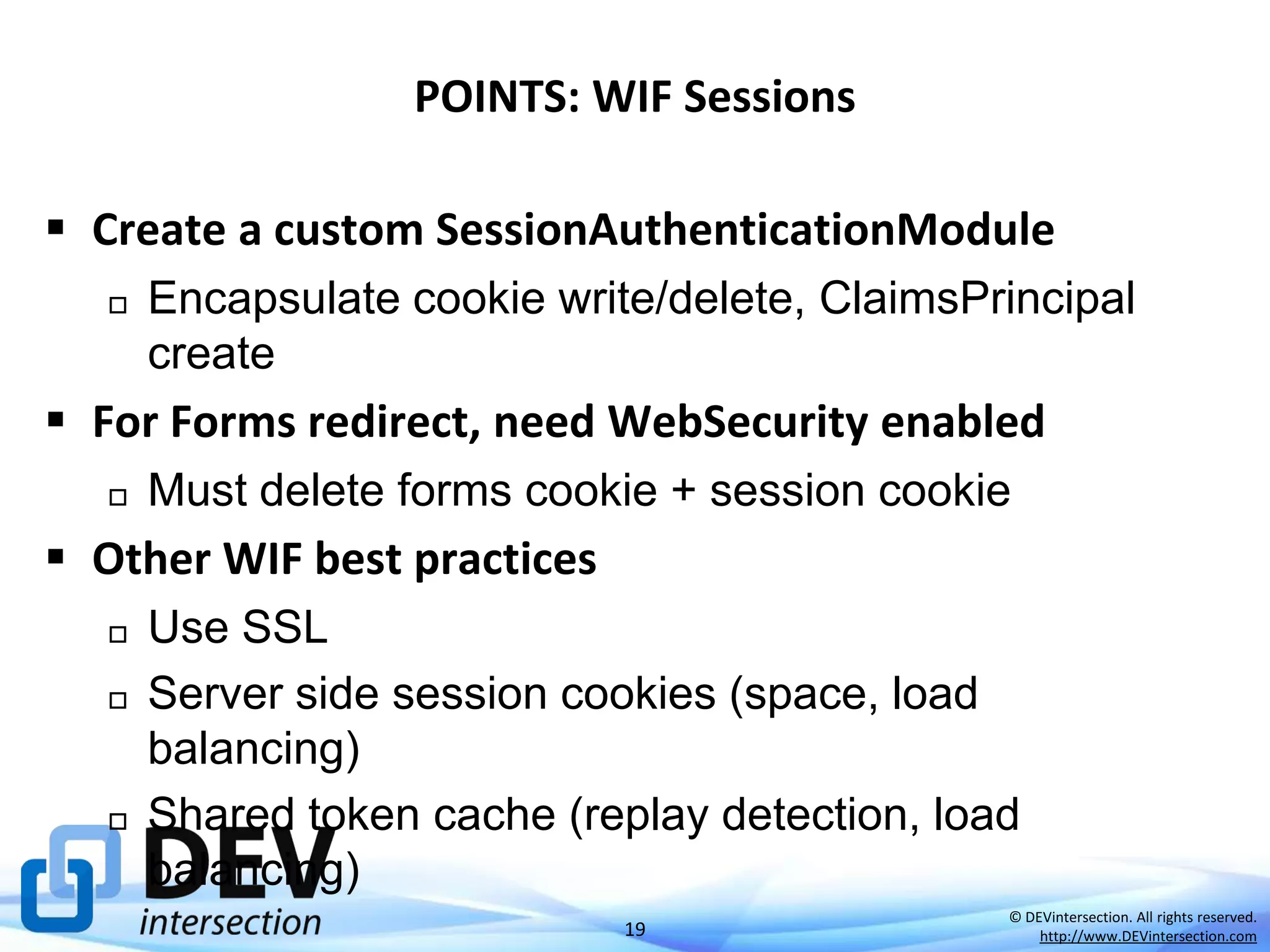

19. POINTS: WIF Sessions
 Create a custom SessionAuthenticationModule

Encapsulate cookie write/delete, ClaimsPrincipal
create
 For Forms redirect, need WebSecurity enabled

Must delete forms cookie + session cookie
 Other WIF best practices



Use SSL
Server side session cookies (space, load
balancing)
Shared token cache (replay detection, load
balancing)
19
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

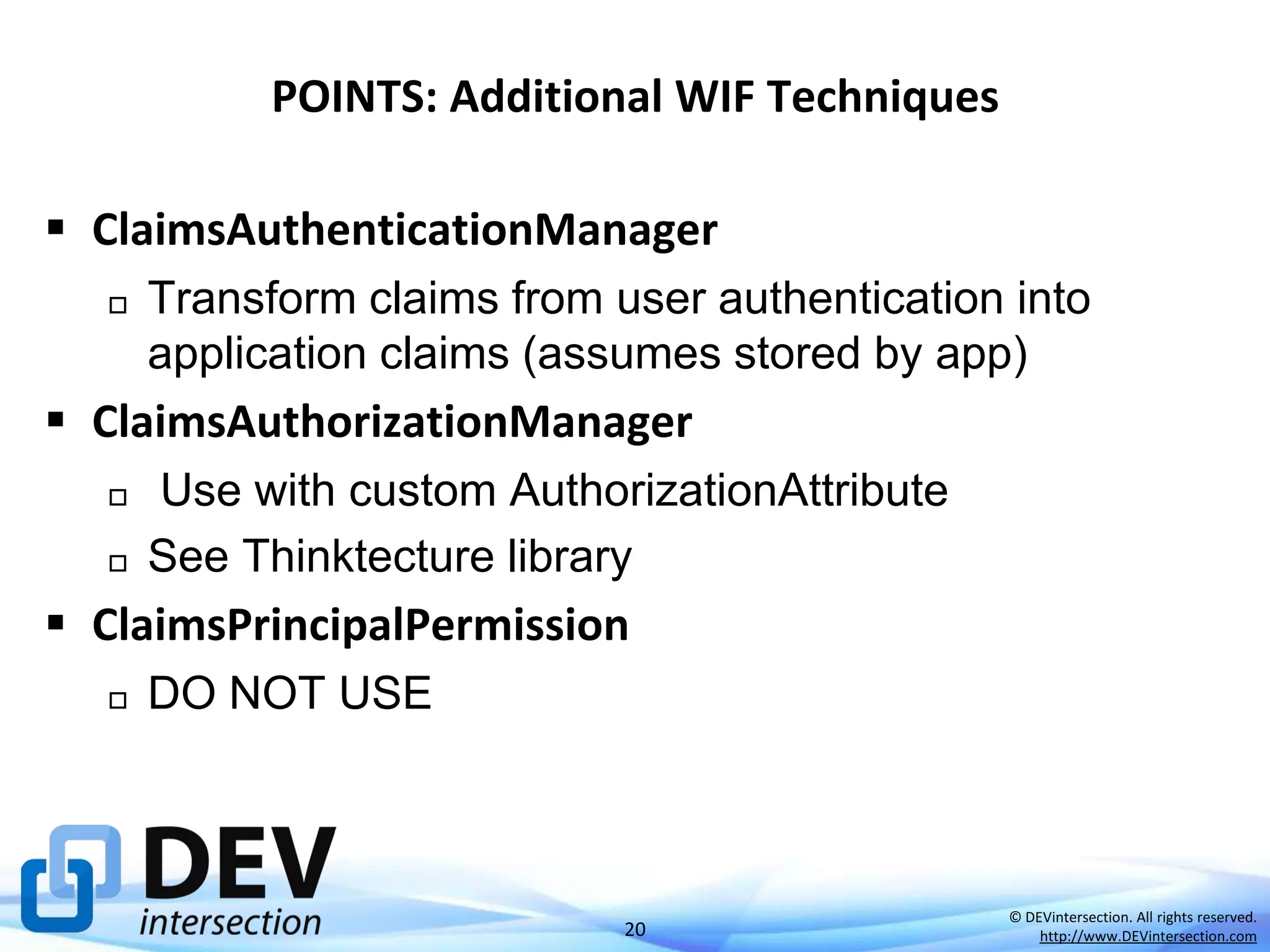

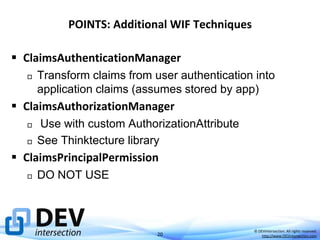

20. POINTS: Additional WIF Techniques
 ClaimsAuthenticationManager

Transform claims from user authentication into
application claims (assumes stored by app)
 ClaimsAuthorizationManager


Use with custom AuthorizationAttribute
See Thinktecture library
 ClaimsPrincipalPermission

DO NOT USE
20
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

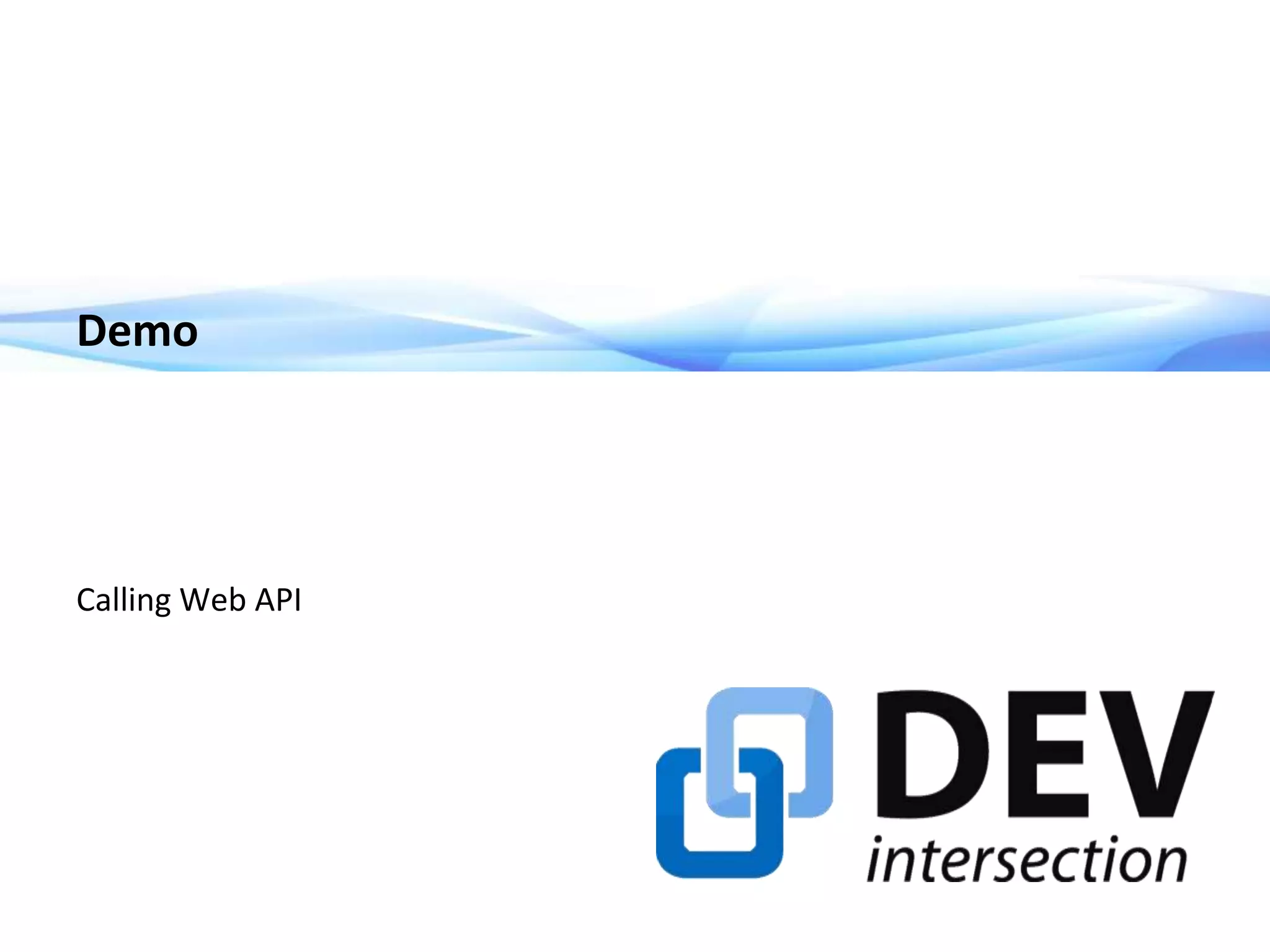

21. Demo
Calling Web API

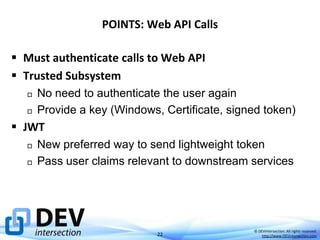

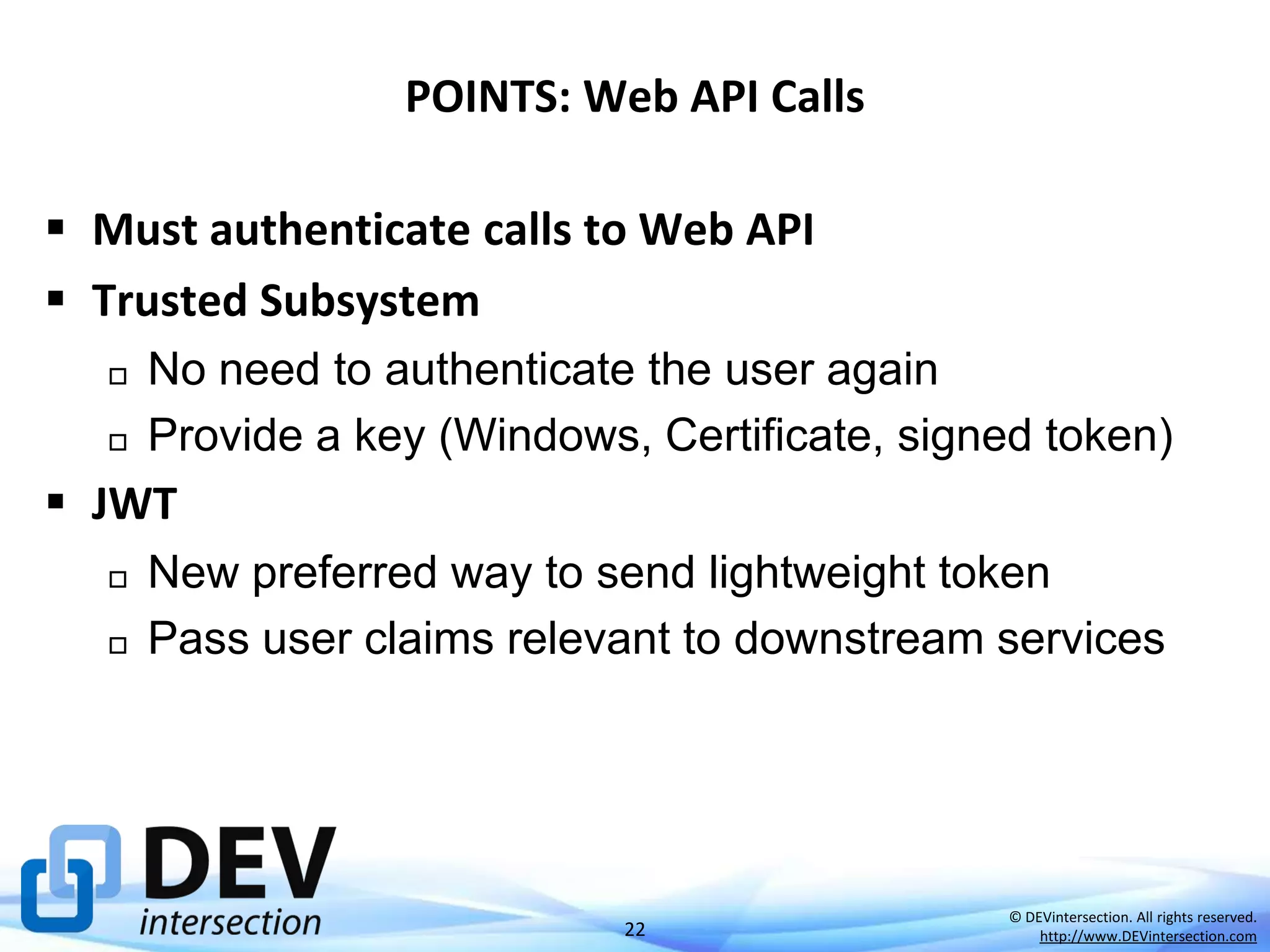

22. POINTS: Web API Calls
 Must authenticate calls to Web API
 Trusted Subsystem


No need to authenticate the user again
Provide a key (Windows, Certificate, signed token)
 JWT


New preferred way to send lightweight token
Pass user claims relevant to downstream services
22
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

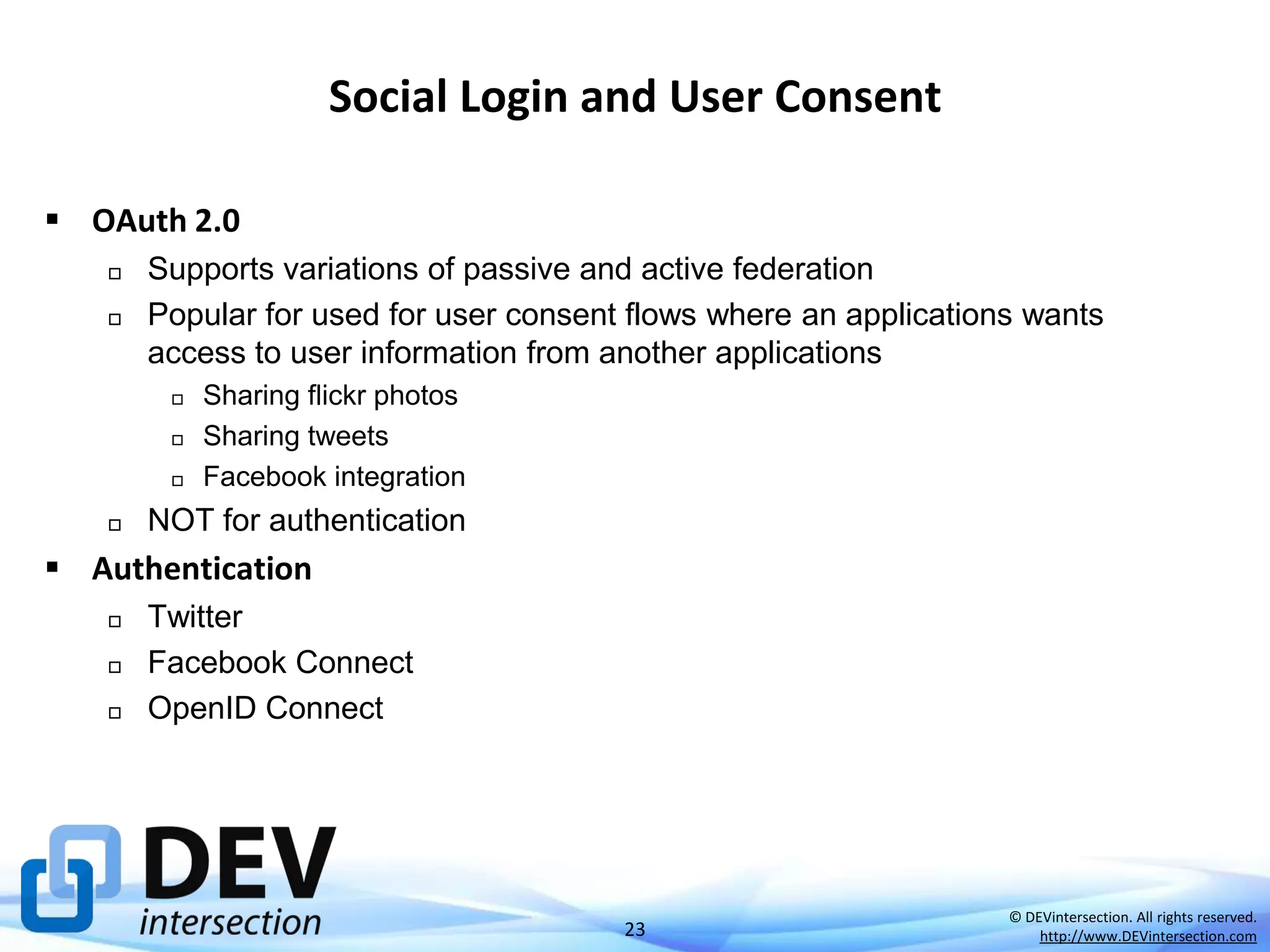

23. Social Login and User Consent
 OAuth 2.0


Supports variations of passive and active federation
Popular for used for user consent flows where an applications wants
access to user information from another applications




Sharing flickr photos
Sharing tweets
Facebook integration
NOT for authentication
 Authentication



Twitter
Facebook Connect
OpenID Connect
23
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

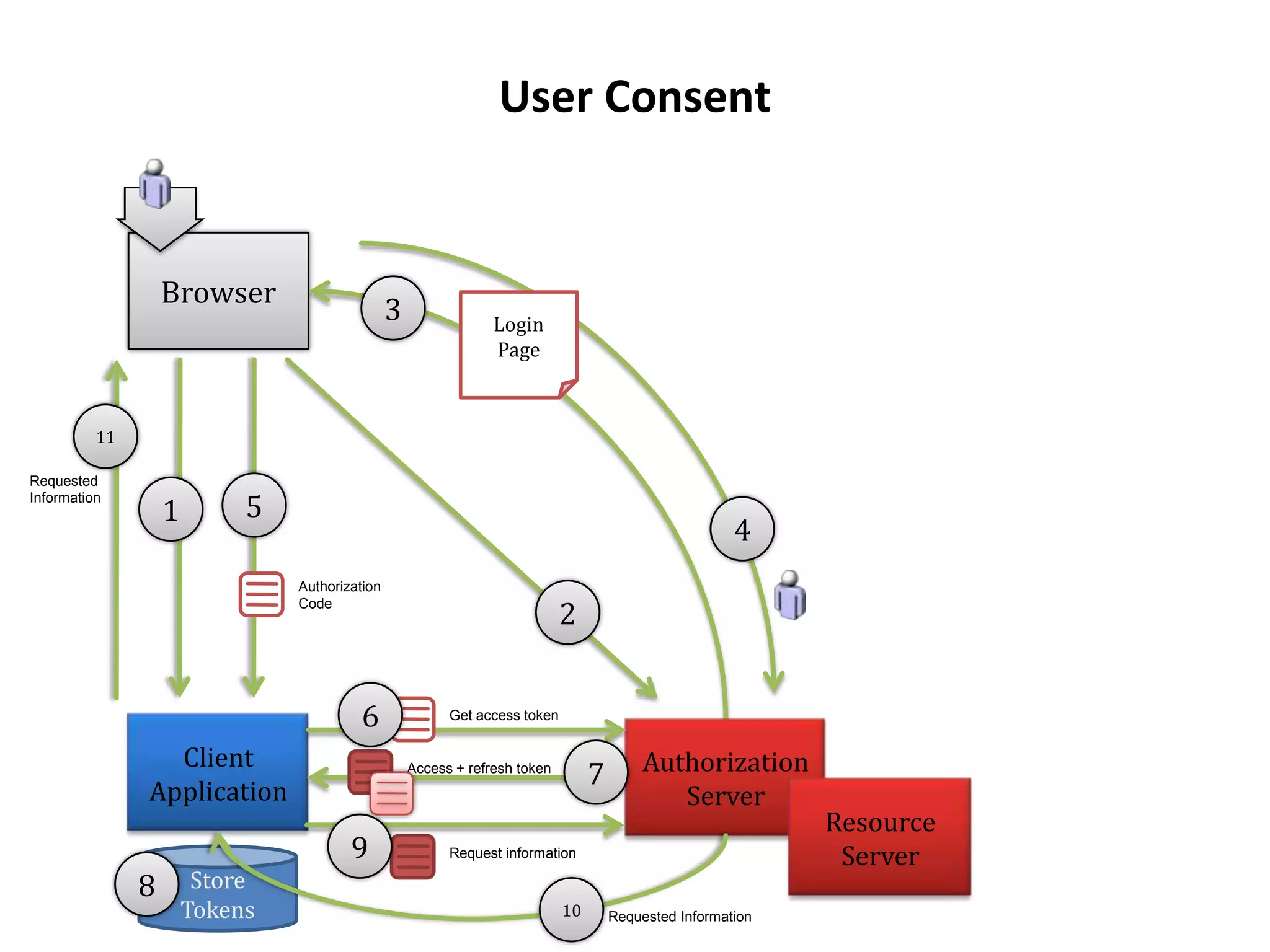

24. User Consent
Browser
3
Login
Page
11
Requested
Information
1
5
4
Authorization
Code
6
Client
Application
8
Store
Tokens
2
Get access token
7
Access + refresh token
9
Authorization
Server
Request information
10
Requested Information
Resource
Server

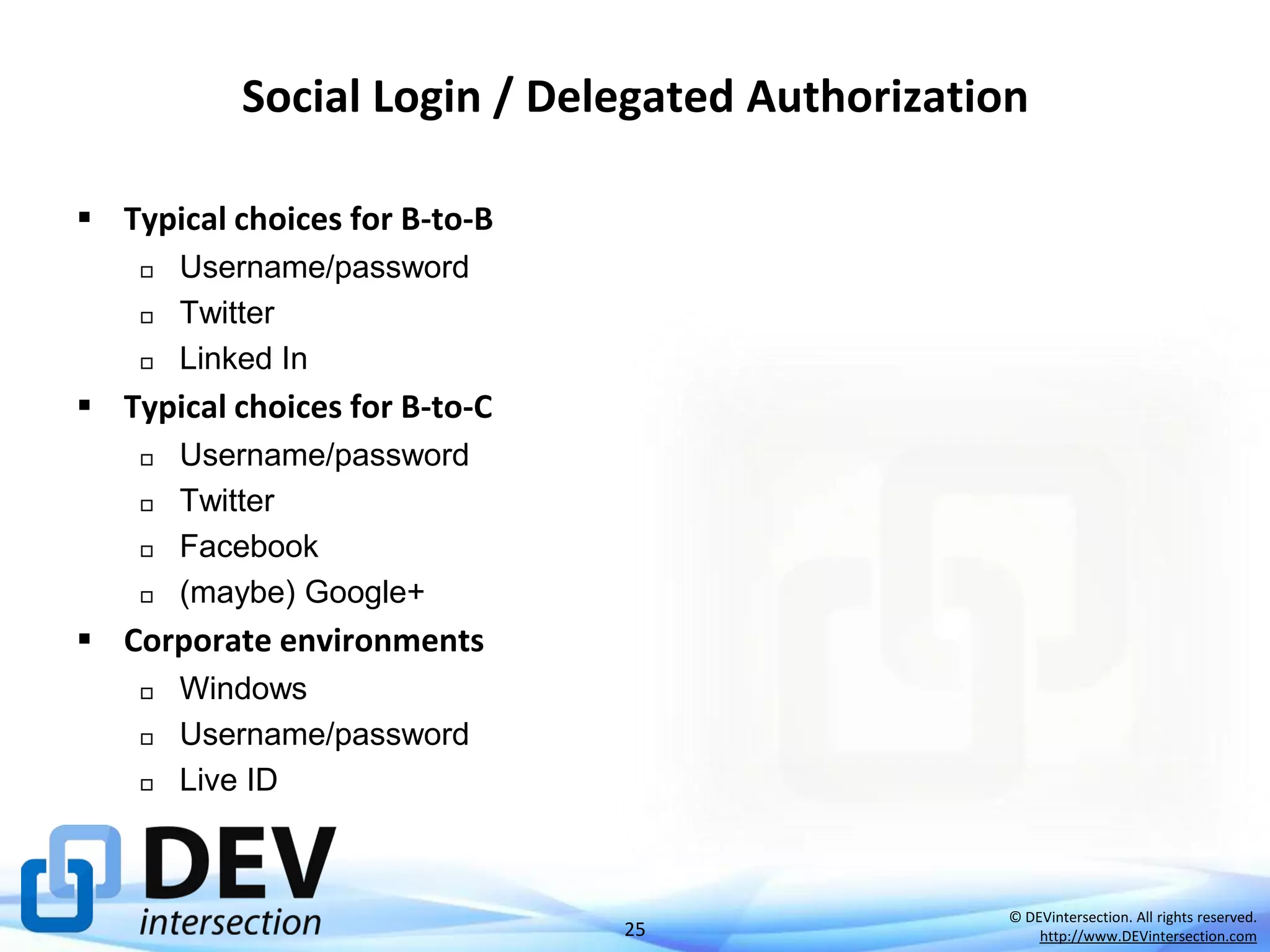

25. Social Login / Delegated Authorization
 Typical choices for B-to-B



Username/password
Twitter
Linked In
 Typical choices for B-to-C




Username/password
Twitter
Facebook
(maybe) Google+
 Corporate environments



Windows
Username/password
Live ID
25
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

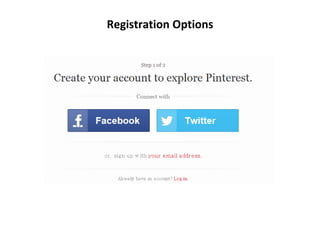

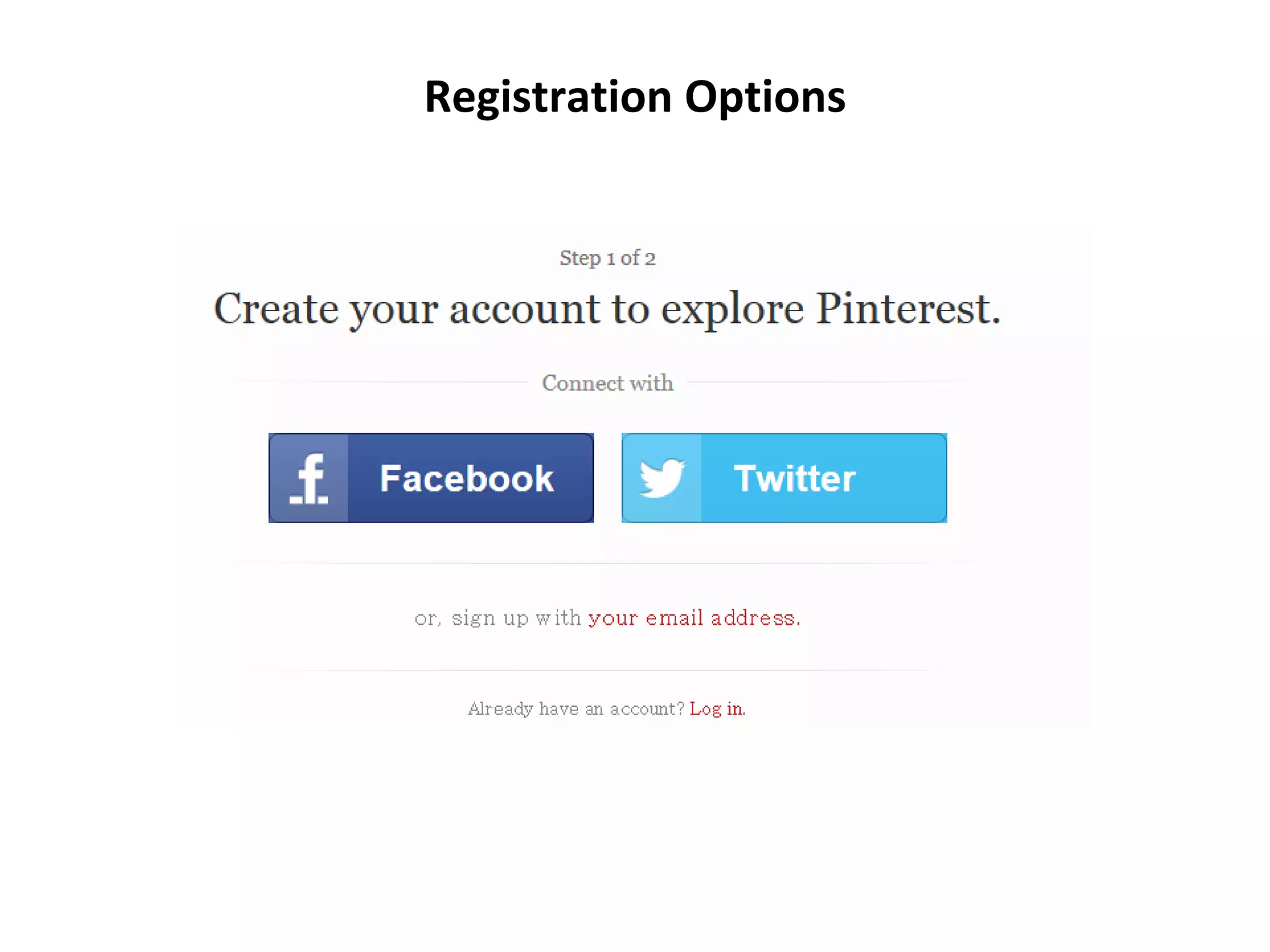

26. Registration Options

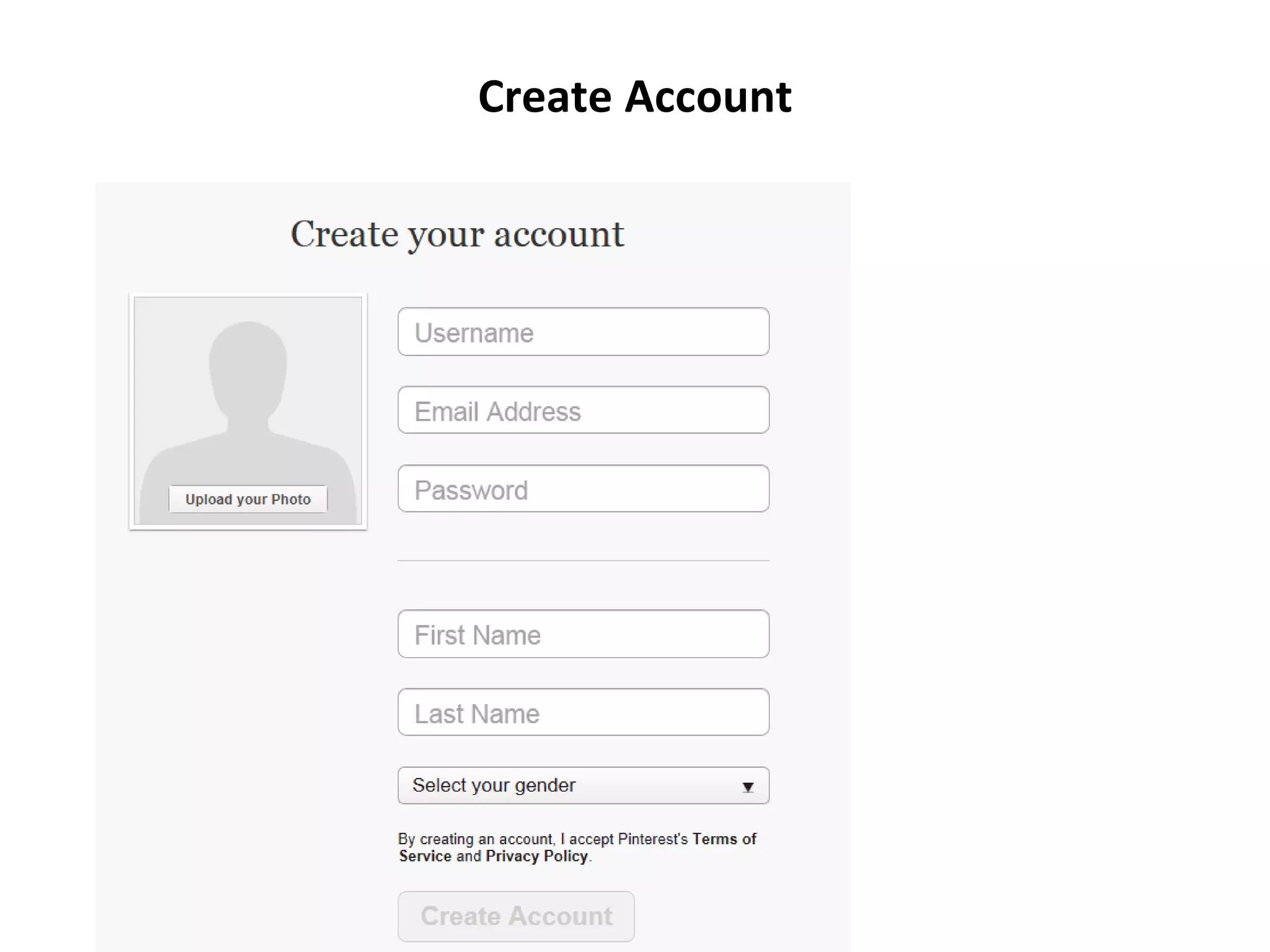

27. Create Account

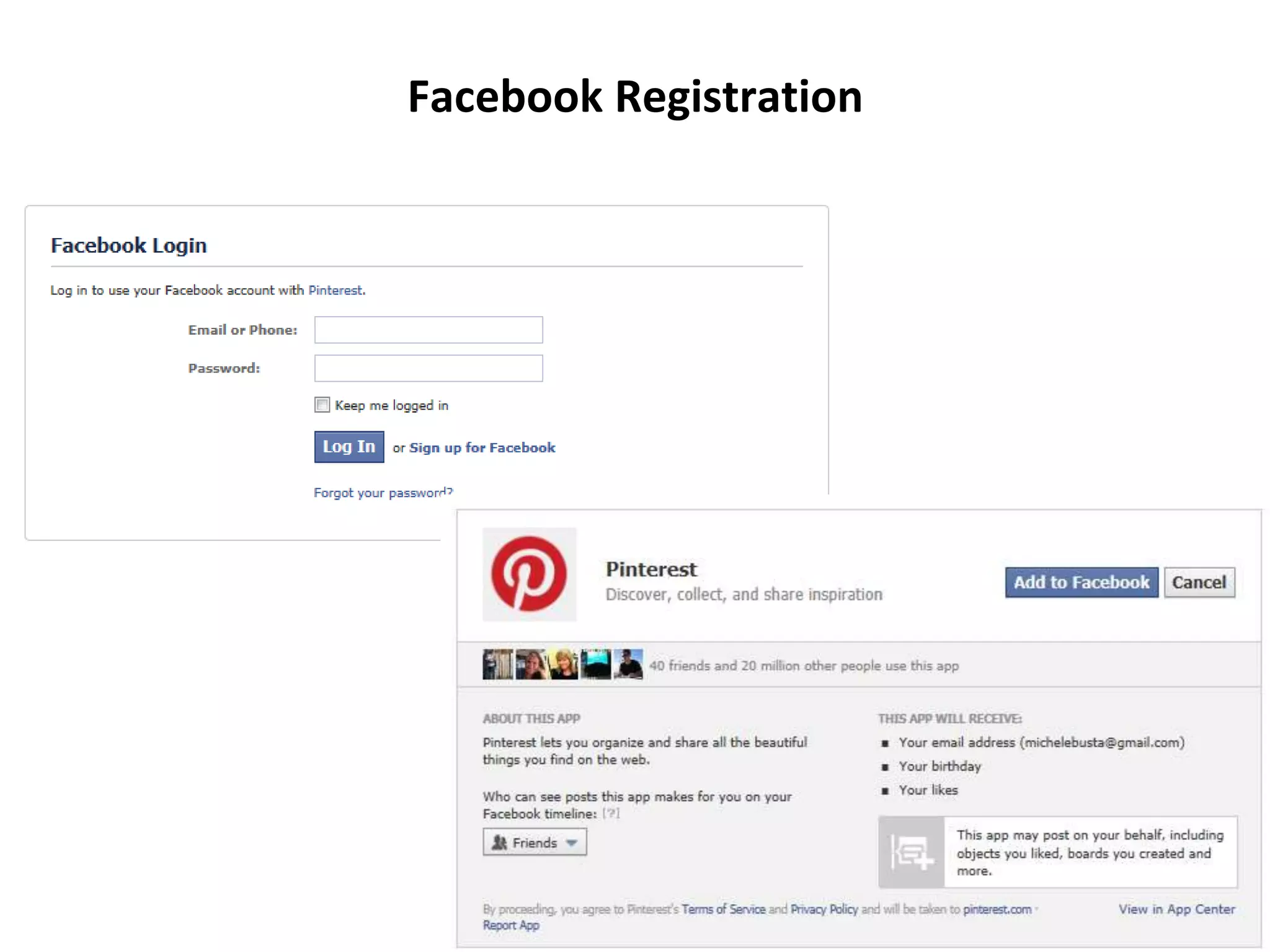

28. Facebook Registration

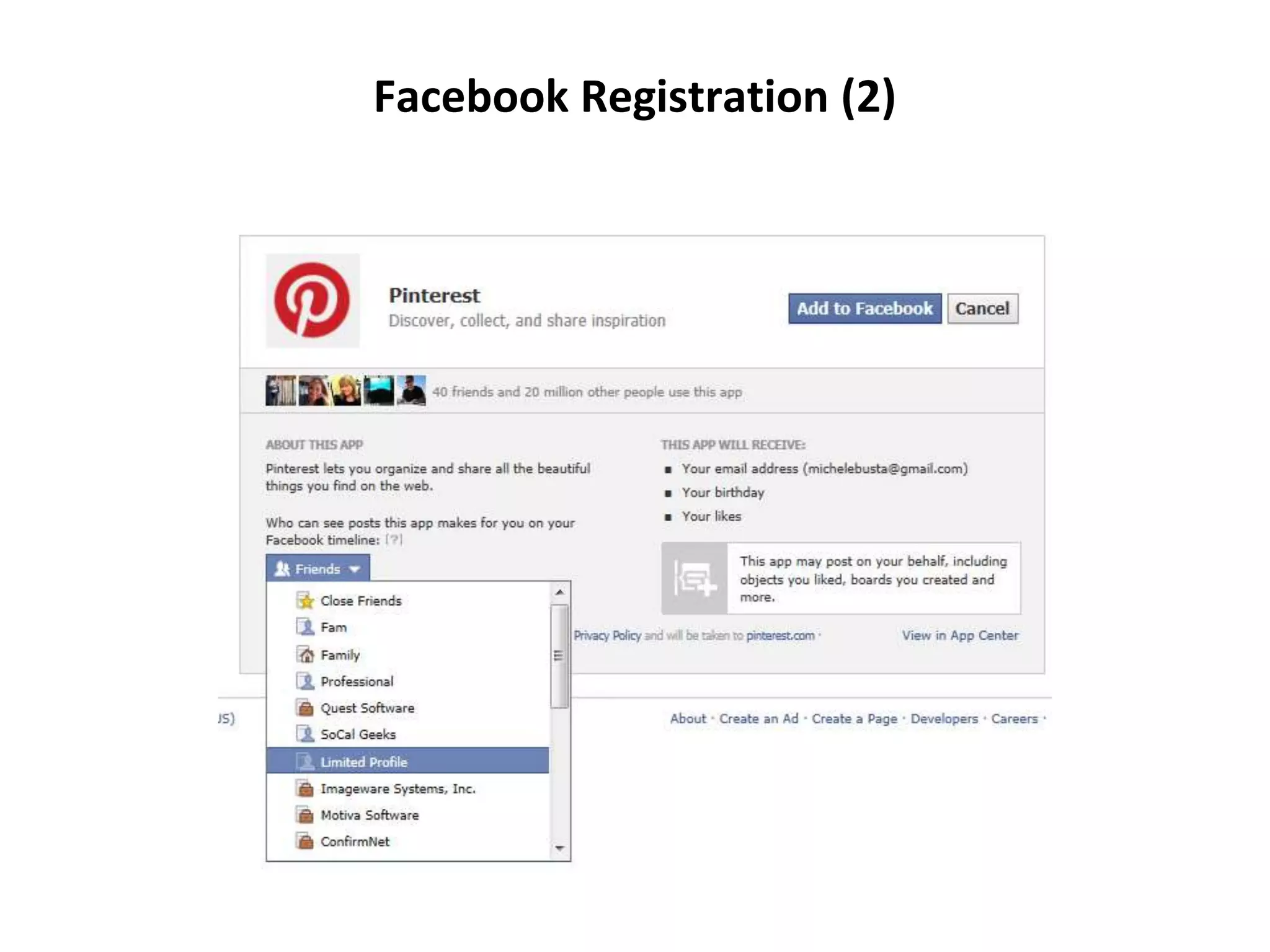

29. Facebook Registration (2)

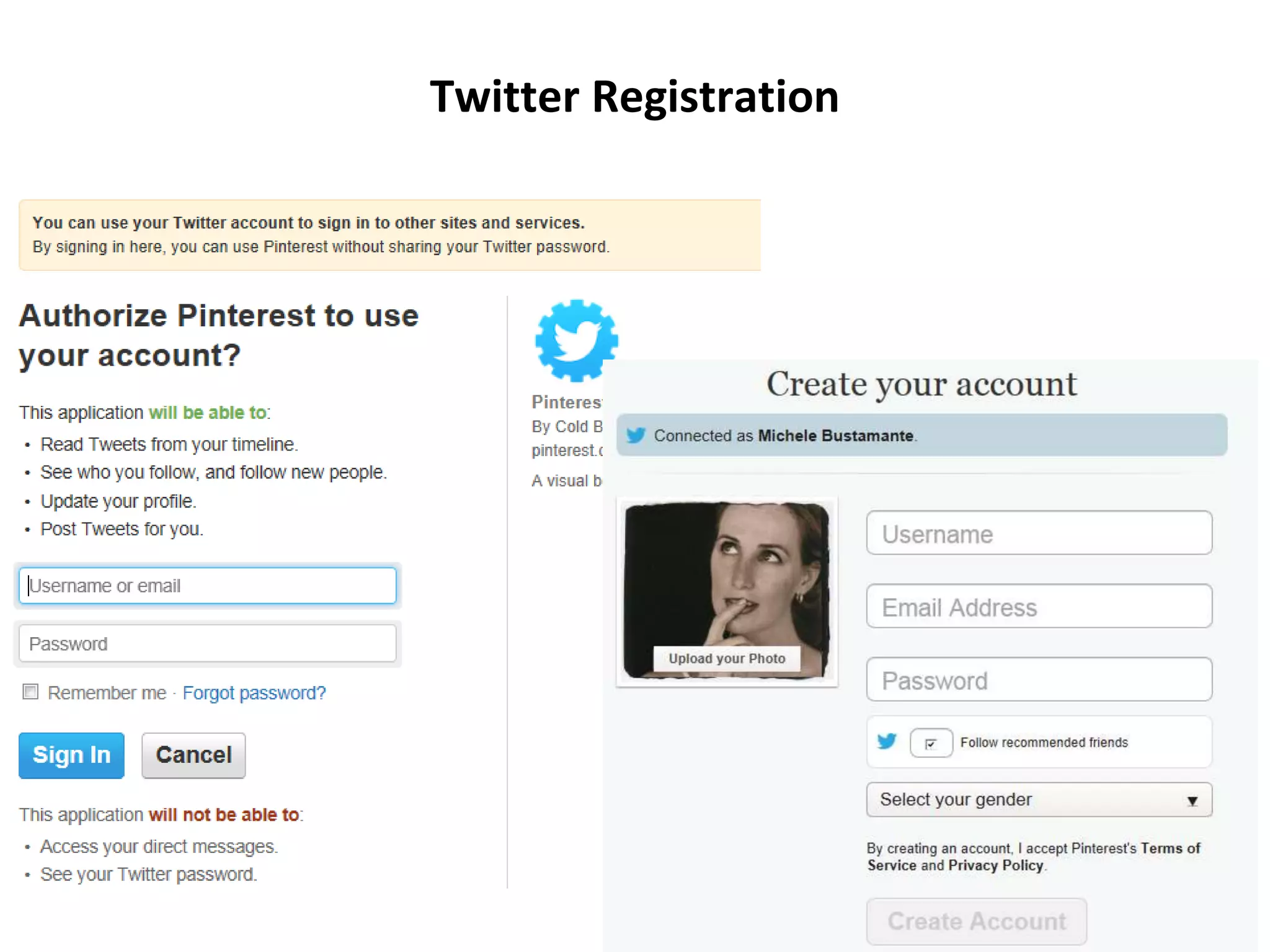

30. Twitter Registration

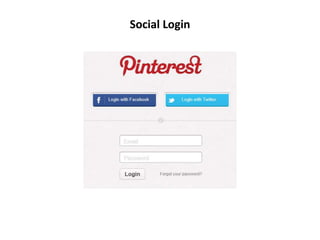

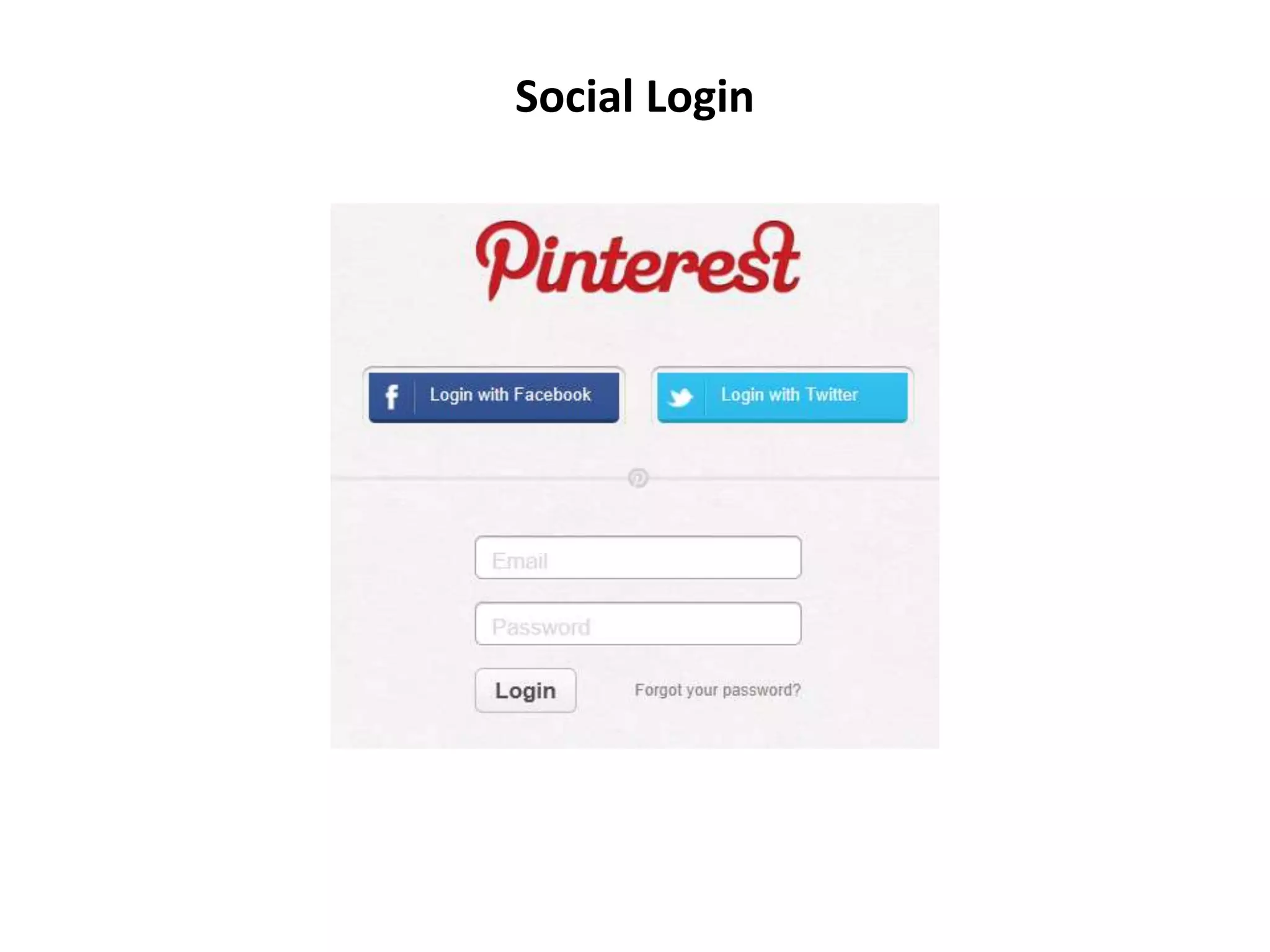

31. Social Login

32. Demo
Social Login

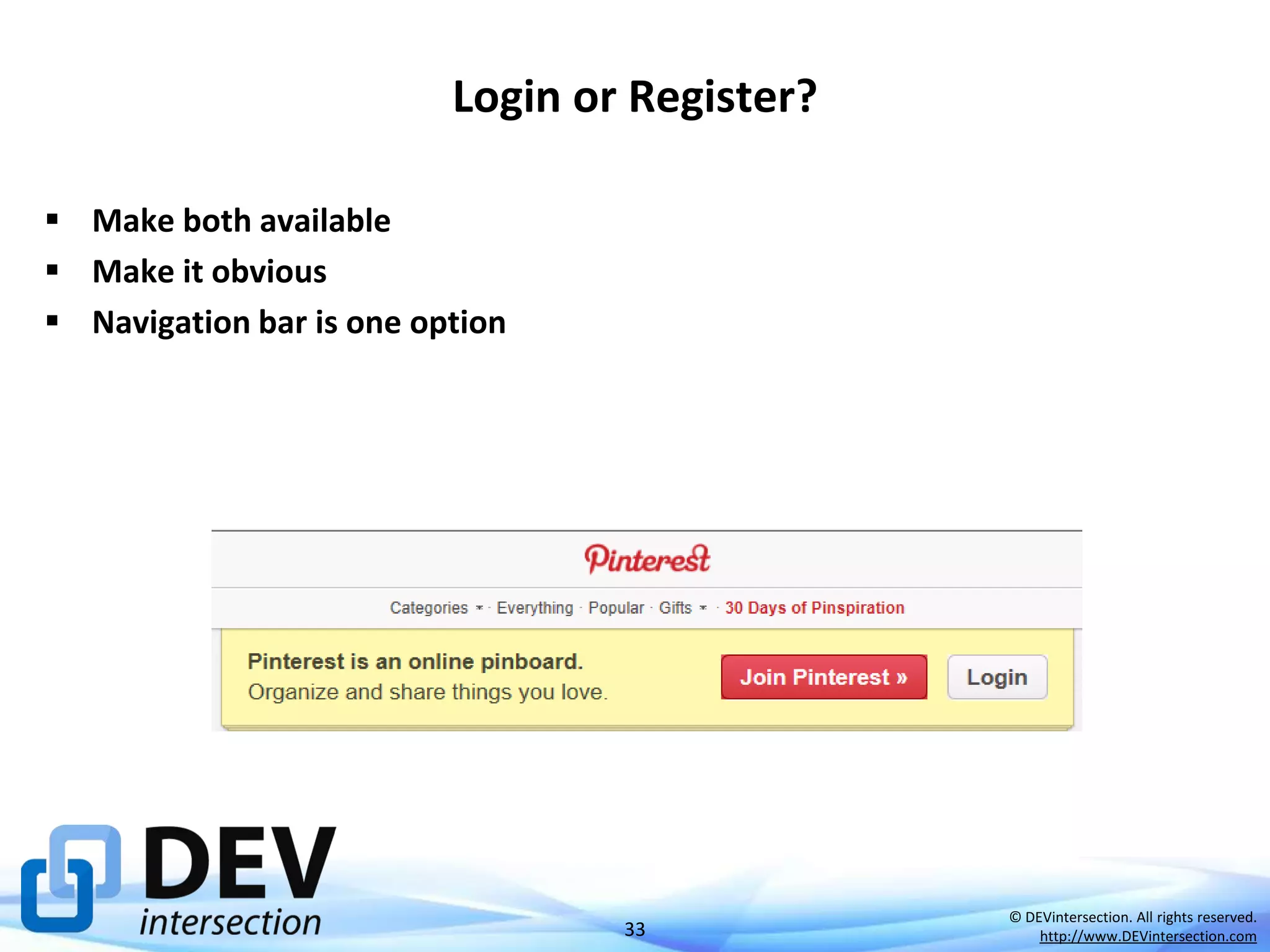

33. Login or Register?
 Make both available
 Make it obvious
 Navigation bar is one option
33
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

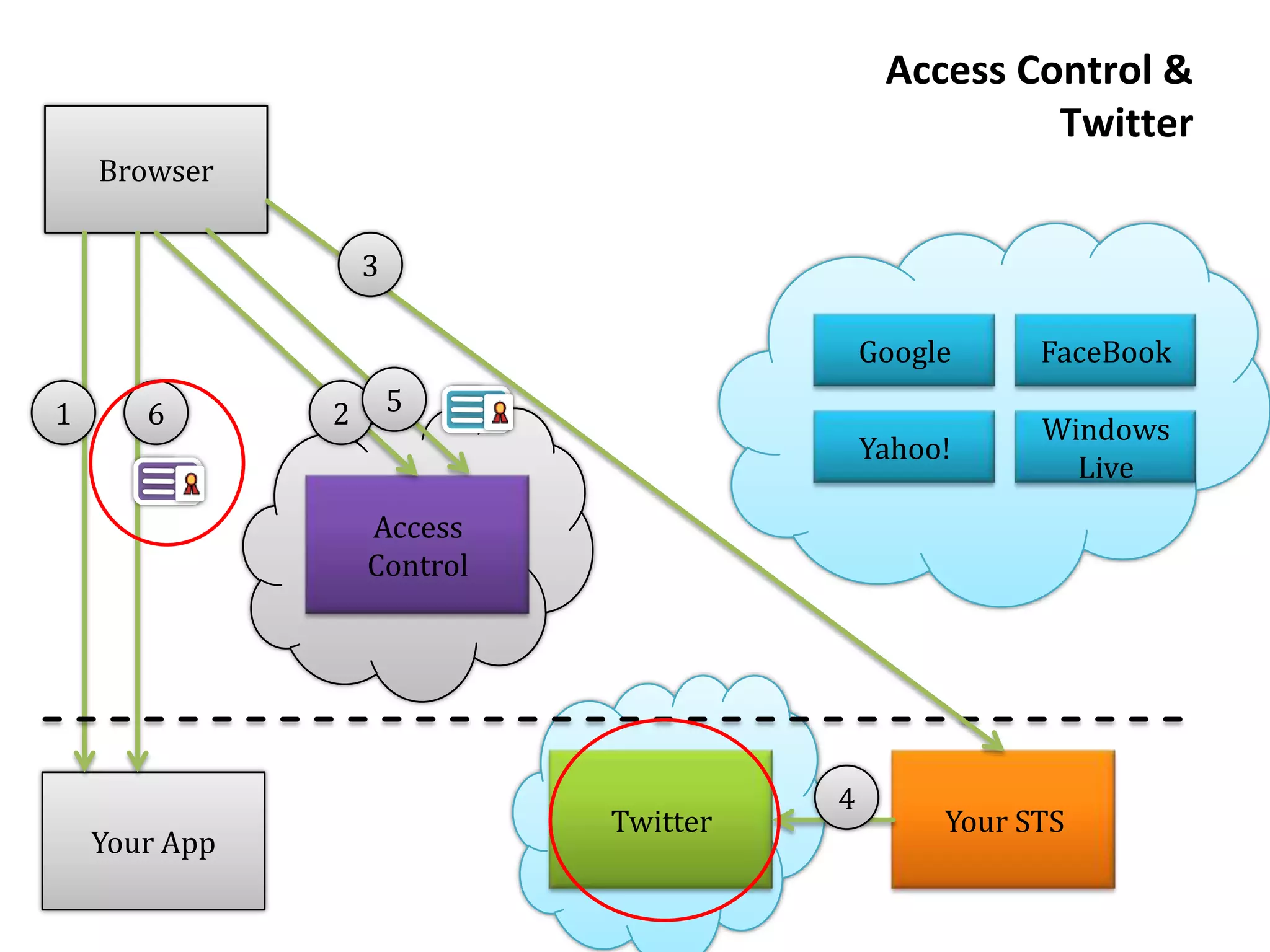

34. Access Control &
Twitter
Browser
3
Google
1
6
2
FaceBook
Yahoo!
Windows
Live
5
Access
Control
Your App
Twitter
4
Your STS

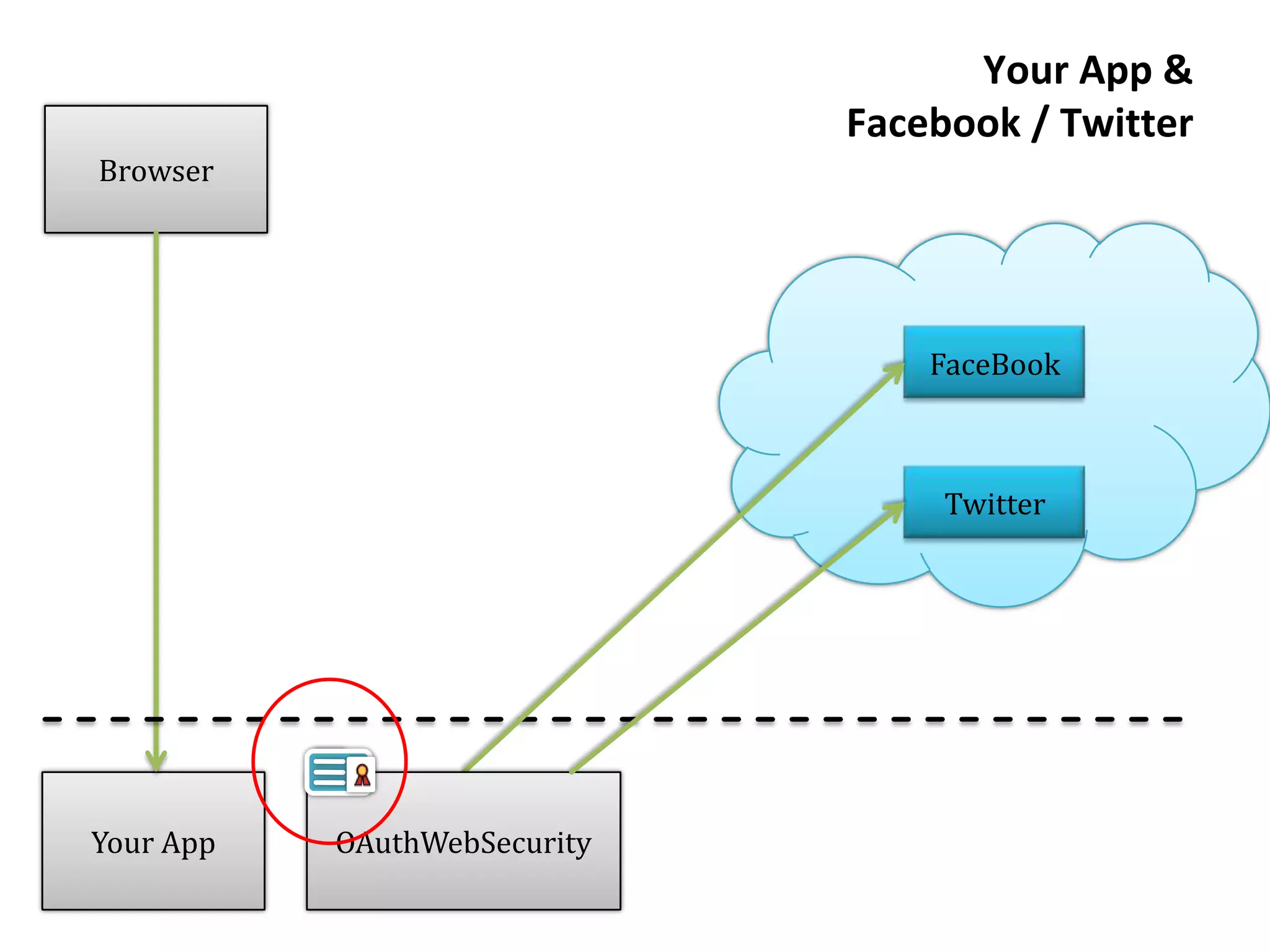

35. Your App &
Facebook / Twitter
Browser
FaceBook
Twitter
Your App
OAuthWebSecurity

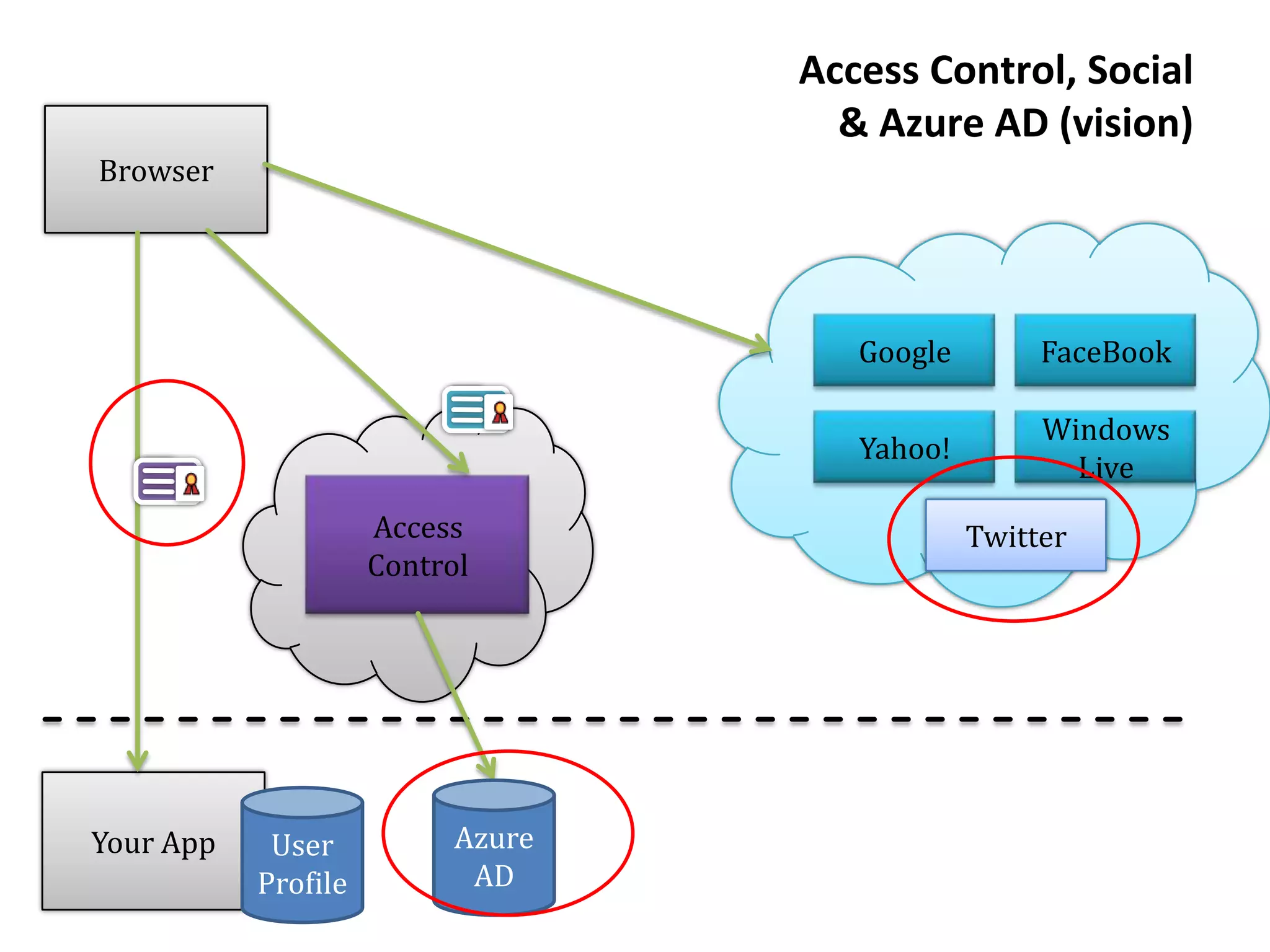

36. Access Control, Social
& Azure AD (vision)
Browser
Google
Yahoo!
Access
Control
Your App
User
Profile
Azure
AD
FaceBook
Windows
Live
Twitter

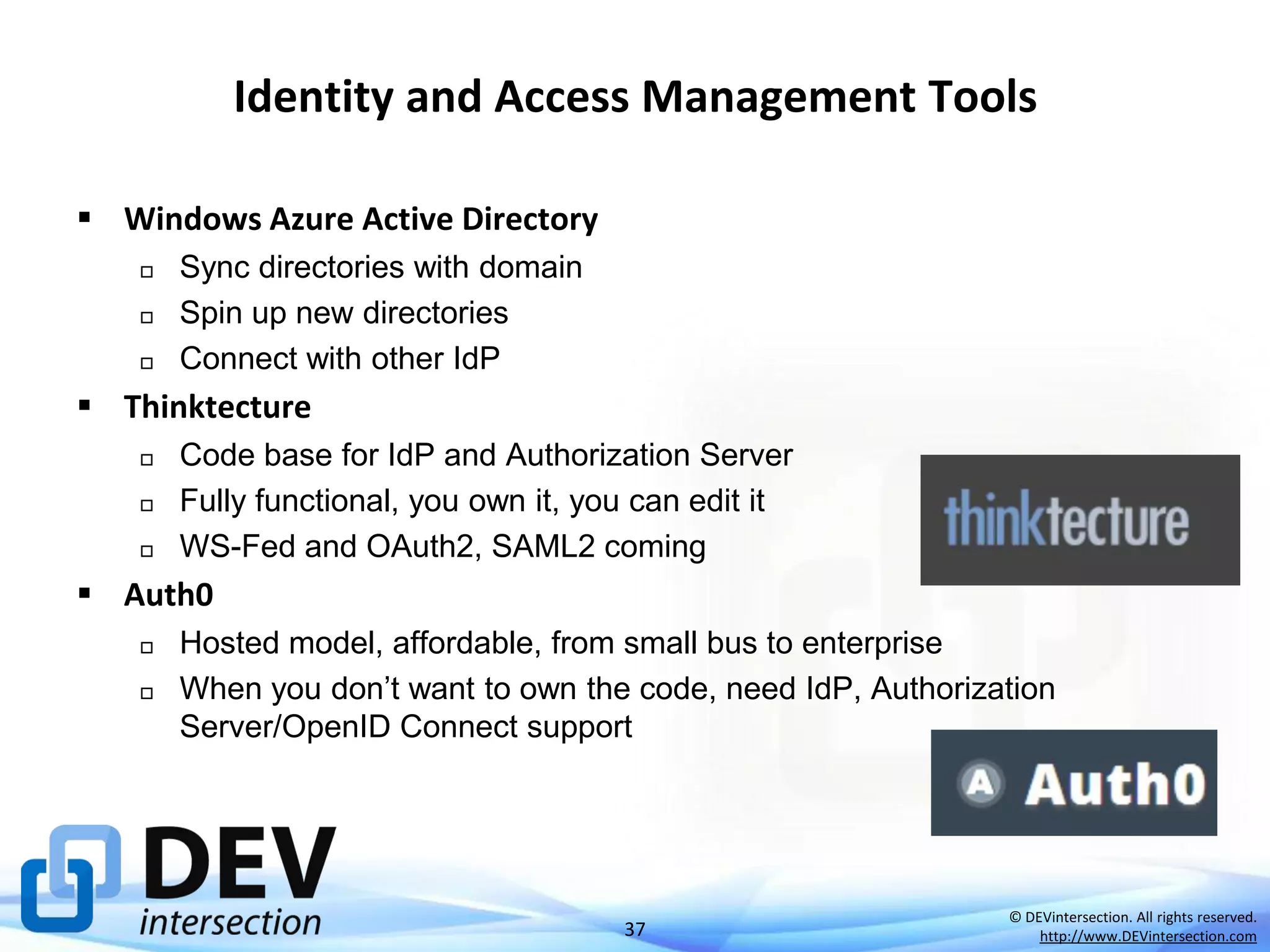

37. Identity and Access Management Tools
 Windows Azure Active Directory



Sync directories with domain
Spin up new directories
Connect with other IdP
 Thinktecture



Code base for IdP and Authorization Server
Fully functional, you own it, you can edit it
WS-Fed and OAuth2, SAML2 coming
 Auth0


Hosted model, affordable, from small bus to enterprise
When you don’t want to own the code, need IdP, Authorization
Server/OpenID Connect support
37
© DEVintersection. All rights reserved.
http://www.DEVintersection.com

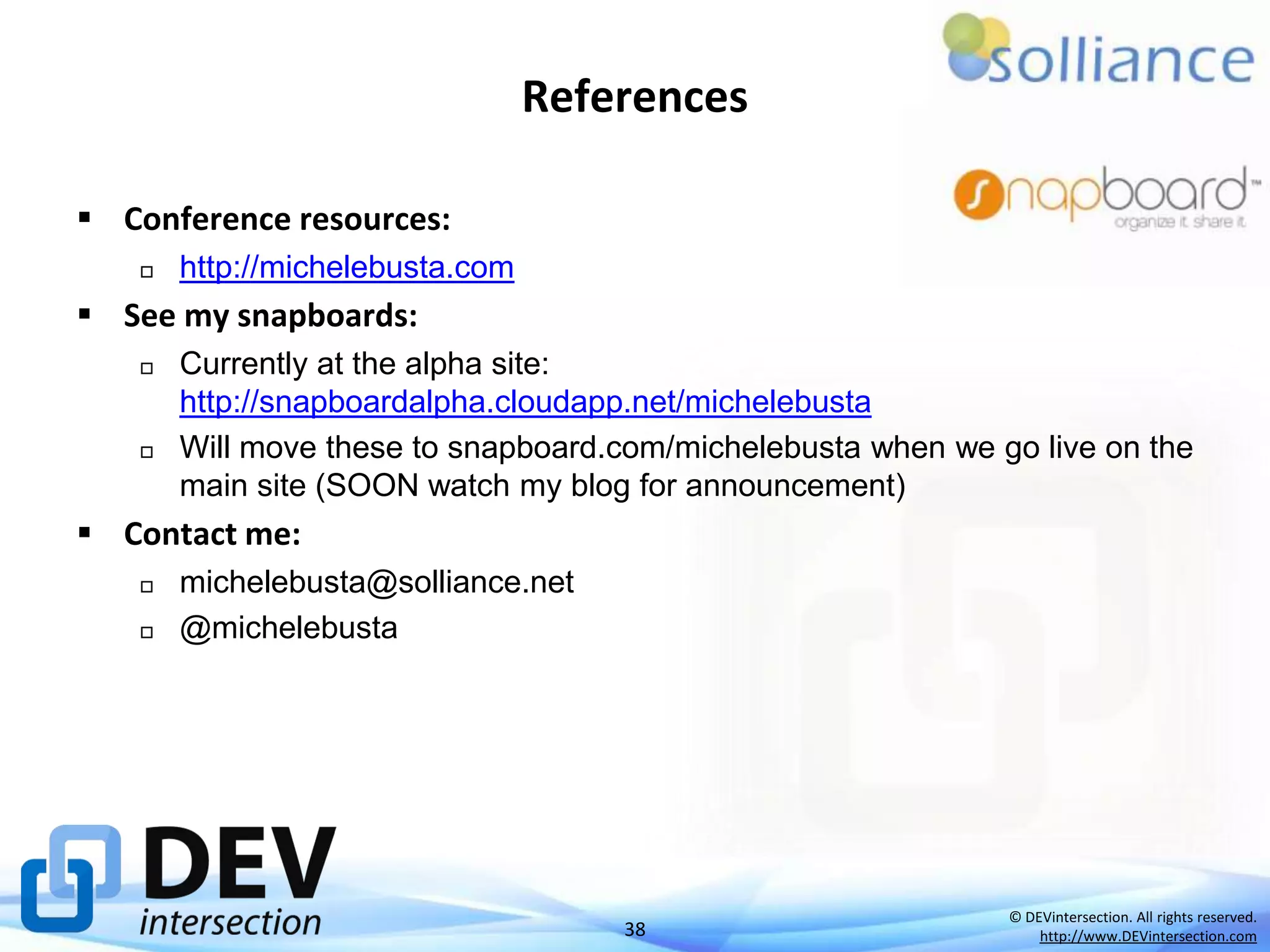

38. References
 Conference resources:

http://michelebusta.com
 See my snapboards:


Currently at the alpha site:
http://snapboardalpha.cloudapp.net/michelebusta
Will move these to snapboard.com/michelebusta when we go live on the
main site (SOON watch my blog for announcement)
 Contact me:


michelebusta@solliance.net
@michelebusta
38
