1. Introducing Features
of WatchOS 2
Joe
2015/7/17

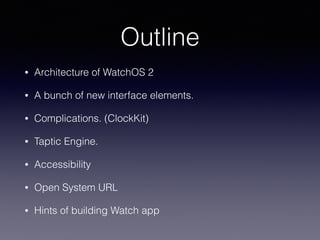

2. Outline
• Architecture of WatchOS 2
• A bunch of new interface elements.
• Complications. (ClockKit)
• Taptic Engine.
• Accessibility
• Open System URL
• Hints of building Watch app

3. Architecture of
WatchOS 2

4. Architecture of WatchOS 2
(In order to remove the dependency from
iPhone)

5. Extensions built specifically for watchOS 2 have
access to the following system frameworks

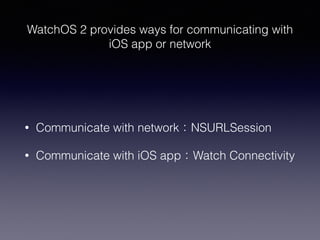

6. WatchOS 2 provides ways for communicating with
iOS app or network
• Communicate with network：NSURLSession
• Communicate with iOS app：Watch Connectivity

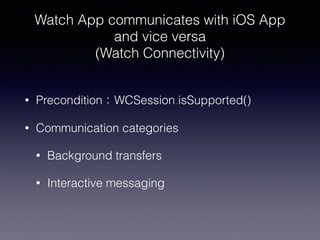

7. Watch App communicates with iOS App
and vice versa
(Watch Connectivity)
• Precondition：WCSession.isSupported()
• Communication categories
• Background transfers
• Interactive messaging

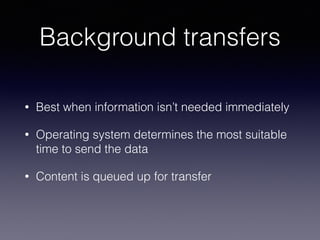

8. Background transfers
• Best when information isn’t needed immediately
• Operating system determines the most suitable
time to send the data
• Content is queued up for transfer

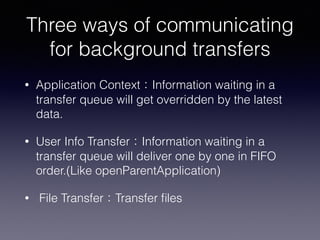

9. Three ways of communicating
for background transfers
• Application Context：Information waiting in a
transfer queue will get overridden by the latest
data.
• User Info Transfer：Information waiting in a
transfer queue will deliver one by one in FIFO
order.(Like openParentApplication)
• File Transfer：Transfer files

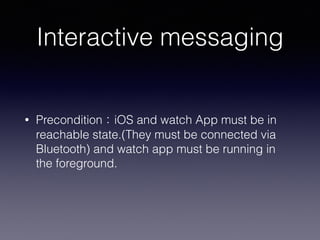

10. Interactive messaging
• Precondition：iOS and watch App must be in
reachable state.(They must be connected via
Bluetooth) and watch app must be running in
the foreground.

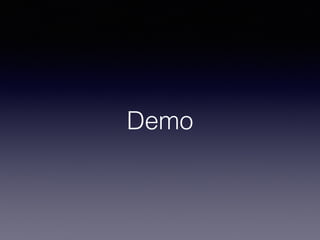

11. Demo

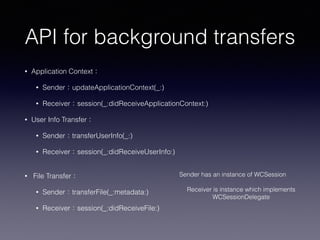

12. API for background transfers
• Application Context：
• Sender：updateApplicationContext(_:)
• Receiver：session(_:didReceiveApplicationContext:)
• User Info Transfer：
• Sender：transferUserInfo(_:)
• Receiver：session(_:didReceiveUserInfo:)
• File Transfer：
• Sender：transferFile(_:metadata:)
• Receiver：session(_:didReceiveFile:)
Sender has an instance of WCSession
Receiver is instance which implements
WCSessionDelegate

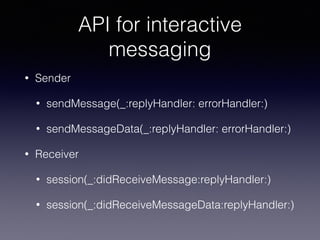

13. API for interactive
messaging
• Sender
• sendMessage(_:replyHandler: errorHandler:)
• sendMessageData(_:replyHandler: errorHandler:)
• Receiver
• session(_:didReceiveMessage:replyHandler:)
• session(_:didReceiveMessageData:replyHandler:)

14. A bunch of new
interface elements

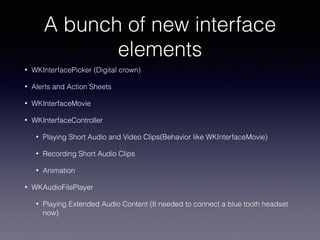

15. A bunch of new interface
elements
• WKInterfacePicker (Digital crown)
• Alerts and Action Sheets
• WKInterfaceMovie
• WKInterfaceController
• Playing Short Audio and Video Clips(Behavior like WKInterfaceMovie)
• Recording Short Audio Clips
• Animation
• WKAudioFilePlayer
• Playing Extended Audio Content (It needed to connect a blue tooth headset
now)

16. Demo

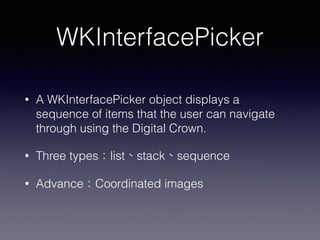

17. WKInterfacePicker
• A WKInterfacePicker object displays a
sequence of items that the user can navigate
through using the Digital Crown.
• Three types：list、stack、sequence
• Advance：Coordinated images

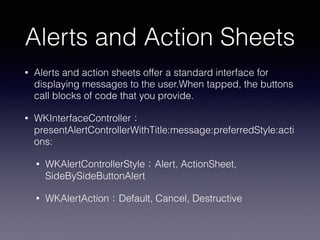

18. Alerts and Action Sheets
• Alerts and action sheets offer a standard interface for
displaying messages to the user.When tapped, the buttons
call blocks of code that you provide.
• WKInterfaceController：
presentAlertControllerWithTitle:message:preferredStyle:acti
ons:
• WKAlertControllerStyle：Alert, ActionSheet,
SideBySideButtonAlert
• WKAlertAction：Default, Cancel, Destructive

19. WKInterfaceMovie
• A WKInterfaceMovie object lets you embed short
audio or video clips directly into your interface.
• setMovieURL(URL: NSURL)
• setVideoGravity(videoGravity: WKVideoGravity)
• setLoops(loops: Bool)
• setPosterImage(posterImage: WKImage?)

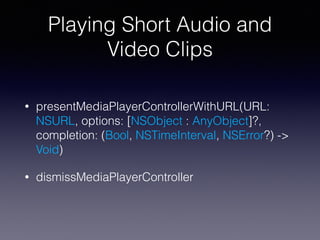

20. Playing Short Audio and
Video Clips
• presentMediaPlayerControllerWithURL(URL:
NSURL, options: [NSObject : AnyObject]?,
completion: (Bool, NSTimeInterval, NSError?) ->
Void)
• dismissMediaPlayerController

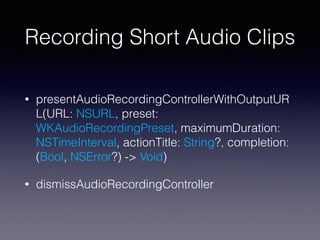

21. Recording Short Audio Clips
• presentAudioRecordingControllerWithOutputUR
L(URL: NSURL, preset:
WKAudioRecordingPreset, maximumDuration:
NSTimeInterval, actionTitle: String?, completion:
(Bool, NSError?) -> Void)
• dismissAudioRecordingController

22. Animation
• WKInterfaceController
• animateWithDuration:

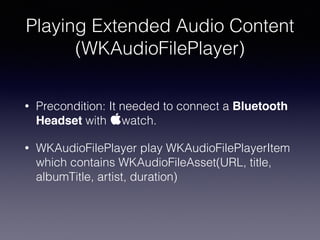

23. Playing Extended Audio Content
(WKAudioFilePlayer)
• Precondition: It needed to connect a Bluetooth
Headset with watch.
• WKAudioFilePlayer play WKAudioFilePlayerItem
which contains WKAudioFileAsset(URL, title,
albumTitle, artist, duration)

24. Complications.
(ClockKit)

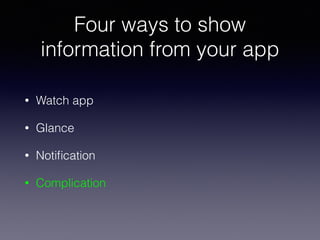

25. Four ways to show
information from your app
• Watch app
• Glance
• Notification
• Complication

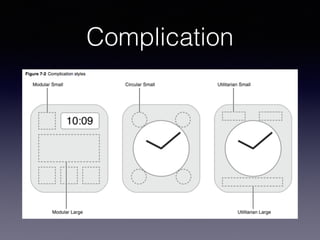

26. Complication

27. Timeline
( The data that changes by time)

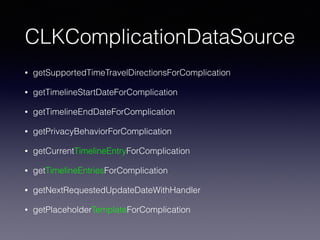

28. CLKComplicationDataSource
• getSupportedTimeTravelDirectionsForComplication
• getTimelineStartDateForComplication
• getTimelineEndDateForComplication
• getPrivacyBehaviorForComplication
• getCurrentTimelineEntryForComplication
• getTimelineEntriesForComplication
• getNextRequestedUpdateDateWithHandler
• getPlaceholderTemplateForComplication

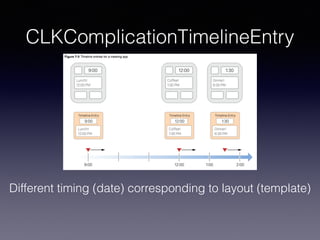

29. CLKComplicationTimelineEntry
Different timing (date) corresponding to layout (template)

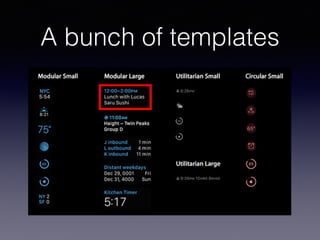

30. A bunch of templates

31. Template
(Layout of complication)
e.g. CLKComplicationTemplateModularLargeStandardBody
headerText
body2Text
body1Text
Text is not type of string.

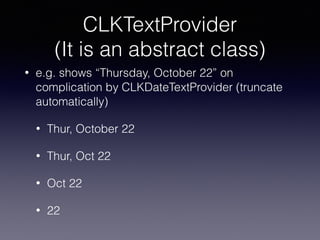

32. CLKTextProvider
(It is an abstract class)
• e.g. shows “Thursday, October 22” on
complication by CLKDateTextProvider (truncate
automatically)
• Thur, October 22
• Thur, Oct 22
• Oct 22
• 22

33. Demo

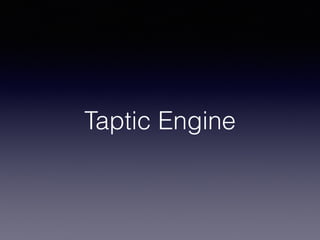

34. Taptic Engine

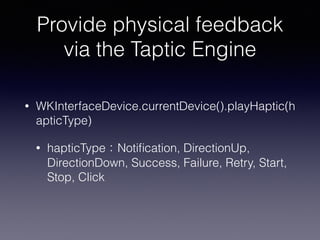

35. Provide physical feedback
via the Taptic Engine
• WKInterfaceDevice.currentDevice().playHaptic(h
apticType)
• hapticType：Notification, DirectionUp,
DirectionDown, Success, Failure, Retry, Start,
Stop, Click

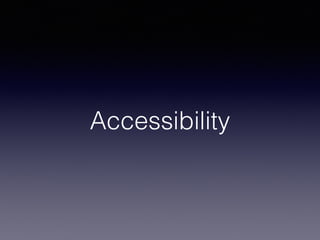

36. Accessibility

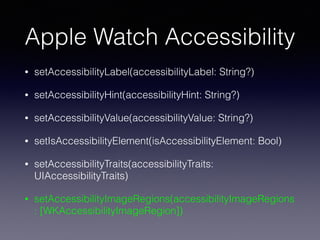

37. Apple Watch Accessibility
• setAccessibilityLabel(accessibilityLabel: String?)
• setAccessibilityHint(accessibilityHint: String?)
• setAccessibilityValue(accessibilityValue: String?)
• setIsAccessibilityElement(isAccessibilityElement: Bool)
• setAccessibilityTraits(accessibilityTraits:
UIAccessibilityTraits)
• setAccessibilityImageRegions(accessibilityImageRegions
: [WKAccessibilityImageRegion])

38. Open System URL

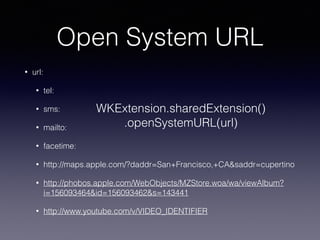

39. Open System URL
• url:
• tel:
• sms:
• mailto:
• facetime:
• http://maps.apple.com/?daddr=San+Francisco,+CA&saddr=cupertino
• http://phobos.apple.com/WebObjects/MZStore.woa/wa/viewAlbum?
i=156093464&id=156093462&s=143441
• http://www.youtube.com/v/VIDEO_IDENTIFIER
WKExtension.sharedExtension()
.openSystemURL(url)

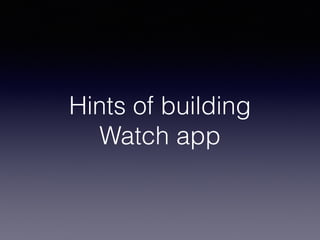

40. Hints of building
Watch app

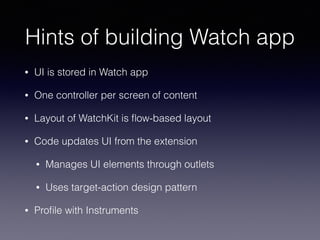

41. Hints of building Watch app
• UI is stored in Watch app
• One controller per screen of content
• Layout of WatchKit is flow-based layout
• Code updates UI from the extension
• Manages UI elements through outlets
• Uses target-action design pattern
• Profile with Instruments

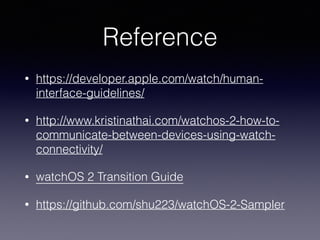

42. Reference
• https://developer.apple.com/watch/human-
interface-guidelines/
• http://www.kristinathai.com/watchos-2-how-to-
communicate-between-devices-using-watch-
connectivity/
• watchOS 2 Transition Guide
• https://github.com/joehsieh/watchOS-2-Sampler

43. Q & A
