The document discusses how fact-based monitoring improves on host-centric monitoring by using metadata facts instead of individual hostnames to define monitoring checks and queries. It draws parallels between how Puppet, SQL, and MCollective improved systems management, configuration, and orchestration respectively by moving from imperative programming to fact-based declarative queries. Examples are given of how Sensu and Datadog can implement fact-based monitoring checks and metrics queries that reuse existing Puppet facts to define monitoring logic instead of hardcoding hostnames. The key advantages highlighted are avoiding host groups and reducing complexity when infrastructure changes.

1. Fact-based Monitoring
puppetconf 2014
Alexis Lê-Quôc @alq

2. Alexis Lê-Quôc, @alq
CTO at Datadog

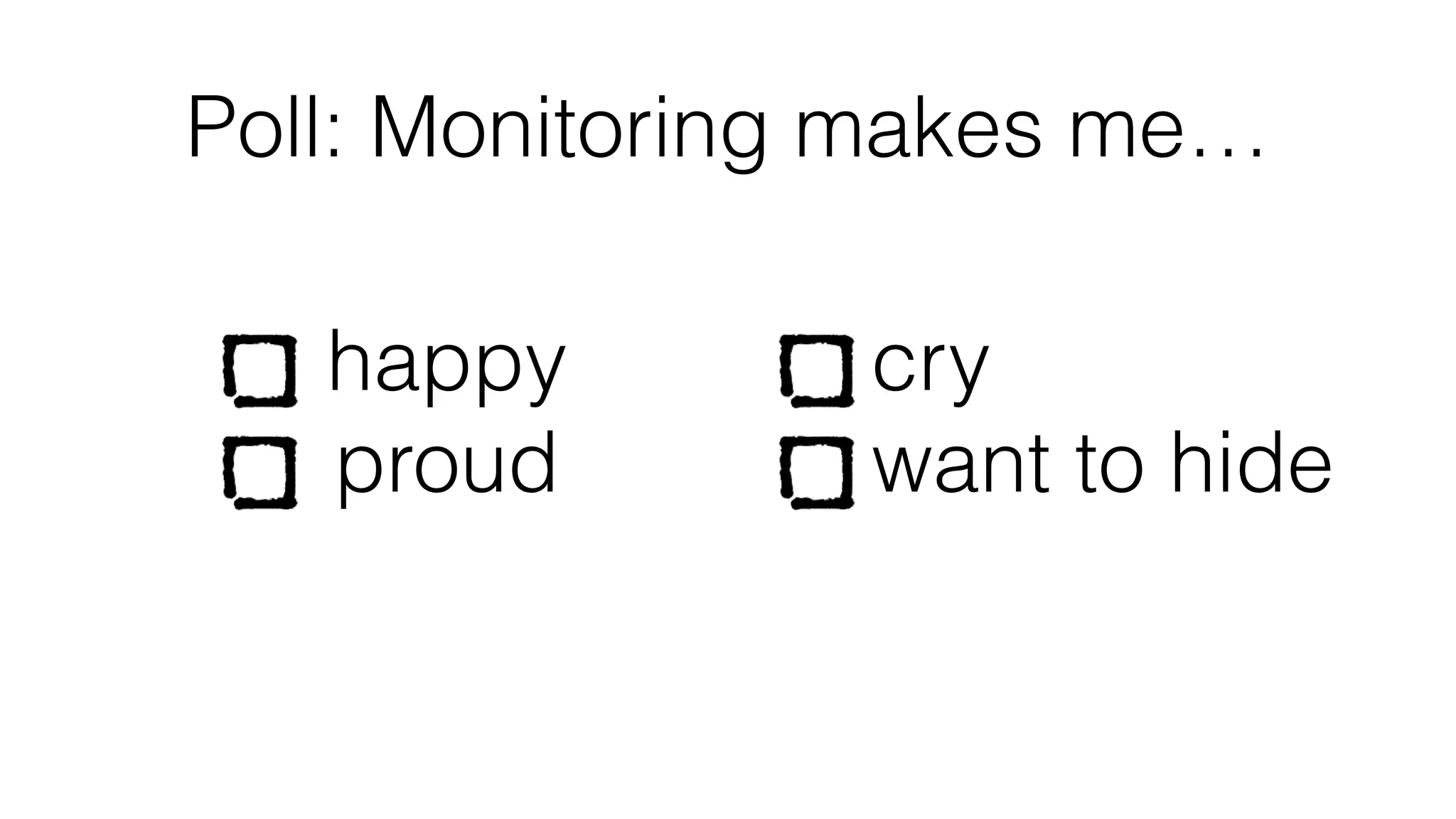

3. Poll: Monitoring makes me…
happy
proud
cry
want to hide

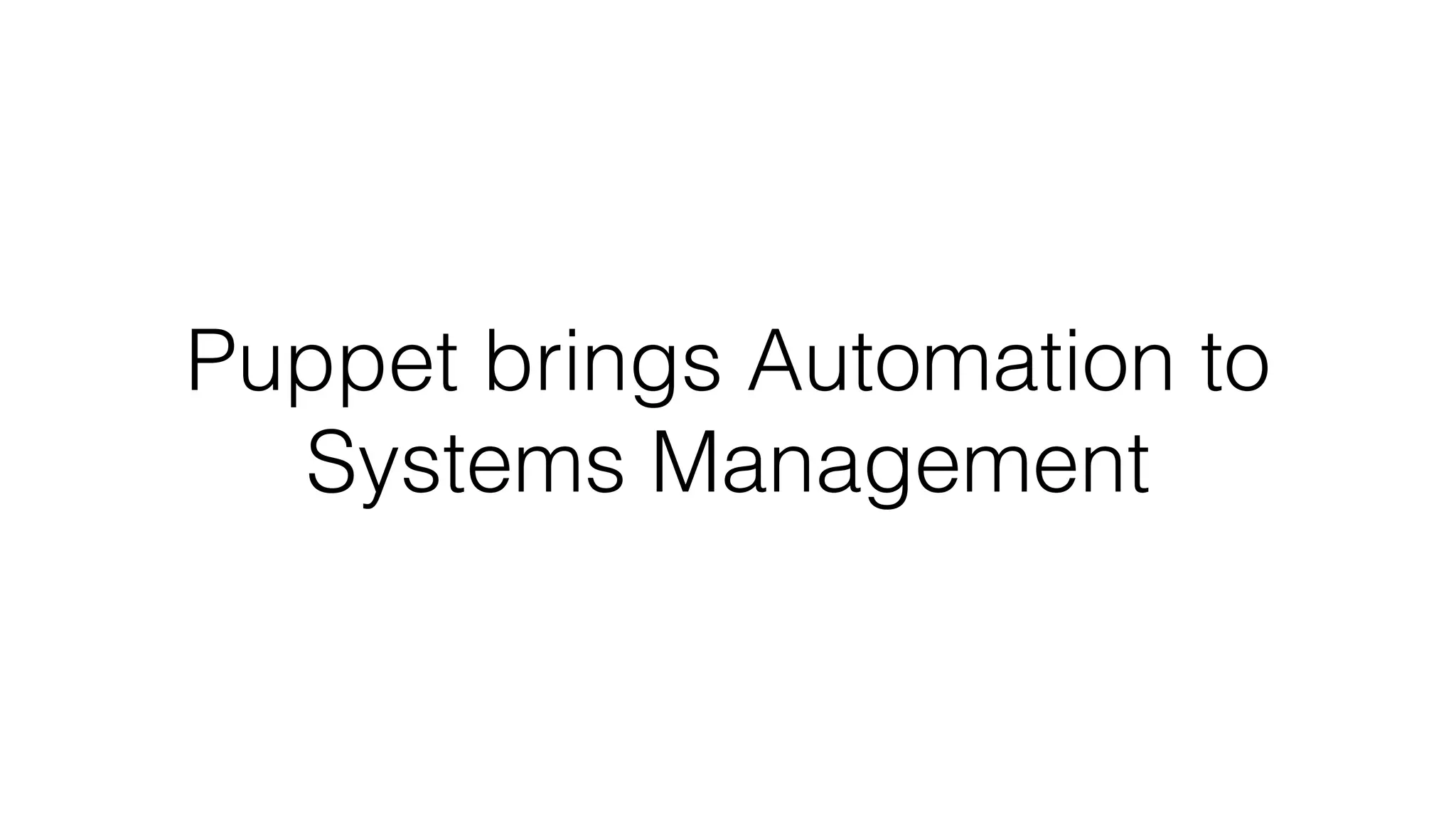

4. Puppet brings Automation to
Systems Management

5. Improve
Monitoring
the way Puppet has
improved
Systems Management

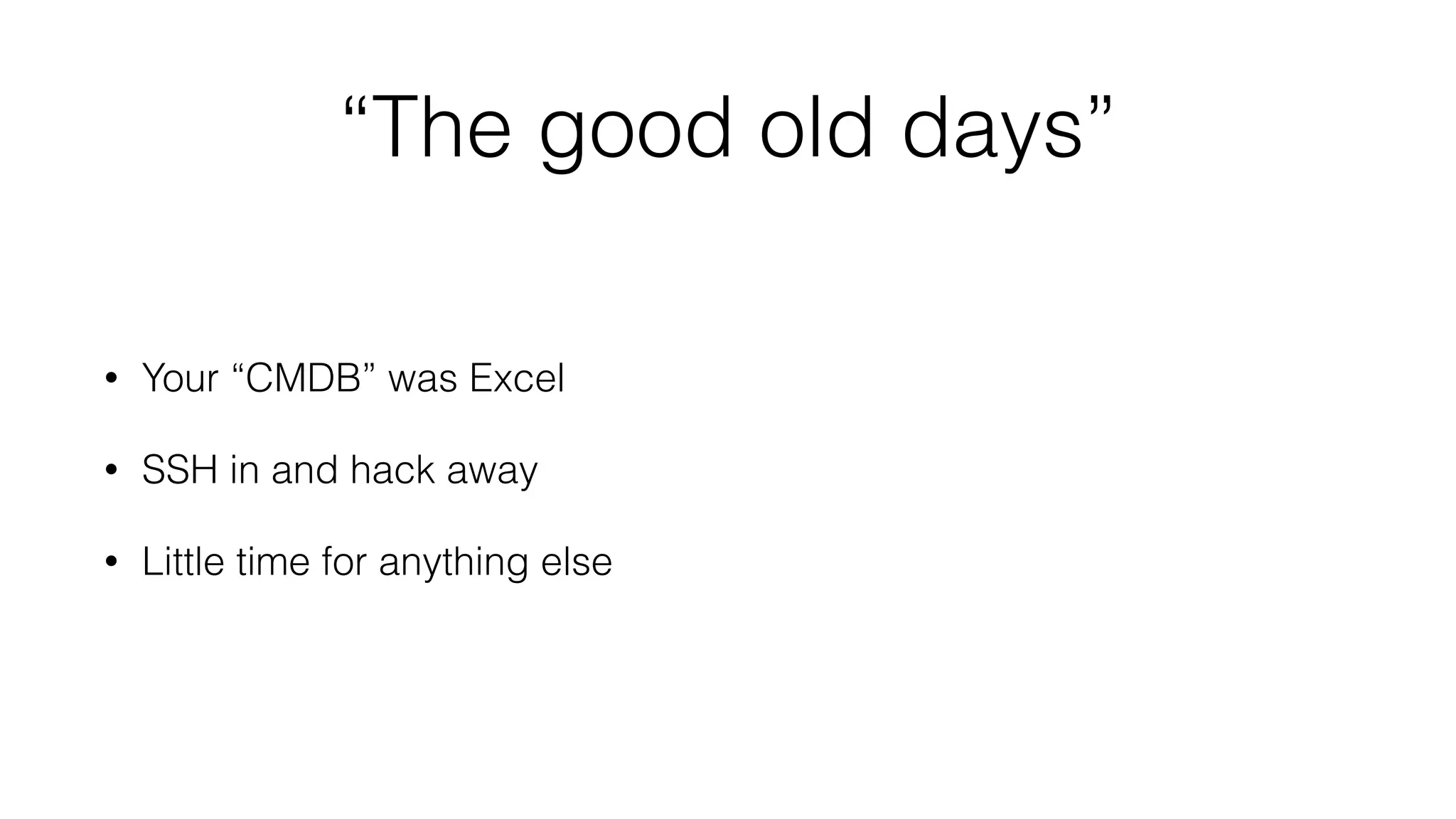

6. “The good old days”
• Your “CMDB” was Excel
• SSH in and hack away
• Little time for anything else

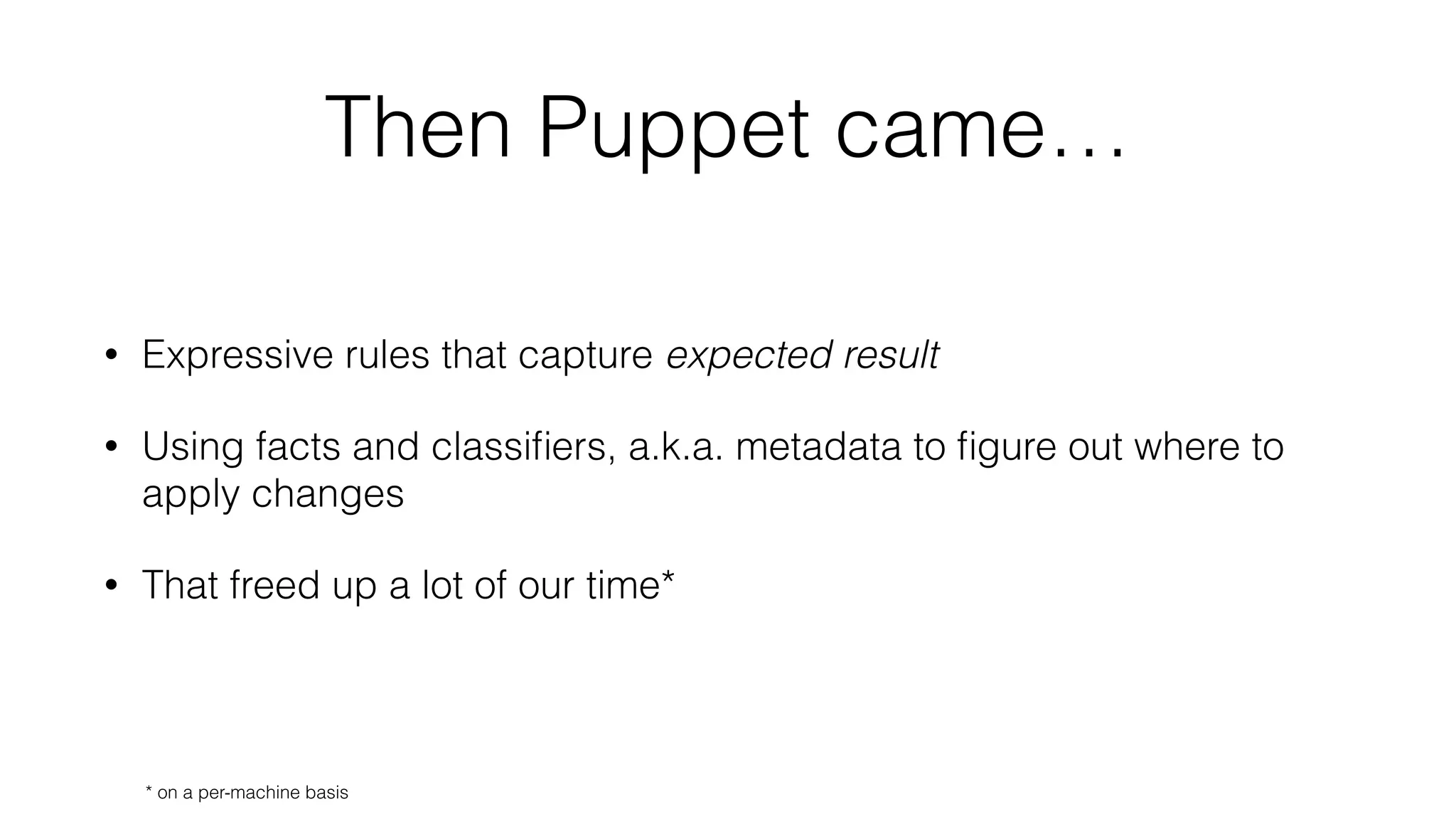

7. Then Puppet came…
• Expressive rules that capture expected result
• Using facts and classifiers, a.k.a. metadata to figure out where to
apply changes
• That freed up a lot of our time*
* on a per-machine basis

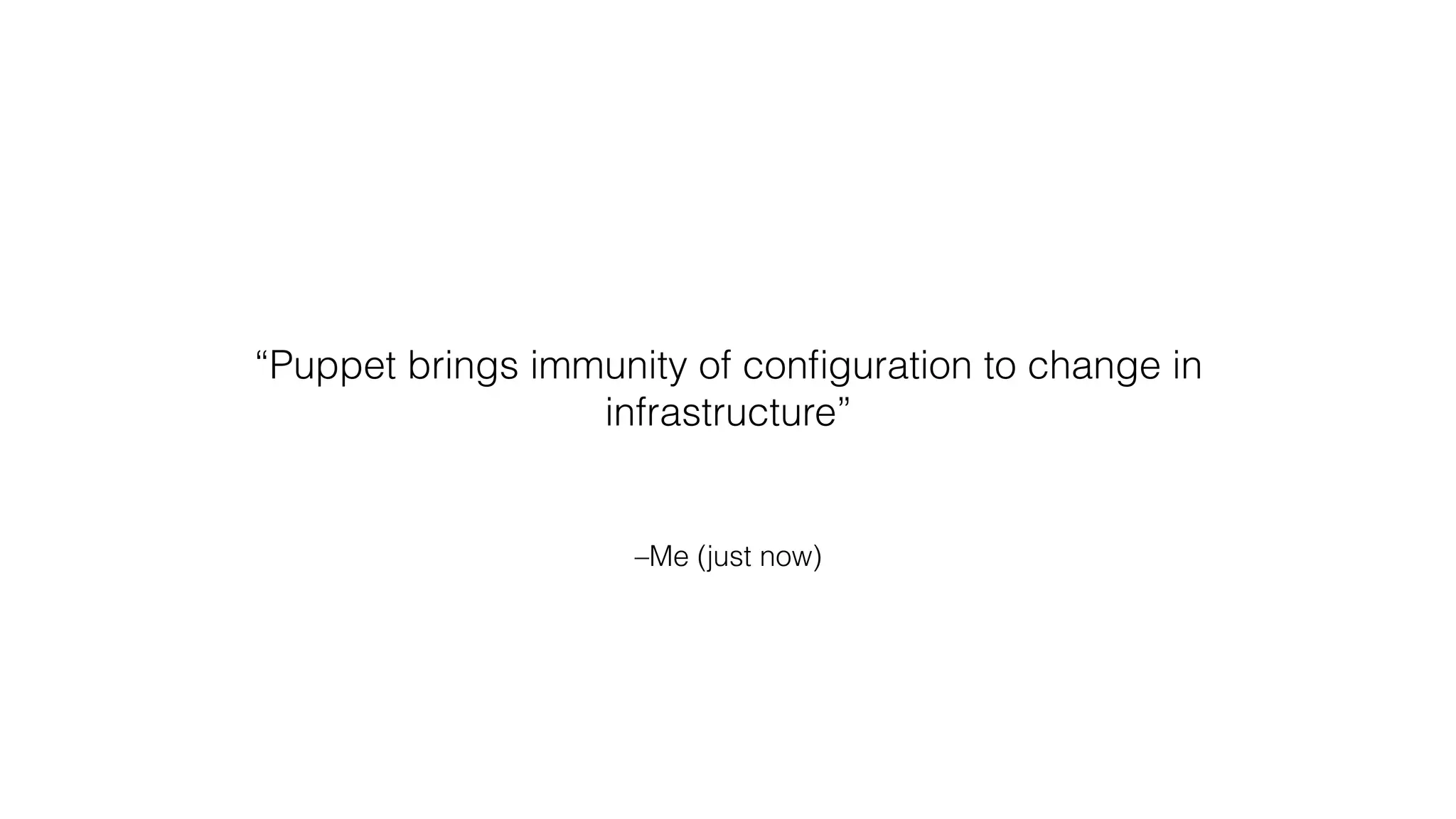

8. –Me (just now)
“Puppet brings immunity of configuration to change in
infrastructure”

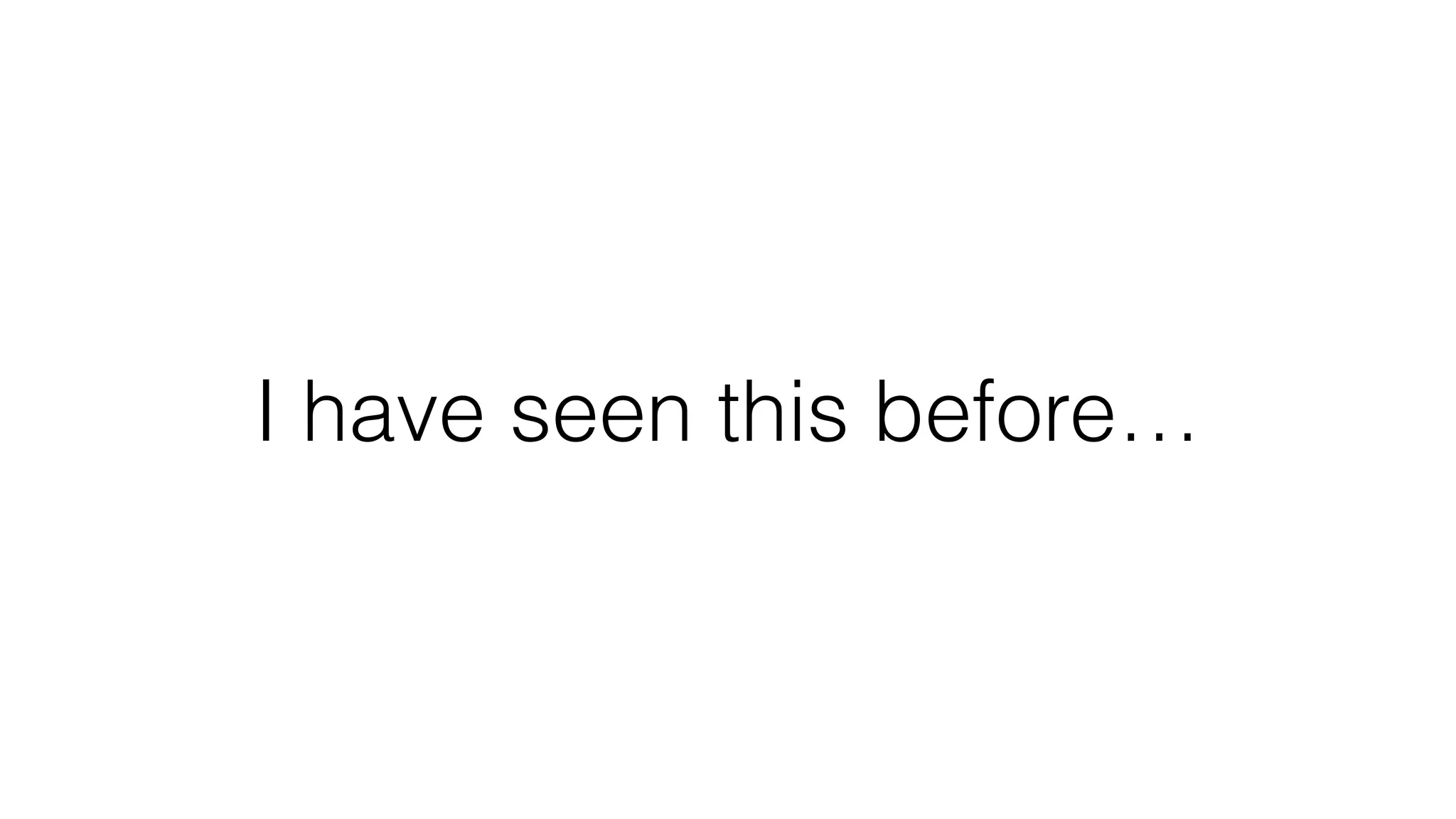

9. I have seen this before…

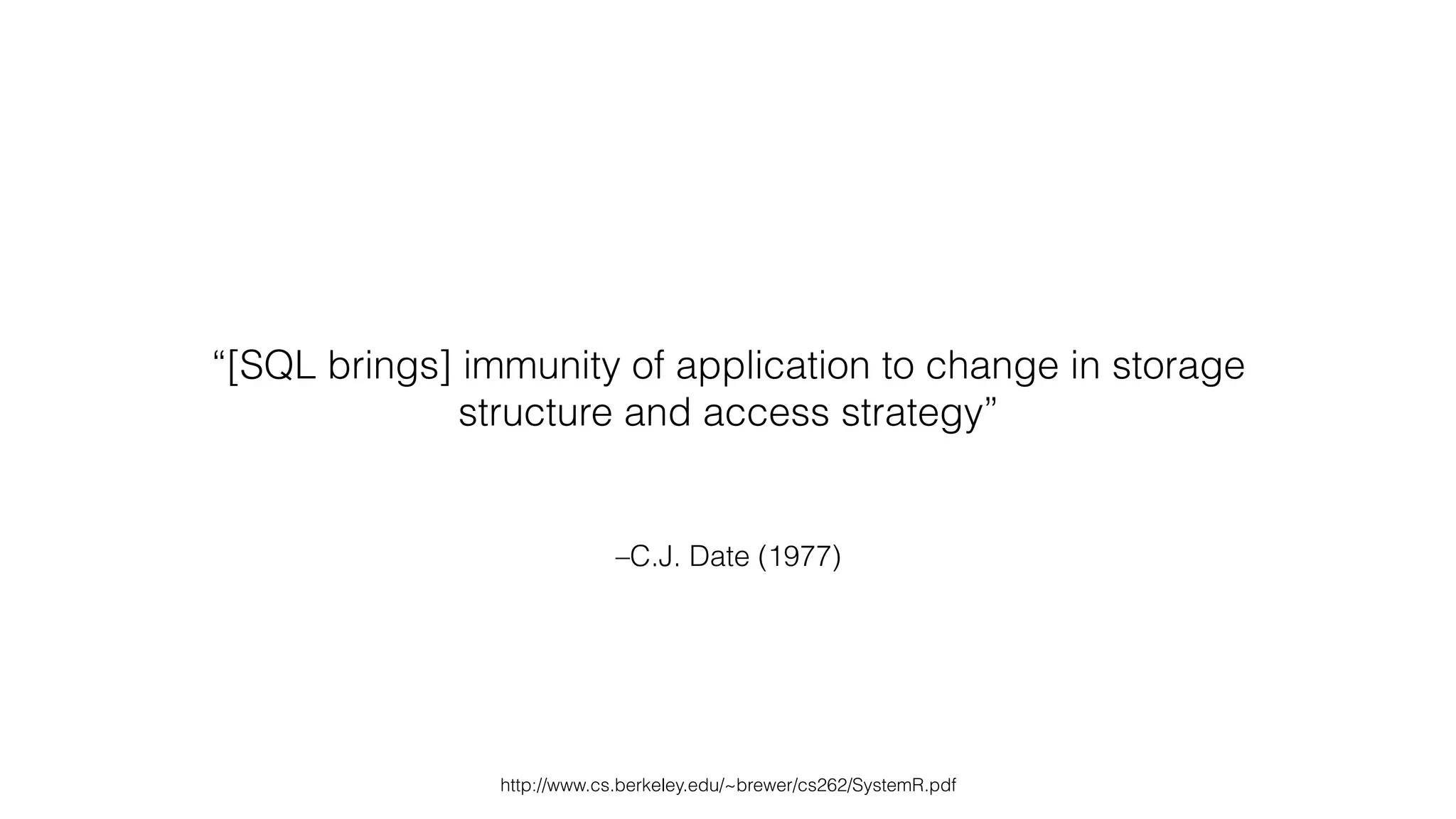

10. –C.J. Date (1977)
“[SQL brings] immunity of application to change in storage
structure and access strategy”
http://www.cs.berkeley.edu/~brewer/cs262/SystemR.pdf

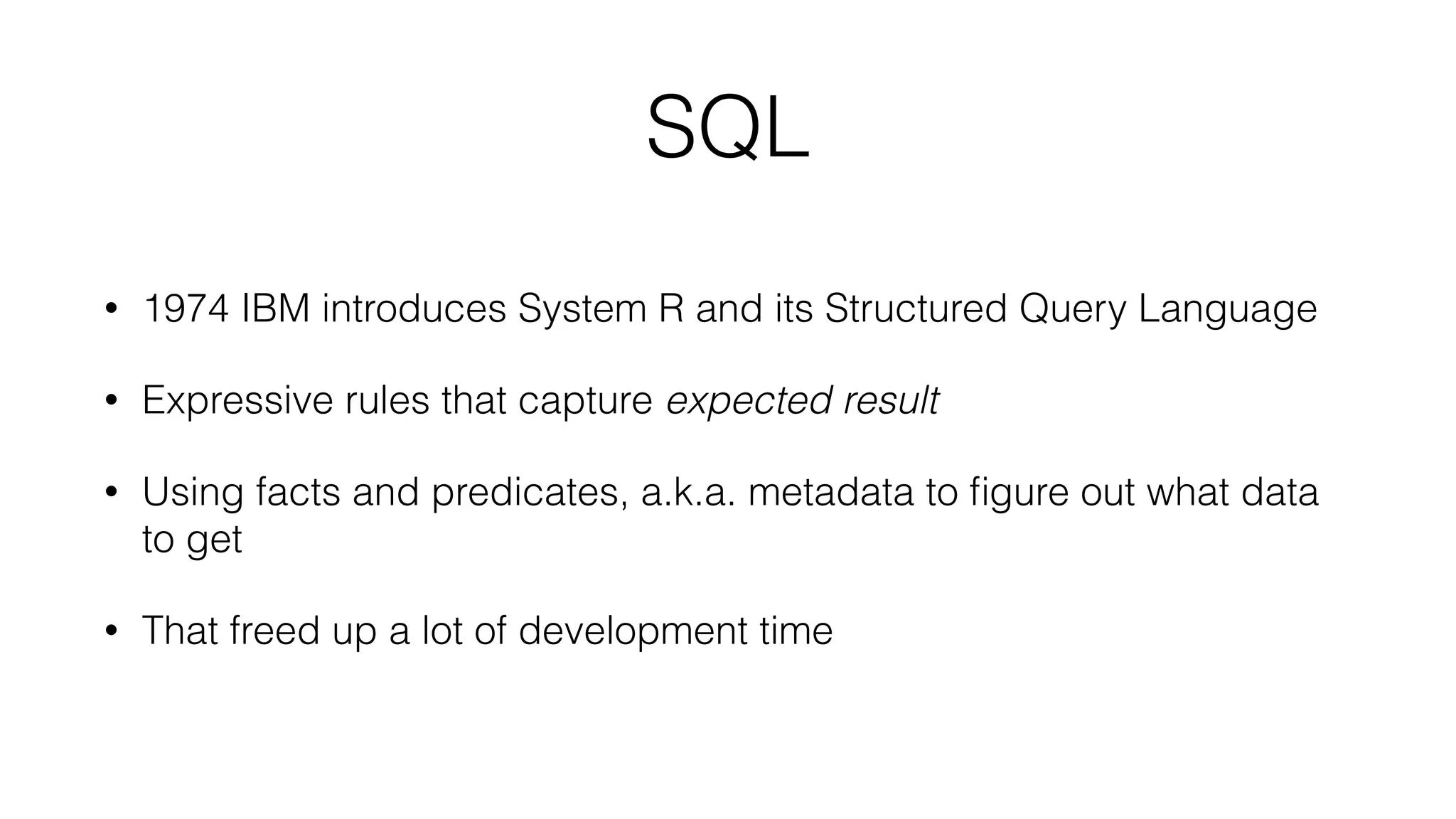

11. SQL
• 1974 IBM introduces System R and its Structured Query Language
• Expressive rules that capture expected result
• Using facts and predicates, a.k.a. metadata to figure out what data
to get
• That freed up a lot of development time

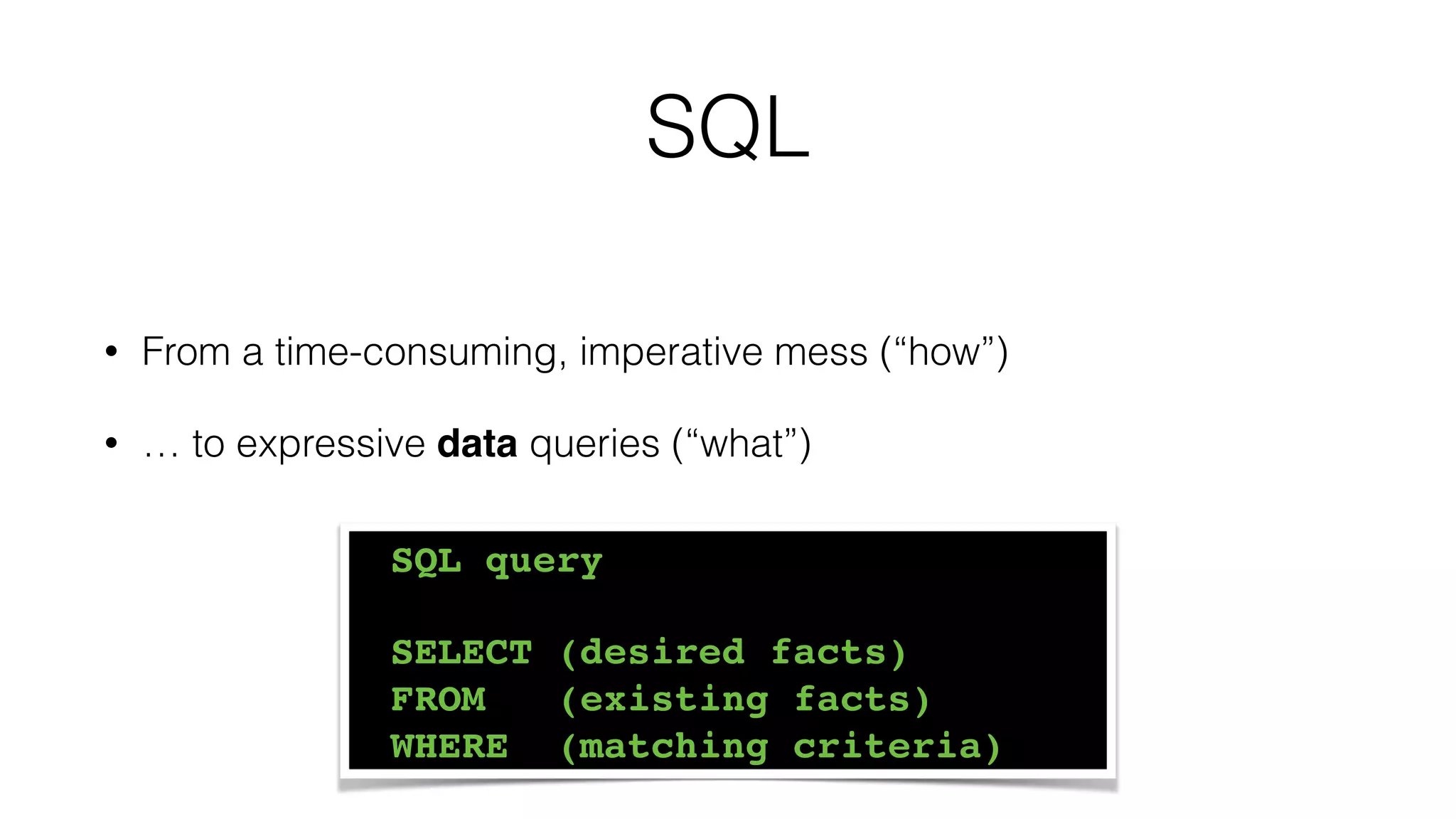

12. SQL
• From a time-consuming, imperative mess (“how”)
• … to expressive data queries (“what”)
SQL query
SELECT (desired facts)
FROM (existing facts)
WHERE (matching criteria)

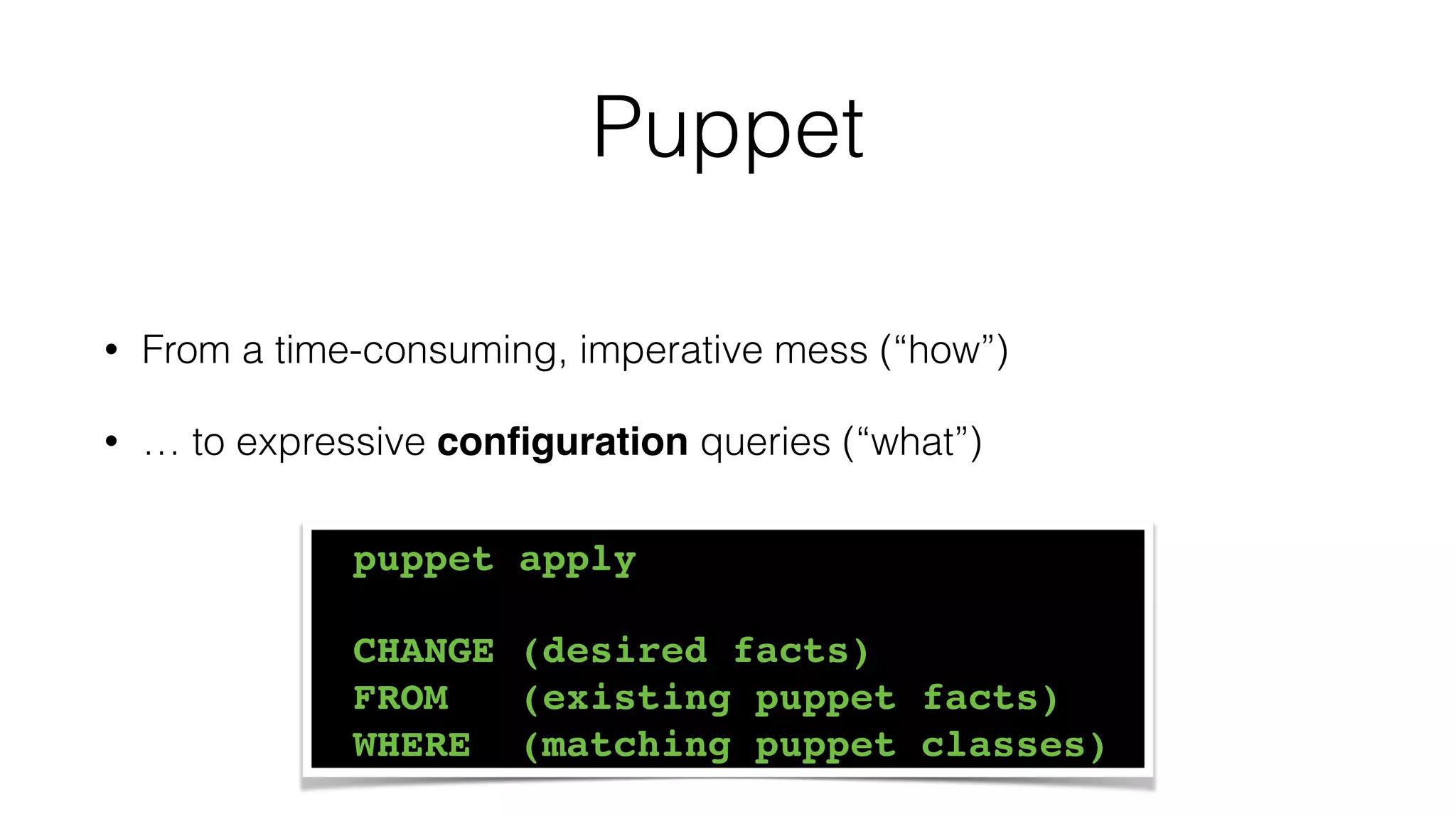

13. Puppet
• From a time-consuming, imperative mess (“how”)
• … to expressive configuration queries (“what”)
puppet apply
CHANGE (desired facts)
FROM (existing puppet facts)
WHERE (matching puppet classes)

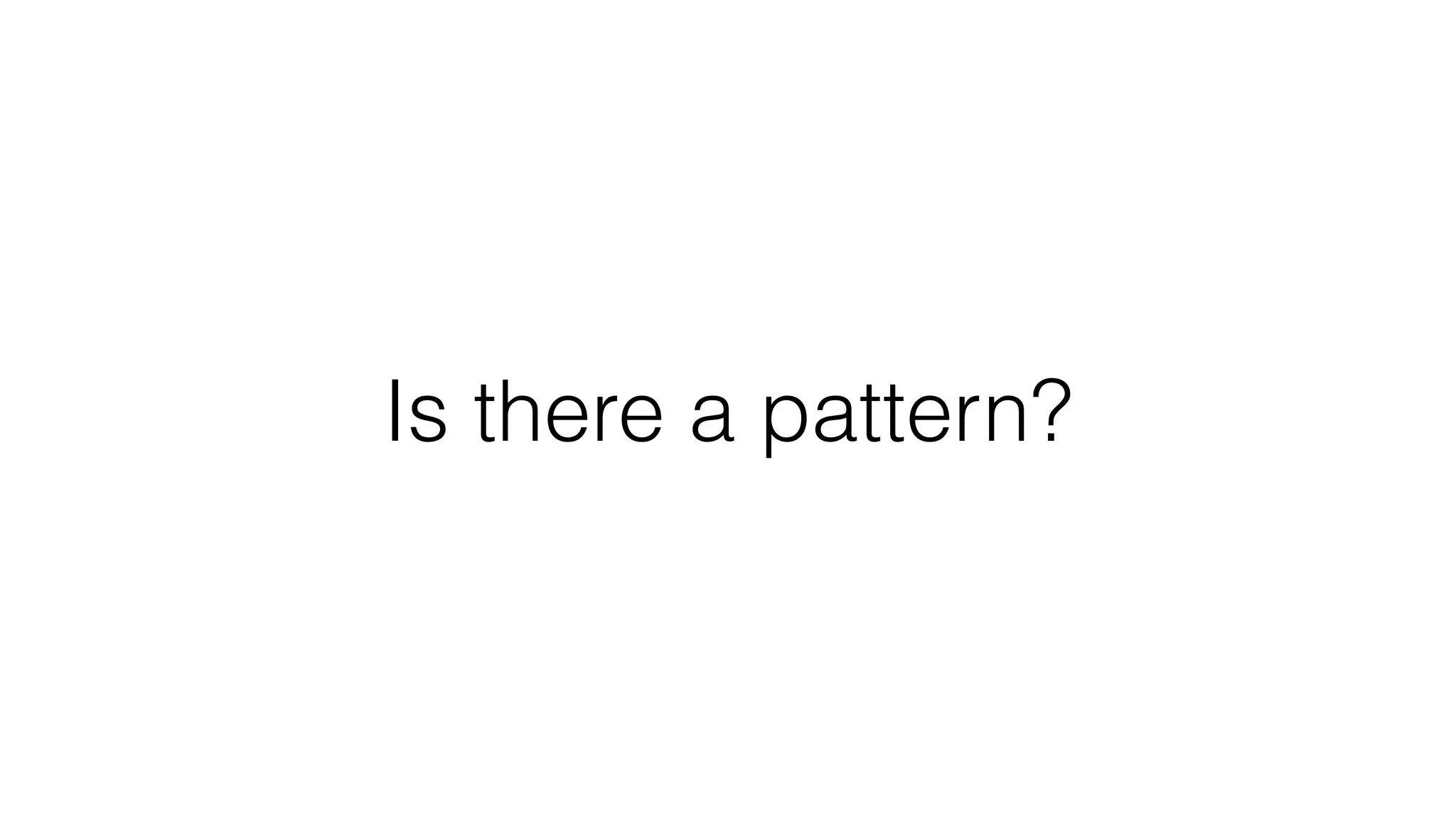

14. Is there a pattern?

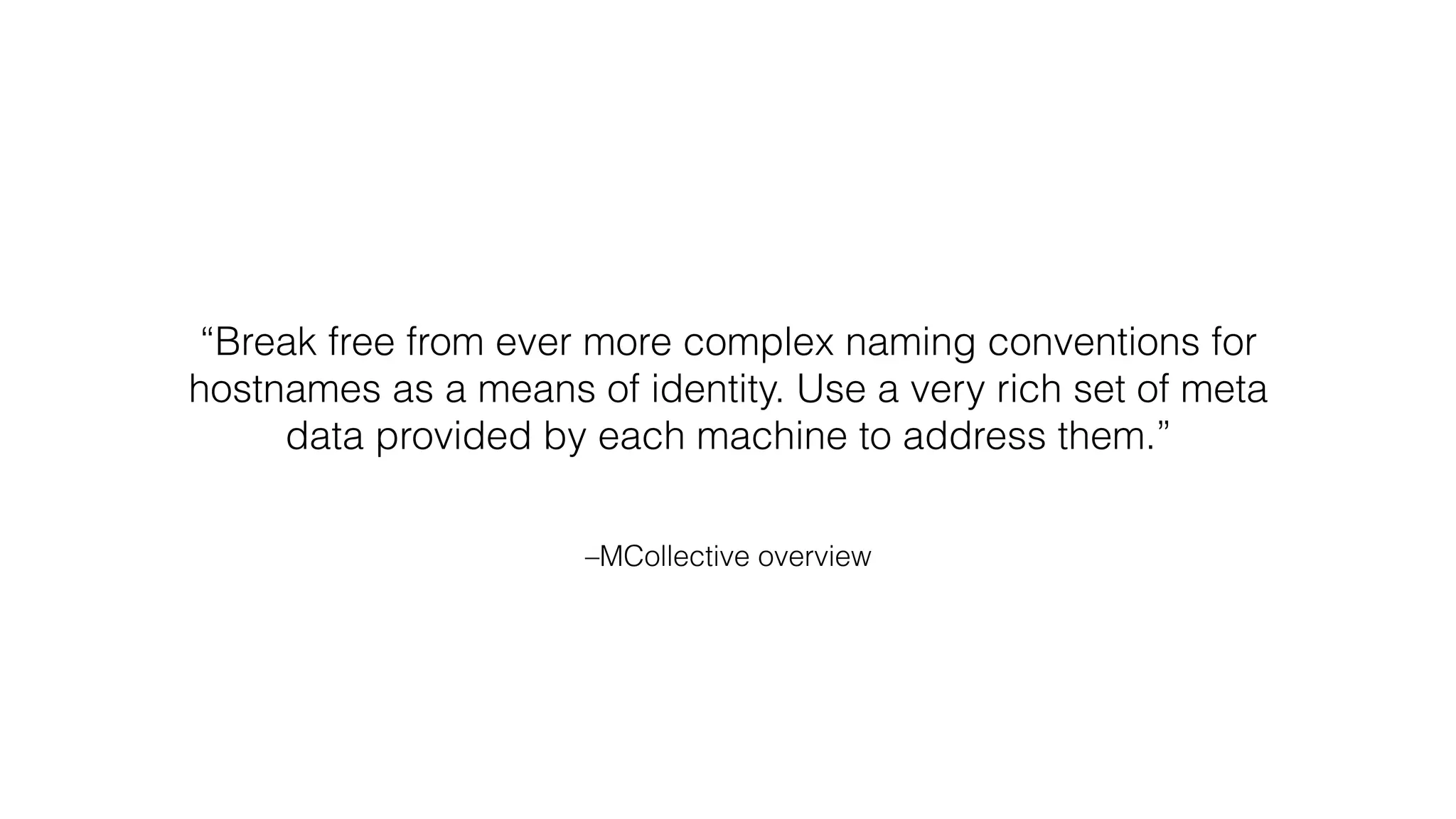

15. –MCollective overview
“Break free from ever more complex naming conventions for
hostnames as a means of identity. Use a very rich set of meta
data provided by each machine to address them.”

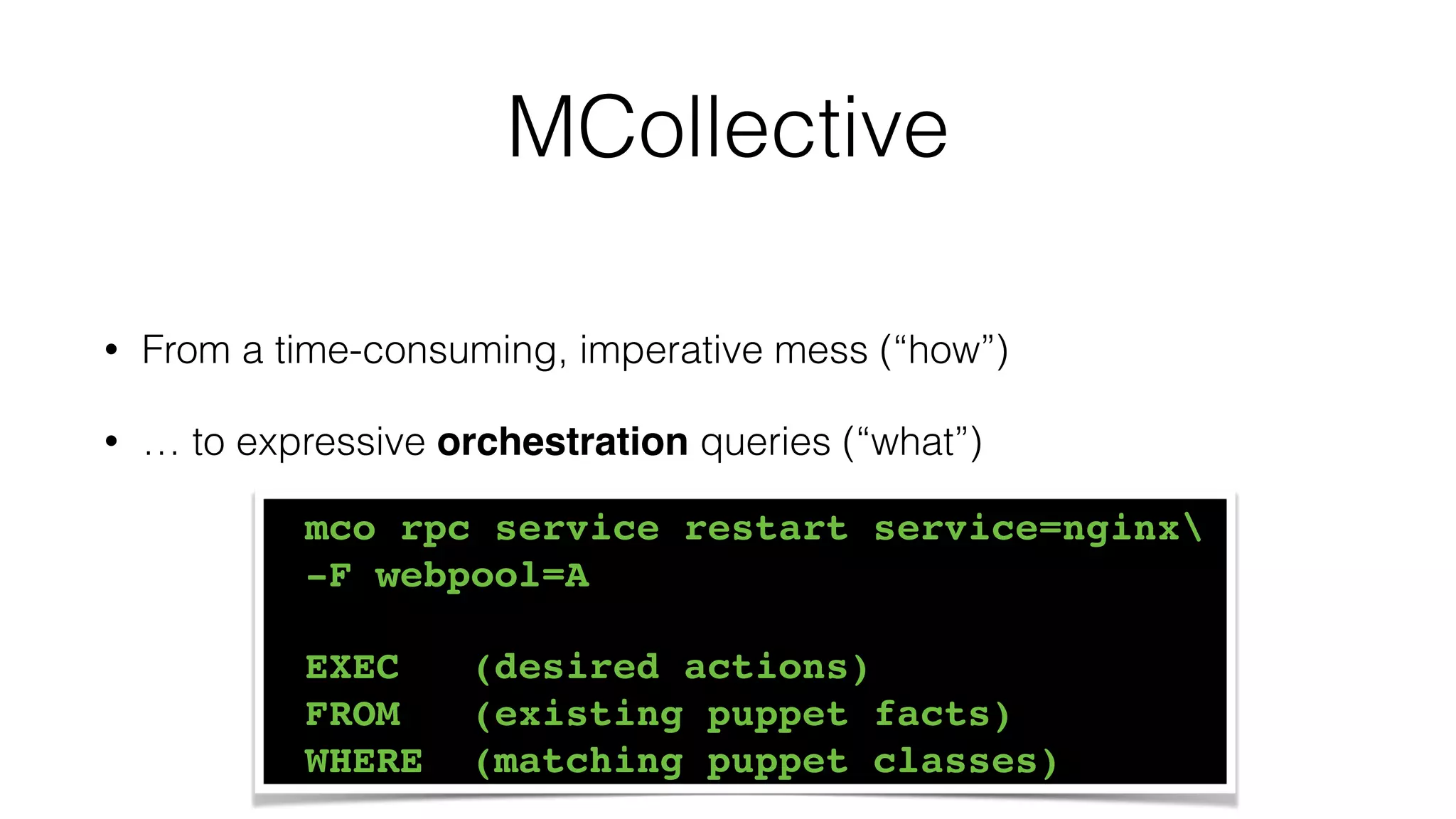

16. MCollective
• From a time-consuming, imperative mess (“how”)
• … to expressive orchestration queries (“what”)
mco rpc service restart service=nginx
-F webpool=A
EXEC (desired actions)
FROM (existing puppet facts)
WHERE (matching puppet classes)

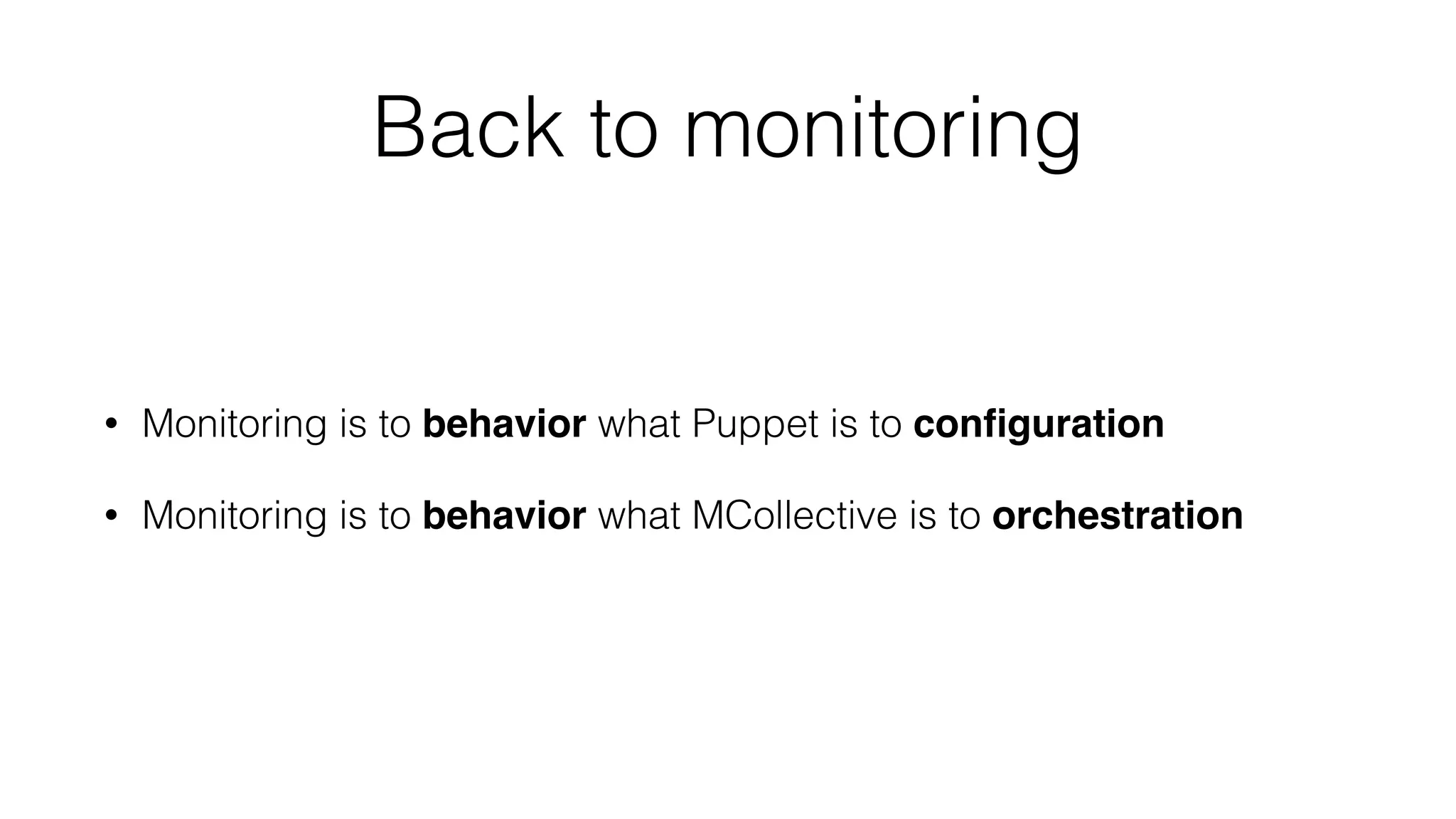

17. Back to monitoring
• Monitoring is to behavior what Puppet is to configuration
• Monitoring is to behavior what MCollective is to orchestration

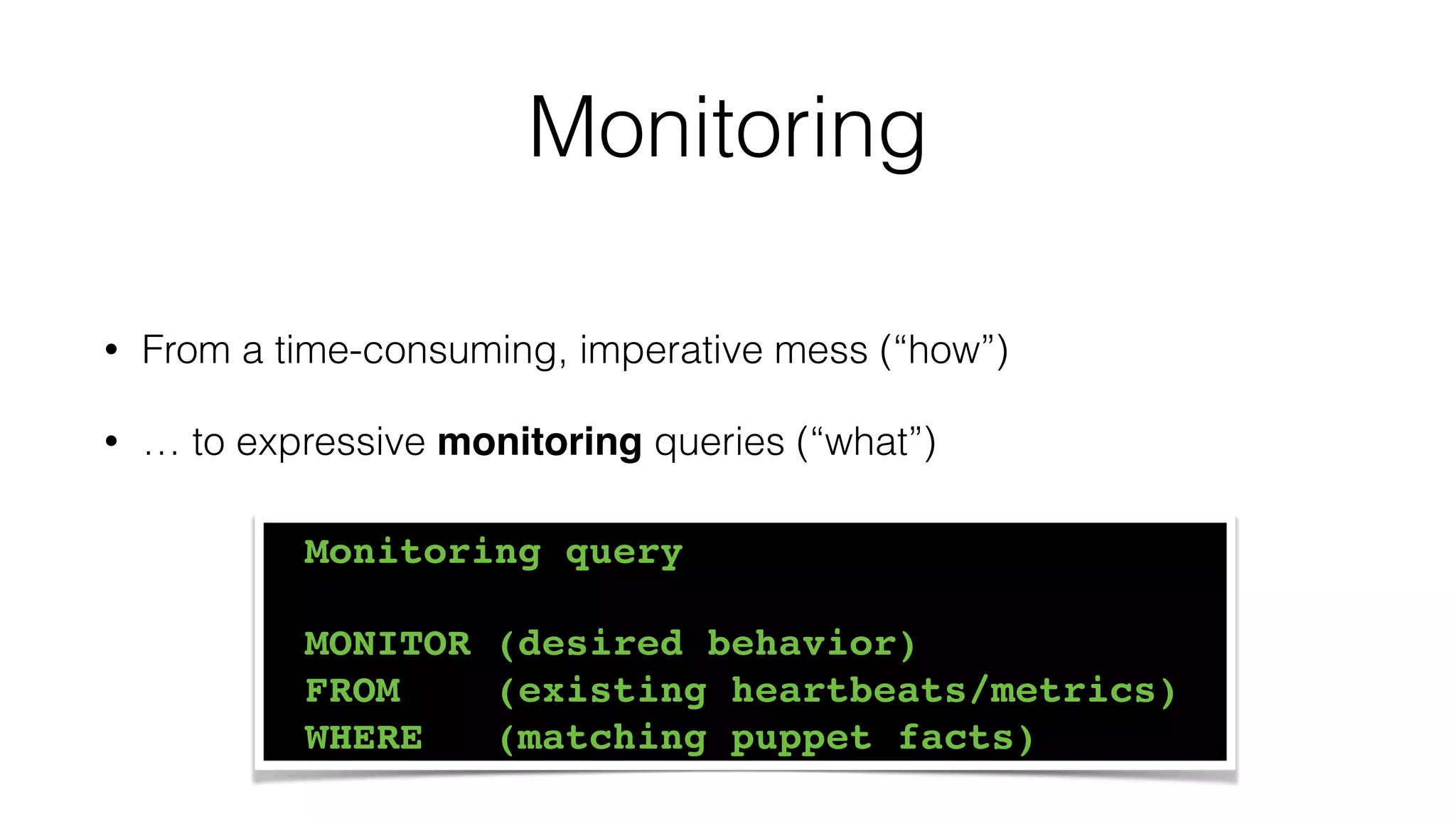

18. Monitoring
• From a time-consuming, imperative mess (“how”)
• … to expressive monitoring queries (“what”)
Monitoring query
MONITOR (desired behavior)
FROM (existing heartbeats/metrics)
WHERE (matching puppet facts)

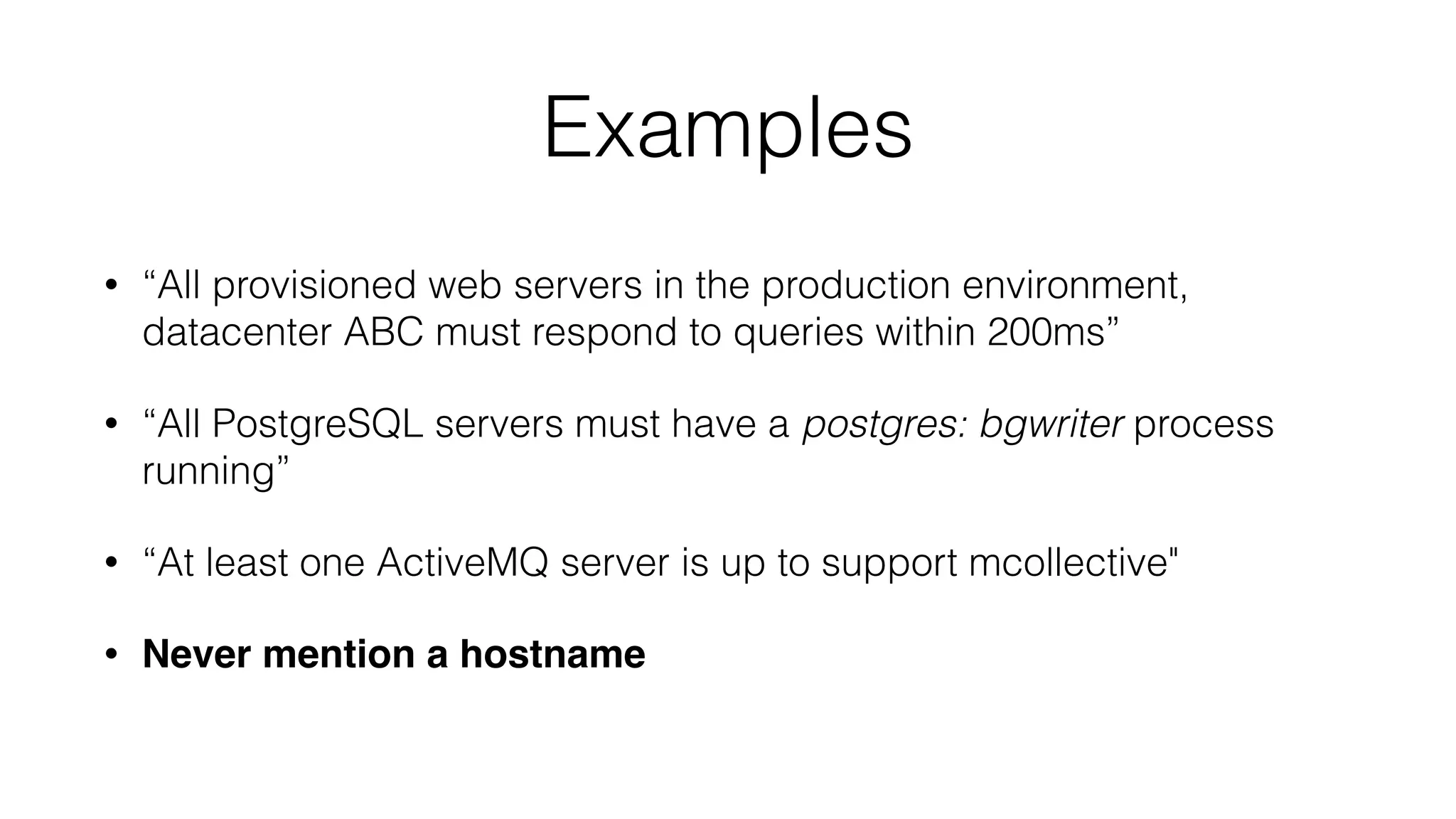

19. Examples
• “All provisioned web servers in the production environment,
datacenter ABC must respond to queries within 200ms”
• “All PostgreSQL servers must have a postgres: bgwriter process
running”
• “At least one ActiveMQ server is up to support mcollective"
• Never mention a hostname

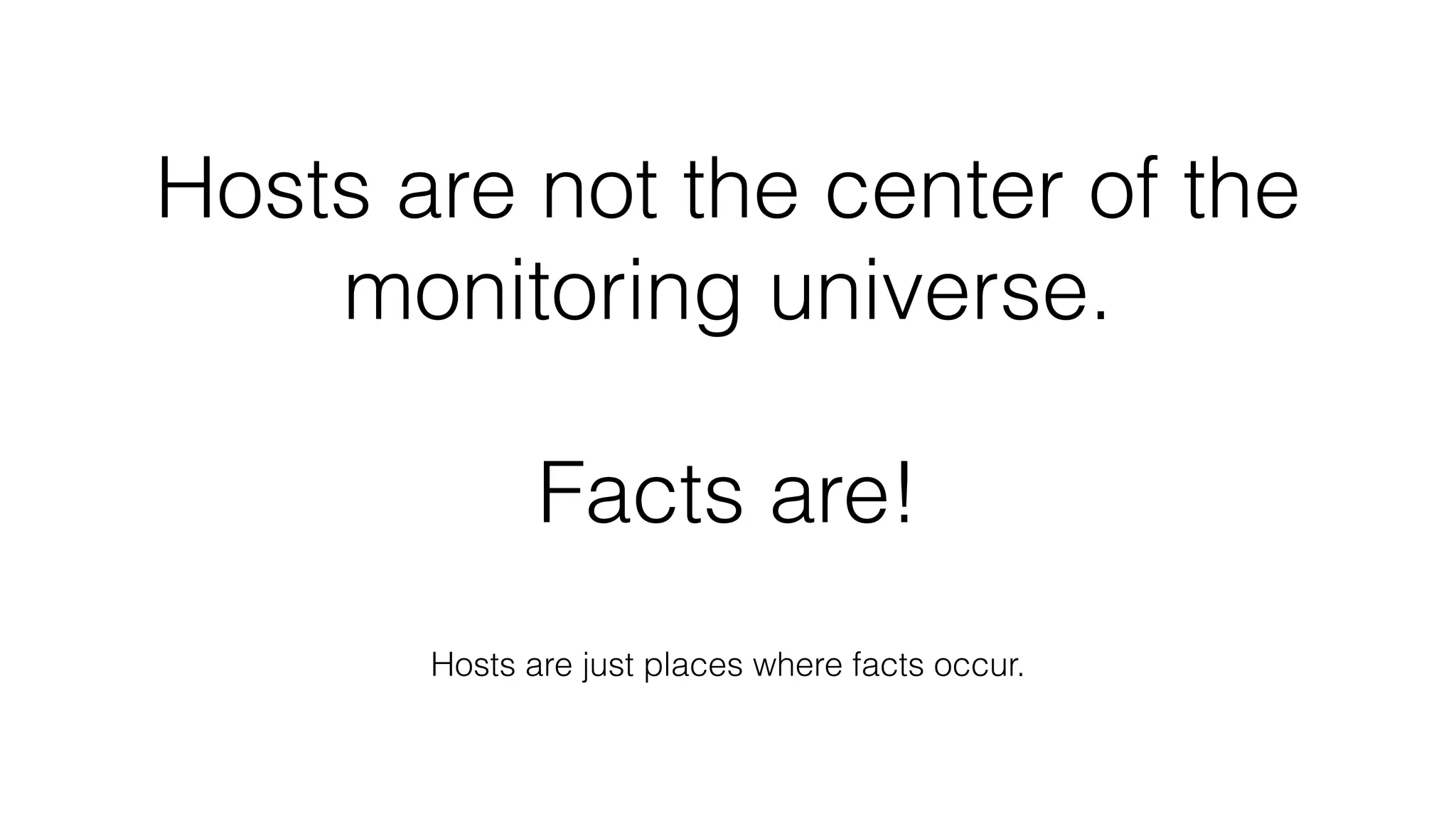

20. Hosts are not the center of the
monitoring universe.
Facts are!
Hosts are just places where facts occur.

21. The proof is in the pudding…

22. Hosts at the center of the universe
a.k.a. the Wrong Way

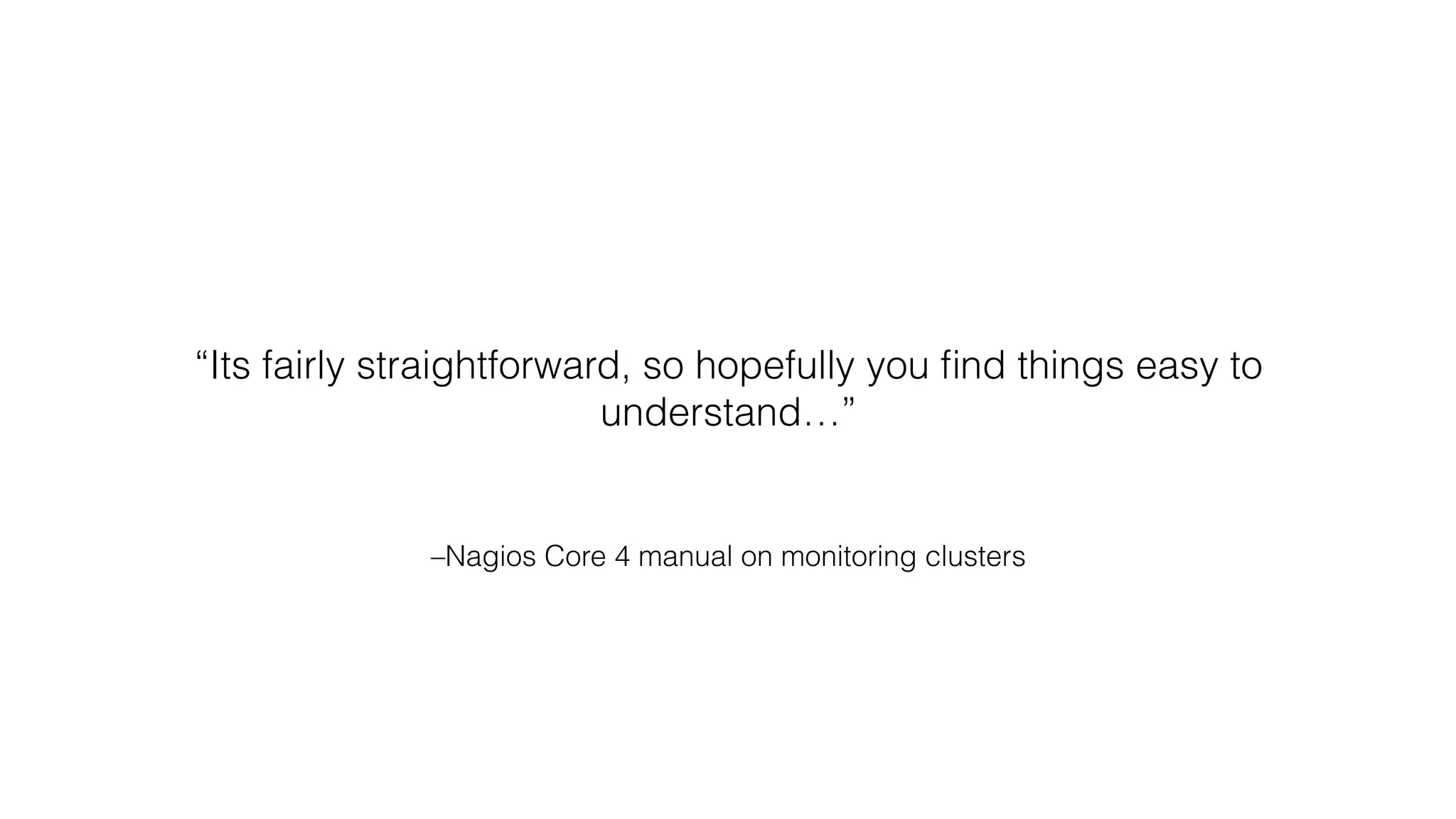

23. –Nagios Core 4 manual on monitoring clusters
“Its fairly straightforward, so hopefully you find things easy to
understand…”

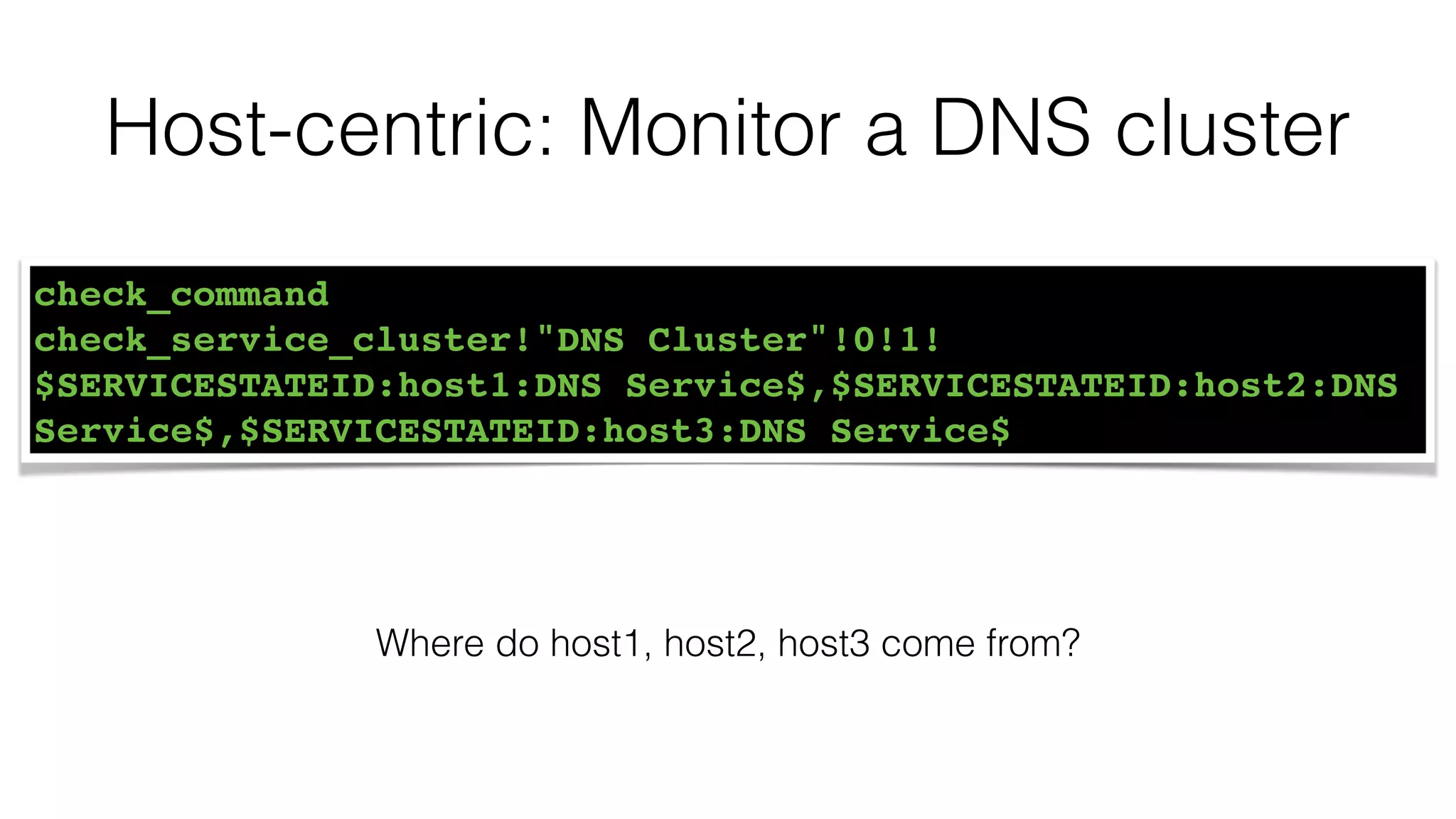

24. Host-centric: Monitor a DNS cluster
check_command
check_service_cluster!"DNS Cluster"!0!1!
$SERVICESTATEID:host1:DNS Service$,$SERVICESTATEID:host2:DNS
Service$,$SERVICESTATEID:host3:DNS Service$
Where do host1, host2, host3 come from?

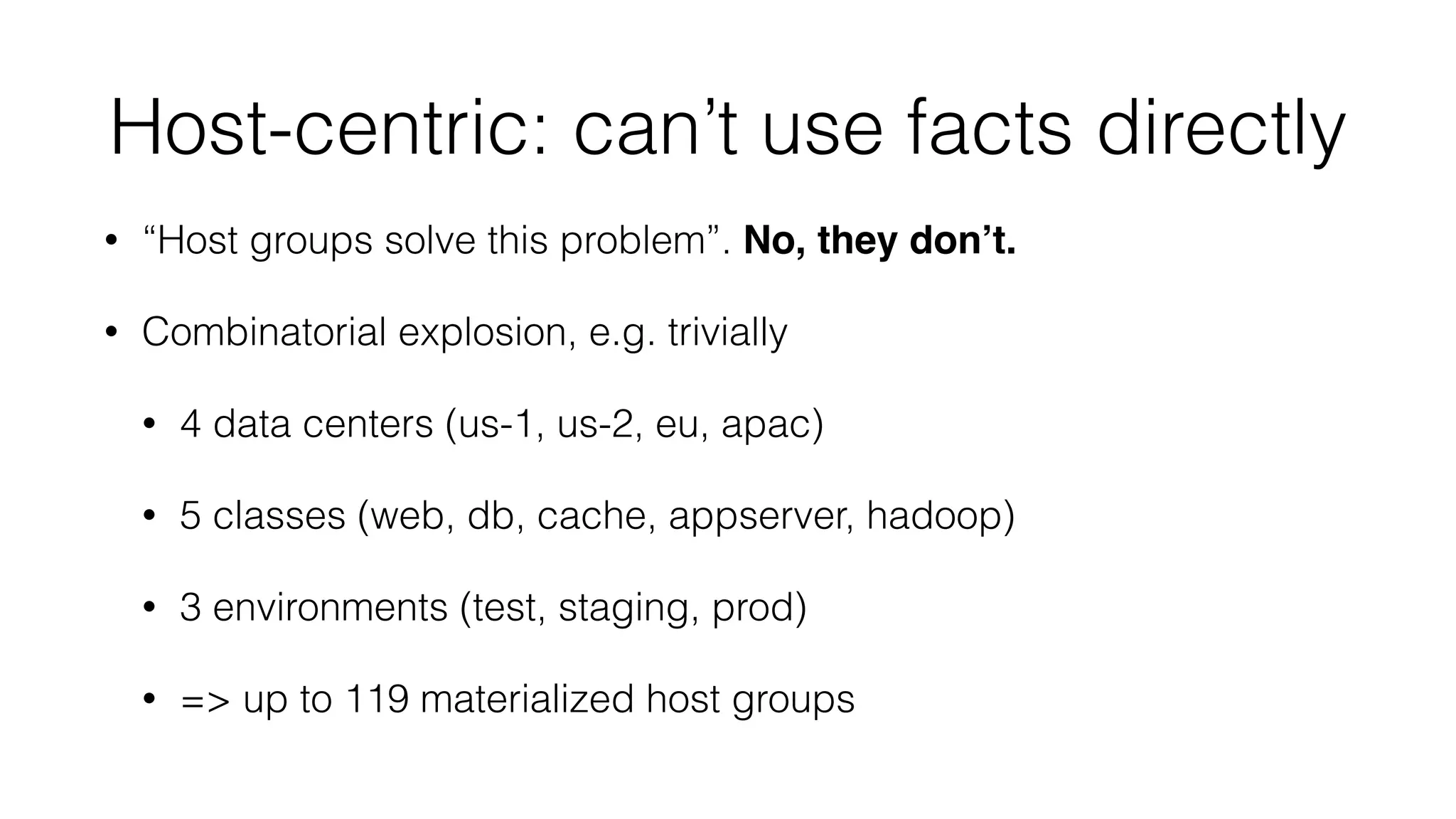

25. Host-centric: can’t use facts directly
• “Host groups solve this problem”. No, they don’t.
• Combinatorial explosion, e.g. trivially
• 4 data centers (us-1, us-2, eu, apac)
• 5 classes (web, db, cache, appserver, hadoop)
• 3 environments (test, staging, prod)
• => up to 119 materialized host groups

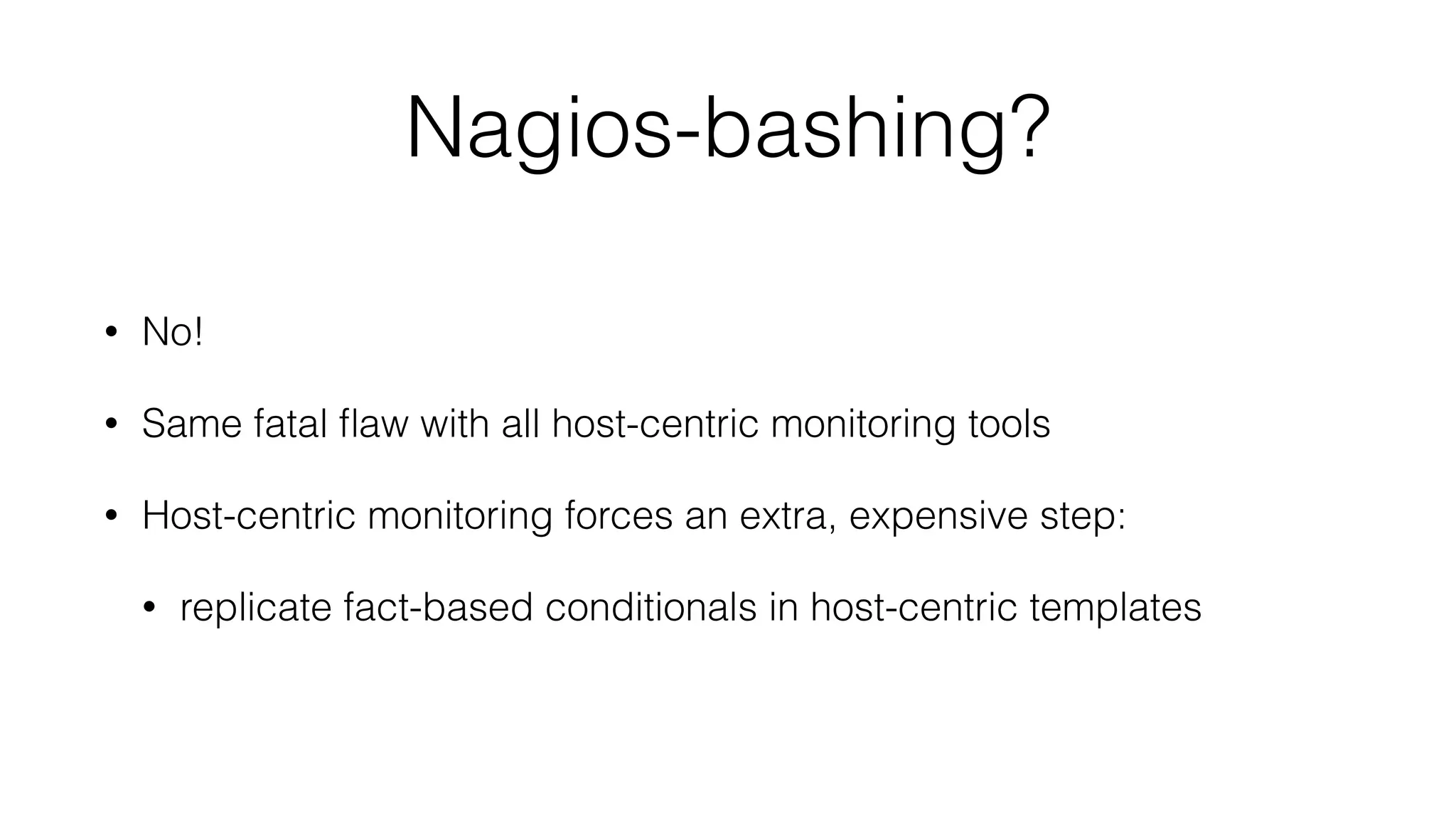

26. Nagios-bashing?
• No!
• Same fatal flaw with all host-centric monitoring tools
• Host-centric monitoring forces an extra, expensive step:
• replicate fact-based conditionals in host-centric templates

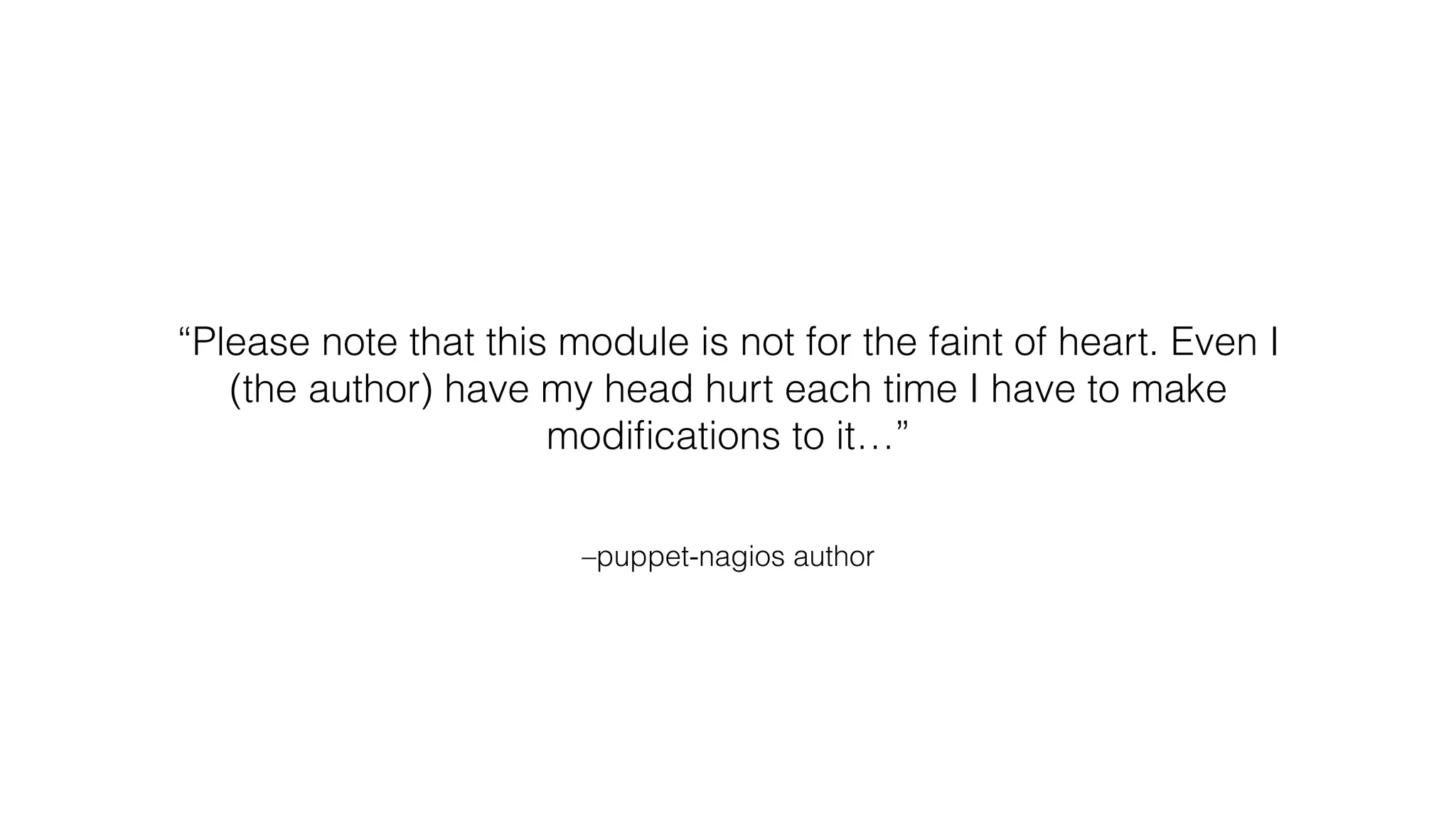

27. –puppet-nagios author
“Please note that this module is not for the faint of heart. Even I
(the author) have my head hurt each time I have to make
modifications to it…”

28. Facts at the center of the universe
a.k.a. the Right Way
"De Revolutionibus manuscript p9b" by Nicolas Copernicus - www.bj.uj.edu.pl. Licensed under Public domain via Wikimedia Commons - http://commons.wikimedia.org/wiki/File:De_Revolutionibus_manuscript_p9b.jpg#mediaviewer/
File:De_Revolutionibus_manuscript_p9b.jpga

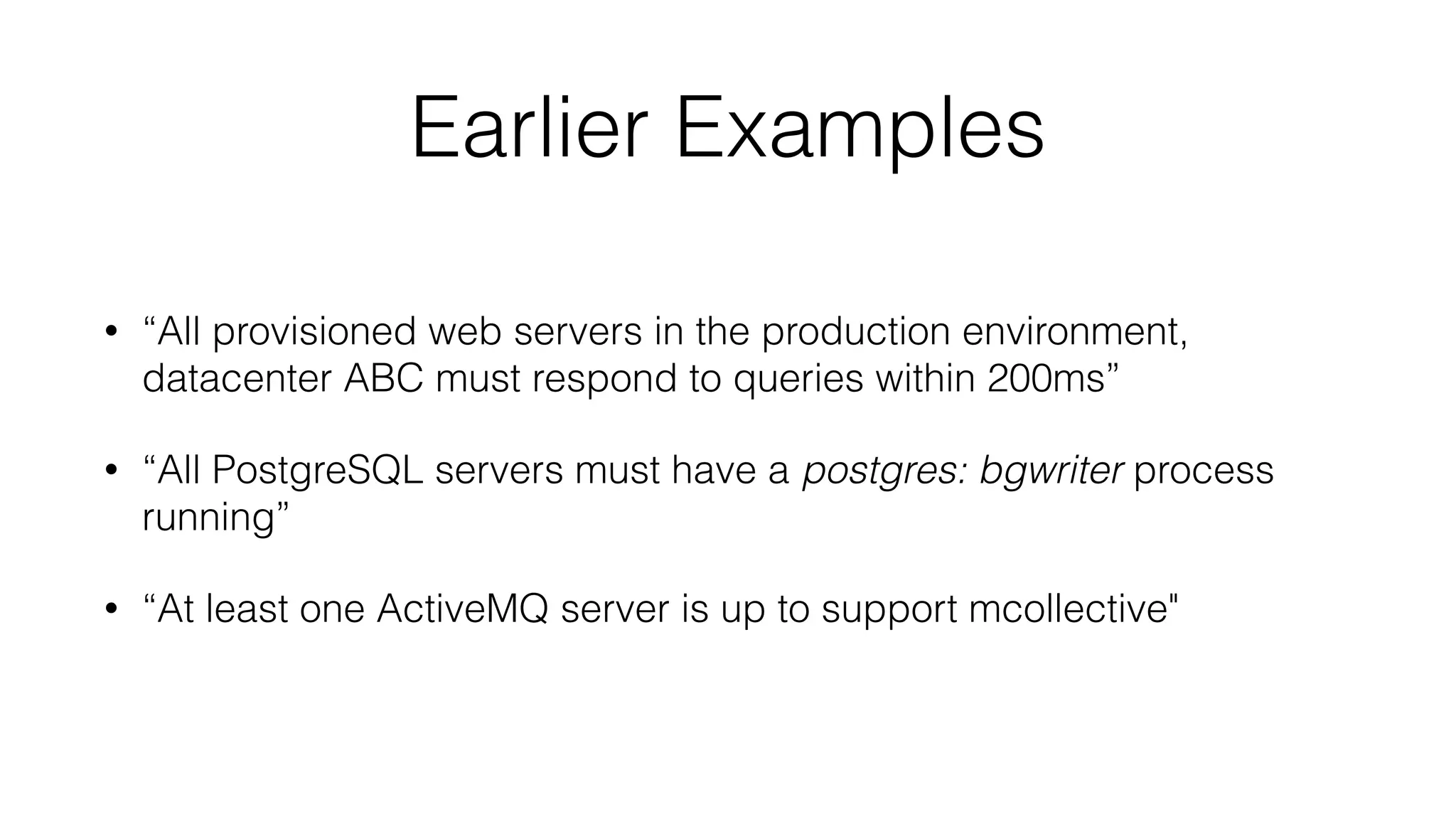

29. Earlier Examples
• “All provisioned web servers in the production environment,
datacenter ABC must respond to queries within 200ms”
• “All PostgreSQL servers must have a postgres: bgwriter process
running”
• “At least one ActiveMQ server is up to support mcollective"

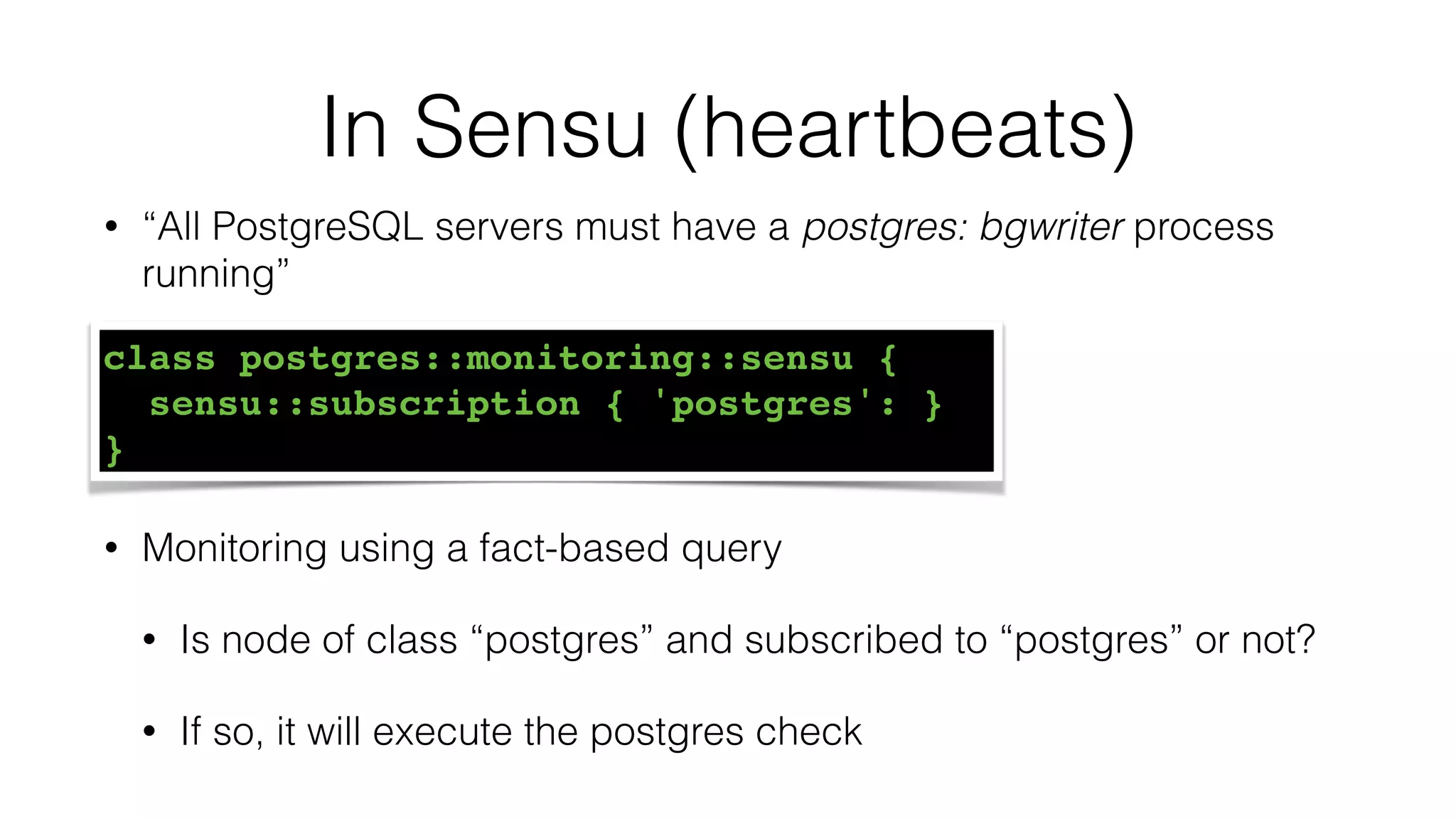

30. In Sensu (heartbeats)
• “All PostgreSQL servers must have a postgres: bgwriter process
running”
class postgres::monitoring::sensu {
sensu::subscription { 'postgres': }
}
• Monitoring using a fact-based query
• Is node of class “postgres” and subscribed to “postgres” or not?
• If so, it will execute the postgres check

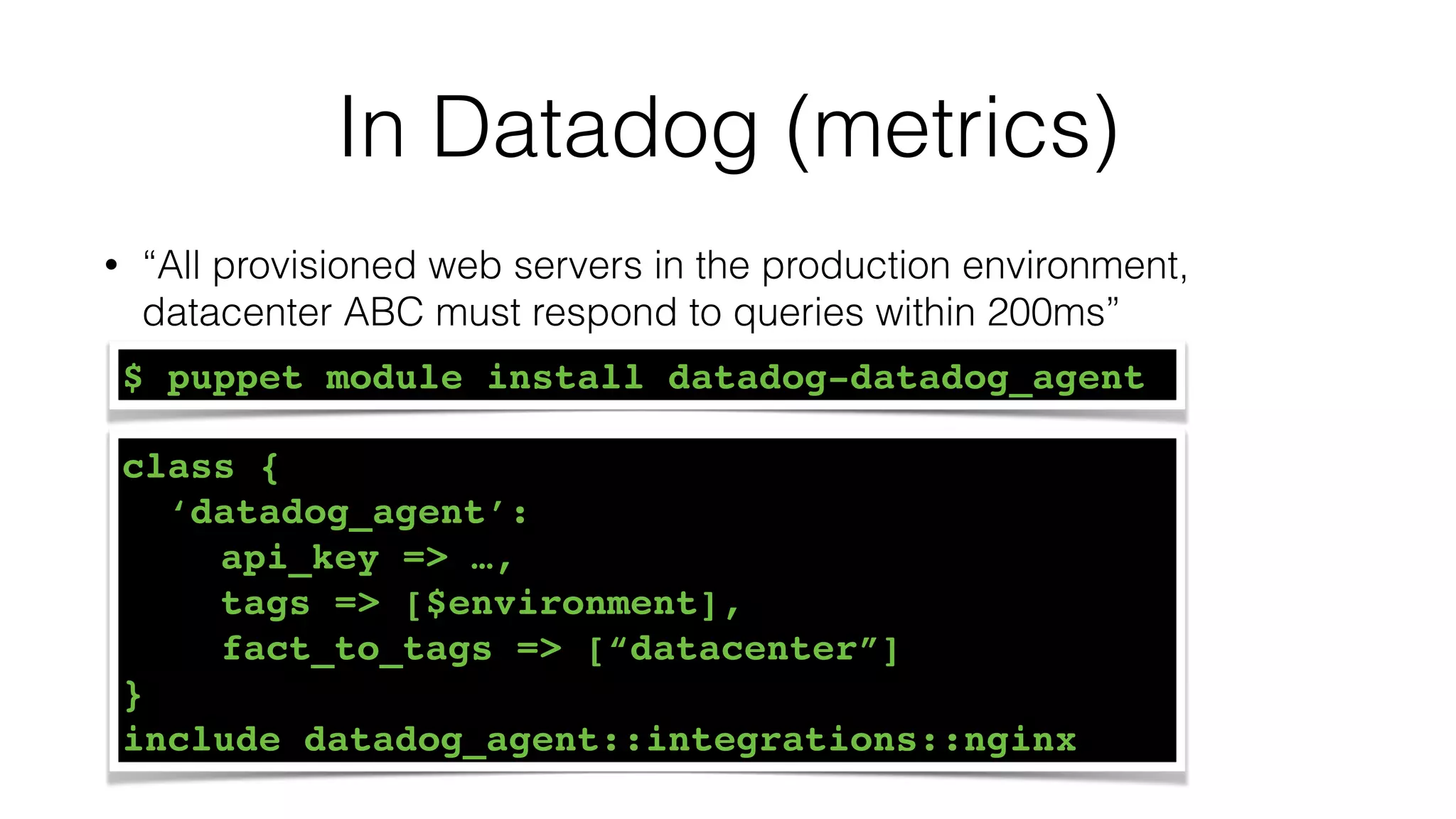

31. In Datadog (metrics)
• “All provisioned web servers in the production environment,
datacenter ABC must respond to queries within 200ms”
$ puppet module install datadog-datadog_agent
class {
‘datadog_agent’:
api_key => …,
tags => [$environment],
fact_to_tags => [“datacenter”]
}
include datadog_agent::integrations::nginx

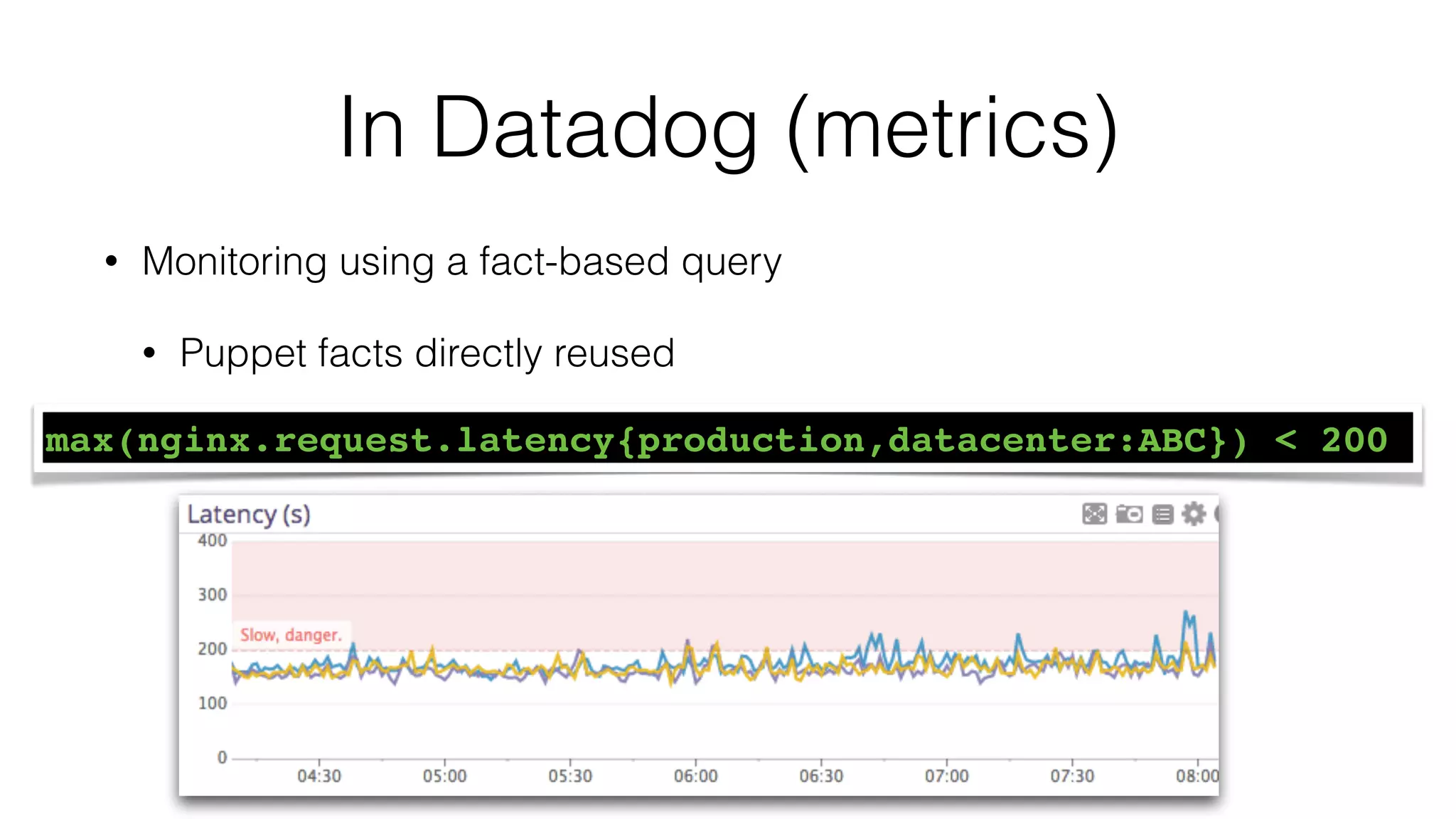

32. In Datadog (metrics)
• Monitoring using a fact-based query
• Puppet facts directly reused
max(nginx.request.latency{production,datacenter:ABC}) < 200

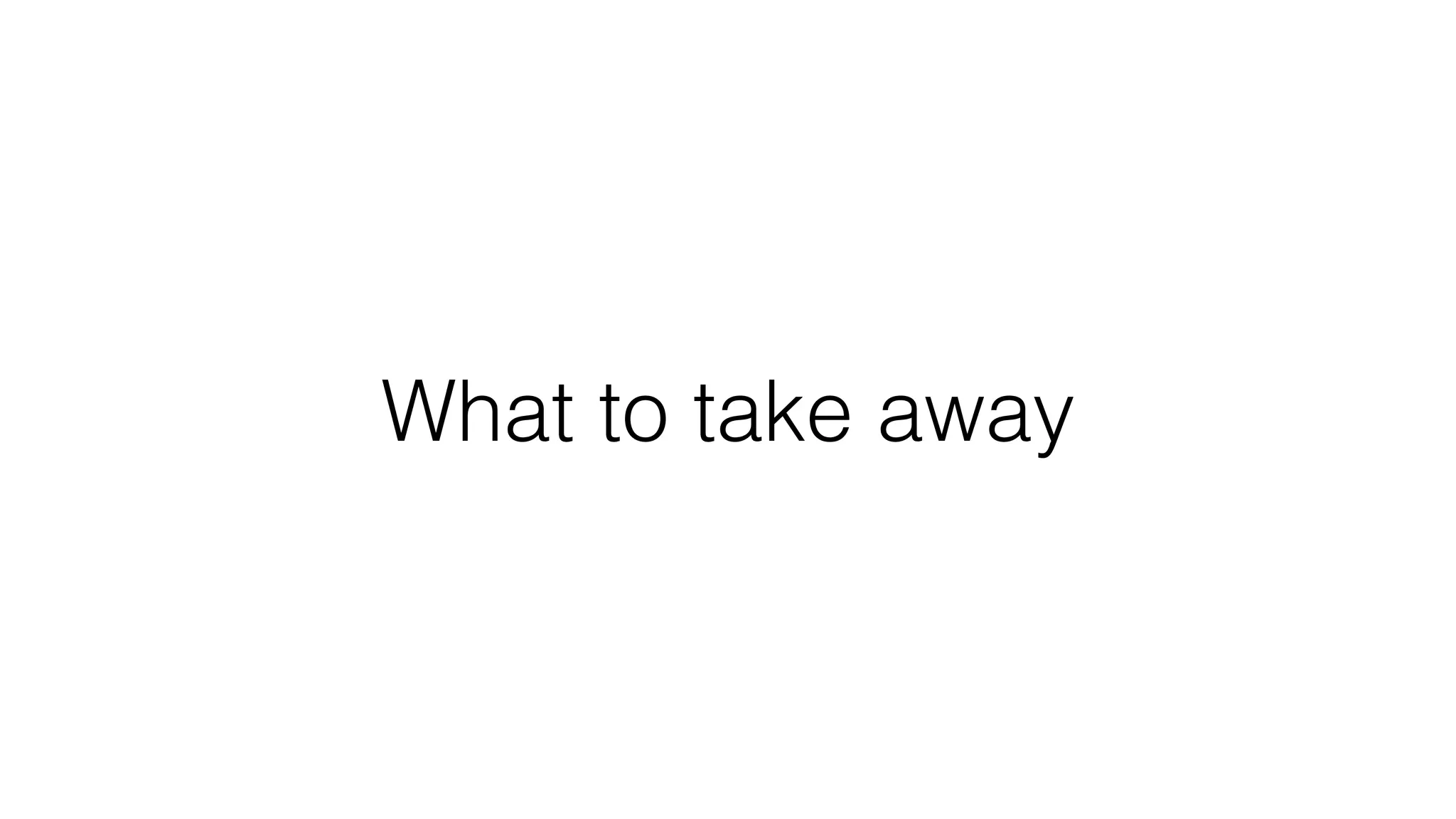

33. What to take away

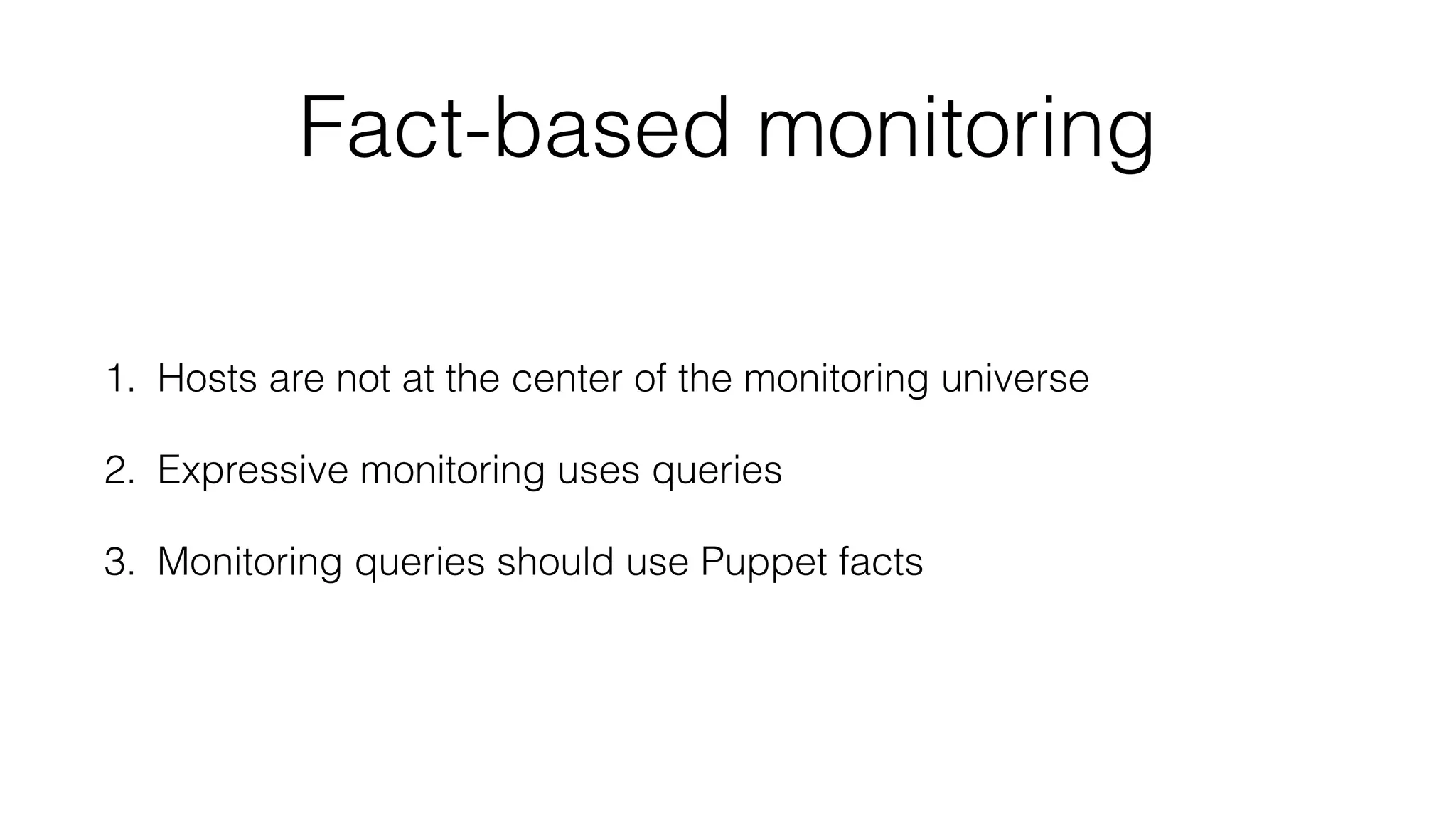

34. Fact-based monitoring
1. Hosts are not at the center of the monitoring universe
2. Expressive monitoring uses queries
3. Monitoring queries should use Puppet facts

35. Thank you!
