Monitoring Docker at Scale - Docker San Francisco Meetup - August 11, 2015
The document discusses the complexities of monitoring Docker containers at scale, emphasizing the need for a robust monitoring platform due to the high volume of metrics and dynamic nature of containers. It outlines steps for implementing a Docker-based app, utilizing Docker Machine, and the application of tags for efficient monitoring. The conclusion highlights that declarative monitoring through tagging is essential for managing numerous metrics effectively in a containerized environment.
More Related Content
Similar to Monitoring Docker at Scale - Docker San Francisco Meetup - August 11, 2015
Monitoring Docker at Scale - Docker San Francisco Meetup - August 11, 2015
- 1. MonitoringDocker at Scale MattWilliams Evangelist @ Datadog mattw@datadoghq.com @technovangelist …and having a way to answer every question you have about it

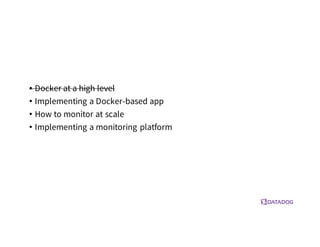

- 2. • Docker ata high level • Implementing a Docker-based app • How to monitor at scale • Implementing a monitoring platform
- 3.
- 4.
- 5. Steps to workingwith Docker • Create the Docker host • Create a container from an image • The imagecould have come from an online repository • Orchestrate a set of containers to replicate your app

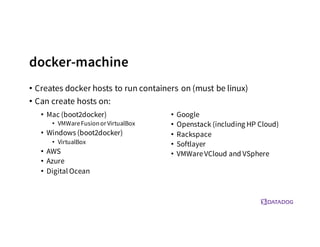

- 6. docker-machine • Creates dockerhosts to run containers on (must be linux) • Can create hosts on: • Mac (boot2docker) • VMWareFusionorVirtualBox • Windows (boot2docker) • VirtualBox • AWS • Azure • Digital Ocean • Google • Openstack (including HP Cloud) • Rackspace • Softlayer • VMWareVCloud and VSphere

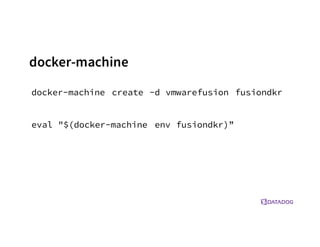

- 7. docker-machine create -dvmwarefusion fusiondkr eval "$(docker-machine env fusiondkr)” docker-machine
- 8. docker-machine create -d"openstack" --openstack-flavor-name "standard.large" --openstack-image-id "bec3cab5-4722-40b...218e22fe" --openstack-floatingip-pool "Ext-Net" --openstack-ssh-user "ubuntu" hpdocker eval "$(docker-machine env hpdocker)" docker-machine

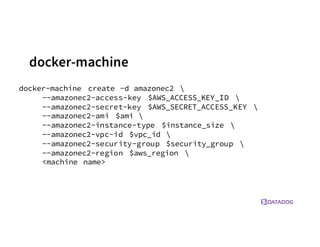

- 9. docker-machine docker-machine create -damazonec2 --amazonec2-access-key $AWS_ACCESS_KEY_ID --amazonec2-secret-key $AWS_SECRET_ACCESS_KEY --amazonec2-ami $ami --amazonec2-instance-type $instance_size --amazonec2-vpc-id $vpc_id --amazonec2-security-group $security_group --amazonec2-region $aws_region <machine name>
- 10. Docker Hub • Collectionof public / private repositories of Docker images

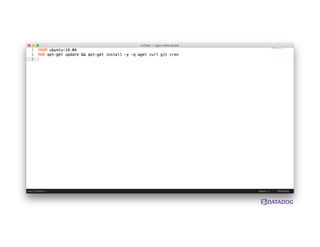

- 11. docker • Use commandline params or provide Dockerfile • Create containers and images

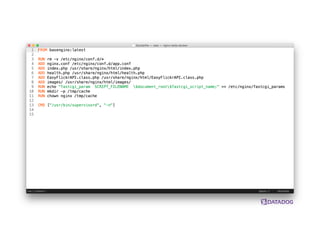

- 20.
- 21.
- 22.

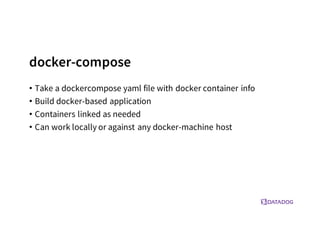

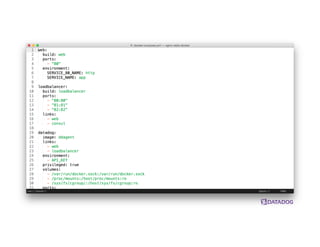

- 23. docker-compose • Take adockercompose yaml file with docker container info • Build docker-based application • Containers linked as needed • Can work locally or against any docker-machine host
- 27.
- 28. one more tip… •If sharing a volume in Docker on top of VirtualBox and using nginx/apache: • sendfile off;
- 29.
- 30.

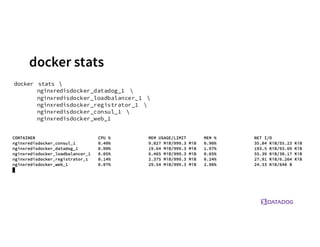

- 31. docker stats docker stats nginxredisdocker_datadog_1 nginxredisdocker_loadbalancer_1 nginxredisdocker_registrator_1 nginxredisdocker_consul_1 nginxredisdocker_web_1

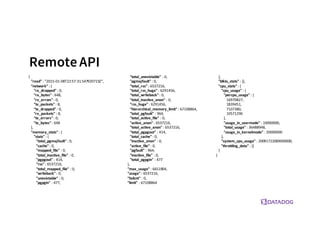

- 32. RemoteAPI { "read" : "2015-‐01-‐08T22:57:31.547920715Z", "network": { "rx_dropped" : 0, "rx_bytes" : 648, "rx_errors" : 0, "tx_packets" : 8, "tx_dropped" : 0, "rx_packets" : 8, "tx_errors" : 0, "tx_bytes" : 648 }, "memory_stats" : { "stats" : { "total_pgmajfault" : 0, "cache" : 0, "mapped_file" : 0, "total_inactive_file" : 0, "pgpgout" : 414, "rss" : 6537216, "total_mapped_file" : 0, "writeback" : 0, "unevictable" : 0, "pgpgin" : 477, "total_unevictable" : 0, "pgmajfault" : 0, "total_rss" : 6537216, "total_rss_huge" : 6291456, "total_writeback" : 0, "total_inactive_anon" : 0, "rss_huge" : 6291456, "hierarchical_memory_limit" : 67108864, "total_pgfault" : 964, "total_active_file" : 0, "active_anon" : 6537216, "total_active_anon" : 6537216, "total_pgpgout" : 414, "total_cache" : 0, "inactive_anon" : 0, "active_file" : 0, "pgfault" : 964, "inactive_file" : 0, "total_pgpgin" : 477 }, "max_usage" : 6651904, "usage" : 6537216, "failcnt" : 0, "limit" : 67108864 }, "blkio_stats" : {}, "cpu_stats" : { "cpu_usage" : { "percpu_usage" : [ 16970827, 1839451, 7107380, 10571290 ], "usage_in_usermode" : 10000000, "total_usage" : 36488948, "usage_in_kernelmode" : 20000000 }, "system_cpu_usage" : 20091722000000000, "throttling_data" : {} } }

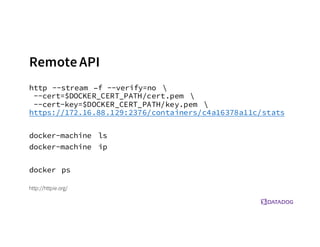

- 33. RemoteAPI http --stream –f--verify=no --cert=$DOCKER_CERT_PATH/cert.pem --cert-key=$DOCKER_CERT_PATH/key.pem https://172.16.88.129:2376/containers/c4a16378a11c/stats docker-machine ls docker-machine ip docker ps http://httpie.org/

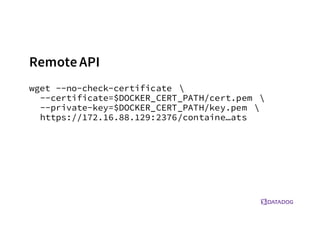

- 34. RemoteAPI wget --no-check-certificate --certificate=$DOCKER_CERT_PATH/cert.pem --private-key=$DOCKER_CERT_PATH/key.pem https://172.16.88.129:2376/containe…ats
- 35.

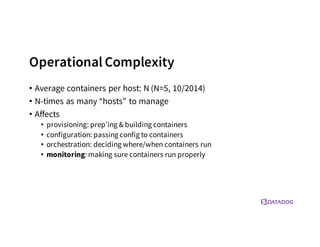

- 36. Operational Complexity • Averagecontainers per host: N (N=5, 10/2014) • N-times as many “hosts” to manage • Affects • provisioning: prep’ing & building containers • configuration: passing config to containers • orchestration: deciding where/when containers run • monitoring: making sure containers run properly
- 37. Complexity increases with… •Number of things to measure • Velocity of change

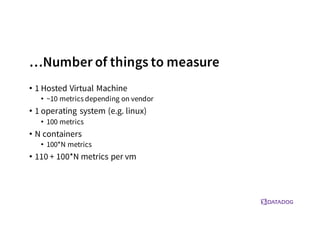

- 38. …Number of thingsto measure • 1 Hosted Virtual Machine • ~10 metrics depending on vendor • 1 operating system (e.g. linux) • 100 metrics • N containers • 100*N metrics • 110 + 100*N metrics per vm

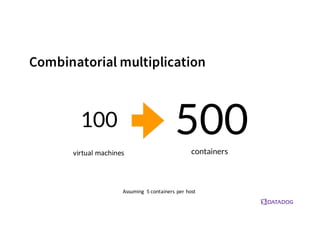

- 39. Combinatorial multiplication Assuming 5 containers per host virtual machines
- 40. Combinatorial multiplication Assuming 5 containers per host

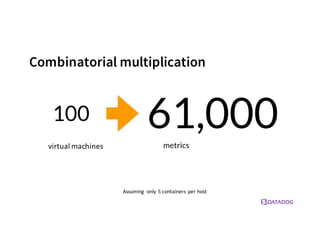

- 41. Combinatorial multiplication Assuming only 5 containers per host virtual machines
- 42.
- 43.

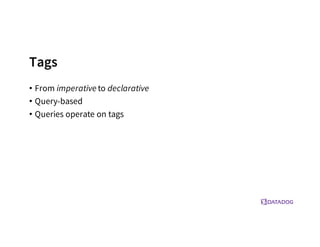

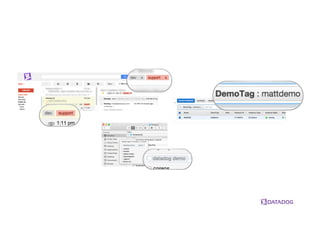

- 45. Tags • From imperativeto declarative • Query-based • Queries operate on tags

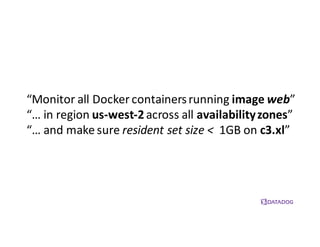

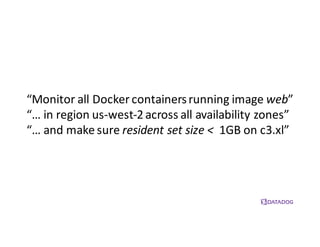

- 46. “Monitor all Dockercontainers running image web” “… in region us-‐west-‐2 across all availability zones” “… and make sure resident set size < 1GB on c3.xl”
- 47. “Monitor all Dockercontainers running image web” “… in region us-‐west-‐2across all availability zones” “… and make sure resident set size < 1GB on c3.xl”
- 48. “Monitor all Dockercontainers running image web” “… in region us-‐west-‐2across all availability zones” “… that use more than 1.5x the average on c3.xl”

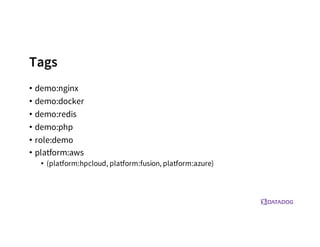

- 49. Tags • demo:nginx • demo:docker •demo:redis • demo:php • role:demo • platform:aws • (platform:hpcloud, platform:fusion, platform:azure)
- 50. How We CollectStats for Datadog

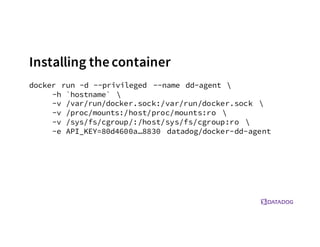

- 51. Installing the container dockerrun -d --privileged --name dd-agent -h `hostname` -v /var/run/docker.sock:/var/run/docker.sock -v /proc/mounts:/host/proc/mounts:ro -v /sys/fs/cgroup/:/host/sys/fs/cgroup:ro -e API_KEY=80d4600a…8830 datadog/docker-dd-agent

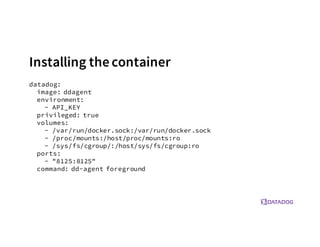

- 52. Installing thecontainer datadog: image: ddagent environment: -API_KEY privileged: true volumes: - /var/run/docker.sock:/var/run/docker.sock - /proc/mounts:/host/proc/mounts:ro - /sys/fs/cgroup/:/host/sys/fs/cgroup:ro ports: - "8125:8125" command: dd-agent foreground

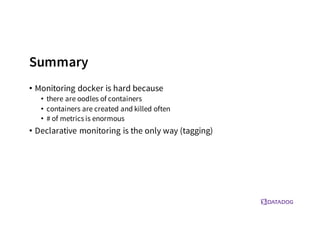

- 59. Summary • Monitoring dockeris hard because • there are oodles of containers • containers are created and killed often • # of metrics is enormous • Declarative monitoring is the only way (tagging)
- 60. MonitoringDocker at Scale MattWilliams Evangelist @ Datadog mattw@datadoghq.com @technovangelist …and having a way to answer every question you have about it
