This document discusses running Dockerized applications on AWS EC2 Container Service (ECS). It covers building Docker images from Spring Boot applications, pushing images to ECR, deploying containers to ECS using Terraform, autoscaling containers based on CPU usage, service discovery using DNS, and monitoring containers using Prometheus. The key aspects covered include creating Docker images, using ECS for container orchestration, infrastructure as code with Terraform, autoscaling, service discovery, logging and monitoring containers.

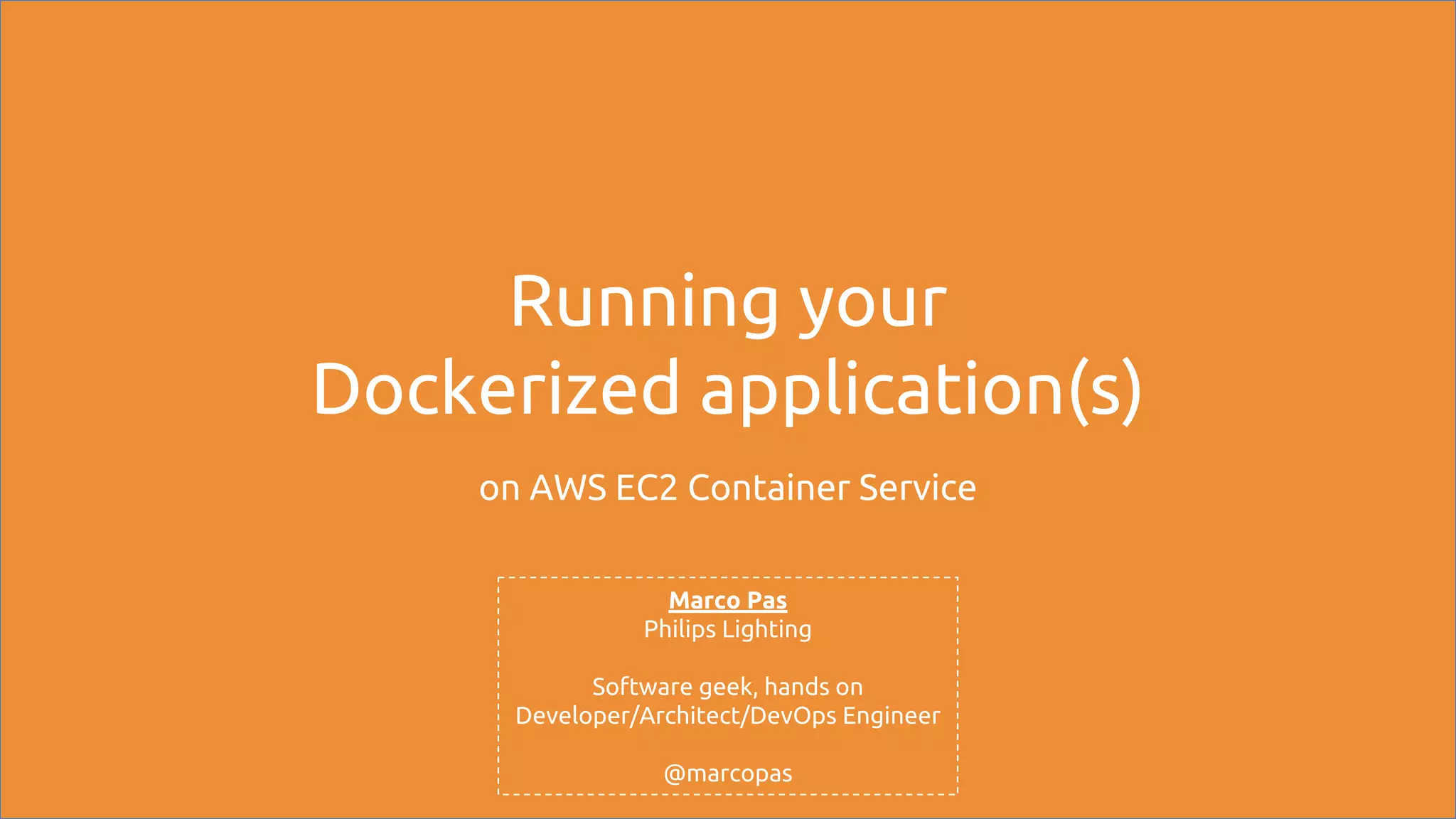

1. Running your
Dockerized application(s)
on AWS EC2 Container Service
Marco Pas
Philips Lighting
Software geek, hands on
Developer/Architect/DevOps Engineer
@marcopas

2. Some stuff about me...
● Mostly doing cloud related stuff
○ Java, Groovy, Scala, Spring Boot, IOT, AWS, Terraform, Infrastructure
● Enjoying the good things
● Chef leuke dingen doen == “trying out cool and new stuff”
● Currently involved in a big IOT project
● Wannabe chef, movie & Netflix addict

3. ..Quick Inventory..

5. From Personal Container Management to ...

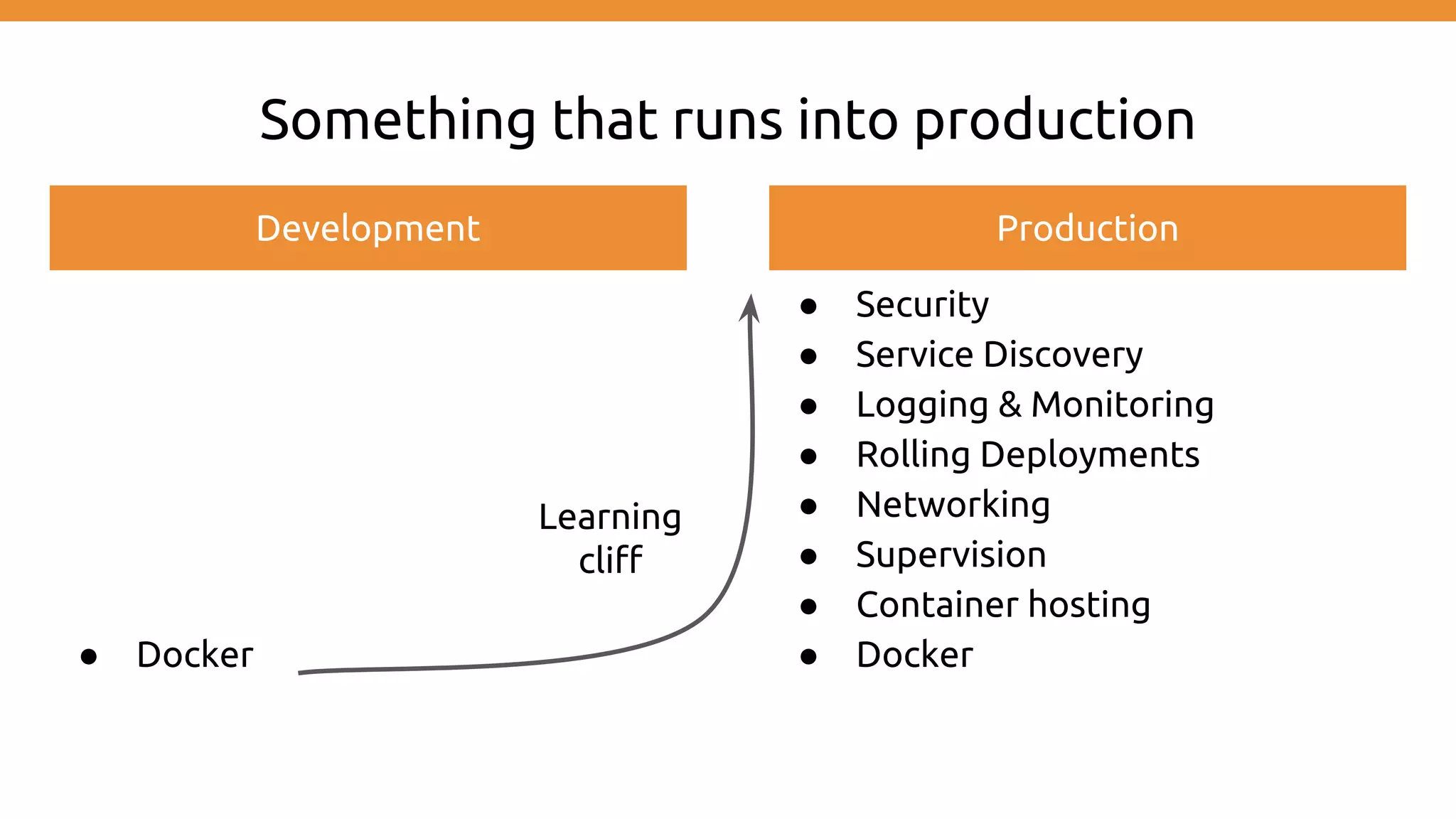

6. Something that runs into production
● Docker
● Security
● Service Discovery
● Logging & Monitoring
● Rolling Deployments
● Networking
● Supervision
● Container hosting
● Docker
Development Production
Learning
cliff

7. Using Docker Compose != Running production

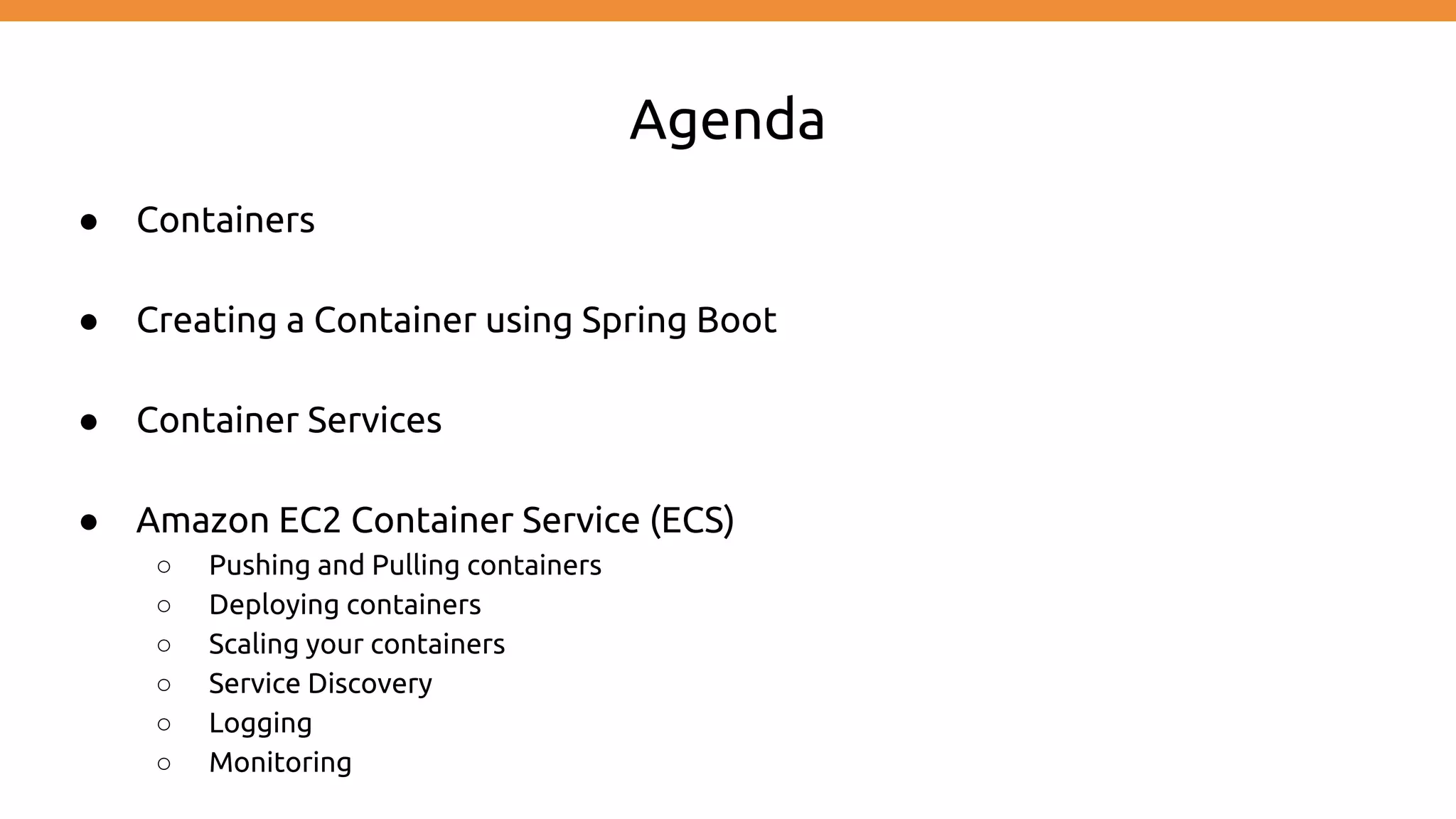

8. Agenda
● Containers
● Creating a Container using Spring Boot
● Container Services
● Amazon EC2 Container Service (ECS)
○ Pushing and Pulling containers
○ Deploying containers
○ Scaling your containers
○ Service Discovery
○ Logging
○ Monitoring

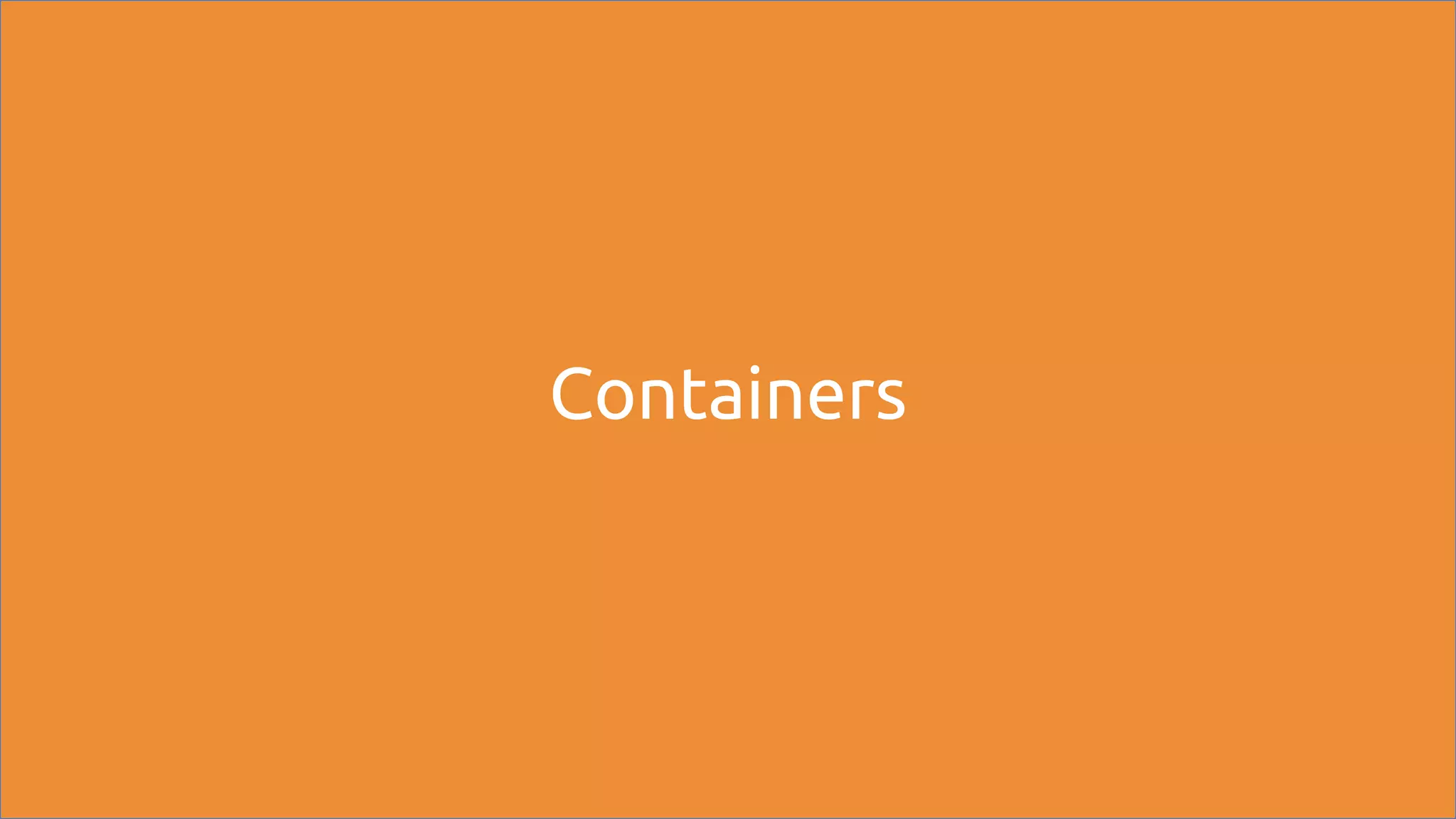

9. Containers

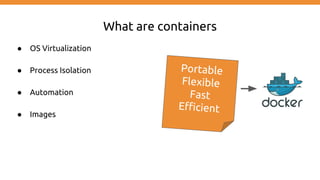

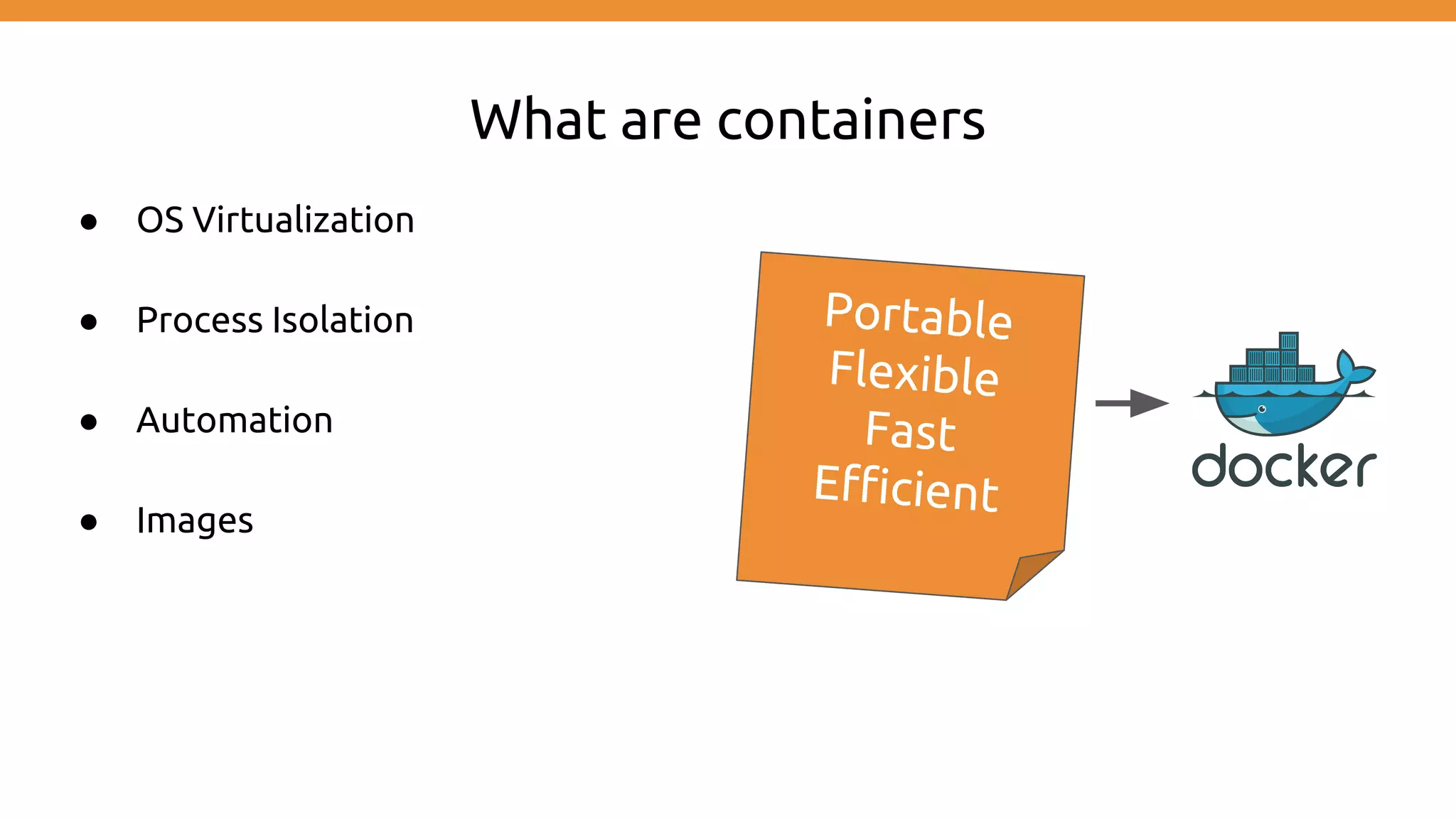

10. ● OS Virtualization
● Process Isolation
● Automation
● Images
What are containers
Portable
Flexible
Fast
Efficient

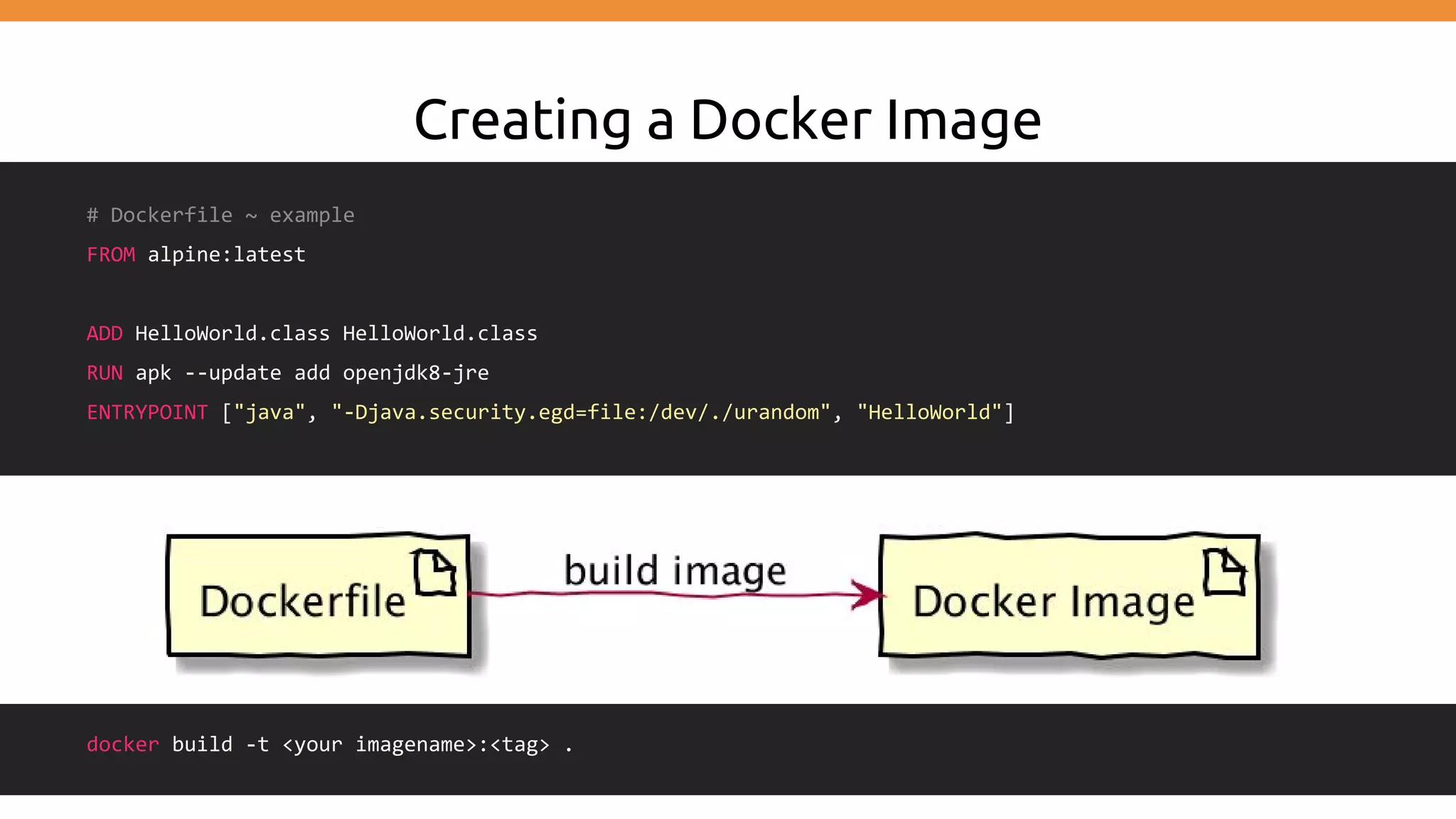

11. Creating a Docker Image
# Dockerfile ~ example
FROM alpine:latest
ADD HelloWorld.class HelloWorld.class
RUN apk --update add openjdk8-jre
ENTRYPOINT ["java", "-Djava.security.egd=file:/dev/./urandom", "HelloWorld"]
docker build -t <your imagename>:<tag> .

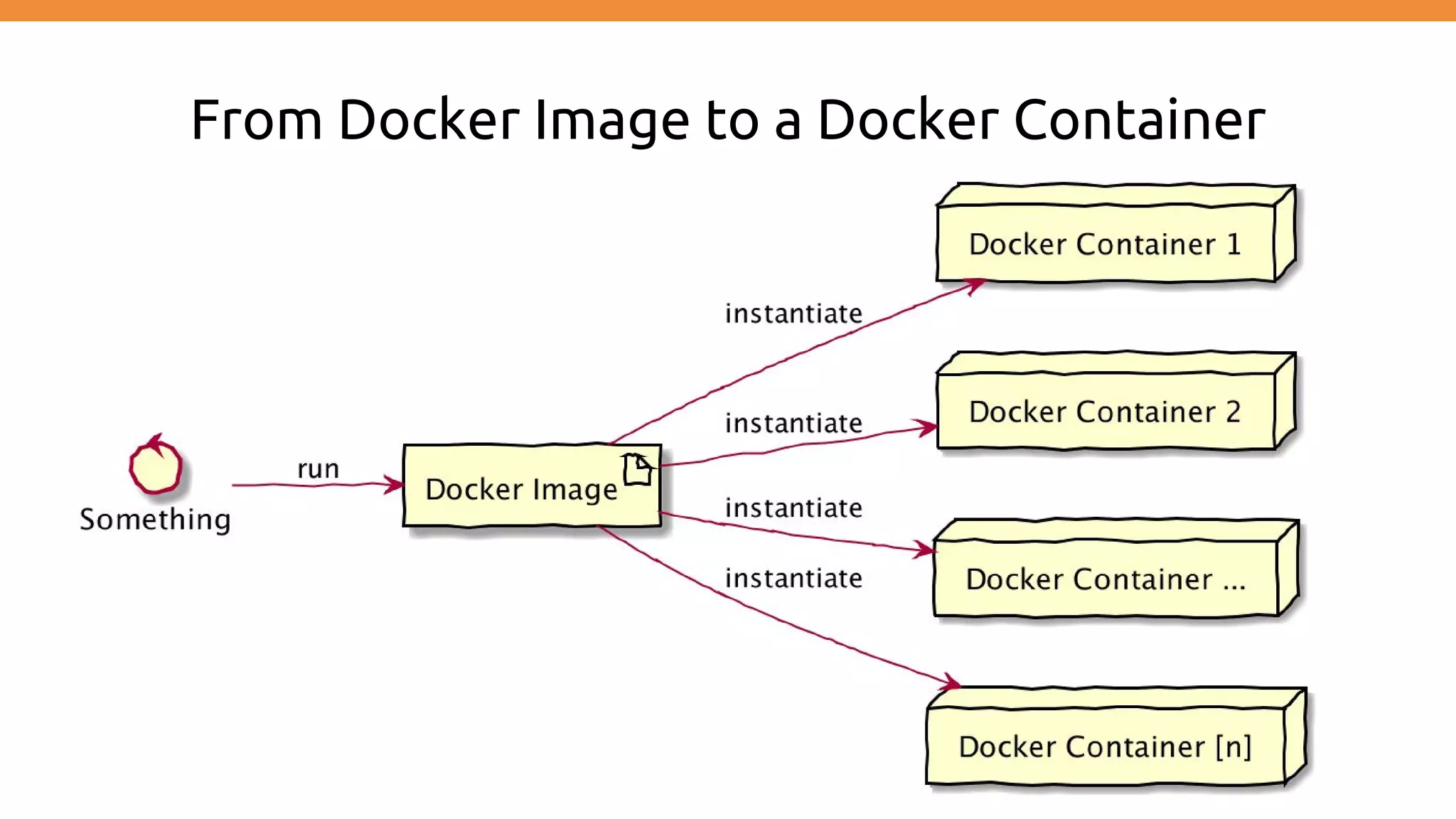

12. From Docker Image to a Docker Container

13. Creating a Container
using Spring Boot

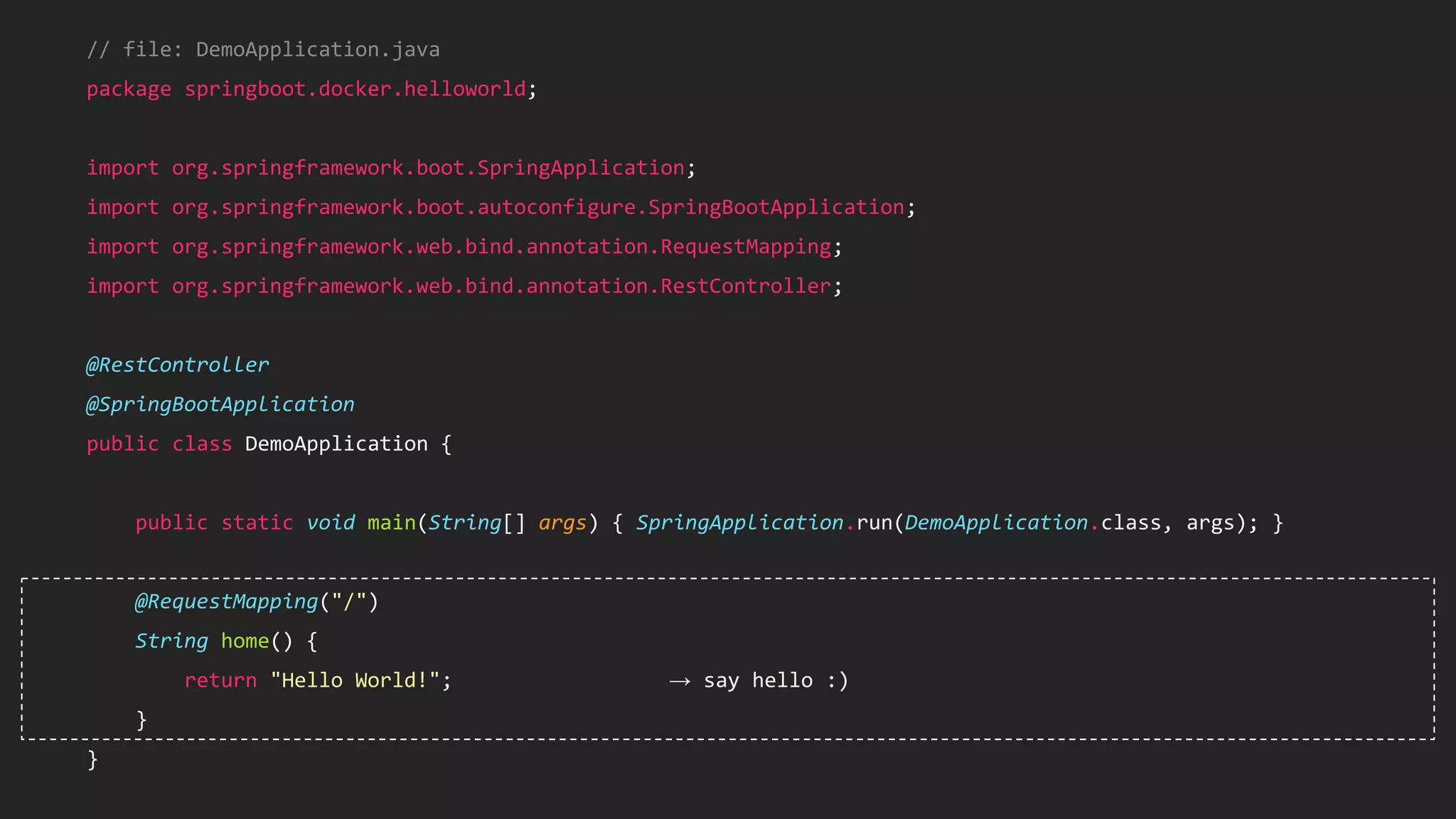

14. // file: DemoApplication.java
package springboot.docker.helloworld;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
@SpringBootApplication
public class DemoApplication {
public static void main(String[] args) { SpringApplication.run(DemoApplication.class, args); }
@RequestMapping("/")
String home() {
return "Hello World!"; → say hello :)
}
}

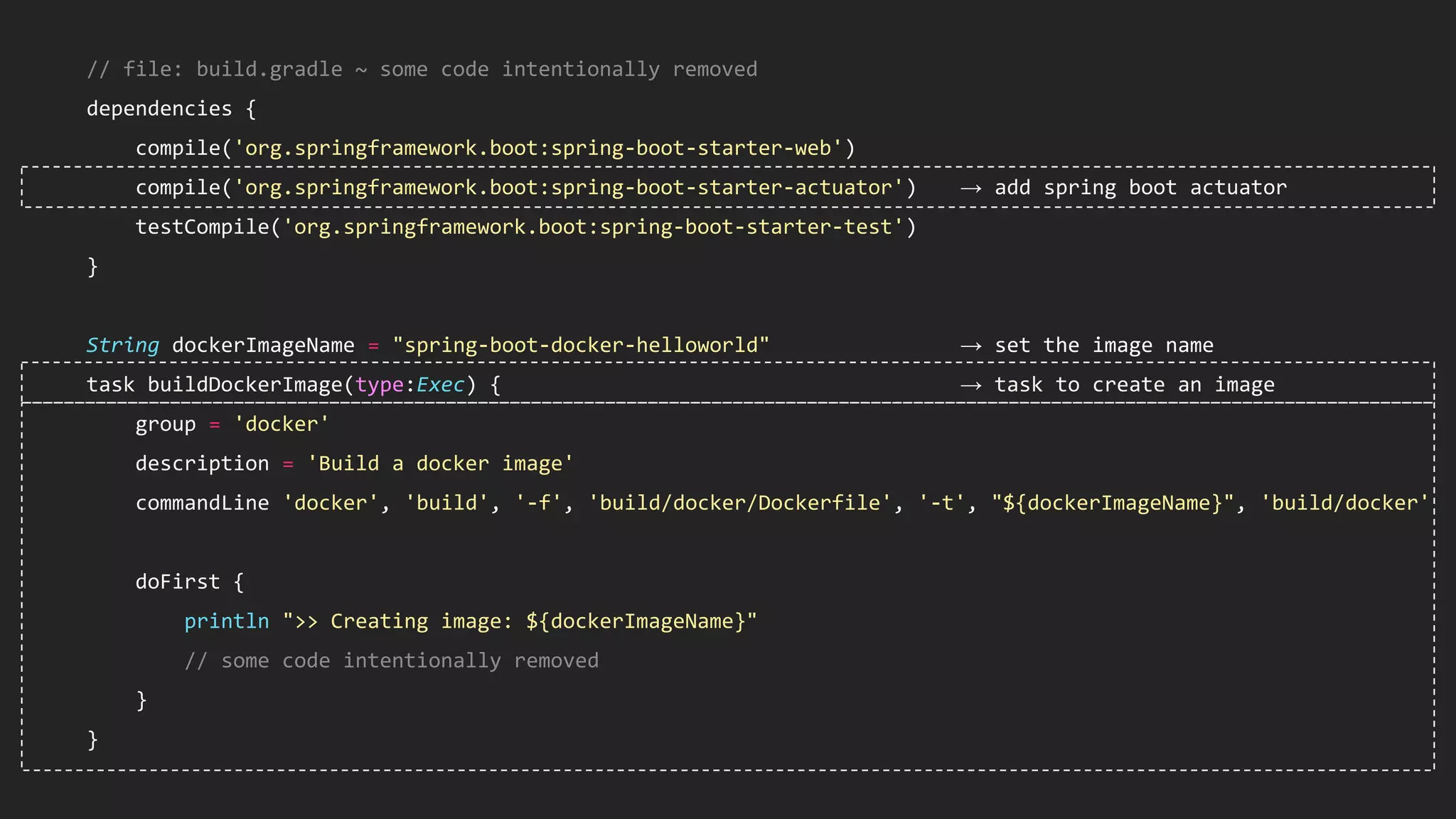

15. // file: build.gradle ~ some code intentionally removed
dependencies {
compile('org.springframework.boot:spring-boot-starter-web')
compile('org.springframework.boot:spring-boot-starter-actuator') → add spring boot actuator
testCompile('org.springframework.boot:spring-boot-starter-test')
}
String dockerImageName = "spring-boot-docker-helloworld" → set the image name
task buildDockerImage(type:Exec) { → task to create an image
group = 'docker'
description = 'Build a docker image'
commandLine 'docker', 'build', '-f', 'build/docker/Dockerfile', '-t', "${dockerImageName}", 'build/docker'
doFirst {
println ">> Creating image: ${dockerImageName}"
// some code intentionally removed
}
}

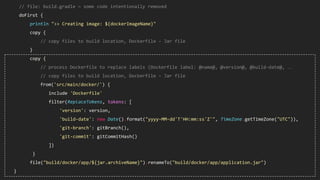

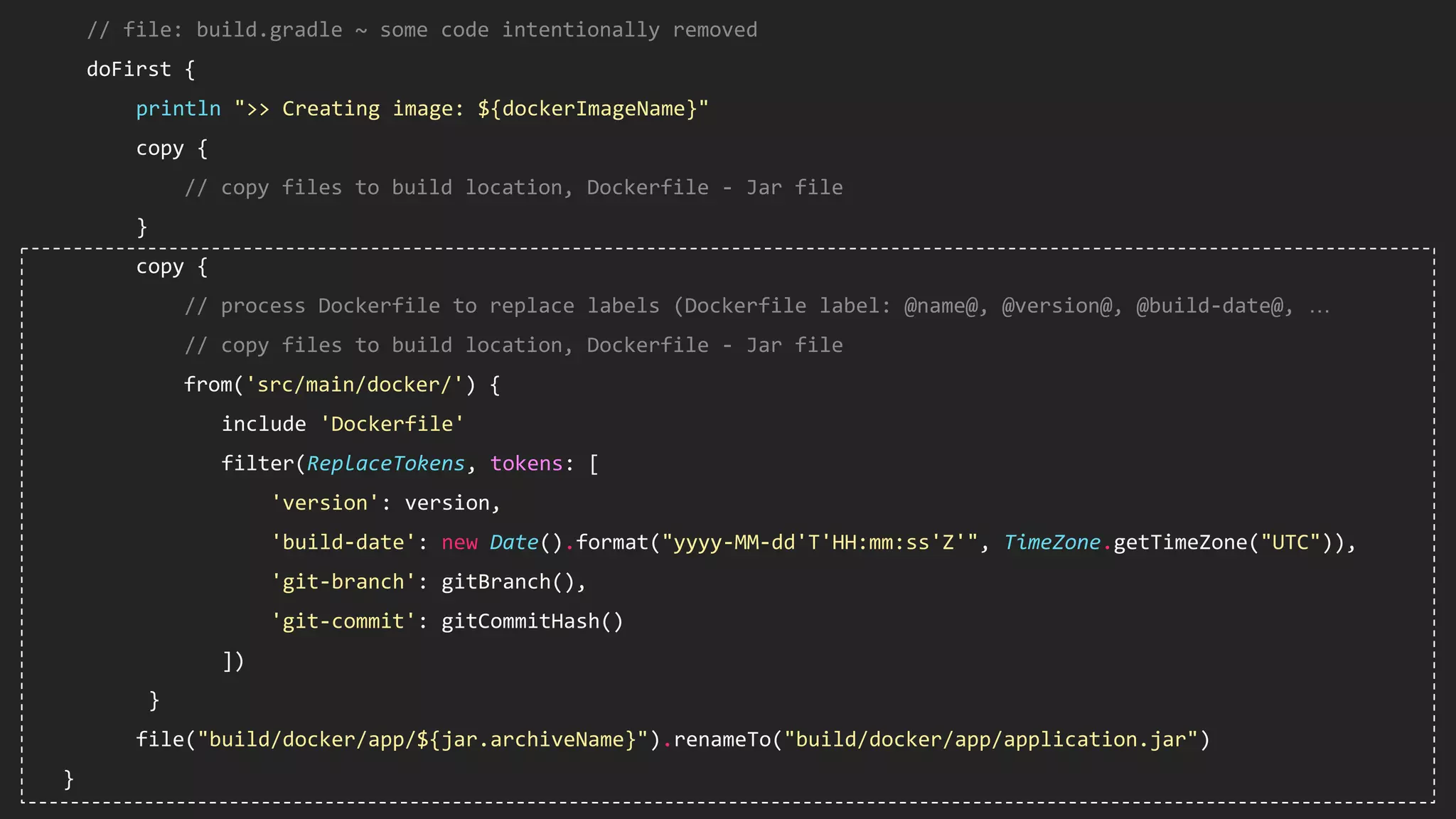

16. // file: build.gradle ~ some code intentionally removed
doFirst {
println ">> Creating image: ${dockerImageName}"
copy {
// copy files to build location, Dockerfile - Jar file
}
copy {
// process Dockerfile to replace labels (Dockerfile label: @name@, @version@, @build-date@, …
// copy files to build location, Dockerfile - Jar file
from('src/main/docker/') {
include 'Dockerfile'
filter(ReplaceTokens, tokens: [
'version': version,
'build-date': new Date().format("yyyy-MM-dd'T'HH:mm:ss'Z'", TimeZone.getTimeZone("UTC")),
'git-branch': gitBranch(),
'git-commit': gitCommitHash()
])
}
file("build/docker/app/${jar.archiveName}").renameTo("build/docker/app/application.jar")
}

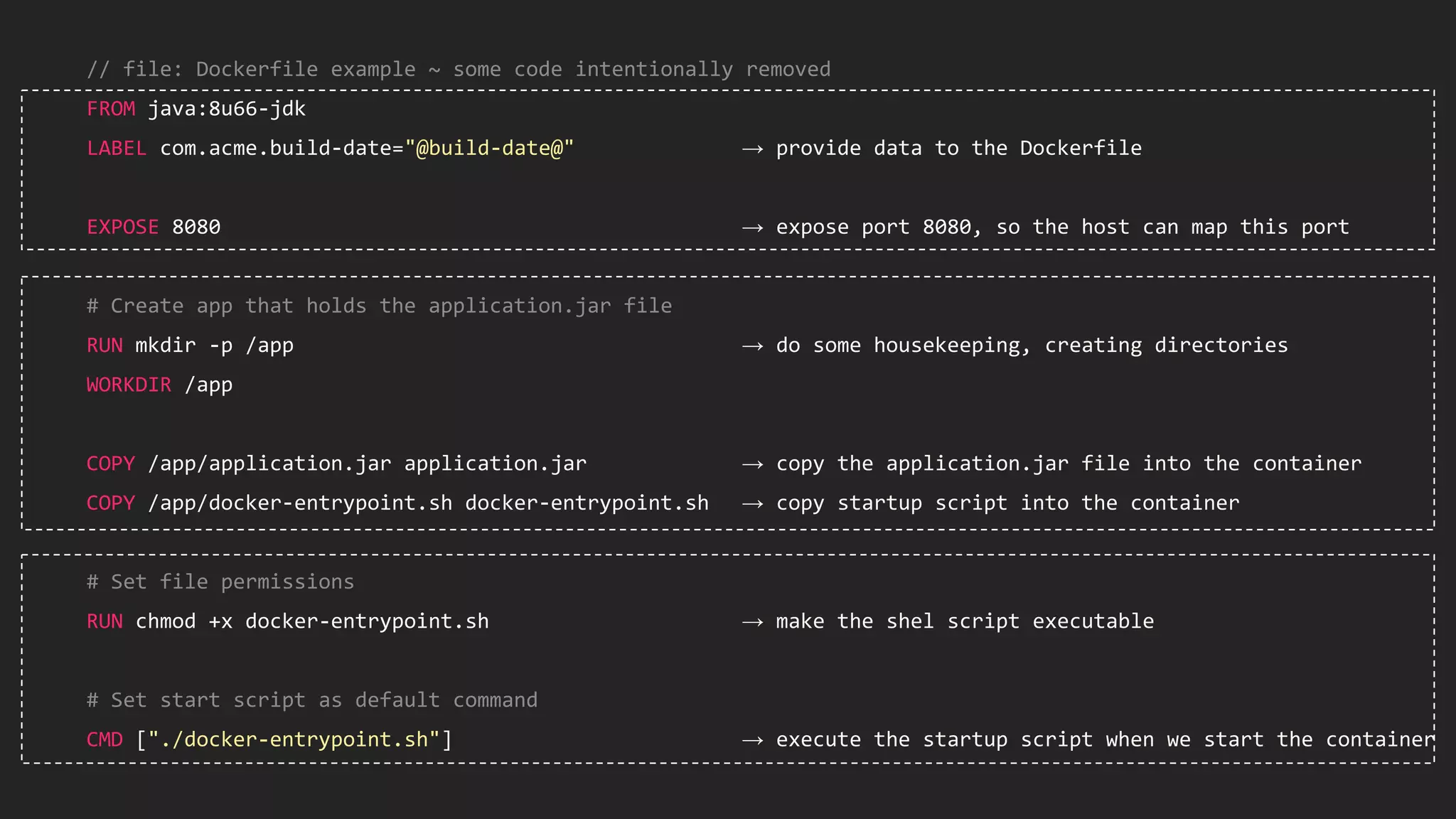

17. // file: Dockerfile example ~ some code intentionally removed
FROM java:8u66-jdk
LABEL com.acme.build-date="@build-date@" → provide data to the Dockerfile
EXPOSE 8080 → expose port 8080, so the host can map this port
# Create app that holds the application.jar file
RUN mkdir -p /app → do some housekeeping, creating directories
WORKDIR /app
COPY /app/application.jar application.jar → copy the application.jar file into the container
COPY /app/docker-entrypoint.sh docker-entrypoint.sh → copy startup script into the container
# Set file permissions
RUN chmod +x docker-entrypoint.sh → make the shel script executable
# Set start script as default command
CMD ["./docker-entrypoint.sh"] → execute the startup script when we start the container

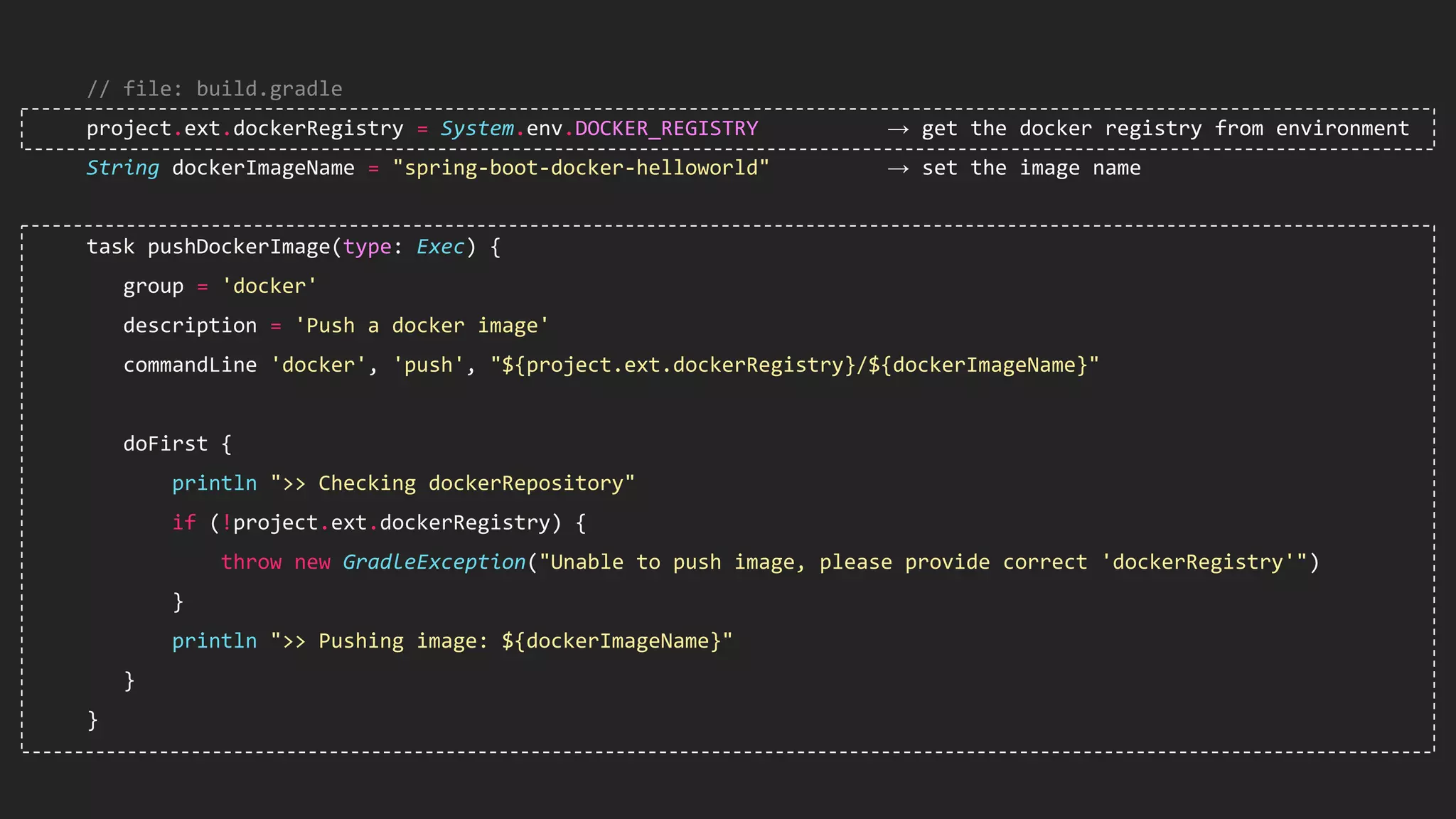

18. // file: build.gradle
project.ext.dockerRegistry = System.env.DOCKER_REGISTRY → get the docker registry from environment
String dockerImageName = "spring-boot-docker-helloworld" → set the image name
task pushDockerImage(type: Exec) {
group = 'docker'
description = 'Push a docker image'
commandLine 'docker', 'push', "${project.ext.dockerRegistry}/${dockerImageName}"
doFirst {
println ">> Checking dockerRepository"
if (!project.ext.dockerRegistry) {
throw new GradleException("Unable to push image, please provide correct 'dockerRegistry'")
}
println ">> Pushing image: ${dockerImageName}"
}
}

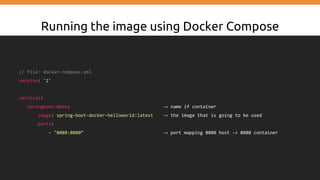

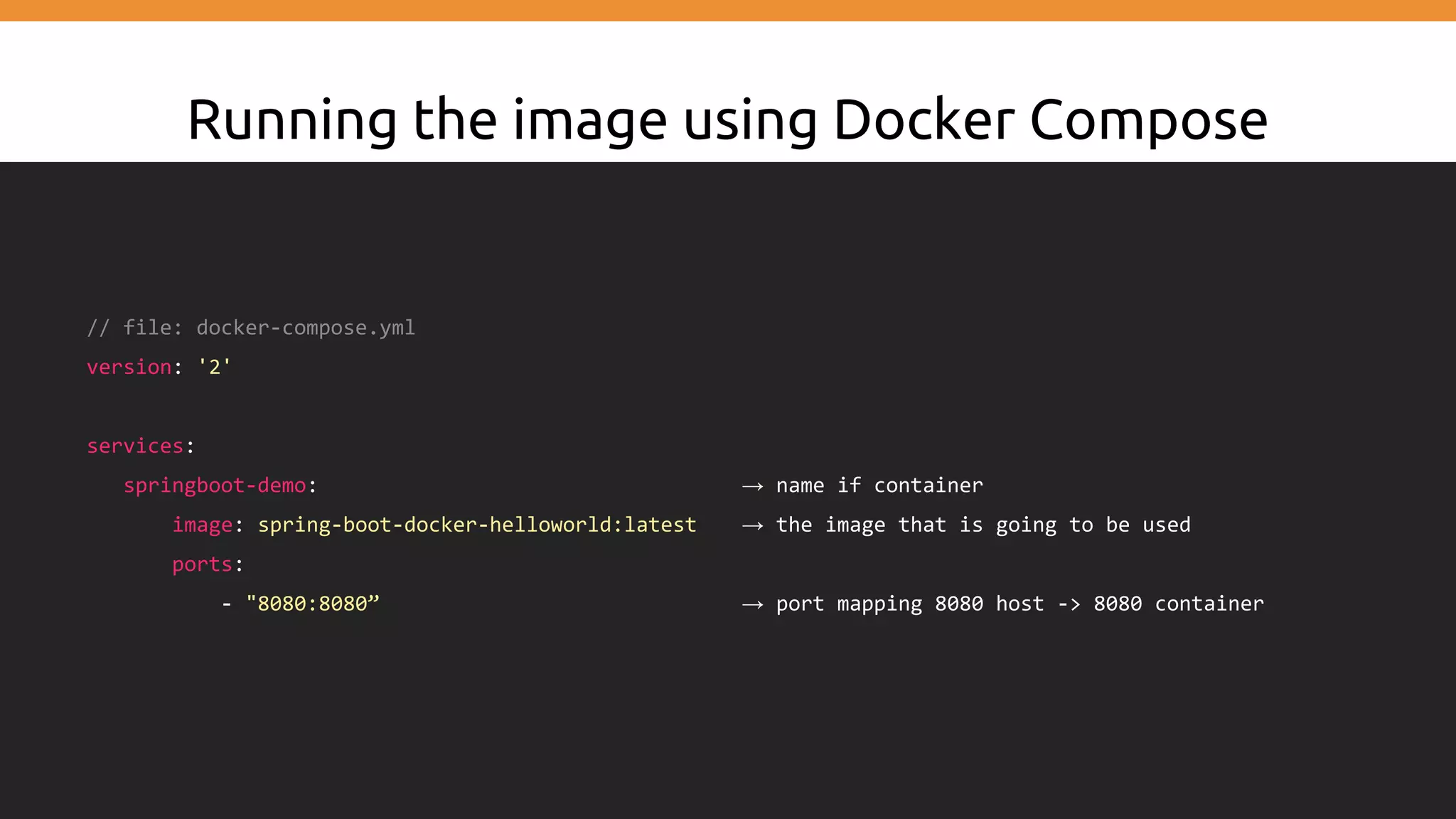

19. Running the image using Docker Compose
// file: docker-compose.yml
version: '2'
services:
springboot-demo: → name if container
image: spring-boot-docker-helloworld:latest → the image that is going to be used
ports:
- "8080:8080” → port mapping 8080 host -> 8080 container

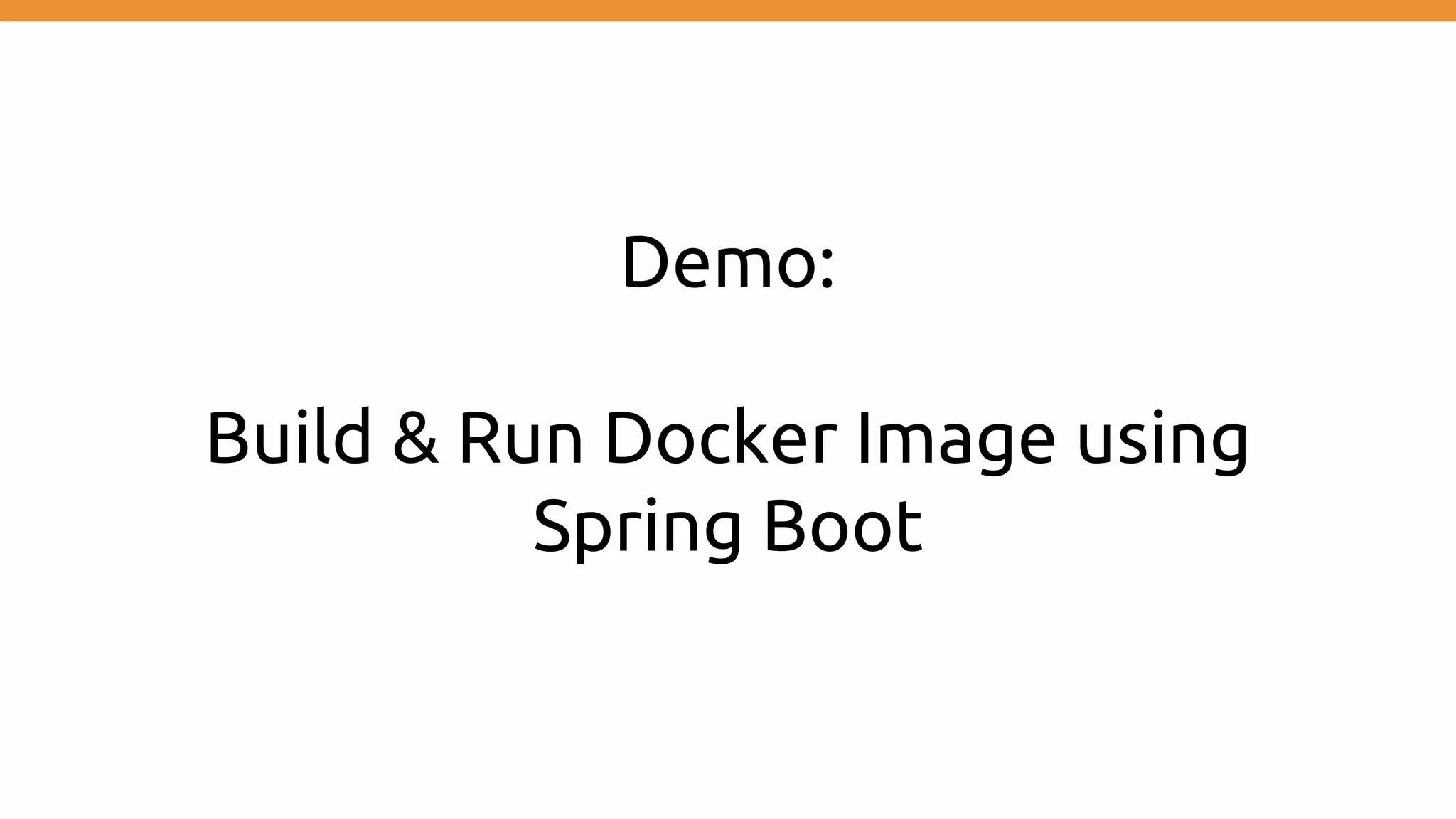

20. Demo:
Build & Run Docker Image using
Spring Boot

21. But wait… we have images now
how do we run our containers?
We need some help!
Container Storage, Scheduling
& Orchestration

22. Container Services

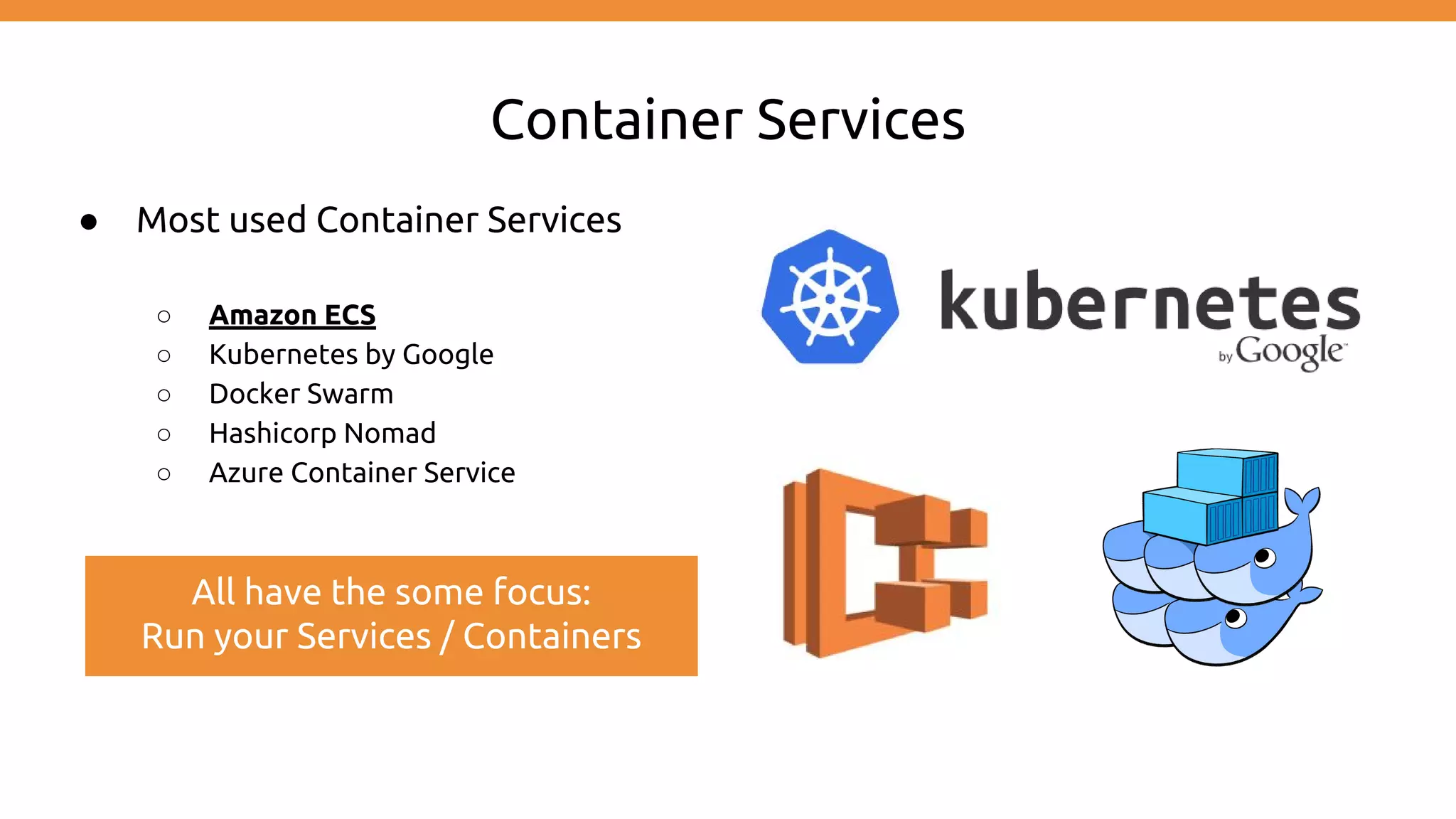

23. Container Services
● Most used Container Services
○ Amazon ECS
○ Kubernetes by Google
○ Docker Swarm
○ Hashicorp Nomad
○ Azure Container Service
All have the some focus:
Run your Services / Containers

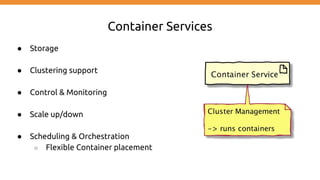

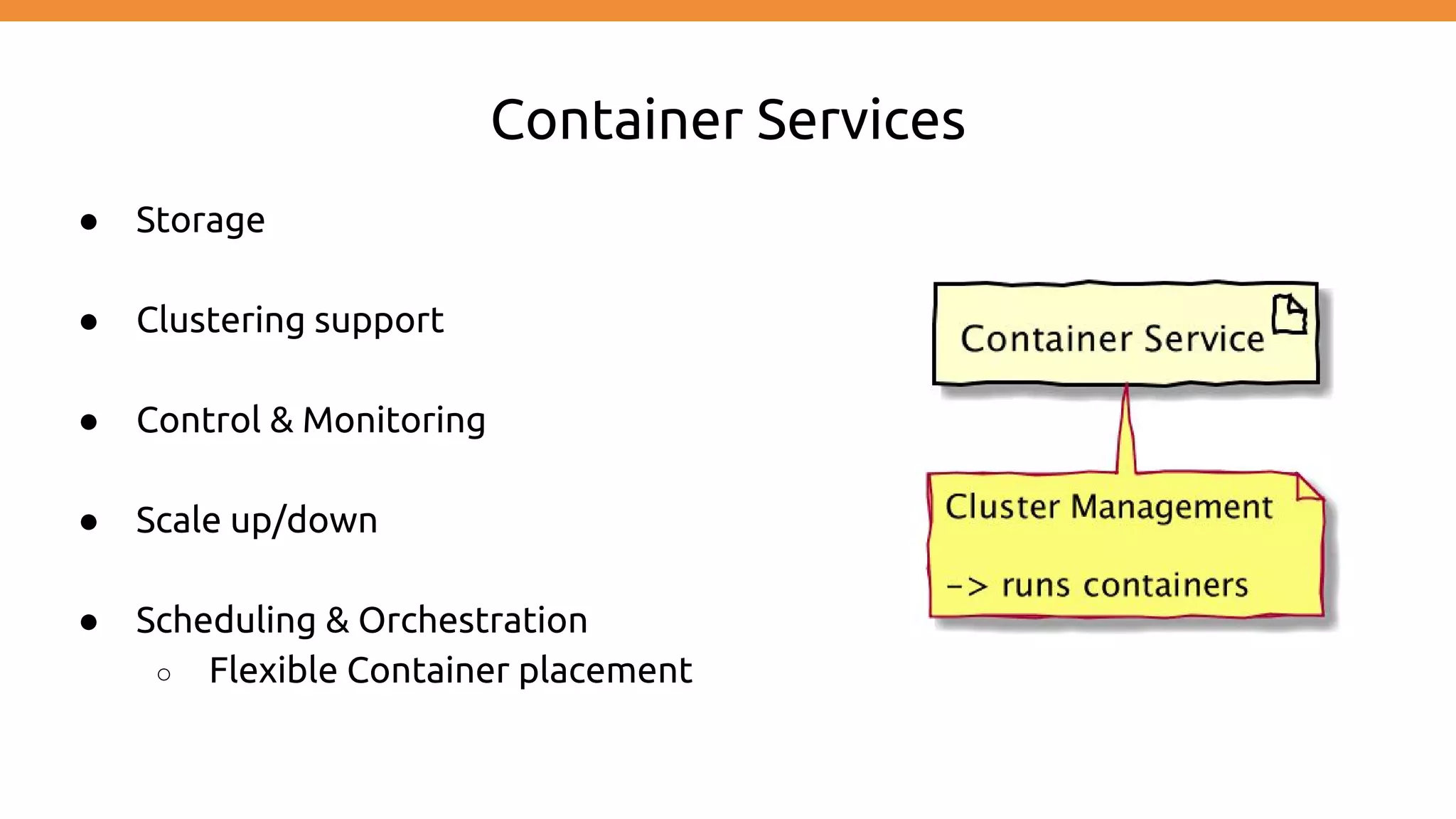

24. Container Services
● Storage
● Clustering support
● Control & Monitoring
● Scale up/down
● Scheduling & Orchestration
○ Flexible Container placement

25. Placement Strategies
● Strategy name
○ node selected
● Spread
○ has the fewest containers,
disregarding their states
● Binpack
○ most packed (i.e. has the minimum
amount of free CPU/RAM)
● Random
○ chosen randomly

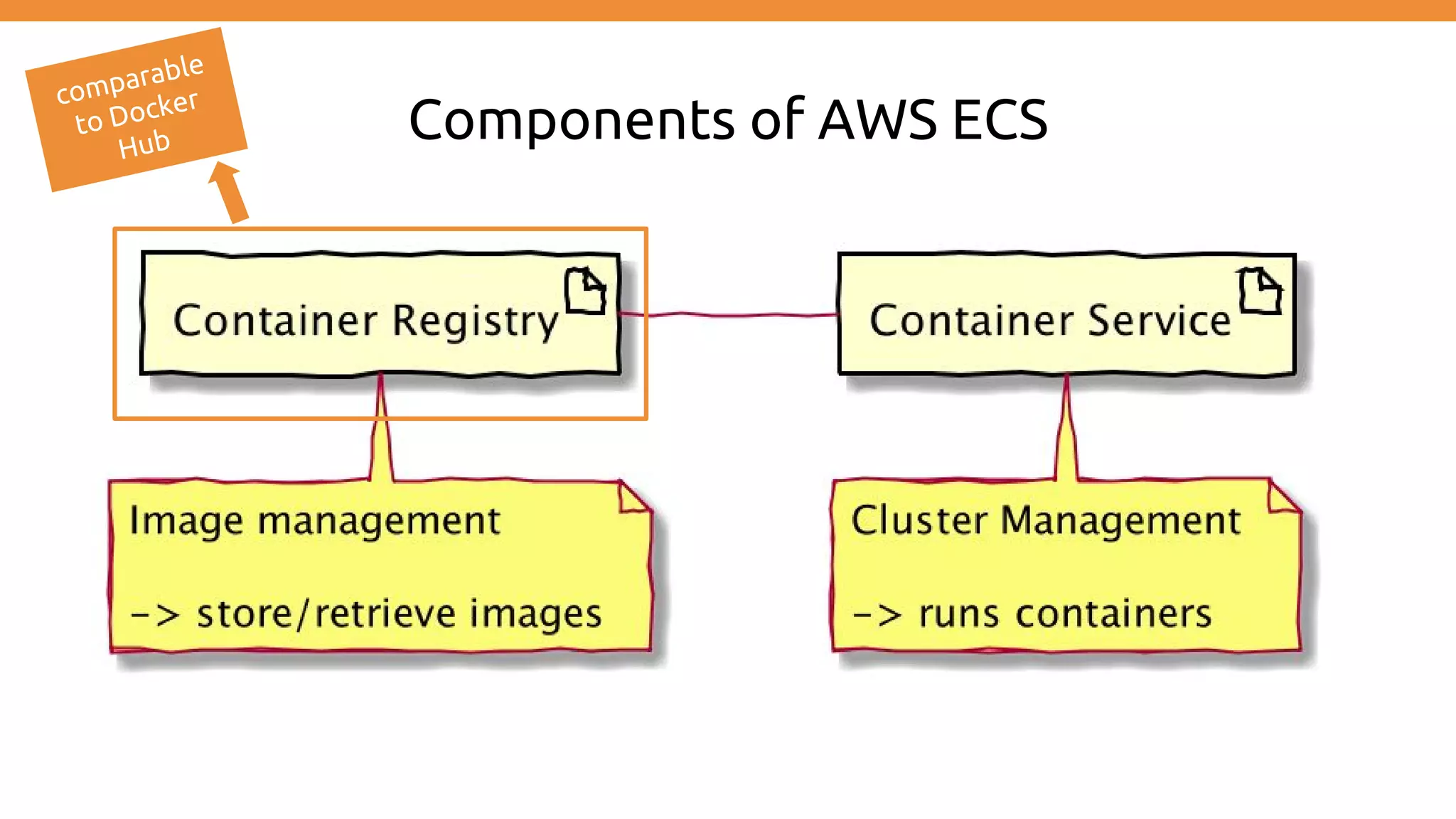

27. Components of AWS ECS
comparable
to Docker
Hub

28. Amazon EC2 Container Service (ECS)
“ECR → Pushing and Pulling containers”

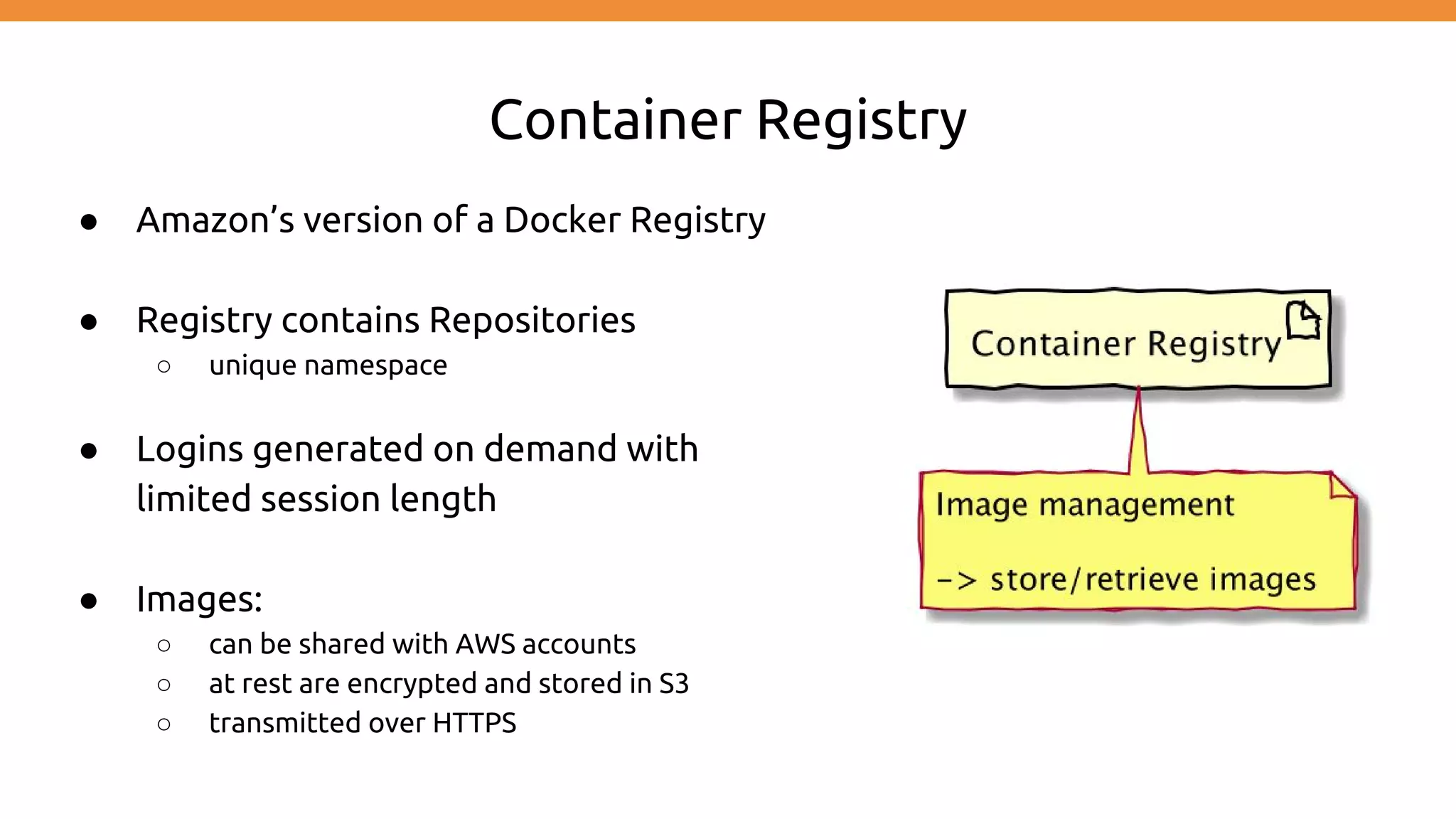

29. ● Amazon’s version of a Docker Registry
● Registry contains Repositories
○ unique namespace
● Logins generated on demand with
limited session length
● Images:
○ can be shared with AWS accounts
○ at rest are encrypted and stored in S3
○ transmitted over HTTPS
Container Registry

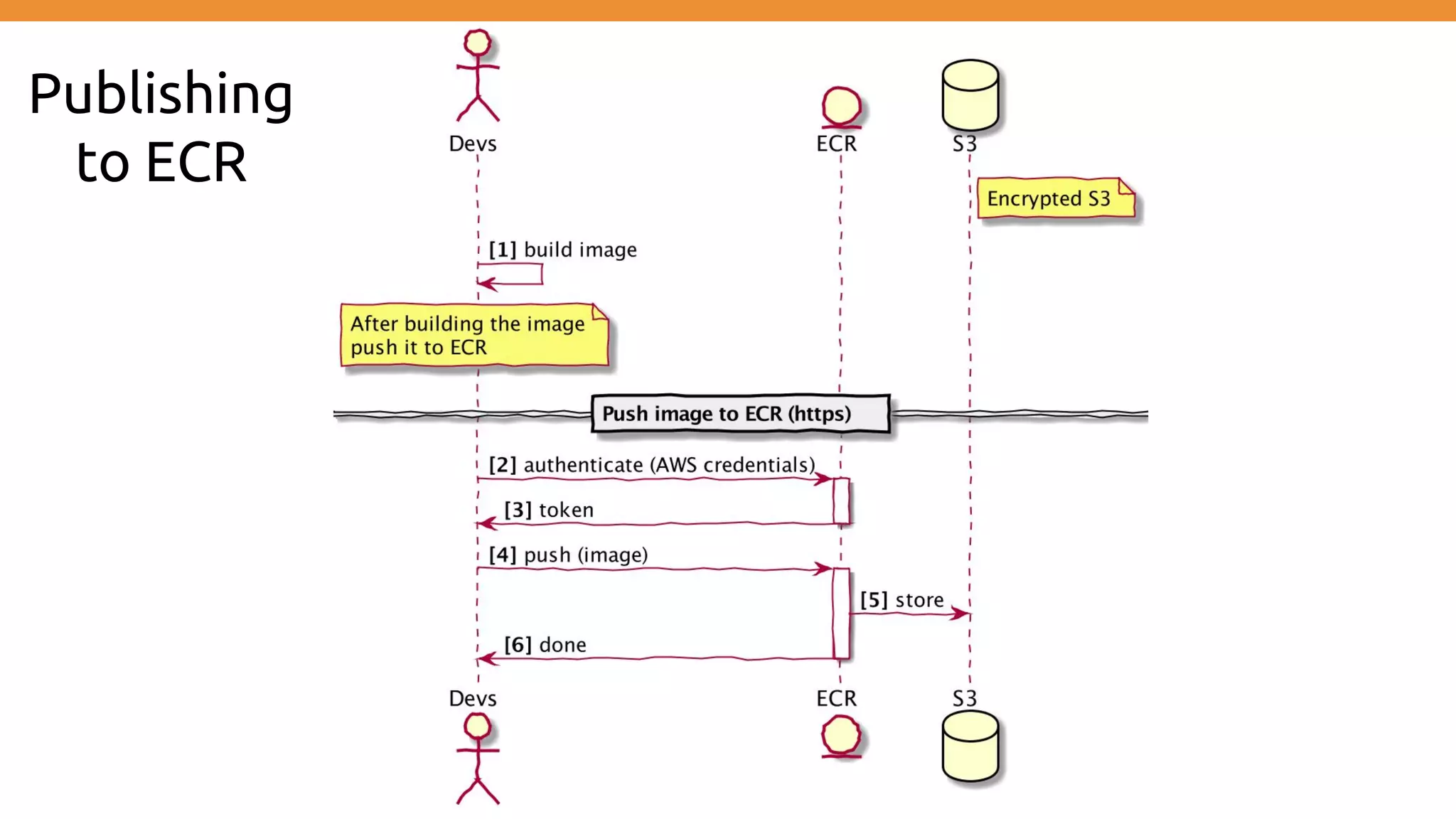

30. Publishing
to ECR

31. Demo:
Push/Pull image(s) to/from ECR

32. Amazon EC2 Container Service (ECS)
“ECS → Deploying containers”

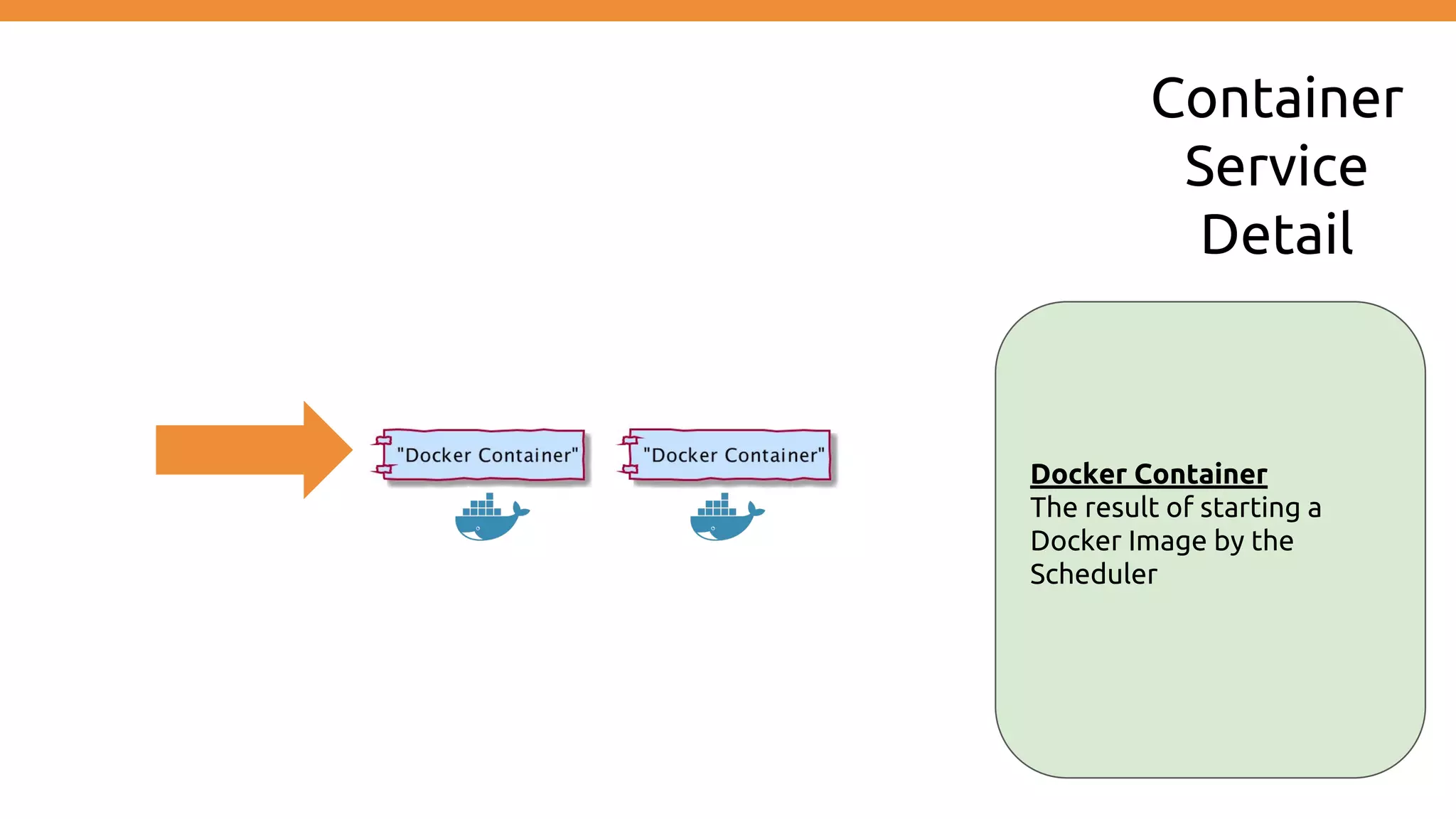

33. Container
Service
Detail
Docker Container
The result of starting a
Docker Image by the
Scheduler

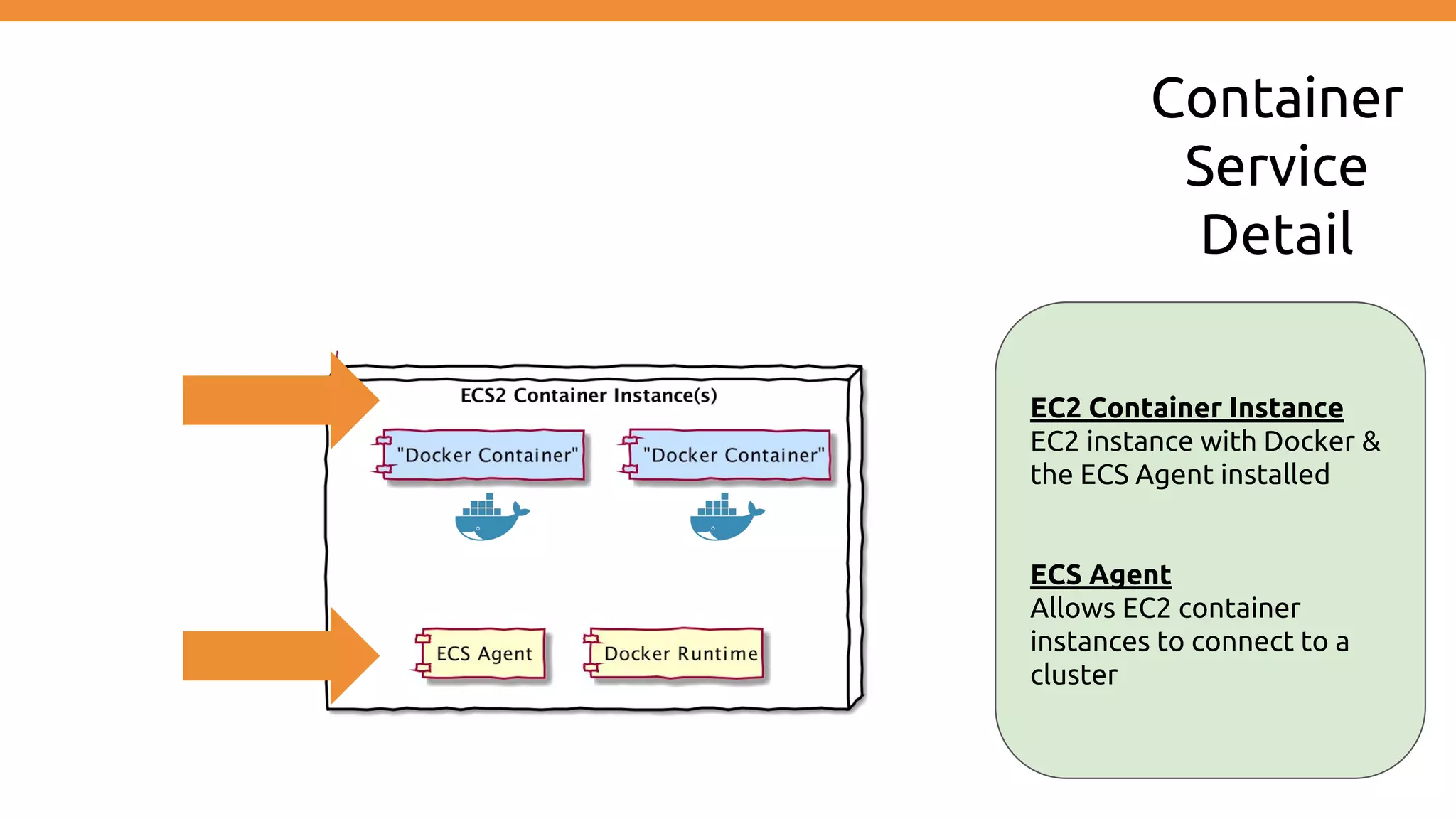

34. Container
Service
Detail
EC2 Container Instance
EC2 instance with Docker &
the ECS Agent installed
ECS Agent
Allows EC2 container
instances to connect to a
cluster

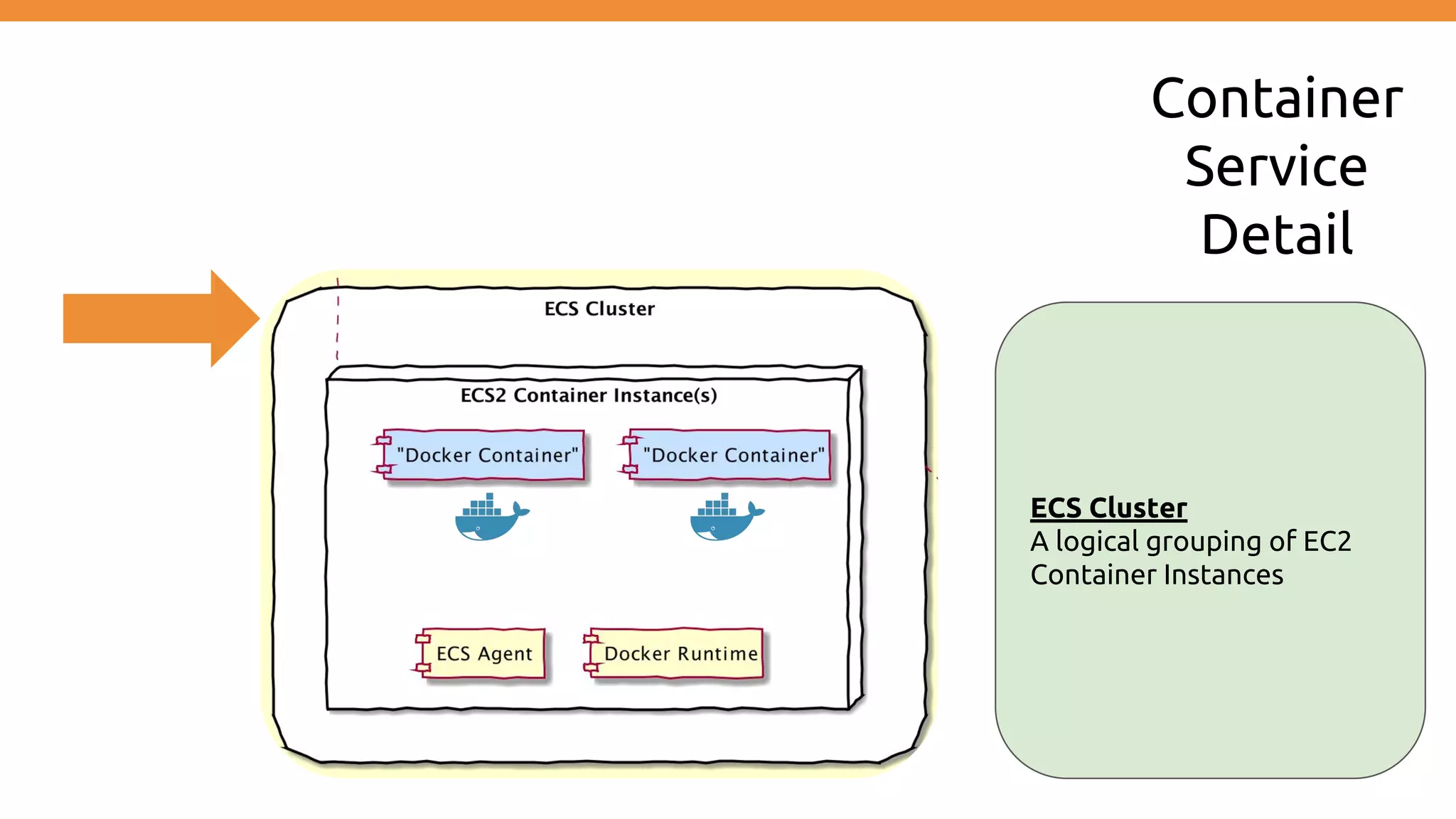

35. Container
Service
Detail
ECS Cluster
A logical grouping of EC2
Container Instances

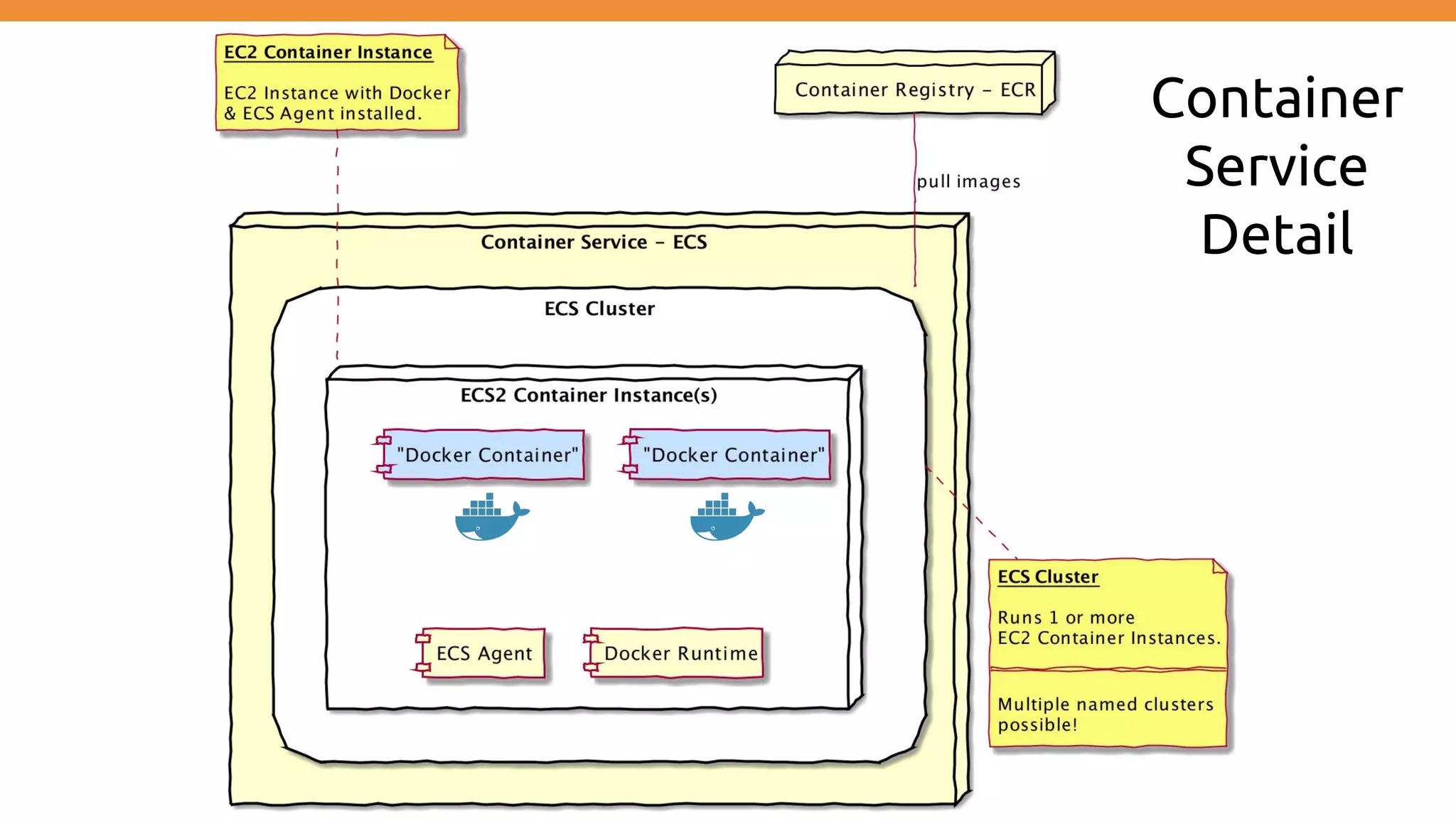

36. Container
Service
Detail

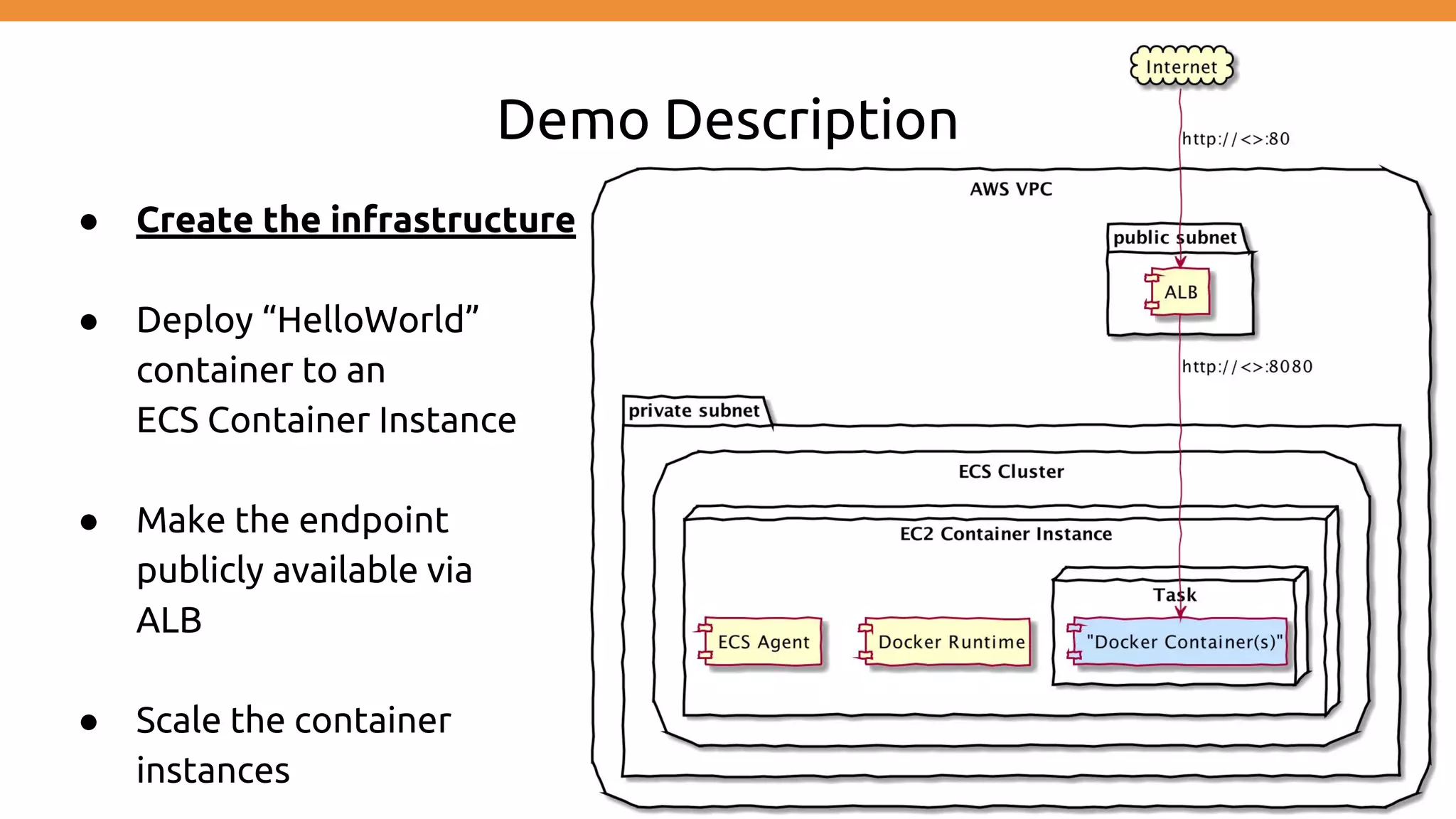

37. Demo Description
● Create the infrastructure
● Deploy “HelloWorld”
container to an
ECS Container Instance
● Make the endpoint
publicly available via
ALB
● Scale the container
instances

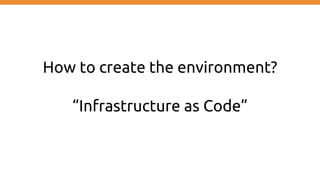

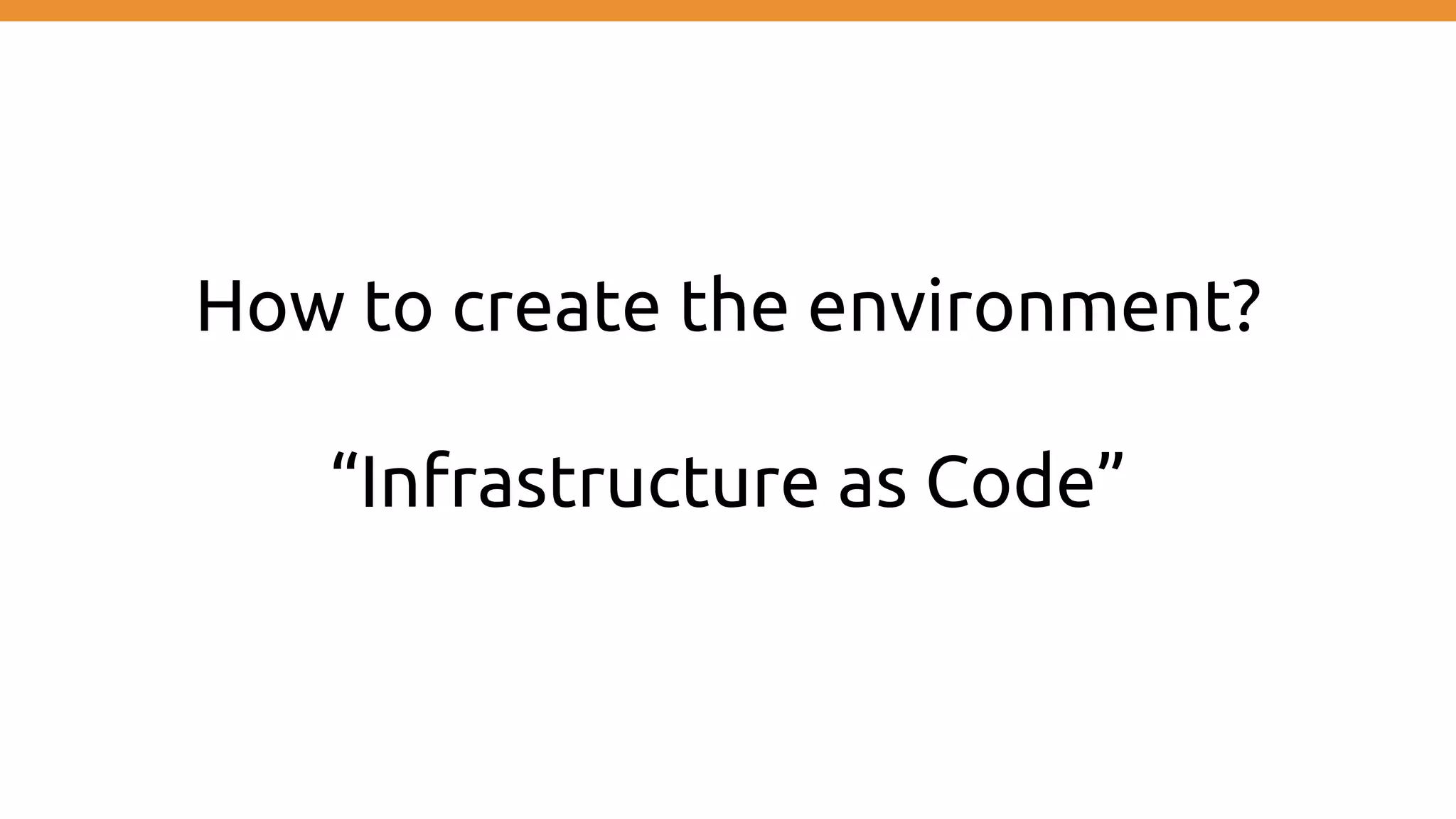

38. How to create the environment?
“Infrastructure as Code”

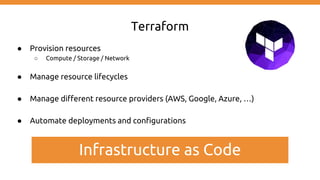

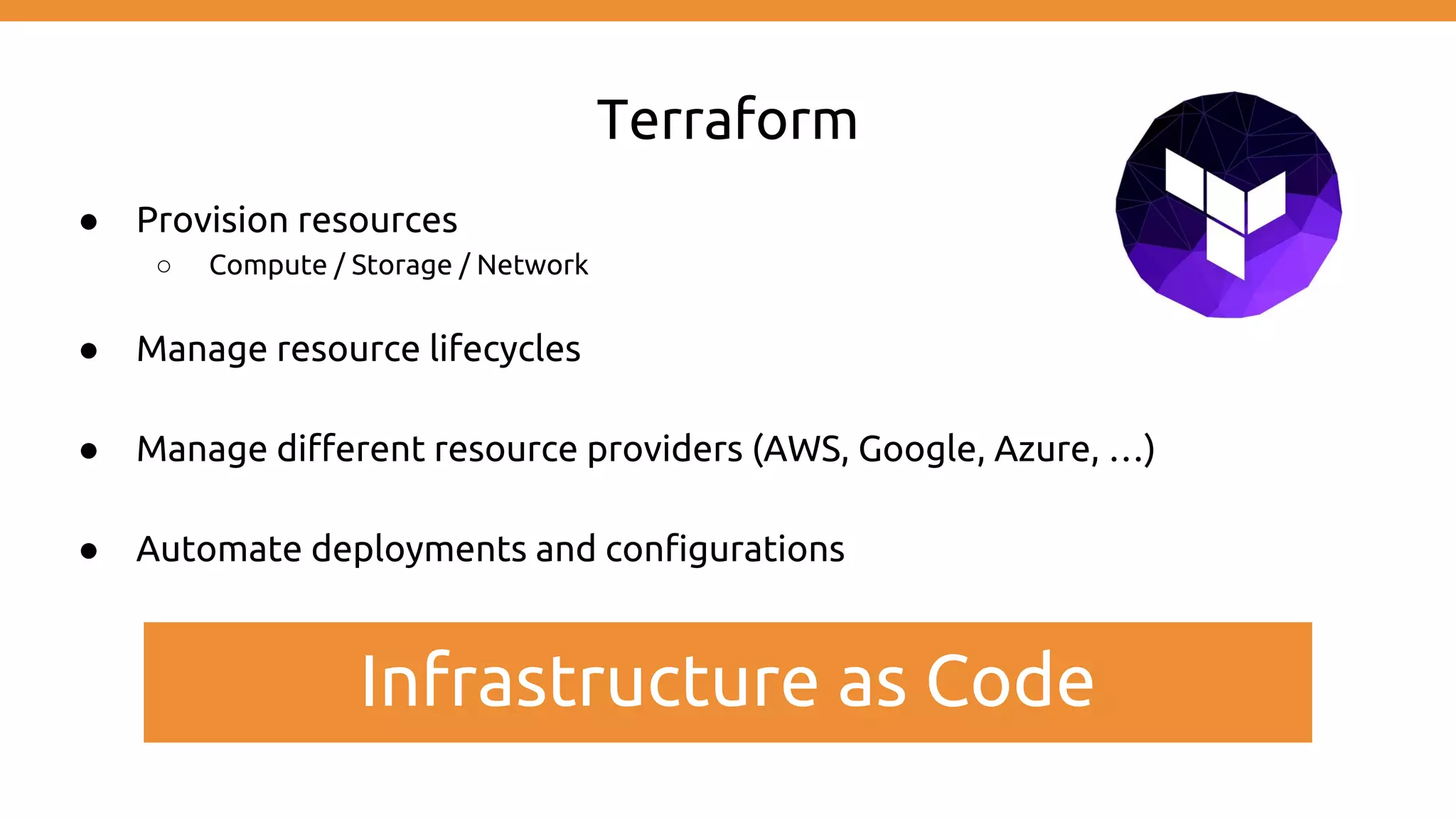

39. Terraform
● Provision resources
○ Compute / Storage / Network
● Manage resource lifecycles
● Manage different resource providers (AWS, Google, Azure, …)
● Automate deployments and configurations
Infrastructure as Code

40. Tip
Considering using TFENV
to manage Terraform versions

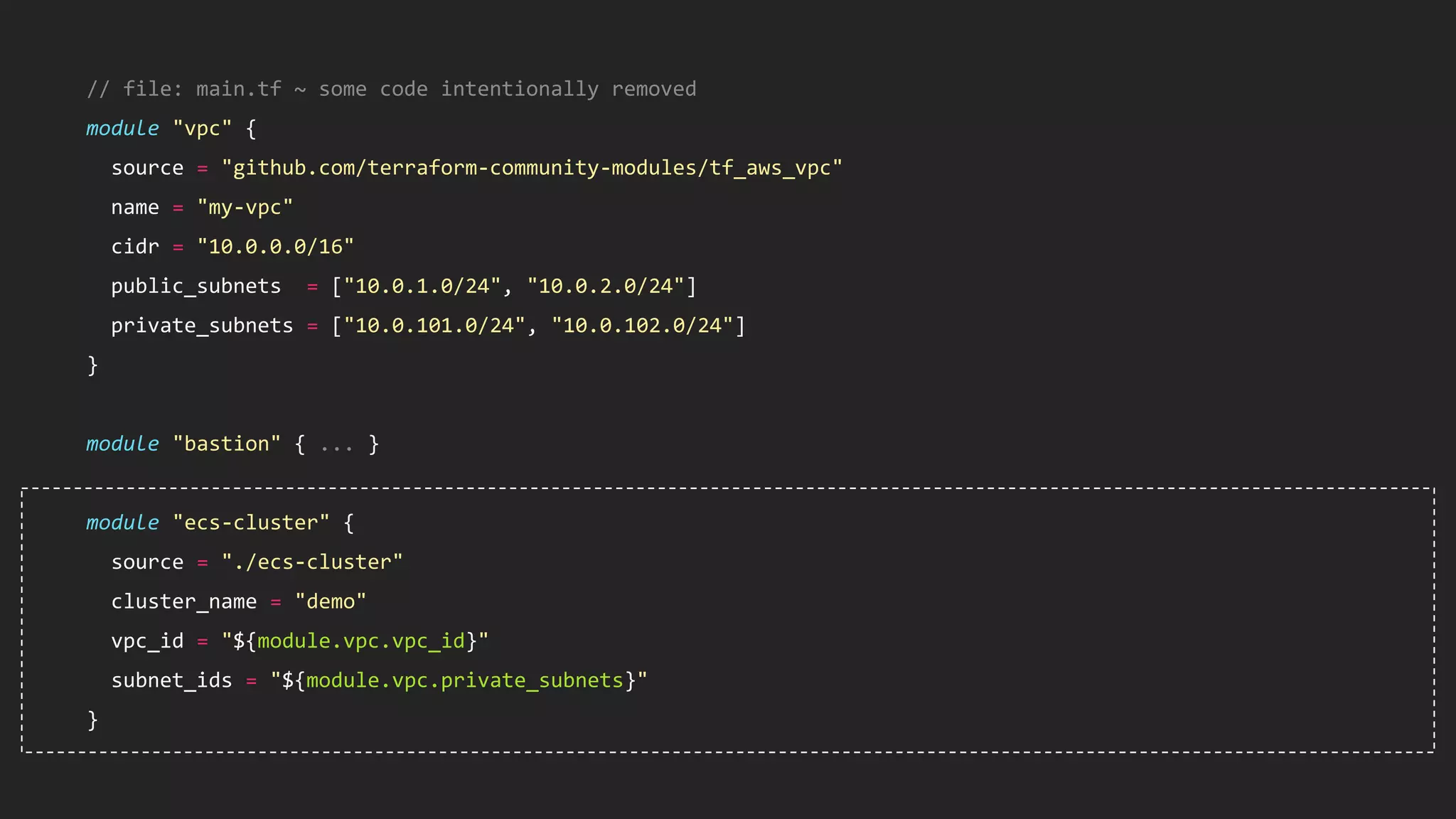

41. // file: main.tf ~ some code intentionally removed
module "vpc" {
source = "github.com/terraform-community-modules/tf_aws_vpc"
name = "my-vpc"
cidr = "10.0.0.0/16"
public_subnets = ["10.0.1.0/24", "10.0.2.0/24"]
private_subnets = ["10.0.101.0/24", "10.0.102.0/24"]
}
module "bastion" { ... }
module "ecs-cluster" {
source = "./ecs-cluster"
cluster_name = "demo"
vpc_id = "${module.vpc.vpc_id}"
subnet_ids = "${module.vpc.private_subnets}"
}

42. Demo:
Overview of AWS Infrastructure

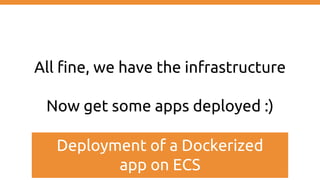

43. All fine, we have the infrastructure
Now get some apps deployed :)
Deployment of a Dockerized
app on ECS

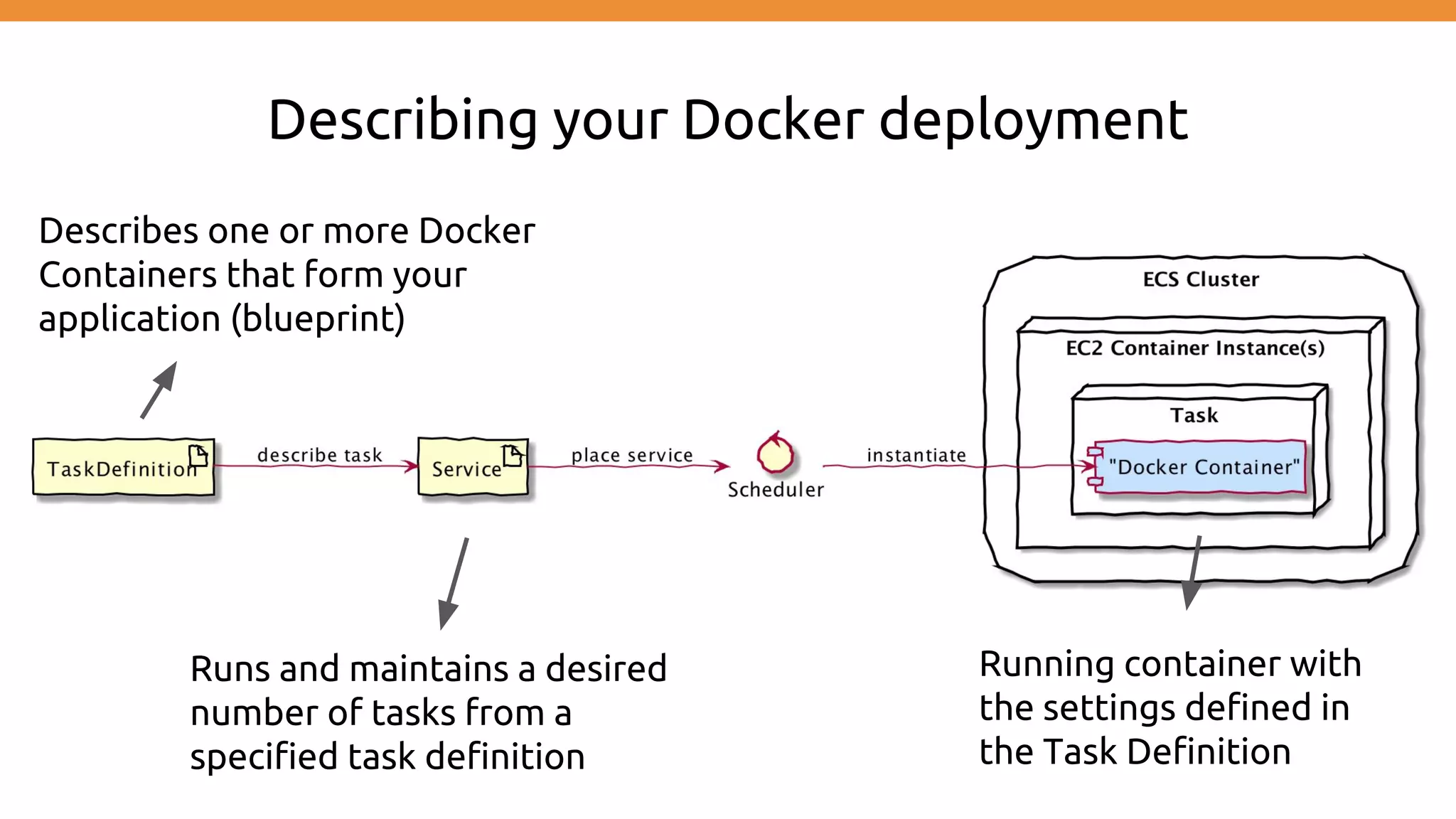

44. Describing your Docker deployment
Describes one or more Docker
Containers that form your
application (blueprint)
Runs and maintains a desired
number of tasks from a
specified task definition
Running container with
the settings defined in
the Task Definition

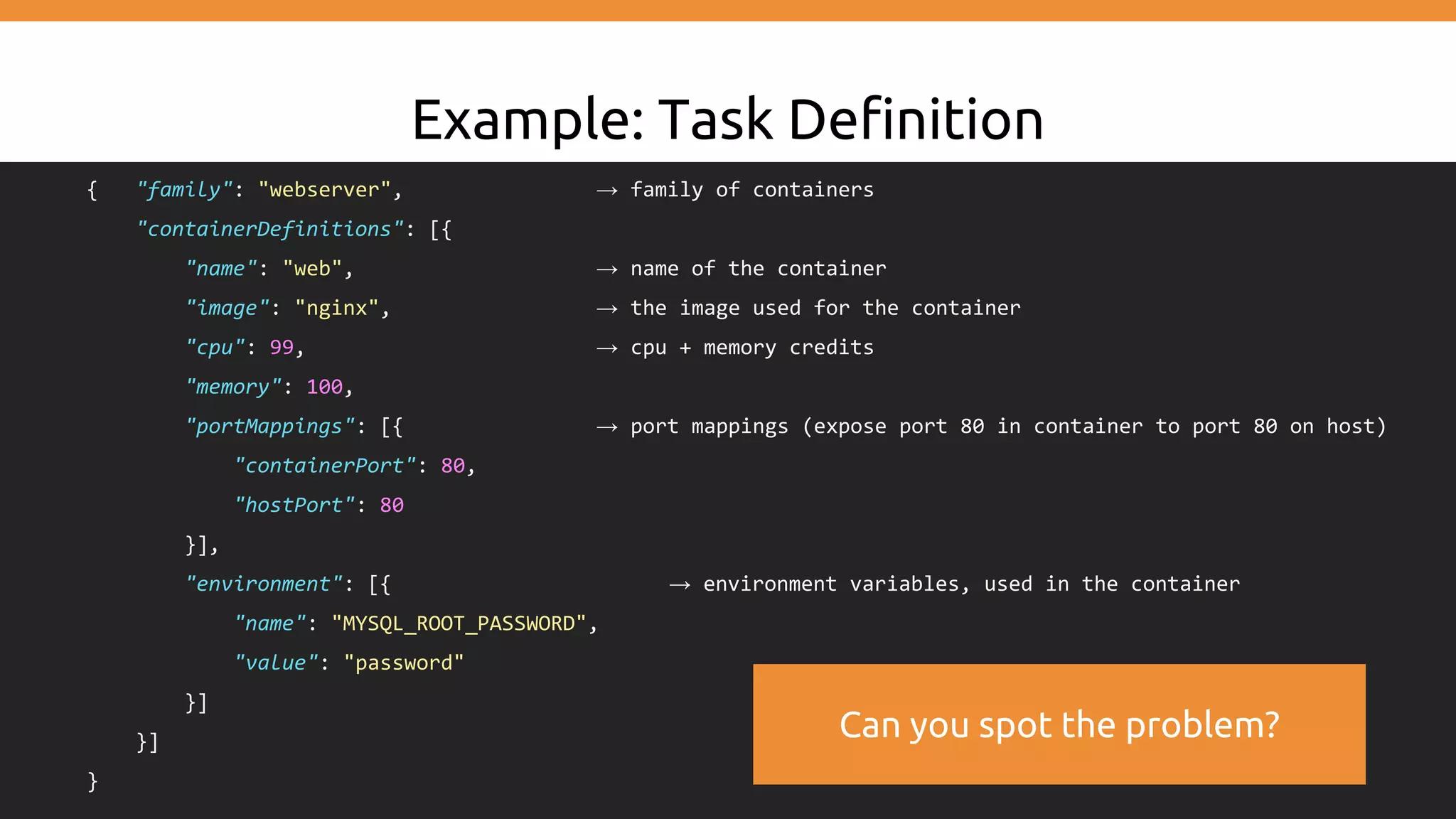

45. Example: Task Definition
45
{ "family": "webserver", → family of containers
"containerDefinitions": [{
"name": "web", → name of the container
"image": "nginx", → the image used for the container
"cpu": 99, → cpu + memory credits
"memory": 100,
"portMappings": [{ → port mappings (expose port 80 in container to port 80 on host)
"containerPort": 80,
"hostPort": 80
}],
"environment": [{ → environment variables, used in the container
"name": "MYSQL_ROOT_PASSWORD",
"value": "password"
}]
}]
}
Can you spot the problem?

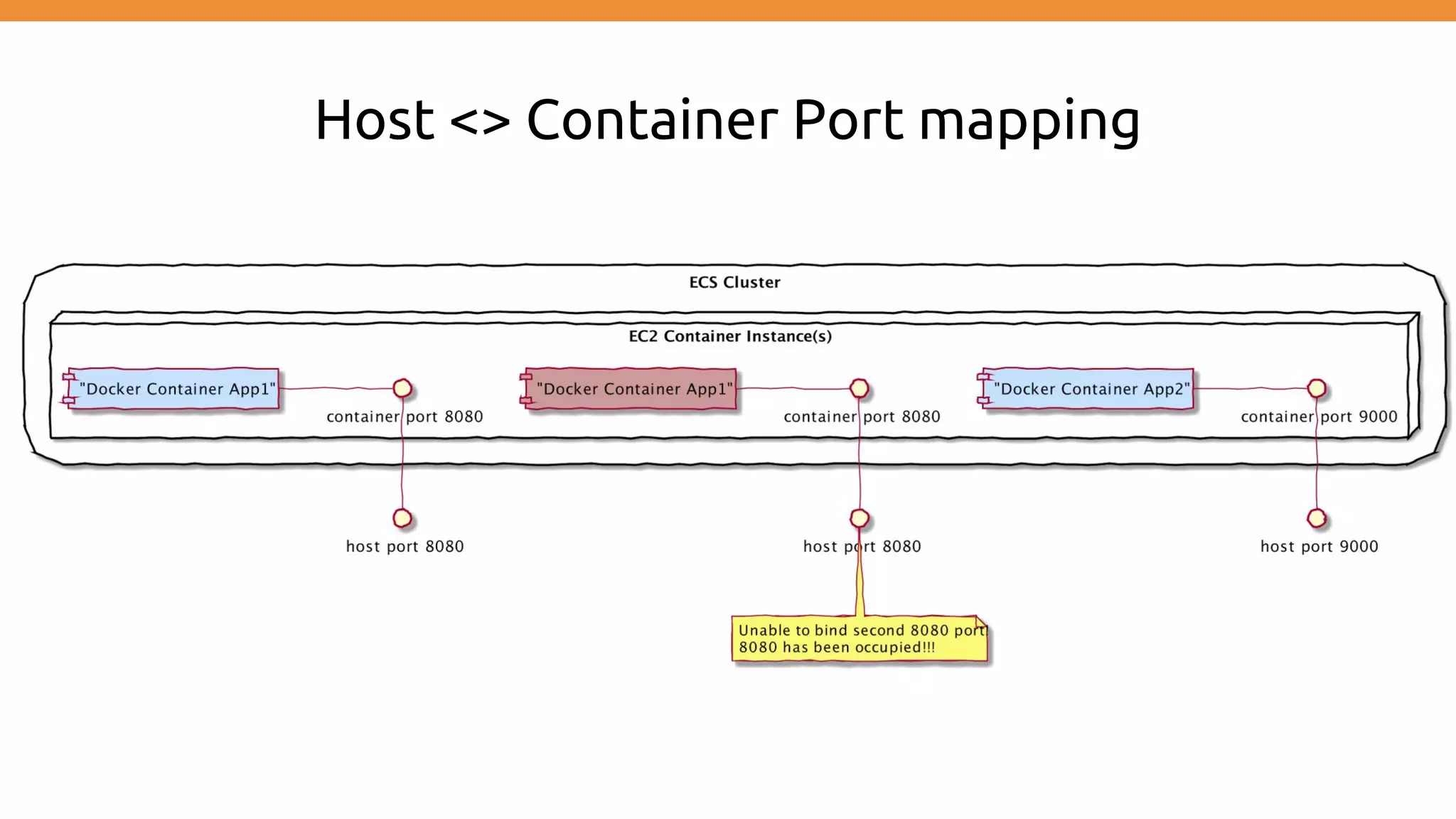

46. Host <> Container Port mapping

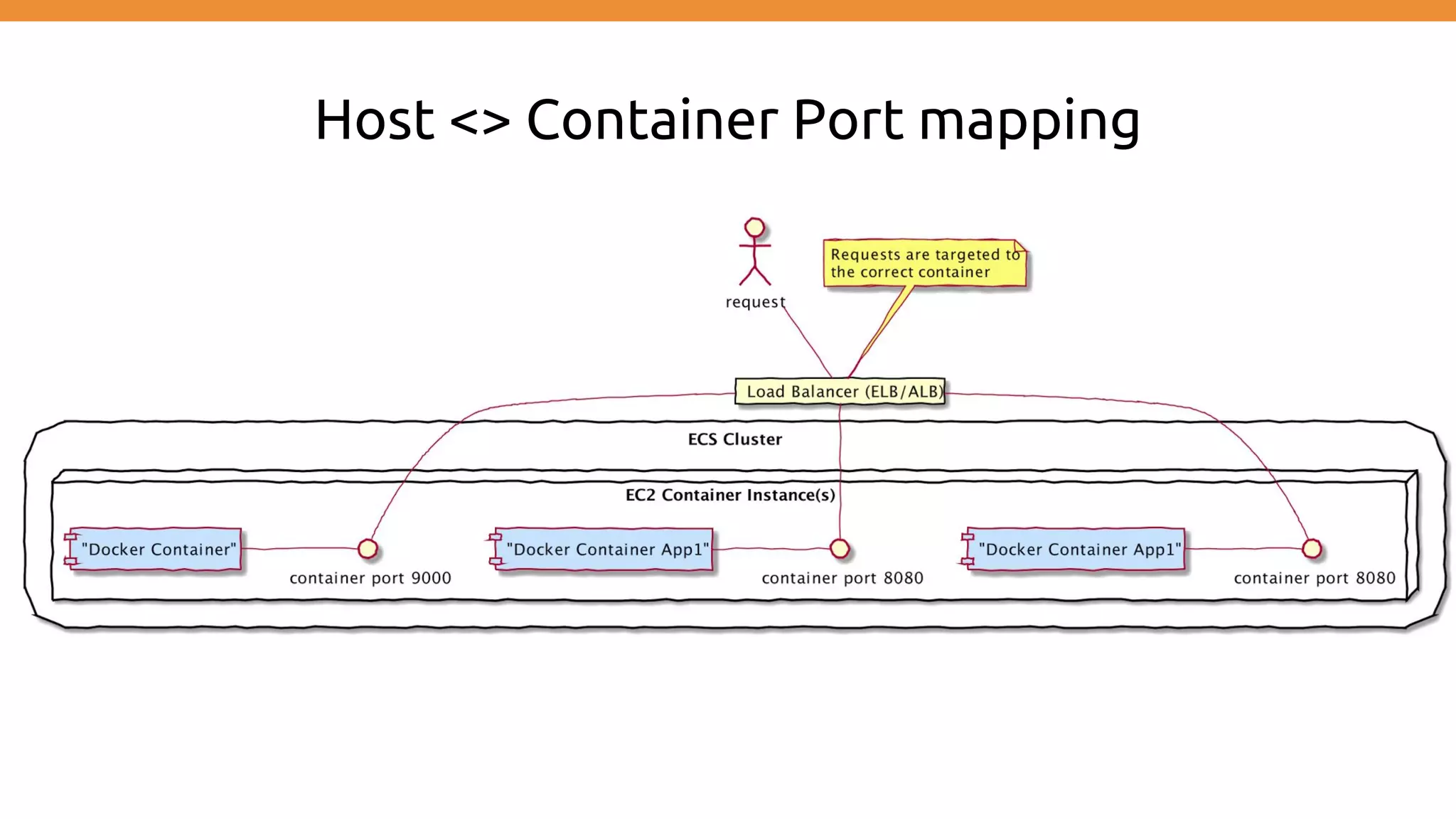

47. Host <> Container Port mapping

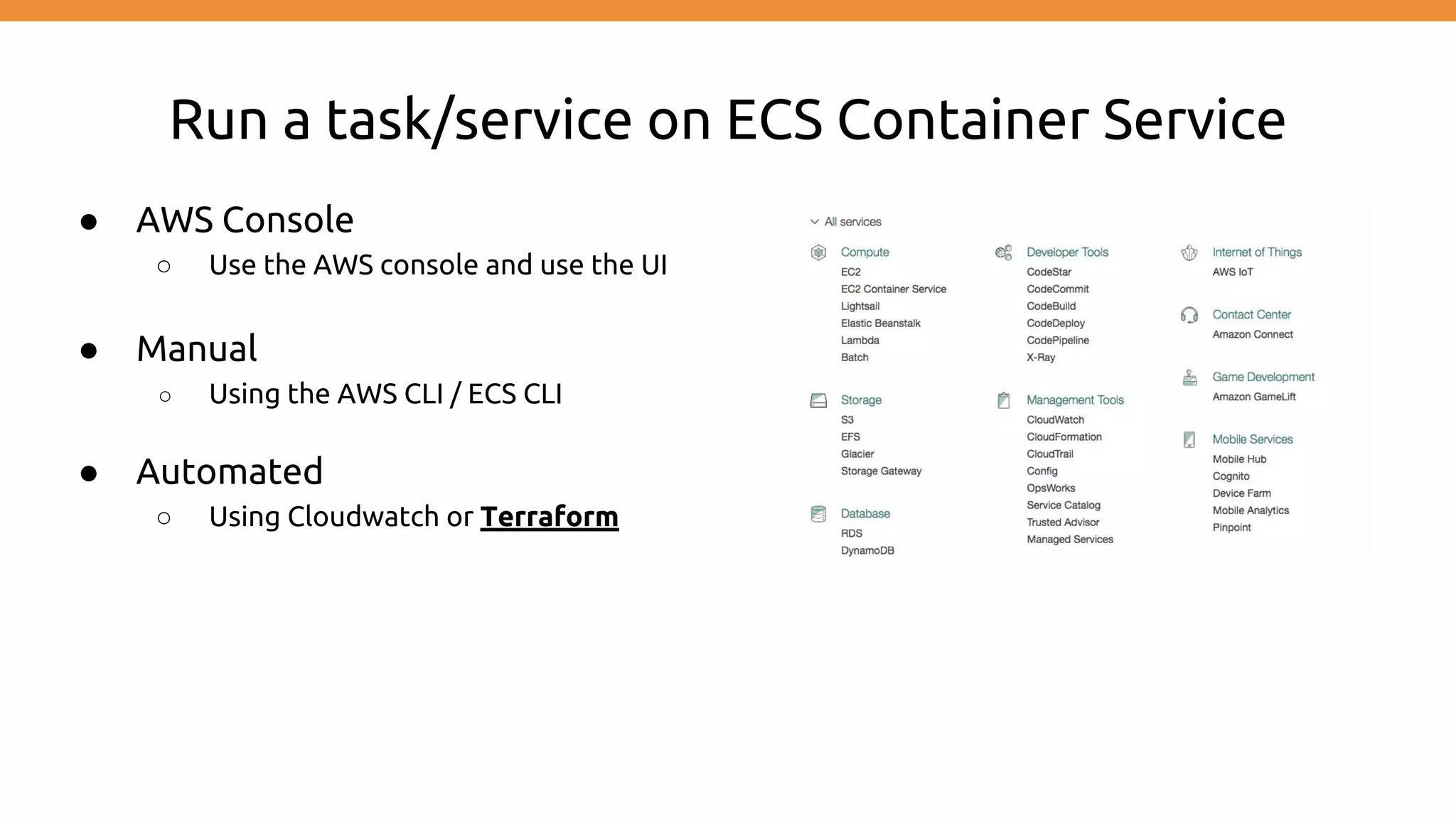

48. Run a task/service on ECS Container Service
● AWS Console
○ Use the AWS console and use the UI
● Manual
○ Using the AWS CLI / ECS CLI
● Automated
○ Using Cloudwatch or Terraform

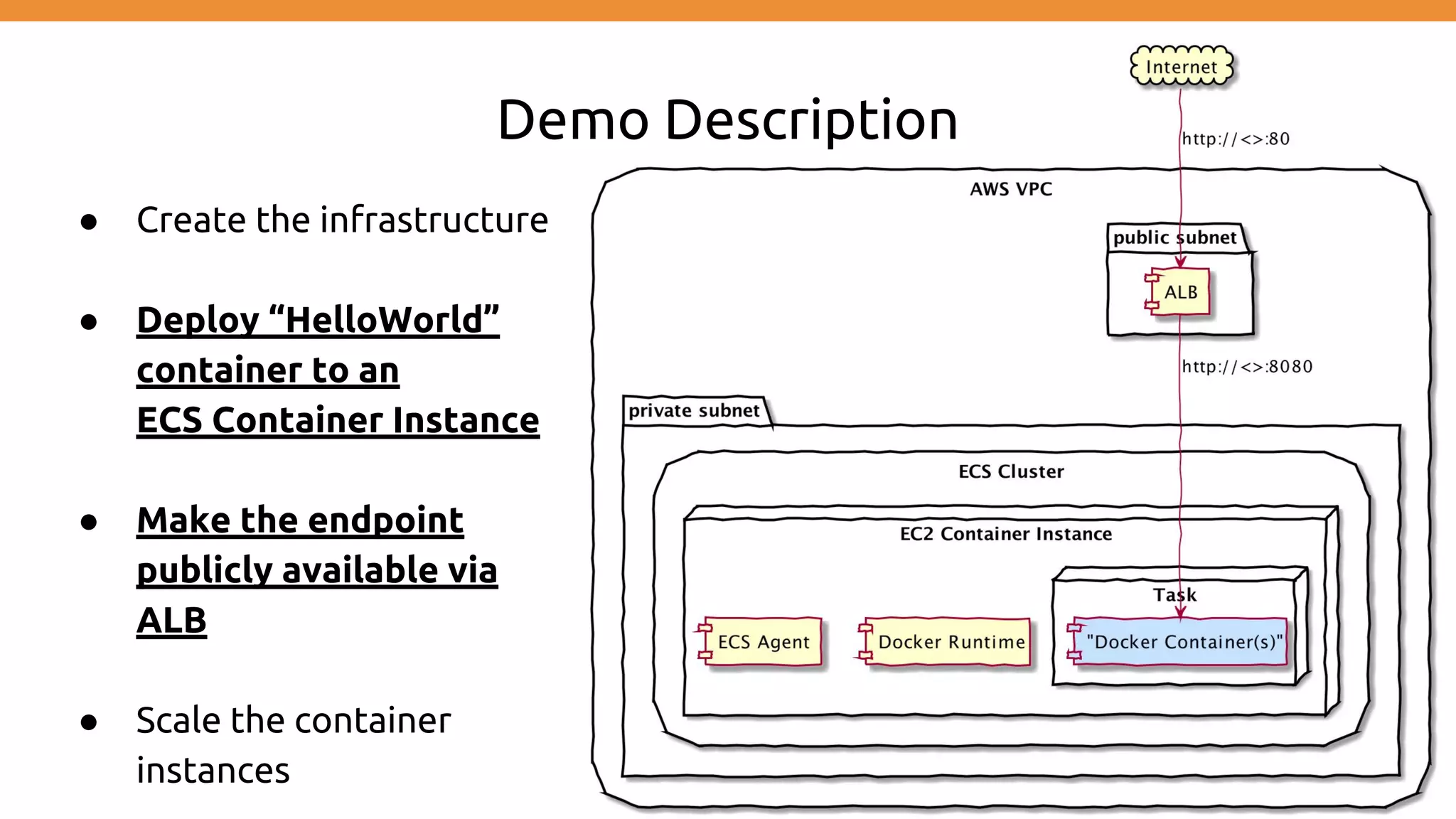

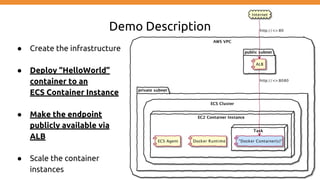

49. Demo Description
● Create the infrastructure
● Deploy “HelloWorld”
container to an
ECS Container Instance
● Make the endpoint
publicly available via
ALB
● Scale the container
instances

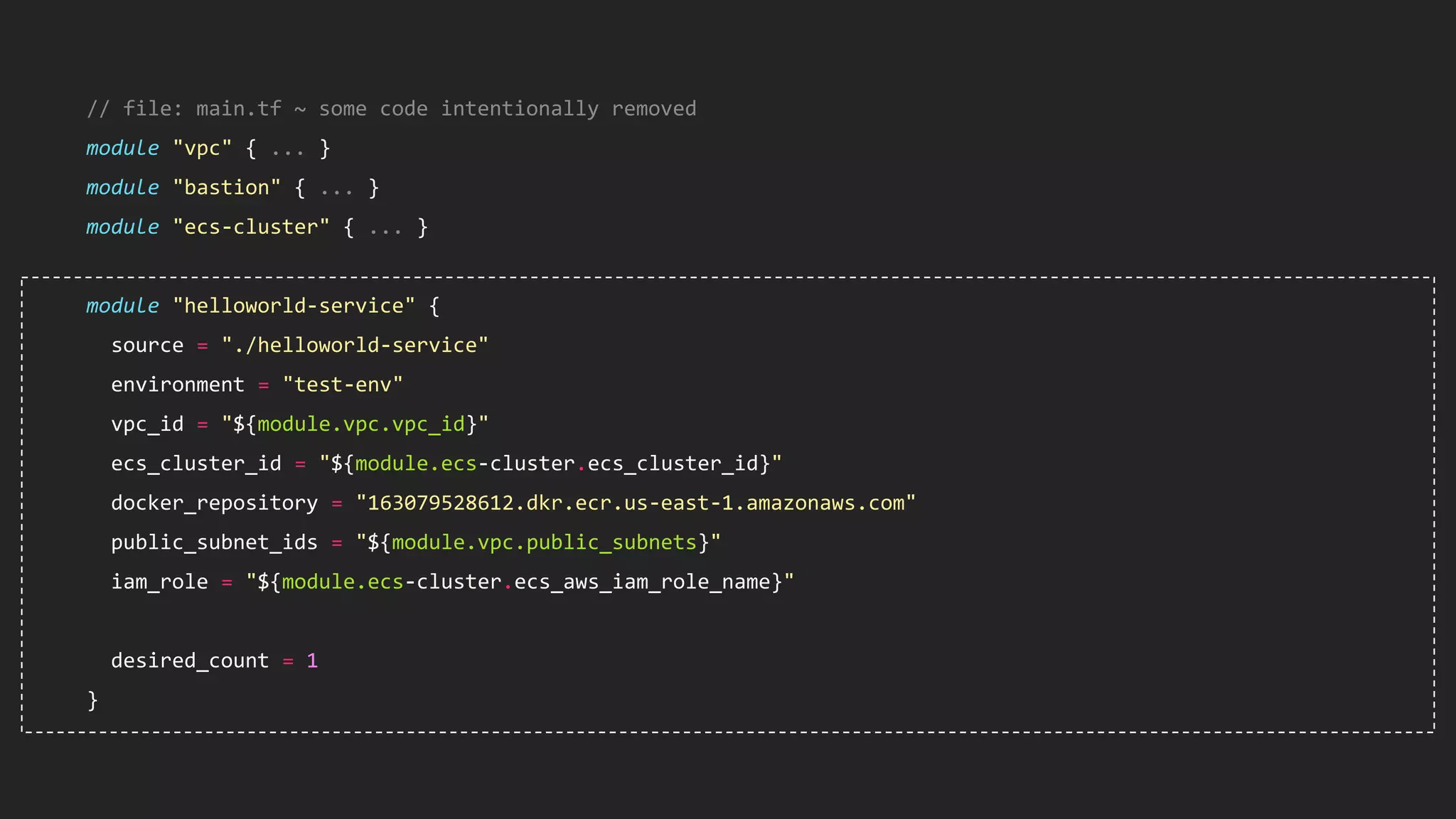

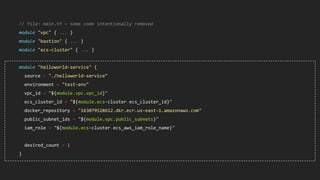

50. // file: main.tf ~ some code intentionally removed
module "vpc" { ... }
module "bastion" { ... }
module "ecs-cluster" { ... }
module "helloworld-service" {
source = "./helloworld-service"
environment = "test-env"
vpc_id = "${module.vpc.vpc_id}"
ecs_cluster_id = "${module.ecs-cluster.ecs_cluster_id}"
docker_repository = "163079528612.dkr.ecr.us-east-1.amazonaws.com"
public_subnet_ids = "${module.vpc.public_subnets}"
iam_role = "${module.ecs-cluster.ecs_aws_iam_role_name}"
desired_count = 1
}

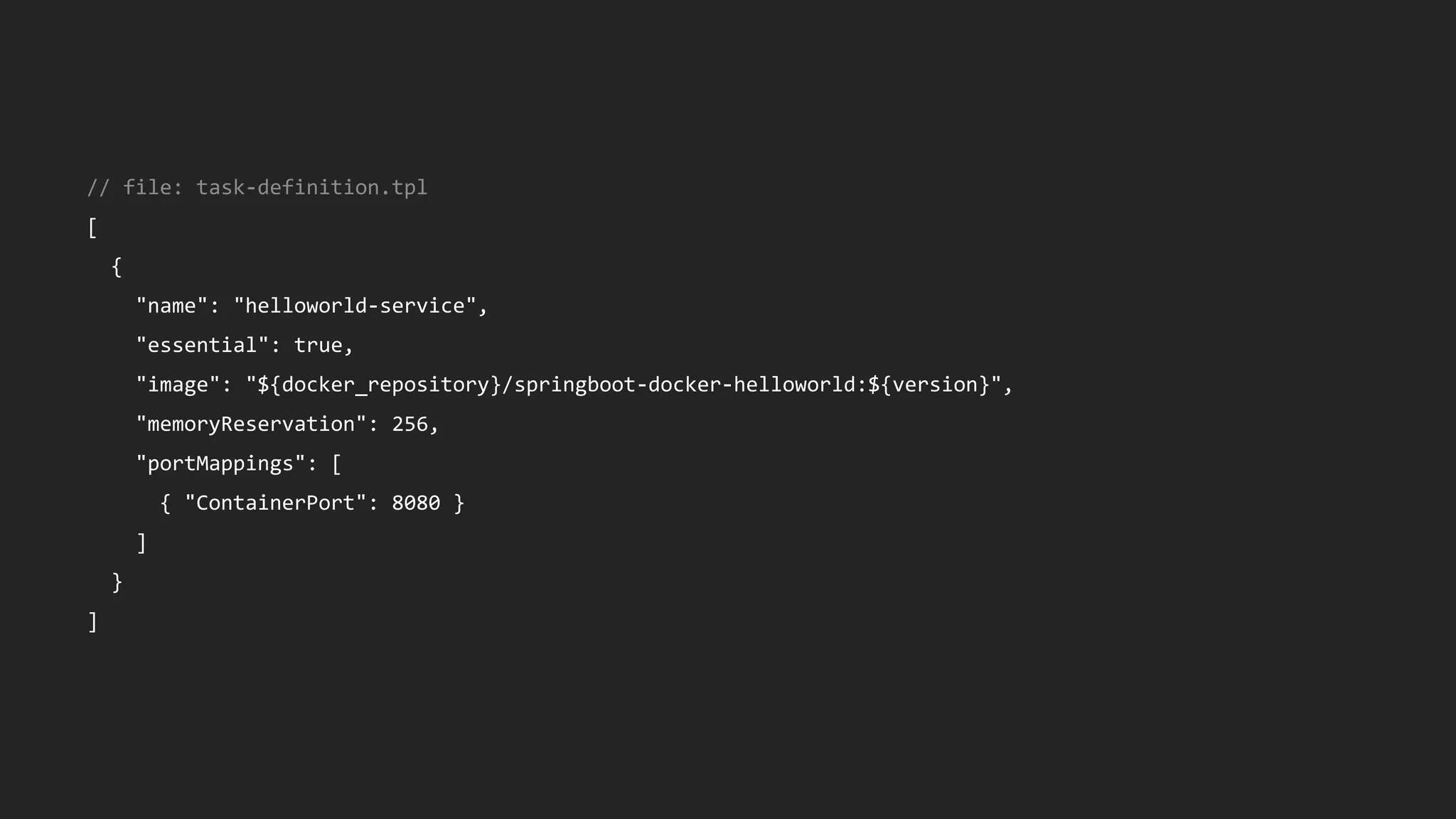

51. // file: task-definition.tpl
[
{
"name": "helloworld-service",
"essential": true,
"image": "${docker_repository}/springboot-docker-helloworld:${version}",
"memoryReservation": 256,
"portMappings": [
{ "ContainerPort": 8080 }
]
}
]

52. Demo:
Deploy Docker Container on ECS
Container Service using Terraform

53. Service Autoscaling

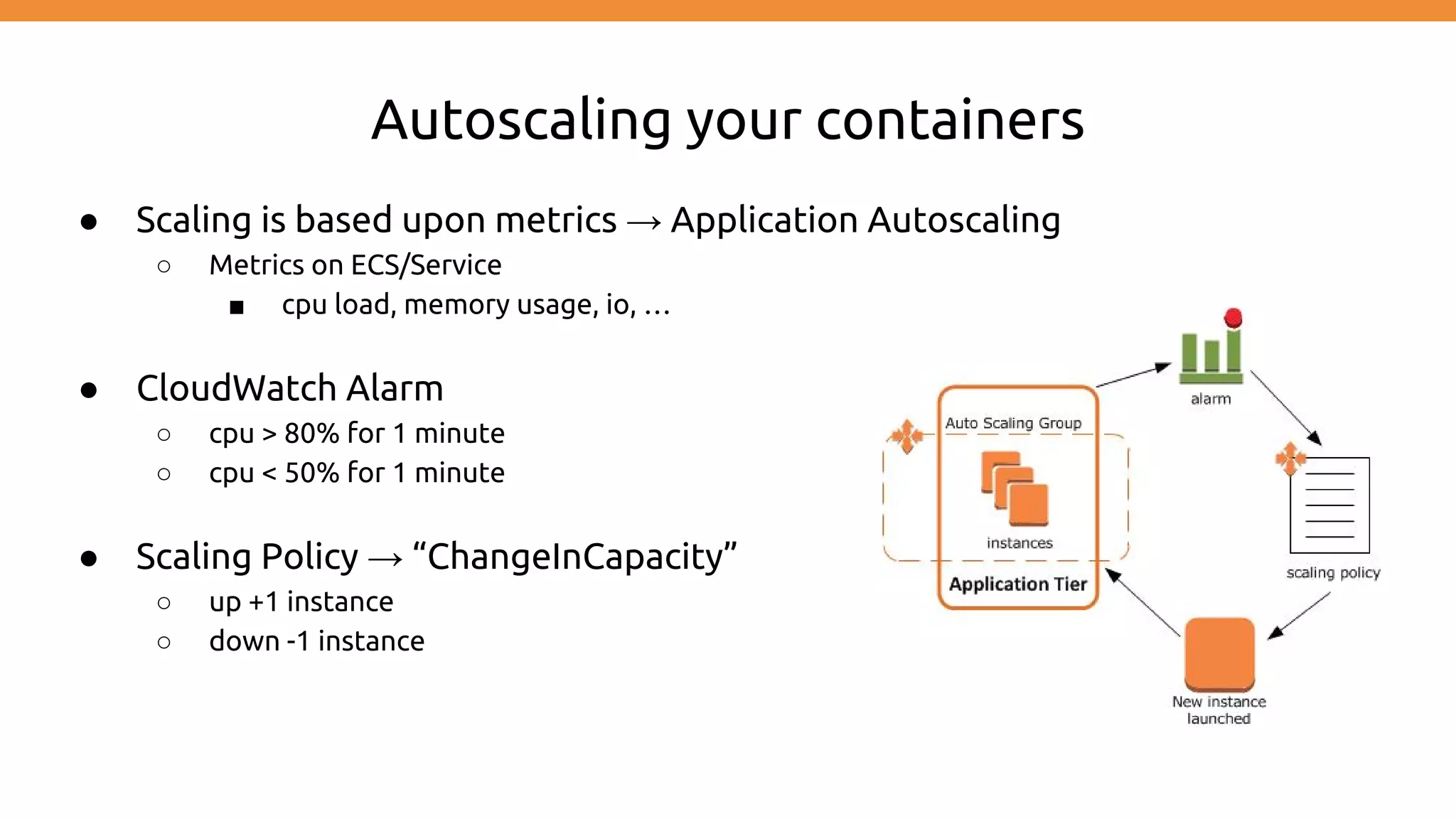

54. Autoscaling your containers
● Scaling is based upon metrics → Application Autoscaling
○ Metrics on ECS/Service
■ cpu load, memory usage, io, …
● CloudWatch Alarm
○ cpu > 80% for 1 minute
○ cpu < 50% for 1 minute
● Scaling Policy → “ChangeInCapacity”
○ up +1 instance
○ down -1 instance

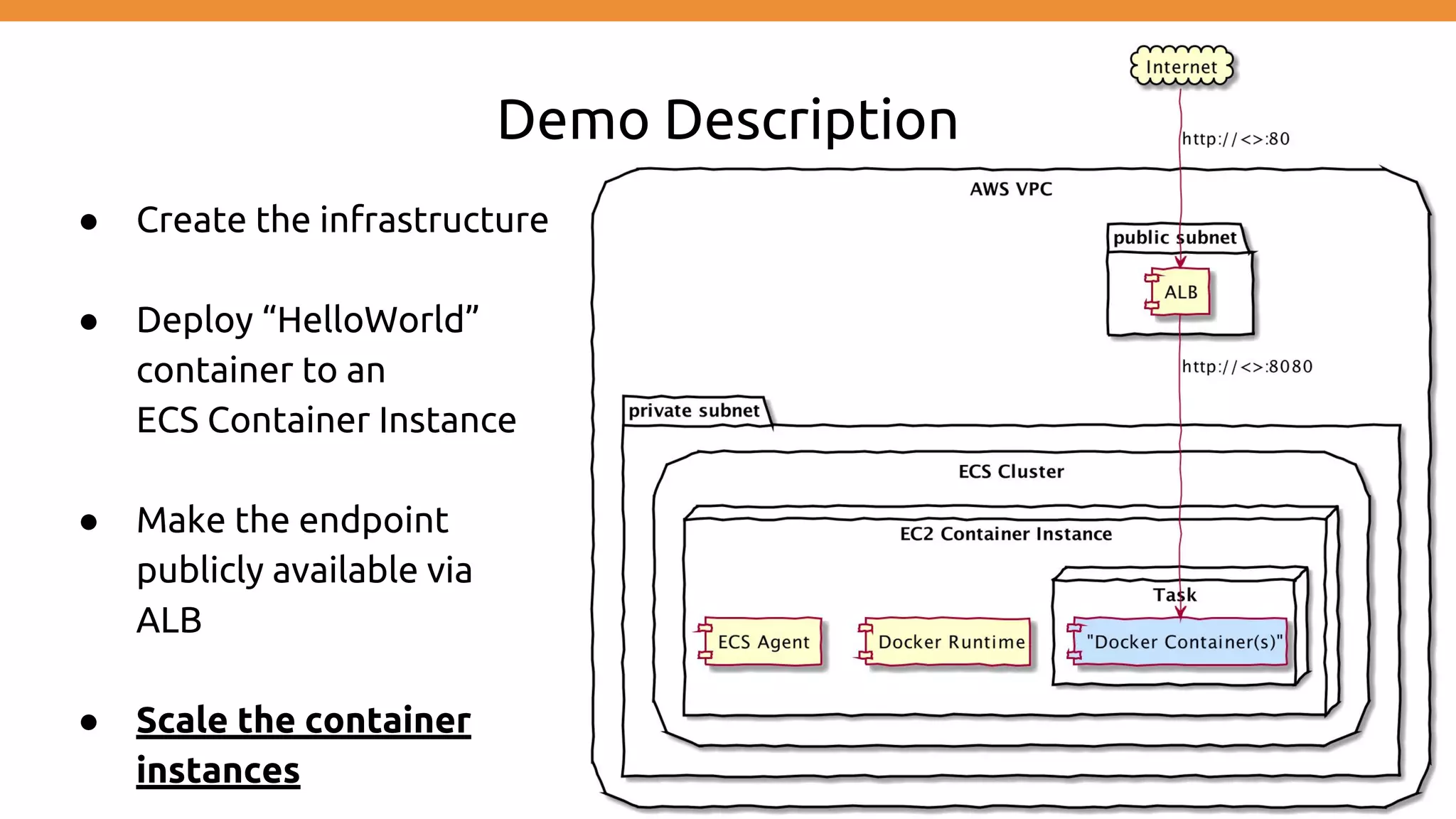

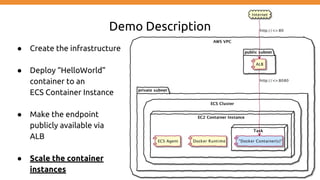

55. Demo Description
● Create the infrastructure
● Deploy “HelloWorld”
container to an
ECS Container Instance
● Make the endpoint
publicly available via
ALB
● Scale the container
instances

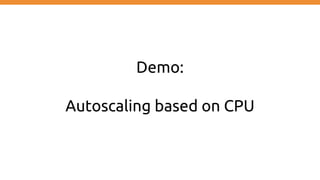

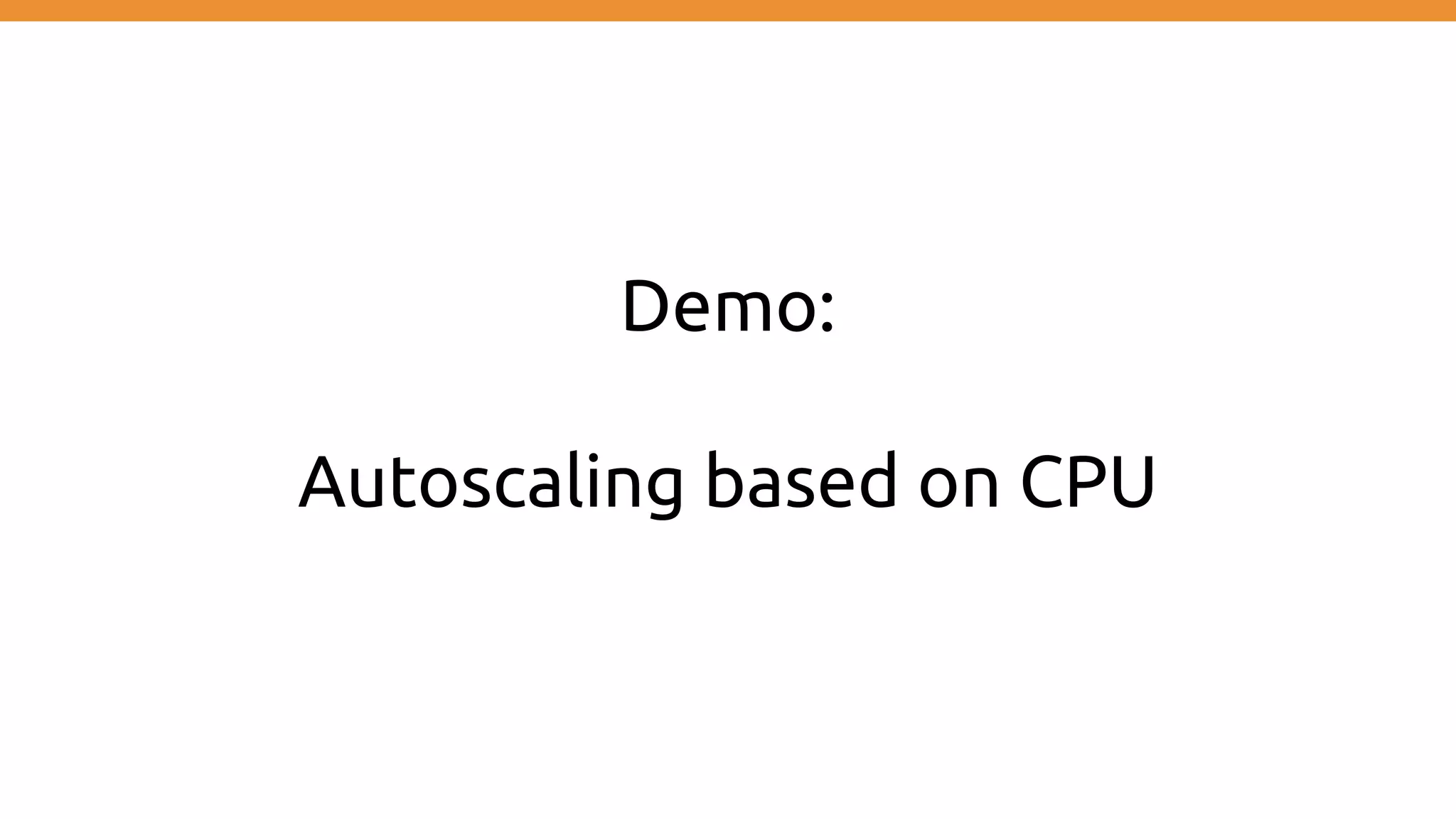

56. Demo:
Autoscaling based on CPU

57. Service Discovery

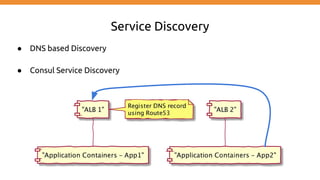

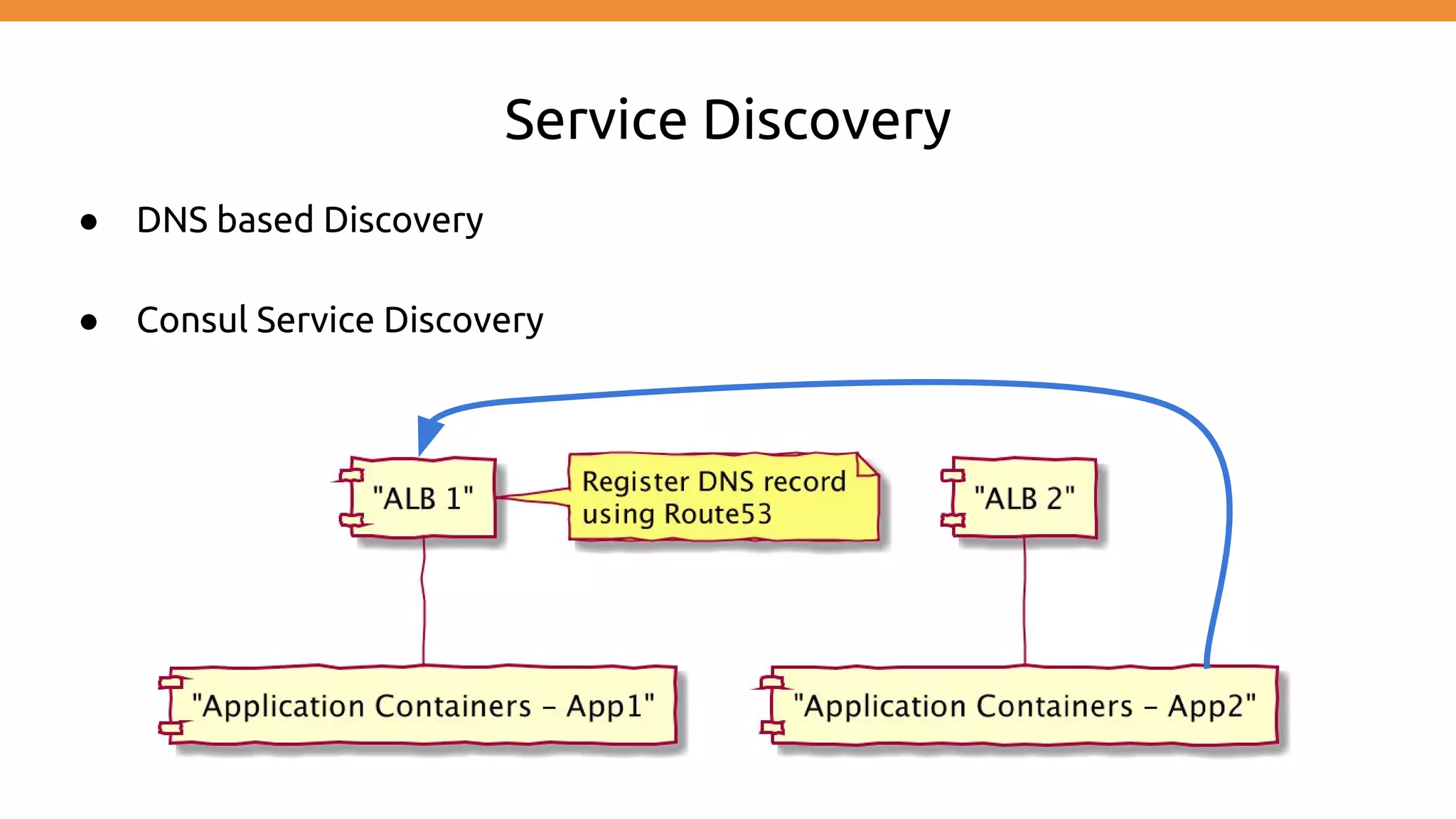

58. Service Discovery
● DNS based Discovery
● Consul Service Discovery

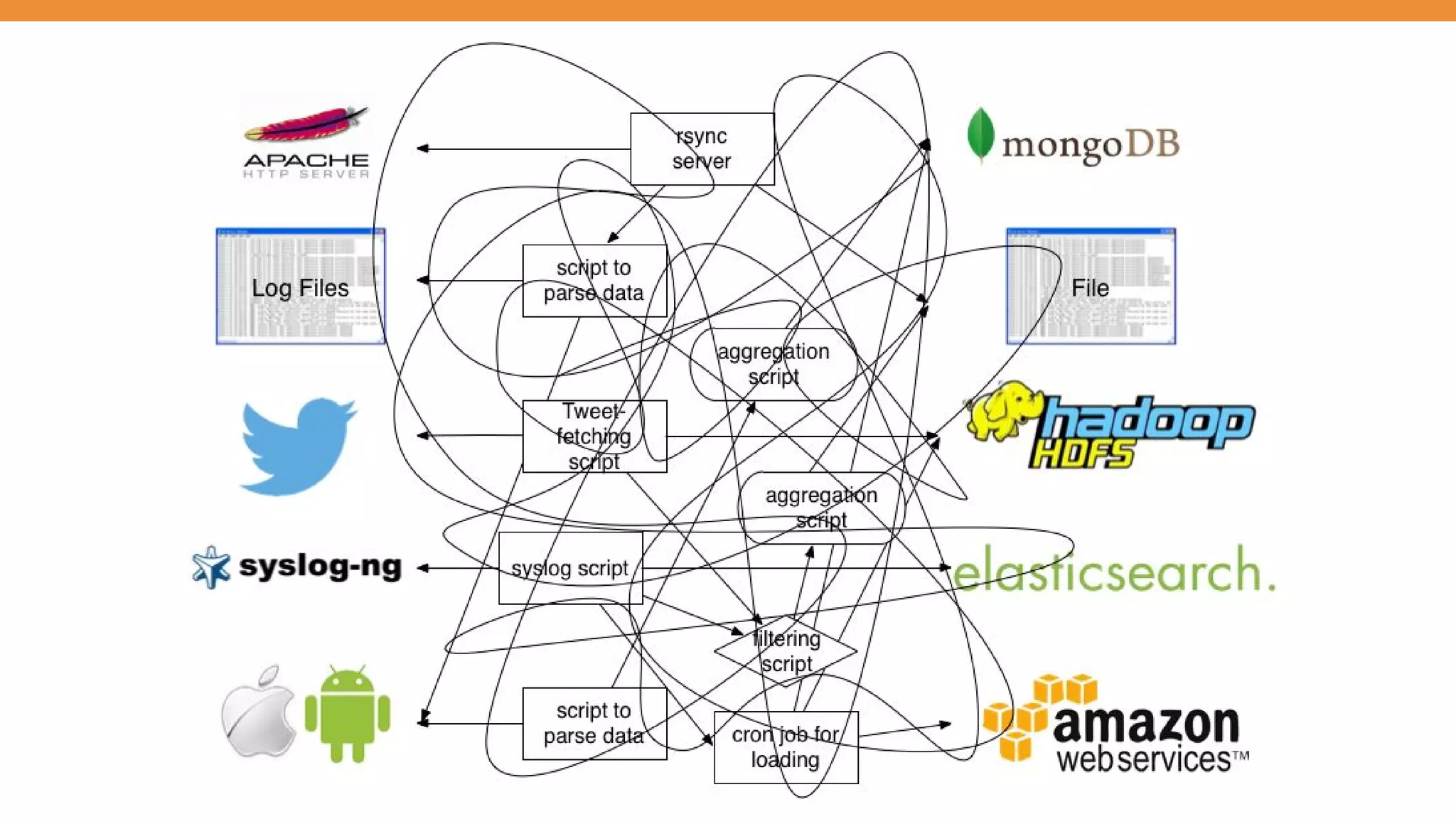

59. Logging

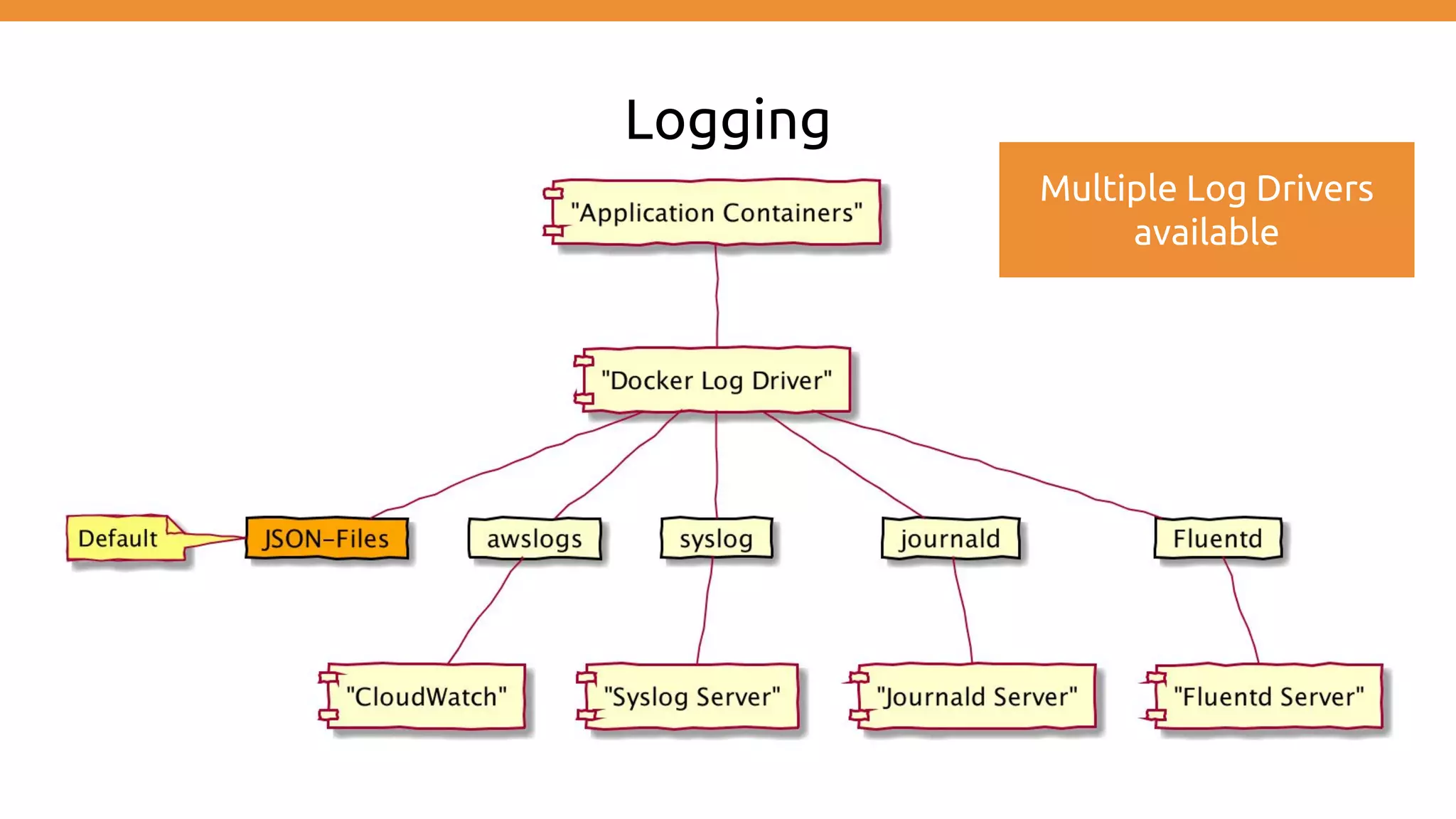

61. Logging
Multiple Log Drivers
available

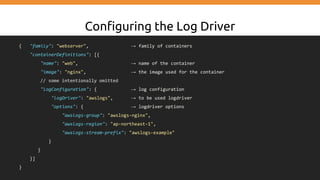

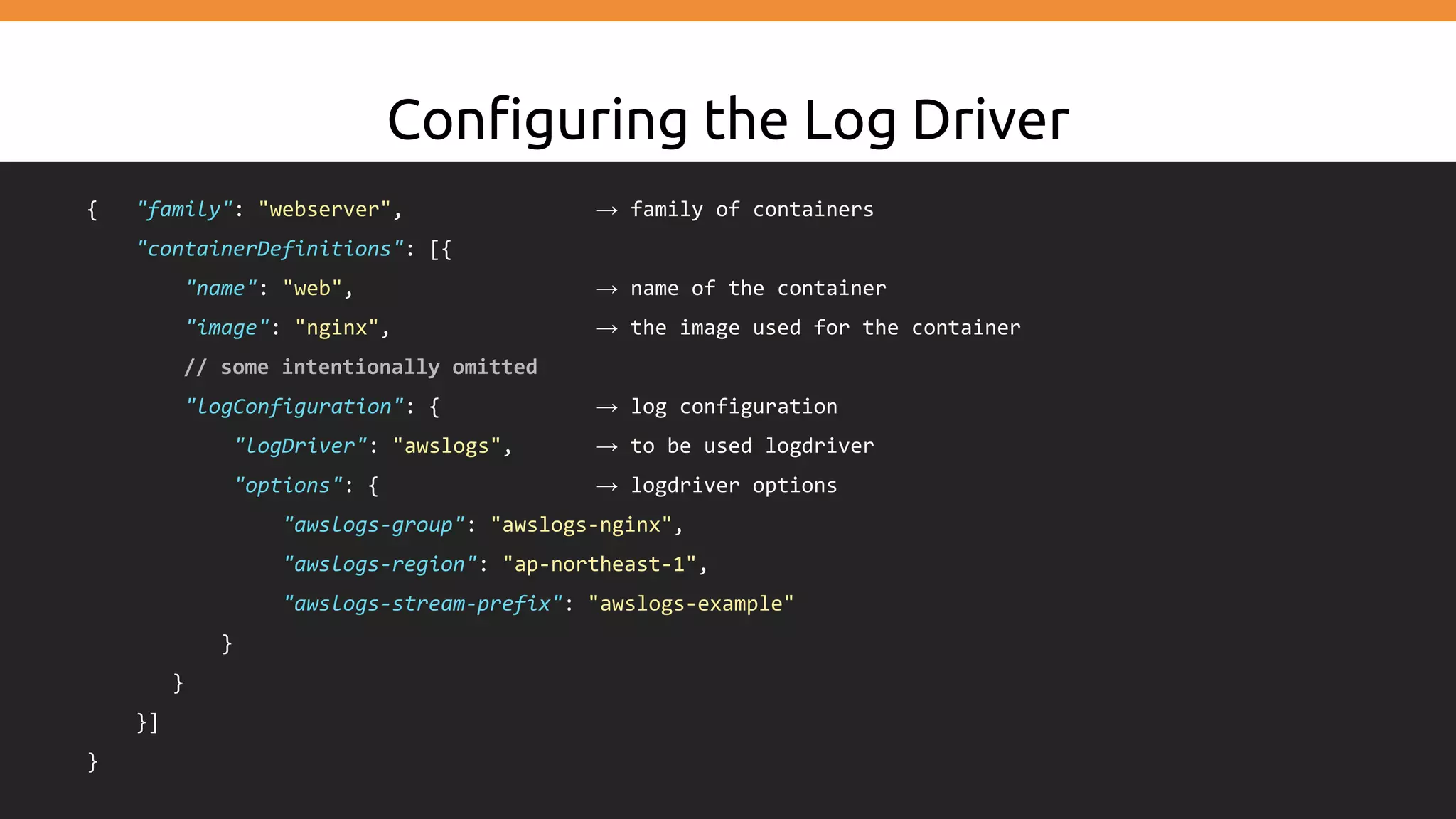

62. Configuring the Log Driver
62
{ "family": "webserver", → family of containers
"containerDefinitions": [{
"name": "web", → name of the container
"image": "nginx", → the image used for the container
// some intentionally omitted
"logConfiguration": { → log configuration
"logDriver": "awslogs", → to be used logdriver
"options": { → logdriver options
"awslogs-group": "awslogs-nginx",
"awslogs-region": "ap-northeast-1",
"awslogs-stream-prefix": "awslogs-example"
}
}
}]
}

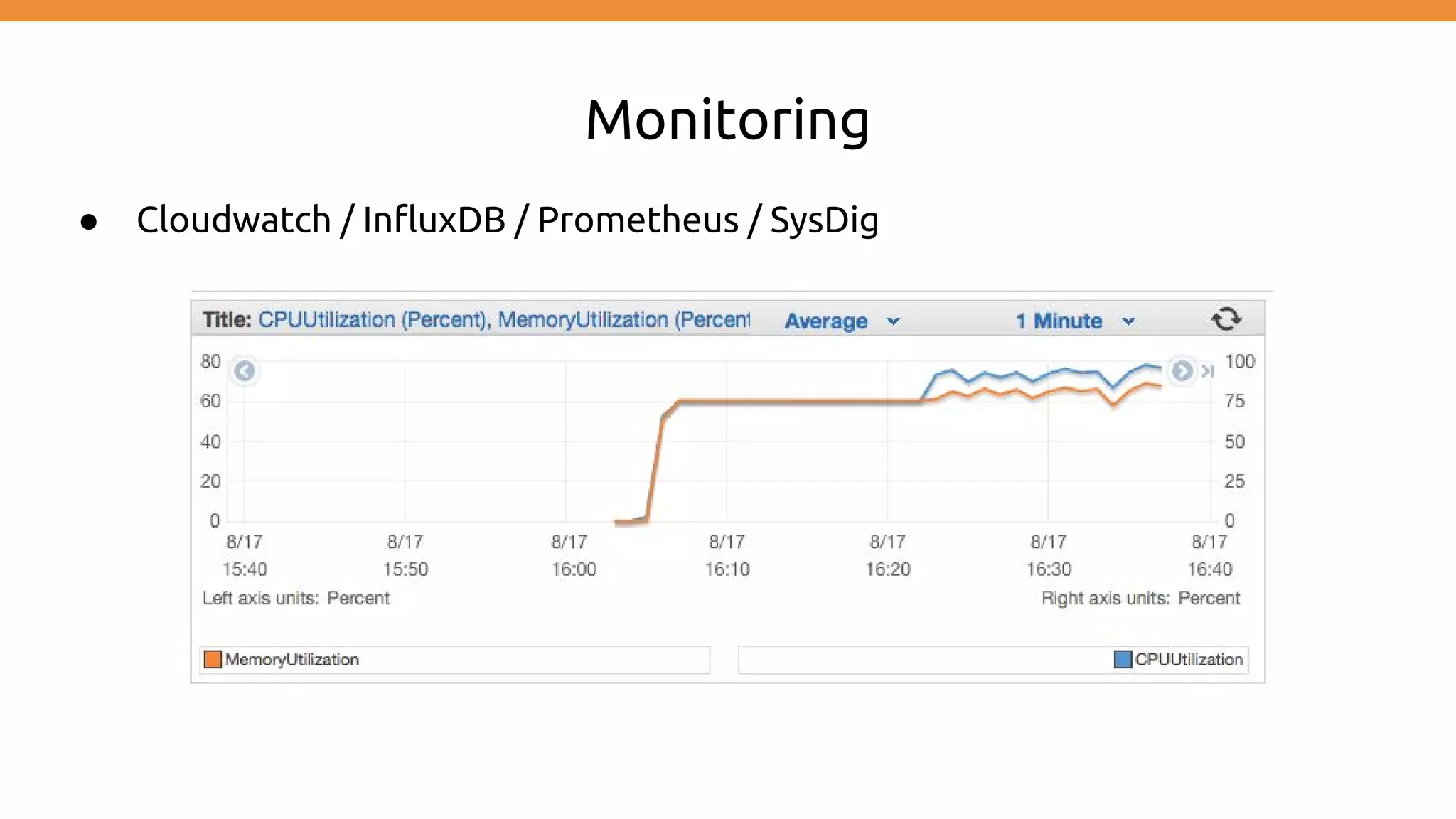

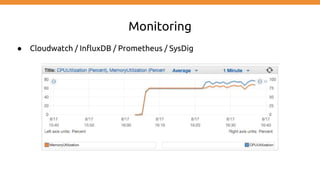

63. Monitoring

64. ● Cloudwatch / InfluxDB / Prometheus / SysDig
Monitoring

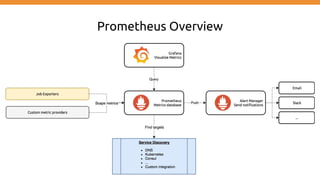

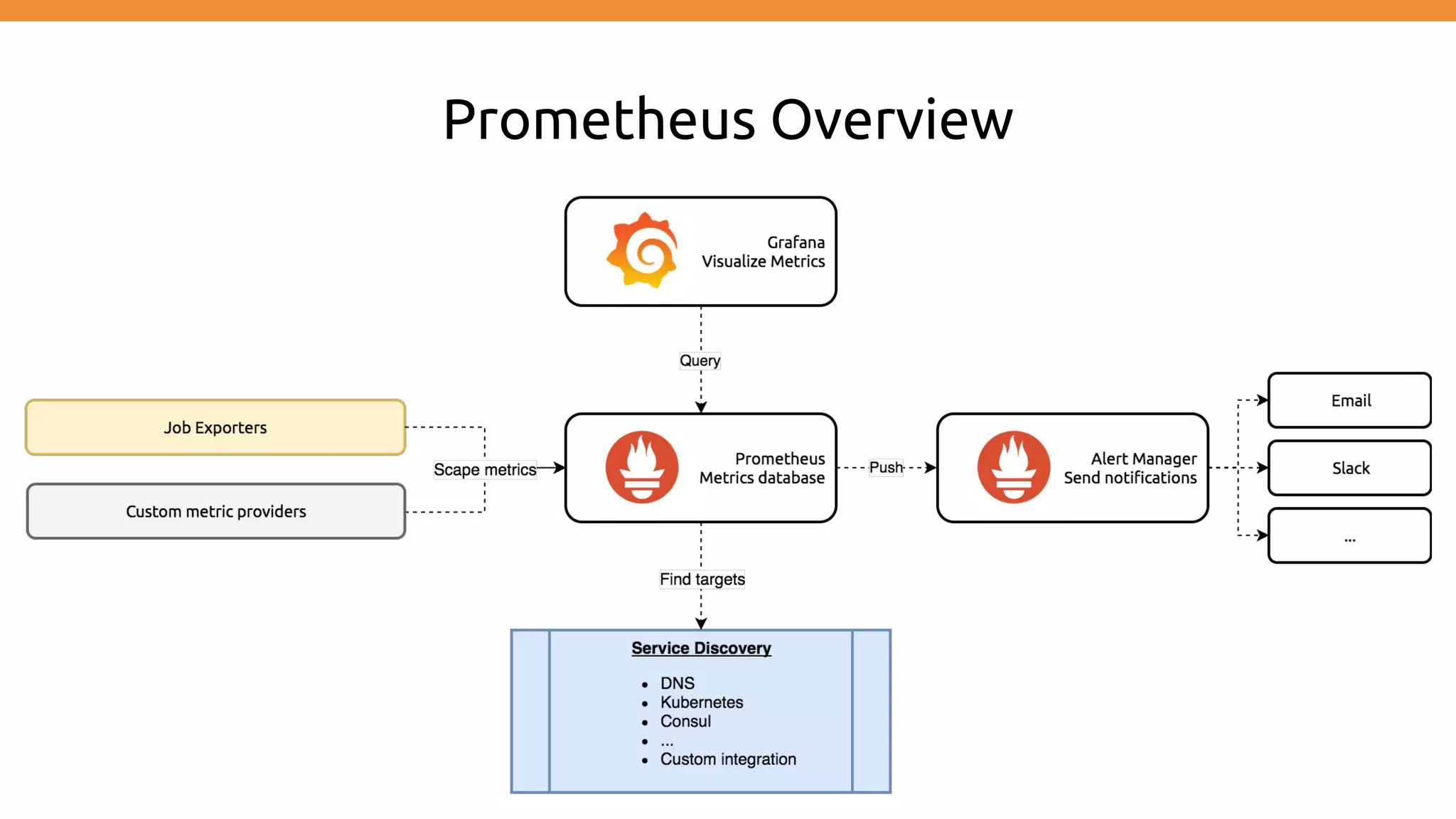

65. Prometheus Overview

66. Demo:
Monitoring using Prometheus

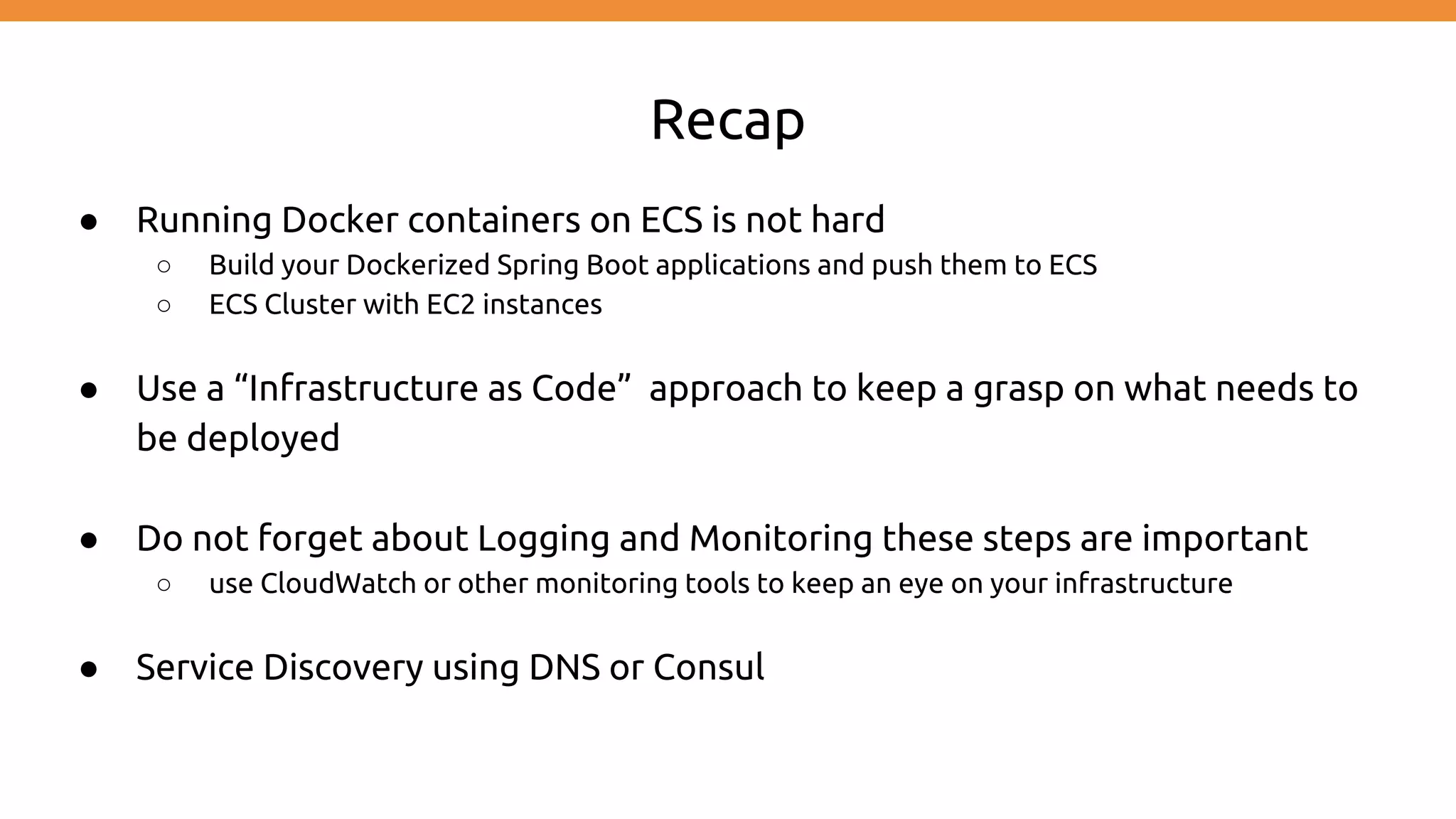

67. Recap
● Running Docker containers on ECS is not hard
○ Build your Dockerized Spring Boot applications and push them to ECS
○ ECS Cluster with EC2 instances
● Use a “Infrastructure as Code” approach to keep a grasp on what needs to
be deployed
● Do not forget about Logging and Monitoring these steps are important
○ use CloudWatch or other monitoring tools to keep an eye on your infrastructure
● Service Discovery using DNS or Consul

68. That’s a wrap!
Question?
https://github.com/mpas/running-your-dockerized-application-on-aws-ec2-container-service
Marco Pas
Philips Lighting
Software geek, hands on
Developer/Architect/DevOps Engineer
@marcopas
