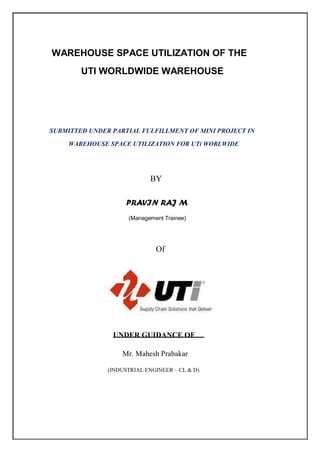

1. WAREHOUSE SPACE UTILIZATION OF THE
UTI WORLDWIDE WAREHOUSE
SUBMITTED UNDER PARTIAL FULFILLMENT OF MINI PROJECT IN
WAREHOUSE SPACE UTILIZATION FOR UTi WORLWIDE
BY
PRAVIN RAJ M
(Management Trainee)
Of
UNDER GUIDANCE OF
Mr. Mahesh Prabakar
(INDUSTRIAL ENGINEER – CL & D)

2. INTRODUCTION
UTI WORLDWIDE proposes to provide warehouse facility for the FORD INDIA
PRIVATE LTD. The proposed unit envisages providing facility in the field of safe storage
of car manufacturing products by making standard warehouse with all type of required
safety measures. The warehouse operation has been working for more than one year and
it undergoes Inbound and out bound operation. It receives the various cars parts from the
FORD plant and send back to the Ford plant when it is required. It almost contains more
than 750 parts in the warehouse which also includes both the vehicle parts and engine
parts.
WAREHOUSE AT A GLANCE
1. Unit : UTI WORLDWIDE
2. Location : Kuthambakkam
3. Status : Rent
4. Storage capacity : 1, 38,000 square feet
5. Annual Rent : ----------
7. Man-power : 200 (~)
8. Client : Ford India Pvt Ltd
9. No of fork lift : 8
10. No of locations : A to z (01 to 41)

3. SITE DETAILS
1. Location : Padur road, kuthambakkam
Chennai-107
2. Power : Available through TNEB
3. Water : Available from Tube well
4. Transport Facility : Own transport facility is available.
5. Medical Facility : Available
6. Post Office : Available
7. Bank Facility : Available
PROJECT SUMMARY
In the warehouse it is responsibility to make sure that we have sufficient location
available for all the parts that are to be stored in the warehouse. This is quite challenging
task. Warehouse space is somehow so expensive and must avoid the empty free space
and also to make sure there is free space in the warehouse when the goods arrived. If
suppose there is shortage of location when the goods arrive in the warehouse it may result
into a huge financial loss to the company and production stops in the plant. From the
above line mentioned here the project report has been prepared to reduce the space
utilized by the NON-MOVING parts for more than 60days in the warehouse. It has been
analyzed in the various format and ensured for moving pallets in the warehouse.

4. DATA ANALYSIS
The analysis has been done for finding out the NON-MOVING parts in the
warehouse. As a result of that the two parts which are not moving for more than
60days in the warehouse is


They are




PD6BBA044L00DDB5NF
PD6BBA044L00FDB5NF


Steps involved:-
Step 1:-
Step 2:-
Quantified the current location of the pallets in warehouse.
Analyzing how much space the pallet is utilizing.
Estimating & measuring the location pallet to reduce the space and allocateand
the pallets within minimum locations.
Step 3:-
Step 4:-
Reducing the number of locations used by the pallets my arranging in the orders.

Details of the pallet:-

Total no of pallets that are not moved are
Part Number
PD6BBA044L00FDB5NF
PD6BBA044L00DDB5NF
Qty
40
42

Number of location occupied by these two pallets is
Part Number
PD6BBA044L00FDB5NF
PD6BBA044L00DDB5NF
TOTAL
Qty
40
42
82
Locations
34
32
66

5. Before (pallet locations in the warehouse)

6. After (pallet locations in the warehouse)

7. SPACE CALCULATION (PD6BBA044L00FDB5NF)
Area covered for single pallet (before -PD6BBA044L00FDB5NF)
Points to be noted: - This is the actual measurement of keeping pallet in the
warehouse but it was not in this manner.
BEFORE (for two pallets –double stacking)
Location
2
Dimension
Length (m)Width (m)
31.7
Area (m)
5.1
AREA ( square feet)
54.8913
1
For 42 pallets
(ie.,Double stacking) =
1152.72
AFTER (for two pallets –double stacking)
Location
2 2.34
Dimension
Length (m) Width (m)
1.7 3.978 42.815214
Area (m) AREA (square feet)
2
For 42 pallets
(ie.,Double stacking) =
899.12

8. SPACE CALCULATION (PD6BBA044L00DDB5NF)
Area covered for single pallet (before -PD6BBA044L00DDB5NF)
Points to be noted: - This is the actual measurement of keeping pallet in the
warehouse but it was not in this manner.
BEFORE (for two pallets –double stacking)
Location
2
Dimension
Length (m)Width (m)
31.7
For 40 pallets
(ie.,Double stacking) =
Area (m)
5.1
AREA (feet)
54.8913
1097.83
AFTER (for two pallets –double stacking)
Location
2
Dimension
Length (m)
2.34
Width (m)
1.7
Area (m)
3.978
AREA (feet)
42.815214
4
For 40 pallets
(ie.,Double stacking) =
856.30
-5-

9. TOTAL SPACE CREATED IN THE
WAREHOSUE AFTER THE
ARRANGEMETNS OF THESE PALLETS
(By subtracting (1 + 3) – (2 + 4) )
____
495.12
TOTAL COST SPEND FOR THIS
SPACE IN THE WAREHOUSE IS
(assumptions Rs 1/feet)
____
495.12
The 495.12 which is equal to 7 locations
in the warehouse
(One location occupies 64.57 feet)

10. CONTINGENCY PLAN FOR THE SPACE UTILIZATION IN THE
WAREHOUSE:-
As already mentioned above, necessary
actions to be taken for these kinds of pallets in the warehouse. And manage the
space that is available and make sure that the inbound parts can be stored in the
warehouse. Information about current and forecasted space utilization can enable
the warehouse manager to make decisions about where items should be stored.
This report can help the warehouse manager to identify problems with missing
empty space for items that will arrive today or in the future and it can provide
sufficient space for the pallets to keep in unused space.
For avoiding the space related issues, we should
analyze the current capacity of the warehouse and total capacity of the warehouse.
We should segregate the pallets into moving and non moving pallets in the
warehouse which have separate locations for each and this reduce the movements
of the Fork lift for the various locations to the pick the pallets. These kind of actions
to be taken for the betterment of the space utilization in the warehouse.
By,
PRAVIN RAJ M
(Management Trainee)
