VMware Overview
By Alamgir Hossain
Email: alamgirgtc@outlook.com
M:+8801922688303
Working Experience with VMware vSphere 6.0 (ESXi & vCenter) & VMware Horizon 7 (For VDI):
Optical Data Archive and Networking (ODAN 2nd Phase) Project of BBS
R&D Project of VMware VDI (virtual desktop infrastructure)

2. © 2009 VMware Inc. All rights reserved

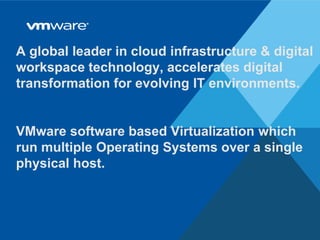

A global leader in cloud infrastructure & digital
workspace technology, accelerates digital
transformation for evolving IT environments.
VMware software based Virtualization which
run multiple Operating Systems over a single
physical host.

3. 3 Confidential

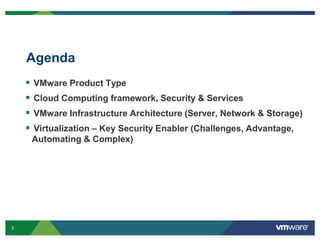

Agenda
 VMware Product Type
 Cloud Computing framework, Security & Services
 VMware Infrastructure Architecture (Server, Network & Storage)
 Virtualization – Key Security Enabler (Challenges, Advantage,
Automating & Complex)

4. 4 Confidential

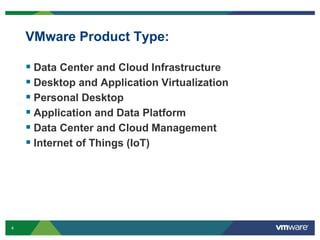

VMware Product Type:
 Data Center and Cloud Infrastructure
 Desktop and Application Virtualization
 Personal Desktop
 Application and Data Platform
 Data Center and Cloud Management
 Internet of Things (IoT)

5. 5 Confidential

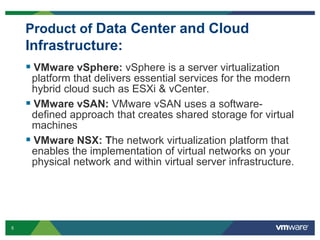

Product of Data Center and Cloud
Infrastructure:
 VMware vSphere: vSphere is a server virtualization
platform that delivers essential services for the modern
hybrid cloud such as ESXi & vCenter.
 VMware vSAN: VMware vSAN uses a software-
defined approach that creates shared storage for virtual
machines
 VMware NSX: The network virtualization platform that
enables the implementation of virtual networks on your
physical network and within virtual server infrastructure.

6. 6 Confidential

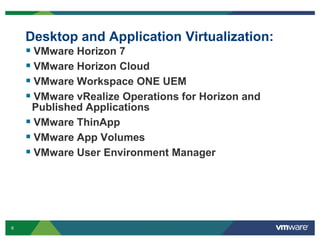

Desktop and Application Virtualization:
 VMware Horizon 7
 VMware Horizon Cloud
 VMware Workspace ONE UEM
 VMware vRealize Operations for Horizon and
Published Applications
 VMware ThinApp
 VMware App Volumes
 VMware User Environment Manager

7. 7 Confidential

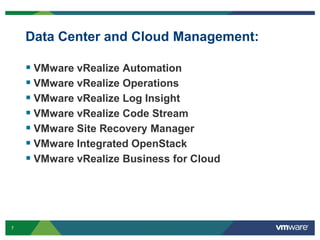

Data Center and Cloud Management:
 VMware vRealize Automation
 VMware vRealize Operations
 VMware vRealize Log Insight
 VMware vRealize Code Stream
 VMware Site Recovery Manager
 VMware Integrated OpenStack
 VMware vRealize Business for Cloud

8. 8 Confidential

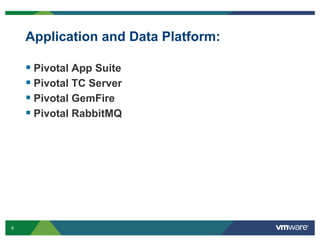

Application and Data Platform:
 Pivotal App Suite
 Pivotal TC Server
 Pivotal GemFire
 Pivotal RabbitMQ

9. 9 Confidential
Internet of Things (IoT):
 VMware Pulse IoT Center: A secure, enterprise-grade
IoT device management platform that improves the
reliability & security of your IoT infrastructure.

10. 10 Confidential

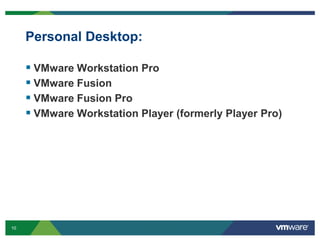

Personal Desktop:
 VMware Workstation Pro
 VMware Fusion
 VMware Fusion Pro
 VMware Workstation Player (formerly Player Pro)

11. 11 Confidential
VMware Cloud Services security framework:

12. 12 Confidential

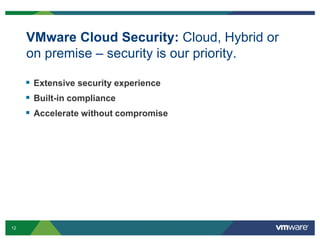

VMware Cloud Security: Cloud, Hybrid or
on premise – security is our priority.
 Extensive security experience
 Built-in compliance
 Accelerate without compromise

13. 13 Confidential

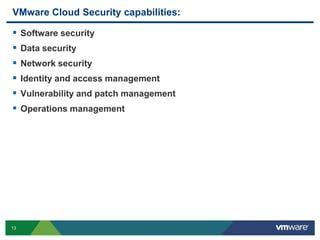

VMware Cloud Security capabilities:
 Software security
 Data security
 Network security
 Identity and access management
 Vulnerability and patch management
 Operations management

14. 14 Confidential
VMware Transforms Security from Expensive to Cost Effective
Load balancer
firewall
VPN
Load balancer
Firewall
VPN
Etc… vShield
Virtual
Appliance
vShield eliminates the need for multiple special purpose
hardware appliances – 3-5x Savings Capex, Opex

15. 15 Confidential

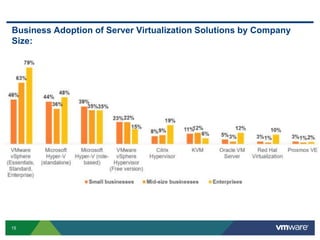

Business Adoption of Server Virtualization Solutions by Company
Size:

16. 16 Confidential

17. 17 Confidential

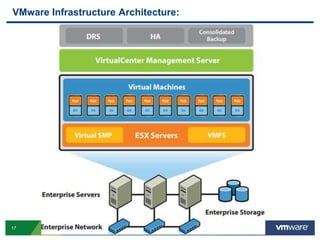

VMware Infrastructure Architecture:

18. 18 Confidential
Physical Topology of the VMware Infrastructure Data Center:

19. 19 Confidential

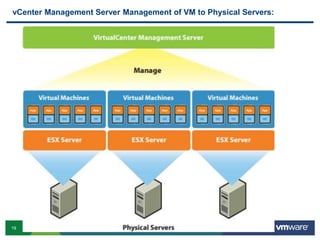

vCenter Management Server Management of VM to Physical Servers:

20. 20 Confidential

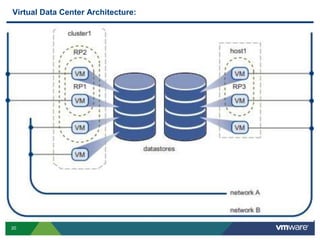

Virtual Data Center Architecture:

21. 21 Confidential
VMware VMotion, VMware DRS and VMware HA:
VMware VMotion
VMware DRS VMware
HA

22. 22 Confidential

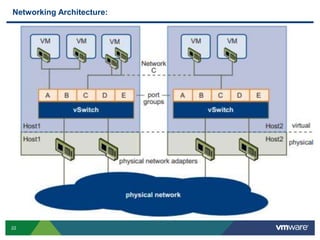

Networking Architecture:

23. 23 Confidential

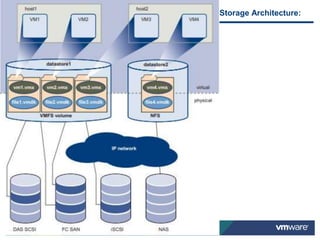

Storage Architecture:

24. 24 Confidential
VMware VMotion, VMware DRS and VMware HA:
VMware VMotion
VMware DRS VMware
HA

25. 25 Confidential

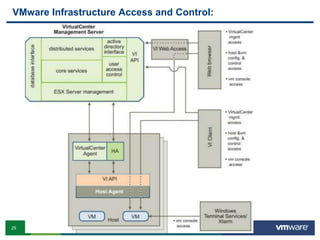

VMware Infrastructure Access and Control:

26. 26 Confidential
• VLAN sprawl
• Gap between policy and
enforcement
• Manual re-implementation of
security policies
• Heightened risk exposures
• Limited control and visibility
• Organizational confusion (VI,
security, network)
• Hindered IT compliance
• Slow provisioning
• Heightened risk exposures
Security Challenges
Traditional Security
Expensive
• Specialized hardware
appliances
• Multiple point solutions
Rigid
• Policy directly tied to
implementation
• Not virtualization and change-
aware
Effect
Complex
• Spaghetti of different rules and
policies
• Security “rationing”
• Heightened risk exposures

27. 27 Confidential

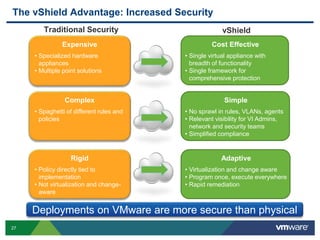

The vShield Advantage: Increased Security
Traditional Security vShield
Cost Effective
• Single virtual appliance with
breadth of functionality
• Single framework for
comprehensive protection
Simple
• No sprawl in rules, VLANs, agents
• Relevant visibility for VI Admins,
network and security teams
• Simplified compliance
Adaptive
• Virtualization and change aware
• Program once, execute everywhere
• Rapid remediation
Expensive
• Specialized hardware
appliances
• Multiple point solutions
Rigid
• Policy directly tied to
implementation
• Not virtualization and change-
aware
Complex
• Spaghetti of different rules and
policies
Deployments on VMware are more secure than physical

28. 28 Confidential

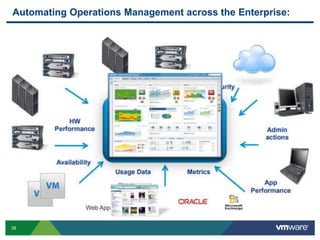

Automating Operations Management across the Enterprise:

29. 29 Confidential

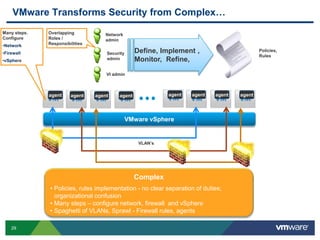

VMware Transforms Security from Complex…
VLAN’s
agent
Complex
• Policies, rules implementation - no clear separation of duties;
organizational confusion
• Many steps – configure network, firewall and vSphere
• Spaghetti of VLANs, Sprawl - Firewall rules, agents
Policies,
Rules
Network
admin
Security
admin
VI admin
Overlapping
Roles /
Responsibilities
Many steps.
Configure
•Network
•Firewall
•vSphere
Define, Implement ,
Monitor, Refine,
agent agent agent agent agent agent agent

30. 30 Confidential

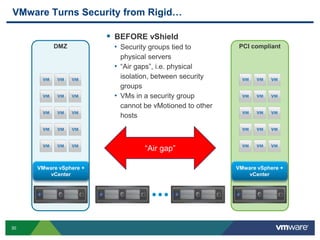

VMware Turns Security from Rigid…
 BEFORE vShield
• Security groups tied to
physical servers
• “Air gaps”, i.e. physical
isolation, between security
groups
• VMs in a security group
cannot be vMotioned to other
hosts
DMZ PCI compliant
“Air gap”

31. 31 Confidential

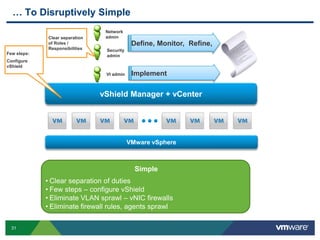

… To Disruptively Simple
Few steps:
Configure
vShield
Simple
• Clear separation of duties
• Few steps – configure vShield
• Eliminate VLAN sprawl – vNIC firewalls
• Eliminate firewall rules, agents sprawl
Network
admin
Security
admin
VI admin
Clear separation
of Roles /
Responsibilities
Define, Monitor, Refine,
Implement

32. 32 Confidential
PCI CompliantDMZDMZDMZ PCI Compliant
….to Adaptive
 AFTER vShield
• Security groups becomes a
VM construct rather than
physical server construct
• Security groups enforced with
VM movement
• Mix VMs from different
groups on the same host

33. 33 Confidential

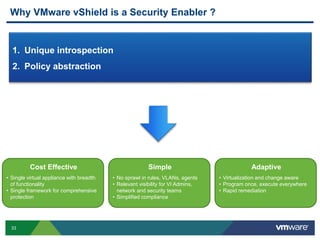

Why VMware vShield is a Security Enabler ?
1. Unique introspection
2. Policy abstraction
Cost Effective
• Single virtual appliance with breadth
of functionality
• Single framework for comprehensive
protection
Simple
• No sprawl in rules, VLANs, agents
• Relevant visibility for VI Admins,
network and security teams
• Simplified compliance
Adaptive
• Virtualization and change aware
• Program once, execute everywhere
• Rapid remediation

34. 34 Confidential
Security Enabler: Unique Introspection
Introspect detailed VM state and VM-to-VM
communications
vSphere + vShield
Processor
memory
Network
Benefits
• Comprehensive host and VM
protection
• Reduced configuration errors
• Quick problem identification
• Reduced complexity – no security
agents per VM required

35. 35 Confidential
Security Enabler: Policy Abstraction
Before
vShield
Policy tied to the
physical host;
lost during
vMotion
Policy tied to
logical
attributes
After
vShield
Benefits
• Create and enforce security
policies with live migration,
automated VM load balancing
and automated VM restart
• Rapid provisioning of security
policies
• Easier compliance with
continuous monitoring and
comprehensive logging
Separate the policy definition from the policy
implementation
Policy tied to
logical attributes;
follow virtual
machine

36. © 2009 VMware Inc. All rights reserved
Thank You..
By Alamgir Hossain
Email: alamgirgtc@outlook.com
M:+8801922688303
Working Experience with VMware vSphere 6.0 (ESXi & vCenter) & VMware Horizon 7 (For VDI):
Optical Data Archive and Networking (ODAN 2nd Phase) Project of BBS
R&D Project of VMware VDI (virtual desktop infrastructure)
