1. Using Microsoft Virtualization Technologies: Today and Planning for Tomorrow Ronald Beekelaar Beekelaar Consultancy [email_address] Virtualization Seminar - Dublin - 18-Jan-2007

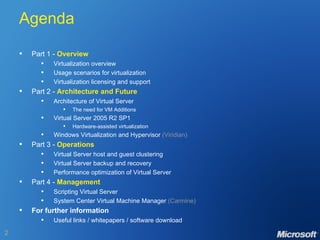

2. Agenda Part 1 - Overview Virtualization overview Usage scenarios for virtualization Virtualization licensing and support Part 2 - Architecture and Future Architecture of Virtual Server The need for VM Additions Virtual Server 2005 R2 SP1 Hardware-assisted virtualization Windows Virtualization and Hypervisor (Viridian) Part 3 - Operations Virtual Server host and guest clustering Virtual Server backup and recovery Performance optimization of Virtual Server Part 4 - Management Scripting Virtual Server System Center Virtual Machine Manager (Carmine) For further information Useful links / whitepapers / software download

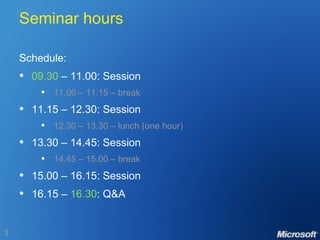

3. Seminar hours Schedule: 09.30 – 11.00: Session 11.00 – 11.15 – break 11.15 – 12.30: Session 12.30 – 13.30 – lunch (one hour) 13.30 – 14.45: Session 14.45 – 15.00 – break 15.00 – 16.15: Session 16.15 – 16.30 : Q&A

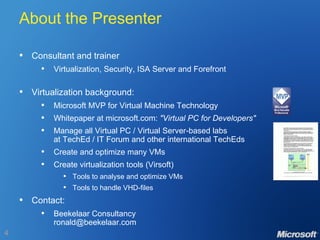

4. About the Presenter Consultant and trainer Virtualization, Security, ISA Server and Forefront Virtualization background: Microsoft MVP for Virtual Machine Technology Whitepaper at microsoft.com: "Virtual PC for Developers" Manage all Virtual PC / Virtual Server-based labs at TechEd / IT Forum and other international TechEds Create and optimize many VMs Create virtualization tools (Virsoft) Tools to analyse and optimize VMs Tools to handle VHD-files Contact: Beekelaar Consultancy [email_address]

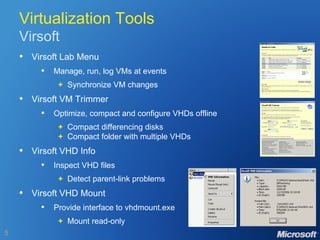

5. Virtualization Tools Virsoft Virsoft Lab Menu Manage, run, log VMs at events + Synchronize VM changes Virsoft VM Trimmer Optimize, compact and configure VHDs offline + Compact differencing disks + Compact folder with multiple VHDs Virsoft VHD Info Inspect VHD files + Detect parent-link problems Virsoft VHD Mount Provide interface to vhdmount.exe + Mount read-only

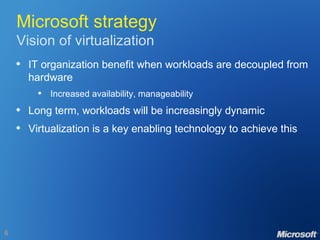

6. Microsoft strategy Vision of virtualization IT organization benefit when workloads are decoupled from hardware Increased availability, manageability Long term, workloads will be increasingly dynamic Virtualization is a key enabling technology to achieve this

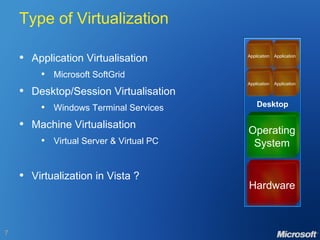

7. Type of Virtualization Application Virtualisation Microsoft SoftGrid Desktop/Session Virtualisation Windows Terminal Services Machine Virtualisation Virtual Server & Virtual PC Virtualization in Vista ? Desktop Hardware Operating System Application Application Application Application

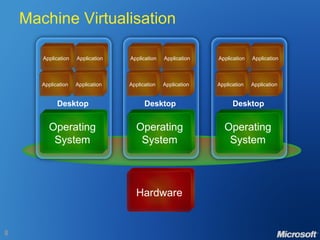

8. Machine Virtualisation Hardware Operating System Application Application Application Application Desktop Operating System Application Application Application Application Desktop Operating System Application Application Application Application Desktop

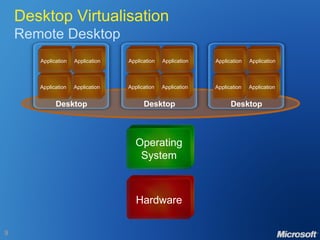

9. Desktop Virtualisation Remote Desktop Hardware Operating System Application Application Application Application Desktop Application Application Application Application Desktop Application Application Application Application Desktop

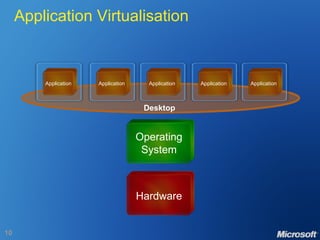

10. Application Virtualisation Desktop Hardware Operating System Application Application Application Application Application

11. Application Virtualization SoftGrid Traditional Layered Install Model Isolated Virtual Application Model

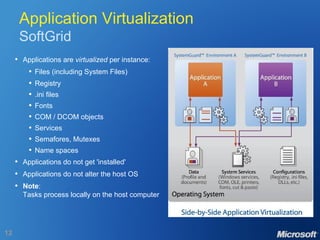

12. Application Virtualization SoftGrid Applications are virtualized per instance: Files (including System Files) Registry .ini files Fonts COM / DCOM objects Services Semafores, Mutexes Name spaces Applications do not get 'installed' Applications do not alter the host OS Note : Tasks process locally on the host computer

13. Product versions * Currently at end of support lifecycle ** See http://vpc.visualwin.com for a list of 1150+ (!) OS that run in Virtual PC / Virtual Server See KB 867572 for a list of supported OS in Virtual Server 2005 R2 +Intel VT and AMD Virtualization processor support +Vista support (Host and Guest) ~Mar 2007 Virtual PC 2007 Implement Windows Hypervisor New virtualization model, requires VT/Virtualization hardware Code name "Viridian" Longhorn + 180 days Windows Virtualization Same as Virtual PC 2004 SP1 + But can only run a single VM + With Vista Enterprise / only for Software Assurance customers Mar 2006 Virtual PC 2004 Express +Intel VT and AMD Virtualization processor support +Volume Shadow Copy Service support Same as Virtual Server 2005 + Win XP Pro SP2 (non prod) + Win2003 (SP1, R2) + Win XP / Win2003 x64 Same as Virtual PC 2004 + Win2003 SE • Win XP Pro • Win2003 SBS • Win2003 (SE, EE, Data) • Win2000 Pro SP4 • Win XP Pro (Tablet, SP1) Hosts • MS-DOS 6.22 * / OS/2 • Win 95, 98, 98SE, ME * • Win NT4 SP6a (wrkstn) * • Win2000 Pro SP4 • Win XP (Tablet, SP1) Oct 2003 Virtual PC 2004 • Win NT4 SP6a (server) * • Win2000 Server • Win2003 (SE, EE, Web) Jul 2004 Virtual Server 2005 Same as Virtual PC 2004 + Win XP SP2 Oct 2004 Virtual PC 2004 SP1 ~Feb 2007 Virtual Server 2005 R2 SP1 Same as Virtual Server 2005 + Win XP Pro SP2 + Win2003 (SP1, R2) + Linux (9x distro's) - Apr 2006 Nov 2005 Virtual Server 2005 R2 Guests ** Release Product

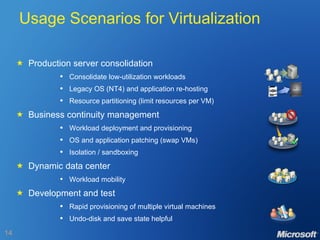

14. Usage Scenarios for Virtualization  Production server consolidation Consolidate low-utilization workloads Legacy OS (NT4) and application re-hosting Resource partitioning (limit resources per VM)  Business continuity management Workload deployment and provisioning OS and application patching (swap VMs) Isolation / sandboxing  Dynamic data center Workload mobility  Development and test Rapid provisioning of multiple virtual machines Undo-disk and save state helpful

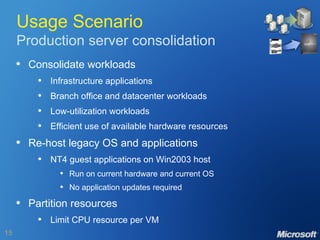

15. Usage Scenario Production server consolidation Consolidate workloads Infrastructure applications Branch office and datacenter workloads Low-utilization workloads Efficient use of available hardware resources Re-host legacy OS and applications NT4 guest applications on Win2003 host Run on current hardware and current OS No application updates required Partition resources Limit CPU resource per VM

16. Usage Scenario Business continuity management Workload deployment Quickly switch pre-configured VM (vhd-files) For disaster recovery Eliminate unscheduled downtime OS and application patching Deploy and test patches off-production, and swap Eliminate scheduled downtime Isolation / sandboxing Isolate OS environments for untrusted applications Prevent malicious code from affecting others

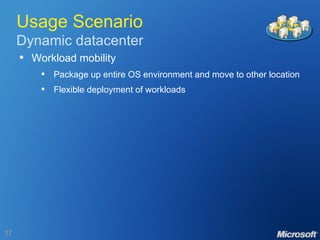

17. Usage Scenario Dynamic datacenter Workload mobility Package up entire OS environment and move to other location Flexible deployment of workloads

18. Usage Scenario Development and test Rapid provisioning of virtual machines Provide multiple VMs for testing quickly Use save state to start up quickly Create arbitrary test scenarios Recreate reported issues Avoid use of production network Use undo-disk to rollback to known state Wider test range for niche scenarios Provision multiple VMs with variations Use difference-disks for easy provisioning

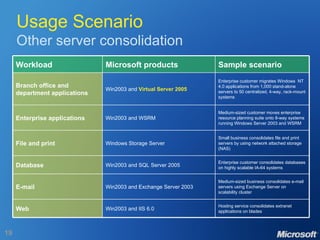

19. Usage Scenario Other server consolidation Hosting service consolidates extranet applications on blades Win2003 and IIS 6.0 Web Medium-sized business consolidates e-mail servers using Exchange Server on scalability cluster Enterprise customer consolidates databases on highly scalable IA-64 systems Small business consolidates file and print servers by using network attached storage (NAS) Medium-sized customer moves enterprise resource planning suite onto 8-way systems running Windows Server 2003 and WSRM Enterprise customer migrates Windows NT 4.0 applications from 1,000 stand-alone servers to 50 centralized, 4-way, rack-mount systems Sample scenario Win2003 and Virtual Server 2005 Branch office and department applications Win2003 and WSRM Enterprise applications Windows Storage Server File and print Win2003 and Exchange Server 2003 E-mail Win2003 and SQL Server 2005 Database Microsoft products Workload

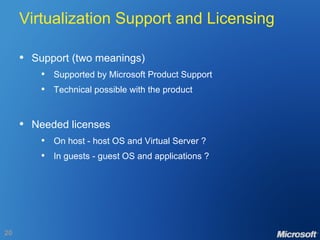

20. Virtualization Support and Licensing Support (two meanings) Supported by Microsoft Product Support Technical possible with the product Needed licenses On host - host OS and Virtual Server ? In guests - guest OS and applications ?

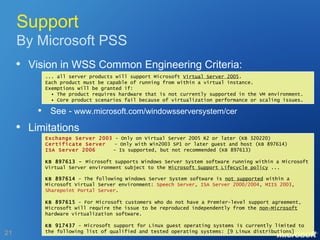

21. Support By Microsoft PSS Vision in WSS Common Engineering Criteria: See - www.microsoft.com/windowsserversystem/cer Limitations ... all server products will support Microsoft Virtual Server 2005 . Each product must be capable of running from within a virtual instance. Exemptions will be granted if: • The product requires hardware that is not currently supported in the VM environment. • Core product scenarios fail because of virtualization performance or scaling issues. Exchange Server 2003 - Only on Virtual Server 2005 R2 or later (KB 320220) Certificate Server - Only with Win2003 SP1 or later guest and host (KB 897614) ISA Server 2006 - Is supported, but not recommended (KB 897613) KB 897613 - Microsoft supports Windows Server System software running within a Microsoft Virtual Server environment subject to the Microsoft Support Lifecycle policy ... KB 897614 - The following Windows Server System software is not supported within a Microsoft Virtual Server environment: Speech Server , ISA Server 2000/2004 , MIIS 2003 , Sharepoint Portal Server . KB 897615 - For Microsoft customers who do not have a Premier-level support agreement, Microsoft will require the issue to be reproduced independently from the non-Microsoft hardware virtualization software. KB 917437 - Microsoft support for Linux guest operating systems is currently limited to the following list of qualified and tested operating systems: [9 Linux distributions]

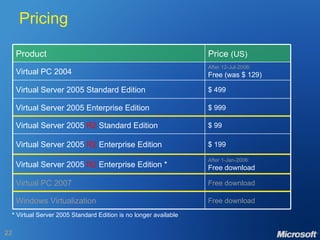

22. Pricing * Virtual Server 2005 Standard Edition is no longer available Free download Virtual PC 2007 Free download Windows Virtualization After 1-Jan-2006: Free download Virtual Server 2005 R2 Enterprise Edition * After 12-Jul-2006: Free (was $ 129) Virtual PC 2004 $ 499 Virtual Server 2005 Standard Edition $ 999 Virtual Server 2005 Enterprise Edition $ 99 Virtual Server 2005 R2 Standard Edition $ 199 Virtual Server 2005 R2 Enterprise Edition Price (US) Product

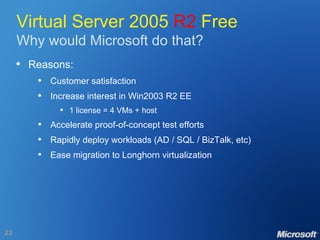

23. Virtual Server 2005 R2 Free Why would Microsoft do that? Reasons: Customer satisfaction Increase interest in Win2003 R2 EE 1 license = 4 VMs + host Accelerate proof-of-concept test efforts Rapidly deploy workloads (AD / SQL / BizTalk, etc) Ease migration to Longhorn virtualization

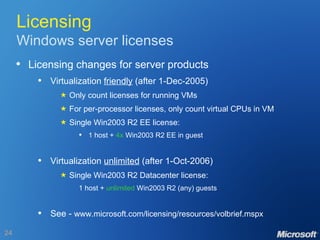

24. Licensing Windows server licenses Licensing changes for server products Virtualization friendly (after 1-Dec-2005)  Only count licenses for running VMs  For per-processor licenses, only count virtual CPUs in VM  Single Win2003 R2 EE license: 1 host + 4x Win2003 R2 EE in guest Virtualization unlimited (after 1-Oct-2006)  Single Win2003 R2 Datacenter license: 1 host + unlimited Win2003 R2 (any) guests See - www.microsoft.com/licensing/resources/volbrief.mspx

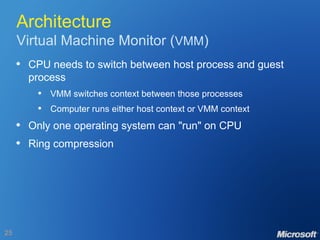

25. Architecture Virtual Machine Monitor ( VMM ) CPU needs to switch between host process and guest process VMM switches context between those processes Computer runs either host context or VMM context Only one operating system can "run" on CPU Ring compression

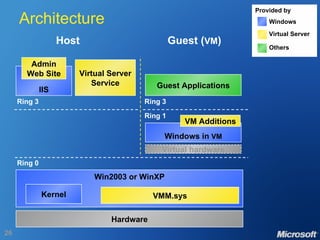

26. Architecture Win2003 or WinXP Kernel VMM.sys Ring 0 Hardware Host Guest ( VM ) Ring 1 Ring 3 Windows in VM VM Additions Guest Applications Ring 3 Virtual Server Service IIS Admin Web Site Virtual hardware Provided by Windows Virtual Server Others

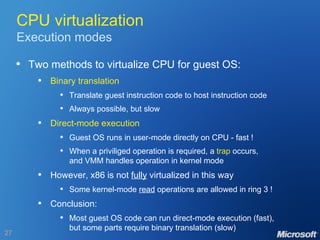

27. CPU virtualization Execution modes Two methods to virtualize CPU for guest OS: Binary translation Translate guest instruction code to host instruction code Always possible, but slow Direct-mode execution Guest OS runs in user-mode directly on CPU - fast ! When a priviliged operation is required, a trap occurs, and VMM handles operation in kernel mode However, x86 is not fully virtualized in this way Some kernel-mode read operations are allowed in ring 3 ! Conclusion: Most guest OS code can run direct-mode execution (fast), but some parts require binary translation (slow)

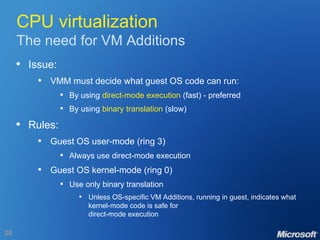

28. CPU virtualization The need for VM Additions Issue: VMM must decide what guest OS code can run: By using direct-mode execution (fast) - preferred By using binary translation (slow) Rules: Guest OS user-mode (ring 3) Always use direct-mode execution Guest OS kernel-mode (ring 0) Use only binary translation Unless OS-specific VM Additions, running in guest, indicates what kernel-mode code is safe for direct-mode execution

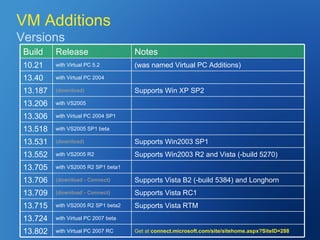

29. VM Additions Versions Get at connect.microsoft.com/site/sitehome.aspx?SiteID=288 with Virtual PC 2007 RC 13.802 with Virtual PC 2007 beta 13.724 Supports Vista RTM with VS2005 R2 SP1 beta2 13.715 Supports Vista RC1 (download - Connect) 13.709 Supports Vista B2 (-build 5384) and Longhorn (download - Connect) 13.706 with VS2005 R2 SP1 beta1 13.705 with Virtual PC 2004 SP1 13.306 (was named Virtual PC Additions) with Virtual PC 5.2 10.21 with Virtual PC 2004 13.40 Supports Win XP SP2 (download) 13.187 Supports Win2003 R2 and Vista (-build 5270) with VS2005 R2 13.552 Supports Win2003 SP1 (download) 13.531 with VS2005 SP1 beta 13.518 with VS2005 13.206 Notes Release Build

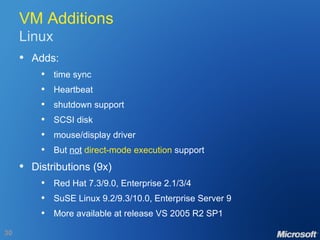

30. VM Additions Linux Adds: time sync Heartbeat shutdown support SCSI disk mouse/display driver But not direct-mode execution support Distributions (9x) Red Hat 7.3/9.0, Enterprise 2.1/3/4 SuSE Linux 9.2/9.3/10.0, Enterprise Server 9 More available at release VS 2005 R2 SP1

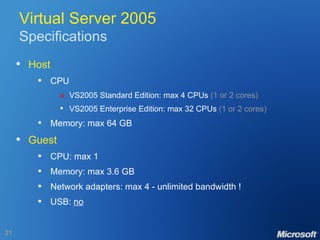

31. Virtual Server 2005 Specifications Host CPU  VS2005 Standard Edition: max 4 CPUs (1 or 2 cores) VS2005 Enterprise Edition: max 32 CPUs (1 or 2 cores) Memory: max 64 GB Guest CPU: max 1 Memory: max 3.6 GB Network adapters: max 4 - unlimited bandwidth ! USB: no

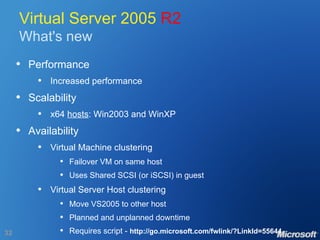

32. Virtual Server 2005 R2 What's new Performance Increased performance Scalability x64 hosts : Win2003 and WinXP Availability Virtual Machine clustering Failover VM on same host Uses Shared SCSI (or iSCSI) in guest Virtual Server Host clustering Move VS2005 to other host Planned and unplanned downtime Requires script - http://go.microsoft.com/fwlink/?LinkId=55644

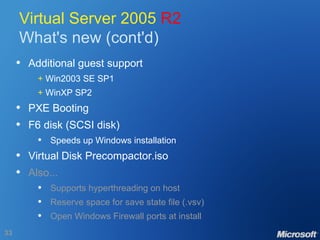

33. Virtual Server 2005 R2 What's new (cont'd) Additional guest support + Win2003 SE SP1 + WinXP SP2 PXE Booting F6 disk (SCSI disk) Speeds up Windows installation Virtual Disk Precompactor.iso Also... Supports hyperthreading on host Reserve space for save state file (.vsv) Open Windows Firewall ports at install

34. Virtual Server 2005 R2 SP1 What's new Features Intel VT and AMD Virtualization support Volume Shadow Copy (VSS) support Active Directory integration using Service Connection Points Vista as Guest support Includes VHD mount tool Also... Host clustering whitepaper included Default vhd capacity is 127 GB (was 16 GB) Additional Linux VM Additions Virtual SCSI fix for Linux 2.6.x guests

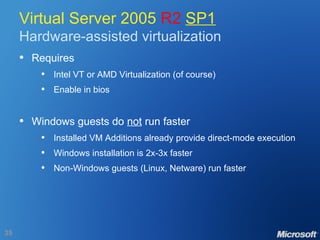

35. Virtual Server 2005 R2 SP1 Hardware-assisted virtualization Requires Intel VT or AMD Virtualization (of course) Enable in bios Windows guests do not run faster Installed VM Additions already provide direct-mode execution Windows installation is 2x-3x faster Non-Windows guests (Linux, Netware) run faster

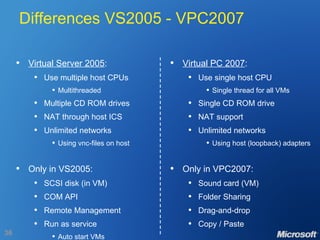

36. Differences VS2005 - VPC2007 Virtual Server 2005 : Use multiple host CPUs Multithreaded Multiple CD ROM drives NAT through host ICS Unlimited networks Using vnc-files on host Only in VS2005: SCSI disk (in VM) COM API Remote Management Run as service Auto start VMs Virtual PC 2007 : Use single host CPU Single thread for all VMs Single CD ROM drive NAT support Unlimited networks Using host (loopback) adapters Only in VPC2007: Sound card (VM) Folder Sharing Drag-and-drop Copy / Paste

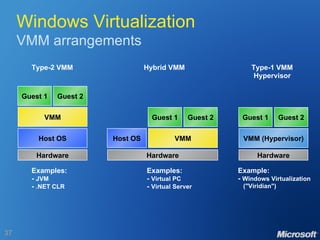

37. Windows Virtualization VMM arrangements Hardware Host OS VMM Guest 1 Guest 2 Hardware VMM (Hypervisor) Guest 1 Guest 2 Hardware VMM Guest 1 Guest 2 Host OS Type-2 VMM Examples: - JVM - .NET CLR Examples: - Virtual PC - Virtual Server Example: - Windows Virtualization ("Viridian") Type-1 VMM Hypervisor Hybrid VMM

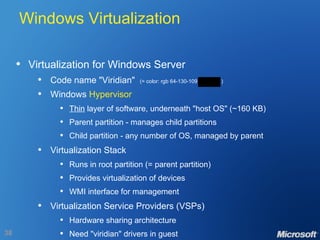

38. Windows Virtualization Virtualization for Windows Server Code name "Viridian" (= color: rgb 64-130-109 ) Windows Hypervisor Thin layer of software, underneath "host OS" (~160 KB) Parent partition - manages child partitions Child partition - any number of OS, managed by parent Virtualization Stack Runs in root partition (= parent partition) Provides virtualization of devices WMI interface for management Virtualization Service Providers (VSPs) Hardware sharing architecture Need "viridian" drivers in guest

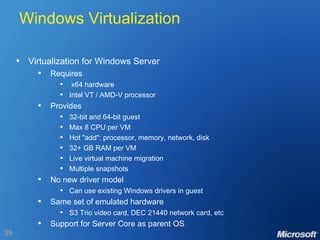

39. Windows Virtualization Virtualization for Windows Server Requires x64 hardware Intel VT / AMD-V processor Provides 32-bit and 64-bit guest Max 8 CPU per VM Hot "add": processor, memory, network, disk 32+ GB RAM per VM Live virtual machine migration Multiple snapshots No new driver model Can use existing Windows drivers in guest Same set of emulated hardware S3 Trio video card, DEC 21440 network card, etc Support for Server Core as parent OS

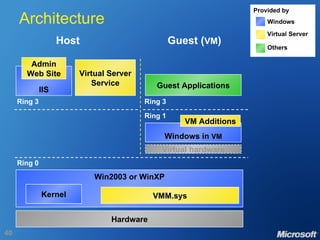

40. Architecture Win2003 or WinXP Kernel VMM.sys Ring 0 Hardware Host Guest ( VM ) Ring 1 Ring 3 Windows in VM VM Additions Guest Applications Ring 3 Virtual Server Service IIS Admin Web Site Virtual hardware Provided by Windows Virtual Server Others

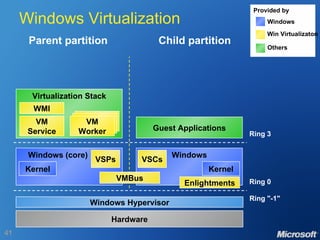

41. Windows Virtualization Windows (core) Kernel Windows Hypervisor Ring 0 Hardware Parent partition Child partition Ring 3 Guest Applications Ring "-1" Windows VMBus Enlightments Kernel VSPs VSCs Virtualization Stack VM Service WMI VM Worker Provided by Windows Win Virtualizaton Others

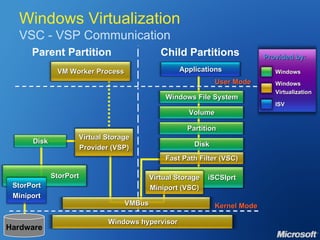

42. Windows Virtualization VSC - VSP Communication Parent Partition Child Partitions Kernel Mode Provided by: Windows ISV Windows Virtualization Hardware User Mode Windows hypervisor Applications VMBus Windows File System Volume Partition Disk Fast Path Filter (VSC) iSCSIprt Virtual Storage Miniport (VSC) Virtual Storage Provider (VSP) StorPort StorPort Miniport VM Worker Process Disk

43. Virtual Server 2005 vs Windows Server Virtualization Virtual Server 2005 R2 Windows Server Virtualization 32-bit VMs? Yes Yes 64-bit VMs? No Yes Multi-processor VMs? No Yes, up to 8 processor VMs VM memory support? 3.6 GB per VM More than 32 GB per VM Hot add memory/processors? No Yes Hot add storage/networking? No Yes Can be managed by System Center Virtual Machine Manager? Yes Yes Microsoft Cluster support? Yes Yes Scriptable / Extensible? Yes, COM Yes, WMI Number of running VMs? 64 More than 64. As many as hardware will allow. User interface Web Interface MMC 3.0 Interface

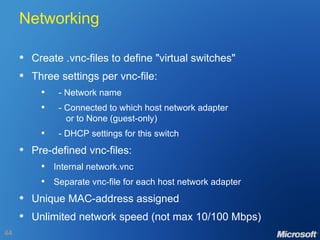

44. Networking Create .vnc-files to define "virtual switches" Three settings per vnc-file: - Network name - Connected to which host network adapter or to None (guest-only) - DHCP settings for this switch Pre-defined vnc-files: Internal network.vnc Separate vnc-file for each host network adapter Unique MAC-address assigned Unlimited network speed (not max 10/100 Mbps)

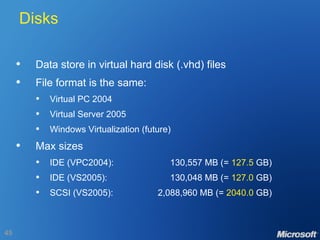

45. Disks Data store in virtual hard disk (.vhd) files File format is the same: Virtual PC 2004 Virtual Server 2005 Windows Virtualization (future) Max sizes IDE (VPC2004): 130,557 MB (= 127.5 GB) IDE (VS2005): 130,048 MB (= 127.0 GB) SCSI (VS2005): 2,088,960 MB (= 2040.0 GB)

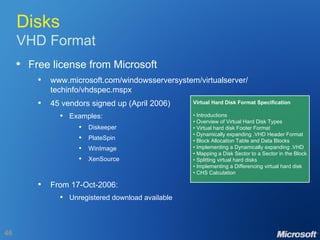

46. Disks VHD Format Free license from Microsoft www.microsoft.com/windowsserversystem/virtualserver/ techinfo/vhdspec.mspx 45 vendors signed up (April 2006) Examples: Diskeeper PlateSpin WinImage XenSource From 17-Oct-2006: Unregistered download available Virtual Hard Disk Format Specification • Introductions • Overview of Virtual Hard Disk Types • Virtual hard disk Footer Format • Dynamically expanding .VHD Header Format • Block Allocation Table and Data Blocks • Implementing a Dynamically expanding .VHD • Mapping a Disk Sector to a Sector in the Block • Splitting virtual hard disks • Implementing a Differencing virtual hard disk • CHS Calculation

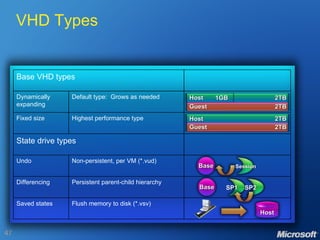

47. VHD Types Guest Host Guest 2TB 2TB 2TB Host SP1 SP2 Host 2TB 1GB Session Flush memory to disk (*.vsv) Saved states Persistent parent-child hierarchy Differencing Non-persistent, per VM (*.vud) Undo State drive types Highest performance type Fixed size Default type: Grows as needed Dynamically expanding Base VHD types VM Base Base

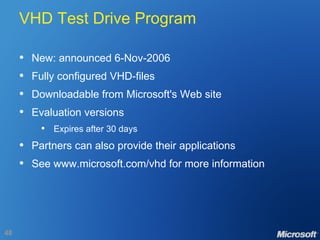

48. VHD Test Drive Program New: announced 6-Nov-2006 Fully configured VHD-files Downloadable from Microsoft's Web site Evaluation versions Expires after 30 days Partners can also provide their applications See www.microsoft.com/vhd for more information

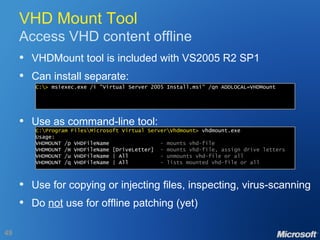

49. VHD Mount Tool Access VHD content offline VHDMount tool is included with VS2005 R2 SP1 Can install separate: Use as command-line tool: Use for copying or injecting files, inspecting, virus-scanning Do not use for offline patching (yet) C:\> msiexec.exe /i "Virtual Server 2005 Install.msi" /qn ADDLOCAL=VHDMount C:\Program Files\Microsoft Virtual Server\Vhdmount> vhdmount.exe Usage: VHDMOUNT /p VHDFileName - mounts vhd-file VHDMOUNT /m VHDFileName [DriveLetter] - mounts vhd-file, assign drive letters VHDMOUNT /u VHDFileName | All - unmounts vhd-file or all VHDMOUNT /q VHDFileName | All - lists mounted vhd-file or all

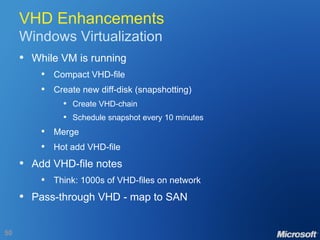

50. VHD Enhancements Windows Virtualization While VM is running Compact VHD-file Create new diff-disk (snapshotting) Create VHD-chain Schedule snapshot every 10 minutes Merge Hot add VHD-file Add VHD-file notes Think: 1000s of VHD-files on network Pass-through VHD - map to SAN

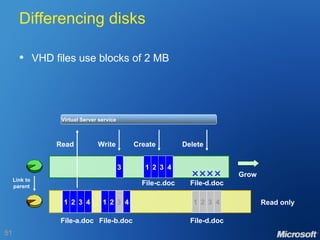

51. Differencing disks VHD files use blocks of 2 MB File-a.doc File-b.doc 1 2 4 File-d.doc Read only Virtual Server service 3 Link to parent Read 1 2 3 4 Create File-c.doc 1 2 3 4 Grow Write 3 3 1 2 3 4 Delete File-d.doc 1 2 3 4

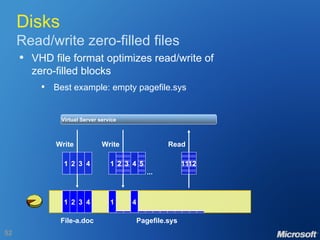

52. Disks Read/write zero-filled files VHD file format optimizes read/write of zero-filled blocks Best example: empty pagefile.sys Virtual Server service Write File-a.doc 1 2 3 4 1 2 3 4 Pagefile.sys Write 1 000 000 000 000 2 4 000 000 000 000 3 000 000 000 000 5 ... 1 4 Read 000 000 000 000 11 000 000 000 000 12

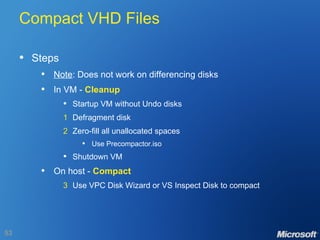

53. Compact VHD Files Steps Note : Does not work on differencing disks In VM - Cleanup Startup VM without Undo disks 1 Defragment disk 2 Zero-fill all unallocated spaces Use Precompactor.iso Shutdown VM On host - Compact 3 Use VPC Disk Wizard or VS Inspect Disk to compact

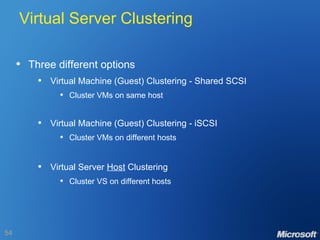

54. Virtual Server Clustering Three different options Virtual Machine (Guest) Clustering - Shared SCSI Cluster VMs on same host Virtual Machine (Guest) Clustering - iSCSI Cluster VMs on different hosts Virtual Server Host Clustering Cluster VS on different hosts

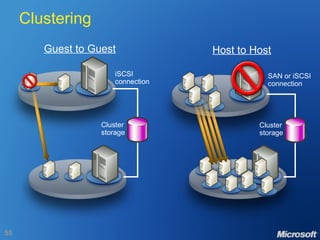

55. Clustering Host to Host Cluster storage SAN or iSCSI connection Guest to Guest Cluster storage iSCSI connection

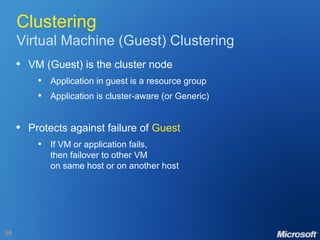

56. Clustering Virtual Machine (Guest) Clustering VM (Guest) is the cluster node Application in guest is a resource group Application is cluster-aware (or Generic) Protects against failure of Guest If VM or application fails, then failover to other VM on same host or on another host

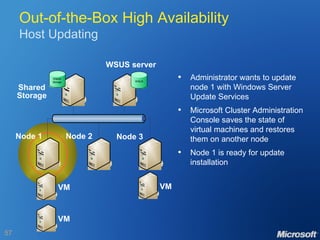

57. Out-of-the-Box High Availability Host Updating Administrator wants to update node 1 with Windows Server Update Services Microsoft Cluster Administration Console saves the state of virtual machines and restores them on another node Node 1 is ready for update installation Node 1 Node 2 Node 3 Shared Storage WSUS server VM VM VM

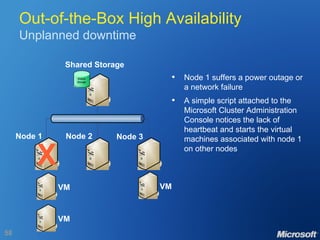

58. Out-of-the-Box High Availability Unplanned downtime Node 1 suffers a power outage or a network failure A simple script attached to the Microsoft Cluster Administration Console notices the lack of heartbeat and starts the virtual machines associated with node 1 on other nodes Node 1 Node 2 Node 3 Shared Storage X VM VM VM

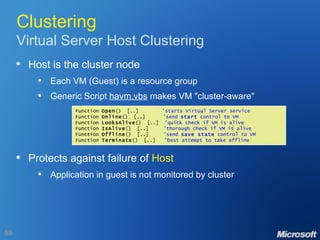

59. Clustering Virtual Server Host Clustering Host is the cluster node Each VM (Guest) is a resource group Generic Script havm.vbs makes VM "cluster-aware" Protects against failure of Host Application in guest is not monitored by cluster Function Open () [..] 'starts Virtual Server service Function Online () [..] 'send start control to VM Function LooksAlive () [..] 'quick check if VM is alive Function IsAlive () [..] 'thorough check if VM is alive Function Offline () [..] 'send save state control to VM Function Terminate () [..] 'best attempt to take offline

60. Clustering Virtual Server Host Clustering Benefits Move VMs before scheduled host maintenance Hardware upgrades Software updates on host Steps : Saves state VM1 - failover - restore state in VM2 Protect against unscheduled host failure Steps : (Oops) - failover - startup VM2 Run legacy operating systems in a "clustered" way

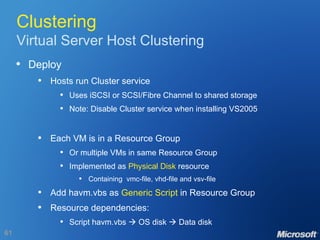

61. Clustering Virtual Server Host Clustering Deploy Hosts run Cluster service Uses iSCSI or SCSI/Fibre Channel to shared storage Note: Disable Cluster service when installing VS2005 Each VM is in a Resource Group Or multiple VMs in same Resource Group Implemented as Physical Disk resource Containing vmc-file, vhd-file and vsv-file Add havm.vbs as Generic Script in Resource Group Resource dependencies: Script havm.vbs  OS disk  Data disk

62. Management Pain points now Existing tools: Do not map to virtual environments Provisioning Backup Health monitoring Performance monitoring / management Do not consider physical - virtual relationship Ownership Patching and servicing

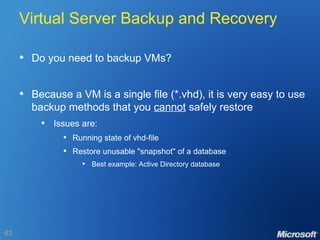

63. Virtual Server Backup and Recovery Do you need to backup VMs? Because a VM is a single file (*.vhd), it is very easy to use backup methods that you cannot safely restore Issues are: Running state of vhd-file Restore unusable "snapshot" of a database Best example: Active Directory database

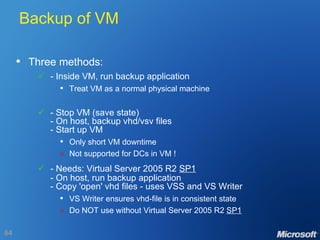

64. Backup of VM Three methods:  - Inside VM, run backup application Treat VM as a normal physical machine  - Stop VM (save state) - On host, backup vhd/vsv files - Start up VM Only short VM downtime  Not supported for DCs in VM !  - Needs: Virtual Server 2005 R2 SP1 - On host, run backup application - Copy 'open' vhd files - uses VSS and VS Writer VS Writer ensures vhd-file is in consistent state  Do NOT use without Virtual Server 2005 R2 SP1

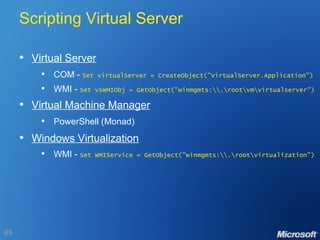

65. Scripting Virtual Server Virtual Server COM - Set virtualServer = CreateObject("VirtualServer.Application") WMI - Set vsWMIObj = GetObject("winmgmts:\\.\root\vm\virtualserver") Virtual Machine Manager PowerShell (Monad) Windows Virtualization WMI - Set WMIService = GetObject("winmgmts:\\.\root\virtualization")

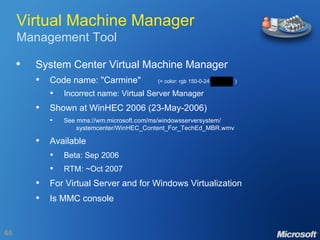

66. Virtual Machine Manager Management Tool System Center Virtual Machine Manager Code name: "Carmine" (= color: rgb 150-0-24 ) Incorrect name: Virtual Server Manager Shown at WinHEC 2006 (23-May-2006) See mms://wm.microsoft.com/ms/windowsserversystem/ systemcenter/WinHEC_Content_For_TechEd_MBR.wmv Available Beta: Sep 2006 RTM: ~Oct 2007 For Virtual Server and for Windows Virtualization Is MMC console VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM

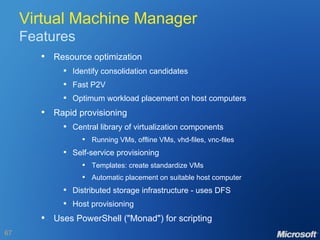

67. Virtual Machine Manager Features Resource optimization Identify consolidation candidates Fast P2V Optimum workload placement on host computers Rapid provisioning Central library of virtualization components Running VMs, offline VMs, vhd-files, vnc-files Self-service provisioning Templates: create standardize VMs Automatic placement on suitable host computer Distributed storage infrastructure - uses DFS Host provisioning Uses PowerShell ("Monad") for scripting

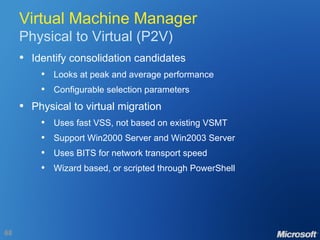

68. Virtual Machine Manager Physical to Virtual (P2V) Identify consolidation candidates Looks at peak and average performance Configurable selection parameters Physical to virtual migration Uses fast VSS, not based on existing VSMT Support Win2000 Server and Win2003 Server Uses BITS for network transport speed Wizard based, or scripted through PowerShell

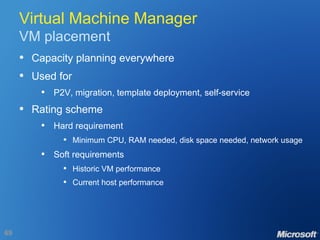

69. Virtual Machine Manager VM placement Capacity planning everywhere Used for P2V, migration, template deployment, self-service Rating scheme Hard requirement Minimum CPU, RAM needed, disk space needed, network usage Soft requirements Historic VM performance Current host performance

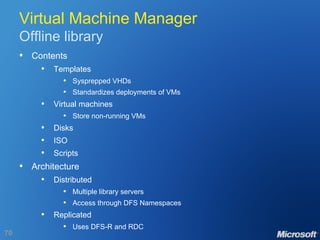

70. Virtual Machine Manager Offline library Contents Templates Sysprepped VHDs Standardizes deployments of VMs Virtual machines Store non-running VMs Disks ISO Scripts Architecture Distributed Multiple library servers Access through DFS Namespaces Replicated Uses DFS-R and RDC

71. Virtual Machine Manager Self-service portal Web based interface Controls management deployment End users interact with their own VMs Deployment based on templates Resource quotas set per user VMs may retire after "lease" expires

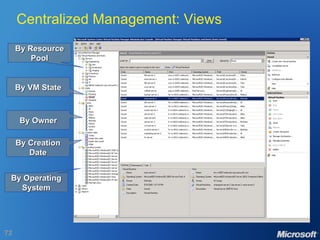

72. Centralized Management: Views By Resource Pool By VM State By Owner By Creation Date By Operating System

73. Centralized Management: Reports Full set of reports, integration with MOM database Actions one click away in context sensitive Actions Pane

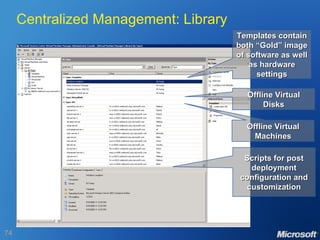

74. Centralized Management: Library Templates contain both “Gold” image of software as well as hardware settings Offline Virtual Disks Offline Virtual Machines Scripts for post deployment configuration and customization

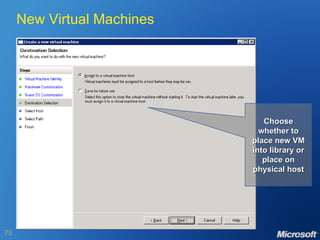

75. New Virtual Machines Choose whether to place new VM into library or place on physical host

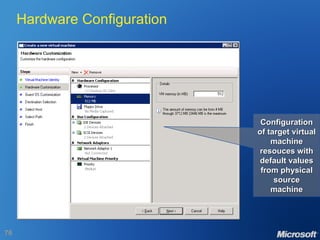

76. Hardware Configuration Configuration of target virtual machine resouces with default values from physical source machine

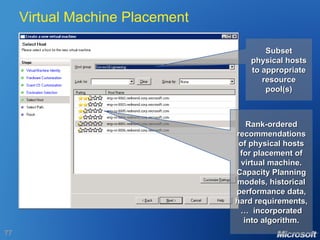

77. Virtual Machine Placement Subset physical hosts to appropriate resource pool(s) Rank-ordered recommendations of physical hosts for placement of virtual machine. Capacity Planning models, historical performance data, hard requirements, … incorporated into algorithm.

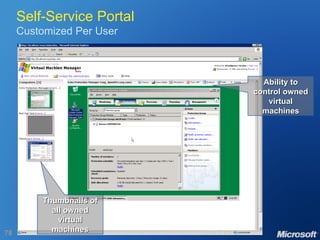

78. Self-Service Portal Customized Per User Ability to control owned virtual machines Thumbnails of all owned virtual machines

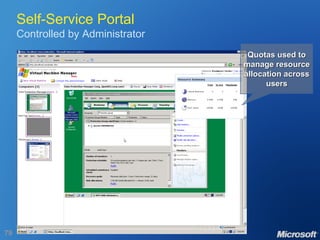

79. Self-Service Portal Controlled by Administrator Quotas used to manage resource allocation across users

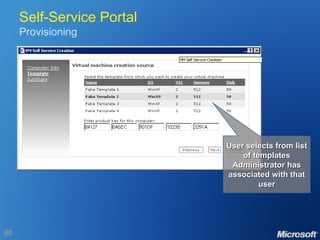

80. Self-Service Portal Provisioning User selects from list of templates Administrator has associated with that user

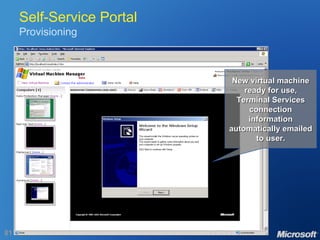

81. Self-Service Portal Provisioning New virtual machine ready for use, Terminal Services connection information automatically emailed to user.

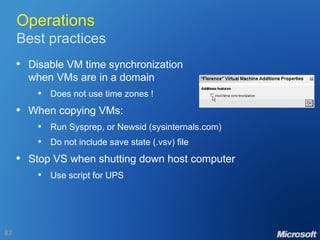

82. Operations Best practices Disable VM time synchronization when VMs are in a domain Does not use time zones ! When copying VMs: Run Sysprep, or Newsid (sysinternals.com) Do not include save state (.vsv) file Stop VS when shutting down host computer Use script for UPS

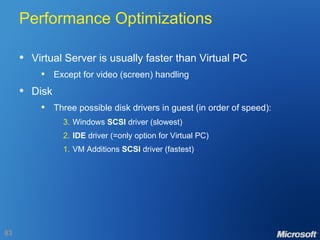

83. Performance Optimizations Virtual Server is usually faster than Virtual PC Except for video (screen) handling Disk Three possible disk drivers in guest (in order of speed): 3. Windows SCSI driver (slowest) 2. IDE driver (=only option for Virtual PC) 1. VM Additions SCSI driver (fastest)

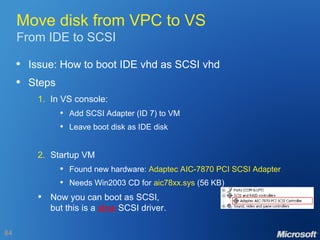

84. Move disk from VPC to VS From IDE to SCSI Issue: How to boot IDE vhd as SCSI vhd Steps 1. In VS console: Add SCSI Adapter (ID 7) to VM Leave boot disk as IDE disk 2. Startup VM Found new hardware: Adaptec AIC-7870 PCI SCSI Adapter Needs Win2003 CD for aic78xx.sys (56 KB) Now you can boot as SCSI, but this is a slow SCSI driver.

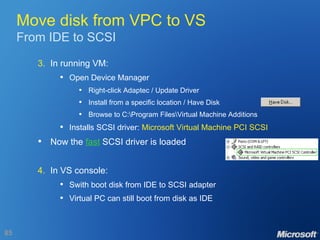

85. Move disk from VPC to VS From IDE to SCSI 3. In running VM: Open Device Manager Right-click Adaptec / Update Driver Install from a specific location / Have Disk Browse to C:\Program Files\Virtual Machine Additions Installs SCSI driver: Microsoft Virtual Machine PCI SCSI Now the fast SCSI driver is loaded 4. In VS console: Swith boot disk from IDE to SCSI adapter Virtual PC can still boot from disk as IDE

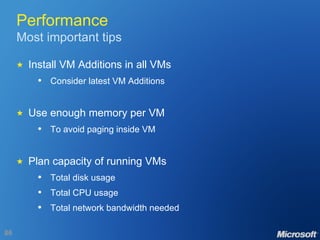

86. Performance Most important tips  Install VM Additions in all VMs Consider latest VM Additions  Use enough memory per VM To avoid paging inside VM  Plan capacity of running VMs Total disk usage Total CPU usage Total network bandwidth needed

87. Performance On host On host, for disks: Use multiple physical disks Use SCSI host disks Defragment host disk Use NTFS Use NTFS compression - maybe On host, use multiple network adapters Unbind Virtual Machine Network Service from dedicated host adapter On host, exclude .vhd from virus-scanning On host, do not use /3GB in boot.ini VMs use non-paged kernel memory

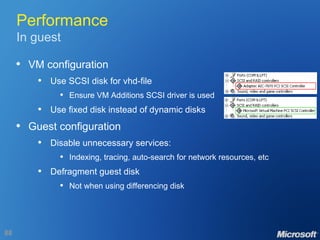

88. Performance In guest VM configuration Use SCSI disk for vhd-file Ensure VM Additions SCSI driver is used Use fixed disk instead of dynamic disks Guest configuration Disable unnecessary services: Indexing, tracing, auto-search for network resources, etc Defragment guest disk Not when using differencing disk

89. Summary/Call to Action

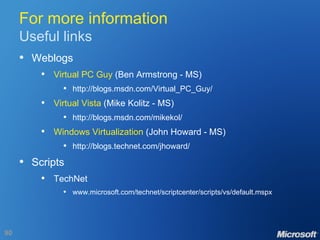

90. For more information Useful links Weblogs Virtual PC Guy (Ben Armstrong - MS) http://blogs.msdn.com/Virtual_PC_Guy/ Virtual Vista (Mike Kolitz - MS) http://blogs.msdn.com/mikekol/ Windows Virtualization (John Howard - MS) http://blogs.technet.com/jhoward/ Scripts TechNet www.microsoft.com/technet/scriptcenter/scripts/vs/default.mspx

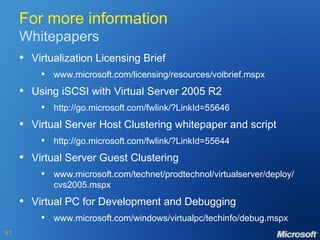

91. For more information Whitepapers Virtualization Licensing Brief www.microsoft.com/licensing/resources/volbrief.mspx Using iSCSI with Virtual Server 2005 R2 http://go.microsoft.com/fwlink/?LinkId=55646 Virtual Server Host Clustering whitepaper and script http://go.microsoft.com/fwlink/?LinkId=55644 Virtual Server Guest Clustering www.microsoft.com/technet/prodtechnol/virtualserver/deploy/ cvs2005.mspx Virtual PC for Development and Debugging www.microsoft.com/windows/virtualpc/techinfo/debug.mspx

92. For more information Download software Virtual Server 2005 R2 EE www.microsoft.com/windowsserversystem/virtualserver/software/ default.mspx Virtual Server 2005 R2 SP1 Beta2 connect.microsoft.com - sign-up for beta Virtual PC 2004 SP1 www.microsoft.com/windows/virtualpc/downloads/sp1.mspx Virtual PC 2007 RC (including VM Additions 13.802) connect.microsoft.com - sign up for beta Linux VM Additions www.microsoft.com/windowsserversystem/virtualserver/ evaluation/linuxguestsupport/default.mspx VSMT http://go.microsoft.com/fwlink/?LinkId=37030
