This document discusses using Apache Spark to generate Elasticsearch indices offline in order to offload an Elasticsearch cluster. It describes how directly indexing to a live cluster and using Lucene failed due to performance issues. The presented solution uses Spark with a local Elasticsearch node to generate indices offline at speeds over 30,000 documents per second, then restores them to the main cluster. Future work ideas include improving shard routing and indexing speed.

1. Using Apache Spark for generating
ElasticSearch indices offline
Andrej Babolčai
ESET Database systems engineer
Apache: Big Data Europe 2016

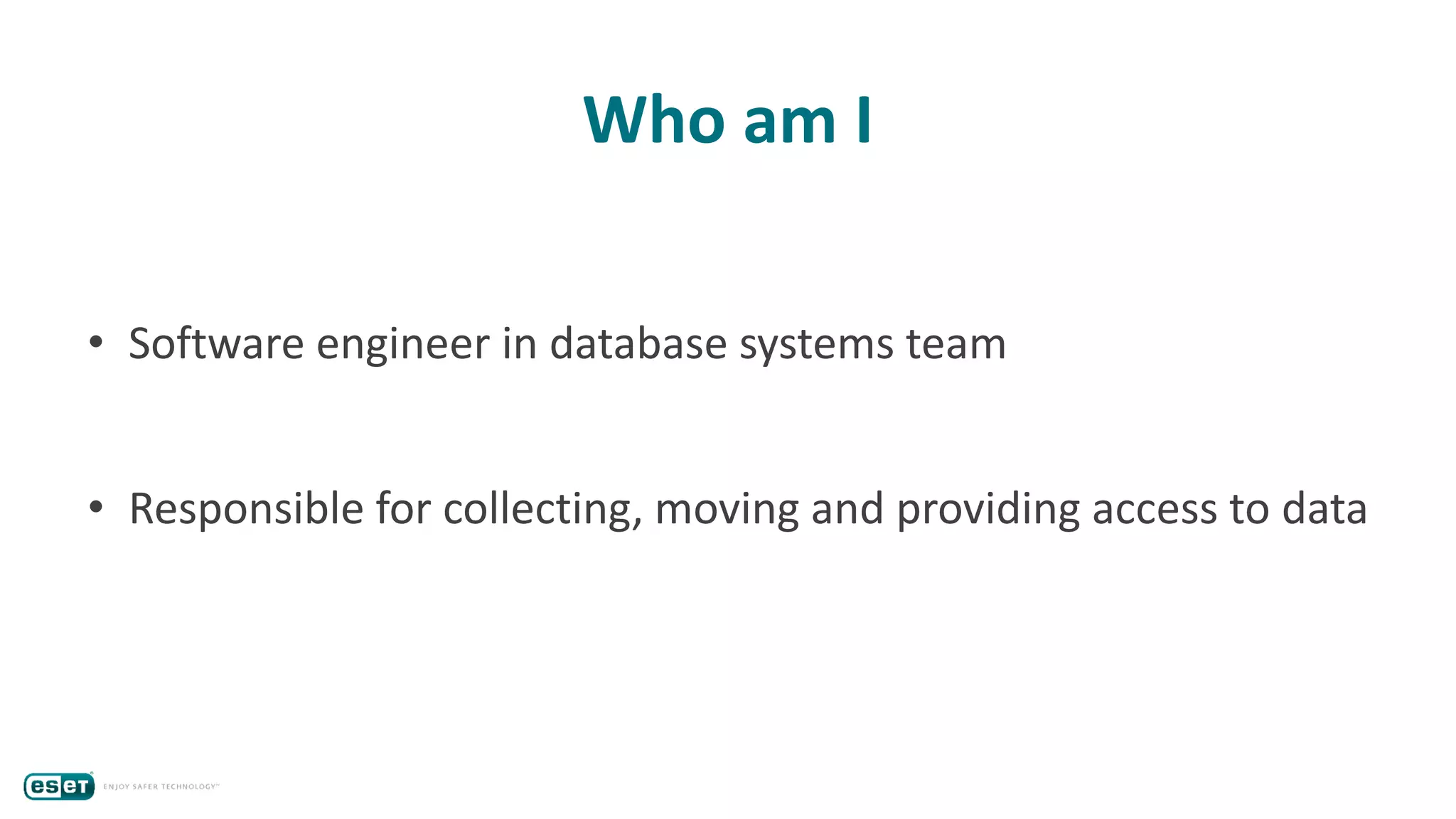

2. Who am I
• Software engineer in database systems team
• Responsible for collecting, moving and providing access to data

3. Context
Apache
Kafka
Apache
Hive/Impala
ElasticSearch

4. Agenda
• Approaches we tried and why they failed
• Solution used, Spark + ES
• Benchmark, summary and possible improvements

5. Agenda
• Approaches we tried and why they failed
• Solution used, Spark + ES
• Benchmark, summary and possible improvements

6. Indexing data to live cluster
• Failed because of
• Slowed search and near real-time (NRT) import
• Reduce ingestion speed - too slow

7. Spark job with Lucene library
• Approach
• Generate indices with Lucene and “import” them to ES
• Indexing with Lucene is fast, hundreds of GB/hour
• Failed because of
• ES types in Lucene
• ES translog and checksum

8. Agenda
• Approaches tried and why they failed
• Solution used, Spark + ES
• Benchmark, summary and possible improvements

9. Goal
• Offload ES cluster and generate indices on Spark cluster
• We want indices to be “ready to use”
• When appropriate copy them to ES

10. Spark + local ES
• Based on https://github.com/MyPureCloud/elasticsearch-
lambda
• Similar approach to Cloudera Solr MapReduceIndexerTool

11. How do we generate indices offline
S
p
a
r
k
0 partition
1 partition
n partition
…
Start ES
n shards/
1 with data
Start ES
Start ES
…
…
HDFS repository
Index/0
Index/1
Index/n
Input
Data
1 partition 1. shard (data)
0. shard (empty)
n. shard (empty)
… SnapshotConstant shard routing
0. sh. snapshot(empty)
1. sh. snapshot
n. sh. snapshot(empty)

12. HDFS snapshot repository layout
Dest dir
indices
idxname-2015
idxname-2016
0
__r
__z
1
meta-idxname-
2016.dat
snap-idxname-
2016.dat

13. Creating local ES node
val nodeSettings: Settings = Settings.builder
.put("http.enabled", false)
.put("processors", 1)
.put("index.merge.scheduler.max_thread_count", 1)
…
.build
val node: Node =
nodeBuilder().settings(nodeSettings).local(true).node()
node.start
val client: Client = node.client
client.admin.indices. … .setSource(mapping).get
HTTP unnecessary, use transport interface
Only JVM local node discovery
Same json mapping as Index API (http)

14. RDD export like saveAsTextFile
rddToIndex
.repartition(config.numShards)
.saveToESSnapshot(
config,…

15. We use implicit conversions
package object spark {
implicit class
DBSysSparkRDDFunctions
[T <: Map[String,Object]] //Row
(val rdd: RDD[T]) extends AnyVal {
def saveToESSnapshot(config:String,…):Unit = {
…
rdd.sparkContext.runJob(rdd,esWriter.processPartition _)
Input RDD type bound
Indexing method
Infiltrate spark namespace

16. Useful ES commands
• Create HDFS snapshot repository:
curl -s -XPUT 'localhost:9200/_snapshot/<Repo name>' -d '{
"type": "hdfs",
"settings": {
"uri": "hdfs://namenode:8020/",
"path": "/user/<username>/<Snapshot repo hdfs path>",
"load_defaults": "false"
}
}’

17. Useful ES commands
• Start restore process:
curl -XPOST 'localhost:9200/_snapshot/<Repo name>/<snapshot name>/_restore’
• Monitor restore progress:
curl -s –XGET 'localhost:9200/_cat/recovery?v' |
awk '{print $1 " " $11}' |
fgrep -v " 0.0%" |
fgrep -v "100.0%"

18. Agenda
• Approaches tried and why they failed
• Solution used, Spark + ES
• Benchmark, summary and possible improvements

19. ES cluster configuration
Property Value
Number of nodes 24
ES heap size 29GB
CPUs 8 (/proc/cpuinfo)
HDD 2x3.5TB / node
No. of indices 130
No. of shards ~3900
Data size 16 TB
No. of docs > 60 billion
Indexing speed (what we can handle…) ~1000 docs/s

20. Offline indexing environment
Property Value
Input size 135GB compr. parquet
Number of docs 470M
CPUs (indexing) 15 spark workers
Memory 4GB /worker
Output index layout 20 string fields, 15 part.
Job duration ~3.5h
Restore duration ~20m
Duration total ~4h
Indexing speed >30k docs/s

21. Future work
• Shard routing
• Indexing on local FS, use directly HDFS
• Speed up indexing
• Use for stream indexing

22. Summary
• Hard to directly compare RT with our offline approach
• What we wanted was to make historical data available for
users, without influencing production systems
https://github.com/andybab/OfflineESIndexGenerator

23. Thank you
Questions?
