The document discusses using CUDA within Mathematica. It provides an overview and introduces Mathematica and its API. It then discusses how to use MathLink to allow Mathematica to call CUDA functions in an external program. It provides examples of simple MathLink programs and discusses how to handle different data types like lists, arrays, complex numbers when communicating between Mathematica and external CUDA programs.

1. Using CUDA
within
Mathematica
Kashif Rasul
and Raqibul Hassan
l a b s

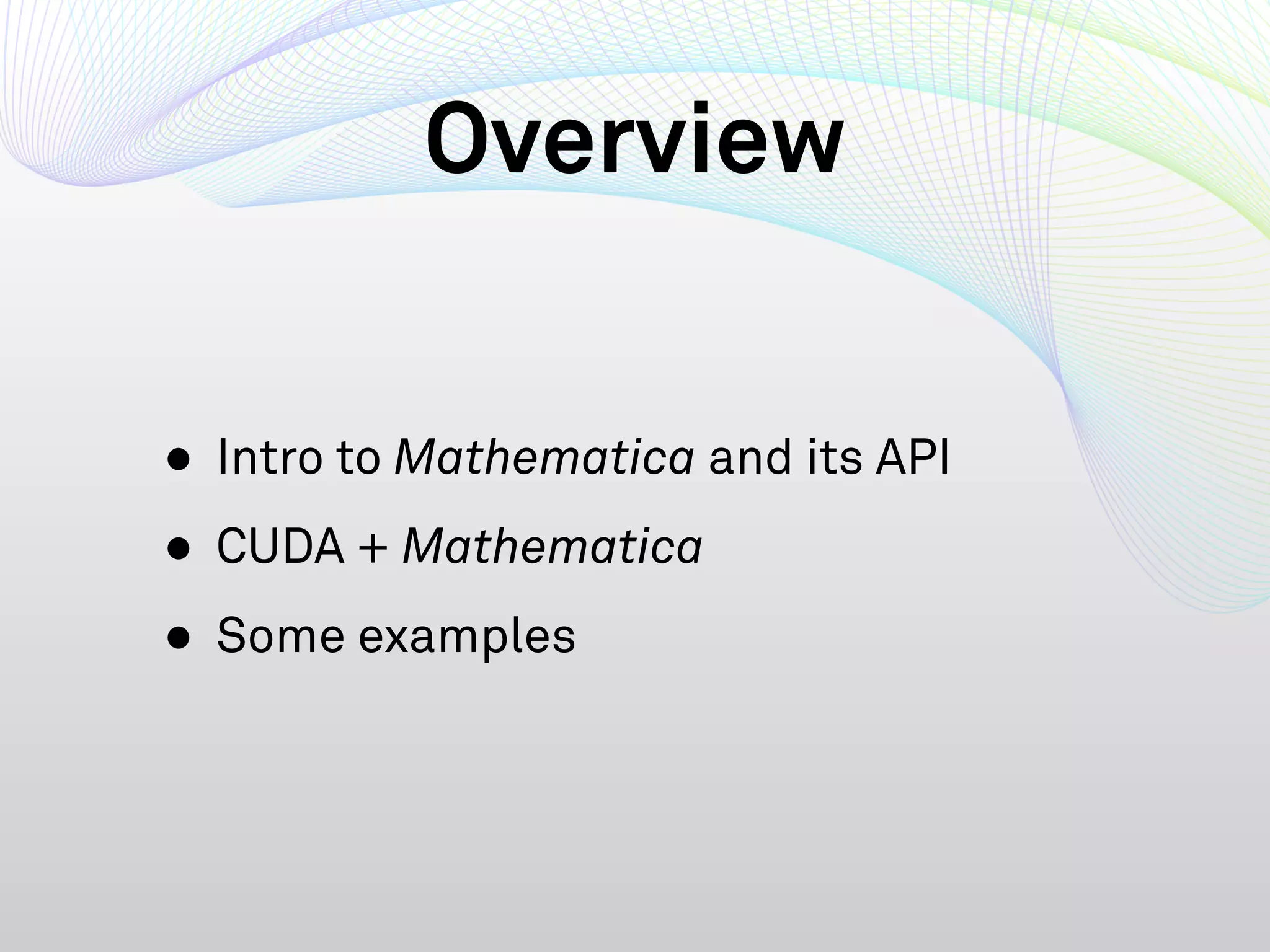

2. Overview
• Intro to Mathematica and its API
• CUDA + Mathematica
• Some examples

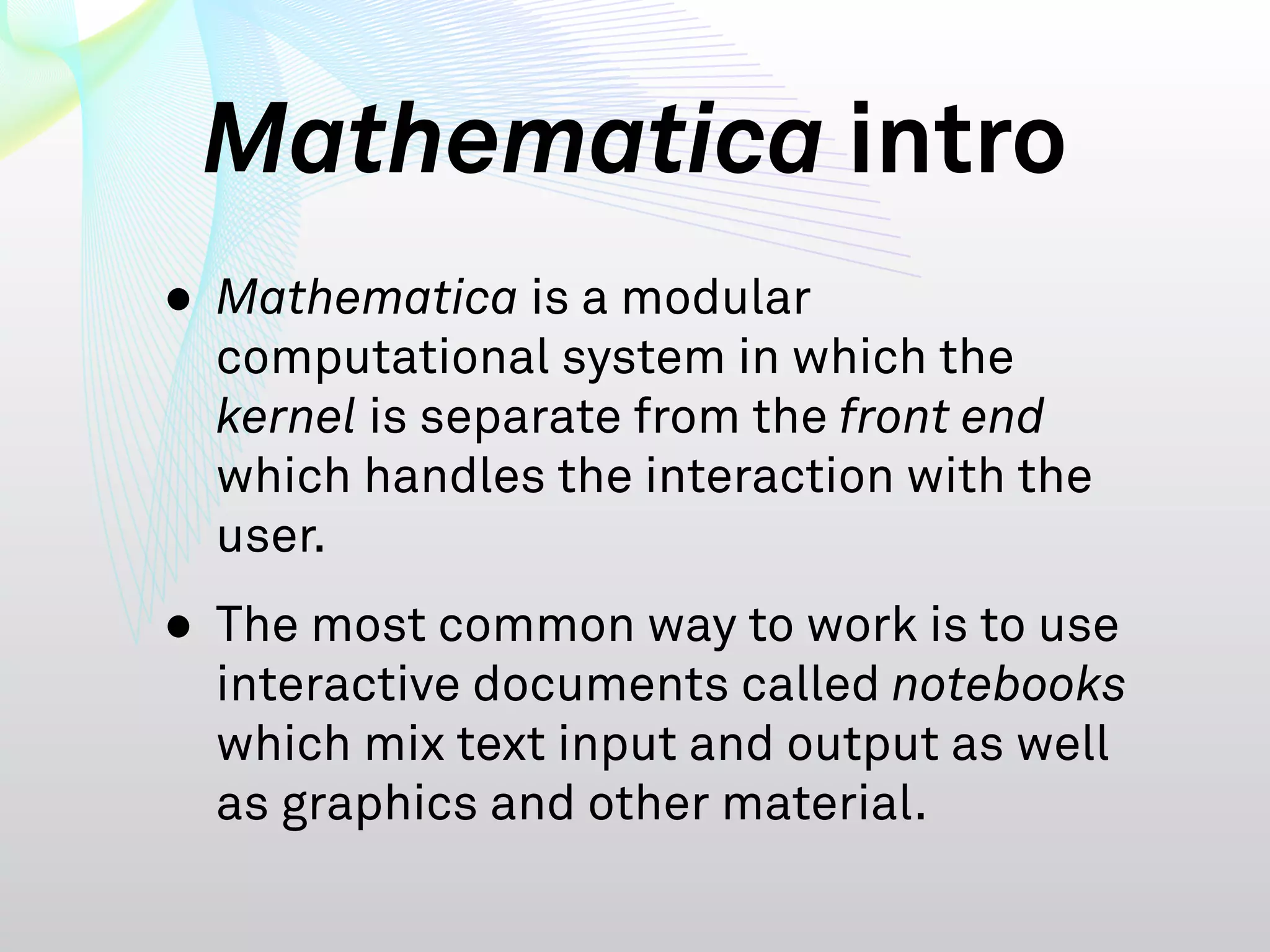

3. Mathematica intro
• Mathematica is a modular
computational system in which the
kernel is separate from the front end
which handles the interaction with the
user.
• The most common way to work is to use
interactive documents called notebooks
which mix text input and output as well
as graphics and other material.

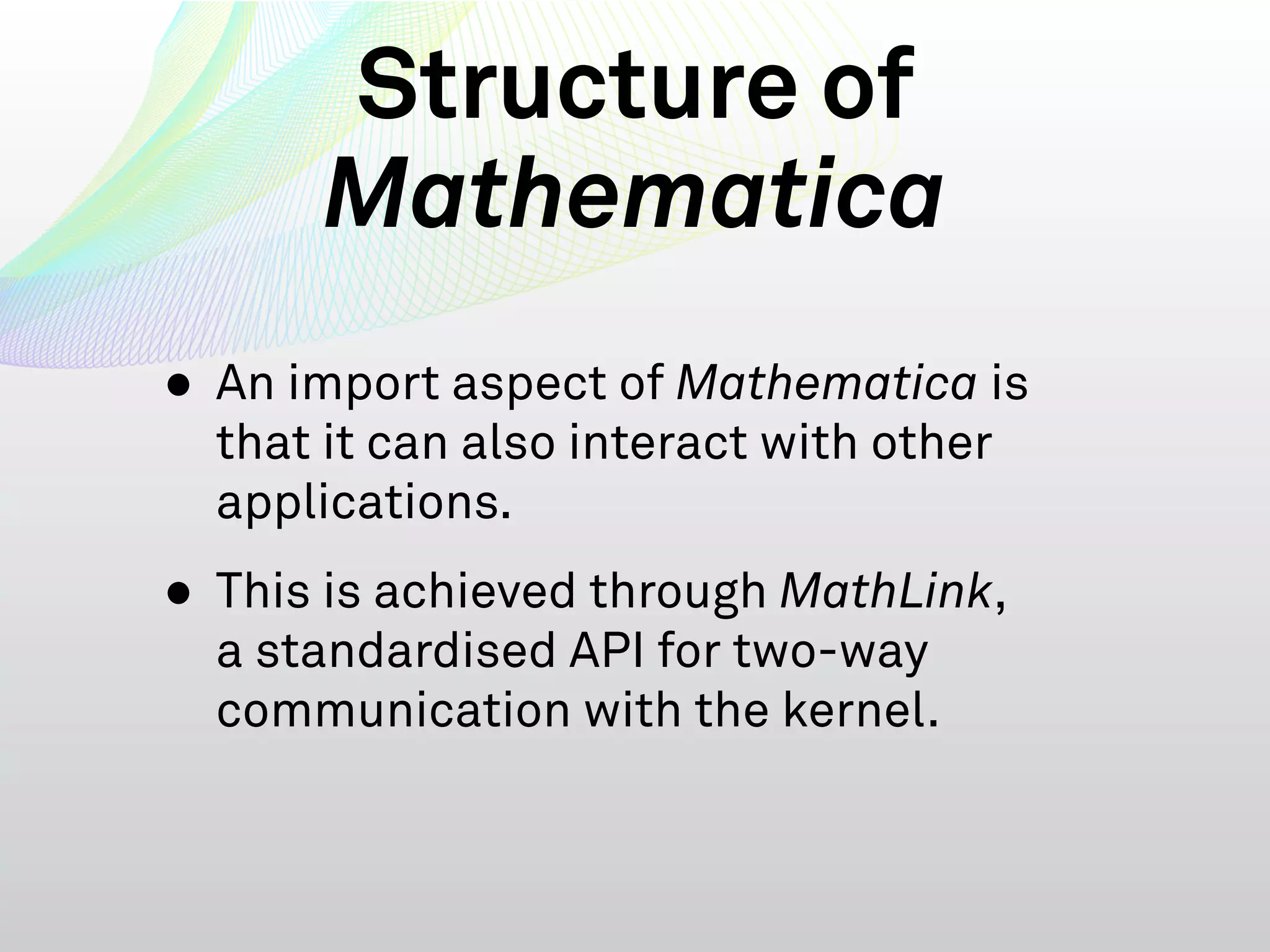

4. Structure of
Mathematica
• An import aspect of Mathematica is
that it can also interact with other
applications.
• This is achieved through MathLink,
a standardised API for two-way
communication with the kernel.

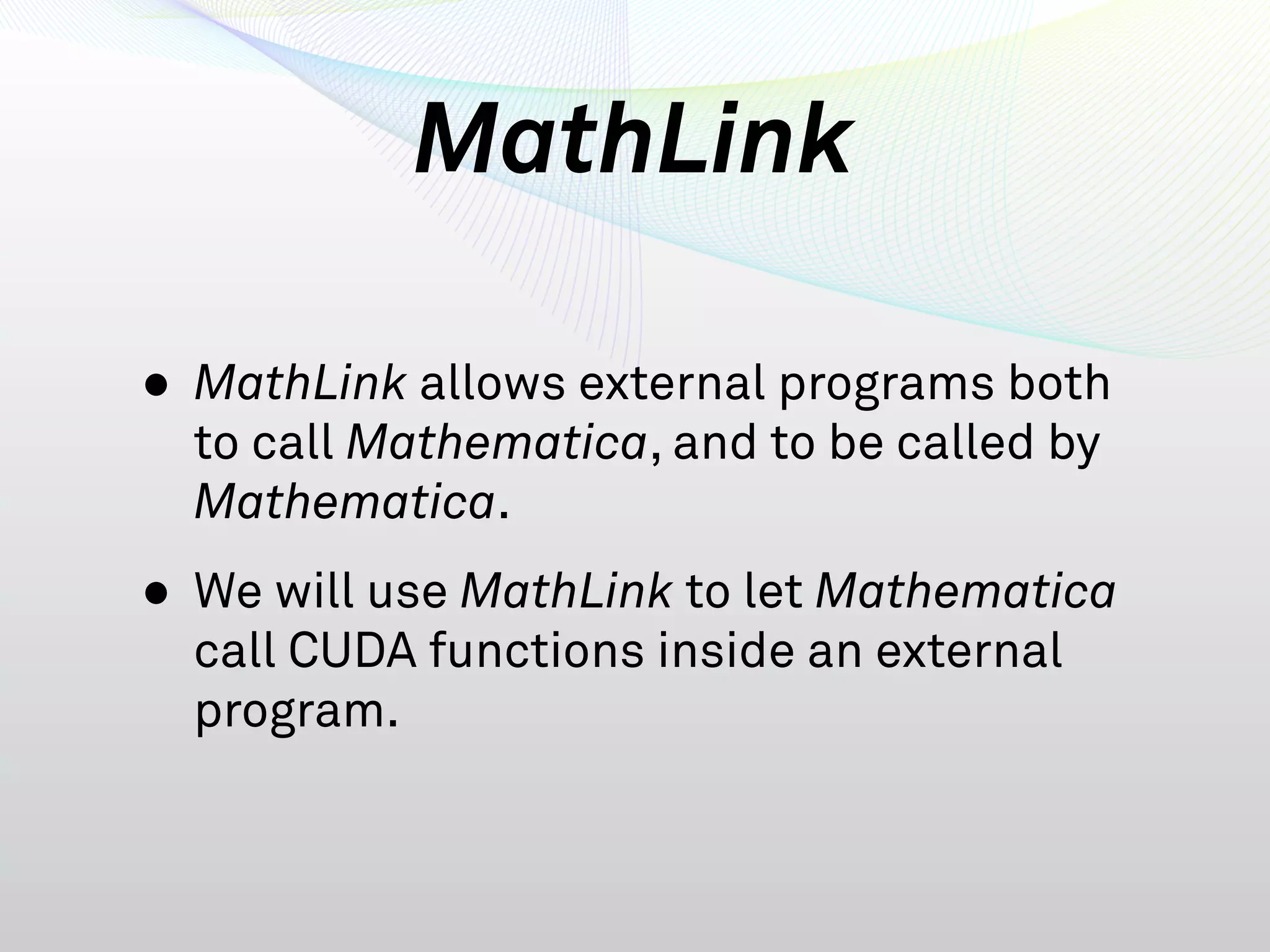

5. MathLink
• MathLink allows external programs both
to call Mathematica, and to be called by
Mathematica.
• We will use MathLink to let Mathematica
call CUDA functions inside an external
program.

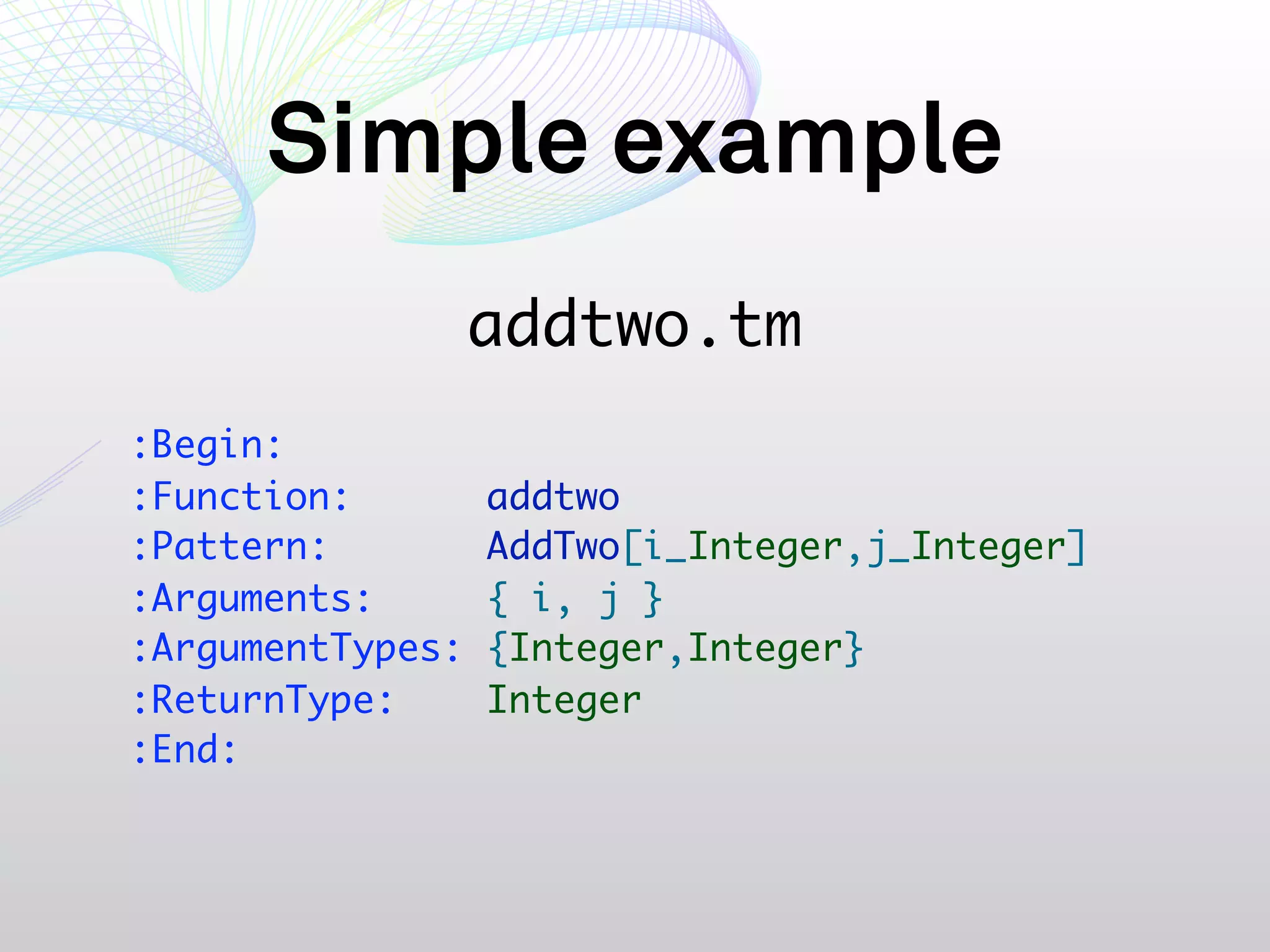

6. Simple example
addtwo.tm
:Begin:
:Function: addtwo
:Pattern: AddTwo[i_Integer,j_Integer]
:Arguments: { i, j }
:ArgumentTypes: {Integer,Integer}
:ReturnType: Integer
:End:

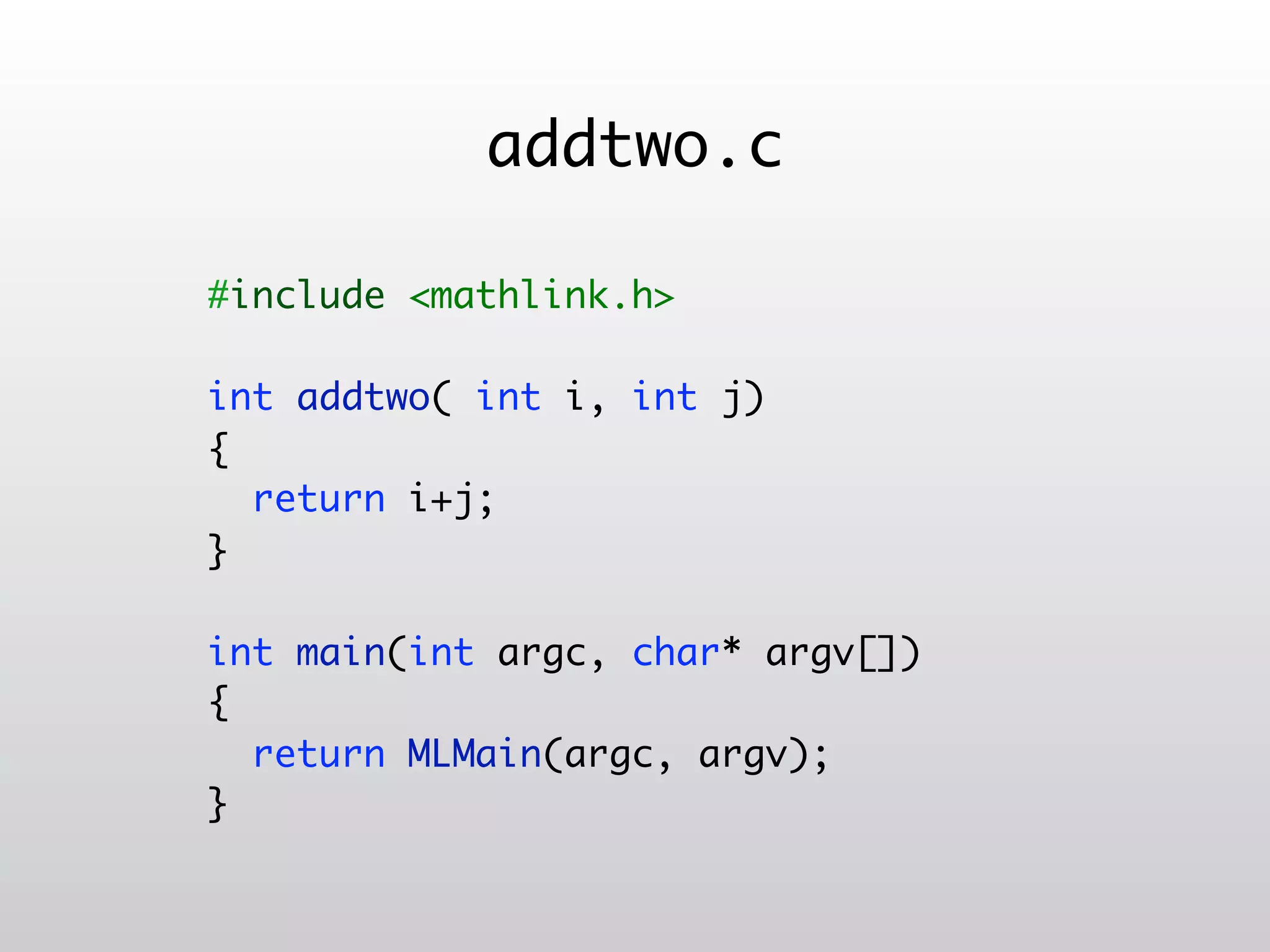

7. addtwo.c
#include <mathlink.h>
int addtwo( int i, int j)
{
return i+j;
}
int main(int argc, char* argv[])
{
return MLMain(argc, argv);
}

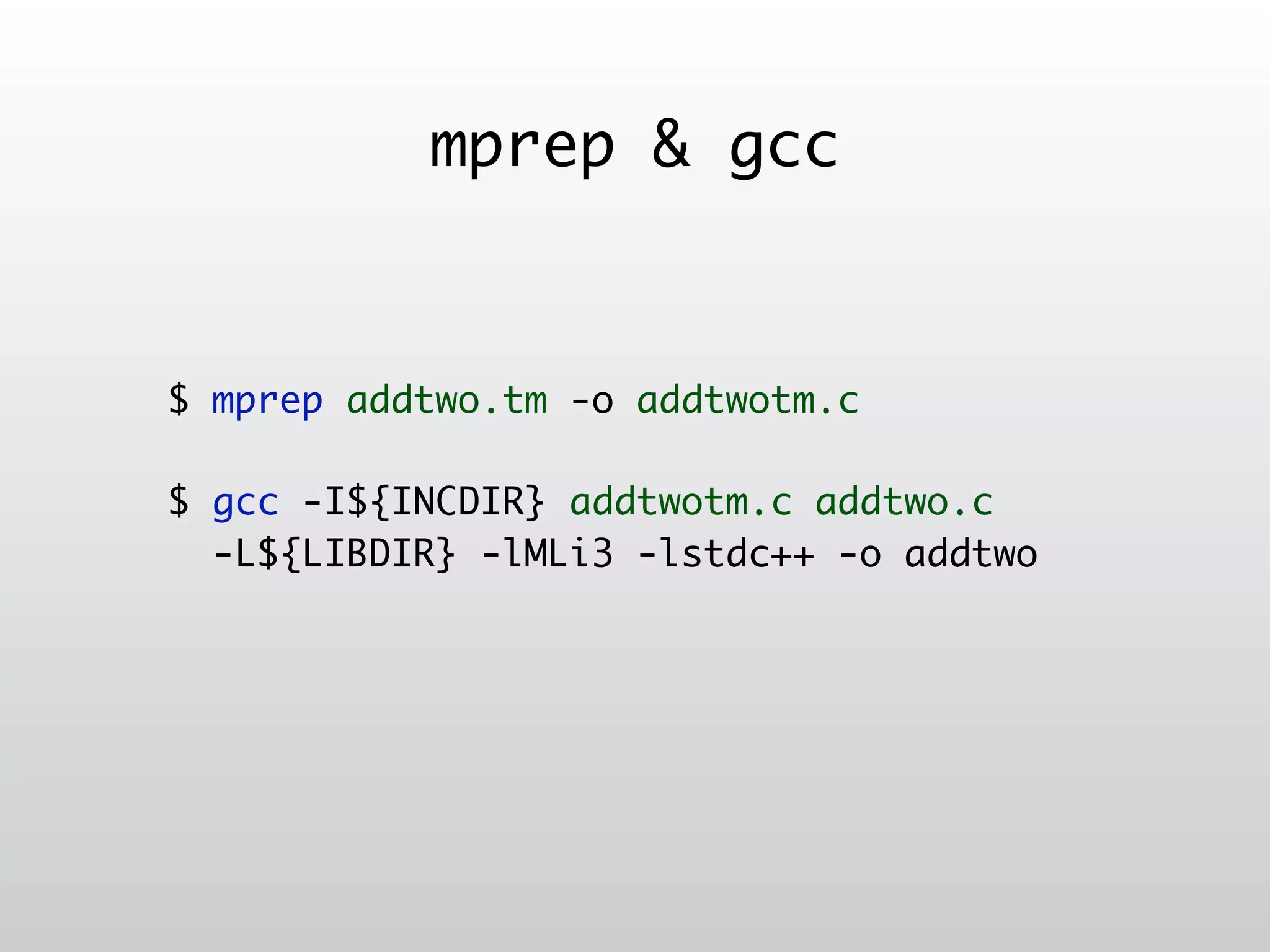

8. mprep & gcc
$ mprep addtwo.tm -o addtwotm.c
$ gcc -I${INCDIR} addtwotm.c addtwo.c
-L${LIBDIR} -lMLi3 -lstdc++ -o addtwo

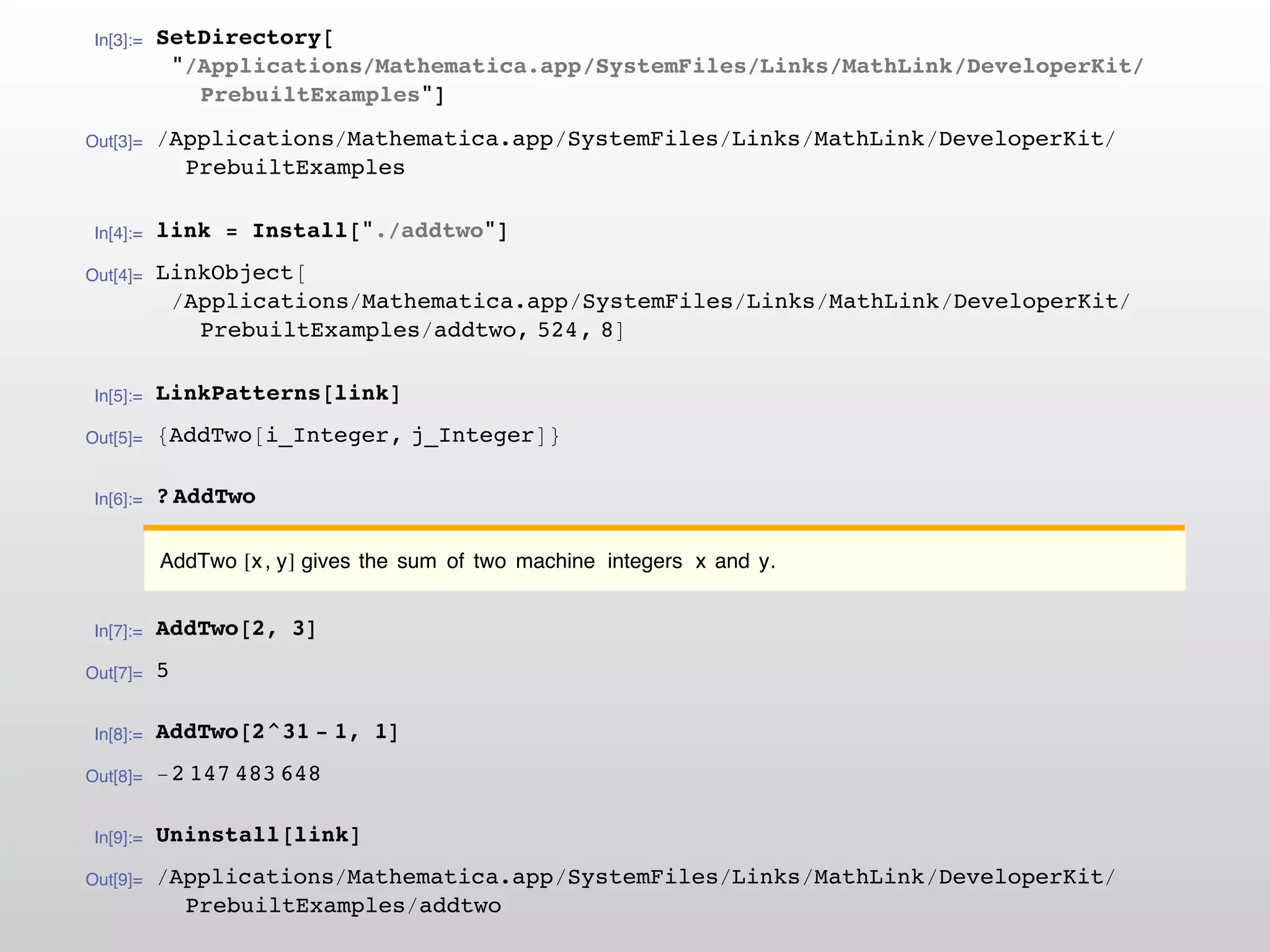

9. In[3]:= SetDirectory
" Applications Mathematica.app SystemFiles Links MathLink DeveloperKit
PrebuiltExamples"
Out[3]= Applications Mathematica.app SystemFiles Links MathLink DeveloperKit
PrebuiltExamples
In[4]:= link Install ". addtwo"
Out[4]= LinkObject
Applications Mathematica.app SystemFiles Links MathLink DeveloperKit
PrebuiltExamples addtwo, 524, 8
In[5]:= LinkPatterns link
Out[5]= AddTwo i_Integer, j_Integer
In[6]:= ? AddTwo
AddTwo x , y gives the sum of two machine integers x and y.
In[7]:= AddTwo 2, 3
Out[7]= 5
In[8]:= AddTwo 2^31 1, 1
Out[8]= 2 147 483 648
In[9]:= Uninstall link
Out[9]= Applications Mathematica.app SystemFiles Links MathLink DeveloperKit
PrebuiltExamples addtwo

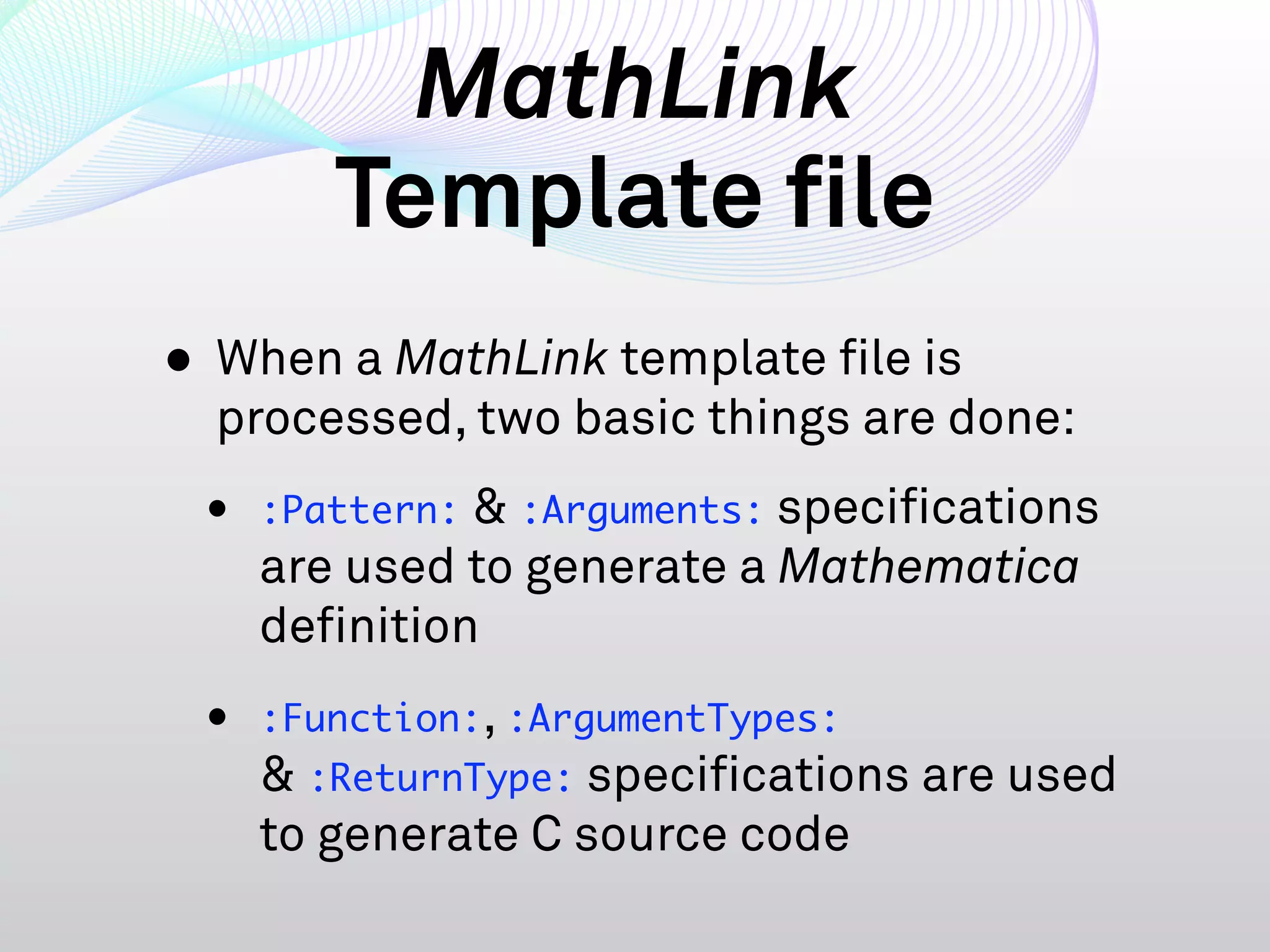

10. MathLink
Template file
• When a MathLink template file is
processed, two basic things are done:
• :Pattern:& :Arguments: specifications
are used to generate a Mathematica
definition
• :Function:, :ArgumentTypes:
& :ReturnType: specifications are used
to generate C source code

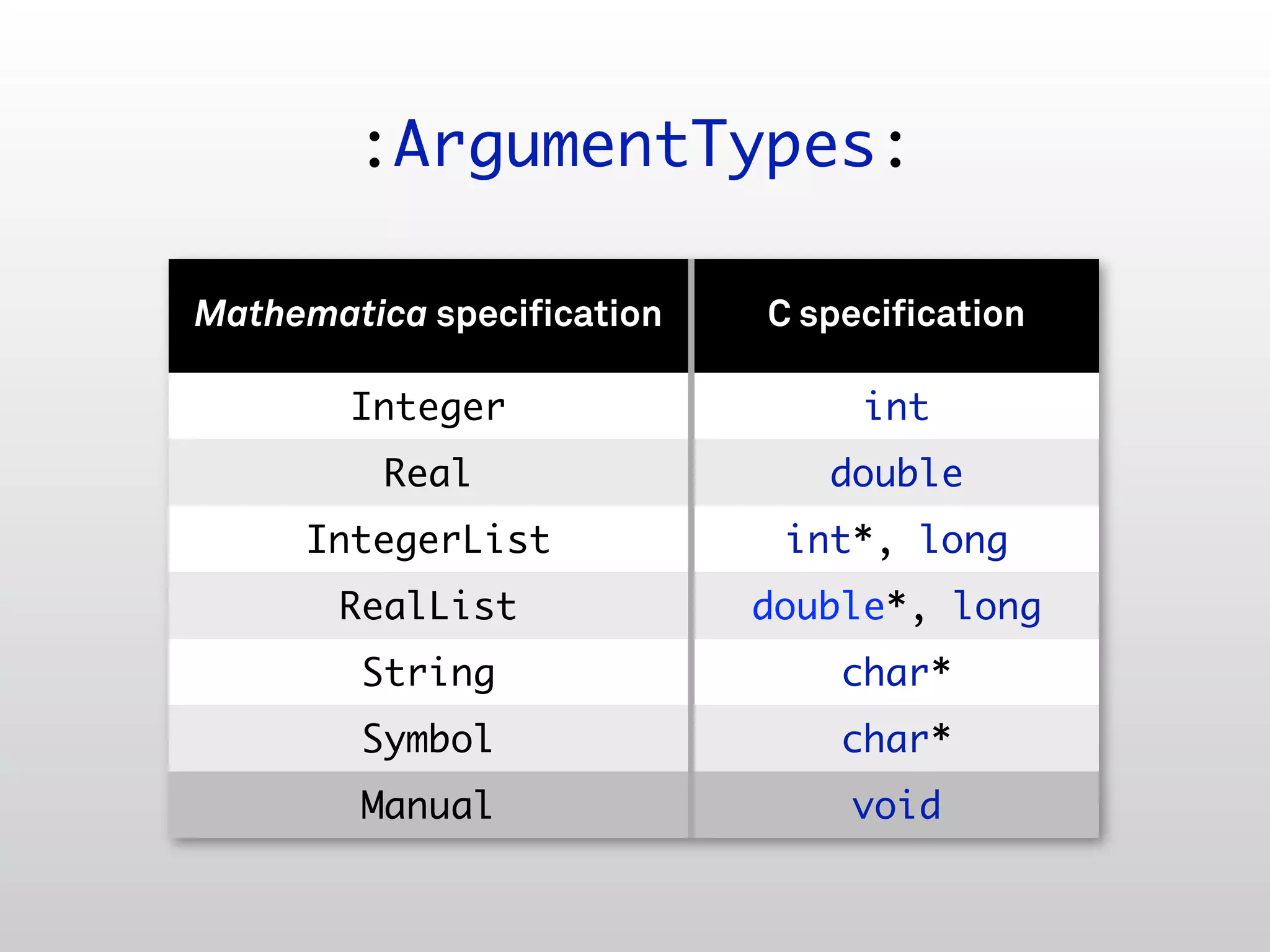

11. :ArgumentTypes:
Mathematica specification C specification
Integer int
Real double
IntegerList int*, long
RealList double*, long
String char*
Symbol char*
Manual void

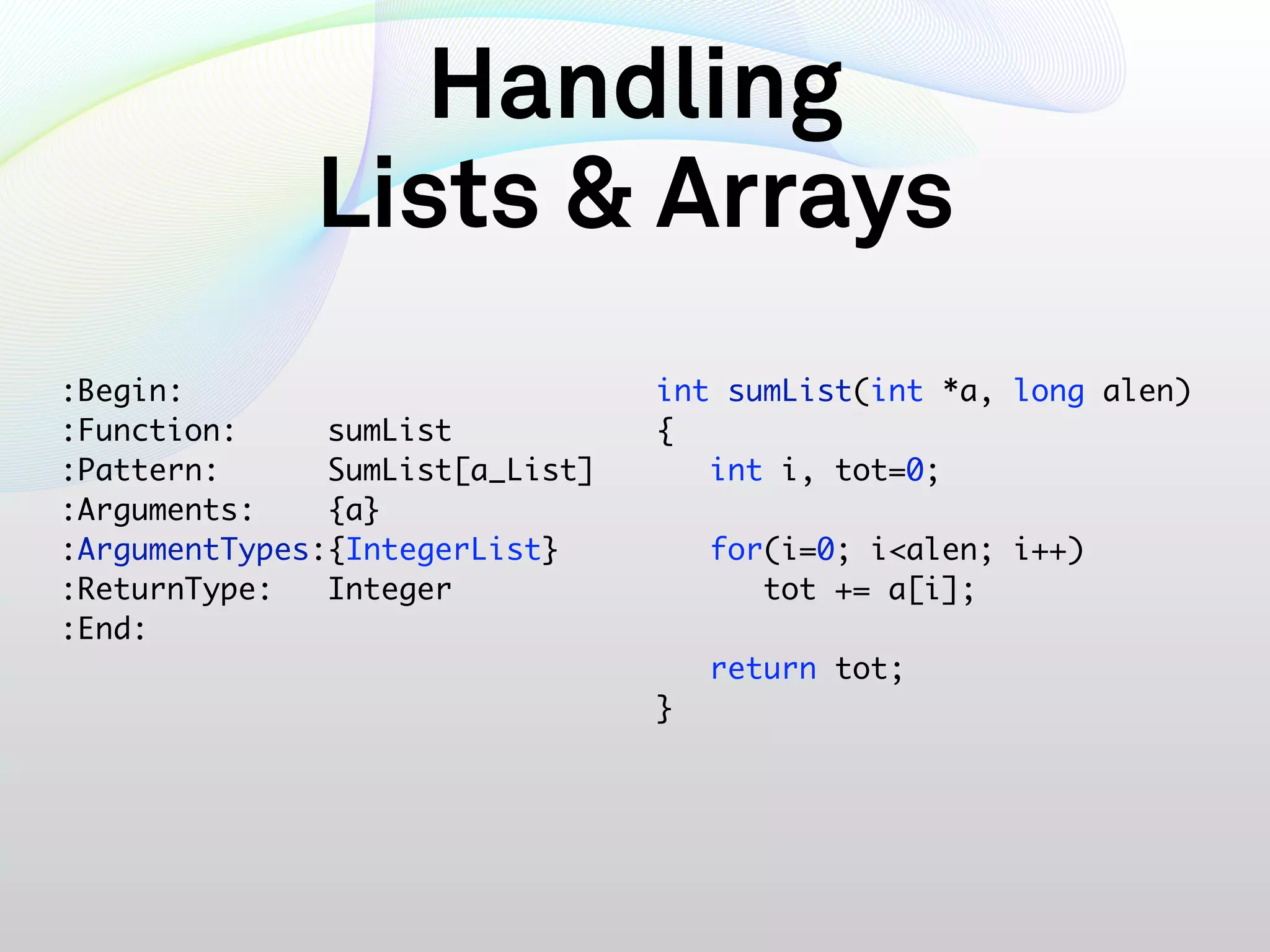

12. Handling
Lists & Arrays
:Begin: int sumList(int *a, long alen)
:Function: sumList {
:Pattern: SumList[a_List] int i, tot=0;
:Arguments: {a}
:ArgumentTypes:{IntegerList} for(i=0; i<alen; i++)
:ReturnType: Integer tot += a[i];
:End:
return tot;
}

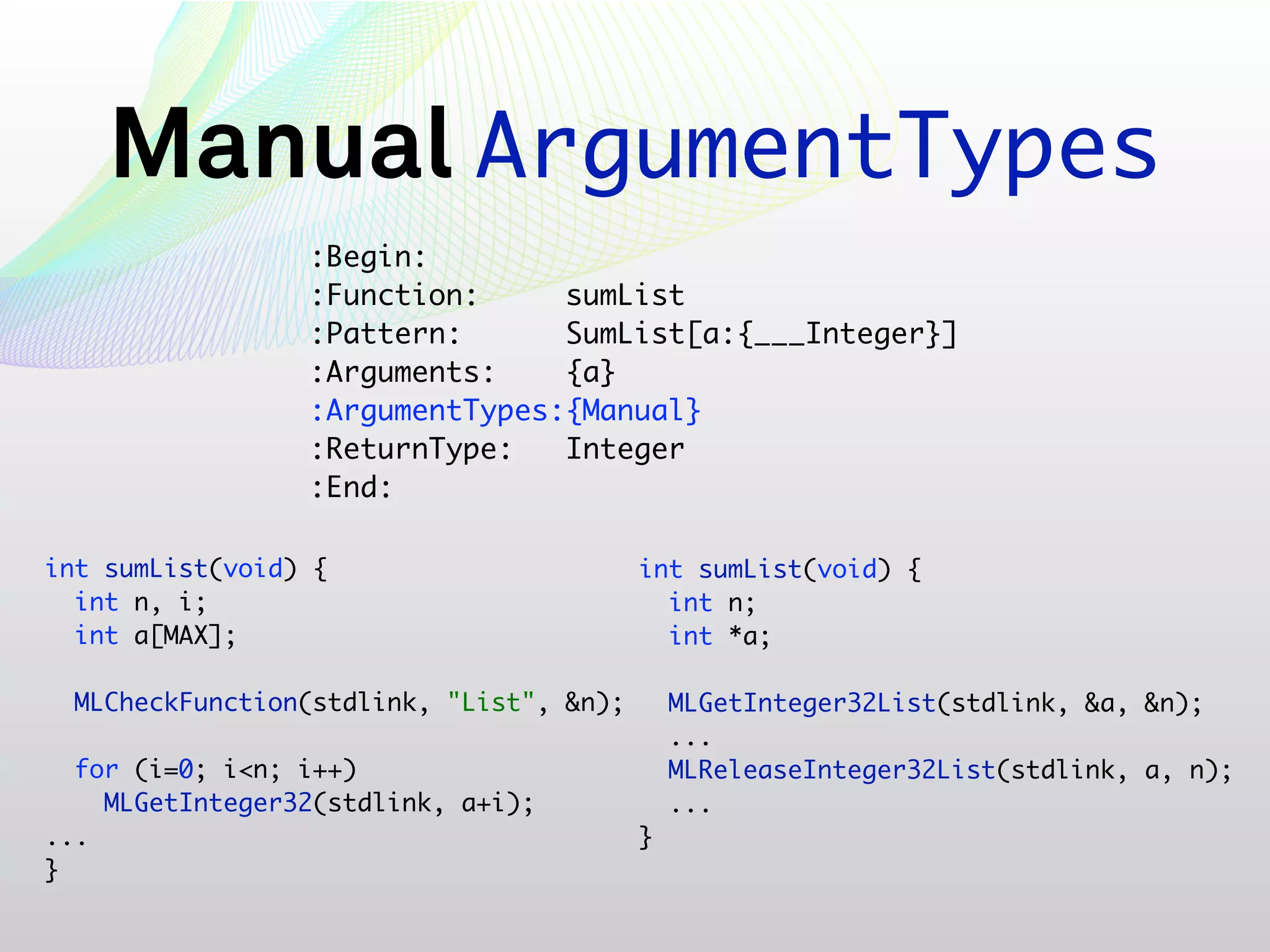

13. Manual ArgumentTypes
:Begin:
:Function: sumList
:Pattern: SumList[a:{___Integer}]
:Arguments: {a}
:ArgumentTypes:{Manual}
:ReturnType: Integer
:End:
int sumList(void) { int sumList(void) {
int n, i; int n;
int a[MAX]; int *a;
MLCheckFunction(stdlink, "List", &n); MLGetInteger32List(stdlink, &a, &n);
...
for (i=0; i<n; i++) MLReleaseInteger32List(stdlink, a, n);
MLGetInteger32(stdlink, a+i); ...
... }
}

14. Array of arb. depth
#include <mathlink.h>
/* read an array of double-precision floating-point numbers from a link */
void f(MLINK lp)
{
double *data;
int *dims;
char **heads;
int d; /* stores the rank of the array */
if(! MLGetRealArray(lp, &data, &dims, &heads, &d))
{
/* unable to read the array from lp */
return;
}
/* ... */
MLReleaseRealArray(lp, data, dims, heads, d);
}

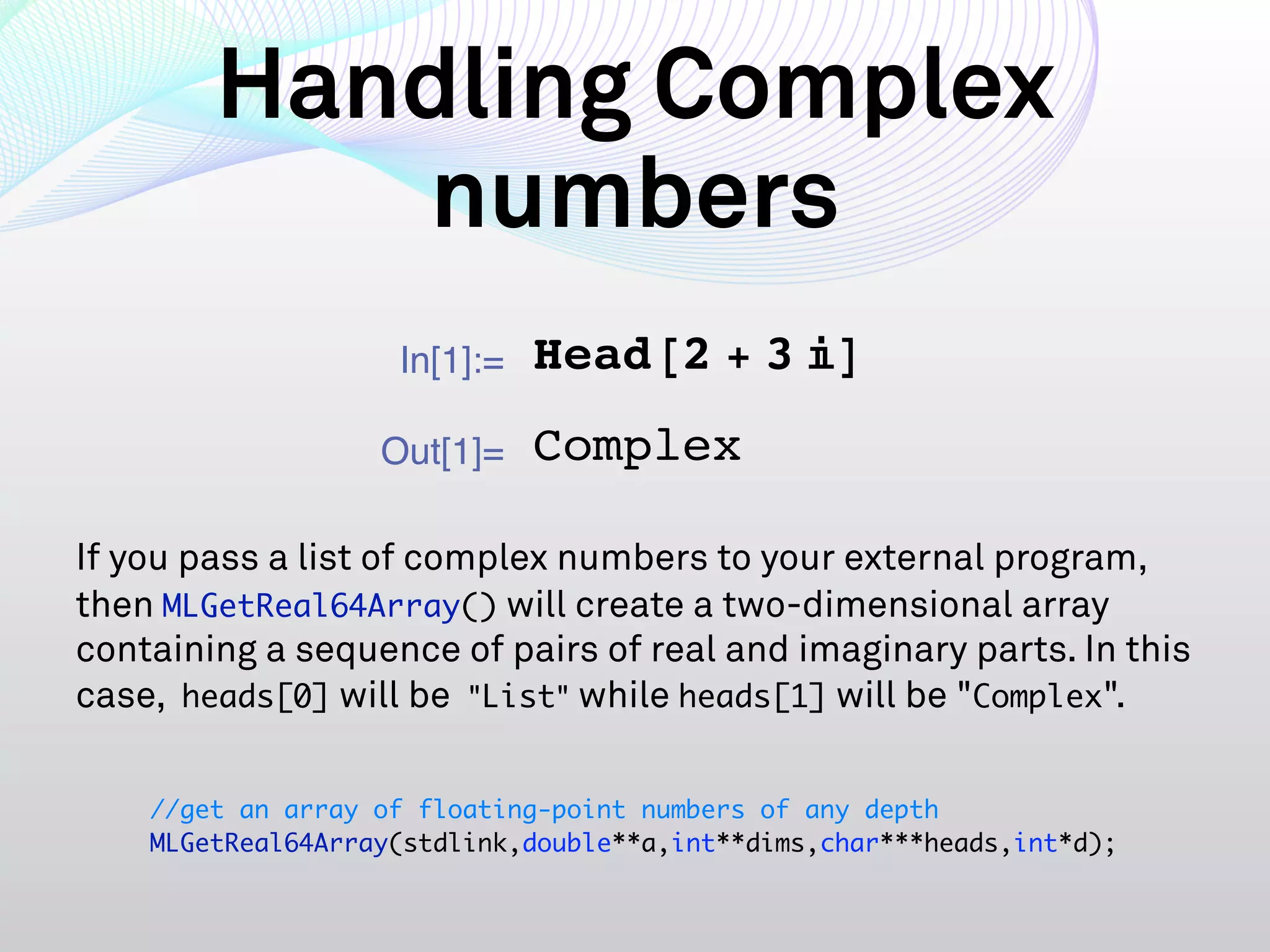

15. Handling Complex
numbers
In[1]:= Head 2 3
Out[1]= Complex
If you pass a list of complex numbers to your external program,
then MLGetReal64Array() will create a two-dimensional array
containing a sequence of pairs of real and imaginary parts. In this
case, heads[0] will be "List" while heads[1] will be "Complex".
//get an array of floating-point numbers of any depth
MLGetReal64Array(stdlink,double**a,int**dims,char***heads,int*d);

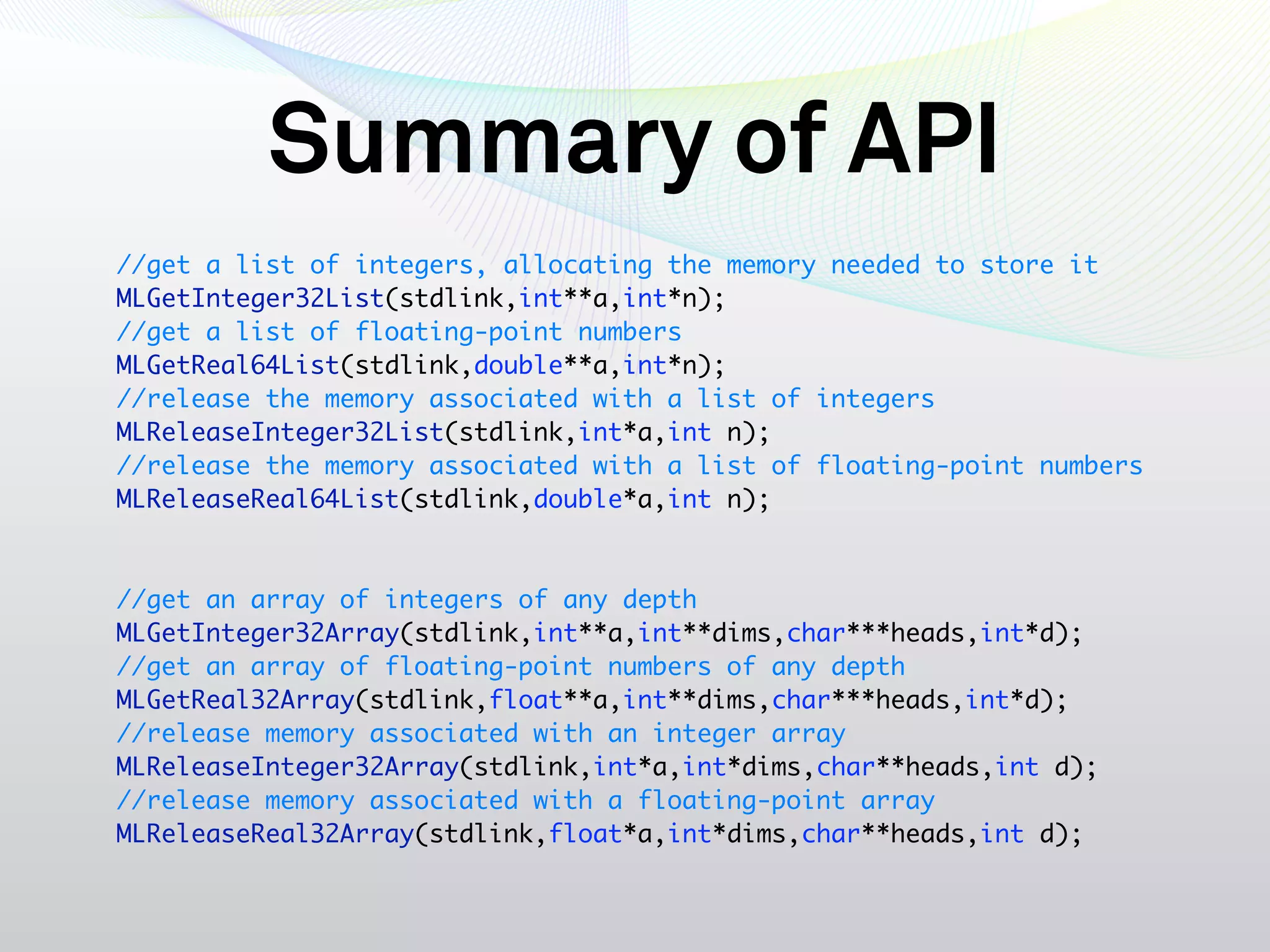

16. Summary of API
//get a list of integers, allocating the memory needed to store it
MLGetInteger32List(stdlink,int**a,int*n);
//get a list of floating-point numbers
MLGetReal64List(stdlink,double**a,int*n);
//release the memory associated with a list of integers
MLReleaseInteger32List(stdlink,int*a,int n);
//release the memory associated with a list of floating-point numbers
MLReleaseReal64List(stdlink,double*a,int n);
//get an array of integers of any depth
MLGetInteger32Array(stdlink,int**a,int**dims,char***heads,int*d);
//get an array of floating-point numbers of any depth
MLGetReal32Array(stdlink,float**a,int**dims,char***heads,int*d);
//release memory associated with an integer array
MLReleaseInteger32Array(stdlink,int*a,int*dims,char**heads,int d);
//release memory associated with a floating-point array
MLReleaseReal32Array(stdlink,float*a,int*dims,char**heads,int d);

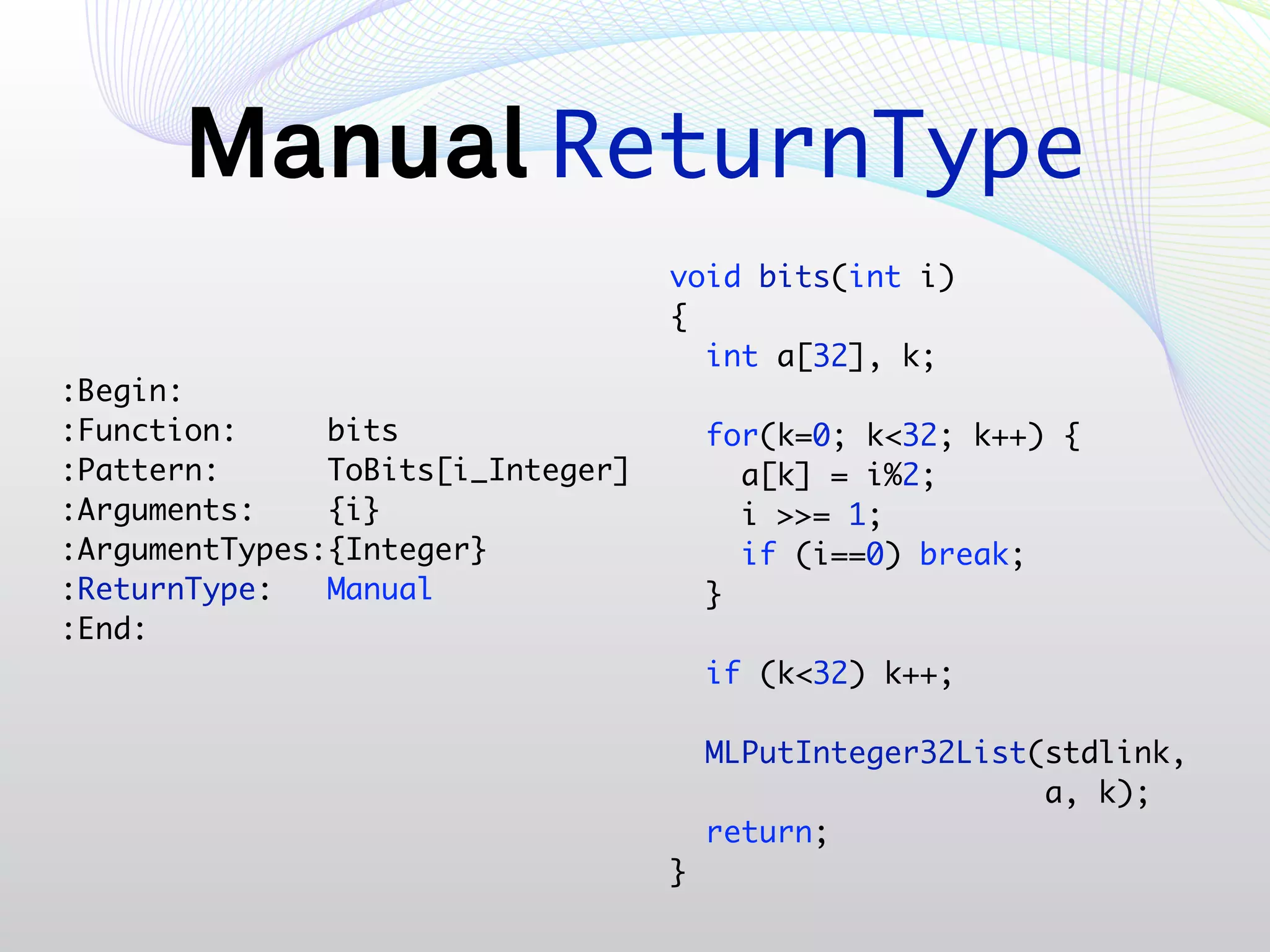

17. Manual ReturnType
void bits(int i)
{
int a[32], k;
:Begin:
:Function: bits for(k=0; k<32; k++) {
:Pattern: ToBits[i_Integer] a[k] = i%2;
:Arguments: {i} i >>= 1;
:ArgumentTypes:{Integer} if (i==0) break;
:ReturnType: Manual }
:End:
if (k<32) k++;
MLPutInteger32List(stdlink,
a, k);
return;
}

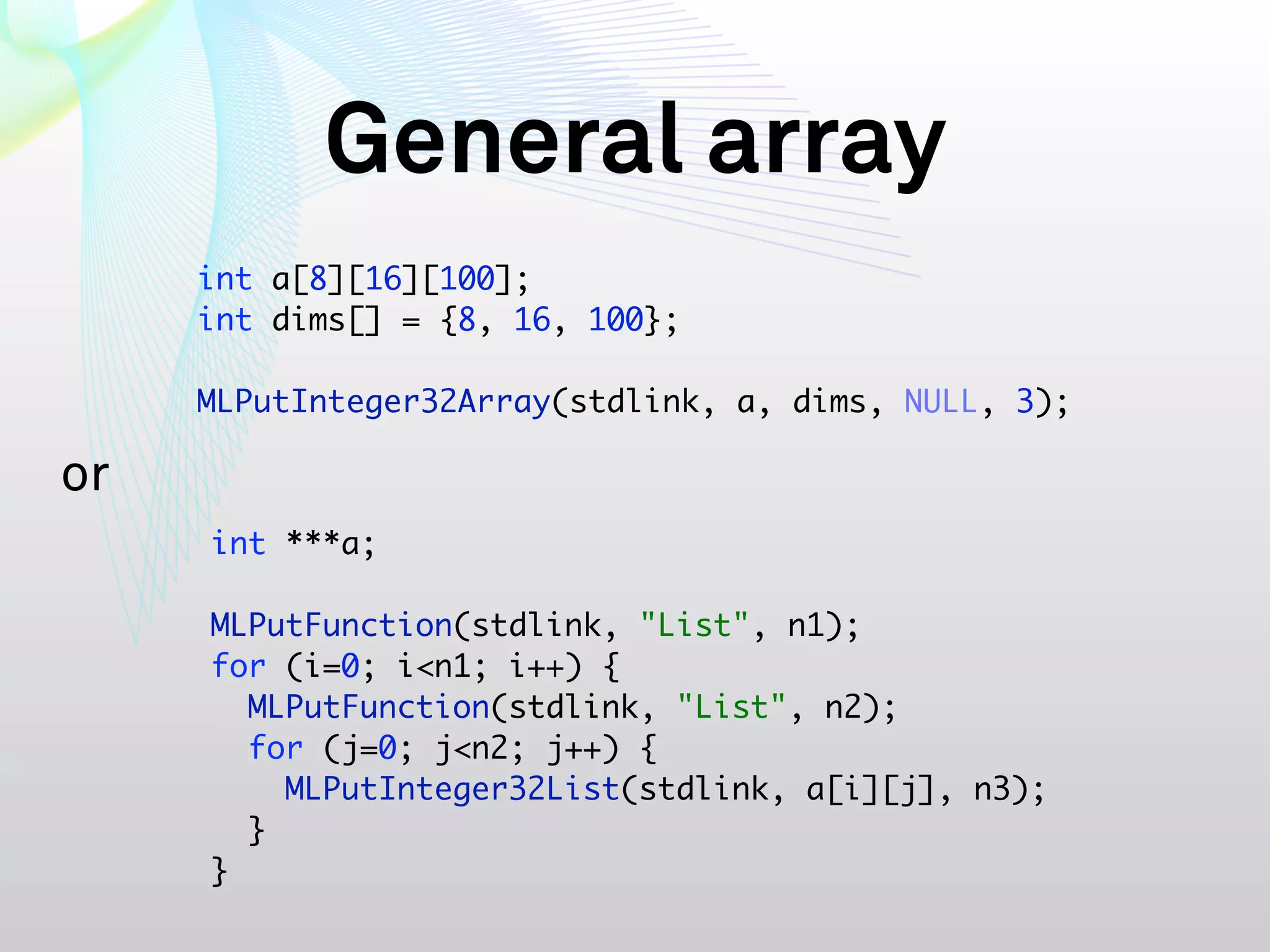

18. General array
int a[8][16][100];
int dims[] = {8, 16, 100};
MLPutInteger32Array(stdlink, a, dims, NULL, 3);
or
int ***a;
MLPutFunction(stdlink, "List", n1);
for (i=0; i<n1; i++) {
MLPutFunction(stdlink, "List", n2);
for (j=0; j<n2; j++) {
MLPutInteger32List(stdlink, a[i][j], n3);
}
}

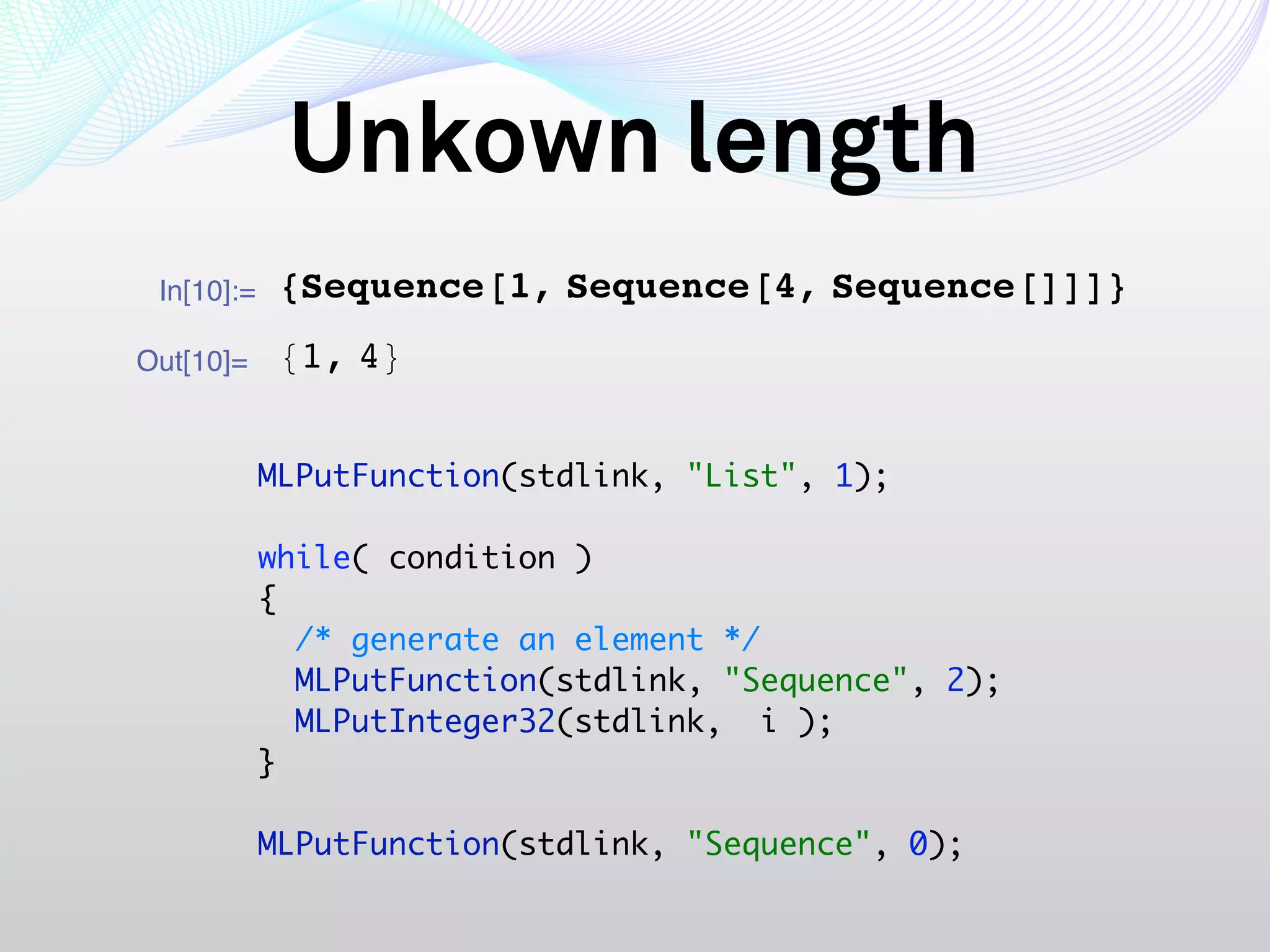

19. Unkown length
In[10]:= Sequence 1, Sequence 4, Sequence
Out[10]= 1, 4
MLPutFunction(stdlink, "List", 1);
while( condition )
{
/* generate an element */
MLPutFunction(stdlink, "Sequence", 2);
MLPutInteger32(stdlink, i );
}
MLPutFunction(stdlink, "Sequence", 0);

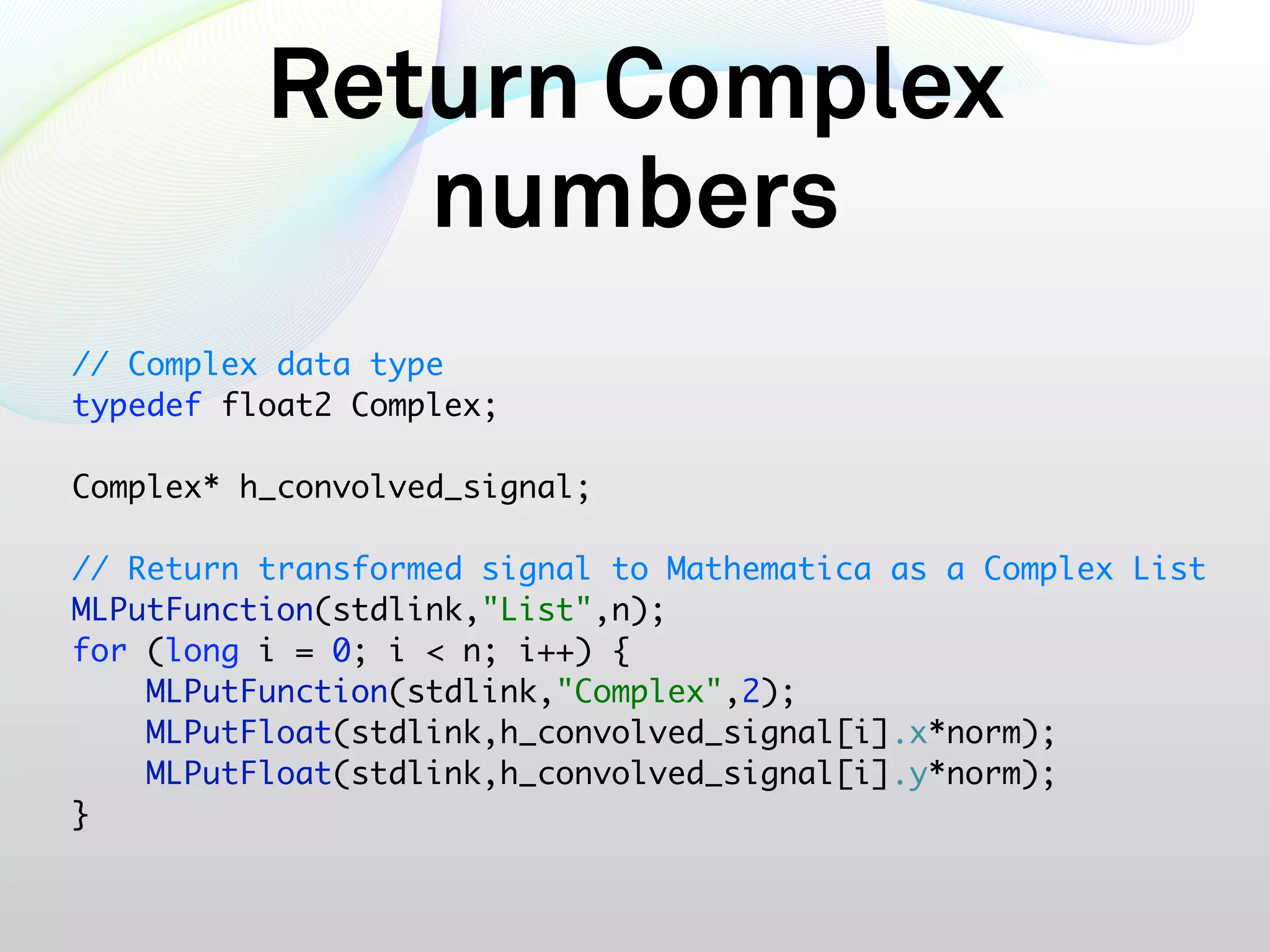

20. Return Complex
numbers
// Complex data type
typedef float2 Complex;
Complex* h_convolved_signal;
// Return transformed signal to Mathematica as a Complex List
MLPutFunction(stdlink,"List",n);
for (long i = 0; i < n; i++) {
MLPutFunction(stdlink,"Complex",2);
MLPutFloat(stdlink,h_convolved_signal[i].x*norm);
MLPutFloat(stdlink,h_convolved_signal[i].y*norm);
}

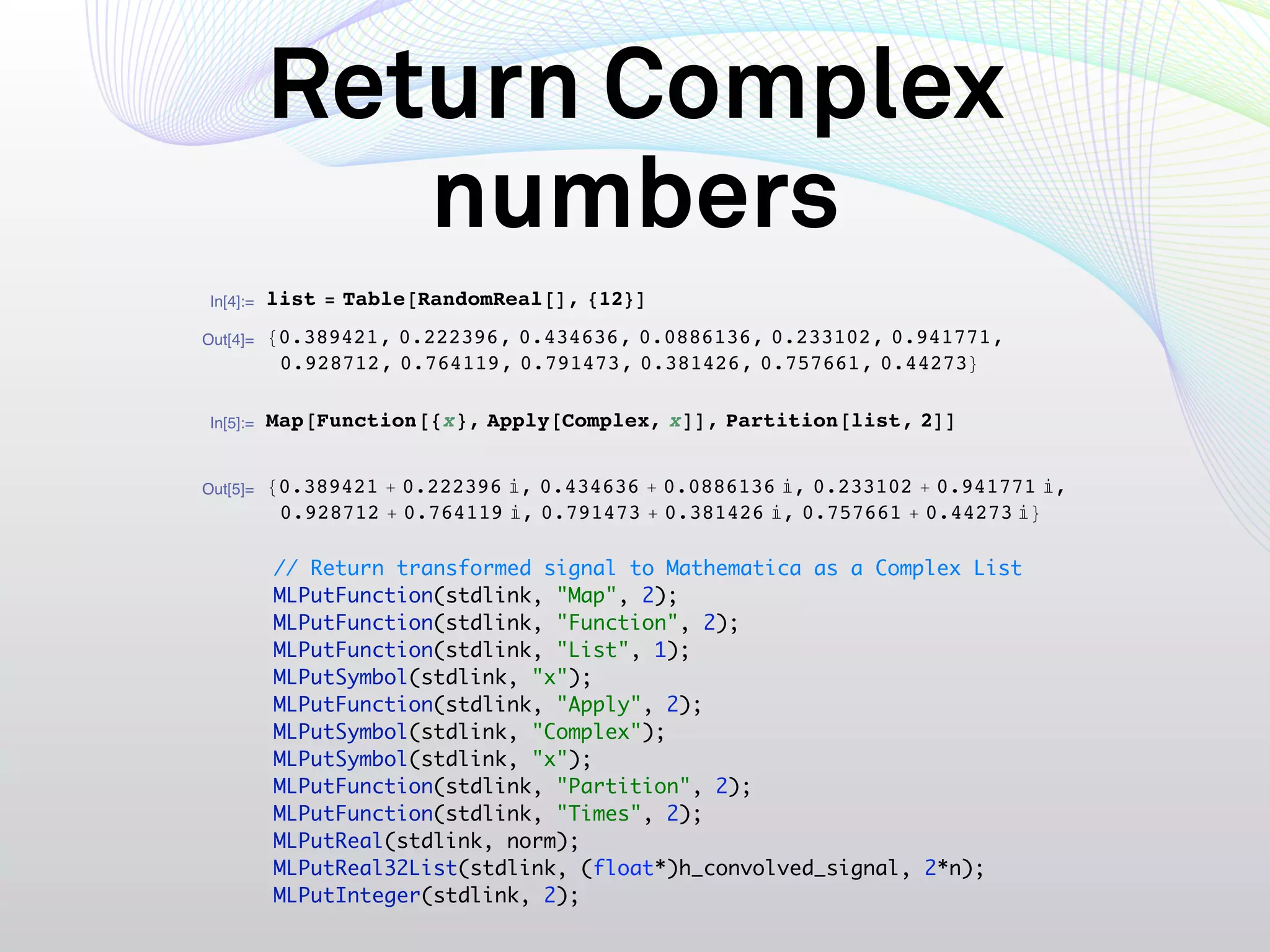

21. Return Complex
numbers
In[4]:= list Table RandomReal , 12
Out[4]= 0.389421, 0.222396, 0.434636, 0.0886136, 0.233102, 0.941771,
0.928712, 0.764119, 0.791473, 0.381426, 0.757661, 0.44273
In[5]:= Map Function x , Apply Complex, x , Partition list, 2
Out[5]= 0.389421 0.222396 , 0.434636 0.0886136 , 0.233102 0.941771 ,
0.928712 0.764119 , 0.791473 0.381426 , 0.757661 0.44273

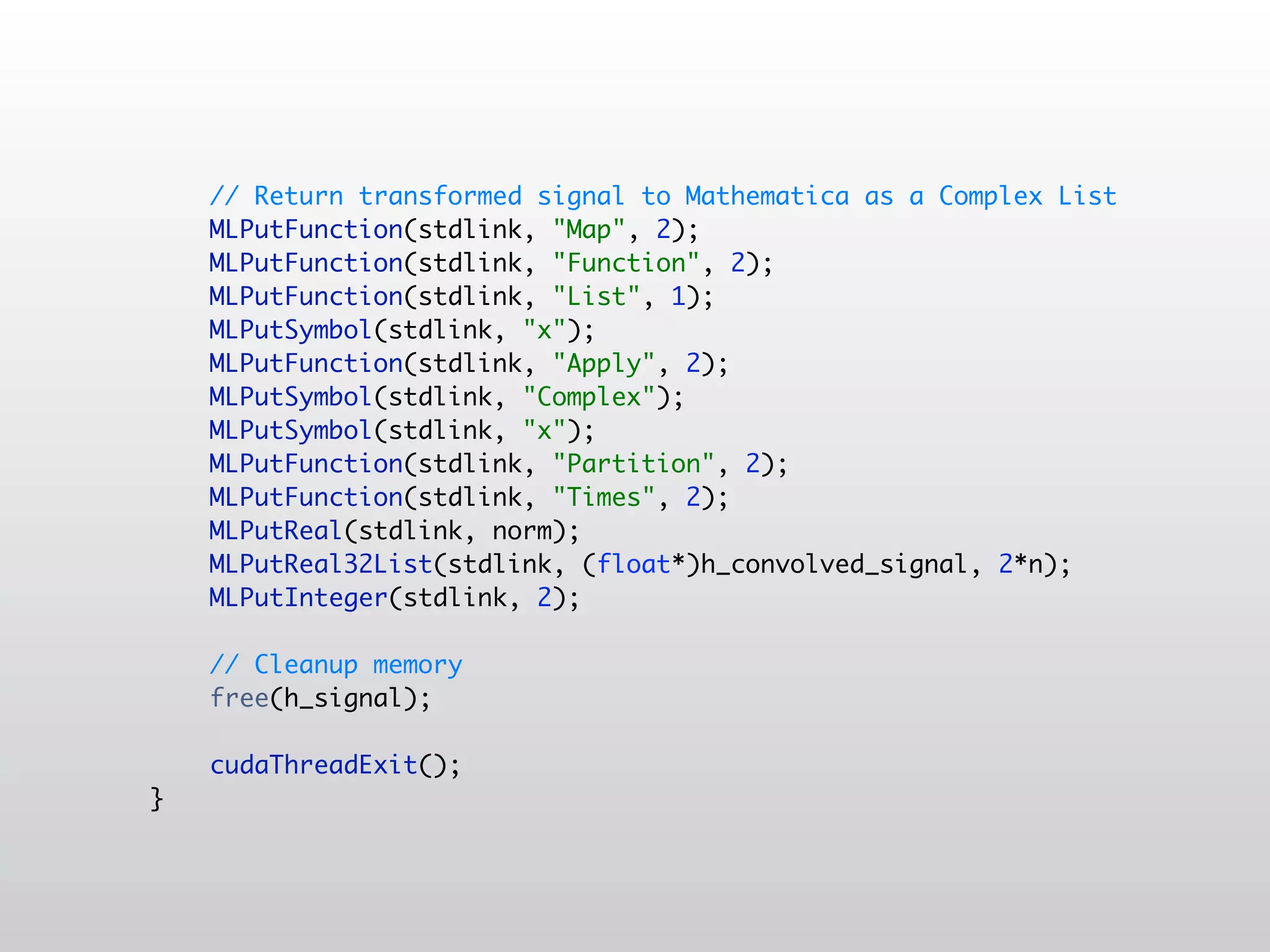

// Return transformed signal to Mathematica as a Complex List
MLPutFunction(stdlink, "Map", 2);
MLPutFunction(stdlink, "Function", 2);
MLPutFunction(stdlink, "List", 1);
MLPutSymbol(stdlink, "x");
MLPutFunction(stdlink, "Apply", 2);
MLPutSymbol(stdlink, "Complex");
MLPutSymbol(stdlink, "x");
MLPutFunction(stdlink, "Partition", 2);
MLPutFunction(stdlink, "Times", 2);
MLPutReal(stdlink, norm);
MLPutReal32List(stdlink, (float*)h_convolved_signal, 2*n);
MLPutInteger(stdlink, 2);

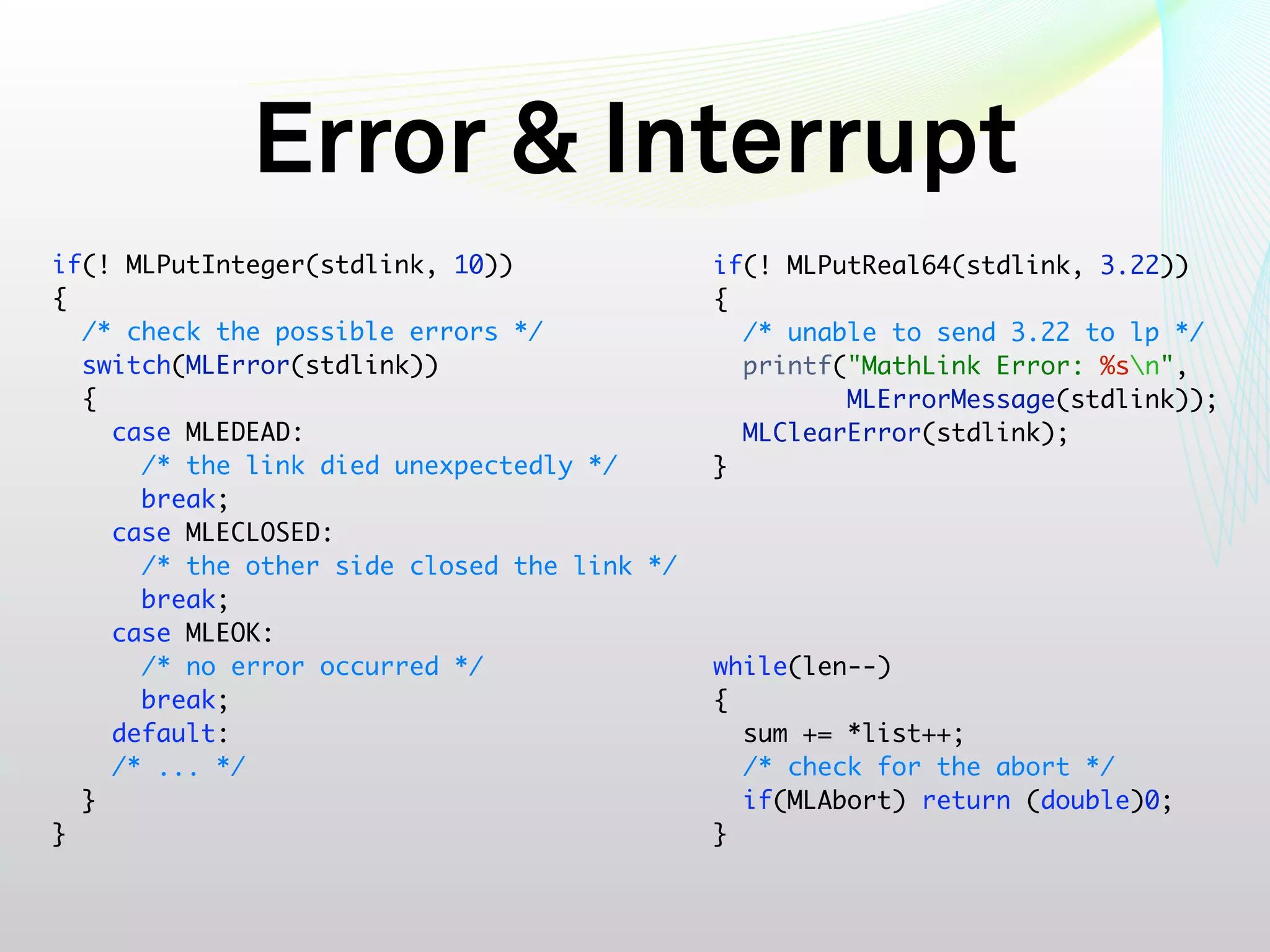

22. Error & Interrupt
if(! MLPutInteger(stdlink, 10)) if(! MLPutReal64(stdlink, 3.22))
{ {
/* check the possible errors */ /* unable to send 3.22 to lp */
switch(MLError(stdlink)) printf("MathLink Error: %sn",
{ MLErrorMessage(stdlink));
case MLEDEAD: MLClearError(stdlink);
/* the link died unexpectedly */ }
break;
case MLECLOSED:
/* the other side closed the link */
break;
case MLEOK:
/* no error occurred */ while(len--)
break; {
default: sum += *list++;
/* ... */ /* check for the abort */
} if(MLAbort) return (double)0;
} }

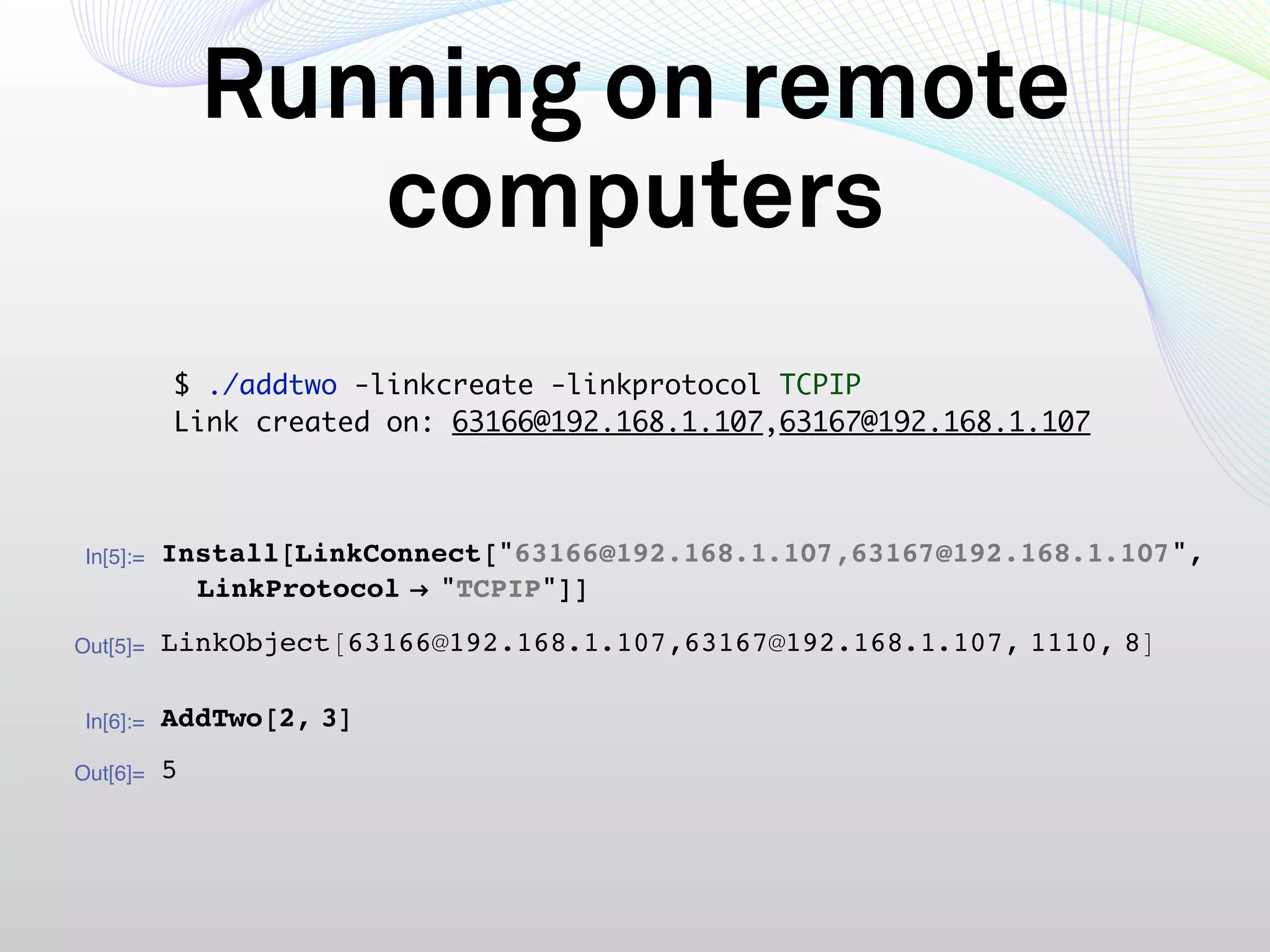

23. Running on remote
computers
$ ./addtwo -linkcreate -linkprotocol TCPIP
Link created on: 63166@192.168.1.107,63167@192.168.1.107
In[5]:= Install LinkConnect "63166 192.168.1.107,63167 192.168.1.107",
LinkProtocol "TCPIP"
Out[5]= LinkObject 63166 192.168.1.107,63167 192.168.1.107, 1110, 8
In[6]:= AddTwo 2, 3
Out[6]= 5

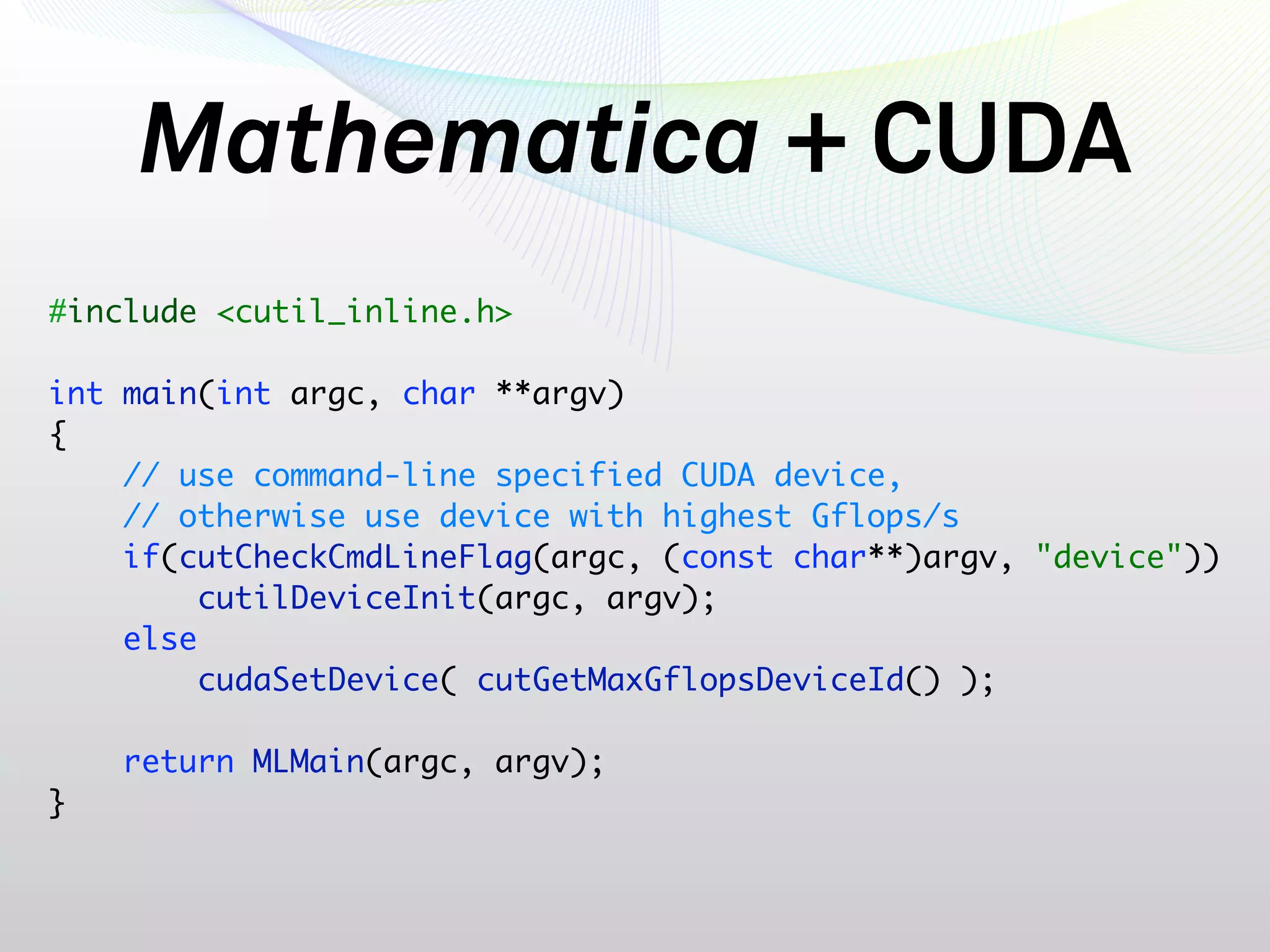

24. Mathematica + CUDA
#include <cutil_inline.h>
int main(int argc, char **argv)
{
// use command-line specified CUDA device,
// otherwise use device with highest Gflops/s
if(cutCheckCmdLineFlag(argc, (const char**)argv, "device"))
cutilDeviceInit(argc, argv);
else
cudaSetDevice( cutGetMaxGflopsDeviceId() );
return MLMain(argc, argv);
}

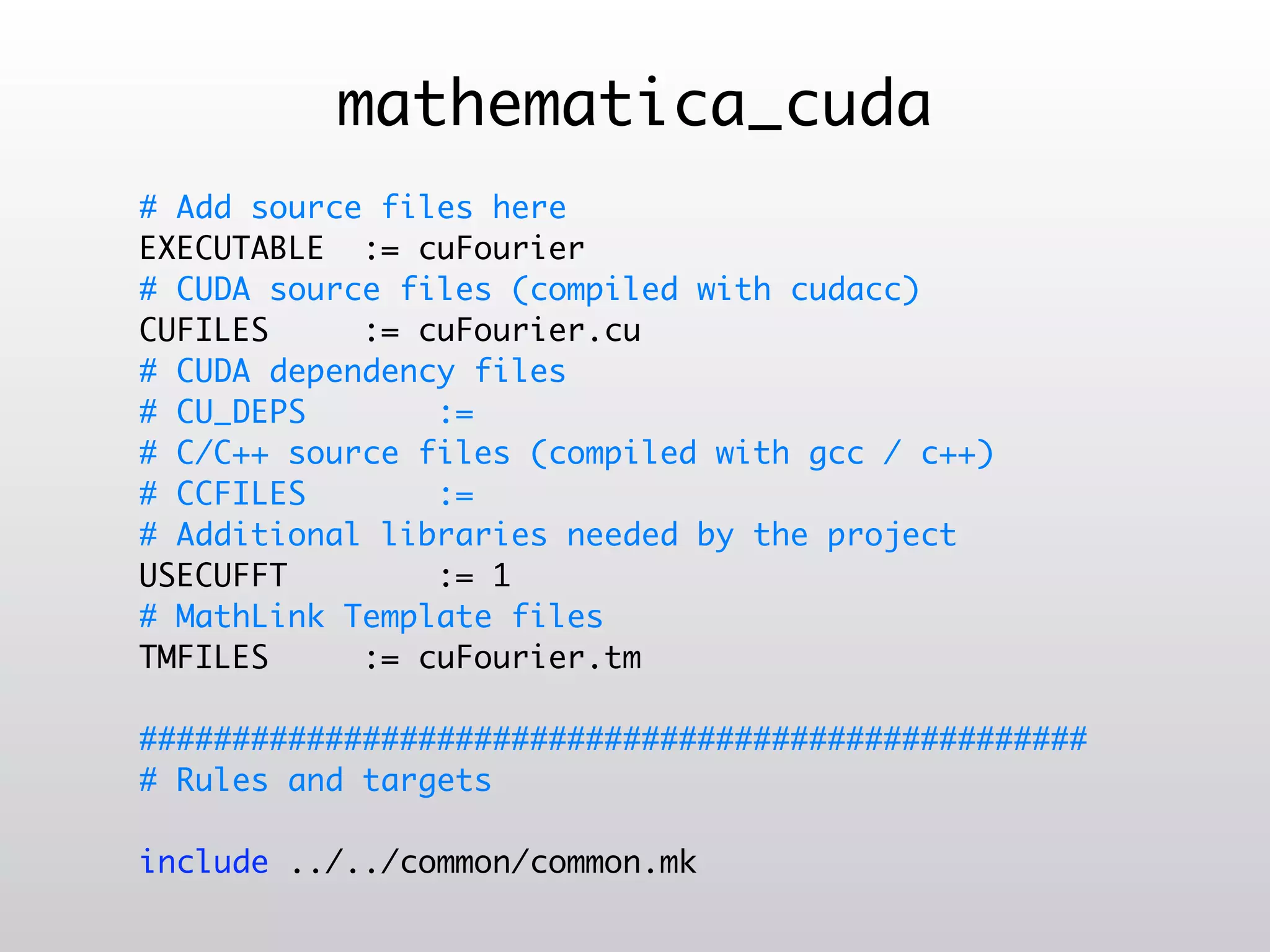

25. mathematica_cuda
# Add source files here
EXECUTABLE := cuFourier
# CUDA source files (compiled with cudacc)
CUFILES := cuFourier.cu
# CUDA dependency files
# CU_DEPS :=
# C/C++ source files (compiled with gcc / c++)
# CCFILES :=
# Additional libraries needed by the project
USECUFFT := 1
# MathLink Template files
TMFILES := cuFourier.tm
###################################################
# Rules and targets
include ../../common/common.mk

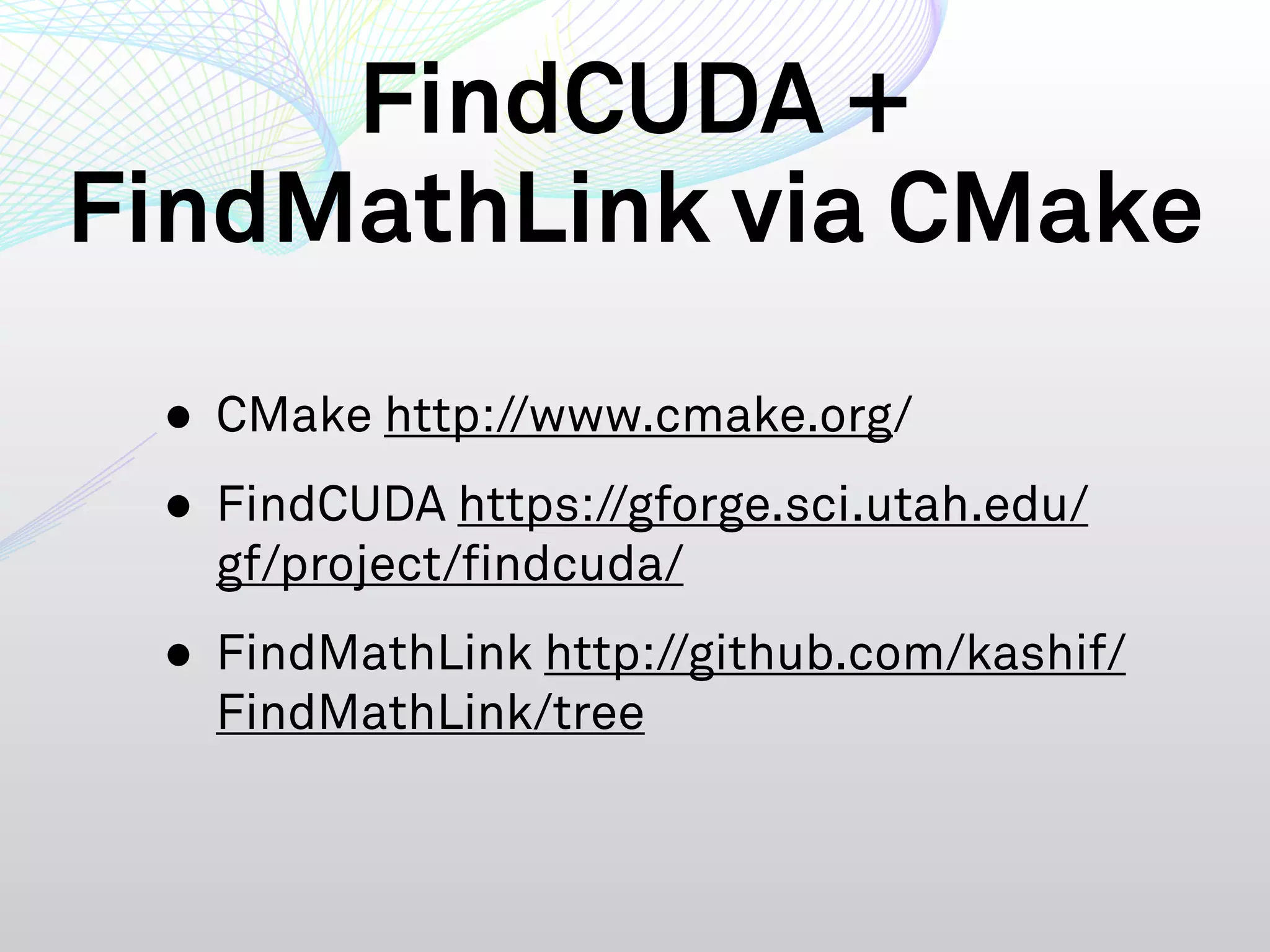

26. FindCUDA +
FindMathLink via CMake
• CMake http://www.cmake.org/
• FindCUDA https://gforge.sci.utah.edu/
gf/project/findcuda/
• FindMathLink http://github.com/kashif/
FindMathLink/tree

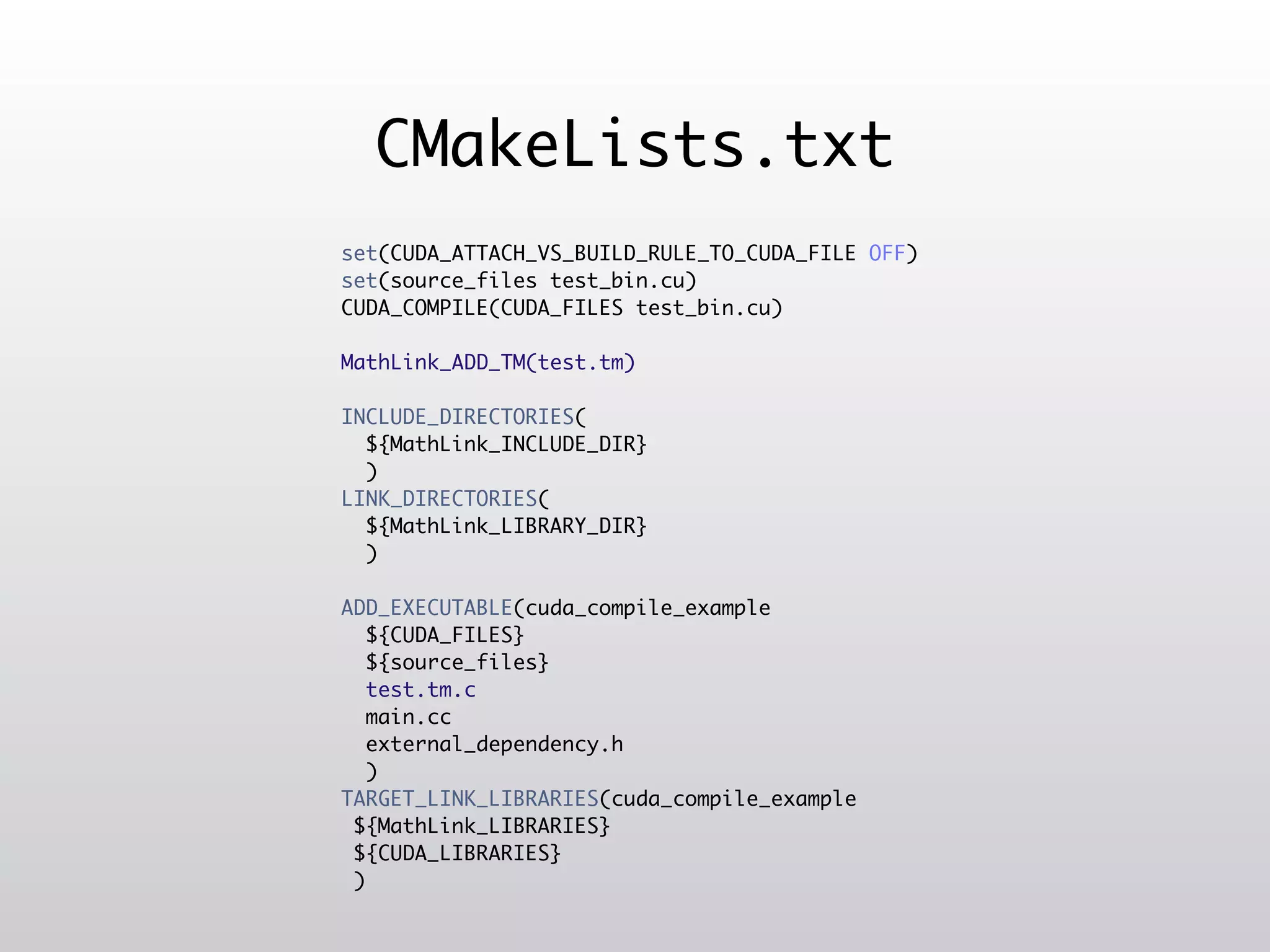

27. CMakeLists.txt
set(CUDA_ATTACH_VS_BUILD_RULE_TO_CUDA_FILE OFF)
set(source_files test_bin.cu)
CUDA_COMPILE(CUDA_FILES test_bin.cu)
MathLink_ADD_TM(test.tm)
INCLUDE_DIRECTORIES(
${MathLink_INCLUDE_DIR}
)
LINK_DIRECTORIES(
${MathLink_LIBRARY_DIR}
)
ADD_EXECUTABLE(cuda_compile_example
${CUDA_FILES}
${source_files}
test.tm.c
main.cc
external_dependency.h
)
TARGET_LINK_LIBRARIES(cuda_compile_example
${MathLink_LIBRARIES}
${CUDA_LIBRARIES}
)

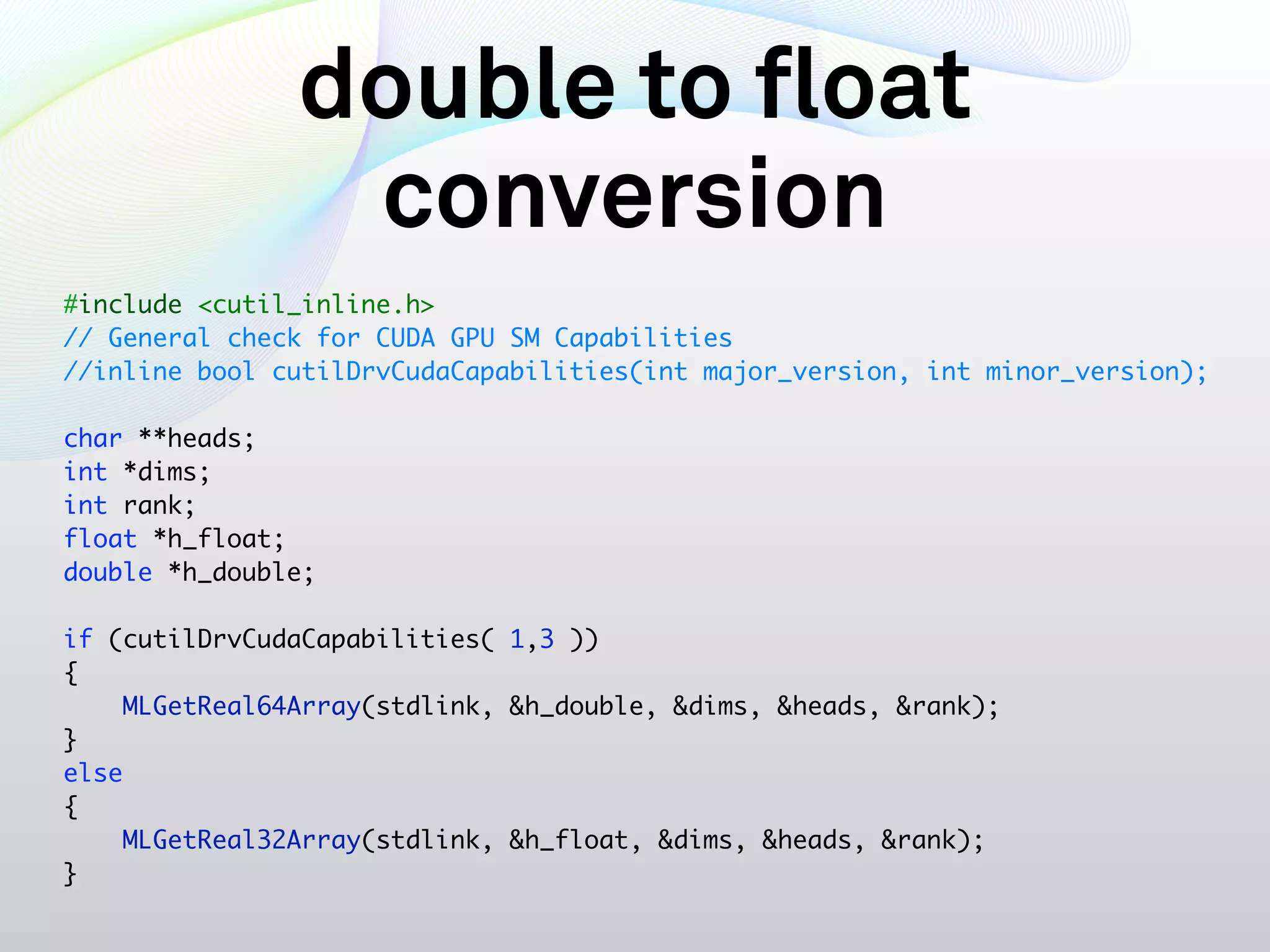

28. double to float
conversion
#include <cutil_inline.h>
// General check for CUDA GPU SM Capabilities
//inline bool cutilDrvCudaCapabilities(int major_version, int minor_version);
char **heads;
int *dims;
int rank;
float *h_float;
double *h_double;
if (cutilDrvCudaCapabilities( 1,3 ))
{
MLGetReal64Array(stdlink, &h_double, &dims, &heads, &rank);
}
else
{
MLGetReal32Array(stdlink, &h_float, &dims, &heads, &rank);
}

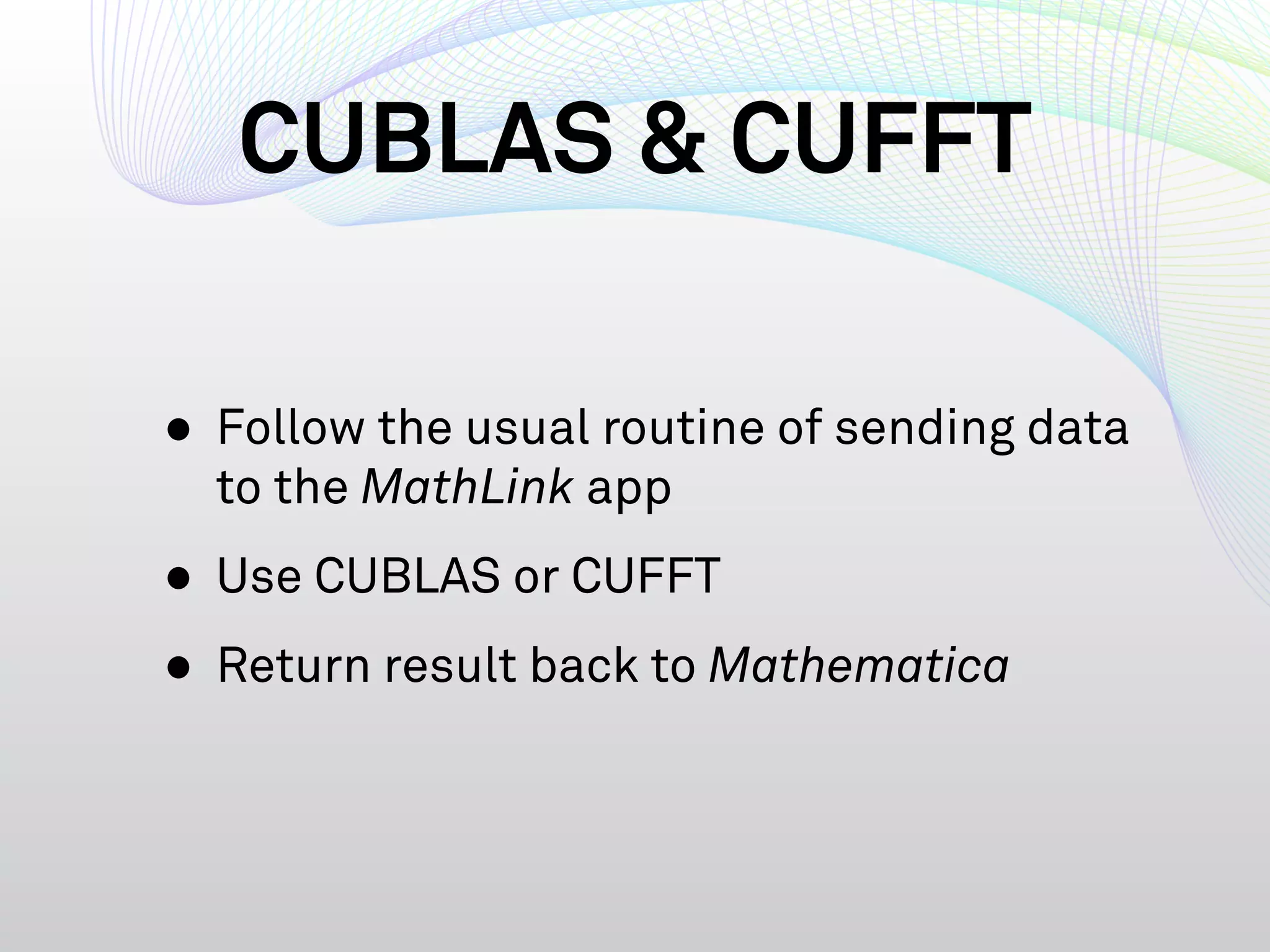

29. CUBLAS & CUFFT
• Follow the usual routine of sending data
to the MathLink app
• Use CUBLAS or CUFFT
• Return result back to Mathematica

30. cuFourier
In[1]:= ListLinePlot Abs Fourier RandomReal 1, 200 ^2
0.30
0.25
0.20
Out[1]= 0.15
0.10
0.05
50 100 150 200

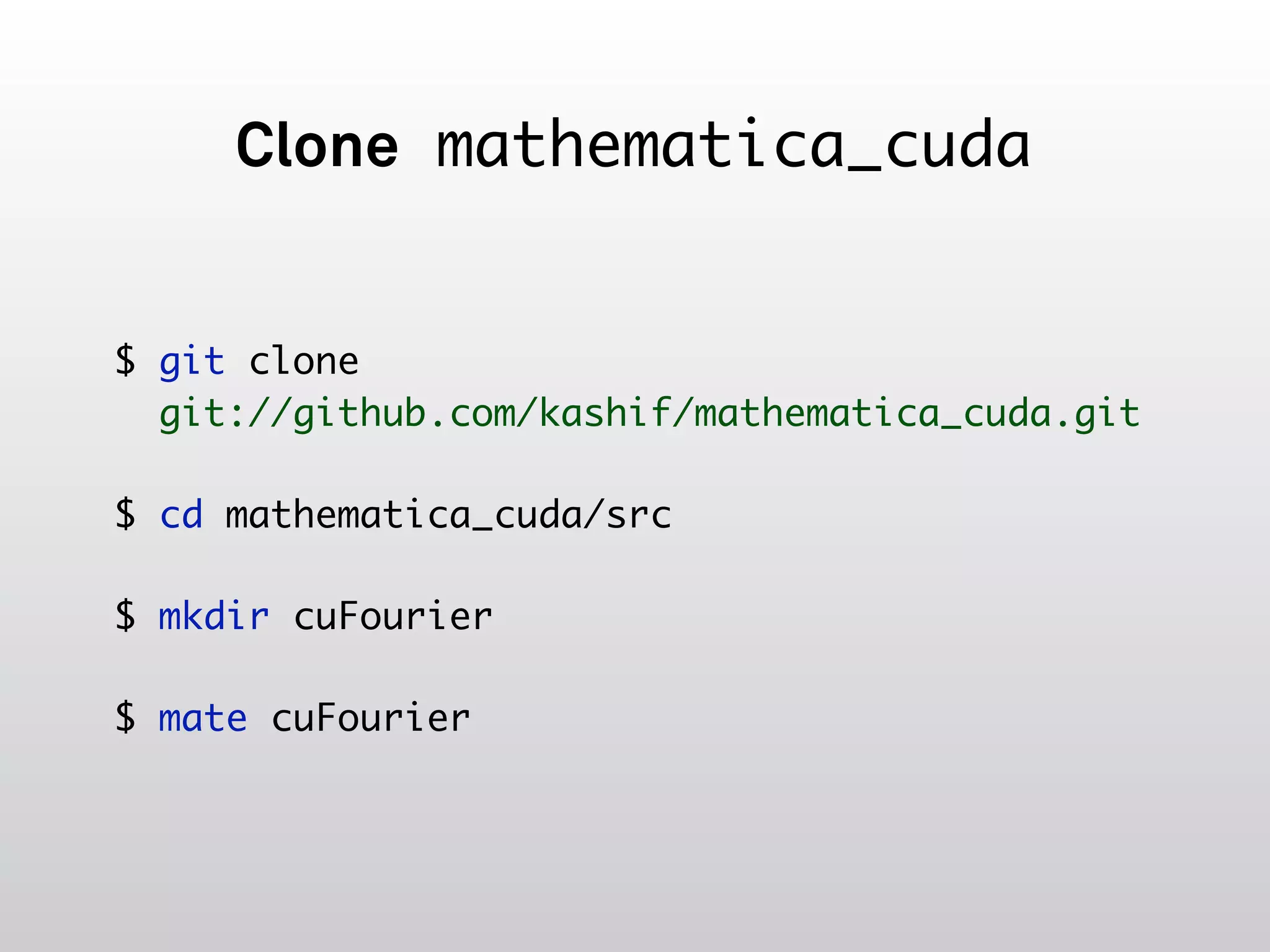

31. Clone mathematica_cuda
$ git clone
git://github.com/kashif/mathematica_cuda.git
$ cd mathematica_cuda/src
$ mkdir cuFourier
$ mate cuFourier

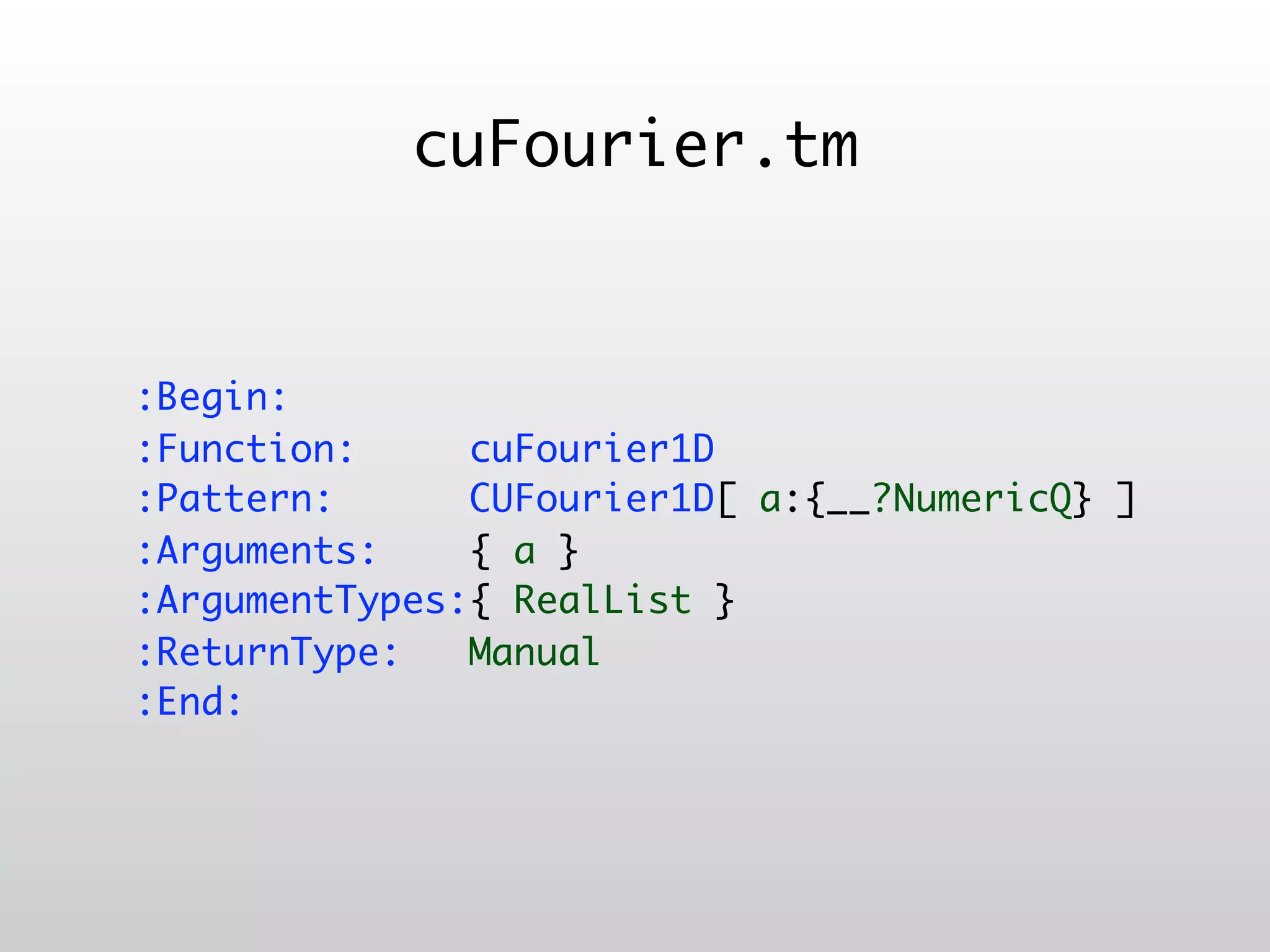

32. cuFourier.tm
:Begin:
:Function: cuFourier1D
:Pattern: CUFourier1D[ a:{__?NumericQ} ]
:Arguments: { a }
:ArgumentTypes:{ RealList }
:ReturnType: Manual
:End:

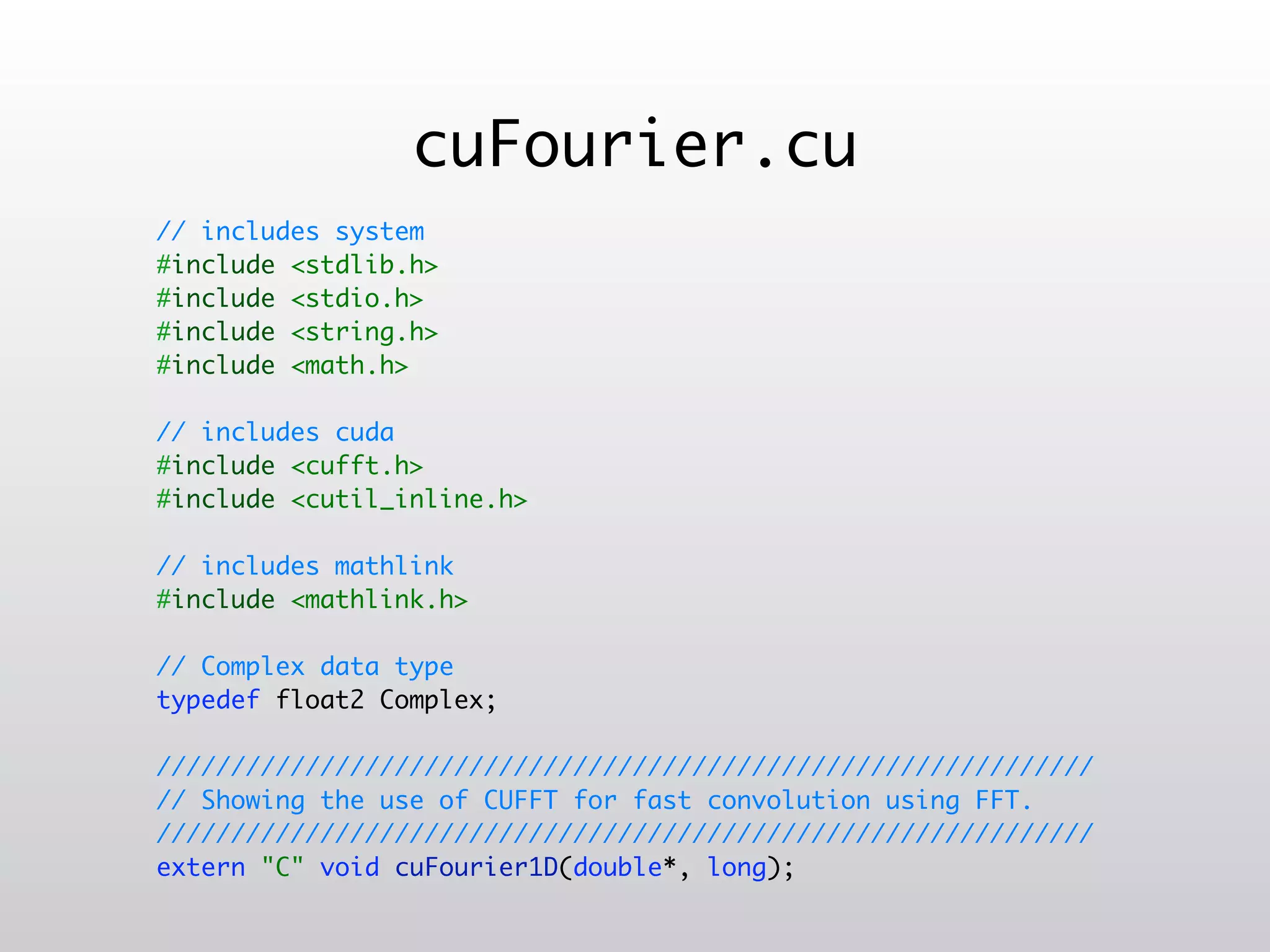

33. cuFourier.cu
// includes system
#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <math.h>
// includes cuda
#include <cufft.h>
#include <cutil_inline.h>
// includes mathlink
#include <mathlink.h>
// Complex data type
typedef float2 Complex;
///////////////////////////////////////////////////////////////
// Showing the use of CUFFT for fast convolution using FFT.
///////////////////////////////////////////////////////////////
extern "C" void cuFourier1D(double*, long);

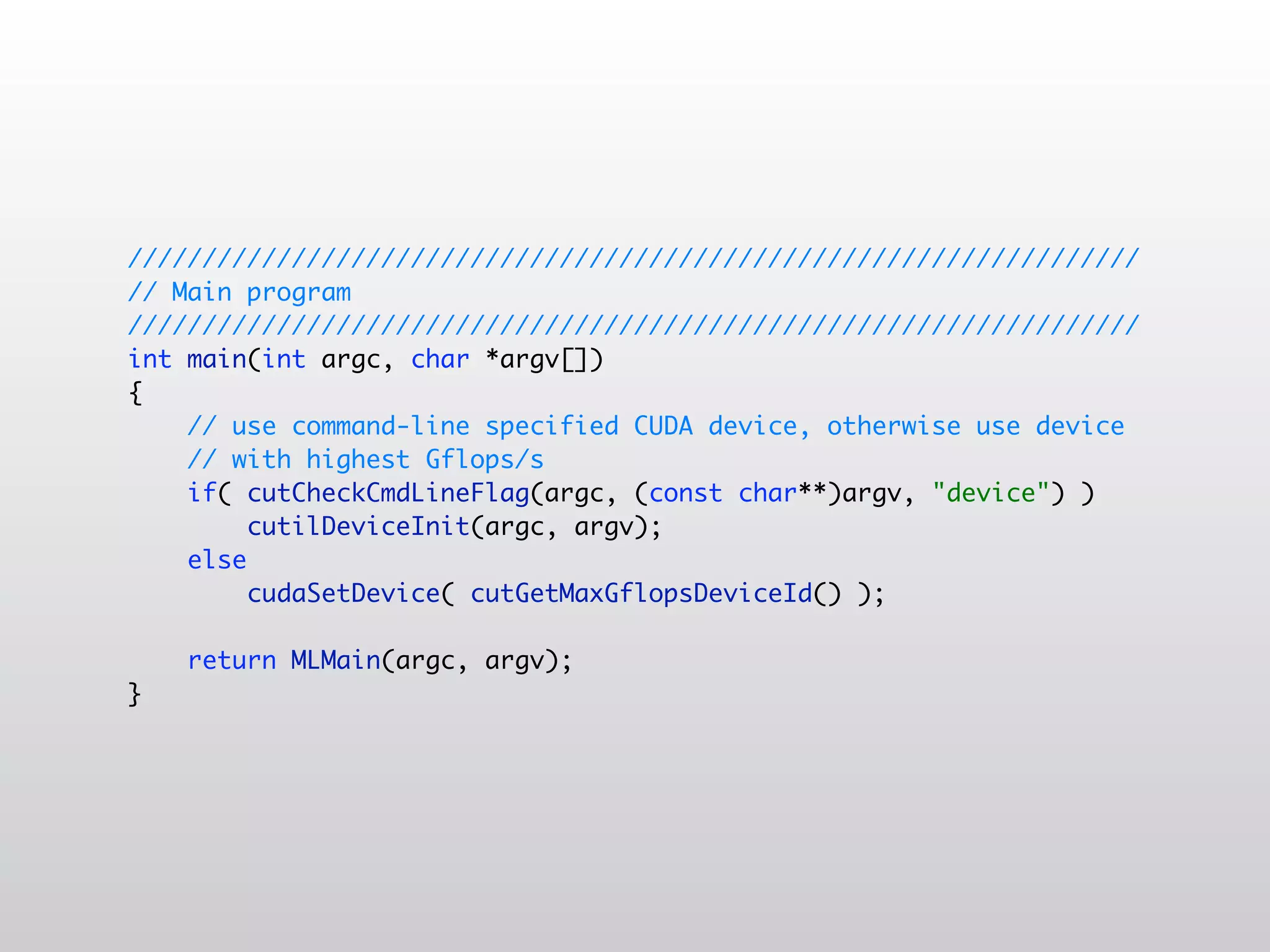

34. ////////////////////////////////////////////////////////////////////
// Main program
////////////////////////////////////////////////////////////////////
int main(int argc, char *argv[])
{
// use command-line specified CUDA device, otherwise use device
// with highest Gflops/s
if( cutCheckCmdLineFlag(argc, (const char**)argv, "device") )
cutilDeviceInit(argc, argv);
else
cudaSetDevice( cutGetMaxGflopsDeviceId() );
return MLMain(argc, argv);
}

35. void cuFourier1D (double *h_A, long n)
{
double norm = 1.0/sqrt((double) n);
long mem_size = sizeof(Complex) * n;
// Allocate host memory for the signal
Complex* h_signal = (Complex*)malloc(mem_size);
// Initalize the memory for the signal
for (long i = 0; i < n; ++i) {
h_signal[i].x = (float)h_A[i];
h_signal[i].y = 0.0f;
}
// Allocate device memory for signal
Complex* d_signal;
cutilSafeCall(cudaMalloc((void**)&d_signal, mem_size));
// Copy host memory to device
cutilSafeCall(cudaMemcpy(d_signal, h_signal, mem_size,
cudaMemcpyHostToDevice));

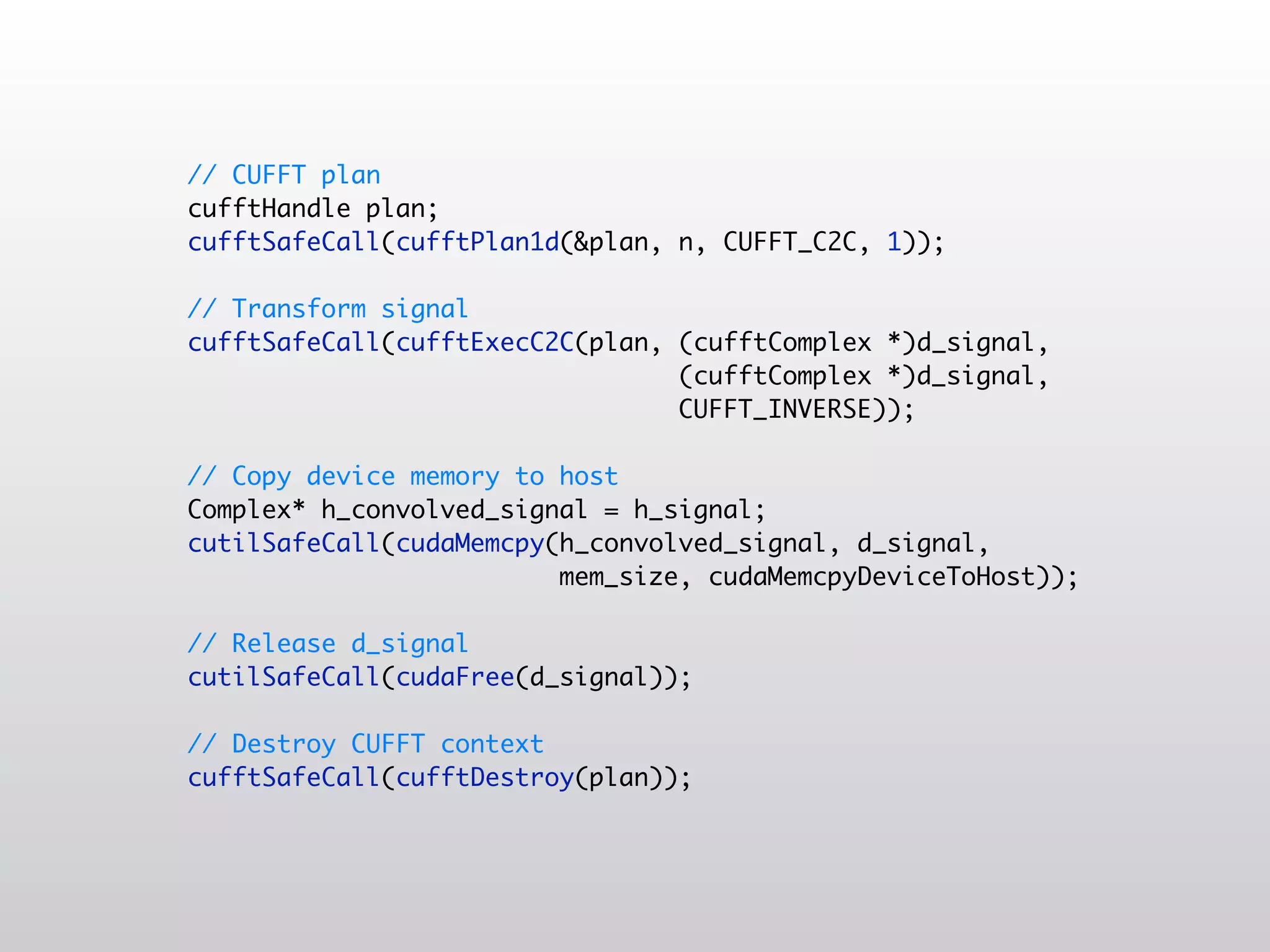

36. // CUFFT plan
cufftHandle plan;
cufftSafeCall(cufftPlan1d(&plan, n, CUFFT_C2C, 1));
// Transform signal
cufftSafeCall(cufftExecC2C(plan, (cufftComplex *)d_signal,
(cufftComplex *)d_signal,
CUFFT_INVERSE));
// Copy device memory to host
Complex* h_convolved_signal = h_signal;
cutilSafeCall(cudaMemcpy(h_convolved_signal, d_signal,
mem_size, cudaMemcpyDeviceToHost));
// Release d_signal
cutilSafeCall(cudaFree(d_signal));
// Destroy CUFFT context
cufftSafeCall(cufftDestroy(plan));

37. // Return transformed signal to Mathematica as a Complex List
MLPutFunction(stdlink, "Map", 2);
MLPutFunction(stdlink, "Function", 2);
MLPutFunction(stdlink, "List", 1);
MLPutSymbol(stdlink, "x");
MLPutFunction(stdlink, "Apply", 2);
MLPutSymbol(stdlink, "Complex");
MLPutSymbol(stdlink, "x");
MLPutFunction(stdlink, "Partition", 2);
MLPutFunction(stdlink, "Times", 2);
MLPutReal(stdlink, norm);
MLPutReal32List(stdlink, (float*)h_convolved_signal, 2*n);
MLPutInteger(stdlink, 2);
// Cleanup memory
free(h_signal);
cudaThreadExit();
}

38. Makefile
##################################################################
#
# Build script for project
#
##################################################################
# Add source files here
EXECUTABLE := cuFourier
# CUDA source files (compiled with cudacc)
CUFILES := cuFourier.cu
# Additional libraries needed by the project
USECUFFT := 1
# MathLink Template files
TMFILES := cuFourier.tm
##################################################################
# Rules and targets
include ../../common/common.mk

39. In[35]:= link
Install
" Users kashif Dropbox 20090630_NDVI_CUDA mathematica_cuda bin darwin
release cuFourier"
Out[35]= LinkObject
Users kashif Dropbox 20090630_NDVI_CUDA mathematica_cuda bin darwin
release cuFourier, 605, 9
In[36]:= LinkPatterns link
Out[36]= CUFourier1D a : __ ?NumericQ
In[37]:= ListLinePlot Abs CUFourier1D RandomReal 1, 200 ^2
0.4
0.3
Out[37]=
0.2
0.1
50 100 150 200
In[38]:= Uninstall link
Out[38]= Users kashif Dropbox 20090630_NDVI_CUDA mathematica_cuda bin darwin
release cuFourier

40. Image Deconvolution
for Life Sciences
• Confocal and Widefield microscopy
3D or 4D images
• Multichannel (3 or more channels)
• Comes in a wide variety of formats

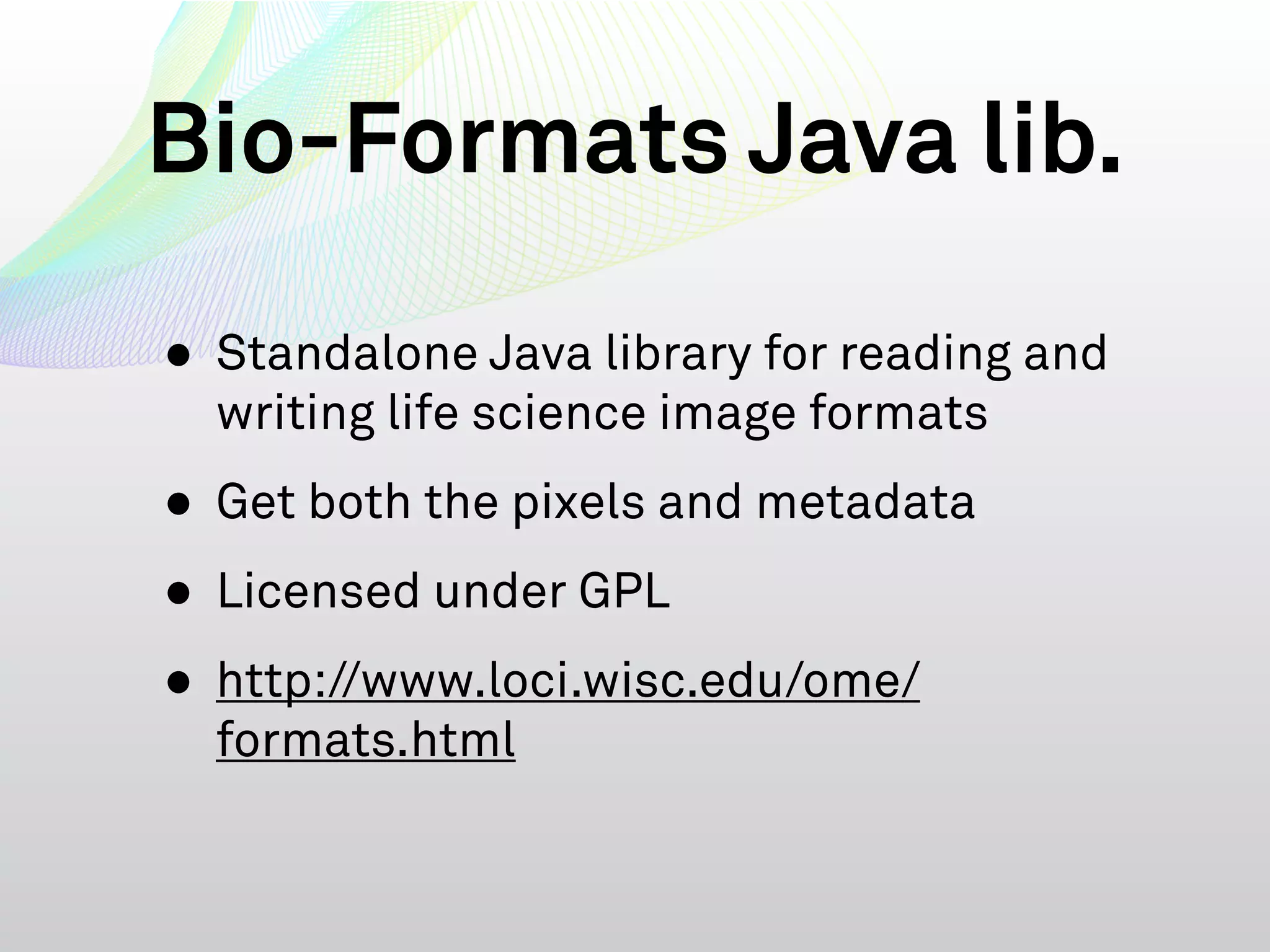

41. Bio-Formats Java lib.
• Standalone Java library for reading and
writing life science image formats
• Get both the pixels and metadata
• Licensed under GPL
• http://www.loci.wisc.edu/ome/
formats.html

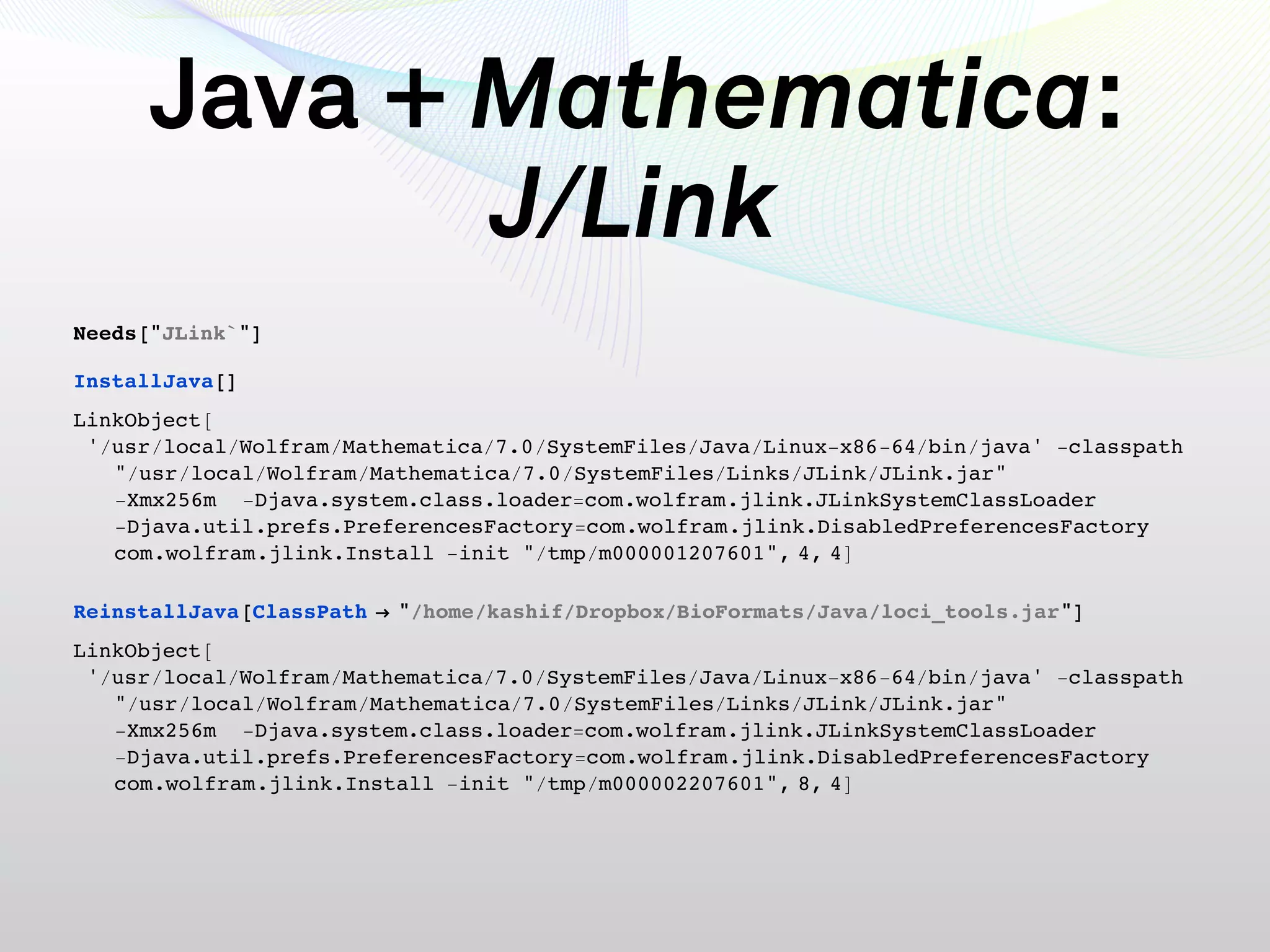

42. Java + Mathematica:
J/Link
Needs "JLink`"
InstallJava
LinkObject
' usr local Wolfram Mathematica 7.0 SystemFiles Java Linux x86 64 bin java' classpath
" usr local Wolfram Mathematica 7.0 SystemFiles Links JLink JLink.jar"
Xmx256m Djava.system.class.loader com.wolfram.jlink.JLinkSystemClassLoader
Djava.util.prefs.PreferencesFactory com.wolfram.jlink.DisabledPreferencesFactory
com.wolfram.jlink.Install init " tmp m000001207601", 4, 4
ReinstallJava ClassPath " home kashif Dropbox BioFormats Java loci_tools.jar"
LinkObject
' usr local Wolfram Mathematica 7.0 SystemFiles Java Linux x86 64 bin java' classpath
" usr local Wolfram Mathematica 7.0 SystemFiles Links JLink JLink.jar"
Xmx256m Djava.system.class.loader com.wolfram.jlink.JLinkSystemClassLoader
Djava.util.prefs.PreferencesFactory com.wolfram.jlink.DisabledPreferencesFactory
com.wolfram.jlink.Install init " tmp m000002207601", 8, 4

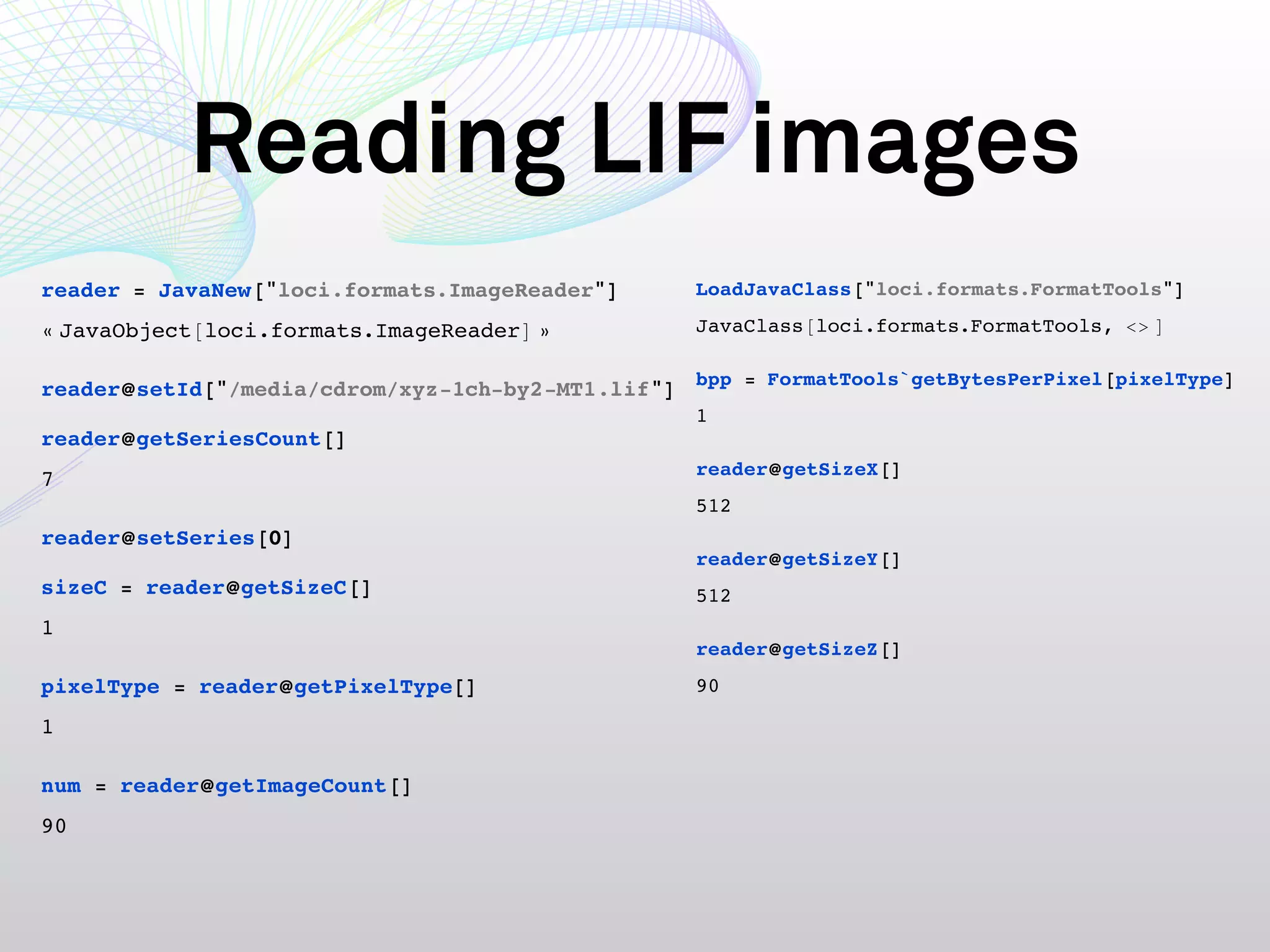

43. Reading LIF images
reader JavaNew "loci.formats.ImageReader" LoadJavaClass "loci.formats.FormatTools"
« JavaObject loci.formats.ImageReader » JavaClass loci.formats.FormatTools,
bpp FormatTools`getBytesPerPixel pixelType
reader setId " media cdrom xyz 1ch by2 MT1.lif"
1
reader getSeriesCount
reader getSizeX
7
512
reader setSeries 0
reader getSizeY
sizeC reader getSizeC 512
1
reader getSizeZ
pixelType reader getPixelType 90
1
num reader getImageCount
90

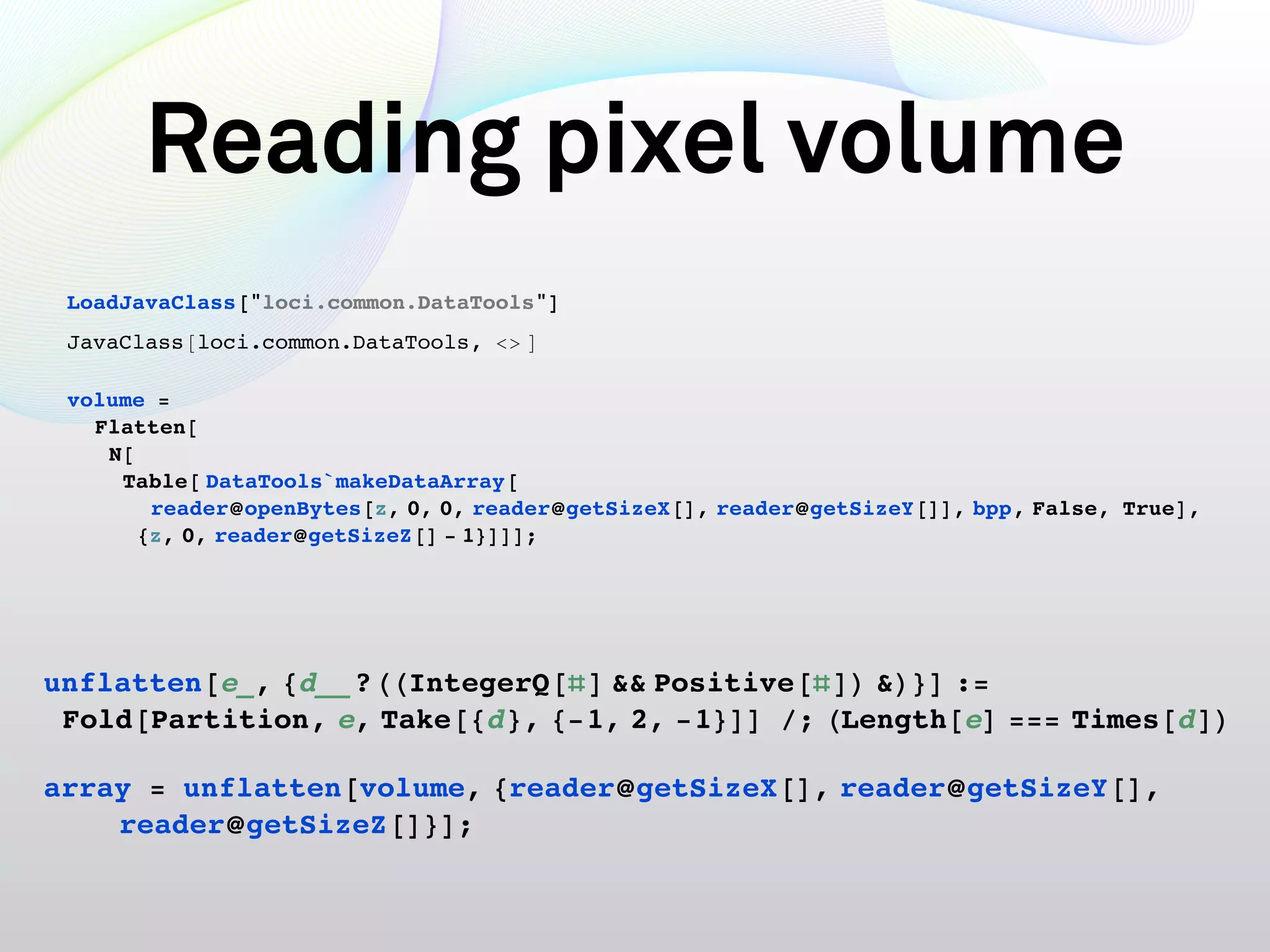

44. Reading pixel volume
LoadJavaClass "loci.common.DataTools"
JavaClass loci.common.DataTools,
volume
Flatten
N
Table DataTools`makeDataArray
reader openBytes z, 0, 0, reader getSizeX , reader getSizeY , bpp, False, True ,
z, 0, reader getSizeZ 1 ;
unflatten e_, d__ ? IntegerQ && Positive & :
Fold Partition, e, Take d , 1, 2, 1 ; Length e Times d
array unflatten volume, reader getSizeX , reader getSizeY ,
reader getSizeZ ;

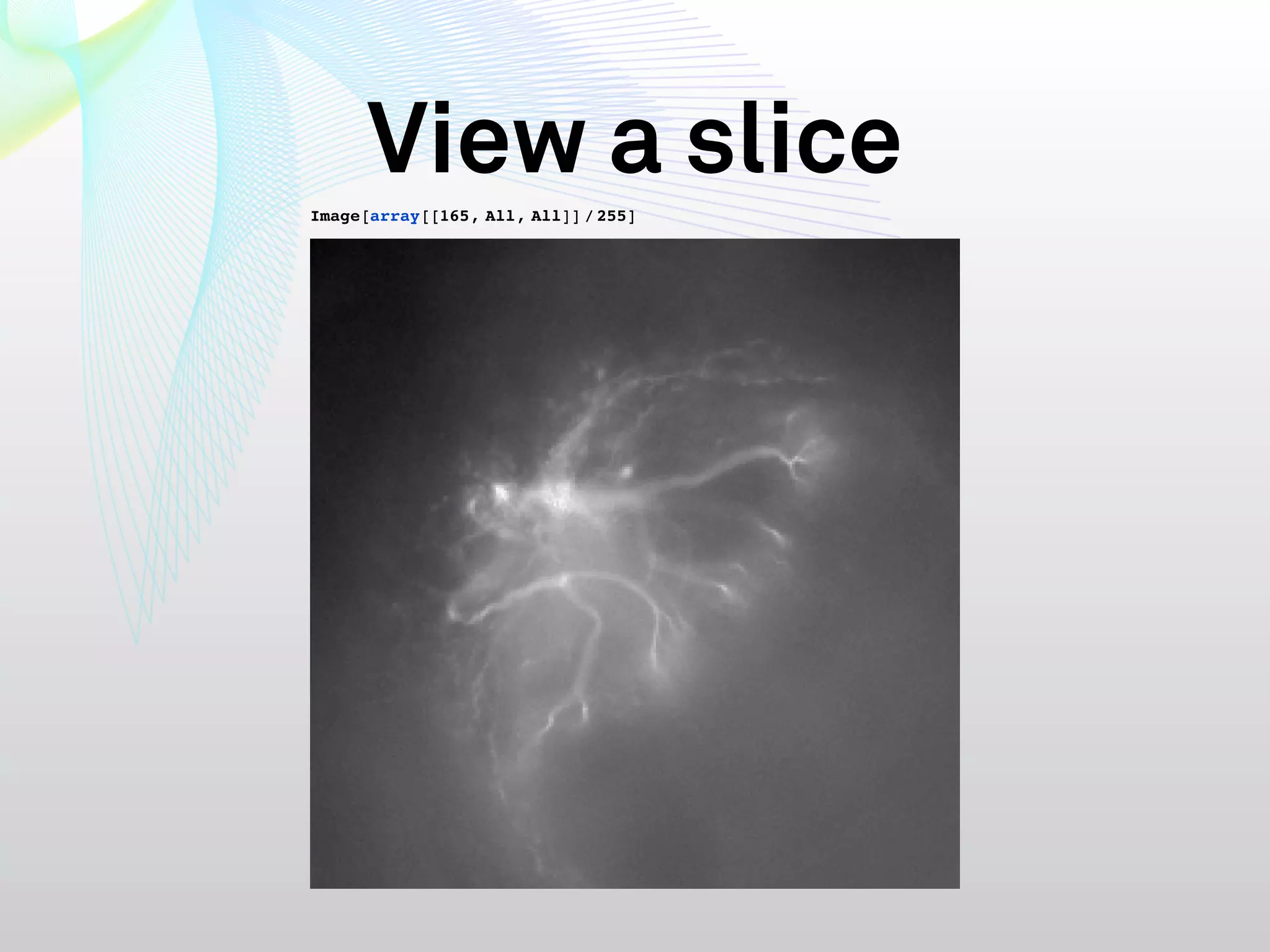

45. View a slice
Image array 165, All, All 255

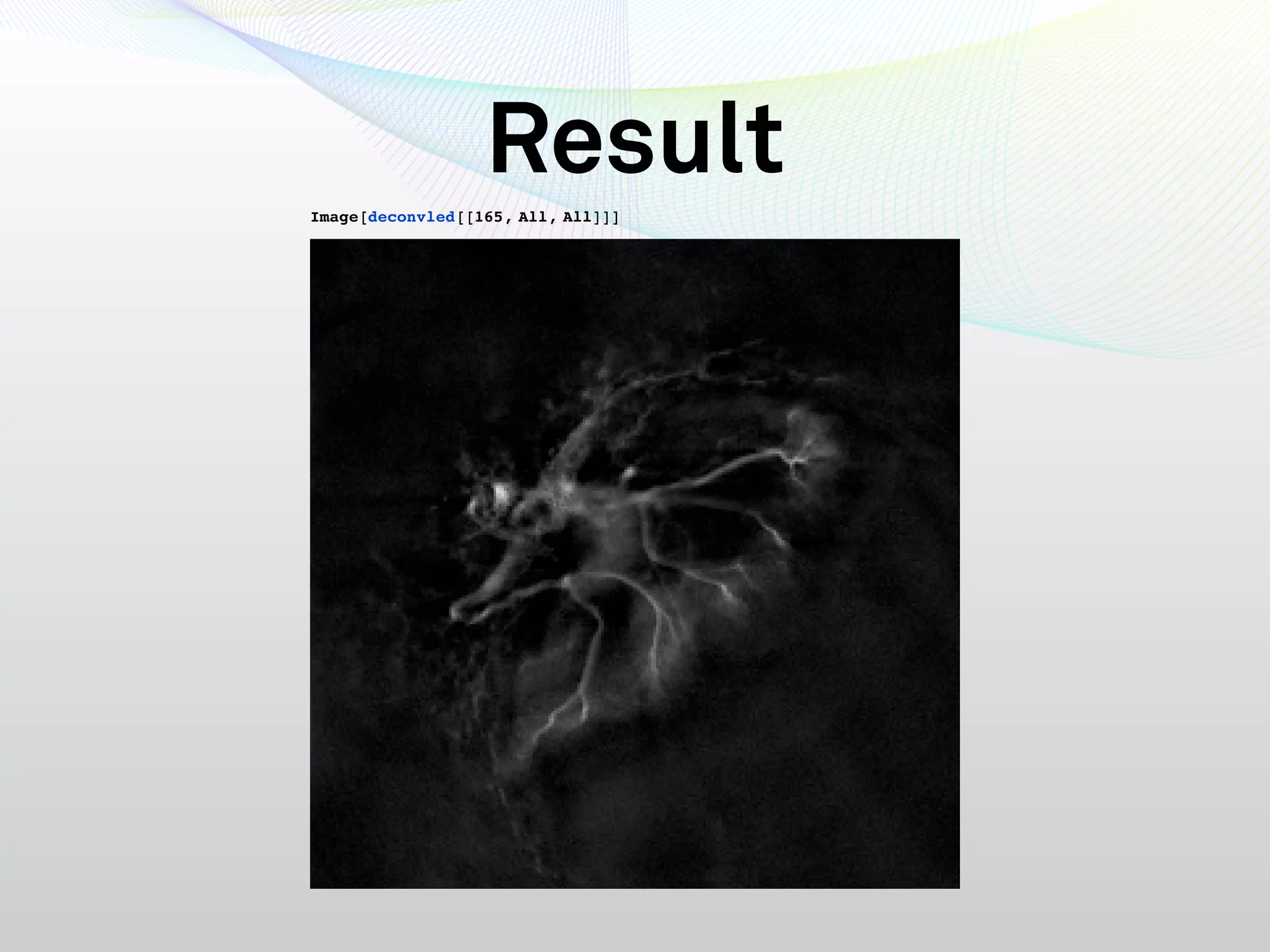

46. Image deconvled
Result
165, All, All

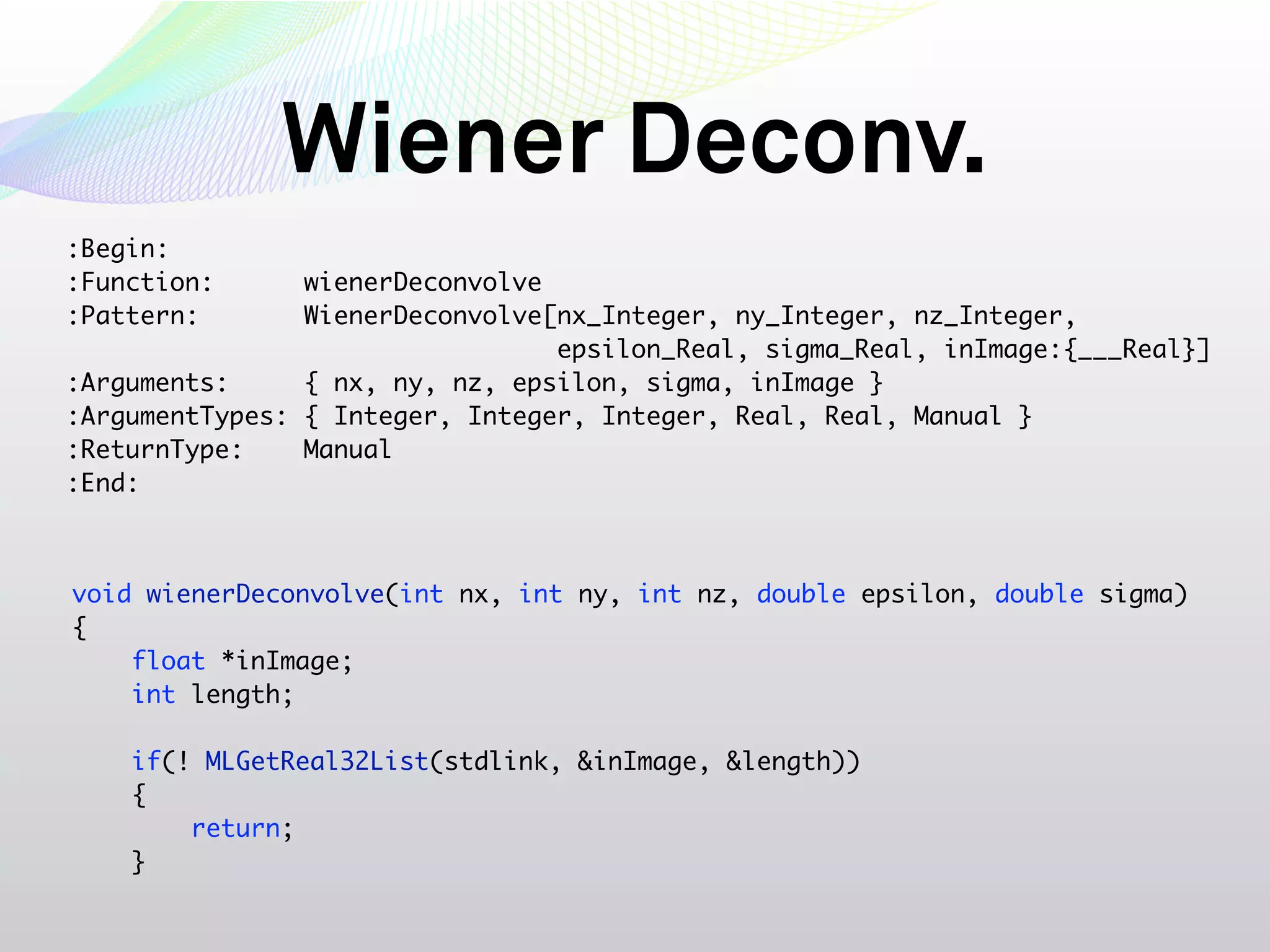

47. Wiener Deconv.
:Begin:
:Function: wienerDeconvolve
:Pattern: WienerDeconvolve[nx_Integer, ny_Integer, nz_Integer,
epsilon_Real, sigma_Real, inImage:{___Real}]
:Arguments: { nx, ny, nz, epsilon, sigma, inImage }
:ArgumentTypes: { Integer, Integer, Integer, Real, Real, Manual }
:ReturnType: Manual
:End:
void wienerDeconvolve(int nx, int ny, int nz, double epsilon, double sigma)
{
float *inImage;
int length;
if(! MLGetReal32List(stdlink, &inImage, &length))
{
return;
}

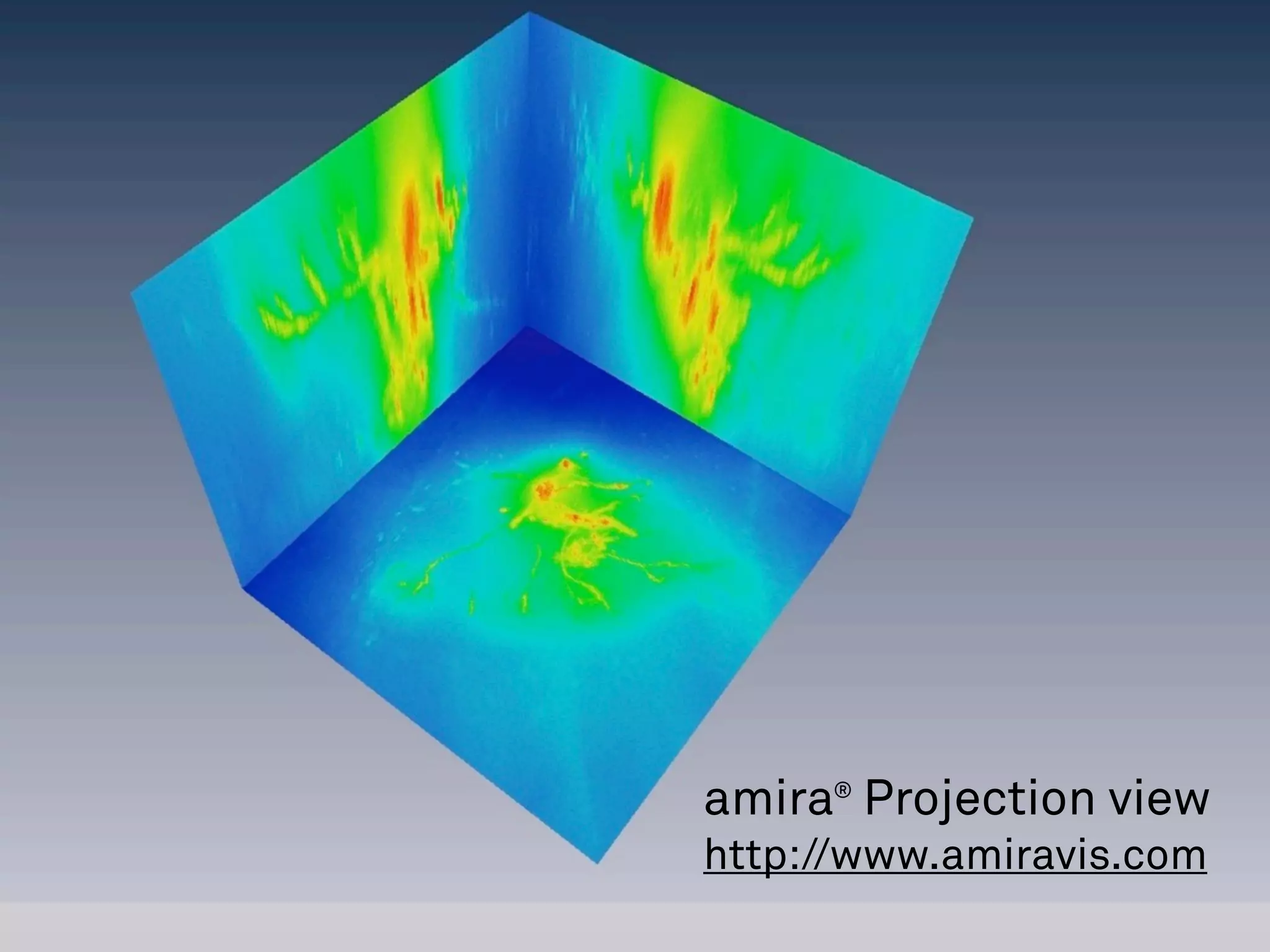

48. amira Projection view
®
http://www.amiravis.com

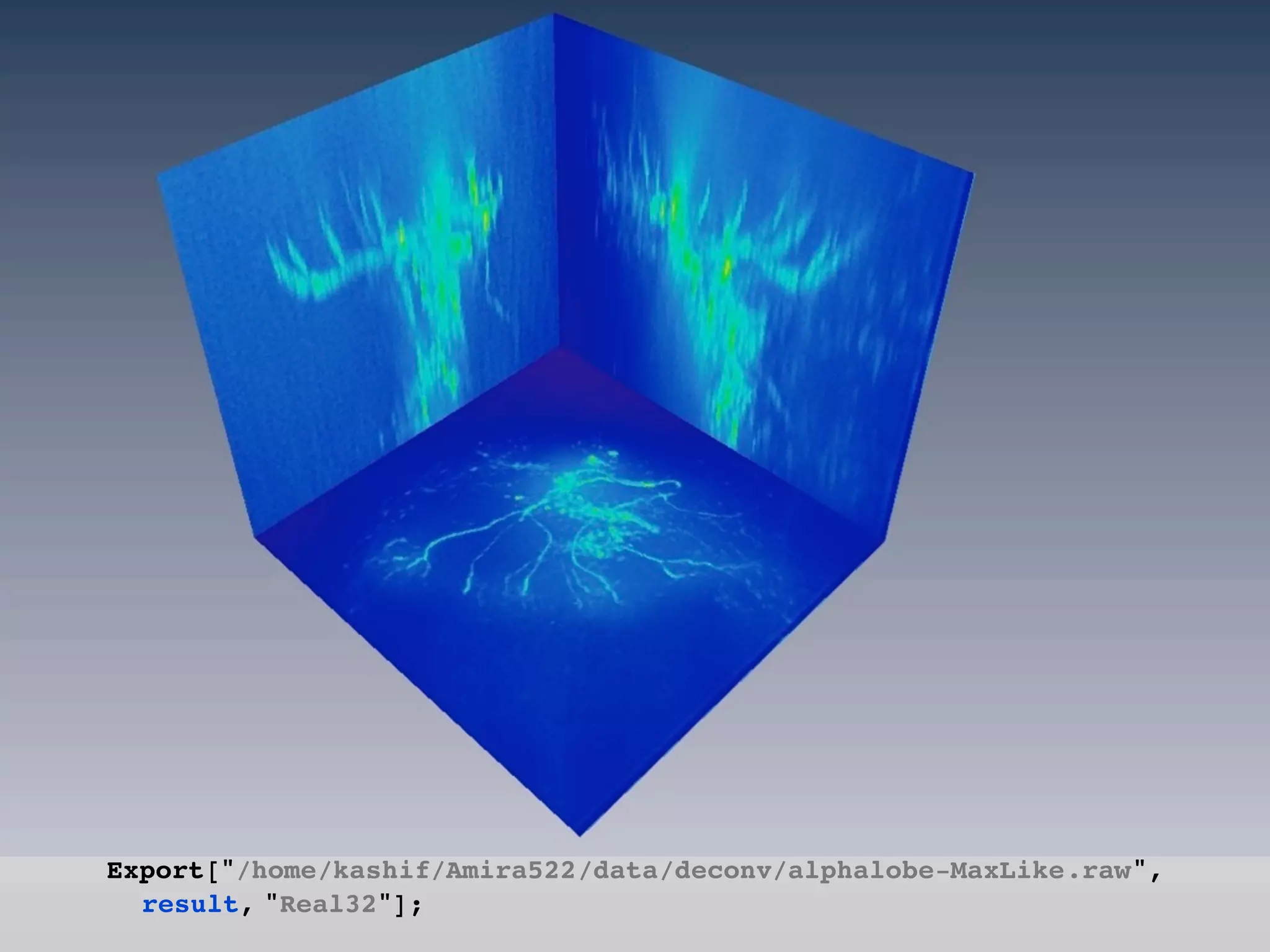

49. Export " home kashif Amira522 data deconv alphalobe MaxLike.raw",
result, "Real32" ;

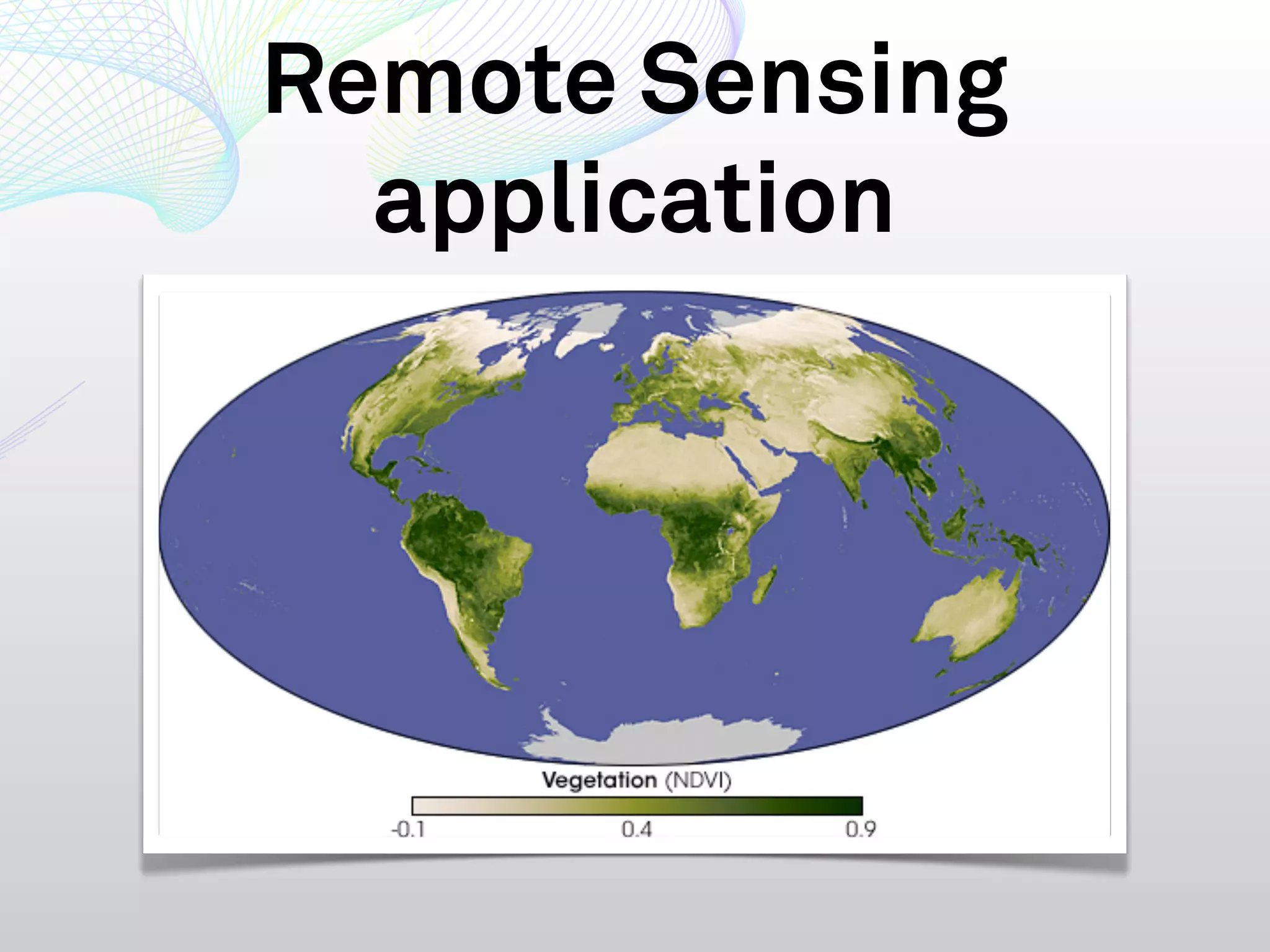

50. Remote Sensing
application

51. Reflectance

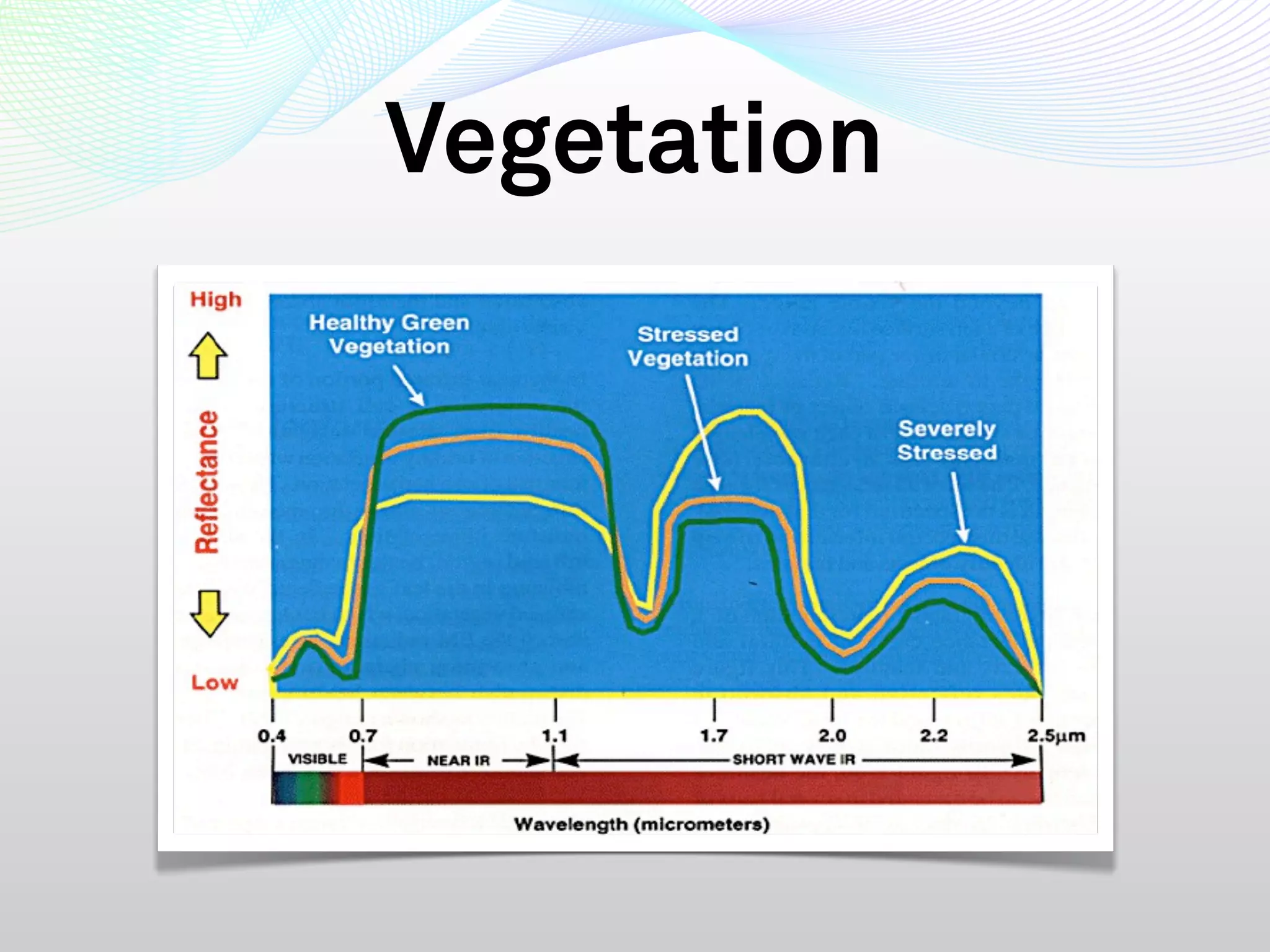

52. Vegetation

53. Landsat TM Data

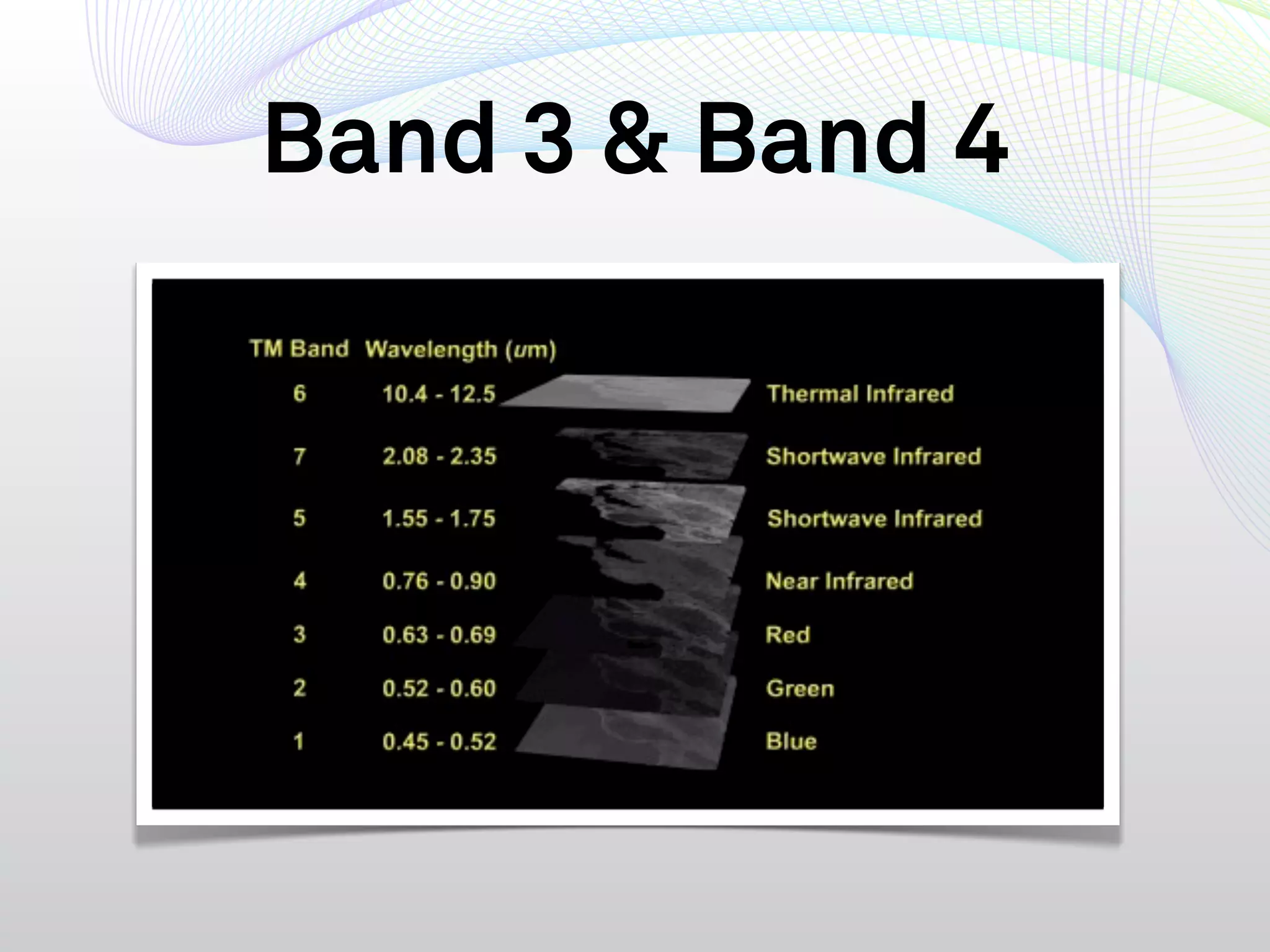

54. Band 3 & Band 4

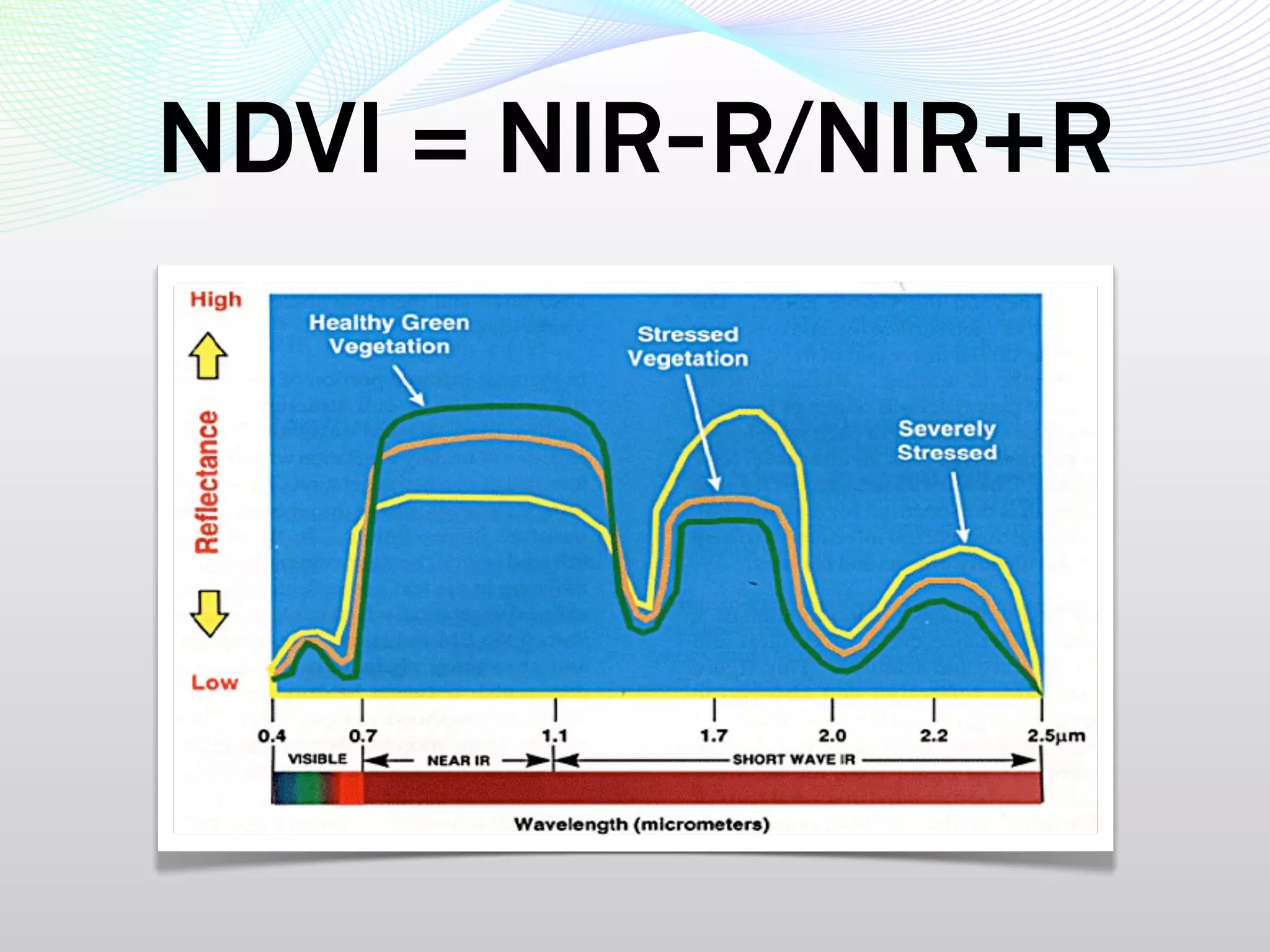

55. NDVI = NIR-R/NIR+R

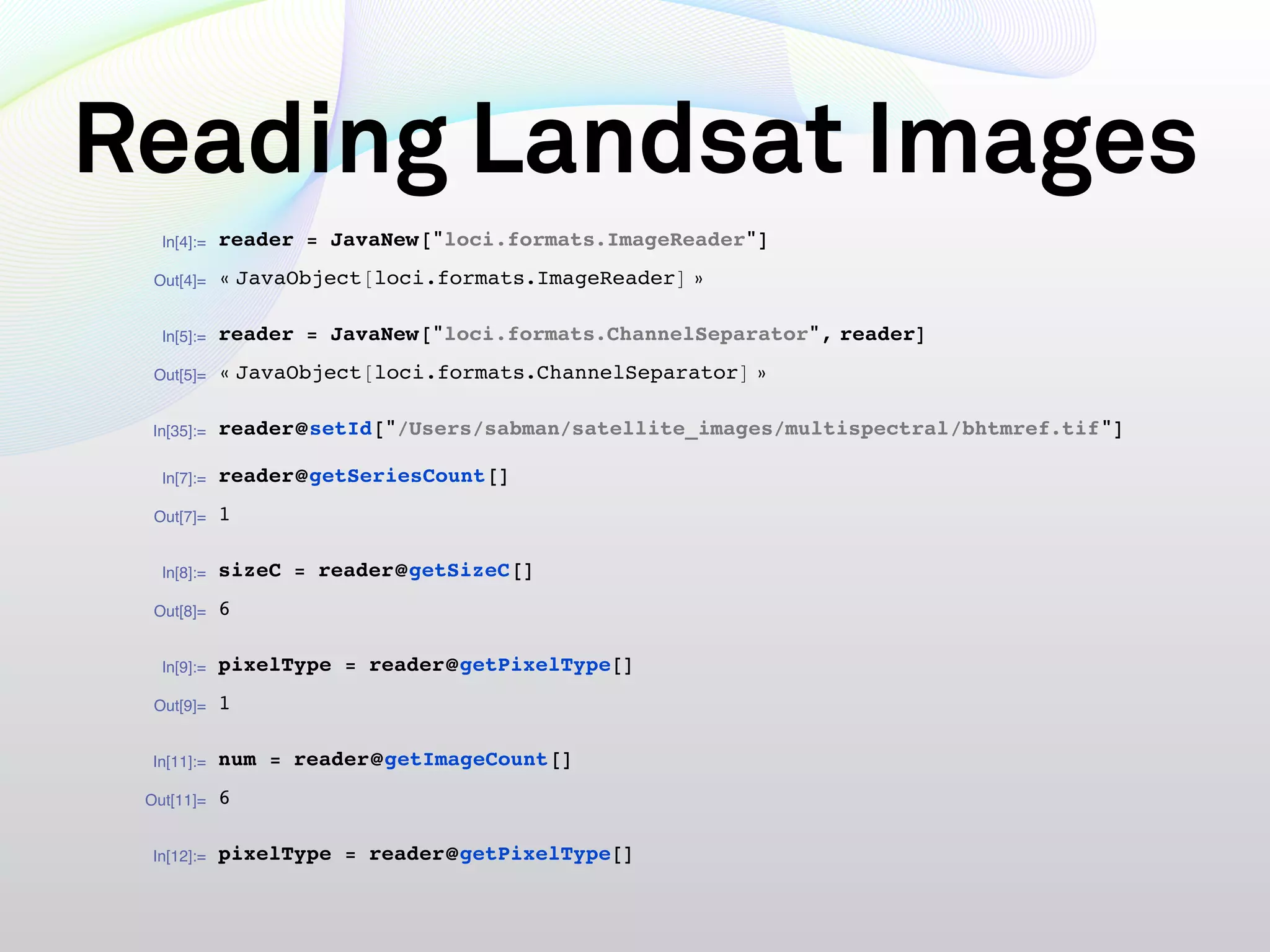

56. Reading Landsat Images
In[4]:= reader JavaNew "loci.formats.ImageReader"
Out[4]= « JavaObject loci.formats.ImageReader »
In[5]:= reader JavaNew "loci.formats.ChannelSeparator", reader
Out[5]= « JavaObject loci.formats.ChannelSeparator »
In[35]:= reader setId " Users sabman satellite_images multispectral bhtmref.tif"
In[7]:= reader getSeriesCount
Out[7]= 1
In[8]:= sizeC reader getSizeC
Out[8]= 6
In[9]:= pixelType reader getPixelType
Out[9]= 1
In[11]:= num reader getImageCount
Out[11]= 6
In[12]:= pixelType reader getPixelType

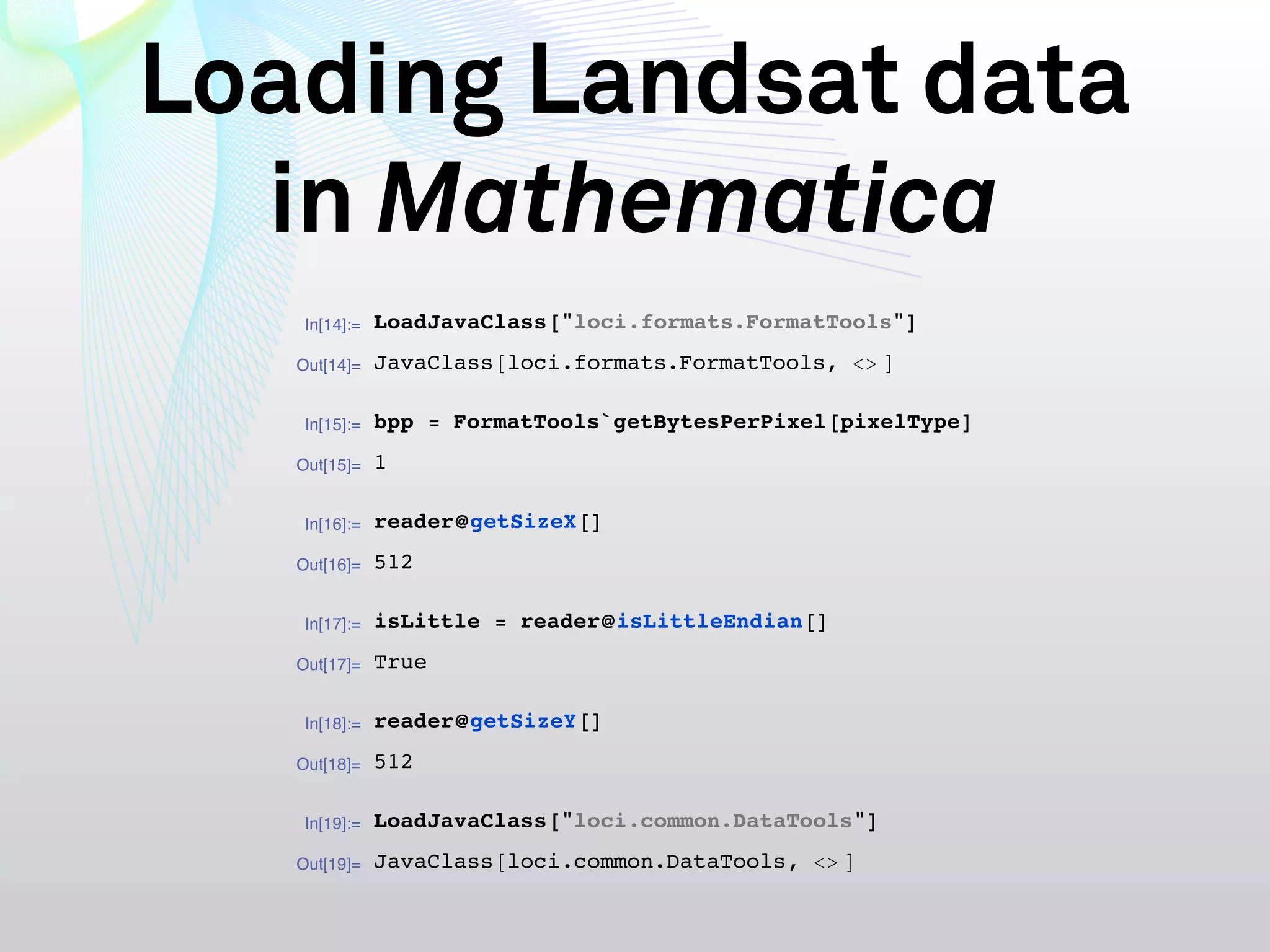

57. Loading Landsat data
in Mathematica
In[14]:= LoadJavaClass "loci.formats.FormatTools"
Out[14]= JavaClass loci.formats.FormatTools,
In[15]:= bpp FormatTools`getBytesPerPixel pixelType
Out[15]= 1
In[16]:= reader getSizeX
Out[16]= 512
In[17]:= isLittle reader isLittleEndian
Out[17]= True
In[18]:= reader getSizeY
Out[18]= 512
In[19]:= LoadJavaClass "loci.common.DataTools"
Out[19]= JavaClass loci.common.DataTools,

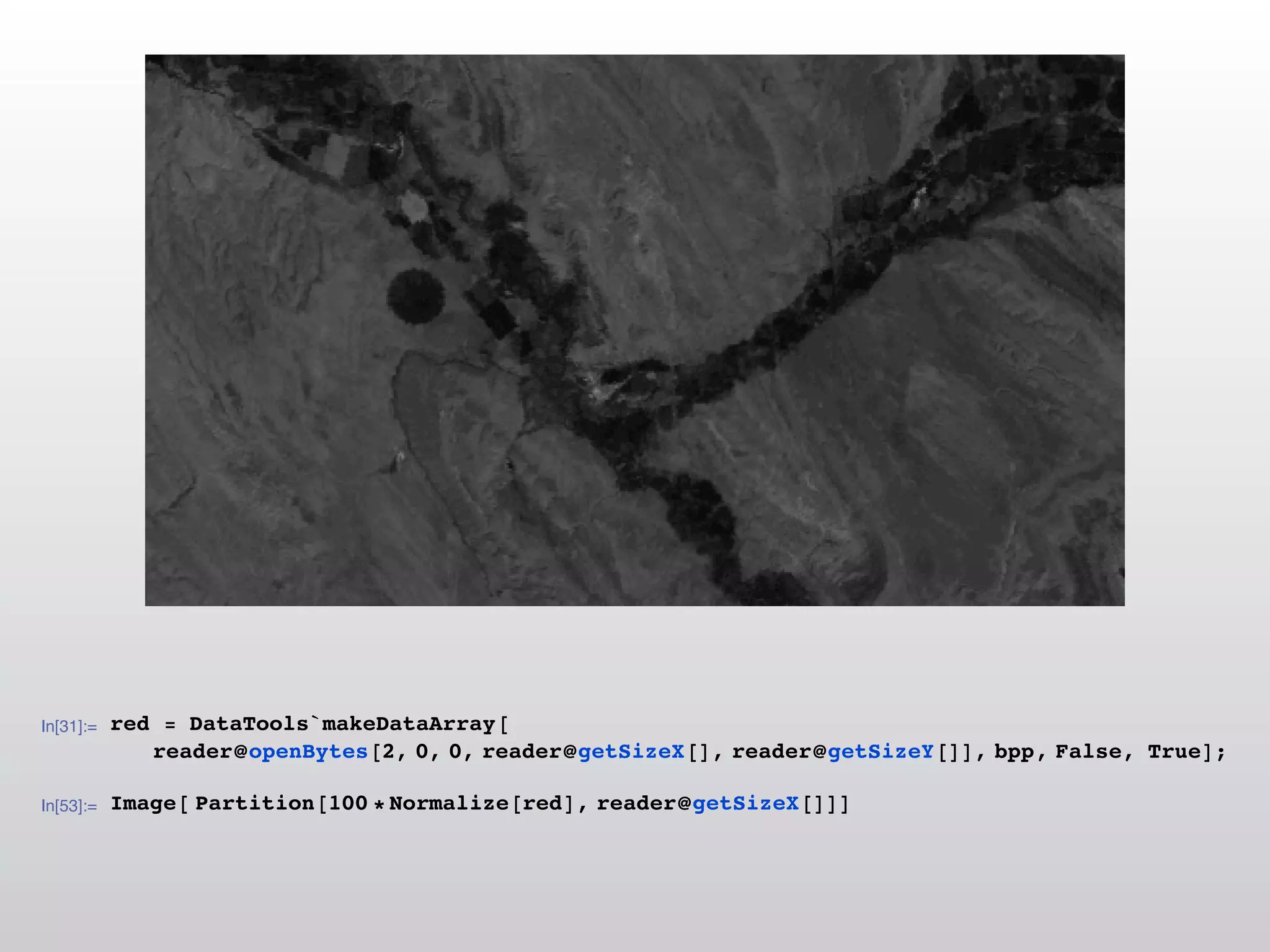

58. In[31]:= red DataTools`makeDataArray
reader openBytes 2, 0, 0, reader getSizeX , reader getSizeY , bpp, False, True ;
In[53]:= Image Partition 100 Normalize red , reader getSizeX

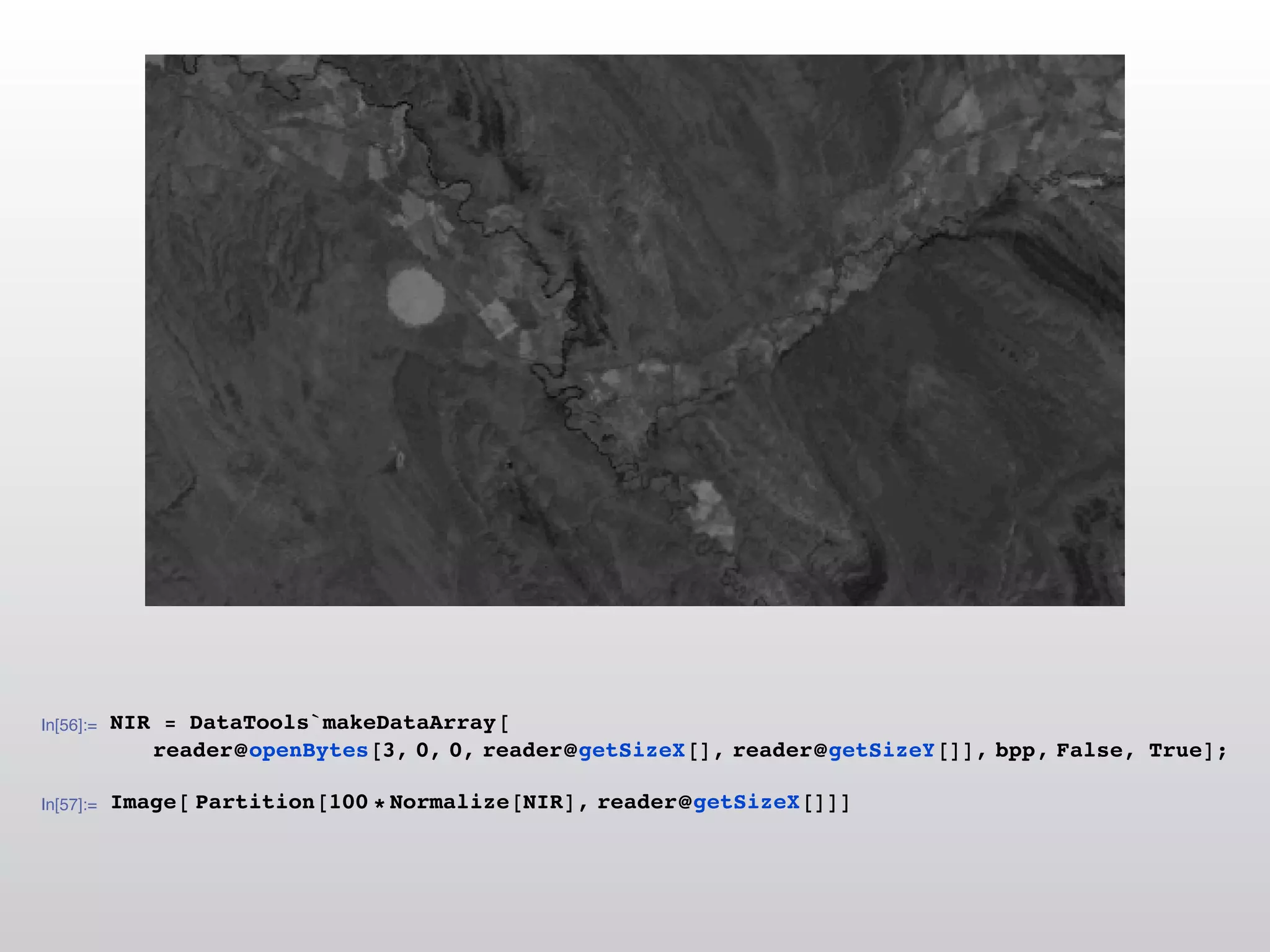

59. In[56]:= NIR DataTools`makeDataArray
reader openBytes 3, 0, 0, reader getSizeX , reader getSizeY , bpp, False, True ;
In[57]:= Image Partition 100 Normalize NIR , reader getSizeX

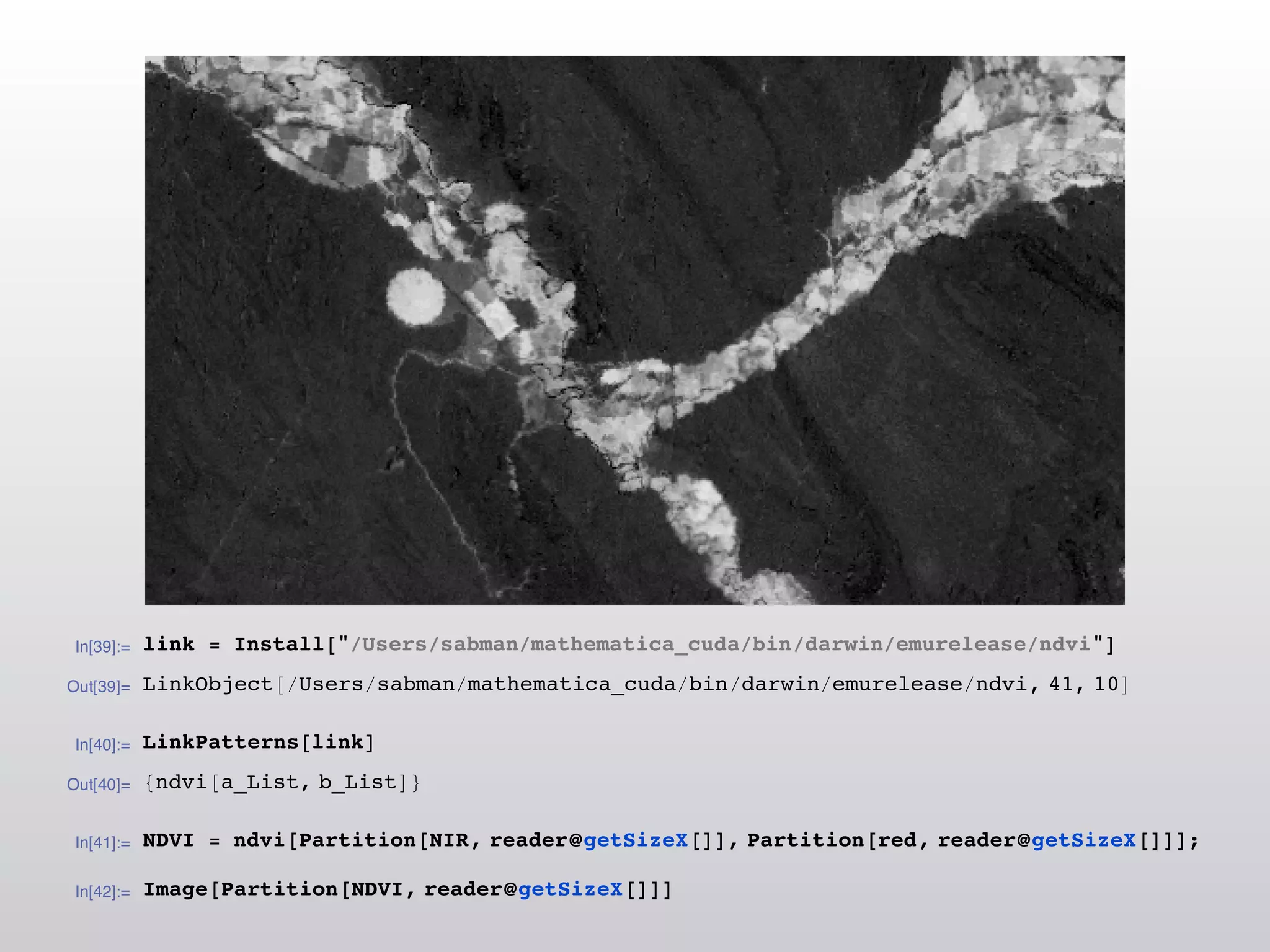

60. In[39]:= link Install " Users sabman mathematica_cuda bin darwin emurelease ndvi"
Out[39]= LinkObject Users sabman mathematica_cuda bin darwin emurelease ndvi, 41, 10
In[40]:= LinkPatterns link
Out[40]= ndvi a_List, b_List
In[41]:= NDVI ndvi Partition NIR, reader getSizeX , Partition red, reader getSizeX ;
In[42]:= Image Partition NDVI, reader getSizeX

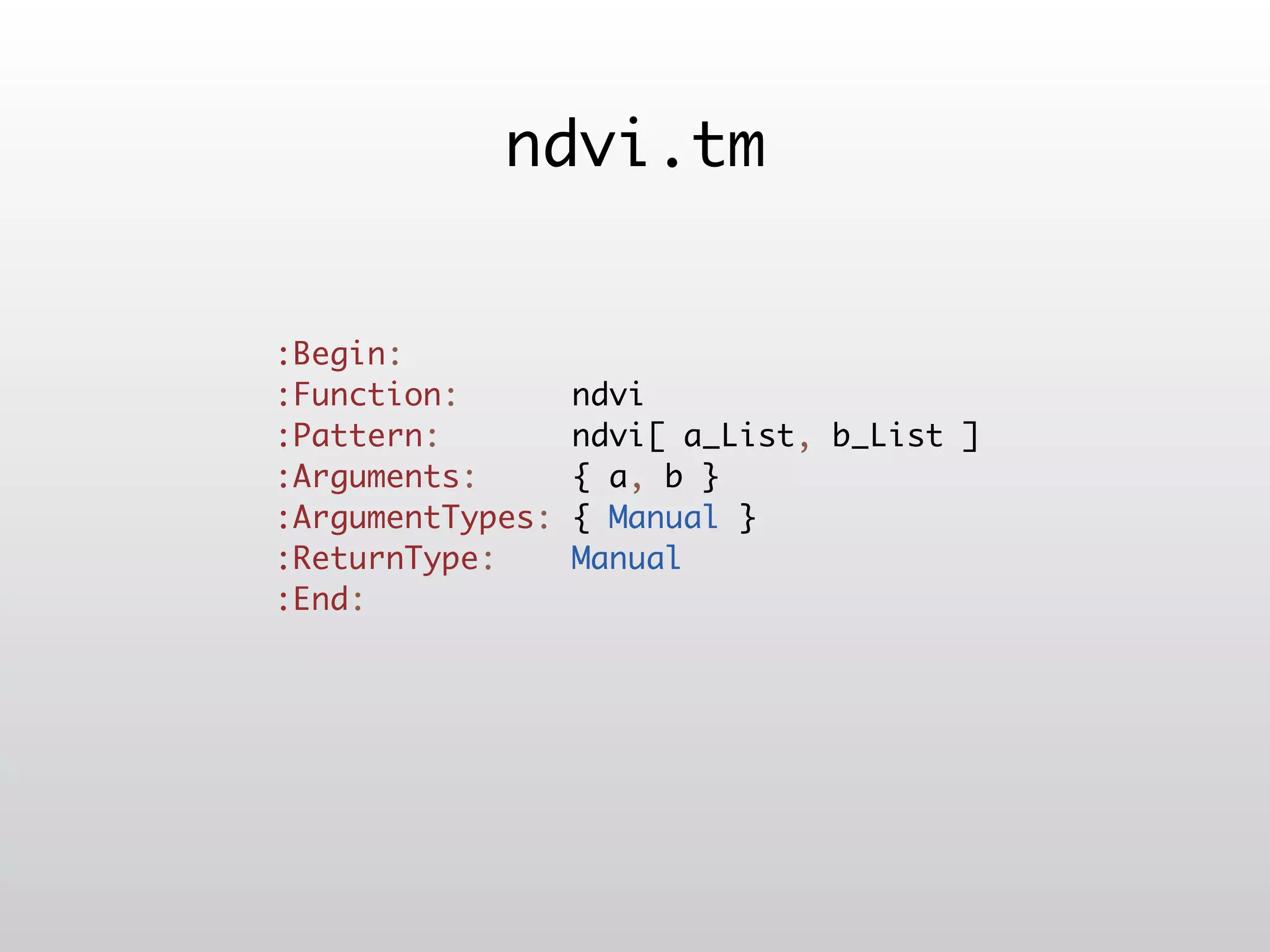

61. ndvi.tm
:Begin:
:Function: ndvi
:Pattern: ndvi[ a_List, b_List ]
:Arguments: { a, b }
:ArgumentTypes: { Manual }
:ReturnType: Manual
:End:

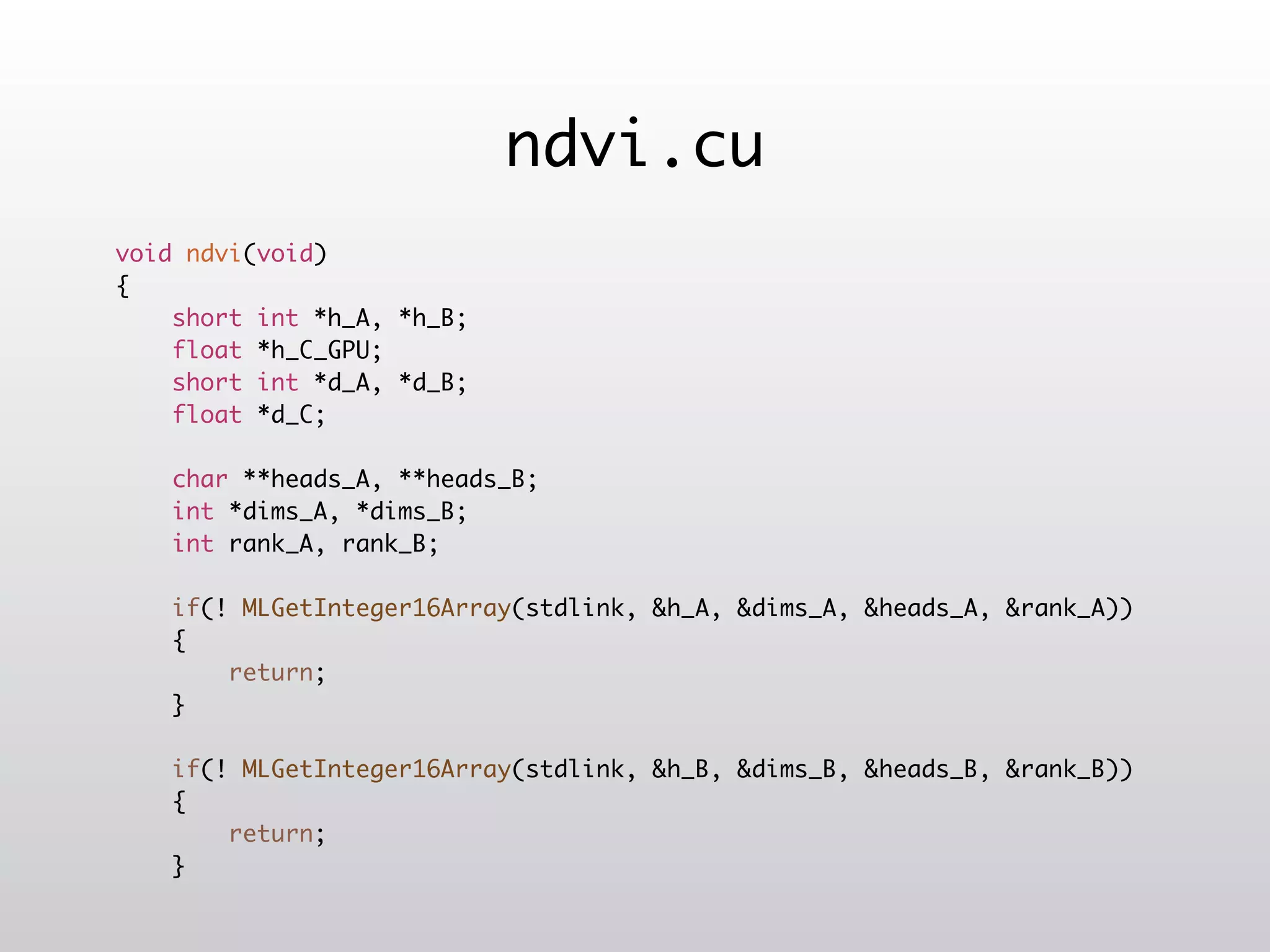

62. ndvi.cu
void ndvi(void)
{
short int *h_A, *h_B;
float *h_C_GPU;
short int *d_A, *d_B;
float *d_C;
char **heads_A, **heads_B;
int *dims_A, *dims_B;
int rank_A, rank_B;
if(! MLGetInteger16Array(stdlink, &h_A, &dims_A, &heads_A, &rank_A))
{
return;
}
if(! MLGetInteger16Array(stdlink, &h_B, &dims_B, &heads_B, &rank_B))
{
return;
}

63. //Initializing data
h_C_GPU = (float *)malloc(dims_A[0]*dims_A[1]*sizeof(float));
//Allocating GPU memory
cutilSafeCall( cudaMalloc((void **)&d_A, dims_A[0]*dims_A[1]*sizeof(short int)) );
cutilSafeCall( cudaMalloc((void **)&d_B, dims_A[0]*dims_A[1]*sizeof(short int)) );
cutilSafeCall( cudaMalloc((void **)&d_C, dims_A[0]*dims_A[1]*sizeof(float)) );
//Copy data to GPU memory for further processing
cutilSafeCall( cudaMemcpy(d_A, h_A, dims_A[0]*dims_A[1]*sizeof(short int),
cudaMemcpyHostToDevice) );
cutilSafeCall( cudaMemcpy(d_B, h_B, dims_A[0]*dims_A[1]*sizeof(short int),
cudaMemcpyHostToDevice) );
cutilSafeCall( cudaThreadSynchronize() );
dim3 grid(ceil((float)dims_A[0]/(float)16.0f), ceil((float) dims_A[1]/32.0f), 1);
dim3 threads(ceil( dims_A[0]/(float)grid.x), ceil( dims_A[1]/(float)grid.y), 1);
ndviGPU<<<grid, threads>>>(d_C, d_A, d_B, dims_A[0], dims_A[1]);
cutilCheckMsg("ndviGPU() execution failedn");
cutilSafeCall( cudaThreadSynchronize() );

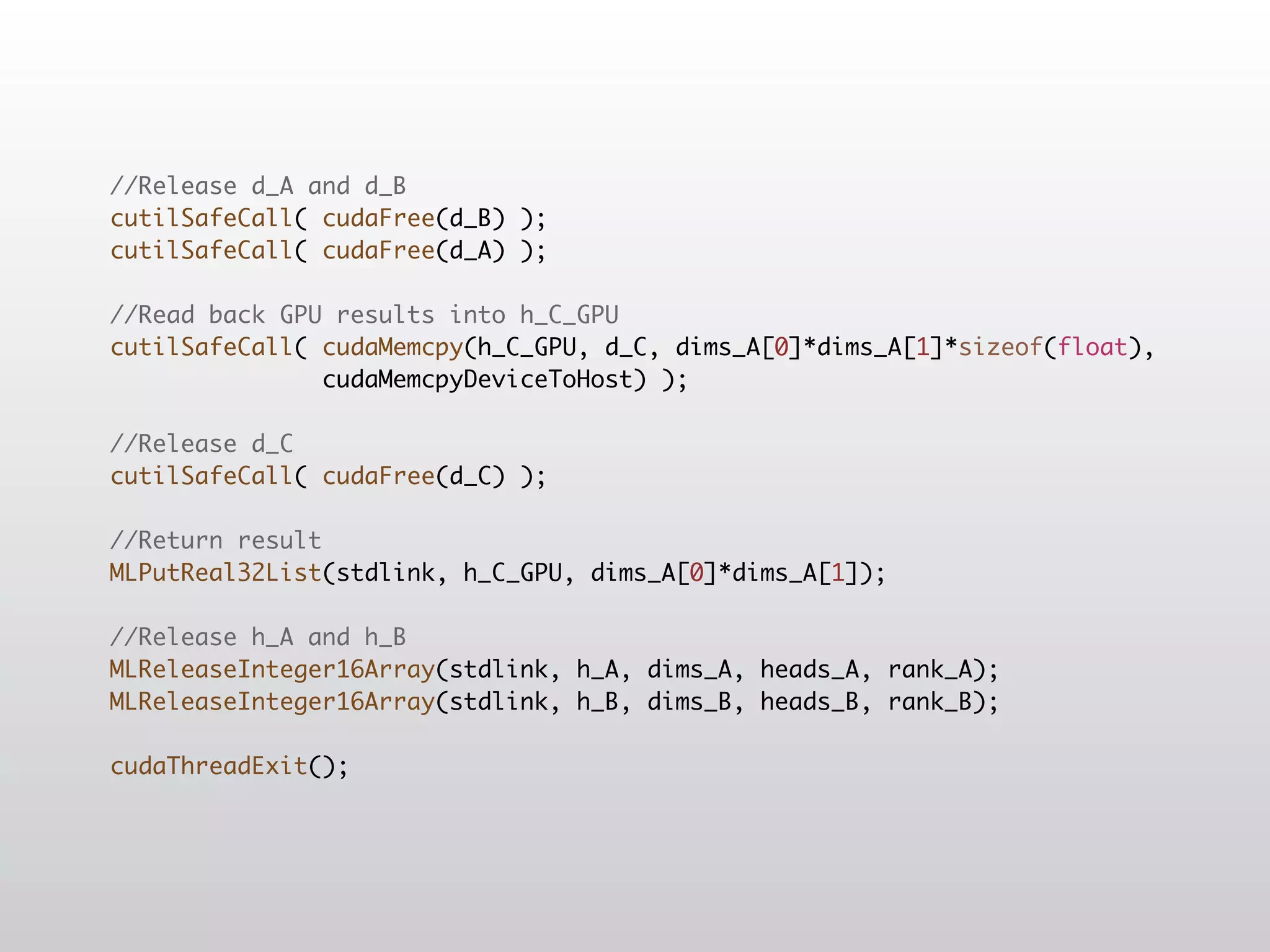

64. //Release d_A and d_B
cutilSafeCall( cudaFree(d_B) );
cutilSafeCall( cudaFree(d_A) );
//Read back GPU results into h_C_GPU
cutilSafeCall( cudaMemcpy(h_C_GPU, d_C, dims_A[0]*dims_A[1]*sizeof(float),
cudaMemcpyDeviceToHost) );
//Release d_C
cutilSafeCall( cudaFree(d_C) );
//Return result
MLPutReal32List(stdlink, h_C_GPU, dims_A[0]*dims_A[1]);
//Release h_A and h_B
MLReleaseInteger16Array(stdlink, h_A, dims_A, heads_A, rank_A);
MLReleaseInteger16Array(stdlink, h_B, dims_B, heads_B, rank_B);
cudaThreadExit();

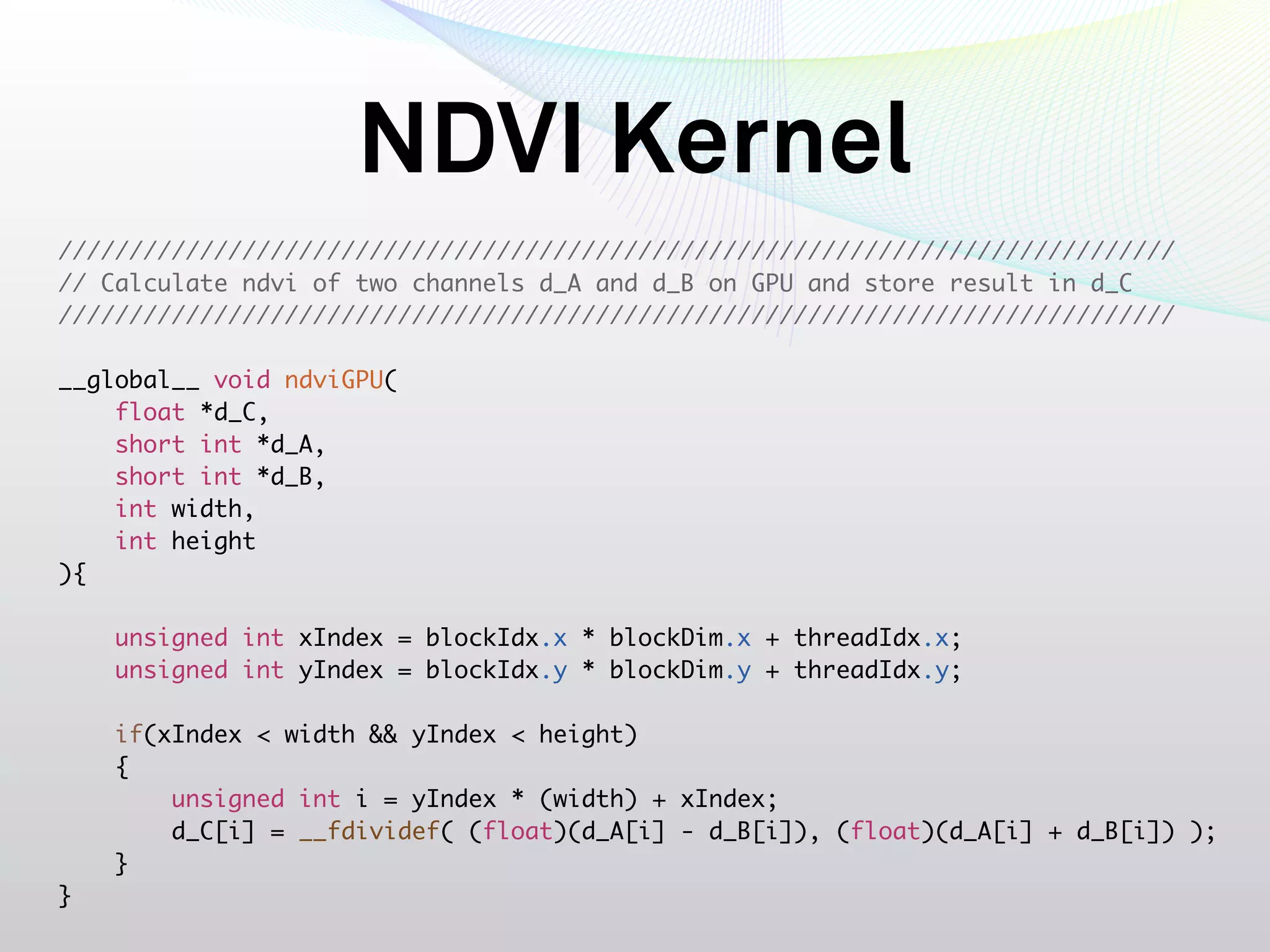

65. NDVI Kernel
///////////////////////////////////////////////////////////////////////////////
// Calculate ndvi of two channels d_A and d_B on GPU and store result in d_C
///////////////////////////////////////////////////////////////////////////////
__global__ void ndviGPU(
float *d_C,
short int *d_A,
short int *d_B,
int width,
int height
){
unsigned int xIndex = blockIdx.x * blockDim.x + threadIdx.x;
unsigned int yIndex = blockIdx.y * blockDim.y + threadIdx.y;
if(xIndex < width && yIndex < height)
{
unsigned int i = yIndex * (width) + xIndex;
d_C[i] = __fdividef( (float)(d_A[i] - d_B[i]), (float)(d_A[i] + d_B[i]) );
}
}

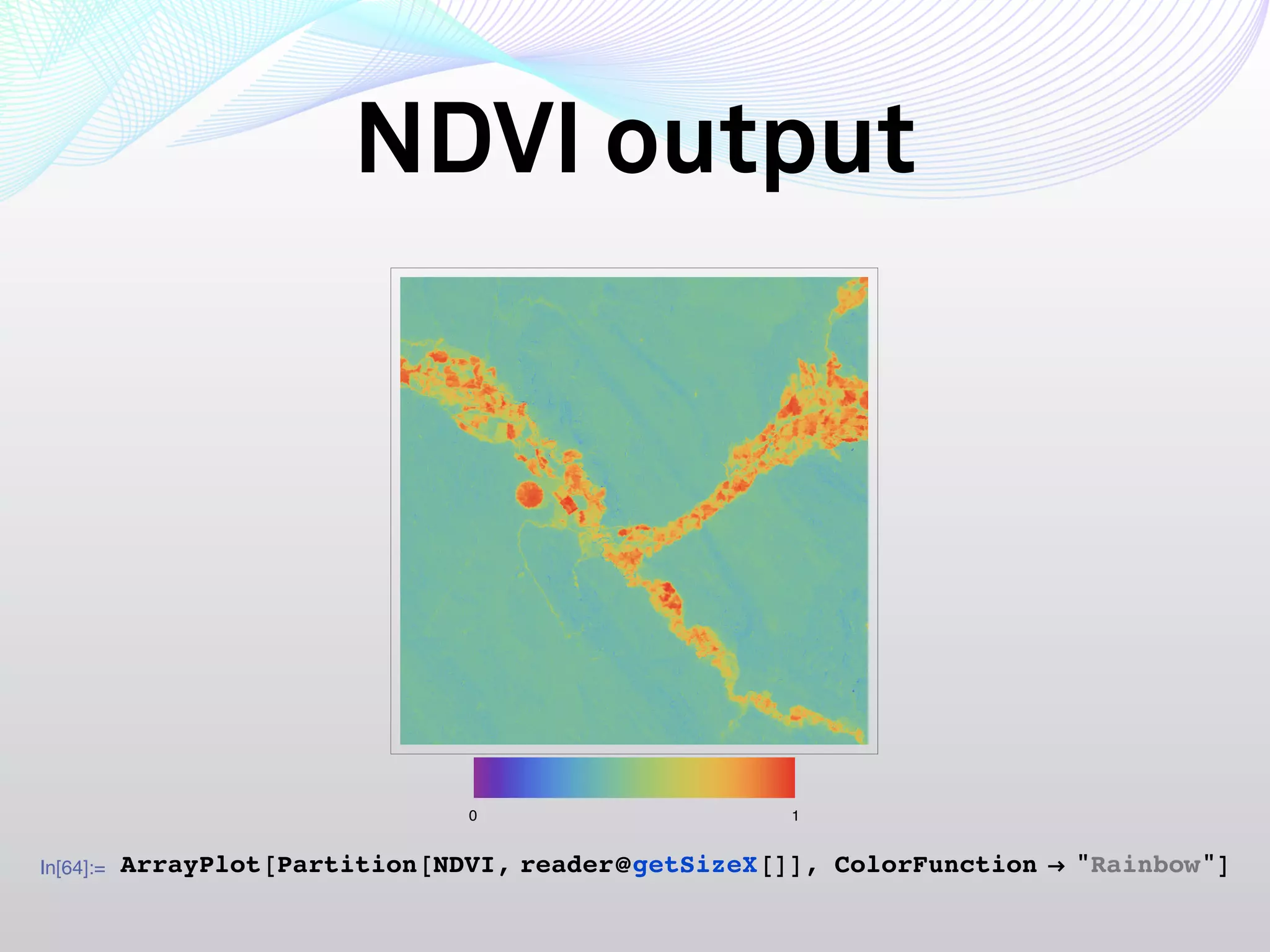

66. NDVI output
0 1
In[64]:= ArrayPlot Partition NDVI, reader getSizeX , ColorFunction "Rainbow"

67. Questions?
http://hpc.nomad-labs.com
kashif@nomad-labs.com
twitter krasul
