1. Pointers and Arrays
S.Bhuvaneshwari
Assistant Professor/CSE
Sri Eshwar College of Engineering
Coimbatore

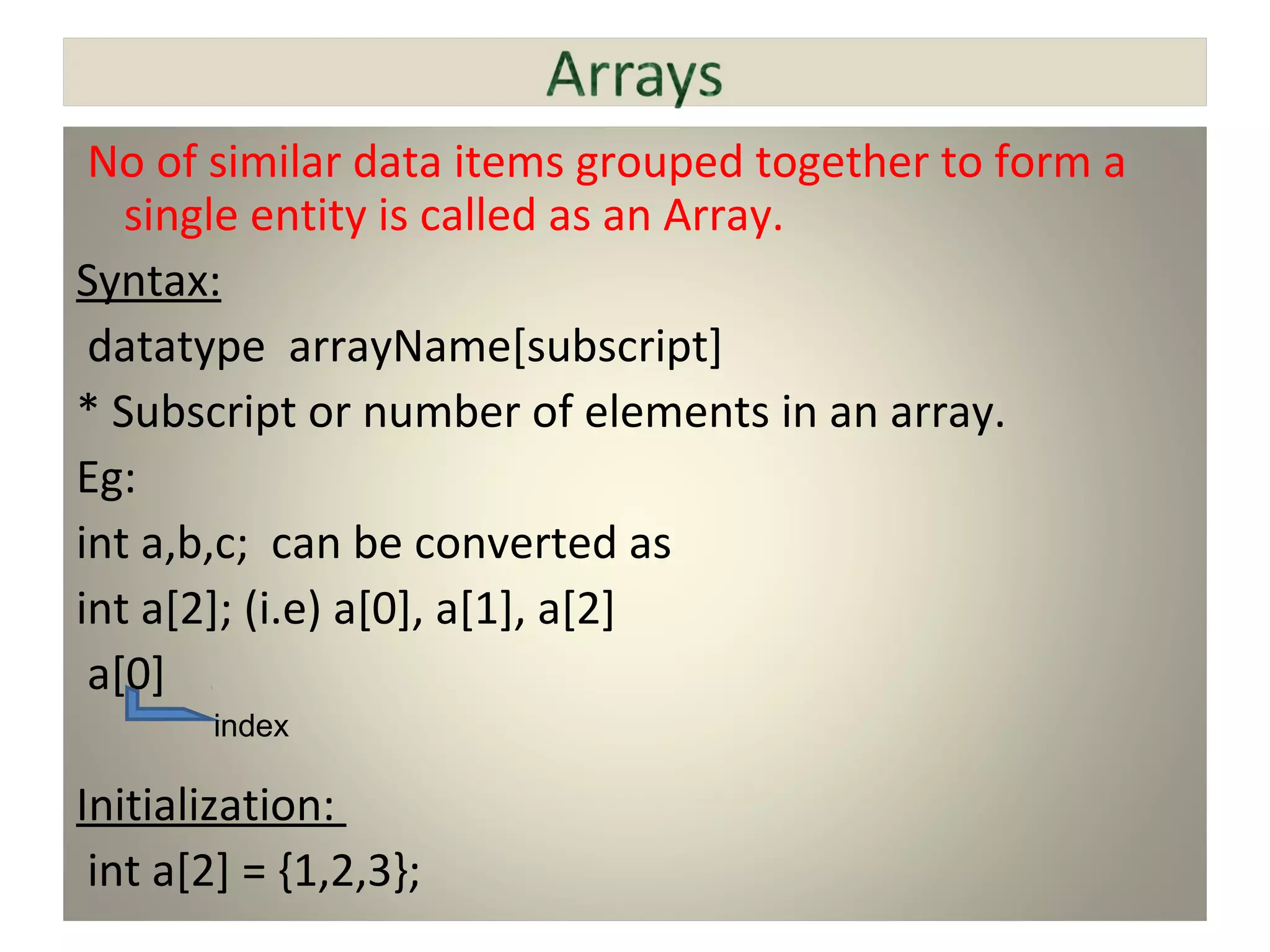

2. No of similar data items grouped together to form a
single entity is called as an Array.
Syntax:
datatype arrayName[subscript]
* Subscript or number of elements in an array.
Eg:
int a,b,c; can be converted as
int a[2]; (i.e) a[0], a[1], a[2]
a[0]
Initialization:
int a[2] = {1,2,3};
index

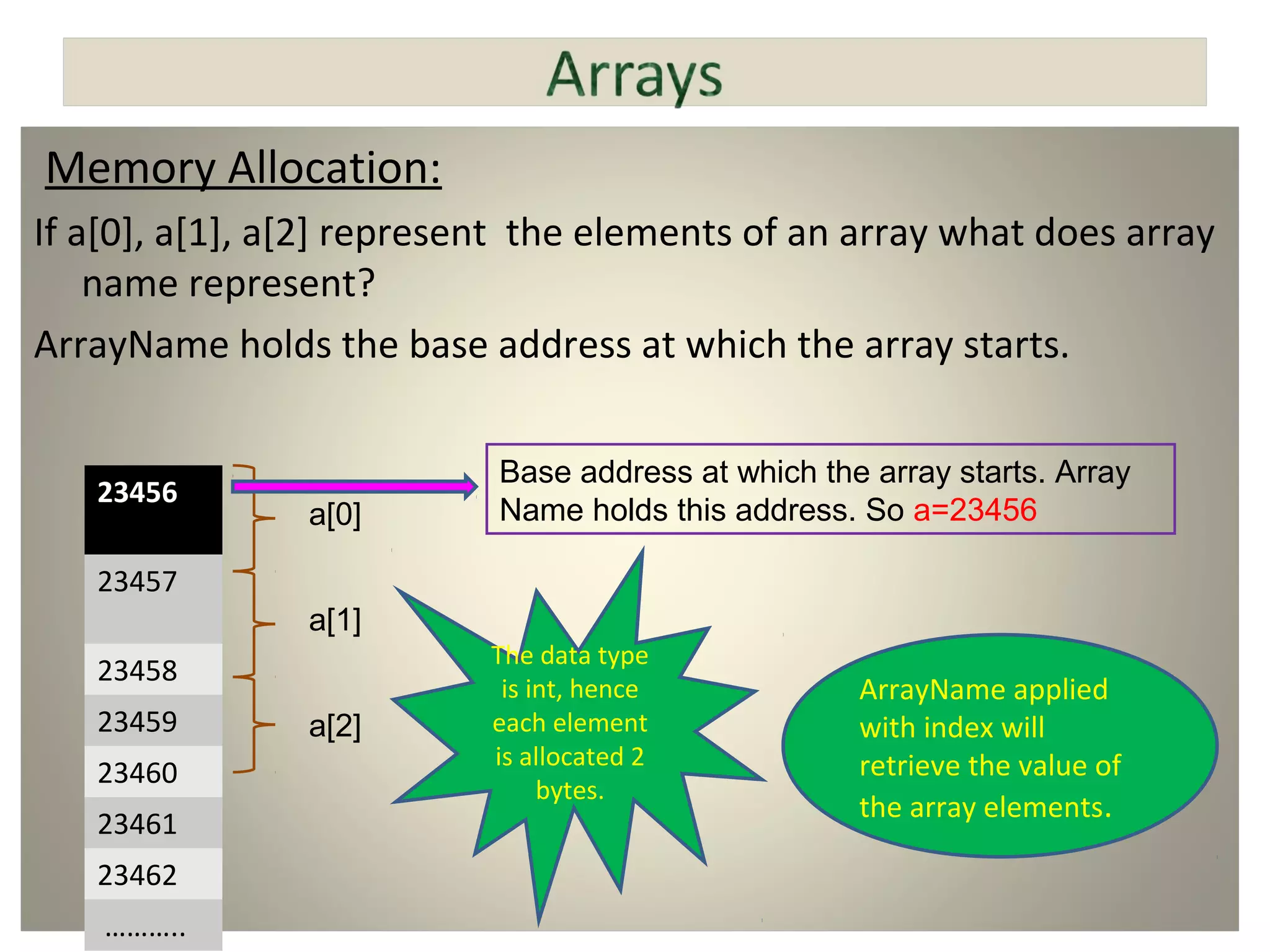

3. Memory Allocation:
If a[0], a[1], a[2] represent the elements of an array what does array
name represent?
ArrayName holds the base address at which the array starts.
23456
23457
23458
23459
23460
23461
23462
………..
a[0]
a[1]
a[2]
Base address at which the array starts. Array
Name holds this address. So a=23456
The data type
is int, hence
each element
is allocated 2
bytes.
ArrayName applied
with index will
retrieve the value of
the array elements.

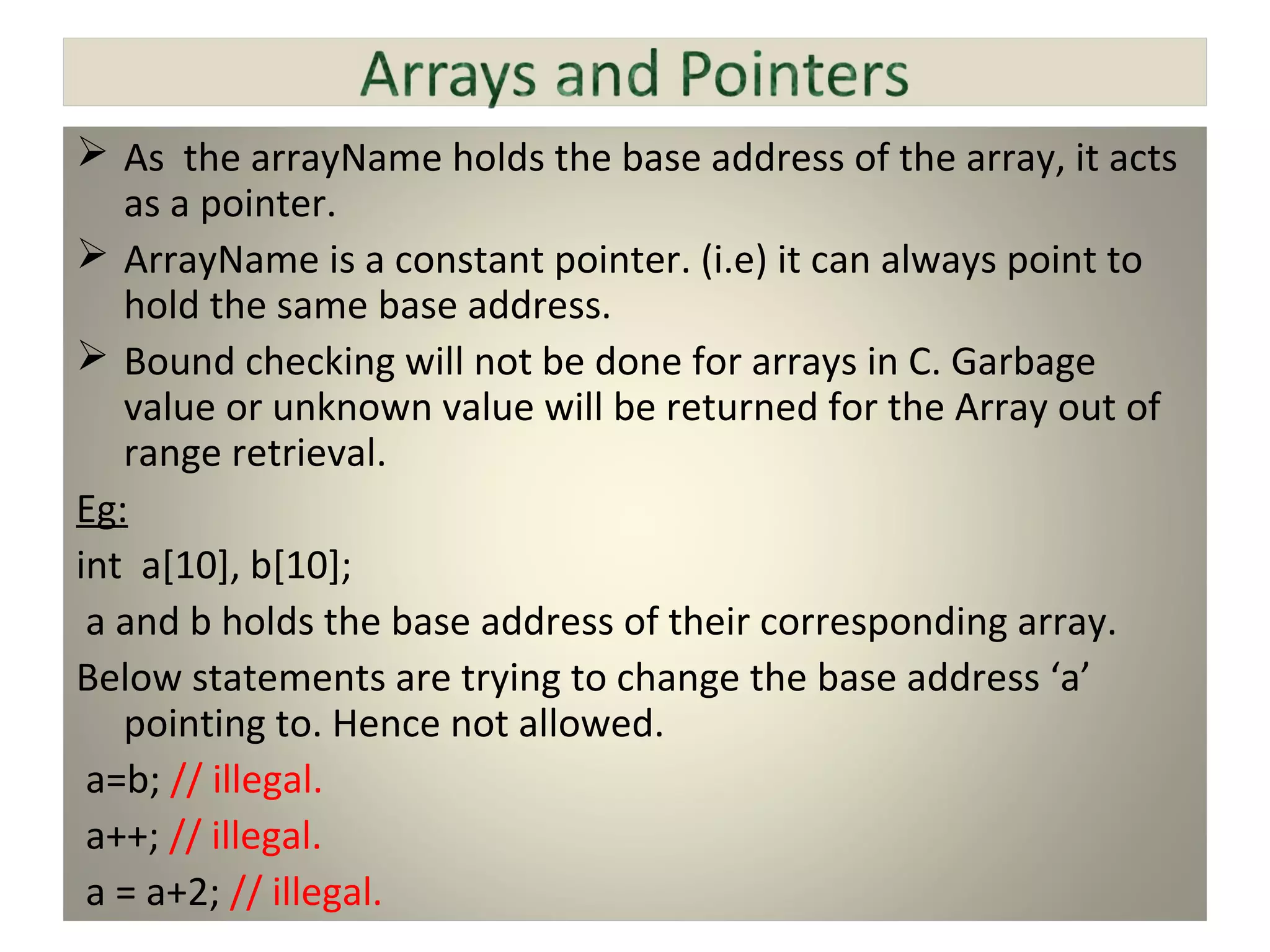

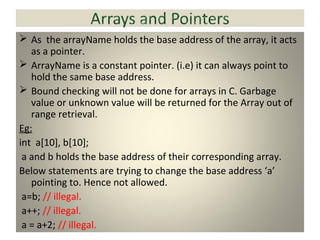

4.  As the arrayName holds the base address of the array, it acts
as a pointer.
 ArrayName is a constant pointer. (i.e) it can always point to
hold the same base address.
 Bound checking will not be done for arrays in C. Garbage
value or unknown value will be returned for the Array out of
range retrieval.
Eg:
int a[10], b[10];
a and b holds the base address of their corresponding array.
Below statements are trying to change the base address ‘a’
pointing to. Hence not allowed.
a=b; // illegal.
a++; // illegal.
a = a+2; // illegal.

5. Difference between pointer and an array.
Pointer ArrayName
Pointer value can be changed. (i.e)
Address the pointer holds.
Array Name is a constant pointer.
Can be made to point to any value’s
address.
Points to same base address always.
Sizeof (pointer) will be always same.
(Mostly 2 bytes).
Sizeof (arrayName) varies according to
the datatype.
Sizeof (pointer) will give the size of only
the pointer.
Sizeof (arrayName) gives the size of the
whole array.

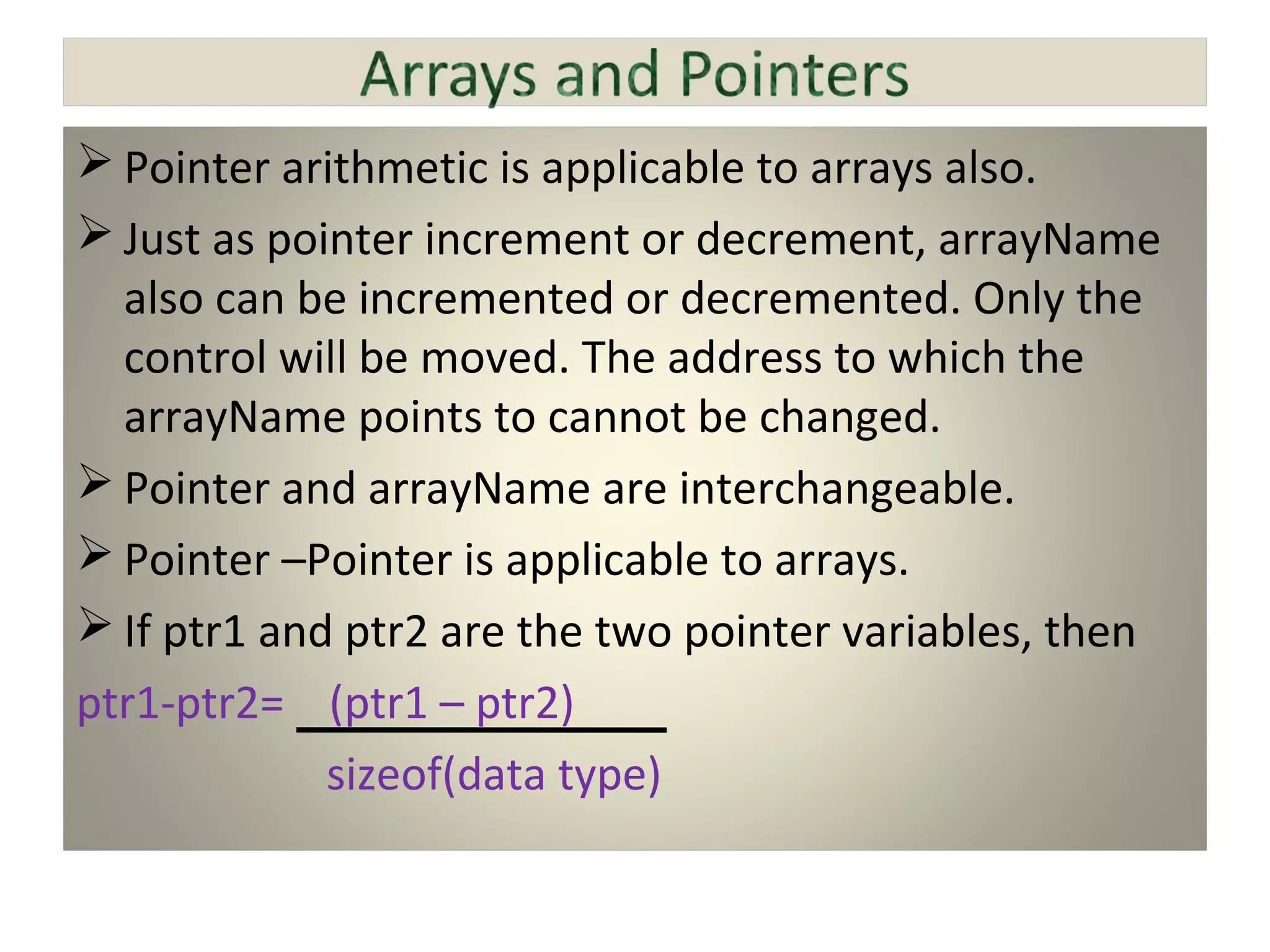

6.  Pointer arithmetic is applicable to arrays also.
 Just as pointer increment or decrement, arrayName
also can be incremented or decremented. Only the
control will be moved. The address to which the
arrayName points to cannot be changed.
 Pointer and arrayName are interchangeable.
 Pointer –Pointer is applicable to arrays.
 If ptr1 and ptr2 are the two pointer variables, then
ptr1-ptr2= (ptr1 – ptr2)
sizeof(data type)

7. Example program where arrayName acts as a pointer.
 No value is assigned for element a[2], so zero will be assigned for it.
void main()
{
int i, a[3]={1,2};
clrscr();
printf("Base Address of array:%un", a);
for(i=0;i<=2;i++)
printf("Address of element %d:%u and value :%dn", i, (a+i), *(a+i));
getch();
}
Output:

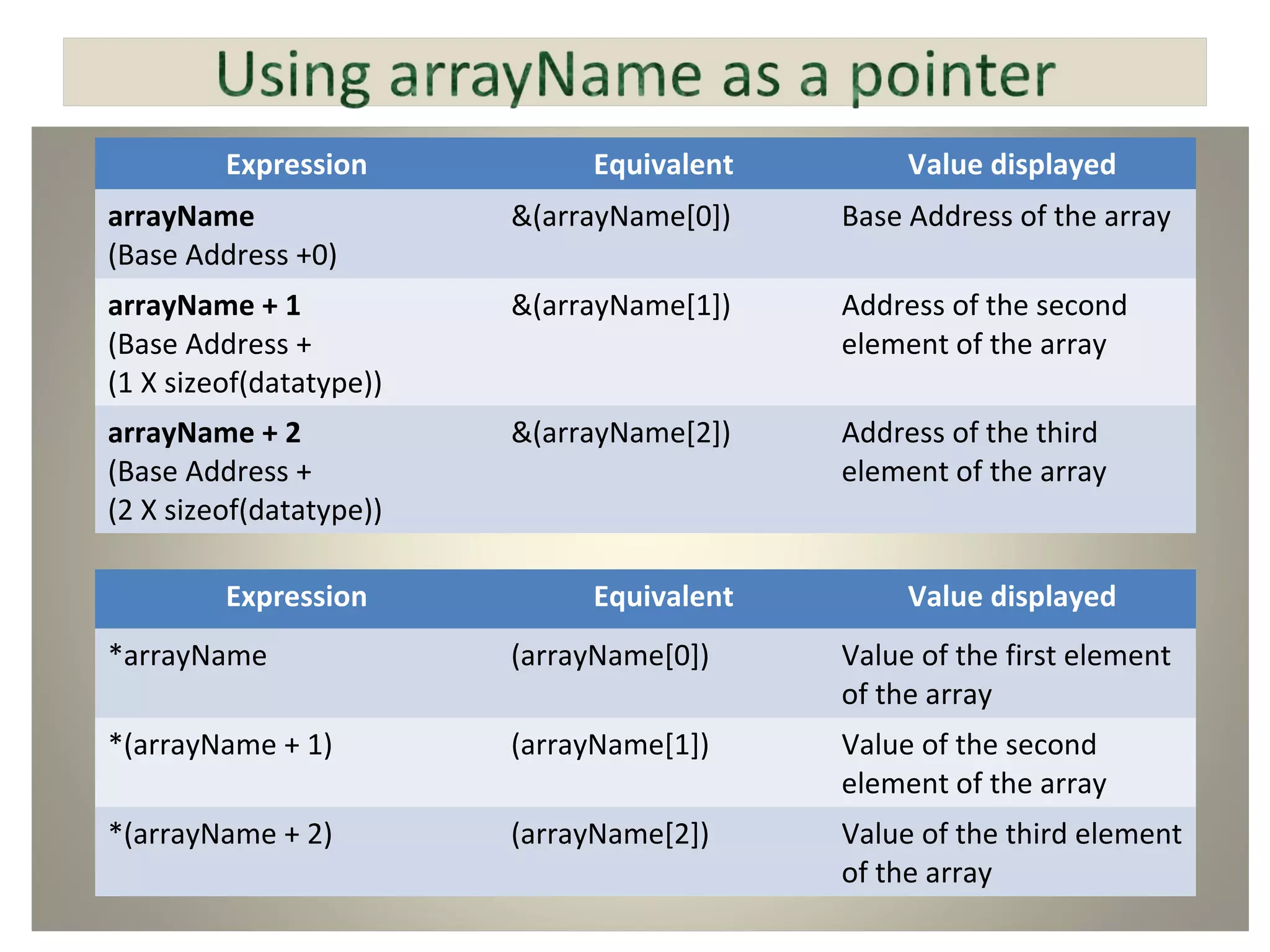

8. Expression Equivalent Value displayed
arrayName
(Base Address +0)
&(arrayName[0]) Base Address of the array
arrayName + 1
(Base Address +
(1 X sizeof(datatype))
&(arrayName[1]) Address of the second
element of the array
arrayName + 2
(Base Address +
(2 X sizeof(datatype))
&(arrayName[2]) Address of the third
element of the array
Expression Equivalent Value displayed
*arrayName (arrayName[0]) Value of the first element
of the array
*(arrayName + 1) (arrayName[1]) Value of the second
element of the array
*(arrayName + 2) (arrayName[2]) Value of the third element
of the array

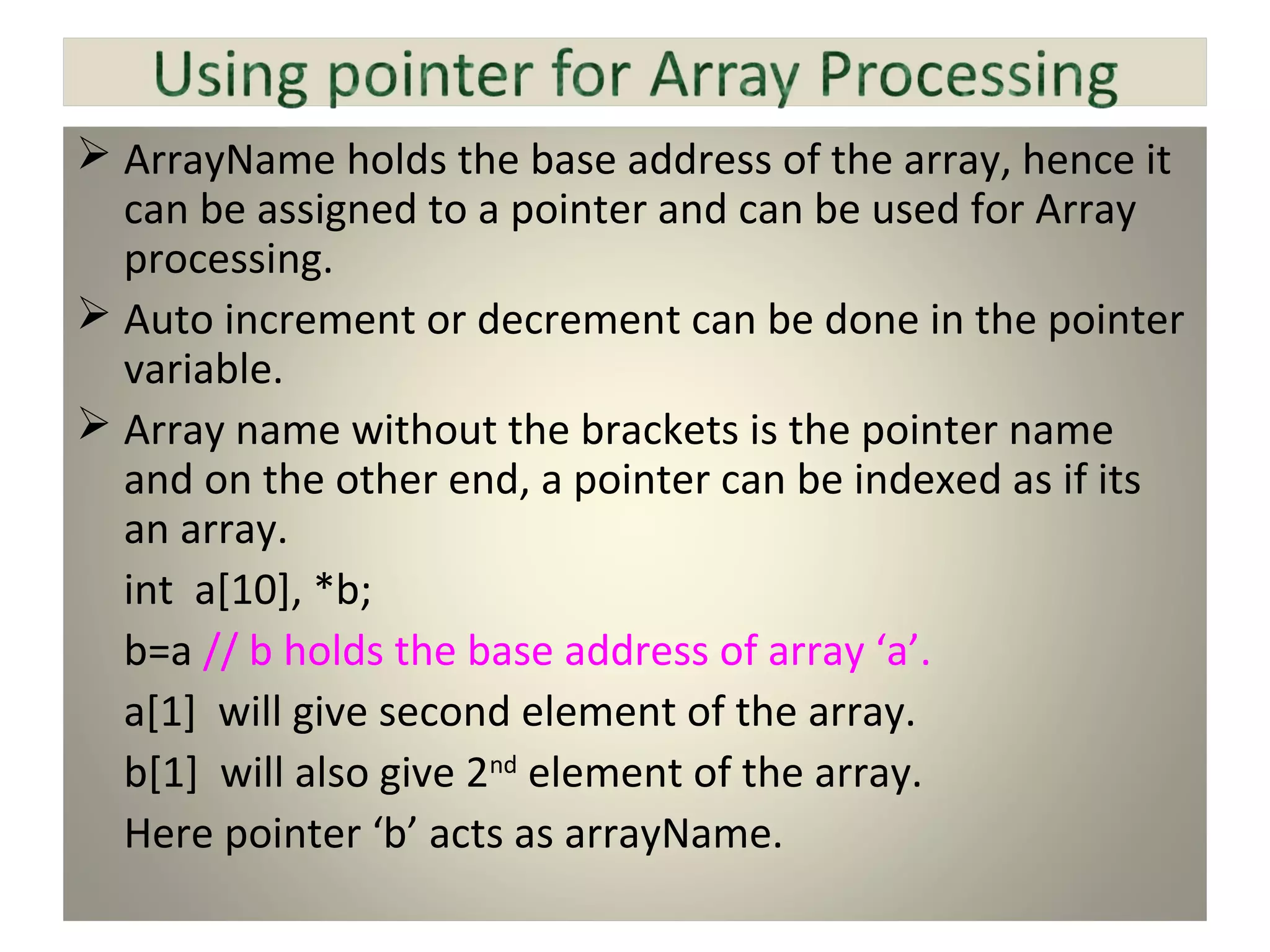

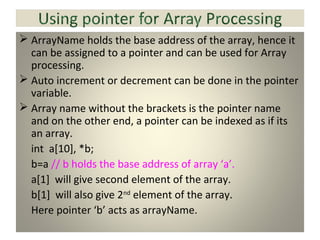

9.  ArrayName holds the base address of the array, hence it
can be assigned to a pointer and can be used for Array
processing.
 Auto increment or decrement can be done in the pointer
variable.
 Array name without the brackets is the pointer name
and on the other end, a pointer can be indexed as if its
an array.
int a[10], *b;
b=a // b holds the base address of array ‘a’.
a[1] will give second element of the array.
b[1] will also give 2nd
element of the array.
Here pointer ‘b’ acts as arrayName.

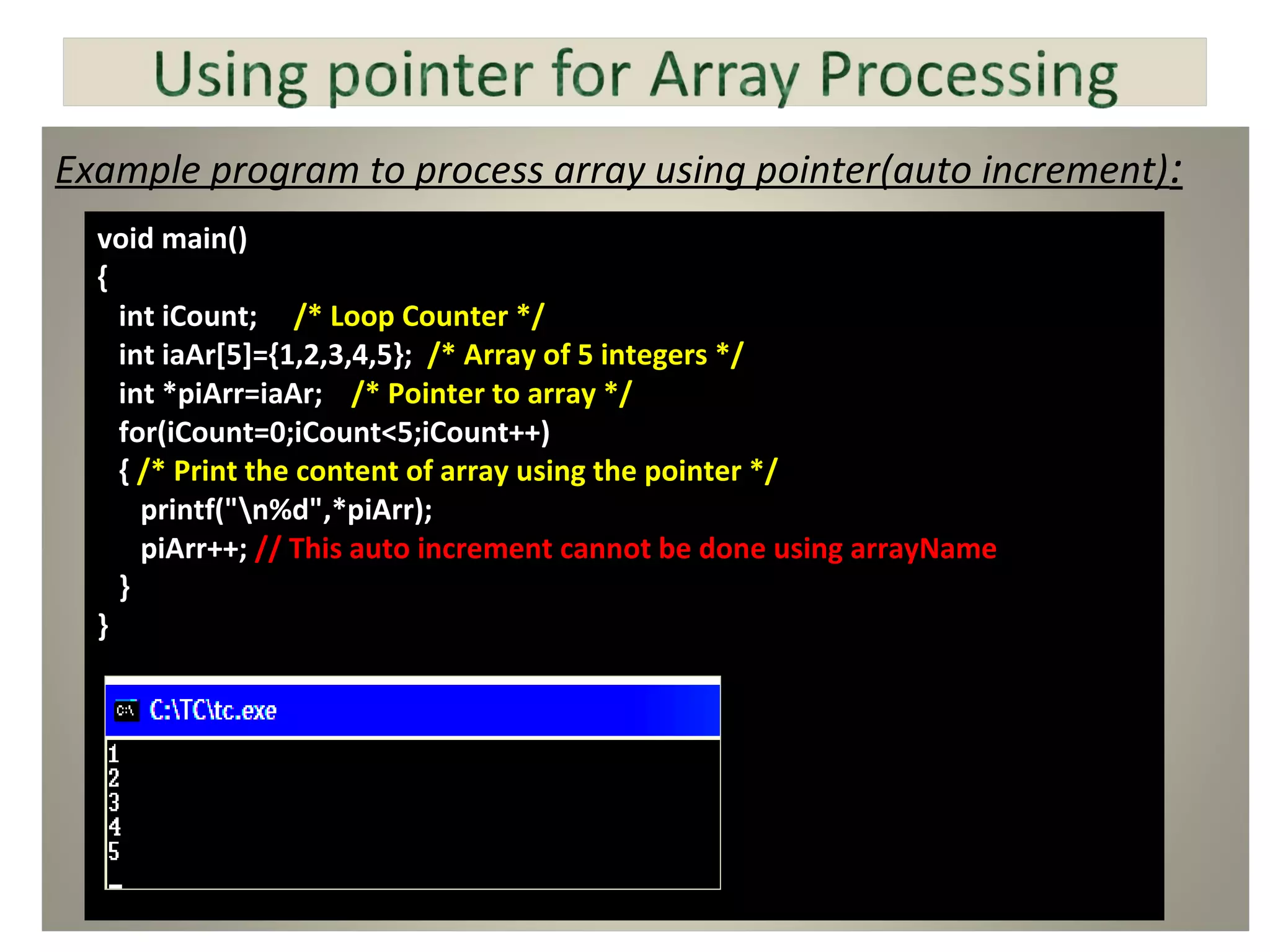

10. Example program to process array using pointer(auto increment):
void main()
{
int iCount; /* Loop Counter */
int iaAr[5]={1,2,3,4,5}; /* Array of 5 integers */
int *piArr=iaAr; /* Pointer to array */
for(iCount=0;iCount<5;iCount++)
{ /* Print the content of array using the pointer */
printf("n%d",*piArr);
piArr++; // This auto increment cannot be done using arrayName
}
}

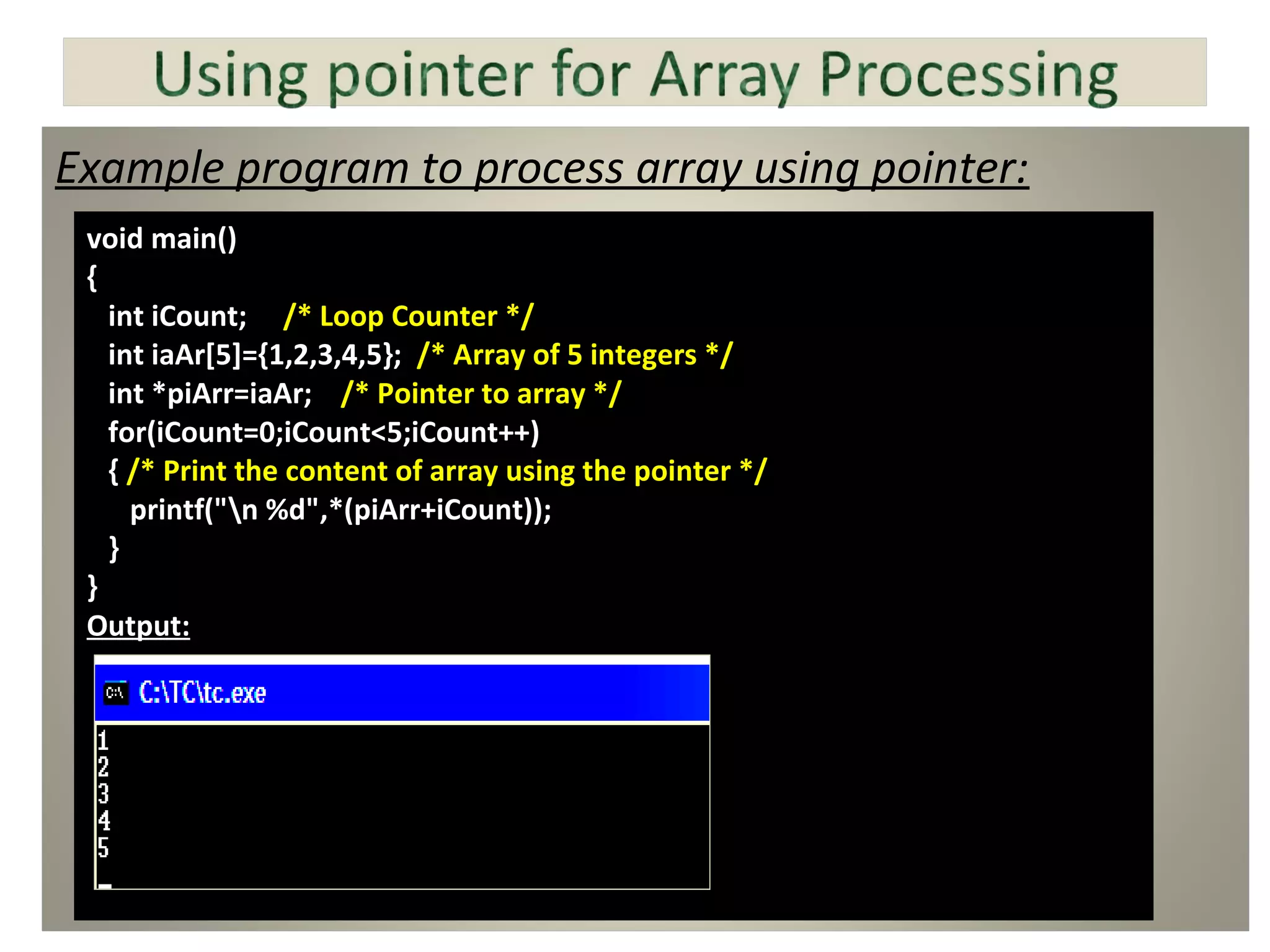

11. Example program to process array using pointer:
void main()
{
int iCount; /* Loop Counter */
int iaAr[5]={1,2,3,4,5}; /* Array of 5 integers */
int *piArr=iaAr; /* Pointer to array */
for(iCount=0;iCount<5;iCount++)
{ /* Print the content of array using the pointer */
printf("n %d",*(piArr+iCount));
}
}
Output:

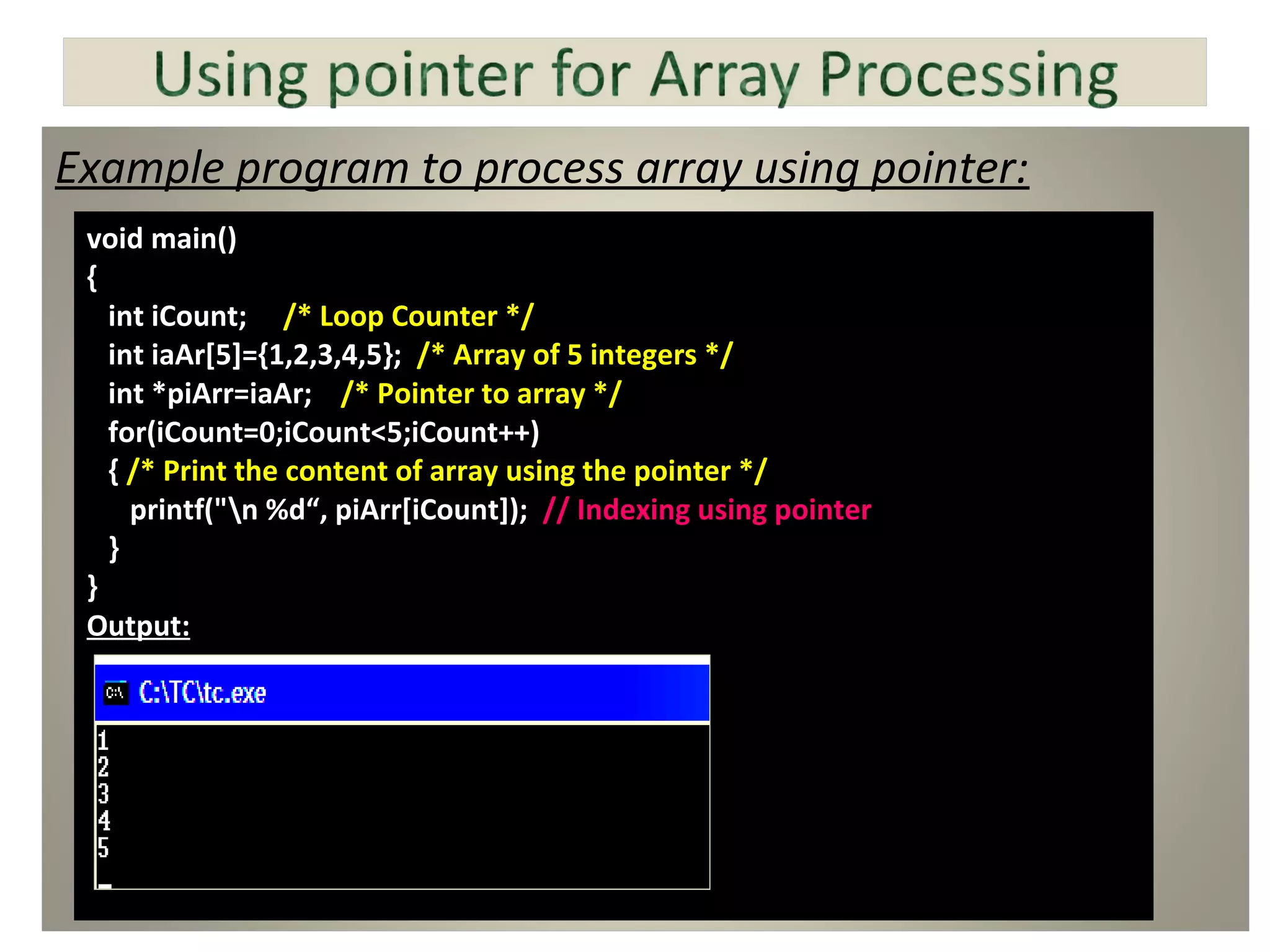

12. Example program to process array using pointer:
void main()
{
int iCount; /* Loop Counter */
int iaAr[5]={1,2,3,4,5}; /* Array of 5 integers */
int *piArr=iaAr; /* Pointer to array */
for(iCount=0;iCount<5;iCount++)
{ /* Print the content of array using the pointer */
printf("n %d“, piArr[iCount]); // Indexing using pointer
}
}
Output:

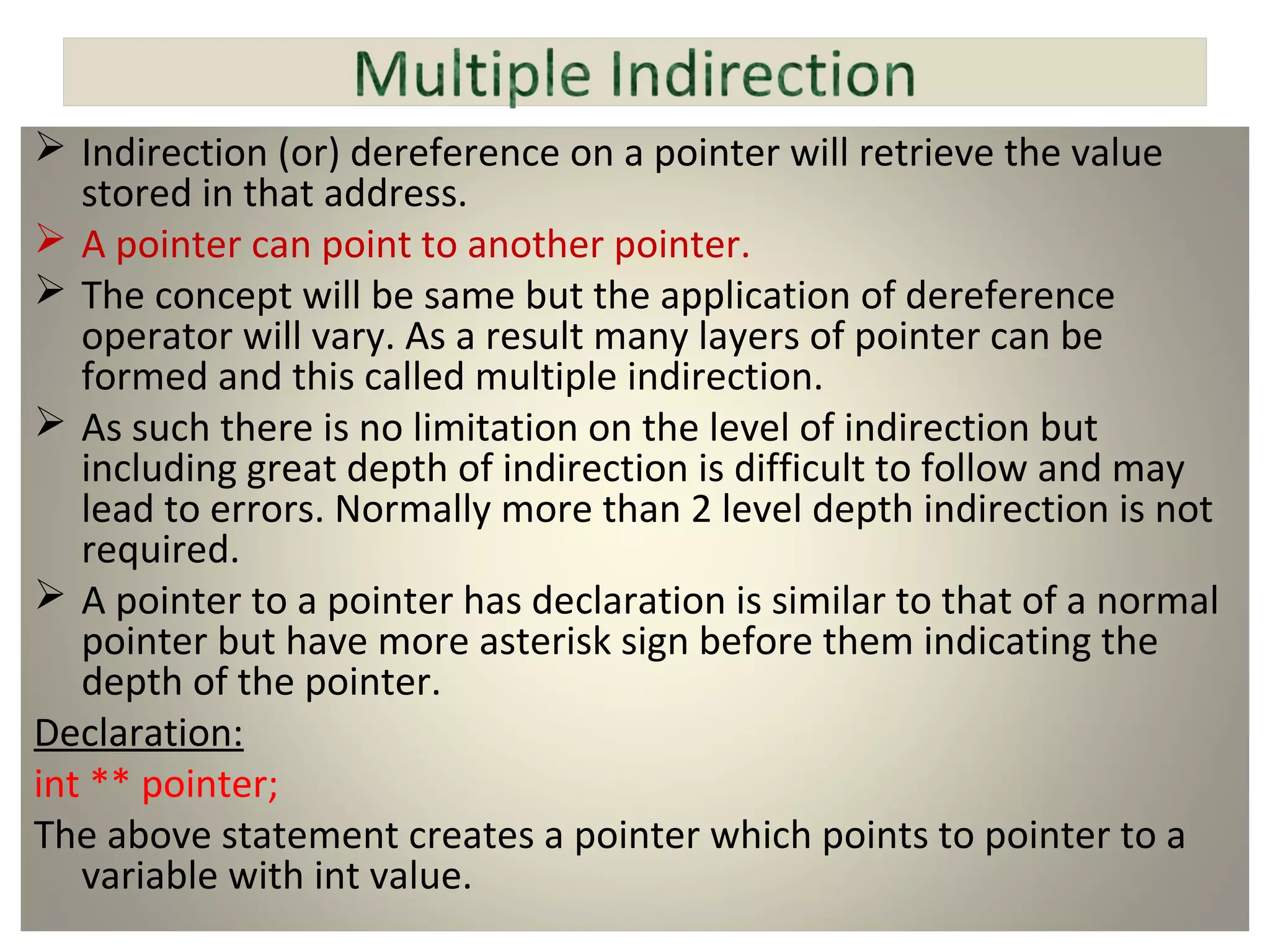

13.  Indirection (or) dereference on a pointer will retrieve the value
stored in that address.
 A pointer can point to another pointer.
 The concept will be same but the application of dereference
operator will vary. As a result many layers of pointer can be
formed and this called multiple indirection.
 As such there is no limitation on the level of indirection but
including great depth of indirection is difficult to follow and may
lead to errors. Normally more than 2 level depth indirection is not
required.
 A pointer to a pointer has declaration is similar to that of a normal
pointer but have more asterisk sign before them indicating the
depth of the pointer.
Declaration:
int ** pointer;
The above statement creates a pointer which points to pointer to a
variable with int value.

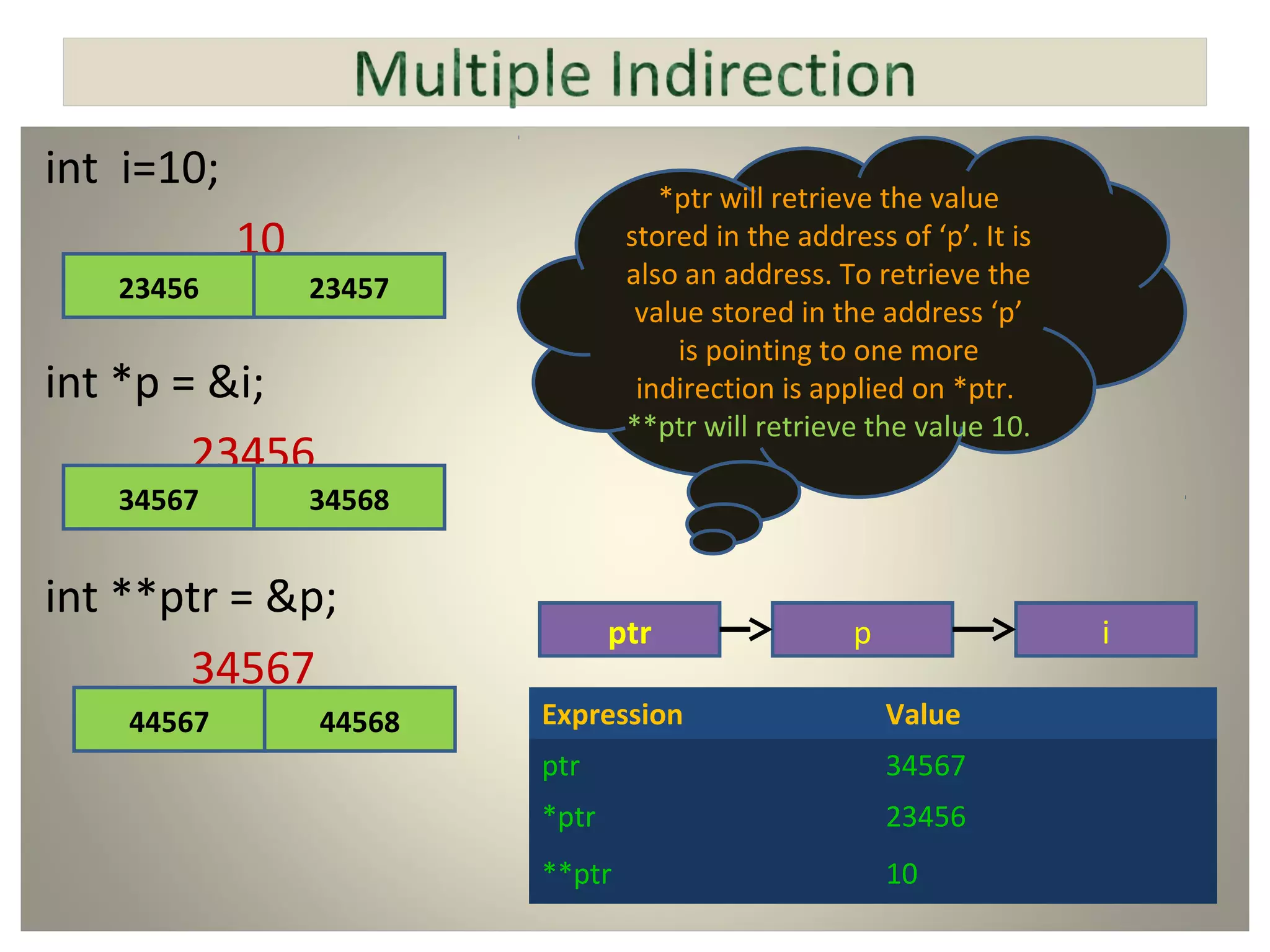

14. int i=10;
10
int *p = &i;
23456
int **ptr = &p;
34567
23456 23457
34567 34568
4456844567
ptr p i
*ptr will retrieve the value
stored in the address of ‘p’. It is
also an address. To retrieve the
value stored in the address ‘p’
is pointing to one more
indirection is applied on *ptr.
**ptr will retrieve the value 10.
Expression Value
ptr 34567
*ptr 23456
**ptr 10

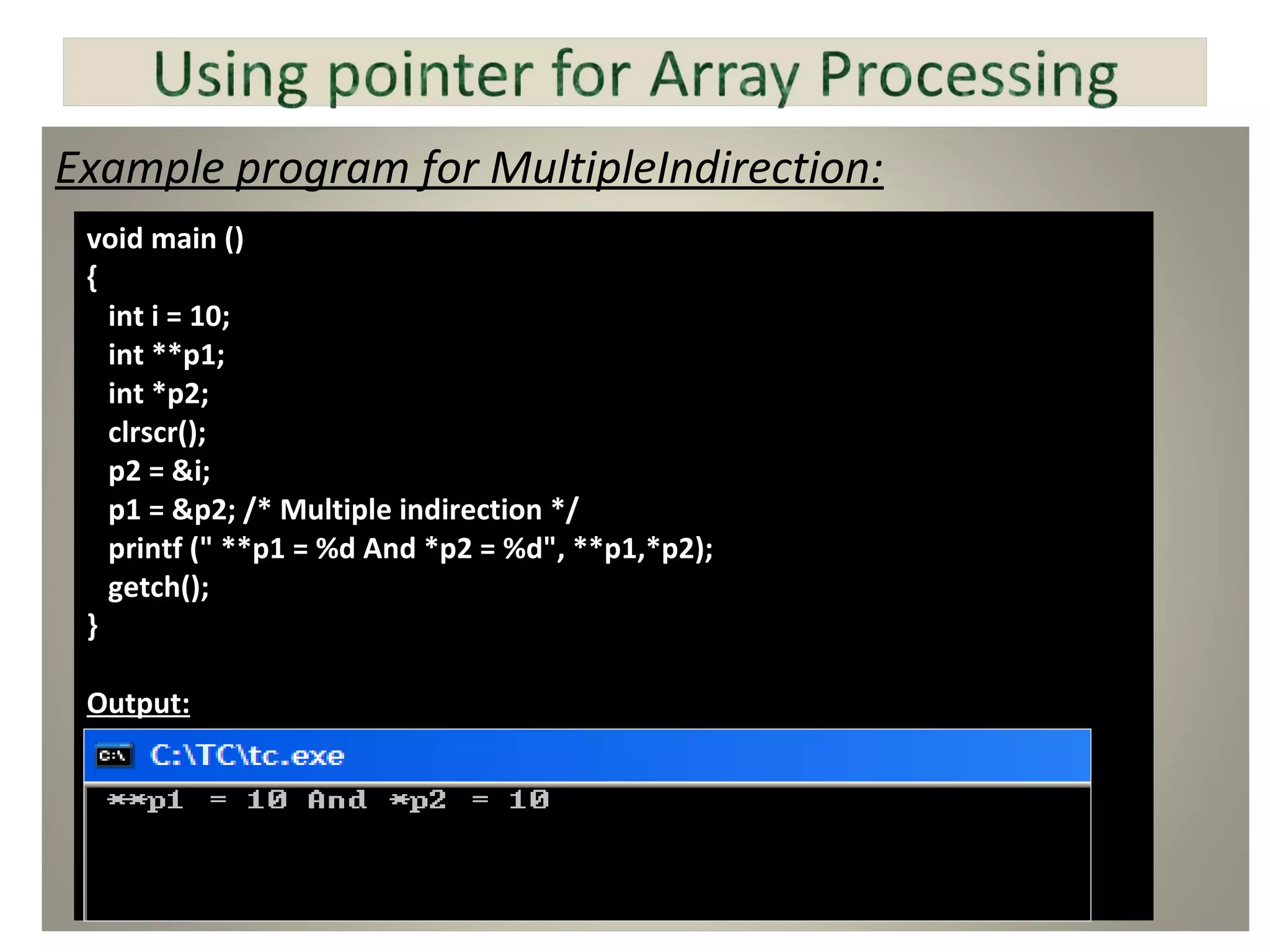

15. Example program for MultipleIndirection:
void main ()
{
int i = 10;
int **p1;
int *p2;
clrscr();
p2 = &i;
p1 = &p2; /* Multiple indirection */
printf (" **p1 = %d And *p2 = %d", **p1,*p2);
getch();
}
Output:

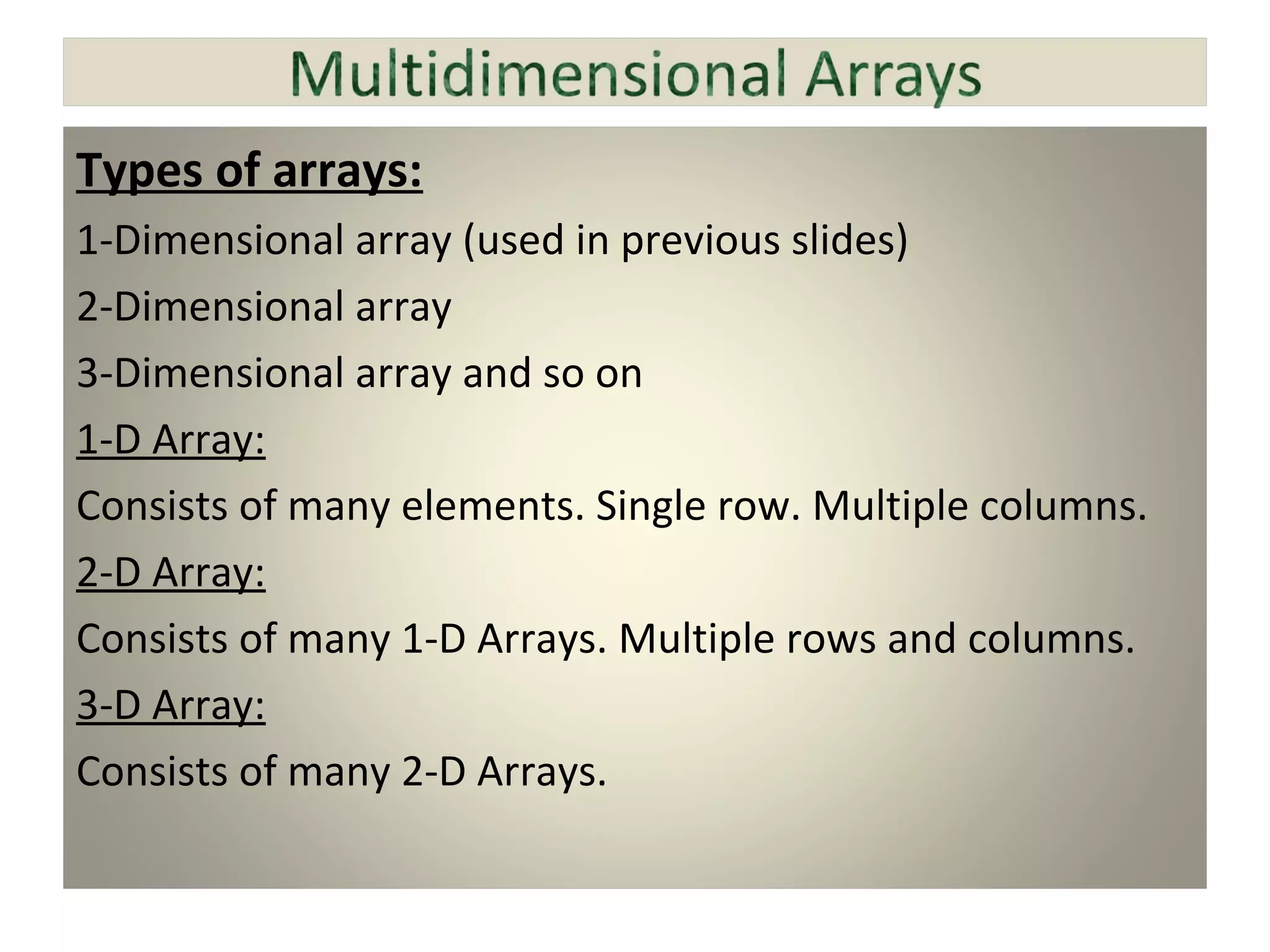

16. Types of arrays:
1-Dimensional array (used in previous slides)
2-Dimensional array
3-Dimensional array and so on
1-D Array:
Consists of many elements. Single row. Multiple columns.
2-D Array:
Consists of many 1-D Arrays. Multiple rows and columns.
3-D Array:
Consists of many 2-D Arrays.

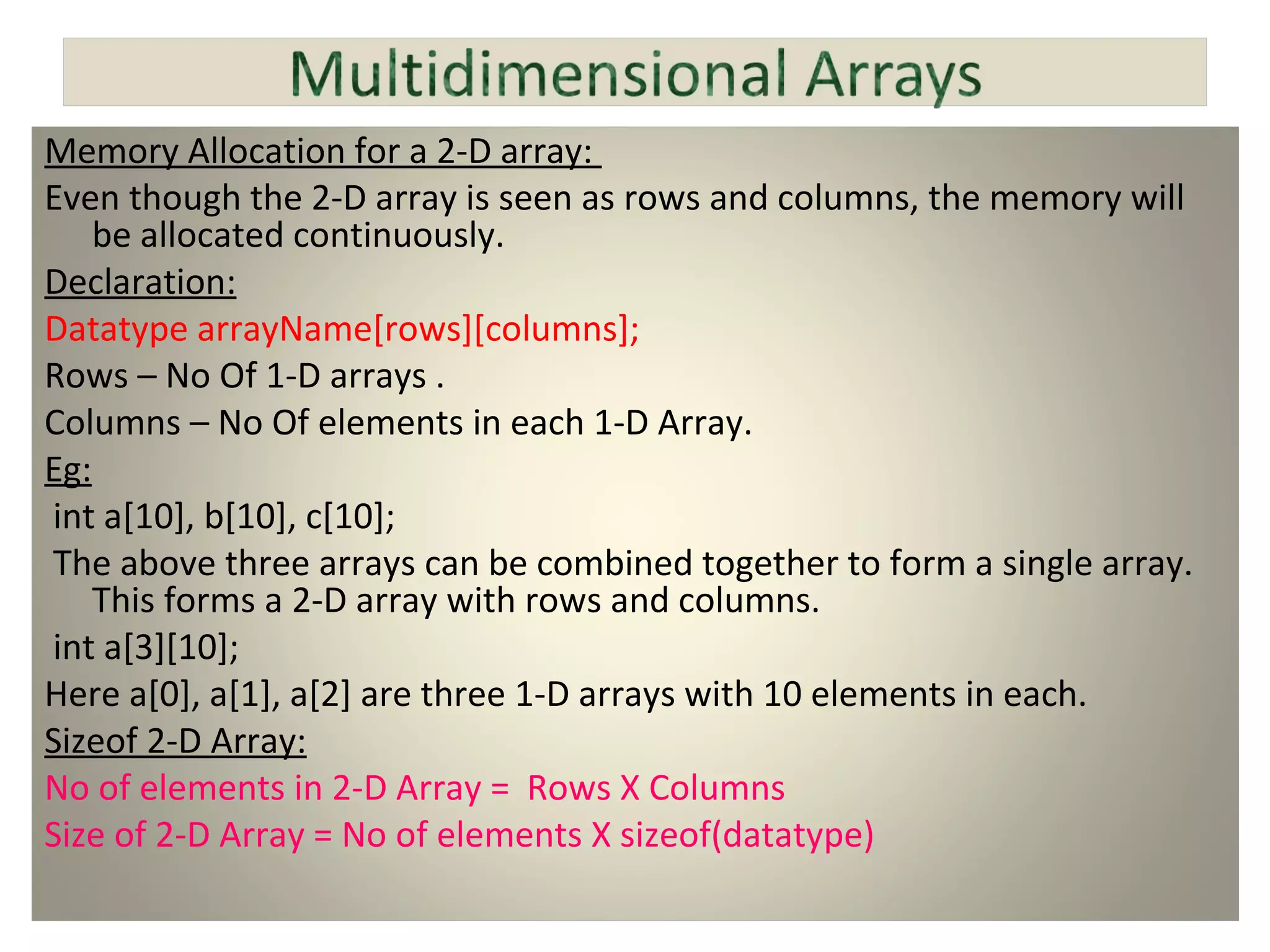

17. Memory Allocation for a 2-D array:
Even though the 2-D array is seen as rows and columns, the memory will
be allocated continuously.
Declaration:
Datatype arrayName[rows][columns];
Rows – No Of 1-D arrays .
Columns – No Of elements in each 1-D Array.
Eg:
int a[10], b[10], c[10];
The above three arrays can be combined together to form a single array.
This forms a 2-D array with rows and columns.
int a[3][10];
Here a[0], a[1], a[2] are three 1-D arrays with 10 elements in each.
Sizeof 2-D Array:
No of elements in 2-D Array = Rows X Columns
Size of 2-D Array = No of elements X sizeof(datatype)

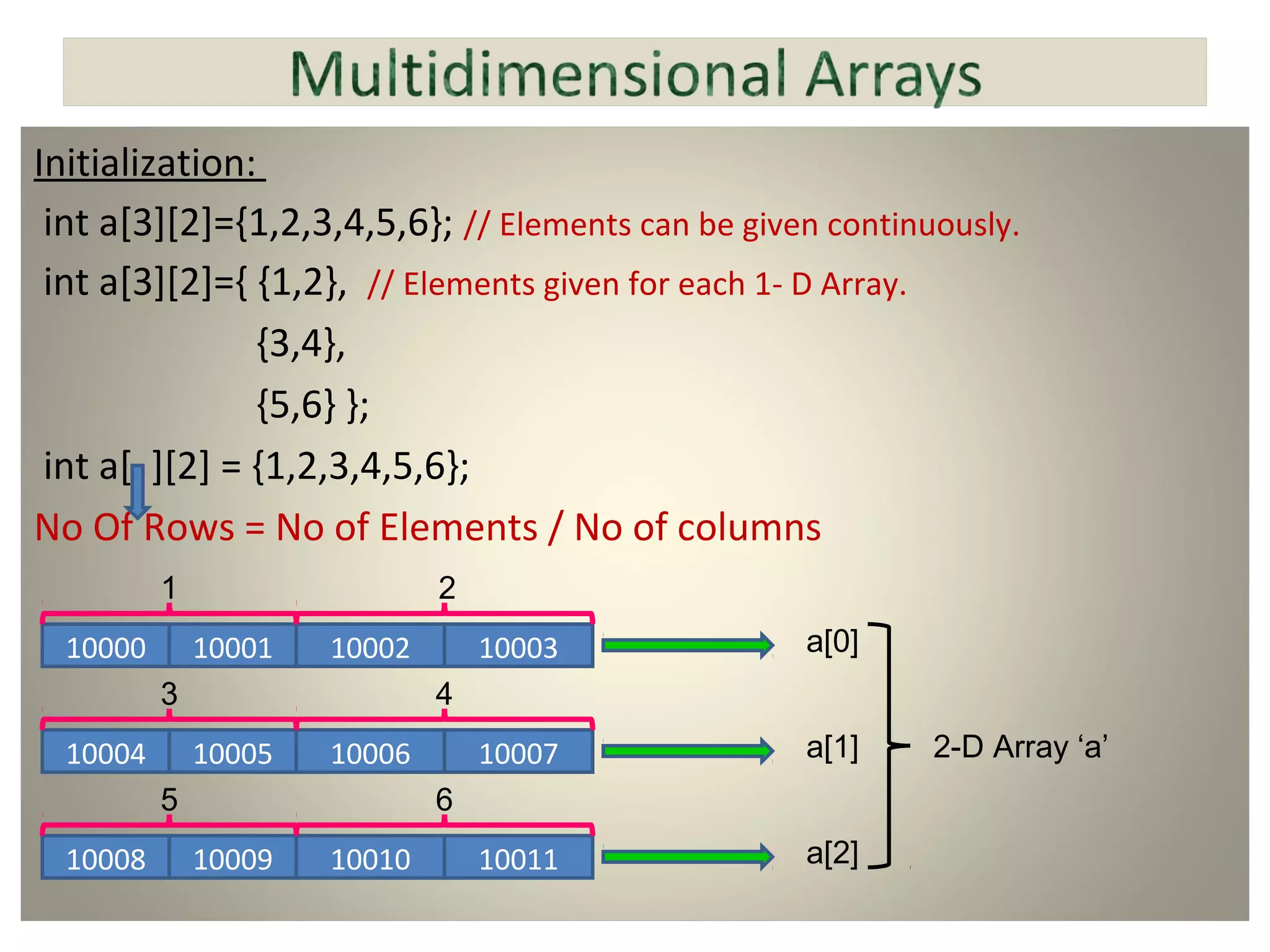

18. Initialization:
int a[3][2]={1,2,3,4,5,6}; // Elements can be given continuously.
int a[3][2]={ {1,2}, // Elements given for each 1- D Array.
{3,4},
{5,6} };
int a[ ][2] = {1,2,3,4,5,6};
No Of Rows = No of Elements / No of columns
10000 10001
10004 10005
10008 10009
1
3
5
10002 10003
10006 10007
10010 10011
2
4
6
a[0]
a[1]
a[2]
2-D Array ‘a’

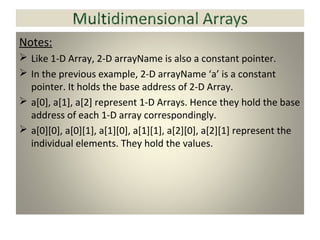

19. Notes:
 Like 1-D Array, 2-D arrayName is also a constant pointer.
 In the previous example, 2-D arrayName ‘a’ is a constant
pointer. It holds the base address of 2-D Array.
 a[0], a[1], a[2] represent 1-D Arrays. Hence they hold the base
address of each 1-D array correspondingly.
 a[0][0], a[0][1], a[1][0], a[1][1], a[2][0], a[2][1] represent the
individual elements. They hold the values.

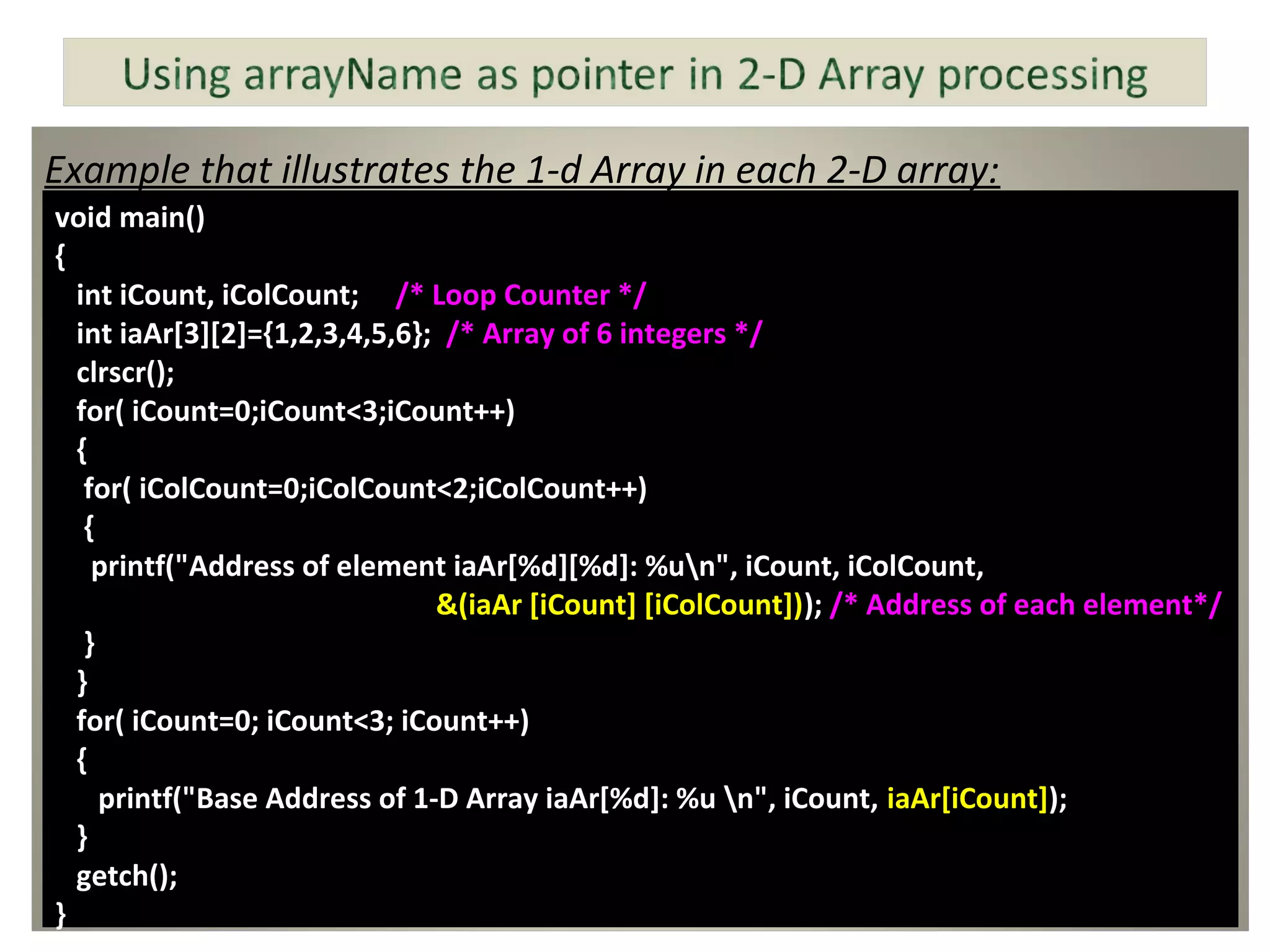

20. Example that illustrates the 1-d Array in each 2-D array:
void main()
{
int iCount, iColCount; /* Loop Counter */
int iaAr[3][2]={1,2,3,4,5,6}; /* Array of 6 integers */
clrscr();
for( iCount=0;iCount<3;iCount++)
{
for( iColCount=0;iColCount<2;iColCount++)
{
printf("Address of element iaAr[%d][%d]: %un", iCount, iColCount,
&(iaAr [iCount] [iColCount])); /* Address of each element*/
}
}
for( iCount=0; iCount<3; iCount++)
{
printf("Base Address of 1-D Array iaAr[%d]: %u n", iCount, iaAr[iCount]);
}
getch();
}

21. Output:

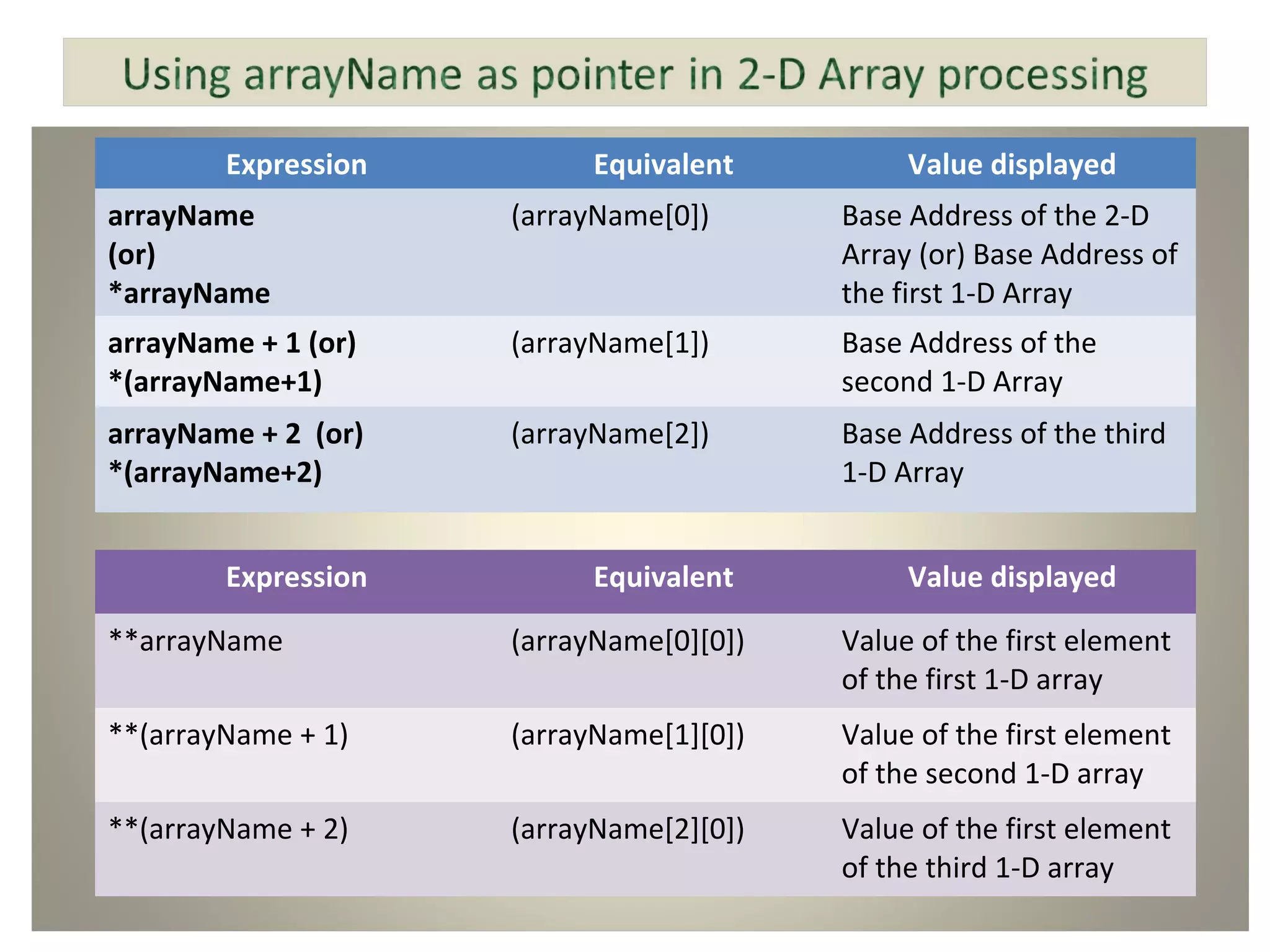

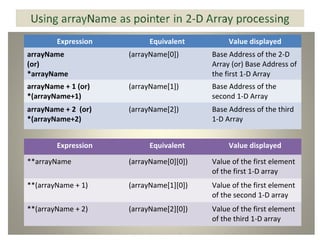

22. Expression Equivalent Value displayed
arrayName
(or)
*arrayName
(arrayName[0]) Base Address of the 2-D
Array (or) Base Address of
the first 1-D Array
arrayName + 1 (or)
*(arrayName+1)
(arrayName[1]) Base Address of the
second 1-D Array
arrayName + 2 (or)
*(arrayName+2)
(arrayName[2]) Base Address of the third
1-D Array
Expression Equivalent Value displayed
**arrayName (arrayName[0][0]) Value of the first element
of the first 1-D array
**(arrayName + 1) (arrayName[1][0]) Value of the first element
of the second 1-D array
**(arrayName + 2) (arrayName[2][0]) Value of the first element
of the third 1-D array

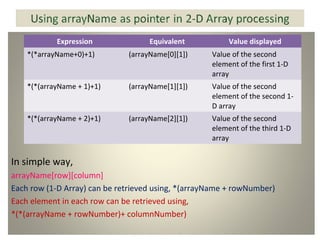

23. In simple way,
arrayName[row][column]
Each row (1-D Array) can be retrieved using, *(arrayName + rowNumber)
Each element in each row can be retrieved using,
*(*(arrayName + rowNumber)+ columnNumber)
Expression Equivalent Value displayed
*(*arrayName+0)+1) (arrayName[0][1]) Value of the second
element of the first 1-D
array
*(*(arrayName + 1)+1) (arrayName[1][1]) Value of the second
element of the second 1-
D array
*(*(arrayName + 2)+1) (arrayName[2][1]) Value of the second
element of the third 1-D
array

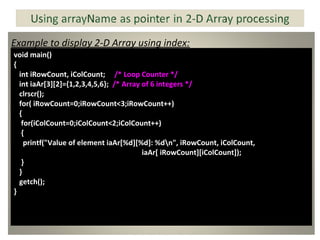

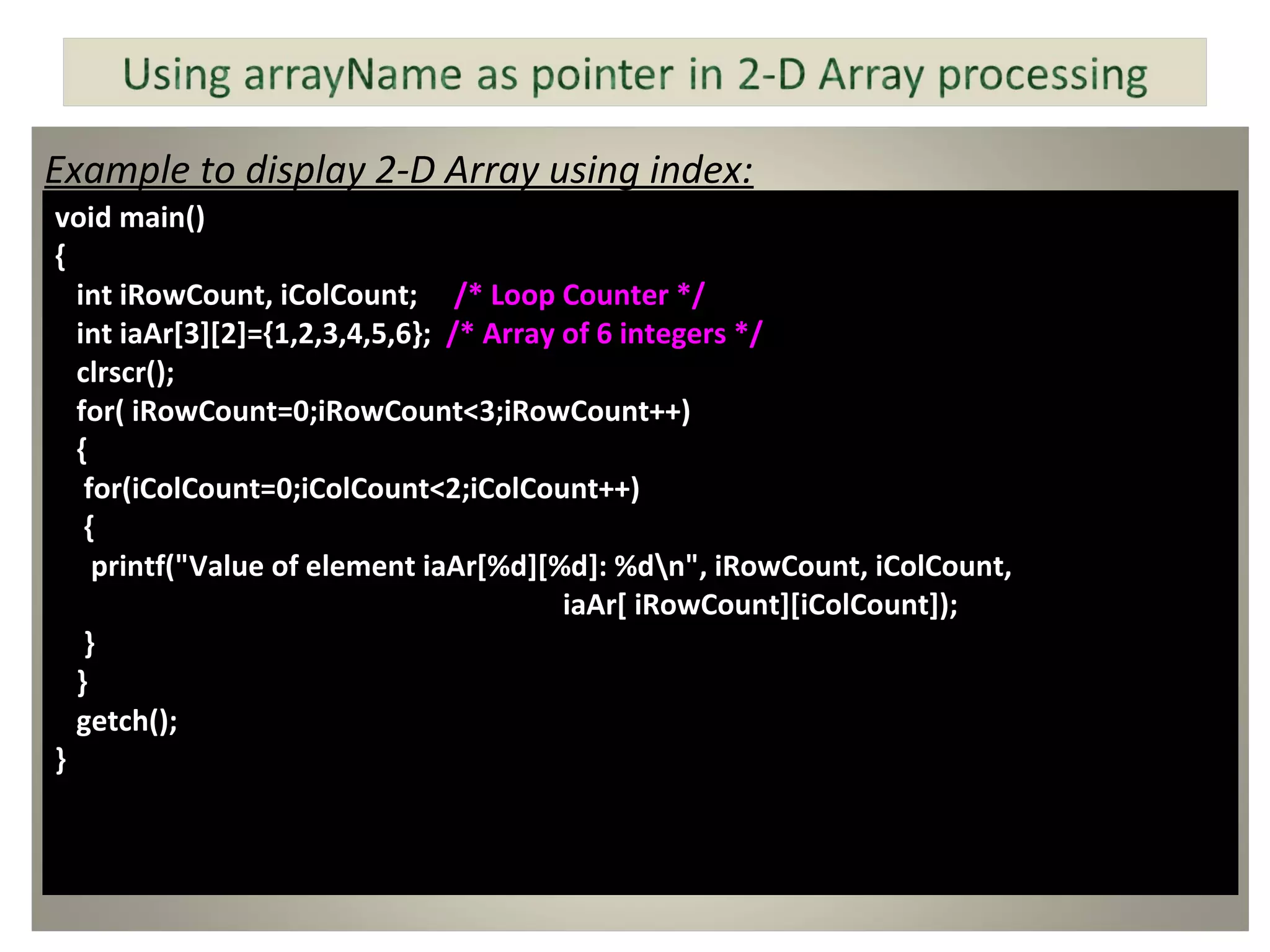

24. Example to display 2-D Array using index:
void main()
{
int iRowCount, iColCount; /* Loop Counter */
int iaAr[3][2]={1,2,3,4,5,6}; /* Array of 6 integers */
clrscr();
for( iRowCount=0;iRowCount<3;iRowCount++)
{
for(iColCount=0;iColCount<2;iColCount++)
{
printf("Value of element iaAr[%d][%d]: %dn", iRowCount, iColCount,
iaAr[ iRowCount][iColCount]);
}
}
getch();
}

25. Output:

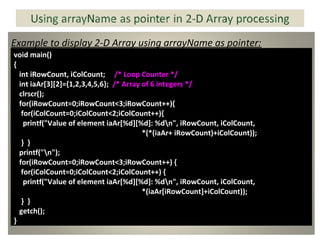

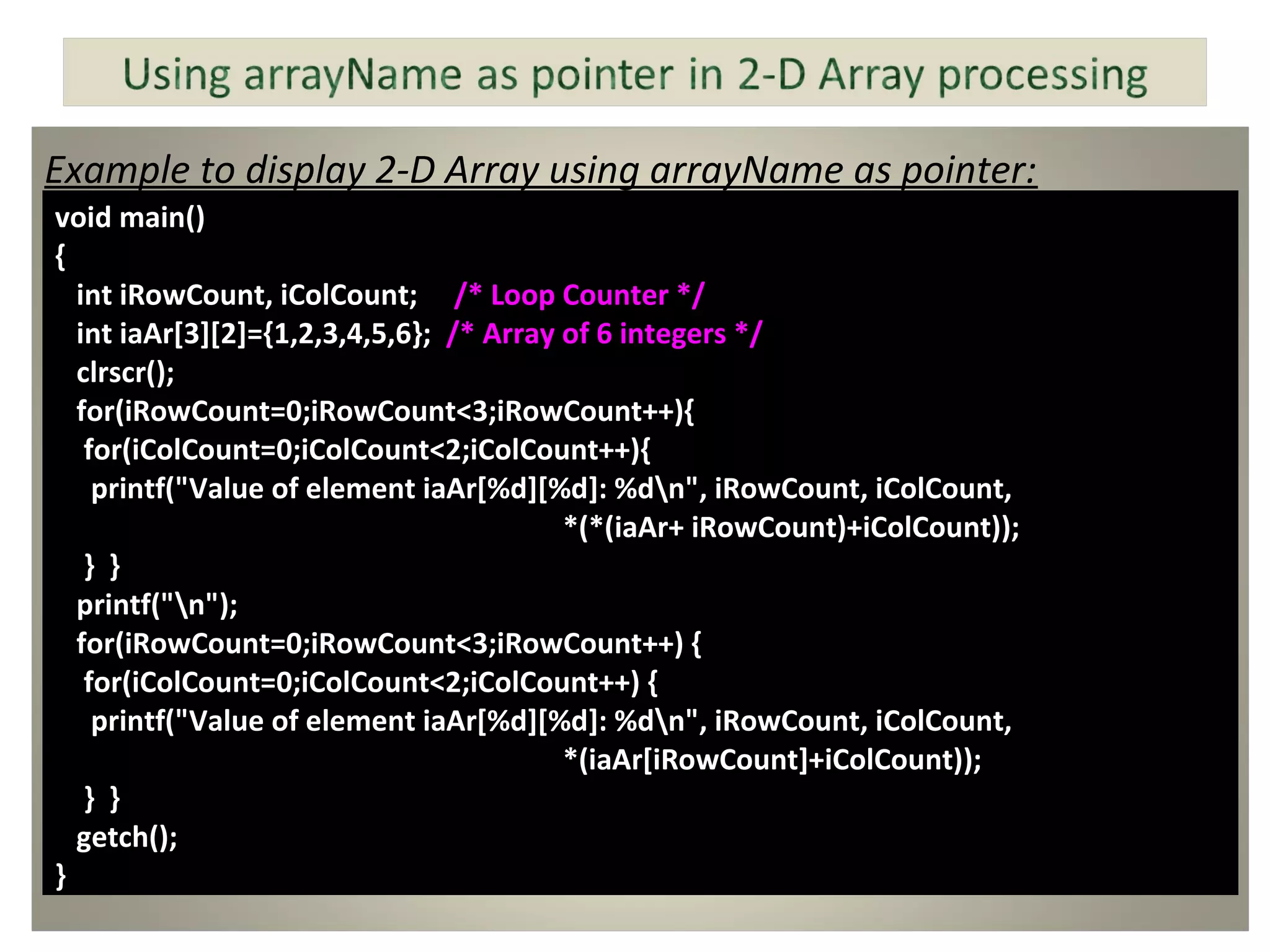

26. Example to display 2-D Array using arrayName as pointer:
void main()
{
int iRowCount, iColCount; /* Loop Counter */
int iaAr[3][2]={1,2,3,4,5,6}; /* Array of 6 integers */
clrscr();
for(iRowCount=0;iRowCount<3;iRowCount++){
for(iColCount=0;iColCount<2;iColCount++){
printf("Value of element iaAr[%d][%d]: %dn", iRowCount, iColCount,
*(*(iaAr+ iRowCount)+iColCount));
} }
printf("n");
for(iRowCount=0;iRowCount<3;iRowCount++) {
for(iColCount=0;iColCount<2;iColCount++) {
printf("Value of element iaAr[%d][%d]: %dn", iRowCount, iColCount,
*(iaAr[iRowCount]+iColCount));
} }
getch();
}

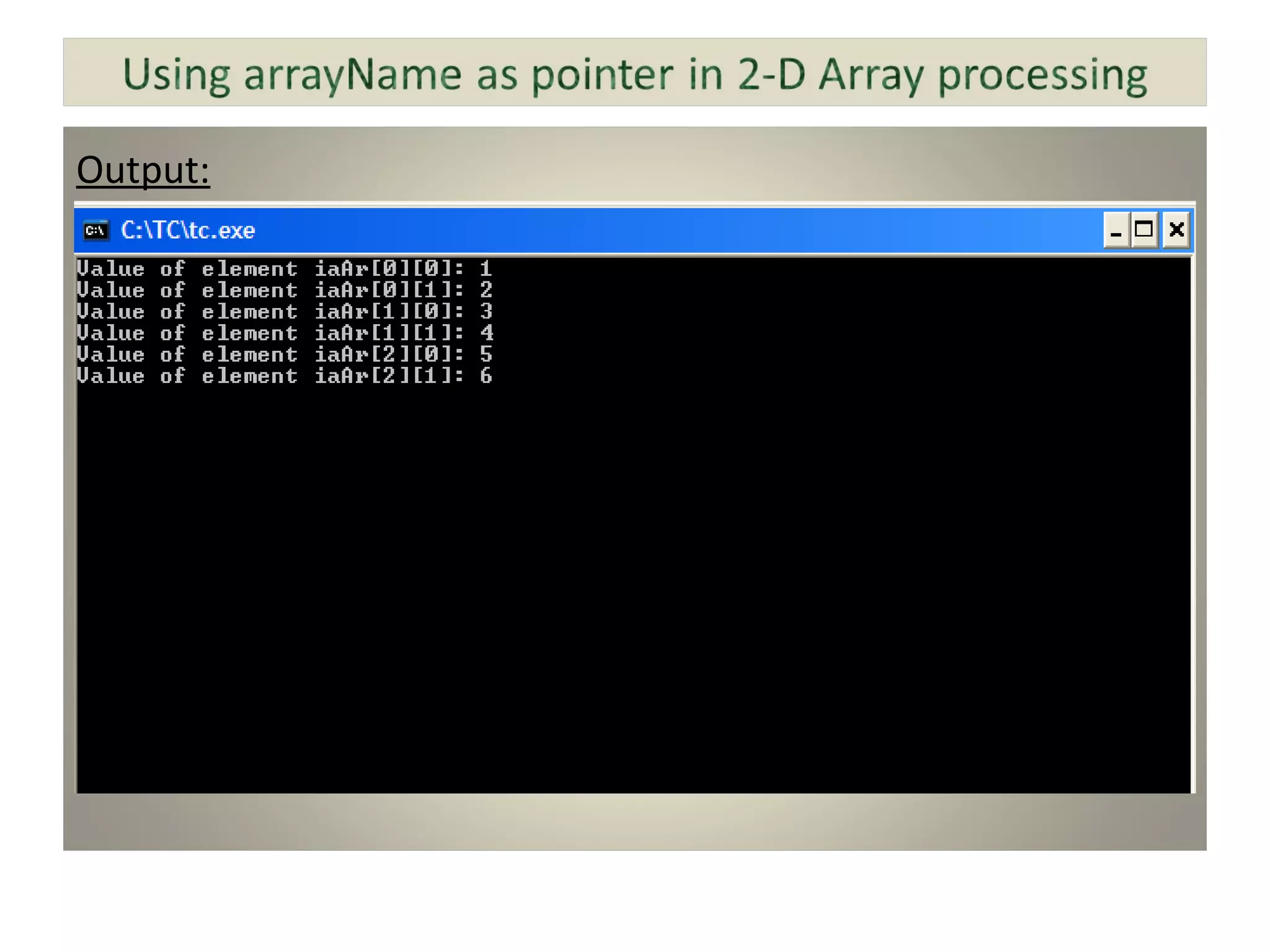

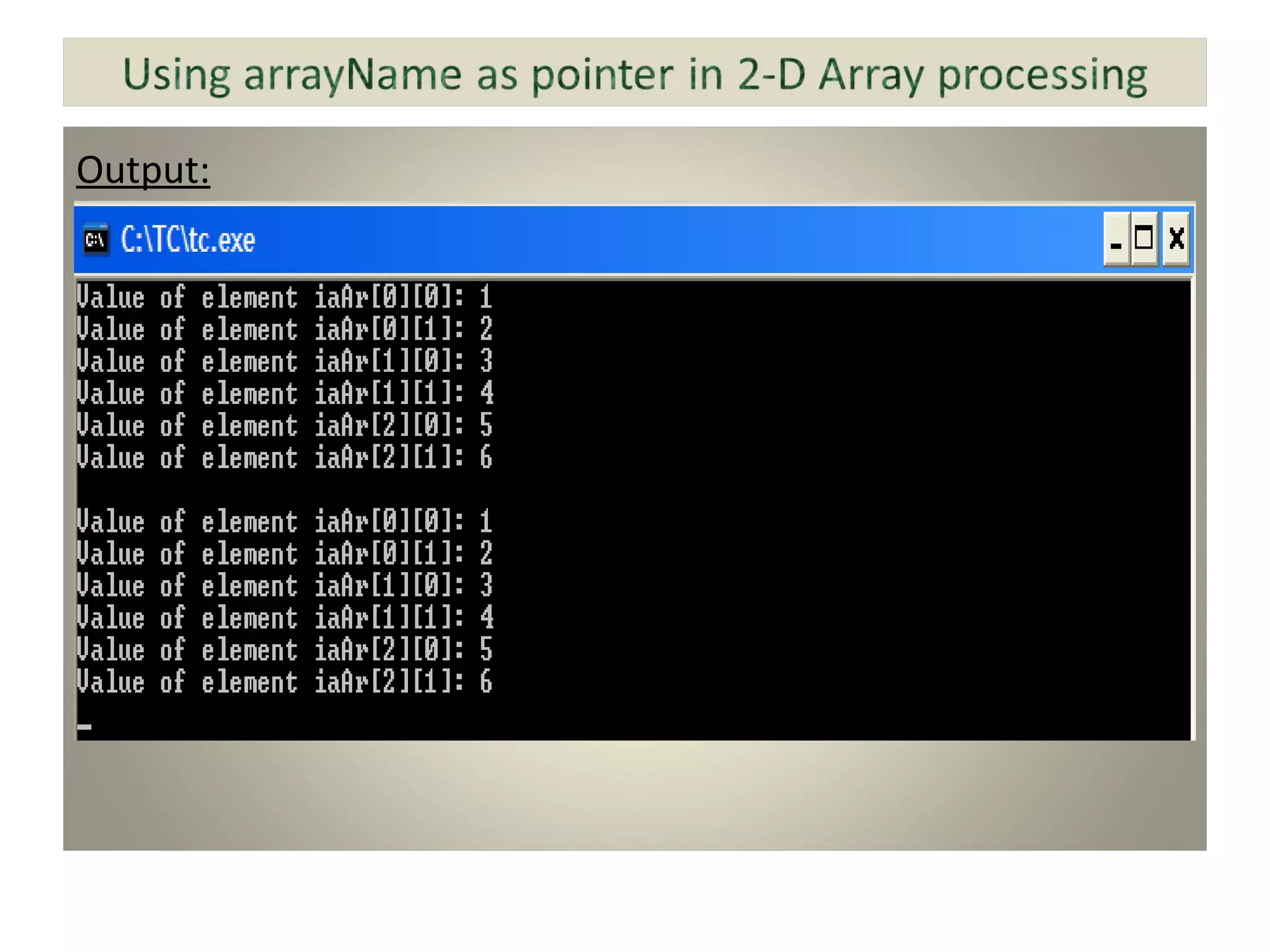

27. Output:

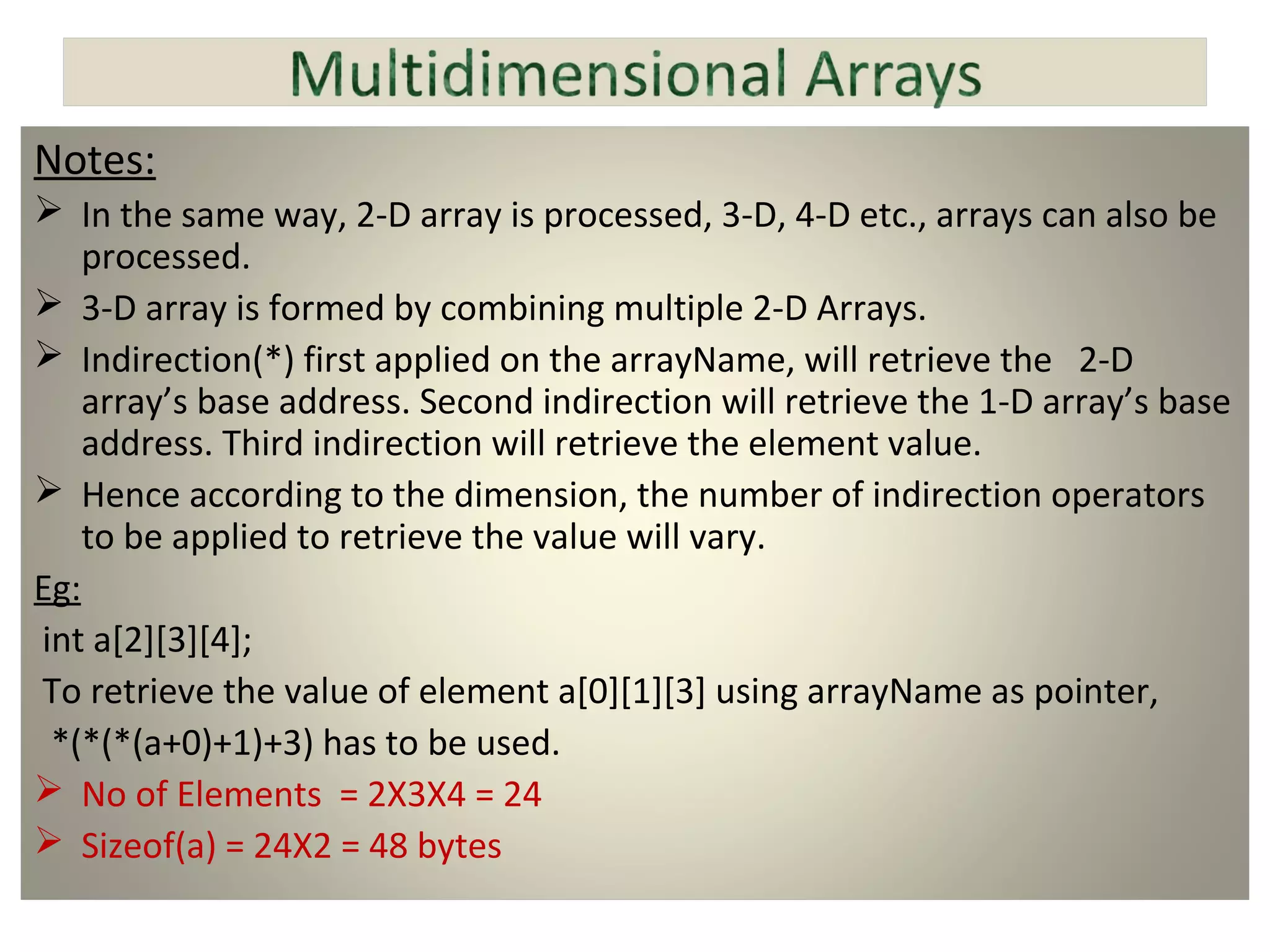

28. Notes:
 In the same way, 2-D array is processed, 3-D, 4-D etc., arrays can also be
processed.
 3-D array is formed by combining multiple 2-D Arrays.
 Indirection(*) first applied on the arrayName, will retrieve the 2-D
array’s base address. Second indirection will retrieve the 1-D array’s base
address. Third indirection will retrieve the element value.
 Hence according to the dimension, the number of indirection operators
to be applied to retrieve the value will vary.
Eg:
int a[2][3][4];
To retrieve the value of element a[0][1][3] using arrayName as pointer,
*(*(*(a+0)+1)+3) has to be used.
 No of Elements = 2X3X4 = 24
 Sizeof(a) = 24X2 = 48 bytes
