Using Big Data to Find Anomalies and Fight Crime

© 2017 Uncharted Software Inc.
Richard Brath
April 24, 2017
Using Big Data to Find Anomaliesand Fight Crime

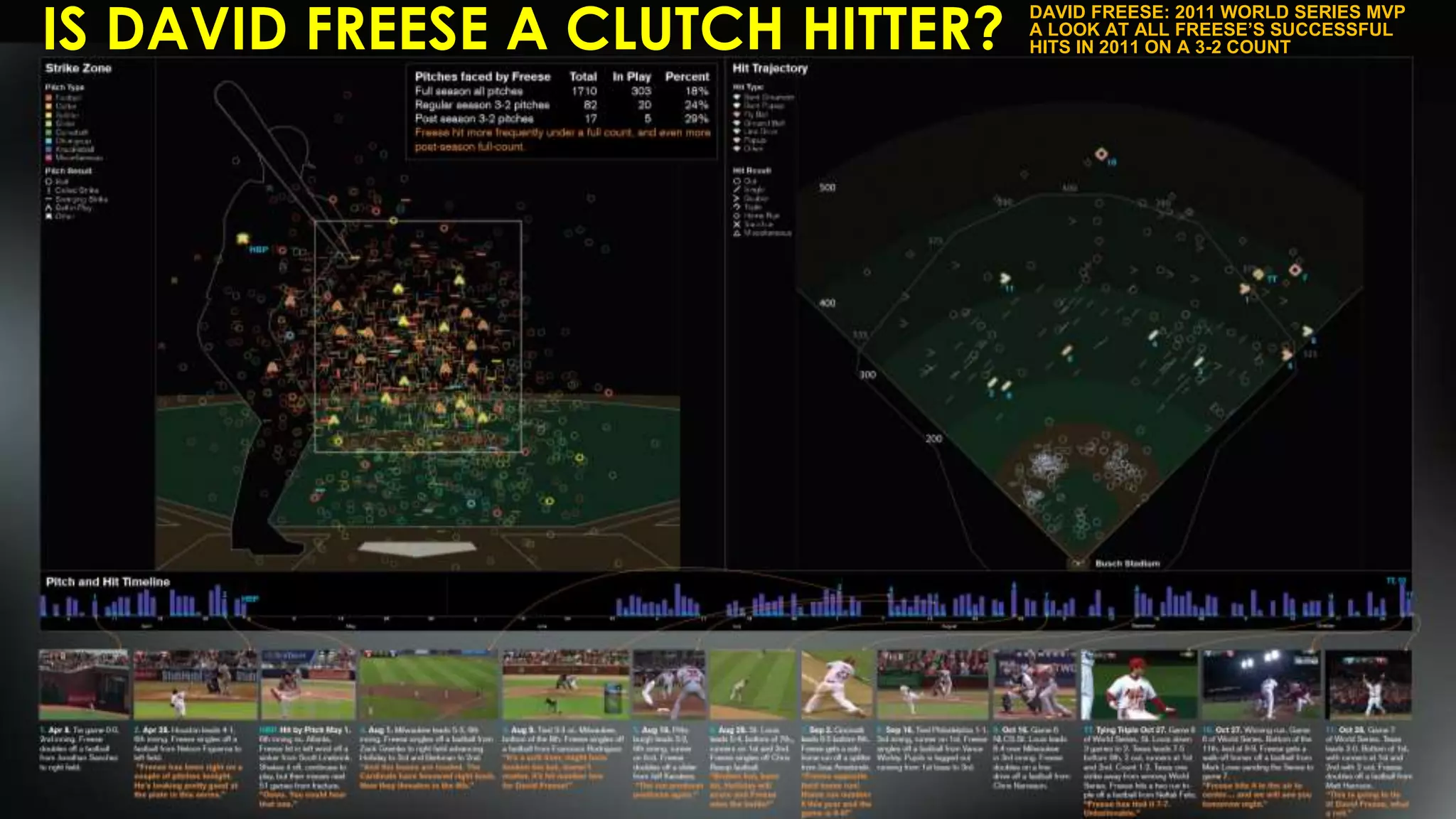

IS DAVID FREESE A CLUTCH HITTER?
DAVID FREESE: 2011 WORLD SERIES MVP
A LOOK AT ALL FREESE’S SUCCESSFUL
HITS IN 2011 ON A 3-2 COUNT

Using Big Data to Find Anomaliesand Fight Crime

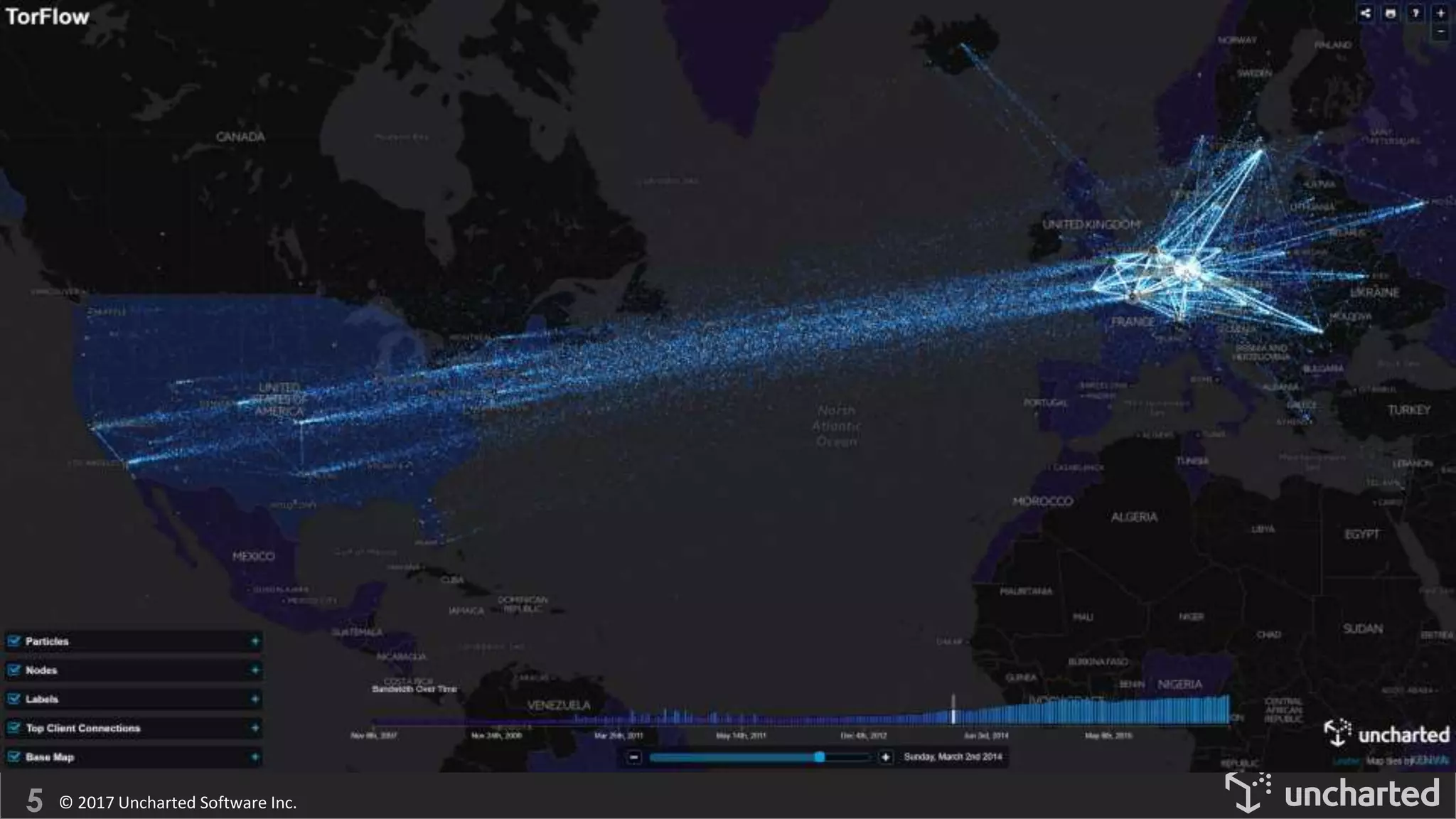

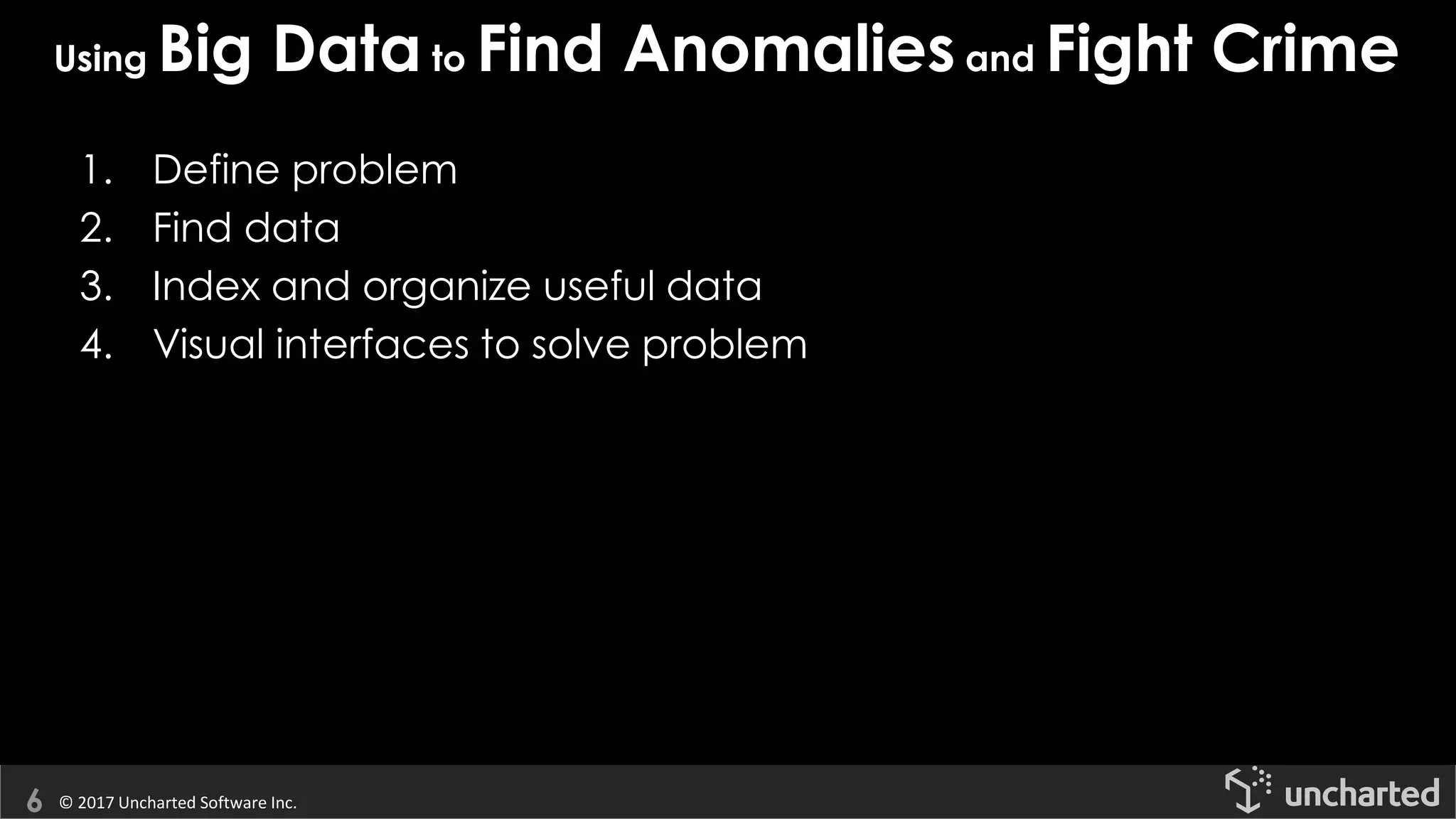

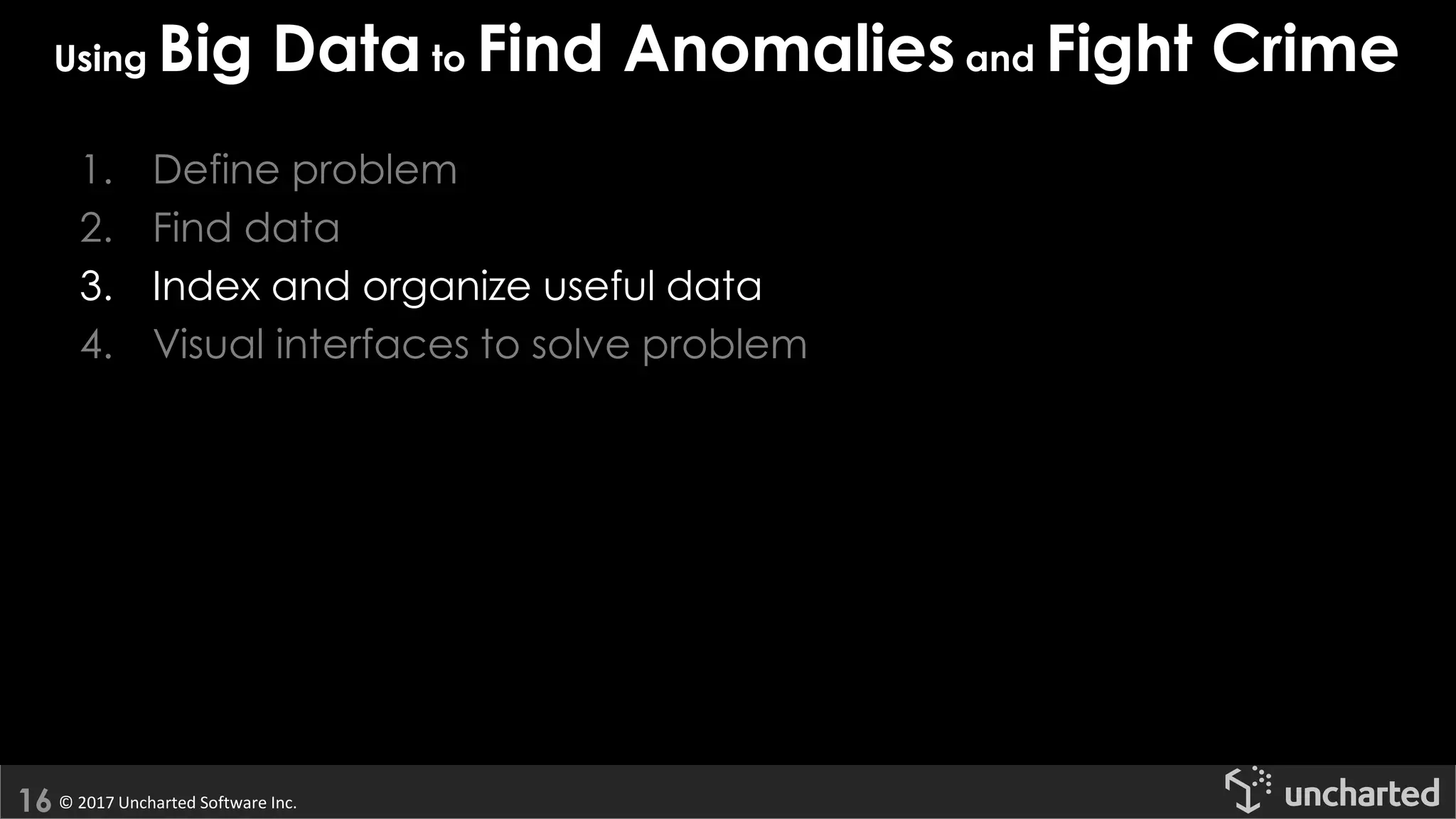

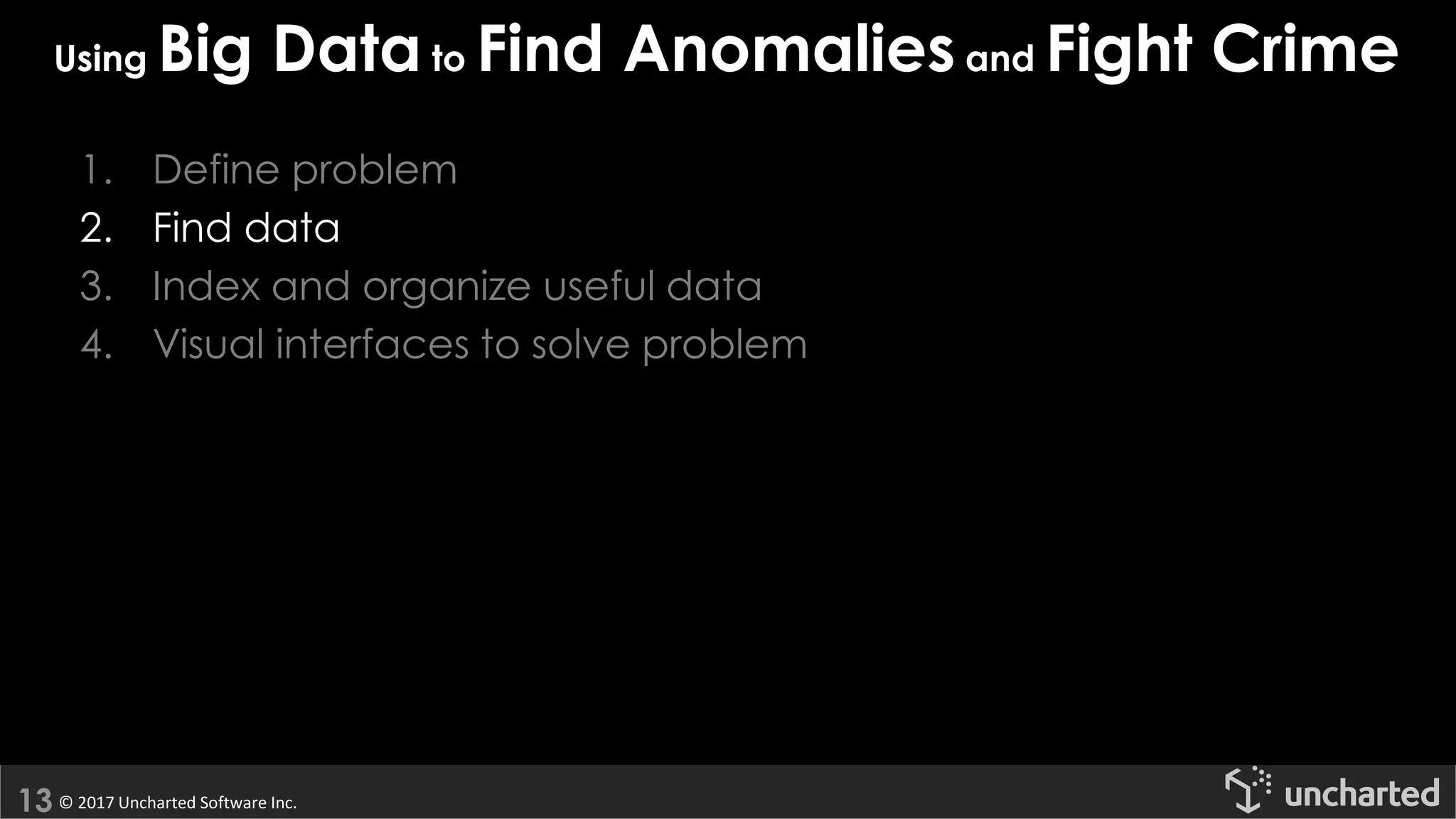

1. Define problem
2. Find data
3. Index and organize useful data
4. Visual interfaces to solve problem

Fatal Fakery

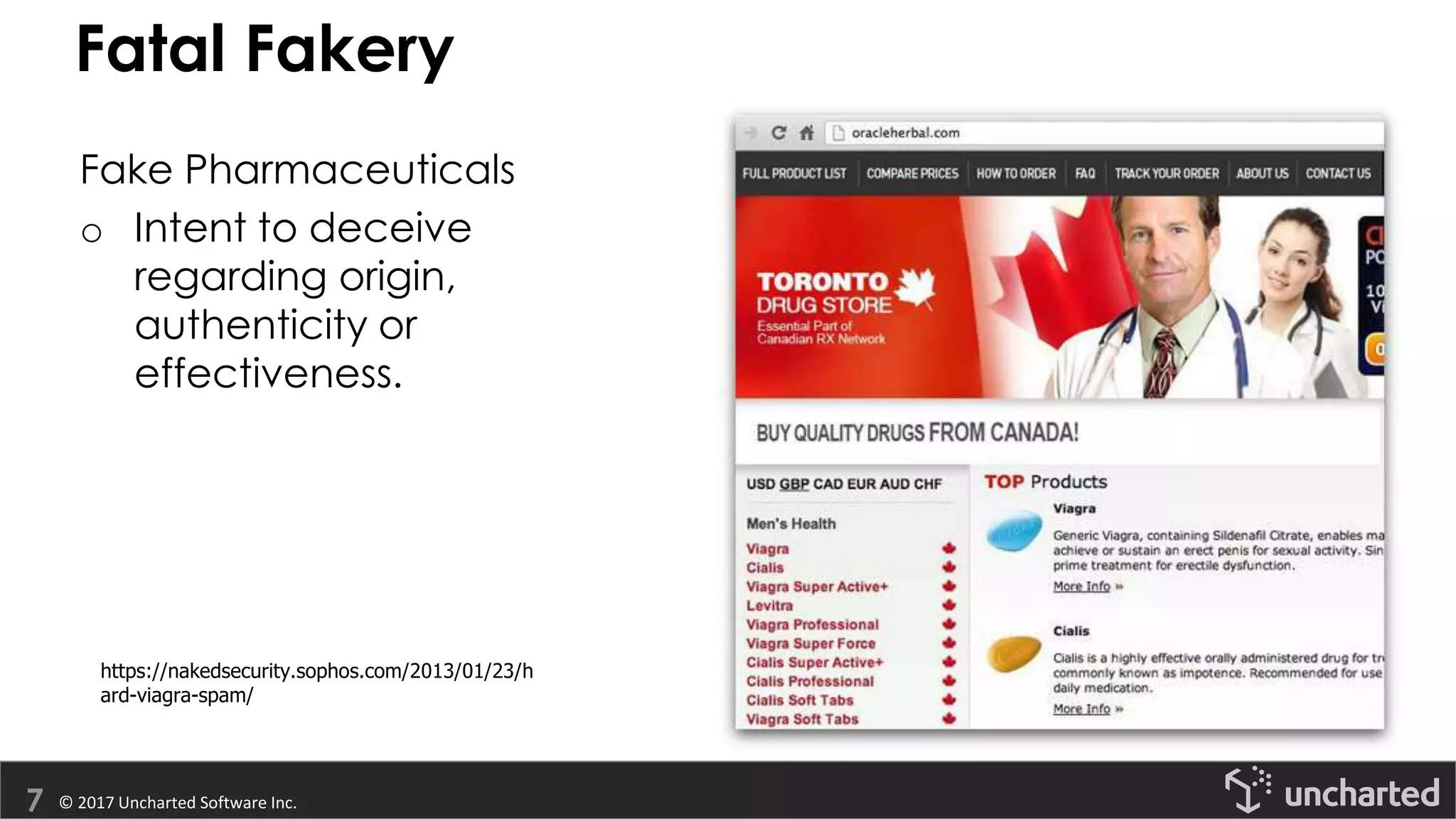

Fake Pharmaceuticals
o Intent to deceive
regarding origin,
authenticity or
effectiveness.
https://nakedsecurity.sophos.com/2013/01/23/h
ard-viagra-spam/

Fatal Fakery
Fake Pharma world-wide

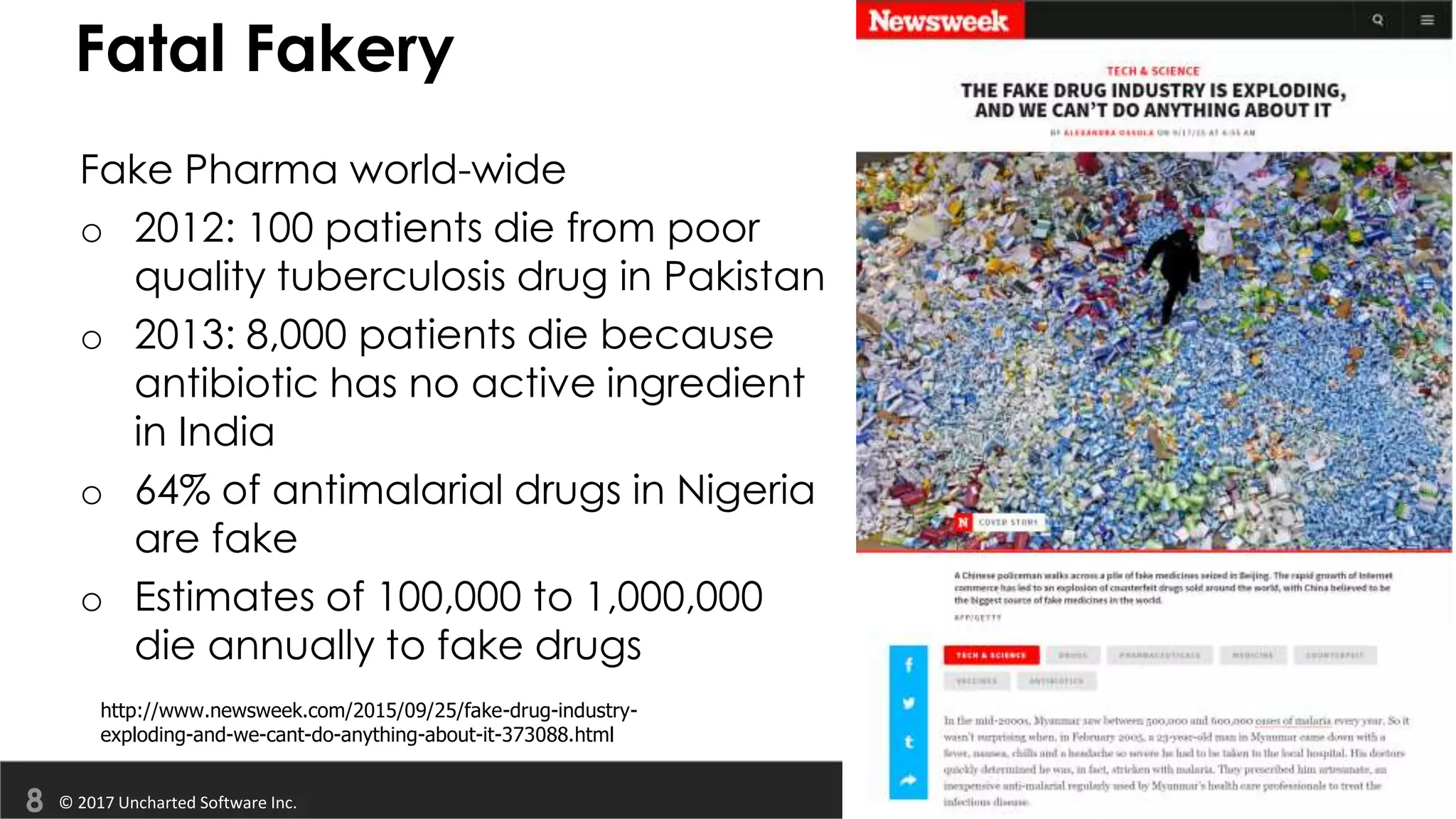

o 2012: 100 patients die from poor
quality tuberculosis drug in Pakistan
o 2013: 8,000 patients die because
antibiotic has no active ingredient
in India
o 64% of antimalarial drugs in Nigeria
are fake
o Estimates of 100,000 to 1,000,000
die annually to fake drugs
http://www.newsweek.com/2015/09/25/fake-drug-industry-
exploding-and-we-cant-do-anything-about-it-373088.html

Fatal Fakery

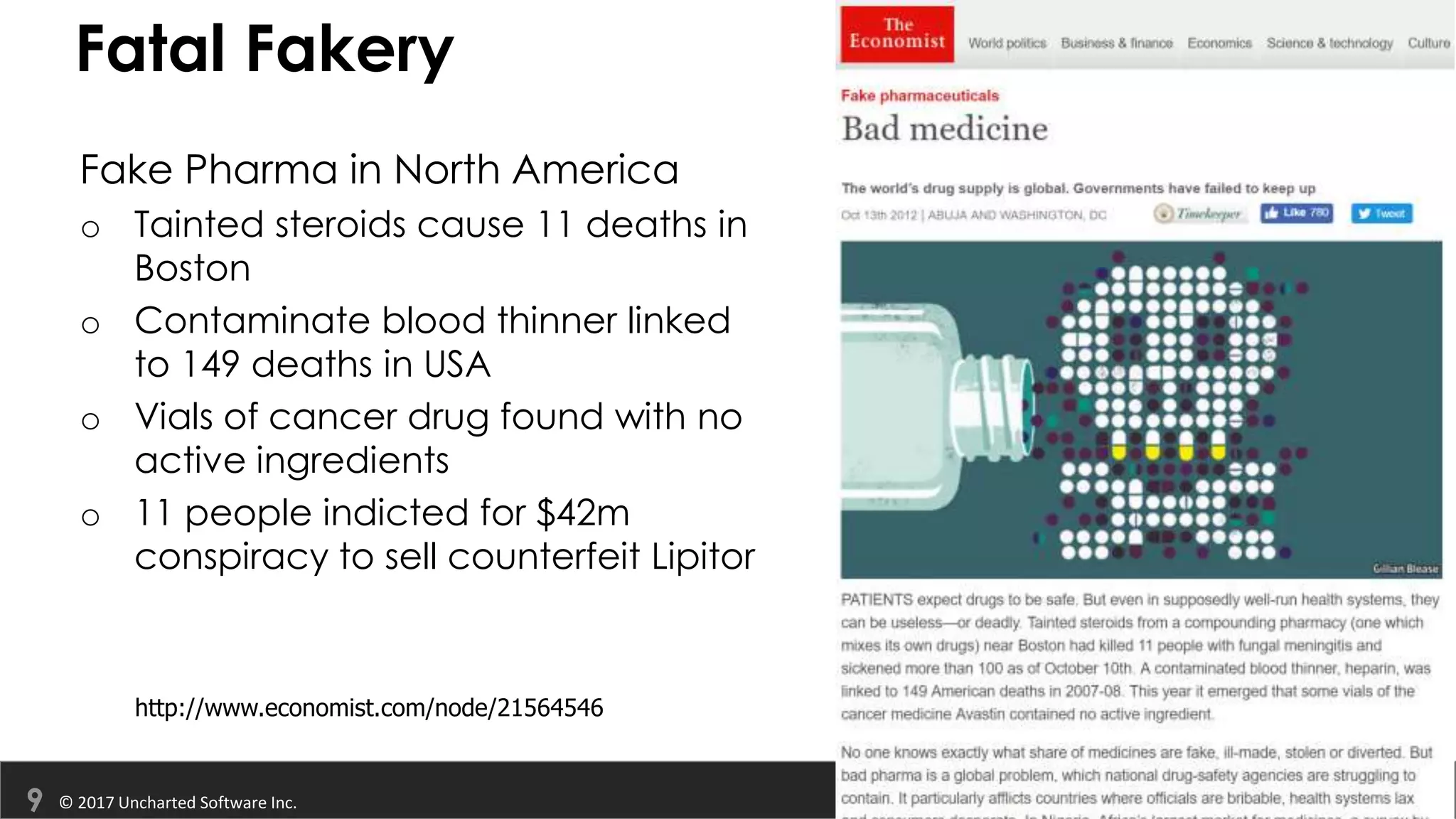

Fake Pharma in North America
o Tainted steroids cause 11 deaths in
Boston
o Contaminate blood thinner linked
to 149 deaths in USA
o Vials of cancer drug found with no
active ingredients
o 11 people indicted for $42m
conspiracy to sell counterfeit Lipitor
http://www.economist.com/node/21564546

Fatal Fakery

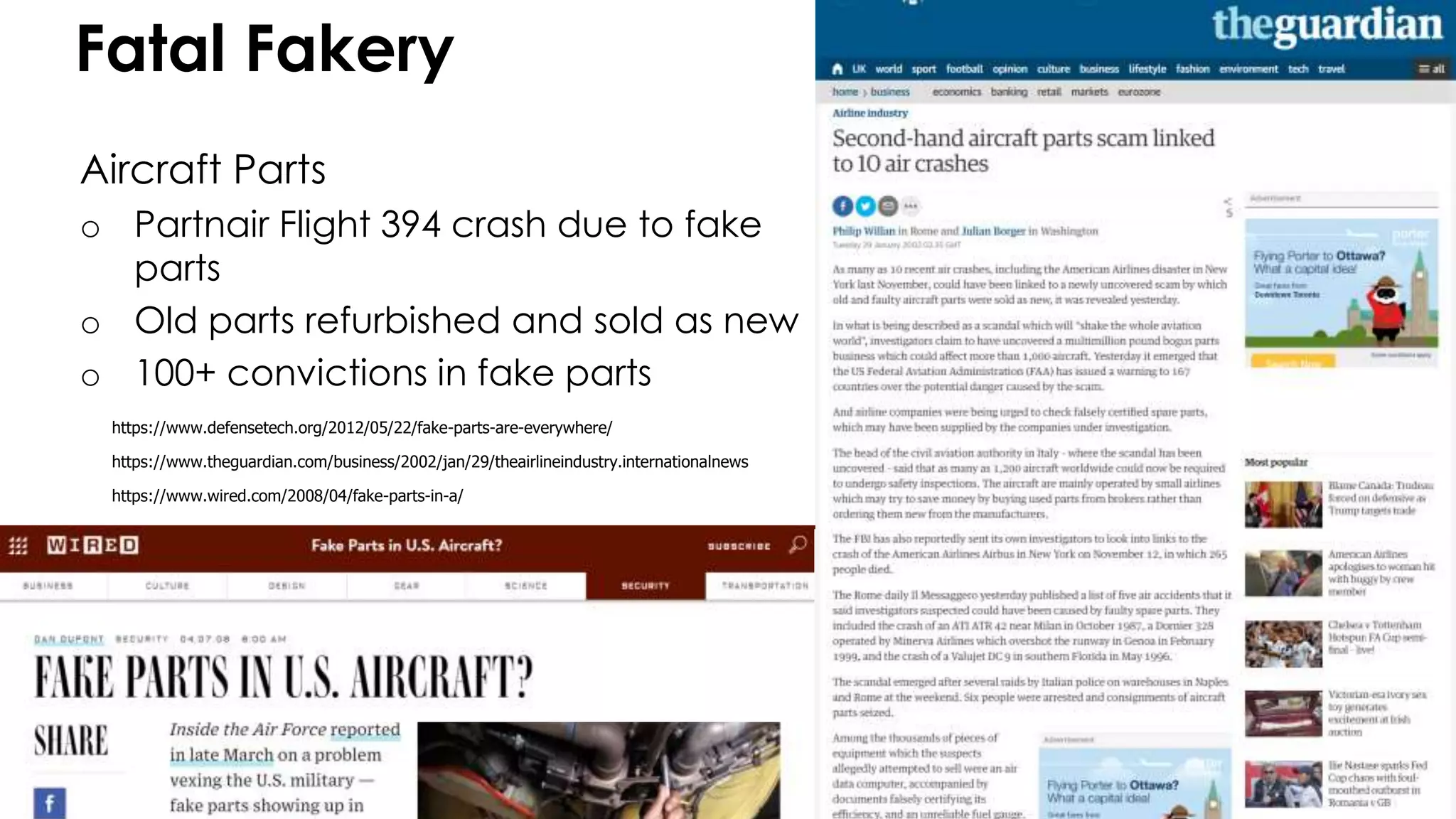

Aircraft Parts
o Partnair Flight 394 crash due to fake
parts
o Old parts refurbished and sold as new
o 100+ convictions in fake parts
https://www.defensetech.org/2012/05/22/fake-parts-are-everywhere/
https://www.theguardian.com/business/2002/jan/29/theairlineindustry.internationalnews
https://www.wired.com/2008/04/fake-parts-in-a/

Fatal Fakery
Aircraft Parts

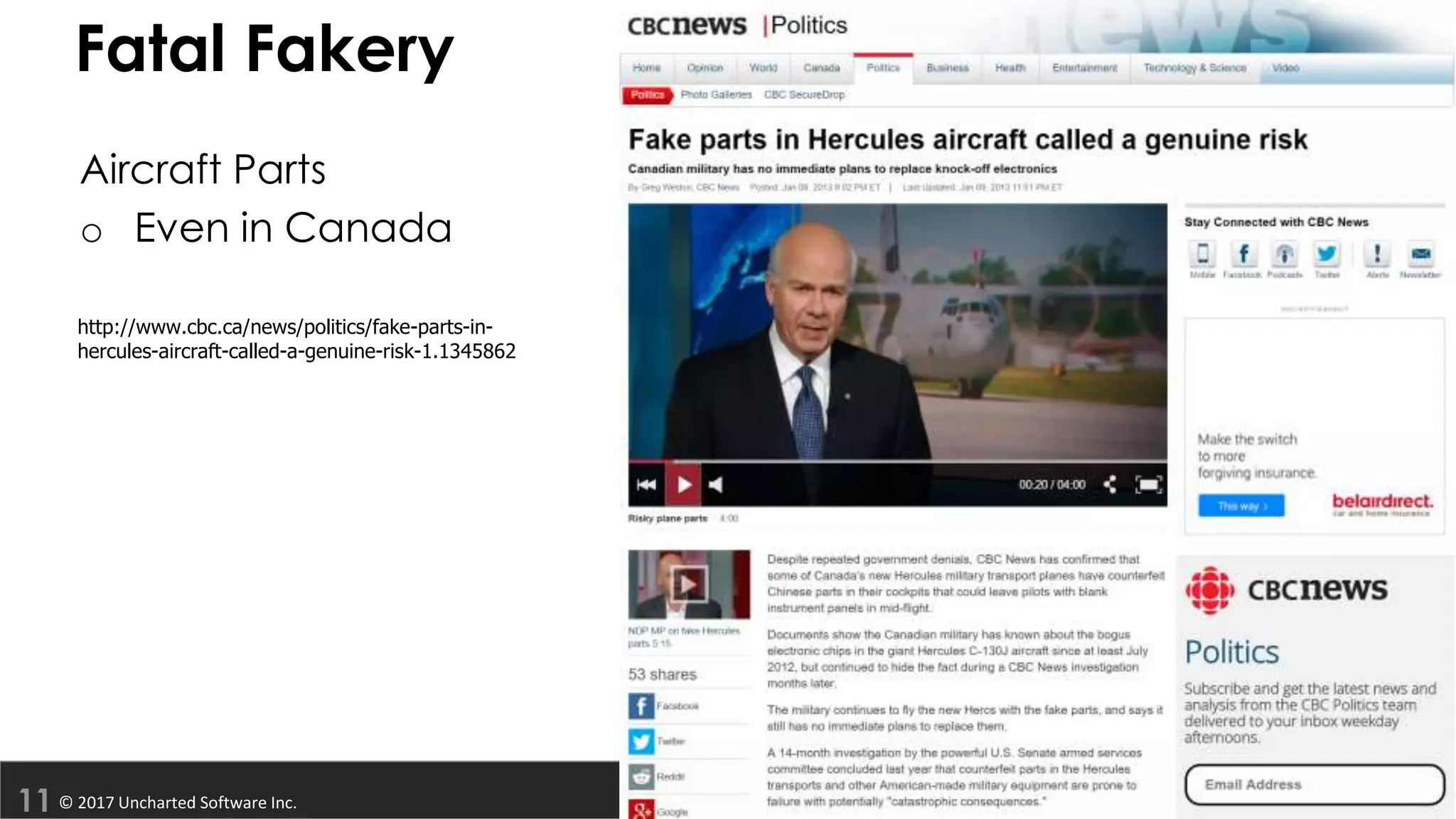

o Even in Canada
http://www.cbc.ca/news/politics/fake-parts-in-
hercules-aircraft-called-a-genuine-risk-1.1345862

Fatal Fakery
Fake Airbags
o Fail to deploy, only partially
deploy or cause fires!
o One person sells 7000 fake
airbags
o 10,000-250,000 cars in US estimate
to have fake airbags
http://www.dailymail.co.uk/news/article-2221976/Fake-airbags-
Man-27-1-4-million-selling-counterfeit-airbags-failed-deploy.html
http://www.cnn.com/2012/10/10/us/counterfeit-airbags/index.html

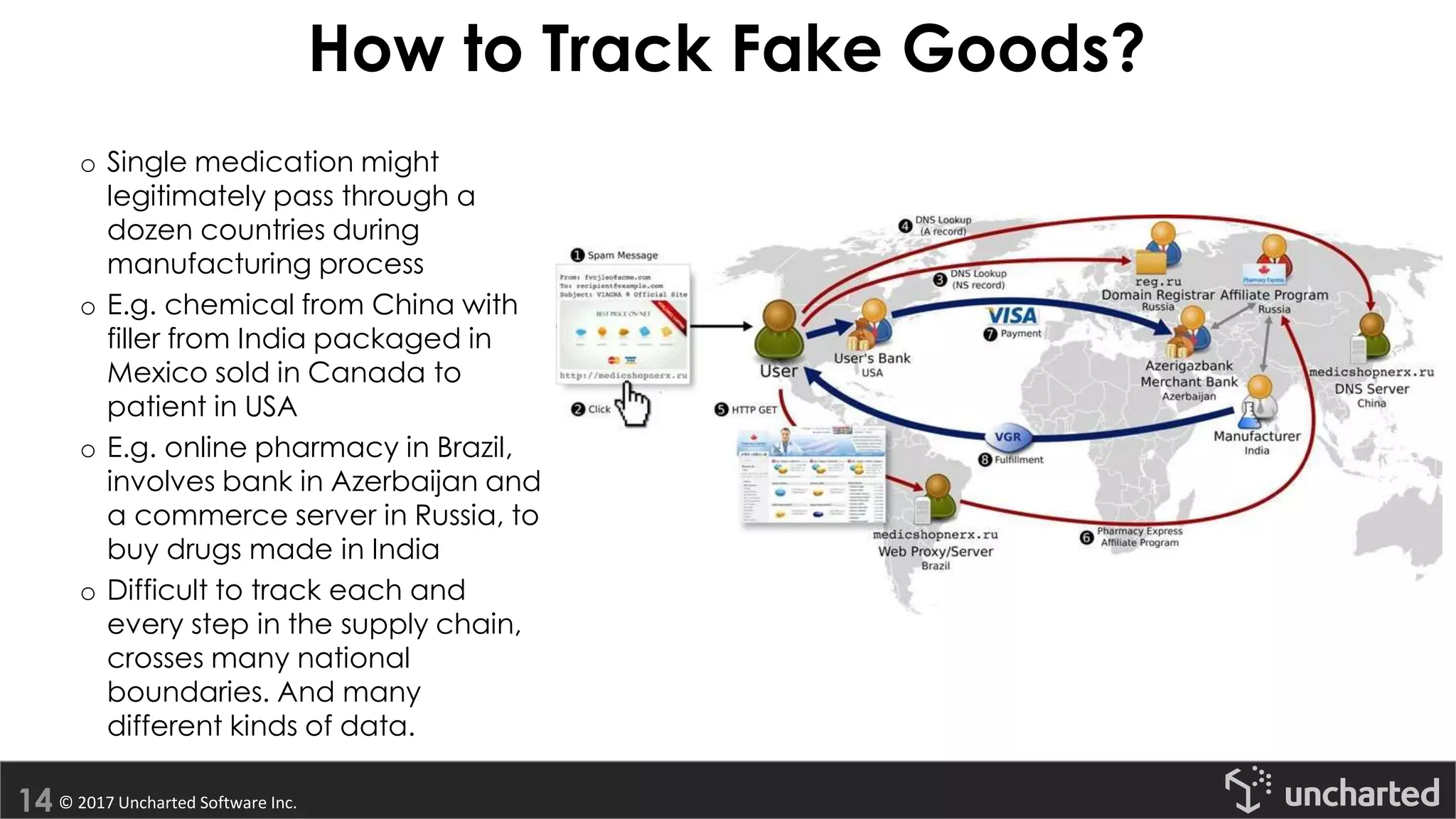

How to Track Fake Goods?
o Single medication might
legitimately pass through a
dozen countries during
manufacturing process
o E.g. chemical from China with
filler from India packaged in
Mexico sold in Canada to
patient in USA
o E.g. online pharmacy in Brazil,
involves bank in Azerbaijan and
a commerce server in Russia, to
buy drugs made in India
o Difficult to track each and
every step in the supply chain,
crosses many national
boundaries. And many
different kinds of data.

How to Track Fake Goods?

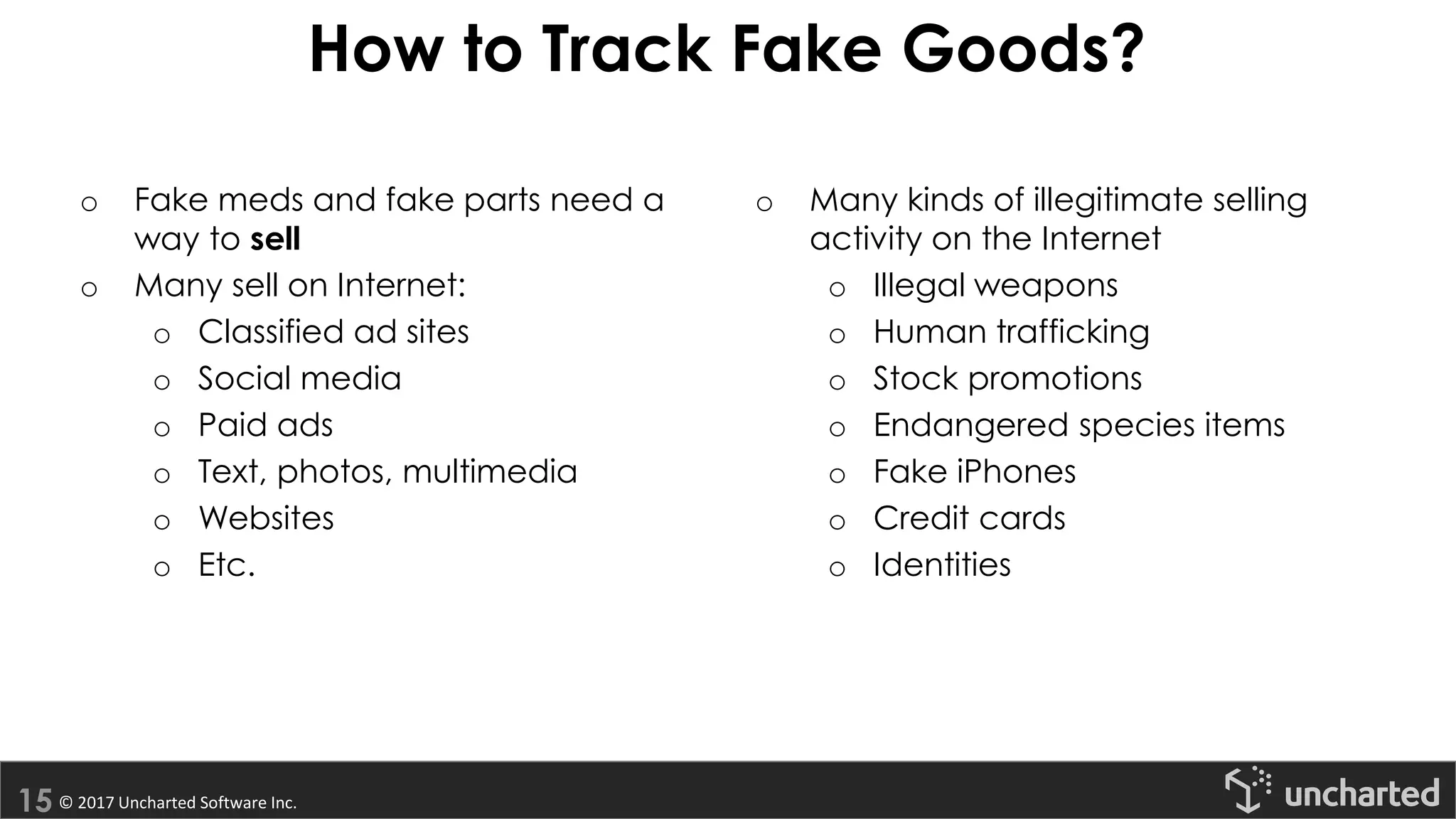

o Fake meds and fake parts need a
way to sell
o Many sell on Internet:
o Classified ad sites
o Social media
o Paid ads
o Text, photos, multimedia
o Websites
o Etc.
o Many kinds of illegitimate selling
activity on the Internet
o Illegal weapons
o Human trafficking
o Stock promotions
o Endangered species items
o Fake iPhones
o Credit cards
o Identities

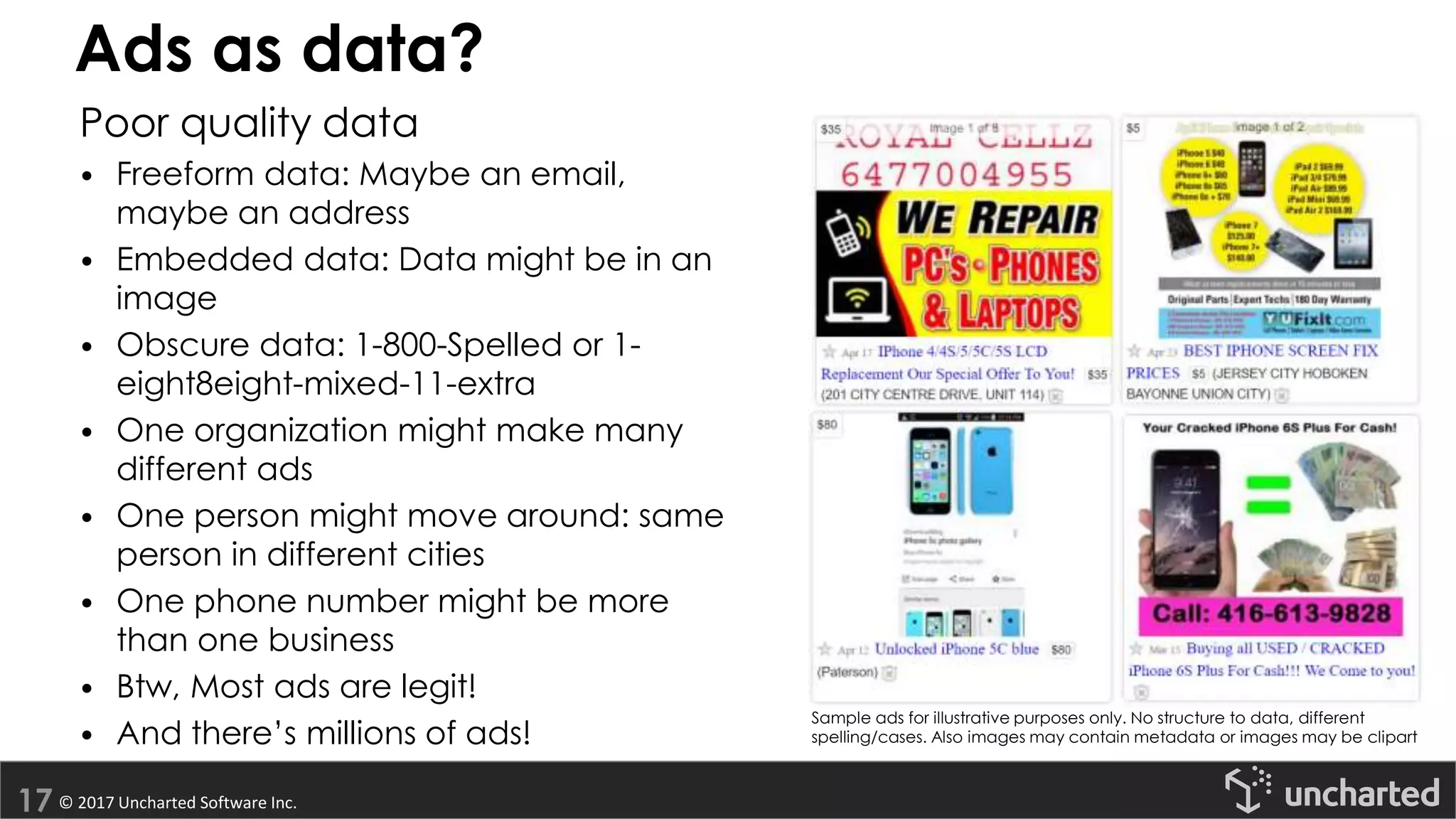

Ads as data?
Poor quality data
• Freeform data: Maybe an email,
maybe an address
• Embedded data: Data might be in an
• Obscure data: 1-800-Spelled or 1-
eight8eight-mixed-11-extra
• One organization might make many
different ads
• One person might move around: same
person in different cities
• One phone number might be more
than one business
• Btw, Most ads are legit!
• And there’s millions of ads!
Sample ads for illustrative purposes only. No structure to data, different
spelling/cases. Also images may contain metadata or images may be clipart

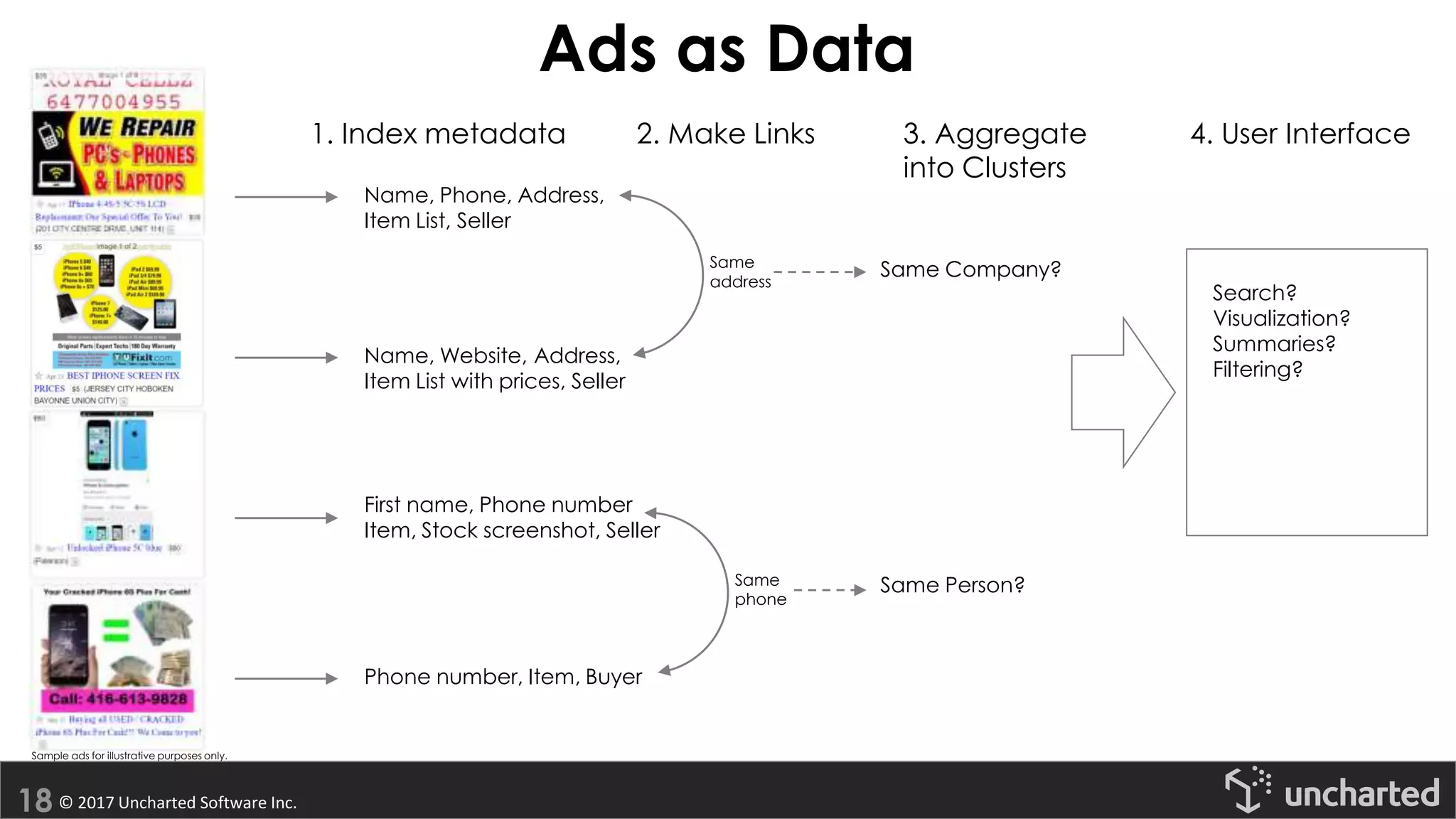

Ads as Data
First name, Phone number
Item, Stock screenshot, Seller
Name, Website, Address,
Item List with prices, Seller
Phone number, Item, Buyer
Name, Phone, Address,
Item List, Seller
1. Index metadata
Same Company?
Same Person?
3. Aggregate
into Clusters
Same
address
Same
phone
2. Make Links
Search?
Visualization?
Summaries?
Filtering?
4. User Interface
Sample ads for illustrative purposes only.

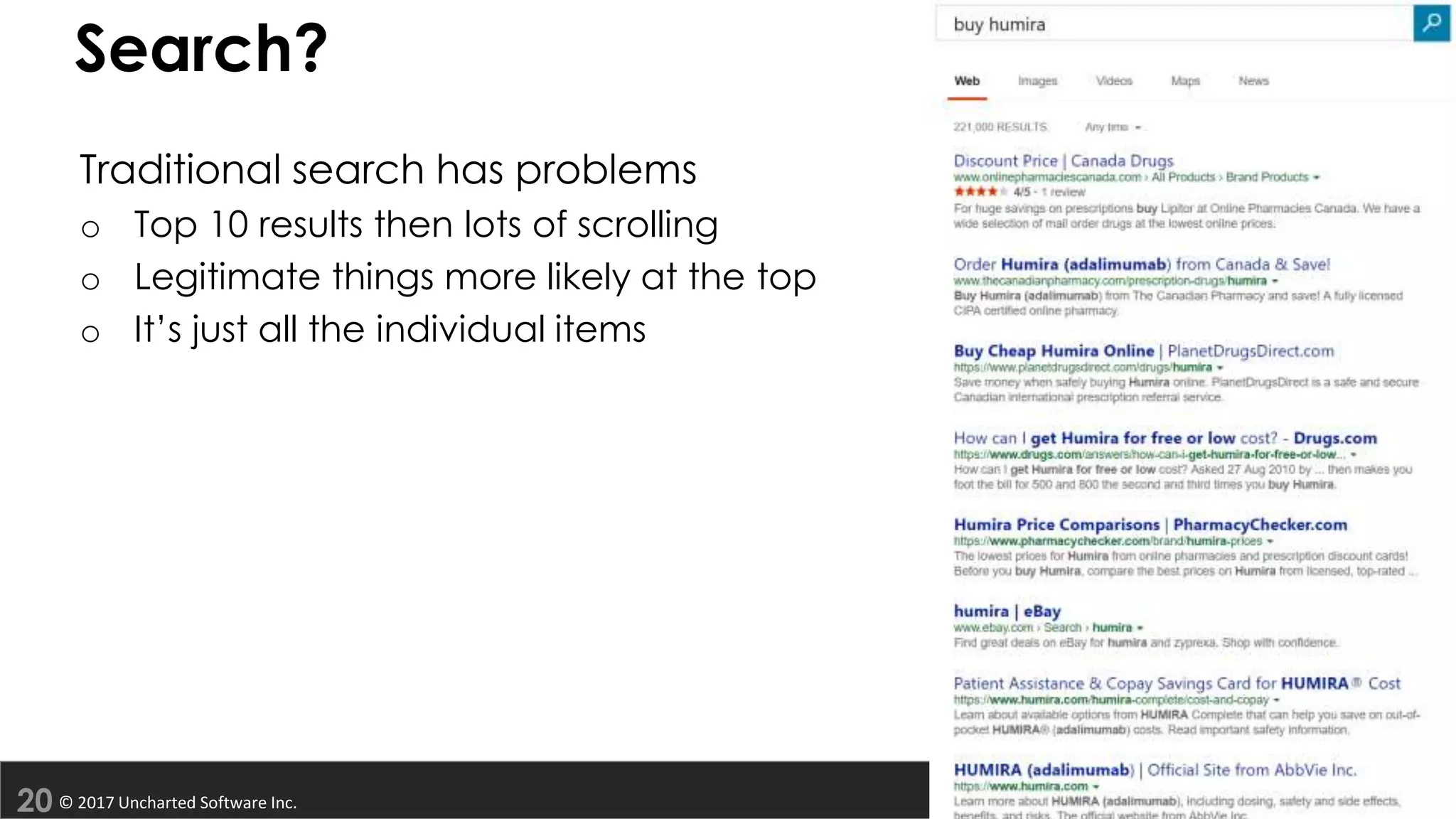

Search?
Traditional search has problems
o Top 10 results then lots of scrolling
o Legitimate things more likely at the top
o It’s just all the individual items

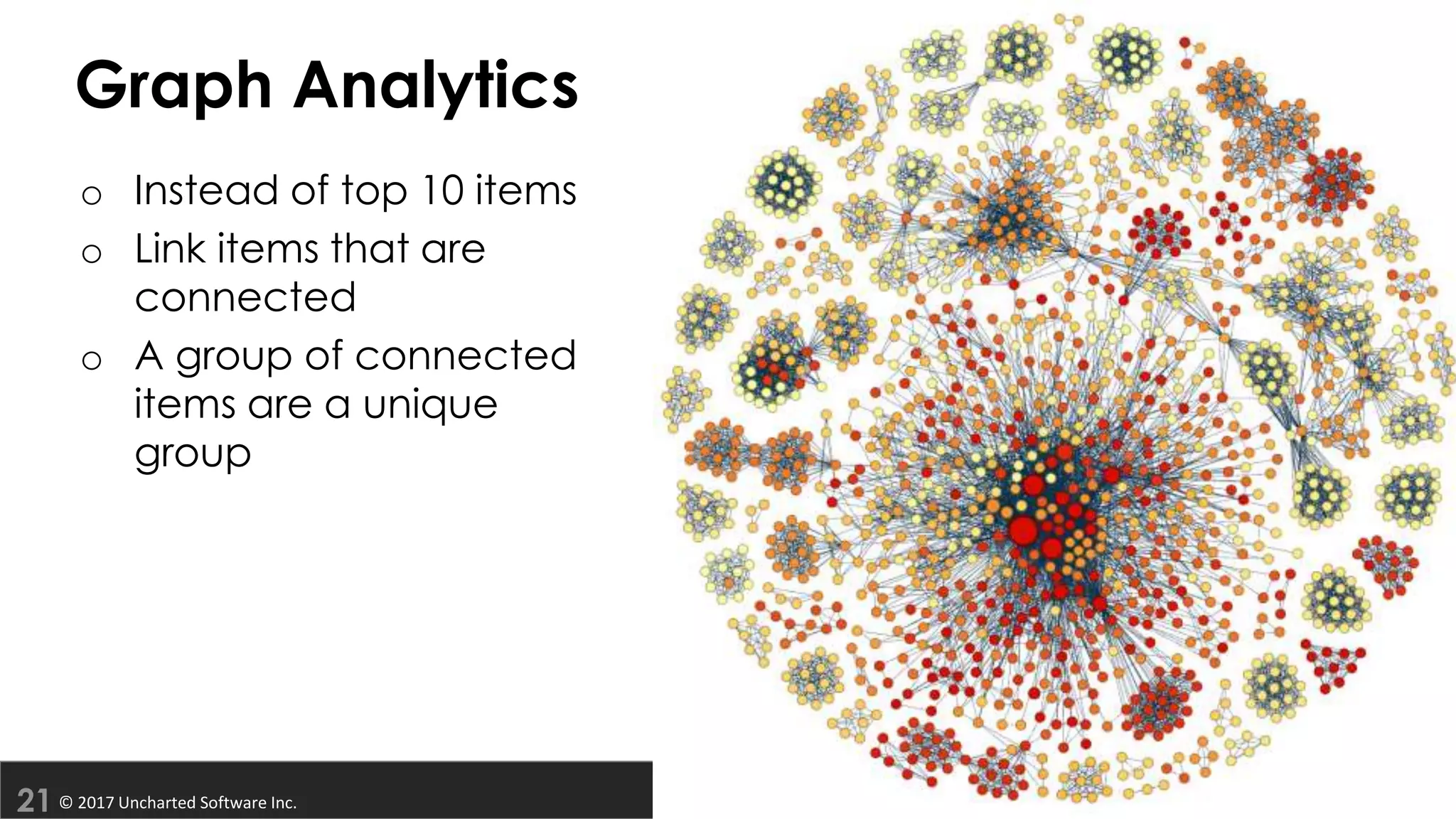

Graph Analytics
o Instead of top 10 items
o Link items that are
connected
o A group of connected
items are a unique
group

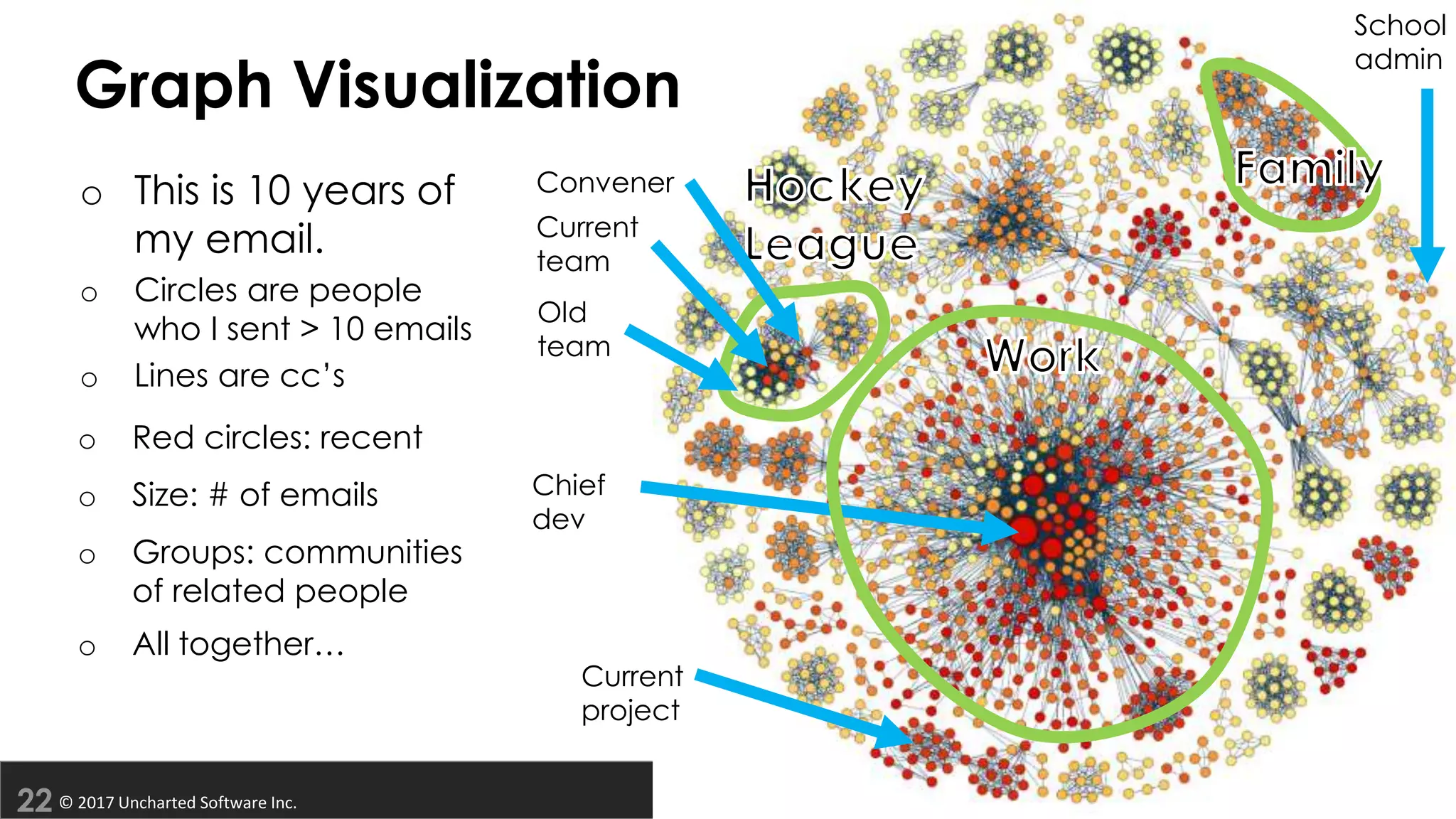

o This is 10 years of
my email.
o Circles are people
who I sent > 10 emails
o Lines are cc’s
Chief
dev
Current
project
School
admin
Convener
Current
team
Old
team
Graph Visualization
o Red circles: recent
o Size: # of emails
o Groups: communities
of related people
o All together…

Graph Visualization

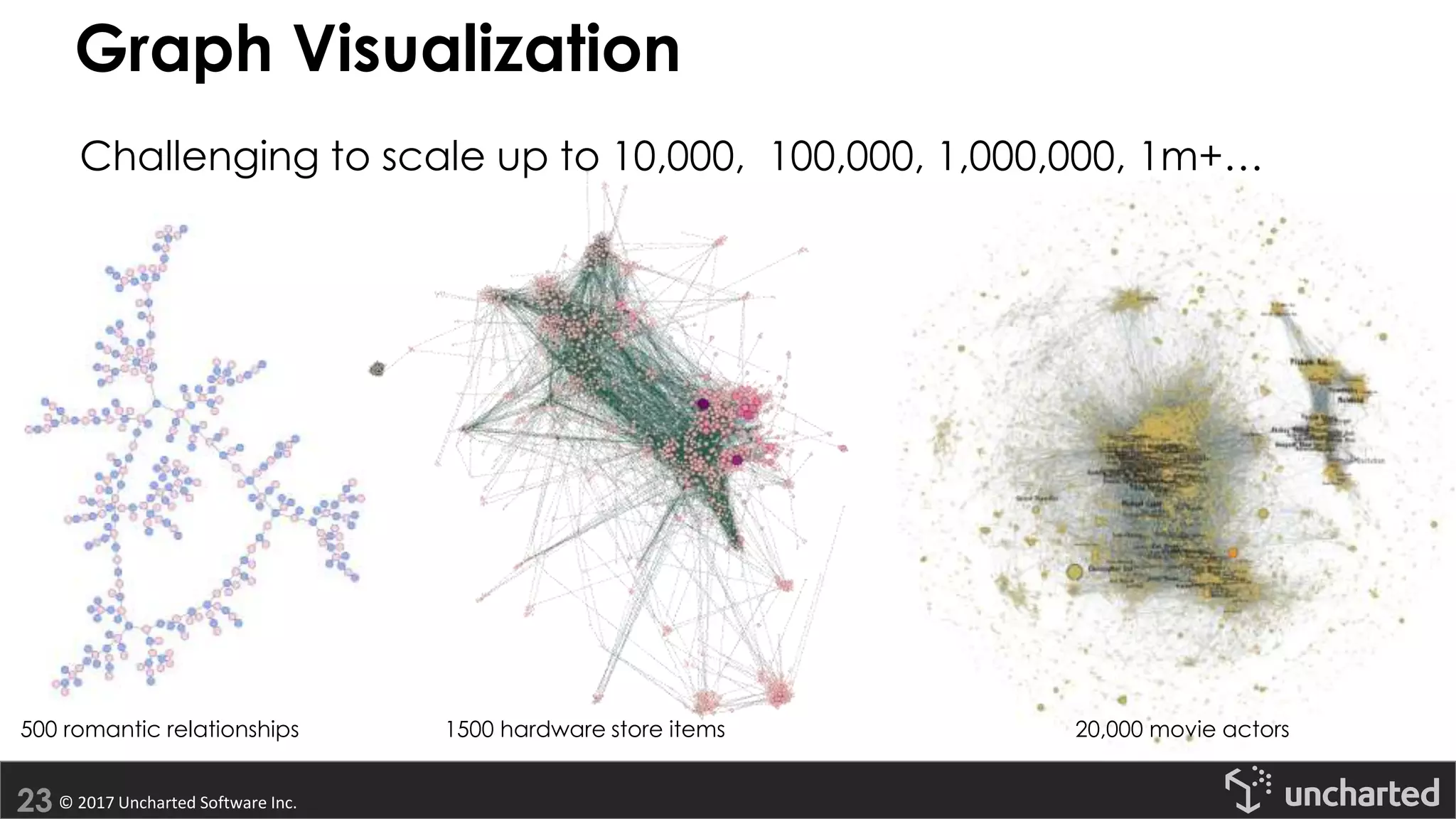

Challenging to scale up to 10,000, 100,000, 1,000,000, 1m+…
500 romantic relationships 1500 hardware store items 20,000 movie actors

INFLUENCER ANALYSIS
1. Marketing email – track forwards.
2. See who forward the most, where tenuous
connections are, long chains.
- Size: people who share widely (degree)
- Centrality: text size indicates key people
required
to reach across the network (betweenness)
- Color: average distance to other nodes
(closeness)

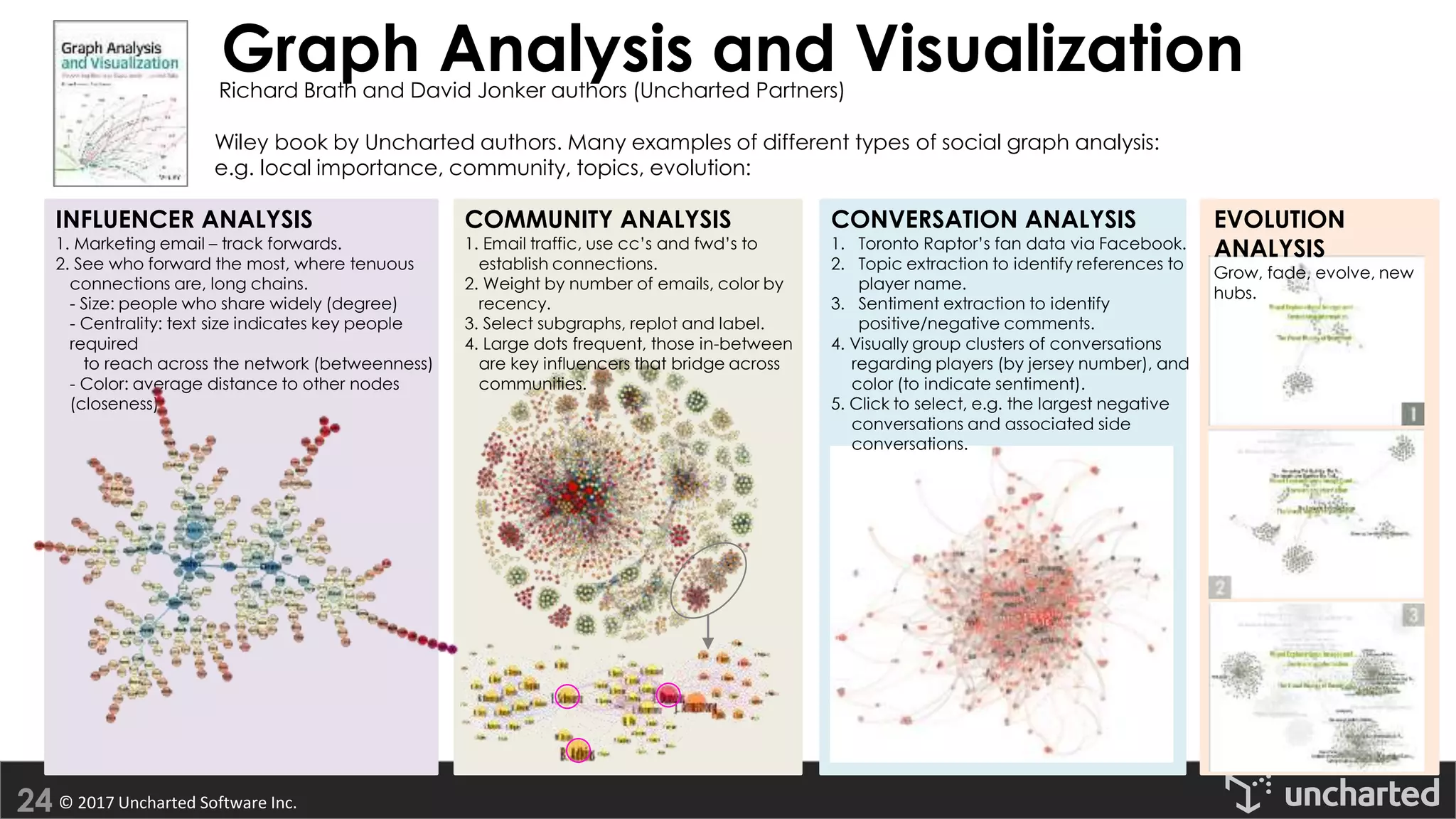

Graph Analysis and VisualizationRichard Brath and David Jonker authors (Uncharted Partners)
CONVERSATION ANALYSIS
1. Toronto Raptor’s fan data via Facebook.
2. Topic extraction to identify references to
player name.
3. Sentiment extraction to identify
positive/negative comments.
4. Visually group clusters of conversations
regarding players (by jersey number), and
color (to indicate sentiment).
5. Click to select, e.g. the largest negative
conversations and associated side
conversations.
EVOLUTION
ANALYSIS
Grow, fade, evolve, new
hubs.
COMMUNITY ANALYSIS
1. Email traffic, use cc’s and fwd’s to
establish connections.
2. Weight by number of emails, color by
recency.
3. Select subgraphs, replot and label.
4. Large dots frequent, those in-between
are key influencers that bridge across
communities.
Wiley book by Uncharted authors. Many examples of different types of social graph analysis:
e.g. local importance, community, topics, evolution:

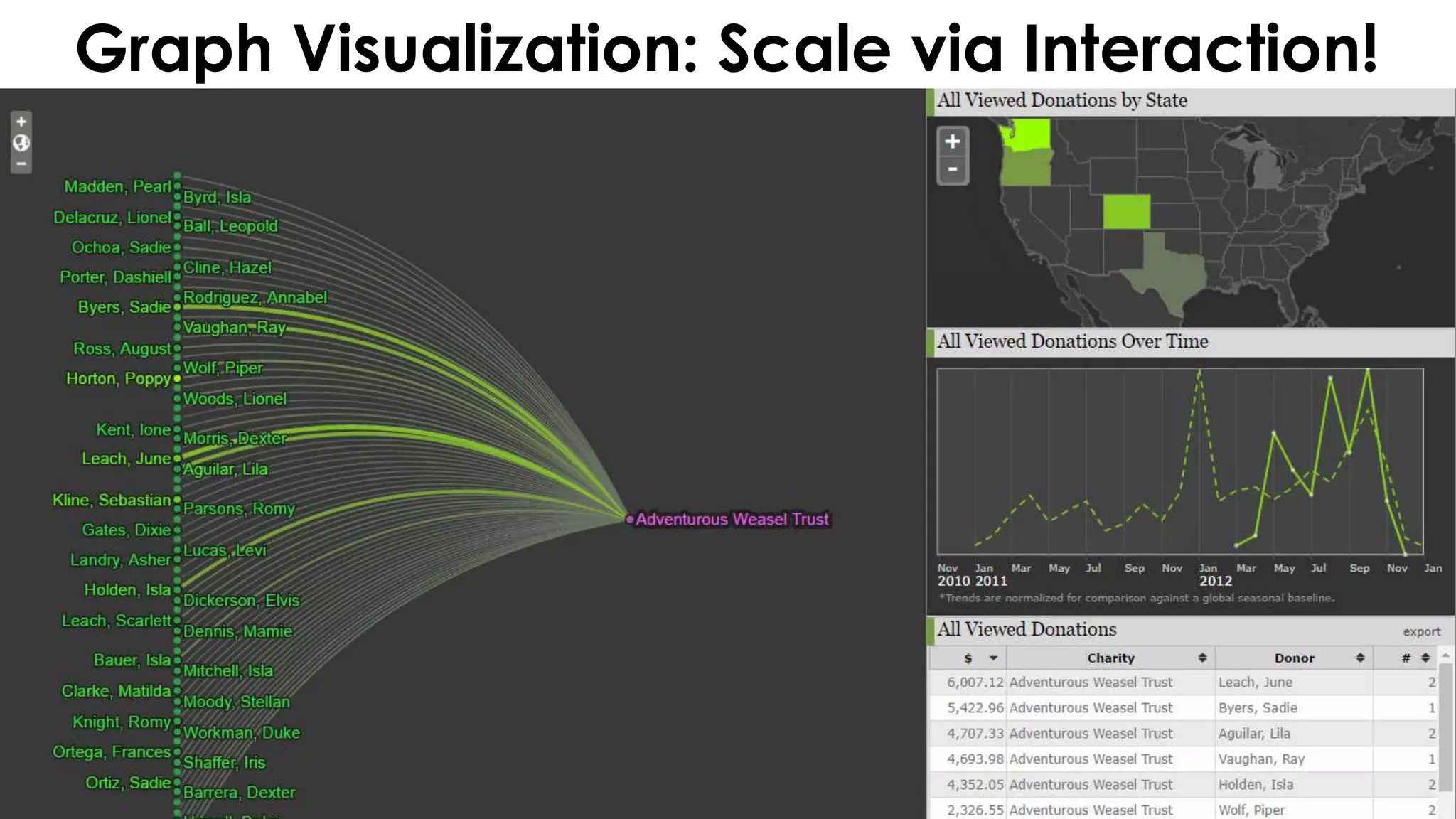

Graph Visualization: Scale via Interaction!

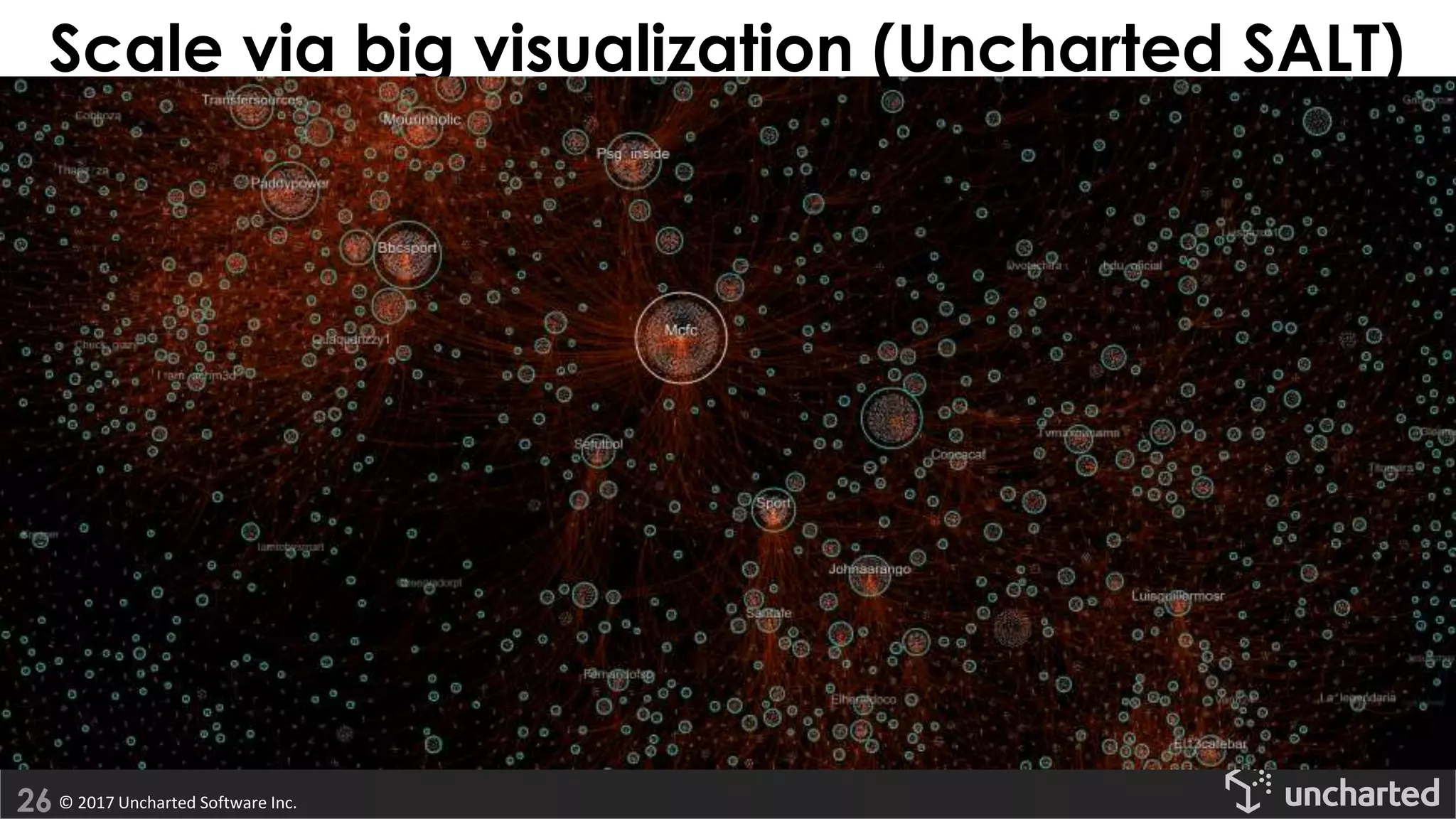

Scale via big visualization (Uncharted SALT)

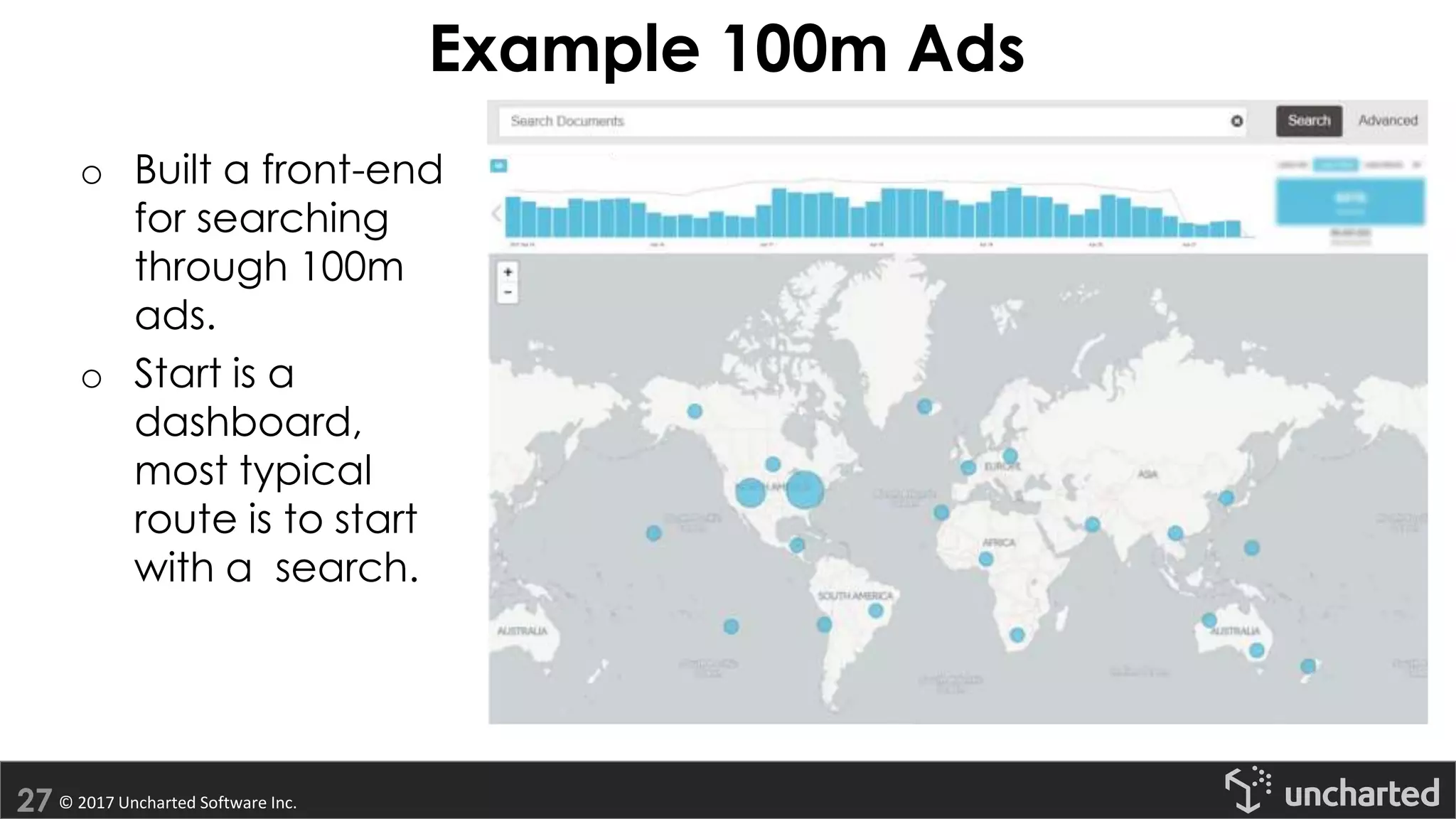

Example 100m Ads
o Built a front-end
for searching
through 100m
ads.
o Start is a
dashboard,
most typical
route is to start
with a search.

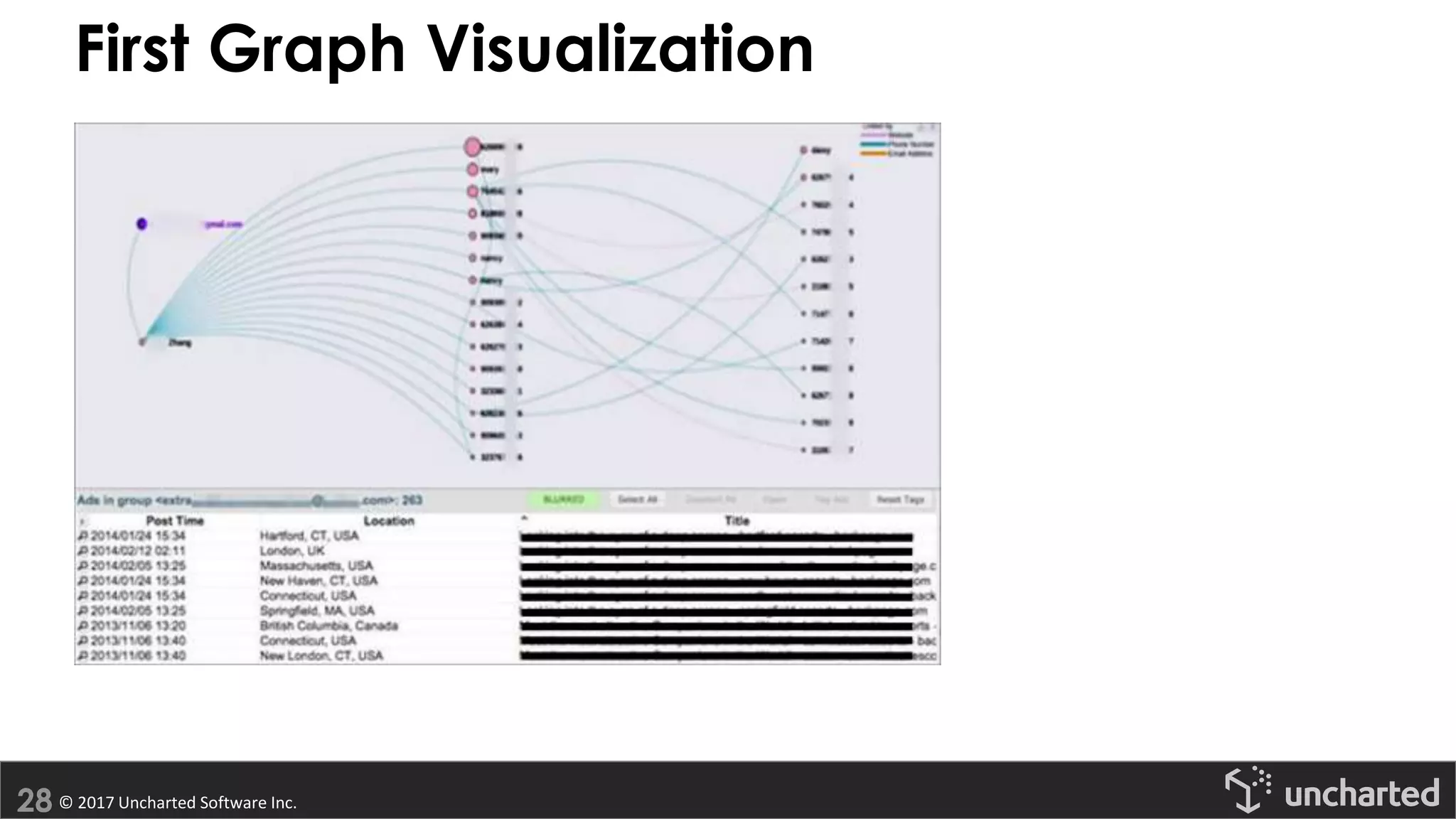

First Graph Visualization

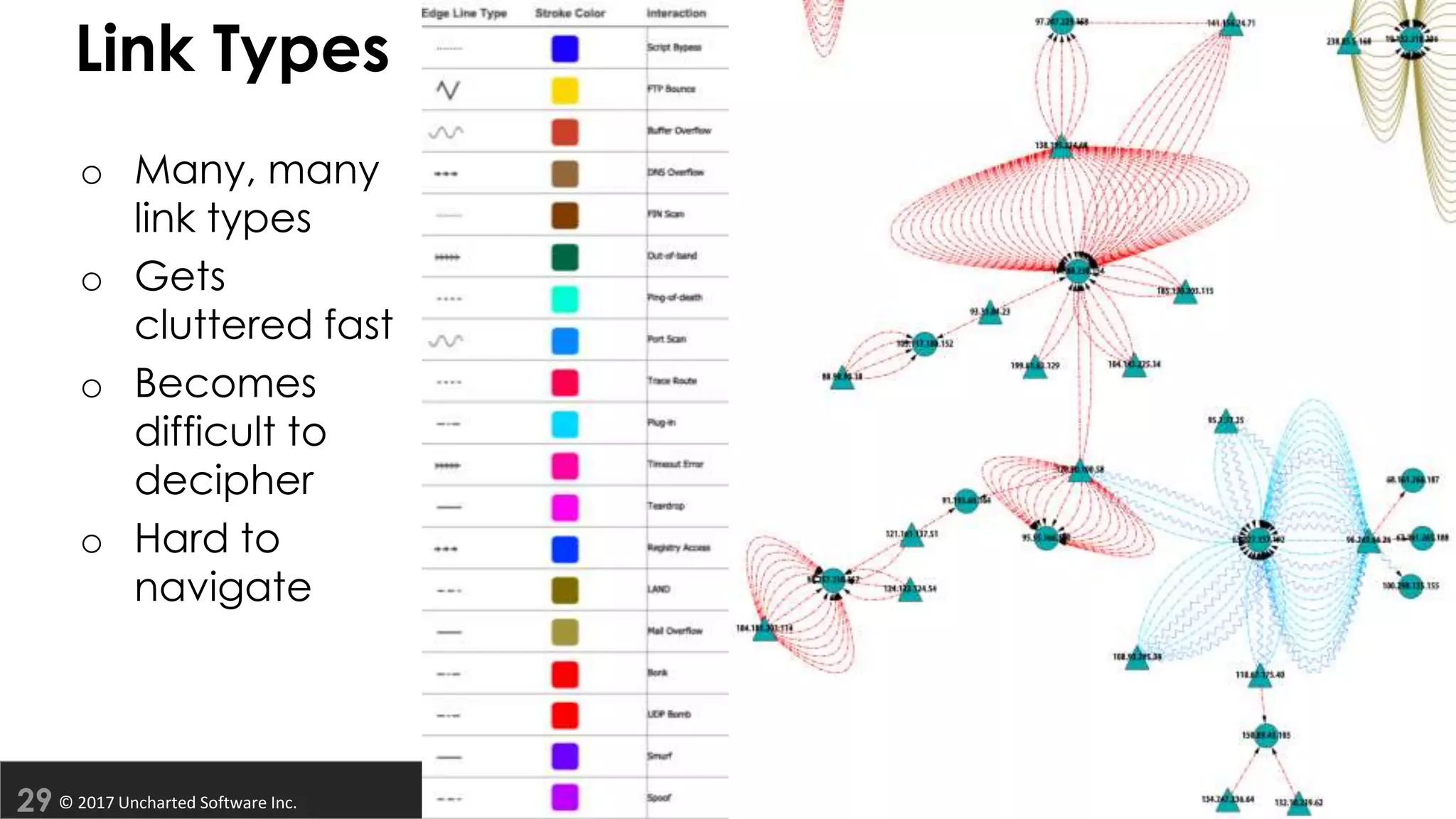

Link Types
o Many, many
link types
o Gets
cluttered fast
o Becomes
difficult to
decipher
o Hard to
navigate

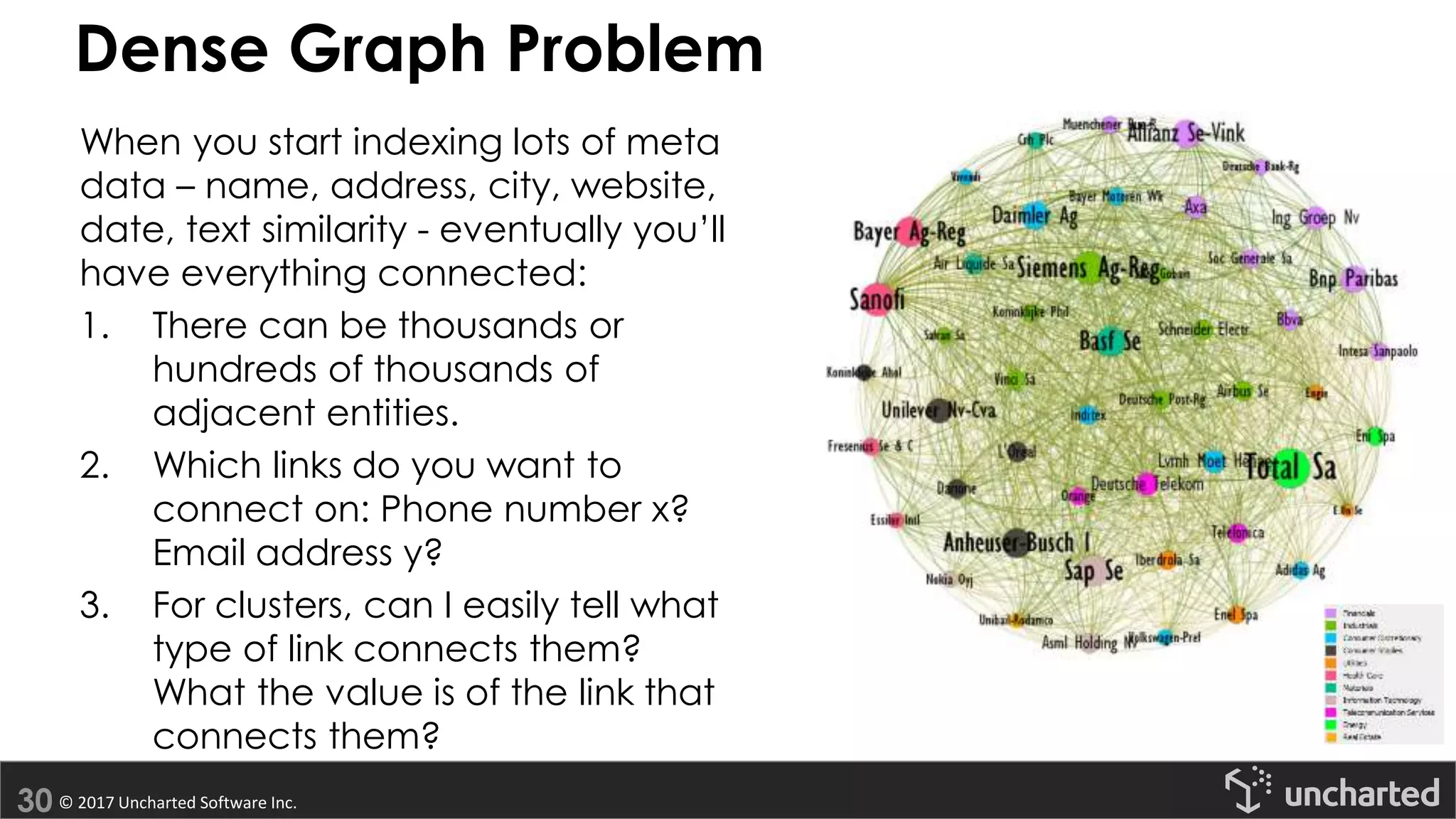

Dense Graph Problem
When you start indexing lots of meta
data – name, address, city, website,
date, text similarity - eventually you’ll
have everything connected:
1. There can be thousands or
hundreds of thousands of
adjacent entities.
2. Which links do you want to
connect on: Phone number x?
Email address y?
3. For clusters, can I easily tell what
type of link connects them?
What the value is of the link that
connects them?

Focus on the metadata
what are the differences
Focus on the links
interact by link types
Focus on the aggregate
what makes a cluster

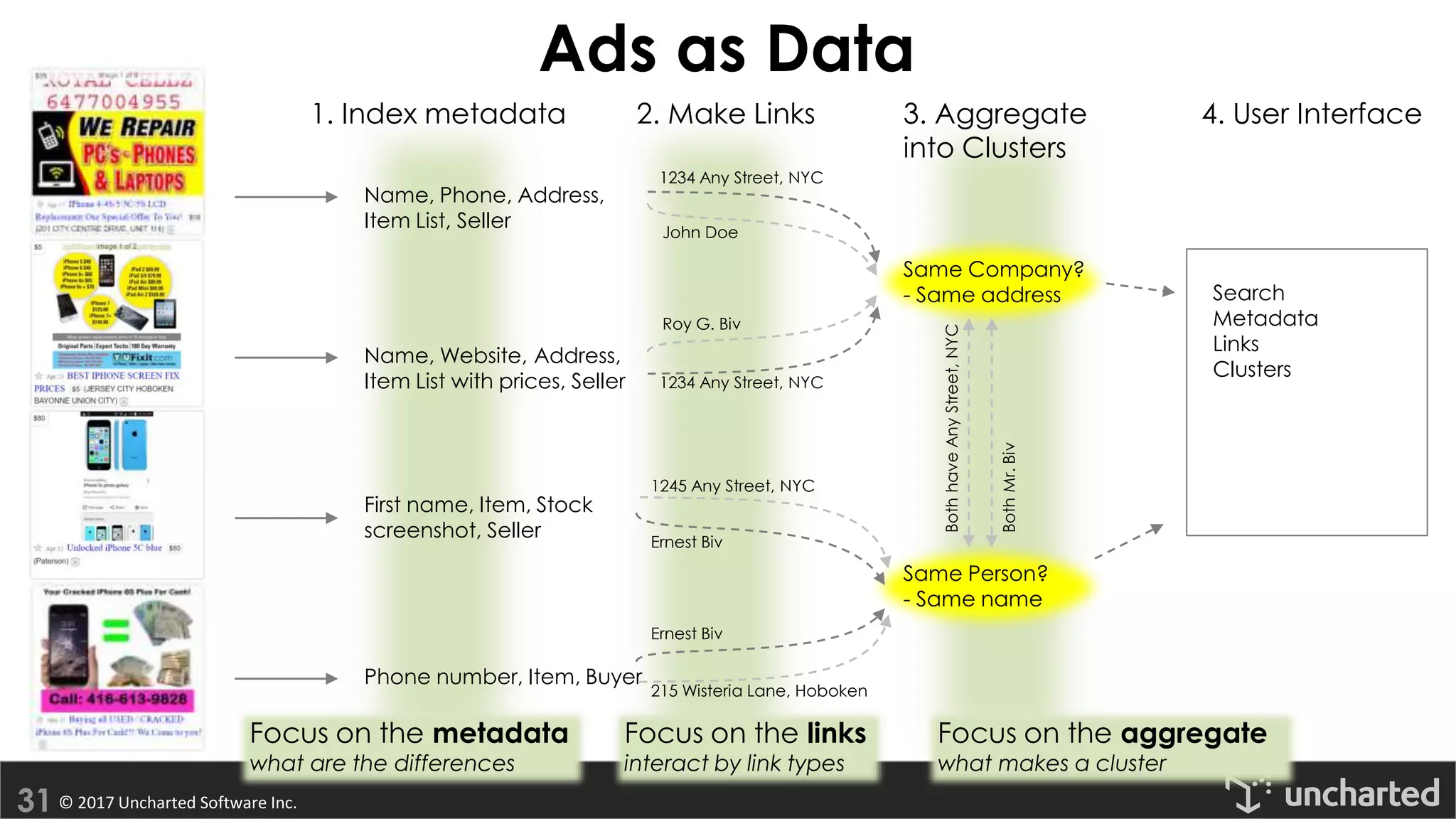

Ads as Data
Same Company?
- Same address
Name, Website, Address,
Item List with prices, Seller
First name, Item, Stock
screenshot, Seller
Phone number, Item, Buyer
Name, Phone, Address,
Item List, Seller
Same Person?
- Same name
1. Index metadata 3. Aggregate
into Clusters
4. User Interface
Search
Metadata
Links
Clusters
1234 Any Street, NYC
215 Wisteria Lane, Hoboken
John Doe
Roy G. Biv
BothhaveAnyStreet,NYC
BothMr.Biv
Ernest Biv
Ernest Biv
2. Make Links

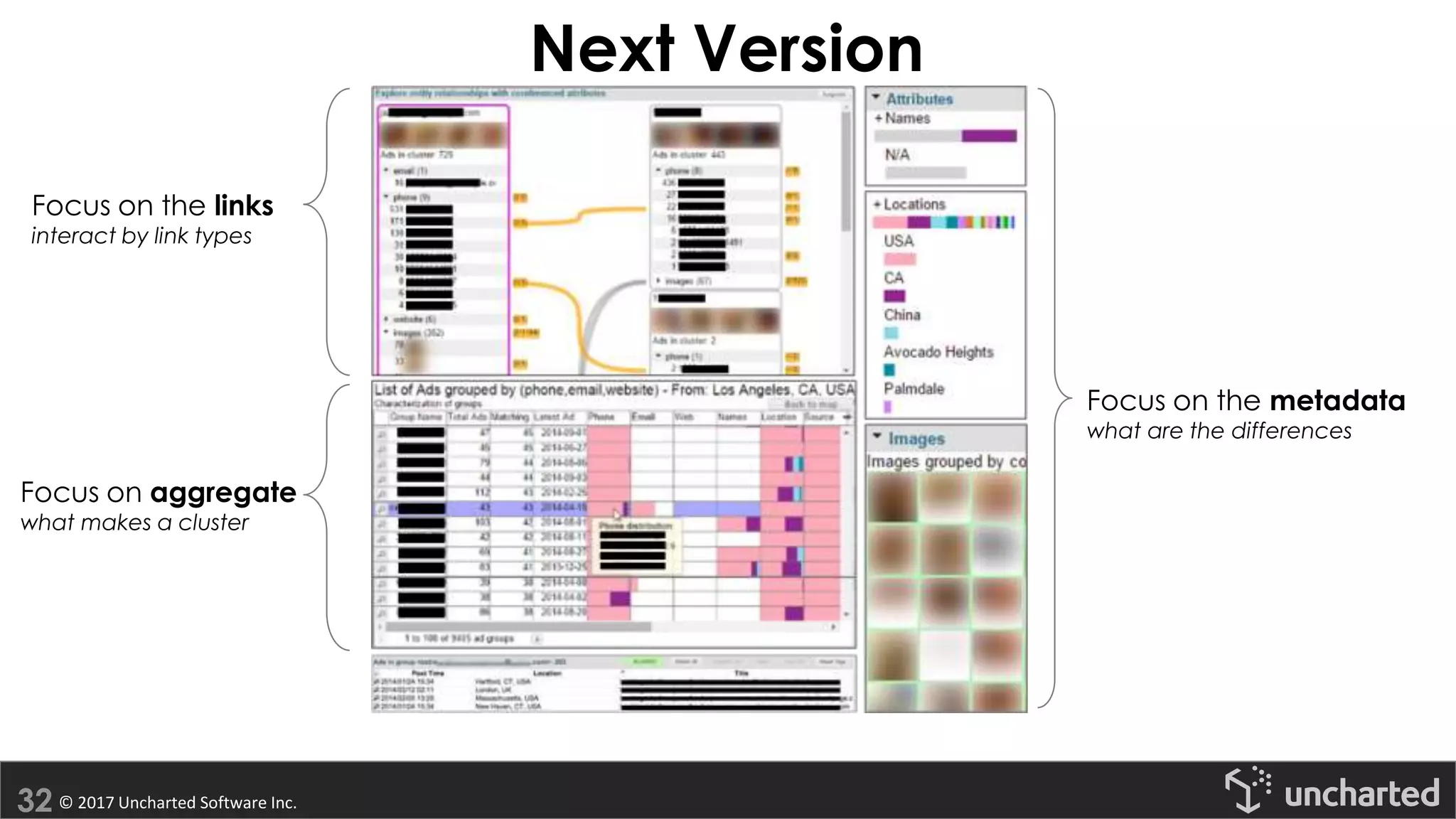

Next Version
Focus on the metadata
what are the differences
Focus on the links
interact by link types
Focus on aggregate
what makes a cluster

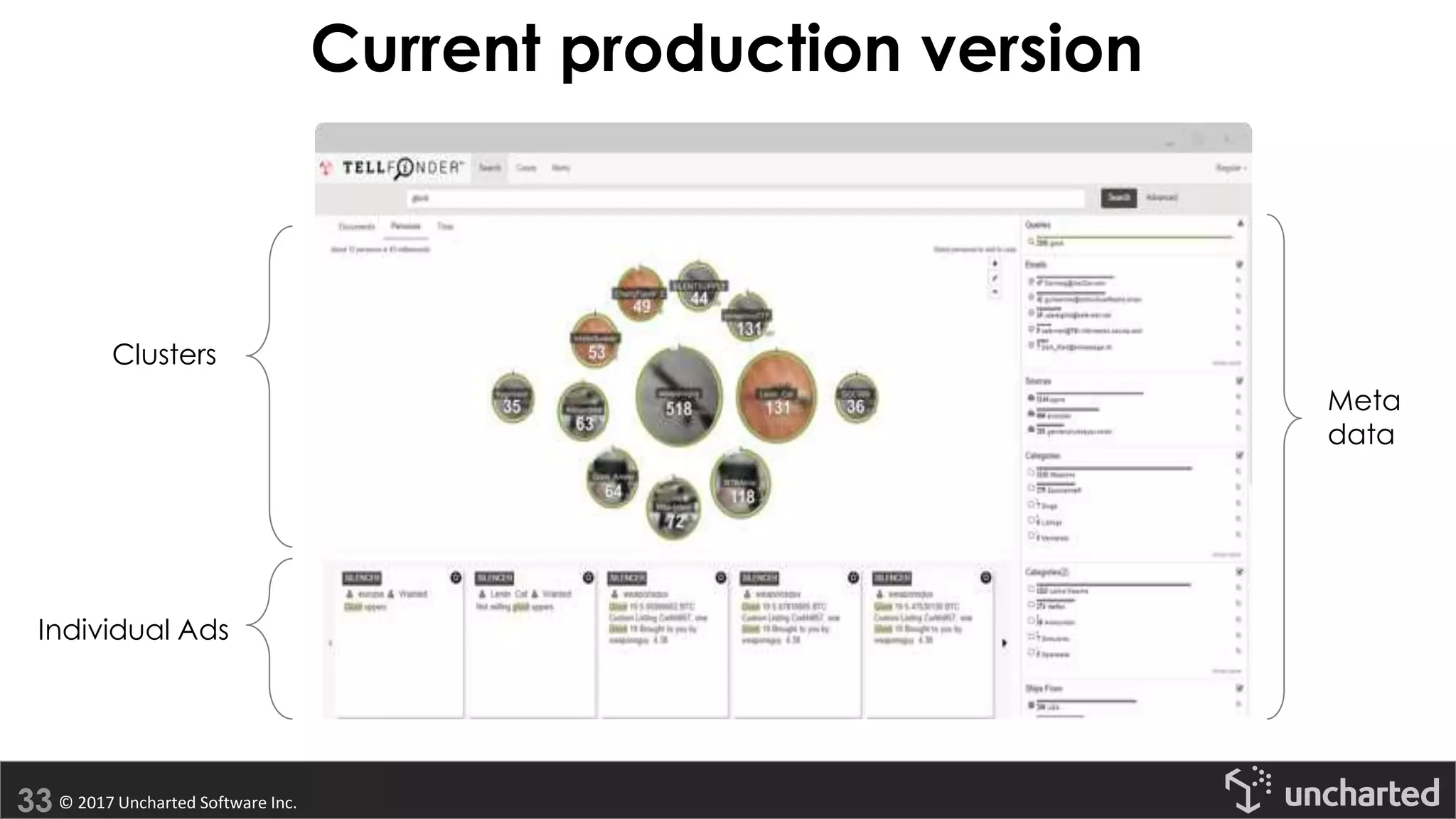

Current production version
Clusters
Individual Ads
Meta
data

So what?
o Some people design visualizations
just using “ready-made”
components
o In this case, a standard graph
layout didn’t work.
o Nor did a few other early
prototypes
• Design is required
• Iterative approach
• Driven by the data and the

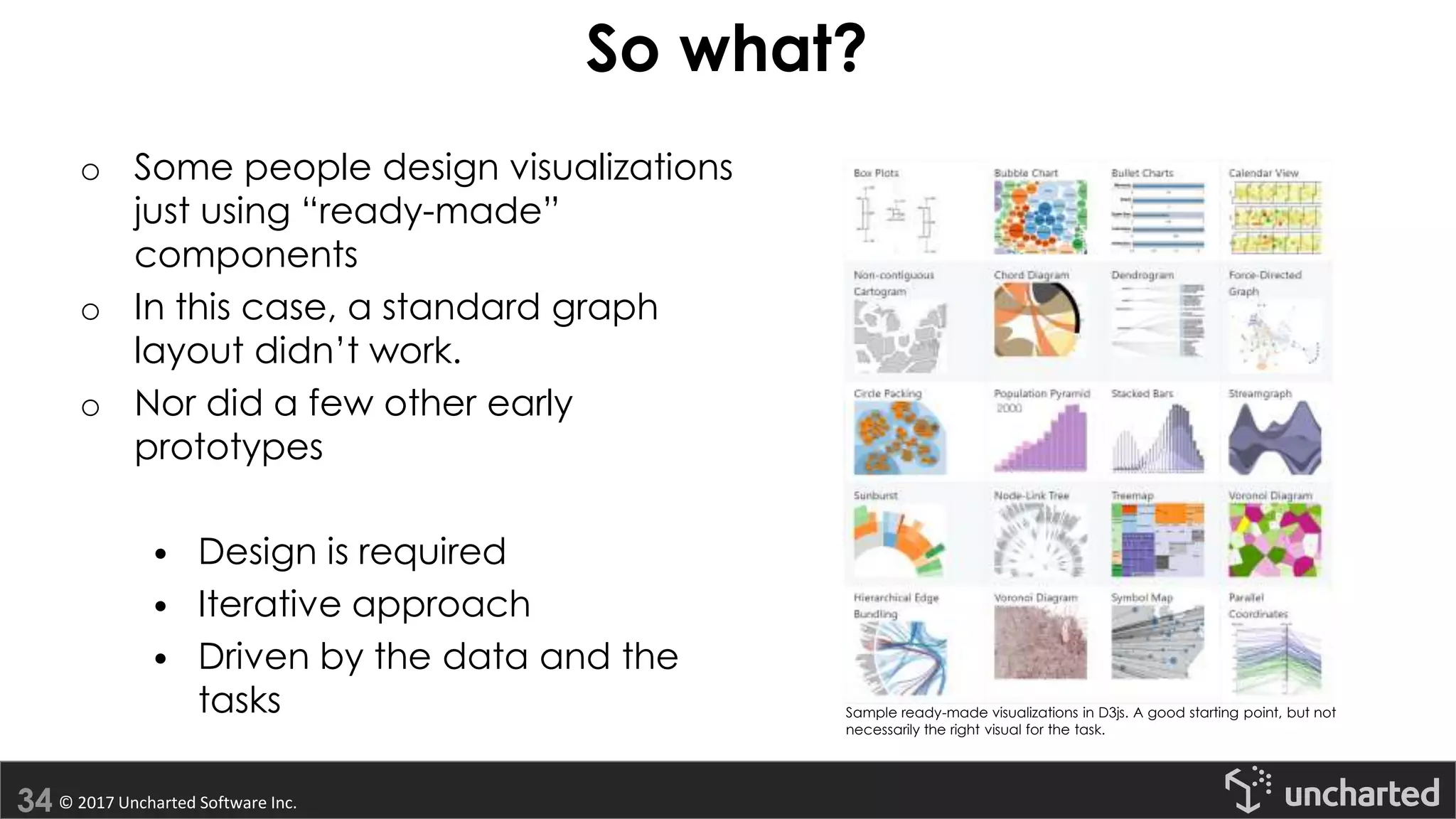

tasks Sample ready-made visualizations in D3js. A good starting point, but not
necessarily the right visual for the task.

Thanks!
Richard Brath
Uncharted Software
rbrath<at>uncharted.software
@rkbrath
