URVI provides point-to-point and point-to-multipoint wireless connectivity solutions using its URVI~wave~ systems. The systems offer high-speed connectivity of up to 100 Mbps at ranges of 50-100 km using OFDM technology. They provide a low-cost option for applications like backhaul, private networks, and remote site connectivity.

1. Ultra Radio Versatile Interface
URVI
R e s e a r c h L a b s
Application Brief
SOLUTIONS
BACKHAUL
Wireless
Building
Better
www.urvirl.in

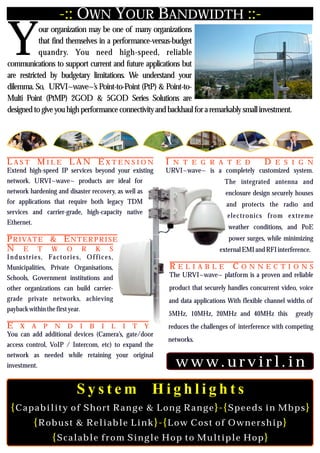

2. -:: OWN YOUR BANDWIDTH ::-
Y our organization may be one of many organizations
that find themselves in a performance-versus-budget
quandry. You need high-speed, reliable
communications to support current and future applications but
are restricted by budgetary limitations. We understand your
dilemma. So, URVI~wave~’s Point-to-Point (PtP) & Point-to-
Multi Point (PtMP) 2GOD & 5GOD Series Solutions are
designed to give you high performance connectivity and backhaul for a remarkably small investment.
LAST MILE LAN EXTENSION I N T E G R A T E D D E S I G N
Extend high-speed IP services beyond your existing URVI~wave~ is a completely customized system.
network. URVI~wave~ products are ideal for The integrated antenna and
network hardening and disaster recovery, as well as enclosure design securely houses
for applications that require both legacy TDM and protects the radio and
services and carrier-grade, high-capacity native
electronics from extreme
Ethernet.
weather conditions, and PoE
PRIVATE & ENTER PRISE power surges, while minimizing
N E T W O R K S external EMI and RFI interference.
I n d u s t r i e s, Fa c t o r i e s, O f f i c e s,
Municipalities, Private Organisations, RELIABLE CONNECTIONS
Schools, Government institutions and The URVI~wave~ platform is a proven and reliable
other organizations can build carrier- product that securely handles concurrent video, voice
grade private networks, achieving and data applications With flexible channel widths of
payback within the first year.
5MHz, 10MHz, 20MHz and 40MHz this greatly
E X A P N D I B I L I T Y reduces the challenges of interference with competing
You can add additional devices (Camera’s, gate/door
networks.
access control, VoIP / Intercom, etc) to expand the
network as needed while retaining your original
investment. www.urvirl.in
System Highlights
{Capability of Short Range & Long Range}-{Speeds in Mbps}
{Robust & Reliable Link}-{Low Cost of Ownership}
{Scalable from Single Hop to Multiple Hop}

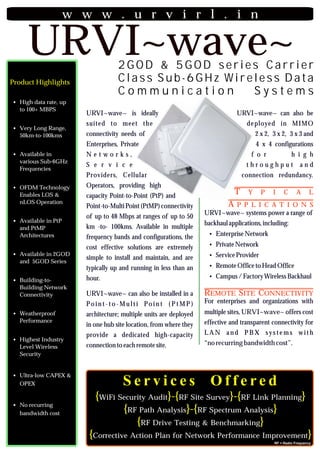

3. w w w . u r v i r l . i n
URVI~wave~ 2GOD & 5GOD series Carrier
Product Highlights Class Sub-6GHz Wireless Data
Communication Systems
? rate, up
High data
to 100+ MBPS
URVI~wave~ is ideally URVI~wave~ can also be
suited to meet the de ployed in MIMO
? Range,
Very Long
50km-to-100kms connectivity needs of 2 x 2, 3 x 2, 3 x 3 and
Enterprises, Private 4 x 4 configurations
?in
Available Networks, f o r h i g h
various Sub-6GHz
S e r v i c e throughput and
Frequencies
Providers, Cellular connection redundancy.
?
OFDM Technology Operators, providing high
Enables LOS & capacity Point-to-Point (PtP) and
T Y P I C A L
nLOS Operation
Point-to-Multi Point (PtMP) connectivity APPLICATIONS
URVI~wave~ systems power a range of
of up to 48 Mbps at ranges of up to 50
?in PtP
Available backhaul applications, including:
and PtMP km -to- 100kms. Available in multiple
Architectures ? Network
Enterprise
frequency bands and configurations, the
cost effective solutions are extremely ?
Private Network
?in 2GOD
Available ?
Service Provider
simple to install and maintain, and are
and 5GOD Series
typically up and running in less than an ?
Remote Office to Head Office
hour. ? Factory Wireless Backhaul
Campus /
?
Building-to-
Building Network
Connectivity URVI~wave~ can also be installed in a REMOTE SITE CONNECTIVITY
Po i n t - t o - M u l t i Po i n t ( P t M P ) For enterprises and organizations with
?
Weatherproof architecture; multiple units are deployed multiple sites, URVI~wave~ offers cost
Performance effective and transparent connectivity for
in one hub site location, from where they
provide a dedicated high-capacity LAN and PBX systems with
?
Highest Industry
connection to each remote site. “no recurring bandwidth cost”.
Level Wireless
Security
?CAPEX &
Ultra-low
OPEX Services Offered
{WiFi Security Audit}-{RF Site Survey}-{RF Link Planning}
?
No recurring
bandwidth cost {RF Path Analysis}-{RF Spectrum Analysis}
{RF Drive Testing & Benchmarking}
{Corrective Action Plan for Network Performance Improvement}
RF = Radio Frequency

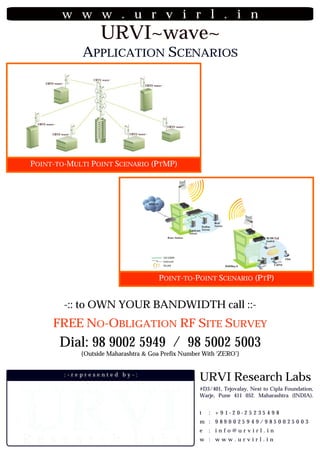

4. w w w . u r v i r l . i n
URVI~wave~
APPLICATION SCENARIOS
POINT-TO-MULTI POINT SCENARIO (PTMP)
POINT-TO-POINT SCENARIO (PTP)
-:: to OWN YOUR BANDWIDTH call ::-
FREE NO-OBLIGATION RF SITE SURVEY
Dial: 98 9002 5949 / 98 5002 5003
{Outside Maharashtra & Goa Prefix Number With ‘ZERO’}
