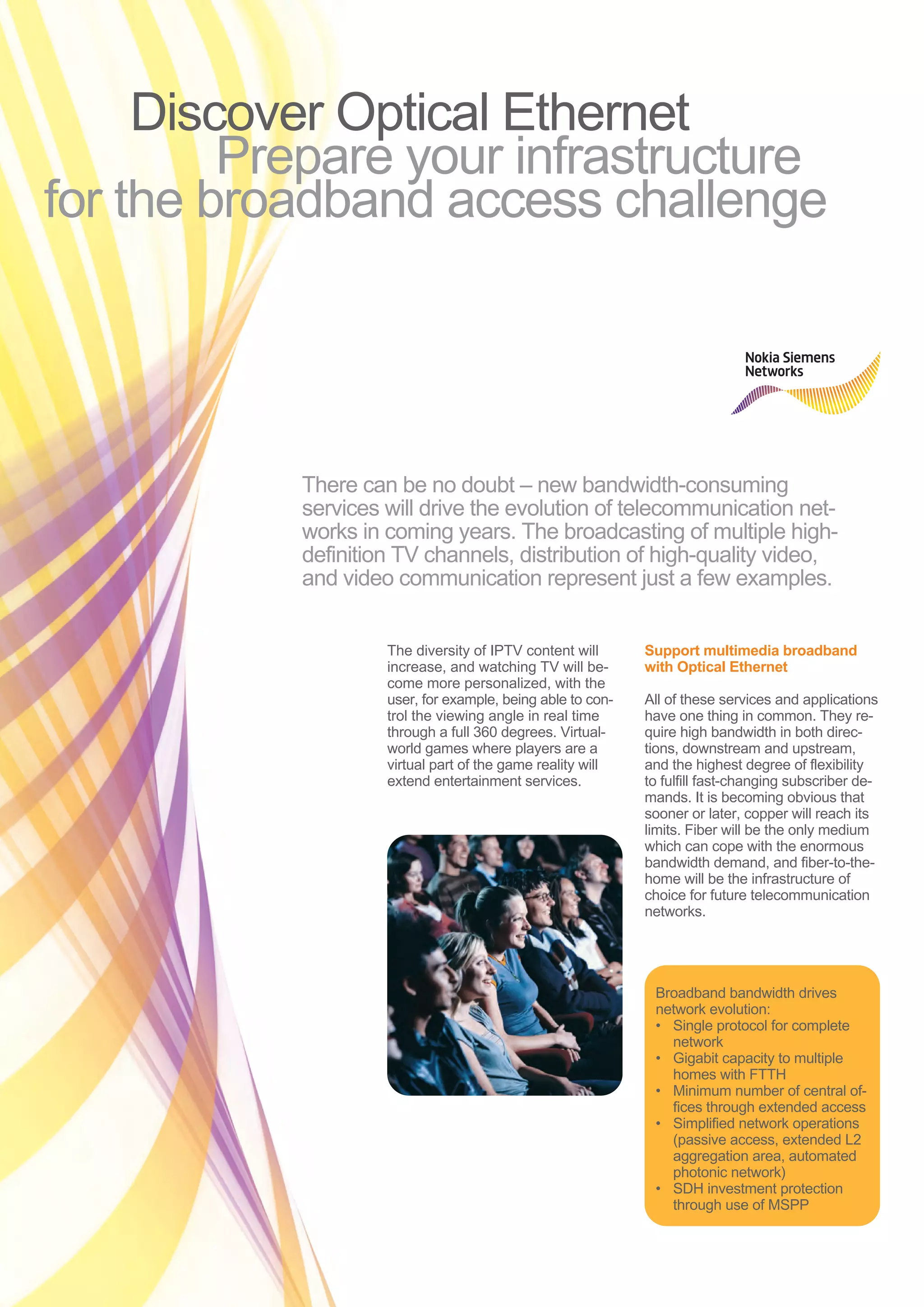

1. Discover Optical Ethernet
Prepare your infrastructure
for the broadband access challenge
There can be no doubt – new bandwidth-consuming
services will drive the evolution of telecommunication net-
works in coming years. The broadcasting of multiple high-
definition TV channels, distribution of high-quality video,
and video communication represent just a few examples.
The diversity of IPTV content will Support multimedia broadband
increase, and watching TV will be- with Optical Ethernet
come more personalized, with the
user, for example, being able to con- All of these services and applications
trol the viewing angle in real time have one thing in common. They re-
through a full 360 degrees. Virtual- quire high bandwidth in both direc-
world games where players are a tions, downstream and upstream,
virtual part of the game reality will and the highest degree of flexibility
extend entertainment services. to fulfill fast-changing subscriber de-
mands. It is becoming obvious that
sooner or later, copper will reach its
limits. Fiber will be the only medium
which can cope with the enormous
bandwidth demand, and fiber-to-the-
home will be the infrastructure of
choice for future telecommunication
networks.
Broadband bandwidth drives
network evolution:
• Single protocol for complete
network
• Gigabit capacity to multiple
homes with FTTH
• Minimum number of central of-
fices through extended access
• Simplified network operations
(passive access, extended L2
aggregation area, automated
photonic network)
• SDH investment protection
through use of MSPP

2. 2.5 to 10 Gbit /s scalability
IP applications
Central office (VoIP, Video call,
IPTV…)
GPON OLT
SURPASS
PXC
hiX 5750
n x GPON
L2 Switching
SURPASS
hiD 6650 /70
Eth P2P
…
MSPP
Eth SURPASS
IP applications
over SDH hiT 70xx series
(File sharing,
Eth Virtual reality…)
over WDM
ROADM
SURPASS
hiT 7300 /7500
10 to 100 km
Access Aggregation IP /MPLS core
OLT: Optical Line Terminal ROADM: Remotely Re-configurable Optical Add/Drop Multiplexer PXC: Photonic Cross Connect GPON: Gigabit Passive Optical Network
Range of possibilities to build an optical Ethernet network
Optimize your network An optical and extended access (up Smoothly migrate to Optical
infrastructure to 100 km) leads to OPEX reduction. Ethernet
Power-consuming and floor space-
The aggregation network also has to requiring network elements are placed Today, access networks are mostly
cope with bandwidth increase and only in the central offices, which are built on a copper infrastructure. How-
with a fast-changing subscriber and heavily reduced in number. ever, the latest high-bandwidth DSL
service landscape. A fully automated technologies such as VDSL2 already
flexible high-capacity network is re- A flexible multi-haul photonic (DWDM) require fiber-to-the-curb deployments.
quired. network extends the L2 aggregation VDSL2 networks can easily be up-
area. This simplifies network opera- graded to GPON by placing a pas-
Underneath these new service offer- tions with the conversion of optical sive optical splitter in the same site
ings, cost reduction and simple net- service to electrical only at service as the DSLAM. Leased-line services
work operation are also driving car- endpoints, and transparent transport for business customers can be mi-
riers to invest in a new infrastructure. of all services with carrier-grade per- grated to point-to-point optical Ether-
Today’s telecommunication land- formance monitoring. net via native Ethernet, Ethernet over
scape is versatile, competition is SDH or Ethernet over WDM.
fierce – and many non-telecom oper- An extended-reach GPON access
ators are pushing into the telecom- and a multi-haul Ethernet-over-pho- The extended reach of the access
munication market. Operators can tonic aggregation connect to an “IP/ network, and the much higher band-
only remain competitive if they can MPLS over DWDM” core. The solu- width requirements, will result in
offer new services AND keep their tion includes SURPASS hiX 57xx higher capacity DWDM aggregation
operational costs to a minimum. GPON, SURPASS hiD 6650/70 transporting multiple 1G/10G Ether-
A minimum OPEX means keeping Ethernet aggregation and the net signals.
the network as simple as possible, SURPASS hiT 7300/7500 DWDM
with minimum human intervention. platform. The capacity growth in access has to
This starts with the use of one single be supported by an efficient and au-
protocol in the access, aggregation The SURPASS hiT 70xx series, the tomated high-speed core. A 40 Gbit/s
and regional network. cost-optimized Nokia Siemens Net- DWDM transport service is gaining
works multi-service provisioning plat- market share here already, while
Over the past years, Ethernet has form (MSPP), extends the concept 100 Gbit/s technology is being read-
been established as THE protocol of optical Ethernet to an SDH infra- ied for product development. Nokia
of choice. It is fully standardized, structure. Siemens Networks has proven that
carrier-grade, and implemented in this technology can be deployed on
access and transport technologies This MSPP portfolio provides a full today’s DWDM 10 Gbit/s infrastruc-
of the Nokia Siemens Networks variety of services from classic ser- ture, thus keeping future CAPEX
SURPASS portfolio. SURPASS vices up to full Ethernet support with investments to a minimum.
thus stands for a comprehensive the highest possible reliability, includ-
end-to-end solution for Optical ing full ASON/GMPLS support to-
Ethernet. gether with the core equipment.
