This document provides product specifications for the AP 622 dual-band wireless access point. The AP 622 features dual radios that can operate independently on the 2.4GHz and 5GHz bands. It supports high-performance 802.11a/b/g/n wireless networking and delivers security, quality of service, and mobility services when used with a wireless controller. The AP 622 is designed for reliability, ease of deployment, and cost-effective wireless networking.

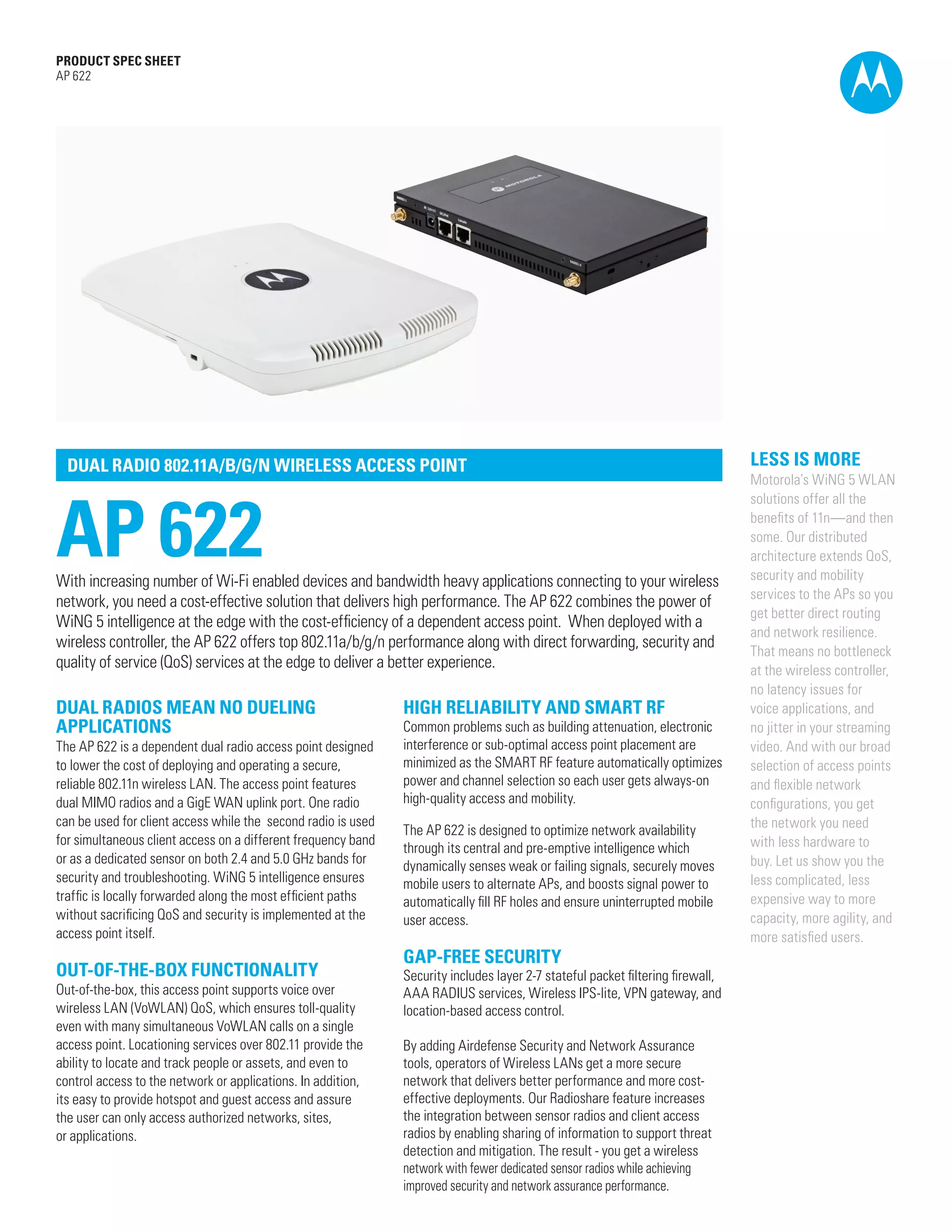

1. PRODUCT SPEC SHEET
AP 622
DUAL RADIO 802.11A/B/G/N WIRELESS ACCESS POINT LESS IS MORE
Motorola’s WiNG 5 WLAN
AP 622
solutions offer all the
benefits of 11n—and then
some. Our distributed
architecture extends QoS,
With increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless security and mobility
services to the APs so you
network, you need a cost-effective solution that delivers high performance. The AP 622 combines the power of
get better direct routing
WiNG 5 intelligence at the edge with the cost-efficiency of a dependent access point. When deployed with a
and network resilience.
wireless controller, the AP 622 offers top 802.11a/b/g/n performance along with direct forwarding, security and
That means no bottleneck
quality of service (QoS) services at the edge to deliver a better experience. at the wireless controller,
no latency issues for
DUAL RADIOS MEAN NO DUELING HIGH RELIABILITY AND SMART RF voice applications, and
APPLICATIONS Common problems such as building attenuation, electronic no jitter in your streaming
The AP 622 is a dependent dual radio access point designed interference or sub-optimal access point placement are video. And with our broad
to lower the cost of deploying and operating a secure, minimized as the SMART RF feature automatically optimizes selection of access points
reliable 802.11n wireless LAN. The access point features power and channel selection so each user gets always-on and flexible network
dual MIMO radios and a GigE WAN uplink port. One radio high-quality access and mobility. configurations, you get
can be used for client access while the second radio is used the network you need
The AP 622 is designed to optimize network availability
for simultaneous client access on a different frequency band with less hardware to
through its central and pre-emptive intelligence which
or as a dedicated sensor on both 2.4 and 5.0 GHz bands for buy. Let us show you the
dynamically senses weak or failing signals, securely moves
security and troubleshooting. WiNG 5 intelligence ensures mobile users to alternate APs, and boosts signal power to less complicated, less
traffic is locally forwarded along the most efficient paths automatically fill RF holes and ensure uninterrupted mobile expensive way to more
without sacrificing QoS and security is implemented at the user access. capacity, more agility, and
access point itself. more satisfied users.
GAP-FREE SECURITY
OUT-OF-THE-BOX FUNCTIONALITY Security includes layer 2-7 stateful packet filtering firewall,
Out-of-the-box, this access point supports voice over AAA RADIUS services, Wireless IPS-lite, VPN gateway, and
wireless LAN (VoWLAN) QoS, which ensures toll-quality location-based access control.
even with many simultaneous VoWLAN calls on a single
access point. Locationing services over 802.11 provide the By adding Airdefense Security and Network Assurance
ability to locate and track people or assets, and even to tools, operators of Wireless LANs get a more secure
control access to the network or applications. In addition, network that delivers better performance and more cost-
its easy to provide hotspot and guest access and assure effective deployments. Our Radioshare feature increases
the user can only access authorized networks, sites, the integration between sensor radios and client access
or applications. radios by enabling sharing of information to support threat
detection and mitigation. The result - you get a wireless
network with fewer dedicated sensor radios while achieving PAGE 1
improved security and network assurance performance.

2. PRODUCT SPEC SHEET
AP 622

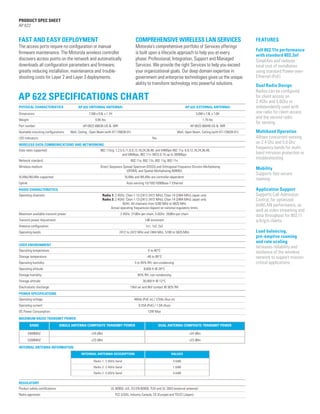

FAST AND EASY DEPLOYMENT COMPREHENSIVE WIRELESS LAN SERVICES FEATURES
The access ports require no configuration or manual Motorola’s comprehensive portfolio of Services offerings
Full 802.11n performance
firmware maintenance. The Motorola wireless controller is built upon a lifecycle approach to help you at every
with standard 802.3af
discovers access points on the network and automatically phase: Professional, Integration, Support and Managed Simplifies and reduces
downloads all configuration parameters and firmware, Services. We provide the right Services to help you exceed total cost of installation
greatly reducing installation, maintenance and trouble- your organizational goals. Our deep domain expertise in using standard Power-over-
shooting costs for Layer 2 and Layer 3 deployments. government and enterprise technologies gives us the unique Ethernet (PoE)
ability to transform technology into powerful solutions. Dual Radio Design
Radios can be configured
AP 622 SPECIFICATIONS CHART for client access on
2.4Ghz and 5.0Ghz or
PHYSICAL CHARACTERISTICS AP 622 (INTERNAL ANTENNA) AP 622 (EXTERNAL ANTENNA) independently used with
Dimensions: 7.5W x 9.5L x 1.1H 5.0W x 7.8L x 1.0H one radio for client access
Weight: 0.85 lbs 1.75 lbs
and the second radio
for sensing
Part number: AP-0622-66030-US & -WR AP-0622-66040-US & -WR
Available mounting configurations: Wall, Ceiling , Open Beam (with KT-135628-01) Wall, Open Beam, Ceiling (with KT-135628-01) Multiband Operation
LED indicators: Yes Allows concurrent sensing
WIRELESS DATA COMMUNICATIONS AND NETWORKING
on 2.4 Ghz and 5.0 Ghz
frequency bands for multi-
Data rates supported: 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54Mbps 802.11a: 6,9,12,18,24,36,48,
and 54Mbps, 802.11n: MCS 0-15 up to 300Mbps band intrusion protection or
Network standard: 802.11a, 802.11b, 802.11g, 802.11n
troubleshooting
Wireless medium: Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing
(OFDM), and Spatial Multiplexing (MIMO)
Mobility
Supports fast secure
VLANs/WLANs supported: VLANs and WLANs are controller-dependent
roaming
Uplink: Auto-sensing 10/100/1000Base-T Ethernet
RADIO CHARACTERISTICS Application Support
Operating channels: Radio 1: 2.4GHz: Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan only Supports Call Admission
Radio 2: 2.4GHz: Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan only Control, for optimized
5GHz: All channels from 5200 MHz to 5825 MHz VoWLAN performance, as
Actual operating frequencies depend on national regulatory limits
well as video streaming and
Maximum available transmit power: 2.4GHz: 21dBm per chain, 5.0GHz: 20dBm per chain
data throughput for 802.11
Transmit power Adjustment: 1dB increment a/b/g/n clients
Antenna configuration: 1x1, 1x2, 2x2
Operating bands: 2412 to 2472 MHz and 2484 MHz, 5180 to 5825 MHz Load balancing,
pre-emptive roaming
and rate scaling
USER ENVIRONMENT
Increases reliability and
Operating temperature: 0 to 40°C
resilience of the wireless
Storage temperature: -40 to 85°C network to support mission
Operating humidity: 5 to 95% RH, non-condensing critical applications
Operating altitude: 8,000 ft @ 28°C
Storage humidity: 85% RH, non-condensing
Storage altitude: 30,000 ft @ 12°C
Electrostatic discharge: 15kV air and 8kV contact @ 50% RH
POWER SPECIFICATIONS
Operating voltage: 48Vdc (PoE in) / 12Vdc (Aux in)
Operating current: 0.25A (PoE) / 1.0A (Aux)
DC Power Consumption: 12W Max
MAXIMUM RADIO TRANSMIT POWER:
BAND SINGLE ANTENNA COMPOSITE TRANSMIT POWER DUAL ANTENNA COMPOSITE TRANSMIT POWER
2400MHZ +24 dBm +24 dBm
5200MHZ +23 dBm +23 dBm
INTERNAL ANTENNA INFORMATION
INTERNAL ANTENNA DESCRIPTION VALUES
Radio 1: 2.4GHz band 3.0dBi
Radio 2: 2.4GHz band 1.0dBi
Radio 2: 5.0GHz band 4.0dBi
REGULATORY
Product safety certifications: UL 60950, cUL, EU EN 60950, TUV and UL 2043 (external antenna)
Radio approvals: FCC (USA), Industry Canada, CE (Europe) and TELEC (Japan) PAGE 2
