Upgrading to MongoDB 4.0
from older versions
Antonios Giannopoulos
DBA @ ObjectRocket by Rackspace
1

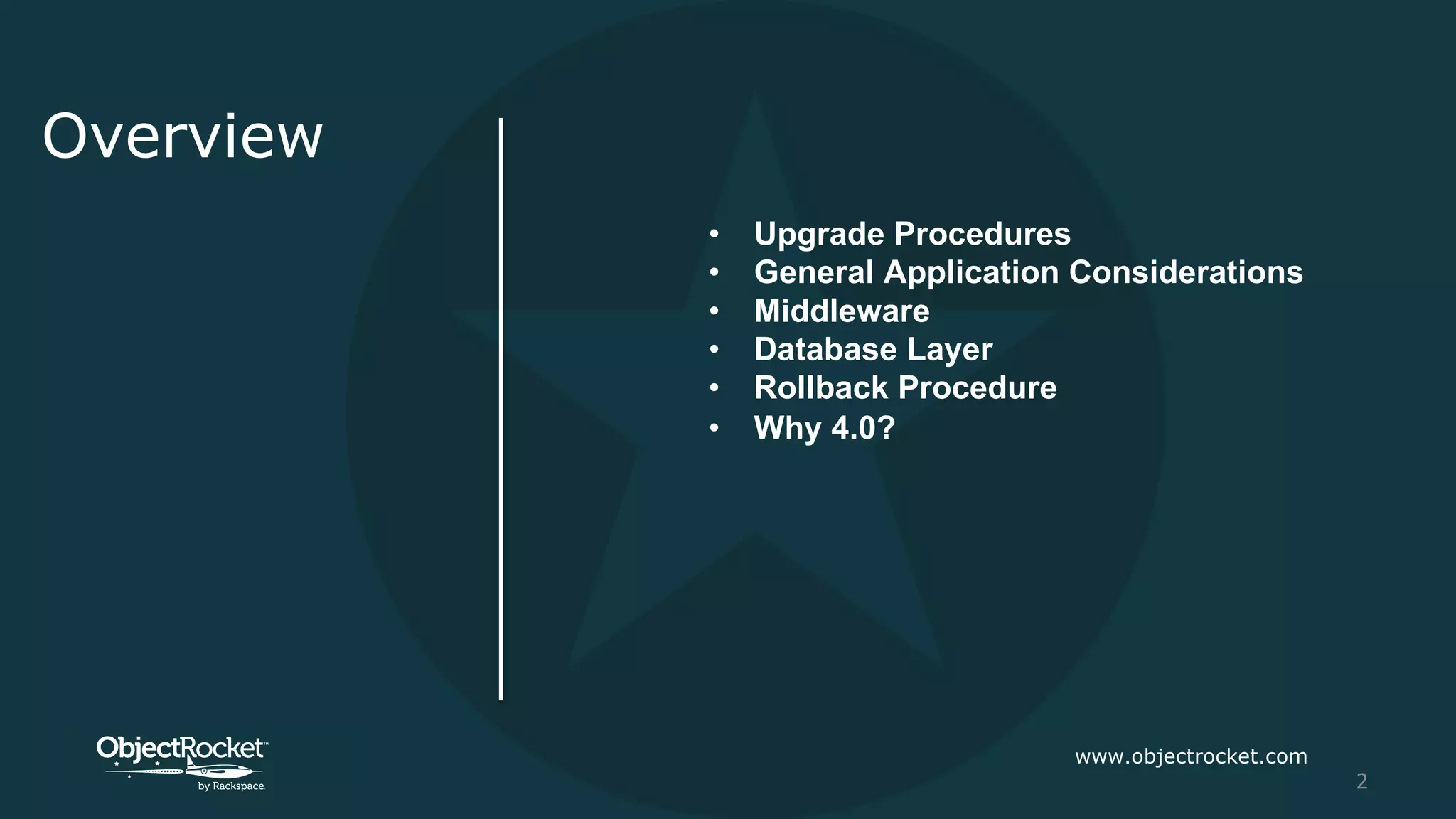

Overview
• Upgrade Procedures
• General Application Considerations
• Middleware
• Database Layer
• Rollback Procedure
• Why 4.0?
www.objectrocket.com
2

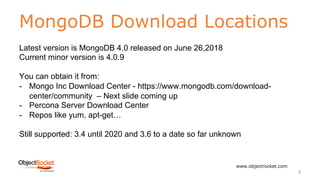

MongoDB Download Locations
www.objectrocket.com
3
Latest version is MongoDB 4.0 released on June 26,2018
Current minor version is 4.0.9
You can obtain it from:
- Mongo Inc Download Center - https://www.mongodb.com/download-
center/community – Next slide coming up
- Percona Server Download Center
- Repos like yum, apt-get…
Still supported: 3.4 until 2020 and 3.6 to a date so far unknown

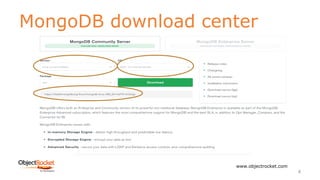

MongoDB download center
www.objectrocket.com
4

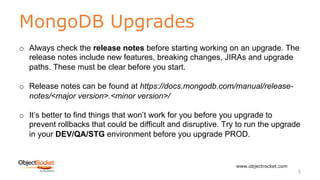

MongoDB Upgrades
www.objectrocket.com
5
o Always check the release notes before starting working on an upgrade. The
release notes include new features, breaking changes, JIRAs and upgrade
paths. These must be clear before you start.
o Release notes can be found at https://docs.mongodb.com/manual/release-
notes/<major version>.<minor version>/
o It’s better to find things that won’t work for you before you upgrade to
prevent rollbacks that could be difficult and disruptive. Try to run the upgrade
in your DEV/QA/STG environment before you upgrade PROD.

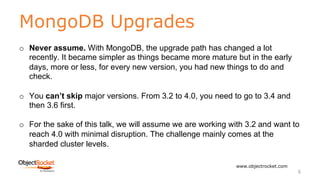

MongoDB Upgrades
www.objectrocket.com
6
o Never assume. With MongoDB, the upgrade path has changed a lot
recently. It became simpler as things became more mature but in the early
days, more or less, for every new version, you had new things to do and
check.
o You can’t skip major versions. From 3.2 to 4.0, you need to go to 3.4 and
then 3.6 first.
o For the sake of this talk, we will assume we are working with 3.2 and want to
reach 4.0 with minimal disruption. The challenge mainly comes at the
sharded cluster levels.

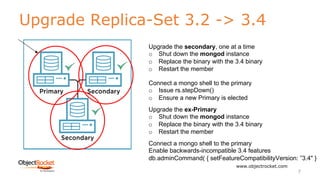

Upgrade Replica-Set 3.2 -> 3.4
www.objectrocket.com
7
Upgrade the secondary, one at a time
o Shut down the mongod instance
o Replace the binary with the 3.4 binary
o Restart the member
Connect a mongo shell to the primary
o Issue rs.stepDown()
o Ensure a new Primary is elected
Upgrade the ex-Primary
o Shut down the mongod instance
o Replace the binary with the 3.4 binary
o Restart the member
Connect a mongo shell to the primary
Enable backwards-incompatible 3.4 features
db.adminCommand( { setFeatureCompatibilityVersion: ”3.4" }
Upgrading Sharded Cluster 3.2 -> 3.4
www.objectrocket.com
8
o The upgrade to 3.4 is probably the most difficult yet because the config
server MUST be deployed as a ReplicaSet (CSRS).
o 3.2 is the first version that allows you to have the option of having either
mirrored config servers (SCCC) or a ReplicaSet (CSRS) but in 3.4, this
option is not available anymore.
o All components must be 3.2 before starting and for the sake of this exercise
we will roll with 3 config servers.

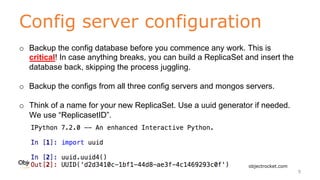

Config server configuration
www.objectrocket.com
9
o Backup the config database before you commence any work. This is
critical! In case anything breaks, you can build a ReplicaSet and insert the
database back, skipping the process juggling.
o Backup the configs from all three config servers and mongos servers.
o Think of a name for your new ReplicaSet. Use a uuid generator if needed.
We use “ReplicasetID”.

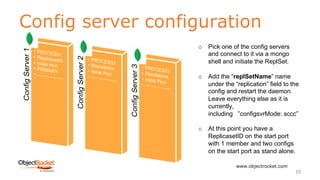

Config server configuration
www.objectrocket.com
10
o Pick one of the config servers
and connect to it via a mongo
shell and initiate the ReplSet.
o Add the “replSetName” name
under the “replication” field to the
config and restart the daemon.
Leave everything else as it is
currently,
including ”configsvrMode: sccc”
o At this point you have a
ReplicasetID on the start port
with 1 member and two configs
on the start port as stand alone.

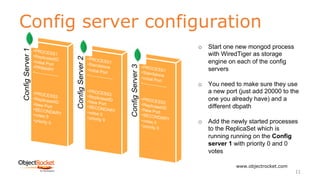

Config server configuration
www.objectrocket.com
11
o Start one new mongod process
with WiredTiger as storage
engine on each of the config
servers
o You need to make sure they use
a new port (just add 20000 to the
one you already have) and a
different dbpath
o Add the newly started processes
to the ReplicaSet which is
running running on the Config
server 1 with priority 0 and 0
votes
Config server configuration
www.objectrocket.com
12
o Stop one of the SCCC
processes. At this point the
config server will go in read only
so some operations such as
splits will fail.
o Reconfigure all the members to
have a default priority and votes
which is 1.
o Stepdown the PROCESS1 on
CONFIG1 and elect another.
o Remove configsvrMode=sccc
from PROCESS1 on config1 and
restart the process. This will
appear as removed if on MMAP.

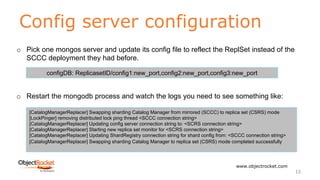

Config server configuration
www.objectrocket.com
13
o Pick one mongos server and update its config file to reflect the ReplSet instead of the
SCCC deployment they had before.
o Restart the mongodb process and watch the logs you need to see something like:
configDB: ReplicasetID/config1:new_port,config2:new_port,config3:new_port
[CatalogManagerReplacer] Swapping sharding Catalog Manager from mirrored (SCCC) to replica set (CSRS) mode
[LockPinger] removing distributed lock ping thread <SCCC connection string>
[CatalogManagerReplacer] Updating config server connection string to: <SCRS connection string>
[CatalogManagerReplacer] Starting new replica set monitor for <SCRS connection string>
[CatalogManagerReplacer] Updating ShardRegistry connection string for shard config from: <SCCC connection string>
[CatalogManagerReplacer] Swapping sharding Catalog Manager to replica set (CSRS) mode completed successfully

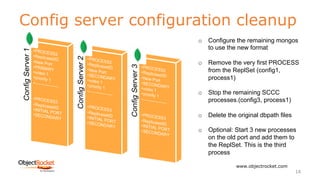

Config server configuration cleanup
www.objectrocket.com
14
o Configure the remaining mongos
to use the new format
o Remove the very first PROCESS
from the ReplSet (config1,
process1)
o Stop the remaining SCCC
processes.(config3, process1)
o Delete the original dbpath files
o Optional: Start 3 new processes
on the old port and add them to
the ReplSet. This is the third
process
Config server configuration cleanup
www.objectrocket.com
15
o The mongos will automatically
recognize the PROCESS3
members.
o Remove the 2 secondaries on
PROCESS2 and run a stepdown.
This will make the primary land on
one of the PROCESS3 on the initial
port.
o Remove the last PROCESS2
member and this will mean that you
have only PROCESS3 members.
o Update only the config server ports
from the mongos configs with the
initial ones. No need for another
restart. We’re done. Upgrade time.

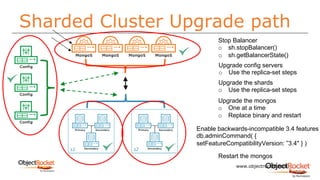

Sharded Cluster Upgrade path
www.objectrocket.com
16
s1 s2
Stop Balancer
o sh.stopBalancer()
o sh.getBalancerState()
Upgrade config servers
o Use the replica-set steps
Upgrade the shards
o Use the replica-set steps
Upgrade the mongos
o One at a time
o Replace binary and restart
Enable backwards-incompatible 3.4 features
db.adminCommand( {
setFeatureCompatibilityVersion: ”3.4" } )
Restart the mongos

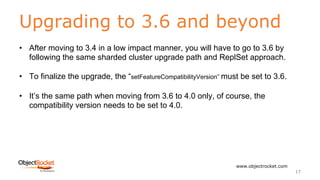

Upgrading to 3.6 and beyond
www.objectrocket.com
17
• After moving to 3.4 in a low impact manner, you will have to go to 3.6 by
following the same sharded cluster upgrade path and ReplSet approach.
• To finalize the upgrade, the “setFeatureCompatibilityVersion” must be set to 3.6.
• It’s the same path when moving from 3.6 to 4.0 only, of course, the
compatibility version needs to be set to 4.0.
General
Application
Considerations
• Upgrade Driver
• Upgrade Language
• Inspect the code base
www.objectrocket.com
18

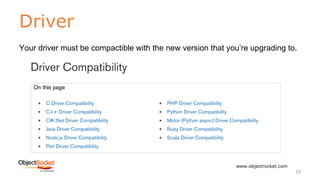

Driver
www.objectrocket.com
19
Your driver must be compactible with the new version that you’re upgrading to.
Driver
www.objectrocket.com
20

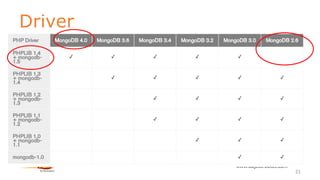

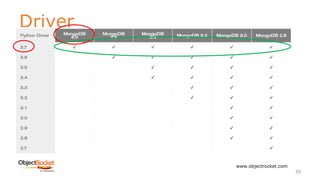

Driver
www.objectrocket.com
21

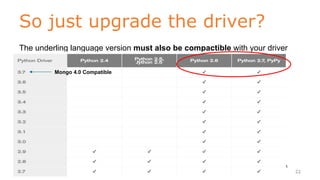

So just upgrade the driver?
www.objectrocket.com
22
The underling language version must also be compactible with your driver
Mongo 4.0 Compatible
Upgrade the driver/language
www.objectrocket.com
23
Perform safe upgrades / Always have rollback in mind
Python supports “virtual environments”
Python “virtualenv” creates an isolated environment for Python projects.
Each project can have its own dependencies, regardless of what dependencies
every other project has.
There are no limits to the number of environments ,they’re just directories
containing scripts

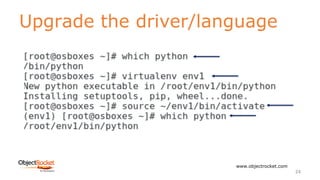

Upgrade the driver/language
www.objectrocket.com
24

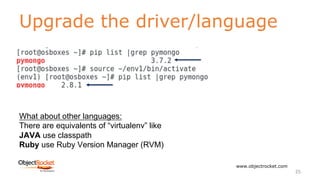

Upgrade the driver/language
www.objectrocket.com
25
What about other languages:
There are equivalents of “virtualenv” like
JAVA use classpath
Ruby use Ruby Version Manager (RVM)
Upgrade the driver/language
www.objectrocket.com
26
Do not forget frameworks and their dependencies
o Very popular in PHP
o They have their own compatibility matrix
Should I always use the latest driver?
o Check the change log
o Check the open bugs

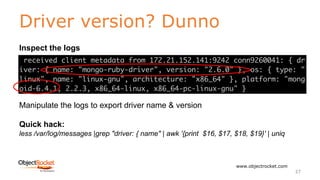

Driver version? Dunno
www.objectrocket.com
27
Inspect the logs
Manipulate the logs to export driver name & version
Quick hack:
less /var/log/messages |grep "driver: { name" | awk '{print $16, $17, $18, $19}' | uniq

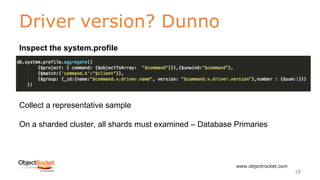

Driver version? Dunno
www.objectrocket.com
28
Inspect the system.profile
Collect a representative sample
On a sharded cluster, all shards must examined – Database Primaries
Inspect the codebase
www.objectrocket.com

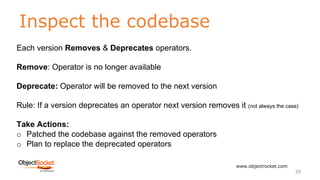

29
Each version Removes & Deprecates operators.
Remove: Operator is no longer available
Deprecate: Operator will be removed to the next version
Rule: If a version deprecates an operator next version removes it (not always the case)
Take Actions:
o Patched the codebase against the removed operators
o Plan to replace the deprecated operators
Inspect the codebase
www.objectrocket.com
30
Removed Operators (MongoDB 4.0):
o Operator: $isolated (The operator has been deprecated since 3.6) If you have an existing
partial index that includes the $isolated operator or a view that includes
a $isolated operator, recreate the index or view without the operator in the definition
before upgrading.
Removed Operators (MongoDB 3.6):
o Operator: $pushAll (The operator has been deprecated since 2.4) .Use the $push operator
with the $each

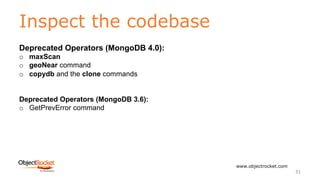

Inspect the codebase
www.objectrocket.com
31
Deprecated Operators (MongoDB 4.0):
o maxScan
o geoNear command
o copydb and the clone commands
Deprecated Operators (MongoDB 3.6):
o GetPrevError command

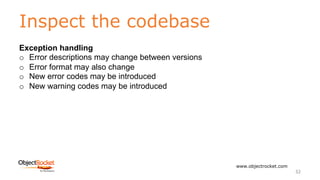

Inspect the codebase
www.objectrocket.com
32
Exception handling
o Error descriptions may change between versions
o Error format may also change
o New error codes may be introduced
o New warning codes may be introduced

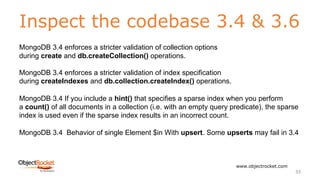

Inspect the codebase 3.4 & 3.6
www.objectrocket.com
33
MongoDB 3.4 enforces a stricter validation of collection options
during create and db.createCollection() operations.
MongoDB 3.4 enforces a stricter validation of index specification
during createIndexes and db.collection.createIndex() operations.
MongoDB 3.4 If you include a hint() that specifies a sparse index when you perform
a count() of all documents in a collection (i.e. with an empty query predicate), the sparse
index is used even if the sparse index results in an incorrect count.
MongoDB 3.4 Behavior of single Element $in With upsert. Some upserts may fail in 3.4
Inspect the codebase 3.4 & 3.6
www.objectrocket.com
34
MongoDB 3.6 removes the use of aggregate command without the cursor option
Starting in 3.6, when sorting a field containing an array, MongoDB orders the field with
the lowest-valued element of the array first for ascending sorts and the highest-valued
element of the array first for descending sorts.
Starting in MongoDB 3.6, fields that conflict with arrayFilters identifiers can no longer be
updated.
Starting in 3.6, you cannot specify * as the index name during index creation nor can
you delete indexes named * by specifying the index keys.
Middleware
• Monitoring
• Backups
• Deployments
• Utilities
• OS changes
• TLS/SSL
www.objectrocket.com
35
Monitoring
www.objectrocket.com
36
The monitoring system must be able to connect to MongoDB
Vast majority relies on db.serverStatus()
A newer version may be necessary to installed prior to upgrade

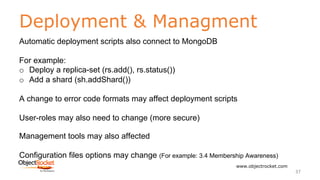

Deployment & Managment
www.objectrocket.com
37
Automatic deployment scripts also connect to MongoDB
For example:
o Deploy a replica-set (rs.add(), rs.status())
o Add a shard (sh.addShard())
A change to error code formats may affect deployment scripts
User-roles may also need to change (more secure)
Management tools may also affected
Configuration files options may change (For example: 3.4 Membership Awareness)
Backup
www.objectrocket.com
38
- Filesystems Snapshots
- Copy files
- Hot Backup (Percona Server)
- Mongodump
They should all work but testing is recommended.
In the case of restore, a downgrade may be required.

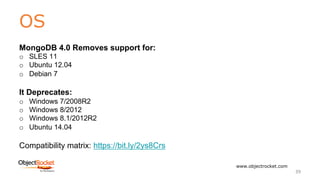

OS
www.objectrocket.com
39
MongoDB 4.0 Removes support for:
o SLES 11
o Ubuntu 12.04
o Debian 7
It Deprecates:
o Windows 7/2008R2
o Windows 8/2012
o Windows 8.1/2012R2
o Ubuntu 14.04
Compatibility matrix: https://bit.ly/2ys8Crs

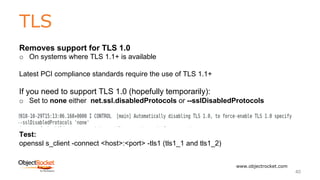

TLS
www.objectrocket.com
40
Removes support for TLS 1.0
o On systems where TLS 1.1+ is available
Latest PCI compliance standards require the use of TLS 1.1+
If you need to support TLS 1.0 (hopefully temporarily):
o Set to none either net.ssl.disabledProtocols or --sslDisabledProtocols
Test:
openssl s_client -connect <host>:<port> -tls1 (tls1_1 and tls1_2)

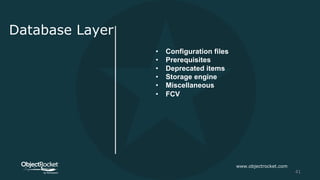

Database Layer
• Configuration files
• Prerequisites
• Deprecated items
• Storage engine
• Miscellaneous
• FCV
www.objectrocket.com
41

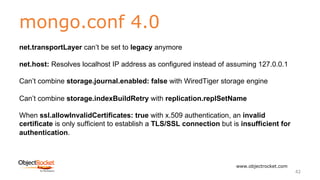

mongo.conf 4.0
www.objectrocket.com
42
net.transportLayer can’t be set to legacy anymore
net.host: Resolves localhost IP address as configured instead of assuming 127.0.0.1
Can’t combine storage.journal.enabled: false with WiredTiger storage engine
Can’t combine storage.indexBuildRetry with replication.replSetName
When ssl.allowInvalidCertificates: true with x.509 authentication, an invalid
certificate is only sufficient to establish a TLS/SSL connection but is insufficient for
authentication.

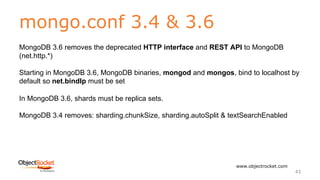

mongo.conf 3.4 & 3.6
www.objectrocket.com
43
MongoDB 3.6 removes the deprecated HTTP interface and REST API to MongoDB
(net.http.*)
Starting in MongoDB 3.6, MongoDB binaries, mongod and mongos, bind to localhost by
default so net.bindIp must be set
In MongoDB 3.6, shards must be replica sets.
MongoDB 3.4 removes: sharding.chunkSize, sharding.autoSplit & textSearchEnabled

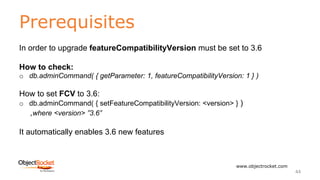

Prerequisites
www.objectrocket.com
44
In order to upgrade featureCompatibilityVersion must be set to 3.6
How to check:
o db.adminCommand( { getParameter: 1, featureCompatibilityVersion: 1 } )
How to set FCV to 3.6:
o db.adminCommand( { setFeatureCompatibilityVersion: <version> } )
,where <version> ”3.6”
It automatically enables 3.6 new features

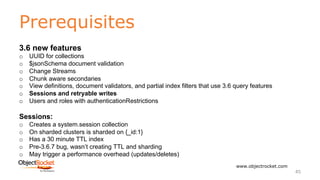

Prerequisites
www.objectrocket.com
45
3.6 new features
o UUID for collections
o $jsonSchema document validation
o Change Streams
o Chunk aware secondaries
o View definitions, document validators, and partial index filters that use 3.6 query features
o Sessions and retryable writes
o Users and roles with authenticationRestrictions
Sessions:
o Creates a system.session collection
o On sharded clusters is sharded on {_id:1}
o Has a 30 minute TTL index
o Pre-3.6.7 bug, wasn’t creating TTL and sharding
o May trigger a performance overhead (updates/deletes)

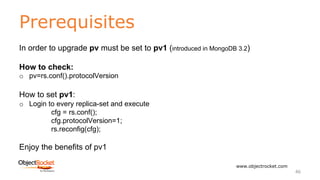

Prerequisites
www.objectrocket.com
46
In order to upgrade pv must be set to pv1 (introduced in MongoDB 3.2)
How to check:
o pv=rs.conf().protocolVersion
How to set pv1:
o Login to every replica-set and execute
cfg = rs.conf();
cfg.protocolVersion=1;
rs.reconfig(cfg);
Enjoy the benefits of pv1
Prerequisites
www.objectrocket.com
47
Master-slave replication, no longer supported
You must upgrade to a replica set Prior the upgrade
Conversion involves downtime & affects high availability
o Stop mongo
o Start Master with --replSet <setname>
o Initialize the replica set
rs.initiate( { _id: "<setname>", members: [ { _id: 0, host: "<host:port>" } ] } )
o Add nodes, rs.add("<host:port>" )

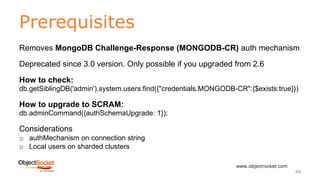

Prerequisites
www.objectrocket.com
48
Removes MongoDB Challenge-Response (MONGODB-CR) auth mechanism
Deprecated since 3.0 version. Only possible if you upgraded from 2.6
How to check:
db.getSiblingDB('admin').system.users.find({"credentials.MONGODB-CR":{$exists:true}})
How to upgrade to SCRAM:
db.adminCommand({authSchemaUpgrade: 1});
Considerations
o authMechanism on connection string
o Local users on sharded clusters
Storage engine
www.objectrocket.com
49
MongoDB 4.0 deprecates MMAPv1
It’s likely the next version to support only WiredTiger
You should consider a switch to WiredTiger (If not already since 3.2)
Change to WiredTiger may be challenging:
o In-place Updates
o Range Queries
o Different HW specs
o Different shard keys

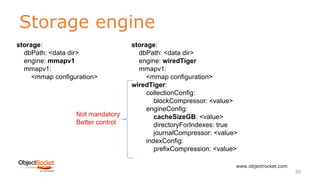

Storage engine
www.objectrocket.com
50
storage:
dbPath: <data dir>
engine: mmapv1
mmapv1:
<mmap configuration>
storage:
dbPath: <data dir>
engine: wiredTiger
mmapv1:
<mmap configuration>
wiredTiger:
collectionConfig:
blockCompressor: <value>
engineConfig:
cacheSizeGB: <value>
directoryForIndexes: true
journalCompressor: <value>
indexConfig:
prefixCompression: <value>
Not mandatory
Better control
Storage engine
www.objectrocket.com
51
Switch to WT (without secondary reads)
WT
1)Convert one secondary
- Alter the configuration
- Stop mongo, wipe data dir,start mongodb
- Initial sync converts the secondary to WT
2)Promote the secondary to become Primary
- rs.freeze(300) the MMAPv1 secondary
- rs.stepdown(300)
WT
3)Burn Period
- Convert the remaining nodes
- Rollback to MMAPv1
Freeze

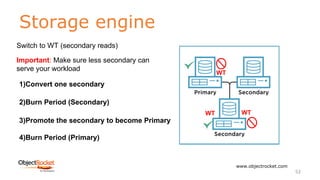

Storage engine
www.objectrocket.com
52
Switch to WT (secondary reads)
WT
1)Convert one secondary
3)Promote the secondary to become Primary
WT
2)Burn Period (Secondary)
4)Burn Period (Primary)
Important: Make sure less secondary can
serve your workload
WT

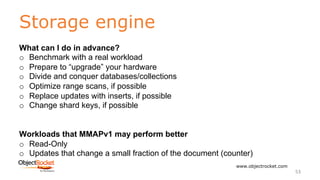

Storage engine
www.objectrocket.com
53
What can I do in advance?
o Benchmark with a real workload
o Prepare to “upgrade” your hardware
o Divide and conquer databases/collections
o Optimize range scans, if possible
o Replace updates with inserts, if possible
o Change shard keys, if possible
Workloads that MMAPv1 may perform better
o Read-Only
o Updates that change a small fraction of the document (counter)

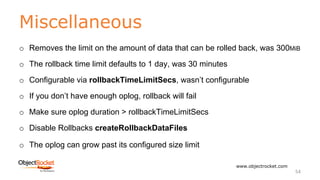

Miscellaneous
www.objectrocket.com
54
o Removes the limit on the amount of data that can be rolled back, was 300MiB
o The rollback time limit defaults to 1 day, was 30 minutes
o Configurable via rollbackTimeLimitSecs, wasn’t configurable
o If you don’t have enough oplog, rollback will fail
o Make sure oplog duration > rollbackTimeLimitSecs
o Disable Rollbacks createRollbackDataFiles
o The oplog can grow past its configured size limit

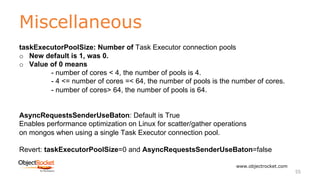

Miscellaneous
www.objectrocket.com
55
taskExecutorPoolSize: Number of Task Executor connection pools
o New default is 1, was 0.
o Value of 0 means
- number of cores < 4, the number of pools is 4.
- 4 <= number of cores =< 64, the number of pools is the number of cores.
- number of cores> 64, the number of pools is 64.
AsyncRequestsSenderUseBaton: Default is True
Enables performance optimization on Linux for scatter/gather operations
on mongos when using a single Task Executor connection pool.
Revert: taskExecutorPoolSize=0 and AsyncRequestsSenderUseBaton=false

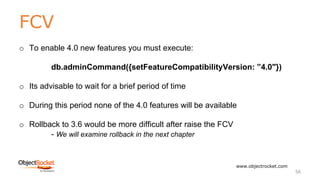

FCV
www.objectrocket.com
56
o To enable 4.0 new features you must execute:
db.adminCommand({setFeatureCompatibilityVersion: ”4.0"})
o Its advisable to wait for a brief period of time
o During this period none of the 4.0 features will be available
o Rollback to 3.6 would be more difficult after raise the FCV
- We will examine rollback in the next chapter

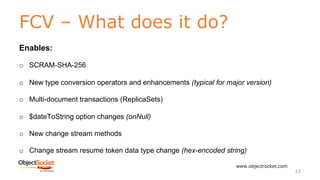

FCV – What does it do?
www.objectrocket.com
57
Enables:
o SCRAM-SHA-256
o New type conversion operators and enhancements (typical for major version)
o Multi-document transactions (ReplicaSets)
o $dateToString option changes (onNull)
o New change stream methods
o Change stream resume token data type change (hex-encoded string)

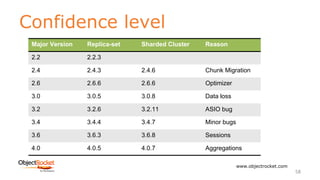

Confidence level
www.objectrocket.com
58
Major Version Replica-set Sharded Cluster Reason
2.2 2.2.3
2.4 2.4.3 2.4.6 Chunk Migration
2.6 2.6.6 2.6.6 Optimizer
3.0 3.0.5 3.0.8 Data loss
3.2 3.2.6 3.2.11 ASIO bug
3.4 3.4.4 3.4.7 Minor bugs
3.6 3.6.3 3.6.8 Sessions
4.0 4.0.5 4.0.7 Aggregations
Downgrade
• Downgrade FCV
• Rollback a replica set
• Rollback a sharded cluster
www.objectrocket.com
59

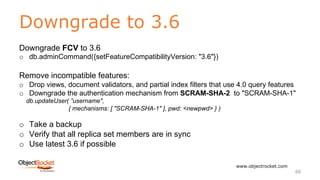

Downgrade to 3.6
www.objectrocket.com
60
Downgrade FCV to 3.6
o db.adminCommand({setFeatureCompatibilityVersion: "3.6"})
Remove incompatible features:
o Drop views, document validators, and partial index filters that use 4.0 query features
o Downgrade the authentication mechanism from SCRAM-SHA-2 to "SCRAM-SHA-1"
db.updateUser( ”username",
{ mechanisms: [ "SCRAM-SHA-1" ], pwd: <newpwd> } )
o Take a backup
o Verify that all replica set members are in sync
o Use latest 3.6 if possible

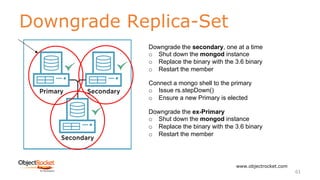

Downgrade Replica-Set
www.objectrocket.com
61
Downgrade the secondary, one at a time
o Shut down the mongod instance
o Replace the binary with the 3.6 binary
o Restart the member
Connect a mongo shell to the primary
o Issue rs.stepDown()
o Ensure a new Primary is elected
Downgrade the ex-Primary
o Shut down the mongod instance
o Replace the binary with the 3.6 binary
o Restart the member

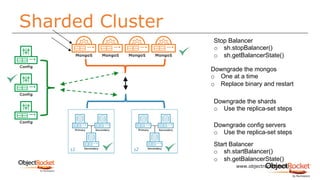

Sharded Cluster
www.objectrocket.com
s1 s2
Stop Balancer
o sh.stopBalancer()
o sh.getBalancerState()
Downgrade config servers
o Use the replica-set steps
Downgrade the shards
o Use the replica-set steps
Downgrade the mongos
o One at a time
o Replace binary and restart
Start Balancer
o sh.startBalancer()
o sh.getBalancerState()
Why 4.0?
• Transactions
• Secure authentication
• Change streams
• Non blocking Secondary reads
• Performance
• Miscellaneous improvements
www.objectrocket.com
63

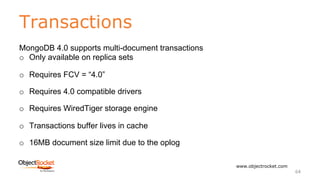

Transactions
www.objectrocket.com
64
MongoDB 4.0 supports multi-document transactions
o Only available on replica sets
o Requires FCV = “4.0”
o Requires 4.0 compatible drivers
o Requires WiredTiger storage engine
o Transactions buffer lives in cache
o 16MB document size limit due to the oplog
Transactions
www.objectrocket.com
65
SCRAM-SHA-256
www.objectrocket.com
66
o SHA1 has been deprecated due to its security vulnerabilities
o SHA2 is the successor of SHA1 and SHA-256 its one of its variants
o SHA-256 produces a 256 bits hash (vs 160 on SHA1)
o SHA2 is less vulnerable to collision attacks
o SHA2 is vulnerable to collision attacks length extension attack

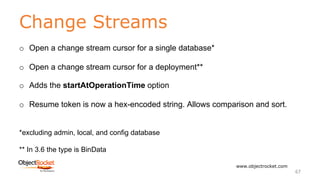

Change Streams
www.objectrocket.com
67
o Open a change stream cursor for a single database*
o Open a change stream cursor for a deployment**
o Adds the startAtOperationTime option
o Resume token is now a hex-encoded string. Allows comparison and sort.
*excluding admin, local, and config database
** In 3.6 the type is BinData

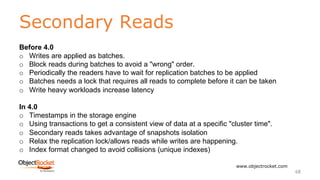

Secondary Reads
www.objectrocket.com
68
Before 4.0
o Writes are applied as batches.
o Block reads during batches to avoid a "wrong" order.
o Periodically the readers have to wait for replication batches to be applied
o Batches needs a lock that requires all reads to complete before it can be taken
o Write heavy workloads increase latency
In 4.0
o Timestamps in the storage engine
o Using transactions to get a consistent view of data at a specific "cluster time".
o Secondary reads takes advantage of snapshots isolation
o Relax the replication lock/allows reads while writes are happening.
o Index format changed to avoid collisions (unique indexes)

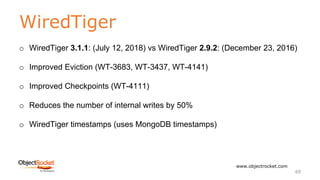

WiredTiger
www.objectrocket.com
69
o WiredTiger 3.1.1: (July 12, 2018) vs WiredTiger 2.9.2: (December 23, 2016)
o Improved Eviction (WT-3683, WT-3437, WT-4141)
o Improved Checkpoints (WT-4111)
o Reduces the number of internal writes by 50%
o WiredTiger timestamps (uses MongoDB timestamps)

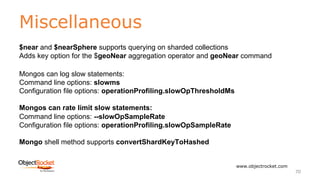

Miscellaneous
www.objectrocket.com
70
$near and $nearSphere supports querying on sharded collections
Adds key option for the $geoNear aggregation operator and geoNear command
Mongos can log slow statements:
Command line options: slowms
Configuration file options: operationProfiling.slowOpThresholdMs
Mongos can rate limit slow statements:
Command line options: --slowOpSampleRate
Configuration file options: operationProfiling.slowOpSampleRate
Mongo shell method supports convertShardKeyToHashed
Miscellaneous
www.objectrocket.com
71
Aggregation framework supports $convert
Converts a value to specified type:

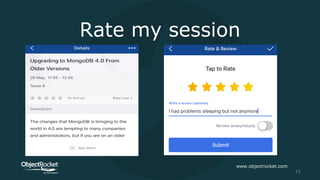

Rate my session
www.objectrocket.com
72
Way better than Season 8
www.objectrocket.com
73
www.objectrocket.com
74
We’re Hiring!
Looking to join a dynamic & innovative
team?
https://www.objectrocket.com/careers/
or email careers@objectrocket.com
Questions?
www.objectrocket.com
75
Thank you!
Address:
401 Congress Ave Suite 1950
Austin, TX 78701
Support:
1-800-961-4454
Sales:
1-888-440-3242
www.objectrocket.com
76

More Related Content

What's hot

Comparison of MPP Data Warehouse Platforms
Comparison of MPP Data Warehouse PlatformsComparison of MPP Data Warehouse Platforms
Comparison of MPP Data Warehouse Platforms
David Portnoy

AWS Fargate on EKS 실전 사용하기
AWS Fargate on EKS 실전 사용하기AWS Fargate on EKS 실전 사용하기
AWS Fargate on EKS 실전 사용하기
AWSKRUG - AWS한국사용자모임

RocksDB Performance and Reliability Practices
RocksDB Performance and Reliability PracticesRocksDB Performance and Reliability Practices
RocksDB Performance and Reliability Practices
Yoshinori Matsunobu

AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...
AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...
AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...
Simplilearn

Database-Migration and -Upgrade with Transportable Tablespaces
Database-Migration and -Upgrade with Transportable TablespacesDatabase-Migration and -Upgrade with Transportable Tablespaces
Database-Migration and -Upgrade with Transportable Tablespaces
Markus Flechtner

Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...
Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...
Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...
Amazon Web Services

MariaDB ColumnStore
MariaDB ColumnStoreMariaDB ColumnStore
MariaDB ColumnStore
MariaDB plc

HDFS User Reference
HDFS User ReferenceHDFS User Reference
HDFS User Reference
Biju Nair

AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법
AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법
AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법
Amazon Web Services Korea

Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016
Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016
Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016
Amazon Web Services

CloudTrail ログの検索を爆速化してみた
CloudTrail ログの検索を爆速化してみたCloudTrail ログの検索を爆速化してみた
CloudTrail ログの検索を爆速化してみた
Yohei Azekatsu

MySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptxMySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptx
NeoClova

[215] Druid로 쉽고 빠르게 데이터 분석하기
[215] Druid로 쉽고 빠르게 데이터 분석하기[215] Druid로 쉽고 빠르게 데이터 분석하기
[215] Druid로 쉽고 빠르게 데이터 분석하기
NAVER D2

Hudi architecture, fundamentals and capabilities
Hudi architecture, fundamentals and capabilitiesHudi architecture, fundamentals and capabilities
Hudi architecture, fundamentals and capabilities
Nishith Agarwal

MySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB StatusMySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB Status
Karwin Software Solutions LLC

製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)
製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)
製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)
Amazon Web Services Japan

Deep Dive on Amazon Aurora
Deep Dive on Amazon AuroraDeep Dive on Amazon Aurora
Deep Dive on Amazon Aurora
Amazon Web Services

MariaDB ColumnStore
MariaDB ColumnStoreMariaDB ColumnStore
MariaDB ColumnStore
MariaDB plc

LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...
LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...
LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...
Amazon Web Services Korea

Understanding the architecture of MariaDB ColumnStore
Understanding the architecture of MariaDB ColumnStoreUnderstanding the architecture of MariaDB ColumnStore
Understanding the architecture of MariaDB ColumnStore
MariaDB plc


What's hot (20)

Comparison of MPP Data Warehouse Platforms
Comparison of MPP Data Warehouse PlatformsComparison of MPP Data Warehouse Platforms
Comparison of MPP Data Warehouse Platforms

AWS Fargate on EKS 실전 사용하기
AWS Fargate on EKS 실전 사용하기AWS Fargate on EKS 실전 사용하기
AWS Fargate on EKS 실전 사용하기

RocksDB Performance and Reliability Practices
RocksDB Performance and Reliability PracticesRocksDB Performance and Reliability Practices
RocksDB Performance and Reliability Practices

AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...
AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...
AWS S3 | Tutorial For Beginners | AWS S3 Bucket Tutorial | AWS Tutorial For B...

Database-Migration and -Upgrade with Transportable Tablespaces
Database-Migration and -Upgrade with Transportable TablespacesDatabase-Migration and -Upgrade with Transportable Tablespaces
Database-Migration and -Upgrade with Transportable Tablespaces

Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...
Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...
Best Practices for Migrating Oracle Databases to the Cloud - AWS Online Tech ...

MariaDB ColumnStore
MariaDB ColumnStoreMariaDB ColumnStore
MariaDB ColumnStore

HDFS User Reference
HDFS User ReferenceHDFS User Reference
HDFS User Reference

AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법
AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법
AWS Summit Seoul 2023 | 갤럭시 규모의 서비스를 위한 Amazon DynamoDB의 역할과 비용 최적화 방법

Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016
Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016
Amazon RDS with Amazon Aurora | AWS Public Sector Summit 2016

CloudTrail ログの検索を爆速化してみた
CloudTrail ログの検索を爆速化してみたCloudTrail ログの検索を爆速化してみた
CloudTrail ログの検索を爆速化してみた

MySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptxMySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptx

[215] Druid로 쉽고 빠르게 데이터 분석하기
[215] Druid로 쉽고 빠르게 데이터 분석하기[215] Druid로 쉽고 빠르게 데이터 분석하기
[215] Druid로 쉽고 빠르게 데이터 분석하기

Hudi architecture, fundamentals and capabilities
Hudi architecture, fundamentals and capabilitiesHudi architecture, fundamentals and capabilities
Hudi architecture, fundamentals and capabilities

MySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB StatusMySQL 5.5 Guide to InnoDB Status
MySQL 5.5 Guide to InnoDB Status

製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)
製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)
製造装置データ収集の選択肢 (AWS IoT Deep Dive #5)

Deep Dive on Amazon Aurora
Deep Dive on Amazon AuroraDeep Dive on Amazon Aurora
Deep Dive on Amazon Aurora

MariaDB ColumnStore
MariaDB ColumnStoreMariaDB ColumnStore
MariaDB ColumnStore

LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...
LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...
LG 이노텍 - Amazon Redshift Serverless를 활용한 데이터 분석 플랫폼 혁신 과정 - 발표자: 유재상 선임, LG이노...

Understanding the architecture of MariaDB ColumnStore
Understanding the architecture of MariaDB ColumnStoreUnderstanding the architecture of MariaDB ColumnStore
Understanding the architecture of MariaDB ColumnStore


Similar to Upgrading to MongoDB 4.0 from older versions

How to upgrade to MongoDB 4.0 - Percona Europe 2018
How to upgrade to MongoDB 4.0 - Percona Europe 2018How to upgrade to MongoDB 4.0 - Percona Europe 2018
How to upgrade to MongoDB 4.0 - Percona Europe 2018
Antonios Giannopoulos

Upgrade your mongo the right way linkedin
Upgrade your mongo the right way linkedinUpgrade your mongo the right way linkedin
Upgrade your mongo the right way linkedin
Lior Altarescu

MongoDB – Sharded cluster tutorial - Percona Europe 2017
MongoDB – Sharded cluster tutorial - Percona Europe 2017MongoDB – Sharded cluster tutorial - Percona Europe 2017
MongoDB – Sharded cluster tutorial - Percona Europe 2017
Antonios Giannopoulos

MongoDB - Sharded Cluster Tutorial
MongoDB - Sharded Cluster TutorialMongoDB - Sharded Cluster Tutorial
MongoDB - Sharded Cluster Tutorial
Jason Terpko

Sharded cluster tutorial
Sharded cluster tutorialSharded cluster tutorial
Sharded cluster tutorial
Antonios Giannopoulos

Percona Live 2017 ­- Sharded cluster tutorial
Percona Live 2017 ­- Sharded cluster tutorialPercona Live 2017 ­- Sharded cluster tutorial
Percona Live 2017 ­- Sharded cluster tutorial
Antonios Giannopoulos

Monitoring_with_Prometheus_Grafana_Tutorial
Monitoring_with_Prometheus_Grafana_TutorialMonitoring_with_Prometheus_Grafana_Tutorial
Monitoring_with_Prometheus_Grafana_Tutorial
Tim Vaillancourt

How To Install Openbravo ERP 2.50 MP43 in Ubuntu
How To Install Openbravo ERP 2.50 MP43 in UbuntuHow To Install Openbravo ERP 2.50 MP43 in Ubuntu
How To Install Openbravo ERP 2.50 MP43 in Ubuntu
Wirabumi Software

Uni centa opos data transfer guide
Uni centa opos data transfer guideUni centa opos data transfer guide
Uni centa opos data transfer guide
AlfonsoCueto

Swift configurator installation-manual
Swift configurator installation-manualSwift configurator installation-manual
Swift configurator installation-manual
Pramod Sharma

OpenCms Days 2014 - Updating to OpenCms 9.5
OpenCms Days 2014 - Updating to OpenCms 9.5OpenCms Days 2014 - Updating to OpenCms 9.5
OpenCms Days 2014 - Updating to OpenCms 9.5
Alkacon Software GmbH & Co. KG

Mdb dn 2016_09_34_features
Mdb dn 2016_09_34_featuresMdb dn 2016_09_34_features
Mdb dn 2016_09_34_features
Daniel M. Farrell

Docker Swarm secrets for creating great FIWARE platforms
Docker Swarm secrets for creating great FIWARE platformsDocker Swarm secrets for creating great FIWARE platforms
Docker Swarm secrets for creating great FIWARE platforms
Federico Michele Facca

New sap installation post installation
New sap  installation   post installationNew sap  installation   post installation
New sap installation post installation
dkeerthan

Workshop MSF4J - Getting Started with Microservices and Java
Workshop MSF4J - Getting Started with Microservices and JavaWorkshop MSF4J - Getting Started with Microservices and Java
Workshop MSF4J - Getting Started with Microservices and Java
Edgar Silva

DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...
DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...
DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...
Felipe Prado

Lesson 2
Lesson 2Lesson 2
Practical Replication June-2011
Practical Replication June-2011Practical Replication June-2011
Practical Replication June-2011
Chris Westin

linux installation.pdf
linux installation.pdflinux installation.pdf
linux installation.pdf
MuhammadShoaibHussai2

Openshift cheat rhce_r3v1 rhce
Openshift cheat rhce_r3v1 rhceOpenshift cheat rhce_r3v1 rhce
Openshift cheat rhce_r3v1 rhce
Darnette A


Similar to Upgrading to MongoDB 4.0 from older versions (20)

How to upgrade to MongoDB 4.0 - Percona Europe 2018
How to upgrade to MongoDB 4.0 - Percona Europe 2018How to upgrade to MongoDB 4.0 - Percona Europe 2018
How to upgrade to MongoDB 4.0 - Percona Europe 2018

Upgrade your mongo the right way linkedin
Upgrade your mongo the right way linkedinUpgrade your mongo the right way linkedin
Upgrade your mongo the right way linkedin

MongoDB – Sharded cluster tutorial - Percona Europe 2017
MongoDB – Sharded cluster tutorial - Percona Europe 2017MongoDB – Sharded cluster tutorial - Percona Europe 2017
MongoDB – Sharded cluster tutorial - Percona Europe 2017

MongoDB - Sharded Cluster Tutorial
MongoDB - Sharded Cluster TutorialMongoDB - Sharded Cluster Tutorial
MongoDB - Sharded Cluster Tutorial

Sharded cluster tutorial
Sharded cluster tutorialSharded cluster tutorial
Sharded cluster tutorial

Percona Live 2017 ­- Sharded cluster tutorial
Percona Live 2017 ­- Sharded cluster tutorialPercona Live 2017 ­- Sharded cluster tutorial
Percona Live 2017 ­- Sharded cluster tutorial

Monitoring_with_Prometheus_Grafana_Tutorial
Monitoring_with_Prometheus_Grafana_TutorialMonitoring_with_Prometheus_Grafana_Tutorial
Monitoring_with_Prometheus_Grafana_Tutorial

How To Install Openbravo ERP 2.50 MP43 in Ubuntu
How To Install Openbravo ERP 2.50 MP43 in UbuntuHow To Install Openbravo ERP 2.50 MP43 in Ubuntu
How To Install Openbravo ERP 2.50 MP43 in Ubuntu

Uni centa opos data transfer guide
Uni centa opos data transfer guideUni centa opos data transfer guide
Uni centa opos data transfer guide

Swift configurator installation-manual
Swift configurator installation-manualSwift configurator installation-manual
Swift configurator installation-manual

OpenCms Days 2014 - Updating to OpenCms 9.5
OpenCms Days 2014 - Updating to OpenCms 9.5OpenCms Days 2014 - Updating to OpenCms 9.5
OpenCms Days 2014 - Updating to OpenCms 9.5

Mdb dn 2016_09_34_features
Mdb dn 2016_09_34_featuresMdb dn 2016_09_34_features
Mdb dn 2016_09_34_features

Docker Swarm secrets for creating great FIWARE platforms
Docker Swarm secrets for creating great FIWARE platformsDocker Swarm secrets for creating great FIWARE platforms
Docker Swarm secrets for creating great FIWARE platforms

New sap installation post installation
New sap  installation   post installationNew sap  installation   post installation
New sap installation post installation

Workshop MSF4J - Getting Started with Microservices and Java
Workshop MSF4J - Getting Started with Microservices and JavaWorkshop MSF4J - Getting Started with Microservices and Java
Workshop MSF4J - Getting Started with Microservices and Java

DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...
DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...
DEF CON 27 - workshop - ISAAC EVANS - discover exploit and eradicate entire v...

Lesson 2
Lesson 2Lesson 2
Lesson 2

Practical Replication June-2011
Practical Replication June-2011Practical Replication June-2011
Practical Replication June-2011

linux installation.pdf
linux installation.pdflinux installation.pdf
linux installation.pdf

Openshift cheat rhce_r3v1 rhce
Openshift cheat rhce_r3v1 rhceOpenshift cheat rhce_r3v1 rhce
Openshift cheat rhce_r3v1 rhce


More from Antonios Giannopoulos

Comparing Geospatial Implementation in MongoDB, Postgres, and Elastic
Comparing Geospatial Implementation in MongoDB, Postgres, and ElasticComparing Geospatial Implementation in MongoDB, Postgres, and Elastic
Comparing Geospatial Implementation in MongoDB, Postgres, and Elastic
Antonios Giannopoulos

Using MongoDB with Kafka - Use Cases and Best Practices
Using MongoDB with Kafka -  Use Cases and Best PracticesUsing MongoDB with Kafka -  Use Cases and Best Practices
Using MongoDB with Kafka - Use Cases and Best Practices
Antonios Giannopoulos

Sharding in MongoDB 4.2 #what_is_new
 Sharding in MongoDB 4.2 #what_is_new Sharding in MongoDB 4.2 #what_is_new
Sharding in MongoDB 4.2 #what_is_new
Antonios Giannopoulos

New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2
New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2
New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2
Antonios Giannopoulos

Managing data and operation distribution in MongoDB
Managing data and operation distribution in MongoDBManaging data and operation distribution in MongoDB
Managing data and operation distribution in MongoDB
Antonios Giannopoulos

Elastic 101 tutorial - Percona Europe 2018
Elastic 101 tutorial - Percona Europe 2018 Elastic 101 tutorial - Percona Europe 2018
Elastic 101 tutorial - Percona Europe 2018
Antonios Giannopoulos

Triggers in MongoDB
Triggers in MongoDBTriggers in MongoDB
Triggers in MongoDB
Antonios Giannopoulos

How sitecore depends on mongo db for scalability and performance, and what it...
How sitecore depends on mongo db for scalability and performance, and what it...How sitecore depends on mongo db for scalability and performance, and what it...
How sitecore depends on mongo db for scalability and performance, and what it...
Antonios Giannopoulos

Antonios Giannopoulos Percona 2016 WiredTiger Configuration Variables
Antonios Giannopoulos Percona 2016 WiredTiger Configuration VariablesAntonios Giannopoulos Percona 2016 WiredTiger Configuration Variables
Antonios Giannopoulos Percona 2016 WiredTiger Configuration Variables
Antonios Giannopoulos

Introduction to Polyglot Persistence
Introduction to Polyglot Persistence Introduction to Polyglot Persistence
Introduction to Polyglot Persistence
Antonios Giannopoulos

MongoDB Sharding Fundamentals
MongoDB Sharding Fundamentals MongoDB Sharding Fundamentals
MongoDB Sharding Fundamentals
Antonios Giannopoulos


More from Antonios Giannopoulos (11)

Comparing Geospatial Implementation in MongoDB, Postgres, and Elastic
Comparing Geospatial Implementation in MongoDB, Postgres, and ElasticComparing Geospatial Implementation in MongoDB, Postgres, and Elastic
Comparing Geospatial Implementation in MongoDB, Postgres, and Elastic

Using MongoDB with Kafka - Use Cases and Best Practices
Using MongoDB with Kafka -  Use Cases and Best PracticesUsing MongoDB with Kafka -  Use Cases and Best Practices
Using MongoDB with Kafka - Use Cases and Best Practices

Sharding in MongoDB 4.2 #what_is_new
 Sharding in MongoDB 4.2 #what_is_new Sharding in MongoDB 4.2 #what_is_new
Sharding in MongoDB 4.2 #what_is_new

New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2
New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2
New Indexing and Aggregation Pipeline Capabilities in MongoDB 4.2

Managing data and operation distribution in MongoDB
Managing data and operation distribution in MongoDBManaging data and operation distribution in MongoDB
Managing data and operation distribution in MongoDB

Elastic 101 tutorial - Percona Europe 2018
Elastic 101 tutorial - Percona Europe 2018 Elastic 101 tutorial - Percona Europe 2018
Elastic 101 tutorial - Percona Europe 2018

Triggers in MongoDB
Triggers in MongoDBTriggers in MongoDB
Triggers in MongoDB

How sitecore depends on mongo db for scalability and performance, and what it...
How sitecore depends on mongo db for scalability and performance, and what it...How sitecore depends on mongo db for scalability and performance, and what it...
How sitecore depends on mongo db for scalability and performance, and what it...

Antonios Giannopoulos Percona 2016 WiredTiger Configuration Variables
Antonios Giannopoulos Percona 2016 WiredTiger Configuration VariablesAntonios Giannopoulos Percona 2016 WiredTiger Configuration Variables
Antonios Giannopoulos Percona 2016 WiredTiger Configuration Variables

Introduction to Polyglot Persistence
Introduction to Polyglot Persistence Introduction to Polyglot Persistence
Introduction to Polyglot Persistence

MongoDB Sharding Fundamentals
MongoDB Sharding Fundamentals MongoDB Sharding Fundamentals
MongoDB Sharding Fundamentals


Recently uploaded

Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Ortus Solutions, Corp

Folding Cheat Sheet #6 - sixth in a series
Folding Cheat Sheet #6 - sixth in a seriesFolding Cheat Sheet #6 - sixth in a series
Folding Cheat Sheet #6 - sixth in a series
Philip Schwarz

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
kgyxske

What’s new in VictoriaMetrics - Q2 2024 Update
What’s new in VictoriaMetrics - Q2 2024 UpdateWhat’s new in VictoriaMetrics - Q2 2024 Update
What’s new in VictoriaMetrics - Q2 2024 Update
VictoriaMetrics

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps
Jhone kinadey

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx
Reetu63

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Paul Brebner

The Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdfThe Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdf
mohitd6

Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7
Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7
Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7
manji sharman06

Beginner's Guide to Observability@Devoxx PL 2024
Beginner's  Guide to Observability@Devoxx PL 2024Beginner's  Guide to Observability@Devoxx PL 2024
Beginner's Guide to Observability@Devoxx PL 2024
michniczscribd

Microsoft-Power-Platform-Adoption-Planning.pptx
Microsoft-Power-Platform-Adoption-Planning.pptxMicrosoft-Power-Platform-Adoption-Planning.pptx
Microsoft-Power-Platform-Adoption-Planning.pptx
jrodriguezq3110

Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)
alowpalsadig

What’s New in VictoriaLogs - Q2 2024 Update
What’s New in VictoriaLogs - Q2 2024 UpdateWhat’s New in VictoriaLogs - Q2 2024 Update
What’s New in VictoriaLogs - Q2 2024 Update
VictoriaMetrics

42 Ways to Generate Real Estate Leads - Sellxpert
42 Ways to Generate Real Estate Leads - Sellxpert42 Ways to Generate Real Estate Leads - Sellxpert
42 Ways to Generate Real Estate Leads - Sellxpert
vaishalijagtap12

Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom KittEnhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Peter Caitens

Upturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in NashikUpturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in Nashik
Upturn India Technologies

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
campbellclarkson

The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
kalichargn70th171

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
The Third Creative Media

Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical OperationsEnsuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations
OnePlan Solutions


Recently uploaded (20)

Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...
Strengthening Web Development with CommandBox 6: Seamless Transition and Scal...

Folding Cheat Sheet #6 - sixth in a series
Folding Cheat Sheet #6 - sixth in a seriesFolding Cheat Sheet #6 - sixth in a series
Folding Cheat Sheet #6 - sixth in a series

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理

What’s new in VictoriaMetrics - Q2 2024 Update
What’s new in VictoriaMetrics - Q2 2024 UpdateWhat’s new in VictoriaMetrics - Q2 2024 Update
What’s new in VictoriaMetrics - Q2 2024 Update

Boost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management AppsBoost Your Savings with These Money Management Apps
Boost Your Savings with These Money Management Apps

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...

The Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdfThe Role of DevOps in Digital Transformation.pdf
The Role of DevOps in Digital Transformation.pdf

Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7
Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7
Call Girls Bangalore🔥7023059433🔥Best Profile Escorts in Bangalore Available 24/7

Beginner's Guide to Observability@Devoxx PL 2024
Beginner's  Guide to Observability@Devoxx PL 2024Beginner's  Guide to Observability@Devoxx PL 2024
Beginner's Guide to Observability@Devoxx PL 2024

Microsoft-Power-Platform-Adoption-Planning.pptx
Microsoft-Power-Platform-Adoption-Planning.pptxMicrosoft-Power-Platform-Adoption-Planning.pptx
Microsoft-Power-Platform-Adoption-Planning.pptx

Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)Photoshop Tutorial for Beginners (2024 Edition)
Photoshop Tutorial for Beginners (2024 Edition)

What’s New in VictoriaLogs - Q2 2024 Update
What’s New in VictoriaLogs - Q2 2024 UpdateWhat’s New in VictoriaLogs - Q2 2024 Update
What’s New in VictoriaLogs - Q2 2024 Update

42 Ways to Generate Real Estate Leads - Sellxpert
42 Ways to Generate Real Estate Leads - Sellxpert42 Ways to Generate Real Estate Leads - Sellxpert
42 Ways to Generate Real Estate Leads - Sellxpert

Enhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom KittEnhanced Screen Flows UI/UX using SLDS with Tom Kitt
Enhanced Screen Flows UI/UX using SLDS with Tom Kitt

Upturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in NashikUpturn India Technologies - Web development company in Nashik
Upturn India Technologies - Web development company in Nashik

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻

The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...
The Power of Visual Regression Testing_ Why It Is Critical for Enterprise App...

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...

Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical OperationsEnsuring Efficiency and Speed with Practical Solutions for Clinical Operations
Ensuring Efficiency and Speed with Practical Solutions for Clinical Operations


Upgrading to MongoDB 4.0 from older versions

  • 1. Upgrading to MongoDB 4.0 from older versions Antonios Giannopoulos DBA @ ObjectRocket by Rackspace 1
  • 2. Overview • Upgrade Procedures • General Application Considerations • Middleware • Database Layer • Rollback Procedure • Why 4.0? www.objectrocket.com 2
  • 3. MongoDB Download Locations www.objectrocket.com 3 Latest version is MongoDB 4.0 released on June 26,2018 Current minor version is 4.0.9 You can obtain it from: - Mongo Inc Download Center - https://www.mongodb.com/download- center/community – Next slide coming up - Percona Server Download Center - Repos like yum, apt-get… Still supported: 3.4 until 2020 and 3.6 to a date so far unknown
  • 5. MongoDB Upgrades www.objectrocket.com 5 o Always check the release notes before starting working on an upgrade. The release notes include new features, breaking changes, JIRAs and upgrade paths. These must be clear before you start. o Release notes can be found at https://docs.mongodb.com/manual/release- notes/<major version>.<minor version>/ o It’s better to find things that won’t work for you before you upgrade to prevent rollbacks that could be difficult and disruptive. Try to run the upgrade in your DEV/QA/STG environment before you upgrade PROD.
  • 6. MongoDB Upgrades www.objectrocket.com 6 o Never assume. With MongoDB, the upgrade path has changed a lot recently. It became simpler as things became more mature but in the early days, more or less, for every new version, you had new things to do and check. o You can’t skip major versions. From 3.2 to 4.0, you need to go to 3.4 and then 3.6 first. o For the sake of this talk, we will assume we are working with 3.2 and want to reach 4.0 with minimal disruption. The challenge mainly comes at the sharded cluster levels.
  • 7. Upgrade Replica-Set 3.2 -> 3.4 www.objectrocket.com 7 Upgrade the secondary, one at a time o Shut down the mongod instance o Replace the binary with the 3.4 binary o Restart the member Connect a mongo shell to the primary o Issue rs.stepDown() o Ensure a new Primary is elected Upgrade the ex-Primary o Shut down the mongod instance o Replace the binary with the 3.4 binary o Restart the member Connect a mongo shell to the primary Enable backwards-incompatible 3.4 features db.adminCommand( { setFeatureCompatibilityVersion: ”3.4" }
  • 8. Upgrading Sharded Cluster 3.2 -> 3.4 www.objectrocket.com 8 o The upgrade to 3.4 is probably the most difficult yet because the config server MUST be deployed as a ReplicaSet (CSRS). o 3.2 is the first version that allows you to have the option of having either mirrored config servers (SCCC) or a ReplicaSet (CSRS) but in 3.4, this option is not available anymore. o All components must be 3.2 before starting and for the sake of this exercise we will roll with 3 config servers.
  • 9. Config server configuration www.objectrocket.com 9 o Backup the config database before you commence any work. This is critical! In case anything breaks, you can build a ReplicaSet and insert the database back, skipping the process juggling. o Backup the configs from all three config servers and mongos servers. o Think of a name for your new ReplicaSet. Use a uuid generator if needed. We use “ReplicasetID”.
  • 10. Config server configuration www.objectrocket.com 10 o Pick one of the config servers and connect to it via a mongo shell and initiate the ReplSet. o Add the “replSetName” name under the “replication” field to the config and restart the daemon. Leave everything else as it is currently, including ”configsvrMode: sccc” o At this point you have a ReplicasetID on the start port with 1 member and two configs on the start port as stand alone.
  • 11. Config server configuration www.objectrocket.com 11 o Start one new mongod process with WiredTiger as storage engine on each of the config servers o You need to make sure they use a new port (just add 20000 to the one you already have) and a different dbpath o Add the newly started processes to the ReplicaSet which is running running on the Config server 1 with priority 0 and 0 votes
  • 12. Config server configuration www.objectrocket.com 12 o Stop one of the SCCC processes. At this point the config server will go in read only so some operations such as splits will fail. o Reconfigure all the members to have a default priority and votes which is 1. o Stepdown the PROCESS1 on CONFIG1 and elect another. o Remove configsvrMode=sccc from PROCESS1 on config1 and restart the process. This will appear as removed if on MMAP.
  • 13. Config server configuration www.objectrocket.com 13 o Pick one mongos server and update its config file to reflect the ReplSet instead of the SCCC deployment they had before. o Restart the mongodb process and watch the logs you need to see something like: configDB: ReplicasetID/config1:new_port,config2:new_port,config3:new_port [CatalogManagerReplacer] Swapping sharding Catalog Manager from mirrored (SCCC) to replica set (CSRS) mode [LockPinger] removing distributed lock ping thread <SCCC connection string> [CatalogManagerReplacer] Updating config server connection string to: <SCRS connection string> [CatalogManagerReplacer] Starting new replica set monitor for <SCRS connection string> [CatalogManagerReplacer] Updating ShardRegistry connection string for shard config from: <SCCC connection string> [CatalogManagerReplacer] Swapping sharding Catalog Manager to replica set (CSRS) mode completed successfully
  • 14. Config server configuration cleanup www.objectrocket.com 14 o Configure the remaining mongos to use the new format o Remove the very first PROCESS from the ReplSet (config1, process1) o Stop the remaining SCCC processes.(config3, process1) o Delete the original dbpath files o Optional: Start 3 new processes on the old port and add them to the ReplSet. This is the third process
  • 15. Config server configuration cleanup www.objectrocket.com 15 o The mongos will automatically recognize the PROCESS3 members. o Remove the 2 secondaries on PROCESS2 and run a stepdown. This will make the primary land on one of the PROCESS3 on the initial port. o Remove the last PROCESS2 member and this will mean that you have only PROCESS3 members. o Update only the config server ports from the mongos configs with the initial ones. No need for another restart. We’re done. Upgrade time.
  • 16. Sharded Cluster Upgrade path www.objectrocket.com 16 s1 s2 Stop Balancer o sh.stopBalancer() o sh.getBalancerState() Upgrade config servers o Use the replica-set steps Upgrade the shards o Use the replica-set steps Upgrade the mongos o One at a time o Replace binary and restart Enable backwards-incompatible 3.4 features db.adminCommand( { setFeatureCompatibilityVersion: ”3.4" } ) Restart the mongos
  • 17. Upgrading to 3.6 and beyond www.objectrocket.com 17 • After moving to 3.4 in a low impact manner, you will have to go to 3.6 by following the same sharded cluster upgrade path and ReplSet approach. • To finalize the upgrade, the “setFeatureCompatibilityVersion” must be set to 3.6. • It’s the same path when moving from 3.6 to 4.0 only, of course, the compatibility version needs to be set to 4.0.
  • 18. General Application Considerations • Upgrade Driver • Upgrade Language • Inspect the code base www.objectrocket.com 18
  • 19. Driver www.objectrocket.com 19 Your driver must be compactible with the new version that you’re upgrading to.
  • 22. So just upgrade the driver? www.objectrocket.com 22 The underling language version must also be compactible with your driver Mongo 4.0 Compatible
  • 23. Upgrade the driver/language www.objectrocket.com 23 Perform safe upgrades / Always have rollback in mind Python supports “virtual environments” Python “virtualenv” creates an isolated environment for Python projects. Each project can have its own dependencies, regardless of what dependencies every other project has. There are no limits to the number of environments ,they’re just directories containing scripts
  • 25. Upgrade the driver/language www.objectrocket.com 25 What about other languages: There are equivalents of “virtualenv” like JAVA use classpath Ruby use Ruby Version Manager (RVM)
  • 26. Upgrade the driver/language www.objectrocket.com 26 Do not forget frameworks and their dependencies o Very popular in PHP o They have their own compatibility matrix Should I always use the latest driver? o Check the change log o Check the open bugs
  • 27. Driver version? Dunno www.objectrocket.com 27 Inspect the logs Manipulate the logs to export driver name & version Quick hack: less /var/log/messages |grep "driver: { name" | awk '{print $16, $17, $18, $19}' | uniq
  • 28. Driver version? Dunno www.objectrocket.com 28 Inspect the system.profile Collect a representative sample On a sharded cluster, all shards must examined – Database Primaries
  • 29. Inspect the codebase www.objectrocket.com 29 Each version Removes & Deprecates operators. Remove: Operator is no longer available Deprecate: Operator will be removed to the next version Rule: If a version deprecates an operator next version removes it (not always the case) Take Actions: o Patched the codebase against the removed operators o Plan to replace the deprecated operators
  • 30. Inspect the codebase www.objectrocket.com 30 Removed Operators (MongoDB 4.0): o Operator: $isolated (The operator has been deprecated since 3.6) If you have an existing partial index that includes the $isolated operator or a view that includes a $isolated operator, recreate the index or view without the operator in the definition before upgrading. Removed Operators (MongoDB 3.6): o Operator: $pushAll (The operator has been deprecated since 2.4) .Use the $push operator with the $each
  • 31. Inspect the codebase www.objectrocket.com 31 Deprecated Operators (MongoDB 4.0): o maxScan o geoNear command o copydb and the clone commands Deprecated Operators (MongoDB 3.6): o GetPrevError command
  • 32. Inspect the codebase www.objectrocket.com 32 Exception handling o Error descriptions may change between versions o Error format may also change o New error codes may be introduced o New warning codes may be introduced
  • 33. Inspect the codebase 3.4 & 3.6 www.objectrocket.com 33 MongoDB 3.4 enforces a stricter validation of collection options during create and db.createCollection() operations. MongoDB 3.4 enforces a stricter validation of index specification during createIndexes and db.collection.createIndex() operations. MongoDB 3.4 If you include a hint() that specifies a sparse index when you perform a count() of all documents in a collection (i.e. with an empty query predicate), the sparse index is used even if the sparse index results in an incorrect count. MongoDB 3.4 Behavior of single Element $in With upsert. Some upserts may fail in 3.4
  • 34. Inspect the codebase 3.4 & 3.6 www.objectrocket.com 34 MongoDB 3.6 removes the use of aggregate command without the cursor option Starting in 3.6, when sorting a field containing an array, MongoDB orders the field with the lowest-valued element of the array first for ascending sorts and the highest-valued element of the array first for descending sorts. Starting in MongoDB 3.6, fields that conflict with arrayFilters identifiers can no longer be updated. Starting in 3.6, you cannot specify * as the index name during index creation nor can you delete indexes named * by specifying the index keys.
  • 35. Middleware • Monitoring • Backups • Deployments • Utilities • OS changes • TLS/SSL www.objectrocket.com 35
  • 36. Monitoring www.objectrocket.com 36 The monitoring system must be able to connect to MongoDB Vast majority relies on db.serverStatus() A newer version may be necessary to installed prior to upgrade
  • 37. Deployment & Managment www.objectrocket.com 37 Automatic deployment scripts also connect to MongoDB For example: o Deploy a replica-set (rs.add(), rs.status()) o Add a shard (sh.addShard()) A change to error code formats may affect deployment scripts User-roles may also need to change (more secure) Management tools may also affected Configuration files options may change (For example: 3.4 Membership Awareness)
  • 38. Backup www.objectrocket.com 38 - Filesystems Snapshots - Copy files - Hot Backup (Percona Server) - Mongodump They should all work but testing is recommended. In the case of restore, a downgrade may be required.
  • 39. OS www.objectrocket.com 39 MongoDB 4.0 Removes support for: o SLES 11 o Ubuntu 12.04 o Debian 7 It Deprecates: o Windows 7/2008R2 o Windows 8/2012 o Windows 8.1/2012R2 o Ubuntu 14.04 Compatibility matrix: https://bit.ly/2ys8Crs
  • 40. TLS www.objectrocket.com 40 Removes support for TLS 1.0 o On systems where TLS 1.1+ is available Latest PCI compliance standards require the use of TLS 1.1+ If you need to support TLS 1.0 (hopefully temporarily): o Set to none either net.ssl.disabledProtocols or --sslDisabledProtocols Test: openssl s_client -connect <host>:<port> -tls1 (tls1_1 and tls1_2)
  • 41. Database Layer • Configuration files • Prerequisites • Deprecated items • Storage engine • Miscellaneous • FCV www.objectrocket.com 41
  • 42. mongo.conf 4.0 www.objectrocket.com 42 net.transportLayer can’t be set to legacy anymore net.host: Resolves localhost IP address as configured instead of assuming 127.0.0.1 Can’t combine storage.journal.enabled: false with WiredTiger storage engine Can’t combine storage.indexBuildRetry with replication.replSetName When ssl.allowInvalidCertificates: true with x.509 authentication, an invalid certificate is only sufficient to establish a TLS/SSL connection but is insufficient for authentication.
  • 43. mongo.conf 3.4 & 3.6 www.objectrocket.com 43 MongoDB 3.6 removes the deprecated HTTP interface and REST API to MongoDB (net.http.*) Starting in MongoDB 3.6, MongoDB binaries, mongod and mongos, bind to localhost by default so net.bindIp must be set In MongoDB 3.6, shards must be replica sets. MongoDB 3.4 removes: sharding.chunkSize, sharding.autoSplit & textSearchEnabled
  • 44. Prerequisites www.objectrocket.com 44 In order to upgrade featureCompatibilityVersion must be set to 3.6 How to check: o db.adminCommand( { getParameter: 1, featureCompatibilityVersion: 1 } ) How to set FCV to 3.6: o db.adminCommand( { setFeatureCompatibilityVersion: <version> } ) ,where <version> ”3.6” It automatically enables 3.6 new features
  • 45. Prerequisites www.objectrocket.com 45 3.6 new features o UUID for collections o $jsonSchema document validation o Change Streams o Chunk aware secondaries o View definitions, document validators, and partial index filters that use 3.6 query features o Sessions and retryable writes o Users and roles with authenticationRestrictions Sessions: o Creates a system.session collection o On sharded clusters is sharded on {_id:1} o Has a 30 minute TTL index o Pre-3.6.7 bug, wasn’t creating TTL and sharding o May trigger a performance overhead (updates/deletes)
  • 46. Prerequisites www.objectrocket.com 46 In order to upgrade pv must be set to pv1 (introduced in MongoDB 3.2) How to check: o pv=rs.conf().protocolVersion How to set pv1: o Login to every replica-set and execute cfg = rs.conf(); cfg.protocolVersion=1; rs.reconfig(cfg); Enjoy the benefits of pv1
  • 47. Prerequisites www.objectrocket.com 47 Master-slave replication, no longer supported You must upgrade to a replica set Prior the upgrade Conversion involves downtime & affects high availability o Stop mongo o Start Master with --replSet <setname> o Initialize the replica set rs.initiate( { _id: "<setname>", members: [ { _id: 0, host: "<host:port>" } ] } ) o Add nodes, rs.add("<host:port>" )
  • 48. Prerequisites www.objectrocket.com 48 Removes MongoDB Challenge-Response (MONGODB-CR) auth mechanism Deprecated since 3.0 version. Only possible if you upgraded from 2.6 How to check: db.getSiblingDB('admin').system.users.find({"credentials.MONGODB-CR":{$exists:true}}) How to upgrade to SCRAM: db.adminCommand({authSchemaUpgrade: 1}); Considerations o authMechanism on connection string o Local users on sharded clusters
  • 49. Storage engine www.objectrocket.com 49 MongoDB 4.0 deprecates MMAPv1 It’s likely the next version to support only WiredTiger You should consider a switch to WiredTiger (If not already since 3.2) Change to WiredTiger may be challenging: o In-place Updates o Range Queries o Different HW specs o Different shard keys
  • 50. Storage engine www.objectrocket.com 50 storage: dbPath: <data dir> engine: mmapv1 mmapv1: <mmap configuration> storage: dbPath: <data dir> engine: wiredTiger mmapv1: <mmap configuration> wiredTiger: collectionConfig: blockCompressor: <value> engineConfig: cacheSizeGB: <value> directoryForIndexes: true journalCompressor: <value> indexConfig: prefixCompression: <value> Not mandatory Better control
  • 51. Storage engine www.objectrocket.com 51 Switch to WT (without secondary reads) WT 1)Convert one secondary - Alter the configuration - Stop mongo, wipe data dir,start mongodb - Initial sync converts the secondary to WT 2)Promote the secondary to become Primary - rs.freeze(300) the MMAPv1 secondary - rs.stepdown(300) WT 3)Burn Period - Convert the remaining nodes - Rollback to MMAPv1 Freeze
  • 52. Storage engine www.objectrocket.com 52 Switch to WT (secondary reads) WT 1)Convert one secondary 3)Promote the secondary to become Primary WT 2)Burn Period (Secondary) 4)Burn Period (Primary) Important: Make sure less secondary can serve your workload WT
  • 53. Storage engine www.objectrocket.com 53 What can I do in advance? o Benchmark with a real workload o Prepare to “upgrade” your hardware o Divide and conquer databases/collections o Optimize range scans, if possible o Replace updates with inserts, if possible o Change shard keys, if possible Workloads that MMAPv1 may perform better o Read-Only o Updates that change a small fraction of the document (counter)
  • 54. Miscellaneous www.objectrocket.com 54 o Removes the limit on the amount of data that can be rolled back, was 300MiB o The rollback time limit defaults to 1 day, was 30 minutes o Configurable via rollbackTimeLimitSecs, wasn’t configurable o If you don’t have enough oplog, rollback will fail o Make sure oplog duration > rollbackTimeLimitSecs o Disable Rollbacks createRollbackDataFiles o The oplog can grow past its configured size limit
  • 55. Miscellaneous www.objectrocket.com 55 taskExecutorPoolSize: Number of Task Executor connection pools o New default is 1, was 0. o Value of 0 means - number of cores < 4, the number of pools is 4. - 4 <= number of cores =< 64, the number of pools is the number of cores. - number of cores> 64, the number of pools is 64. AsyncRequestsSenderUseBaton: Default is True Enables performance optimization on Linux for scatter/gather operations on mongos when using a single Task Executor connection pool. Revert: taskExecutorPoolSize=0 and AsyncRequestsSenderUseBaton=false
  • 56. FCV www.objectrocket.com 56 o To enable 4.0 new features you must execute: db.adminCommand({setFeatureCompatibilityVersion: ”4.0"}) o Its advisable to wait for a brief period of time o During this period none of the 4.0 features will be available o Rollback to 3.6 would be more difficult after raise the FCV - We will examine rollback in the next chapter
  • 57. FCV – What does it do? www.objectrocket.com 57 Enables: o SCRAM-SHA-256 o New type conversion operators and enhancements (typical for major version) o Multi-document transactions (ReplicaSets) o $dateToString option changes (onNull) o New change stream methods o Change stream resume token data type change (hex-encoded string)
  • 58. Confidence level www.objectrocket.com 58 Major Version Replica-set Sharded Cluster Reason 2.2 2.2.3 2.4 2.4.3 2.4.6 Chunk Migration 2.6 2.6.6 2.6.6 Optimizer 3.0 3.0.5 3.0.8 Data loss 3.2 3.2.6 3.2.11 ASIO bug 3.4 3.4.4 3.4.7 Minor bugs 3.6 3.6.3 3.6.8 Sessions 4.0 4.0.5 4.0.7 Aggregations
  • 59. Downgrade • Downgrade FCV • Rollback a replica set • Rollback a sharded cluster www.objectrocket.com 59
  • 60. Downgrade to 3.6 www.objectrocket.com 60 Downgrade FCV to 3.6 o db.adminCommand({setFeatureCompatibilityVersion: "3.6"}) Remove incompatible features: o Drop views, document validators, and partial index filters that use 4.0 query features o Downgrade the authentication mechanism from SCRAM-SHA-2 to "SCRAM-SHA-1" db.updateUser( ”username", { mechanisms: [ "SCRAM-SHA-1" ], pwd: <newpwd> } ) o Take a backup o Verify that all replica set members are in sync o Use latest 3.6 if possible
  • 61. Downgrade Replica-Set www.objectrocket.com 61 Downgrade the secondary, one at a time o Shut down the mongod instance o Replace the binary with the 3.6 binary o Restart the member Connect a mongo shell to the primary o Issue rs.stepDown() o Ensure a new Primary is elected Downgrade the ex-Primary o Shut down the mongod instance o Replace the binary with the 3.6 binary o Restart the member
  • 62. Sharded Cluster www.objectrocket.com s1 s2 Stop Balancer o sh.stopBalancer() o sh.getBalancerState() Downgrade config servers o Use the replica-set steps Downgrade the shards o Use the replica-set steps Downgrade the mongos o One at a time o Replace binary and restart Start Balancer o sh.startBalancer() o sh.getBalancerState()
  • 63. Why 4.0? • Transactions • Secure authentication • Change streams • Non blocking Secondary reads • Performance • Miscellaneous improvements www.objectrocket.com 63
  • 64. Transactions www.objectrocket.com 64 MongoDB 4.0 supports multi-document transactions o Only available on replica sets o Requires FCV = “4.0” o Requires 4.0 compatible drivers o Requires WiredTiger storage engine o Transactions buffer lives in cache o 16MB document size limit due to the oplog
  • 66. SCRAM-SHA-256 www.objectrocket.com 66 o SHA1 has been deprecated due to its security vulnerabilities o SHA2 is the successor of SHA1 and SHA-256 its one of its variants o SHA-256 produces a 256 bits hash (vs 160 on SHA1) o SHA2 is less vulnerable to collision attacks o SHA2 is vulnerable to collision attacks length extension attack
  • 67. Change Streams www.objectrocket.com 67 o Open a change stream cursor for a single database* o Open a change stream cursor for a deployment** o Adds the startAtOperationTime option o Resume token is now a hex-encoded string. Allows comparison and sort. *excluding admin, local, and config database ** In 3.6 the type is BinData
  • 68. Secondary Reads www.objectrocket.com 68 Before 4.0 o Writes are applied as batches. o Block reads during batches to avoid a "wrong" order. o Periodically the readers have to wait for replication batches to be applied o Batches needs a lock that requires all reads to complete before it can be taken o Write heavy workloads increase latency In 4.0 o Timestamps in the storage engine o Using transactions to get a consistent view of data at a specific "cluster time". o Secondary reads takes advantage of snapshots isolation o Relax the replication lock/allows reads while writes are happening. o Index format changed to avoid collisions (unique indexes)
  • 69. WiredTiger www.objectrocket.com 69 o WiredTiger 3.1.1: (July 12, 2018) vs WiredTiger 2.9.2: (December 23, 2016) o Improved Eviction (WT-3683, WT-3437, WT-4141) o Improved Checkpoints (WT-4111) o Reduces the number of internal writes by 50% o WiredTiger timestamps (uses MongoDB timestamps)
  • 70. Miscellaneous www.objectrocket.com 70 $near and $nearSphere supports querying on sharded collections Adds key option for the $geoNear aggregation operator and geoNear command Mongos can log slow statements: Command line options: slowms Configuration file options: operationProfiling.slowOpThresholdMs Mongos can rate limit slow statements: Command line options: --slowOpSampleRate Configuration file options: operationProfiling.slowOpSampleRate Mongo shell method supports convertShardKeyToHashed
  • 71. Miscellaneous www.objectrocket.com 71 Aggregation framework supports $convert Converts a value to specified type:
  • 73. Way better than Season 8 www.objectrocket.com 73
  • 74. www.objectrocket.com 74 We’re Hiring! Looking to join a dynamic & innovative team? https://www.objectrocket.com/careers/ or email careers@objectrocket.com
  • 76. Thank you! Address: 401 Congress Ave Suite 1950 Austin, TX 78701 Support: 1-800-961-4454 Sales: 1-888-440-3242 www.objectrocket.com 76
