This presentation will discuss scalability best practices with MongoDB. We will review how the following affect scalability: schema design, locking granularity within versions and engines, scaling vertically or horizontally, and collection sharding. Understanding how these topics can affect your application will help you avoid complications as your data and workload grows.

1. MongoDB Scalability Best
Practices
Jason Terpko
DBA, Rackspace/ObjectRocket
www.linkedin.com/in/jterpko
1

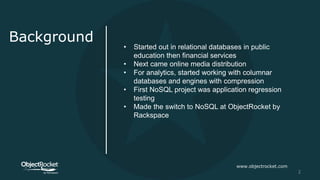

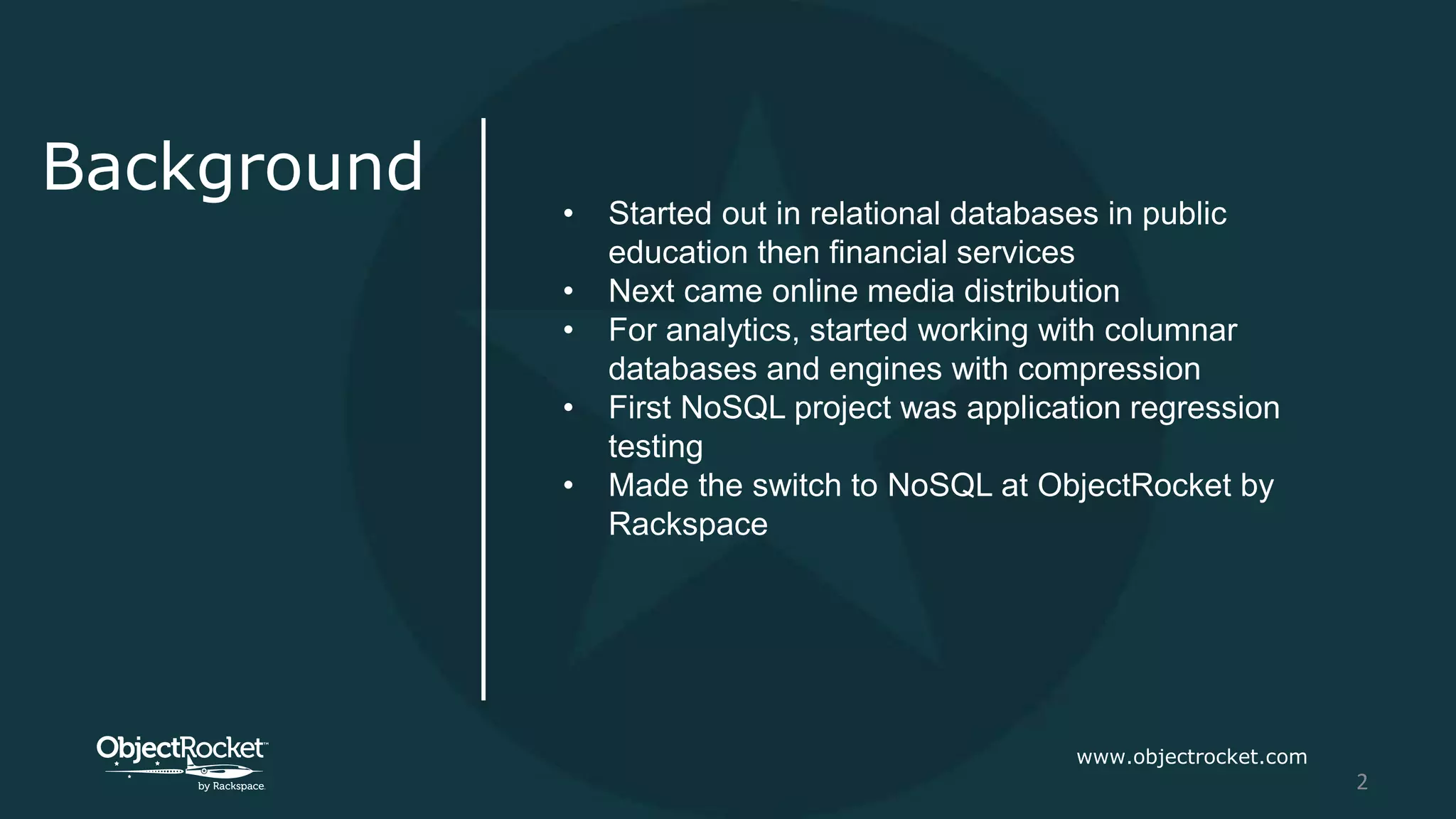

2. Background
• Started out in relational databases in public
education then financial services
• Next came online media distribution
• For analytics, started working with columnar
databases and engines with compression
• First NoSQL project was application regression
testing
• Made the switch to NoSQL at ObjectRocket by
Rackspace
www.objectrocket.com
2

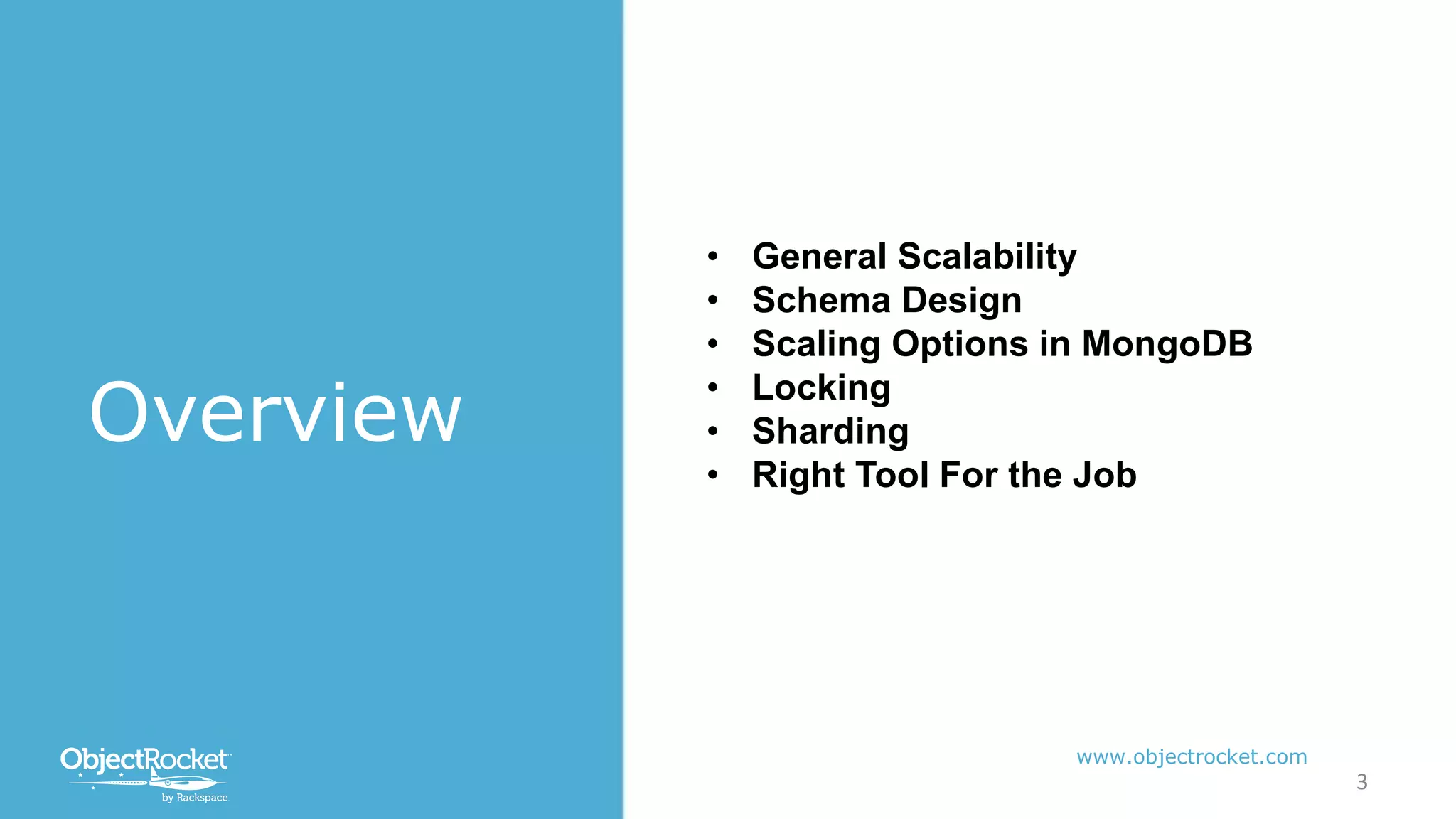

3. Overview
• General Scalability
• Schema Design
• Scaling Options in MongoDB
• Locking
• Sharding
• Right Tool For the Job
www.objectrocket.com
3

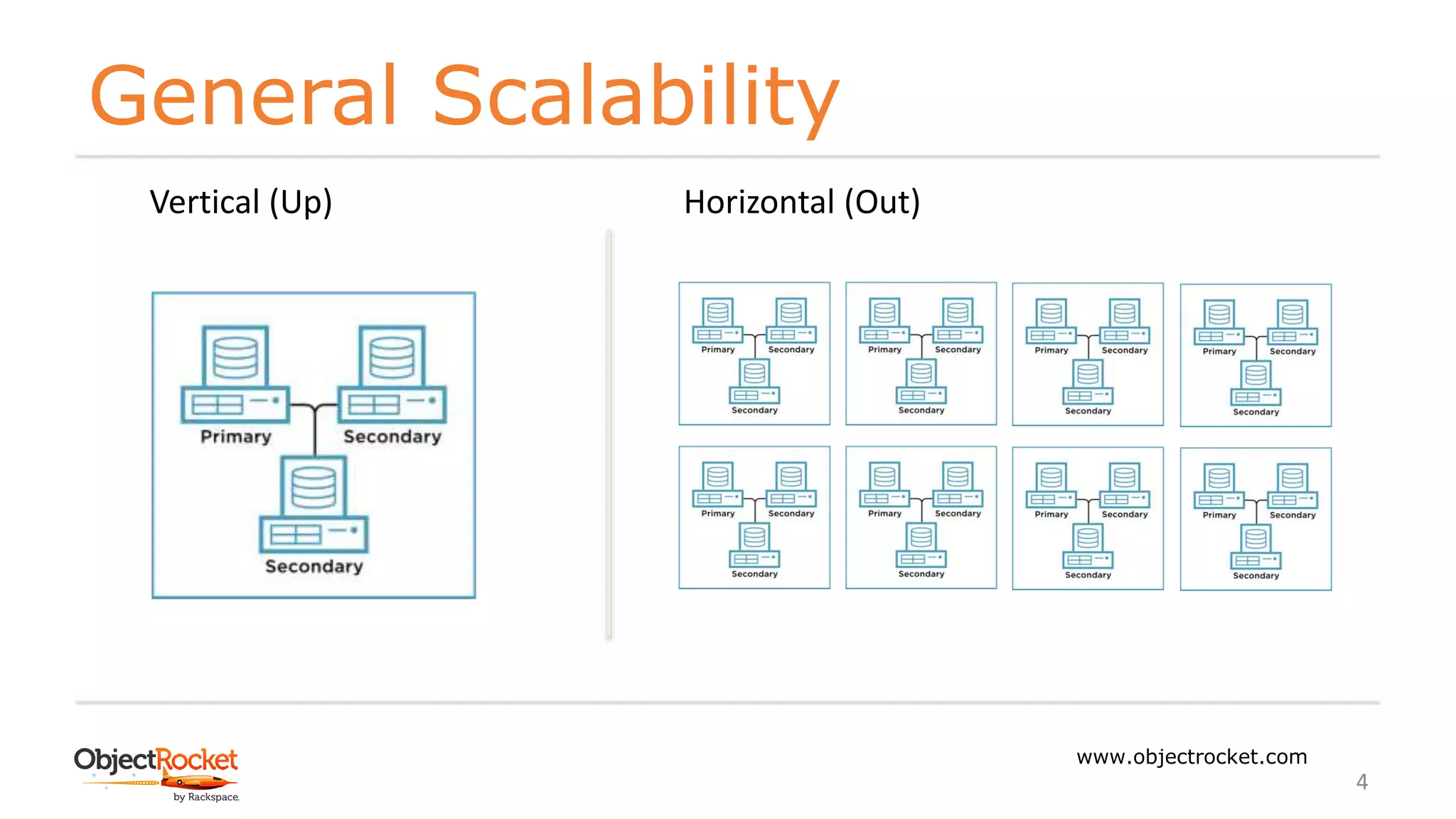

4. General Scalability
www.objectrocket.com
Vertical (Up) Horizontal (Out)
4

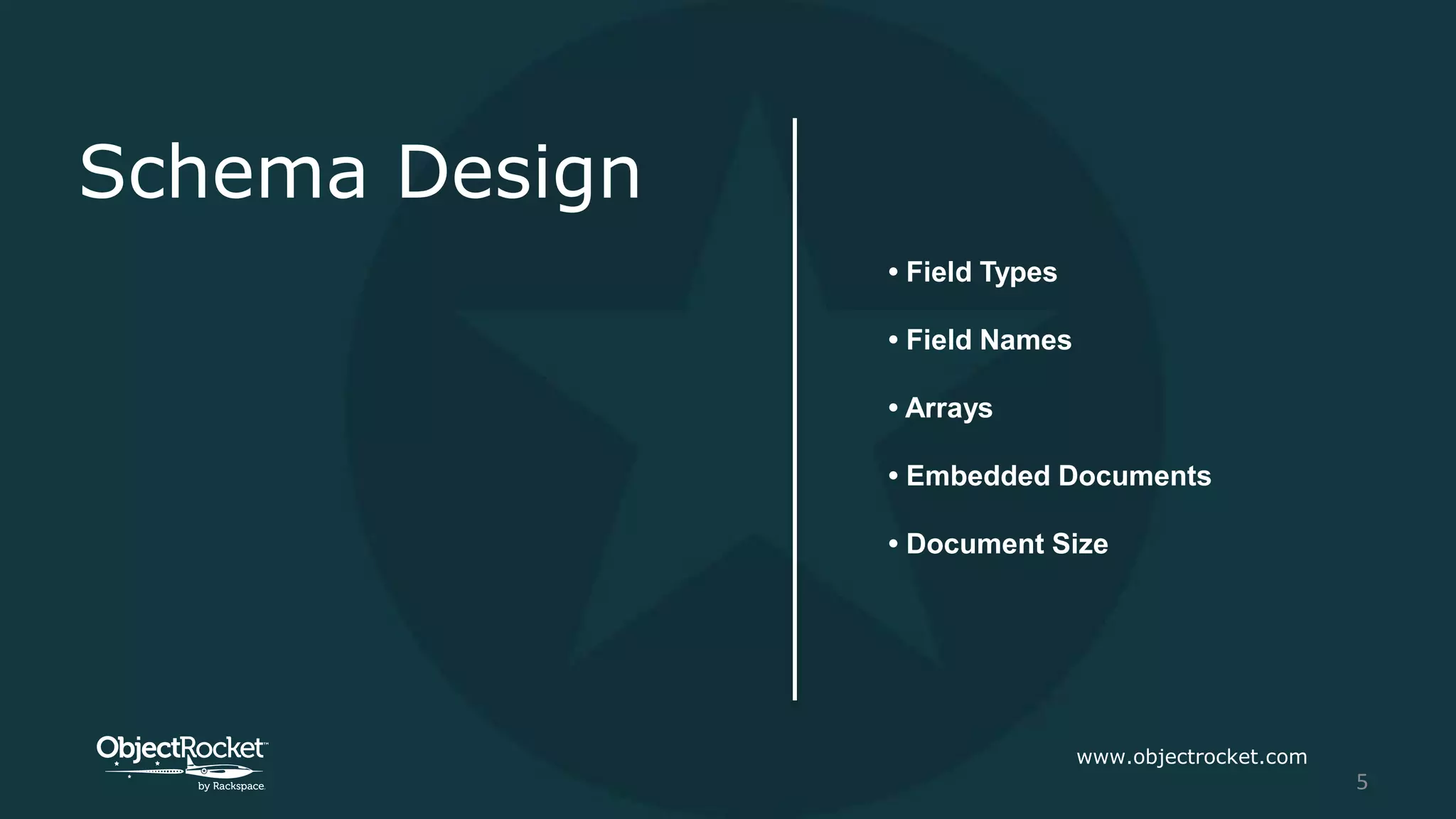

5. Schema Design
• Field Types
• Field Names
• Arrays
• Embedded Documents
• Document Size
www.objectrocket.com
5

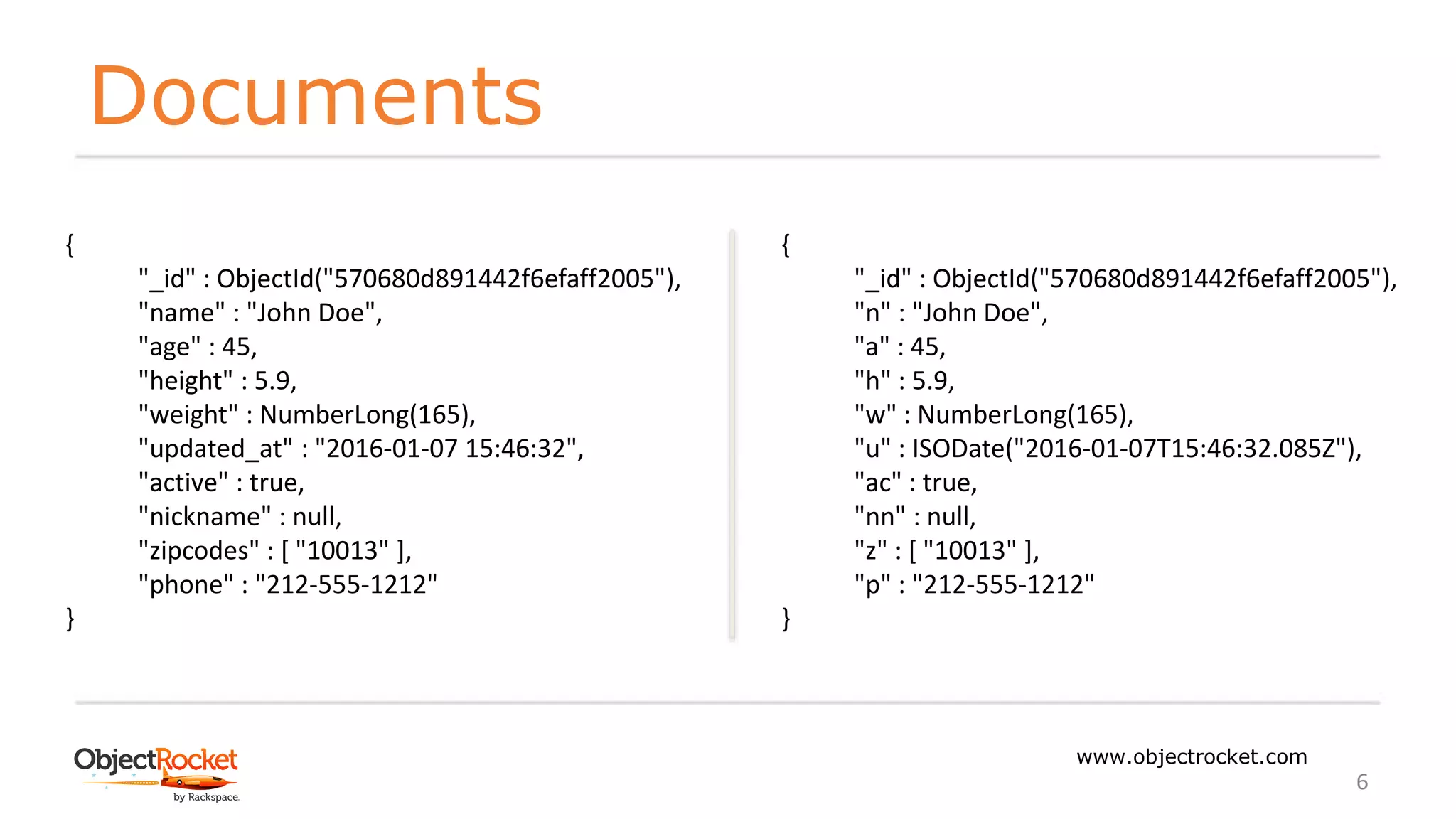

6. Documents
www.objectrocket.com
{
"_id" : ObjectId("570680d891442f6efaff2005"),
"name" : "John Doe",
"age" : 45,
"height" : 5.9,
"weight" : NumberLong(165),
"updated_at" : "2016-01-07 15:46:32",
"active" : true,
"nickname" : null,
"zipcodes" : [ "10013" ],
"phone" : "212-555-1212"
}
{
"_id" : ObjectId("570680d891442f6efaff2005"),
"n" : "John Doe",
"a" : 45,
"h" : 5.9,
"w" : NumberLong(165),
"u" : ISODate("2016-01-07T15:46:32.085Z"),
"ac" : true,
"nn" : null,
"z" : [ "10013" ],
"p" : "212-555-1212"
}
6

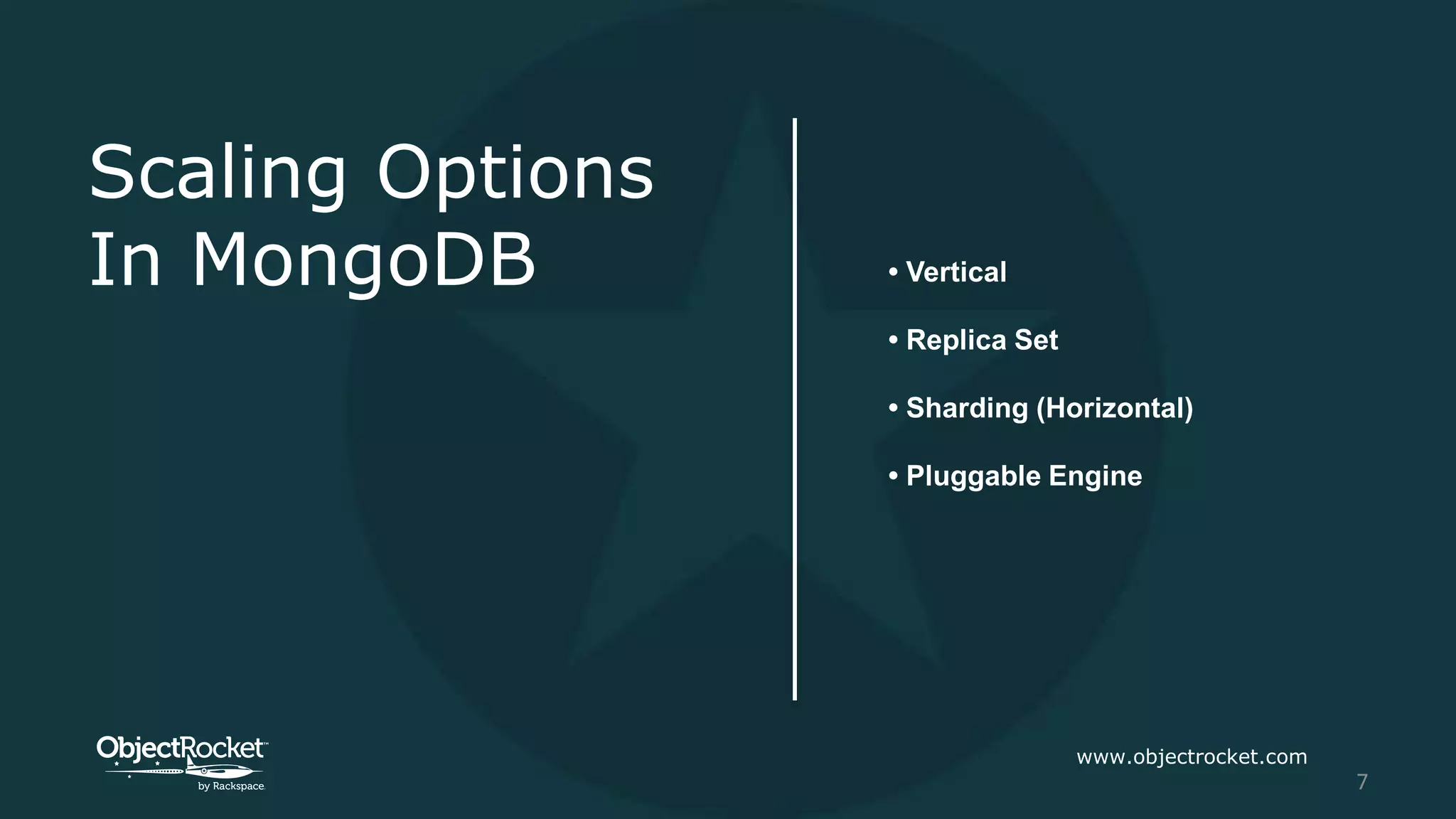

7. Scaling Options
In MongoDB • Vertical
• Replica Set
• Sharding (Horizontal)
• Pluggable Engine
www.objectrocket.com
7

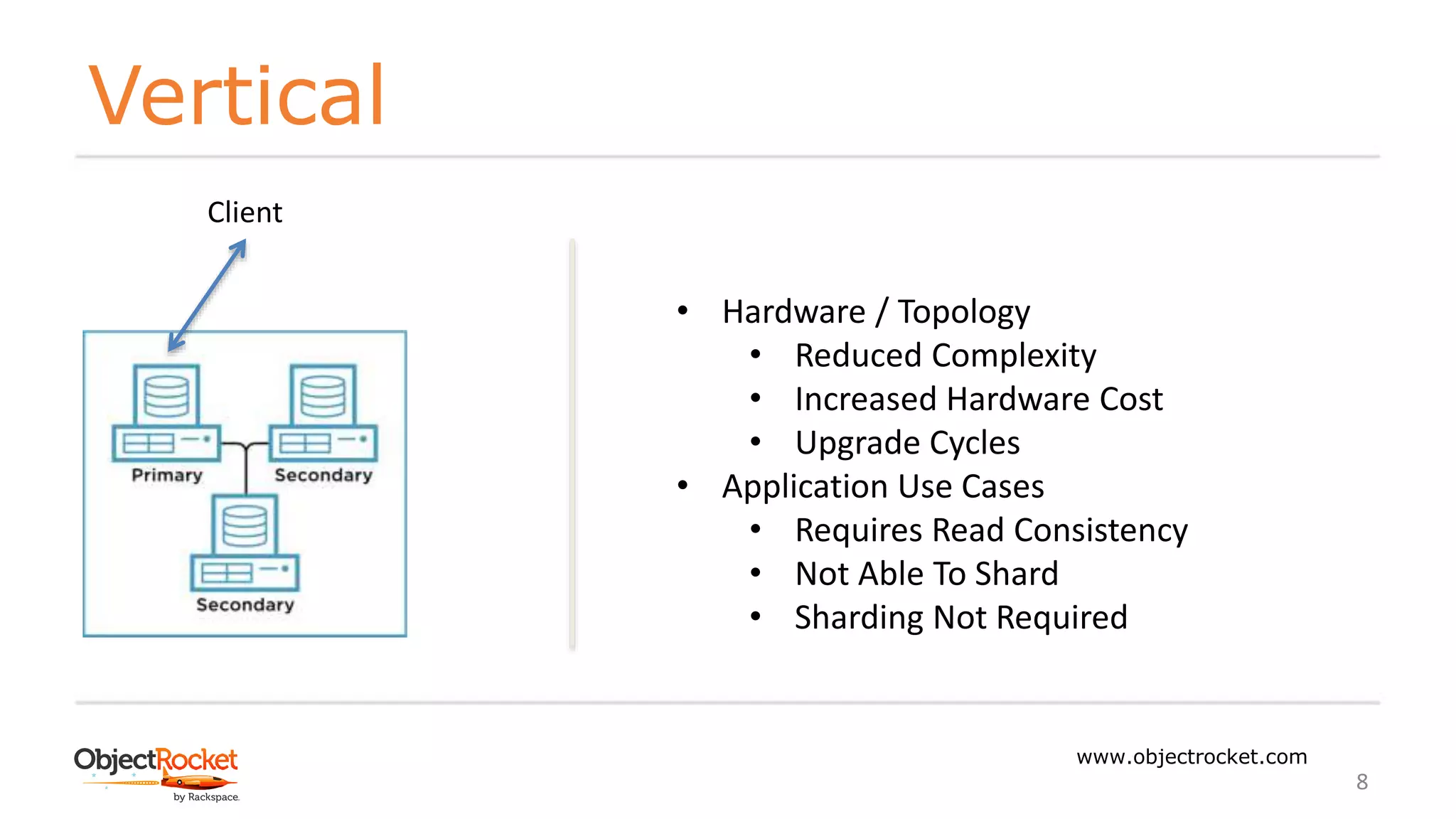

8. Vertical
www.objectrocket.com
Client
• Hardware / Topology
• Reduced Complexity
• Increased Hardware Cost
• Upgrade Cycles
• Application Use Cases
• Requires Read Consistency
• Not Able To Shard
• Sharding Not Required
8

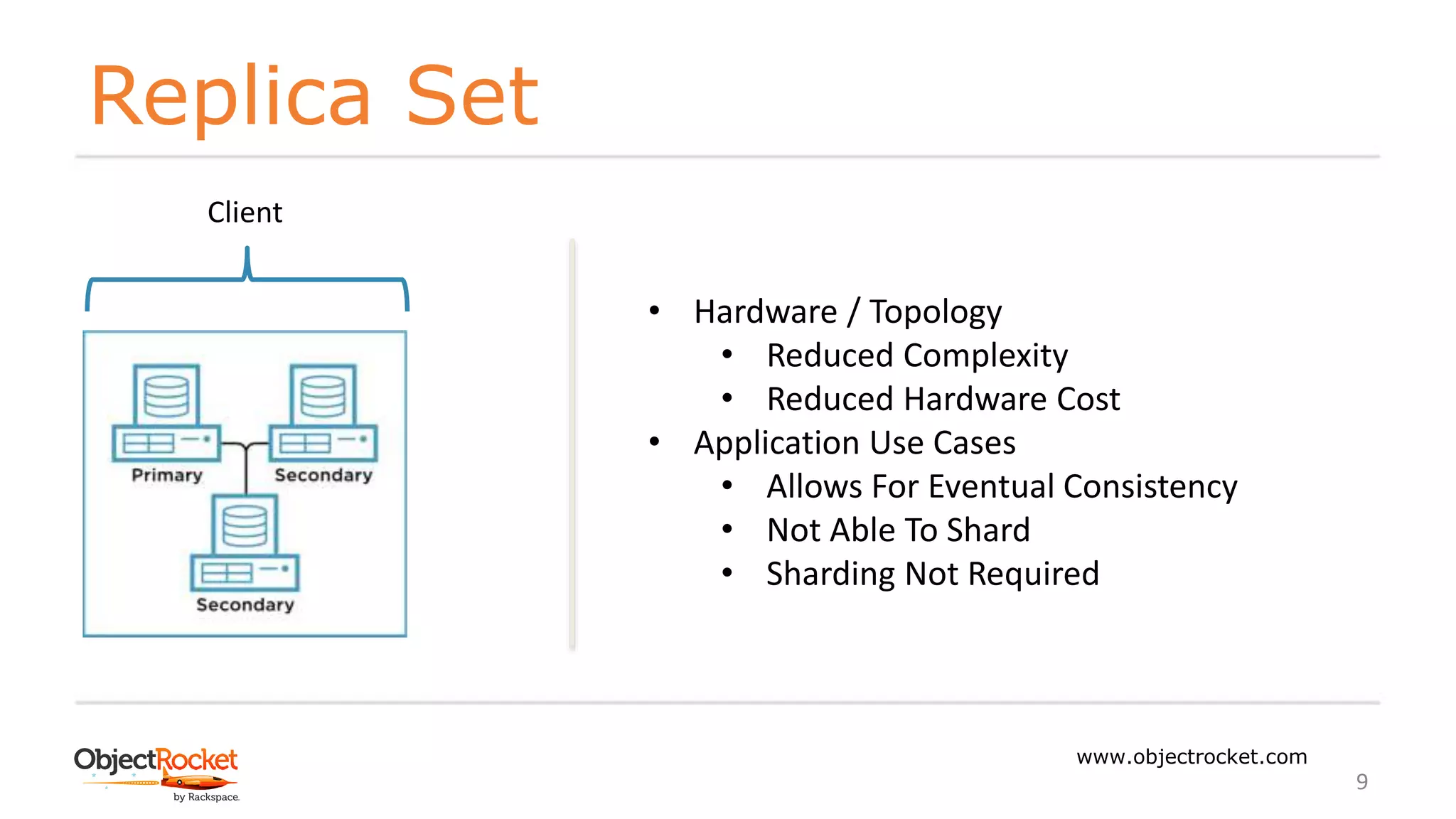

9. Replica Set
www.objectrocket.com
Client
• Hardware / Topology
• Reduced Complexity
• Reduced Hardware Cost
• Application Use Cases
• Allows For Eventual Consistency
• Not Able To Shard
• Sharding Not Required
9

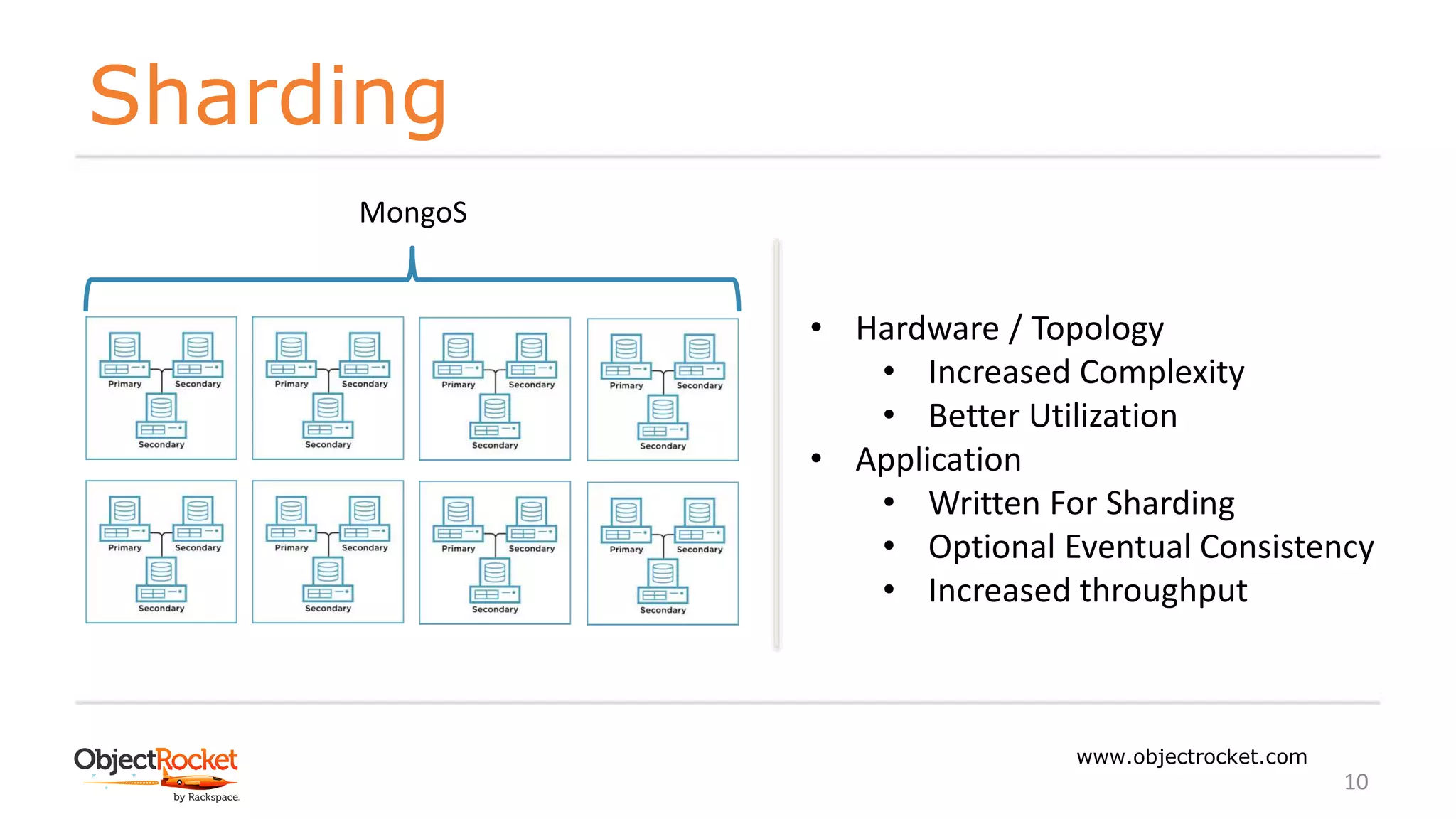

10. Sharding
www.objectrocket.com
MongoS
• Hardware / Topology
• Increased Complexity
• Better Utilization
• Application
• Written For Sharding
• Optional Eventual Consistency
• Increased throughput
10

11. Pluggable Engine API
www.objectrocket.com
11
MMAP

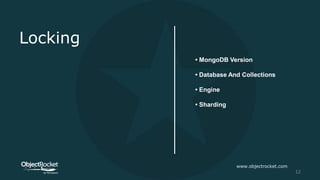

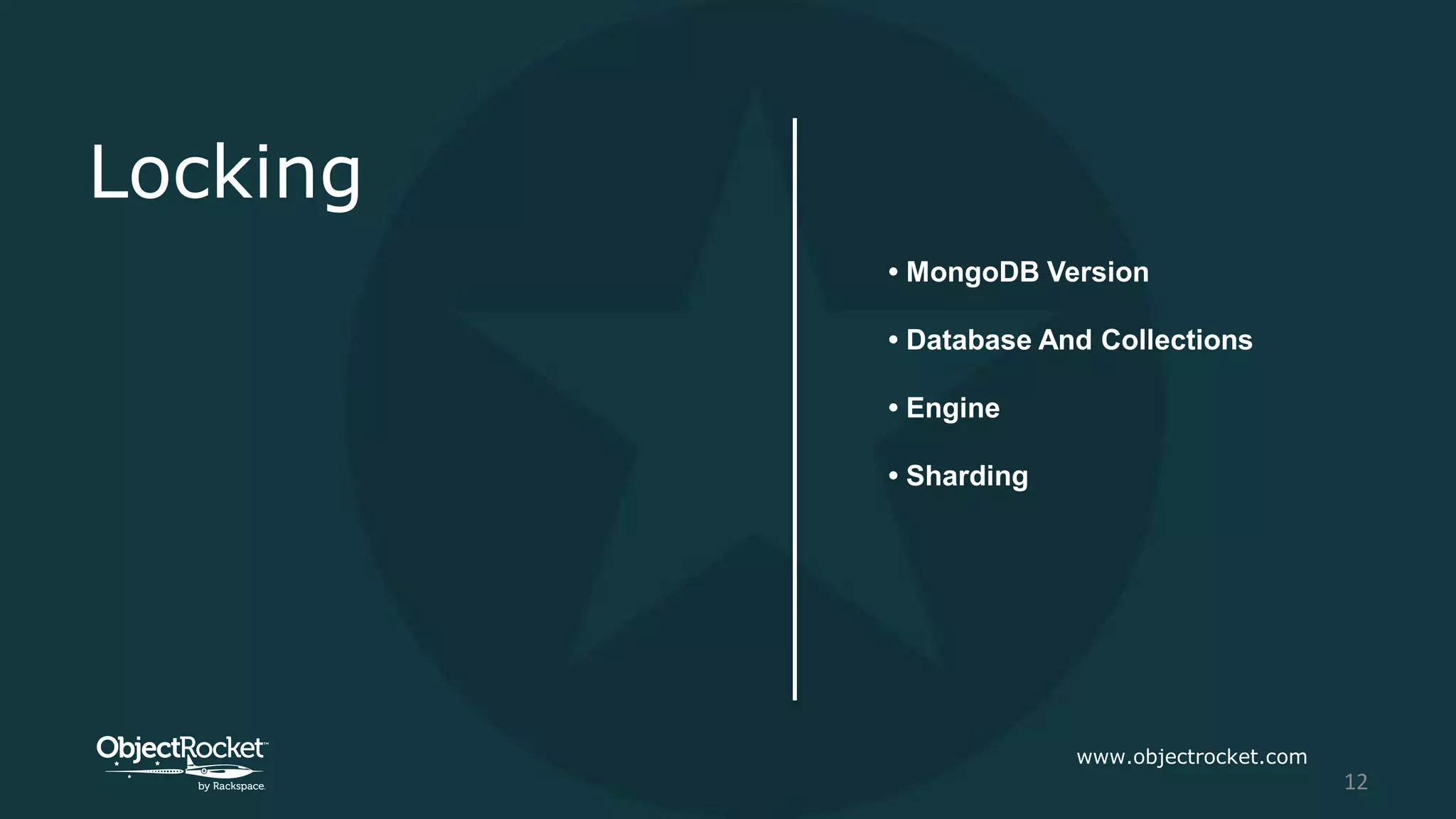

12. Locking
• MongoDB Version
• Database And Collections
• Engine
• Sharding
www.objectrocket.com
12

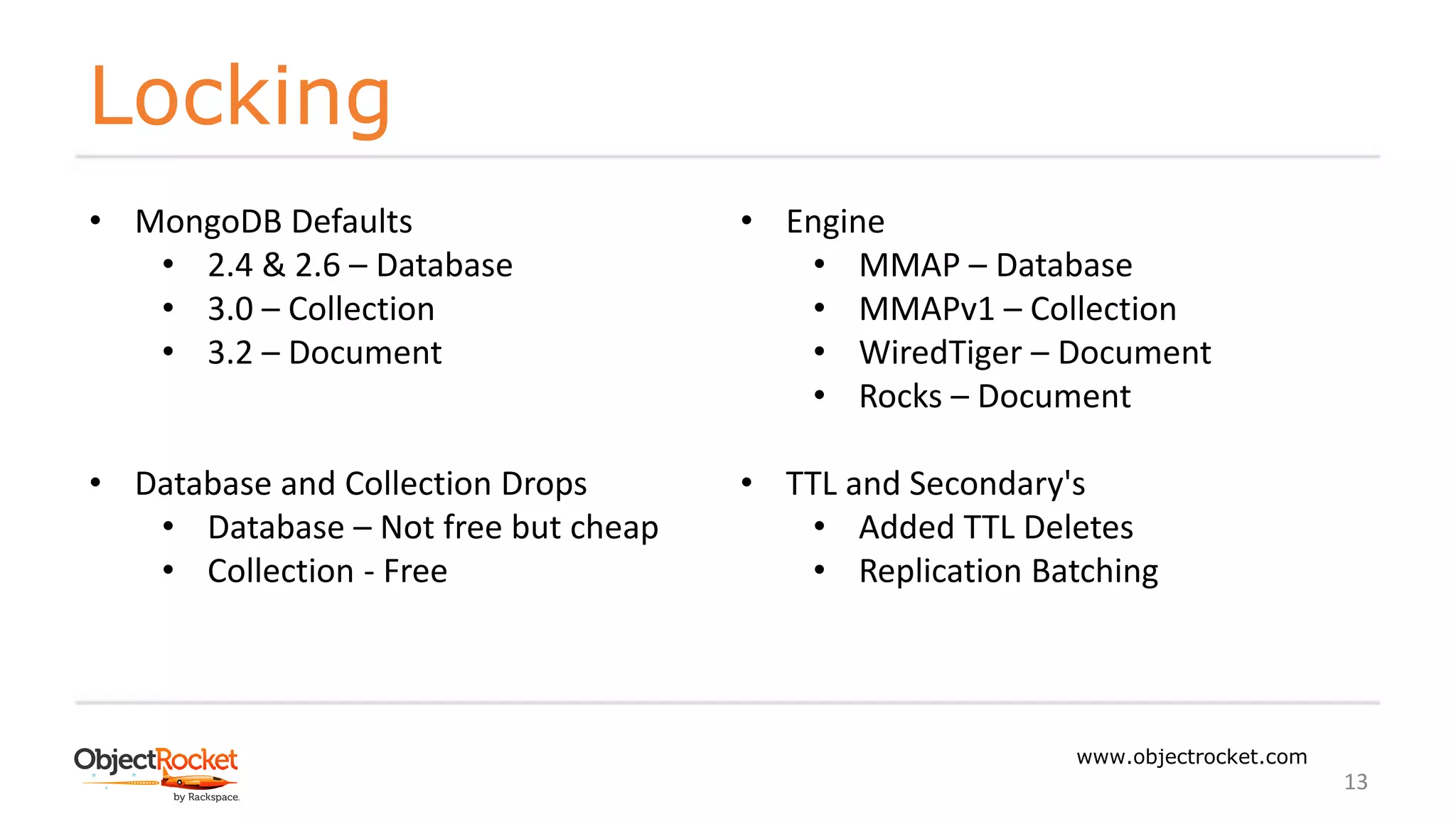

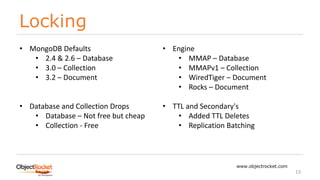

13. Locking
www.objectrocket.com
• MongoDB Defaults
• 2.4 & 2.6 – Database
• 3.0 – Collection
• 3.2 – Document
• Database and Collection Drops
• Database – Not free but cheap
• Collection - Free
• Engine
• MMAP – Database
• MMAPv1 – Collection
• WiredTiger – Document
• Rocks – Document
• TTL and Secondary's
• Added TTL Deletes
• Replication Batching
13

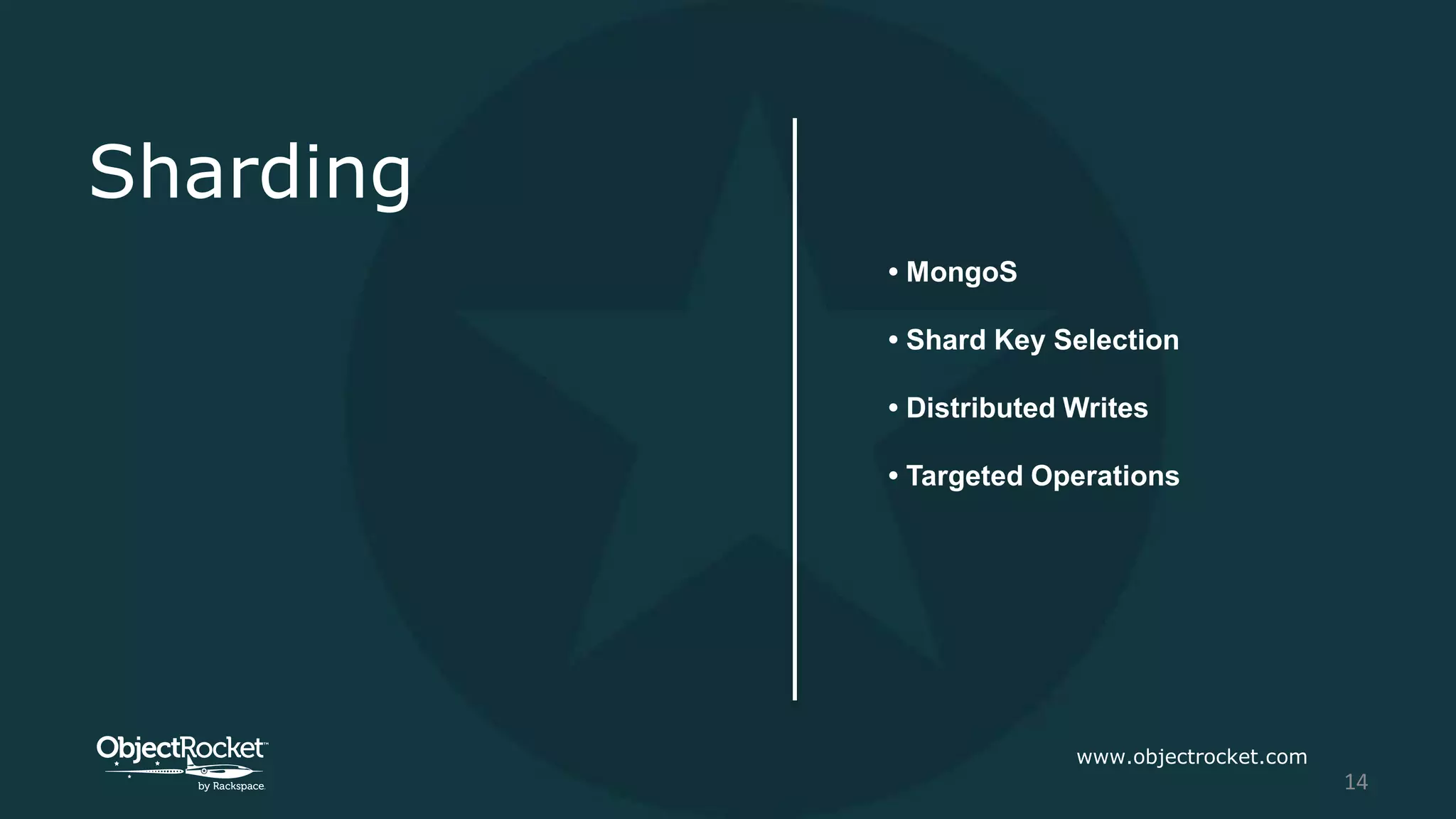

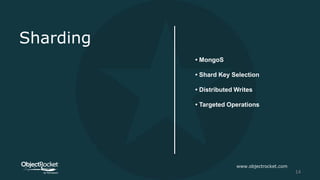

14. Sharding
• MongoS
• Shard Key Selection
• Distributed Writes
• Targeted Operations
www.objectrocket.com
14

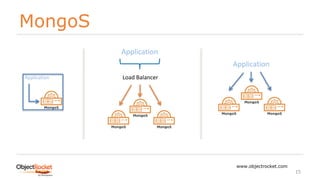

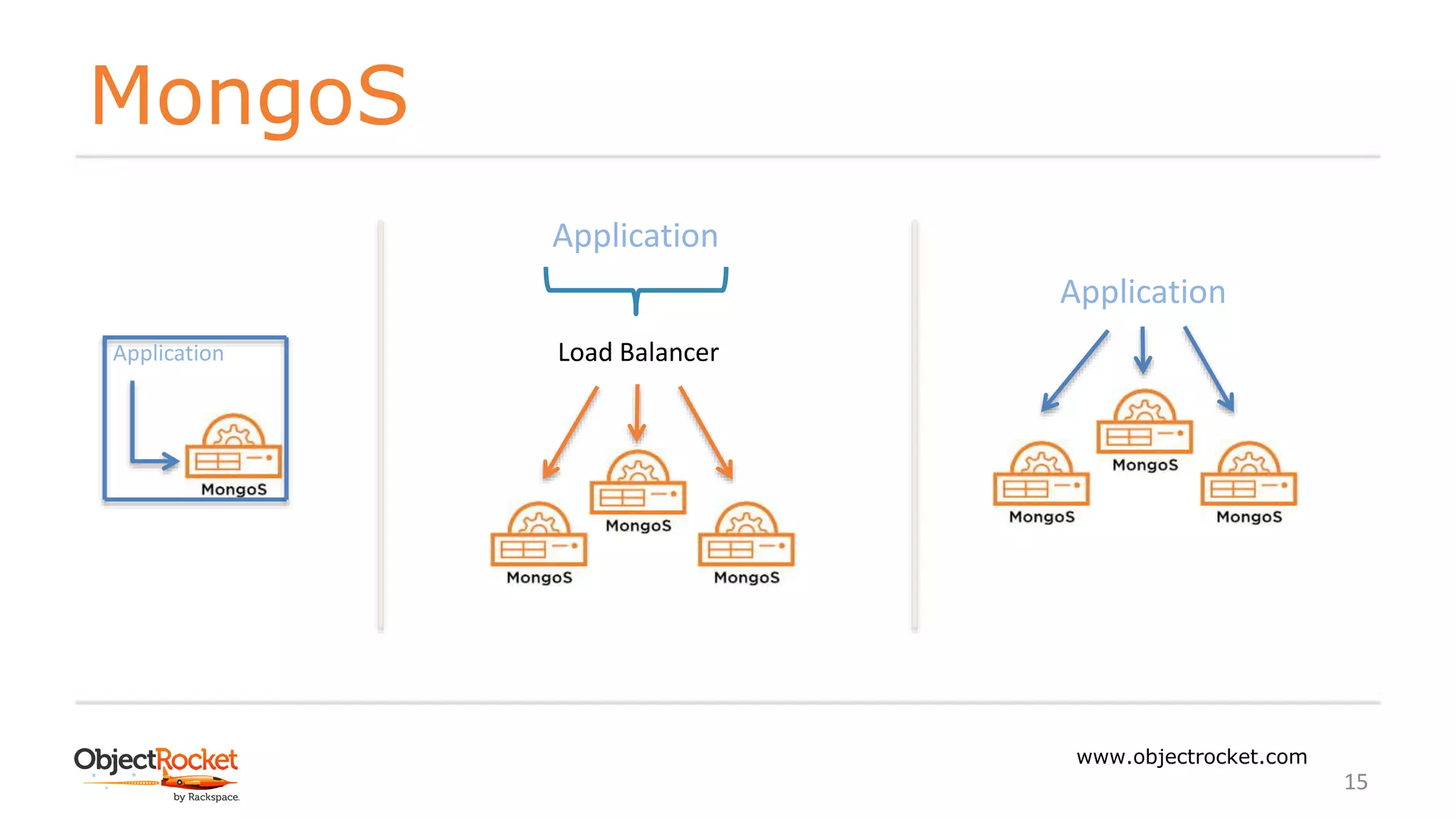

15. MongoS
www.objectrocket.com
Application
Application
Load Balancer
Application
15

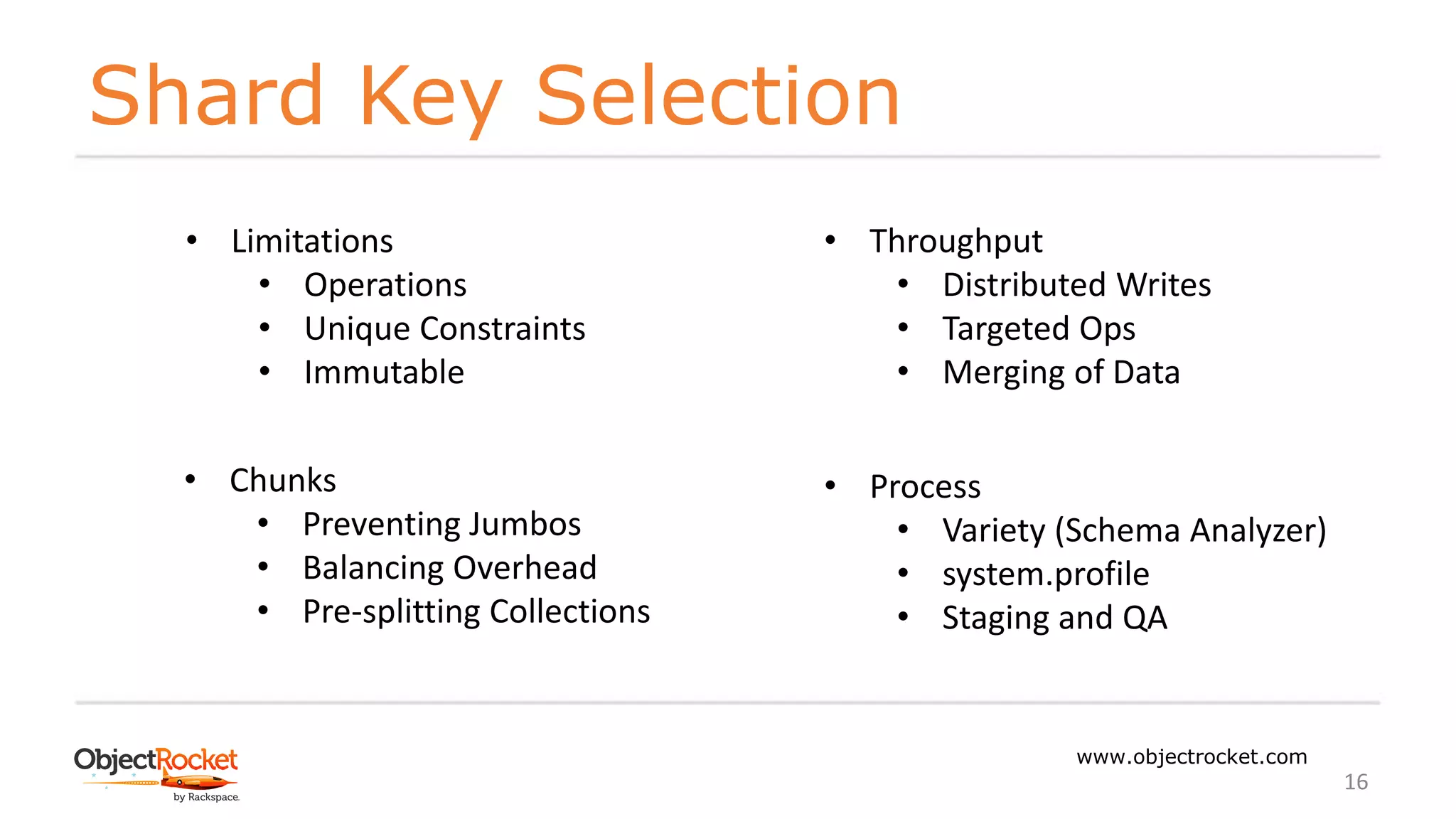

16. Shard Key Selection
www.objectrocket.com
• Limitations
• Operations
• Unique Constraints
• Immutable
• Process
• Variety (Schema Analyzer)
• system.profile
• Staging and QA
• Chunks
• Preventing Jumbos
• Balancing Overhead
• Pre-splitting Collections
• Throughput
• Distributed Writes
• Targeted Ops
• Merging of Data
16

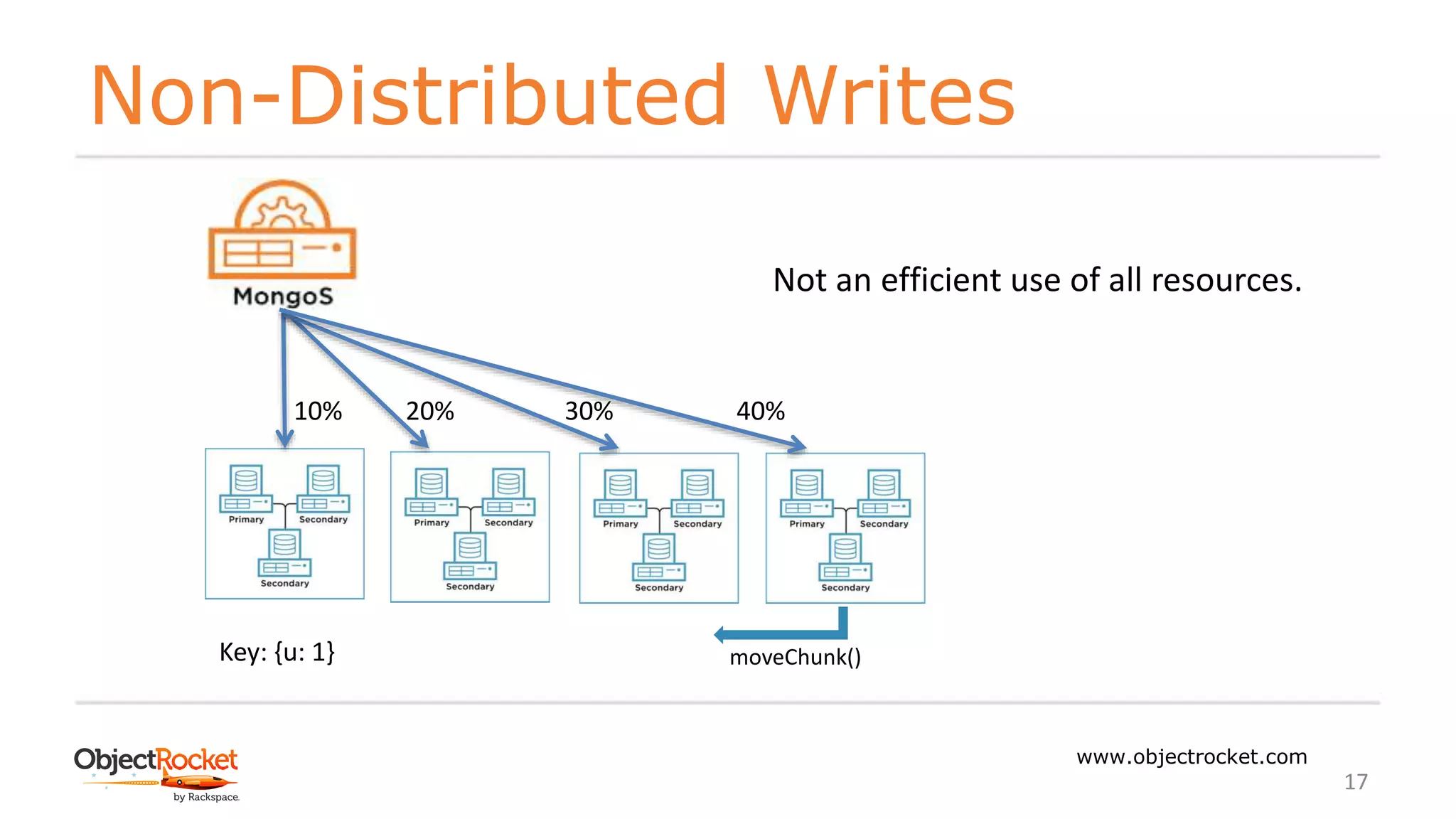

17. Non-Distributed Writes
www.objectrocket.com
10% 20% 30% 40%
Not an efficient use of all resources.
moveChunk()Key: {u: 1}
17

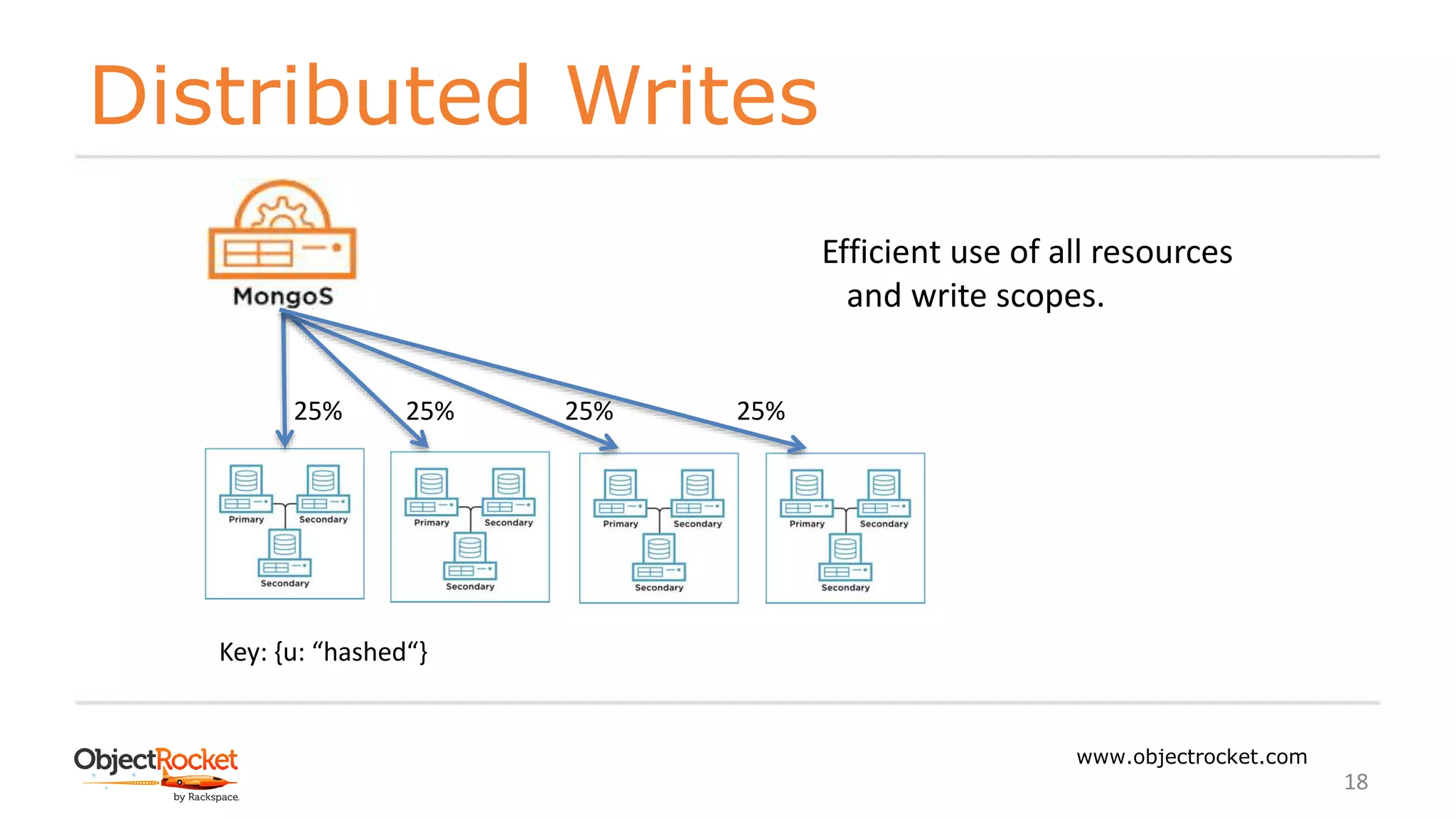

18. Distributed Writes
www.objectrocket.com
25% 25% 25% 25%
Efficient use of all resources
and write scopes.
Key: {u: “hashed“}
18

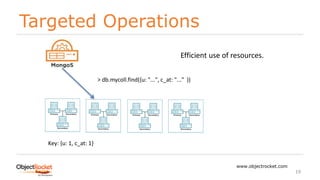

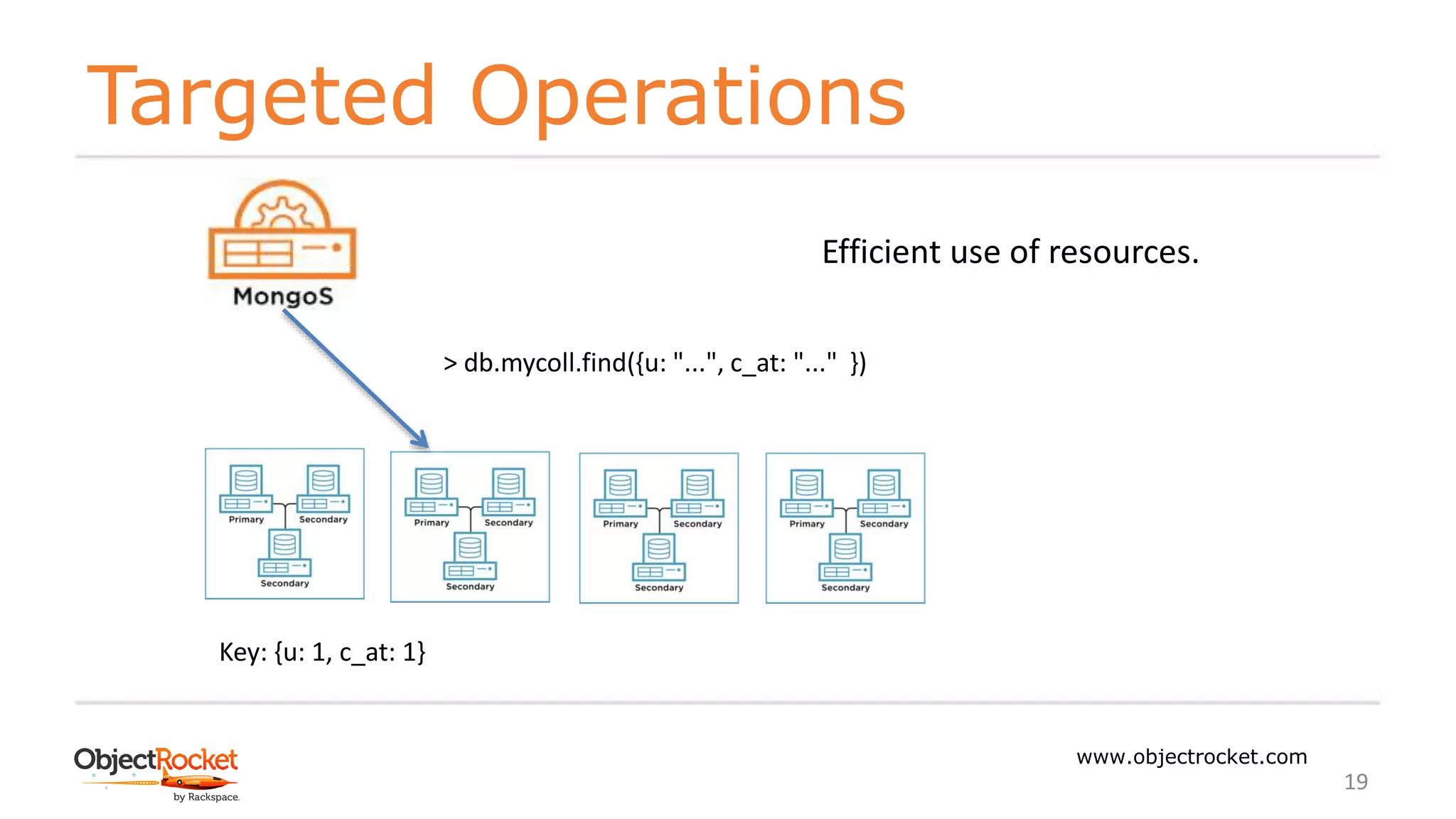

19. Targeted Operations
www.objectrocket.com
Efficient use of resources.
> db.mycoll.find({u: "...", c_at: "..." })
Key: {u: 1, c_at: 1}
19

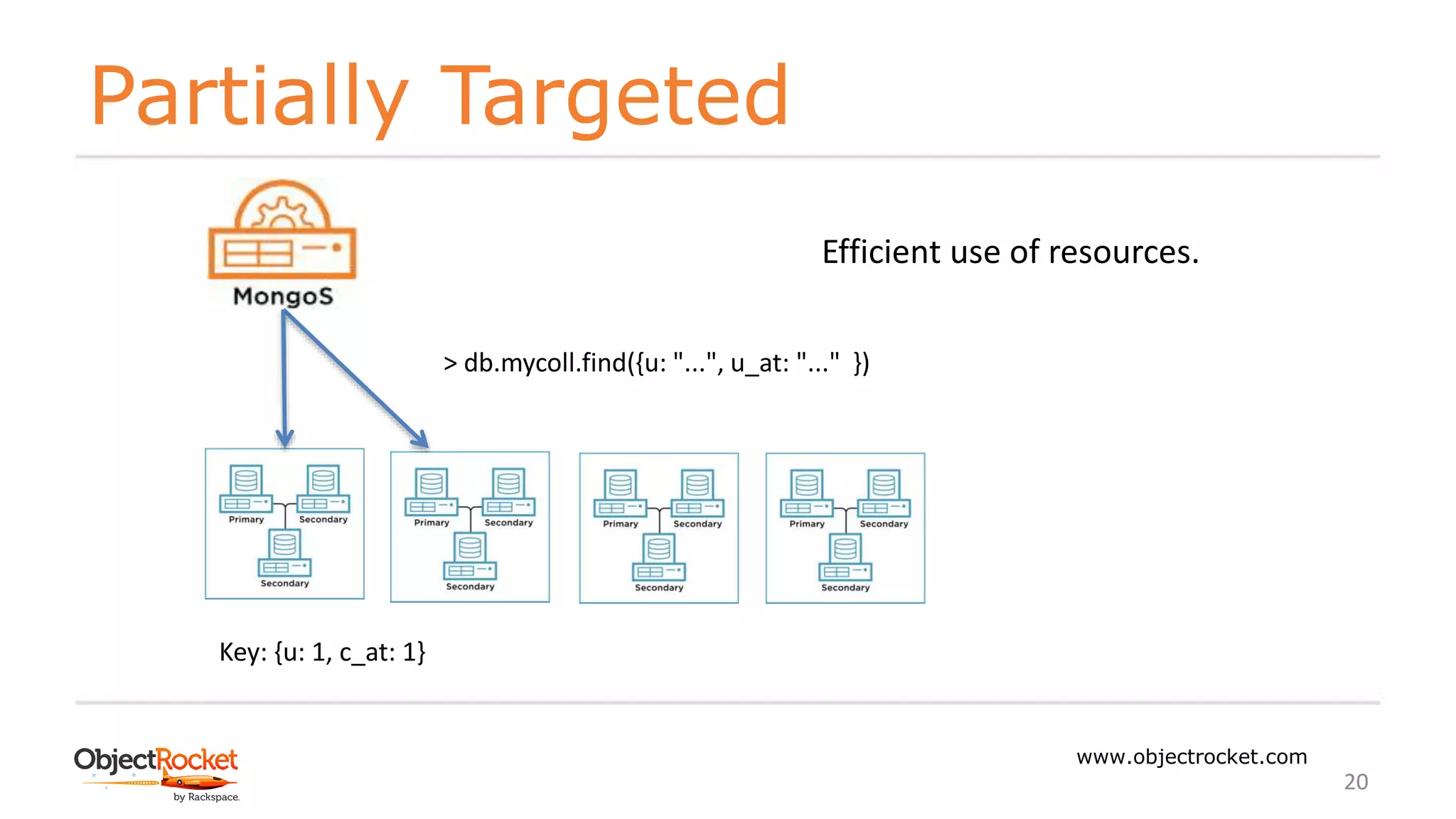

20. Partially Targeted
www.objectrocket.com
Efficient use of resources.
Key: {u: 1, c_at: 1}
> db.mycoll.find({u: "...", u_at: "..." })
20

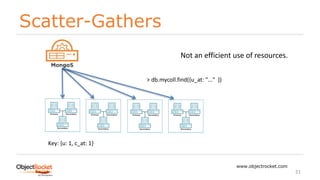

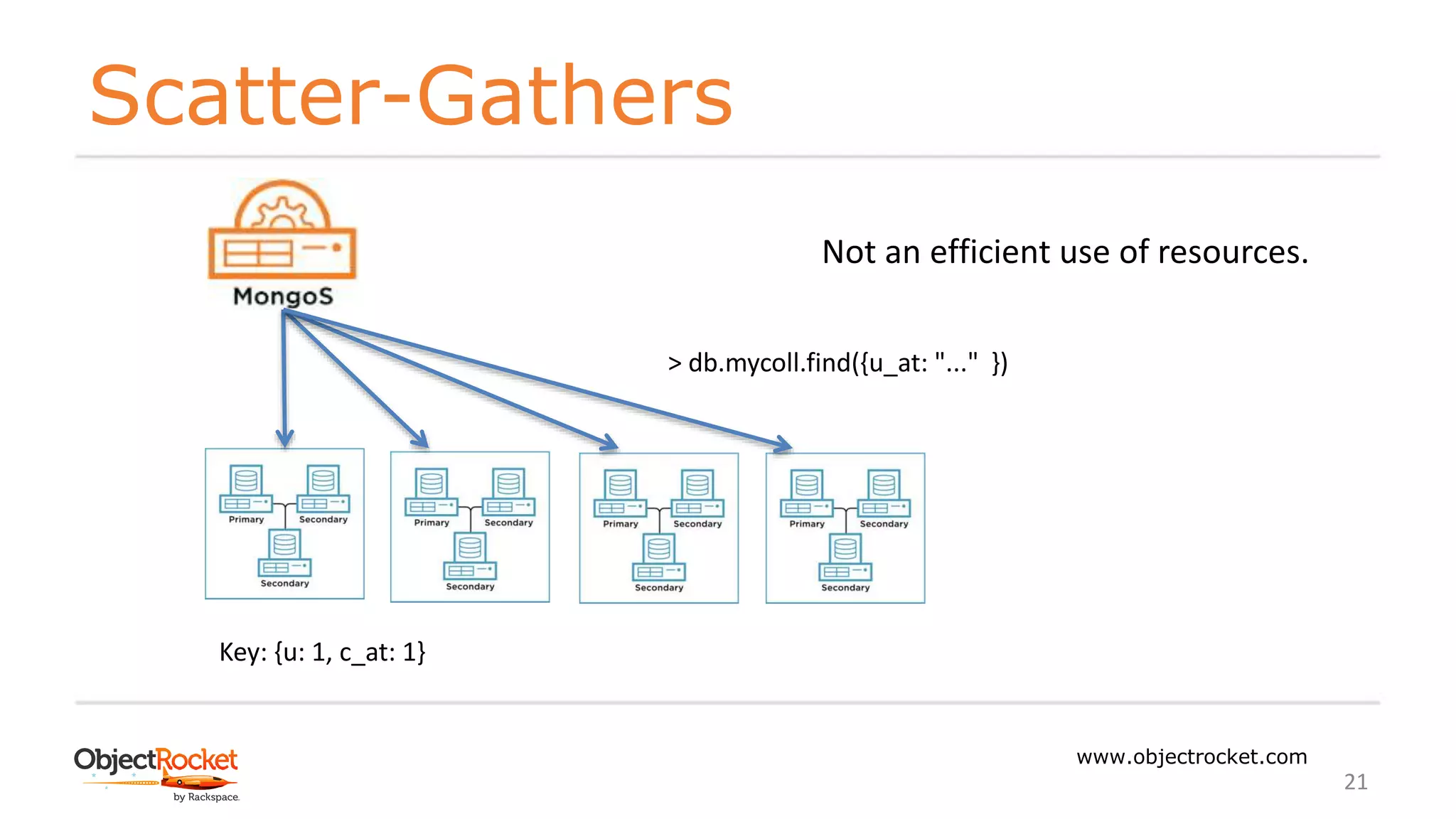

21. Scatter-Gathers
www.objectrocket.com
Not an efficient use of resources.
Key: {u: 1, c_at: 1}
> db.mycoll.find({u_at: "..." })
21

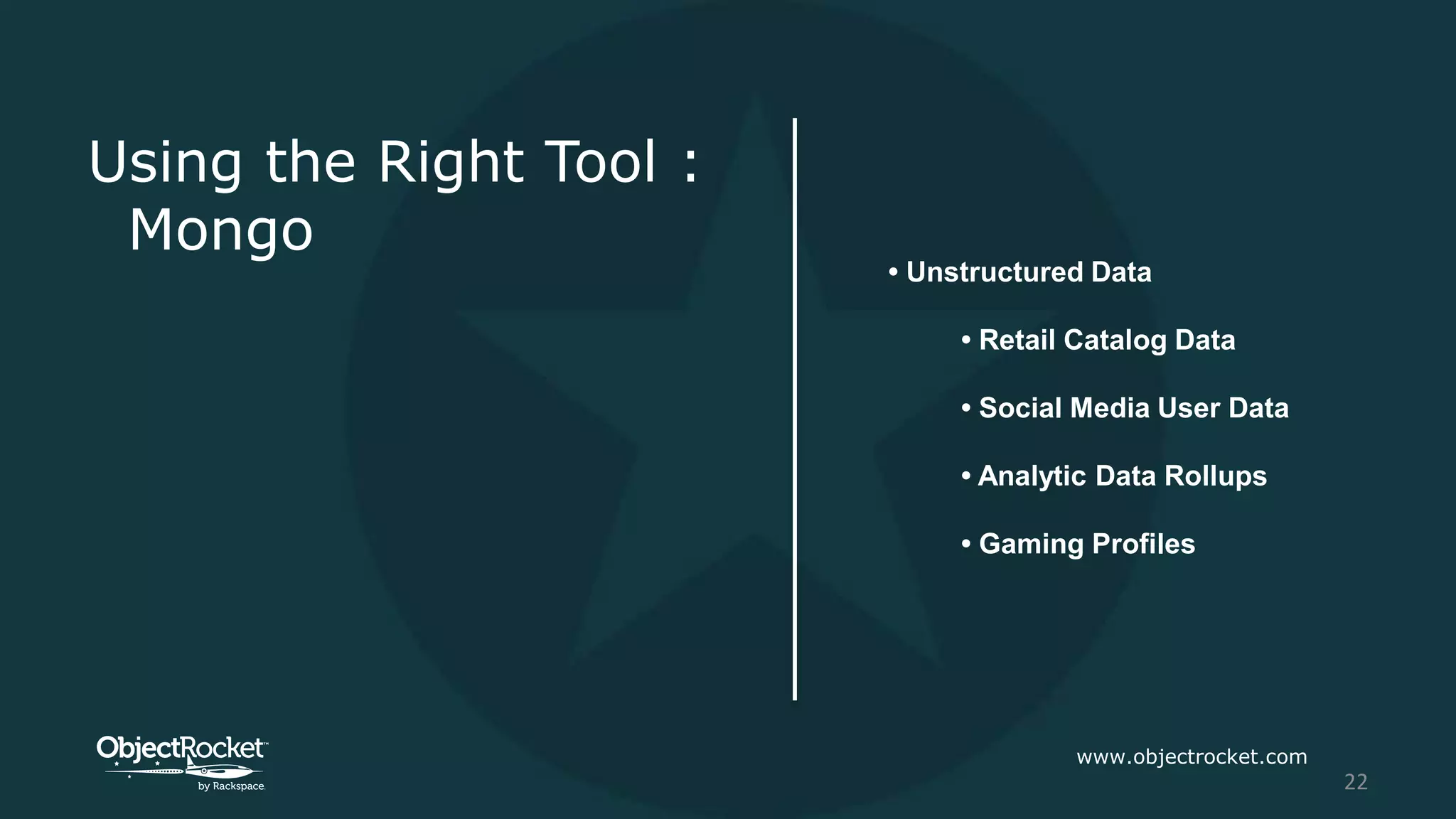

22. Using the Right Tool :
Mongo
• Unstructured Data
• Retail Catalog Data
• Social Media User Data
• Analytic Data Rollups
• Gaming Profiles
www.objectrocket.com
22

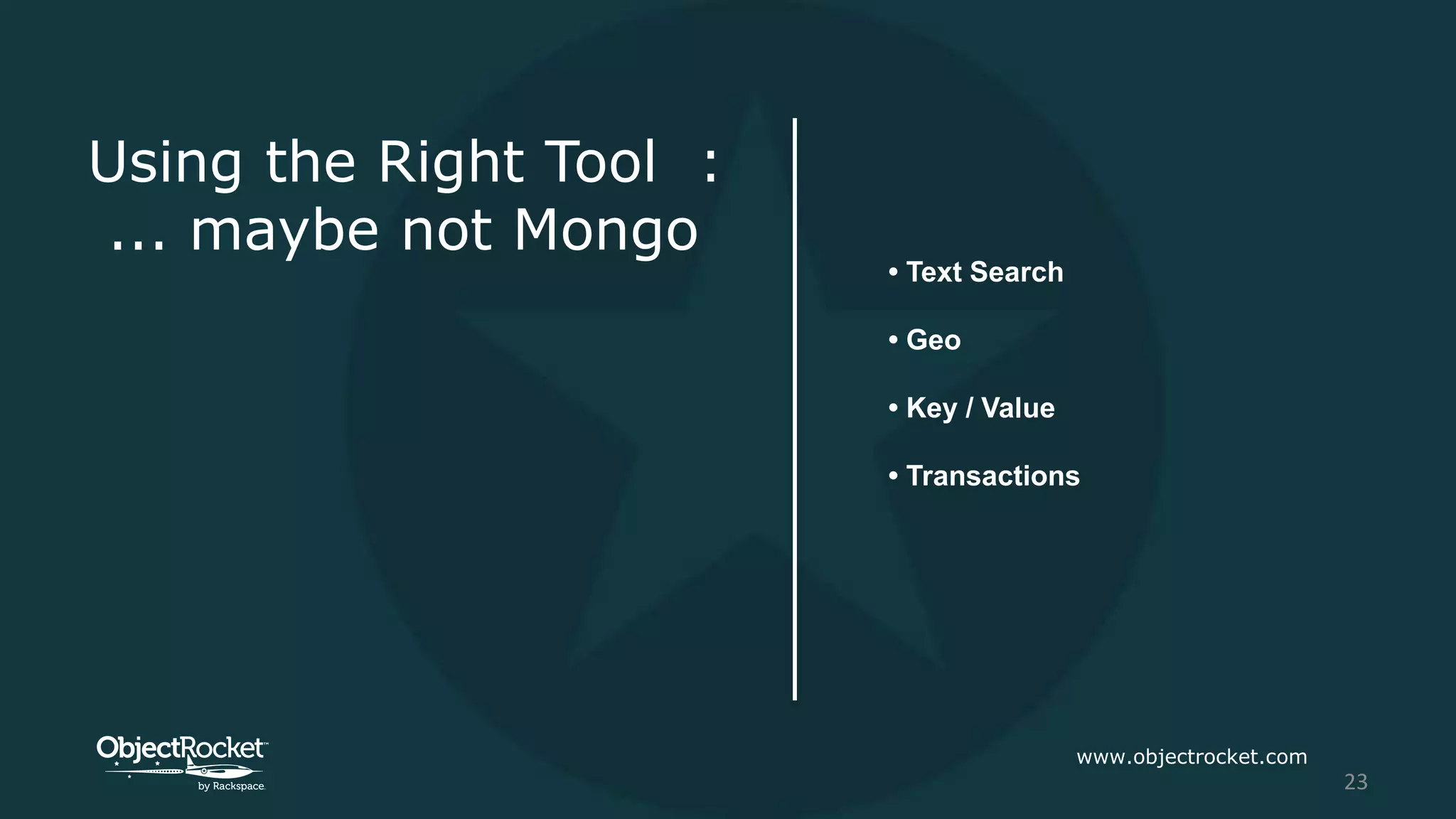

23. Using the Right Tool :
... maybe not Mongo
• Text Search
• Geo
• Key / Value
• Transactions
www.objectrocket.com
23

24. Questions?
www.objectrocket.com
24
